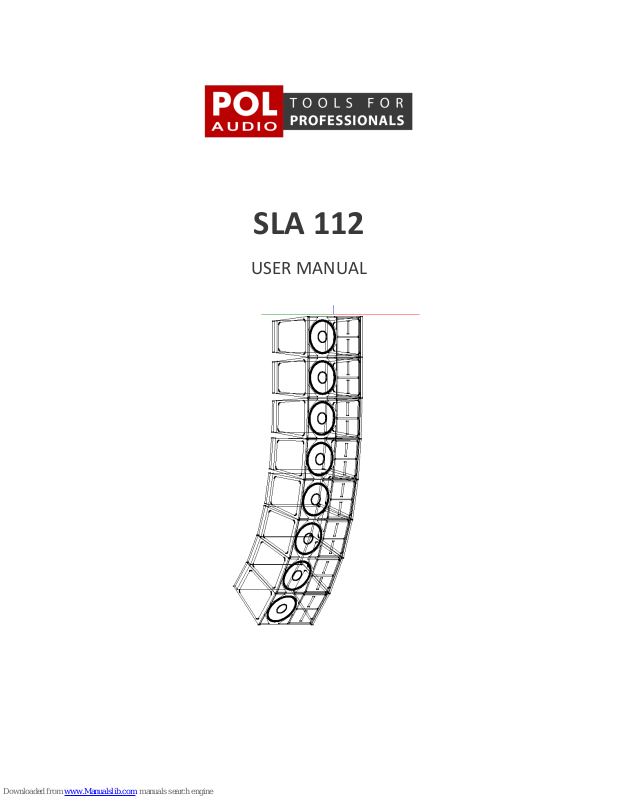

POL-AUDIO SLA 112 User Manual

SLA 112

USER MANUAL

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

2

Manufacturer: POL-AUDIO Leszek Polanowski

Manufacturer address: Skłodowskiej 33, 05-420 Józefów, Polska

Model: SLA 112

Version: SLA 112

Document Version: 0.1-EN-SLA112

Issue date: 2017.04

Legend

WARNING

INFO

DANGER

TIPS

Keep this document and act according to keep the warranty and operate the system in a proper
way.

Please check the package in presence of a forwarder and make sure it is not damaged during the
transport. Notify the forwarder company and sender about any problems with the package.

SERVICE
To contact manufacturer service please use phone or email:

[phone]

[e-mail]

We appreciate your purchase of POL-AUDIO product. Welcome to the users family! If you will have any ideas that
you would like to share – please let us know! We are always interested in how the system perform and what is your
experience.

+ 48 22 789 30 02

[e-mail]

All POL-AUDIO loudspeaker systems are being manufactured in Poland.

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

3

OGÓLNE ZASADY BEZPIECZEŃSTWA I UŻYTKOWANIA

PRODUCT DAMAGE

In case of a product damage, contact authorized service immediately. Do not use damaged product
and do not try to repair it. You should not modify the product. Violating those conditions can exclude
product from warranty.

OPERATING CONDITIONS

Do not operate the system next to source of water or other fluids. Product should be placed on stable
and dry ground. Please avoid operating the system next to a heat source. Protect the system from
strong wind to avoid possible collapse.

System can’t be placed near fire source. During storm, system should be unplugged. Atmospheric
discharge can lead to product damage. Cables should be placed in a way that protects it from being
cut or damaged in any other way.

WARRANTY

POL-AUDIO products are secured with 36 months of warranty from the date of sale. It protects
defects found in the materials or workmanship. The owner should inform about these defects the
dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed
description. This warranty does not extend to damage resulting from improper installation, misuse,
neglect or abuse. POL-AUDIO will verify damage on returned units, and when the unit has been
properly used and warranty is still valid, then the unit will be replaced or repaired. POL-AUDIO is not
responsible for any “direct damage” or “indirect damage” caused by product defectiveness.

WARRANTY CANCELLATION

Operating system with a preset different than the one provided by the manufacturer can lead to system
damage and warranty cancellation. Presets provided with the system can only be modified within
necessary scope on the input channels. Manufacturer is not responsible for damages caused by misuse
of preset.

Technical data of the product can be changed by a manufacturer without previous notification.

All rights to this document and product described are restricted by POL-AUDIO Leszek Polanowski.

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

4

PRODUCT DESCRIPTION

SLA 112 is a touring grade line array system based on BMS and Eighteen Sound transducers. Double 1” high frequency
tranducers with 12” woofer provides a safe output overhead for events up to medium size with demanding rock music.

SLA 112 rigging system was designed to provide safety for rigging up to 16 modules in a single array. All of the
measurements for acoustic prediction software has been performed in German Institute of Acoustics. For splay angle
calculation and coverage prediction please use EASE Focus 3 application. The libraries are also compatible with EASE
Focus 2 application.

In case of an event without requirement for high output at low frequencies SLA 112 can be used as a full range system
without additional subwoofer section. 12” woofer allows the system to be cut off as low as 50Hz. This way you can
save cargo space when providing sound reinforcement for specific kind of events.

OPERATION

Before you connect the product to other elements of the system, make sure all of the parameters
match and guaranty a safe operation.

After exposure to very low temperatures system should be left until the temperature is similar to the
operating conditions during the event. If the system is exposed to the temperature shock it can be
damaged.

Przed uruchomieniem systemu należy się upewnić, że wysyłany sygnał nie jest przesterowany.

HOW TO MINIMIZE RISK OF SYSTEM DAMAGE

Make sure the signal is not distorted and is within operating levels of the system. Avoid placing a
microphone in front of the system to minimize the risk of a feedback. Before you turn on the system make
sure the amplifier and loudspeaker system are properly matched with all of the technical data.

GLL LIBRARIES FOR EASE FOCUS 2 AND EASE FOCUS 3

For acoustic prediction use EASE Focus 2 or EASE Focus 3 with libraries provided by manufacturer. Be sure
to use correct model and correct version for simulations. To download system libraries, please visit
manufacturer website or contact the manufacturer.

VENUE SIMULATIONS

The more precise the model the accurate the simulation will be in EASE Focus. It is better to gather all of
the information and create the simulation before the event. In most cases there will be an opportunity to
adjust the configuration at the venue therefore remember to take the file with the project and a computer
with application in case you need to modify something last minute.

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

5

GENERAL SAFETY RULES

 During the system setup always place pins so the safety lock in engaged so it cannot be pulled out

without releasing it.

 Always use pins provided by the manufacturer and no other objects.
 Before using a pin check if the safety lock is operating properly.
 When system is being ground stacked, make sure the base is stable and it is safe for system not to

collapse.

 To increase the stability, attach the frame to the base.
 Always verify if the hoist and construction is prepared for the load you are about to fly.
 Do not stand under the array. If the system collapses it can cause permanent health damage or even

death.

FLYING BAR MARKINGS

POL-AUDIO SLA 112 can be used only with flying bar provided by manufacturer. Below you can find frame with angles
possible to achieve.

Image 1a Angle setup between frame and first module SLA 112

Image 1b Middle rail points numbers for ease focus calculations

FLYING SYSTEM

When rigging the system, always use the pins according to the marking on suspension system.
Angles between modules should be result of EASE Focus 2 or 3 simulations.

MAXIMUM ARRAY SIZE

Depending on the system configuration maximum size of an array is:

 Flown: 16 modules
 Ground stack: 10 modules

Image 2. Angles on SLA 112
suspension.

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

6

PRODUCT SPECIFICATION

Model

SLA 112

Type

Concert Line Array

Application

Outdoor and indoor concerts and meetings. Small to medium scale events.

Prediction Software

EASE Focus II / EASE Focus III

Frequency range

50Hz-19kHz

Components

1 x 12" (3")
2 x 1" (1,75")

AES Power

160 W HF / 500 W LF

SPL Sensitivity

115 dB HF / 98 dB LF

Dimensions [no pins]

Height

Width
Depth

390 mm
638 mm
485 mm

Weight

30 kg

Connectors

2 x Neutrik

®

NL4MP

Image 3 SLA 112 with dimensions

ADDITIONAL ACCESSORIES

Transport case

Case can fit 2 modules of connected SLA 112 modules.

Wiring

Set of cables for connecting SLA 112 system.

Rigging Equipment

Set of pins and shackles for system rigging.

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

7

SYSTEM MARKING

POL-AUDIO SLA 112 system is marked with a back plate containing serial number and primary technical parameters.

Image 4 SLA 112 system back plate

SAMPLE CONFIGURATION

Connection schema

Image 5a Sample SLA 112 configuration

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

8

Image 5b Sample SLA 112 configuration

RECOMMENDED AMPLIFIERS PARAMETERS

HF SECTION

od 320 W do 500 W dla każdego modułu w gronie

LF SECTION

od 600 W do 800 W dla każdego modułu w gronie

RECOMMENDED MODELS

CAMCO ® D SERIES, POWERSOFT

®

K / X SERIES

RECOMMENDED DSP PROCESSOR

INPUT NUMBER

Minimum 4 [HF L / HF R / M-LF R / M-LF L]

PEQ

Minimum 4 points per output.

CROSSOVER

Two per each output. Filters: Butterworth 18 dB / oct, 24 dB / oct

DELAY

On HF L/R outputs, minimum 0,187ms

LIMITER

Per each output

GAIN

Control per each output

RECOMMENDED MODELS

Xilica

®

XP/XD SERIES

ARRAY CONFIGURATION

Array size

At least 4 modules per side for minimum directivity control in full bendwidth.

BOX INTERCONNETION SCHEMA

Image 6 Interconnection schema for SLA 112

Markings: 1+ i 1- and 2+ i 2- correspond to pins of SPEAKON® connectors in the box. Connecting cables
should be wired according to the schema.

TRANSPORT

For system transportation, stable cases should be used to provide reliable support for modules during
transportation to and from venues.

MAINTAINING SYSTEM

Image 7 NL4
SPEAKON® schema

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

9

To keep system operational we suggest to undertake periodic inspections at authorised service point. First inspection
should be done around 6 months after the buy. Each next inspection can be done with 2 years frequency.

In case of enclosure cleaning, use cloth with water. Cleaning substances can effect in enclosure damage.

HEARING PROTECTION

We suggest using hearing protection when long exposure to high sound pressure is necessary. If not, temporarily or
permanently hearing damage can occur.

Remember: Hearing is one of our primary working tools. Take care of it.

SPARE PARTS

Manufacturer uses only original spare parts for performing repairs. If system will be repaired in
external service facility with different spare parts, the warranty is no longer valid.

ORIGINAL PRODUCT

When encountered a product that looks like a counterfeit please contact manufacturer. We treat each notification
very seriously. The logo is a warranty of a product quality. Non-original products impact interest of: event organizer,
artists, rental companies and manufacturer. Each notification will be forwarder to appropriate law enforcement
department.

POL-AUDIO SLA 112 Manual

You have a question? Call us [phone]

10

CE DECLARATION OF CONFORMITY

NAME AND ADRES OF MANUFACTURER:

POL-AUDIO Leszek Polanowski
ul. M.C. Skłodowskiej 33
05-420 Józefów
Poland

SYSTEMS LIST:

Passive loudspeaker systems: POL-AUDIO SLA 112, POL-AUDIO SLA 208M ND, POL-AUDIO SLA 210CX

DIRECTIVES AND NORMS:

 EMC 89/336/EEC 03.05.1989 with annotations 91/31/EEC and 93/68 EEC
 73/23/EC 19.02.1973 with annotations 93/68/EEC
 PN-EN50081-1: 1996
 PN-EN50082-1: 1999

Declarations was issued by POL-AUDIO Leszek Polanowski company.

Issue date: …………………… Sign: …………………………………..
