Important Safety Instructions --------------------------------------------------------------------
Characteristic Features ----------------------------------------------------------------------------
Screen And Main Panel ----------------------------------------------------------------------------
Right and Left Side Panels------------------------------------------------------------------------
Remote Control --------------------------------------------------------------------------------------
Connections -------------------------------------------------------------------------------------------
Connecting to External AV Source----------------------------------------------------------------
Connecting to Normal Amplifier ------------------------------------------------------------------Playback Preparations -----------------------------------------------------------------------------
Use Of Remote Control ----------------------------------------------------------------------------
Disc Formats Supported By This Player ---------------------------------------------------------
Usage Of The Power Adapter ----------------------------------------------------------------------
Using Headphones -----------------------------------------------------------------------------------Power Supply ------------------------------------------------------------------------------------------

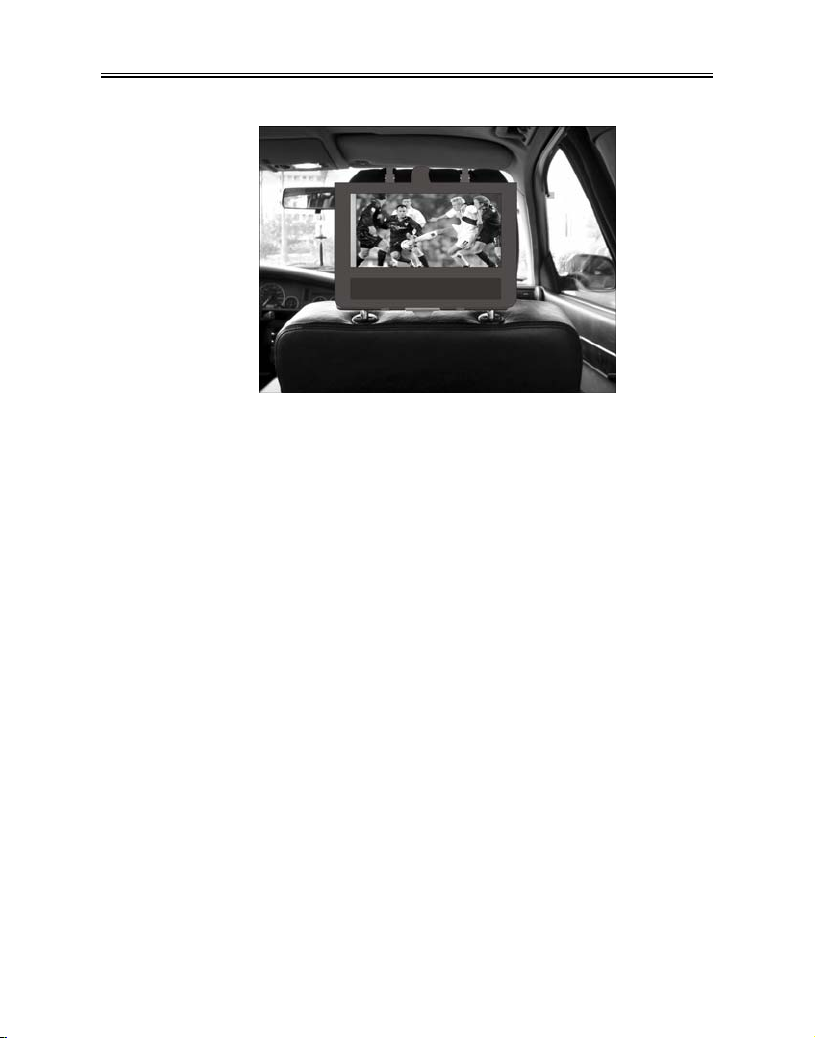

Using A Car Adapter ----------------------------------------------------------------------------------
Play Operation ---------------------------------------------------------------------------------------System Setup -----------------------------------------------------------------------------------------
Playback Functions----------------------------------------------------------------------------------

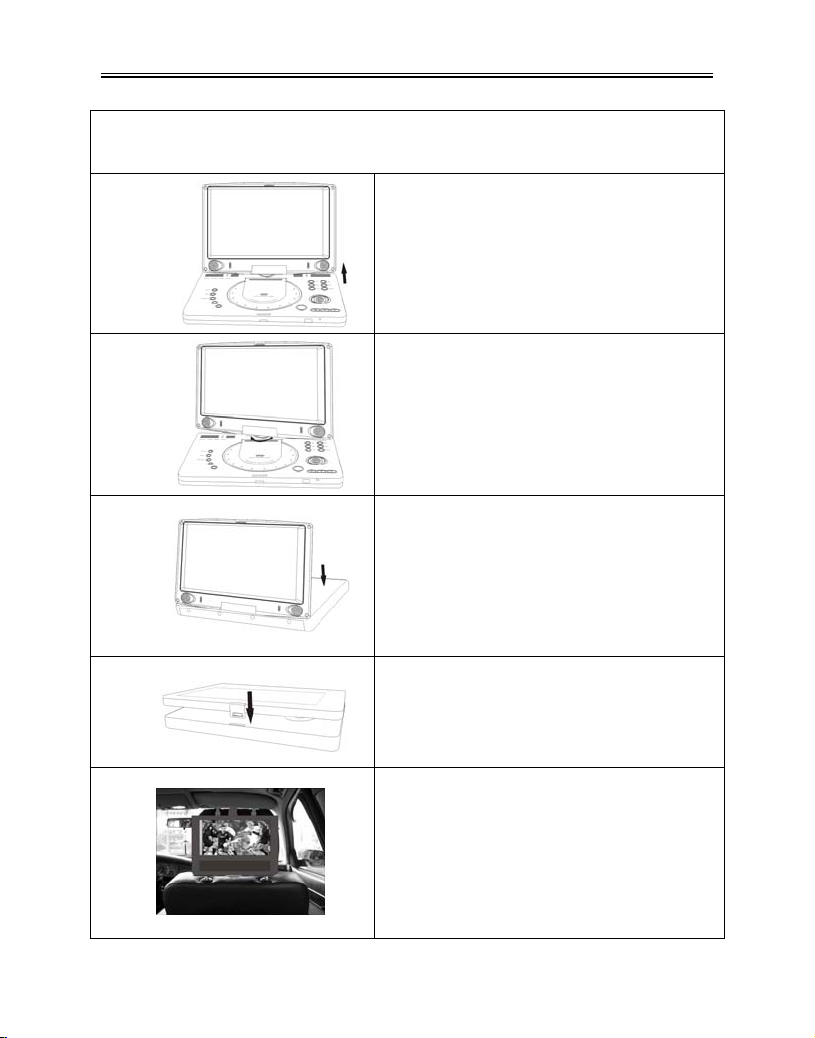

Special Features Of Revolving LCD Screen ------------------------------------------------Car Bag--------------------------------------------------------------------------------------------------Troubleshooting---------------------------------------------------------------------------------------
Specifications-------------------------------------------------------------------------------------------
3
5
6
7
8
10
10
10
11
11
12
13
13
14
14
15
17
20
23
24
25
26
- 2 -
Important Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
POWER SUPPLY:
Connect the supplied adapter to the side of the DVD player in the slot marked “Power
In”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you have
difficulty inserting the plug, turn it over and reinsert it, if the unit will not be used for a
long time, disconnect the plug from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
The lightning flask with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
- 3 -
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use near water.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. Maintain well ventilated conditions around the product, Do not put
product on bed, sofa or anything that blocks ventilation. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
Copyright Protection
Unauthorized copying, broadcasting, public performance, and lending of disks are
prohibited. This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-able
parts inside the unit. Leave all servicing to qualified service personnel.
This unit complies with FDA regulation for radiation control of laser
products.
- 4 -
Characteristic Features
Excellent Sound
Dolby Digital output for excellent sound.
High Resolution
MPEG2 decoding format achieves more
than 500 lines of horizontal resolution.
Special Functions
Supports multi-angle view, subtitle caption.
Compatibility
Compatible with DVD, CD and PICTURE
CD discs.
Particular Performance
Multi-speed, fast forward, fast backward,
slow play and repeat playback.
Search By Time
Search for a certain time on a disc.
Last Memory Playback
Continues playing from place stopped.
AV Input
External Audio / Video input can be
connected to most external AV sources.
DVD players and discs are coded by region. These regional codes must match the
discs they play. If the codes don’t match, the disc won’t play. This player’s code is
region 1.
On-Screen Display
On-screen displays in your choice of
English/Spanish/French.
Audio Out
Audio output terminal for connection to
audio amplifiers.
Earphone Output
Convenient for listening to movies or
music in private.
Amplifier Function
Built-in 2x1W stereo amplifier and left
and right speakers.
LCD (Liquid Crystal Display)
Designed with 10.2" color LCD screen
clearly shows the data.
Revolving TFT LCD Screen
Adjust the screen for custom viewing by
revolving it horizontally about its axis, or
lay it flat with the screen facing up.
Switching Power Adapter
Automatically adapts to voltage required
in the U.S. and other countries.
- 5 -
Screen and Main Panel
1. LCD display latch
Press to open the LCD screen.
2. Disc tray cover
For disc to be put in
3. OPEN button
Press to open the disc tray cover.
4. Remote sensor
Receive the remote control signal for
operation.
5. STOP button
Press to stop playback.
6. Power on indicator
Lights green when the player is in
operation.
Lights red when the player is in
standby mode.
7. PAUSE button
Press to pause playback.
8. PLAY button
Press to start playback.
9. ENT button
Press to confirm selections.
10. Direction buttons
Press to select menu items or
settings.
11. TITLE button
Press to display titles if present on
the DVD disc.
12. MENU button
Press to display the disc menu on
the LCD screen in Play mode.
Prev skip button
13.
Press to skip to previous
chapter/track.
14.
Next skip button
Press to skip to next chapter/track.
15. Reverse scan button
Press to scan reverse.
- 6 -
16. Forward scan button
Press to scan forward.
17. Speaker
For enjoying high quality stereo
music.
18. LCD screen
Present high resolution picture.
19. Latch hook
20. TFT- Switch button
Press to turn on or off the LCD
screen display.
21. ROTATE button
Press to rotate the picture up and
down 180 degrees.
22. MODE button
Press to change aspect ratio
among 4:3,16:9 and zoom modes.
23. FUNCTION button
Press to enter the brightness, color
or contrast level adjusting mode.
24. + button
Press to adjust the brightness,
color or contrast level upward.
25. - button
Press to adjust the brightness,
color or contrast level downward.
Right and Left Side Panels
Right Side Panel Drawing
1. Earphone volume adjusting knob
Used to adjust the earphone and
speaker volume.
2. Earphone jack
HI-FI earphone output, when
connecting this jack, speaker
volume is turned off.
Left Side Panel Drawing
3. AV IN/OUT switch
Switch to IN, then the player is in
audio and video input mode.
Switch to OUT, then the player is in
normal playback mode.
4. Audio input/output jack
5. Video input/output jack
6. Direct current 9.5V input jack
1. Earphone jack 2. Power On/Off switch
- 7 -
Remote Control
The Remote Control
1. PWR button
Press to enter standby mode.
2. INFO button
Press for detailed information on the
disc playing.
Keep pressing to remove
information from screen.
3. TITLE button
Press to display titles if present on
the disc.
Direction buttons
4.
Press to select menu items.
5. ENTER button
Press to confirm the items or
setting.
6. SETUP button
Press to access the DVD player’s
setup menu.
7. 0-9 number buttons
Select numbers by pressing these
buttons.
8.
PREV SKIP button
Press to go to beginning of current
track. Press twice to go to beginning
of previous track.
- 8 -
Remote Control
NEXT SKIP button
9.
Press to go to next chapter.
10. SUBT button
When a DVD is playing, press to
select a subtitle language or to turn
subtitles off, if the DVD disc contains
multiple subtitles.
11. ANGLE button
Press to access various camera
angles, if the DVD disc contains
multiple camera angles.
-B button
12. A
Press to mark a segment to repeat
between A and B.
13. ZOOM button
Press to cycle through zoom
function.
14. REP button
Press to repeat a chapter, track, title,
or all content.
15. MENU button
Press to enter disc menu.
16. PIC button
Press to enter the brightness, color
or contrast level adjusting mode.
17. STOP button
Press once to stop playback and
then press the PLAY button to
resume normal playback.
Press the button twice to stop
playback completely.
18. Play/Pause button
Press to start or pause playback.
19. GOTO button
Press to select the desired disc
starting time, track or title.
20. +10 button
Select numbers greater than 9 by
pressing the (+10) button first, and
then an additional number button.
FWD SCAN button
21.
Press to search forward.
REV SCAN button
22.
Press to search backward.
23. SLOW button
Press to activate slow forward or
slow rewind.
24. AUDIO button
Press to access various audio
languages, if the DVD disc contains
multiple audio languages.
- 9 -
Loading...
+ 18 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
