Polaroid PDV-0700 User Manual

7” Portable DVD Player
PDV-0700
Operation Manual
Contents
Precautions with Moisture .......... 4
Function Features ...................... 5
Parts Introduction ....................... 6
Remote Control .......................... 7
Connections ............................... 9
Playback Preparations ............... 10
■ Usage of Remote Control ..... 10
■ Disc Formats Supported ....... 11
■ Usage of Switch Adapter ...... 12
Power Supply ............................. 13
■ Using and Changing the
Battery Pack ............................... 13
■ Recommended Recharging
and Charging Times ................... 13
Detaching Battery Pack.............. 14
Using a Car Adapter................... 14
Using Headphones..................... 14
Basic Operations ........................ 15
■ Start of Playback................... 15
■ Pause.................................... 15
■ Zoom..................................... 15
■ Stop....................................... 16
■ Mode ..................................... 16
■ Title Menu ............................. 16
■ Previous and Next................. 16
System Setup ............................. 17
■ General Setup....................... 17
■ Speaker Setup ...................... 18
■ Dolby Digital Setup ............... 18
■ Video Setup .......................... 18
■ Preference Page ................... 19
■ Audio..................................... 19
■ Region Codes ....................... 19
Playback Functions .................... 21
■ Fast Forward and Rewind..... 21
■ Slow Forward and Rewind .... 21
■ Repeat .................................. 21
■ Subtitle .................................. 21
■ Angle..................................... 22
■ Search by Time..................... 22
■ Resume Playback ................. 22
■ Playing a MP3....................... 22
■ Playing a JPEG..................... 23

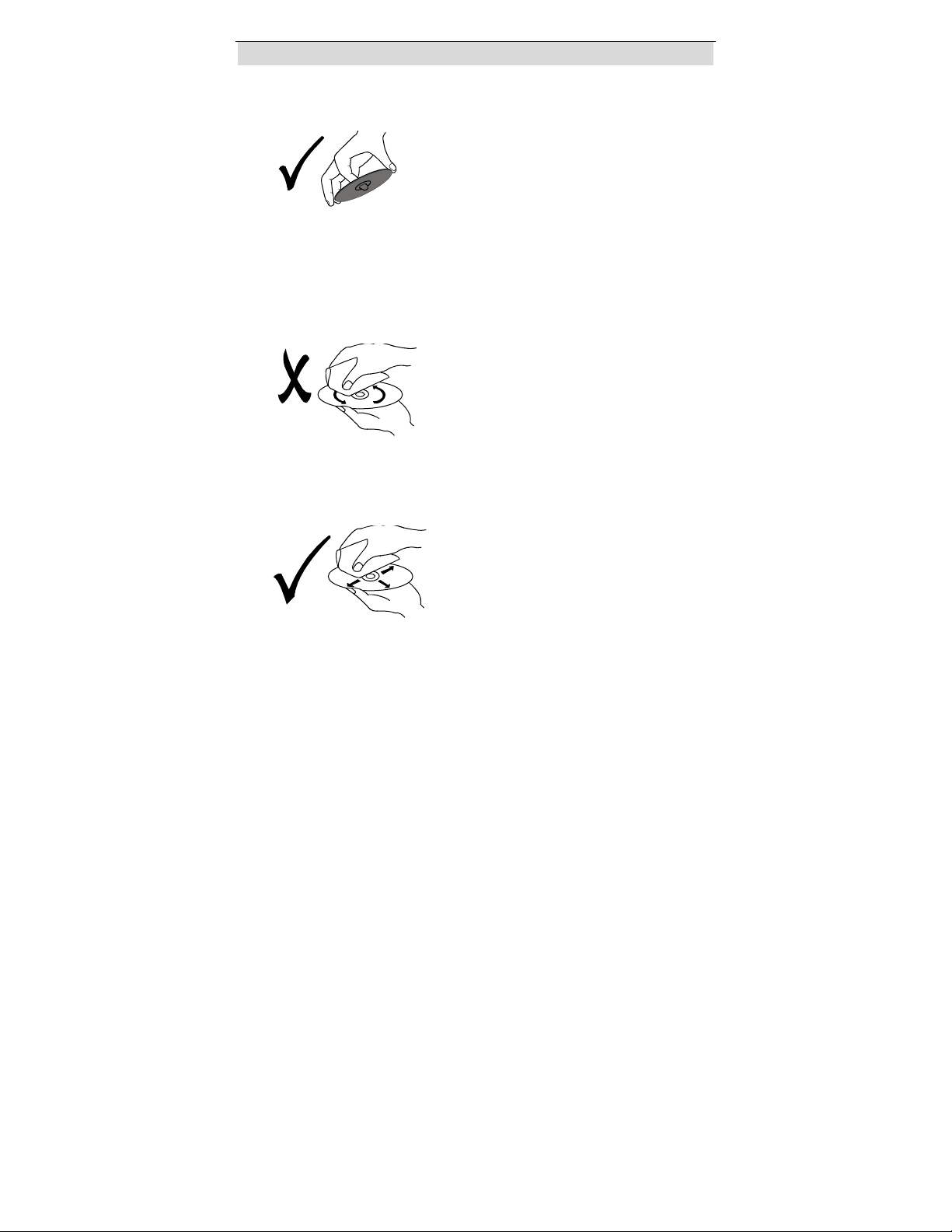

Care of Discs.............................. 24
About Rechargeable Battery ...... 25
Troubleshooting.......................... 26
Specifications ............................. 27
- 2 -
Thank you for buying this Polaroid DVD product. Please read operating instructions for proper operation. Save these instructions for future reference. ________ _____________
Sa f et y P re c au t io n s
WAR NING: To reduce the risk of fire or shock hazard, do not expose this DVD player to rain or moisture.
To reduce risk of electrical shock, do not remove cover or back, no user serviceable parts
inside.
WAR NING:
CAUTION CAUTION
WAR NING:
Im p o r t a n t S a fet y I n s t r u c t ions
1. Read these instructions. Keep these instructions.
2. Do not use this product near water.
3. Clean only with dry cloth.
4. Do not block any ventilation openings or holes.
5. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
6. Must be plugged into a polarized or grounding type plug. A polarized plug has two blades with one
7. Protect the power cord from being walked on or pinched, particularly the plugs, convenience receptacles,
8. Only use attachments/accessories specified by the manufacturer.
9. Use only with cart, stand, tripod, bracket, or table specified by manufacturer, or sold with product.
10. Unplug the product during lightning storms or when unused for long periods of time.
11. Servicing should be referred to qualified service personnel and is required when product has been
12. Do not expose product to dripping or splashing. Objects filled with liquids, such as vases, should
- 3 -
To reduce risks associated with heat build-up, do not charge battery for more than 4 hours;
do not leave battery attached when player is using an alternative power source, electrical adaptor
or car adaptor; and do not block any ventilation openings or holes.
: To prevent electric shock, match wide blade of plug with slot, insert. : This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure. Do not open cover
to view it, do not repair it yourself. Refer servicing to qualified personnel.
Any substitutions or modifications of this product without authorization from Polaroid or an
authorized dealer will void the warranty.
Heed all warnings, follow all instructions.
Install according to the manufacturer’s instructions.
Maintain well-ventilated conditions around the
product, avoiding heat. Do not put product on bed, sofa or anything that blocks ventilation.
(including amplifiers) that produce heat.
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
and the point where they exit from the machine.
When cart is used, use caution when moving cart/product combination to avoid tip-over injury.
damaged in any way, such as; damaged power-supply cord or plug, objects have fallen into the product,
exposed to rain, moisture or spills, item was dropped or doesn’t operate normally.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-able parts inside the unit. Leave all servicing to qualified service personnel.
Pr e ca u ti on s w i th Mo i st u re
Under the following circumferences, moisture may appear on the lens of the product,
which is the most sensitive part of the DVD player.
- The DVD player is suddenly moved from a cold place to a warm place.
- A room is heated while the DVD player starts operating, or the DVD is placed by
an air-conditioner.
- In the hot summer season, the DVD player is moved from an air-conditioned room
to a hot, damp place to be used.
- The DVD player is being operated in a damp place.
If moisture appears on the player, discontinue use.
If the player is operated under said conditions, or the disc is loaded, certain interior
components could be damaged. Take disc out, plug power in, switch power button
on the DVD player for two to three hours to dry.
- 5 -
Function Features
1. EXCELLENT SOUND
Dolby Digital delivers great sound.
2. H I GH R E SOL U T ION
MPEG2 decoding format achieves more
than 500 lines of horizontal resolution.
3. S P ECI A L FU N C TIO N S
Supports multi-angle, excessive language
caption and parental-lock.
4. COMPATIBILITY
Pla y s DVD, CD, CD-R, CD-RW, PICTURE
CD and MP3 discs.
5. PARTICULAR PERFORMANCE
Multi-speed, fast forward, fast backward,
slow play and step playback, repeat
playback and programming playback.
6. SEARCH BY TIME
Search for a certain time on a disc.
DVD players and discs are coded by region. These regional codes must match the discs they play. If the codes don’t match, the disc won’t play. This player’s code is region 1.
7. LAST MEMORY PLAYBACK
Memorizes and continues playing from
place stopped.
8. ON-SCREEN DISPLAY
On-screen displays in your choice of
English/Spanish/French.
9. AUDIO OUT
Analog audio output and optical digital
audio outputs connect to any amplifying
equipment.
10. EARPHONE OUTPUT
Convenient for listening to movies or music
in private.
11. SWITCHING POWER ADAPTER
Automatically dapts to voltage
requirements in the U.S. and other
countries.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
- 6 -
Parts Introduction
DVD Player
1. OPEN button
2. Remote sensor
3. Disc cover
4. Lights red when the power switch is on.
5. Lights green when the player is in operation.
6. ENTER button
7. Direction buttons
8. TITLE button
9. STOP button
10. MODE button
11. MENU button
12. NEXT SKIP button
13. PREV skip button
14. Speaker
15. Bright up/down
16. Color up/down
17. TFT Liquid Crystal Display
18. Earphone/speaker volume knob
19. Earphone jack
20. Audio/output/input and optical digital output jack
21. Video output/input jack
22. Switch position between AV ‘IN’ and AV ‘OUT’
23. Direct current input jack
24. Power switch
- 7 -
Re m ot e C o nt r ol
1. PWR button
2. INFO button
3. TITLE button
Direction buttons
4.
-Press to turn the player on or off.
-Press for detailed information on the disc playing.
-Keep pressing to remove information from screen.
-Press to display titles if present on the disc.
-Press to select random play when playing a CD.
-Press to select menu items.
5. ENTER button
-Press to confirm the items or setting.
6. SETUP button
-Press to access the DVD player’s setup menu.
7. 0-9 number buttons
-Select numbers by pressing these buttons.
8.
PREV SKIP button
-Press to go to beginning of current track. Press again quickly to go to beginning of previous track.
- 8 -
Re m ot e C o nt r ol
NEXT SKIP button
9.
-Press to go to next chapter.
10. SUBT button
-When a DVD is playing, press to select a subtitle language or to turn subtitles off.
11. ANGLE button
-Press to access various camera angles (if the DVD disc contains multiple camera angles).
-B button
12. A
-Press to mark a segment to repeat between A and B.
13. ZOOM button
-Press to cycle through zoom function.
14. REP button
-Press to repeat a chapter, track, title, or all content.
15. MENU button
-Press to select the disc menu.
16. PAUSE button
-Press to pause playback.
-Press PLAY button to resume normal playback.
17. STOP button
-Press once to stop playback and then
press PLAY button to resume normal playback.
-Press the button twice to stop playback
completely.
18. PLAY button
-Press to begin playback.
19. GOTO button
-Press to select the desired disc starting
time, track or title.
20. +10 button
-Select numbers greater than 9 by
pressing the (+10) button first, and then an additional number button.
FWD SCAN button
21.
-Press to search forward.
REV SCAN button
22.
-Press to search backward.
23. SLOW button
-Press to activate slow forward or slow
rewind.
24. AUDIO button
-Press to access various audio languages
(if the DVD disc contains multiple audio languages).
- 9 -
Connections
Connecting to a TV
Audio/video connections
1. Always ensure that the DVD player, TV and any other electrical equipment you are connecting the DVD player to is switched off and unplugged from the power supply.
2. The easiest way to connect the DVD player to a television is via the supplied Audio/Video connections. Connect the audio/video cable from the DVD player to the TV’s audio/video inputs.
Connecting to an Amplifier with Dolby Digital Decoder
The DVD player can be connected to an AV amplifier of Dolby digital decoder via the Digital Optical output. Please refer to your Audio equipment’s manual before connecting.
- 10 -
