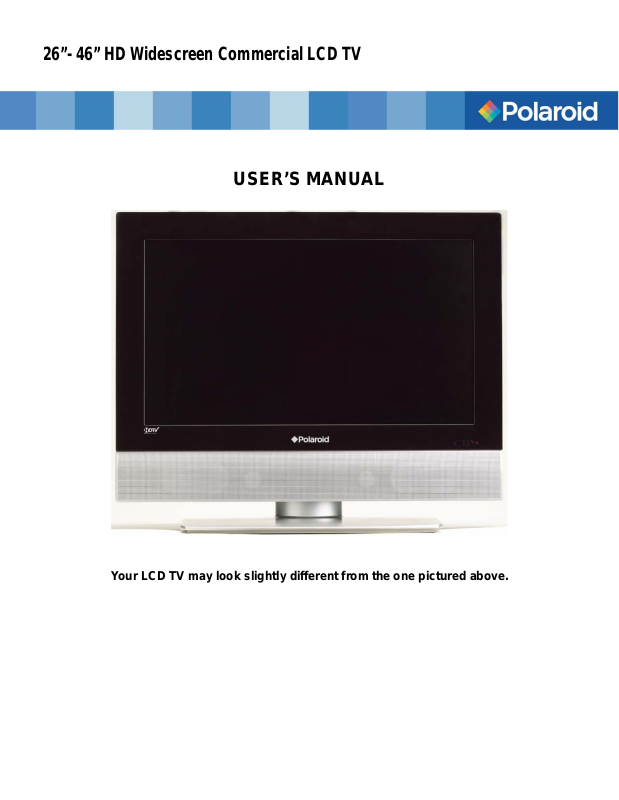

26”- 46” HD Widescreen Commercial LCD TV
USER’S MANUAL
Your LCD TV may look slightly different from the one pictured above.
Table of Contents
Important Safety Instructions ................................................................................ 2
Accessory List......................................................................................................... 4
Disc Information ...................................................................................................... 5
View of Unit.............................................................................................................. 6
Remote Control........................................................................................................ 9
System Connections............................................................................................. 14
Connecting an External AV Signal Source (AV1)..................................................... 14
Connecting an External AV Signal Source (AV2)..................................................... 15
Connecting an External AV Signal Source (AV3 /AV4)............................................ 16
Connecting an HDMI Signal Source........................................................................17
Connecting an External AV Device (AV Output)......................................................18
Connecting a PC .....................................................................................................19
Connecting a TV Signal Source...............................................................................20
Connecting the Power Supply ................................................................................. 20
Connecting Earphones............................................................................................ 21
Input Source Selection.......................................................................................... 22
System Setup......................................................................................................... 23
Special features of the DVD Module.................................................................... 30
DVD Playback Operation....................................................................................... 31
USB and SD/MS/MMC Card Function .................................................................. 35
DVD System Setup ................................................................................................ 36
Use of the Wall Mount........................................................................................... 43
Troubleshooting .................................................................................................... 44
Specifications ........................................................................................................ 45
Warranty................................................................................................................. 46
- -
1
Important Safety Instructions
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electrocution.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION: Laser radiation when open. Do not stare into beam.
POWER SUPPLY:
Connect the supplied adapter to the side of the DVD player (if equipped) or back of the TV in the slot
marked “Power In”. Plug the two-prong end of the power cord to a 110-220 volt electrical outlet. If
you have difficulty inserting the plug, turn it over and reinsert it. If the unit will not the used for a long
time, disconnect the plug from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all input and output device
connections have been made.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
The images in this manual are for reference only and may differ from your model.
- -
2
Important Safety Instructions
1) Read and follow all directions.
2) Keep these instructions.
3) Heed all warnings.
4) Do not use near water.
5) Clean only with dry cloth.
6) Do not block any ventilation
openings. Maintain well ventilated
conditions around the product, Do
not put product on bed, sofa or anything that blocks ventilation. Install in accordance with the
manufacturer’s instructions.
7) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. A void direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are no
user serviceable parts inside the unit. Leave all
servicing to qualified service personnel.
9) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10) Only use attachments/accessories specified by the manufacturer.
11) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
12) Unplug this apparatus during lightning storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall not be placed on the apparatus.
Note: Do not touch the LCD screen. In the event that an electric shock is transmitted, the
screen could be damaged.
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.
- -
3
Accessory List
ITEM NAME QTY
Remote Control (optional) 1
Batteries for Remote Control (optional) 2
Power Supply Cord
(Cannot be removed from TVs 19” or smaller)
1
Operation Manual 1
Note:
¾ Accessories and their numbers are subject to modification without prior notice.
- -
4
Disc Information (for systems equipped with
DVD Players)
Discs Supported
DISC LOGO CONTENTS SIZE MAXIMUM TIME
DVD
CD
JPEG Still high resolution 12cm
z The software maker specifies the operating method of some DVD discs. Please refer to the
instruction manual of the disc.
z The unit will play most recordable (CD-R) or erasable (CD-RW) CDs, but playback of CD-R or
CD-RW discs created on a computer requires proper formatting and finalization of the disc for
audio playback. Some computers and/or software programs may not be capable of creating
compatible discs.
Audio & Video
(Active picture)
Audio 12cm 74min
12cm
133min(SS-SL)
242min(SS-DL)
266min(DS-SL)
484min(DS-DL)
About Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several sections, including
chapter(s) and/or title(s).
Chapter
The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of
one or more chapters, often numbered for easy searching.
Track
A segment of picture or music on a CD. Typically each track is numbered for searching.
- -
5
View of Unit
Front and Right Side Panel (including optional DVD player)
1. Color TFT screen
2. INPUT button
Press repeatedly to toggle between input
sources: TV, AV1 (Composite1), AV2
(Composite 2), AV3 (Component1), AV4
(Component2), VGA , HDMI or DVD mode.
3. MENU button
Press to enter or exit system setup menu.
4. CH ▲/▼ button
In TV mode, press to select channels; on
system setup menu, the same function as
▲/▼ direction buttons.
5. VOL ▲/▼ button
Press to decrease or increase the volume;
on system setup menu, the same function
as ◄/► direction buttons.
6. STOP button
7. PLAY button
Press to start disc playback in DVD mode.
8. EJECT button
Press to eject disc from disc tray.
9. POWER button
Press to enter or exit standby mode.
10. Disc Tray Slot
Insert disc into this slot.
11. SD/MS/MMC card port
Insert SD/MS/MMC card into this slot.
12. USB Port
Connect external USB device.
13. Remote Sensor
14. Power Indicator
Lights blue while system is active and red
while system is in standby.
15. Speakers
Press to stop disc playback in DVD mode.
- -
6
View of Unit
Rear Panel
Open the back cover on the right side of the unit’s rear panel and all the jacks will appear, as shown
on the figure below:
1. Y/Pr(Cr)/Pb(Cb) (Component) and L/R audio
Input Jacks
Connect Y/Pr(Cr)/Pb(Cb) (Component) input
source in AV3 (Component) mode.
2. Y/Pr(Cr)/Pb(Cb) (Component) and L/R audio
Input Jacks
Connect Y/Pr(Cr)/Pb(Cb) (Component) input
source in AV4 (Component) mode.
3. Composite Video and L/R audio Input Jacks
Connect composite video and audio input source
in AV1 (Composite) mode.
4. Video/S-VIDEO and L/R audio Input Jacks
Connect audio and video/S-Video input source in
AV2 (Composite) mode. Video and S-Video share
L/R audio jacks and S-Video is the priority.
5. Earphone Jack
Connect earphone.
6. TV Signal Input Jack
Connect TV antenna or analog cable in TV mode.
7. VGA Input Jack
Connect VGA input source in VGA mode.
8. OPTICAL audio output jack
Outputs optical digital audio (SPDIF) signals.
9. Audio Output Jack
Outputs audio for optional external equipment.
10. PPV Jack
For use with Hospitality VOD only.
11. HDMI Jack
Connect HDMI input source.
12. Power In Jack
Connect power supply.
- -
7
View of Unit
Rear Panel
Open the back cover on the right side of the unit’s rear panel and all the jacks will appear, as shown
on the figure below:
13. RS232/SERVICE Jack (Hospitality VOD Use)
14. HDMI Jack
Connect HDMI input source.
15. DC OUT Jack (Hospitality VOD Use)
16. PPV Jack (Hospitality VOD Use)
- -
8
Remote Control
For TV Operation
1. POWER button
Press to enter or exit standby mode.
2. 0~9 Number buttons
Press to select numbers.
3. MTS button
Press repeatedly to select SAP, Mono or
Stereo mode in TV mode.
4. VOL +/- button
Press to increase or decrease the volume.
5. MUTE button
Press to mute or unmute the speaker audio
output.
6. Input button
Press to enter Input menu. Then use the
▲▼ button to toggle between input sources:
TV, AV1 (Composite1), AV2 (Composite2),
AV3 (Component1), AV4 (Component2),
VGA, HDMI or DVD (if equipped). Press the
Enter button to select the currently
displayed input source.
7. Direction buttons (▲▼◄►)
Used for menu selection in setup (menu)
mode.
8. Enter button
Press to confirm a selection.
9. Sleep button
Press to set sleep time.
10. TV button
Press to enter TV mode.
11. Signal button
Press to display ATSC (tuner) signal status.
- -
9
Remote Control
For TV Operation
12. button
Press number buttons to select channel
and then press this button to go
immediately to the selected channel.
13. +10/- button
Used for selection of high-numbered (100+)
channels while in TV mode.
14. Last button
Press to return to the previously viewed
channel in TV mode.
15. CH / button
Press to select channel in TV mode.
16. Freeze button
Press to freeze the current picture.
17. Menu button
Press to enter or exit the TV setup menu.
18. Exit button
Press to exit the TV setup menu.
19. CC button
Press repeatedly to toggle closed
captioning between TEXT1, TEXT2, TEXT3,
TEXT4, CC1, CC2, CC3, CC4, or OFF.
20. Info. button
Press to display the current mode/input
source information.
- -
10
Remote Control (Continued)
For DVD Operation (for models so equipped)
1. Play button
Press to play the disc in DVD mode.
2. Pause button
During disc playback, press to pause
playback or start step
frame-by-frame playback. Press the
PLAY button to resume normal playback.
3. button
Press to activate fast backward playback
function during disc playback.
4. button
Press to activate fast forward playback
function during disc playback.
5. 0~9 Number buttons
Press to select numbers.
6. Direction buttons (▲▼◄►)
Press to select item or adjust setup within
setup menu.
7. Enter button
Press to confirm the current selection.
8. Audio button
Press to select audio language if the disc
contains multi-audio languages during disc
playback.
9. Angle button
Press to select camera angle if the disc
contains multiple camera angles during disc
playback.
10. Dvdmenu button
Press to enter or exit the disc menu in DVD
mode.
11. Setup button
Press to enter or exit DVD setup menu in
DVD mode.
- -
11
Remote Control
For DVD Operation (for models so equipped)
12. Eject button
Press to eject the disc.
13. ■ Stop button
In DVD mode, press to stop playback.
Press the PLAY button to resume normal
playback; press twice repeatedly to stop
playback completely.
14. button
Press to go to the next chapter/track during
disc playback.
15. button
During disc playback, press once to go to
the beginning of current chapter/track;
press twice to go to the previous
chapter/track.
16. +10/- button
Press this button first and then 0~9 number
buttons to select numbers or tracks greater
than 9.
17. Card button
Press to shift among disc playback, USB
playback and CARD playback mode when
an external USB device or card is
connected to the unit.
18. Title button
Press to enter or exit the disc title menu
during disc playback.
19. Subtitle button
Press to select subtitle language if the disc
contains multi-subtitle languages during
disc playback.
20. Repeat button
Press to repeat a chapter or title.
- -
12
Remote Control
Preparation
Softly push the back cover to open the battery
compartment.
Insert two batteries (1.5V, size AAA), ensuring
the polarity matches the marks inside the
compartment.
Softly press the back cover to close it.
z Remove batteries when the remote is not in
use for a long time.
Using Remote control
Point the remote control unit from no more than
about 7 meters (22 feet) from the television and
within about 60 degrees of the front of the unit.
•
The operating distance may vary depending
on room illumination.
Notes:
• Do not point bright lights directly at the
television’s remote control sensor.
• Do not place objects between the remote
control unit and the remote control sensor.
z Do not use this remote control unit while
simultaneously operating the remote control
unit of any other equipment.
- -
13
System Connections
• Do not connect the power cord until all other connections have been made.
• Ensure that you observe and correctly connect colored cables when connecting audio and video
cables.
• Before connecting, open the cover on the right side of the unit’s rear panel.
• If you wall mount the television, ensure that screws used between the wall mount and the back
of the television are 18 mm (0.70”) or less in length.
Connecting an External AV Signal Source (AV1)
Use AV cables to connect an external AV signal source to the AV1 (Composite) input jacks on the
jack panel of the unit.
After connection, turn on the power of the unit and the external AV signal source and then use the
Input button to select AV1 (Composite) mode.
- -
14
Loading...
