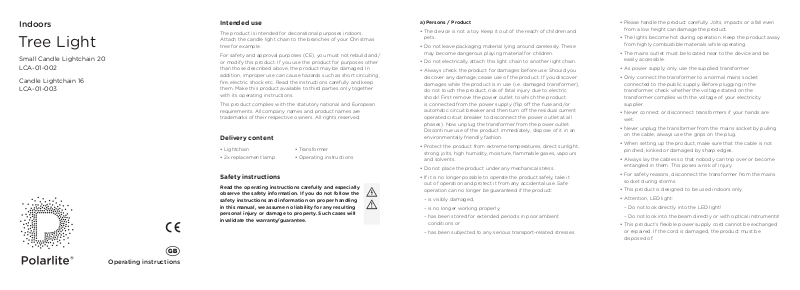

Polarlite LCA-01-003, LCA-01-002 User guide
Indoors
• Lightchain
•
• Transformer
Tree Light
Small Candle Lightchain 20
LCA-01-002
Candle Lightchain 16
LCA-01-003
Intended use
The product is intended for decorational purposes indoors.
Attach the candle light chain to the branches of your Christmas
tree for example.
For safety and approval purposes (CE), you must not rebuild and/
or modify this product. If you use the product for purposes other
than those described above, the product may be damaged. In
addition, improper use can cause hazards such as short circuiting,
fire, electric shock etc. Read the instructions carefully and keep
them. Make this product available to third parties only together
with its operating instructions.
This product complies with the statutory national and European
requirements. All company names and product names are
trademarks of their respective owners. All rights reserved.
Delivery content
2x replacement lamp
• Operating instructions
Safety instructions
Read the operating instructions carefully and especially
observe the safety information. If you do not follow the
safety instructions and information on proper handling
in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will
invalidate the warranty/guarantee.
a) Persons / Product
• The device is not a toy. Keep it out of the reach of children and
pets.
• Do not leave packaging material lying around carelessly. These
may become dangerous playing material for children.
• Do not electrically attach this light chain to another light chain.
• Always check the product for damages before use. Should you
discover any damage, cease use of the product. If you discover
damages while the product is in use (i.e. damaged transformer),
do not touch the product, risk of fatal injury due to electric
shock! First remove the power outlet to which the product
is connected from the power supply (flip o the fuse and/or
automatic circuit breaker and then turn o the residual current
operated circuit breaker to disconnect the power outlet at all
phases). Now unplug the transformer from the power outlet.
Discontinue use of the product immediately, dispose of it in an
environmentally friendly fashion.
• Protect the product from extreme temperatures, direct sunlight,
strong jolts, high humidity, moisture, flammable gases, vapours
and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it
out of operation and protect it from any accidental use. Safe
operation can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient
conditions or
– has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even
from a low height can damage the product.
• The lights become hot during operation. Keep the product away
from highly combustible materials while operating.
• The mains outlet must be located near to the device and be
easily accessible.
• As power supply, only use the supplied transformer.
• Only connect the transformer to a normal mains socket
connected to the public supply. Before plugging in the
transformer, check whether the voltage stated on the
transformer complies with the voltage of your electricity
supplier.
• Never connect or disconnect transformers if your hands are
wet.
• Never unplug the transformer from the mains socket by pulling
on the cable; always use the grips on the plug.
• When setting up the product, make sure that the cable is not
pinched, kinked or damaged by sharp edges.
• Always lay the cables so that nobody can trip over or become
entangled in them. This poses a risk of injury.
• For safety reasons, disconnect the transformer from the mains
socket during storms.
• This product is designed to be used indoors only.
• Attention, LED light:
– Do not look directly into the LED light!
– Do not look into the beam directly or with optical instruments!
• This product’s flexible power supply cord cannot be exchanged
or repaired. If the cord is damaged, the product must be
disposed of.
Operating instructions
b) Miscellaneous
• Maintenance, modifications and repairs are to be performed
exclusively by an expert or at a qualified shop.
• If you have questions which remain unanswered by these
operating instructions, contact our technical support service or
other technical personnel.
Operation
Do not set up or operate the product under water.
Make sure that the cables hang loosely and are not
stretched too tightly. Failure to heed this warning may
cause the cables to tear.
Do not connect the product to the power supply while
it is still in the packaging. Lay the product out entirely
before connecting it to the power supply.
Do not hang any objects from the product and do not
cover the product.
Make sure that a bulb is inserted into every socket.
The LEDs are not dimmable.
1. Lay the product out entirely and arrange the cables so that
they lie freely and are not tangled.
2. Attach the candles, for example, to your Christmas tree.
Ensure stability when clamping the candles onto branches of
the tree.
3. Connect the plug to the correct connector on the
transformer.
4. Connect the transformer to a power outlet.
5. Disconnect the transformer from the power outlet for
extended periods of disuse.
The product has no power switch and is always on as long as
it is connected to the power supply.
Replacing bulbs
Always unplug the transformer from the mains outlet before
changing any bulb.
In order to avoid overheating, replace defective bulbs
immediately with spare bulbs that have the same voltage
and wattage.
• The scope of delivery includes 2 spare bulbs.
• Remove the defective light bulb and insert a new one.
Maintenance and cleaning
• The product is maintenance-free apart from occasional
cleaning.
• Disconnect the transformer from the power supply before
cleaning and allow the LEDs to cool down suciently.
• To clean, use a clean, dry, lint-free cloth. For stubborn dirt,
slightly dampen the cloth with water.
• Allow the product to dry completely before continued use.
Disposal
Electronic devices are recyclable waste and must not
be disposed of in the household waste. At the end of its
service life, dispose of the product according to the
relevant statutory regulations.
You thus fulfil your statutory obligations and contribute
to the protection of the environment.
Technical data
a) Light chain
Item No. LCA-01-002
Operating voltage 24 V/DC*
Power consumption max. 0.768 W
Number of lights 20
Luminous colour Warm White
Power cable length 5 m
Total length approx. 10.7 m
Distance between
lights
Operating conditions -20 to +60 °C / 20 – 80 % RH
Storage conditions -20 to +60 °C / 20 – 80 % RH
Weight 440 g
*The rectifier on the supply line of the light chain converts
alternating current into direct current. Therefore, use only the
transformer that is provided.
b) Transformer (DE-02-24)
Input voltage 230 V/AC, 50 Hz
Output voltage 24 V/AC
Output current 83.3 mA
Output power max. 2 W
30 cm
c) Light chain
Item No. LCA-01-003
Operating voltage 24 V/DC*
Power consumption max. 3.84 W
Number of lights 16
Luminous colour Warm White
Power cable length 5 m
Total length approx. 17 m
Distance between
80 cm
lights
Operating conditions -20 to +60 °C / 20 – 80 % RH
Storage conditions -20 to +60 °C / 20 – 80 % RH
Weight 600 g
*The rectifier on the supply line of the light chain converts
alternating current into direct current. Therefore, use only the
transformer that is provided.
d) Transformer (DE-04-24)
Input voltage 230 V/AC, 50 Hz
Output voltage 24 V/AC
Output current 166.7 mA
Output power max. 4 W
These operating instructions are published by CEI Conrad Electronic International (HK) Limited, 18th Floor, Tower 2,
Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, New Territories, Hong Kong. All rights including translation reserved.
Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems
require the prior written approval by the editor. Reprinting, also in part, is prohibited. The operating instructions
reflect the current technical specifications at time of print.
© Copyright 2014 by CEI Conrad Electronic International (HK) Limited
distributed by Conrad Electronic SE,
Klaus-Conrad-Str. 1, D-92240 Hirschau
LCA-01-002-003_v1_0814_02_m_EN(1)
