Polaris Trail Boss 9921784 User Manual

For your nearest Polaris dealer, call 1-800-POLARIS or visit www.polarisindustries.com Polaris Sales Inc., 2100 Hwy 55 Medina, MN 55340 Phone 1-888-704-5290 Part No. 9921784 Rev 02 Printed in USA

WARNING

The engine exhaust from this product contains

chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

A card containing important ATV safety information should be attached to the owner's manual on the next page. If you cannot locate this card, or if it has been removed, please call 1-800-3423764 for assistance.

WELCOME

Thank you for purchasing a Polaris vehicle, and welcome to our worldwide family of Polaris owners. We proudly produce an exciting line of utility and recreational products.

• Snowmobiles

• All-terrain vehicles (ATVs)

• RANGER utility vehicles

• Victory motorcycles We believe Polaris sets a standard of excellence for all utility and recre-

ational vehicles manufactured in the world today. Many years of experience have gone into the engineering, design, and development of your Polaris vehicle, making it the finest machine we’ve ever produced.

For safe and enjoyable operation of your vehicle, be sure to follow the instructions and recommendations in this owner’s manual. Your manual contains instructions for minor maintenance, but information about major repairs is outlined in the Polaris Service Manual and should be performed only by a Factory Certified Master Service Dealer (MSD) Technician.

Your Polaris dealer knows your vehicle best and is interested in your total satisfaction. Be sure to return to your dealership for all of your service needs during, and after, the warranty period.

We also take great pride in our complete line of apparel, parts and accessories, available through our online store at www .purepolaris.co m. Have your accessories and clothing delivered right to your door!

POLARIS and POLARIS THE WAY OUT are registered trademarks of Polaris Industries Inc.

Copyright 2008 Polaris Sales Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information presented in this publication. Depictions and/or procedures in this publication are intended for reference use only. No liability can be accepted for omissions or in acc uracies. Any reprinting or reuse of the depictions and/or procedures contained within, whether whole or in part, is expressly prohibited.

Printed in U.S.A. 2009 Trail Boss Owner’s Manual P/N 9921784

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Features and Controls . . . . . . . . . . . . . . . . . . . 26

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Emission Control Systems . . . . . . . . . . . . . . . 56

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Polaris Products. . . . . . . . . . . . . . . . . . . . . . . 103

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 104

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 108

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 116

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

INTRODUCTION

The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.

The safety alert symbol indicates a potential personal injury hazard.

WARNING

A WARNING indicates a hazardous situation which, if not avoided, may result in death or serious injury.

CAUTION

A CAUTION indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A NOTICE indicates a situation that may result in property damage.

The Prohibition Safety Sign indicates an action NOT to take in order to avoid a hazard.

The Mandatory Action Sign indicates an action that NEEDS to be taken to avoid a hazard.

INTRODUCTION

WARNING

Failure to heed the warnings and safety precautions contained in this manual can result in severe injury or death. A Polaris ATV is not a toy and can be hazardous to operate. This vehicle handles differently than other vehicles, such as motorcycles and cars. A collision or rollover can occur quickly , even during routine maneuvers like turning, or driving on hills or over obstacles, if you fail to take proper precautions.

• Read this owner’s manual. Understand all safety warnings, precautions and operating procedures before operating a Polaris ATV. Keep this manual with the ATV.

• Never operate an ATV without proper instruction. Take a training course. Purchasers of a new Polaris ATV and their eligible family members are entitled to take the ATV RiderCourse (800) 887-2887 or visit www.atvsafety .org for information on enrollment in the ATV RiderCoursesm.

• This vehicle is an ADULT VEHICLE ONLY . Operation is prohibited for anyone under 16 years of age.

• Never permit a guest to operate the ATV unless the guest has read this manual and all product labels and has completed a certified safety training course.

. Contact ATV Enrollment Express at

INTRODUCTION

####

VIN

Key Number

Vehicle Identification Numbers

Record your vehicle's identification numbers and key number in the spaces provided. Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a Polaris key blank (using your key number) and mating it with one of your existing keys. The ignition switch must be replaced if all keys are lost.

Vehicle Model Number: ___________________________________________________

Frame VIN: ____________________________________________________________

Engine Serial Number: ___________________________________________________ (right front side of engine crankcase)

Key Number: ___________________________________________________________

SAFETY

Safety Training

ATV safety training is a top priority for Polaris. When you purchased your new ATV, your dealer instructed you on the authorized ATV

RiderCourse

training is included in the purchase price of your ATV. Polaris strongly encourages you and your eligible family members who will be riding the ATV to take the ATV RiderCourse printed materials that explain safe operating procedures. You should review this information on a regular basis.

If you purchased a used Polaris ATV, you can take the ATV

RiderCourse

by visiting www.atvsafety.org. Purchasers of a used Polaris ATV will be charged for this training.

A Polaris ATV is an off-road vehicle. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area.

W e strongly advise you to strictly follow the recommended maintenance program outlined in your owner's manual. This preventive maintenance program is designed to ensure that all critical components on your vehicle are thoroughly inspected at specific intervals.

FOR MORE INFORMATION ABOUT ATV SAFETY, call the Consumer Product Safety Commission at 1-800-638-2772, or visit www.cp sc.gov, visit www.atvsafety.org, or call Polaris at 1-800-342-

3764.

available to you and your eligible family members. This

. You were also provided with

by calling A TV Enrollment Express at (800) 887-2887 or

SAFETY

Helmet

Eye Protection

Gloves

Boots

Long Pants

Long

Sleeves

051039

0006.31

Safe Riding Gear

Always wear appropriate clothing when riding an ATV. Wear protective clothing for comfort and to reduce the chance of injury.

Helmet

Wearing a helmet can prevent a severe head injury. Whenever riding a Polaris vehicle, always wear a helmet that meets or exceeds established safety standards.

Approved helmets in the USA and Canada bear a U.S. Department of Transportation (DOT) label.

Approved helmets in Europe, Asia and Oceania bear the ECE 22.05 label. The ECE mark consists of a circle surrounding the letter E, followed by the distinguishing number of the country which has granted approval. The approval number and serial number will also be displayed on the label.

SAFETY

Safe Riding Gear

Eye Protection

Do not depend on eyeglasses or sunglasses for eye protection. Whenever riding a Polaris vehicle, always wear shatterproof goggles or use a shatterproof helmet face shield. Polaris recommends wearing approved Personal Protective Equipment (PPE) bearing markings such as VESC 8, V-8, Z87.1, or CE. Make sure protective eye wear is kept clean.

Gloves

Off-road style gloves with knuckle pads are the best for comfort and protection.

Boots

The best footwear is a pair of sturdy over-the-calf boots with low heels.

Clothing

Always wear long sleeves and long pants to protect arms and legs. Riding pants with kneepads and a jersey with shoulder pads provide the best protection.

Equipment Modifications

We strongly recommend that consumers do not install on a Polaris ATV any equipment that may increase the speed or power of the vehicle, or make any other modifications to the vehicle for these purposes.

The warranty on your Polaris ATV is terminated if an y equipment has been added to the vehicle, or if any modifications have been made to the vehicle, that increase its speed or power.

The addition of certain accessories, including (but not limited to) mowers, blades, tires, sprayers, or large racks, may change the handling characteristics of the vehicle. Use only Polaris-approved accessories, and familiarize yourself with their function and effect on the vehicle.

SAFETY

WARNING

Safety Warnings

Failure to operate the ATV properly can result in a collision, loss of control, accident or overturn, which may result in serious injury or death. Heed all safety warnings outlined in this section of the owner’s manual. See the OPERATION section of the owner’s manual for proper operating procedures.

Operating Without Instruction

Operating this ATV without proper instruction increases the risk of an accident. The operator must understand how to operate the ATV properly in different situations and on different types of terrain.

Beginning and inexperienced operators should complete the recommended safety training before operating this vehicle. See page 7.

Never permit a guest to operate the ATV unless the guest has read this manual and all product labels and has completed a certified safety training course.

Age Restrictions

This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone under 16 years of age.

Even though a child may be within the recommended age group for operating some ATVs, he/she may not have the skills, abilities, or judgment needed to operate an ATV safely and could be susceptible to accident or injury.

SAFETY

Safety Warnings

Handling Gasoline

Gasoline is highly flammable and explosive under certain conditions.

• Always exercise extreme caution whenever handling gasoline.

• Always refuel with the engine stopped, and outdoors or in a well ventilated area.

• Do not smoke or allow open flames or sparks in or near the area where refueling is performed or where gasoline is stored.

• Do not overfill the tank. Do not fill the tank neck.

• If gasoline spills on your skin or clothing, immediately wash it off with soap and water and change clothing.

• Turn the fuel valve off whenever the vehicle is stored or parked.

Exposure to Exhaust

Engine exhaust fumes are poisonous and can cause loss of consciousness or death in a short time. Never start the engine or let it run in an enclosed area.

The engine exhaust from this product contains chemicals known to cause cancer, birth defects or other reproductive harm. Operate this vehicle only outdoors or in well-ventilated areas.

Failure to Inspect Before Operating

Failure to inspect and verify that the ATV is in safe operating condition before operating increases the risk of an accident.

Always inspect the ATV before each use to make sure it's in safe operating condition.

Always follow all inspection and maintenance procedures and schedules described in the owner's manual.

SAFETY

Safety Warnings

Protective Apparel

Riding in this vehicle without wearing an approved helmet and protective eyewear increases the risk of a serious injuries in the event of an accident.

Operator and passenger must always wear an approved helmet that fits properly and eye protection (goggles or face shield).

Using Alcohol or Drugs

Operating the ATV after consuming alcohol or drugs could adversely affect operator judgment, reaction time, balance and perception.

Never consume alcohol or drugs before or while operating an ATV.

Carrying a Passenger

Carrying a passenger greatly reduces the operator's ability to balance and control the ATV, which may result in an accident or overturn.

Never carry a passenger on this ATV.

Safety Warnings

Operating on Pavement

Operating an ATV on paved surfaces (including sidewalks, paths, parking lots and driveways) may adversely affect the handling of the ATV and could result in loss of control and accident or overturn.

Avoid operating the A T V on pavement. AT V tires are designed for off-road use. If it's unavoidable, travel slowly and avoid sudden turns or stops.

Operating on Public Roads

Operating this ATV on public streets, roads or highways could result in a collision with another vehicle.

Never operate the ATV on any public street, road or highway, including dirt and gravel roads. In many states it's unlawful to operate ATVs on public streets, roads and highways.

Operating at Excessive Speeds

Operating the ATV at excessive speeds increases the operator's risk of losing control.

Always operate at a speed that's appropriate for the terrain, the visibility and operating conditions, and your experience.

SAFETY

Safety Warnings

Physical Control of the ATV

Removing a hand from the handlebars or feet from the footrests during operation can reduce your ability to control the vehicle or cause loss of balance and ejection from the AT V. If the operator's foot is not firmly planted on the footrest, it could also contact the rear wheels.

Never remove your hands from the handlebars while operating, and always keep both feet on the footrests.

Turning Improperly

Turning improperly could cause loss of traction, loss of control, accident or overturn.

Always follow proper procedures for turning as described in the owner's manual.

Never turn abruptly or at sharp angles. Never turn at high speeds. Practice turning at slow speeds before attempting to turn at faster speeds.

Jumps and Stunts

Attempting wheelies, jumps and other stunts increases the risk of an accident or overturn.

Never attempt wheelies, jumps, or other stunts. Avoid exhibition driving.

Improper Hill Climbing

Improper hill climbing could cause loss of control or overturn. Always follow proper procedures for climbing hills as described in the owner's manual. See page 46.

SAFETY

Safety Warnings

Descending Hills Improperly

Improperly descending a hill could cause loss of control or overturn.

• Always follow proper procedures for traveling down hills as described in the own e r 's manual. NOTE: A special technique is required when braking while traveling downhill. See page 48.

• Always descend a hill with the transmission in forward gear. Do not descend a hill with the transmission in neutral.

• Always check the terrain carefully before descending a hill.

• Shift your weight rearward.

• Never travel down a hill at high speed.

• Avoid traveling down a hill at an angle, which would cause the vehicle to lean sharply to one side. Travel straight down the hill when possible.

Crossing Hillsides

Driving on a sidehill is not recommended. Improper procedure could cause loss of control or overturn. Avoid crossing the side of any hill unless absolutely necessary.

If crossing a hillside is unavoidable, always follow proper procedures as described in the owner's manual. See page 47.

Never attempt to turn the ATV around on any hill until you've mastered the turning technique (on level ground) as described in the owner's manual. See page 49.

SAFETY

Safety Warnings

Stalling While Climbing a Hill

Stalling, rolling backwards or improperly dismounting while climbing a hill could cause an overturn.

• Always maintain a steady speed when climbing a hill.

If all forward speed is lost:

• Keep body weight uphill.

• Apply the single-lever brak e gradually.

• Lock the parking brake when fully stopped.

• Dismount on uphill side, or to either side if ATV is pointed straight uphill.

• Turn the ATV around and remount, following the procedure described in the owner's manual. See page 49.

If the ATV begins rolling downhill:

• Keep body weight uphill.

• Never apply engine power.

• Never apply the auxiliary rear brake while rolling backwards. Apply the singlelever brake gradually.

• When fully stopped, apply the rear brake as well, and then lock the parking brake.

• Dismount on uphill side, or to either side if ATV is pointed straight uphill.

• Turn the ATV around and remount, following the procedure described in the owner's manual. See page 49.

Operating on Steep Hills

Operating on excessively steep hills could cause an overturn.

Never operate on hills too steep for the ATV or for your abilities. Never operate the ATV on hills steeper than 25 degrees.

Safety Warnings

Operating on Slippery Terrain

Failure to use extra caution when operating on excessively rough, slippery or loose terrain could cause loss of traction, loss of control, accident or overturn.

Do not operate on excessively rough, slippery or loose terrain. Always use extra caution on rough, slippery or loose terrain.

Operating in Unfamiliar Terrain

Failure to use extra caution when operating on unfamiliar terrain could result in an accident or overturn.

Unfamiliar terrain may contain hidden rocks, bumps, or holes that could cause loss of control or overturn.

Travel slowly and use extra caution when operating on unfamiliar terrain. Always be alert to changing terrain conditions.

SAFETY

Safety Warnings

Operating Improperly in Reverse

Improperly operating in reverse could result in a collision with an obstacle or person. Always follow proper operating procedures as outlined in this manual. See page 52.

Before shifting into reverse gear, always check for obstacles or people behind the ATV. When it's safe to proceed, back slowly.

Improper Tire Maintenance

Operating this ATV with improper tires or with improper or uneven tire pressure could cause loss of control or accident.

Always use the size and type of tires specified for your ATV.

Always maintain proper tire pressure as described in the owner's manual and on safety labels.

SAFETY

Safety Warnings

Operating Over Obstacles

Improperly operating over obstacles could cause loss of control or overturn. Before operating in a new area, check for obstacles. Avoid operating over large

obstacles such as rocks and fallen trees. If unavoidable, use extreme caution and always follow proper operating procedures as outlined in this manual. See page 51.

Skidding or Sliding

Skidding or sliding can cause loss of control or overturn (if tires regain traction unexpectedly).

On slippery surfaces such as ice or loose gravel, travel slowly and use extra caution to reduce the chance of skidding or sliding. Do not operate on excessively slippery surfaces.

Operating Through Deep Water

Operating the ATV through deep or fastflowing water could cause the tires to float, causing loss of control or overturn.

Avoid operating the ATV through deep or fast-flowing water. If it's unavoidable to enter water that exceeds the recommended maximum depth (see page

50):

• Travel slowly.

• Balance your weight carefully.

• Avoid sudden movements.

• Maintain a slow and steady forward motion. Do not make sudden turns or

stops, and do not make sudden throttle changes.

• Wet brakes may have reduced stopping ability. After leaving water, test the

brakes. Apply them lightly several times while driving slowly. The friction will help dry out the pads.

SAFETY

Safety Warnings

Improper Cargo Loading

Overloading the ATV or carrying/towing cargo improperly may cause changes in handling, which could cause loss of control or an accident.

• Never exceed the stated load capacity for this ATV.

• Cargo should be properly distributed and securely attached.

• Reduce speed when carrying cargo or pulling a trailer. Allow a greater distance for braking.

• Always follow the instructions in the owner's manual for carrying cargo or pulling a trailer.

Operating on Frozen Bodies of Water

Operating on frozen bodies of water may result in serious injury or death if the ATV and/or the operator fall through the ice.

Never operate the ATV on a frozen body of water.

Poor Visibility

Operating the ATV in darkness or inclement weather could result in a collision or accident, especially if operating on a road or street. This AT V is not equipped with highway-approved lights. Operate this vehicle off-road only. Use caution and drive at reduced speeds in conditions of reduced visibility such as fog, rain and darkness. Clean headlights frequently and replace burned out headlamps promptly.

SAFETY

Safety Warnings

Operating a Damaged ATV

Operating a damaged ATV can result in an accident. After any overturn or accident, have a qualified service dealer inspect the entire machine for possible damage, including (but not limited to) brakes, throttle and steering systems.

Physical Skills

Safe operation of this rider-active vehicle requires good judgement and physical skills. Persons with cognitive or physical disabilities who operate this veh icle have an increased risk of overturn and loss of control.

Hot Exhaust Systems

Exhaust system components are very hot during and after use of the vehicle. Hot components can cause burns and fire. Do not touch hot exhaust system components. Always keep combustible materials away from the exhaust system. Use caution when traveling through tall grass, especially dry grass.

Unauthorized Use of the ATV

Leaving the keys in the ignition can lead to unauthorized use of the vehicle, which could result in an accident or overturn. Always remove the ignition key when the vehicle is not in use.

SAFETY

Safety Labels and Locations

Warning labels hav e been placed on the vehicle for your protection. Read and follow the instructions on each label carefully. If any of the labels shown in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle.

If an informational or graphic label becomes illegible or comes off, contact your Polaris dealer to purchase a replacement. Replacement safety labels are provided by Polaris at no charge. The part number is printed on the label.

General Warning

WARNING Improper ATV use can result in SEVERE INJURY or DEATH ALWAYS USE AN APPROVED HELMET AND PROTECTIVE GEAR NEVER USE ON PUBLIC ROADS NEVER CARRY PASSENGERS NEVER USE WITH DRUGS OR ALCOHOL NEVER operate:

• without proper training or instruction

• at speeds too fast for your skills or the conditions

• on public roads - a collision can occur with another vehicle

• with a passenger - passengers affect balance and steering and increase risk of losing control

ALWAYS:

• use proper riding techniques to avoid vehicle overturns on hills and rough terrain and in turns

• avoid paved surfaces - pavement may seriously affect handling and control

LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.

7175376

SAFETY

General

Warning

Discretionary

Warning

Rack Warning

Safety Labels and Locations

Discretionary Warning

WARNING

• Never operate this ATV on HILLS steeper than 25 degrees 25°. To pre-

vent overturn on hilly terrain, use throttle and brakes gradually, and shift weight uphill.

• REVERSE operation can be dangerous even at low speeds. Steering

becomes difficult. To prevent loss of control, avoid sudden braking or sharp turns.

Rack Warning, Front and Rear

WARNING

• DO NOT TOW FROM RACK OR BUMPER. Vehicle damage or tipover may

result causing severe injury or death. Tow only from tow hooks or hitch.

• Max Rack Loads: Front 75 lbs. (34 kg) Rear 125 lbs. (57 kg)

7175511

7172666

SAFETY

“No Passenger”

Warning

Clutch Cover

Warning

Age 16 Warning

Tire Pressure/Load

Warning

Safety Labels and Locations

“No Passenger” Warning

WARNING NEVER ride as a passenger. Passengers can cause a loss of control, resulting in SEVERE INJURY or

DEAT H.

7175378

Tire Pressure/Load Warning

WARNING Improper tire pressure or overloading can cause loss of control. Loss of control can result in severe injury or death.

• Cold tire pressure:

• Maximum weight capacity: 415 lbs. (188 kg)

Front: 4.0 psi (27.6 kPa) Rear: 3.0 psi (20.7 kPa)

7175444

SAFETY

Safety Labels and Locations

Age 16 Warning

WARNING Operating this ATV if you are under the age of 16 increases your chance of

severe injury or death. NEVER operate this ATV if you are under age 16.

7175374

Clutch Cover Warning

WARNING

• Moving parts hazard under belt-clutch guard. To prevent serious injury , do not

operate vehicle with guard removed.

• Do not modify engine or clutch. Doing so can cause part failure, possible

imbalance, and excessive engine RPM, which can result in serious injury or death.

NO STEP

7172563

Reverse Override Warning

WARNING Improper use of override button can lead to loss of contro l resulting in severe

injury or death. Do not activate override while throttle is engaged. Always apply throttle gradually, while in reverse.

7175486

FEATURES AND CONTROLS

Override

Switch

Main Key Switch

Engine

Stop Switch

Headlight Switch

OFF OFFRUN

Switches

Override Switch

This vehicle is equipped with a reverse speed limiter system. To gain additional wheel speed while backing, release the throttle and press the override switch.

WARNING! Pressing the override switch while the throttle is open can cause loss of control, which may result in serious injury or death. Always release the throttle before pressing the override switch.

The override switch also allows activation of All Wheel Drive in reverse, if the AWD switch is on.

Engine Stop Switch

Move the stop switch either left or right to the OFF position to stop the engine quickly. The engine will not start or run when the switch is off.

Both the main switch and the engine stop switch will shut off all electrical power to the vehicle, including lights.

Main Key Switch

Use the main key switch to start the engine. See page 41 for starting procedures.

FEATURES AND CONTROLS

Neutral Indicator

Reverse Indicator

High Temperature Warning

(displays if engine overheats)

Switches

Headlight Switch

Use the headlight switch to turn the lights on and off and to change the lights from high beam to low beam (if equipped). The key must be in the ON position and the engine stop switch must be in the RUN position to operate the headlights.

Indicator Lights

With the engine running, verify the function of all indicator lights before each use of the vehicle.

Tip: The taillight is on whenever the main switch (key) is on. Turn the key off to

prevent battery drain.

FEATURES AND CONTROLS

WARNING

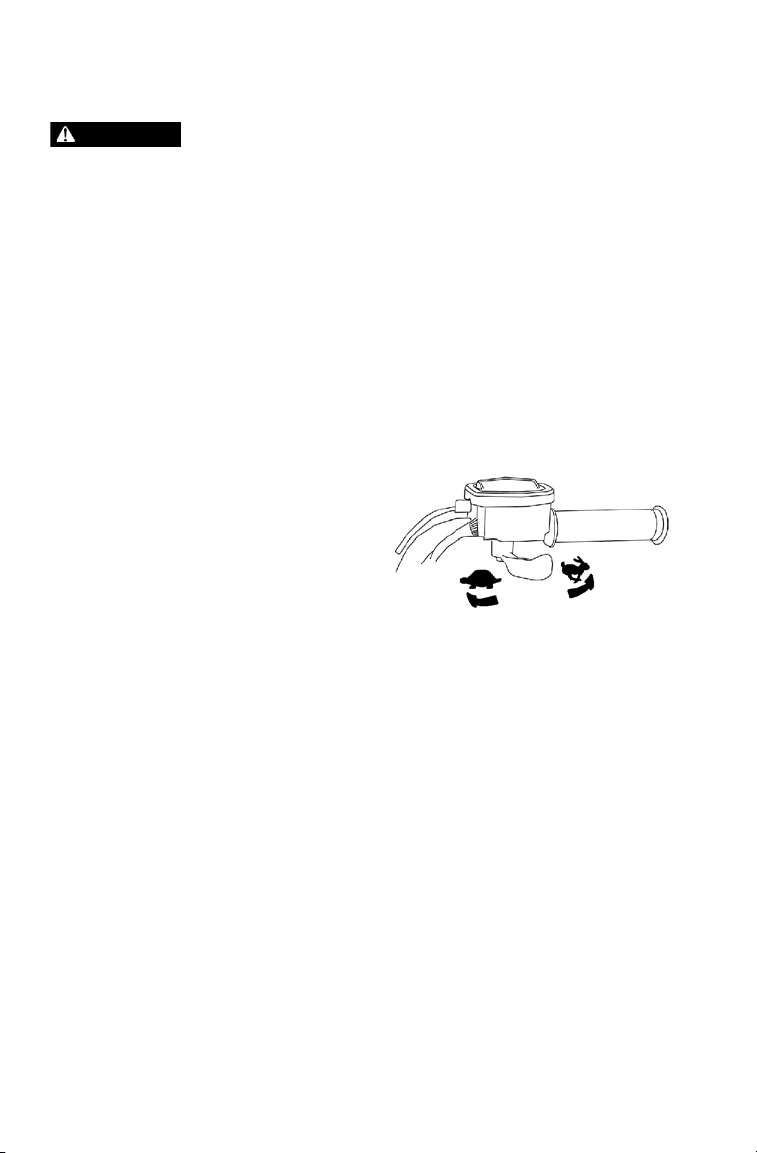

Throttle Lever

Operating an ATV with sticking or improperly operating throttle controls could cause an accident. Never start or operate an ATV that has a sticking or improperly operating throttle. Always contact your dealer for service before operating the vehicle.

Failure to check or maintain proper operation of the throttle system can result in an accident if the throttle lever sticks during operation. Always check the lever for free movement and return before starting the engine. Also check occasionally during operation.

Modifications to the electronic throttle control could result in failure to perform as designed, which could result in an accident. Do not attempt to modify the throttle control system or replace it with any after market throttle mechanisms. Always ensure that the throttle cable is installed and properly routed to the throttle control.

Engine speed and vehicle movement are controlled by pressing the throttle lever. The throttle lever is spring loaded. Engine speed returns to idle when the lever is released.

This ATV is equipped with Polaris Electronic Throttle Control (ETC), which is designed to reduce the risk of a frozen or stuck throttle. If the throttle cable should stick in an open position when the operator releases the throttle lever, the engine will stop, and power to the rear wheels will cease.

FEATURES AND CONTROLS

WARNING

Brake Lever

Operating the ATV with a spongy brake lever can result in loss of braking, which could cause an accident. Never operate the ATV with a spongy-feeling brake lever. Always contact your dealer for service before operating the vehicle.

Squeeze the brake lever toward the handlebar to apply the front and rear brakes. These brakes are hydraulically activated disc type brakes that are activated by only one lever.

Always test brake lever travel and master cylinder fluid level before riding. When squeezed, the lever should feel firm. Any sponginess would indicate a possible fluid leak or low master cylinder fluid level, which must be corrected before riding. Contact your dealer for proper diagnosis and repairs.

Parking Brake

Locking the Parking Brake

1. Place the transmission in gear.

2. Squeeze and release the brake

lever two or three times, then squeeze and hold.

3. Push the parking brake lock for-

ward to engage the lock.

4. Release the brake lever.

5. To release the parking brake lock, squeeze and release the brake

lever. It will return to its unlocked position.

WARNING! Operating the ATV while the parking brake is engaged could result in an accident or fire. Always check to be sure the parking brake is disengaged before operating.

The parking brake may relax if left on for a long period of time. Always block the wheels to prevent rolling. Always block the wheels on the downhill side of the ATV if leaving it parked on a hill. Another option is to park the ATV in a sidehill position. Never depend on the parking brake alone if the ATV is parked on a hill. Always block the wheels to prevent rolling.

FEATURES AND CONTROLS

WARNING

Auxiliary

Foot Brake

Auxiliary Foot Brake

Aggressively applying the auxiliary brake when backing down a hill may cause rear tipover, which could result in serious injury or death. Never back down a hill.

Use caution when applying the auxiliary brake. Do not aggressively apply the auxiliary brake when going forward. The rear wheels may skid and slide sideways, causing loss of control, which may result in serious injury or death.

The auxiliary brake system is intended to be used as a backup for the main brake system. Should the main system fail, use the auxiliary foot brake.

The auxiliary foot brake is located on the inside of the right footrest. Operate this brake with your right foot.

If the rear wheels slide while using the auxiliary brake, reduce brake pedal pressure to brake the rear wheels without skidding.

FEATURES AND CONTROLS

WARNING

Brake Fluid

An over-full master cylinder may cause brake drag or brake lock-up, which could result in an accident. Maintain brake fluid at the recommended level. Do not overfill.

Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture from the air. The moisture causes the boiling temperature of the brake fluid to drop, which can lead to early brake fade and the possibility of brake failure, which could result in an accident. After opening a bottle of brake fluid, always discard any unused portion.

Always maintain brake fluid at the recommended level. Do not overfill. If the fluid level is low add DOT 4 brake fluid only. See page 103 for the part numbers of Polaris products.

Under normal operation, the diaphragm extends into the reservoir as fluid level drops. If the fluid level is low and the diaphragm is not extended, a leak is likely and the diaphragm should be replaced. To ensure proper diaphragm operation, always fill the reservoir as needed whenever the cover is loosened or removed. Do not overfill.

FEATURES AND CONTROLS

Master Cylinder

Indicator

Window

Brake Fluid

Hand Brake

Check the brake fluid level in the master cylinder before each use of the vehicle. The master cylinder is located on the left handlebar. Maintain the fluid level 1/4" (6 mm) below the top edge of the master cylinder. Do not overfill.

1. Position the vehicle on a level

surface. Make sure the handlebars are straight.

2. View the fluid level through

the indicator window (eye) on the top of the master cylinder. The eye will appear dark when the fluid level is full. When fluid is low, the eye will be clear.

3. Add the recommended fluid as needed. Do not overfill.

Auxiliary Foot Brake

Check the brake fluid level frequently for the auxiliary brake system. The brake fluid reservoir is located either under the seat or near the foot brake. Maintain the fluid level between the minimum and maximum marks. Do not overfill.

FEATURES AND CONTROLS

Fuel Tank

Cap

Fuel

Valve

OFF

RES

Choke

The choke assists in starting a cold engine. Refer to the engine starting procedure on page 41 for correct choke and throttle settings during starting.

Fuel Tank Cap

Always refuel with the engine stopped, and outdoors or in a well ventilated area. Refuel on a level surface.

Remove the fuel tank cap to add fuel to the fuel tank. Use either leaded or unleaded gasoline with a minimum pump octane number of 87=(R+ M/2) octane. Do not use E-85 fuel.

Fuel Valve

The fuel valve is located on the left side of the vehicle, below the fender.

ON: For normal operation. OFF: For vehicle storage and when

transporting. RES: Turn the valve to the reserve set-

ting if the main fuel supply is exhausted. Refuel as soon as possible. Return the valve to the ON position after refueling.

Reserve fuel range is about 7-10 miles (11-16 km).

Fuel Filter

The in-line fuel filter should be replaced by your dealer after every 100 hours of operation or annually. Do not attempt to clean the fuel filter.

FEATURES AND CONTROLS

Gear

Selector

Automatic Transmission Gear Selector

The transmission gear selector is located on the right side of the vehicle.

F: Forward Gear N: Neutral R: Reverse

To shift gears, brake to a complete stop. When the engine is idling, move the lever to the desired gear.

NOTICE: Shifting gears with the engine

Whenever the ATV is left unattended, always place the transmission in gear and lock the parking brake.

speed above idle or while the vehicle is moving could cause transmission damage.

FEATURES AND CONTROLS

Recoil Starter

Handle

Recoil Starter

If the battery is too weak to start the engine, use the recoil starter. Follow the starting procedures on page 41, cranking the engine with the recoil starter instead of the main key switch.

1. Grasp the recoil starter rope

handle tightly.

2. Pull slowly so you can feel the

engine strokes.

Tip: The rope will be harder to pull when the engine is on a compression stroke.

When a compression stroke is found, continue pulling the rope just until the engine rolls past the stroke, then stop pulling immediately.

3. Allow the recoil rope to rewind into the recoil assembly, then pull

the rope abruptly and forcefully to start the engine.

4. Repeat all steps until the engine starts.

5. Make sure the handle is fully seated on the housing.

NOTICE: Extending the recoil starter rope until it stops can cause damage to

the recoil assembly. Do not extend the starter rope so far that it stops. If the starter rope handle is not seated properly, water may enter the

recoil housing and damage components. Make sure the handle is fully seated on the recoil housing, especially when traveling in wet areas.

OPERATION

WARNING

Failure to operate the ATV properly can result in a collision, loss of control, accident or overturn, which may result in serious injury or death. Read and understand all safety warnings outlined in the safety section of this owner’s manual.

Break-In Period

The break-in period for your new Polaris ATV is the first ten hours of operation, or the time it takes to use the first two full tanks of gasoline. No single action on your part is as important as following the procedures for a proper break-in. Careful treatment of a new engine and drive components will result in more efficient performance and longer life for these components.

NOTICE: Excessive heat build-up during the first three hours of operation will

damage close-fitted engine parts and drive components. Do not operate at full throttle or high speeds during the first three hours of use.

OPERATION

Break-In Period

Engine and Drivetrain Break-in

1. Fill the fuel tank with gasoline. See page 33. Always exercise

extreme caution whenever handling gasoline.

2. Check the oil level on the dipstick. See page 62. Add oil if neces-

sary to maintain the level in the safe operating range.

3. Drive slowly at first. Select an open area that allows room to famil-

iarize yourself with vehicle operation and handling.

4. Vary the throttle positions. Do not operate at sustained idle.

5. Perform regular checks on fluid levels, controls and areas outlined

on the daily pre-ride inspection checklist. See page 40.

6. Pull only light loads.

7. Change both the oil and the filter at 20 hours or one month, which-

ever comes first.

PVT Break-in (Clutches/Belt)

A proper break-in of the clutches and drive belt will ensure a longer life and better performance. Break in the clutches and belt by operating at slower speeds during the break-in period as recommended. Pull only light loads. Avoid aggressive acceleration and high speed operation during the break-in period.

OPERATION

Safe Operation Practices

1. Complete the recommended safety training before operating this

vehicle. See page 7.

2. Do not allow anyone under 16 years of age to operate this vehicle.

Do not allow anyone with cognitive or physical disabilities to operate this vehicle.

3. Never carry a passenger on this ATV.

4. Engine exhaust fumes are poisonous. Never start the engine or let it

run in an enclosed area.

5. Before operating, learn how to use the auxiliary brake for emer-

gency situations (if service brakes become inoperable).

6. Operate this vehicle off-road only. Never operate the vehicle on

pavement or on any public street, road or highway, including dirt and gravel roads.

7. Use caution and drive at reduced speeds in conditions of reduced

visibility such as fog, rain and darkness. Clean headlights frequently and replace burned out headlamps promptly.

8. Drive in a manner appropriate for your skills and operating condi-

tions. Never operate at excessive speeds. Never attempt wheelies, jumps, or other stunts. Never remove your hands from the handlebars while operating, and always keep both feet on the footrests.

9. Never consume alcohol or drugs before or while operating an ATV.

10. Always use the size and type of tires specified for your vehicle.

Always maintain proper tire pressure.

11. Never operate a damaged ATV . After any overturn or acciden t, have

a qualified service dealer inspect the entire machine for possible damage.

12. Never operate the ATV on a frozen body of water.

13. Do not touch hot exhaust system components. Always keep com-

bustible materials away from the exhaust system.

14. Always remove the ignition key when the vehicle is not in use to

prevent unauthorized use.

OPERATION

Know Your Riding Area/Tread Lightly

Familiarize yourself with all laws and regulations concerning the operation of this off-road vehicle in your area. Respect the environment in which you ride. Find out where the designated riding areas are by contacting your Polaris dealer, a local riding club or local officials.

Help keep our trails open for recreational vehicle use. As an off-road enthusiast, you represent the sport and can set a good example (or a poor example) for others to follow . T read lightly. Operate with respect for the terrain, avoid littering, and always stay on the designated trails.

Trail Etiquette

Always practice good etiquette when riding. Allow a safe distance between your vehicle and other vehicles operating in the same area. Communicate to oncoming operators by signaling the number of vehicles in your group. When stopping, move your vehicle to the edge of the trail as far as possible to allow others to pass safely.

OPERATION

Pre-Ride Checklist

Failure to inspect and verify that the AT V is in safe operating condition before operating increases the risk of an accident. Always inspect the ATV before each use to make sure it's in safe operating condition.

Item Remarks Page

Brake system/lever travel Ensure proper operation 29

Brake fluid Ensure proper level 31

Auxiliary brake Ensure proper operation 30

Front suspension Inspect, lubricate if necessary 61

Rear suspension Inspect, lubricate if necessary 61

Steering Ensure free operation -

Tires Inspect condition and pressure 71

Wheels/fasteners Inspect, ensure fastener tightness 71

Frame nuts, bolts, fasteners Inspect, ensure tightness -

Fuel and oil Ensure proper levels 33

Throttle Ensure proper operation 28

Indicator lights/switches Ensure operation 26

Engine stop switch Ensure proper operation 26

Drive chain Check condition/slack, lubricate as

Air filter, pre-filter Inspect, clean 74

Air box sediment tube Drain deposits whenever visible -

Headlamp Check operation, apply Polaris dielec-

Brake light/tail lamp Check operation, apply Polaris dielec-

Riding gear Wear approved helmet, goggles, and

needed

tric grease when lamp is replaced

protective clothing

27 81

OPERATION

Choke

Knob

Adjusting

Nut

Starting the Engine

1. Position the vehicle on a level surface outdoors or in a well-venti-

lated area.

2. Place the transmission in neutral.

3. Lock the parking brake.

Tip: The starter interlock will prevent the engine from starting if the transmission

is in gear and the brake is not engaged.

4. Turn the fuel valve on.

5. Sit on the vehicle.

Tip: Do not use the choke if st ar ting a w arm engine. Excessive use of the choke

can cause the spark plug to become wet fouled.

6. If the engine is cold, pull the

choke knob out until it stops. If the knob doesn't stay where positioned, increase the tension by rotating the tension adjusting nut clockwise.

Tip: The variable choke is fully on

when the knob is pulled completely out. The choke is off when the knob is pushed completely in. The choke can be adjusted gradually, depending on how much choke is needed for starting. Be sure the choke is off during operation, as excess fuel washing into the engine oil will increase wear on engine components.

7. Move the engine stop switch to RUN.

8. Do not press the throttle while starting the engine.

OPERATION

Starting the Engine

9. Turn the ignition key past the ON position to engage the starter.

Activate the starter for a maximum of five seconds, releasing the key when the engine starts.

NOTICE: Operating the vehicle immediately after starting could cause engine

10. If the engine does not start, return the key to the OFF position and

Tip: If a warm engine has cooled to a point where it does not readily start, inter-

11. If the engine slows or stops, position the choke knob half way in to

damage. Allow the engine to warm up for several minutes before operating the vehicle.

wait five seconds before attempting to start again. Activate the starter for another five seconds if necessary. Repeat this procedure until the engine starts.

mittent use of the choke (knob pulled half way out) may be necessary. If the engine is over-choked when warm, depress the throttle lever fully while cranking to aid in starting. Release the throttle lever immediately after the engine starts. If the engine does not start and all conditions are favorable, change the spark plug and try again.

allow proper engine warm up. Vary the engine RPM slightly with the throttle to aid in warm-up. When the engine idles smoothly, push the choke completely in.

OPERATION

Driving Procedures

1. Wear a helmet and eye protection. See page 8.

2. Sit upright with both feet on the footrests and both hands on the

handlebars.

3. Start the engine and allow it to warm up.

4. Shift the transmission into gear.

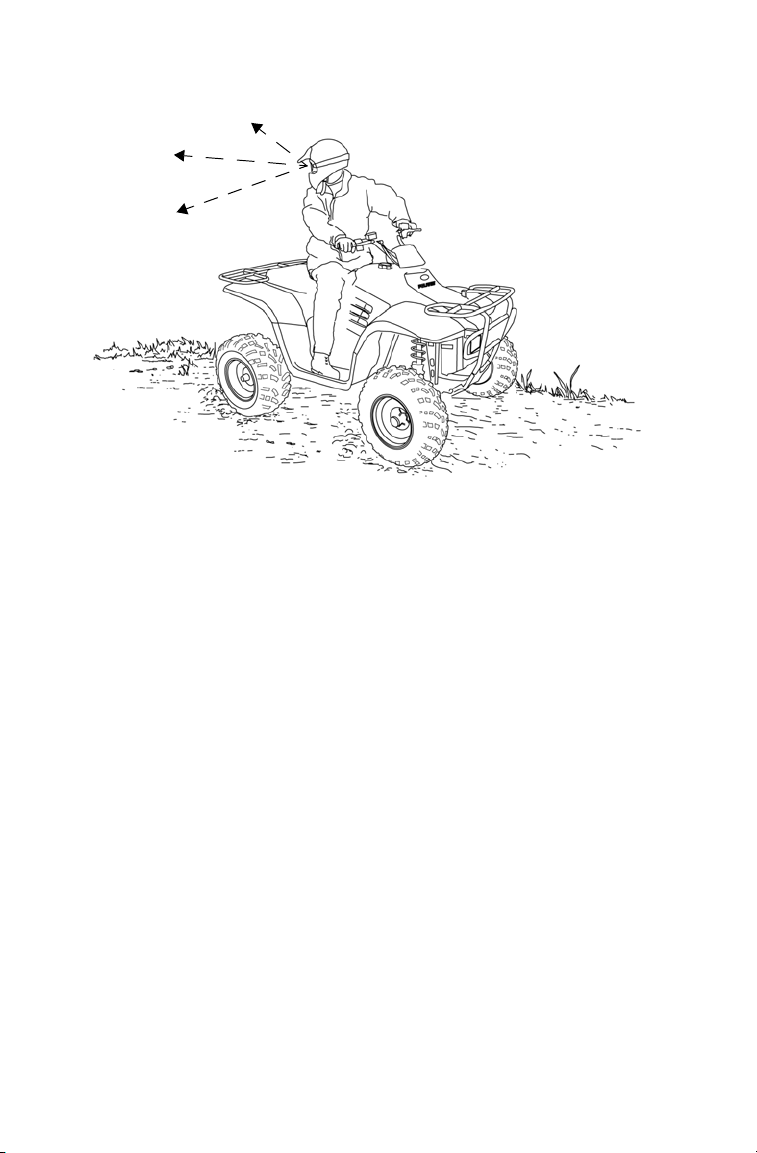

5. Check your surroundings and determine your path of travel.

6. Release the parking brake.

7. Slowly depress the throttle with your right thumb and begin driving.

8. Drive slowly. Practice maneuvering and using the throttle and

brakes on level surfaces.

OPERATION

Turning the Vehicle

Your ATV is equipped with a solid rear axle, which drives both rear wheels equally at all times. This means that the wheel on the outside of the turn must travel a greater distance than the inside wheel when turning and the inside tire must slip traction slightly.

T o turn, steer in the direction of the turn, leaning your upper body to the inside of the turn while supporting your weight on the outer footrest. This technique alters the balance of traction between the rear wheels, allowing the turn to be made smoothly. The same leaning technique should be used for turning in reverse.

Practice making turns at slow speeds before attempting to turn at faster speeds.

WARNING! Turning improperly can result in vehicle overturn. Never turn abruptly or at sharp angles. Never turn at high speeds.

Driving on Slippery Surfaces

Sideways

skid

Tur n in

direction of

skid

OPERATION

Whenever riding on slippery surfaces such as wet trails or loose gravel, or during freezing weather, follow these precautions:

1. Do not operate on excessively rough, slippery or loose terrain.

2. Slow down when entering slippery areas.

3. Engage AWD before wheels begin to lose traction.

NOTICE: Severe damage to drive train may occur if AWD is engaged while the

wheels are spinning. Allow the rear wheels to stop spinning before engaging AWD, or engage AWD before wheels begin to lose traction.

4. Maintain a high level of alertness, reading the trail and avoiding

quick, sharp turns, which can cause skids.

5. Never apply the brakes during a skid. Correct a skid by turning the

handlebars in the direction of the skid and shifting your body weight forward.

OPERATION

25° Maximum

Driving Uphill

Braking and handling are greatly affected when operating in hilly terrain. Improper procedure could cause loss of control or overturn. Whenever traveling uphill, follow these precautions:

1. Drive straight uphill.

2. Avoid steep hills (25° maximum).

3. Always check the terrain carefully before ascending any hill.

4. Never climb hills with excessively slippery or loose surfaces.

5. Keep both feet on the footrests.

6. Shift body weight uphill.

7. Proceed at a steady rate of speed and throttle opening. Opening the

throttle suddenly could cause the ATV to flip over backwards.

8. Remain alert and be prepared to take emergency action. This may

include quick dismounting of the vehicle.

OPERATION

Driving on a Sidehill (Sidehilling)

Driving on a sidehill is not recommended. Improper procedure could cause loss of control or overturn. Avoid crossing the side of any hill unless absolutely necessary.

If crossing a sidehill is unavoidable, follow these precautions:

1. Slow down.

2. Avoid crossing the side of a steep hill.

3. Shift body weight uphill.

4. Keep your feet on the footrests.

5. If the vehicle begins to tip, quickly turn the front wheel downhill, if

possible, or dismount on the uphill side immediately!

OPERATION

Driving Downhill

When driving downhill, follow these precautions:

1. Avoid steep hills (25° maximum).

2. Shift body weight uphill.

3. Drive straight downhill.

4. Slow down. Excessive speed when traveling downhill can cause

loss of control.

5. Squeeze the brake lever gradually. Applying the brakes too firmly

may cause the rear wheels to lock, which could result in loss of control.

OPERATION

8 ft. (2.4 m)

Turning Around on a Hill (K-Turn)

If the vehicle stalls while climbing a hill, never back it down the hill! Use the K-turn to turn around.

1. Stop and lock the parking brake while keeping body weight uphill.

2. Leave the transmission in forward and shut off the engine.

3. Dismount on the uphill side of the vehicle, or on the left if the vehi-

cle is pointing straight uphill.

4. Staying uphill of the vehicle, turn the handlebars full left.

5. While holding the brake lever, release the parking brake lock and

slowly allow the vehicle to roll around to your right until it's pointing across the hill or slightly downward.

6. Lock the parking brake. Remount the vehicle from the uphill side,

keeping body weight uphill.

7. Start the engine with the transmission still in forward.

8. Release the parking brake and proceed slowly , controlling speed

with the brake lever, until the vehicle is on more level ground.

OPERATION

Maximum Depth

Driving Through Water

Your ATV can operate through water with a maximum recommended depth equal to the bottom of the footrests. Follow these procedures when operating

through water:

1. Determine water

depths and current before entering water.

2. Choose a crossing

where both banks have gradual inclines.

3. Avoid operating

through deep or fast-flowing water.

NOTICE: Major engine damage can result if the vehicle is not thoroughly

4. After leaving water, test the brakes. Apply them lightly several

If it’s unavoidable to enter water deeper than the footrest level:

• Proceed slowly. Avoid rocks and obstacles.

• Balance your weight carefully. Avoid sudden movements.

• Maintain a steady rate of speed. Do not make sudden turns or stops. Do not make sudden throttle changes.

inspected after operation in water. Perform the services outlined in the maintenance chart. See page 57. The following areas need special attention: engine oil, transmission oil, front and rear gearcases (if equipped) and all grease fittings

If the vehicle tips or overturns in water, or if the engine stops during or after operating in water, restarting can result in serious engine damage. Transport the vehicle to your dealer for service before restarting the engine. If this is not possible, follow the vehicle immersion inspection and drying procedures outlined on page 85, then see your dealer for service at the first opportunity.

times while driving slowly. The friction will help dry out the pads.

OPERATION

Driving Over Obstacles

Follow these precautions when operating over obstacles:

1. Always check for obstacles before operating in a new area.

2. Look ahead and learn to read the terrain. Be constantly alert for haz-

ards such as logs, rocks and low hanging branches.

3. Travel slowly and use extra caution when operating on unfamiliar

terrain. Not all obstacles are immediately visible.

4. Never attempt to operate over large obstacles, such as rocks or

fallen trees.

OPERATION

Driving in Reverse

Follow these precautions when operating in reverse:

1. Always check for obstacles or people behind the vehicle.

2. Always avoid backing downhill.

3. Back slowly.

4. Apply the brakes lightly for stopping.

5. Avoid turning at sharp angles.

6. Never open the throttle suddenly.

7. Do not use the override switch unless additional wheel speed is

required for vehicle movement. Use the override with caution as rearward vehicle speed is greatly increased. Do not operate at wide open throttle. Operate the throttle just enough to maintain a desired speed.

NOTICE: Excessive throttle operation while in the speed limit mode may cause

fuel to build in the exhaust, resulting in engine popping and/or engine damage.

OPERATION

Parking on an Incline

Avoid parking on an incline if possible. If it's unavoidable, follow these precautions:

1. Stop the engine.

2. Place the transmission in gear.

3. Lock the parking brake.

4. Always block the rear wheels on the downhill side.

5. Turn the fuel valve off.

OPERATION

WARNING

Hauling Cargo

Overloading the vehicle or carrying or towing cargo improperly can alter vehicle handling and may cause loss of control or brake instability, which can result in serious injury or death. Always follow these precautions when hauling cargo:

REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING WHEN HAULING CARGO.

NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When determining the weight you are adding to the vehicle, include the weight of the operator, accessories, loads in the rack or box and the load on the trailer tongue. The combined weight of these items must not exceed the maximum weight capacity.

CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on the rear rack. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions. Carrying loads on only one rack increases the possibility of vehicle overturn.

CARRY LOADS AS LOW ON THE RACKS AS POSSIBLE. Carrying loads high on the racks raises the center of gravity of the vehicle and creates a less stable operating condition.

SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create unstable operating conditions, which could result in loss of control of the vehicle.

OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When handling off-centered loads that cannot be centered, securely fasten the load and operate with extra caution. Always attach the tow load to the hitch point designated for your vehicle.

HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use extreme caution when applying brakes with a loaded vehicle. Avoid terrain or situations that may require backing downhill.

USE EXTREME CAUTION when operating with loads that extend over the rack sides. Stability and maneuverability may be adversely affected, causing the vehicle to overturn.

DO NOT BLOCK THE FRONT HEADLIGHT BEAM when carrying loads on the front rack.

DO NOT TRAVEL FASTER THAN THE RECOMME NDED SPEEDS. Vehicle should never exceed 10 mph (16 kph) while towing a load on a level surface. Vehicle speed should never exceed 5 mph (8 kph) when towing loads in rough terrain, while cornering, or while ascending or descending a hill.

OPERATION

1/3

2/3

Maximum

4" (10 cm)

Hauling Cargo

Never exceed the weight capacities specified for your ATV on warning labels and in the specifications section of this manual.

Cargo weight should be evenly distributed (1/3 on the front rack and 2/3 on the rear rack) and mounted as low as possible. When operating over rough or hilly terrain, reduce speed and cargo weight to maintain stable driving conditions. Do not obstruct the headlight beam with cargo.

Towing Loads

Always attach a towed load to the hitch point. Remove the hitch from the ATV when not towing a trailer. If towing a load, reduce rear rack cargo weight by the amount of tongue weight.

• The combination of rear rack cargo weight and tongue weight must

not exceed the rear rack capacity.

• The total load (operator, accessories, car go an d weight on hitch) must

not exceed the maximum weight capacity of the vehicle.

NOTICE: Using an improper hitch or

exceeding the maximum tongue weight capacity can result in serious damage to the vehicle and will void your ATV warranty. Never install a hitch longer than 4" (10 cm). Never install automotive accessories on your Polaris ATV. Always install Polaris-approved (or equivalent) accessories designed for ATV use.

EMISSION CONTROL SYSTEMS

Noise Emission Control System

Do not modify the engine, intake or exhaust components, as doing so may affect compliance with U.S.A. EPA noise control requirements (40 CFR 205) and local noise level requirements.

Operation on Public Lands in the U.S.A.

Your Polaris vehicle has a spark arrestor that was tested and qualified to be in accordance with the USDA Forest Service Standard 5100-1C. Federal law requires that this spark arrestor be installed and functional when the vehicle is operated on public lands.

Operation of off-road vehicles on public lands in the U.S.A. is regulated by 43 CFR 8343.1(c). Violations are subject to monetary penalties. Federal regulations can be viewed online at www.gpoaccess.gov/ecfr/.

Crankcase Emission Control System

This engine is equipped with a closed crankcase system. Blow-by gases are forced back to the combustion chamber by the intake system. All exhaust gases exit through the exhaust system.

Exhaust Emission Control System

The emissions from the exhaust of this vehicle are controlled by engine design, including factory-set fuel delivery and ignition. The engine and related components must be maintained at Polaris specifications to achieve optimal performance.

Engine idle speed is the only adjustment Polaris recommends that the operator perform. Any other adjustments should be performed by an authorized Polaris dealer.

The vehicle compliance labels can be found on the frame tubing of the vehicle.

Electromagnetic Interference

This spark ignition system complies with Canadian ICES-002. This vehicle complies with the EMC requirements of European direc-

tives 97/24/EC and 2004/108/EC.

MAINTENANCE

Periodic Maintenance Chart

Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspection, adjustment and lubrication of important components are explained in the periodic maintenance chart.

Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, use genuine Polaris parts available from your Polaris dealer.

Record maintenance and service in the Maintenance Log beginning on page 116.

Service and adjustments are important for proper vehicle operation. If you're not familiar with safe service and adjustment procedures, have a qualified dealer perform these operations.

Maintenance intervals in the following chart are based upon average riding conditions and an average vehicle speed of approximately 10 miles per hour (16 km/h). Vehicles subjected to severe use must be inspected and serviced more frequently.

Severe Use Definition

• Frequent immersion in mud, water or sand

• Racing or race-style high RPM use

• Prolonged low speed, heavy load operation

• Extended idle

• Short trip cold weather operation Pay special attention to the oil level. A rise in oil level during cold

weather can indicate contaminants collecting in the oil sump or crankcase. Change oil immediately if the oil level begins to rise. Monitor the oil level, and if it continues to rise, discontinue use and determine the cause or see your dealer.

MAINTENANCE

WARNING

Periodic Maintenance Chart

Improperly performing the procedures marked with a  could result in component failure and cause an accident, which may result in serious injury or death. Always have an authorized Polaris dealer perform these services.

Maintenance Chart Key

X Perform these operations more often for vehicles subjected to

severe use.

E Emission-related service (Failure to conduct this maintenance will

not void the emissions warranty but may affect emissions.)

Q Have an authorized Polaris dealer perform these services.

MAINTENANCE

Periodic Maintenance Chart

Perform all services at whichever maintenance interval is reached first.

Item Maintenance Interval

Steering - Pre-Ride - Make adjustments as need

X Front suspension - Pre-Ride - X Rear suspension - Pre-Ride -

Tires - Pre-Ride -

X Brake fluid level - Pre-Ride - X Brake lever travel - Pre-Ride -

Brake system - Pre-Ride -

Wheels/fasteners - Pre-Ride -

Frame fasteners - Pre-Ride -

X Engine oil level - Pre-Ride - XEAir filter, pre-filter - Daily - Inspect; clean often; replace

X Air box sediment

tube

Headlamp/tail lamp

XEAir filter,

main element

Recoil housing (if applicable)

Brake pad wear 10 H Monthly 100 (160) Inspect periodically

Battery 20 H Monthly 200 (320) Check terminals; clean; test

X Transmission oil 25 H Monthly 250 (400) Inspect level; change yearly XEEngine breather

filter (if equipped)

X General

lubrication

Carburetor float bowl

Throttle Cable/

ETC Switch

Choke cable 50 H 6 M 500 (800) Inspect; adjust; lubricate;

(whichever comes first)

Hours Calendar Miles

- Daily - Drain deposits when visible

- Daily - Check operation; apply

- Weekly - Inspect; replace as needed

- Weekly - Drain water as needed,

25 H Monthly 250 (400) Inspect; clean if needed

50 H 3 M 500 (800) Lubricate all fittings, pivots,

50 H 6 M 500 (800) Drain bowl periodically and

50 H 6 M 500 (800) Inspect; adjust; lubricate;

(Km)

ed. See Pre-Ride Checklist on page 40.

as needed

dielectric grease if replacing

check often if operating in wet conditions

cables, etc.

prior to storage

replace if necessary

Remarks

MAINTENANCE

Periodic Maintenance Chart

Item Maintenance Interval

E Carburetor air

intake ducts/flange

Drive belt 50 H 6 M 500 (800) Inspect; adjust; replace as

X Engine oil change 100 H 6 M 1000 (1600) Perform a break-in oil change

X Oil filter change 100 H 6 M 1000 (1600) Replace with oil change

Valve clearance 100 H 12 M 1000 (1600) Inspect; adjust

Fuel system/filter 100 H 12 M 1000 (1600) Check for leaks at tank cap,

X Engine mounts 100 H 12 M 1000 (1600) Inspect

Exhaust muffler/ pipe

Spark plug 100 H 12 M 1000 (1600) Inspect; replace as needed

Ignition Timing 100 H 12 M 1000 (1600) Inspect

X Wiring 100 H 12 M 1000 (1600) Inspect for wear, routing,

Clutches (drive and driven)

Front wheel bearings

Brake fluid 200 H 24 M 2000 (3200) Change every two years

Spark arrestor 300 H 36 M 3000 (4800) Clean out

Idle speed - Adjust as needed

Toe adjustment - Inspect periodically; adjust

Headlight aim - Adjust as needed

X Perform these procedures more often for vehicles subjected to severe use. E Emission-Related Service

Q Have an authorized Polaris dealer perform these services.

(whichever comes first)

Hours Calendar Miles

50 H 6 M 500 (800 Inspect duct for proper seal-

100 H 12 M 1000 (1600) Inspect

100 H 12 M 1000 (1600) Inspect; clean; replace worn

100 H 12 M 1000 (1600) Inspect; replace as needed

(Km)

ing/air leaks

needed

at 20 hours

lines, fuel valve, filter, pump, carburetor; replace lines every two years

security; apply dielectric grease to connectors subjected to water, mud, etc.

parts

when parts are replaced

Remarks

MAINTENANCE

Swing Arm

Bushings

Ball Joint

Axle

Housing

Lubrication Guide

Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on page 57. Items not listed in the chart should be lubricated at the General Lubrication interval. See page 103 for the part numbers of Polaris products.

The a-arms and lower control arms are lubricated at the factory, and no additional lubrication will be needed. However, if these components are subjected to severe use, grease zerks have been provided for additional lubrication at the user's discretion.

Item Lube Method

Engine Oil PS-4 PLUS Performance

Brake Fluid DOT 4 Only See page 31.

Drive Chain(s) O-ring chain lube or SAE

Transmission Oil AGL Synthetic Gearcase

Ball Joint XPremium All Season

Swing Arm Bushings

Axle Housing

Synthetic 2W-50

80/90

Lube

Grease XPremium All Season

Grease

See page 62.

Lubricate.

See page 64.

Locate fitting on back side of struts and grease with grease gun.

Locate fittings on swing arm and grease with grease gun

MAINTENANCE

{

Safe Range

Dipstick

Engine Oil

Oil Recommendations

Polaris recommends the use of Polaris PS-4 PLUS Performance Synthetic 2W -50 4-cycle oil or a similar oil for thi s engine. Oil may need to be changed more frequently if Polaris oil is not used. Always use 2W-50 oil. Follow the manufacturer's recommendations for ambient temperature operation.

NOTICE: Mixing brands or using a non-recommended oil may cause serious

Oil Specifications

PS-4 PLUS Performance

Synthetic 2W-50 4-Cycle Oil

Oil Level

The oil dipstick is located on the left side of the vehicle.

1. Position the vehicle on a level surface. Place the transmission in

2. Start the engine. Allow it to idle for 30 seconds. Stop the engine.

3. Remove the dipstick. Wipe it dry with a clean cloth.

4. Reinstall the dipstick completely.

5. Remove the dipstick and check the oil level. Add oil as needed.

6. Reinstall the dipstick.

engine damage. Always use the recommended oil. Never substitute or mix oil brands.

Lubricant Capacity Drain Plug Torque

1.9 qts. (1.8 l) (with oil cooler)

1.7 qts. (1.6 l) (oil change only)

14 ft. lbs. (19 Nm)

neutral. Lock the parking brake.

Maintain the oil level in the safe range. Do not overfill.

MAINTENANCE

Oil and Filter Change

Always change the oil and filter at the intervals outlined in the Periodic Maintenance Chart beginning on page 57. Always change the oil filter whenever changing oil.

1. Position the vehicle on a level surface. Place the transmission in

neutral. Lock the parking brake.

2. Clean the area around the drain plug.

3. Start the engine. Allow it to idle for two to three minutes. Stop the

engine.

4. Place a drain pan under the engine crankcase. Remove the drain

plug. Allow the oil to drain completely.

CAUTION! Hot oil can cause burns to skin. Do not allow hot oil to contact skin.

5. Reinstall the drain plug with a new sealing washer. Torque to speci-

fication. See page 62.

Tip: The sealing surfaces on the drain plug and crankcase should be clean and

free of burrs, nicks or scratches.

6. Place towels under the oil filter. Using an oil filter wrench, turn the

filter counterclockwise to remove it.

7. Using a clean, dry cloth, clean the filter sealing surface on the

crankcase.

8. Lubricate the gasket on the new filter with a film of new engine oil.

Check to make sure the gasket is in good condition.

9. Install the new filter and turn by hand until the filter gasket contacts

the sealing surface, then turn an additional 1/2 turn.

10. Remove the dipstick and fill the sump with 1.7 quarts (1.6 l) of the

recommended oil (see page 62). Reinstall the dipstick.

11. Start the engine and allow it to idle for one to two minutes. Stop the

engine and inspect for leaks.

12. Recheck the oil level and add oil as necessary to bring the level to

the upper mark on the dipstick.

13. Discard used oil and filter properly.

MAINTENANCE

Dipstick

Transmission Oil

Always check and change the transmission oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 57. Polaris recommends the use of Polaris Premium AGL Synthetic Gearcase Lube. See page 103 for the part numbers of Polaris products.

Transmission Oil Recommendations

Gearcase Lubricant Capacity Drain Plug

Transmission Premium AGL Synthetic

Gearcase Lubricant

11.3 oz.

(335 ml)

To r q u e

14 ft. lbs.

(19 Nm)

Oil Check

The dipstick is located on the right side of the vehicle near the recoil handle.

1. Position the vehicle on a level

surface.

2. Remove the dipstick. Wipe it

dry with a clean cloth.

3. Reinstall the dipstick com-

pletely.

4. Remove the dipstick and check

the fluid level. Add fluid as needed. Maintain the fluid level in the safe range. Do not overfill.

5. Reinstall the dipstick.

MAINTENANCE

Jam

Nut

Drain Plug

Adjuster

Bolt

Transmission Oil

Oil Change

1. Position the vehicle on a level

surface.

2. Place a drain pan beneath the

transmission oil drain plug area.

3. Loosen the jam nut.

4. Turn the adjuster bolt in to allow

the removal of the drain plug.

5. Remove the drain plug and wipe

the magnetic end clean to remove accumulated metallic filings.

6. Allow the oil to drain com-

pletely.

7. Reinstall the drain plug with a

new sealing washer. Torque to specification.

8. Turn the adjuster bolt out until it

touches the frame, and then turn an additional 1/2 turn.

9. Tighten the jam nut securely while holding the adjuster bolt.

10. Add the recommended lubricant through the dipstick hole until the

oil level is between the upper and lower limits. Do not overfill.

11. Reinstall the dipstick.

12. Check for leaks.

MAINTENANCE

1 mm

Brakes

The front and rear brakes are hydraulic disc brakes, activated by moving the single brake lever toward the handlebar. The auxiliary foot brake is also hydraulic. Both brake systems are self-adjusting.

Brake Inspections

The following checks are recommended to keep the brake system in good operating condition. Check more often if brakes are used heavily under normal operation.

1. Always keep brake fluid at an

adequate level. See page 31.

2. Check the brake system for fluid

leaks.

3. Check the brakes for excessive

travel or spongy feel.

4. Check the friction pads for wear,

damage and looseness. Replace the pads when the friction material is worn to 1 mm.

5. Check the security and surface

condition of the disc.

MAINTENANCE

Step 3

Step 2

Step 4

Side Panel Removal

Tip: Side panel removal may be difficult until the locking tabs and receivers have

been snapped and unsnapped a few times.

1. Remove the seat.

2. Grasp the rear of the side

panel near the rear cab. With a quick and firm motion, pull the panel forward and outward to disengage the two rear tabs.

3. Place your hand on top of

the side panel behind the fuel tank. With a quick and firm motion, push down on the side panel to disengage the top rear two tabs. Then pull up on the side panel to disengage the front upper and lower tabs.

4. To reinstall the side panel,

align the panel tabs with the slots on the front cab. Push the panel upward and forward until the tabs lock. Bend the rear of the side panel and insert the two tabs into the rear cab.

MAINTENANCE

Toe Alignment

Use the following procedure to check the toe alignment of the vehicle. The recommended toe alignment is 1/8" to 1/4" (3-6 mm) toe out.

WARNING! Severe injury or death can result from improper to e alignment and adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments should be performed by an authorized Polaris dealer.

1. Position the vehicle on a level surface.

2. Set the handlebars in a straight-ahead position and secure them in

this position.

3. Place a chalk mark on the

center line of the front tires approximately 10" (25.4 cm) from the floor, or as close to the hub/axle center line as possible. Make sure both marks are the same distance from the floor.

4. Measure the distance

between the marks and record the measurement (1).

5. Move the vehicle until the

chalk marks are at the rear of the tires, even with the hub/axle center line.

6. Measure the distance between the marks and record the

measurement (2).

7. Subtract measurement 2 from measurement 1. The difference is the

vehicle toe-out alignment.

8. If you discover improper alignment, see your Polaris dealer for ser-

vice.

Throttle Cable Freeplay

Lock Nut

Adjuster

Boot

Adjust throttle cable freeplay at the handlebar .

1. Locate the throttle cable

adjuster at the handlebar.

2. Squeeze the end of the rub-

ber boot and slide it far enough to expose the end of the inline cable adjuster.

3. Loosen the adjuster lock nut.

4. Rotate the boot to turn the

adjuster until 1/16" to 1/8" (1.5-3 mm) of freeplay is achieved at the thumb lever. While adjusting freeplay, be sure to flip the throttle lever back and forth.

5. Tighten the lock nut.

6. Squeeze the end of the rub-

ber boot and slide it over the cable adjuster to its original position.

MAINTENANCE

Steering Assembly

The steering assembly of the ATV should be che cked periodically for loose nuts and bolts. If loose nuts and bolts are found, see your Polaris dealer for service before operating the vehicle.

MAINTENANCE

Adjuster

Handlebar Bolts

Camber and Caster

The camber and caster are non-adjustable.

Rear Spring

The rear shock absorber spring is adjusted by rotating the adjuster either clockwise or counterclockwise to increase or decrease spring tension.

Accessory springs are available through your Polaris dealer.

Handlebars

The handlebars can be adjusted for rider preference.

WARNING! Improper adjustme nt of the handlebars or incorrect torquing of the adjuster block tightening bolts can cause limited steering or loosening of the handlebars, resulting in loss of control and serious injury or death. Follow the adjustment procedures exactly, or see your Polaris dealer for service.

1. Remove the handlebar cover to

access the handlebar bolts.

2. Loosen the four handlebar bolts.

3. Adjust the handlebar to the

desired height.

4. Be sure the handlebars do not

contact the gas tank or any other part of the machine when turned fully to the left or right.

5. Torque the front two bolts to 10-12 ft. lbs. (14-17 Nm), then torque

the rear two bolts. A gap of up to 1/8" (3 mm) will remain at the rear bolts.

MAINTENANCE

WARNING

1/8" (3 mm)

Tires

Operating your ATV with worn tires, improperly inflated tires, non-standard tires or improperly installed tires will affect vehicle handling and could cause an accident resulting in serious injury or death. Always follow all tire maintenance procedures as outlined in this manual and on the labels on the vehicle. Always use original equipment size and type when replacing tires.

Refer to the specifications section beginning on page 108 for recommended tire type, size and pressure.

Tire Tread Depth

Always replace tires when tread depth is worn to 1/8" (3 mm) or less.

Front Wheel Hub Tightening

Front wheel bearing tightness and spindle nut retention are critical component operations. All service must be performed by your authorized Polaris dealer.

MAINTENANCE

Tires

Wheel Removal

1. Position the vehicle on a level surface. Place the transmission in

gear. Lock the parking brake.

2. Loosen the wheel nuts slightly.

WARNING! Do not service axle nuts that have a cotter pin installed. See your Polaris dealer.

3. Place a suitable stand under the

footrest frame to raise the wheel slightly off the ground.

4. Remove the wheel nuts.

5. Remove the wheel.

Wheel Installation

1. Place the wheel on the wheel hub

with the valve stem toward the outside and the rotation arrows on the tire pointing toward forward rotation.

2. Install the wheel nuts finger tight.

On vehicles with tapered rear wheel nuts, make sure the tapered ends of the nuts fit into the tapers on the wheels.

3. Lower the vehicle to the ground.

4. Torque the wheel nuts to

specification (page 73).

WARNING! Loose nuts could cause a tire to come off during operation, which could result in an accident or overturn. Always ensure that all nuts are torqued to specification.

MAINTENANCE

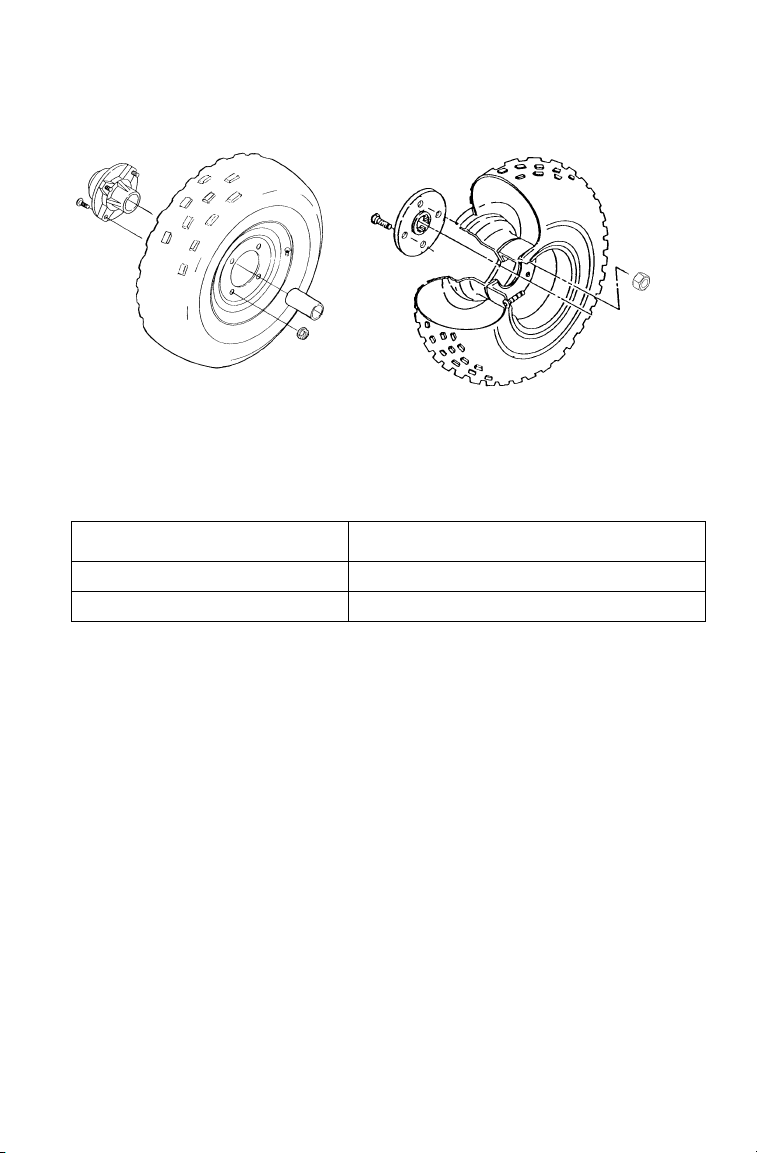

Rear

50 ft. lbs.

(68 Nm)

Front

27 ft. lbs.

(37 Nm)

Tires

Wheel Nut Torque Specifications

Check the wheel nut torques occasionally and when they've been loosened for service.

Item Torque Specification

Front Wheel Nuts 27 ft. lbs. (37 Nm)

Rear Wheel Nuts 50 ft. lbs. (68 Nm)

MAINTENANCE

Pre-Filter

Main Filter

Air Filter

1. Position the vehicle on a level surface. Place the transmission in

gear. Lock the parking brake.

2. Remove the seat.

3. Release the air box cover clips,

and remove the air box cover.

4. Loosen the clamp and remove

the filter.

5. Remove the pre-filter from the

main filter.

6. Wash the pre-filter in soapy

water, then rinse and let dry.

7. Reinstall the pre-filter over the

main filter. Replace the main filter if needed.

8. Reinstall the air filter into the

air box. Tight en the clamp, but do not over-tighten as filter damage could occur.

9. Reinstall the air box cover and the seat.

MAINTENANCE

Recoil Housing

Always drain the recoil housing after operating the vehicle in wet conditions. Drain the housing before storing the vehicle. Make sure the housing is completely dry before reinstalling the drain plug.

Water will enter the recoil housing if the starter handle is disengaged from the rope guide when under water.

1. Place the transmission in gear.

2. Lock the parking brake.

3. Stop the engine.

4. Remove the drain screw on the

bottom of the recoil housing.

5. Reinstall the drain screw.

Tip: Do not open the crankcase drain

unless the engine has ingested water. On 4-cycle engines, some engine oil will be lost if the crankcase drain is opened.

MAINTENANCE

Idle

Adjuster

Carburetor

Your Polaris ATV is calibrated at the factory for optimal performance at altitudes ranging from zero to 6,000 feet (1800 m) and temperatures of +40 degrees F. (4 degrees C.) or higher. Above 6000 feet (1800 m) the engine air/fuel mixture becomes overly rich and the engine loses approximately 3% of its power for each 1000-foot (304.8 m) increase in elevation. Although this power cannot be regained, adjustments to the carburetor and drive system can be made to allow more efficient operation. Optional jets, available from your Polaris dealer, are required for operation above 6,000 feet and temperatures below +40 degrees F. (4 degrees C.)

Tip: Continuous operation of the engine without proper jetting when required

can cause poor performance, overheating or PVT or engine damage. See your Polaris dealer for more information about jetting the ATV for conditions in your area.

Carburetor/Engine Idle RPM Adjustment

If the engine idle speed is not satisfactory, and all other conditions are favorable, the carburetor can be adjusted.

1. Place the transmission in gear. Lock

the parking brake.

2. Start the engine and allow it to warm

up for approximately five minutes.

3. Turn the screw in (clockwise) to

raise RPM. Turn the screw out (counterclockwise) to lower RPM.

MAINTENANCE

Drive Chain

Drive Chain Lubrication

Polaris ATV drive chains are equipped with o-ring-sealed, permanently greased pins and rollers. However, the outer surfaces of the roller must be lubricated.

Always inspect the drive chain prior to operating the vehicle. Check for damaged or missing o-rings or damaged rollers. Also check for correct slack adjustment. Maintain the stone guard to rear sprocket clearance at 1/8” (3 mm).

Regularly lubricate the drive chain with Polaris Chain Lube, an SAE 8090 lube or an approved o-ring chain spray lube. See page 103 for the part numbers of Polaris products.

NOTICE: Washing the drive chain with a high pressure washer or gasoline can

cause damage to the o-rings, causing premature wear and drive chain failure. Do not use a high pressure washer or gasoline to clean the drive chain.

MAINTENANCE

3/16"-3/8" (5 mm - 10 mm)

Locking Bolts

Pin Punch

Drive Chain

Rear Drive Chain Slack

Check the amount of chain slack in three different locations by moving the vehicle slightly forward to gain slack at the top side of the rear chain. Measure the chain slack at the tightest of the three positions. At this point the chain should have 3/16"-3/8" (5 mm - 10 mm) deflection.

NOTICE: Adjusting or operating the ATV with improper rear drive chain slack

Use the following procedure if adjustment is required.

1. Remove the chain guard (if

2. Loosen the chain guide.

3. Loosen the two eccentric

4. Loosen the caliper mounting

5. Insert a pin punch through

can result in severe damage to the transmission and drive components. Always make sure the slack is within the stated specifications.

equipped).

locking bolts.

bolt located on the left side of the swing arm.

the sprocket hub and into the eccentric housing.

MAINTENANCE

Clip

Position

Drive Chain

Rear Drive Chain Slack

6. Roll the ATV forward or backward

to adjust the chain slack to the proper tension. See the illustration for proper splice link clip opening position.

7. Tighten the eccentric locking bolts

to 30 ft. lbs. (41 Nm) for machines without the hitch and 45 ft. lbs. (61 Nm) for machines with a hitch.

8. Tighten the caliper mount bolt to 15

ft. lbs. (20 Nm)

9. Remove the pin punch.

10. Roll the ATV forward, checking chain tension in several places

around the chain.

Tip: The chain is adjusted correctly when the tightest portion of the chain has

approximately 3/8" (10mm) deflection.

11. Position the chain guide to allow 1/8" (3 mm) clearance and tighten

the retaining bolt to 5 ft. lbs. (7 Nm).

12. Reinstall the chain guard (if equipped).

MAINTENANCE

25 ft.

(7.6 m)

2" (5 cm)

Lights

Headlight Beam Adjustment

The headlight beam can be adjusted slightly upward or downward. Use the following procedure to make the adjustment.

1. Position the vehicle on a level surface with the headlight approxi-

mately 25 ft. (7.6 m) from a wall.

2. Place the transmission in neutral.

3. Lock the parking brake.

4. Measure the distance from the floor to the center of the headlight

and make a mark on the wall at the same height. Include rider weight on the seat when measuring.

5. Start the engine. Turn the headlight switch to high beam.

6. Observe the headlight aim on the wall. The most intense part of the

headlight beam should be two inches (5 cm) below the mark on the wall.

7. Loosen the pivot bolt and adjust the beam to the desired position.

8. Tighten the bolt and torque to 60 in. lbs. (7 Nm).

MAINTENANCE

Lights

Poor lighting can result in reduced visibility when driving. Headlight and taillight lenses become dirty during normal operation. Clean lights frequently and replace burned out lamps promptly. Always make sure lights are adjusted properly for best visibility.

Headlamp Replacement

When servicing a halogen lamp, don't touch the lamp with bare fingers. Oil from your skin leaves a residue, causing a hot spot that will shorten the life of the lamp.

1. Remove the wire harness connector from the back of the headlight.

CAUTION! Hot components can cause burns to skin. Allow lamps to cool before servicing.

2. Grasp the bulb housing and turn it counterclockwise to remove the bulb.

3. Apply dielectric grease to the light bulb socket before installing the new bulb. Install the replacement bulb into the headlight housing and rotate clockwise firmly .

Tip: The bulb must be positioned so the harness installs into the lamp at the bot-

tom.

4. Reinstall the connector to the back of the headlight.

MAINTENANCE

Lamp

Lights

Taillight/Brakelight Lamp Replacement

1. Remove the taillight lens cover mounting screws. Remove the lens cover and gasket and set aside for reassembly.

2. Remove the lamp.

3. Apply dielectric grease to the

socket and install the new lamp.

4. Test the taillight/brake light for

proper operation.

5. Reinstall the gasket and lens cover.

Indicator Lamp Replacement

1. Remove the instrument panel or front cover, if necessary, to access the back of the indicator panel.

2. Using a small, straight-blade screwdriver, turn the base of the bulb

1/4 turn counterclockwise.

3. Using a needle-nose pliers or similar tool, pull the lamp out of the

indicator panel housing.

4. Insert the new bulb and seat it by turning it 1/4 turn clockwise.

5. Reinstall the instrument panel or front cover.

MAINTENANCE

Spark Plugs

Spark Plug Recommendations

Refer to the specifications section beginning on page 108 for the recommended spark plug type and gap for your vehicle. Torque spark plugs to specification.

NOTICE: Using non-recommended spark plugs can result in serious engine

Spark Plug Inspection

Spark plug condition is indicative of engine operation. Check the spark plug firing end condition after the engine has been warmed up and the vehicle has been driven at higher speeds. Immediately check the spark plug for correct color . See page 84.

CAUTION! A hot exhaust system and engine can cause burns. Wear protective gloves when removing a spark plug for inspection.

1. Rotate the spark plug cap.

2. Using the special wrench provided in the tool pouch, rotate the

3. Inspect the electrodes for wear

4. Reverse the procedure for spark

damage. Always use Polaris-recommended spark plugs.

Plug Condition Torque Specification

New Spark Plug 9-11 ft. lbs. (12-15 Nm)

Previously Installed Spark Plug 17-20 ft. lbs. (23-27 Nm)

spark plug counterclockwise to remove it.

and carbon buildup. Replace worn or fouled plugs. Verify that the gap is at specification before installation.

plug installation. Torque to specification.

MAINTENANCE

Spark Plugs

Spark Plug Condition

Normal Spark Plug

The normal insulator tip is gray, tan or light brown. There will be few combustion deposits. The electrodes are not burned or eroded. This indicates the proper type and heat range for the engine and the service.

The tip should not be flaky and white. A white insulator tip indicates overheating, caused by use of an improper spark plug or incorrect carburetion adjustments.

Wet Fouled Spark Plug

The wet fouled insulator tip is black. A damp oil film covers the firing end. There may be a carbon layer over the entire nose. Generally, the electrodes are not worn. General causes of fouling are excessive oil, use of non-recommended oil, improper use of the choke, or incorrect throttle body/carburetor adjustments.

MAINTENANCE

Drain Screw

Vehicle Immersion

If your vehicle becomes immersed, major engine damage ca n result if the machine is not thoroughly inspected. Take the vehicle to your dealer before starting the engine.

If it's impossible to take your ATV to a dealer before starting it, follow the steps outlined below.

1. Move the vehicle out of the water.

2. Turn the fuel valve off.

3. Check the air box. If water is

present, dry the air box and replace the filter with a new filter.

4. Remove the spark plug.

5. Loosen the carburetor drain screw

and drain the carburetor.

6. Turn the engine over several times

using the electric start.

7. Dry the spark plug. Reinstall the plug

or install a new plug.

8. Tighten the carburetor drain screw.

9. Turn the fuel valve on.

10. Attempt to start the engine. If neces-

sary, repeat the drying procedure.

11. Take the ATV to your dealer for ser-

vice as soon as possible, whether you succeed in starting it or not.

12. If water has been ingested into the PVT, follow the procedure on

page 89 for drying out the PVT.

MAINTENANCE

WARNING

Exhaust

Outlet

Clean-Out Plug

Spark Arrestor

Failure to heed the following warnings while servicing the spark arrestor could result in serious injury or death. Never run the engine in an enclosed area. Remove any combustible materials from the area. Wear eye protection and leather work gloves. Do not stand behind or in front of the vehicle while purging. Never go under the vehicle while it's inclined.

The exhaust system can get extremely hot. Do not perform service on the spark arrestor while the system is hot. Allow components to cool sufficiently before proceeding.

Use the following procedure to periodically purge accumulated carbon from the exhaust pipe/muffler.

1. Position the vehicle on a level surface.

2. Place the transmission in

neutral.

3. Lock the parking brake.

4. Remove the arrestor

clean-out plug from the bottom of the muffler.

5. Start the engine.

6. Quickly squeeze and release the throttle lever several times to purge

carbon from the system.

7. If carbon comes out of the exhaust, cover or plug the exhaust outlet.

Wear protective gloves.

8. Lightly tap on the exhaust pipe with a rubber mallet while repeating

step 6.

9. If particles are still suspected to be in the muffler , elev ate the rear of

the vehicle one foot (30 cm) higher than the front. Block the wheels.

10. Place the transmission in neutral. Lock the parking brake. Repeat

steps 6 to 8 until no more particles are expelled.

11. Stop the engine. Allow the arrestor to cool.

12. Reinstall the arrestor plug and remove the exhaust outlet cover or

plug.

MAINTENANCE

WARNING

PVT System

Failure to comply with the instructions in this warning can result in severe injury or death.

Do not modify any component of the PVT system. Doing so may reduce its strength so that a failure may occur at a high speed. The PVT system has been precision balanced. Any modification will cause the system to be out of balance, creating vibration and additional loads on components.

The PVT system rotates at high speeds, creating large amounts of force on clutch components. Extensive engineering and testing has been conducted to ensure the safety of this product. However, as the owner, you have the following responsibilities to make sure this system remains safe:

• Always follow all recommended maintenance procedures. See your dealer as outlined in the owner's manual.

• This PVT system is intended for use on Polaris products only. Do not install it in any other product.

• Always make sure the PVT housing is securely in place during operation.

MAINTENANCE

PVT System

The basic operation of the Polaris PVT system is dependent on engine speed and vehicle torque requirements. As engine speed increases, the force exerted on the movable drive sheave by the flyweights also increases. This, in turn, increases the amount of pinch applied to the drive belt. Similarly, if the engine speed decreases, the amount of centrifugal force decreases, reducing the amount of belt pinch. This begins to occur at speeds of less than 5 MPH (8 km/h), due to the system's dependence on engine speed.

For example, when operating at a ground speed of 3 MPH (5 km/h), the engine would be running at only about 1500 RPM, with an engagement speed of about 1400 RPM. Whenever operating this close to the engagement speed, the engine may be running at a speed too low to provide the pinch needed to prevent belt slip. Belt slip is responsible for creating the excessive heat that destroys belts, wears clutch components and causes outer clutch covers to fail.

If the ATV will be operated for extended periods below 5 MPH (8 km/ h), or for towing loads, we recommend that you install a one tooth smaller counter shaft sprocket to raise the operating RPM far enough above the engagement RPM to reduce heat caused by incomplete engagement. Reducing the temperature inside the clutch cover greatly extends the life of the PVT components (belt, cover, etc.).

Tip: Avoid heavy pulling and extended low-speed operation.

MAINTENANCE

PVT System

PVT Drying

There may be some instances when water is accidently ingested into the PVT system. Use the following instructions to dry it out before operating.

1. Move the vehicle out of the water.

2. Remove the PVT drain plug. Allow the water to drain completely.

Reinstall the drain plug.

3. Start the engine. Place the transmission in neutral.

4. Apply varying throttle for 10-15 seconds to expel the moisture and

air-dry the belt and clutches. Do not hold the throttle wide open for

more than 10 seconds.

5. Allow the engine RPM to settle to idle speed, then shift the trans-

mission into forward gear.

6. Test for belt slippage. If the belt slips, repeat the process.

7. Take the vehicle to your dealer for service as soon as possible.

MAINTENANCE

WARNING

Battery

Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last.

Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing.

Antidote:

External: Flush with water. Internal: Drink large quantities of water or milk. Follow with milk of magnesia,

beaten egg, or vegetable oil. Call physician immediately. Eyes: Flush with water for 15 minutes and get prompt medical attention. Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away.

Ventilate when charging or using in an enclosed space. Always shield eyes when working near batteries. KEEP OUT OF REACH OF CHILDREN.

Your ATV may have either a sealed battery, which requires little maintenance, or a conventional battery. A sealed battery can be identified by its flat covers on the top of the battery. A conventional battery has six filler caps on the top of the battery.

Always keep battery terminals and connections free of corrosion. If cleaning is necessary, remove corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the terminals with dielectric grease or petroleum jelly. Be careful not to allow cleaning solution or tap water into a conventional battery.

MAINTENANCE

Battery

Battery Removal

1. Place the transmission in gear.

2. Lock the parking brake.

3. Disconnect the battery hold-down strap.

4. Remove the battery cover.

5. On conventional batteries, remove the battery vent tube.

6. Disconnect the black (negative) battery cable first.

7. Disconnect the red (positive) battery cable last.

8. Lift the battery out of the ATV. Be careful not to tip a conventional

battery sideways, which could spill electrolyte.

NOTICE: If electrolyte spills, immediately wash it off with a solution of one

tablespoon baking soda and one cup water to prevent damage to the vehicle.

MAINTENANCE

Battery

Battery Installation

Using a new battery that has not been fully charged can damage the battery and result in a shorter life. It can also hinder vehicle performance. Follow the battery charging instructions on page 94 before installing the battery.

1. Ensure that the battery is fully charged.

2. Place the battery in the battery holder.

3. With conventional batteries, install the battery vent t ube (sealed batteries do not have a vent tube). The vent tube must be free of obstructions and securely installed. Route the tube away from the frame and vehicle body to prevent contact with electrolyte.

WARNING! Battery gases could accumulate in an improperly installed vent tube and cause an explosion, resulting in serious injury or death. Always ensure that the vent tube is free of obstructions and is securely installed as recommended.

4. On conventional batteries, coat the terminals with dielectric grease or petroleum jelly.

5. Connect and tighten the red (positive) cable first.

6. Connect and tighten the black (negative) cable last.

7. Install the battery cover.

8. Secure the battery hold-down strap.

9. Verify that cables are properly routed. Cables should be safely tucked away at the front and rear of the battery.

MAINTENANCE

Lower

Mark

Upper

Mark

Battery

Battery Storage

Whenever the vehicle is not used for a period of three months or more, remove the battery from the vehicle, ensure that it's fully charged, and store it out of the sun in a cool, dry place. Check battery voltage each month during storage and recharge as needed to maintain a full charge.

Tip: Power plug leads may need to be bent down so that the battery cover can

be installed.

Polaris recommends maintaining battery charge by using a Polaris Battery Te nder charger or by charging about once a month to make up for normal self-discharge. Battery Tender can be left connected during the storage period, and will automatically charge the battery if the voltage drops below a pre-determined point. See page 103 for the part numbers of Polaris products.

Battery Fluid (Conventional Battery)

A poorly maintained battery will deteriorate rapidly . Check the battery fluid level often. Maintain the fluid level between the upper and lower level marks.

Add only distilled water. Tap water contains minerals that are harmful to a battery.

MAINTENANCE

Battery

Battery Charging (Conventional Battery)

1. Remove the battery from the vehicle to prevent damage from leak-

ing or spilled electrolyte during charging. See page 91.

2. Charge the battery with a charging output no larger than 1/10 of the battery’s amp/hr rating. Charge as needed to raise the specific gravity to 1.270 or greater.

3. Reinstall the battery . See page 92. Make sure the positive terminal is toward the front of the vehicle.

Battery Charging (Sealed Battery)

The following battery charging instructions apply only to the installation of a sealed battery . Read all instru ctions before proceed ing with the installation of this battery.

The sealed battery is already filled with electrolyte and has been sealed and fully charged at the factory. Never pry the sealing strip off or add any other fluid to this battery.

The single most important thing about maintaining a sealed battery is to keep it fully charged. Since the battery is sealed and the sealing strip cannot be removed, you must use a voltmeter or multimeter to measure DC voltage.

WARNING! An overheated battery may explode, causing severe injury or death. Always watch charging times carefully. Stop charging if the battery becomes very warm to the touch. Allow it to cool before resuming charging.

For a refresh charge, follow all instructions carefully.

1. Check the battery voltage with a voltmeter or multimeter. A fully

charged battery will register 12.8 V or higher.

2. If the voltage is less than 12.8 volts, recharge the battery at 1.2 amps or less until battery voltage is 12.8 or greater.

3. When using an automatic charger, refer to the charger manufacturer's instructions for recharging. When using a constant current charger, use the following guidelines for recharging.

MAINTENANCE

Battery

Battery Charging (Sealed Battery)

Always verify battery condition before and 1-2 hours after the end of charging.

State of

Charge

100% 12.8-13.0 volts None, check at 3

75%-100% 12.5-12.8 volts May need slight

50%-75% 12.0-12.5 volts Needs charge 5-11 hours 25%-50% 11.5-12.0 volts Needs charge At least 13 hours,

0%-25% 11.5 volts or less Needs charge with

Voltage Action

mos. from date of

manufacture

charge, if no

charge given,

check in 3 months

desulfating charger

Charge Time

(Using constant current

charger @ standard amps

specified on top of battery)

None required

3-6 hours

verify state of charge

At least 20 hours

MAINTENANCE

Cleaning and Storage

Washing the Vehicle

Keeping your Polaris vehicle clean will not only improve its appearance but it can also extend the life of various components.

NOTICE: High water pressure may damage components. Polaris recommends

The best and safest way to clean your Polaris vehicle is with a garden hose and a pail of mild soap and water.

1. Use a professional-type washing cloth, cleaning the upper body first

2. Rinse with clean water frequently.

3. Dry surfaces with a chamois to prevent wate r spo ts.

Washing Tips

• Avoid the use of harsh cleaners, which can scratch the finish.

• Do not use a power washer to clean the vehicle.

• Do not use medium to heavy duty compounds on the finish.

• Always use clean cloths and pads for cleaning and polishing. Old or

reused cloths and pads may contain dirt particles that will scratch the finish.

washing the vehicle by hand or with a garden hose, using mild soap. Certain products, including insect repellents and chemicals, will

damage plastic surfaces. Do not allow these types of products to contact the vehicle.

and the lower parts last.

MAINTENANCE

Cleaning and Storage

Washing the Vehicle

If a high pressure water system is used for cleaning (not recommended), exercise extreme caution. The water may damage components and could remove paint and decals. A void directing the water stream at the following items:

• Wheel bearings • Electrical components/wiring

• Radiator (if equipped) • Switches and controls

• Transmission seals • Cab and body panels

• Brakes • Labels and decals

If an informational or graphic label becomes illegible or comes off, contact your Polaris dealer to purchase a replacement. Replacement safety labels are provided by Polaris at no charge.

Grease all zerk fittings immediately after washing. Allow the engine to run for a while to evaporate any water that may have entered the engine or exhaust system.

Polishing the Vehicle

Polaris recommends the use of common household aerosol furniture polish for polishing the finish on your Polaris vehicle. Follow the instructions on the container.

Polishing Tips

• Avoid the use of automotive products, some of which can scratch the finish of your vehicle.

• Always use clean cloths and pads for cleaning and polishing. Old or reused cloths and pads may contain dirt particles that will scratch the finish.

Polaris Trail Boss 9921784 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
