WARNING

The engine exhaust from this

product contains chemicals known

to cause cancer, birth defects or

other reproductive harm.

A card containing important ATV safety information should be attached to the owner’s manual on the next page. If you cannot locate this card, or if it has been removed, please call 1-800-342-3764 for assistance.

We’ve created a Web site just for you!

S Technical tips

S New product introductions

S Event schedules

S Parts and Service Manual information

S Exciting details about The Way Out

Check it out...

www.polarisindustries.com/owner

Copyright 2003 Polaris Sales Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information presented in this publication. Depictions and/or procedures in this publication are intended for reference use only. No liability can be accepted for omissions or inaccuracies. Any reprinting or reuse of the depictions and/or procedures contained within, whether whole or in part, is expressly prohibited. Printed in U.S.A.

WELCOME

Thank you for purchasing a Polaris vehicle, and welcome to our world-wide family of Polaris owners. We proudly produce an exciting line of utility and recreational products.

Polaris Recreational and Utility Vehicles

S Snowmobiles S All-terrain vehicles (ATVs) S Wa tercraft S Victory motorcycles S RANGER utility vehicles

Polaris Professional Series Workmobilest

S Utility Task Vehiclest (UTVs) S Personal Task Vehiclest (PTVs) S All-Surface Loaders (ASLs)

We believe Polaris sets a standard of excellence for all utility and recreational vehicles manufactured in the world today. Many years of experience have gone into the engineering, design, and development of your Polaris vehicle, making it the finest machine we’ve ever produced.

For safe and enjoyable operation of your vehicle, be sure to follow the instructions and recommendations in this owner’s manual. Your manual contains instructions for minor maintenance, but information about major repairs is outlined in the Polaris Service Manual and should be performed only by a F actory Certified Master Service Dealer (MSD) Technician.

Your Polaris dealer knows your vehicle best and is interested in your total satisfaction. Be sure to return to your dealership for all of your service needs during, and after, the warranty period.

We also take great pride in our Parts Apparel and Accessories (PAA) products, available through our online store at www.purepolaris.com. Have your accessories and clothing delivered right to your door!

Polaris, Polaris The Way Out, and Workmobiles are registered trademarks of Polaris Industries Inc.

LOCTITE is a registered trademark of LOCTITE Corporation.

TABLE OF CONTENTS

WELCOME 3.................................

VEHICLE IDENTIFICATION NUMBERS 6........

SAFETY 7...................................

FEATURES A ND CONTROLS 36...............

OPERATION 46..............................

EMISSION CONTROL SYSTEMS 63............

MAINTENANCE AND LUBRICATION 64.........

SPECIFICATIONS 105........................

POLARIS PRODUCTS 108.....................

TROUBLESHOOTING 109.....................

WARRANTY 113..............................

INDEX 116...................................

VEHICLE IDENTIFICATION NUMBERS

The vehicle frame vehicle identification number (VIN)(1) and engine serial number are important for model identification when registering your vehicle, when obtaining insurance, and when ordering replacement parts. If your vehicle is stolen, these numbers are essential to the recovery and identification of your vehicle.

Remove the spare key and store it in a safe place. Your key can be duplicated only by mating a Polaris key blank with one of your existing keys. If both keys are lost, the ignition switch must be replaced. See your Polaris dealer.

NOTE: Record your vehicle’s ID numbers and key number (2) in the spaces provided.

31XX

Frame VIN:

Vehicle Model Number:

Engine Serial Number (right front side of engine crankcase):

Key Number:

SAFETY

Operator Safety

WARNING

Failure to follow the warnings contained in this manual can result in severe injury or death.

A Polaris ATV is not a toy and can be hazardous to operate. This vehicle handles differently than other vehicles, such as motorcycles and cars. A collision or rollover can occur quickly, even during routine maneuvers like turning, or driving on hills or over obstacles, if you fail to take proper precautions.

Read and understand your owner’s manual and all warnings before operating a Polaris ATV.

Age Restrictions

This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone under 16 years of age.

Know Your Vehicle

As the operator of the vehicle, you are responsible for your personal safety, the safety of others, and the protection of our environment. Read and understand your owner’s manual, which includes valuable information about all aspects of your vehicle, including safe operating procedures.

Safety Training

When you purchased your new ATV, your dealer offered a hands-on safety training course that covers all aspects of vehicle safety. You were also provided with printed materials that explain safe operating procedures. You should review this information on a regular basis.

If you purchased a used Polaris ATV from a party other than a Polaris dealer, you can request this free safety training from any authorized Polaris dealer.

A Polaris ATV is an off-road vehicle. Familiarize yourself with all laws and regulations concerning the operation of t his vehicle in your area.

We strongly advise you to strictly follow the recommended maintenance program outlined in your owner’s manual. This preventive maintenance program is designed to ensure that all critical components on your vehicle are thoroughly inspected at specific intervals.

SAFETY

Operator Safety

The following signal words and symbols appear throughout this manual and on your ATV. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.

The safety alert symbol, on your ATV or in this manual, alerts you to the potential for personal injury.

WARNING

The safety alert warning indicates a potential hazard that may result in serious injury or death.

CAUTION

The safety alert caution indicates a potential hazard that may result in minor personal injury or damage to the machine.

CAUTION

A caution indicates a situation that may result in damage to the machine.

NOTE

A note will alert you to important information or instructions.

SAFETY

Operator Safety

WARNING

Serious injury or death can result if you do not follow these instructions and procedures, which are outlined in further detail within your owner’s manual.

S Read this manual and all labels carefully, and follow the operating

procedures described.

S Never operate an ATV without proper instruction. Take a t raining

course. Beginners should receive training from a certified instructor.

Contact an authorized Polaris ATV dealer or call Polaris at 1-800-342-3764 to find out about the training courses nearest you.

S Never allow anyone under 16 years of age to operate this ATV. S Never permit a guest to operate the ATV unless the guest has read

this manual and all product labels and has completed a certified safety training course.

S Always avoid operating an ATV on paved surfaces, including side-

walks, driveways, parking lots, and streets.

S Never operate an ATV on a public street, road or highway, including

a dirt or gravel road.

S Never operate an ATV without wearing an approved helmet that fits

properly. Always wear eye protection (goggles or face shield), gloves, boots, a long-sleeved shirt or jacket, and long pants.

S Never consume alcohol or drugs before or while operating an ATV. S Never operate at excessive speeds. Travel at speeds appropriate for

the terrain, visibility and operating conditions, and your experience.

S Never attempt wheelies, jumps or other stunts. S Always inspect your ATV before each use to make sure it’s in safe

operating condition. Always follow the inspection and maintenance procedures and schedules outlined in your owner’s manual.

S Always keep both hands on the handlebars and both feet on the foot-

rests of the ATV during operation.

S Always travel slowly and use extra caution when operating on unfa-

miliar terrain. Be alert to changing terrain conditions.

S Never operate on excessively rough, slippery, or loose terrain. S Always follow proper turning procedures as described in this manu-

al. Practice turning at low speeds before attempting to turn at faster speeds. Do not turn at excessive speeds.

SAFETY

Operator Safety

S Always have the ATV inspected by an authorized Polaris dealer if

it’s been involved in an accident.

S Never operate on hills too steep for the ATV or for your abilities.

Practice on smaller hills before attempting larger hills.

S Always follow proper procedures for climbing hills. Check the ter-

rain carefully before ascend a hill. Never climb hills with excessively slippery or loose surfaces. Shift your weight forward. Never open the throttle suddenly or make sudden gear changes. Never go over the top of a hill at high speed.

S Always follow proper procedures for going downhill and for braking

on hills. Check the terrain carefully before you start down a hill. Shift your weight backward. Never go down a hill at high speed. Avoid going down a hill at an angle, which would cause the vehicle to lean sharply to one side. Travel straight down the hill when possible.

S Always follow proper procedures for crossing the side of a hill.

Avoid hills with excessively slippery or loose surfaces. Shift your weight to the uphill side of the ATV. Never attempt to turn the ATV around on any hill until you’ve mastered (on level ground) the turning technique outlined in this manual. Avoid crossing the side of a steep hill when possible.

S Always use proper procedures if you stall or roll backwards while

climbing a hill. To avoid stalling, maintain a steady speed when climbing a hill. If you stall or roll backwards, follow the special procedure for braking described in this manual. Always dismount on the uphill side, or to either side if the ATV is pointed straight uphill. Turn the ATV around and remount following the procedure described in this manual.

S Always check for obstacles before operating in a new area. Never

attempt to operate over large obstacles, such as rocks or fallen trees. Always follow proper procedures when operating over obstacles as described in this manual.

S Always be careful of skidding or sliding. On slippery surfaces like

ice, travel slowly and use extra caution to reduce the chance of skidding or sliding out of control.

S Avoid operating the ATV through deep or fast-flowing water. If it’s

unavoidable, travel slowly, balance your weight carefully, avoid sudden movements, and maintain a slow and steady forward motion. Do not make sudden turns or stops, and do not make sudden throttle changes.

SAFETY

Operator Safety

S Wet brakes may have reduced stopping ability. Test your brakes after

leaving water. If necessary, apply them lightly several times to allow friction to dry out the pads.

S Always check for obstacles or people behind the ATV before operat-

ing in reverse. When it’s safe to proceed in reverse, move slowly and avoid turning at sharp angles.

S Always use t he size and t ype of tires specified for your ATV, and

always maintain proper tire pressure.

S Never modify an ATV through improper installation or use of acces-

sories.

S Never exceed the stated load capacity for your ATV. Cargo must be

properly distributed and securely attached. Reduce speed and follow the instructions in this manual for carrying cargo or towing. Allow a greater distance for braking.

S Always remove the ignition key when the vehicle is not in use to

prevent unauthorized use or accidental starting.

FOR MORE INFORMATION ABOUT ATV SAFETY, call the Consumer Product Safety Commission at 1-800-638-2772, or call Polaris at 1-800-342-3764.

Equipment Modifications

We are concerned for the safety of our customers and for t he general public. Therefore, we strongly recommend that consumers do not install on a Polaris ATV any equipment that may increase the speed or power of the vehicle, or make any other modifications to the vehicle for these purposes. Any modifications to the original equipment of the vehicle create a substantial safety hazard and increase the risk of bodily injury.

The warranty on your Polaris ATV is terminated if any equipment has been added to the vehicle, or if any modifications have been made to the vehicle, that increase its speed or power.

NOTE: The addition of certain accessories, including (but not limited to) mowers, blades, tires, sprayers, or large racks, may change the handling characteristics of the vehicle. Use only P olaris-approved accessories, and familiarize yourself with their function and effect on the vehicle.

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Operating this ATV without proper instruction.

WHAT CAN

The risk of an accident is greatly increased if the operator does not know how to operate the ATV properly in different situations and on different types of terrain.

HOW TO AVOID THE

Beginning and inexperienced operators should complete the certified training course offered by Polaris. Operators should regularly practice the skills learned in the course and the operating techniques described in the owner’s manual.

For more information about the training course, contact an authorized ATV dealer or call Polaris at 1-800-342-3764.

HAPPEN

HAZARD

WARNING

POTENTIAL

Failure to follow the age recommendations for this ATV.

WHAT CAN

Severe injury and/or death could occur if a child under the minimum age recommendation operates an ATV.

Even though a child may be within the recommended age group for operating some ATVs, he/she may not have the skills, abilities, or judgment needed to operate an ATV safely and could be susceptible to accident or injury.

HOW TO AVOID THE

No one under the age of 16 should operate a Polaris ATV.

HAZARD

HAPPEN

HAZARD

Operator Safety

WARNING

POTENTIAL HAZARD

Carrying a passenger on an ATV.

WHAT CAN

Carrying a passenger greatly reduces the operator’s ability to balance and control the ATV, which could cause an accident and injury to the operator and/or passenger.

HOW TO AVOID THE

Never carry a passenger. The purpose of the long seat is to allow the operator to shift position as needed during operation. It is not intended for carrying passengers.

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Operating an ATV on paved surfaces, including sidewalks, paths, parking lots, and driveways.

WHAT CAN

ATV tires are designed for off-road use. Operating on paved surfaces may seriously affect the handling and control of the ATV and could result in loss of control, accident, and/or injury.

HOW TO AVOID THE

Avoid operating the ATV on pavement. If it’s unavoidable, travel slowly and avoid sudden turns or stops.

HAPPEN

HAZARD

Operator Safety

WARNING

POTENTIAL HAZARD

Operating this ATV on public streets, roads or highways.

WHAT CAN

The ATV could collide with another vehicle.

HOW TO AVOID THE

Never operate the ATV on any public street, road or highway, including dirt and gravel roads. In many states it’s illegal to operate ATVs on public streets, roads and highways.

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Operating this ATV without wearing an approved helmet, eye protection and protective clothing.

WHAT CAN

Operating an ATV without an approved helmet increases the risk of a severe head injury or death in the event of an accident.

Operating without eye protection could result in an accident and could increase the chance of a severe injury in the event of an accident.

HOW TO AVOID THE

Always wear an approved helmet that fits properly.

Always wear eye protection (goggles or face shield), gloves, boots, long-sleeved shirt or jacket, and long pants.

HAPPEN

HAZARD

Operator Safety

WARNING

POTENTIAL HAZARD

Operating the ATV after consuming alcohol or drugs.

WHAT CAN

Consumption of alcohol and/or drugs could seriously affect operator judgment. Reaction time may be slower and operator balance and perception could be affected.

Consuming alcohol and/or drugs before or while operating an ATV could result in an accident causing severe injury or death.

HOW TO AVOID THE

Never consume alcohol or drugs before or while operating an ATV.

HAPPEN

HAZARD

WARNING

SAFETY

POTENTIAL

Operating the ATV at excessive speeds.

WHAT CAN

Excessive speed increases the operator’s chance of losing control of the ATV, which can result in an accident.

HOW TO AVOID THE

Always operate the ATV at a speed that’s proper for the terrain, visibility and operating conditions, and your experience.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Attempting wheelies, jumps and other stunts.

WHAT CAN

Attempting stunts increases the chance of an accident, including an overturn.

HOW TO AVOID THE

Never attempt wheelies, jumps, or other stunts. Avoid exhibition driving.

HAPPEN

HAZARD

Operator Safety

WARNING

POTENTIAL HAZARD

Failure to inspect the ATV before operating.

Failure to properly maintain the ATV.

WHAT CAN

Poor maintenance increases the possibility of an accident or equipment damage.

HOW TO AVOID THE

Always inspect your ATV before each use to make sure it’s in safe operating condition.

Always follow the inspection and maintenance procedures and schedules described in the owner’s manual.

HAPPEN

HAZARD

WARNING

SAFETY

POTENTIAL

Removing hands from the handlebars or feet from the footrests during operation.

WHAT CAN

Removing even one hand or foot can reduce ability to control the vehicle or could cause loss of balance and ejection from the ATV.

If the operator’s foot is not firmly planted on the footrest, it could come into contact with the rear wheels and lead to accident or injury.

HOW TO AVOID THE

Always keep both hands on the handlebars and both feet on the footrests of the ATV during operation.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Failure to use extra caution when operating the ATV on unfamiliar terrain.

WHAT CAN

Unfamiliar terrain may contain hidden rocks, bumps, or holes that could cause loss of control or overturn.

HOW TO AVOID THE

Travel slowly and use extra caution when operating on unfamiliar terrain. Always be alert to changing terrain conditions.

HAPPEN

HAZARD

Operator Safety

WARNING

POTENTIAL HAZARD

Failure to use extra caution when operating on excessively rough, slippery or loose terrain.

WHAT CAN

Operating on excessively rough, slippery or loose terrain could cause loss of traction or loss of control, which could result in an accident or overturn.

HOW TO AVOID THE

Do not operate on excessively rough, slippery or loose terrain until you’ve learned and practiced the skills necessary to control the ATV on such terrain.

Always use extra caution on rough, slippery or loose terrain.

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Turning improperly.

WHAT CAN

Improper turns could cause loss of control and lead to a collision or overturn.

HOW TO AVOID THE

Always follow proper procedures for turning as described in the owner’s manual.

Practice turning at slow speeds before attempting to turn at faster speeds.

Never turn at excessive speed.

HAPPEN

HAZARD

WARNING

POTENTIAL

Operating on excessively steep hills.

WHAT CAN

The vehicle may overturn.

HOW TO AVOID THE

Never operate on hills too steep for the ATV or for your abilities. Never operate the ATV on hills steeper than 25_.

Practice on smaller hills before attempting large hills.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Climbing hills improperly.

WHAT CAN

Improper hill climbing could cause loss of control or overturn.

HOW TO AVOID THE

Always follow proper procedures for climbing hills as described in the owner’s manual.

Always check the terrain carefully before ascending any hill. Never operate the ATV on hills steeper than 25_.

Never climb hills with excessively slippery or loose surfaces.

Shift your weight forward.

Never open the throttle suddenly while traveling uphill. The ATV could flip over backwards.

Never go over the top of any hill at high speed. An obstacle, a sharp drop, or another vehicle or person could be on the other side of the hill.

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Traveling downhill improperly.

WHAT CAN

Improperly descending a hill could cause loss of control or overturn.

HOW TO AVOID THE

Always follow proper procedures for traveling down hills as described in the owner’s manual. NOTE: A special technique is required when braking while traveling downhill. See page

57.

Always check the terrain carefully before you descending a hill.

Shift your weight backward.

Never travel down a hill at high speed.

Avoid traveling down a hill at an angle, which would cause the vehicle to lean sharply to one side. Travel straight down the hill when possible.

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Improperly crossing hills and turning on hills.

WHAT CAN

Improperly crossing or turning as hills could cause loss of control or overturn.

HOW TO AVOID THE

Never attempt to turn the ATV around on any hill until you’ve mastered the turning technique (on level ground) as described in the owner’s manual. See page 58. Use extra caution when turning on any hill.

Avoid crossing the side of a steep hill.

When crossing the side of a

Always follow proper procedures as described in the owner’s manual.

Avoid hills with excessively slippery or loose surfaces.

Shift your weight to the uphill side of the ATV.

HAPPEN

HAZARD

hill:

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Stalling, rolling backwards or improperly dismounting while climbing a hill.

WHAT CAN

The vehicle could overturn.

HOW TO AVOID HAZARD

Maintain steady speed when climbing a hill.

If all forward speed is

Keep your weight uphill.

Apply the single lever brake gradually.

When fully stopped, apply the auxiliary rear brake as well, then lock the parking brake.

If the ATV begins rolling

Keep weight uphill.

Never apply engine power.

Never apply the auxiliary rear brake while rolling backwards.

Apply the single-lever brake gradually.

When fully stopped, apply the auxiliary rear brake as well, and then lock the parking brake.

Dismount on uphill side, or to either side if ATV is pointed straight uphill.

Turn the ATV around and remount, following the procedure described in the owner’s manual. See page 58.

HAPPEN

THE

lost:

backwards:

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Improperly operating over obstacles.

WHAT CAN

Operating over obstacles could cause loss of control or overturn.

HOW TO AVOID THE

Before operating in a new area, check for obstacles.

Avoid operating over large obstacles such as rocks and fallen trees when possible. If unavoidable, use extreme caution and always follow proper procedures as outlined in the owner’s manual.

HAPPEN

HAZARD

WARNING

POTENTIAL

Skidding or sliding.

WHAT CAN

Skidding or sliding can cause loss of control.

If the tires regain traction unexpectedly, the ATV could overturn.

HOW TO AVOID THE

On slippery surfaces such as ice, travel slowly and use extra caution to reduce the chance of skidding or sliding out of control.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Operating the ATV through deep or fast-flowing water.

WHAT CAN

Tires may float, causing loss of traction and loss of control, which could lead to an accident or overturn.

HOW TO AVOID THE

Avoid operating the ATV through deep or fast-flowing water. If it’s unavoidable to enter water that exceeds the recommended maximum depth (see page 59), travel slowly, balance your weight carefully, avoid sudden movements, and maintain a slow and steady forward motion. Do not make sudden turns or stops, and do not make sudden throttle changes.

Wet brakes may have reduced stopping ability. Always test the brakes after leaving water. If necessary, apply them several times to let friction dry out the pads.

HAPPEN

HAZARD

WARNING

POTENTIAL

Improperly operating in reverse.

WHAT CAN

The ATV could collide with an obstacle or person, resulting in severe injury.

HOW TO AVOID THE

Before shifting into reverse gear, always check for obstacles or people behind the ATV . When it’s safe to proceed, back slowly.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Operating this ATV with improper tires, or with improper or uneven tire pressure.

WHAT CAN

Use of improper tires, or operation of the ATV with improper or uneven tire pressure, could cause loss of control or accident.

HOW TO AVOID THE

Always use the size and type of tires specified for the ATV.

Always maintain proper tire pressure as specified.

HAPPEN

HAZARD

WARNING

POTENTIAL

Operating the ATV with improper modifications.

WHAT CAN

Improper installation of accessories or modification of the ATV may cause changes in handling which could lead to an accident.

HOW TO AVOID THE

Never modify the ATV through improper installation or use of accessories. All parts and accessories added to the vehicle must be genuine Polaris Industries Inc. or equivalent components designed for use on this ATV and should be installed and used according to approved instructions. See your authorized Polaris ATV dealer for more information.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

POTENTIAL HAZARD

Overloading the ATV or carrying/towing cargo improperly.

WHAT CAN

Overloading and towing can cause changes in vehicle handling, which could lead to loss of control or an accident.

HOW TO AVOID THE

Never exceed the stated load capacity for this ATV.

Cargo should be properly distributed and securely attached.

Reduce speed when carrying cargo or pulling a trailer. Allow a greater distance for braking.

Always follow the instructions in the owner’s manual for carrying cargo or pulling a trailer. See page 50.

HAPPEN

HAZARD

WARNING

POTENTIAL

Operating on frozen bodies of water.

WHAT CAN

Severe injury or death can result if the ATV and/or the operator fall through the ice.

HOW TO AVOID THE

Never operate the ATV on a frozen body of water. If you’re confident that the ice is thick enough and sound enough to support the machine and its operator, as well as the force created by a moving vehicle, exercise extreme caution.

HAZARD

HAPPEN

HAZARD

SAFETY

Operator Safety

WARNING

Leaving the keys in the ignition can lead to unauthorized use of the vehicle resulting in serious injury or death. Always remove the ignition key when the vehicle is not in use.

WARNING

After any overturn or accident, have a qualified service dealer inspect the entire vehicle for possible damage, including (but not limited to) brakes, throttle and steering systems.

WARNING

Safe operation of this rider-active vehicle requires good judgement and physical skills. Persons with cognitive or physical disabilities who operate this vehicle have an increased risk of overturn and loss of control, which could result in severe injury or death.

CAUTION

Always keep combustible materials away from the exhaust system. Exposure to the hot components could result in a fire.

SAFETY

Safety Decals and Locations

Warning decals have been placed on the ATV for your protection. Read and follow the instructions of the decals and other warnings on the ATV carefully. If any of the decals shown in this manual differ from the decals on your ATV, always read and follow the instructions of the decals on the ATV.

If any decal becomes illegible or comes off, contact your Polaris dealer to purchase a replacement. Replacement safety decals are provided by Polaris at no charge. The part number is printed on the decal.

WARNING

DNever operate this vehicle on HILLS steeper than 25 degrees

To prevent flipover on hilly terrain, when going up or down, use throttle and brakes gradually.

DREVERSE operation can be dangerous, even at lowspeeds. Steering be-

comes difficult. To prevent flipover, avoid sudden braking or sharp turns.

DUse OVERRIDE for reverse speed limiter with caution. To prevent loss

of control, never activate override button with open throttle.

DPARKING BRAKE may relax when used for more than 5 minutes. When

parking on grades, leave shift in forward.

25°

7079085

WARNING

S Moving parts hazar d under belt-clutch guard. To

prevent serious injury, do not operate vehicle with guard removed.

S Do not modify engine or clutch. Doing so can

cause part failure, possible imbalance, and excessive engine RPM, which can result in serious injury or death.

NO STEP

WARNING

7077920

7078689

Safety Decals and Locations

WARNING

S DO NOT TOW FROM RACK OR BUMPER.

Vehicle damage or tipover may r esul t causing severe inj ur y or death. Tow only from t ow hooks or hitch.

S Max Rack Loads: Front 75 lbs. (34 kg) Rear 125 lbs. (57 kg)

Improper ATV use can result in SEVERE INJURY or DEATH

WARNING

SAFETY

7170912

7170952

ALWAYS USE

AN APPROVED

HELMET AND PROTECTIVE

GEAR

NEVER operate:

ALW AYS:

NEVER USE

ON PUBLIC

ROADS

NEVER CARRY

PASSENGERS

NEVER USE WITH DRUGS OR ALCOHOL

SAFETY

Safety Decals and Locations

WARNING

Operating this ATV if you are under the age of 16 increases your chance of severe injury or death.

NEVER operate this ATV if you are under age 16.

Under Seat

7078253

MANUFACTURED BY: POLARIS IND. INC.

DATE:

VIN:

THIS VEHICLE IS AN ALL TERRAIN VEHICLE AND IS NOT INTENDEDFOR USE ON PUBLIC ROADS.

CE VÉHICUL E EST UN VÉHICUL E TOUT TERRAIN QUI NiEST PAS DESTINÉ À ÊTRE UTILIS É SUR LES CHEMI NS PUBLICS.

Canadian Certification Decal

7171492

Chain Freeplay Is Important. Adjust Freeplay to 3/16″ -3/8″ DO NOT Overtensi on. See Owner’s Manual.

Torque Nut on Eccentric Bolts: To 30 Ft. Lbs. (For models without a hitch). To 40 Ft. Lbs. (For models with ahitch).

OVERRIDE

SWITCH

Reverse Speed is limited.

Reverse override is controlled by the override switch.

See your Owner’s Manual.

7079906

7078572

SAFETY

Safe Riding Gear

Always wear clothing suited to the type of riding. ATV riding requires special protective clothing for comfort and to reduce the chance of injury.

1. Helmet

Your helmet is the most important piece of protective gear for safe riding. A helmet can prevent a severe head injury.

Select an approved helmet that meets or exceeds your state’s safety standards and bears either the Department of Transportation (DOT) label, the American National Standards Institute label (ANSI z90.1), or the Snell Memorial Foundation label.

2. Eye Protection

Do not depend on sunglasses for proper eye protection. A pair of goggles or a helmet face shield offer the best protection for your eyes. They should be kept clean and be of shatterproof design (bearing the markings z2.1 or VESC 8).

3. Gloves

Off-road style gloves with knuckle pads are the best for comfort and protection.

4. Boots

The best footwear is a pair of strong over-the-calf boots with heels, like moto-cross boots.

5. Clothing

Always wear long sleeves and long pants to protect arms and legs. Riding pants with kneepads and a jersey with shoulder pads provide the best protection.

FEATURES AND CONTROLS

Electrical Switches

WARNING

Activating the override switch while the throttle is open can cause loss of control, resulting in severe injury or death. Do not activate the override switch while the throttle is open.

Override Switch (1) (Reverse Speed Limiter) This vehicle is equipped with a reverse speed

RUN

OFFOFF

limiter system. To gain additional power while backing, depress the override switch.

Main Switch (2) - To start the engine, slide the stop switch to the center RUN position and turn the main key switch clockwise past the ON position. Release the key when the engine starts. NOTE: Turning off the main switch will shut off all electrical power to the vehicle, including the lights.

WARNING

Leaving the keys in the ignition can lead to unauthorized use of the vehicle resulting in serious injury or death. Always remove the ignition key when the vehicle is not in use.

Engine Stop Switch (3) - The engine will not start or run when the switch is in the OFF position. Its purpose is to provide the operator with a quick means of engine shutdown in case of an emergency. To stop the engine, slide the stop switch either right or left to the OFF position. NOTE: Turning off the engine stop switch will shut off all electrical power to the vehicle, including the lights.

FEATURES AND CONTROLS

WARNING

Do not start or operate an ATV with sticking or improperly operating throttle controls, which could cause an accident and lead to severe injury or death.

Always contact your dealer for service repairs if throttle problems arise.

Failure to check or maintain proper operation of the throttle system can result in an accident if the throttle lever sticks during operation.

Always check the lever for free movement and return before starting the engine. Also check occasionally during operation.

Throttle Lever

Engine speed and vehicle movement are controlled by pressing the throttle lever. The throttle lever (1) is spring loaded. Engine speed returns to idle when the lever is released.

This ATV is equipped with Polaris Electronic Throttle Control (ETC), which is designed t o reduce the risk of a frozen or stuck throttle. If the throttle cable should stick in an open position when the operator releases the throttle lever, the engine will stop, and power to the rear wheels will cease.

WARNING

The Electronic Throttle Control (ETC) stops the engine in the event of a throttle system malfunction and is provided for your safety. Do not attempt to modify the ETC system or replace it with any after market throttle mechanisms.

FEATURES AND CONTROLS

WARNING

Operating the ATV on streets or roads, especially in darkness, could result in an accident and serious injury or death.

Your ATV is not equipped with highway-approved lights. It’s designed for and must be used for off-road use only. Use caution and drive at reduced speeds in conditions of reduced visibility such as fog, rain and darkness.

Light Switches

The light switch is located on the left handlebar (1). It’s used to turn the lights on and off and to switch the lights from HI to LO on models equipped with HI-LO beams. NOTE: The lights won’t work unless the key is in the ON position and the shut-off switch is in the RUN position.

Indicator Lights

With the engine running, verify the function of all indicator lights each time the ATV is used.

NOTE: The taillight is on whenever the main switch (key) is on. Turn the key off to prevent battery drain.

1. Transmission Neutral Indicator

2. Transmission Reverse Indicator

3. HighTempWarning This light will display if the engine overheats.

FEATURES AND CONTROLS

Brakes

Check the brake fluid level in the master cylinder before each use of the ATV. The m aster cylinder (1) is located on the left handlebar.

The fluid level can be seen through an indicator window (2) on the top of the master cylinder. This “eye” will appear dark when the fluid level is full. When fluid needs to be added, the eye will be clear.

WARNING

An over-full master cylinder may cause brake drag or brake lock-up, which could result in serious injury or death. Maintain brake fluid at the recommended level. Do not overfill.

NOTE: When checking the fluid level, the A TV must be on level ground with the handlebars straight. If the fluid level is low add DOT 3 brake fluid only. DO NOT OVERFILL. See page 108 for the part numbers of Polaris products.

WARNING

Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture from the air. The moisture causes the boiling temperature of the brake fluid to drop, which can lead to early brake fade and the possibility of accident or severe injury. After opening a bottle of brake fluid, always discard any unused portion.

FEATURES AND CONTROLS

Brake Lever

The front and rear brakes are applied by squeezing the brake lever (1) toward the handlebar. The front and rear brakes are hydraulically activated disc type brakes that are activated by only one lever.

Always test brake lever travel and master cylinder fluid level before riding. When squeezed, the lever should feel firm. Any sponginess would indicate a possible fluid leak or low master cylinder fluid level, which must be corrected before riding. Contact your dealer for proper diagnosis and repairs.

WARNING

Operating the ATV with a spongy brake lever can result in loss of braking, which could cause an accident. Never operate the ATV with a spongy-feeling brake lever.

Parking Brake

WARNING

Operating the ATV while the parking brake is engaged could result in an accident and serious injury or death. Always check to be sure the parking brake is disengaged before operating.

Setting the Parking Brake

1. Squeeze and release the brake lever two or three times, then

squeeze and hold.

2. Push the park brake lock (2) forward to engage the brake. Release

the brake lever.

3. To release the parking brake lock, squeeze and release the brake

lever. It will return to its unlocked position.

Important Safeguards

S The parking brake may relax if left on for a long period of time. Al-

ways block the wheels to prevent rolling.

S Always block t he wheels on the downhill side of the ATV if leaving

it parked on a hill. Another option i s to park the ATV in a sidehill position.

S Never depend on the parking brake alone if the ATV is parked on a

hill. Always block the wheels to prevent rolling.

FEATURES AND CONTROLS

Auxiliary Brake

WARNING

Aggressively applying the rear brake when backing downhill may cause rear tipover, which could result in serious injury or death.

Use caution when applying the auxiliary brake. Do not aggressively apply the auxiliary brake when going forward. The rear wheels may skid and slide sideways, causing loss of control and serious injury or death.

The auxiliary brake (1), is located on the inside of the right floor board and is operated by the right foot. The auxiliary brake serves as a backup to the main brake system if the main system becomes inoperative.

If the rear wheels slide while using the auxiliary brake, reduce brake pedal pressure to brake the rear wheels without skidding.

Check the brake fluid level frequently for the auxiliary brake system. The reservoir i s located under t he seat or near the foot brake. Maintain the fluid level between the maximum and minimum m arks.

FEATURES AND CONTROLS

Choke

The choke assists i n starting a cold engine. Refer to the engine starting procedure on page 48 for correct choke and throttle settings during starting.

Fuel Valve

The fuel valve (1) is located on the left side of the vehicle, either below the fender or on the side panel. It has three positions:

OFF: For vehicle storage and when transporting.

ON: For normal operation.

RES: For reserve supply if main supply is exhausted.

NOTE: There’s about a 7 to 10 mile (11.2 to 16 km) range on reserve gas. Always refill the gas tank as soon as possible after using the reserve supply.

Always return valve to ON position after refueling.

Fuel T ank

The fuel tank filler cap (2) is l ocated directly below t he handlebar. Use either leaded or unleaded gasoline with a minimum pump octane number of 87=(R+ M/2) octane. Refer to the specifications beginning on page 105 for capacities.

OFF

RES

Fuel Filter

The in-line fuel filter should be replaced by your dealer after every 100 hours of operation, or annually. Do not attempt to clean the fuel filter.

FEATURES AND CONTROLS

Fuel Safety

WARNING

Gasoline is highly flammable and explosive under certain conditions.

S Always exercise extreme caution whenever handling gaso-

line.

S Always refuel with the engine stopped, and outdoors or in a

well ventilated area.

S Do not smoke or allow open flames or sparks in or near the

area where refueling is performed or where gasoline is stored.

S Do not overfill the tank. Do not fill the tank neck. S If gasoline spills on your skin or clothing, immediately wash it

off with soap and water and change clothing.

S Never start the engine or let it run in an enclosed area.

Engine exhaust fumes are poisonous and can cause loss of consciousness or death in a short time.

S Turn the fuel valve off whenever the ATV is stored or parked.

WARNING

The engine exhaust from this product contains chemicals known to cause cancer, birth defects or other reproductive harm.

Operate this vehicle only outdoors or in well-ventilated areas.

FEATURES AND CONTROLS

Automatic Transmission Gear Selector

The transmission gear selector (1) is located on the right side of the ATV.

F: Forward

N: Neutral

R: Reverse

CAUTION

Shifting gears with the engine speed above idle or while the vehicle is moving could cause transmission damage.

To change gears, stop the vehicle, and with the engine idling, move the lever to the desired gear.

Whenever the ATV is left unattended, always place the transmission in gear with the parking brake locked.

Maintaining shift linkage adjustment is important to assure proper transmission function. See your dealer if you experience any shifting problems.

FEATURES AND CONTROLS

Recoil Starter

If the battery has been drained or damaged and cannot start the engine, use of the recoil starter (1) will allow vehicle operation until repairs can be made. The recoil starter is located on the right side of the machine.

Polaris 4-cycle engines are equipped with automatic decompressors. This makes recoil starting possible by reducing the amount of compression during starting. The decompressor senses when the engine is spinning fast enough to start and restores compression when running.

1. Position the vehicle on a level surface and lock the parking brake

(see page 40).

2. Shift the transmission into neutral.

3. Make sure the engine stop switch is set to RUN and the main key

switch is in the ON position. NOTE: If the engine is cold, use the choke as outlined on page 48.

4. Grasp the recoil starter rope handle (2) firmly and pull slowly so

you can feel the engine strokes. NOTE: Every other stroke will be a “compression stroke” and will make the rope harder to pull. When a compression stroke is found, continue pulling the rope just until the engine rolls past the stroke, then stop pulling immediately.

5. Allow the recoil rope to rewind into the recoil assembly, then pull

the rope abruptly and forcefully to start the engine.

6. Repeat steps 4-5 if necessary.

CAUTION

Extending the recoil starter rope until it stops can cause damage to the recoil assembly. Do not extend the starter rope so far that it stops.

If the starter rope handle is not seated properly, water may enter the recoil housing and damage components. Make sure the handle is fully seated on the recoil housing, especially when traveling in wet areas.

OPERATION

Break-In Period

The break-in period for your new Polaris ATV is defined as the first ten hours of operation, or the time it takes to use the first two full t anks of gasoline. No single action on your part is as important as following the procedures for a proper break-in. Careful treatment of a new engine will result in more efficient performance and longer life for the engine. Perform the following procedures carefully.

CAUTION

Excessive heat build-up during the first three hours of operation will damage close-fitted engine parts. Do not operate at full throttle or high speeds for extended periods during the first three hours of use.

Use of any oils other than those recommended by Polaris may cause serious engine damage. We recommend the use of Polaris Premium 4 Synthetic Oil for your 4-cycle engine.

1. Fill the fuel tank with gasoline.

Seepage42.

2. Check the oil level on the

dipstick. See page 75. Add Polaris Premium 4 Synthetic Oil if necessary to maintain the oil level in the safe operating range (1).

3. Drive slowly at first. Select an open area that allows room to

familiarize yourself with vehicle operation and handling.

4. Vary throttle positions. Do not operate at sustained idle.

5. Perform regular checks on fluid levels, controls and areas outlined

on the daily pre-ride inspection checklist. See page 47.

6. Pull only light loads.

7. During the break-in period, change both the oil and the filter at 20

hours or 200 miles.

OPERATION

Pre-Ride Inspection

WARNING

If a proper inspection is not done before each use, severe injury or death could result. Always inspect the vehicle before each use to ensure it’s in proper operating condition.

Use the following checklist to verify that your vehicle is in proper working condition before each use.

Item/Inspection Procedure

1. Tires - Check condition and pressures.

2. Fuel and oil tanks - Fill both tanks to their proper l evels.

3. All brakes - Check operation, adjustment and fluid level (includes

auxiliary brake).

4. Throttle - Check for free operation and closing.

5. Headlight/Taillight/Brakelight - Check operation of all indicator

lights and switches.

6. Engine stop switch - Check for proper function.

7. Wheels - Check for tightness of wheel nuts and axle nuts; check

that axle nuts are secured by cotter pins.

8. Drive chain - Check condition and slack (refer to drive chain

adjustment section); lubricate when needed.

9. Air cleaner element - Check for dirt; clean or replace.

10. St eering - Check for free operation, noting any unusual looseness

in any area.

11. Loose parts - Visually inspect vehicle for any damaged components

or loose nuts/bolts or fasteners.

12. Riding gear - Wear a helmet, goggles and protective clothing.

OPERATION

Starting the Engine

Starting a Cold Engine

WARNING

Engine exhaust contains poisonous carbon monoxide and can cause loss of consciousness resulting in severe injury or death. Never run an engine in an enclosed area.

CAUTION

Operating the vehicle immediately after starting could cause engine damage. Allow the engine to warm up for several minutes before operating the vehicle.

1. Place the transmission in neutral and

lock the parking brake. Make sure the fuel tank valve is on.

2. Sit on the vehicle and pull the choke knob

out until it stops (1). NOTE: If the knob doesn’t stay where positioned, increase the tension by rotating the tension adjusting nut (2) clockwise.

NOTE: The variable choke is fully on when the knob is pulled completely out. The choke is off when the knob is pushed completely in. The choke can be adjusted gradually, depending on how much choke is needed for starting. Be sure the choke is off during operation, as excess fuel washing into the engine oil will increase wear on engine components.

3. Move the engine stop switch to RUN.

NOTE: Do not press the throttle while starting the engine.

4. Turn the ignition key past the ON position to engage the starter.

Activate the starter for a maximum of five seconds, releasing the key when the engine starts. If the engine does not start, release the key and wait five seconds. Activate the starter for another five seconds. Repeat this procedure until the engine starts.

5. If the engine slows, position the choke knob half way in to allow

proper engine warm up.

6. Vary the engine RPM slightly with the throttle to aid in warm-up.

When the engine idles smoothly, push the choke all the way in.

OPERATION

Starting the Engine

Starting a Warm Engine

Warm engines do not normally require the use of the choke. Excessive use of the choke can cause the spark plug to become wet fouled.

1. Position the vehicle on a level surface with the transmission in

neutral.

2. Lock the parking brake, turn the fuel tank valve to ON, sit on the

vehicle, and turn the engine stop switch to RUN.

3. If the engine has cooled to a point where it does not readily start,

intermittent use of the choke (pulled half way out) may be necessary.

4. If the engine is over-choked when warm, depress the throttle lever

fully while cranking to aid in starting.

5. Release the throttle lever immediately after the engine starts. If the

engine does not start and all conditions are favorable, change the sparkplugandtryagain.

OPERATION

Hauling Cargo

2/3

1/3

Your ATV has been designed t o carry or tow a certain amount of load. Always read and understand the load distribution warning labels on the vehicle, and never exceed the weight capacities outlined in the specifications section of the owner’s manual and on the safety decals.

Cargo weight should be evenly distributed (1/3 on the front rack and 2/3 on the rear rack) and mounted as low as possible. When operating over rough or hilly terrain, reduce speed and cargo weight to maintain stable driving conditions. Do not obstruct the headlight beam with cargo.

OPERATION

Hauling Cargo

WARNING

Hauling cargo improperly can alter vehicle handling and may cause loss of control or brake instability and result in serious injury or death. Always follow these precautions when hauling cargo:

S REDUCE SPEED AND ALLOW GREATER DISTANCE FOR

BRAKING WHEN HAULING CARGO.

S CARGO WEIGHT DISTRIBUTION should be 1/3 on the front

rack and 2/3 on the rear rack. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions. Carrying loads on one rack only increases the possibility of vehicle overturn.

S LOADS MUST BE CARRIED AS LOW ON THE RACKS AS

POSSIBLE. Carrying loads high on the racks raises the center of gravity of the vehicle and creates a less stable operating condition. When cargo loads are carried high on the racks, the weight of the loads must be reduced to maintain stable operating conditions.

S ALL LOADS MUST BE SECURED BEFORE OPERATING. Un-

secured loads can create unstable operating conditions, which could result in loss of control of the vehicle.

S OPERATE ONLY WITH STABLE AND SAFELY ARRANGED

LOADS. When handling off-centered loads that cannot be centered, securely fasten load and operate with extra caution. Always attach the tow load to the hitch point designated for your vehicle.

S HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROB-

LEMS. Use extreme caution when applying brakes with a loaded vehicle. Avoid terrain or situations that may require backing downhill.

S EXTREME CAUTION MUST BE USED when operating with

loads extending over the rack sides. Stability and maneuverability may be adversely affected, causing the machine to overturn.

S DO NOT BLOCK THE FRONT HEADLIGHT BEAM when carry-

ing loads on the front rack.

S DO NOT TRAVEL FASTER THAN THE RECOMMENDED

SPEEDS. Vehicle should never exceed 10 mph (16 kph) while towing a load on a level grass surface. Vehicle speed should never exceed 5 mph (8 kph) when towing loads in rough terrain, while cornering, or while ascending or descending a hill.

OPERATION

Driving Safely

Driving Procedures

1. Sit upright with both feet on the footrests and both hands on the

handlebars.

2. Start the engine and allow it to warm up, then shift the transmission

into gear.

3. Check your surroundings and determine your path of travel.

4. Release the parking brake.

5. Slowly depress the throttle with your right thumb and begin driving.

Vehicle speed is controlled by the amount of throttle opening.

6. Drive slowly. Practice maneuvering and using the throttle and brakes

on level surfaces.

OPERATION

Driving Safely

Making Turns

Your Polaris ATV is equipped with a solid rear axle that drives both rear wheels equally at all times. This means that the wheel on the outside of the turn must travel a greater distance than the inside wheel when turning and the inside tire must slip traction slightly.

To make a t urn, steer in the direction of the turn, leaning your upper body to the inside of the turn while supporting your weight on the outer footrest. This technique alters the balance of traction between the rear wheels, allowing the turn to be made smoothly. The same leaning technique should be used for turning in reverse.

NOTE: Practice making turns at slow speeds before attempting to turn at faster speeds.

WARNING

Turning at sharp angles or at excessive speeds can result in vehicle overturn and lead to serious injury. Avoid turning at sharp angles. Never turn at high speeds.

OPERATION

Driving Safely

Driving on Slippery Surfaces

Whenever riding on slippery surfaces such as wet trails or loose gravel, or during freezing weather, follow these precautions:

1. Slow down when entering slippery areas.

2. Maintain a high level of alertness, reading the trail and avoiding

quick, sharp turns which can cause skids.

3. Correct a skid by turning the handlebars in the direction of the skid

and shifting your body weight forward.

WARNING

Failure to exercise care when operating on slippery surfaces can result in loss of tire traction and cause loss of control, accident, and serious injury or death.

Never apply the brakes during a skid.

Do not operate on excessively slippery surfaces.

Always reduce speed and use additional caution.

OPERATION

Driving Safely

Driving Uphill

Whenever traveling uphill, follow these precautions:

1. Always travel straight uphill.

2. Avoid steep hills (25_ maximum).

3. Keep both feet on the footrests.

4. Transfer your weight forward.

5. Proceed at a steady rate of

speed and throttle opening.

6. Remain alert and be prepared

to take emergency action. This may include quick dismounting of the vehicle.

If all forward speed is lost:

Keep your weight uphill. Apply the single lever brake, gradually. When fully stopped, apply the

auxiliary brake as well, then lock the park brake.

If the ATV begins rolling backwards:

Keep your weight uphill. Never apply engine power. Never apply the auxiliary rear brake while rolling backwards.

Apply the single-lever brake, gradually. When fully stopped, apply the auxiliary rear brake as well, and then lock the parking brake.

Dismount on uphill side, or to either side if ATV is pointed straight uphill. Turn the ATV around and remount, following the procedure described on page 58.

25_ Maximum

WARNING

Braking and handling are greatly affected when operating in hilly terrain. Improper procedure could cause loss of control or overturn and result in serious injury or death.

Avoid climbing steep hills (25_ maximum).

Use extreme caution when operating on hills, and follow proper operating procedures outlined in the owner’s manual.

OPERATION

Driving Safely

Sidehilling

WARNING

Improperly crossing hills or turning on hills can result in loss of control or vehicle overturn, resulting in severe injury or death. Avoid crossing the side of a hill when possible. Follow proper procedures as outlined in the owner’s manual.

Sidehilling can be a dangerous type of driving and should be avoided if at all possible. If you do enter into a situation where sidehilling is necessary, follow these precautions:

1. Slow down.

2. Lean into the hill, transferring your upper body weight toward the hill

while keeping your feet on the footrests.

3. Steer slightly into the hill to maintain vehicle directions.

NOTE: If the vehicle begins to tip, quickly turn the front wheel downhill, if possible, or dismount on the uphill side immediately!

OPERATION

Driving Safely

Driving Downhill

Whenever descending a hill, follow these precautions:

1. Proceed directly downhill.

2. Transfer your weight to the rear of the vehicle.

3. Slow down.

4. Apply the brakes slightly to aid in slowing, using the single brake

lever.

NOTE: Familiarize yourself with operation of the auxiliary rear brake pedal for additional braking in the event of normal s ervice brake loss.

WARNING

Excessive speed can cause loss of control and lead to serious injury or death. Always operate slowly when traveling downhill.

OPERATION

Driving Safely

Turning Around on a Hill

WARNING

Improper hill climbing procedures could cause loss of control or overturn and result in serious injury or death.

Avoid climbing steep hills (25_ maximum).

Use extreme caution when operating on hills, and follow proper operating procedures outlined in the owner’s manual.

If the vehicle stalls while climbing a hill, never back it down the hill! One maneuver that can be used when it’s necessary to turn around while climbing a hill is the K-turn:

1. Stop and lock the parking brake while keeping body weight uphill.

2. Leave transmission in forward and shut off the engine.

3. Dismount on the uphill side of the vehicle, or on the left if the

vehicle is pointing straight uphill.

4. Staying uphill of the vehicle, turn the handlebars full left.

5. While holding the brake lever, release t he parking brake lock and

slowly allow the vehicle to roll around to your right until it’s pointing across the hill or slightly downward.

6. Lock the parking brake and remount the vehicle from the uphill

side, keeping body weight uphill.

7. Restart the engine with the transmission still in forward.

8. Release the parking brake and proceed slowly, controlling speed

with the brake, until the vehicle is on more level ground.

8’

Uphill

OPERATION

Driving Safely

Driving Through Water

Your ATV can operate through water with a maximum recommended depth equal to the bottom of the footrests (1). Follow these procedures when operating through water:

1. Determine water

depths and current before crossing.

2. Choose a crossing where

both banks have gradual inclines.

3. Proceed slowly, avoiding rocks and obstacles if possible.

4. After crossing, dry the brakes by applying light pressure to the

lever until braking action is normal.

After running the vehicle in water, it’s critical to have it serviced as outlined in the maintenance chart. See page 64. The following areas need special attention: engine oil, transmission oil, front and rear gearcases, and all grease fittings.

CAUTION

Major engine damage can result if the vehicle is not thoroughly inspected after operation in water. Perform the services outlined in the maintenance chart.

If your vehicle becomes immersed or is operated in water that exceeds the footrest level, take it to your dealer for service before starting the engine.

NOTE: Avoid operating the vehicle through deep or fast-flowing water . If you cannot avoid water that exceeds the recommended maximum depth, go slowly, balance your weight carefully, avoid sudden movements, and maintain a slow and steady forward motion. Do not make sudden turns or stops, and do not make sudden throttle changes.

If your vehicle becomes immersed, and it’s impossible to take it to a dealer before starting it, follow the steps described on page 93. Have the vehicle serviced by your dealer at the first opportunity.

OPERATION

Driving Safely

Driving Over Obstacles

Be alert! Look ahead and learn to read the terrain you’re traveling on. Be constantly alert for hazards such as logs, rocks and low hanging branches.

WARNING

Severe injury or death can result if your vehicle comes in contact with a hidden obstacle. Not all obstacles are immediately visible. Travel with caution in unfamiliar terrain.

OPERATION

Driving Safely

Driving in Reverse

Follow these precautions when operating in reverse:

1. Always avoid

backing downhill.

2. Back slowly.

3. When in reverse,

apply the brakes lightly for stopping.

4. Avoid turning at

sharp angles in reverse.

5. Never open the

throttle suddenly while backing.

WARNING

Failure to use caution when operating in reverse can result in serious injury or death. Before shifting into reverse, always check for obstacles or people behind the vehicle. When it’s safe to proceed, back slowly.

Do not use the override switch unless additional power is required for vehicle movement. Use with caution.

Avoid backing on inclines, and avoid turning at sharp angles.

NOTE: This Polaris ATV is equipped with a reverse speed limiter. The override button should be used with caution as rearward vehicle speed is greatly increased. Do not operate at wide open throttle. Open the throttle just enough to maintain a desired speed.

CAUTION

Excessive throttle operation while in the speed limit mode may cause fuel to build in the exhaust, resulting in engine popping and/or engine damage.

OPERATION

Driving Safely

ParkingonanIncline

Avoid parking on an incline if possible. If it’s unavoidable, follow these precautions:

1. Turn the engine off.

1. Place the transmission in gear.

2. Set the parking brake.

3. Always block the rear wheels on the downhill side. See

illustration.

4. Shut off the fuel supply.

EMISSION CONTROL SYSTEMS

Noise Emission Control System

Do not modify the engine, intake or exhaust components, as doing so may affect compliance with state and local noise level requirements.

Spark Arrestor

Your Polaris vehicle has a spark arrestor that was tested and approved in accordance with the USDA Forest Service Standard 5100-1C. Federal law requires that this spark arrestor be installed and functional when the vehicle is operated on public lands.

Crankcase Emission Control System

This engine is equipped with a closed crankcase system. Blow-by gases are forced back to the combustion chamber by the intake system. The system does not allow the blow-by gases to enter the atmosphere.

Exhaust Emission Control System

The emissions from the exhaust of this vehicle are controlled by engine design, including factory-set carburetion and ignition. The engine and related components must be maintained at Polaris specifications to achieve optimal performance.

Adjustment to engine idle is the only adjustment Polaris recommends that the operator perform. Any other adjustments should be performed by an authorized Polaris dealer.

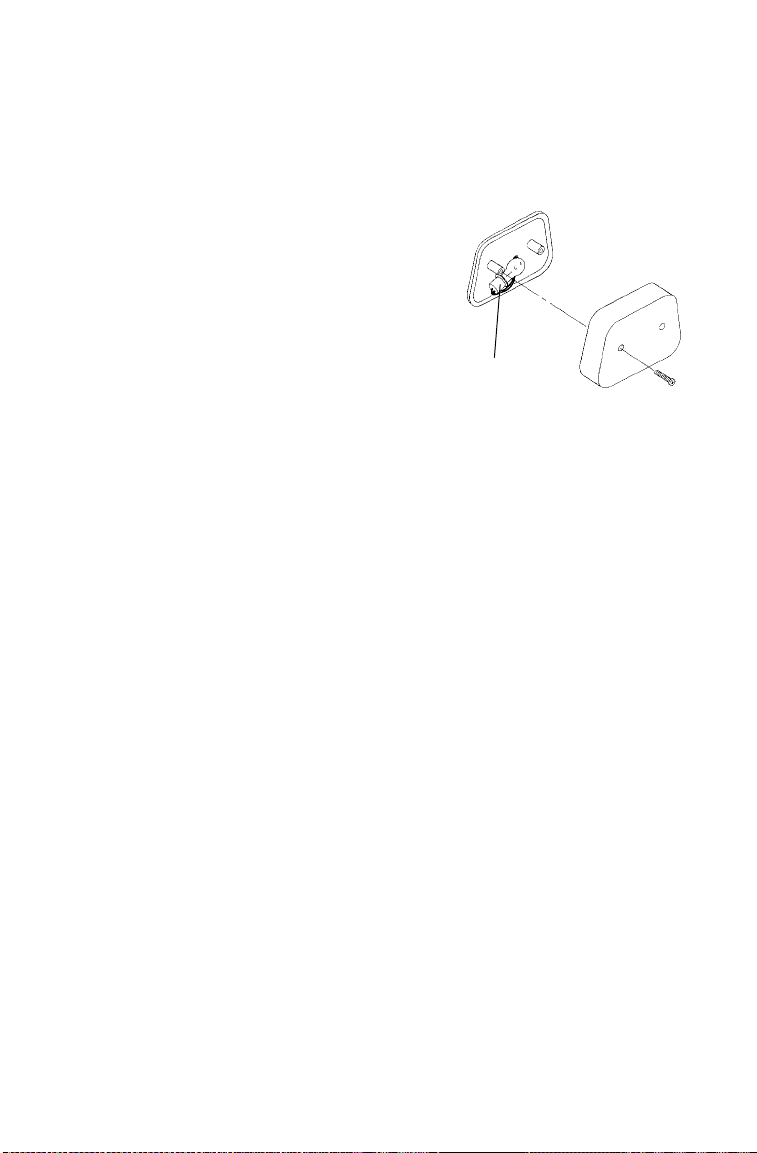

The emissions label (1) is located on the recoil cover.

MAINTENANCE AND LUBRICATION

Accessories

Auxiliary power outlets provide 12V power for operating accessories such as hand held spot lights. Accessory outlets are available for all models. Contact your Polaris dealer for more information.

Polaris has a wide range of additional accessories available for your ATV. See your Polaris dealer.

Periodic Maintenance Schedule

Careful periodic maintenance will help keep your vehicle i n the safest, most reliable condition. Inspection, adjustment and lubrication of important components are explained in the periodic maintenance schedule.

Maintenance intervals in the following charts are based upon average riding conditions and an average vehicle speed of approximately 10 miles per hour. Vehicles subjected to severe use, such as operation in wet or dusty areas, should be inspected and serviced more frequently.

Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, use genuine Polaris parts available from your Polaris dealer.

NOTE: Service and adjustments are critical. If you’re not familiar with safe service and adjustment procedures, have a qualified dealer perform these operations.

Maintenance Chart Key

" Perform these operations more often under severe use, such as in

dirty or wet conditions, t o purge water or dirt contamination from grease fittings and other critical components.

L Emission Control System Service (California - 4-Cycle)

NOTE: Some 4-Cycle models may have an additional Californiaonly emissions warranty.

J Dealer service item.

MAINTENANCE AND LUBRICATION

Periodic Maintenance Schedule

Hours of operation are based on a 10 mph average. If service is due at 20 hours, the equivalent odometer reading would be 200 miles. Perform all services at whichever reading is reached first.

WARNING

Improperly performing the procedures marked with a J could result in component failure and lead to serious injury or death. Have an authorized Polaris dealer perform these services.

Item Hours/

Miles

Brake System Pre-Ride Pre-Ride Inspect

Auxiliary Brake Pre-Ride Pre-Ride Inspect

Tires Pre-Ride Pre-Ride Inspect

Wheels Pre-Ride Pre-Ride Inspect

Frame nuts, bolts, fasteners

Air filter, Pre-cleaner

Fuel and oil tanks Pre-Ride Pre-Ride Fill to proper levels

Throttle Pre-Ride Pre-Ride Check operation

Lights Pre-Ride Pre-Ride Check operation

Engine stop switch Pre-Ride Pre-Ride Check operation

Drive chain Pre-Ride Pre-Ride Check condition/slack

Steering Pre-Ride Pre-Ride Check for free operation

" Air box sediment

tube

Headlamp Pre-Ride Pre-Ride Check operation daily; ap-

Pre-Ride Pre-Ride Inspect

Pre-Ride Pre-Ride Inspect; clean

Pre-Ride Pre-Ride Drain deposits whenever

Frequency Remarks

visible

ply Polaris dielectric grease to connector when replaced

" More often under severe use, such as dirty or wet conditions

L Emission Control System Service (California)

J Dealer service item

MAINTENANCE AND LUBRICATION

Periodic Maintenance Schedule

WARNING

Improperly performing the procedures marked with a J could result in component failure and lead to serious injury or death. Have an authorized Polaris dealer perform these services.

Item Hours/

Miles

Taillight/brakelight Pre-Ride Pre-Ride Check operation daily; ap-

Air filter, main element

J Brake pad wear 10 hrs. Monthly Inspect periodically

" Transmission oil

level

Battery 20 hrs. Monthly Check terminals; clean

Engine breather filter

Engine cylinder head and cylinder base fasteners

" General lubrication 50 hrs. 3 months Lubricate all fittings, pivots,

" Engine oil level/oil

change

" Oil Filter 100 hrs./

Engine breather

hose

Weekly Weekly Inspect; replace as needed

20 hrs. Monthly Inspect monthly; change

20 hrs. Monthly Inspect; replace annually

25 hrs. 3 months Inspect (re-torque required

100 hrs./ 1000 mi.

1000 mi.

100 hrs. 6 months Inspect

Frequency Remarks

ply Polaris dielectric grease to socket when replaced

annually

and as needed

at first service only)

cables, etc.

6 months Check level daily; break-in

service at one month; change oil more often in cold weather

6 months Replace with oil change

" More often under severe use, such as dirty or wet conditions

L Emission Control System Service (California)

J Dealer service item

MAINTENANCE AND LUBRICATION

Periodic Maintenance Schedule

Item Hours/

Miles

Carburetor float bowl

J Throttle Cable/ETC

Switch

Choke (enricher)

cable

Shift linkage 50 hrs. 6 months Inspect; adjust

J Drive belt 50 hrs. 6 months Inspect; replace as needed

" Steering 50 hrs. 6 months Inspect daily; lubricate

" Front suspension 50 hrs. 6 months Inspect; lubricate; tighten

" Rear suspension 50 hrs. 6 months Inspect; tighten fasteners

" Drive c hain(s) 50 hrs. 6 months Inspect daily; adjust and lu-

" Rear axle 50 hrs. 6 months Inspect bearings; lube

Spark p lug 100 hrs. 12 months Inspect; replace as needed

Ignition Timing 100 hrs. 12 months Inspect; adjust as needed

50 hrs. 6 months Drain bowl periodically and

50 hrs. 6 months Inspect; adjust; lubricate;

Fuel system 100 hrs. 12 months Check for leaks at tank

J Fuel filter 100 hrs. 12 months Replace annually

Frequency Remarks

prior to storage

replace if necessary

fasteners

bricate if needed

cap, lines, fuel valve, filter, pump and carburetor; replace lines every two years

" More often under severe use, such as dirty or wet conditions

L Emission Control System Service (California)

J Dealer service item

MAINTENANCE AND LUBRICATION

Periodic Maintenance Schedule

WARNING

Improperly performing the procedures marked with a J could result in component failure and lead to serious injury or death. Have an authorized Polaris dealer perform these services.

Item Hours/

Miles

Radiator/Oil Cooler 100 hrs. 12 months Inspect; clean external sur-

Cooling system hoses

J Clutches (drive and

driven)

Engine mounts 100 hrs. 12 months Inspect

Valve clearance 100 hrs. 12 months Inspect; adjust

100 hrs. 12 months Inspect

100 hrs. 12 months Inspect; clean

Frequency Remarks

face

J Shift selector 200 hrs. 24 months Change lubricant every two

years

J Brake fluid 200 hrs. 24 months Change every two years

J Front wheel

bearings

Spark arrestor 300 hrs. 36 months Clean out

Idle speed As required Adjust

Recoil housing As required Drain moisture out after rid-

J Toe adjustment As required Periodic inspection; adjust

Headlight aim As required Adjust as needed

300 hrs. 36 months Inspect; replace as needed

inginwater

when parts are replaced

" More often under severe use, such as dirty or wet conditions

L Emission Control System Service (California)

J Dealer service item

MAINTENANCE AND LUBRICATION

Periodic Maintenance Record

Use the following chart to record periodic maintenance.

Maintenance

Interval

Performed

10 hrs.

20 hrs.

50 hrs.

100 hrs.

Servicing

Date

Servicing

Dealer

or Person

Remarks

MAINTENANCE AND LUBRICATION

Lubrication Recommendations

NOTE: Hours are based on 10 mph average. If service is due at 20 hours, the equivalent odometer reading would be 200 miles. Perform all services at whichever reading is reached first.

Lubrication Chart Key

" More often under severe use, such as wet or dusty conditions

L Polaris Premium All Season Grease or grease conforming to NLG

No. 2, such as Conoco Superlube M or Mobilegrease Special

∆ When suspension action becomes stiff, or after washing

Item Lube Method Frequency

4-Cycle Engine

Brakes DOT 3 fluid only Maintain level between fill

Drive chain(s) O-ring chain lube

Transmission Polaris Premium

(1) Ball Joint

(2) Swing Arm Bushings

Polaris Premium 4 Synthetic 0W40

or SAE 80/90

Synthetic Gear case Lube

"L Grease

Add to proper level on dipstick.

lines. See page 39.

Lubricate as often as required and before each ride in wet conditions

See Page 73. Check every 6

Locate fitting on back side of struts and grease with grease gun.

Locate fittings on swing arm and grease with grease gun.

Check level daily.

As required; change every two years or 200 hours

As required

months/1000 miles. Change annually or at 100 hours

Every 3 months or 50 hours

Monthly or at 20 hours

(2)

(1)

MAINTENANCE AND LUBRICATION

Lubrication Recommendations

Premium 4 Synthetic Oil

Polaris Premium 4 All Season Synthetic engine oil has been specially formulated for use in Polaris 4-cycle engines. It’s a fully synthetic, high performance, multi-viscosity oil designed to provide the ultimate in lubrication performance and protection. NOTE: See page 108 for the part numbers of Polaris products.

Premium 4 possesses unsurpassed film strength over the widest possible temperature range. It resists viscosity and frictional breakdown in ambient temperatures from -40° F. to 120° F. It s exceptional frictional properties result in more efficient operation, more power output and lower fuel consumption.

Although Polaris Premium 4 is the only oil recommended for use in this engine, use of any API certified “SH” oil is allowable as long as it’s 0W-40. Oil may need to be changed more frequently if Polaris Premium 4 is not used. Follow the manufacturer’s recommendations for ambient temperature operation.

CAUTION

Mixing brands or using a non-recommended oil may cause serious engine damage. We recommend the use of Polaris Premium 4 All Season synthetic oil or API certified “SH” oil, 0W-40. Never substitute or mix oil brands.

Oil and Filter Ch ange

The recommended oil change interval is 100 hours, 1000 miles, or every six months, whichever comes first.

Suggested break-in oil change is at 20 hours, 200 miles, or one month, whichever comes first. Severe use operation requires more frequent service. Severe use includes continuous duty in dusty or wet conditions and cold weather riding. NOTE: Severe use cold weather riding is all riding below 10° F., and riding between 10° F and 30°F when most trips are slow speed and less than 5 miles.

Be sure to change the oil filter whenever changing oil.

MAINTENANCE AND LUBRICATION

Lubrication Recommendations

Oil and Filter Ch ange

1. Position the vehicle on a level surface.

2. C lean the area around the drain plug.

3. Run the engine for two to three minutes until warm. Stop the

engine.

CAUTION

Contact with hot oil may result in serious burns. Do not allow hot oil to come into contact with skin.

4. Place a drain pan beneath t he engine crankcase and remove the

drain plug.

5. Allow the oil to drain completely.

6. Install a new s ealing washer on the drain plug. NOTE: The

sealing surfaces on the drain plug and crankcase should be clean and free of burrs, nicks or scratches.

7. Reinstall the drain plug and torque to 14 ft. lbs. (19 Nm).

8. Place shop towels beneath the oil filter. Using an oil filter wrench,

turn the filter counterclockwise to remove.

9. Using a clean, dry cloth, clean the filter sealing surface on the

crankcase.

10. Lubricate t he gasket on the new filter with a film of engine oil.

Check to make sure the gasket is in good condition.

11. Install the new filter and turn by hand until the filter gasket

contacts the sealing surface, then turn and additional 1/2 turn.

12. Remove the dipstick and fill the sump with 1.7 quarts (1.6 l ) of

Polaris Premium 4 synthetic oil.

13. Pl ace the gear selector in neutral and set the parking brake.

14. Start the engine and let it idle for one to two minutes. Stop the

engine and inspect for leaks.

15. Recheck the oil level and add oil as necessary to bring the level to

the upper mark on the dipstick.

16. Dispose of used filter and oil properly.

MAINTENANCE AND LUBRICATION

Lubrication Recommendations

Transmission Oil Check

The transmission dipstick (1) is located on the right side of the machine near the recoil handle. Check the lubricant level monthly or every 1000 miles (1600 km), whichever comes first. Change the t ransmission oil annually. NOTE: We recommend the use of Polaris Premium Synthetic Gearcase Lubricant. See page 108 for the part numbers of Polaris products.

1. Position the ATV on a level surface. Remove the dipstick and

wipe it clean.

2. R einstall the dipstick completely, then remove it and check the

level. Add the recommended lubricant to bring the level into the safe operating range. See Specifications beginning on page 105 for capacity.

MAINTENANCE AND LUBRICATION

Lubrication Recommendations

Transmission Oil Change

1. Place a drain pan beneath the

transmission oil drain plug area.

2. Loosen the jam nut (A).

3. Turn the adjuster bolt (B) in to

allow the removal of the drain plug (C).

4. R emove the drain plug and

wipe the magnetic end clean to remove accumulated metallic filings.

5. After the oil has drained

completely, install a new sealing washer and reinstall the drain plug. Torque to 14 ft. lbs. (19 Nm).

6. Turn the adjuster bolt (B) out until it touches the frame, and then

turn an additional 1/2 turn.

7. Tighten the jam nut securely while holding the adjuster bolt.

8. Add the recommended lubricant t hrough the dipstick hole until the

oil level is between the upper and lower limits. Do not overfill.

9. Check for leaks.

MAINTENANCE AND LUBRICATION

Lubrication Recommendations

Engine Oil Check

The oil fill is located on the left side of the vehicle (1).

1. Position the machine on a level surface.

2. Start the engine and let it idle for 20-30 seconds. Stop the engine.

3. R emove the dipstick and wipe it dry with a clean cloth.

4. Screw the dipstick completely in.

5. Remove the dipstick and read the oil level. Maintain the oil level in

the safe operating range (2). Do not overfill.

MAINTENANCE AND LUBRICATION

Adjustments

Brakes

The front and rear brakes are hydraulic disc brakes, activated by moving the single brake lever toward the handlebar. These brakes are self-adjusting.

The following checks are recommended to keep the brake system in good operating condition. Check more often if brakes are used heavily under normal operation.

WARNING

1. Always keep brake fluid at an adequate level (see page 39).

WARNING

An over-full master cylinder may cause brake drag or brake lock-up, which could result in serious injury or death. Maintain brake fluid at the recommended level. Do not overfill.

NOTE: Under normal operation, the diaphragm extends into the reservoir as fluid level drops. If the fluid level is low and the diaphragm is not extended, a leak is likely and the diaphragm should be replaced. Always fill the reservoir as needed whenever the cover is loosened or removed to ensure proper diaphragm operation. Use Polaris DOT 3 brake fluid. Do not overfill.

MAINTENANCE AND LUBRICATION

Adjustments

Brakes

2. Check the brake system for fluid leaks.

3. Check the brakes for excessive travel or

spongy feel.

4. Check the friction pads for wear,

damage and looseness.

5. Check the security and surface

condition of the disc.

NOTE: Pads should be changed when worn to 3/64″ (.1 cm), or about the thickness of a U.S. dime.

Auxiliary Brake

The auxiliary brake system is intended to be used as a backup for the main brake system. Should the main system fail, the rear brake can be activated by depressing the foot pedal on the inside of the right footrest. The hydraulic auxiliary brake system requires no adjustment.

NOTE: Since this is a rear brake only, it will not be as effective as the all-wheel single lever system.

3/64″ (.1 cm)

MAINTENANCE AND LUBRICATION

Adjustments

WARNING

Severe injury or death can result from improper toe alignment and adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments should be performed by an authorized Polaris dealer.

Toe Alignment

Use the following procedure to check the toe alignment of the vehicle. The recommended toe alignment i s 1/8″ to 1/4″ toe out.

1. Set the handlebars in a

straight-ahead position. NOTE: The steering frog can be used as an indicator of whether the handlebars are straight. The frog should always point straight back from the steering post.

2. Place stands (1) in front of

the vehicle, perpendicular to the rear tires. See illustration.

3. Tie an elastic string around

the stands, making sure the string just touches the side surface of the rear tires on each side of the vehicle and goes around the stands in front of the vehicle (2).

4. Measure the distance from

the string to the rim at the front and rear of the front rim (3). Rear measurement should be 1/16″ -1/8″ (.2to.3cm) more than the front measurement.

NOTE: If you discover improper alignment, see your Polaris dealer for service.

MAINTENANCE AND LUBRICATION

Adjustments

Side Panel Removal

NOTE: Side panel removal may be difficult until the locking tabs and receivers have been snapped and unsnapped a few times.

1. Remove the seat.

2. Grasp the rear of the side panel

near the rear cab. With a quick and firm motion, pull the panel forward and outward to disengage the two rear tabs.

3. Place your hand on top of the

side panel behind the fuel tank. With a quick and firm motion, push down on the side panel to disengage the top rear two tabs. Then pull up on the side panel to disengage the front upper and lower tabs.

4. To reinstall the side panel, align

the panel tabs with the slots on the front cab. Push the panel upward and forward until the tabs lock. Bend the rear of the side panel and insert the two tabs into the rear cab.

Step 2

Step 3

Step 4

MAINTENANCE AND LUBRICATION

Adjustments

Steering Assembly

The steering assembly of the ATV should be checked periodically for loose nuts and bolts. If loose nuts and bolts are found, see your Polaris dealer for service before operating t he vehicle.

Camber and Caster

The camber and caster are non-adjustable.

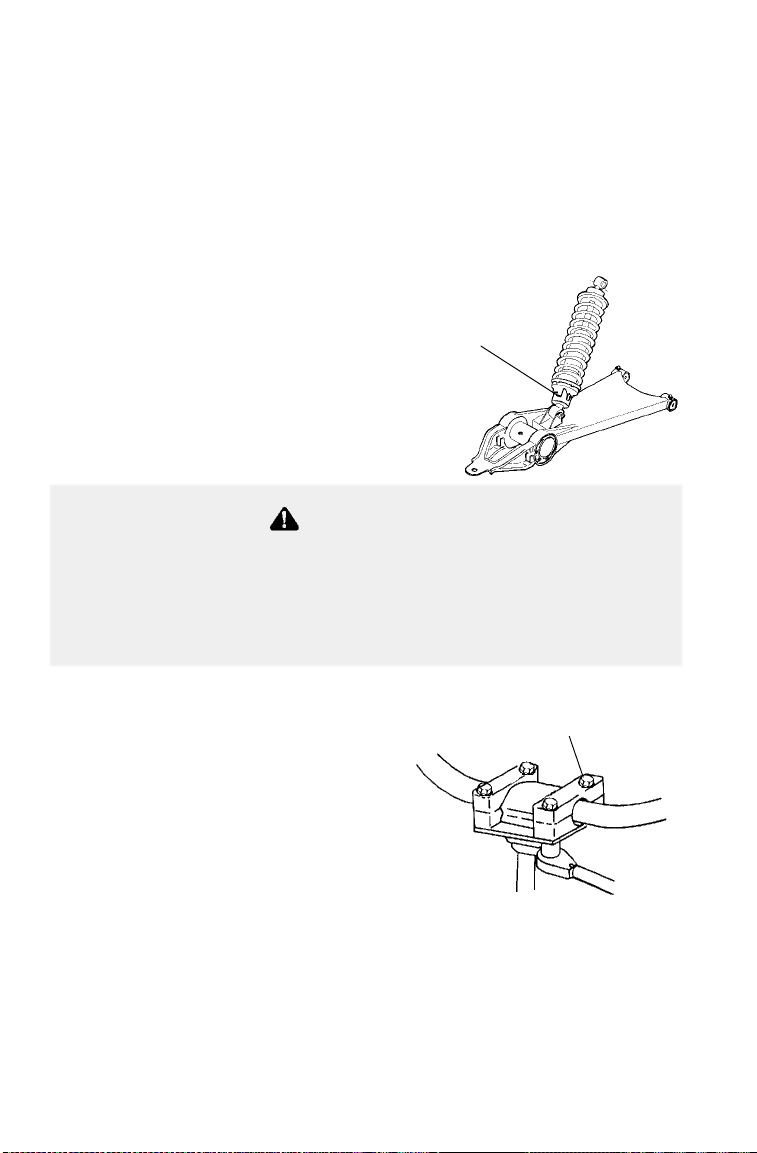

Rear Spring

The rear shock absorber spring is adjusted by rotating the adjuster (1) either clockwise or counterclockwise to increase or decrease spring tension.

NOTE: Accessory springs are available through your Polaris dealer.

WARNING

Improper adjustment of the handlebars or incorrect torquing of the adjuster block tightening bolts can cause limited steering or loosening of the handlebars, resulting in loss of control and possible serious personal injury or death. Follow the adjustment procedures exactly, or see your Polaris dealer for service.

Handlebars

The handlebars can be adjusted for rider preference.

1. Remove the handlebar cover

and locate the handlebar bolts (1).

2. Loosen the four bolts.

3. Adjust the handlebar to the

desired height. Be sure the handlebars do not contact the gas tank or any other part of t he machine when turned fully to the left or right.

4. Torque the front two bolts to 10-12 ft. lbs. (14-17 Nm), then

torque the rear two bolts. A gap of up to 1/8” will remain at the rear bolts.

MAINTENANCE AND LUBRICATION

Adjustments

Carburetor

IMPORTANT: Your Polaris ATV is calibrated at the factory for optimal performance at altitudes ranging from zero to 6,000 feet (1800 m) and temperatures of +40 degrees F. (4 degrees C.) or higher. Above 6000 feet (1800 m) the engine air/fuel mixture becomes overly rich and the engine loses approximately 3% of its power for each 1000-foot (304.8 m) increase in elevation. Although this power cannot be regained, adjustments to the carburetor and drive system can be made to allow more efficient operation. Optional jets, available from your Polaris dealer, are required for operation above 6,000 feet and temperatures below +40 degrees F. (4 degrees C.)

NOTE: Continuous operation of the engine without proper jetting when required can cause poor performance, overheating or engine damage. See your P olaris dealer for more information about jetting the ATV for conditions in your area.

If the engine idle speed is not satisfactory, and all other conditions are favorable, the carburetor can be adjusted.

1. Warm up the engine by running the

vehicle for approximately five minutes.

2. Place the transmission in gear with

the parking brake applied.

3. Adjust the carburetor idle screw (1)

either in or out until the desired idle RPM is reached. Turning the screw in (clockwise) will raise RPM. Turning the screw out (counterclockwise) will lower RPM.

MAINTENANCE AND LUBRICATION

Adjustments

Throttle Cable Freeplay

Throttle cable freeplay is adjusted at the handlebar.

1. Slide the boots (1) off the inline cable adjuster sleeve (2). Loosen

the adjuster locknut (3).

2. Turn the adjuster until 1/16″ to 1/8″ freeplay is achieved at the

thumb lever. NOTE: While adjusting freeplay, be sure to flip the throttle lever back and forth.

3. Tighten the locknut and slide the boots over t he cable adjuster until

they touch at the midpoint of the adjuster.

MAINTENANCE AND LUBRICATION

Adjustments

WARNING

Operating your ATV with worn tires, improperly inflated tires, non-standard tires or improperly installed tires will affect vehicle handling and could cause an accident resulting in serious injury or death.

Maintain proper tire pressure as described on the decal on your ATV and in your owner’s manual.

Always use original equipment size and type when replacing tires.

Make sure the wheels are installed properly.

Always replace tires when the tread depth measures 1/8″ (.3 cm) or less.

Wheel Removal

1. Stop the engine, place the transmission in gear and lock the

parking brake.

2. Loosen the wheel nuts slightly.

3. Elevate the side of the vehicle by placing a suitable stand under the

footrest frame.

4. Remove the wheel nuts and remove the wheel.

MAINTENANCE AND LUBRICATION

Adjustments

Wheel Installation

1. P l ace the transmission in gear

and lock the parking brake.

2. Place the wheel on the wheel

hub with the valve stem toward the outside and rotation arrows on the tire pointing t oward forward rotation.

3. Install the wheel nuts and finger

tighten.

4. Lower the vehicle to the ground.

5. T orque the wheel nuts according to the wheel nut torque

specifications chart.

NOTE: All nuts that have a cotter pin installed must be serviced by an authorized Polaris dealer.

Wheel Nut Torque Specifications

Check the wheel nut torques occasionally and when they’ve been loosened for maintenance service.

Bolt Size Specification

Front 3/8″ 20 ft. lbs. (27 Nm)

Rear 3/8″ 20 ft. lbs. (27 Nm)

Rear 1/2″ 50 ft. lbs. (68 Nm)

MAINTENANCE AND LUBRICATION

Adjustments

Front Wheel Hub Tightening

Front wheel bearing tightness and spindle nut retention are critical component operations. All service must be performed by your authorized Polaris dealer.

Tires

WARNING

Use of non-standard size or type of tires or improper tire inflation may adversely affect vehicle maneuverability and cause loss of control resulting in serious injury or death.

Maintain proper tire pressure as outlined in the specifications section of this manual. When replacing a tire always use original equipment size and type.

WARNING

Operating the vehicle with worn tires will increase the possibility of skidding, which could lead to loss of control and serious injury or death. Always replace tires when the tread depth measures 1/8″ (.3 cm) or less.

Always replace tires when tread depth is worn to 1/8″ (.3 cm) or less.

1/8I (.3 cm)

MAINTENANCE AND LUBRICATION

Adjustments

Rear Drive Chain Slack

CAUTION

Adjusting or operating the ATV with improper rear drive chain slack can result in severe damage to the transmission and drive components. Always make sure the slack is within the stated specifications.

Check the amount of chain slack in three different locations by moving the vehicle slightly forward to gain slack at the top side of the rear chain. Measure the chain slack at the tightest of the three positions. At this point the chain should have 3/16″-3/8″ (.48 cm - .95 cm) deflection. Use the following procedure if adjustment is required.

3/16″-3/8″ (.48 cm - .95 cm)

1. R emove the chain guard if

applicable.

2. Loosen the chain guide.

3. Loosen the two eccentric

locking bolts (1).

4. Loosen the caliper mounting

bracket bolts located under the axle.

5. Insert a pin punch (2) through the sprocket hub and into the

eccentric housing.

MAINTENANCE AND LUBRICATION

Adjustments

Rear Drive Chain Slack

6. Roll the ATV forward or backward

to adjust the chain slack to the proper tension. See the illustration for proper splice link clip opening position (1).

7. Tighten the eccentric locking bolts

to 30 ft. lbs. (41 Nm) for machines without the hitch and 45 ft. lbs. (61 Nm) for machines with a hitch.

8. Tighten the caliper mount bolts to 10-12 ft. lbs. (14-17 Nm)

9. Remove the pin punch.

10. Roll the ATV forward, checking chain tension in several places

around the chain. NOTE: The chain is adjusted correctly when the tightest portion of the chain has approximately 3/8” (10mm) deflection.

11. Position the chain guide to allow 1/8” (3mm) clearance and tighten

the retaining bolt to 5 ft. lbs. (7 Nm).

12. Reinstall the chain guard if applicable.

MAINTENANCE AND LUBRICATION

Adjustments

Drive Chain

Polaris ATV drive chains are equipped with o-ring-sealed, permanently greased pins and rollers. However, the outer surfaces of the roller must be lubricated.

Always inspect the drive chain prior to operating the vehicle. Check for damaged or missing o-rings or damaged rollers. Also check for correct slack adjustment. Maintain the stone guard to rear sprocket clearance at 1/8″ (.3 cm).

Regularly lubricate the drive chain with SAE 80-90 lube or an approved o-ring chain spray lube. See page 108 for the part numbers of Polaris products.

CAUTION

Washing the drive chain with a high pressure washer or gasoline can cause damage to the o-rings, causing premature wear and drive chain failure. Don’t use a high pressure washer or gasoline to clean the drive chain.

MAINTENANCE AND LUBRICATION

Air Filter

1. Remove the seat, release the clips,

and remove the air box cover.

2. Loosen the clamp and remove the

filter.

3. Remove the fabric type pre-filter

(1) from the main filter (2). Wash the pre-filter in soapy water, then rinse and let dry.

4. Reinstall the pre-filter over the

main filter. (Replace the main filter if needed.)

5. Reinstall the filter into the air box

and tighten the clamp. Do not over tighten the clamp, as filter damage could occur.

MAINTENANCE AND LUBRICATION

Lights

When servicing a halogen lamp, don’t touch the lamp with bare fingers. Oil from your skin leaves a residue, causing a hot spot that will shorten the life of the lamp.

WARNING

Poor lighting while driving can result in severe injury or death. Headlight and taillight lenses become dirty during normal operation. Wash the headlights frequently to maintain lighting quality.

Hot components can cause serious burns to skin. Do not service the headlamps until they’ve cooled sufficiently.

Headlight Lamp Replacement

1. R emove the wire harness connector from the back of the headlight.

2. Grasp the bulb housing and turn it counterclockwise to remove the

bulb.

3. Apply dielectric grease to the light bulb socket before installing a

new bulb. Install the replacement bulb into the headlight housing and rotate clockwise firmly. NOTE: The bulb must be positioned so the harness installs into the lamp at the bottom.

4. R einstall the connector to the back of the headlight..

High Beam Adjustment

The headlight beam can be adjusted vertically.

1. Position the ATV on a level surface with the headlight

approximately 25 ft. (7.6 m) from a flat wall.

2. Measure the distance from the floor to the center of the headlight

and make a mark on the wall at the same height.

3. Start the engine and turn the headlight switch to high beam.

4. Observe the headlight aim on the wall. The most intense part of

the headlight beam should be aimed 2” (5.1 cm) below the mark placed on the wall. NOTE: Include rider weight on the seat when measuring.

5. Loosen the pivot bolt and adjust the beam to the desired position.

6. Tighten the bolt and torque to 60 in. lbs.

MAINTENANCE AND LUBRICATION

Lights

Taillig h t /Brakelight Lamp Replacement

If the taillight/brakelight does not work the lamp may need to be replaced.

1. Remove the taillight lens cover

mounting screws. Remove the lens cover and gasket and set aside for reassembly.

2. Remove the lamp (1) and

replace it with a new lamp.

3. Test the taillight/brakelight to

see that it’s working.

4. Reinstall the gasket and lens cover.

Indicator Lamp Replacement

1. Remove the instrument panel, if necessary, to access the back of

the indicator panel.

2. Using a small, straight-blade screwdriver, turn the base of the bulb

1/4 turn counterclockwise.

3. Using a needle-nose plier or similar t ool, pull the lamp out of the

indicator panel housing.

4. Insert the new bulb and seat it by turning it 1/4 turn clockwise.

5. Reassemble the pod or front cover.

MAINTENANCE AND LUBRICATION

Spark Plugs

CAUTION

Using non-recommended spark plugs can result in serious engine damage. Always use Polaris-recommended spark plugs. See Specifications beginning on page 105.

Spark plug condition is i ndicative of engine operation. The spark plug firing end condition should be read after the engine has been warmed up and the vehicle has been driven at higher speeds. Immediately check the spark plug for correct color.

WARNING

A hot exhaust system and engine can cause serious burns. Wear protective gloves when removing a spark plug for inspection.

1. Normal

The normal insulator tip is gray, tan or light brown. There will be few combustion deposits. The electrodes are not burned or eroded. This indicates the proper type and heat range for the engine and the service.

NOTE: The tip should not be white. A white insulator tip indicates overheating, caused by use of an improper spark plug or incorrect carburetion adjustments.

2. Wet Fouled

The wet fouled insulator tip is black. A damp oil film covers the firing end. There may be a carbon layer over the entire nose. Generally, the electrodes are not worn. General causes of fouling are excessive oil, use of non-recommended injection oil, improper use of the choke, or incorrect carburetion adjustments.

Spark Plug Removal and Replacement

1. Remove the spark plug cap.

2. Using the special wrench provided in the tool pouch, rotate the

spark plug counterclockwise to remove.

3. R everse the procedure for spark plug installation. Torque to 14 ft.

lbs. (19 Nm).

MAINTENANCE AND LUBRICATION

Vehicle Immersion

CAUTION

If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly inspected. Take the vehicle to your dealer before starting the engine.

If it’s impossible to take your ATV t o a dealer before starting it, follow the steps outlined below.

1. Move the ATV to dry land or at the

very least, to water below the foot rests.

2. Check the airbox for any water and

dry it if water is present.

3. Turn the fuel valve off.

4. Remove the spark plug.

5. Turn the engine over several times

using the electric start.

6. Loosen the carburetor drain screw (1).

7. Dry the spark plug and reinstall, or

replace it with a new plug.

8. Tighten the carburetor drain screw.

9. Turn the fuel valve on.

10. Attempt to start the engine. If necessary, repeat the drying

procedure.

11. Take the ATV to your dealer for service as soon as possible,

whether you succeed in starting it or not.

NOTE: If water has been ingested into the PVT, follow the procedure on page 97 for drying out the PVT.

MAINTENANCE AND LUBRICATION

Spark Arrestor

WARNING

Failure to heed the following warnings while servicing the spark arrestor could result in serious injury or death.

Do not perform service on the spark arrestor while the system is hot. Exhaust system temperatures can reach 1000° F. Allow components to cool sufficiently before proceeding.

Remove any combustible materials from the area. Wear eye protection and leather work gloves. Do not stand behind or in front of the vehicle while purging. Never run the engine in an enclosed area. Exhaust contains poisonous carbon monoxide gas. Never go under the vehicle while it’s inclined.

1. Remove the arrestor clean-out

plug (1) from the bottom of the muffler.

2. Place the transmission in neutral

and start the engine.

3. Purge carbon from the system by

momentarily revving the engine several times.

4. If carbon is expelled, cover or plug the

exhaust outlet (2) and rap on the pipe around the cleanout plug while revving the engine several more times.

5. If particles are still suspected to be in the muffler, elevate the rear

of the vehicle one foot higher than the front. Set the parking brake and block the wheels. Make sure the vehicle is in neutral and repeat steps 3 and 4 until no more particles are expelled when the engine is revved.

6. Stop the engine and allow the arrestor to cool. Reinstall the

arrestor plug and remove the outlet cover or plug.

MAINTENANCE AND LUBRICATION

Recoil Housing

To prevent possible engine damage, always drain the recoil housing (1) afteroperatingtheATVinverywet conditions. This should also be done before storing the ATV.

Water will enter the recoil housing if the starter handle is disengaged from the rope guide when under water.

The drain screw is located at the bottom of the recoil housing. Use a wrench to remove the screw. Be sure to reinstall the screw after draining the housing.

NOTE: Do not open the crankcase drain unless the engine has ingested water. On 4-cycle engines, some engine oil will be lost if the crankcase drain is opened.

MAINTENANCE AND LUBRICATION

PVT System

The basic operation of the Polaris PVT system is dependent on engine speed and vehicle torque requirements. As engine speed increases, the force exerted on the movable drive sheave by the flyweights also increases. This, in turn, increases the amount of “pinch” applied to the drive belt. Similarly, if the engine speed decreases, the amount of centrifugal force decreases, reducing the amount of belt “pinch.” This begins to occur at speeds of less than 5 MPH, due to the system’s dependence on engine speed.

For example, when operating at a ground speed of 3 MP H, t he engine would be running at only about 1500 RPM, with an engagement speed of about 1400 RPM. Whenever operating this close to the engagement point, the engine may be running at a speed too low to provide the adequate “pinch” needed to prevent incomplete engagement. Incomplete engagement creates excessive heat that can destroy belts and clutch covers. In some cases, excessive clutch wear and damage may result.

If the ATV will be operated for extended periods below 5 MPH, or for towing loads, we recommend that you install a one tooth smaller counter shaft sprocket to raise the operating RPM far enough above the engagement RPM to reduce heat caused by incomplete engagement. Reducing the temperature inside the clutch cover extends the life of the PVT components (belt, cover, etc.).

NOTE: Avoid heavy pulling and extended low-speed operation.

MAINTENANCE AND LUBRICATION

PVT System

WARNING

Failure to comply with the instructions in this warning can result in severe injury or death.

Do not modify any component of the PVT system. Doing so may reduce its strength so that a failure may occur at a high speed. The PVT system has been precision balanced. Any modification will cause the system to be out of balance, creating vibration and additional loads on components.

The PVT system rotates at high speeds, creating large amounts of force on clutch components. Extensive engineering and testing has been conducted to ensure the safety of this product. However, as the owner, you have the following responsibilities to make sure this system remains safe:

Always follow all recommended maintenance procedures. See your dealer as outlined in the owner’s manual.

This PVT system is intended for use on Polaris products only. Do not install it in any other product.

Always make sure the PVT housing is securely in place during operation.

PVT Drying

There may be some instances when water is accidently ingested into the PVT system. Use the following instructions to dry it out before operating:

1. Move the ATV to dry land, or to water that i s at least three inches

below the footwell. Remove the PVT drain plug and allow the water to drain. Reinstall the drain plug.

2. Start the engine and shift the transmission into neutral. Apply

varying throttle for 10-15 seconds to expel the moisture and air-dry the belt and clutches. Do not hold the throttle wide open for more than 10 seconds.

3. Allow the engine RPM to settle to idle speed, then shift the

transmission to the lowest available range.

4. Test for belt slippage. If the belt slips, repeat the process.

5. Take the vehicle to your dealer for service as soon as possible.
