Polaris Ranger 4X4, 2010 Ranger 4X4 Owner's Manual
WARNING
Read, understand, and follow all of the instructions and safety precautions in
this manual and on all product labels.
Failure to follow the safety precautions could result in serious injury or death.
WARNING
The engine exhaust from this product contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive harm.
The text is printed on 100% recycled
with 40% post-consumer waste (PCW).
1
WELCOME
Thank you for purchasing a Polaris vehicle, and welcome to our worldwide family of Polaris owners. We proudly produce an exciting line of
utility and recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
• RANGER
®
utility vehicles
• Victory Motorcycles
®
We believe Polaris sets a standard of excellence for all utility and recreational vehicles manufactured in the world today. Many years of experience have gone into the engineering, design, and development of your
Polaris vehicle, making it the finest machine we’ve ever produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual
contains instructions for minor maintenance, but information about
major repairs is outlined in the Polaris Service Manual and should be
performed only by a factory certified Master Service Dealer
®
(MSD)
technician.
Your Polaris dealer knows your vehicle best and is interested in your
total satisfaction. Be sure to return to your dealership for all of your service needs during, and after, the warranty period.
We also take great pride in our complete line of apparel, parts and accessories, available through our online store at www.purepolaris.com. Have
your accessories and clothing delivered right to your door!
2
POLARIS, POLARIS THE WAY OUT and RANGER are registered trademarks of
Polaris Industries Inc.
Copyright 2009 Polaris Sales Inc. All information contained within this publication is
based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information presented in this publication. Depictions and/or procedures in this publication are intended for reference use
only. No liability can be accepted for omissions or inaccuracies. Any reprinting or reuse
of the depictions and/or procedures contained within, whether whole or in part, is
expressly prohibited.
Printed in U.S.A.
2010 RANGER 4X4 Owner’s Manual
P/N 9922518
3
TABLE OF CONTENTS
Vehicle Identification Numbers . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features and Controls . . . . . . . . . . . . . . . . . . . 18
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Emission Control Systems . . . . . . . . . . . . . . . 49
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 100
Polaris Products. . . . . . . . . . . . . . . . . . . . . . . 102
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 103
Declaration of Conformity . . . . . . . . . . . . . . . 107
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 114
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
4
INTRODUCTION
The RANGER is an off-road vehicle. Familiarize yourself with all laws
and regulations concerning the operation of this vehicle in your area.
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the
manual.
The safety alert symbol indicates a potential personal injury hazard.
WARNING
A WARNING indicates a hazardous situation which, if not avoided, may result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation which, if not avoided, may result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that may result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.
5
INTRODUCTION
Failure to follow the warnings contained in this manual can result in severe
injury or death.
A Polaris RANGER is not a toy and can be hazardous to operate. This vehicle
handles differently than other vehicles, such as motorcycles and cars. A collision
or rollover can occur quickly, even during routine maneuvers like turning, or
driving on hills or over obstacles, if you fail to take proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating the vehicle. Keep this manual with the
vehicle.
• This vehicle is an ADULT VEHICLE ONLY. NEVER operate this vehicle if you
are under age 16 and NEVER operate without a valid driver’s license.
• No person under the age of 12 may ride as a passenger in this vehicle. Any
passenger must be able to comfortably reach the floor and hand holds.
• Never permit a guest to operate this vehicle unless the guest has read this
manual and all product labels.
WARNING
6
INTRODUCTION
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a Polaris key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Frame VIN: ____________________________________________________________
Engine Serial Number: ___________________________________________________
(label on side of engine)
Key Number ___________________________________________________________
VIN
Key
Number
####
7
SAFETY

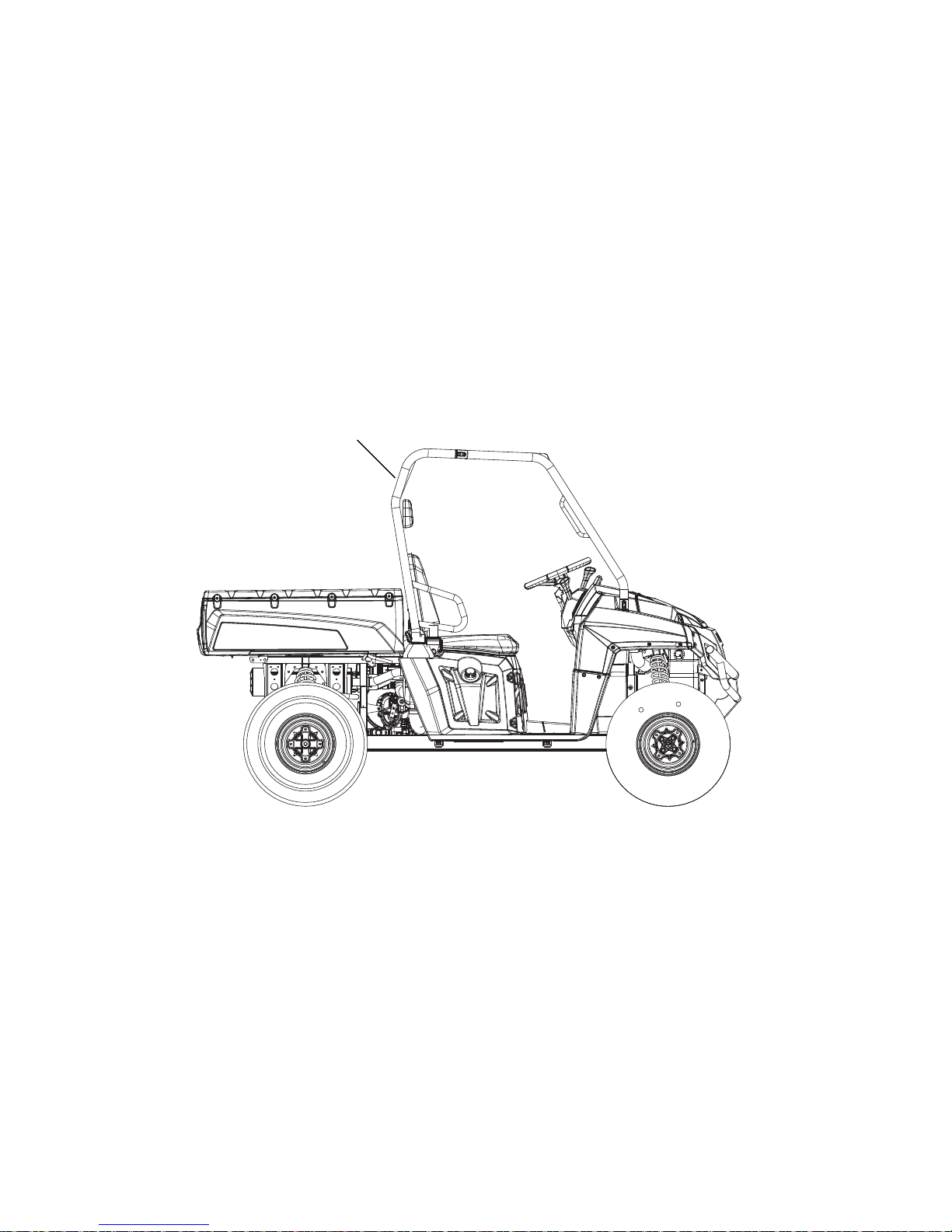

Safety Labels and Locations
Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions of the labels on the vehicle carefully. If
any of the labels depicted in this manual differ from the labels on your
vehicle, always read and follow the instructions of the labels on the
vehicle.
If any label becomes illegible or comes off, contact your Polaris dealer
to purchase a replacement. Replacement safety labels are provided by
Polaris at no charge. The part number is printed on the label.
Container/Passenger/Tire Pressure Warning
WARNING
Remove flammable material containers from
box before filling.
• Passengers can be thrown off. This can
cause serious injury or death.
• Never carry passengers in cargo box.
Maximum 4X4 Box Load 1000 lbs. (455 kg)
Maximum 6X6 Box Load 1250 lbs. (567 kg),
Storage Box Load 250 lbs. (113 kg)
IMPROPER TIRE PRESSURE OR
OVERLOADING can cause loss of control
resulting in SEVERE INJURY OR DEATH.
TIRE PRESSURE IN PSI (KPa):
RANGER - 4X4 FRONT 10 (69) REAR 10 (69)
RANGER - 6X6 FRONT 10 (69) CENTER 10 (69) REAR 10 (69)
MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR,
PASSENGER, CARGO, AND ACCESSORIES.
RANGER 4X4 is 1500 LBS. (682 KG)
RANGER 6X6 is 2000 LBS. (907 KG)
Reduce speed and allow greater distance for braking when carrying cargo.
Overloading or carrying tall, off-center, or unsecured loads will increase your risk
of losing control. Loads should be centered and carried as low as possible in
box. For stability on rough or hilly terrain, reduce speed and cargo. Be careful if
load extends over the side of the box.
Read Owner's Manual for more detailed loading information.
7176334
+
8
SAFETY
Safety Labels and Locations
Clutch Cover Warning
WARNING
NO STEP
• Moving parts hazard under belt-clutch guard. To prevent serious injury, do not
operate vehicle with guard removed.
• Do not modify engine or clutch. Doing so can cause part failure, possible
imbalance, and excessive engine RPM which can result in serious injury or
death.
7172563
Age 16 Warning
Operating this vehicle if you are under the age of 16 increases your chance of
severe injury or death.
NEVER operate this vehicle if you are under age 16 and NEVER operate this
vehicle without a valid driver’s license.
7175566
Shift Caution
CAUTION
To avoid transmission damage, shift only when vehicle is stationary and at idle.
7172674
Clutch Cover
Warning
Discretionary
Warning
Age 16
Warning
Shift Caution
9
SAFETY
Safety Labels and Locations
Discretionary Warning
WARNING
Improper vehicle use can result in Severe Injury or Death.
NEVER Operate:
• At speeds too fast for your skills or the conditions.
• After or while using Alcohol or Drugs.
• On hills steeper than 15 degrees 15°.
• On public roads, a collision can occur with a another vehicle.
• With more than two passengers, or passengers under age twelve or who
cannot comfortably reach the floor and hand holds.
• On paved surfaces - pavement may seriously affect handling and control.
• With non-Polaris approved accessories - they may seriously affect stability.
ALWAYS:
• Wear your seat belt. Vehicle rollover could cause severe injury or death.
• Wear a helmet and eye protection and keep hands and feet in vehicle at all
times.
• Reduce speed and use extra caution when carrying passengers.
• Avoid sharp turns or turns while applying heavy throttle.
• Operate slowly in reverse - avoid sharp turns or sudden braking.
• Make sure passenger reads and understands all safety labels.
• Watch for branches or other hazards that could enter vehicle.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS
AND WARNINGS.
7176128
10
SAFETY
Operator Safety
Serious injury or death can result if you do not follow these instructions and
procedures, which are outlined in further detail within your owner's manual.
• Read this manual and all labels carefully. Follow the operating
procedures described.
• Never allow anyone under age 16 to operate this vehicle and never
allow anyone without a valid driver's license to operate this vehicle.
• Do not carry a passenger until you have at least two hours of driving
experience with this vehicle.
• No person under the age of 12 may ride as a passenger in this vehicle.
Any passenger must be able to comfortably reach the floor and hand
holds.
• The driver and any passenger must wear helmet, eye protection and
seat belt at all times.
• Always keep arms and legs inside the cab frame while the vehicle is
in motion.
• Always keep both hands on the steering wheel and both feet on the
floorboards of the vehicle during operation.
• Never permit a guest to operate this vehicle unless the guest has read
this manual and all product labels.
• To reduce tipover risk, be especially careful when encountering
obstacles and slopes and when braking on hills or during turns.
• This vehicle is for off road use only. Never operate on public roads.
Always avoid paved surfaces.
• Never consume alcohol or drugs before or while operating this
vehicle.
• Never operate at excessive speeds. Always travel at a speed proper
for the terrain, visibility and operating conditions, and your
experience.
• Never attempt jumps or other stunts.
WARNING
11
SAFETY
Operator Safety
• Always inspect your vehicle each time you use it to make sure it's in
safe operating condition. Always follow the inspection and
maintenance procedures and schedules described in this manual.
• Always travel slowly and use extra caution when operating on
unfamiliar terrain. Be alert to changing terrain.
• Never operate on excessively rough, slippery or loose terrain.
• Always follow proper procedures for turning. Practice turning at slow
speeds before attempting to turn at faster speeds. Never turn at excessive speeds.
• Always have this vehicle checked by an authorized Polaris dealer if it
has been involved in an accident.

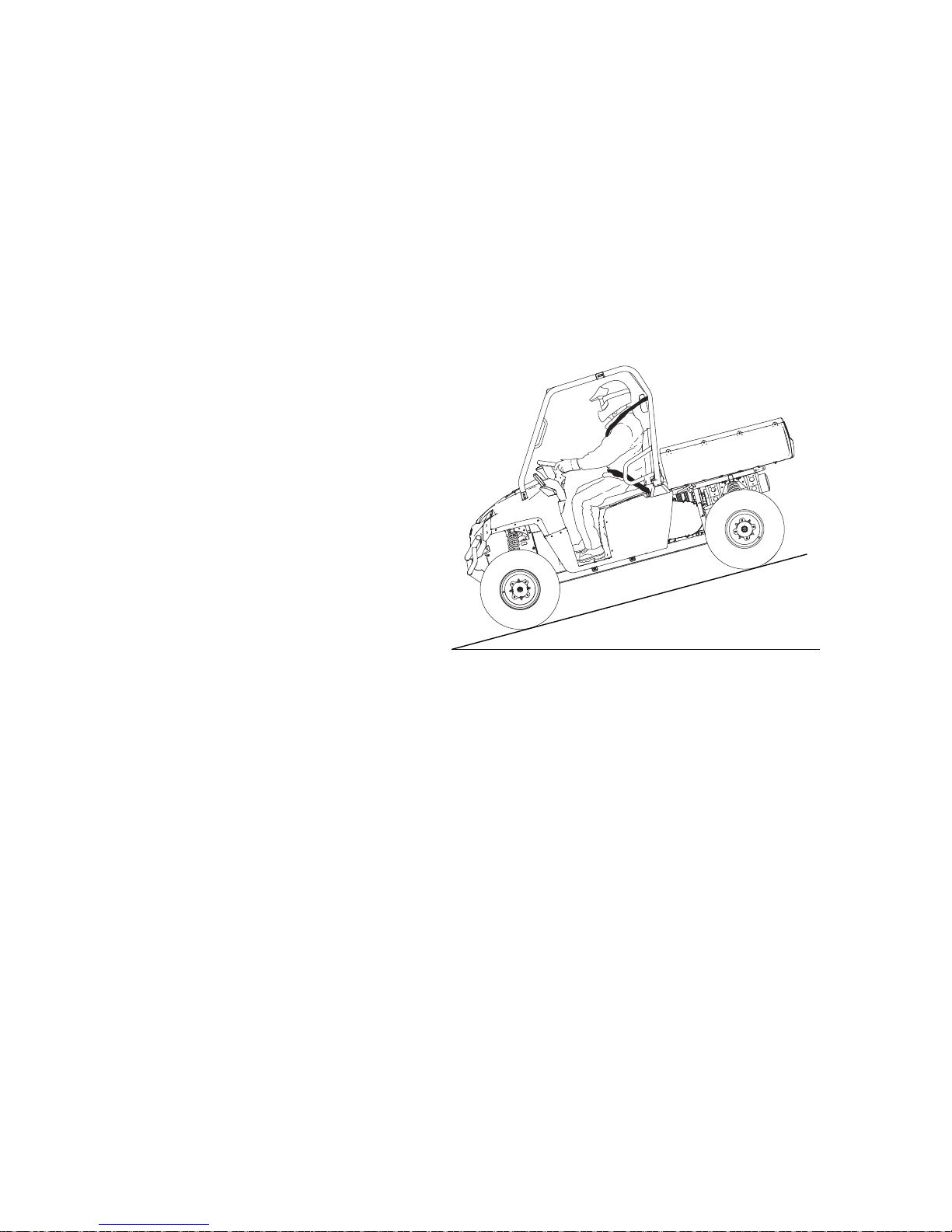

• Never operate this vehicle on hills too steep for the vehicle or for your
abilities. Practice on smaller hills before attempting larger hills.
• Always follow proper procedures for climbing hills as described in
this manual. Check the terrain carefully before attempting to climb a
hill. Never climb hills with excessively slippery or loose surfaces.
Never open the throttle suddenly or make sudden gear changes. Never
go over the top of a hill at high speed.
• Always follow the proper procedures outlined in this manual for trav-
eling downhill and for braking on hills. Check the terrain carefully
before descending a hill. Never travel downhill at high speed. Avoid
going downhill at an angle, which would cause the vehicle to lean
sharply to one side. Travel straight down the hill where possible.
• Always check for obstacles before operating in a new area. Never
attempt to operate over large obstacles such as rocks or fallen trees.
Always follow the proper procedures outlined in this manual when
operating over obstacles.
• Always be careful of skidding or sliding. On slippery surfaces such as
ice, travel slowly and exercise caution to reduce the chance of skidding or sliding out of control.
12
SAFETY
Operator Safety
• Never operate your vehicle in fast-flowing water or in water deeper
than that specified in this manual. Wet brakes may have reduced stopping ability. Test your brakes after leaving water. If necessary, apply
them lightly several times to let friction dry out the pads.
• Always be sure there are no obstacles or people behind your vehicle
when operating in reverse. When it's safe to proceed in reverse, move
slowly. Avoid turning at sharp angles in reverse.
• Always use the proper size and type of tires specified in this manual.
Always maintain proper tire pressure as specified on safety labels.
• Never modify this vehicle through improper installation or use of
accessories.
• Never exceed the stated load capacity for this vehicle. Cargo should
be properly distributed and securely attached. Reduce speed and follow the instructions in this manual for hauling cargo or pulling a
trailer. Allow a greater distance for braking.
• Always engage the park brake before getting out of the vehicle. See
page 25.
• Always apply the brakes before engaging or releasing the park brake.
• Always stop the engine before refueling. Remove flammable material
containers from the box before filling them with fuel. Make sure the
refueling area is well ventilated and free of any source of flame or
sparks. Gasoline is extremely flammable. See page 15 for fuel safety
warnings.
• Always remove the ignition key when the vehicle is not in use to prevent unauthorized use or accidental starting.
FOR MORE INFORMATION ABOUT SAFETY, call Polaris at 1-800342-3764.
13
SAFETY
Operator Safety
Equipment Modifications
We strongly recommend that consumers do not install on a Polaris
RANGER any equipment that may increase the speed or power of the
vehicle, or make any other modifications to the vehicle for these purposes. Any modifications to the original equipment of the vehicle create
a substantial safety hazard and increase the risk of bodily injury.
The warranty on your Polaris RANGER is terminated if any equipment
has been added to the vehicle, or if any modifications have been made to
the vehicle, that increase its speed or power.
The addition of certain accessories, including (but not limited to) mowers, blades, tires, sprayers, or large racks, may change the handling characteristics of the vehicle. Use only Polaris-approved accessories, and
familiarize yourself with their function and effect on the vehicle.
14
SAFETY
Operator Safety
Failure to operate the RANGER properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the OPERATION
section of the owner’s manual for proper operating procedures.
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY.
NEVER operate this vehicle if you are under
age 16 and NEVER operate without a valid
driver’s license.
No person under the age of 12 may ride as a
passenger in this vehicle. Any passenger
must be able to comfortably reach the floor
and hand holds.
Operating Without Instruction
Operating this vehicle without proper
instruction increases the risk of an accident.
The operator must understand how to
operate the vehicle properly in different
situations and on different types of terrain.
All operators must read and understand the
Owner's Manual and all warning and
instruction labels before operating the
vehicle.
Seat Belts
Riding in this vehicle without wearing the seat belt increases the risk of serious
injury in the event of an accident or sudden stop. Riders must wear seat belts at
all times. Always make sure the seat belts are secured for both the operator and
all passengers before riding.
Using Alcohol or Drugs
Operating the vehicle after consuming alcohol
or drugs could adversely affect operator
judgment, reaction time, balance and
perception.
Never drink alcohol or use drugs or medications
before or while operating this vehicle.
WARNING
15
SAFETY
Operator Safety
Failure to Inspect Before Operating
Failure to inspect and verify that the vehicle is in safe operating condition before
operating increases the risk of an accident.
Always inspect your RANGER before each use to make sure it's in safe
operating condition. Always follow all inspection and maintenance procedures
and schedules described in the owner's manual.
Handling Gasoline
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always stop the engine when refueling.
• Remove flammable material containers from the box before filling them with
fuel.
• Always refuel outdoors or in a well ventilated area.
• Do not smoke or allow open flames or sparks in or near the area where refu-
eling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
Exposure to Exhaust
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
The engine exhaust from this product contains chemicals known to cause
cancer, birth defects or other reproductive harm. Operate this vehicle only
outdoors or in well-ventilated areas.
Operating a Damaged Vehicle
Operating a damaged vehicle can result in an accident. After any overturn or
accident, have a qualified service dealer inspect the entire machine for possible
damage, including (but not limited to) brakes, throttle and steering systems.
Operating at Excessive Speeds
Operating this vehicle at excessive speeds increases the operator's risk of
losing control. Always operate at a speed that's appropriate for the terrain, the
visibility and operating conditions, and your experience.
16
SAFETY
Operator Safety
Operating on Pavement
This vehicle's tires are designed for off-road use only, not for use on pavement.
Operating this vehicle on paved surfaces (including sidewalks, paths, parking
lots and driveways) may adversely affect the handling of the vehicle and could
result in loss of control and accident or overturn.
Avoid operating the vehicle on pavement. If it's unavoidable, travel slowly and
avoid sudden turns or stops.
Operating on Public Roads
Operating this vehicle on public streets, roads or highways could result in a
collision with another vehicle.
Never operate this vehicle on any public street, road or highway, including dirt
and gravel roads. In some areas it's unlawful to operate this vehicle on public
streets, roads and highways.

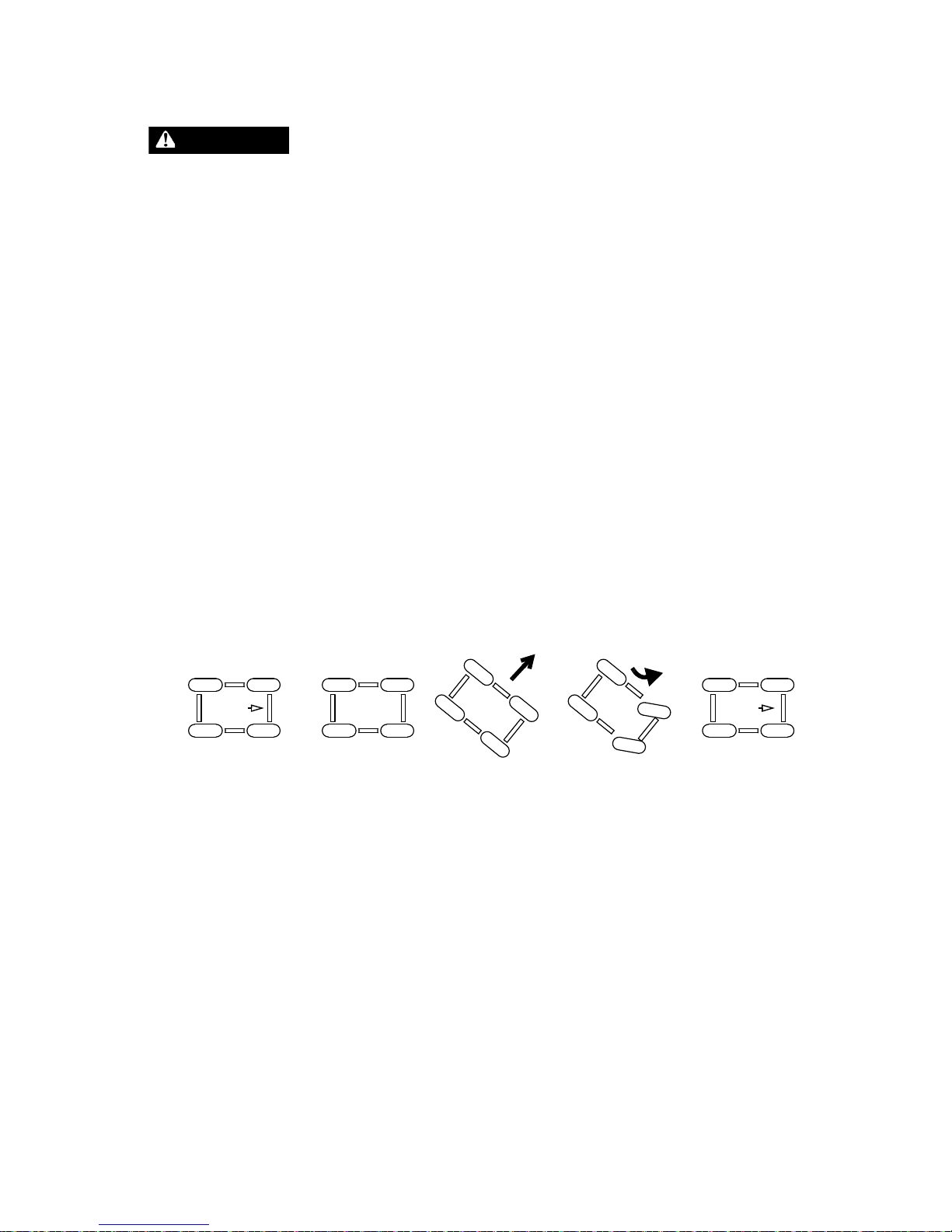

Turning Improperly
Turning improperly could cause loss of traction, loss of control, accident or
overturn. Always follow proper procedures for turning. Never turn abruptly or at
sharp angles. Never turn at high speeds. Practice turning at slow speeds before
attempting to turn at faster speeds.
Jumps and Stunts
Attempting wheelies, jumps and other stunts increases the risk of an accident or
overturn. Never attempt wheelies, jumps, or other stunts. Avoid exhibition
driving.
Operating in Unfamiliar Terrain
Failure to use extra caution when operating on unfamiliar terrain could result in
an accident or overturn. Unfamiliar terrain may contain hidden rocks, bumps, or
holes that could cause loss of control or overturn.
Travel slowly and use extra caution when operating on unfamiliar terrain. Always
be alert to changing terrain conditions.
Operating on Slippery Terrain
Failure to use extra caution when operating on excessively rough, slippery or
loose terrain could cause loss of traction, loss of control, accident or overturn.
Do not operate on excessively slippery surfaces. Always reduce speed and use
additional caution when operating on slippery surfaces.
17
SAFETY
Operator Safety

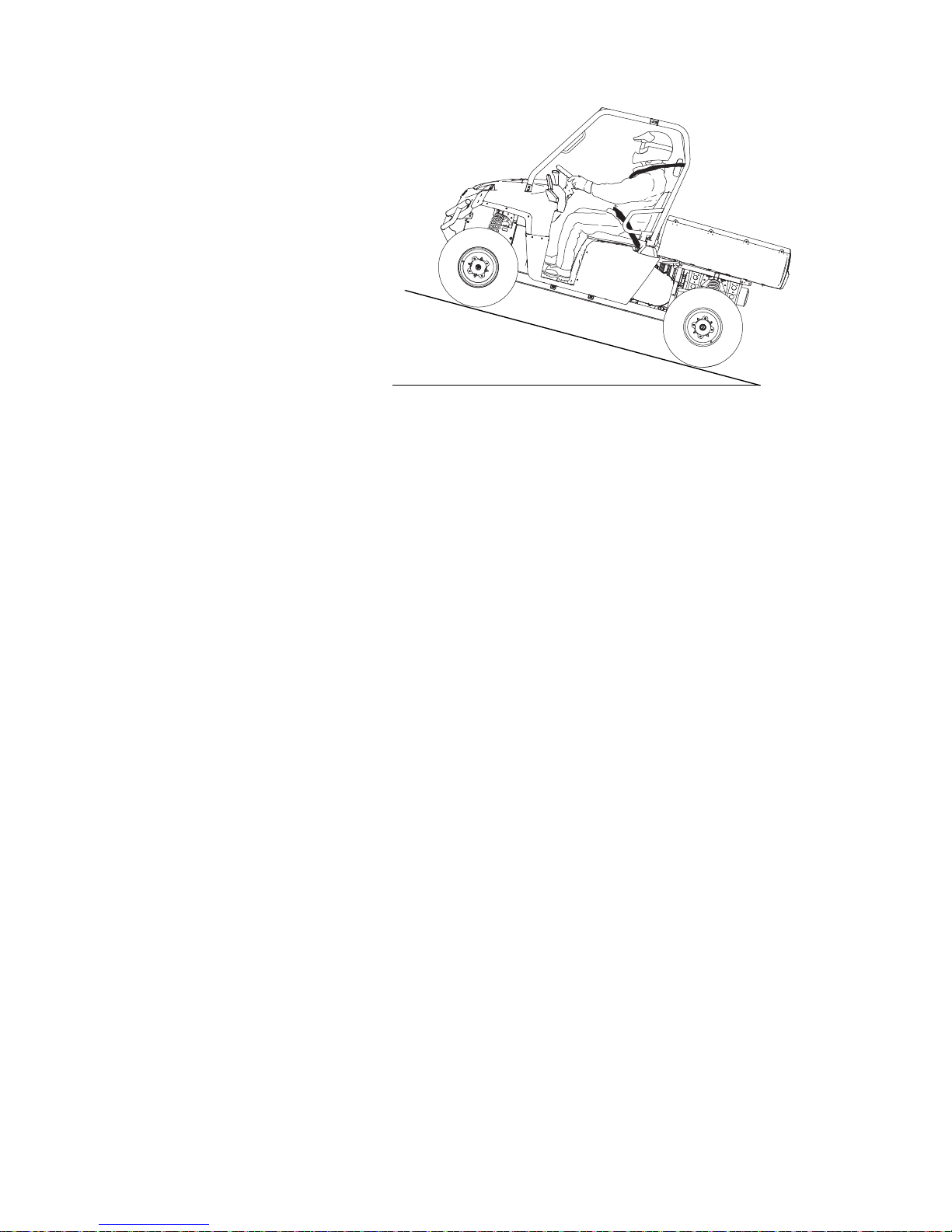

Improper Hill Climbing
Climbing hills improperly can cause loss of control or vehicle overturn. Always
follow proper procedures for climbing hills as described in the owner's manual.
See page 36.
Stalling While Climbing a Hill
Stalling or rolling backwards while climbing a hill could cause an overturn.
Always maintain a steady speed when climbing a hill.
If all forward speed is lost:
• Apply the brakes.
• Place the transmission in reverse and slowly allow the vehicle to roll straight
downhill while applying light brake pressure to control speed.
If you begin rolling downhill:
• Never apply engine power.
• Apply the brakes gradually until the vehicle is fully stopped.
• Place the transmission in reverse and slowly allow the vehicle to roll straight
downhill while applying light brake pressure to control speed.
Improper Tire Maintenance
Operating this vehicle with improper tires or with improper or uneven tire
pressure could cause loss of control or accident.
Always use the size and type of tires specified for your vehicle. Always maintain
proper tire pressure as described in the owner's manual and on safety labels.
Operating on Frozen Bodies of Water
Severe injury or death can result if the vehicle and/or the operator fall through
the ice. Never operate the vehicle on a frozen body of water.
Unauthorized Use of the Vehicle
Leaving the keys in the ignition can lead to unauthorized use of the vehicle,
which could result in an accident or overturn. Always remove the ignition key
when the vehicle is not in use.
Hot Exhaust Systems
Exhaust system components are very hot during and after use of the vehicle.
Hot components can cause burns and fire. Do not touch hot exhaust system
components. Always keep combustible materials away from the exhaust
system. Use caution when traveling through tall grass, especially dry grass.
18
FEATURES AND CONTROLS
Component Locations
Not all models come with all features. Refer to the specifications section
beginning on page 100.
ROPS Cab
Frame
Console
Hip Bar
Cargo Box
Fuel Tank Cap
Headlights
Front Bumper/Brush Guard
Radiator
19
FEATURES AND CONTROLS
Component Locations
Trailer Hitch Bracket
This vehicle is equipped with a receiver hitch bracket for a trailer hitch.
Trailer towing equipment is not supplied with this vehicle.
To avoid injury and property damage, always heed the warnings and
towing capacities outlined on pages 42-45.
Tailgate
Latch Release
Receiver
Hitch
CV Boot/Rear Caliper
Muffler (Spark Arrestor)
Tailgate
20
FEATURES AND CONTROLS
Console
Auxiliary Outlets

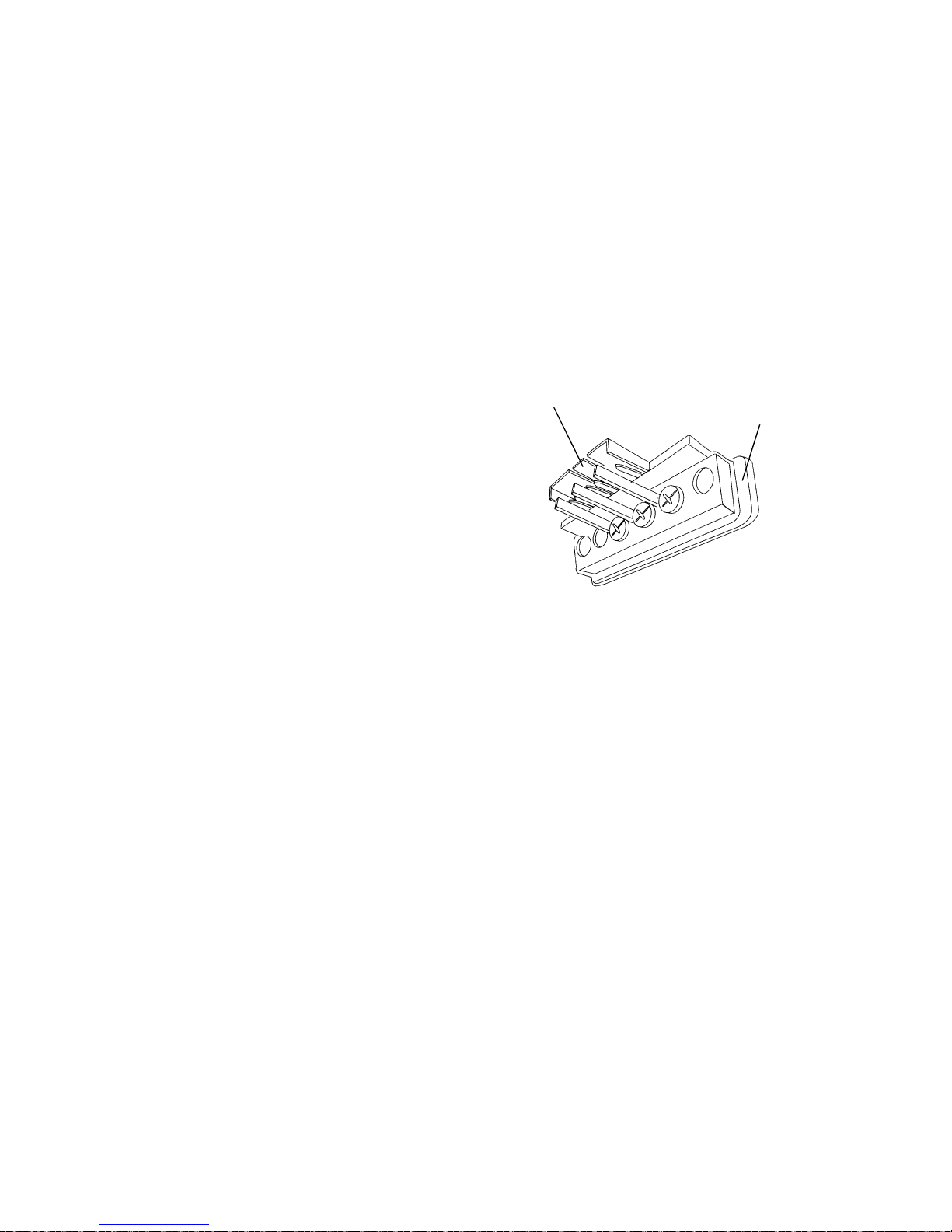

The 12-volt receptacles have spade connections on the back that may be
used to power an auxiliary light or other optional accessories or lights.
The connections are behind the console, under the hood.
Fuel Gauge/Hour Meter
Lighted bars in the upper display indicate fuel level. Hours of engine
operation since manufacture are indicated in the lower display.
Indicator
Lights
Cup
Holder
Storage
Compartment
12V Auxiliary
Outlets
Storage
Tray
Gear Selector
(Shifter)
Park Brake
Lever
Fuel Gauge
21
FEATURES AND CONTROLS
Indicator Lights
The indicator light panel is located on the console.
Gear Selector
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
Low gear is the primary driving range
for the RANGER. High gear is intended
for use on hard-packed surfaces with
light loads.
To change gears, stop the vehicle, and with the engine idling, move the
lever to the desired gear. Do not attempt to shift gears with engine speed
above idle or while the vehicle is moving.
Tip: Maintaining shift linkage adjustment is important to assure proper transmis-
sion function. See your dealer if you experience any shifting problems.
NOTICE: Do not attempt to shift the transmission while the vehicle is moving or
damage to the transmission could result. Always shift when the
vehicle is stationary and the engine is at idle.
High
Gear
Low Gear
(if equipped)
Neutral
Gear
Reverse
Gear
High
Temperature
Park Brake
H
L
N
R
22
FEATURES AND CONTROLS
Switches
Ignition Switch
The ignition switch is a three-position, key-operated switch. The key
can be removed from the switch when it is in the OFF position.
OFF The engine is off. Electrical circuits are off, except Acc, 12V.
ON Electrical circuits are on. Electrical equipment can be used.
START Turn the key to the START position to engage the electric starter.
The key returns to the ON position when released.
Ignition Switch
Light Switch
AWD/Differential Switch
23
FEATURES AND CONTROLS
Switches
Light Switch
The ignition switch key must be in the ON/
RUN position to operate the headlights. Use the
light switch to turn the headlights on or off.
AWD/Differential Lock Switch
The AWD/Differential Switch has three positions: All Wheel Drive (AWD), Differential
Lock/Two Wheel Drive (2WD) and Off (1WD/
Turf Mode).
Press the top of the rocker switch to engage All
Wheel Drive (AWD). See page 48 for AWD
operating instructions.
Move the rocker switch to the center position to
lock the differential and operate in two wheel
drive (2WD). See page 47 for Differential Lock
operating instructions.
Press the bottom of the switch to unlock the differential and allow the rear drive wheels to
operate independently (1WD). This mode of
operation is well suited to turf driving or when
active traction is not needed.
ON
OFF
AWD
2WD
OFF
24
FEATURES AND CONTROLS
Adjustable Steering Wheel
The steering wheel can be tilted
upward or downward for rider preference.
Lift and hold the adjustment lever
toward you while tilting the steering
wheel upward or downward.
Release the lever when the steering
wheel is at the desired position.
Brake Pedal
Depress the brake pedal to slow or
stop the vehicle. Apply the brakes
while starting the engine.
Throttle Pedal
Push the pedal down to increase
engine speed. Spring pressure
returns the pedal to the rest position when released. Always check
that the throttle pedal returns normally before starting the engine.
Make sure there's adequate throttle pedal freeplay. See page 77 for
throttle pedal adjustment procedures.
Throttle
Pedal
Brake
Pedal
25
FEATURES AND CONTROLS
Park Brake Lever
To help prevent the vehicle from rolling, engage the park brake when
parking the vehicle. When the park brake is fully engaged and the park
brake indicator is illuminated, engine speed is limited to 1300 RPM in
all gears, except neutral. If throttle is applied, this limiting feature prevents operation, which protects the park brake pads from excessive
wear.
Tip: This feature will not operate properly if the park brake connector or switch
(under the hood) malfunctions or becomes disconnected, or if the switch
has moved. Check for disconnection, then see your dealer promptly if this
feature fails to operate properly.
Inspect and adjust park brake cable tension after the first 25 hours of
operation and every 100 hours thereafter to ensure proper cable tension.
See page 80.
Always apply the service brakes
before engaging or releasing the
park brake.
1. Apply the brakes.
2. Pull the park brake lever
downward as far as possible.
3. To release the park brake,
apply the brakes. Press the
park brake release inward and
move the lever upward as far
as possible.
WARNING! Operating the vehicle while the park brake is engaged could cause
loss of control and result in serious injury or death. Always disengage the park
brake before operating the vehicle.
26
FEATURES AND CONTROLS
Seat Belts
This Polaris vehicle is equipped with
three-point lap and diagonal seat belts on
all external seats.The center seat is
equipped with a lap-style seat belt. Always
make sure the seat belts are secured for all
riders before operating.
WARNING! Falling from a moving vehicle
could result in serious injury or death. Always
fasten your seat belt securely before operating
or riding in the RANGER.
To wear the seat belt properly, follow this
procedure:
1. For 3-point belts, pull the seat belt
latch downward and across your chest
toward the buckle at the inner edge of
the seat. The belt should fit snugly
across your hips and diagonally across
your chest. Make sure the belt is not
twisted. For lap style belts, place the
belt across your lap as low on your
hips as possible. Make sure that the
belt is not twisted.
2. Push the latch plate into the buckle until it clicks.
3. Release the strap, it will self tighten.
Tip: The center belt must be tightened manually by pulling on the strap.
4. To release the seat belt, press the square red button in the buckle's
center.
Buckle
Latch Plate
Loading...
