Polaris Quattro Owner's Manual

Download

Page 1

H0645700_REVA

Works with Polaris Booster Pump

Fonctionne avec un surpresseur

Funciona con bomba de presión adicional

OWNER’S MANUAL

English | Français | Español

Page 2

English

original instructions

WARNING

To avoid risk of potentially serious injury:

• Do not handle the Polaris cleaner while it is operating, except when checking the wheel RPM.

• Always remove the Polaris cleaner before swimmers enter the pool.

CAUTION

USE OF A POLARIS QUATTRO IN A VINYL LINER POOL Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal caused by

objects coming into contact with the vinyl surface, including pool brushes, pool toys, oats, fountains, chlorine

dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation

process or when it comes into contact with objects in the pool. Zodiac Pool Systems LLC and its afliates and

subsidiaries are not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

Page 3

Before You Start: Important Information

English

• Before installing the Polaris

• New plumbing lines should be flushed out before installing the cleaner.

• The cleaner should not be used to remove plaster dust in new pools.

• Except when checking the wheel RPM, do not handle the cleaner while it is operating.

• Always remove the cleaner before swimmers enter the pool.

• Disconnect the cleaner from the pool wall when cleaning or backwashing the pool filter.

• Always remove the cleaner from the pool before chemical shock treatments.

• After cleaning or backwashing, let the filtration system run for at least five minutes before re-connecting the cleaner.

cleaner, make sure the pool filter is clean.

For customer service or support:

Zodiac Pool Systems LLC

2620 Commerce Way, Vista, CA 92081

1.800.822.7933 | polarispool.com

Zodiac Pool Care Europe

Boulevard de la Romanerie -BP 90023 49180 St. Barthelemy d’Anjou cedex FRANCE zodiac-poolcare.fr

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway, Burlington, ON L7M 1A6

1.800.822.7933 | ZodiacPoolSystems.ca

Zodiac Group Australia PTY, Ltd.

219 Woodpark Rd. Smithfield NSW, 2164 1300 763 021 | Zodiac.com.au

Page 4

English

Included in the Box

Installed in cleaner

a - Cleaner Body

b - Filter Canister - All-Purpose Debris

c - Filter Canister - Fine Debris

d - Hose Assembly

e - In-Line Filter Assembly f - Quick Disconnect

red

f1 - Pressure Relief Valve

g - Universal Wall Fitting (UWF®)

h - Retrictor Disks (Blue and Red)

i - Hose Nuts

j - Feed Hose Connector

k - Hose Floats

l - Hose Swivels

in bag

blue

Page 5

Read the complete owner’s manual before you begin installation.

English

Prepare the Pool

1. Turn on the filtration pump, allow to prime.

2. Turn on the booster pump and flush plumbing lines for five minutes.

3. Turn off both pumps.

Install the Universal Wall Fitting

The UWF installs on pools with a dedicated cleaner return line and a threaded 1-1/2” female pipe fitting.

1. Remove the Universal Wall Fitting (UWF) (g) from the Quick Disconnect (f).

2. Thread the UWF (g) with Blue Restrictor Disk (h) in place, into the dedicated cleaner return line.

3. Attach the Quick Disconnect (f) and hose to the UWF (g). Turn clockwise then pull away to secure.

Cleaner return line

Buse de refoulement de la piscine

línea de retorno para el limpiador

dedicated cleaner

return line

Page 6

English

Adjust Hose Length

1. With the hose assembly (d) connected at the cleaner return line, extend end of the hose to the farthest point of the pool. Do not include steps or seating areas.

2. Theendofthehoseshouldbewithin6″(15cm),longerorshorter,of farthest point.

• If hose is too short, add a feed hose section with floats, a swivel and two hose nuts, available through your local Polaris dealer. Adjust to proper length.

3. Cutthehosesothatitiswithin6”(15cm)ofthefarthestpoint.

Walk hose around to determine farthest point.

the

Cut to within 6” (15 cm) of the farthest point

Couper à 15 cm du point le plus éloigné

Corte a 15 cm o menos del punto más lejano

Page 7

Connect Hose Fitting and Adjust Floats

1. Place the hose nut (i) onto the end of the feed hose connector (j).

2. Push the hose assembly (d) onto the feed hose connector (j).

Water can be used to lubricate the hose.

• Tightly secure the hose nut (i) onto the hose assembly (d).

3. Position the first hose float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.

English

1-3'

(30-90 cm)

1-3'

(30-90 cm)

Page 8

English

Assemble the Cleaner

WARNING

To avoid risk of potentially serious injury, do not swim or use the pool when the cleaner is submerged or operating.

1. Attach the feed hose connector (j) to the cleaner.

2. Confirm the first hose float (k) is up against the feed hose connector (j).

3. Submerge the cleaner, allow it to sink to the bottom of the pool.

Page 9

1 min.

28-32

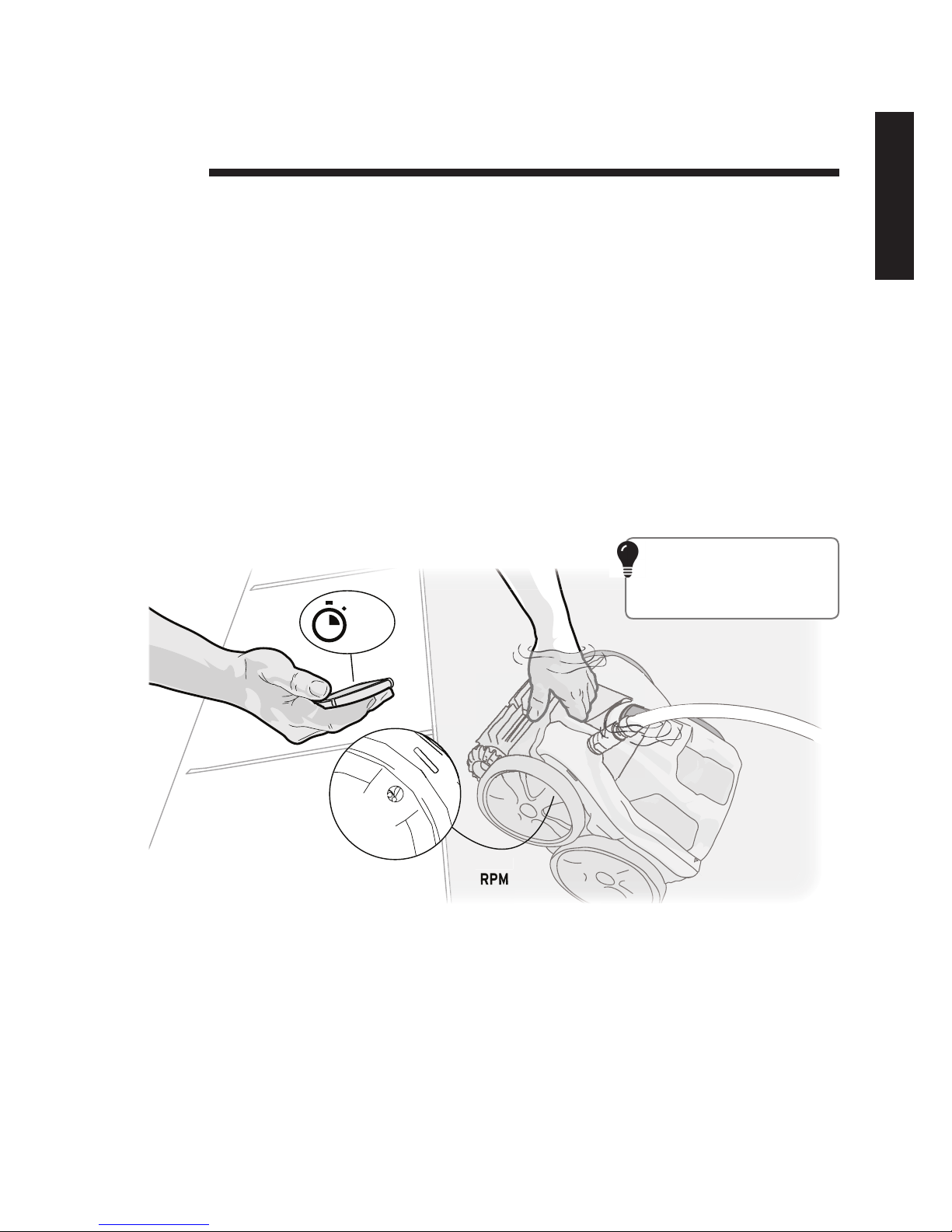

Check for Proper Wheel RPM

Before operating the cleaner, check for proper wheel revolutions per minute (RPM). For maximum efficiency, the cleaner should operate between 28 and 32 RPM.

IMPORTANT: Keep the cleaner submerged for accurate wheel speed count.

1. Turn on the filtration pump and allow it to prime.

2. Turn on the booster pump, the cleaner will begin to move.

3. With both pumps on, pull the cleaner to the waterline and keep submerged. CAUTION: Always lift the cleaner using the handle and take care to avoid possible hair entanglement when leaning over. NOTE: The Polaris

4. Using the Polaris logo on the left-front wheel as a reference, count wheel revolutions (RPM) for 1 minute. If wheels change direction during timing, start over.

5. Targetwheelspeedis28 to 32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.

logo latch is not a handle.

Keep cleaner submerged for accurate wheel speed count.

English

Page 10

English

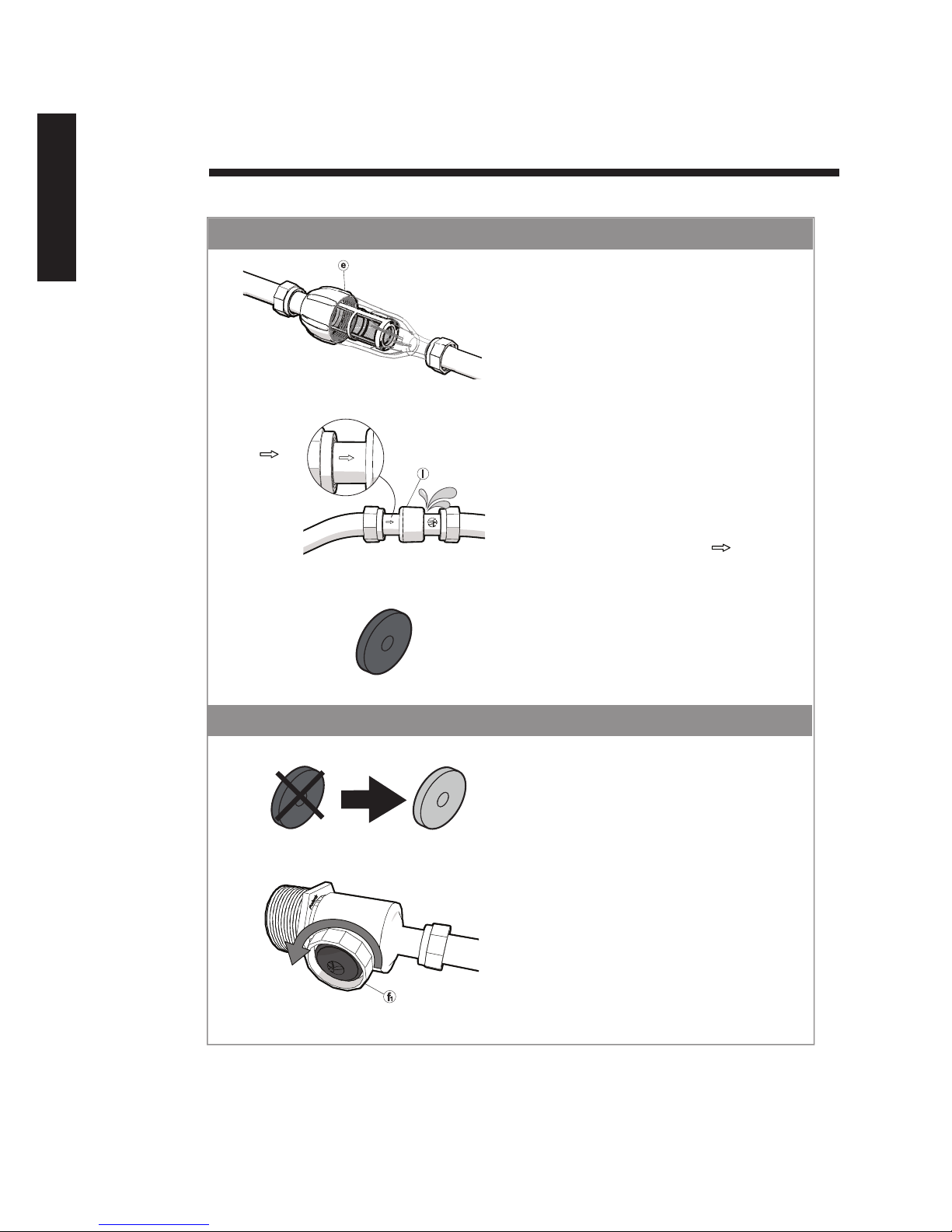

Adjust the Wheel Speed

< 28 RPM

• Check the filter screen in the in-line filter assembly (e) for debris that restricts water flow.

• Clean the skimmer, filter, and pump basket, clearing debris that restricts water flow.

Flow direction arrow ( toward the cleaner

)

• Check the hoses and connections for leaks that cause loss of water pressure.

• Check hose swivels (l) for for excessive leaking or spraying. Verify flow direction arrow ( ) is toward the cleaner.

• Remove the blue restrictor disk (h) from the UWF® (g).

> 32 RPM

• Replace the blue restrictor disk with the red restrictor disk (h).

• Loosen the pressure relief valve (f1) until proper RPM is reached.

NOTE: The Pressure Relief Valve should only be adjusted when a restrictor disk is installed.

Page 11

Fine Tuning

When operating correctly, the Polaris® cleaner vacuums, sweeps and scrubs all surfaces randomly

throughoutthepool.Theclimbingabilitydependsonthepool’sshapeandwaterpressureorflow.

The cleaner climbs best in pools without sharp angles or curves in the transition from the pool floor to the pool wall. Fine tune your cleaner for optimal operation, as necessary.

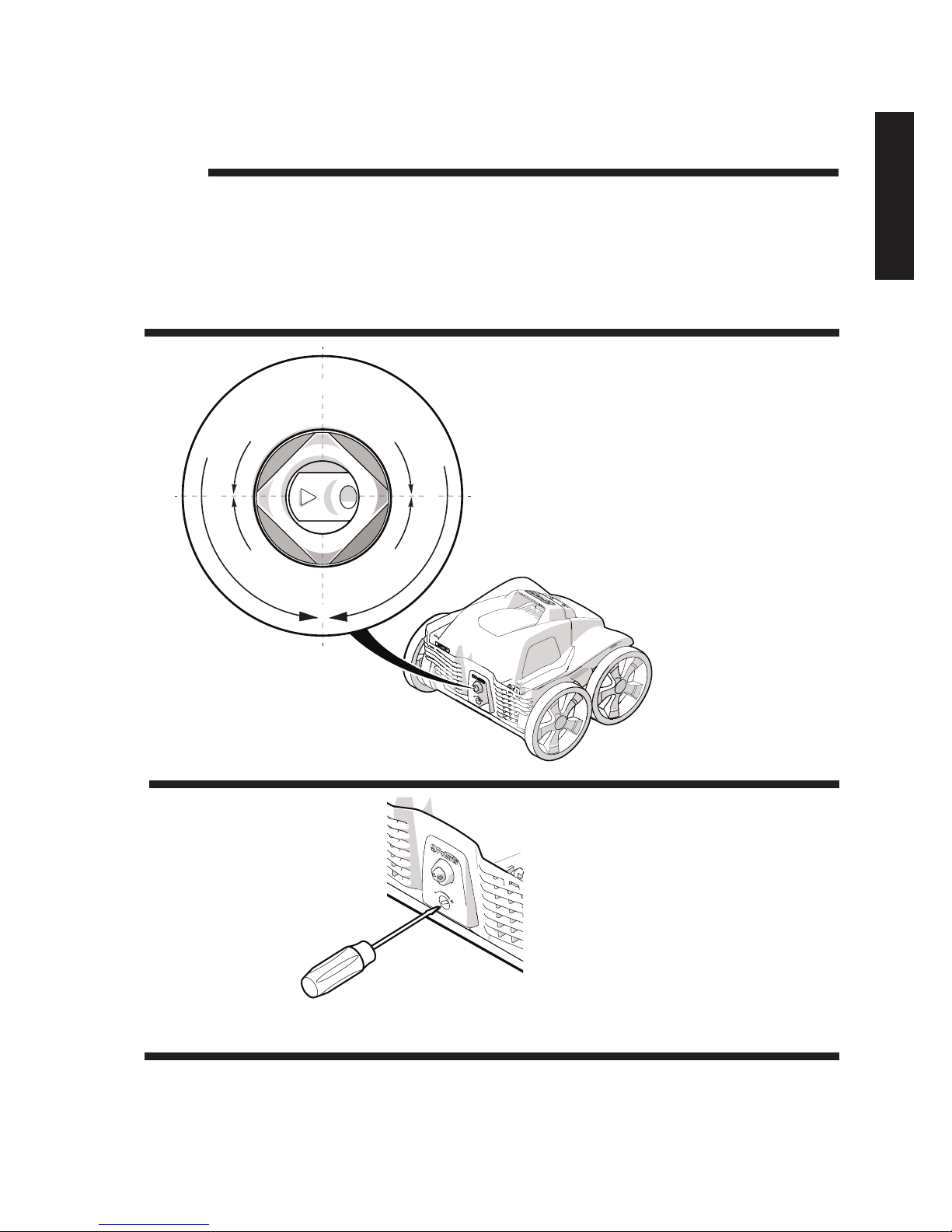

Thrust Jet Position

The thrust jet powers the direction of the cleaner. Factory position is three

(3)o’clock,but,dependingonthepool,

other thrust jet positions can be helpful to improve cleaner coverage.

English

Thrust Jet Flow

Adjust the flow by turning counter-clockwise to decrease and clockwise to increase.

If needed, use a wrench to loosen the square nut, fine tune and then tighten to secure.

Cleaning Schedule

Thecleaner’squickandefficientpoolcoveragemayallowforareducedcleaningschedule

and runtime. The Polaris Quattro cleans most pools in one to two hours or less.

Page 12

English

Maintenance

Perform routine maintenance to prolong the life of your cleaner.

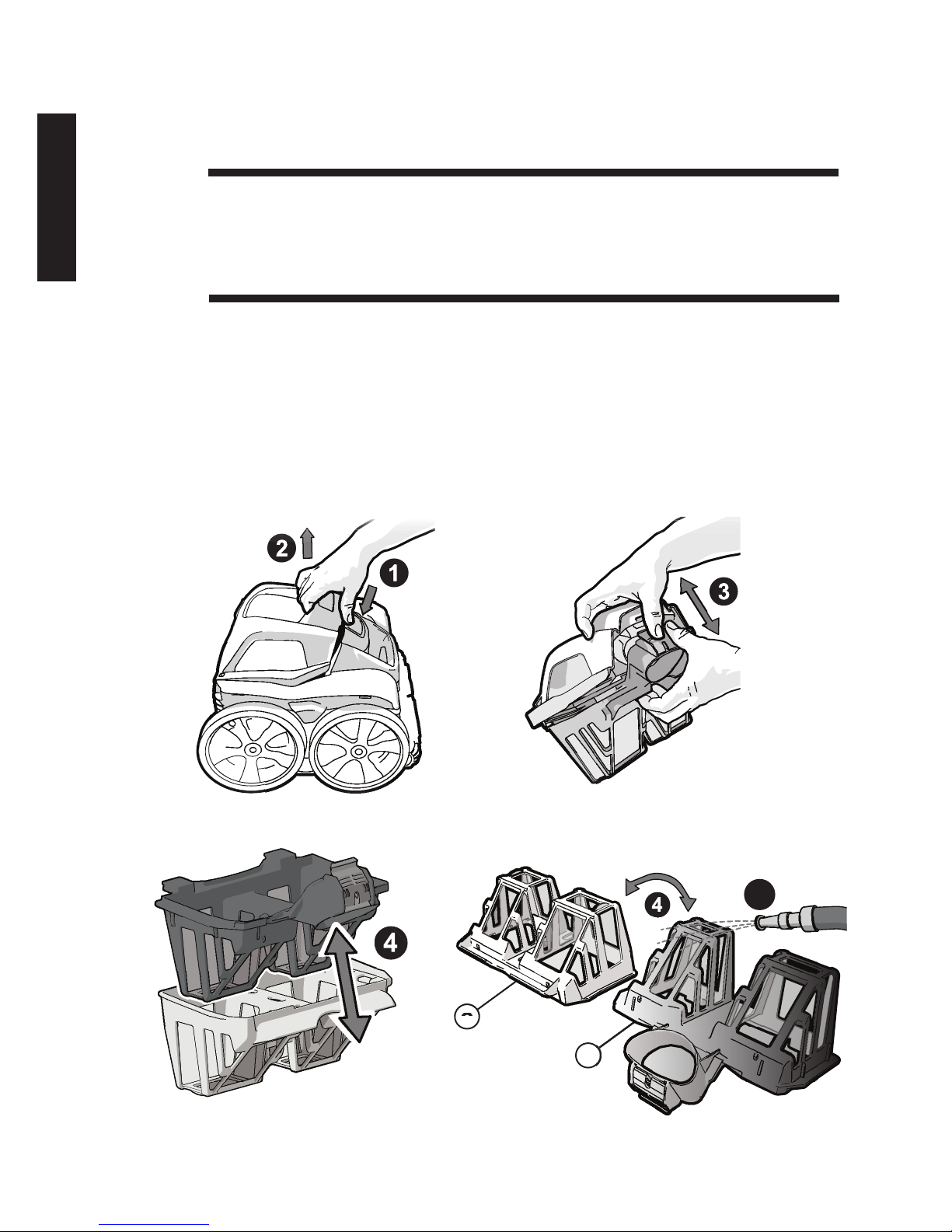

Clean the Filter Canister

1. Press the lid release latch.

2. Lift the handle to remove the filter canister.

3. Press the filter cover release to remove the filter canisters.

4. Separate the fine debris canister (c) from the all-purpose canister (b).

5. Emptydebrisandrinsethefiltercanisterswithfreshwater.

Page 13

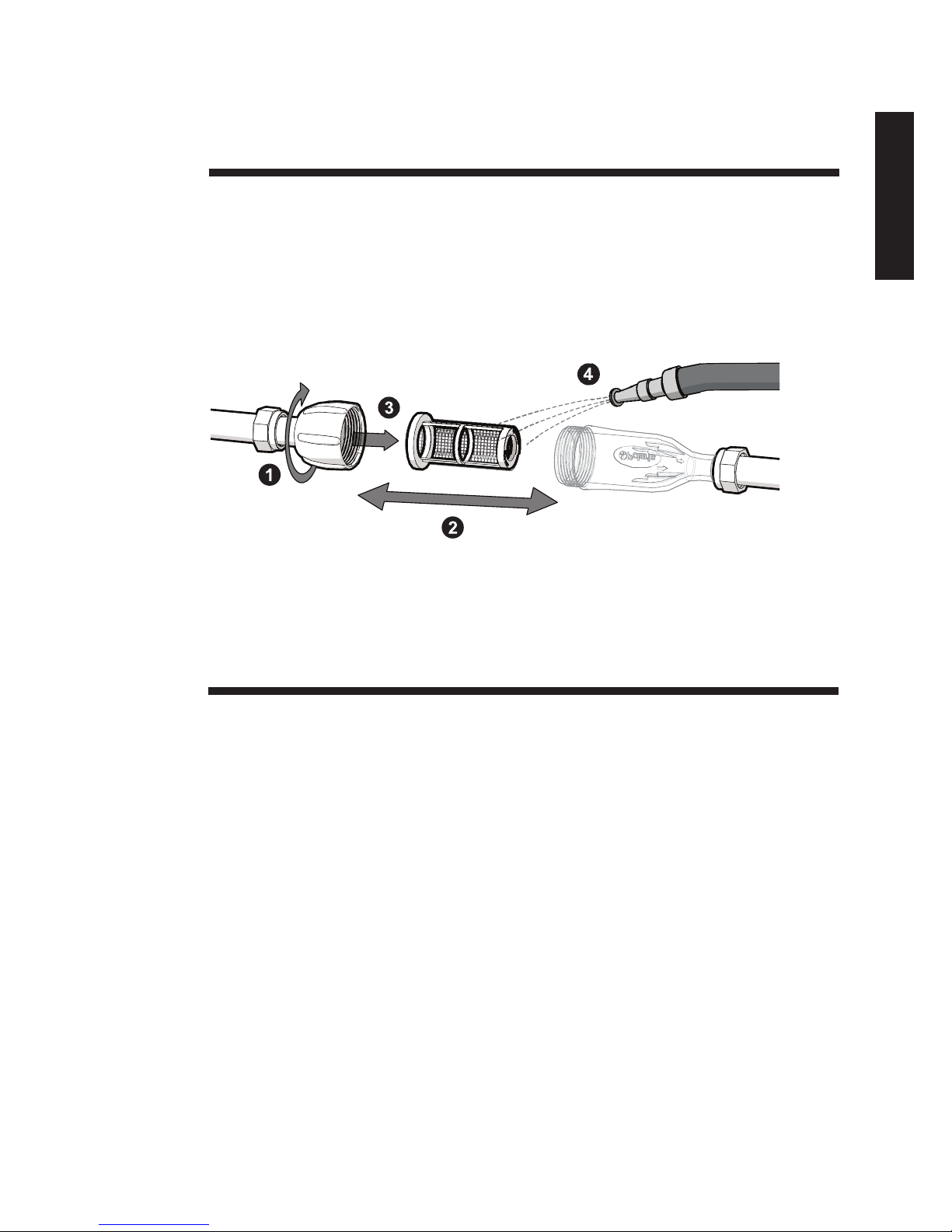

Clean the In-Line Filter Screen

1. Turn off the booster pump.

2. Loosen the in-line filter cap.

3. Separate the in-line filter body from the filter cap.

4. Remove the filter screen.

5. Rinse with fresh water.

English

Storage/Winterizing

NOTE: Never store the cleaner in direct sunlight.

To store the cleaner for the winter:

1. Remove cleaner from the pool and drain all water to avoid freezing water damage (freeze damage is not covered under the warranty).

2. Remove the UWF from the pool wall using the Quick Disconnect. Use a pulling pressure as you unscrew. If necessary, use the UWF Removal Tool (part #10-102-00) available from any Polaris

dealer.

Page 14

English

Troubleshooting

Problem Solution

Hose assembly

becomes tangled.

1. Remeasure the hose to verify that it is adjusted to the proper length for the pool shape.

2. With the cleaner operating, check that the hose swivels and the hose connections turn freely.

3. Ensure the hose is floating and the hose floats are positioned properly. Position the first float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.

4. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.

5. Straighten the hose assembly by laying it out flat in the sun.

Cleaner hangs up on steps or other

obstacles for longer than

3 minutes.

Thrust jet sprays too much

water out of pool.

1. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.

2. Check for debris in the filter canister and clean, if necessary.

3. Ensure the hose is floating and the hose floats are positioned properly. Position the first float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.

4. Adjust the thrust jet. Refer to Section 8 Fine

Tuning.

5. Remove unnecessary pool hardware or install a Ladder Guard Kit (part # G21) from a Polaris® dealer.

6. Install a Back-Up Valve accessory (part # G62,

blackorpart#G52,white)fromaPolarisdealer.

Additional hose nuts and swivel may be required. Position the back-up valve and its adjacent hose float 6-8 ft (1.8 - 2.4m) away from the cleaner.

Check the thrust jet position and adjust thrust jet flow, if necessary. Refer to Section 8 Fine Tuning.

Cleaner does not clean

the entire pool.

1. Ensure the hose length is adjusted to the proper length for the pool shape. Refer to Section 3

Adjust Hose Length.

2. Adjust the thrust jet to improve coverage. Refer to Section 8 Fine Tuning.

Page 15

Problem Solution

Cleaner is sluggish, running with less

power than normal or not

moving.

1. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.

2. Check for debris in the filter canister and clean, if necessary.

3. Check the filter screen and the in-line filter and clean, if necessary.

4. Clean the skimmer basket, pump basket, and pool filter.

5. Check all of the hoses, connections, and swivels for leaks that could cause loss of water pressure.

English

Cleaner does not climb walls.

1. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.

2. Ensure the hose is floating and the hose floats are positioned properly. Position the first float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.

3. Check for debris in the filter canister and clean, if necessary.

4. Adjust the thrust jet. Refer to Section 8 Fine

Tuning.

5. For smooth surface pools (tile, fiberglass, etc.), replace both rear tires with PosiTrax® tires for more traction (available from a Polaris

Smooth Surface Pools (tile, fiberglass, etc.)

Problem Solution

Not enough traction on smooth

surface pools (tile,

fiberglass, etc.).

Replace both rear tires with PosiTrax tires for more traction (available from a Polaris dealer).

dealer).

Page 16
