NG60
User Manual
2
Thank you for purchasing the Polaris NG60 Reversing System
Before operation, be sure to thoroughly read these instructions.
Keep these instructions with your vehicle records for future reference.
Warranty for this product is 3 years from date of purchase, however warranty will be voided if:
• The unit is tampered with, damaged or modified in any way.
• Reverse camera cable is cut or modified in any way.
• Reverse camera is subjected to over voltage.
Warranty Terms
The NG60 is covered for 3 years and includes:
• Defective Equipment • Defective Cables
Not Covered under warranty:
• Abuse • Improper installation
• Alteration to cables (this includes cutting of any cables) • Remote control batteries
• Accidents • Water Damage • Improper use • Labour
If you have any questions concerning the installation, warranty or the operation of the unit,
please contact
Polaris
on
1300 555 514.
We hope that you enjoy the Polaris NG60.
INDEX
Wiring Diagram ................................................. Page 3
Reverse Camera ................................................ Page 4
Rear View Cameras ........................................... Page 5
Settings ............................................................. Page 6
Remote Control ................................................. Page 7
Specifications .................................................... Page 8
3
Plugs into back of monitor
Wiring Notes:
• The NG60 has 4 camera inputs but is designed for one camera to be triggered when
reverse gear is engaged.
• Whichever camera you want to trigger when reverse gear is engaged, please make
sure you plug it into the reverse camera input.
• You can still access Cam 1, 2 & 3 whilst in reverse, please see page 4 for instructions
on how to do this.
• If you don't wish for a camera to activate whilst in reverse, then simply plug your
camera into either Cam 1, 2 or 3 as you can view these cameras whilst driving.
• Cam 1, 2 & 3 can be accessed at any time whilst driving forward, please see
page 5 for instructions on how to do this.
• The NG60 is 12-32Volt and is built into the monitor.
• If you are only wiring up one camera to engage when in reverse please run the
Acc+ (red) along with the reverse trigger wire (green) directly to your reverse lights.
This way the monitor will power down when drive is activated. If you add an
additional camera(s) at a later stage, please run the ACC+(red) to accessories
power so you can access the additional camera(s) whilst driving.
If you have any questions in regards to the wiring of this unit, please contact
Polaris on 1300 555 514
Wiring Diagram
Reverse Camera
Cam 1
Cam 2
Cam 3
Reverse (Green)
GND (Black)
Acc+ (Red)
4
The NG60 is designed to have one reverse camera and 3 additional cameras
wired up.
When you put the vehicle into reverse, the reverse camera will activate and
override the screen that you were originally on.

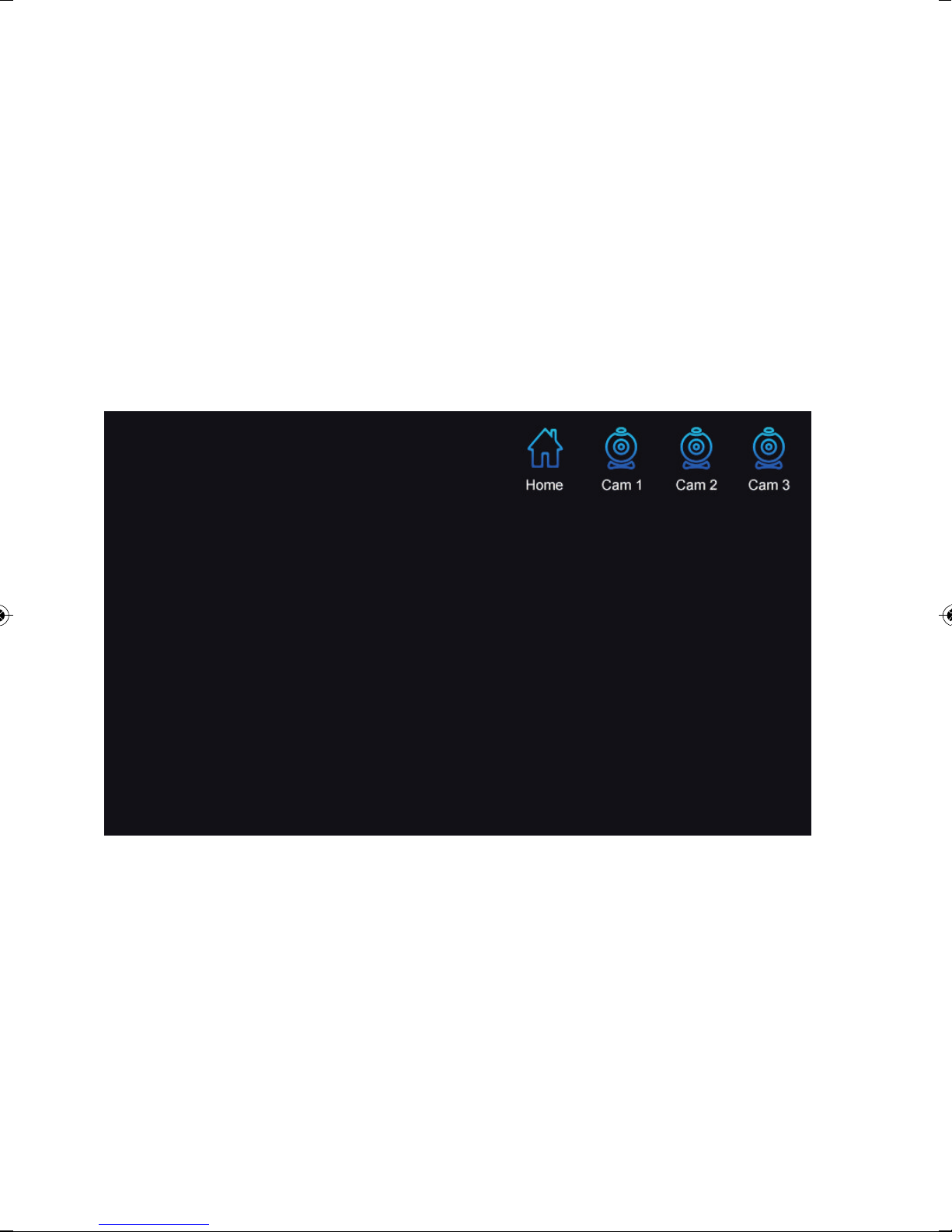

If you wish to view any of the other cameras whilst in reverse, touch the screen
and it will bring up the below options in the top right hand corner:
Choose your desired camera.
Camera Functionality
Reverse Camera
5
If you don't wish for a camera to activate whilst in reverse, then simply plug
your camera into either Cam 1, 2 or 3.
If you have 3 cameras plugged into the NG60 you can view any of these
cameras while driving.

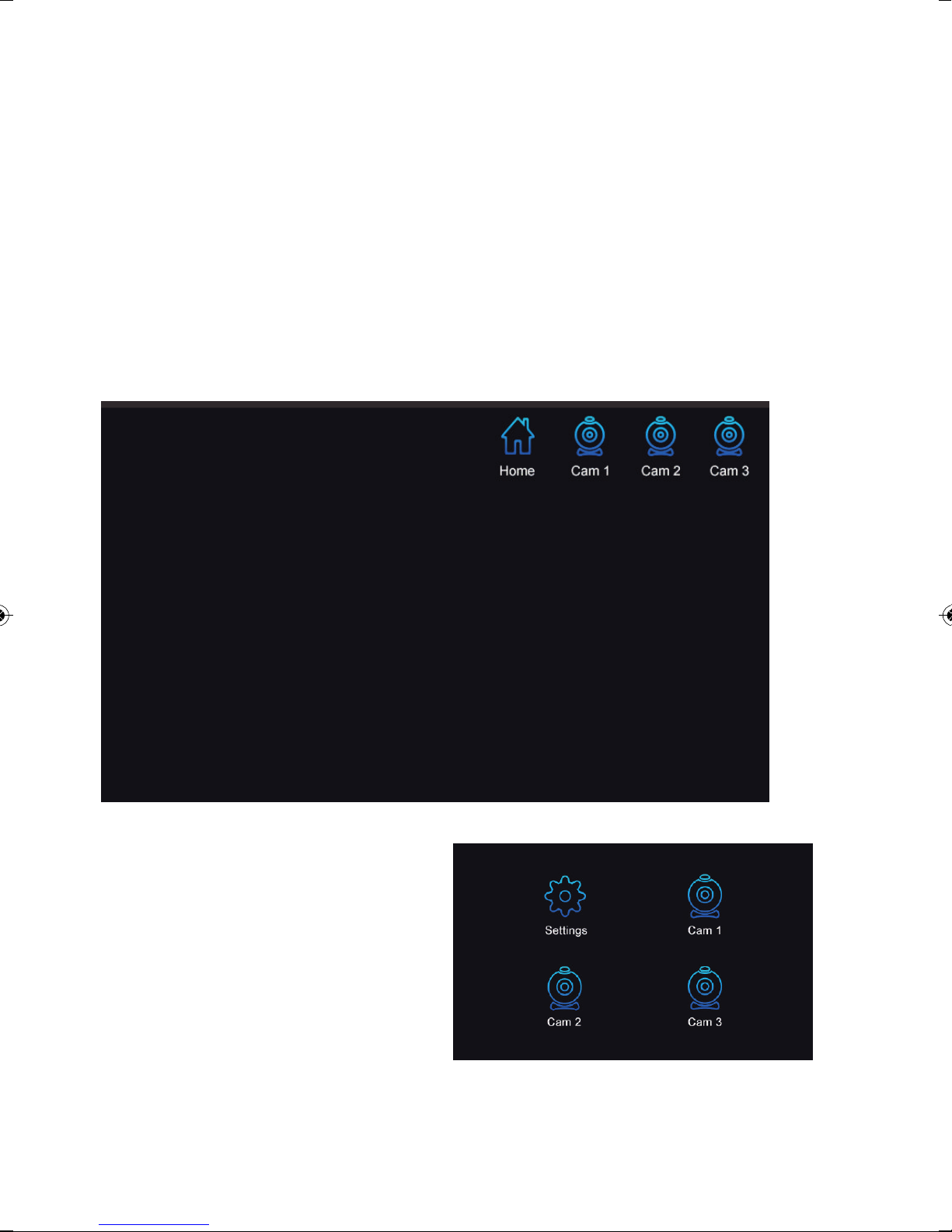

Simply touch the screen to bring up the below options in the top right
hand corner and choose the appropriate camera that you wish to view.
Alternatively, you can also touch
the home icon which will take you
to the main menu and give you the
3 camera options.
Camera Functionality
Rear View Cameras
6

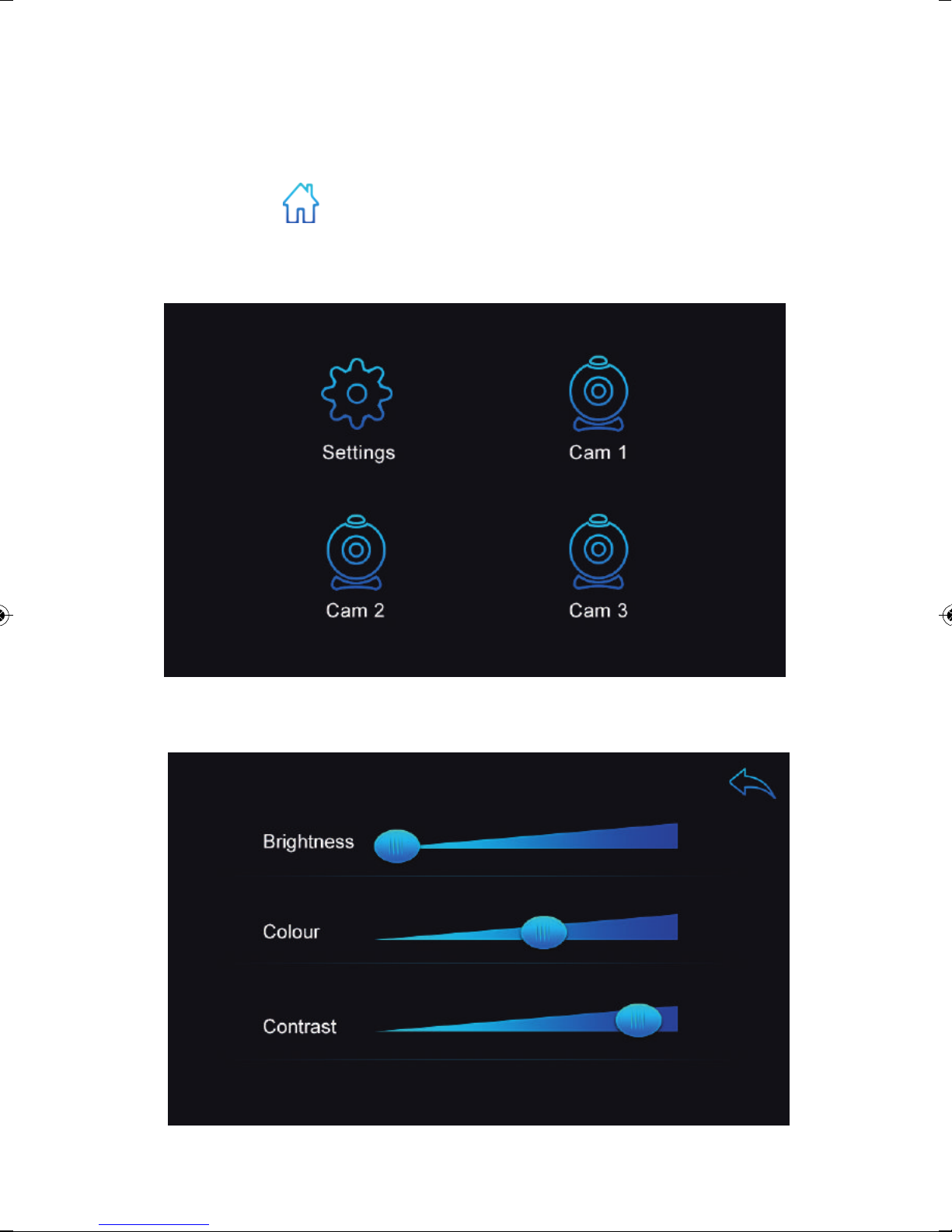

If you touch anywhere on the screen you will see the following icon in the top
right hand corner: Touch this icon to enter into the main menu.
Touch the settings icon to enter into the settings feature:
Settings menu:
Settings
Brightness, colour and contrast
Adjust to your desired setting
7
Remote Control
Functionality

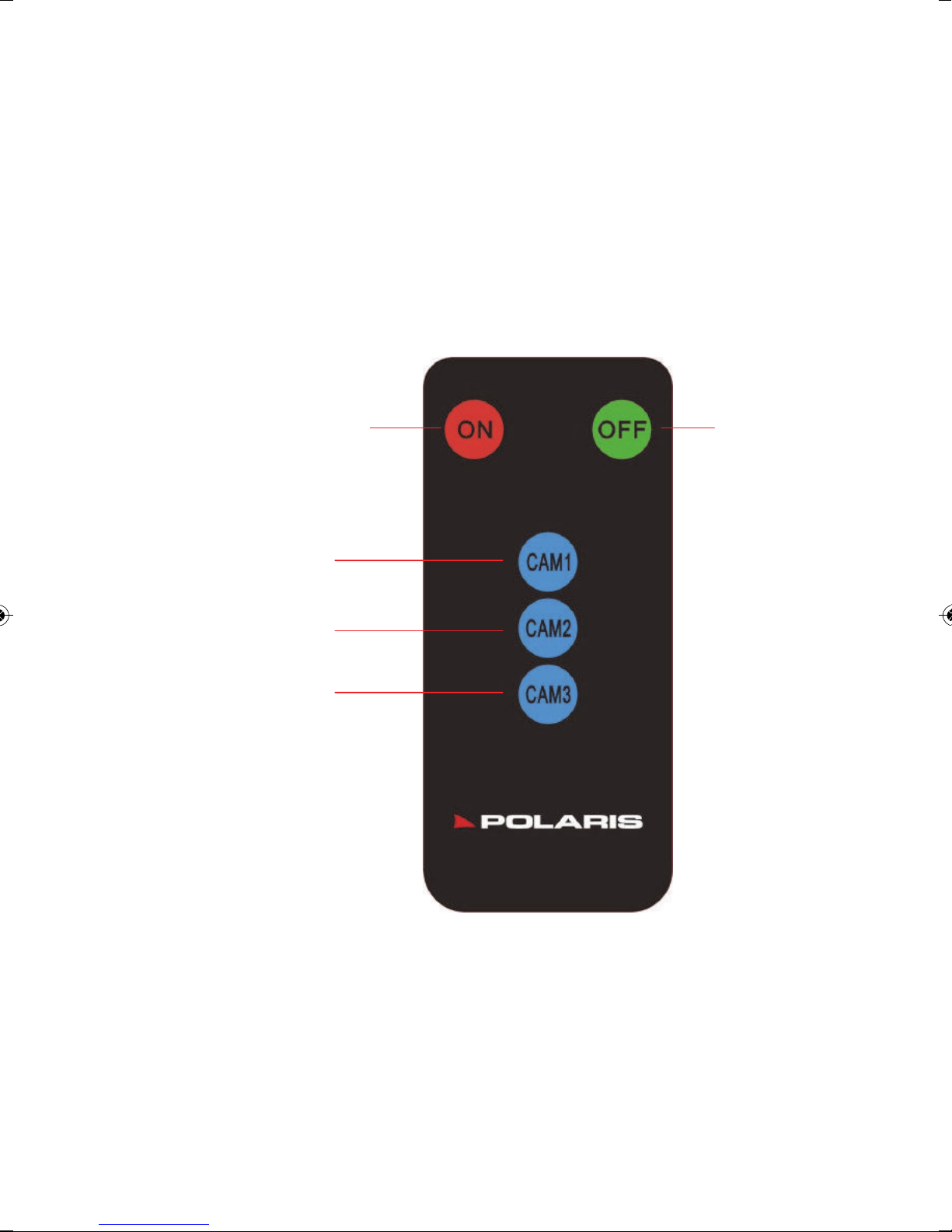

The remote will only allow you to select the different cameras whilst driving.
Will power the
monitor on
Will switch to camera 1
Will switch to camera 2
Will switch to camera 3
Will power the
monitor off
8
Specifications
Monitor Specs
Monitor:
Resolution:
Display Method:
Operating Temperature:
Power input:
Video form:
OSD Language:
Power Consumption
IR Sensor
Wiring Harness
Wiring:
Multi Camera support:
Reverse Trigger:
Ideal camera setup:
Reverse Gear Camera Accessibility:
Rear Vision Camera Accessbility:
Miniature Camera Specs
Image device:
Cable length:
Pixel Size:
Effective Pixels:
Lens Angle
Minimum Illumination
Sensitivity:
TV Lines:
Format:
Power Consumption:
Operating Temperature:
IP Rating:
General Information
Warranty Period:
Model No.
Accessories Included:
6.2"Anti Glare Capacitive Touch Screen
800x480 pixels
Digial TFT LCD Monitor
Minus 10°C to 60°C
DC12V-32V
PAL/NTSC
English
0.5A
Yes - for remote control
Universal wiring harness with 4 camera inputs
Yes, 4 camera inputs with Polaris configuration 4 pin DIN plugs
yes, reverse camera trigger wire
Reverse camera (triggers when vehicle is in reverse) / Cam 1 / Cam 2 / Cam 3
Can still access Cam 1, Cam 2 & Cam 3 whilst in Reverse gear.
Can only access Cam 1, Cam 2 & Cam 3 whilst driving forward
1/3" CMOS PC1099
7 metres
5.00μm * 7.4μm
976 (H)* 496 (V)
170° degree wide angle
0.1 Lux/F
11.4 [V/Lux.sec]
600 TV Lines
NTSC
360 [mW] @ Dynamic / 484 [μW] @ Standby
Minus 20°C to 85°C, RH95% MAX
IP67
3 years from date of purchase
NG60
6.2"Anti Glare Capacitive Touch Screen
Universal wiring harness with four camera inputs
Miniature Camera with 7 metre cable
Dash mount with 3m stick pad
