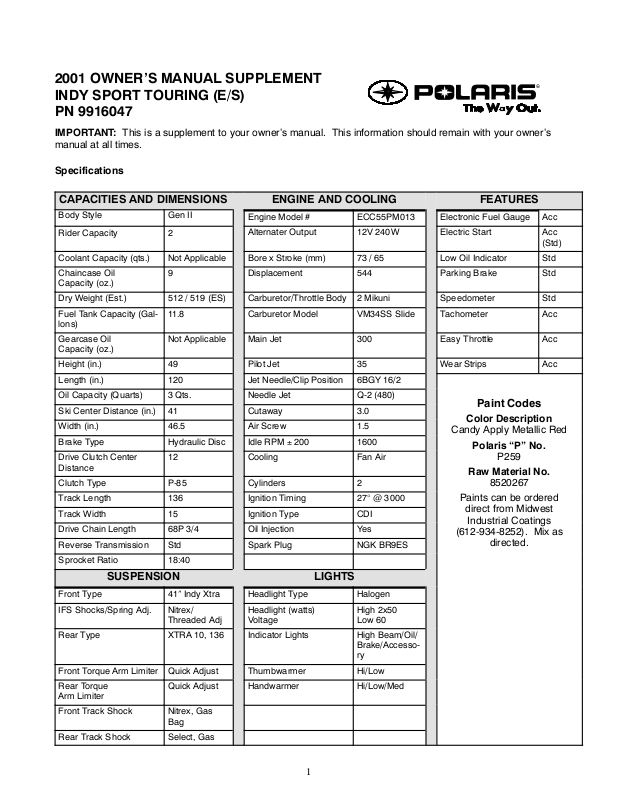

Polaris Indy Sport Touring User Manual

2001 OWNER’S MANUAL SUPPLEMENT
INDY SPORT TOURING (E/S)
PN 9916047

IMPORTANT: This is a supplement to your owner’s manual. This information should remain with your owner’s

manual at all times.

Specifications

CAPACITIES AND DIMENSIONS ENGINE AND COOLING FEATURES

Body Style Gen II

Rider Capacity 2

Coolant Capacity (qts.) Not Applicable Bore x Stroke (mm) 73 / 65 Low Oil Indicator Std

Chaincase Oil
Capacity (oz.)

Dry Weight (Est.) 512 / 519 (ES) Carburetor/Throttle Body 2 Mikuni Speedometer Std

Fuel Tank Capacity (Gal­lons)

Gearcase Oil
Capacity (oz.)

Height (in.) 49 Pilot Jet 35 Wear Strips Acc

Length (in.) 120 Jet Needle/Clip Position 6BGY 16/2

Oil Capacity (Quarts) 3Qts. Needle Jet Q-2 (480)

Ski Center Distance (in.) 41 Cutaway 3.0

Width (in.) 46.5 Air Screw 1.5

Brake Type Hydraulic Disc Idle RPM ± 200 1600

Drive Clutch Center
Distance

Clutch Type P-85 Cylinders 2

Track Length 136 Ignition Timing 27° @ 3000

Track Width 15 Ignition Type CDI

Drive Chain Length 68P 3/4 Oil Injection Ye s

Reverse Transmission Std Spark Plug NGK BR9ES

Sprocket Ratio 18:40

9 Displacement 544 Parking Brake Std

11.8 Carburetor Model VM34SS Slide Tachometer Acc

Not Applicable Main Jet 300 Easy Throttle Acc

12 Cooling Fan Air

Engine Model # ECC55PM013 Electronic Fuel Gauge Acc

Alternater Output 12V 240W Electric Start Acc

(Std)

Paint Codes

Color Description

Candy Apply Metallic Red

Polaris “P” No.

P259

Raw Material No.

8520267

Paints can be ordered

direct from Midwest

Industrial Coatings

(612-934-8252). Mix as

directed.

SUSPENSION LIGHTS

Front Type 41² Indy Xtra Headlight Type Halogen

IFS Shocks/Spring Adj. Nitrex/

Threaded Adj

Rear Type XTRA 10, 136 Indicator Lights High Beam/Oil/

Front Torque Arm Limiter Quick Adjust Thumbwarmer Hi/Low

Rear Torque
Arm Limiter

Front Track Shock Nitrex, Gas

Rear Track Shock Select, Gas

Quick Adjust Handwarmer Hi/Low/Med

Bag

Headlight (watts)
Voltage

1

High 2x50
Low 60

Brake/Accesso­ry

2001 Sport Touring
Engine Model: EC55PM013

Carburetor Jetting Clutching Chart

Alti-

tude

Meters

(Feet)

AMBIENT

TEMPERA-

TURE

0-900

(0-3000)

900-1800

(3000-6000)

1800-2700

(6000-9000)

2700-3700

(9000-12000)

Below

-20°F

Below

-29°C

** 320

-20°Fto
+10°

-29°Cto

-12°C

+10°F-

+40°F

-12°C-
+5°C

Above
+40°F
Above

+5°C

300 300 300 0-900

290 280 260 240 900-1800

260 250 230 220 1800-2700

230 220 210 190 2700-3700

- Shaded zone should drop Jet Needle one position (raise E-Clip)

- Production Setting

** #3 Jet Needle Clip Position

PN 9916047 Rev 4 10/00

Printed in U.S.A.

Altitude

Meters

(Feet)

(0-3000)

(3000-6000)

(6000-9000)

(9000-12000)

Shift

Weight

10-62

Bushed

10-60

Bushed

10-58

Bushed

10-56

Bushed

Drive
Clutch
Spring

Dark
Blue/

White

Dark
Blue/

White

Dark
Blue/

White

Dark
Blue/

White

Driven
Clutch
Spring

Silver/

Blue

Silver/

Blue

Silver/

Blue

Silver/

Blue

Driven

Helix

Chain-

case

Geariang

USA

36°#218-40

68P Borg

Warner

36°#218-40

68P Borg

Warner

36°#217-41

68P Borg

Warner

36°#217-41

68P Borg

Warner
