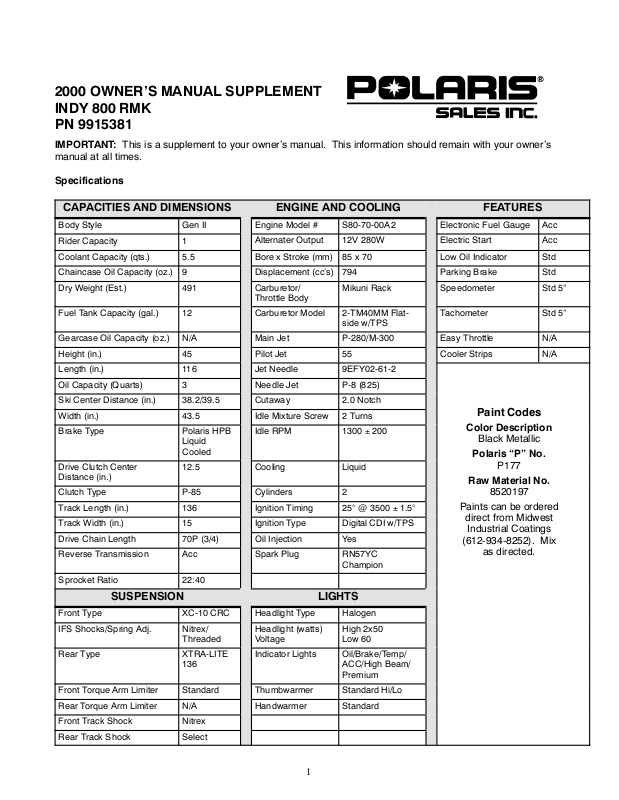

2000 OWNER’S MANUAL SUPPLEMENT
INDY 800 RMK
PN 9915381

IMPORTANT: This is a supplement to your owner’s manual. This information should remain with your owner’s

manual at all times.

Specifications

CAPACITIES AND DIMENSIONS ENGINE AND COOLING FEATURES

Body Style Gen II Engine Model # S80-70-00A2 Electronic Fuel Gauge Acc

Rider Capacity 1

Coolant Capacity (qts.) 5.5 Bore x Stroke (mm) 85 x 70 Low Oil Indicator Std

Chaincase Oil Capacity (oz.) 9 Displacement (cc’s) 794 Parking Brake Std

Dry Weight (Est.) 491 Carburetor/

Fuel Tank Capacity (gal.) 12 Carburetor Model 2-TM40MM Flat-

Gearcase Oil Capacity (oz.) N/A Main Jet P-280/M-300 Easy Throttle N/A

Height (in.) 45 Pilot Jet 55 Cooler Strips N/A

Length (in.) 116 Jet Needle 9EFY02-61-2

Oil Capacity (Quarts) 3 Needle Jet P-8 (825)

Ski Center Distance (in.) 38.2/39.5 Cutaway 2.0 Notch

Width (in.) 43.5 Idle Mixture Screw 2 Turns

Brake Type Polaris HPB

Liquid
Cooled

Drive Clutch Center
Distance (in.)

Clutch Type P-85 Cylinders 2

Track Length (in.) 136 Ignition Timing 25° @ 3500 ± 1.5°

Track Width (in.) 15 Ignition Type Digital CDI w/TPS

Drive Chain Length 70P (3/4) Oil Injection Yes

Reverse Transmission Acc Spark Plug RN57YC

Sprocket Ratio 22:40

12.5 Cooling Liquid

Alternater Output 12V 280W Electric Start Acc

Mikuni Rack Speedometer Std 5²

Throttle Body

Tachometer Std 5²

side w/TPS

Paint Codes

Idle RPM 1300 ± 200

Champion

Color Description

Black Metallic

Polaris “P” No.

P177

Raw Material No.

8520197

Paints can be ordered

direct from Midwest

Industrial Coatings

(612-934-8252). Mix

as directed.

SUSPENSION LIGHTS

Front Type XC-10 CRC Headlight Type Halogen

IFS Shocks/Spring Adj. Nitrex/

Threaded

Rear Type XTRA-LITE

136

Front Torque Arm Limiter Standard Thumbwarmer Standard Hi/Lo

Rear Torque Arm Limiter N/A Handwarmer Standard

Front Track Shock Nitrex

Rear Track Shock Select

Headlight (watts)
Voltage

Indicator Lights Oil/Brake/Temp/

High 2x50
Low 60

ACC/High Beam/
Premium

1

Recommended Break-in Oil: Premium 2-Cycle Oil (TC-W3)

(

)

Recommended Oil After Break-in: Premium 2-Cycle Oil (TC-W3) or Synthetic 2-Cycle Premium Gold

2000 800 RMK
Engine Model: S80-70-00A2

Altitude

TEMPERATURE

Meters

(Feet)

(3000-6000)

(6000-9000)

(9000-12000)

- Shaded zone should raise Jet Needle one position (drop E-Clip)

- Production Setting

PN 9915381 Rev 01 7/99

Printed in U.S.A.

AMBIENT

0-900

(0-3000)

900-1800

1800-2700

2700-3700

Below -20°F
Below -29°C

PTO 440

MAG 460

PTO 380

MAG 400

PTO 320

MAG 340

PTO 290

MAG 310

-20°Fto+10°

-29°Cto-12°C

PTO 410

MAG 430

PTO 350

MAG 370

PTO 300

MAG 320

PTO 270

MAG 290

+10°F-+40°F

-12°C-+5°C

PTO 380

MAG 400

PTO 320

MAG 350

PTO 280

MAG 300

PTO 250

MAG 270

Above +40°F

Above +5°C

PTO 360

MAG 380

PTO 310

MAG 330

PTO 260

MAG 280

PTO 240

MAG 260
