POLAR CS600X

™

Getting Started Guide

Contents

1. POLAR CS600X CYCLING COMPUTER

PARTS ....................................... 4

Optional Accessories .................... 6

2. GETTING STARTED . .. .. .. .. .. .. .. .. .. .. .. .. . 7

Measuring Wheel Size...................... 7

Basic Settings............................... 9

Menu Structure ............................. 11

Installing the Polar Bike Mount ............ 12

Attaching the Cycling Computer to the

Bike Mount ............................... 12

3. PREPARE FOR TRAINING .................... 13

Bike Settings ................................ 13

Using an Accessory with Your CS600X

Cycling Computer ........................... 14

4. TRAINING .................................... 15

Wear the Heart Rate Sensor ................ 15

Start Training.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 16

5. AFTER TRAINING ............................ 17

6. CUSTOMER SERVICE INFORMATION ........ 18

Care and Maintenance...................... 18

Caring for Your Product ................. 18

Service .................................... 18

Changing Batteries....................... 19

Precautions .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 22

Interference During Exercise ........... 22

Minimizing Risks When Exercising..... 23

Technical Specifications ................... 24

Limited International Polar

Guarantee................................. 27

ENGLISH

Disclaimer ................................ 30

ENGLISH

1. POLAR CS600X CYCLING COMPUTER PARTS

Congratulations! You have purchased a complete training system tailor-fit to your training needs.

This guide will help you along using your new Polar CS600X cycling computer. For more detailed
instructions, consult the complete user manual at www.polar.com/support. For video tutorials, go to
www.polar.com/en/polar_community/videos.

ENGLISH

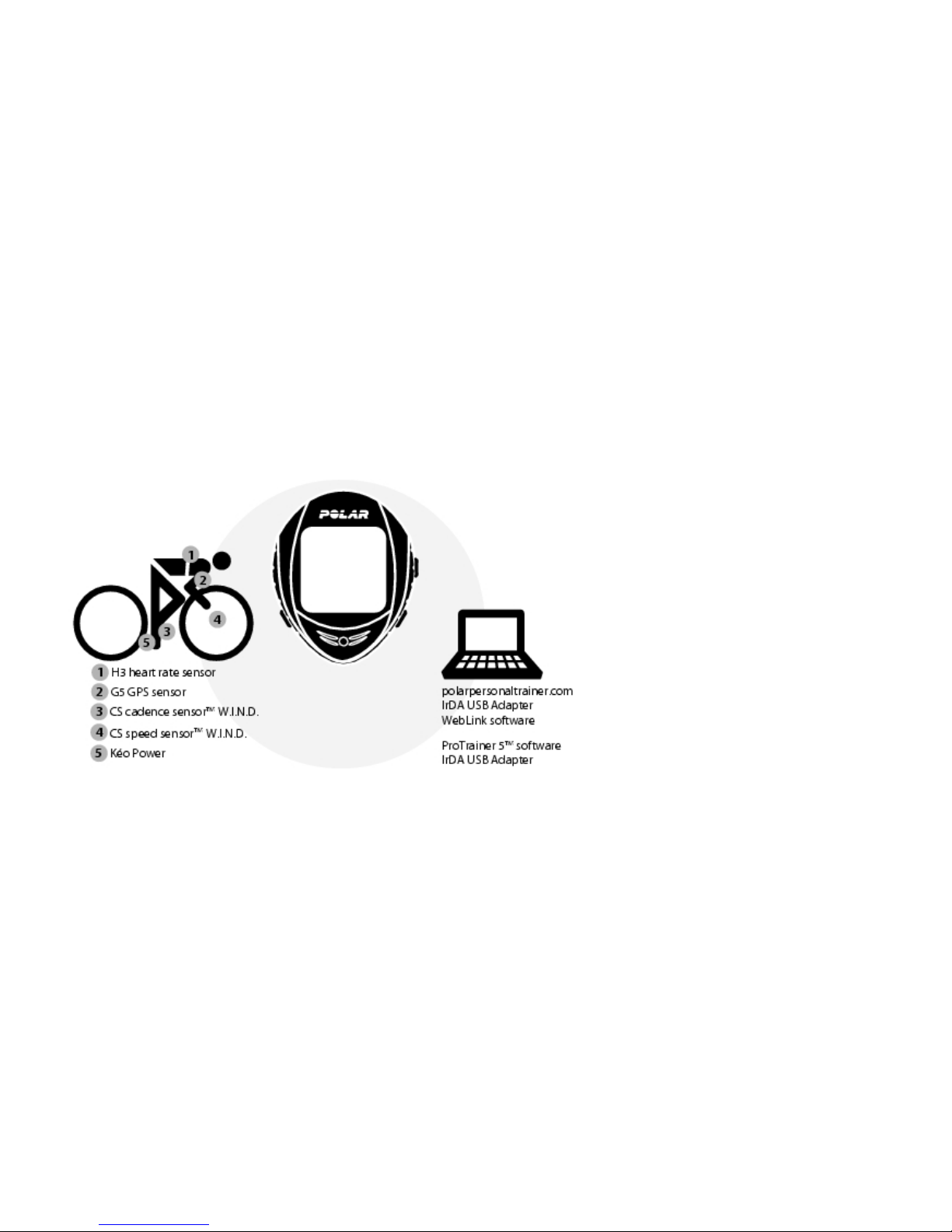

4 Polar CS600X Cycling Computer Parts

• Polar CS600X Cycling Computer: records and displays cycling and exercise data during exercise.

• Polar H3 heart rate sensor: sends the heart rate signal to the cycling computer. Includes a connector and
strap.

• Polar Bike Mount™: Secure the bike mount to your bike and attach the cycling computer to it.

• Polar Speed Sensor™ W.I.N.D.: measures speed and distance wirelessly during cycling.

• CD-ROM: includes the Polar ProTrainer 5TMsoftware and the complete user manual for the CS600X
cycling computer.

With the Polar ProTrainer 5 software you can plan your workout in advance with multiple planning options,
and transfer the settings to your Polar product. After training, you can analyze the results with versatile
graphs which you can customize according to your needs.

You can also transfer your training data to the polarpersonaltrainer.com web
service. Polarpersonaltrainer.com is your online training diary and interactive training community that
keeps you motivated.

The latest version of the full user manual and this getting started guide can be downloaded at
www.polar.com/support.

ENGLISH

Polar CS600X Cycling Computer Parts 5

Optional Accessories

• Polar Speed Sensor™ W.I.N.D.: measures speed and distance when cycling.

• Polar Cadence Sensor™ W.I.N.D.: measures cadence, i.e. crank revolutions per minute when cycling.

• Polar LOOK Kéo Power system: wirelessly measures power output expressed in watts and cadence.

• Polar G5 GPS sensor™: provides speed, distance and location data, as well as track information, in all
outdoor sports using Global Positioning System (GPS) technology.

Transfer your track data to Polar ProTrainer 5 software to view in Google Earth or to convert into a GPX file.
For more information, see software help.

ENGLISH

6 Polar CS600X Cycling Computer Parts

2. GETTING STARTED

Measuring Wheel Size

Before activating your cycling computer, measure
the wheel size of your bicycle.

Wheel size settings are a prerequisite for correct
cycling information. There are two ways of
determining the wheel size of your bike:

Method 1

Look for the diameter in inches or in ETRTO
printed on the wheel. Match it to the wheel size in
millimeters in the right column of the ETRTO
chart on the following page.

Wheel sizes on the chart are advisory as wheel
size depends on the wheel type and air pressure.

Method 2

Measure the wheel manually for the most accurate
result.

Use the valve to mark the point where the wheel
touches the ground. Draw a line on the ground to
mark that point. Move your bike forward on a flat
surface for one complete rotation. The tire should
be perpendicular to the ground. Draw another line
on the ground at the valve to mark a full rotation.
Measure the distance between the two lines.

Subtract 4 mm to account for your weight on the
bike to get your wheel circumference. Enter this
value in the cycling computer.

ENGLISH

Getting Started 7

ETRTO Wheel size

diameter
(inches)

Wheel size
setting
(mm)

25-559 26 x 1.0 1884

23-571 650 x 23C 1909

35-559 26 x 1.50 1947

37-622 700 x 35C 1958

47-559 26 x 1.95 2022

20-622 700 x 20C 2051

52-559 26 x 2.0 2054

23-622 700 x 23C 2070

ETRTO Wheel size

diameter
(inches)

Wheel size
setting
(mm)

25-622 700 x 25C 2080

28-622 700 x 28 2101

32-622 700 x 32C 2126

42-622 700 x 40C 2189

47-622 700 x 47C 2220

55-622 29 x 2.2 2282

55-584 27.5 x 2.2 2124

ENGLISH

8 Getting Started

Basic Settings

Before using your cycling computer for
the first time, customize the basic
settings. Enter as accurate data as
possible to ensure correct performance
feedback based on your personal
metrics.

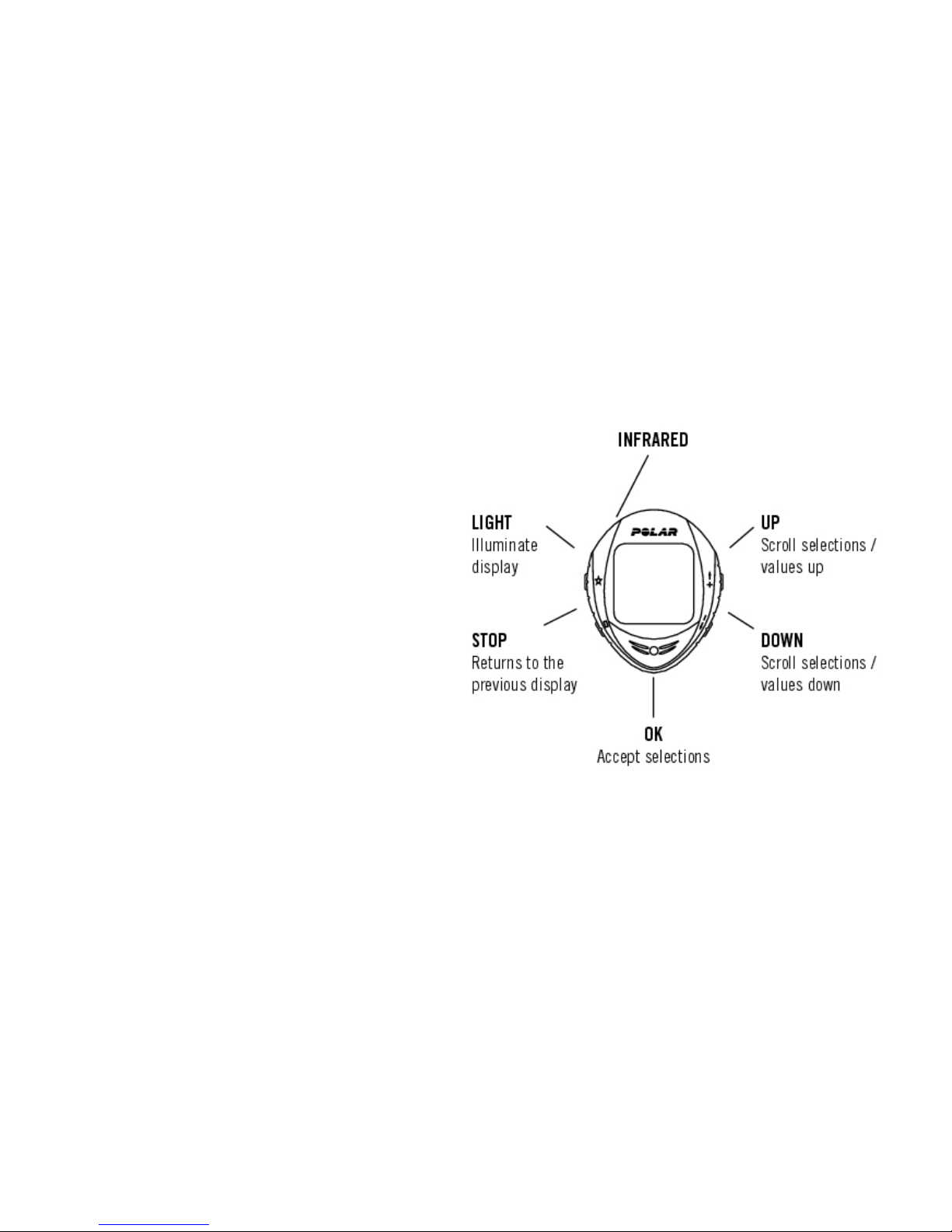

To adjust the data, use UP, DOWN and
accept with OK. The values scroll faster
if you press and hold UP or DOWN.

1. To activate your cycling computer,
press OK twice. Once activated, it
cannot be switched off!

2. The Polar logo will appear. Press
OK.

3. Language: Select English, Deutsch,

Español, Français or Italiano.

Press OK.

ENGLISH

Getting Started 9

4. Start with bike settings is displayed. Press

OK.

5. Number of bikes: Select 1, 2 or 3 depending

on how many bicycles you will be using. If you
only use one bicycle, settings for bikes 2 or 3
bikes can be entered later.

6. Wheel: Enter the wheel size (mm) for each of

your bicycles. For further information, see
Measuring Wheel Size.

7. Basic settings is displayed. Press OK and

adjust the following data:

8. Time: Select 12h or 24h. With 12h, select AM or

PM and enter the local time.

9. Date: Enter current date; dd = day, mm =

month, yy = year. If you use 12 h time mode,
set the date; mm = month, dd = day, yy = year.

10. Units: Select metric (kg/cm/km) or imperial

(lb/ft/mi) units.

11. Weight: Enter your weight. To change units,

press and hold the LIGHT.

12. Height: Enter your height. In LB/FT format, first

enter feet then inches.

13. Birthday: Enter your date of birth; dd=day,

mm=month, yy=year.

14. Sex: Select Male or Female.

15. Settings OK? is displayed. Select Yes or No.
Select Yes to accept and save settings. The
cycling computer will display time of day.
Select No if settings are incorrect and need to
be changed. Press STOP to return to the data
you want to change.

Use the Polar ProTrainer 5 software to enter all
basic settings.

ENGLISH

10 Getting Started

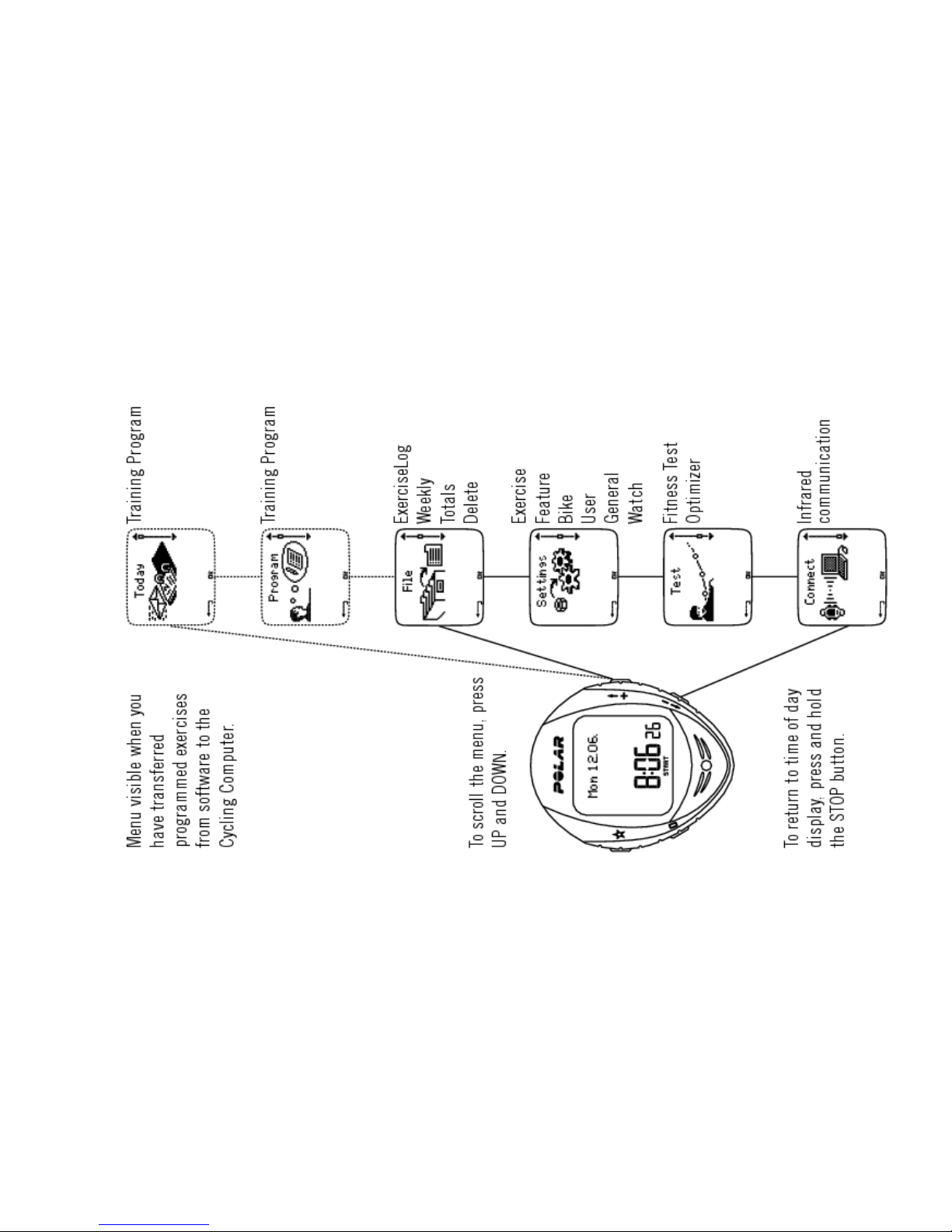

Menu Structure

ENGLISH

Getting Started 11

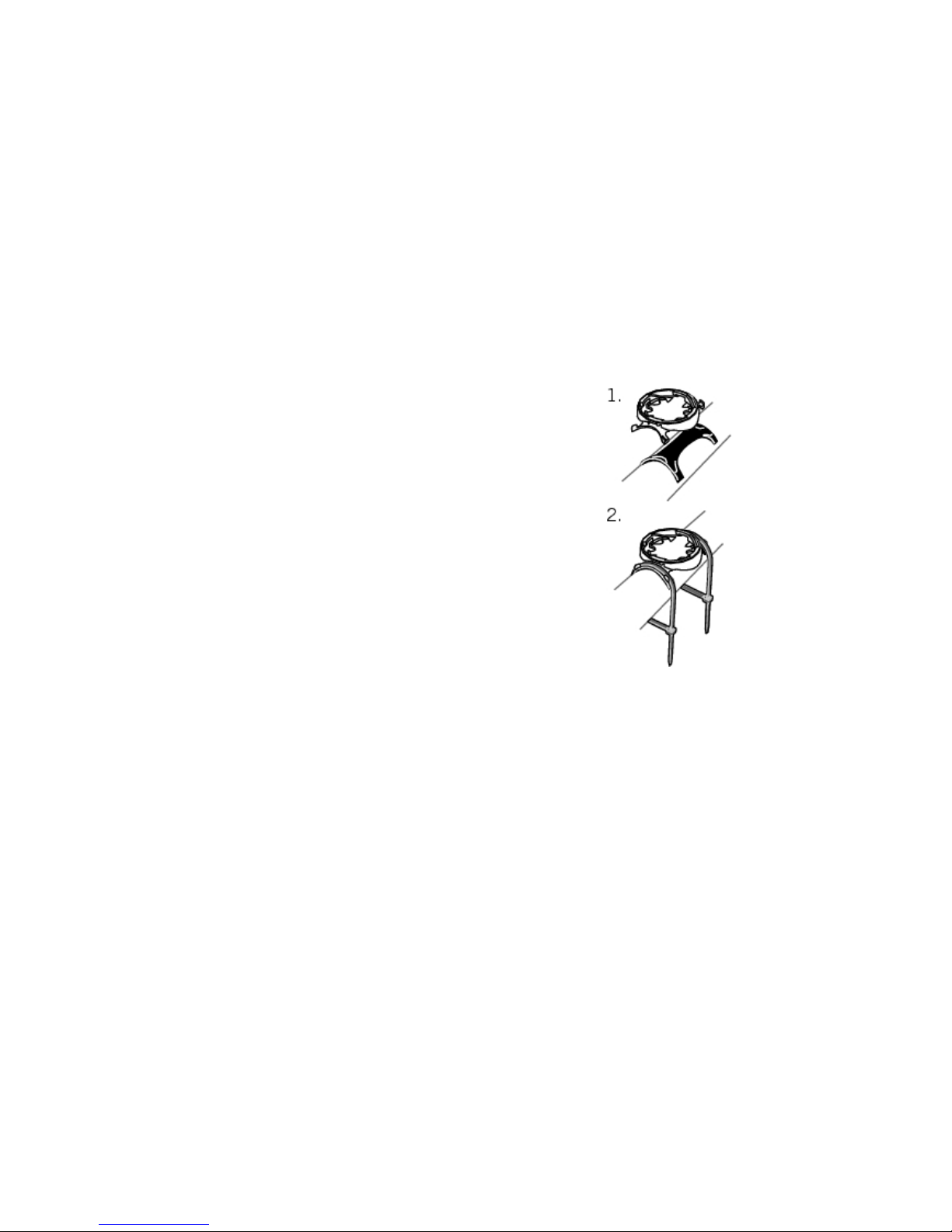

Installing the Polar Bike Mount

You can install the bike mount and the cycling computer on the left
or right side of the handlebar or on the stem.

1. Place the rubber part on the handlebar or stem and insert the
bike mount on top of it

2. Pass the cable ties over the bike mount and adjust them around
the handlebar/stem. Secure the bike mount firmly. Cut off any
excess cable tie ends.

Attaching the Cycling Computer to the Bike Mount

1. Position the cycling computer on to the bike mount. Turn the cycling computer clockwise until you hear
a click.

2. Release the cycling computer by pressing it down and simultaneously turning it counter clockwise.

ENGLISH

12 Getting Started

3. PREPARE FOR TRAINING

Bike Settings

You can set three bike preferences for the cycling computer. Enter
bike settings, and select bike 1, 2 or 3 at the beginning of a
training session. Bike 1 is set as a default.

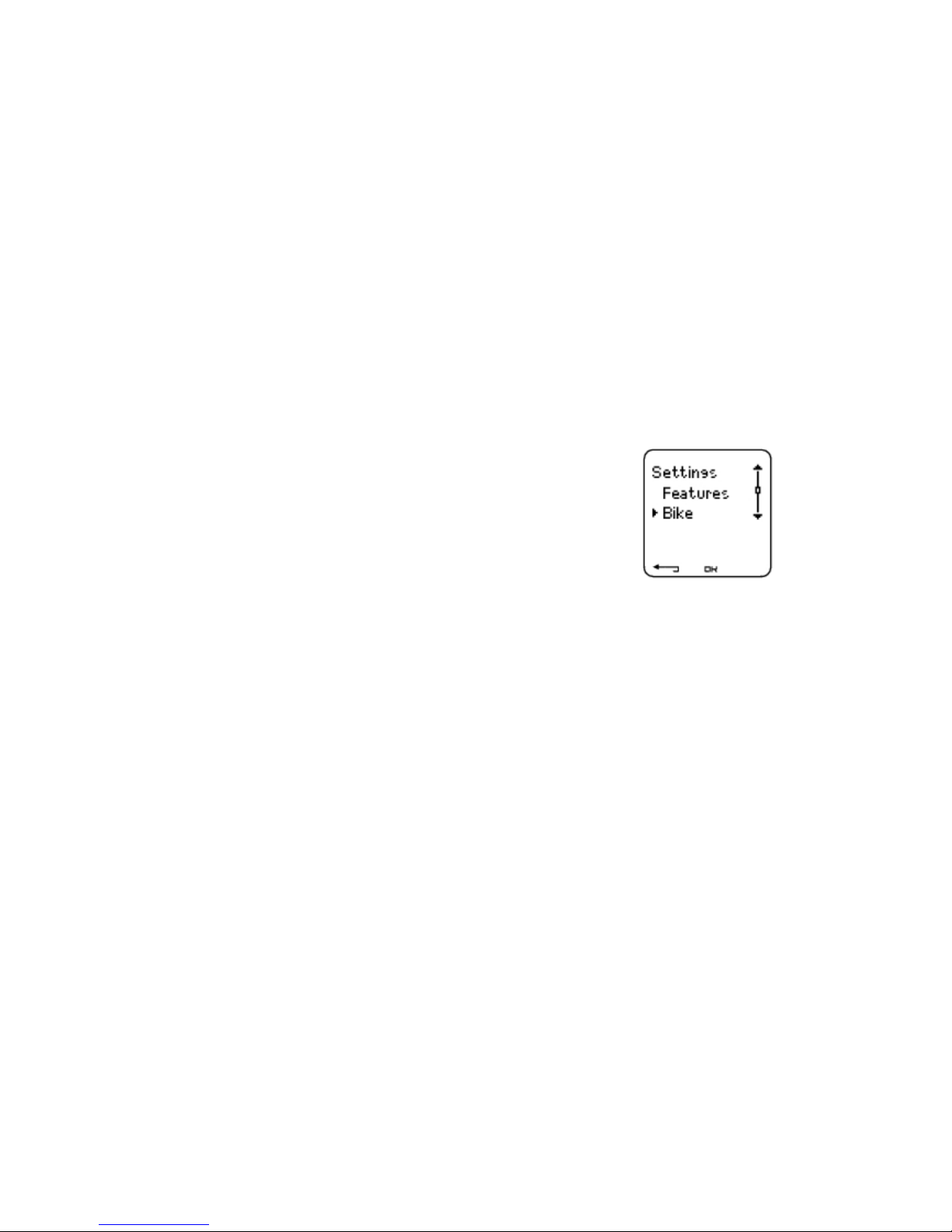

Select Settings > Bike > Bike 1, Bike 2, Bike 3 or Other. Bike 2

and Bike 3 can be turned on or off.

Select Other to deactivate speed, cadence and power sensors and to
measure heart rate, altitude, and temperature data only.

For more information on bike settings, consult the user manual.

ENGLISH

Prepare For Training 13

Using an Accessory with Your CS600X Cycling Computer

Polar CS600X cycling computer is compatible with the following Polar W.I.N.D sensors:

The Polar LOOK Kéo Power system, Polar Speed Sensor W.I.N.D, Polar Cadence Sensor W.I.N.D and the
Polar G5 GPS Sensor.

If you purchase a new sensor, it has to be activated by and introduced to the cycling computer. This is
called teaching and takes only a few seconds. Teaching ensures that your cycling computer receives
signals from your sensors only, and enables disturbance-free exercise in a group. For more information,
see Using a New Accessory in the user manual.

Before entering an event, make sure to perform the teaching process at home. This is to prevent interference
due to the long-range data transmission.

If you purchased the sensor and cycling computer together, as a set, the sensor will already have been
“taught” to work together with the cycling computer. In which case you will only need to activate the
sensor in your cycling computer. For more information see Bike Settings in the user manual.

ENGLISH

14 Prepare For Training

4. TRAINING

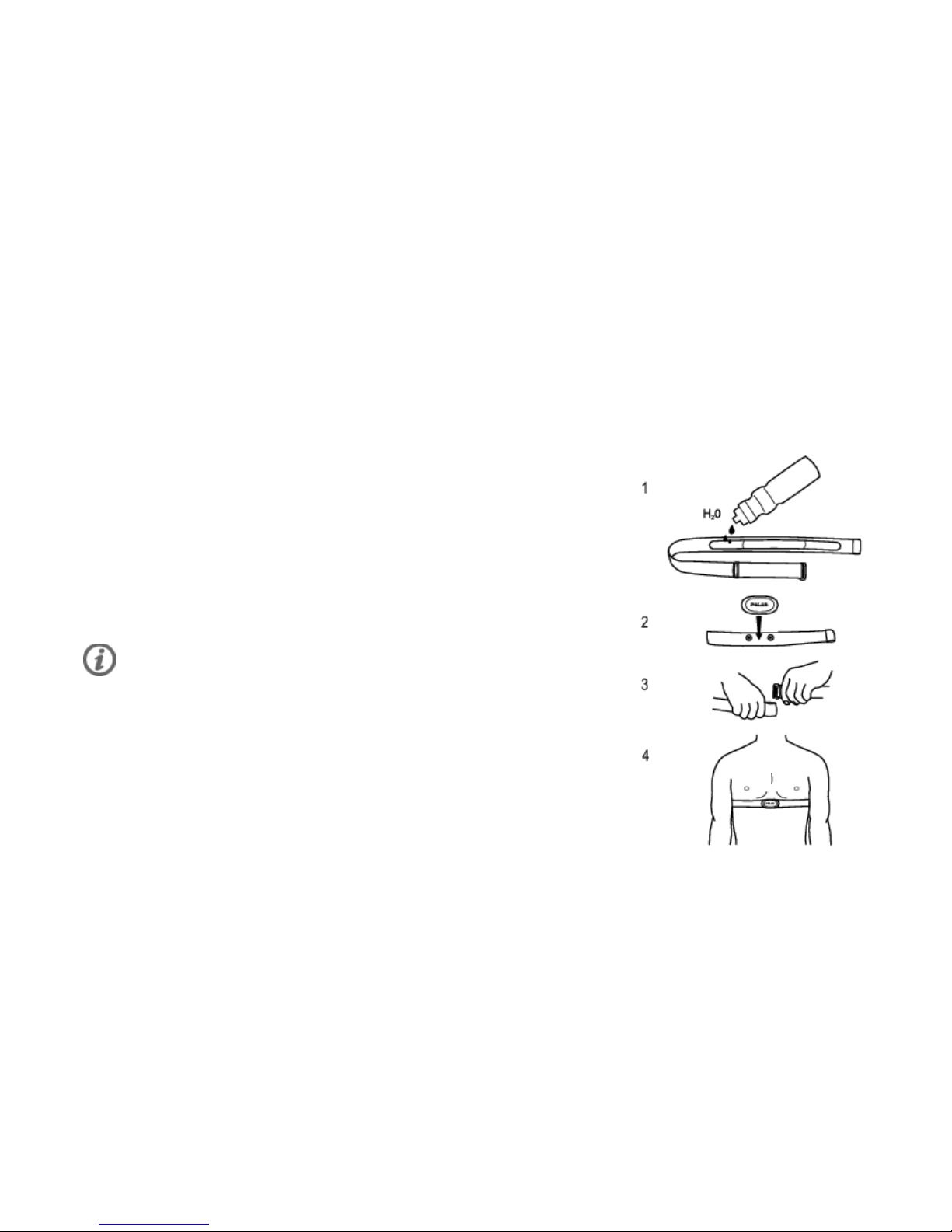

Wear the Heart Rate Sensor

Wear the heart rate sensor to measure heart rate.

1. Moisten the electrode area of the strap.

2. Attach the connector to the strap.

3. Tie the strap around your chest, just below the chest muscles,
and attach the hook to the other end of the strap.

4. Adjust the strap length to fit tightly but comfortably. Check that
the moist electrode areas are firmly against your skin and that the
Polar logo of the connector is in a central and upright position.

Detach the connector from the strap and rinse the strap under
running water after every use. Sweat and moisture may keep the
electrodes wet and the heart rate sensor activated. This will reduce
the heart rate sensor battery life. For more detailed washing
instructions, see Important Information.

For video tutorials, go to
http://www.polar.com/en/support/video_tutorials.

ENGLISH

Training 15

Start Training

Wear the heart rate sensor and attach the cycling computer to the
bike mount.

1. Start heart rate measurement by pressing OK. The cycling
computer goes into pause mode.

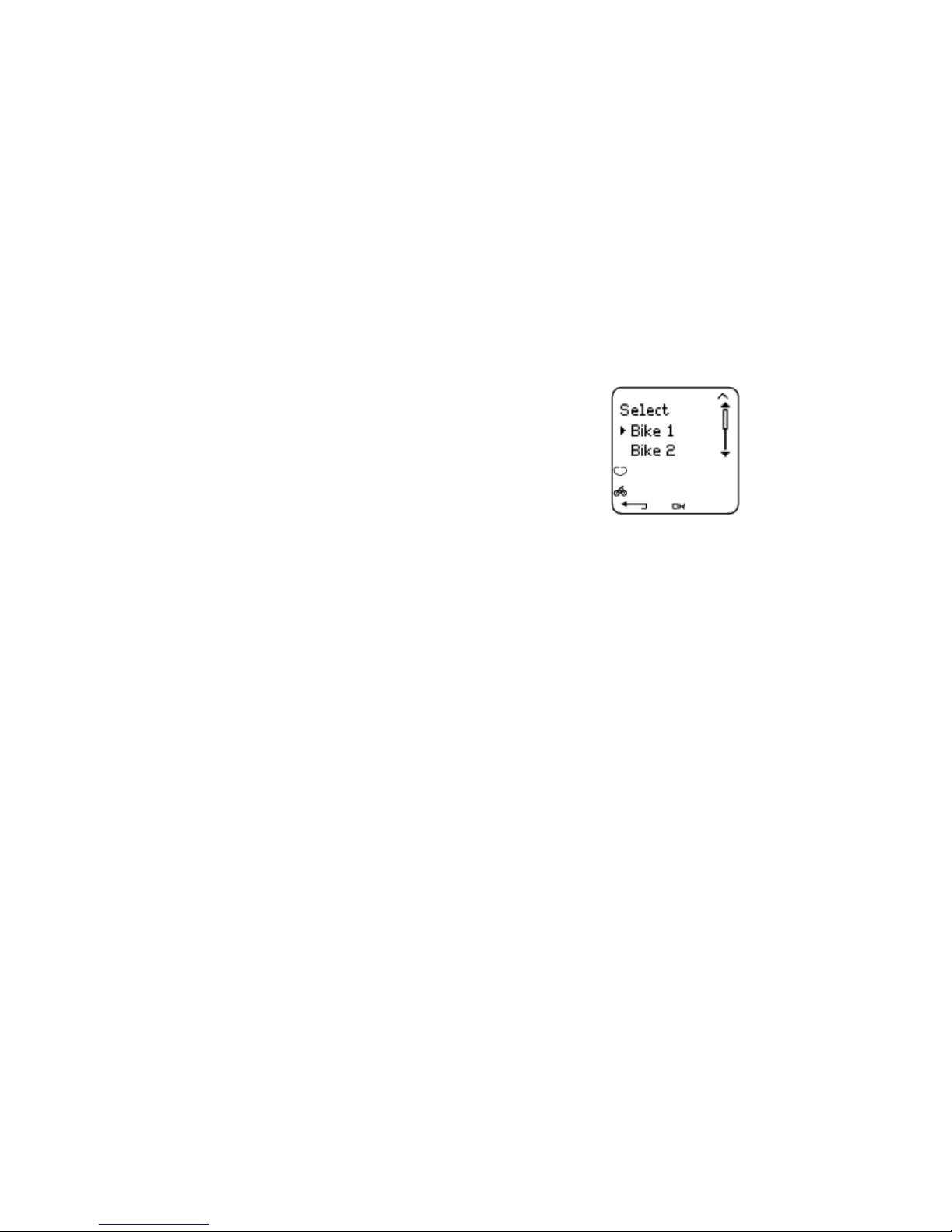

2. Select the bike you are going to exercise with. Bike 1 is set as a
default. Select Settings > Bike > Bike1 > OK. Select Other if
you only want to record heart rate.

3. Within four seconds, your heart rate appears on the display. The
frame around the heart symbol indicates that transmission is
coded. Depending on the sensor you are using, the cyclist or GPS
symbol (or both) on the bottom left-hand corner of the display
flashes until all the sensors are found.

4. Start exercising by pressing OK. The exercise type is displayed in the upper left-hand corner.

5. Pause exercise recording by pressing STOP. To stop recording completely, select EXIT.

To fully operate the different settings choose Settings. For further information on settings, consult the
user manual.

ENGLISH

16 Training

5. AFTER TRAINING

Detach the connector from the strap after use. Keep the heart rate
sensor dry and clean. For further information, see Care and
Maintenance.

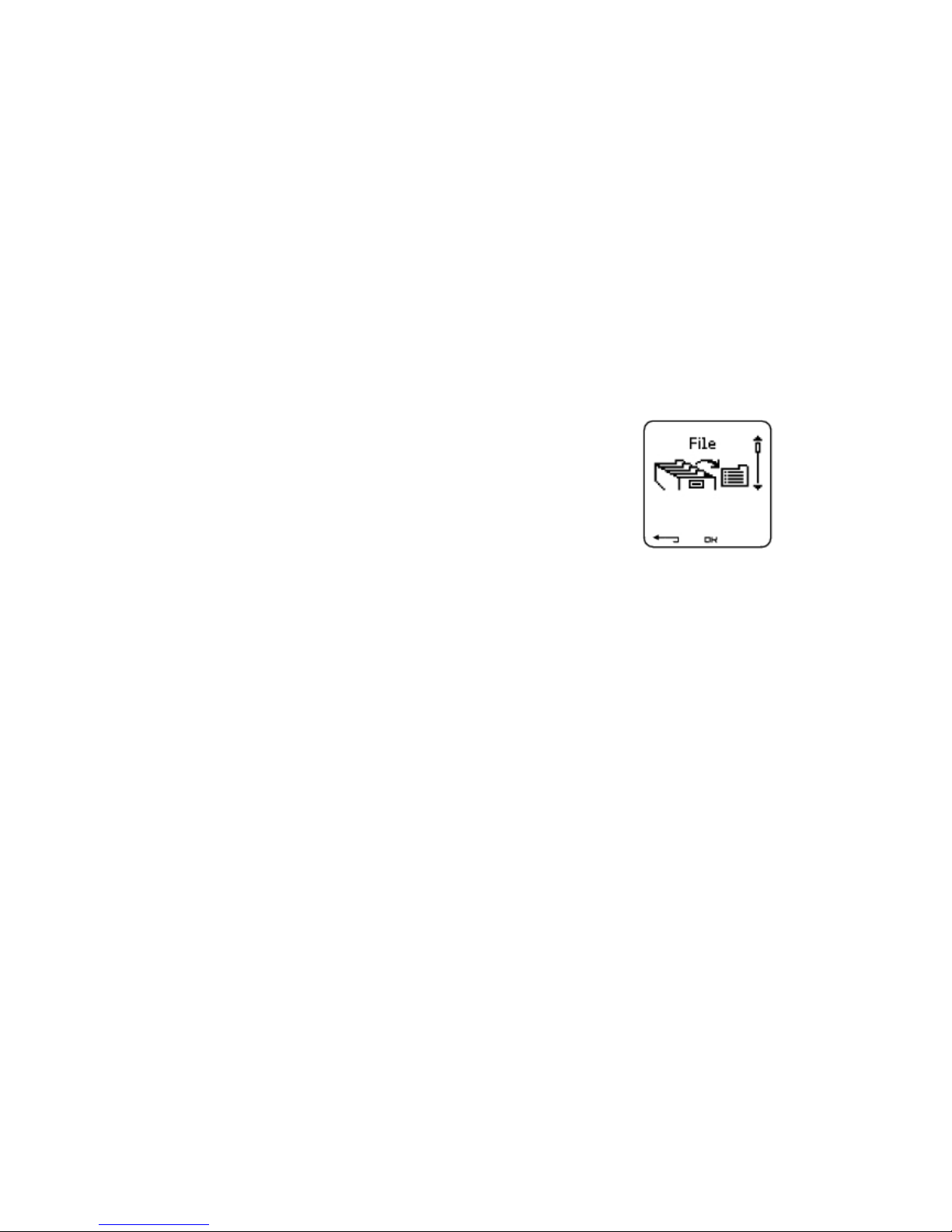

Review exercise data under File.

• The Exercise Log lists a maximum of 99 exercise files.

• The Weekly summary displays summaries for the past 16 weeks.

• Totals include cumulative values recorded during training

sessions.

• Delete files. To view exercise data, press OK and scroll UP or

DOWN.

For complete analysis, transfer data to Polar ProTrainer 5.

For further information on how to review training information,
consult the User Manual.

ENGLISH

After Training 17

6. CUSTOMER SERVICE INFORMATION

Care and Maintenance

Caring for Your Product

Cycling computer: Keep your cycling computer clean.
Clean it with a mild soap and water solution and rinse
them with clean water. Do not immerse the cycling
computer in water. Dry it carefully with a soft towel. Never
use alcohol or any abrasive material such as steel wool or
cleaning chemicals.

Connector: Detach the connector from the strap after every
use and dry the connector with a soft towel. Clean the
connector with a mild soap and water solution when
needed. Never use alcohol or any abrasive material (eg.
steel wool or cleaning chemicals).

Strap: Rinse the strap under running water after every use
and hang to dry. Clean the strap gently with a mild soap
and water solution when needed. Do not use moisturizing
soaps, because they can leave residue on the strap. Do not
soak, iron, dry clean or bleach the strap. Do not stretch
the strap or bend the electrode areas sharply.

Check the label on your strap to see if it is machine washable.
Never put the strap or the connector in a dryer!

Dry and store the strap and the connector separately, to
maximize the heart rate sensor battery lifetime. Keep your

cycling computer and heart rate sensor in a cool and dry
place. Do not store them in a damp environment, in
non-breathable material (a plastic bag or a sports bag) nor
with conductive material (a wet towel). Do not expose
them to direct sunlight for extended periods, such as by
leaving it in a car or mounted on the bike mount.

The cycling computer and sensors are water resistant and
can be used in the rain. To maintain the water resistance,
do not wash the cycling computer or sensors with a
pressure washer or sink them under water. Avoid hard hits
on the cycling computer and the sensors as these may
damage them. Operating temperatures are -10 °C to +50
°C / +14 °F to +122 °F.

Service

During the two-year guarantee/warranty period we
recommend that you have service, other than battery
replacement, done by an authorized Polar Service Center
only. The warranty does not cover damage or
consequential damage caused by service not authorized by
Polar Electro.

ENGLISH

18 Customer Service Information

For contact information and all Polar Service Center
addresses, visit www.polar.com/support and country
specific websites.

Register your Polar product at http://register.polar.fi/ to
ensure we can keep improving our products and services
to better meet your needs.

The username for your Polar Account is always your email
address. The same username and password are valid for Polar
product registration, polarpersonaltrainer.com, Polar discussion
forum and Newsletter registration.

Changing Batteries

For instructions on how to change the battery for the H3
heart rate sensor, consult the full user manual at

www.polar.com/support.

The batteries for the Speed and Cadence Sensors cannot
be replaced. Contact your authorized Polar Service Center
for replacement speed and cadence sensors.

For instructions on how to change the battery for the Polar
LOOK Kéo Power system, consult the Polar LOOK Kéo
Power user manual.

The G5 GPS sensor has an internal, rechargeable battery,
which cannot be removed. For instructions on how to
recharge the battery, consult the G5 GPS Sensor user
manual.

For video tutorials on how to change batteries, go to
www.polar.com/en/polar_community/videos.

There is no separate tutorial video for changing CS600X battery,
so please see the tutorial video for changing CS200 battery, but
notice that the battery type is different.

Cycling Computer Battery

In order to ensure the maximum lifespan of the battery
cover, open it only when you need to change the battery.

The low battery indicator and Battery low are displayed
when 10-15% of the cycling computer battery capacity is
left. The backlight and cycling computer sounds are
automatically deactivated when the symbol is displayed.
Excessive use of the backlight drains the cycling
computer’s battery more rapidly. In cold conditions the
low battery indicator may appear, but the indicator
disappears when you return to warmer temperature.

ENGLISH

Customer Service Information 19

To change the cycling computer battery, you need a coin
and a battery(CR 2354).

1. Using a coin that sits tight into the back cover groove,

open the battery cover by pressing slightly and turning
counter clockwise to OPEN position.

2. Remove the battery cover. The battery is attached to the

cover, which should be carefully lifted.Remove the
battery and replace with a new one. Be carefulnot to
damage the threads of the back cover.

3. Place the negative (-) side of the battery against

thecycling computer and the positive (+) side against
the cover.

4. The sealing ring of the battery cover is also attached to

the cover. Before closing the battery cover, make sure
that thecover’s sealing ring is undamaged and it is
placed correctly in its groove. Only replace the sealing
ring if it is damaged.

5. Put the battery cover in its place and turn the cover

clockwise with a coin to CLOSE position. Make sure
that the cover is closed properly!

ENGLISH

20 Customer Service Information

If used according to the manufacturer’s instructions, the
battery’s sealing ring will last for the cycling computer’s
operating life. However, if the sealing ring is damaged,
you should replace it with a new one.

You can purchase the sealing ring/battery kits at
well-equipped Polar retailers and authorized Polar
Services. In the USA and Canada, the additional sealing
rings are available at authorized Polar Service Centers. In
the USA, the sealing ring/battery kits are also available at
www.shoppolar.com. Go to www.polar.com to find your
own country's shoppolar online store.

After a battery change re-enter time and date settings in
Basic Settings. For further information, see Basic
Settings.

Keep the batteries away from children. If swallowed, contact a
doctor immediately. Batteries should be disposed of properly
according to local regulations.

Danger of explosion if the battery is replaced with wrong
type.

ENGLISH

Customer Service Information 21

Precautions

The Polar Cycling Computer shows your performance
indicators. It is designed to indicate the level of
physiological strain and recovery during and after exercise
session. It also measures speed and distance when cycling
with a Polar Speed Sensor W.I.N.D. The Polar G5 GPS
sensor is designed to measure speed, distance and
location data, as well as to provide track information. The
Polar Cadence Sensor W.I.N.D. is designed to measure
cadence when cycling. The Polar LOOK Kéo Power system
is designed to measure power output when cycling. No
other use is intended or implied.

Interference During Exercise

Electromagnetic Interference and Exercise Equipment.

Disturbance may occur near microware ovens and
computers. Also WLAN base stations may cause
interference when exercising with CS600X. To avoid
erratic reading or misbehaviors, move away from possible
sources of disturbance.

Exercise equipment with electronic or electrical
components such as LED displays, motors and electrical
brakes may cause interfering stray signals. To solve these
problems, try the following:

1. Remove the heart rate sensor from your chest and use
the exercise equipment as you would normally.

2. Move the cycling computer around until you find an
area in which it displays no stray reading or does not
flash the heart symbol. Interference is often worst
directly in front of the display panel of the equipment,
while the left or right side of the display is relatively
free of disturbance.

3. Put the heart rate sensor back on your chest and keep
the cycling computer in this interference-free area as
much as possible.

If the cycling computer still does not work with the
exercise equipment, it may be electrically too noisy for
wireless heart rate measurement.

ENGLISH

22 Customer Service Information

Minimizing Risks When Exercising

Exercise may include some risk. Before beginning a
regular exercise program, it is recommended that you
answer the following questions concerning your health
status. If you answer yes to any of these questions, we
recommend that you consult a doctor before starting any
training program.

• Have you been physically inactive for the past 5 years?

• Do you have high blood pressure or high blood
cholesterol?

• Are you taking any blood pressure or heart medication?

• Do you have a history of breathing problems?

• Do you have symptoms of any disease?

• Are you recovering from a serious illness or medical
treatment?

• Do you use a pacemaker or other implanted electronic
device?

• Do you smoke?

• Are you pregnant?

In addition to exercise intensity, medications for heart
conditions, blood pressure, psychological conditions,
asthma, breathing, etc., as well as some energy drinks,
alcohol, and nicotine may also affect heart rate.

It is important to be sensitive to your body’s responses
during exercise. If you feel unexpected pain or excessive

fatigue when exercising, it is recommended that you stop
the exercise or continue at a lighter intensity.

Note! If you are using a pacemaker, you can use Polar

training computers. In theory interference to pacemaker
caused by Polar products should not be possible. In
practice no reports exist to suggest anyone ever having
experienced interference. We cannot however issue an
official guarantee on our products' suitability with all
pacemakers or other implanted devices due to the variety
of devices available. If you have any doubts, or if you
experience any unusual sensations while using Polar
products, please consult your physician or contact the
implanted electronic device manufacturer to determine
safety in your case.

If you are allergic to any substance that comes into
contact with your skin or if you suspect an allergic
reaction due to using the product, check the listed

materials in Technical Specifications. To avoid any skin
reaction to the heart rate sensor, wear it over a shirt, but
moisten the shirt well under the electrodes to ensure
flawless operation.

The combined impact of moisture and intense abrasion may
cause a black color to come off the heart rate sensor’s surface,
possibly staining light-colored clothes.

ENGLISH

Customer Service Information 23

Technical Specifications

Cycling computer

Class 1 Laser Product
Battery life: Average 1 year
Battery type: CR 2354
Battery sealing ring: O-ring 20.0 x 1.0 Material: silicone
Operating temperature: -10 °C to +50 °C / 14 °F to 122 °F
Materials: Thermoplastic polymer
Watch accuracy: Better than ± 0.5 seconds / day at 25 °C /

77 °F temperature.
Accuracy of heart rate
monitor:

± 1% or 1 bpm, whichever larger.

Definition applies to stable conditions.
Heart rate measuring
range:

15-240

Current speed display
range:

0-127 km/h or 0-75 mph

Altitude display range: -550 m … +9000 m / -1800 ft … +29500

ft
Ascent resolution: 5 m / 20 ft

Cycling computer limit values

Maximum files:

99

Maximum time: 99 h 59 min 59 s
Maximum laps: 99
Total distance: 999 999 km / 621370 mi
Total duration: 9999h 59min 59s
Total calories: 999 999 kcal
Total exercise count: 9999
Total ascent: 304795 m / 999980 ft

Heart rate sensor

Battery life of Polar H3
heart rate sensor:

1600 h

Battery type: CR2025
Battery sealing ring: O-ring 20.0 x 0.90, material silicone
Operating temperature: -10 °C to +40 °C / 14 °F to 104 °F
Connector material: Polyamide
Strap material: 38% Polyamide, 29% Polyurethane, 20%

Elastane, 13% Polyester

ENGLISH

24 Customer Service Information

Polar ProTrainer 5™

System Requirements:

PC
Windows® 2000/XP (32bit), Vista

IrDA compatible port (an external IrDA
device or an internal IR port)
Additionally, for the software your PC must
have a Pentium II 200 MHz processor or
faster, SVGA or higher resolution monitor,
50 MB hard disk space and a CD-ROM
drive.

Polar WebLink using IrDA Communication

System Requirements:

PC
Windows® 2000/XP/Vista 32/64-bit or

Windows 7 32/64-bit
IrDA compatible port (an external IrDA
device or an internal IR port)

ENGLISH

Customer Service Information 25

The Polar Cycling Computer should not be used for obtaining environmental measurements that require professional or
industrial precision. Furthermore, the device should not be used to obtain measurements when engaged in airborne or
underwater activities

Water resistance of Polar products is tested according to International IEC 60529 IPx7 (1m, 30min, 20ºC). Products are
divided into four different categories according to water resistance. Check the back of your Polar product for the water
resistance category and compare it to the chart below. Please note that these definitions do not necessarily apply to
products of other manufacturers.

Marking on case back Water resistant characteristics
Water proof IPX7* Not suitable for bathing or swimming. Protected against

wash splashes and raindrops. Do not wash with a pressure
washer.

Water resistant** Not suitable for swimming. Protected against wash

splashes, sweat, raindrops etc. Do not wash with a

pressure washer.
Water resistant 30 m/50 m*** Suitable for bathing and swimming
Water resistant 100 m Suitable for swimming and snorkeling (without air tanks)

* Polar LOOK Kéo Power system

** Polar CS600X cycling computer, CS speed sensor W.I.N.D. and CS cadence sensor W.I.N.D.

*** Polar H3 heart rate sensor is water resistant 30 m, but it does not measure heart rate in water.

ENGLISH

26 Customer Service Information

Limited International Polar Guarantee

• This guarantee does not affect the consumer’s statutory
rights under applicable national or state laws in force, or
the consumer’s rights against the dealer arising from
their sales/purchase contract.

• This limited Polar international guarantee is issued by
Polar Electro Inc. for consumers who have purchased
this product in the USA or Canada. This limited Polar
international guarantee is issued by Polar Electro Oy for
consumers who have purchased this product in other
countries.

• Polar Electro Oy/Polar Electro Inc. guarantees the
original consumer/purchaser of this device that the
product will be free from defects in material or
workmanship for two (2) years from the date of purchase.

• The receipt of the original purchase is your proof of

purchase!

• The guarantee does not cover the battery, normal wear
and tear, damage due to misuse, abuse, accidents or
non-compliance with the precautions; improper
maintenance, commercial use, cracked, broken or
scratched cases/displays, armband, elastic strap and
Polar apparel.

• The guarantee does not cover any damage/s, losses,
costs or expenses, direct, indirect or incidental,
consequential or special, arising out of, or related to the
product.

• Items purchased second hand are not covered by the two
(2) year warranty, unless otherwise stipulated by local
law.

• During the guarantee period, the product will be either
repaired or replaced at any of the authorized Polar
Service Centers regardless of the country of purchase.

Guarantee with respect to any product will be limited to
countries where the product has been initially marketed.

This product is compliant with Directives 93/42/EEC,
1999/5/EC and 2011/65/EU. The relevant Declaration of
Conformity is available at www.polar.com/support.

ENGLISH

Customer Service Information 27

Compliance Statement

Canada

Polar Electro Oy has not approved any changes or
modifications to this device by the user. Any changes or
modifications could void the user’s authority to operate
the equipment.

Polar Electro Oy n’a approué aucune modification
apportée à l’appareil par l’utilisateur, quelle qu’en soit la
nature. Tout changement ou toute modification peuvent
annuler le droit d’utilisation de l’appareil par l’utilisateur.

Industry Canada (IC) regulatory information

Under Industry Canada regulations, this radio transmitter
may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful
communication.

This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference,
and (2) this device must accept any interference,

including interference that may cause undesired operation
of the device.

Avis de conformité à la réglementation d’Industrie Canada

Conformément à la réglementation d'Industrie Canada, le
présent émetteur radio peut fonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication
satisfaisante.

Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.

Class B digital device notice

This Class B digital apparatus complies with Canadian
ICES-003, RSS-Gen and RSS-210.

ENGLISH

28 Customer Service Information

Cet appareil numérique de la classe B est conforme à la
norme NMB-003, CNR-Gen et CNR-210 du Canada.

USA

Polar Electro Oy has not approved any changes or
modifications to this device by the user. Any changes or
modifications could void the user’s authority to operate
the equipment.

FCC regulatory information

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.

Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:

1.

Reorient or relocate the receiving antenna.

2.

Increase the separation between the equipment and
receiver.

3.

Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

4.

Consult the dealer or an experienced radio/ TV
technician for help.

This product emits radio frequency energy, but the
radiated output power of this device is far below the FCC
radio frequency exposure limits. This equipment complies
with FCC RF radiation exposure limits forth for an
uncontrolled environment. Nevertheless, the device should
be used in such a manner that the potential for human
contact with the antenna during normal operation is
minimized.

ENGLISH

Customer Service Information 29

This crossed out wheeled bin marking shows that Polar
products are electronic devices and are in the scope of
Directive 2002/96/EC of the European Parliament and of
the Council on waste electrical and electronic equipment
(WEEE) and batteries and accumulators used in products
are in the scope of Directive 2006/66/EC of the European
Parliament and of the Council of 6 September 2006 on
batteries and accumulators and waste batteries and
accumulators. These products and batteries/accumulators
inside Polar products should thus be disposed of
separately in EU countries.

This marking shows that the product is protected against
electric shocks.

Regulatory information is available at
www.polar.com/support.

Polar Electro Oy is a ISO 9001:2008 certified company.

Copyright © 2012 Polar Electro Oy, FIN-90440
KEMPELE, Finland.

All rights reserved. No part of this manual may be used or
reproduced in any form or by any means without prior
written permission of Polar Electro Oy. The names and
logos in this user manual or in the package of this product
are trademarks of Polar Electro Oy. The names and logos
marked with a®symbol in this user manual or in the
package of this product are registered trademarks of Polar
Electro Oy. Windows is a registered trademark of Microsoft
Corporation and Mac OS is a registered trademark of
Apple Inc.

Disclaimer

• The material in this manual is for informational purposes
only. The products it describes are subject to change
without prior notice, due to the manufacturer’s
continuous development program.

• Polar Electro Inc./Polar Electro Oy makes no
representations or warranties with respect to this manual
or with respect to the products described herein.

• Polar Electro Inc./Polar Electro Oy shall not be liable for
any damages, losses, costs or expenses, direct, indirect
or incidental, consequential or special, arising out of, or
related to the use of this material or the products
described herein.

ENGLISH

30 Customer Service Information

Manufactured by

Polar Electro Oy
Professorintie 5
FIN-90440 KEMPELE
Tel [phone]
Fax [phone]
www.polar.
