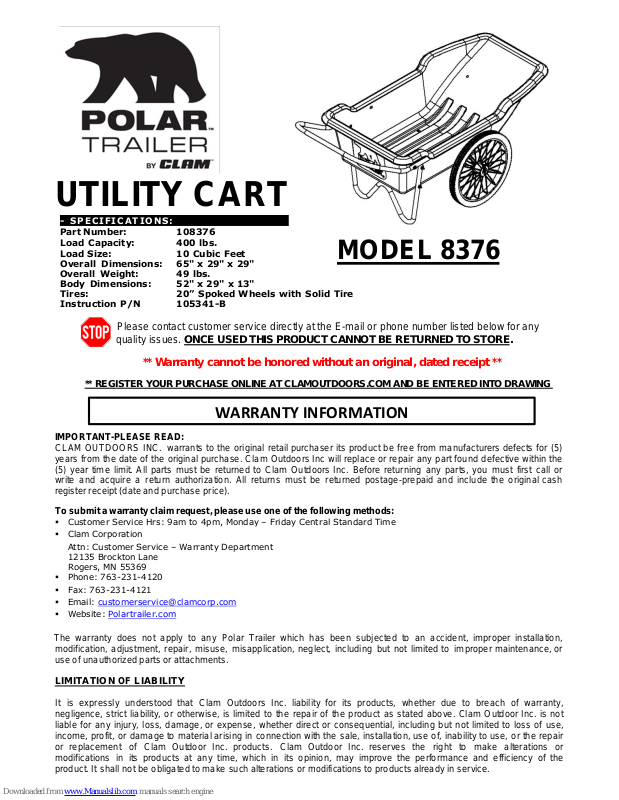

Page 1
UTILITY CART
- S P E C IF I C AT I O N S:
Part Number: 10
8376
Load Capacity: 400 lbs.
Load Size: 10 Cubic Feet
Overall Dimensions: 65" x 29" x 29"
Overall Weight: 49 lbs.
Body Dimensions: 52" x 29" x 13"
Tires: 20” Spoked Wheels with Solid Tire
Instruction P/N 105341-B
Please contact customer service directly at the E-mail or phone number listed below for any
quality issues. ONCE USED THIS PRODUCT CANNOT BE RETURNED TO STORE.
** Warranty cannot be honored without an original, dated receipt **
** REGISTER YOUR PURCHASE ONLINE AT CLAMOUTDOORS.COM AND BE ENTERED INTO DRAWING
IMPORTANT-PLEASE READ:
CLAM OUTDOORS INC. warrants to the original retail purchaser its product be free from manufacturers defects for (5)
years from the date of the original purchase. Clam Outdoors Inc will replace or repair any part found defective within the
(5) year time limit. All parts must be returned to Clam Outdoors Inc. Before returning any parts, you must first call or
write and acquire a return authorization. All returns must be returned postage-prepaid and include the original cash
register receipt (date and purchase price).
To submit a warranty claim request, please use one of the following methods:
Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
Clam Corporation
Attn: Customer Service – Warranty Department
12135 Brockton
Lane
Rogers, MN 55369
The warranty does not apply to any Polar Trailer which has been subjected to an accident, improper installation,
modification, adjustment, repair, misuse, misapplication, neglect, including but not limited to improper maintenance, or
use of unauthorized parts or attachments.
LIMITATION
OF
LIABILITY
It is expressly understood that Clam Outdoors Inc. liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Outdoor Inc. is not
liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use,
income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use, or the repair
or replacement of Clam Outdoor Inc. products. Clam Outdoor Inc. reserves the right to make alterations or
modifications in its products at any time, which in its opinion, may improve the performance and efficiency of the
product. It shall not be obligated to make such alterations or
modifications
to products already in service.
MODEL 8376
WARRANTY INFORMATION
Page 2
WARNING:
▪
THIS PRODUCT IS INTENDED FOR USE IN LAWN CARE AND HOME
APPLICATIONS.
▪
DO NOT TOW BEHIND A VEHICLE OR USE ON A HIGHWAY OR IN ANY HIGH
SPEED
APPLICATION.
▪
THIS PRODUCT HAS BEEN DESIGNED FOR OFF-ROAD USE
ONLY.
Transporting Loads Safely
•
Stopping distance increases with speed and weight of load. Travel slowly and allow extra time
and distance to stop.
•
Excessive load can cause loss of traction and loss of control on slopes. Reduce payload weight
when operating on slopes.
•
Never allow children or others in or on equipment.
•
Do not attach the Utility Cart to any powered vehicle.
•
Follow the manufacturer’s recommendations for weight limits.
•
Do not turn sharply. Use additional caution when turning or operating under adverse surface conditions.
Keep Riders off Utility
Cart
•
Keep riders off of the Utility Cart.
•
Riders are subject to injury, such as being struck by objects or being thrown off the attachment
during sudden starts, stops and turns.
•
Riders obstruct the operator’s view, resulting in the Utility Cart being used in an unsafe manner.
QTY
PART NO.
DESCRIPTION
1
102612
BASE, CURVED
1
105341
INSTRUCTION, CART
2
102595
20" SPOKED WHEELS
1
104257
REMOVABLE LABEL, UTILITY CART
1
105342
INNERPACK, UTILITY CART (INCLUDE THE FOLLOWING)
1
105339
HANDLE, TOP, UTILITY CART
1
102609
ASSY, TUBE CAP, LEG
1
102599
WELDMENT, AXLE, 20" HANDCART
2
105344
ASSY, HANDLE, SIDE, UTILITY CART
1
102601
KIT, HARDWARE, HAND CART (INCLUDES THE FOLLOWING)
2
102201
SPRING COTTER PIN
11
102605
SCREW,5/16-18 X 1.75 THMSCZ
5
102607
WASHER, .75 USS SAE STANDARD YZ
12
102606
5/16 - 18 THIN NYLOCK CZ
12
102035
WASHER, 5/16 WIDE FLAT
3
101473
SCREW, 1/ 4-20 X 1.50 PTH GR2
3
101163
NUT, 1/4-20 NYLOCK
PARTS LIST
Page 3

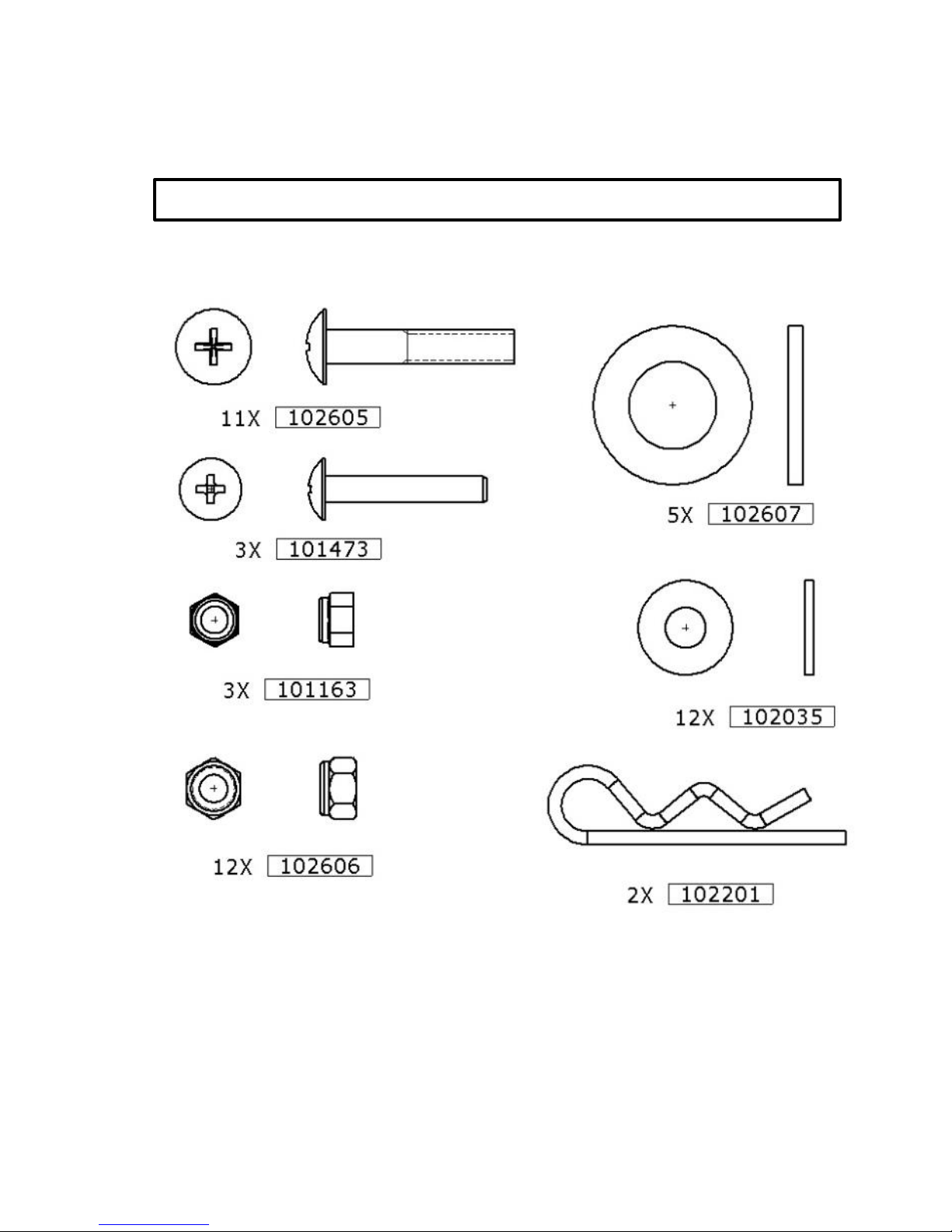

FASTENERS
Page 4
STEP-1
1. LOOSELY INSTALL ONE SIDE HANDLE (105344) TO EACH SIDE OF TRAILER
BASE AS SHOWN.
STEP-2
1. ASSEMBLE THE HANDLE (105339) TO THE SIDE HANDLES AS SHOWN AND SECURELY
TIGHTEN ALL FASTENERS AT THIS POINT INCLUDING THOSE FROM STEP-1.
Page 5
STEP-3
1. ASSEMBLE THE LEG (102609) BOTH SIDES OF THE BASE AS SHOWN AND TIGHTEN
SECURELY.
1. ASSEMBLE THE AXLE (102599) TO BOTTOM SIDE OF BASE AS SHOWN AND TIGHTEN
SECURELY.
STEP-4
Page 6
Thank you for purchasing the HD Utility Cart. Visit our website at
clamoutdoors.com for other exciting and innovative products.
STEP-5
1. ASSEMBLE THE WHEELS (102595) TO AXLE AS SHOWN AND SECURE IN PLACE WITH
COTTER PIN (102201)
PROPER COTTER PIN INSTALLATION.
