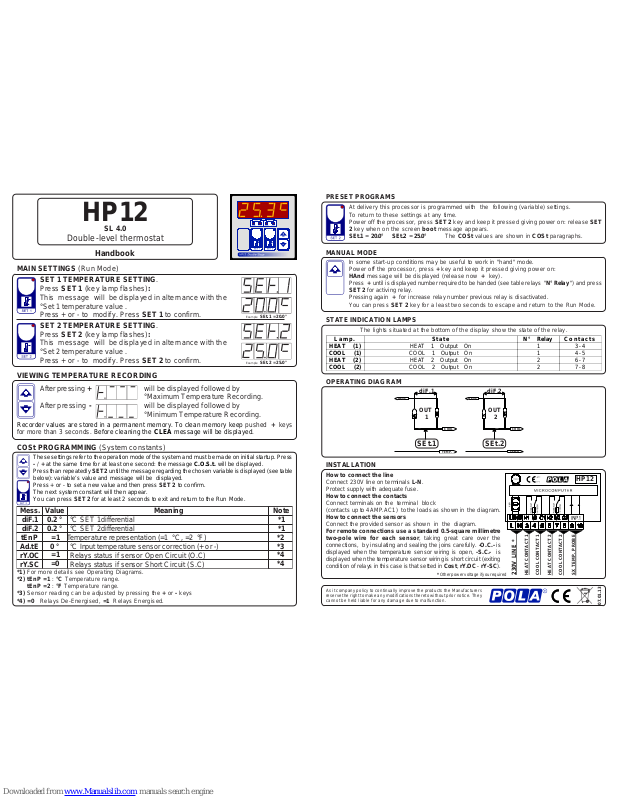

POLA HP12 Handbook

MAIN SETTINGS (Run Mode)

SET 1 TEMPERATURE SETTING.
Press SET 1 (key lamp flashes):
This message will be displayed in alternance with the
°Set 1 temperature value .
Press + or - to modify. Press SET 1 to confirm.

SET 2 TEMPERATURE SETTING.
Press SET 2 (key lamp flashes):
This message will be displayed in alternance with the
°Set 2 temperature value .
Press + or - to modify. Press SET 2 to confirm.

Example SEt.1 = 20.0°

Example SEt.2 = 25.0°

Double-level thermostat

HP12

SL 4.0

Handbook

These settings refer to the operation mode of the system and must be made on initial startup. Press

- / + at the same time for at least one second: the message C.O.S.t. will be displayed.

Press than repeatedly SET 2 until the message regarding the chosen variable is displayed (see table
below): variable’s value and message will be displayed.
Press + or - to set a new value and then press SET 2 to confirm.
The next system constant will then appear.
You can press SET 2 for at least 2 seconds to exit and return to the Run Mode.

COSt PROGRAMMING (System constants)

*1) For more details see Operating Diagrams.
*2) tEnP =1 : °C Temperature range.

tEnP =2 : °F Temperature range.
*3) Sensor reading can be adjusted by pressing the + or - keys
*4) =0 Relays De-Energised, =1 Relays Energised.

.sseM eulaV gninaeM etoN

1.Fid

°2.0

laitnereffid1TESC°

1*

2.Fid

°2.0

laitnereffid2TESC°

1*

PnEt

1=

)F°2=,C°1=(noitatneserpererutarepmeT

2*

Et.dA

°0

)-ro+(noitcerrocrosneserutarepmettupnIC°

3*

CO.Yr

1=

)C.O(tiucriCnepOrosnesfisutatssyaleR

4*

CS.Yr

0=

)C.S(tiucriCtrohSrosnesfisutatssyaleR

4*

After pressing + will be displayed followed by

°Maximum Temperature Recording.

After pressing - will be displayed followed by

°Minimum Temperature Recording.

VIEWING TEMPERATURE RECORDING

Recorder values are stored in a permanent memory. To clean memory keep pushed + keys

for more than 3 seconds. Before cleaning the CLEA message will be displayed.

As it company policy to continually improve the products the Manufacturers
reserve the right to make any modifications thereto without prior notice. They
cannot be held liable for any damage due to malfunction.

07.01.13

At delivery this processor is programmed with the following (variable) settings.
To return to these settings at any time.
Power off the processor, press SET 2 key and keep it pressed giving power on: release SET

2 key when on the screen boot message appears.
SEt.1 = 20.0° SEt.2 = 25.0° The COSt values are shown in COSt paragraphs.

PRESET PROGRAMS

In some start-up conditions may be useful to work in "hand" mode.
Power off the processor, press + key and keep it pressed giving power on:
HAnd message will be displayed (release now + key).
Press + until is displayed number required to be handed (see table relays "N° Relay ") and press
SET 2 for activing relay.
Pressing again + for increase relay number previous relay is disactivated.

You can press SET 2 key for a least two seconds to escape and return to the Run Mode.

MANUAL MODE

INSTALLATION

* Other power voltage if you required

HEAT CONTACT 1

HEAT CONTACT 2

COOL CONTACT 1

COOL CONTACT 2

SX TEMP. PROBE

HP12

How to connect the line

Connect 230V line on terminals L-N.
Protect supply with adequate fuse.

How to connect the contacts

Connect terminals on the terminal block
(contacts up to 4AMP.AC1) to the loads as shown in the diagram.

How to connect the sensors

Connect the provided sensor as shown in the diagram.

For remote connections use a standard 0.5-square millimetre
two-pole wire for each sensor, taking great care over the

connections, by insulating and sealing the joins carefully. -O.C.- is
displayed when the temperature sensor wiring is open, -S.C.- is
displayed when the temperature sensor wiring is short circuit (exiting
condition of relays in this case is that setted in Cost, rY.OC - rY-SC).

230V LINE *

Lam p. State N° Relay Conta c t s

HEAT (1)

HEAT 1 Output On 1 3-4

COOL (1)

COOL 1 Output On 1 4-5

HEAT (2)

HEAT 2 Output On 2 6-7

COOL (2)

COOL 2 Output On 2 7-8

STATE INDICATION LAMPS

The lights situated at the bottom of the display show the state of the relay.

OPERATING DIAGRAM

OUT

2

OUT

1

HEAT

diF.1 diF.2

HEAT

SEt.2

TEMP. TEMP.

COOLCOOL

SEt.1
