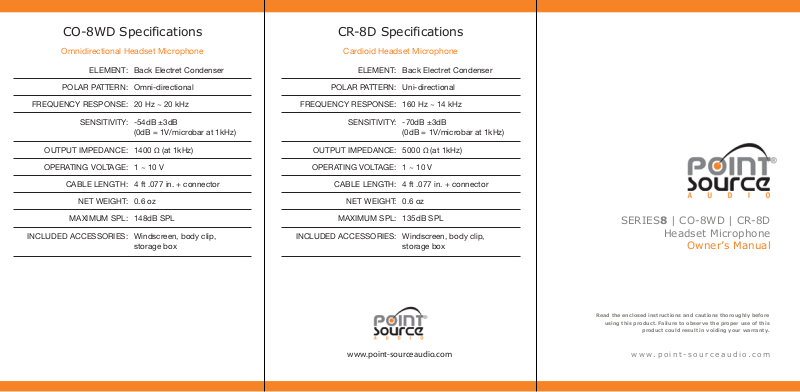

CR-8D SpecificationsCO-8WD Specifications
Omnidirectional Headset Microphone
SENSITIVITY:
OUTPUT IMPEDANCE:
INCLUDED ACCESSORIES:
Back Electret Condenser ELEMENT:
Omni-directional POLAR PATTERN:
20 Hz ~ 20 kHzFREQUENCY RESPONSE:
-54dB ±3dB
(0dB = 1V/microbar at 1kHz)
1400 Ω (at 1kHz)
1 ~ 10 VOPERATING VOLTAGE:
4 ft .077 in. + connectorCABLE LENGTH:
0.6 ozNET WEIGHT:
148dB SPLMAXIMUM SPL:
Windscreen, body clip,
storage box
Cardioid Headset Microphone
SENSITIVITY:
OUTPUT IMPEDANCE:
INCLUDED ACCESSORIES:
Back Electret Condenser ELEMENT:
Uni-directionalPOLAR PATTERN:
160 Hz ~ 14 kHzFREQUENCY RESPONSE:
-70dB ±3dB
(0dB = 1V/microbar at 1kHz)
5000 Ω (at 1kHz)
1 ~ 10 VOPERATING VOLTAGE:
4 ft .077 in. + connectorCABLE LENGTH:
0.6 ozNET WEIGHT:
135dB SPLMAXIMUM SPL:
Windscreen, body clip,
storage box
SERIES8 | CO-8WD | CR-8D
Headset Microphone
Owner’s Manual
Read the enclosed instructions and cautions thoroughly before
using this product. Failure to observe the proper use of this
product could result in voiding your warranty.
www.point-sourceaudio.com
www.point-sourceaudio.com
Page 2
Read Before Use
Read the enclosed instructions and cautions thoroughly before using
this product. Failure to observe the proper use of this product could
result in voiding your warranty.
Note: The products pictured here are for illustration purposes and
may not look exactly like the product you have purchased.
Remove your microphone from its case and carefully uncoil the
cable so that it is fairly straight and without kinks or bends.

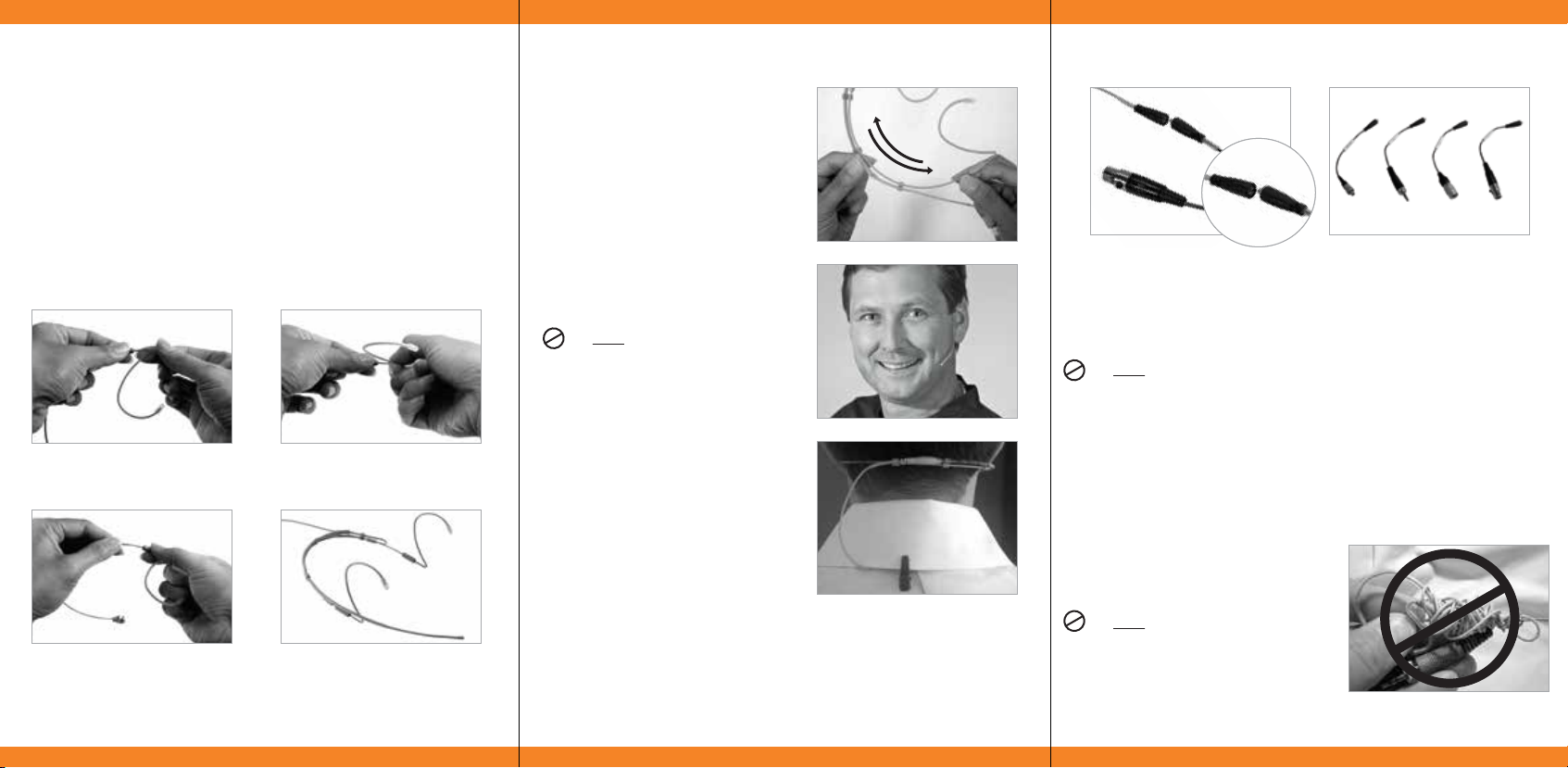

Adjusting the Earhooks
For video instructions, go to
www.point-sourceaudio.com/manuals.html
Turn ear hook into upright
Gently pull ear hook from
1.
the headband about 1/8”
to unlock.
Slide the headband on both
3.
sides to adjust evenly for a
proper fit.
2.
position. Release to snap
lock in place.
Your headset microphone is
4.
now ready to use.
Microphone Placement
Carefully adjust the boom portion of
5.
the mic to curve around the face.
Curve the boom so that the
microphone capsule (tip of the
boom) is located as closely as
possible to the corner of the mouth
Gently curve the boom portion
6.
of the mic around the face so
that the microphone capsule (tip
of the boom) is located as closely
as possible to the corner of the
mouth without touching anything.
Do NOT grab the capsule to
make the adjustments as this
will cause damage to the
capsule.
For CARDIOID model microphones,
follow these same directions.
It is not necessary to position the
capsule directly in front of the
mouth as with other cardioid
microphones. Proper positioning
will provide for an optimal
signal-to-noise ratio and will also
minimize popping and the effects
of breath noise.
Attach the cable to the clip and secure the cable to an area of
7.
clothing near the neck. This will provide strain relief to the
microphone so that movement of the boom is minimized to ensure
a consistent audio level.
Using with Your Wireless System
Threaded screw connection
Your microphone is equipped with an interchangeable X-Connector
of a termination as specified at the time of purchase. To remove,
simply grasp the end of the microphone cable firmly with one hand
and twist off the X-Connector end until separated.
Do NOT attempt to re-terminate the microphone yourself. Making
physical changes to the microphone electronics or wiring will void
your warranty.
To prolong the life of your cable, always remove the microphone
by grasping the connector - NEVER tug on the cable to disconnect
the microphone from the body-pack.
X-Connectors are interchangeable
Storing Your Microphone
When storing your microphone, use
care to coil the cable so that it rests
flat.
Do NOT wrap the cable around the
body pack or coil the cable in any
way that creates serious bends or
strain on the cable.
