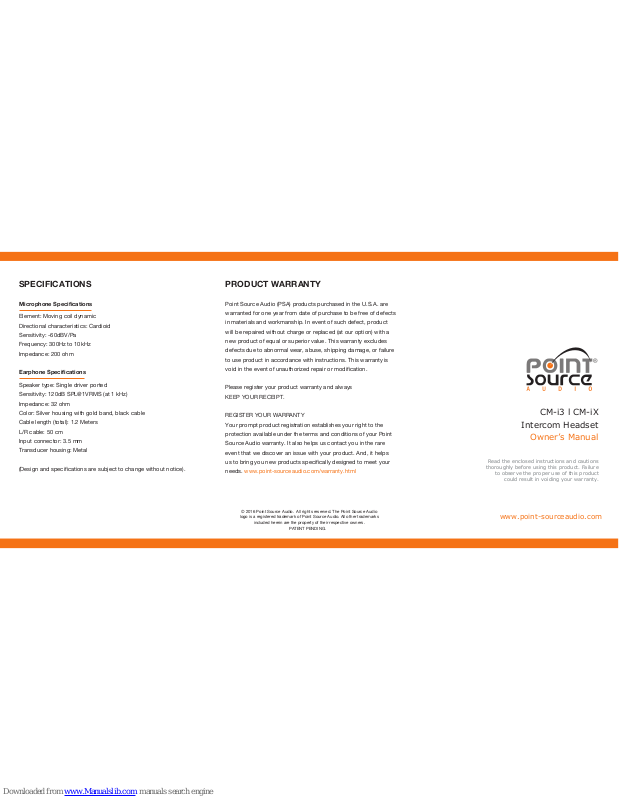

Page 1
Microphone Specifications
Element: Moving coil dynamic
Directional characteristics: Cardioid
Sensitivity: -60dBV/Pa
Frequency: 300Hz to 10kHz
Impedance: 200 ohm
Earphone Specifications
Speaker type: Single driver ported
Sensitivity: 120dB SPL@1VRMS (at 1 kHz)
Impedance: 32 ohm
Color: Silver housing with gold band, black cable
Cable length (total): 1.2 Meters
L/R cable: 50 cm
Input connector: 3.5 mm
Transducer housing: Metal
(Design and specifications are subject to change without notice).
PRODUCT WARRANTY
SPECIFICATIONS
Point Source Audio (PSA) products purchased in the U.S.A. are
warranted for one year from date of purchase to be free of defects
in materials and workmanship. In event of such de fect, product
will be repaired without charge or replaced (at our option) with a
new product of equal or superior value. This warran ty excludes
defects due to abnormal wear, abuse, shipping damage, or failure
to use product in accordance with instruct ions. This warranty is
void in the event of unauthorized repair or modification.
Please register your product warranty and always
KEEP YOUR RECEIPT.
REGISTER YOUR WARRANTY
Your prompt product registration establishes you r right to the
protection available under the terms and conditions of your Point
Source Audio warranty. It also helps us contact you in the rare
event that we discover an issue with your product. And , it helps
us to bring you new p
roducts specifically designed to meet your
needs. www.point-sourceaudio.com/warranty.html
© 2016 Point Source Audio. All rights reserved. The Point Source Audio
logo is a registered trademark of Point Source Audio. All other trademarks
included herein are the property of their respective owners.
PATENT PENDING.
CM-i3 l CM-iX
Intercom Headset
Owner’s Manual
Read the enclosed instructions and cautions
thoroughly before using this product. Failure
to observe the proper use of this product
could result in voiding your warranty.
www.point-sourceaudio.com
Page 2
Switching Intercom Systems
Your headset can be conveniently adapted to work with different
intercom systems. See our Adapter Cables in Parts and Accessories
for cross-compatibility options between intercom systems.
Securing Your Microphone
When adjusting your boom microphone, always secure the mic to
the headset by aligning the arrow with the circle to "lock" the mic into
position. Do NOT force the boom past this point as it may cause
damage to your microphone over time.
One of the many advantages of this product is the ability to
customize or replace the earphones at your option. If you have
purchased the CM-iX or wish to customize your CM-i3 with
alternative earphones, view our video instructions online at
www.point-sourceaudio.com/support
The CM-iX is the generic
microphone assembly ready
to be installed with your
personal choice of earphones.
Line up the symbols to lock
the boom into place
An earphone installation
tool is included with
your CM-iX
Watch the installation video online at
www.point-sourceaudio.com/support
Parts List and Accessories
Customizing the CM-iX
ADP-4Mx5Mm Adapter cable: 4-pin male XLR to 5-pin male mono XLR
ADP-5Fx4F Adapter cable: 5-pin female XLR to 4-pin female XLR
ADP-4MxPH Adapter cable: 4-pin male XLR to male 3.5mm TRRS
ADP-5FxPH Adapter cable: 5-pin female XLR to male 3.5mm TRRS
ADP-PHx4F Adapter cable: female 3.5mm TRRS to 4-pin female XLR
ADP-PHx5Mm Adapter cable: female 3.5mm TRRS to 5-pin male mono XLR
CM-iX Headset microphone assembly with earphone installation
tool. Earphones not included.
EM-3 EM-3 Earphones terminated with 3.5mm mini connector
CM-CSE Premium intercom headset storage case, orange
CM-PCH Intercom headset travel pouch, black
CM-EXT-4/5 Expandable cable with 4 or 5-pin male and female XLR.
2 ft. retracted / 10 ft. extended
CM-WSN Windscreen for CM-i3 with o-ring
CM-CAB-KIT Cable wrap with earphone installation tool
6-ETP-S 3 sets eartips for EM-3 earphones.
6-ETP-M Specify one size: small, medium, or large
6-ETP-L
CM-BCP Belt clip accessory for XLR connector
CM-HSi Headband sizer
