Page 1
“W” indicates Waterproof

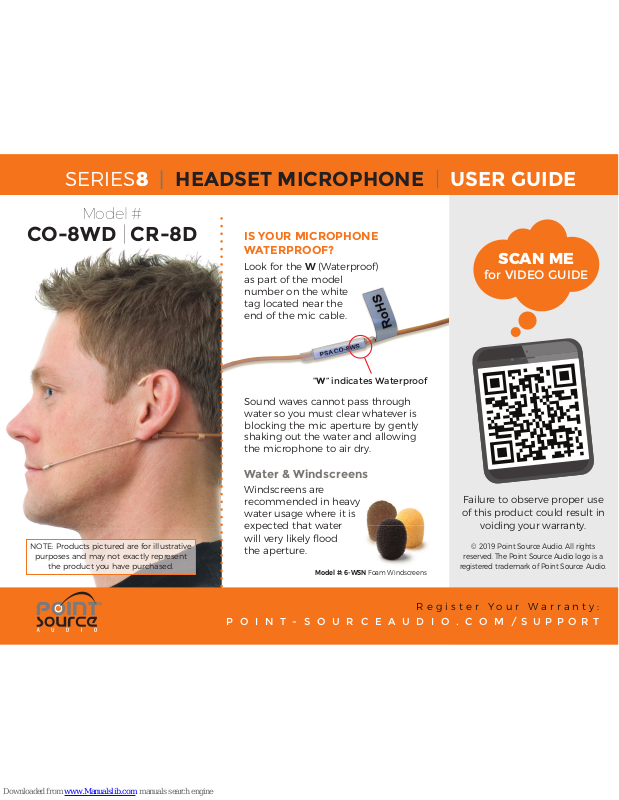

SERIES8 | HEADSET MICROPHONE | USER GUIDE
Water & Windscreens
Windscreens are
recommended in heavy
water usage where it is
expected that water
will very likely fl ood
the aperture.
Model #: 6-WSN Foam Windscreens
Failure to observe proper use
of this product could result in
voiding your warranty.
© 2019 Point Source Audio. All rights
reserved. The Point Source Audio logo is a
registered trademark of Point Source Audio.
IS YOUR MICROPHONE
WATERPROOF?
Sound waves cannot pass through
water so you must clear whatever is
blocking the mic aperture by gently
shaking out the water and allowing
the microphone to air dry.
Look for the W (Waterproof)
as part of the model
number on the white
tag located near the
end of the mic cable.
Model #
CO-8WD | CR-8D
NOTE: Products pictured are for illustrative
purposes and may not exactly represent
the product you have purchased.
SCAN ME
for VIDEO GUIDE
Register Your Warranty:
POINT-SOURCEAUDIO.COM/SUPPORT
Page 2
1 2
3
4 5
SERIES8 | HEADSET MICROPHONE | USER GUIDE
CUSTOMIZING YOUR HEADSET
POINT-SOURCEAUDIO.COM/SUPPORT
For the CARDIOD model (CR-8D)
microphone, adjust headset as
directed above and place the
microphone element closely to the
corner (not in front) of the mouth to
acheive optimal signal-to-noise
ratio while minimizing
popping and breath
noise. Continue to
test mic placement
until acheiving
desired result.
Model #: 6-WSNx
Large Windscreens for Cardioid Mics
Turn ear hook into
upright position to
snap lock in place.
Slide headband on
both sides to adjust
for a proper fi t.
Attach cable to the
clip and secure to an
area near the neck.
Lock the boom
in place using
the S-Hook
Bend cable on the
boom side to avoid
cable stress.
CABLE CARE
Use care when storing your microphone;
coil the cable so that it rests fl at.
DO NOT wrap the cable around the
body pack or coil the cable in any way
that creates serious bends or strain on
the cable.
