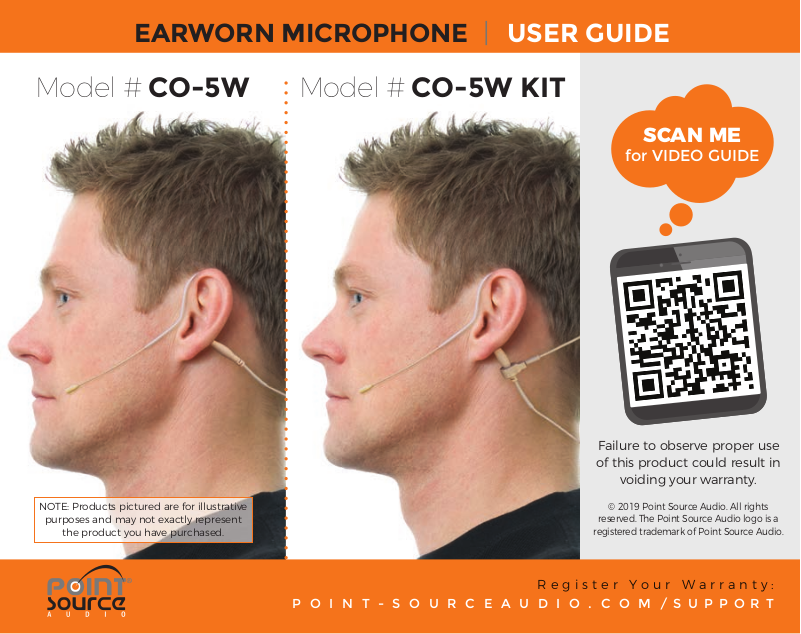

EARWORN MICROPHONE | USER GUIDE
Model # CO-5W Model # CO-5W KIT
NOTE: Products pictured are for illustrative
purposes and may not exactly represent
the product you have purchased.
SCAN ME
for VIDEO GUIDE
Failure to observe proper use
of this product could result in
voiding your warranty.
© 2019 Point Source Audio. All rights
reserved. The Point Source Audio logo is a
registered trademark of Point Source Audio.
Register Your Warranty:
POINT-SOURCEAUDIO.COM/SUPPORT
Page 2
CO-5 | EARWORN MICROPHONE | USER GUIDE
USING YOUR EARWORN MICROPHONE
1 2
Earpiece can be
shaped for wear on
left or right ear.
The boom curvature
may be slightly
adjusted up to 20º
of bend.
element) so the tip is
close to the mouth.
3
Gently curve the
boom (not the
ADDING THE R-DMC (Model # CO-5-KIT)
Reversible
Dual-Ear
Mic Clip
(R-DMC)
Register Your Warranty: POINT-SOURCEAUDIO.COM/SUPPORT
Gently pull ear hook
from the headband
about 1/8” to unlock.
Turn ear hook into
upright position. Release
to lock into place.
Slide the headband
on both sides to adjust
evenly for a proper fi t.
Slide the microphone
into the mic clip.
Adjust to secure the
proper position.
4 5
Gently bend the
junction connecting
earhook and cable
to a 20º angle to
reduce cable stress.
Use care when storing your microphone;
coil the cable so that it rests fl at.
DO NOT wrap the cable around the
body pack or coil the cable in any way
that creates serious bends or strain on
the cable.
Attach cable to the
clip and secure to an
area near the neck.
CABLE CARE
