Point Mobile PM70, PM80 User Manual

For AndroidTM 6.0.1

Enterprise Mobility

PM70

User Manual

Google, Android, Google Play and other marks are

trademarks of Google LLC.

PM70 Android 6.0.1 User Manual

1

User Manual

Please note your phone is battery-embedded design with removable battery and battery cover. Unauthorized personnel are strictly prohibited from disassembling the phone. Make sure to use only the power adapter (5V 2A Output AC/DC) that came with PM70.

In case your phone does not work as expected, you are strongly recommended to restart it by pressing and holding the power button for at least 12 seconds until the startup screen appears. If your phone has encountered a serious error and cannot be recovered, you should reset your phone to factory settings by using

the menu, either “Backup & Reset”, or “Factory Reset”. For more details, please refer to “Factory data reset”

section on page 42

Note: Please be cautious while performing the factory data reset. Because this will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc.

Body-worn Operation

This device was tested for typical body-worn operations with the front & back of the phone kept 0.2 inches (0.5 cm) between the user’s body and the front & back of the phone. A minimum separation distance of

0.2 inches (0.5 cm) must be maintained between the user’s body and the front & back of the phone. Any belt clips, holsters, and similar accessories containing metallic components may not be used. Bodyworn accessories that cannot maintain 0.2 inches (0.5 cm) separation distance between the user's body and the front & back of the phone, and have not been tested for typical body-worn operations should be avoided.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

Rev 03

PM70 Android 6.0.1 User Manual

2

Table of Contents

User Manual .......................................................................................................................................................................... 1

Table of Contents ................................................................................................................................................................. 2

Getting Started ...................................................................................................................................................................... 3

Major Parts ........................................................................................................................................................................ 3

Accessary .......................................................................................................................................................................... 5

Setup PM70....................................................................................................................................................................... 6

Charge PM70 .................................................................................................................................................................... 9

Turn On/Off PM70 .......................................................................................................................................................... 10

Hot swap the battery ...................................................................................................................................................... 11

Learning the basics ............................................................................................................................................................ 12

Use a keypad .................................................................................................................................................................. 12

Use a touch screen ........................................................................................................................................................ 14

Home Screen, Apps and Widget.................................................................................................................................. 16

Status & Notifications Icons .......................................................................................................................................... 20

Make a call ...................................................................................................................................................................... 22

Add to a contact .............................................................................................................................................................. 24

Send a message ............................................................................................................................................................. 25

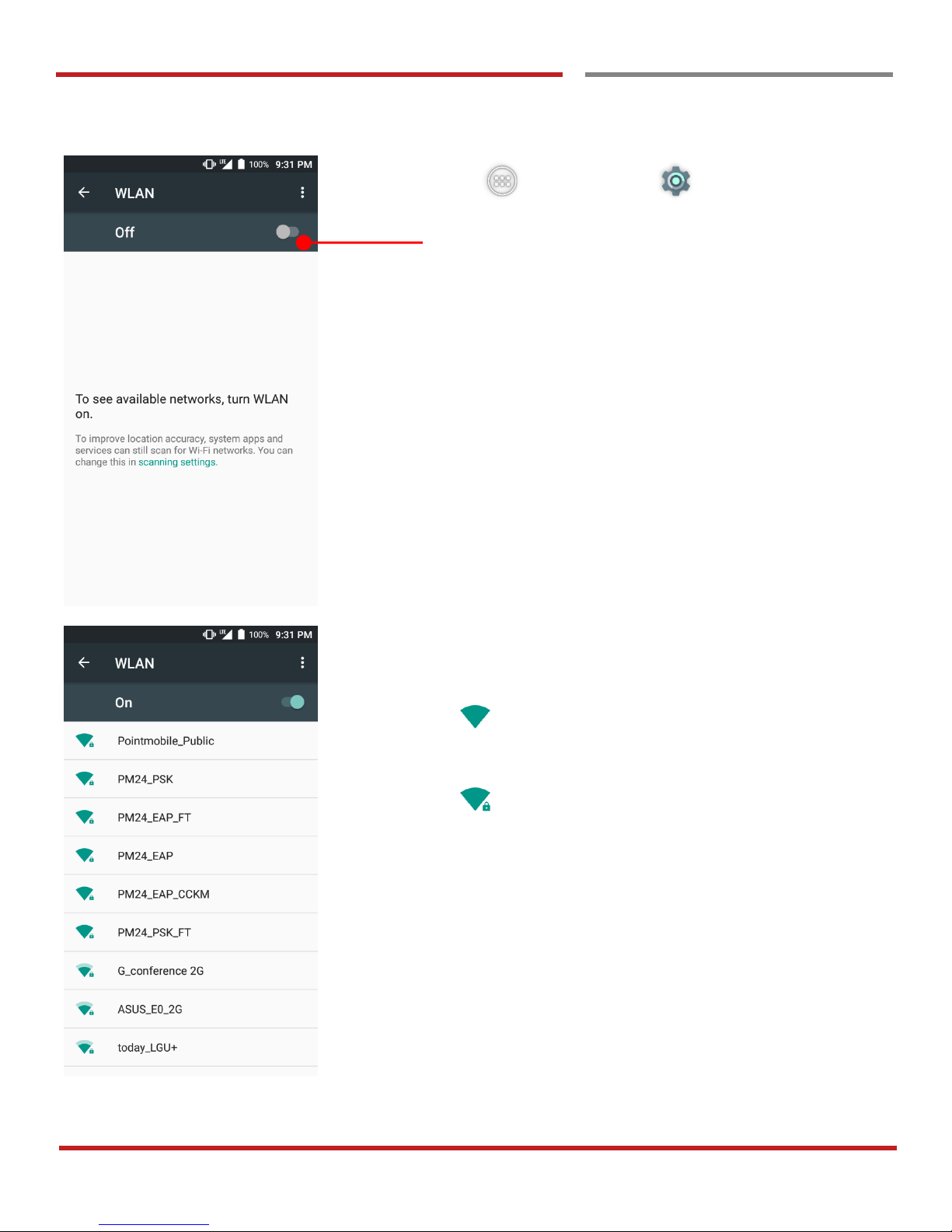

Connect to your Wi-Fi network ..................................................................................................................................... 27

Scanner Settings ................................................................................................................................................................ 29

Use a Scanner ................................................................................................................................................................ 29

Scan a Barcode .............................................................................................................................................................. 36

OS Update ........................................................................................................................................................................... 38

OS Image update from a Storage ................................................................................................................................ 38

OS Image update from the FOTA ................................................................................................................................ 40

Factory data reset .............................................................................................................................................................. 42

Factory data reset from Settings .................................................................................................................................. 42

Force Factory data reset ............................................................................................................................................... 44

EmKit .................................................................................................................................................................................... 47

EmKit Secure .................................................................................................................................................................. 48

EmKit Remote ................................................................................................................................................................. 51

EmKit Tools ..................................................................................................................................................................... 59

EmKit Demos .................................................................................................................................................................. 68

PM70 Android 6.0.1 User Manual

3

Getting Started

Major Parts

Getting Started

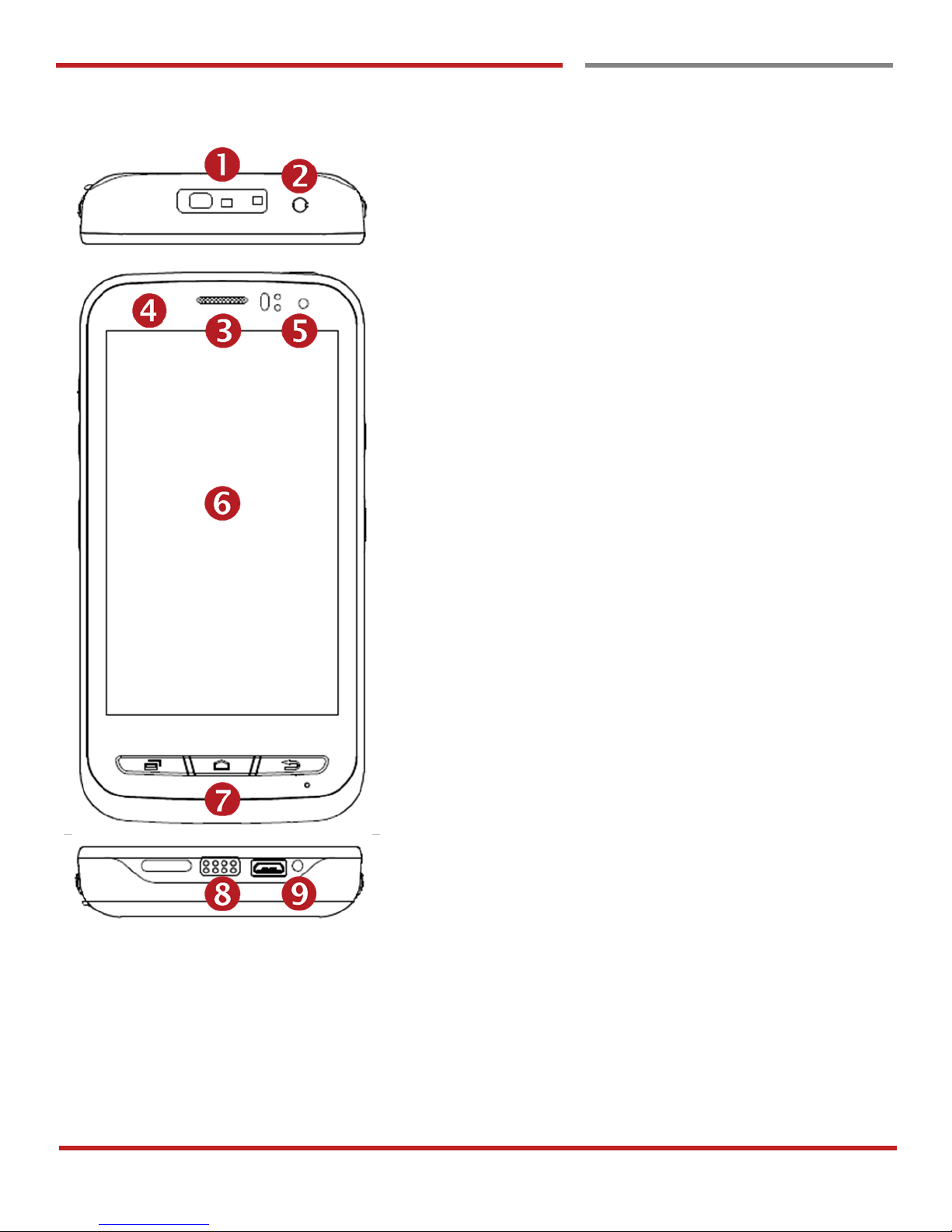

1. Barcode Scanner

2. 3.5mm Audio Jack

3. Speaker

4. Illuminance / Proximity Sensor

5. Front Camera / LED Indicator

6. Touch Screen

7. Front Panel

8. Pogo pin connector

9. micro USB

PM70 Android 6.0.1 User Manual

4

Getting Started

Major Parts

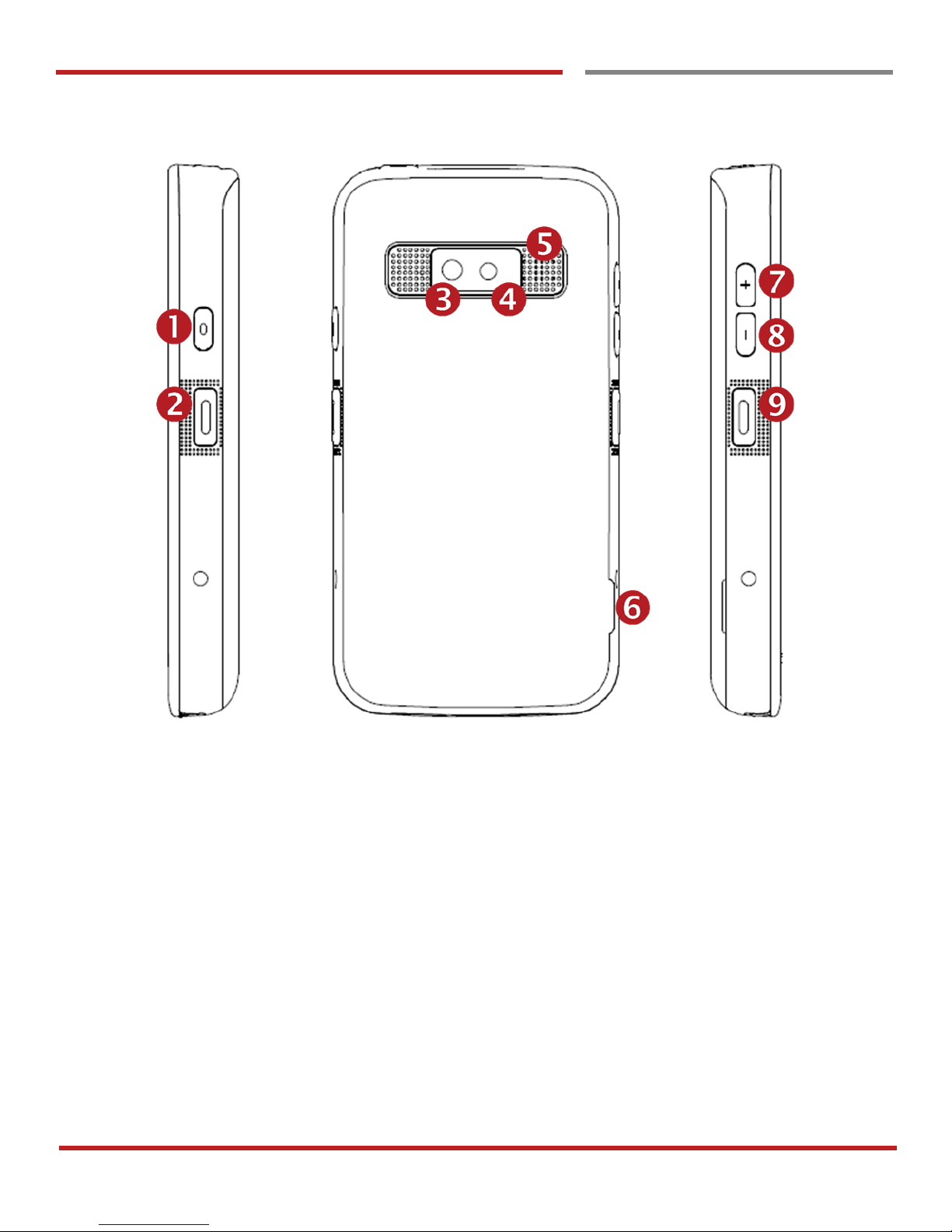

Getting Started

1. Power Key

2. Scanner Trigger

3. Camera

4. Flash Light

5. Speaker

6. Battery Cover Wing

7. 3.5mm Audio Jack

8. Power Key

9. Scan Trigger Key

PM70 Android 6.0.1 User Manual

5

Getting Started

Accessary

Getting Started

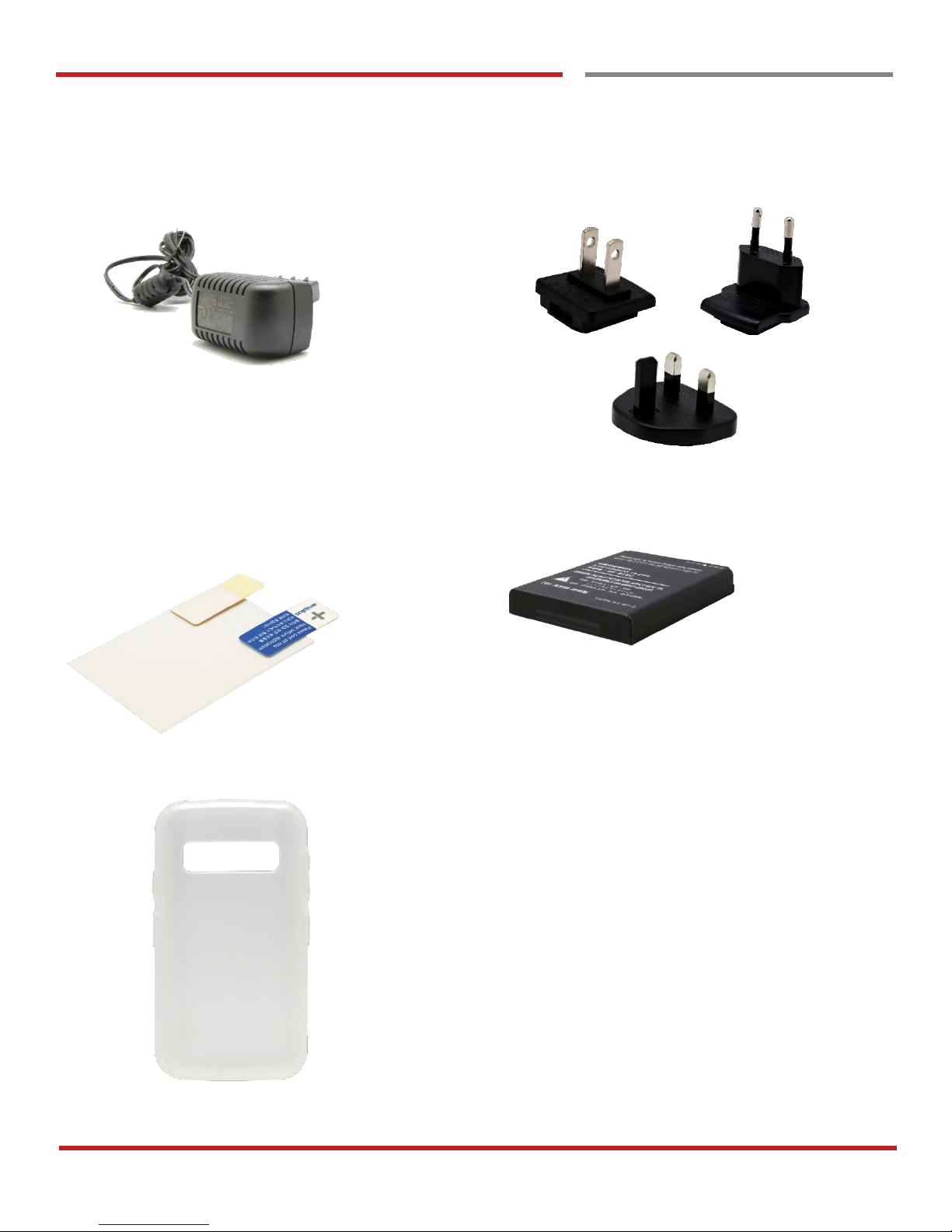

AC/DC adapter Plug (US/ EU/ UK)

LCD protection film Li-ion battery

Jelly Case

PM70 Android 6.0.1 User Manual

6

Getting Started

Setup PM70

Getting Started

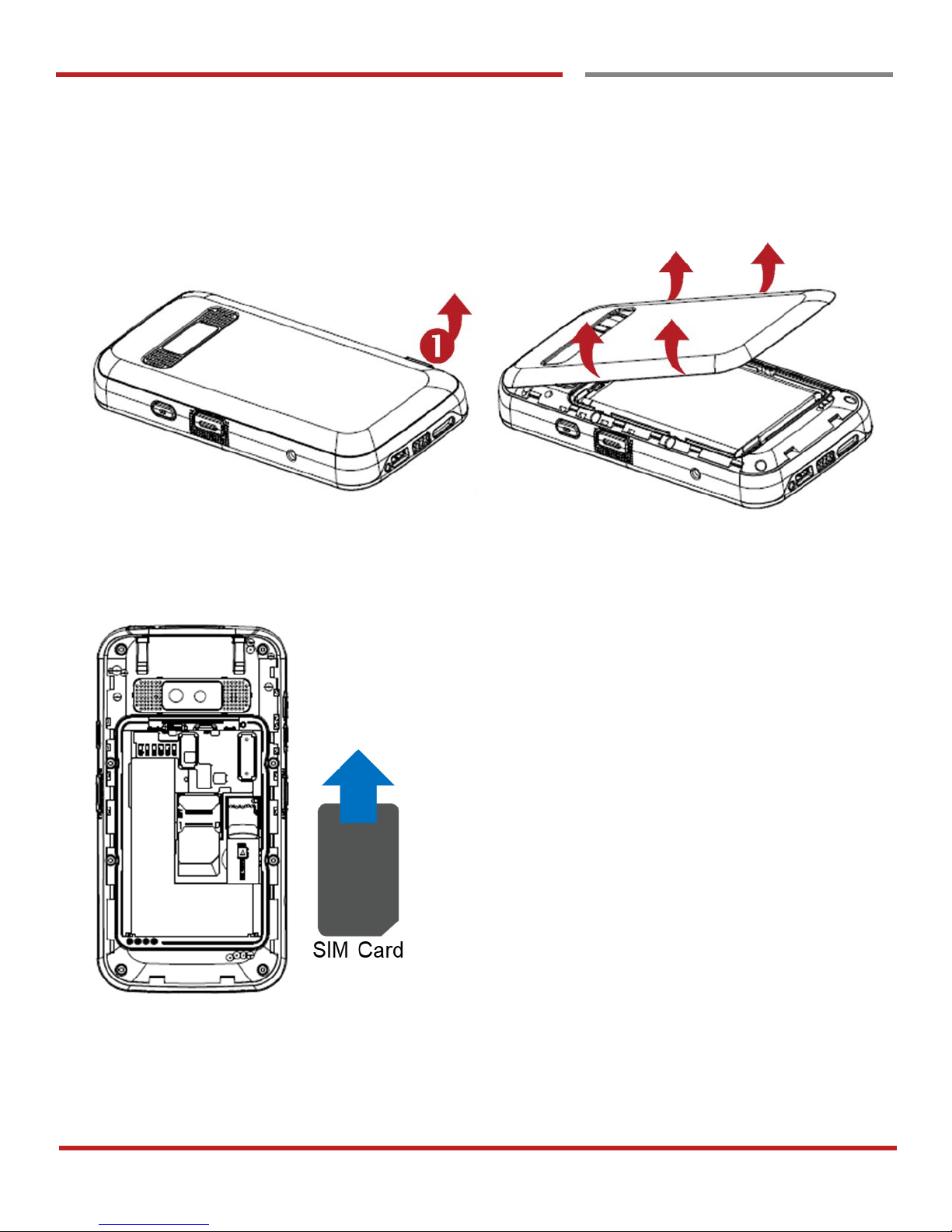

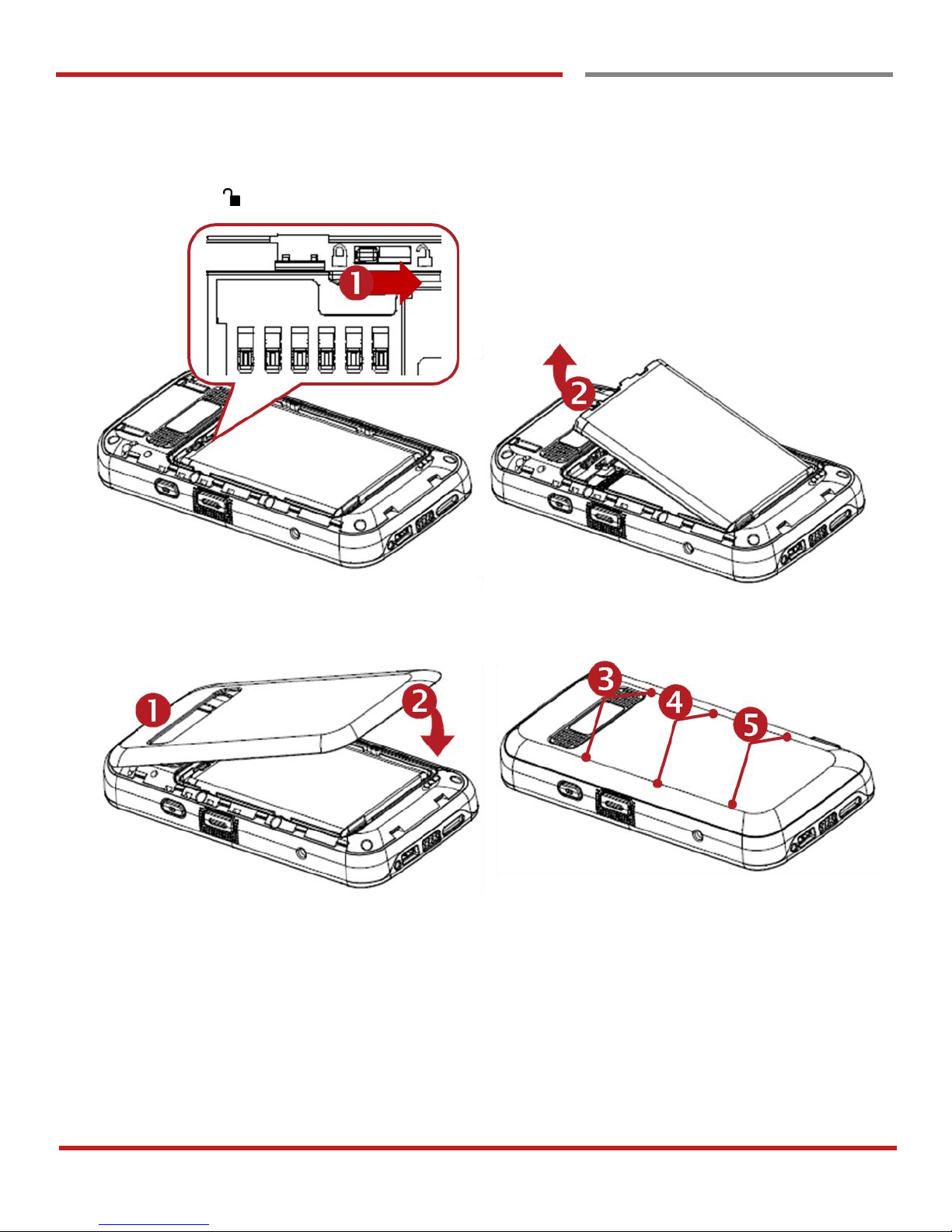

Remove the Battery Cover

1. Lift up the Battery Cover with “Battery Cover Wing”

2. Remove the Battery Cover

Insert and Remove the SIM card

1. Insert the SIM card into the slot. (Gold contact should face down)

2. To remove the card, gently slide it out of the slot.

Getting `Started

PM70 Android 6.0.1 User Manual

7

Setup PM70

Getting Started

Note: Your device only supports SIM cards. Do not attempt to insert other SIM types such as “Micro” and “Nano” SIM card, this may cause damage to your device. If you have to use different SIM card types, please use “SIM adaptor”.

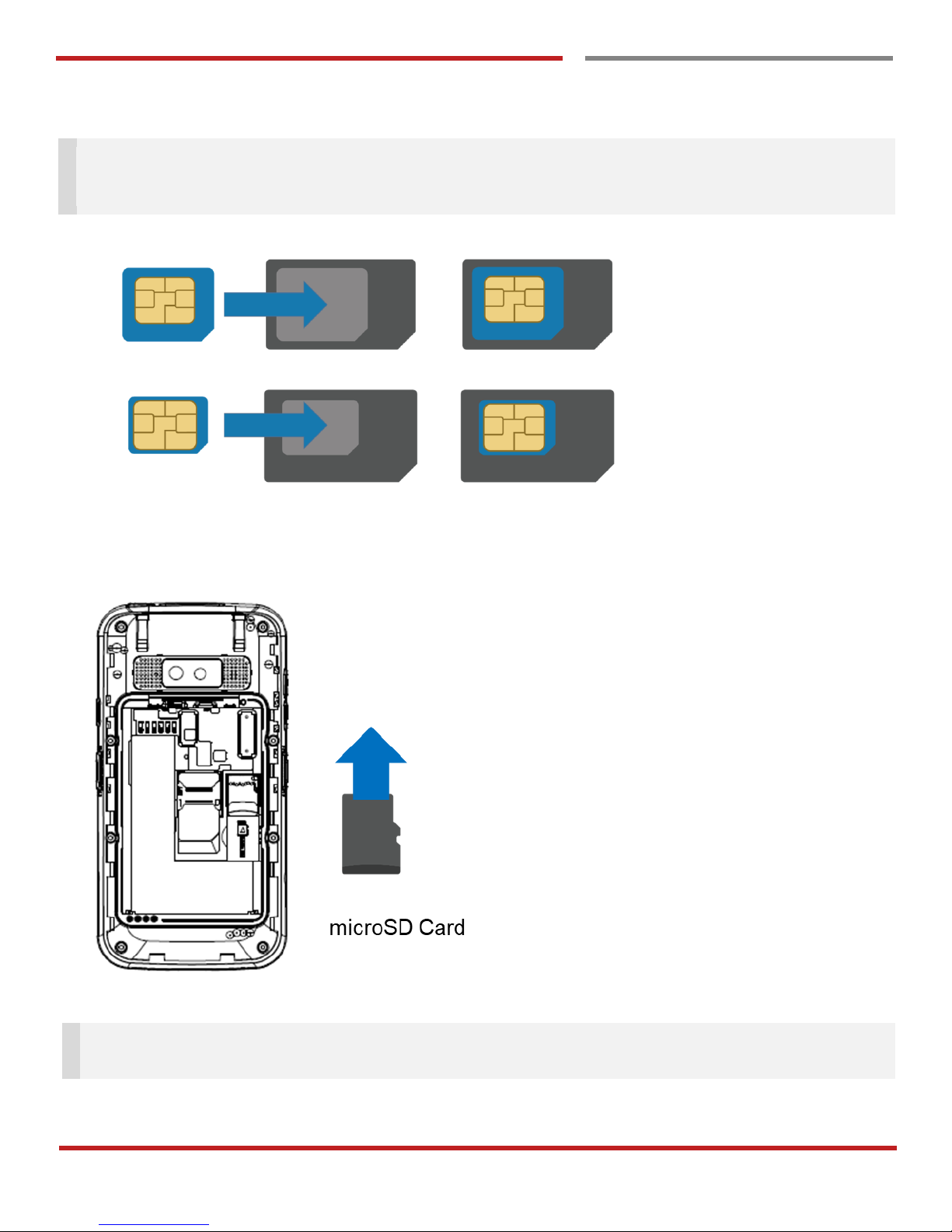

Install and Remove the microSD card

1. Insert the microSD card into the slot (Gold contact should face down).

2. To remove the microSD card, gently slide it out of the slot.

Note: To avoid data loss and SD card damage, please ensure the SD card is unmounted from Android system “Settings – Storage - Unmount SD card”

Getting Started

PM70 Android 6.0.1 User Manual

8

Setup PM70

Getting Started

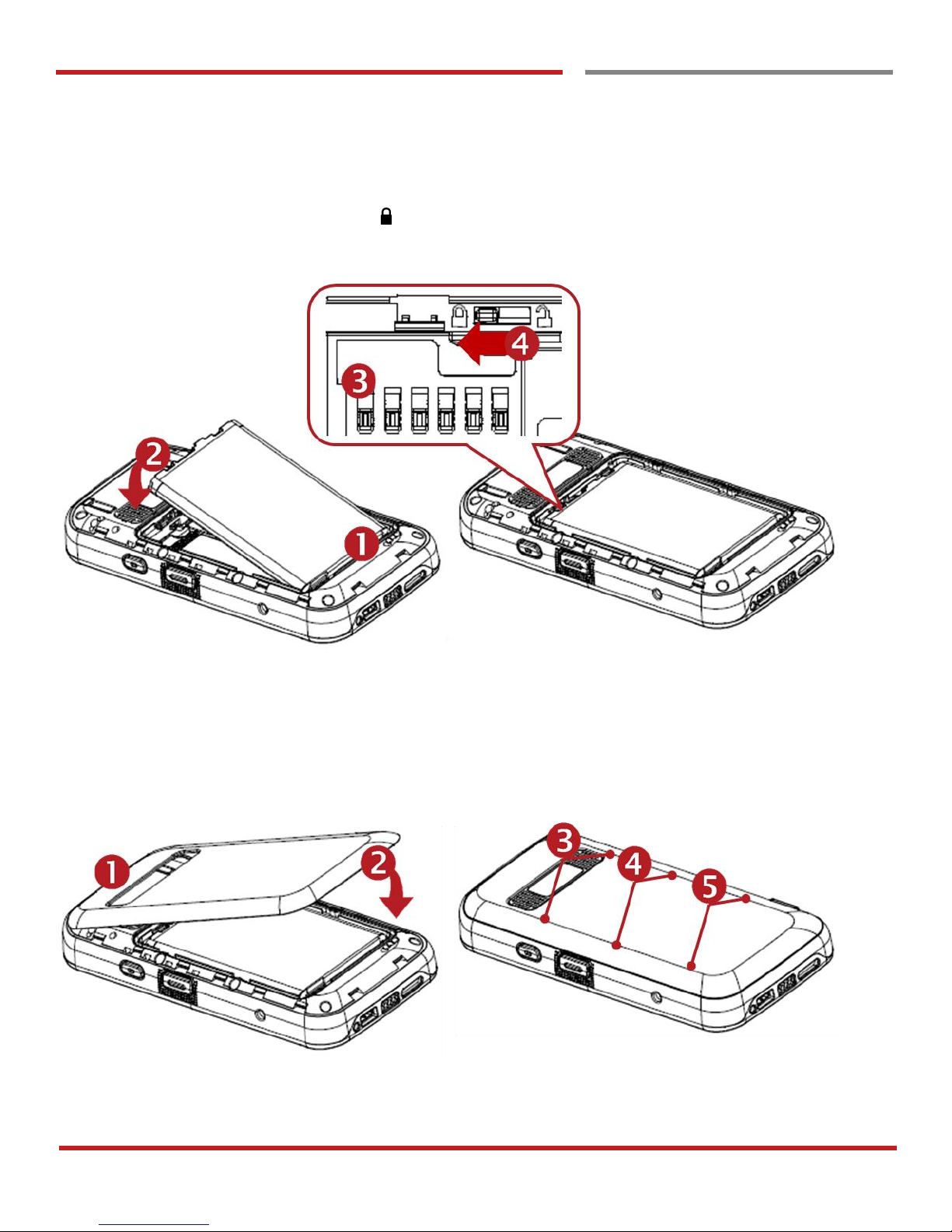

Insert the Battery

Insert “Battery” from bottom area first and then put in top area. Make sure battery contact “Battery Connector” and Battery Latch (Orange color) is locked

Close the Battery Cover

Insert “Battery Cover” from the bottom area first and then put in top area. Press battery cover with both hand firmly

PM70 Android 6.0.1 User Manual

9

Getting Started

Charge PM70

Getting Started

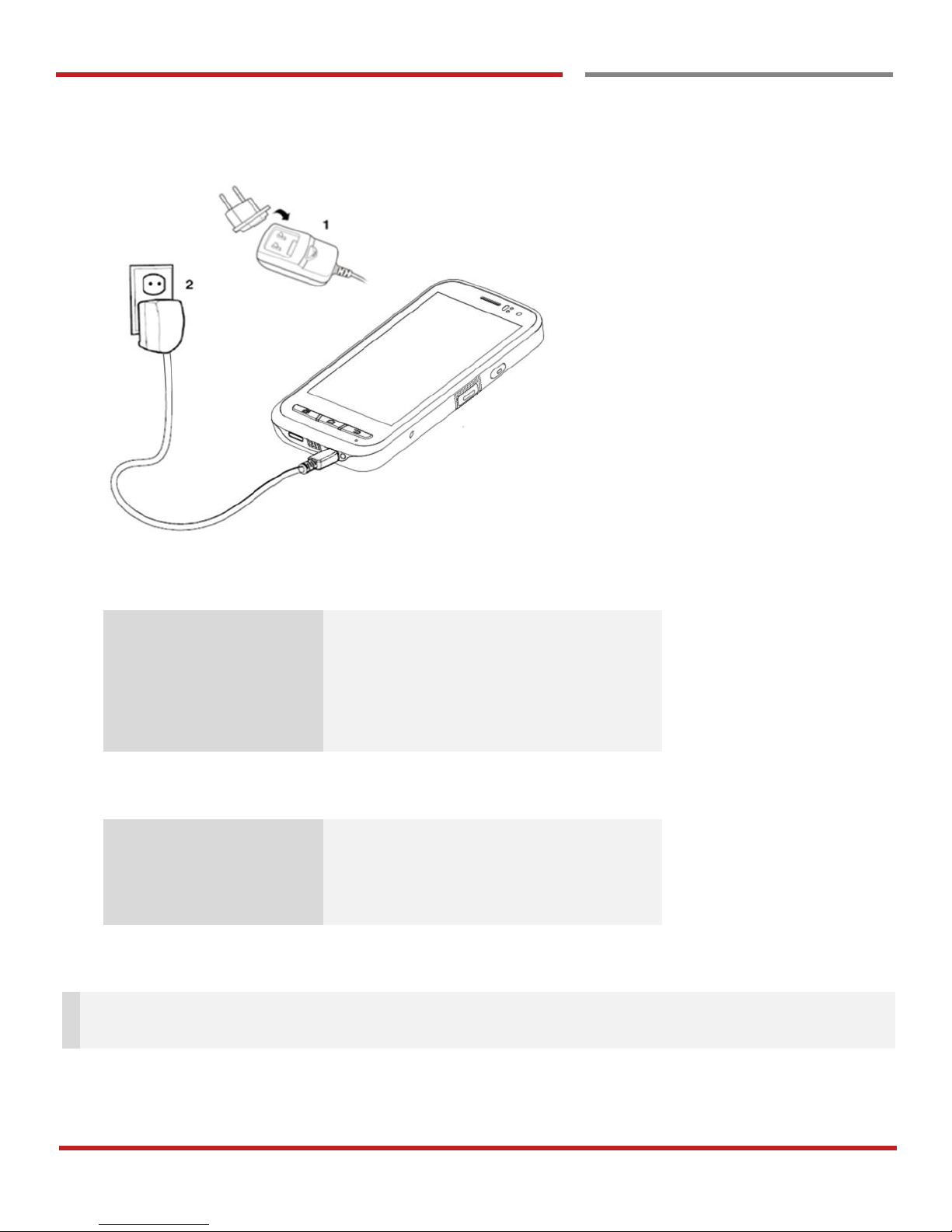

1. Connect the AC/DC adaptor to your device and wall socket respectively

2. LED indicator will display charging status.

Steady Red

Battery is charging or Battery level is low

Blinking Red

Battery level is critical low

Steady Green

Battery is fully charged

Blinking Red and Green

Battery is removed or fail to recognize

PM70 Battery Specification

Standard Battery

3.8V, 3,000mAh

Backup Battery

3.7V, 60mAh

Charging time

About 5hours

Note: Always use an original charger and cable from the Point Mobile. Other chargers and cables may damage PM70. In addition, make sure connector, charger, cables are not wet.

PM70 Android 6.0.1 User Manual

10

Getting Started

Turn On/Off PM70

Getting Started

Turn On

1. Press and hold down the “Power Key” for a few seconds.

2. When PM70 enter to the boot mode, it will display “SMART BEYOND RUGGED” logo with short vibration

3. Release the “Power Key” and wait until PM70 finish booting

Note: If you cannot turn on your PM70, try below steps

- To turn on PM70, battery needs to be charged certain level. Please charge first

- Press and hold the “Power key” for 12 seconds to force reboot

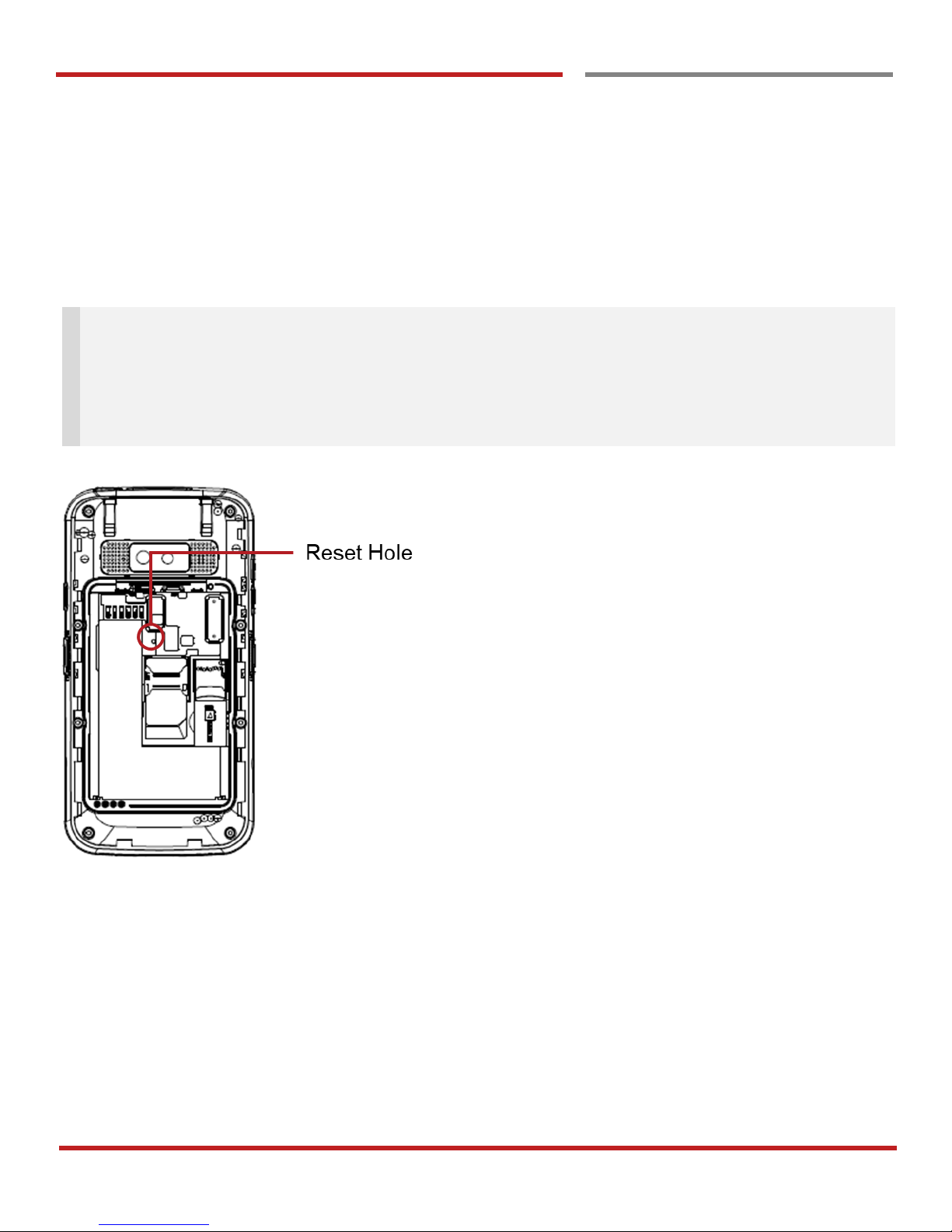

- Press and release the “Reset Hole” and then turn on PM70 again

Turn Off

1. Press and hold the “Power Key” until you see the power menu

2. Among the menu, tap “Power Off”

PM70 Android 6.0.1 User Manual

11

Getting Started

Hot swap the battery

Getting Started

When battery level is low, you can replace the battery without turning off and on PM70.

- Please unlock the Battery Latch (Orange color) first. Remove the Battery and replace to another one.

- Make sure the battery cover closed firmly.

- Press the Power Key to use PM70 again.

PM70 Android 6.0.1 User Manual

12

Learning the basics

Use a keypad

Learning the basics

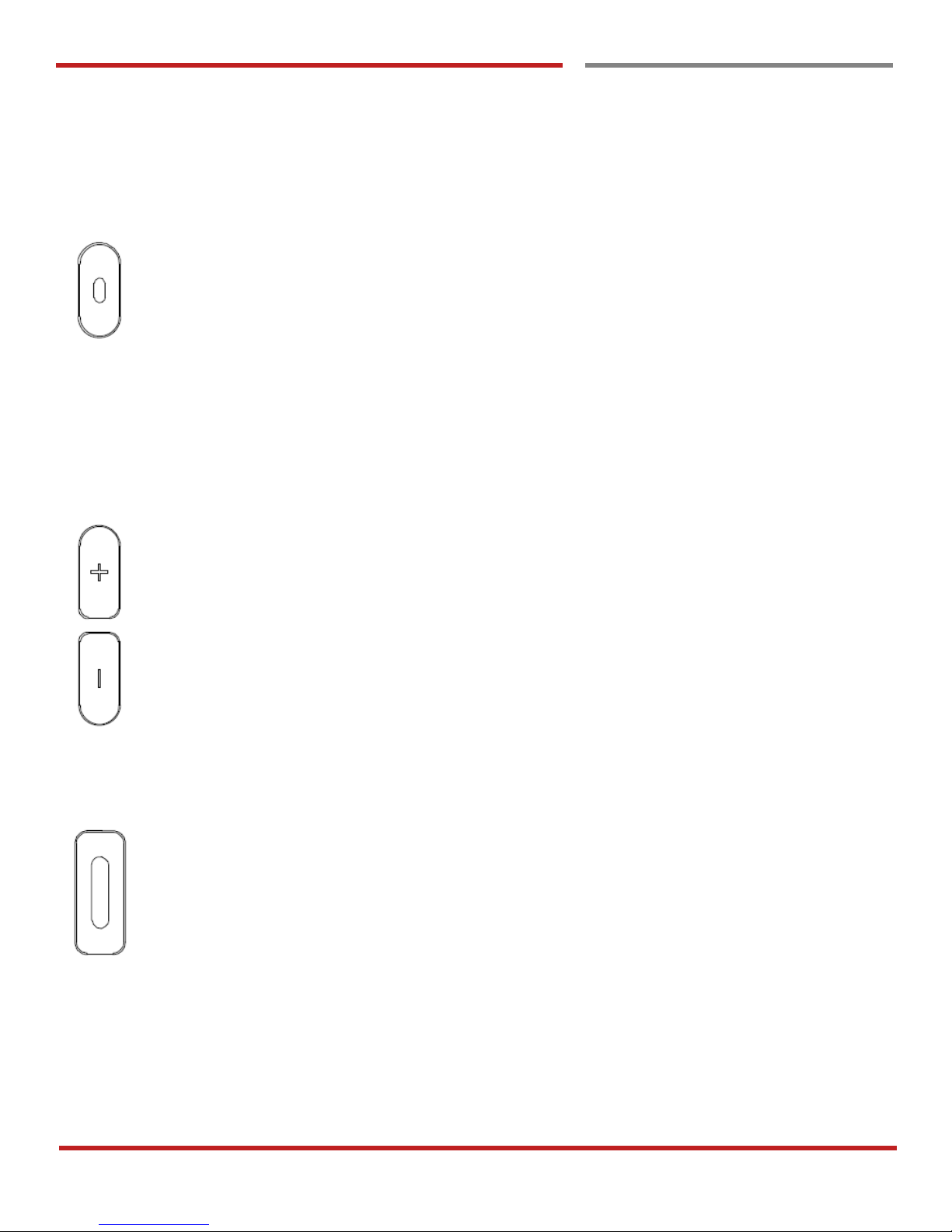

Power key

Press

- Lock the screen / Light up the screen.

Press and hold

- Display the power menu “Power Off / Reboot / Airplane mode”

Press and hold for 12seconds

- Forced to reboot

Press the “Power” key and “Volume Down” key together

- Screen capture

Volume keys

In general

- Adjusts the ringtone volume or “Mute” the ringtone of an incoming call.

In call mode

- Adjusts the earpiece or headset volume.

In Music / Video / Streaming

- Adjusts the media volume.

In camera preview

- Take the photo by pressing Volume Up or Down key.

Scanner Triggers

When “Scan Wedge” mode is activated

- By pressing, PM70 scan the barcode.

PM70 Android 6.0.1 User Manual

13

Learning the basics

Using a keypad

Learning the basics

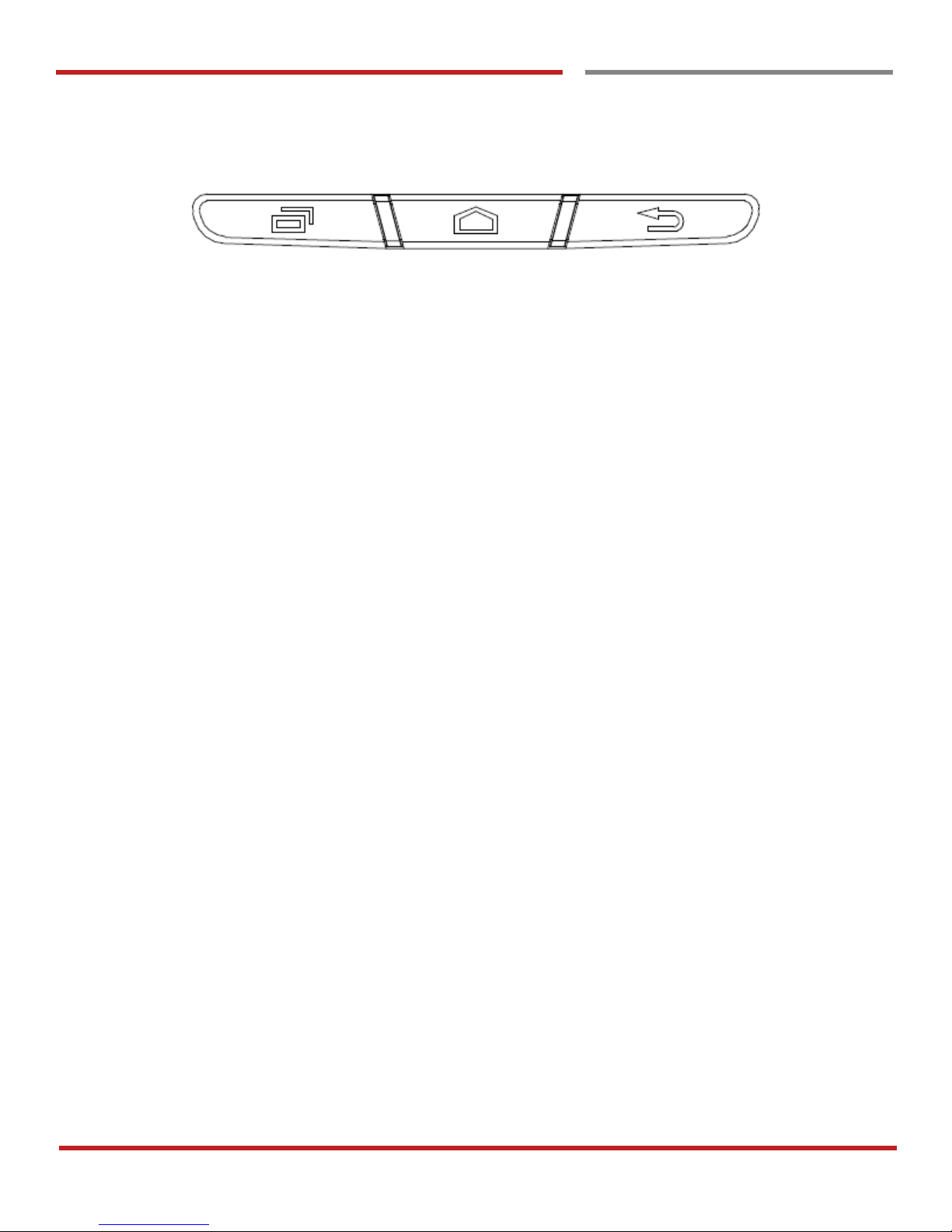

Front panel

Recent Apps key

- Press to see recently used apps.

Home key

- From any apps or screens, press to return to the Home screen.

Back key

- Press to go back to the previous screen, or to close a dialog box, options menu, notification panel,

etc.

PM70 Android 6.0.1 User Manual

14

Learning the basics

Use a touch screen

Learning the basics

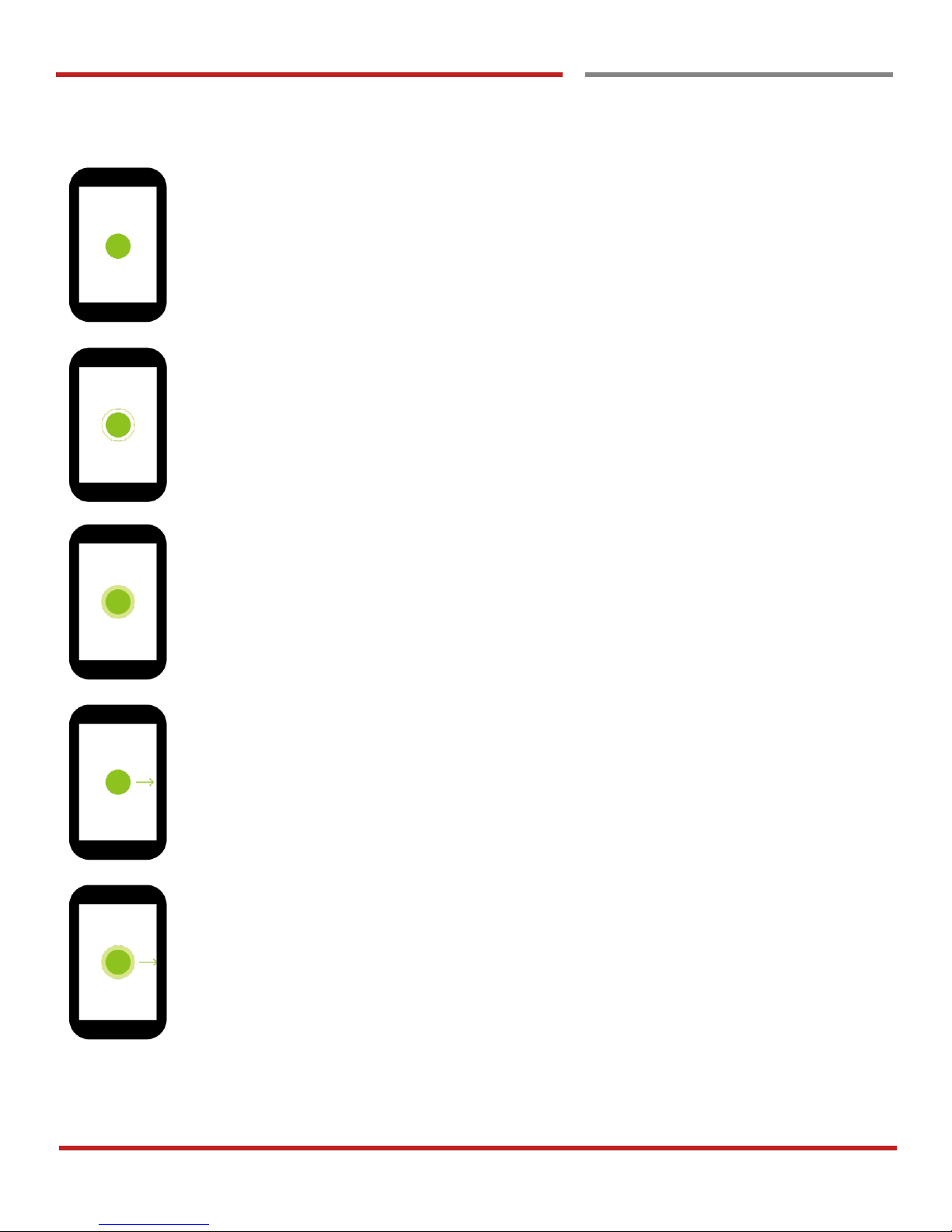

Touch

One-finger press

Double touch

One-finger press, lift, one-finger press, lift for “Zoom in”

Long press

One-finger press, wait, lift for “Select an item”

Drag, Swipe, or Fling

One-finger press, move, lift for “Scroll” or “Tilt”

Long-press drag

One-finger press, wait, move, lift for “Pick up and move” or “select multiple items”

PM70 Android 6.0.1 User Manual

15

Learning the basics

Use a touch screen

Learning the basics

Scroll

Vertical or horizontal swipe in a single direction

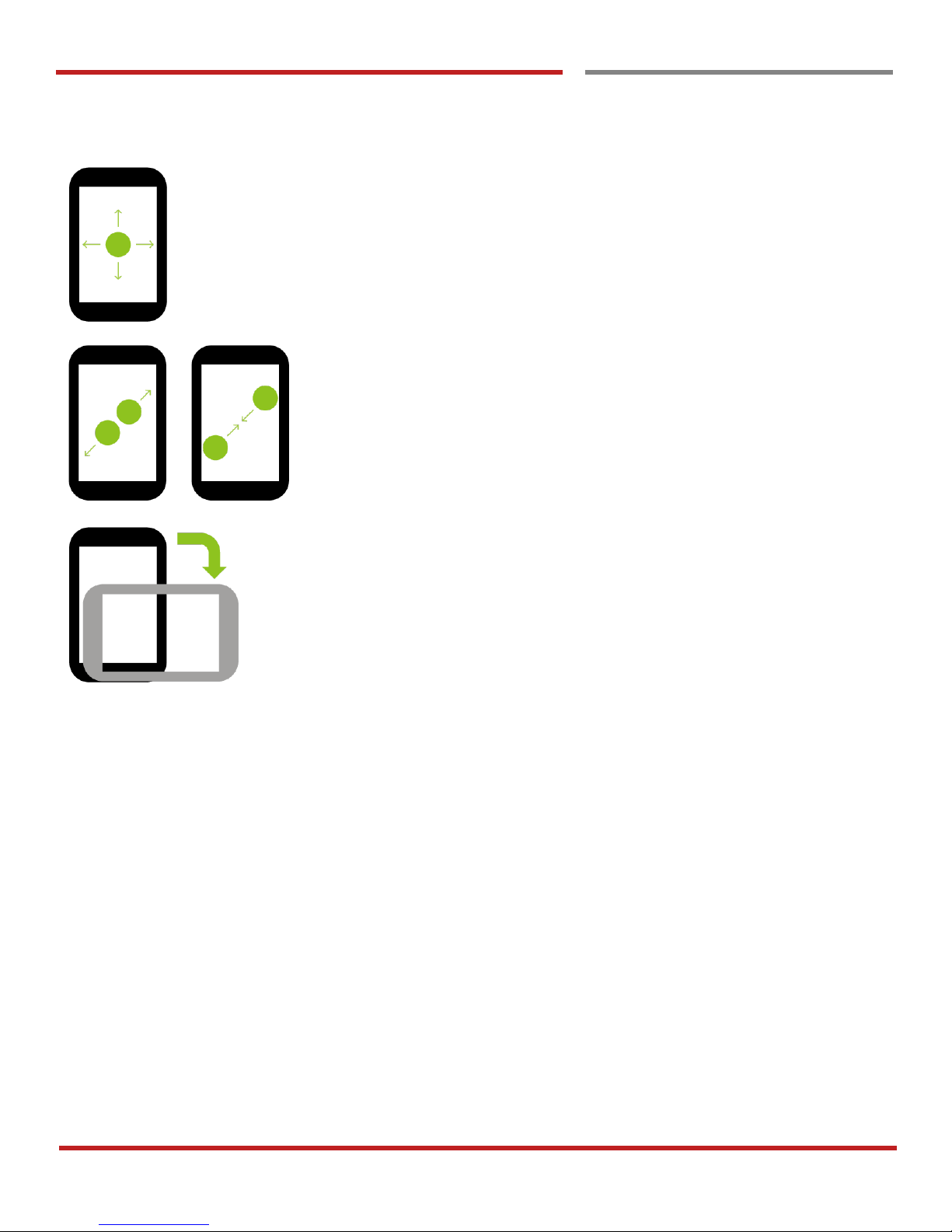

Pinch Open & Close

Two-finger press, move outwards and inwords, lift for “Zoom in and out”

Rotate

When PM70 is turning sideways, screen orientation is changing

PM70 Android 6.0.1 User Manual

16

Learning the basics

Home Screen, Apps and Widget

Learning the basics

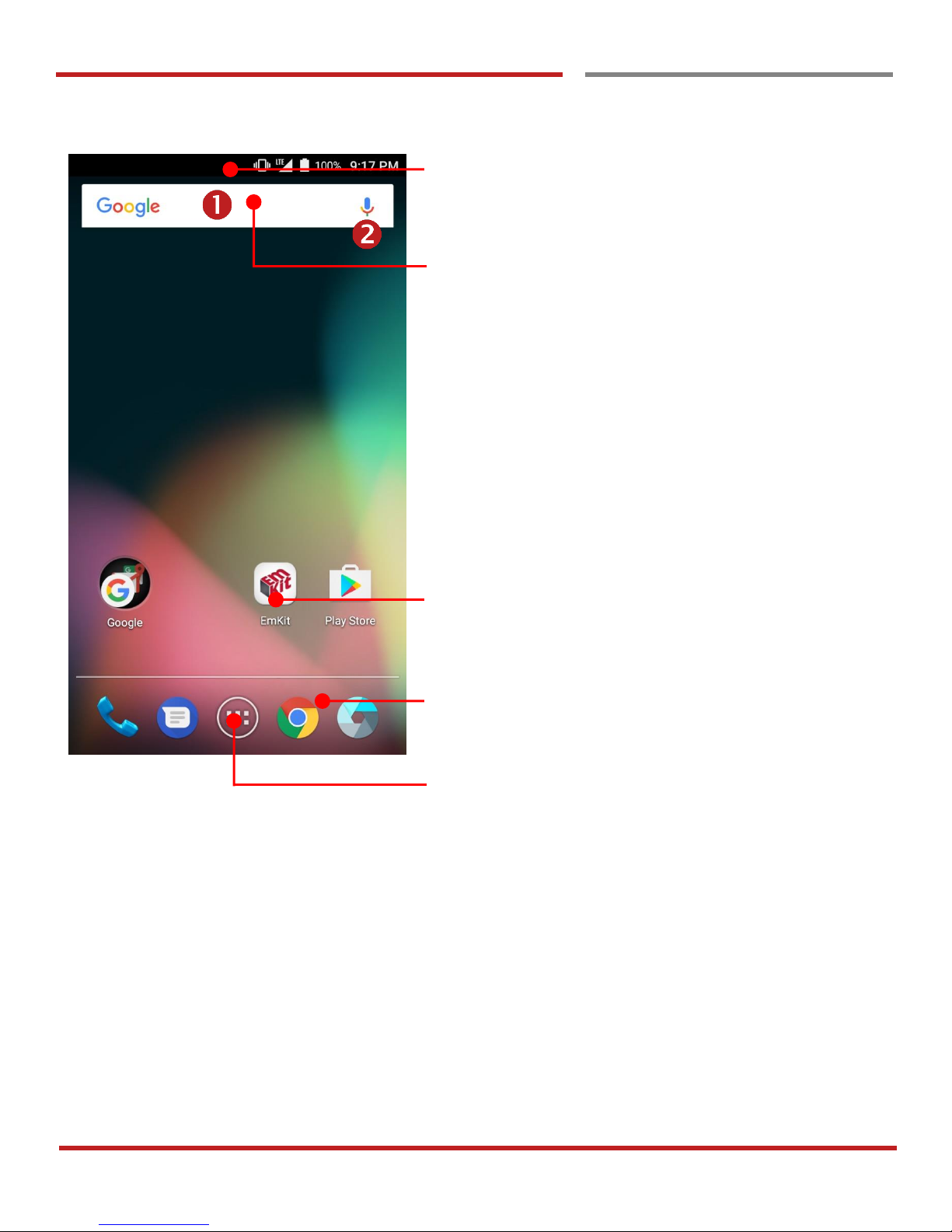

Status Bar

- Status / Notification

- Drag down to open the “Quick Setting Panel”

Search Bar

- Touch 1 to search by text

- Touch 2 to search by voice

Touch an icon to run an app, open folder, etc

Favorite tray apps

- Touch to run an app

- Touch and hold to reorganize

App Drawer

Touch to enter “Apps and Widget”

PM70 Android 6.0.1 User Manual

17

Learning the basics

Home Screen, Apps and Widget

Learning the basics

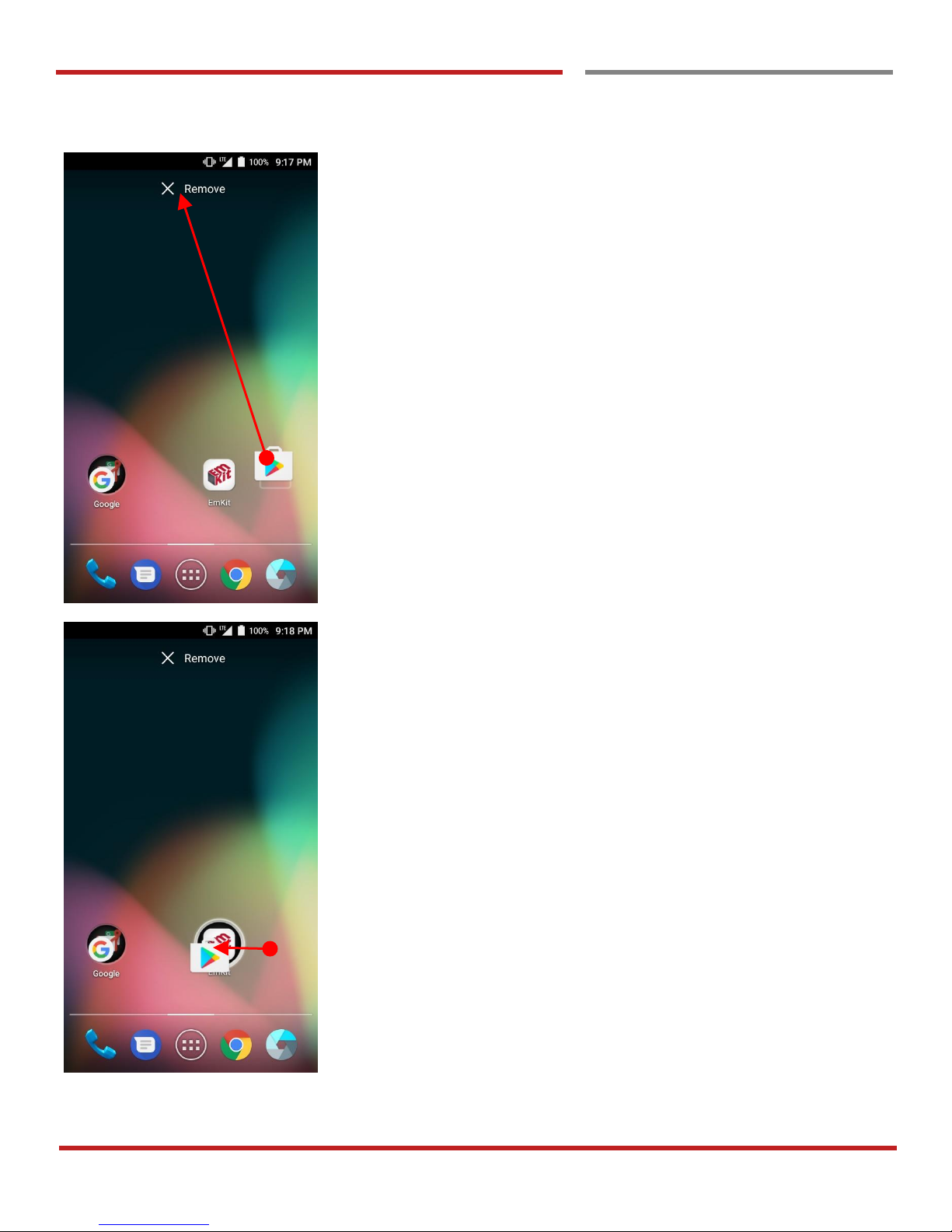

Remove the app icon from home screen

- Long press the app icon and then drag it to the “Remove” area and then release

Create “App Folder”

- Long press the app icon to other app icon. This will create the “App Folder”

- To set the folder name, touch the “Unnamed Folder” and rename it

PM70 Android 6.0.1 User Manual

18

Home Screen, Apps and Widget

Learning the basics

Notification panel

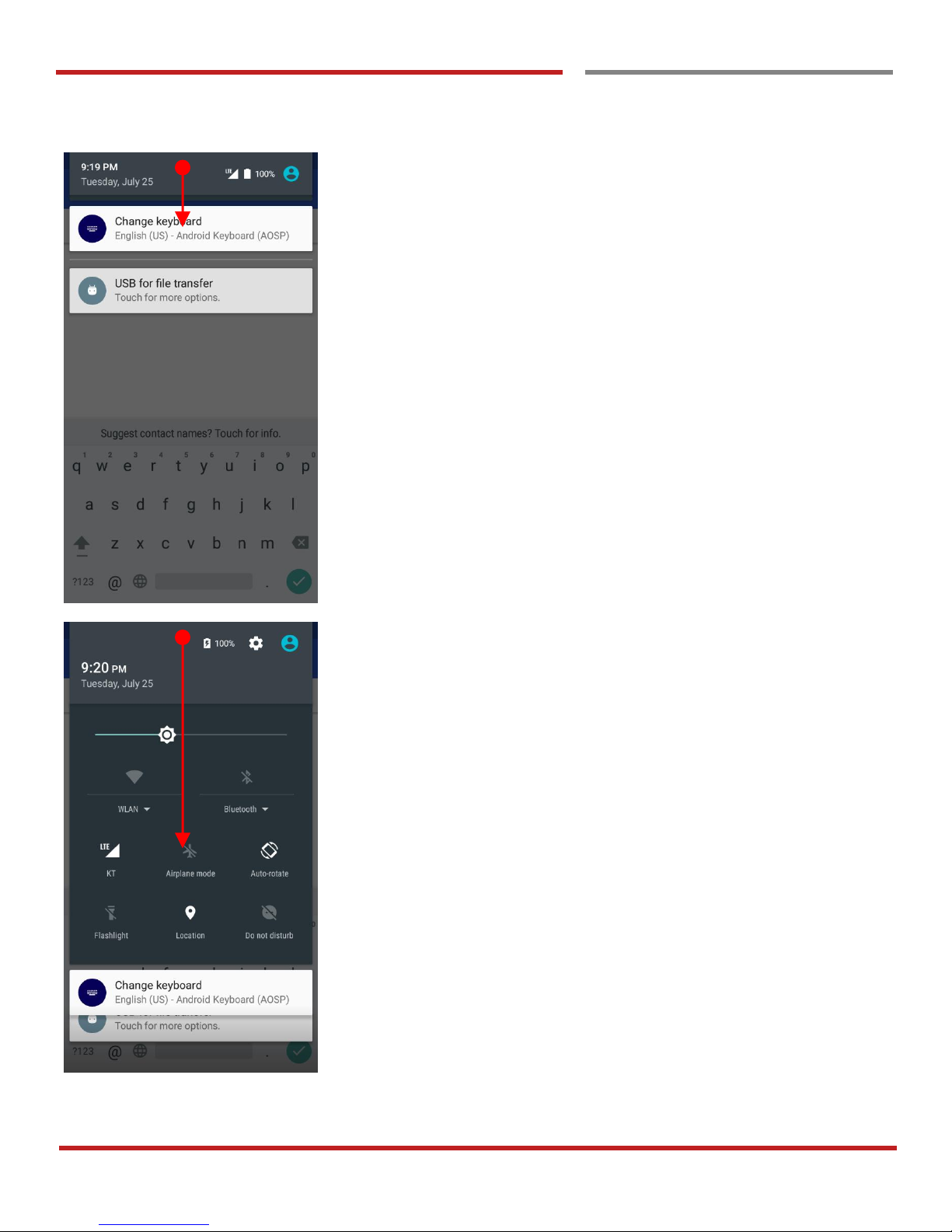

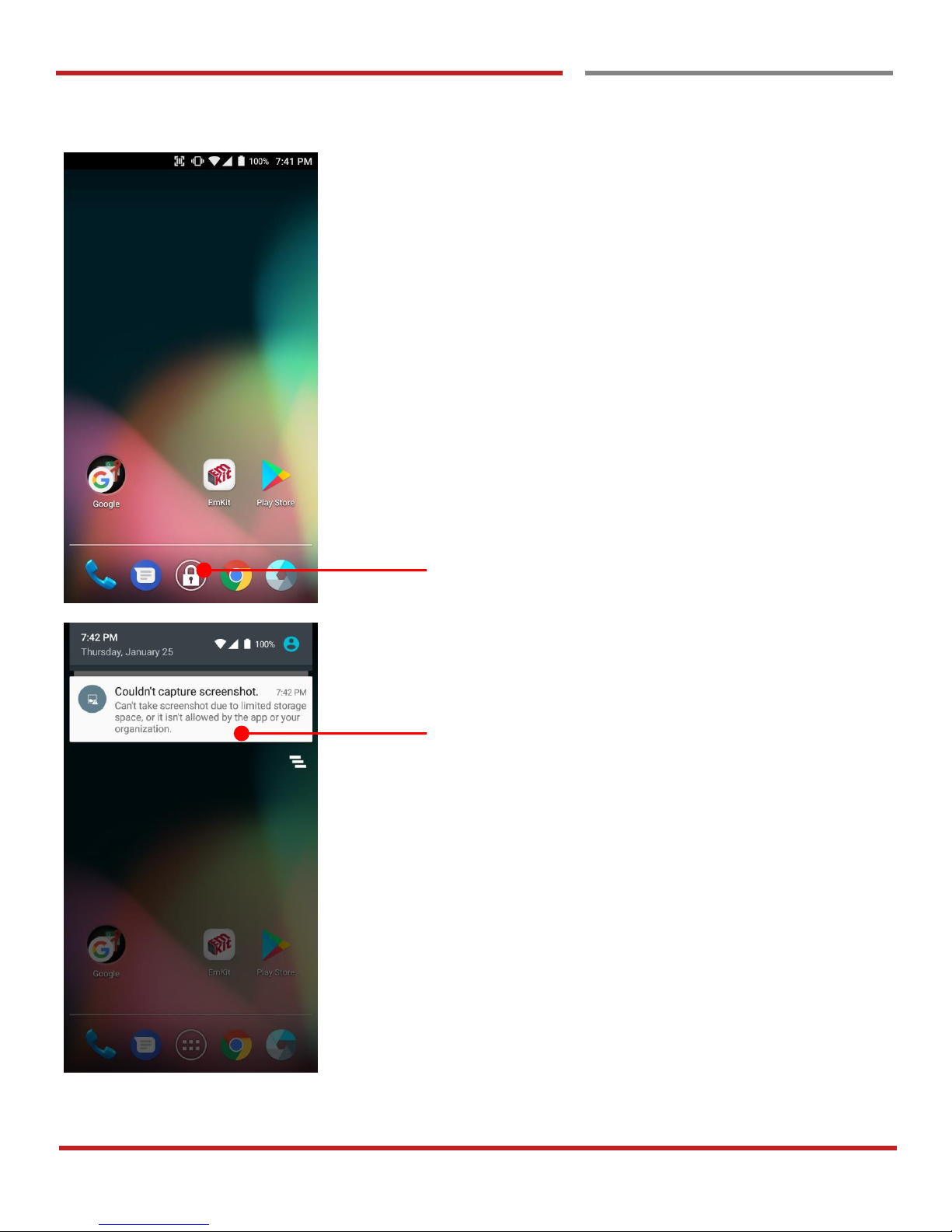

When there are notifications from the Android (system) or the App, you can check details by drag down the “Status Bar”.

Quick setting panel

You can access “Quick setting panel” by drag down the “Notification panel”. You can enable / disable functions or

change modes easily.

PM70 Android 6.0.1 User Manual

19

Learning the basics

Home Screen, Apps and Widget

Learning the basics

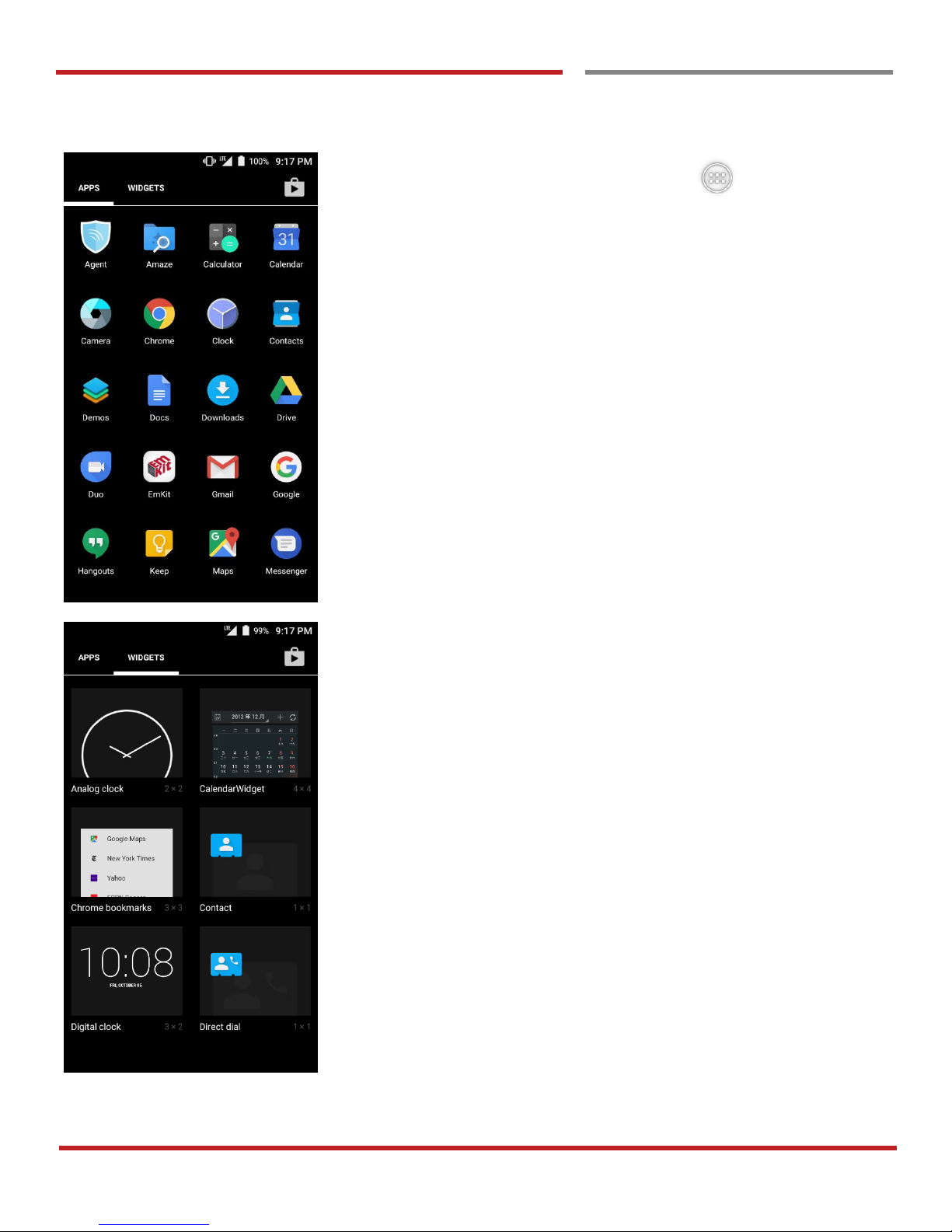

By touching the “App drawer” icon, you can enter to the “Apps” and “Widgets”

All installed apps are listed in the “Apps” tab, alphabetically

- Tap app icon to run.

- Long press, specific app icon to place to the “Home Screen”.

All available widgets are listed in the “Widgets” tab, alphabetically.

- Long press, specific widget to place to the “Home Screen”.

PM70 Android 6.0.1 User Manual

20

Learning the basics

Status & Notifications Icons

Learning the basics

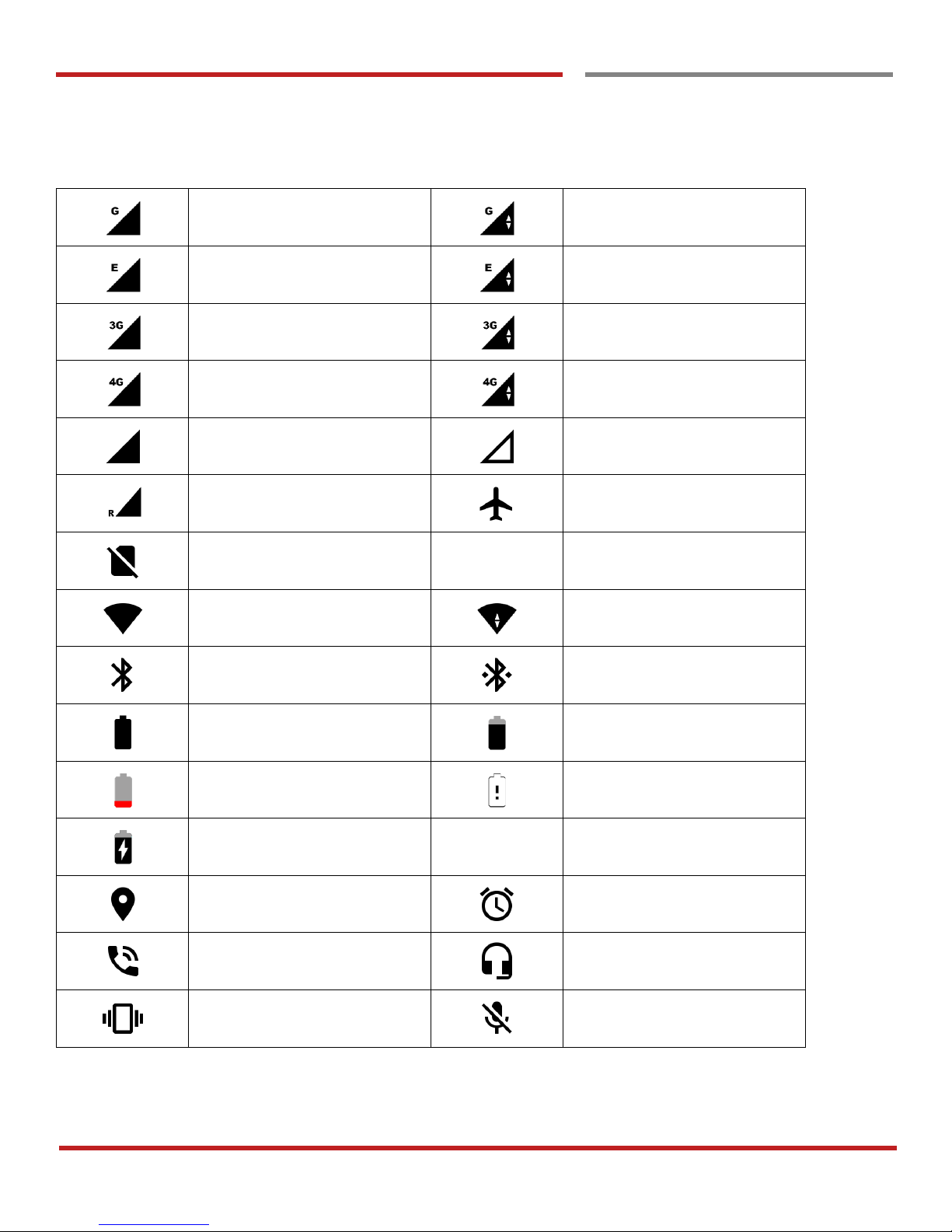

Status icons

GPRS connected

GPRS in use

EDGE connected

EDGE in use

3G connected

3G in use

4G connected

4G in use

Signal strength

No signal

Roaming

Airplane mode

No SIM card installed

WLAN is on

Connected to a WLAN network

Bluetooth is on

Connected to a Bluetooth device

Battery is full

Battery is partially drained

Battery is low

Battery is very low

Battery is charging

GPS is on

Alarm is set

Speaker phone is on

Headset connected

Vibrate mode/ Mute

Phone mic is mute

PM70 Android 6.0.1 User Manual

21

Learning the basics

Status & Notifications Icons

Learning the basics

Notification icons

Missed call

New SMS or MMS message

New Email

Connected to VPN network

Upcoming event

Screenshot captured

Preparing SD card

SD card removed, unexpectedly

OTG device connected

File uploaded

File downloaded

There are more notifications

Other input method available

PM70 Android 6.0.1 User Manual

22

Learning the basics

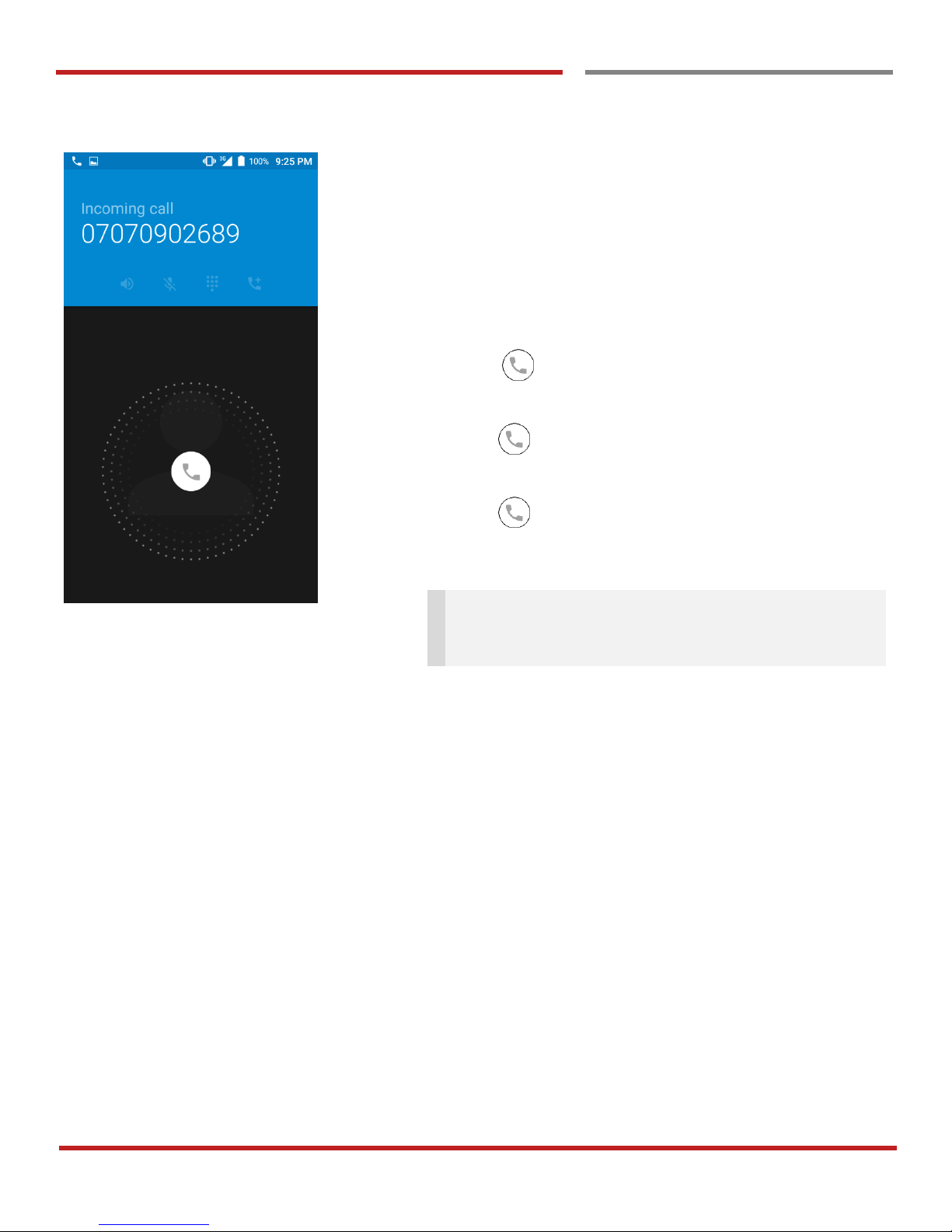

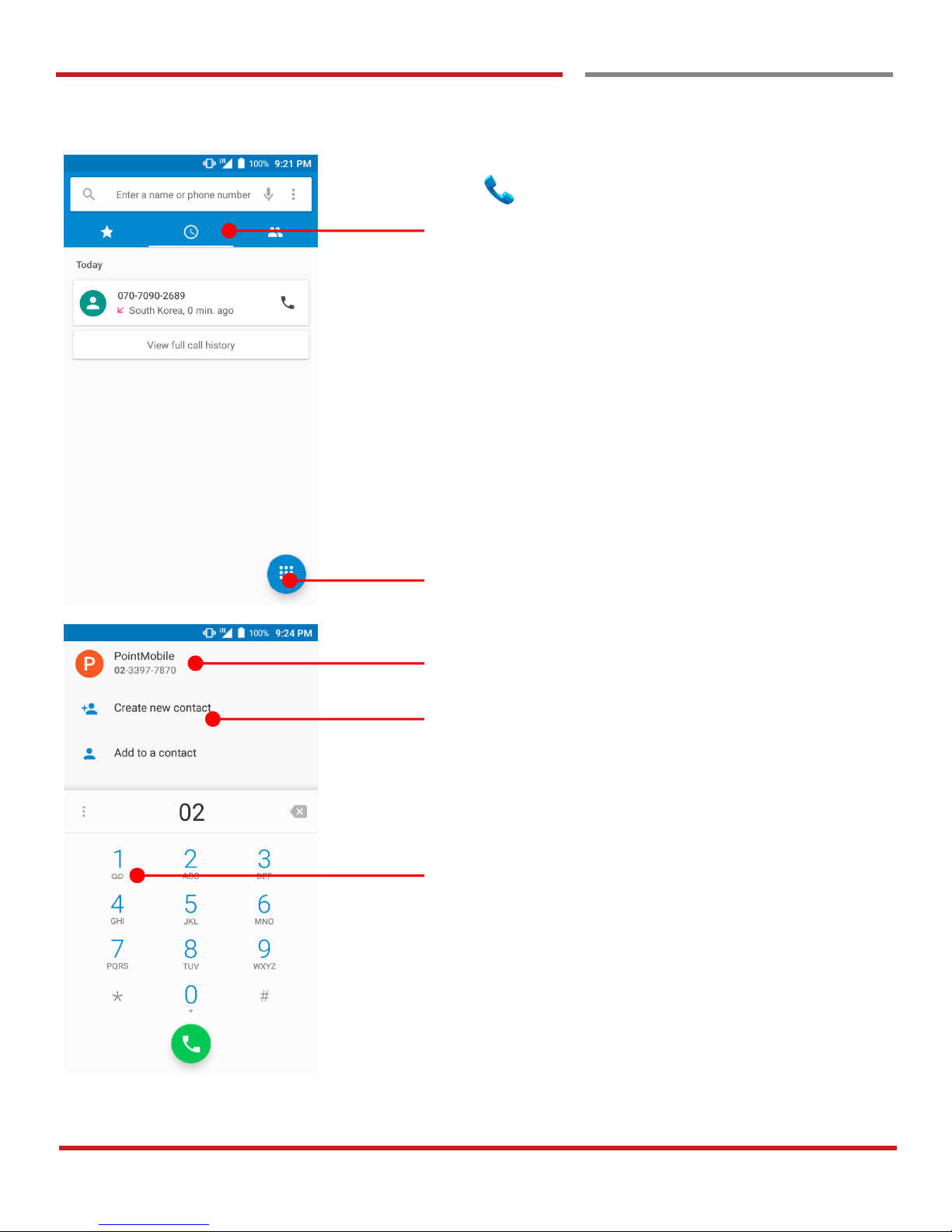

Make a call

Learning the basics

Touch icon in the Favorite tray apps Slide to access the “FAVORITE”, “RECENTS” and

“CONTACTS”.

- To make a call from recent call list or missed call, select “RECENTS” tab

- To make a call from your contact list, select “CONTRACTS”

Touch to use a dialer

Suggested phone number(s)

Phone number can be saved to “CONTACTS”

Touch and hold the dial pad #1, to access voicemail.

PM70 Android 6.0.1 User Manual

23

Learning the basics

Make a call

Learning the basics

You can answering or rejecting a call by sliding the phone icon

Slide the icon to the right direction in order to answer the call

Slide the icon to the left direction in order to reject the call

Slide the icon upwards to reject the call and send a preset message to the caller.

Tip: To mute the ringtone volume of an incoming call, keep press the “Volume down” key or turn your PM70 over.

PM70 Android 6.0.1 User Manual

24

Learning the basics

Add to a contact

Learning the basics

Touch “App Drawer” icon and then icon

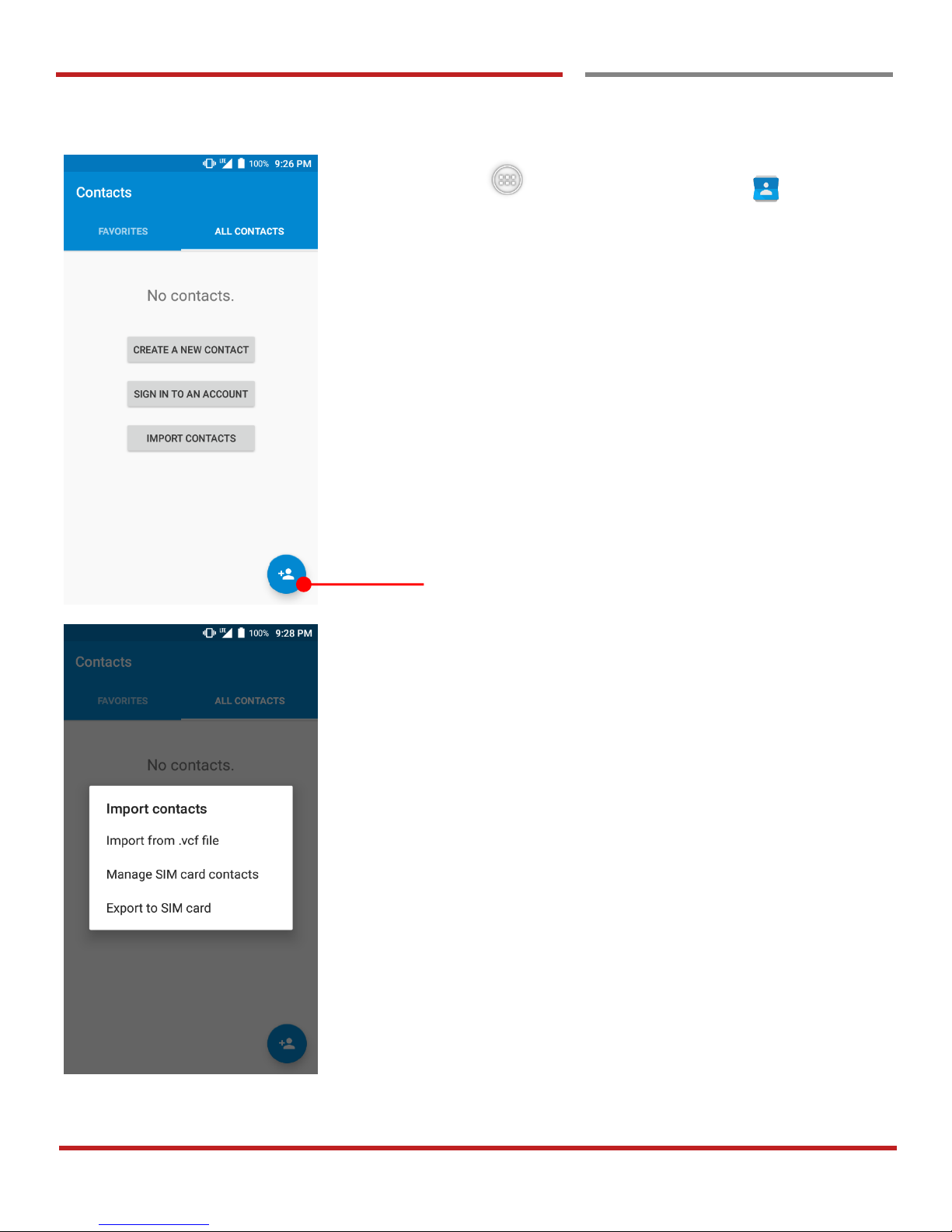

CREATE A NEW CONTACT

- You can manually create the new contact

SIGN IN TO AN ACCOUNT

- You can sync with your contacts in the Google account.

IMPORT CONTACTS

- You can import contact in the storage (.vcf file) or SIM card

Touch to add a new contact

PM70 Android 6.0.1 User Manual

25

Learning the basics

Send a message

Learning the basics

Touch icon in the Favorite tray apps

Touch to use a dialer

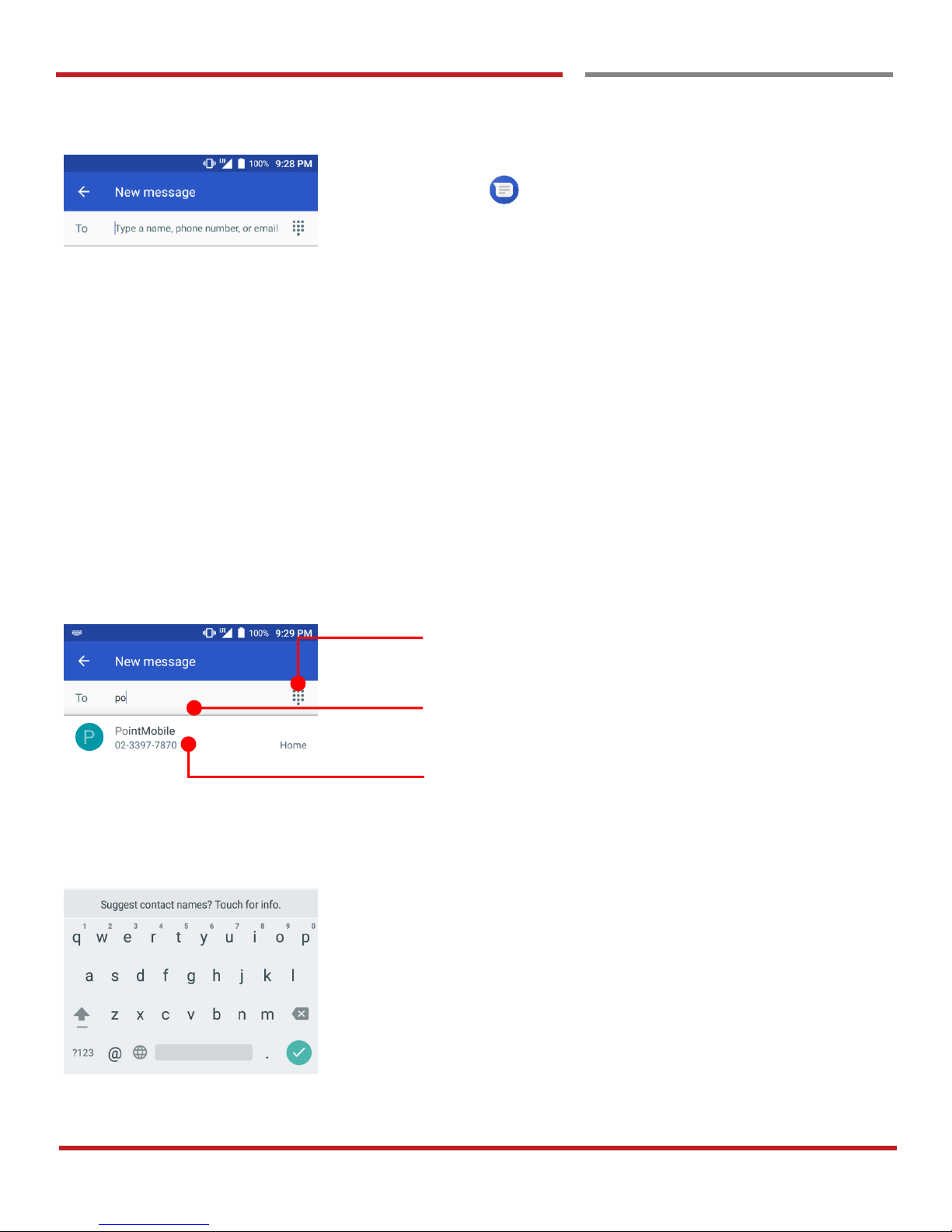

Touch to type a name, phone number or email

Suggest contact display here. Touch “Contacts” to compose a message

PM70 Android 6.0.1 User Manual

26

Learning the basics

Send a message

Learning the basics

Your message display here

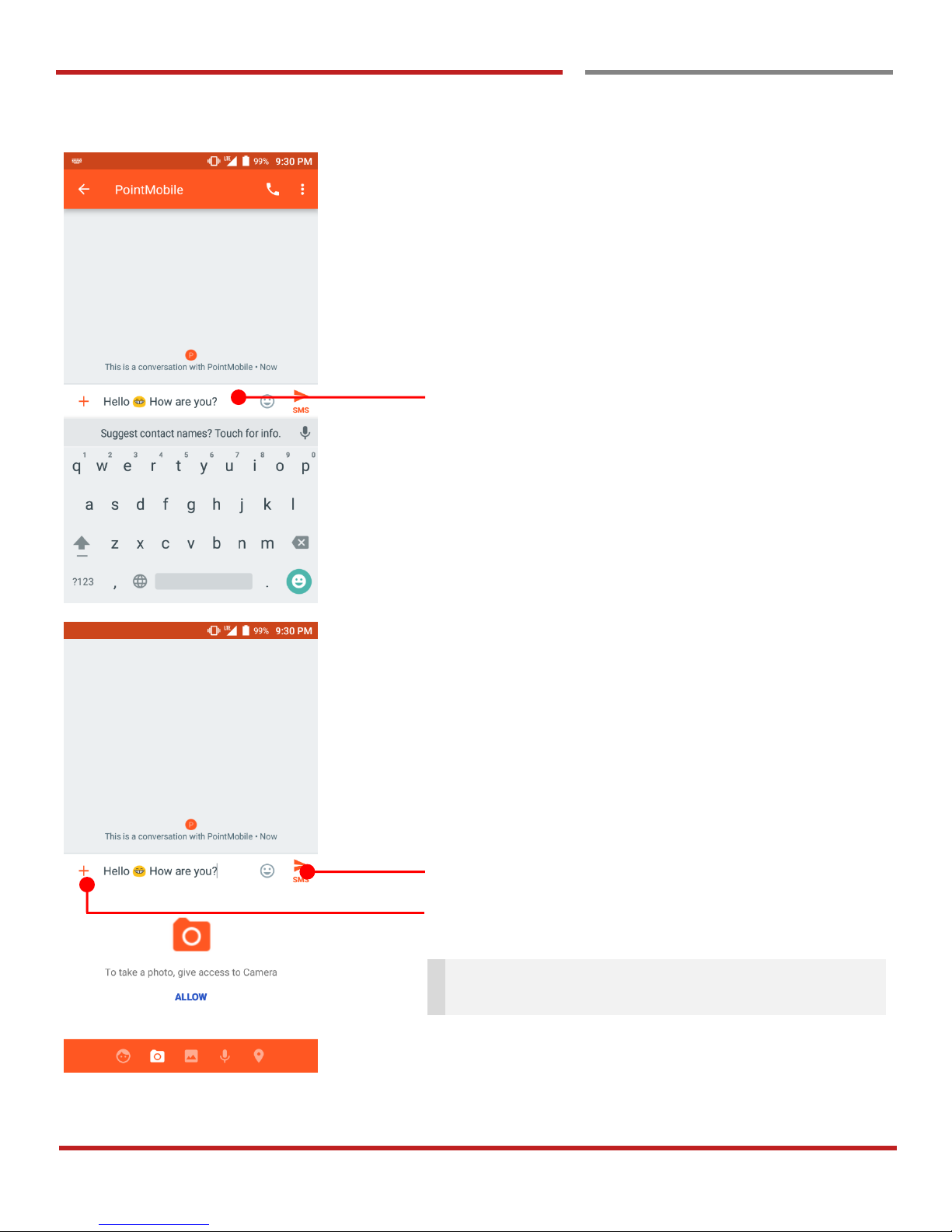

Touch to send the composed message You can attach photo, saved picture, voice or location

Note: You may allow granting “Message App” access specific app or service.

PM70 Android 6.0.1 User Manual

27

Learning the basics

Connect to your Wi-Fi network

Learning the basics

Touch “App Drawer” - “Settings” and then “WLAN”

Touch to turn On / Off the W-Fi

You can see nearby Wi-Fi network. Each AP’s SSID information listed by signal strength

Icon means: Open Wi-Fi network. You don’t need

to enter the password

Icon means: Secured Wi-Fi network. To connect this Wi-Fi, you need to enter the password

PM70 Android 6.0.1 User Manual

28

Learning the basics

Connect to your Wi-Fi network

Learning the basics

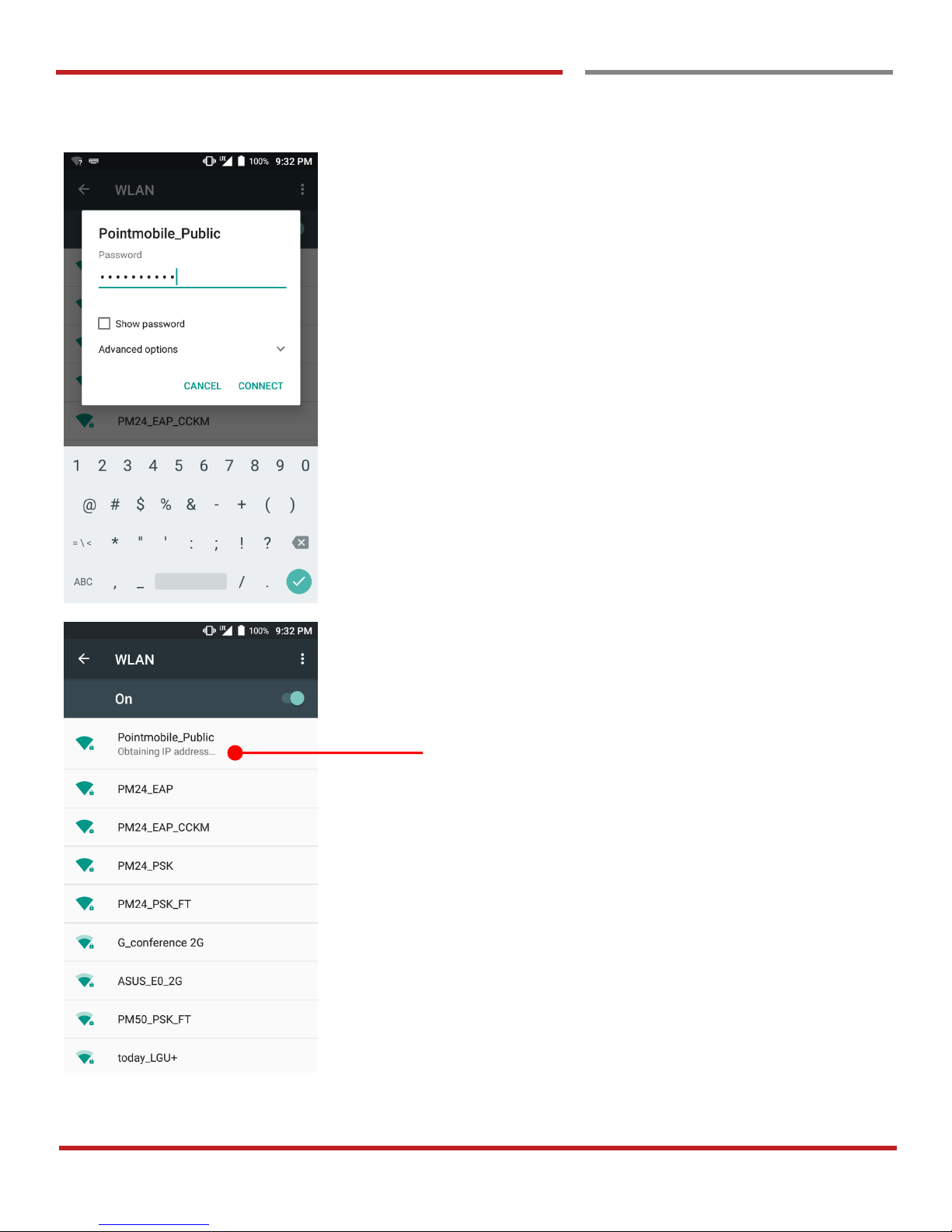

Touch SSID, which you want to connect. To connect to secured network, enter the password

Your PM70 is obtaining the IP address from selected AP

PM70 Android 6.0.1 User Manual

29

Scanner Settings

Use a Scanner

Scanner Settings

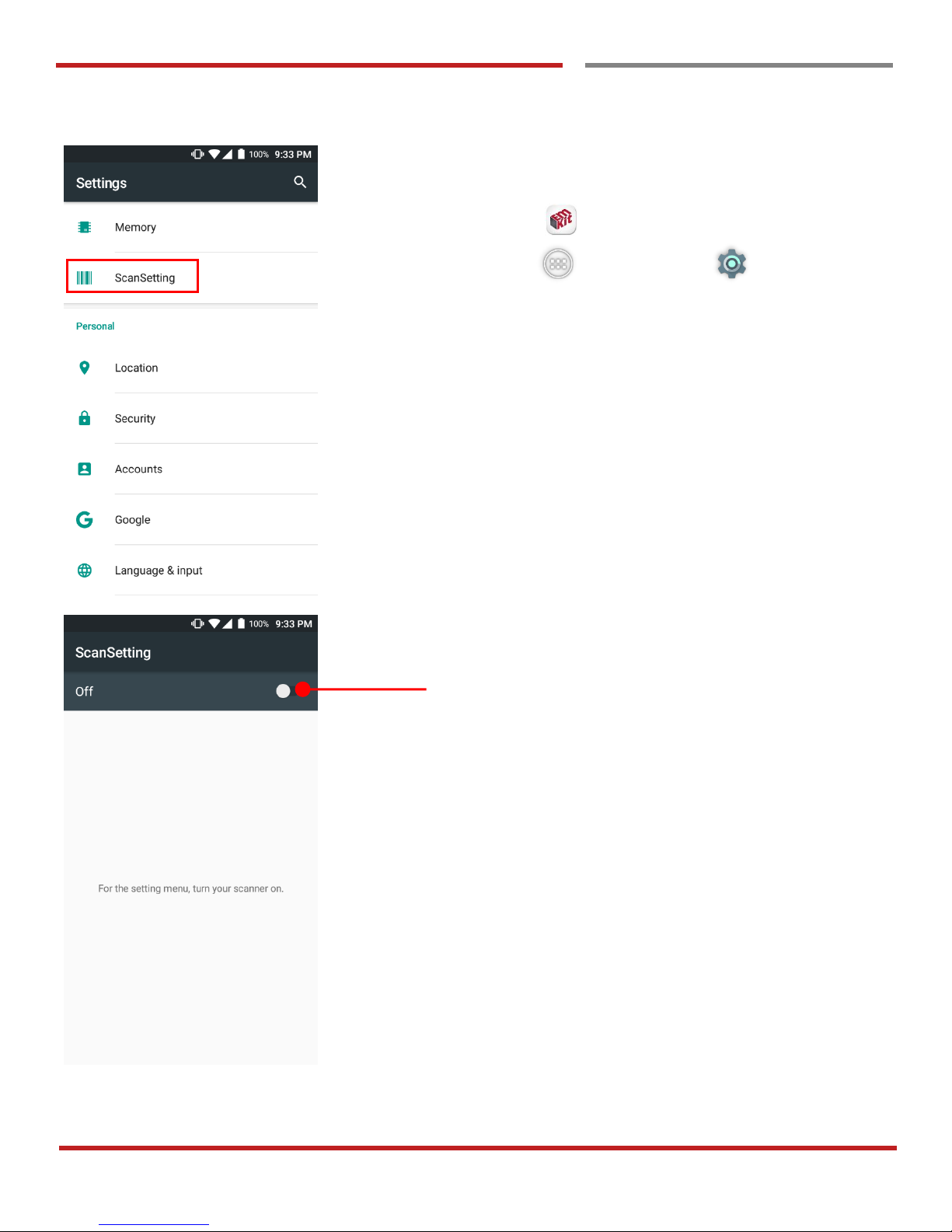

Default setting of Scanner is “Off” To use the Scanner,

- Touch EmKit and then “ScanSetting”

- Touch “App Drawer” - “Settings” and then “ScanSettings”

Touch to turn on the Scanner

PM70 Android 6.0.1 User Manual

30

Scanner Settings

Use a Scanner

Scanner Settings

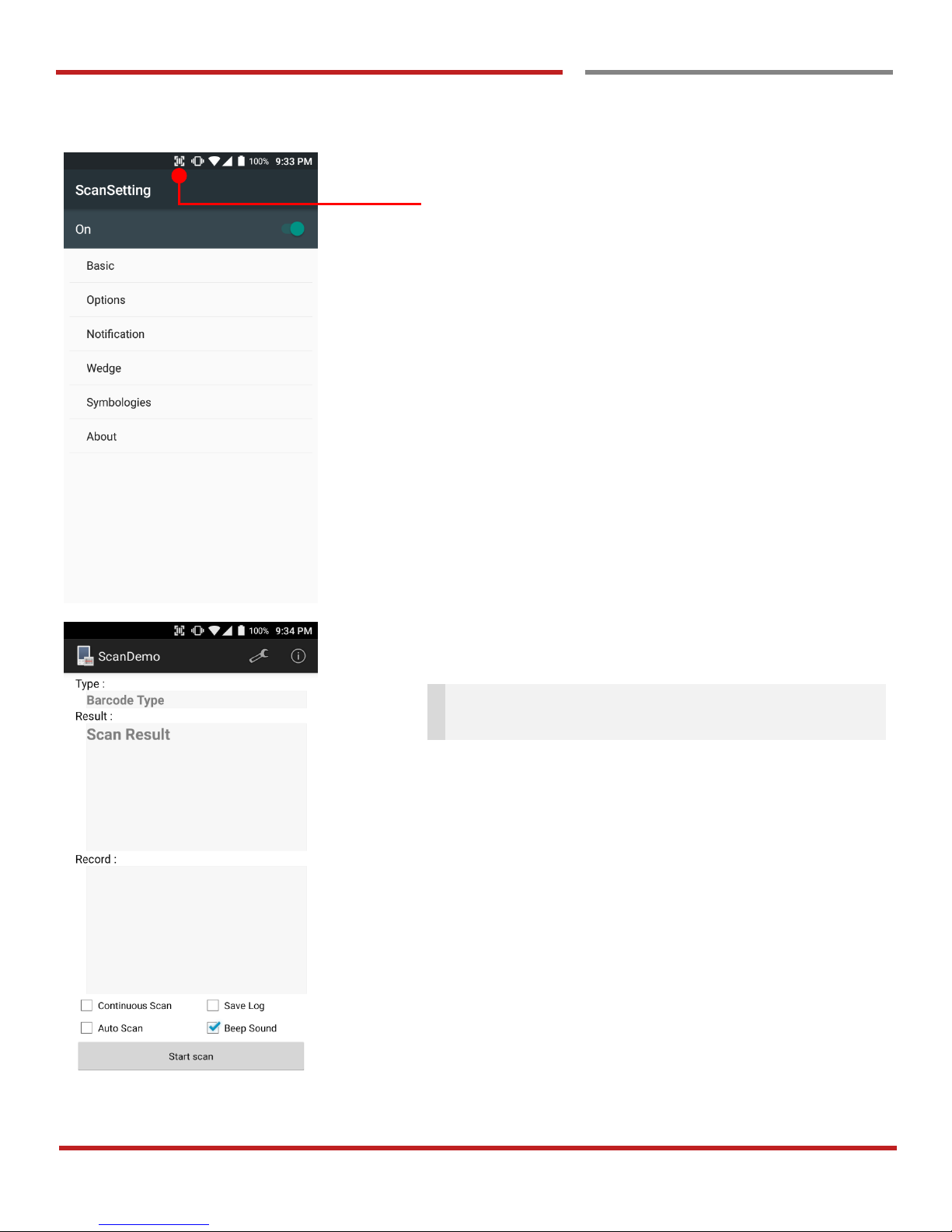

Now you can see “Scanner” icon in the “Status Bar”

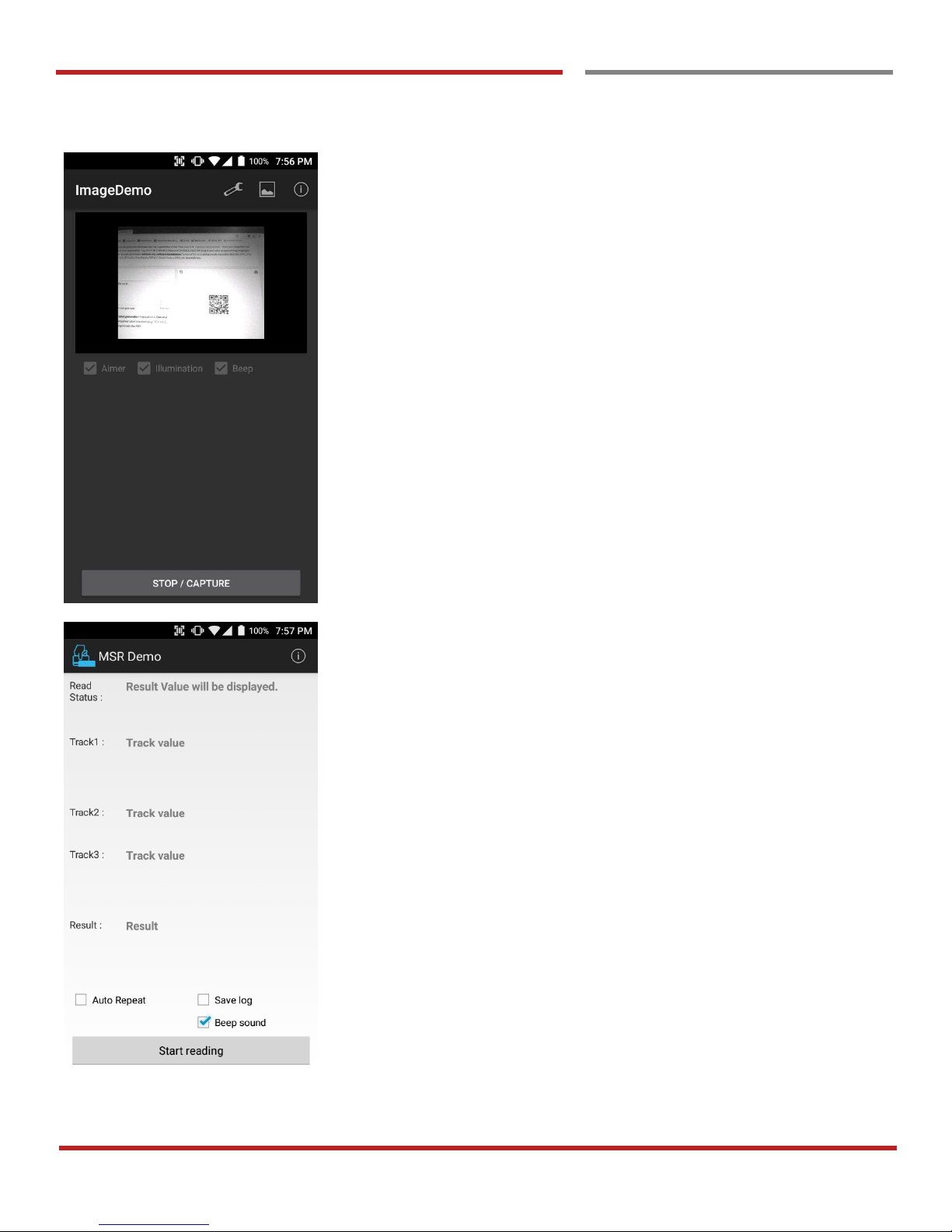

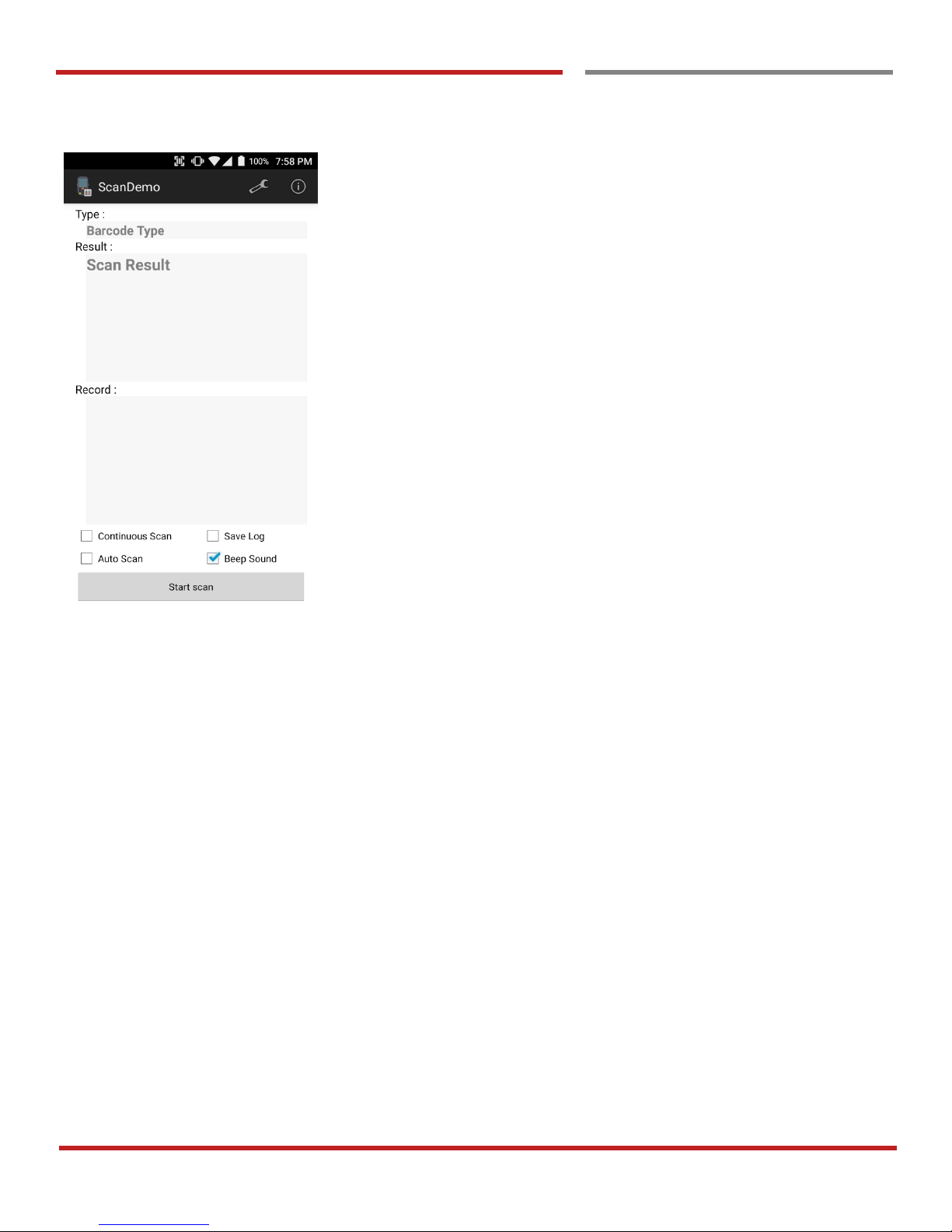

Note: When “Scanner” turned on, you can scan the barcode with “ScanDemo” in the EmKit

PM70 Android 6.0.1 User Manual

31

Scanner Settings

Use a Scanner

Scanner Settings

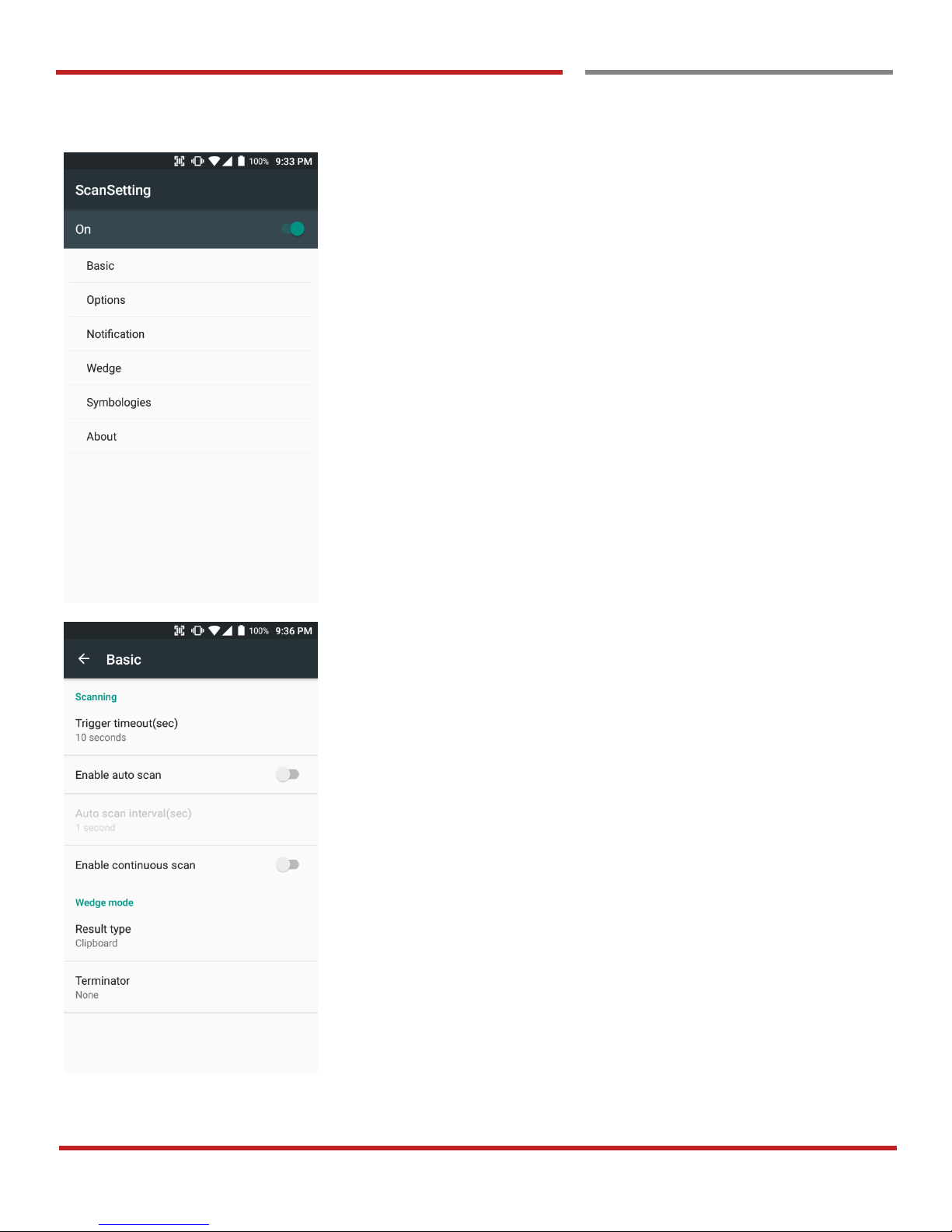

Scanner setting details

Scanner setting consist with “Basic”, “Options”, “Notification”, “Wedge”, “Symbologies”, and “About”

In the “Basic”, you can set “Scanning” option and “Wedge” mode option

In the “Scanning menu”, you can change Scanner’s trigger time out and set “Auto scan” & “Continues scan”

In the Wedge menu you can change, decode scan data’s

result type handling “User Message”, “Keyboard Event”, “Clipboard’ or ‘Intent Broadcast’. Also you can set

“Terminator” – “Space”, “Tab”, “LF” or “Tab & LF”

PM70 Android 6.0.1 User Manual

32

Scanner Settings

Use a Scanner

Scanner Settings

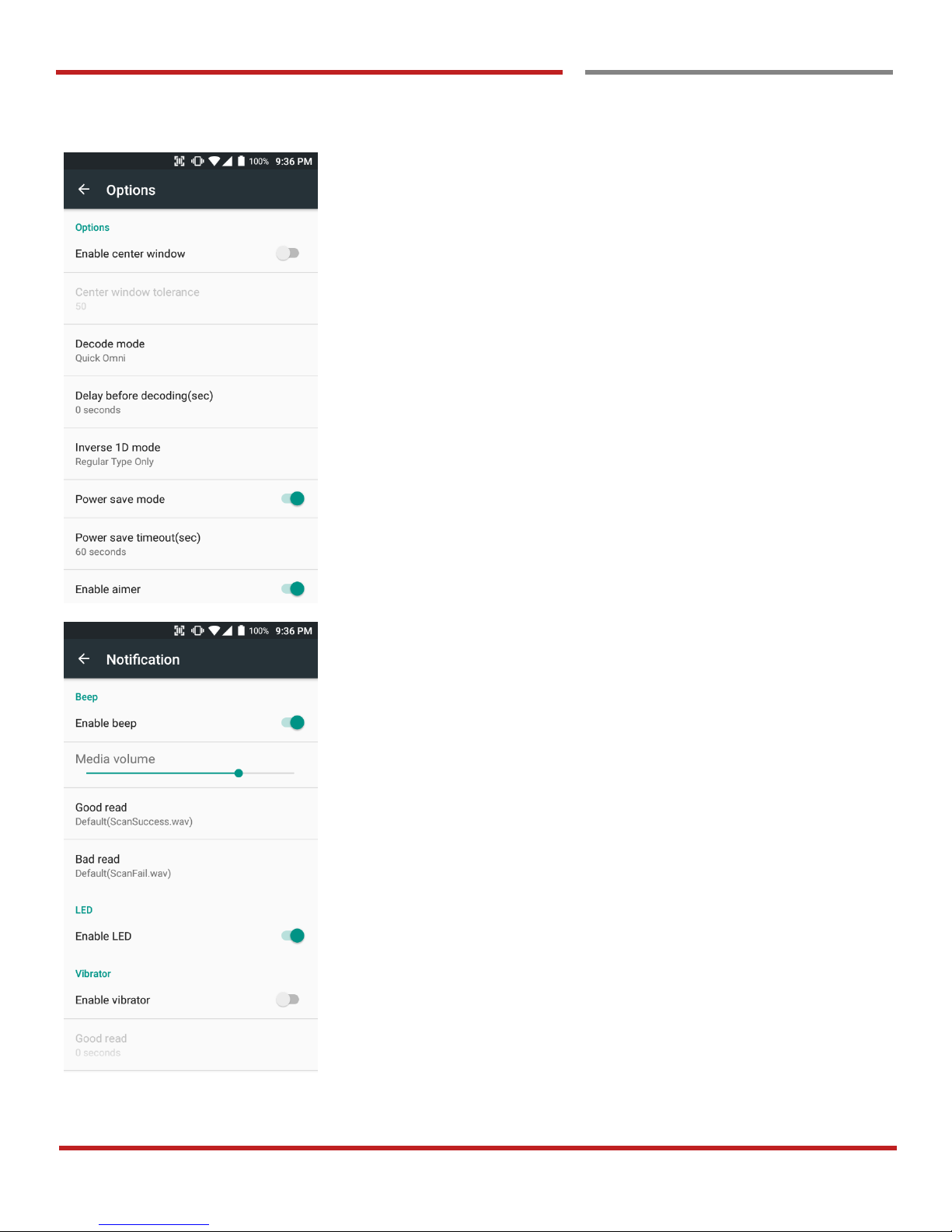

In the “Options”, you can enable / disable the “Center

Window”, set “Decode mode”, “Power save mode” and

enable / disable “Aimer” & “Illumination”

In the “Notification”, you can set notification option. You can

change the volume level, notification sound, LED and vibration option

PM70 Android 6.0.1 User Manual

33

Scanner Settings

Use a Scanner

Scanner Settings

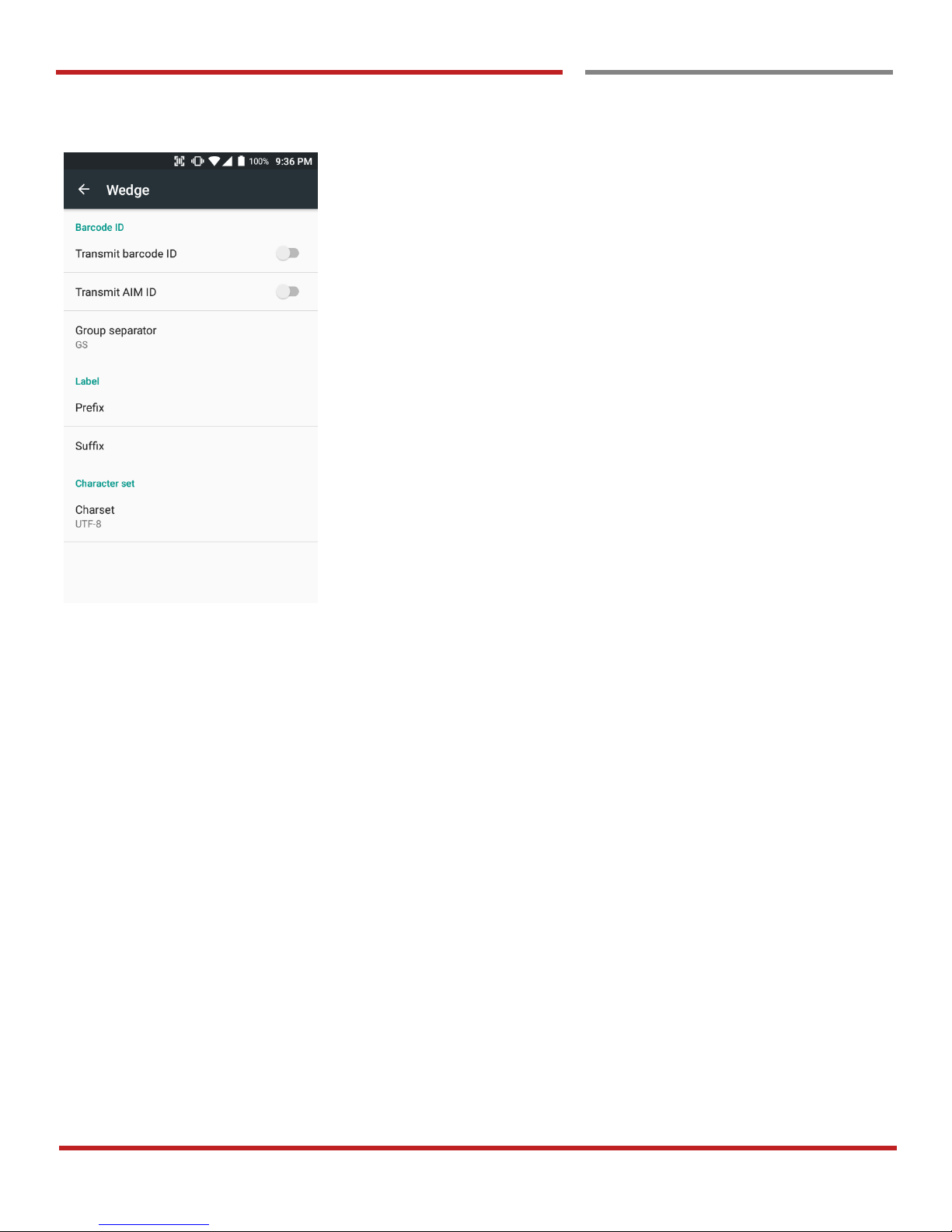

In the “Wedge”, you can enable / disable “Barcode ID” and “Aim ID”, set “Group separator”, “Prefix” & “Suffix” and “Character set”

PM70 Android 6.0.1 User Manual

34

Scanner Settings

Use a Scanner

Scanner Settings

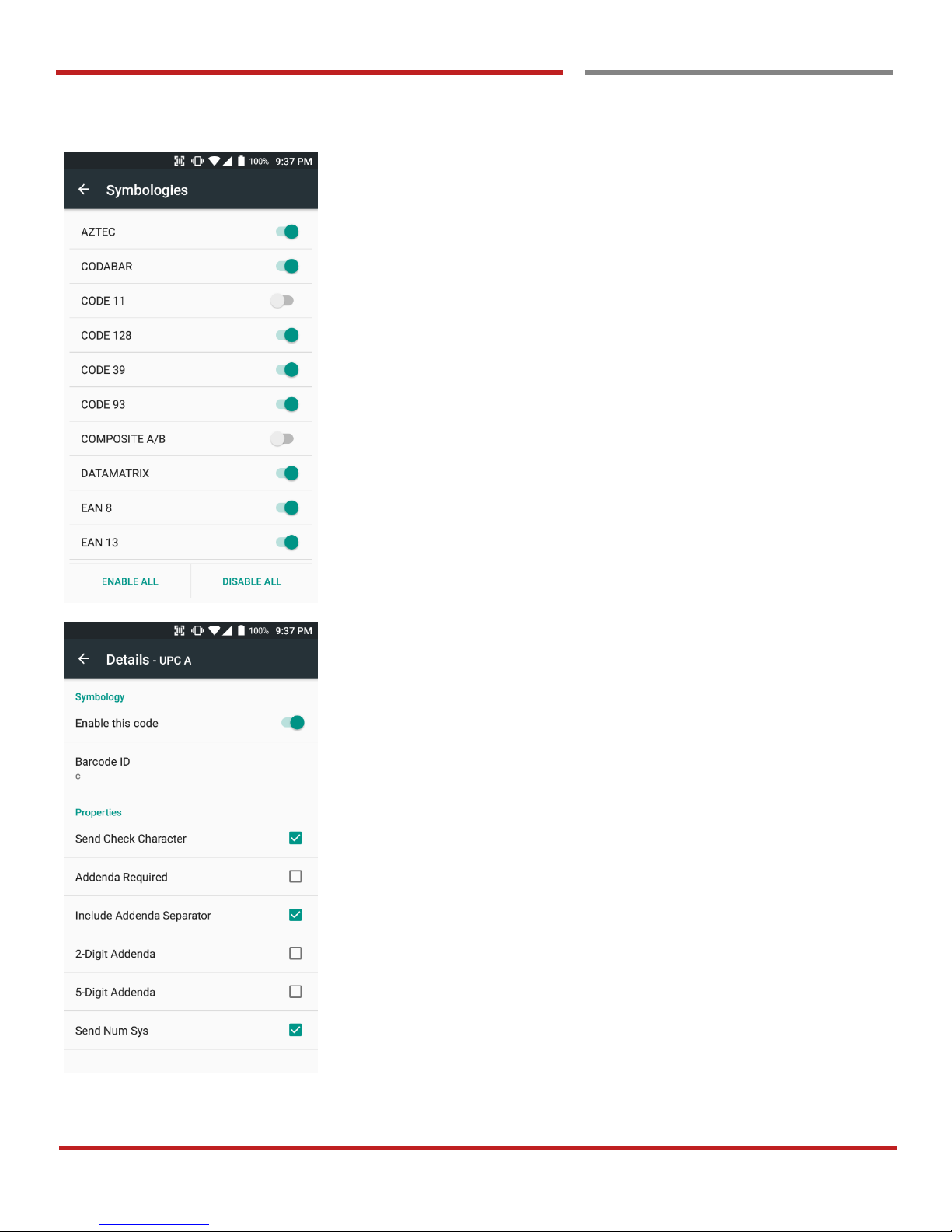

In the “Symbologies”, you can enable / disable specific barcode.

By touching each “Symbology” name, you can set detail option.

PM70 Android 6.0.1 User Manual

35

Scanner Settings

Use a Scanner

Scanner Settings

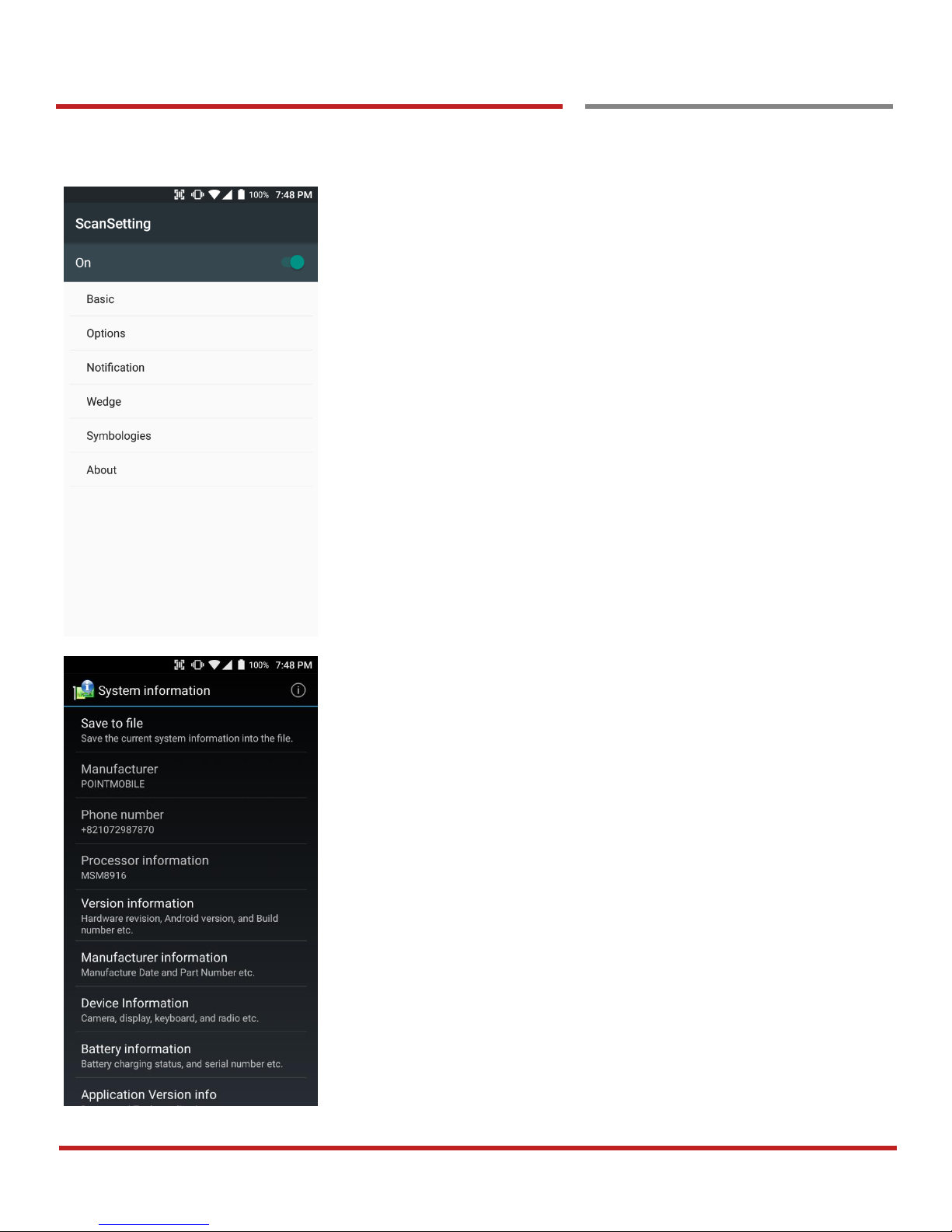

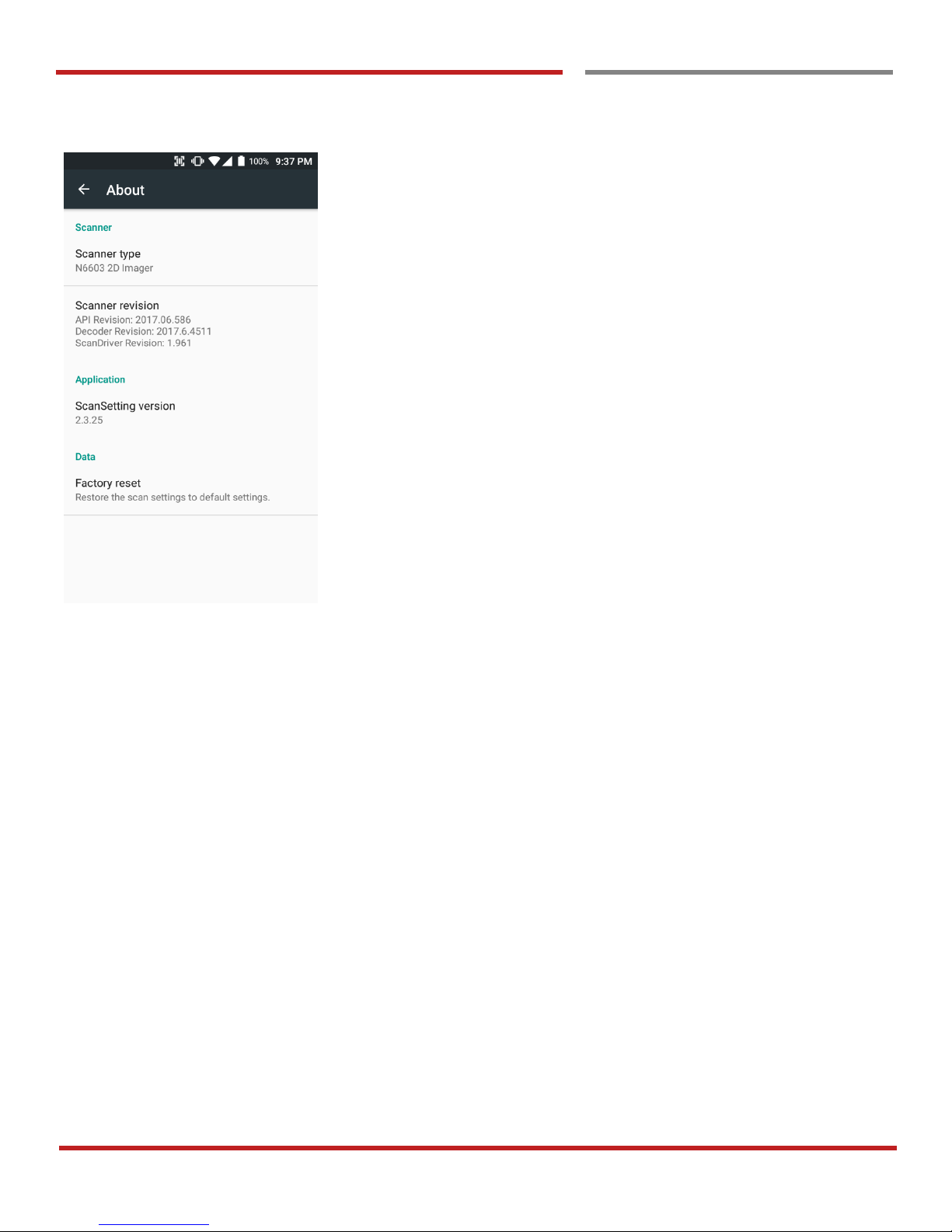

In the ‘About’, you can check your Scanner’s information

and restore Scanner’s settings to default

PM70 Android 6.0.1 User Manual

36

Scan a Barcode

Scanner Settings

Example of good Barcode reading

Idle barcode scan Please aim the middle of barcode

Even you aim the barcode slightly upper or down area or angle is slightly tilted, you can read the barcode

PM70 Android 6.0.1 User Manual

37

Scan a Barcode

Scanner Settings

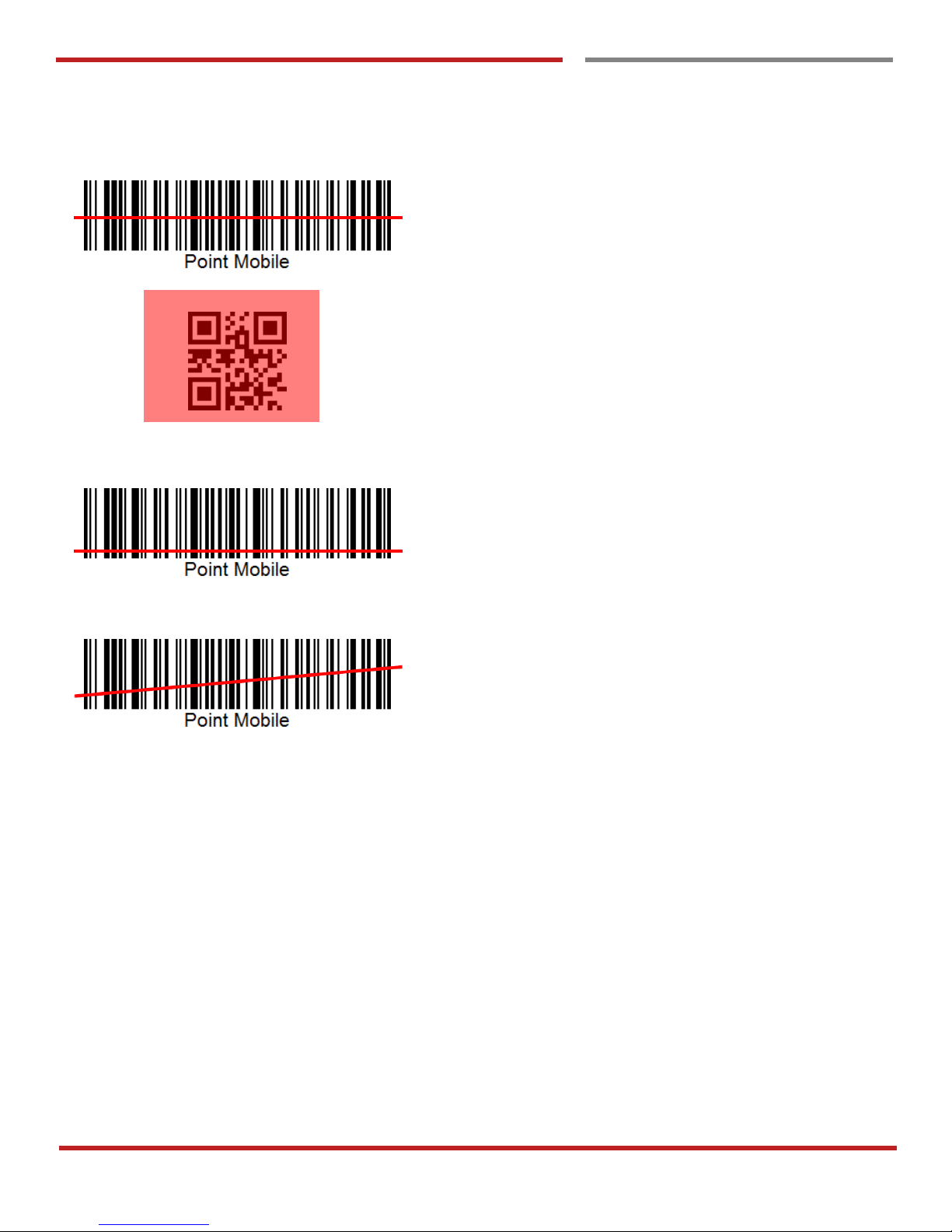

Example of bad Barcode reading

If you aim the barcode wrong direction or tilt too much, you can’t read the barcode

If you aim part of Barcode or aim two barcode together, you can’t read the barcode

PM70 Android 6.0.1 User Manual

38

OS Update

OS Image update from a Storage

OS Update

To update OS image, copy or place OS image file into

the root folder of “Internal Storage” or “External

Storage”

Touch “App Drawer” - “Settings” and then “About phone”

Touch “System Updates”

PM70 Android 6.0.1 User Manual

39

OS Update

OS Image update from a Storage

OS Update

Your PM70 will check storage and display available OS image

Touch “Update” button

By touching the “CONTINUE” button, your PM70 start to update the OS image. During this time, you cannot use your PM70. Please save the data before start, the OS update process.

PM70 Android 6.0.1 User Manual

40

OS Update

OS Image update from the FOTA

OS Update

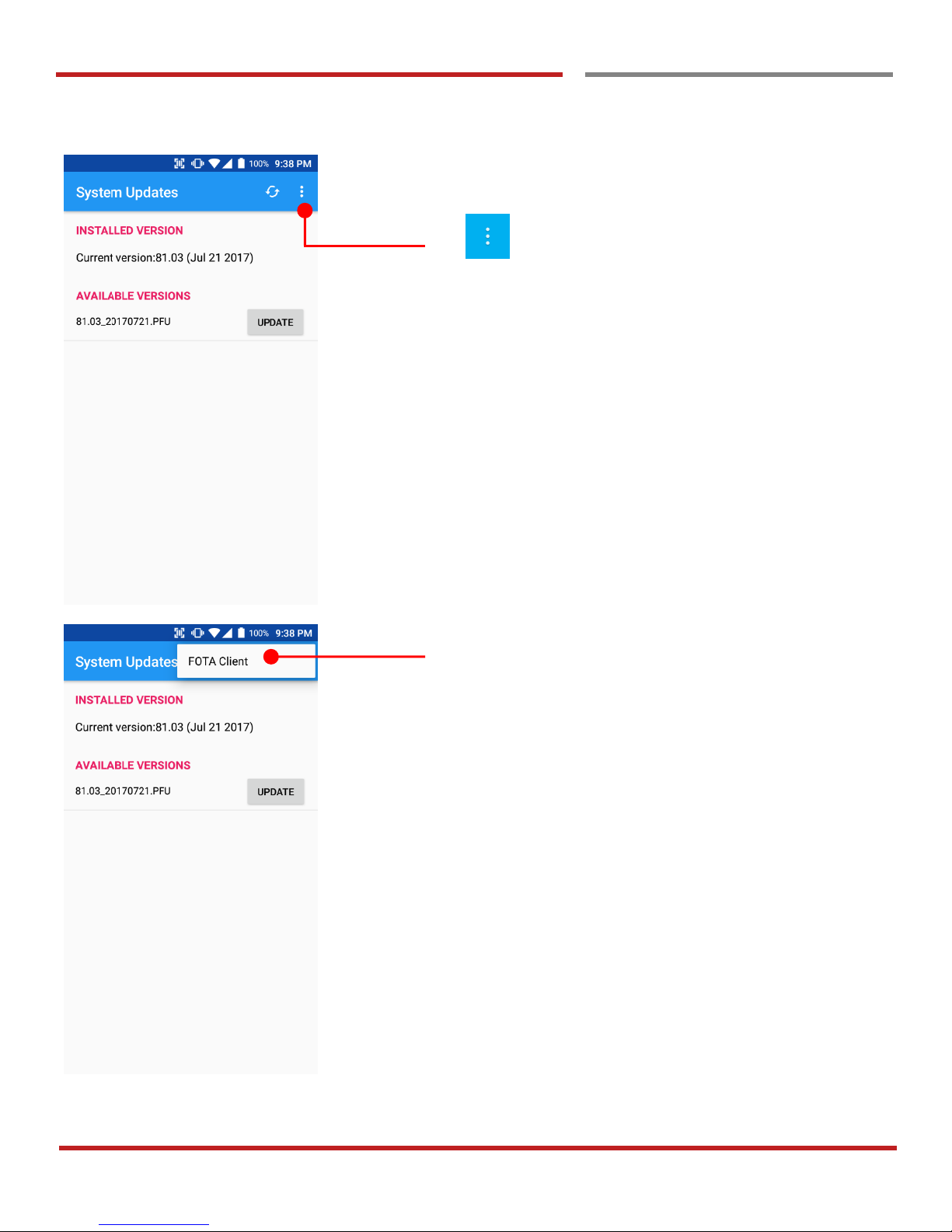

Tap icon for the advanced option

Touch “FOTA Client”

PM70 Android 6.0.1 User Manual

41

OS Update

OS Image update from the FOTA

OS Update

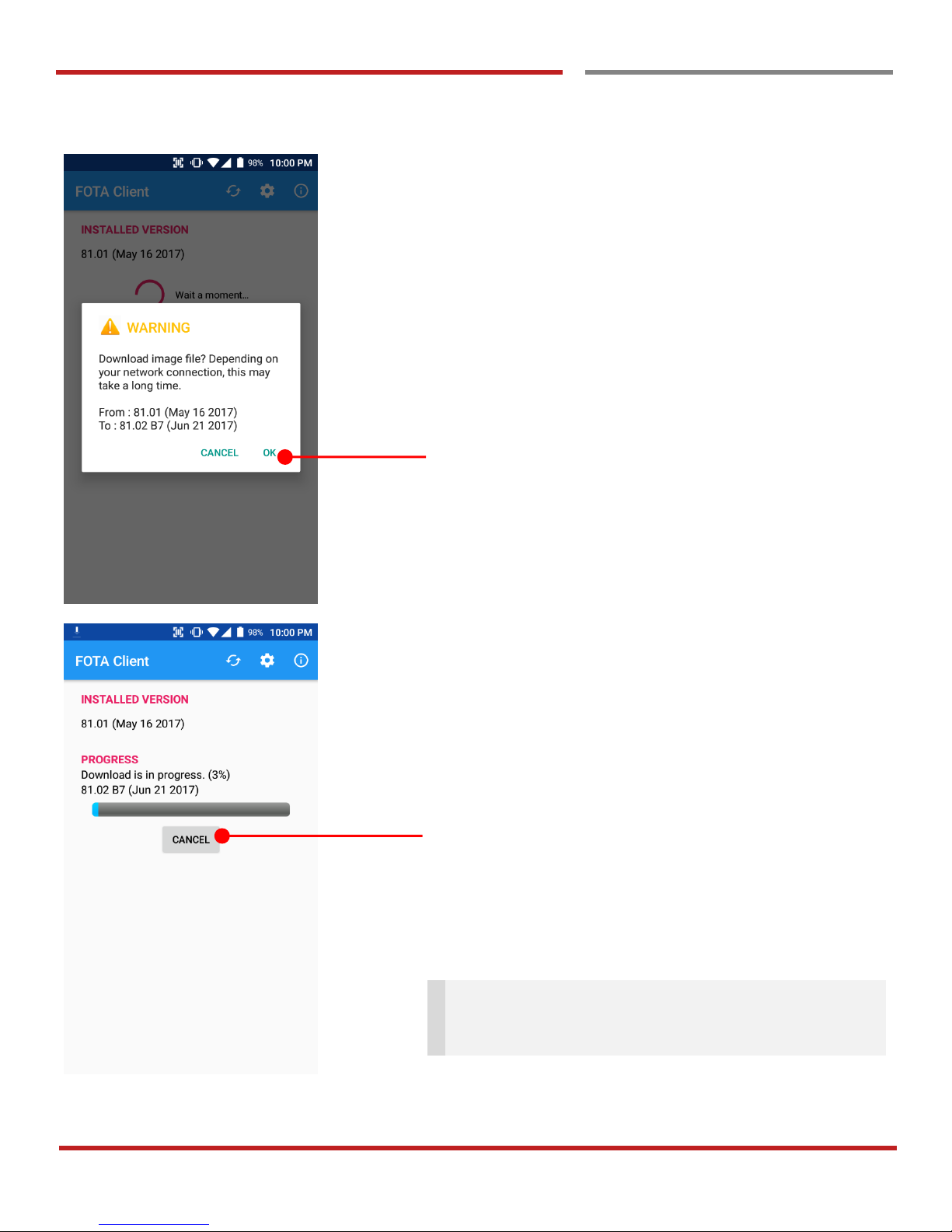

PM70 will compare the OS image between FOTA server and current OS image. If there is newer OS image in the FOTA server, FOTA server will suggest downloading.

Touch “OK” to start download the image in the FOTA server

You can cancel OS image download process

Note: Default OS image download setting of FOTA Client is “Download over Wi-Fi only” Please connect to the nearby Wi-Fi network for FOTA service

PM70 Android 6.0.1 User Manual

42

Factory data reset

Factory data reset from Settings

Factory data reset

When your PM70 system is unstable and abnormal behavior occur but could not recover by rebooting, you may need to “Factory data reset” your PM70

Touch “App Drawer” - “Settings” and then “Backup & reset”

Touch “Factory data reset”

PM70 Android 6.0.1 User Manual

43

Factory data reset from Settings

Factory data reset

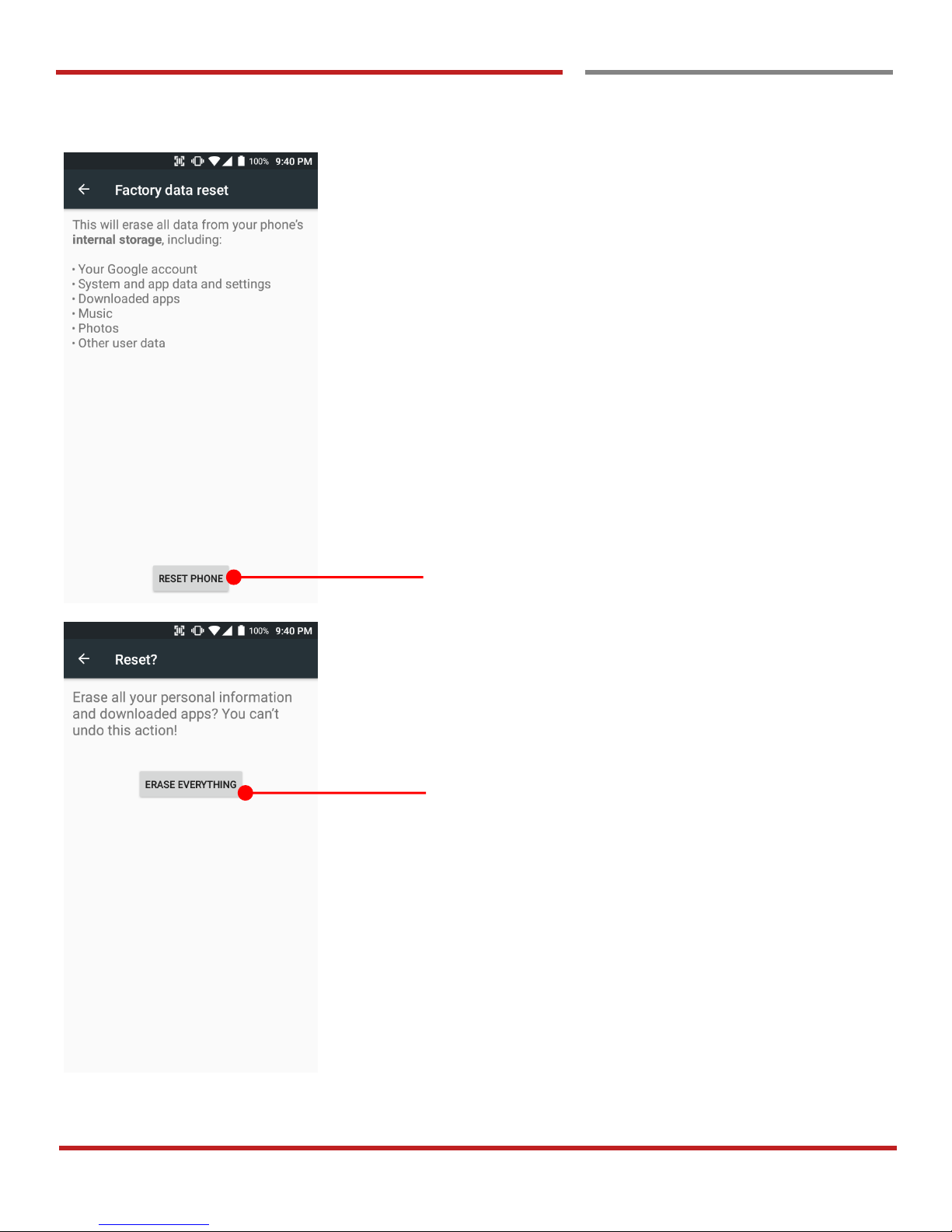

Please note, all apps and data in the internal storage will be

deleted and restored to “Factory default” and this process cannot “Undo”

Touch to start “Factory Reset” process

Touch to confirm erase of “Apps and Data”

PM70 Android 6.0.1 User Manual

44

Factory data Reset

Force Factory data reset

Factory data reset

Force Factory data reset your PM70

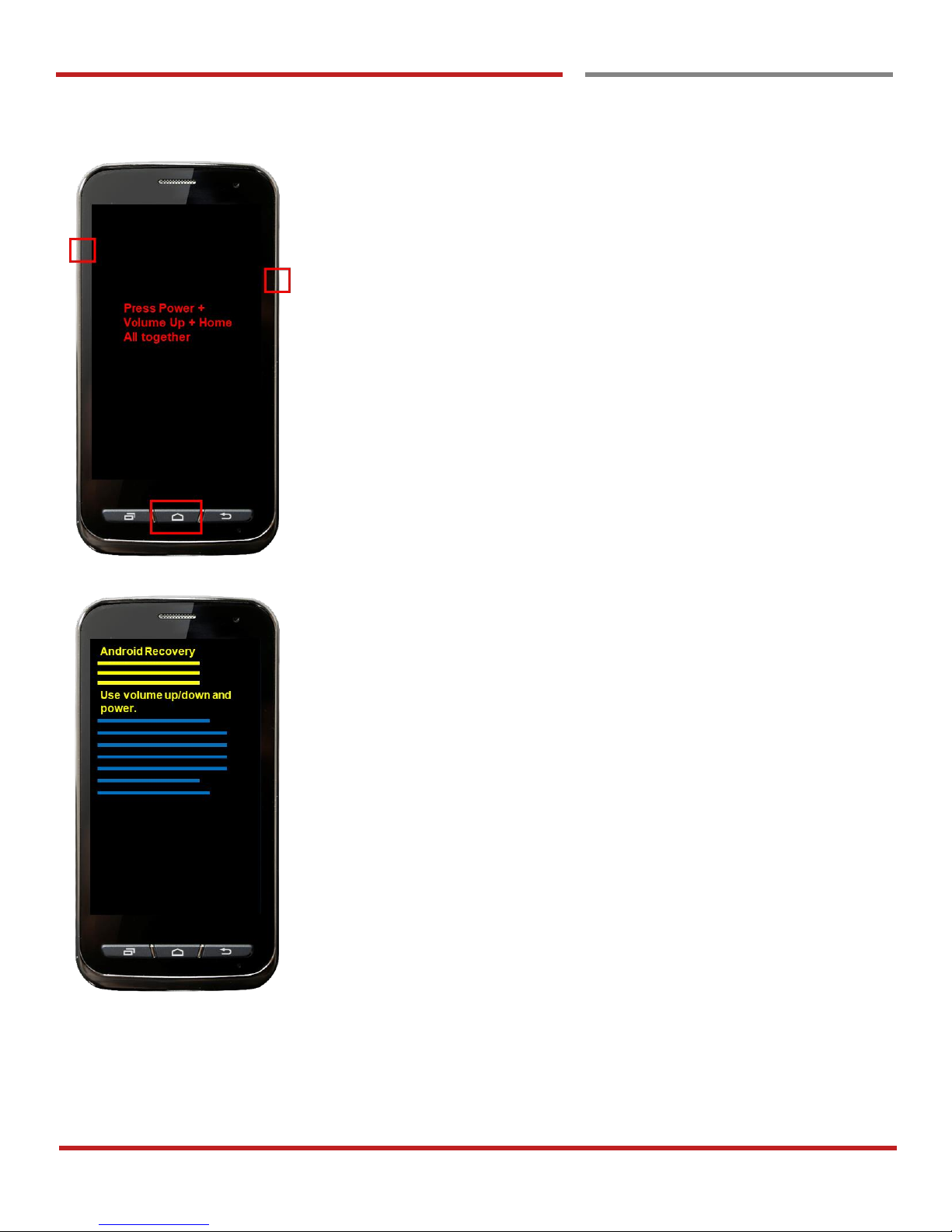

You can perform “force” factory data reset your PM70. When your PM70 turned off, press “Power” + “Volume up” + “Home” button all together. After short vibration from your PM70, you may release the buttons.

PM70 enter to the “Android Recovery” mode. In this mode,

“Volume up” is “Move Up” in the menu tree and “Volume down” is “Move Down” in the menu tree. “Power Button” is

“Select”

PM70 Android 6.0.1 User Manual

45

Factory data Reset

Force Factory data reset

Factory data reset

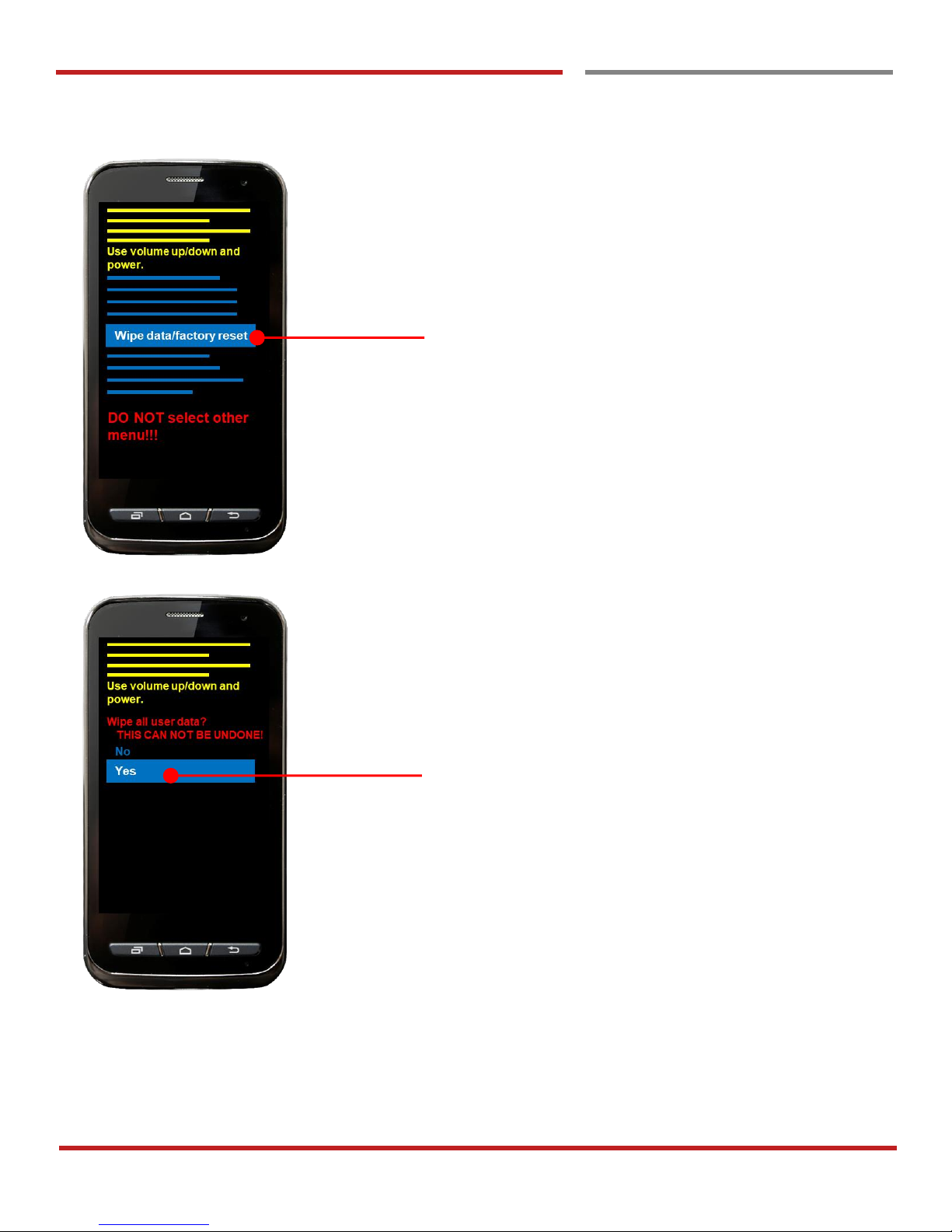

Select “Wipe data/factory reset”

Select “Yes” to perform the “Factory data reset”

After that, your PM70 start wiping the data

PM70 Android 6.0.1 User Manual

46

Factory data Reset

Force Factory data reset

Factory data reset

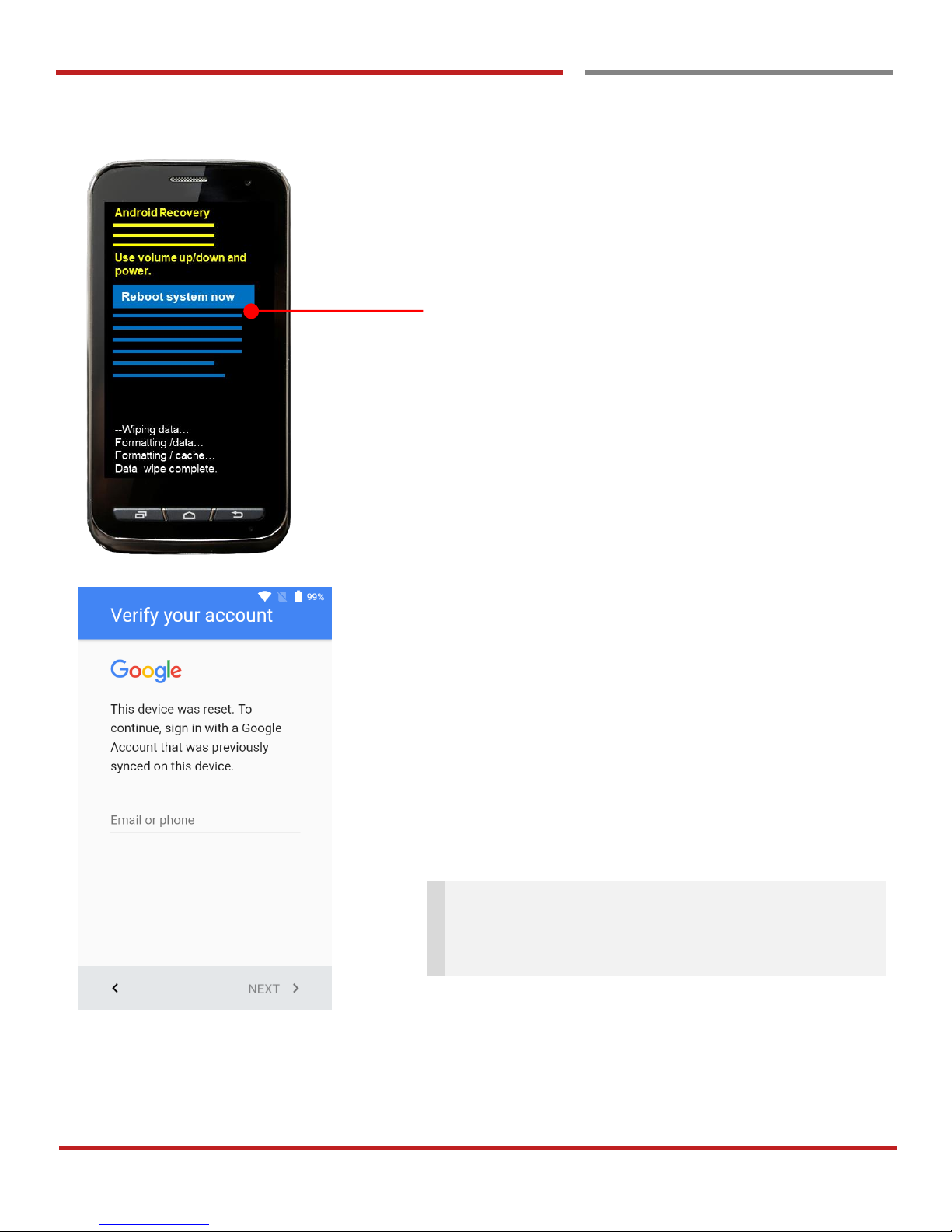

After data wiping, please select “Reboot system now” to finish the “Force Factory data reset” process

After Force factory reset, if PM Android Device locked by Factory Reset Protection, then please enter to Fast Boot mode and execute command

- fastboot erase config

- fastboot reboot

Note: Factory Reset Protection (FRP) is a security method that was designed to make sure someone can't just wipe and factory reset your device if you've lost it or it was stolen

PM70 Android 6.0.1 User Manual

47

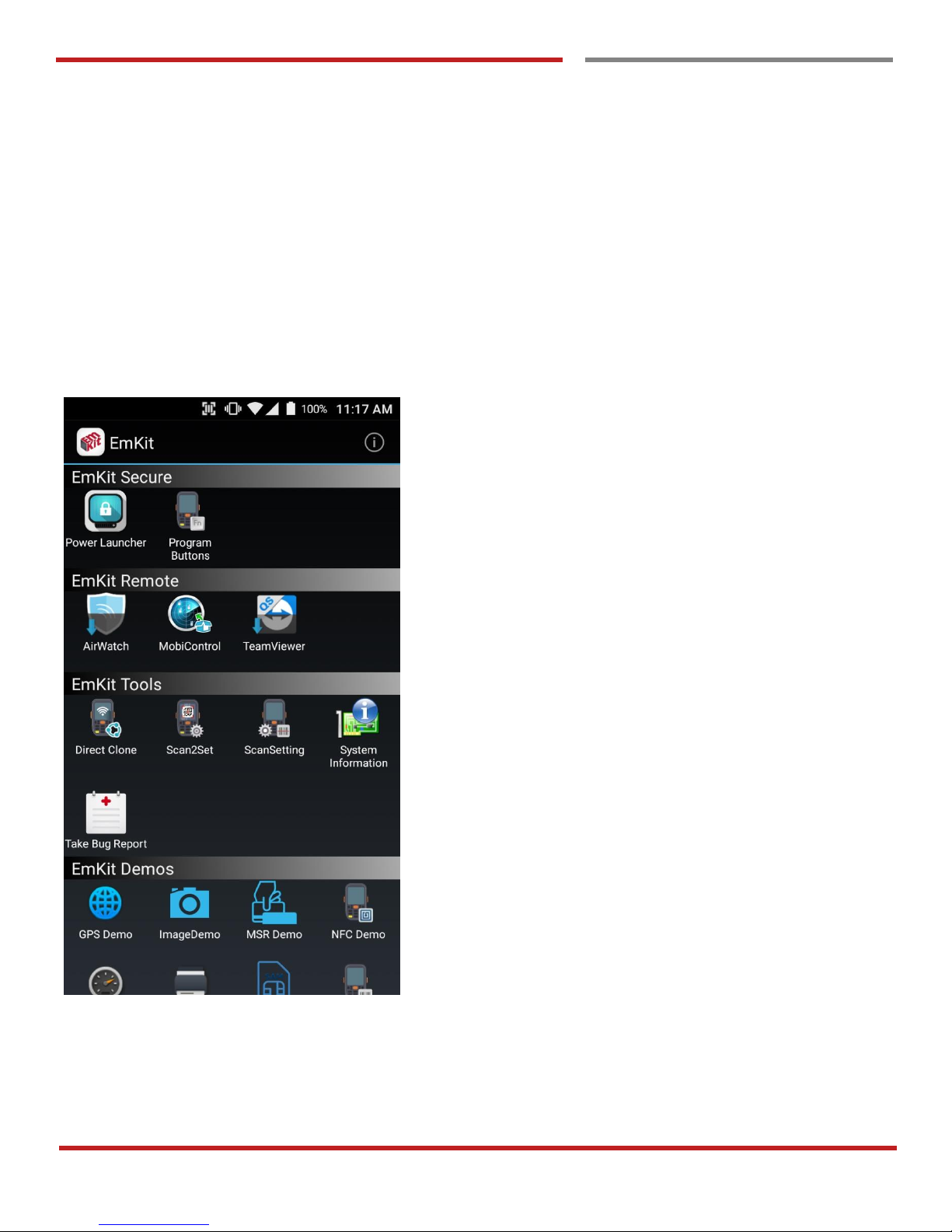

EmKit

Enterprise Mobility Kit

EmKit

Enterprise Mobility Kit – Truly, what Enterprise needs

Point Mobile announces new software solution – called “EmKit” is new software solution for enterprise mobility users. Our every Android device shall have EmKit pre-installed and every use can access them for free of charge*. EmKit offers truly-value-added advantages, for enterprise users, which are against consumer-centric & non-customizable smartphones. Every solution in EmKit is 100% compatible with Point Mobile Android GMS certified devices.

* Necessary MDM license subjects upon individual subscribers

EmKit consist with “EmKit Secure”, “EmKit Remote”, “Emkit Tools” and “EmKit Demos”

- EmKit Secure “Lock Your Device”

- EmKit Remote “Mobile Device Management”

- EmKit Tools “Smarty Tools Ease Enterprise”

- EmKit Demos “Friendly For Programmers”

PM70 Android 6.0.1 User Manual

48

EmKit Secure

EmKit

Power Launcher You can lock your Point Mobile Android model’s Home

Screen and limit to access app drawer or specific function.

This function as known as Kiosk mode.

- Hide Quick Settings : Limit to access quick setting panel

- Restrict MTP connection : Limit to access Point Mobile Device’s MTP connection

- Screenshot Disable : Disable screenshot capture in OS level

Restriction feature will be keep added.

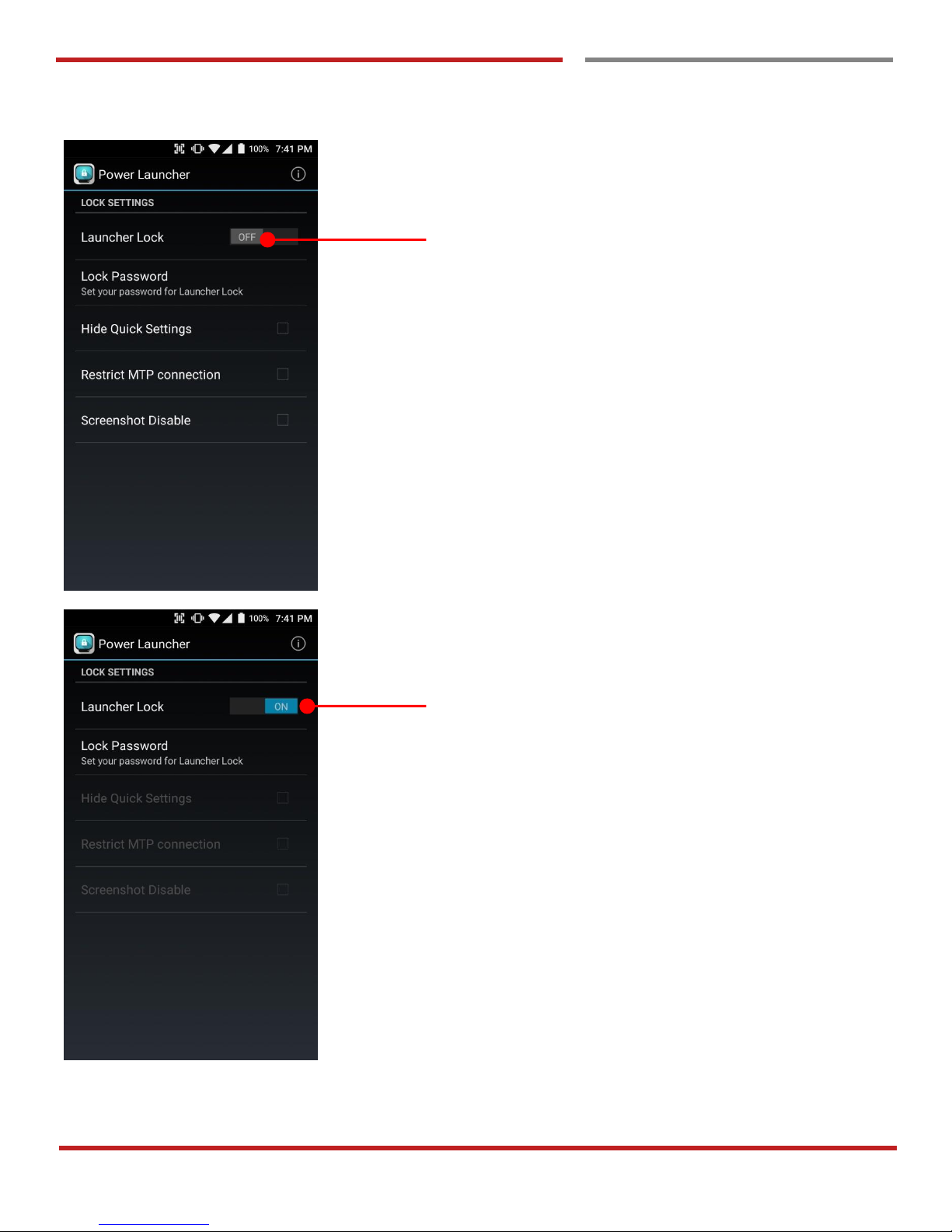

After restriction feature check, switch Launcher Lock to On.

PM70 Android 6.0.1 User Manual

49

EmKit Secure

EmKit

When Power Launcher is locked, operator could not access to App drawer.

Example of Screenshot Disable restriction.

PM70 Android 6.0.1 User Manual

50

EmKit Secure

EmKit

Program Buttons

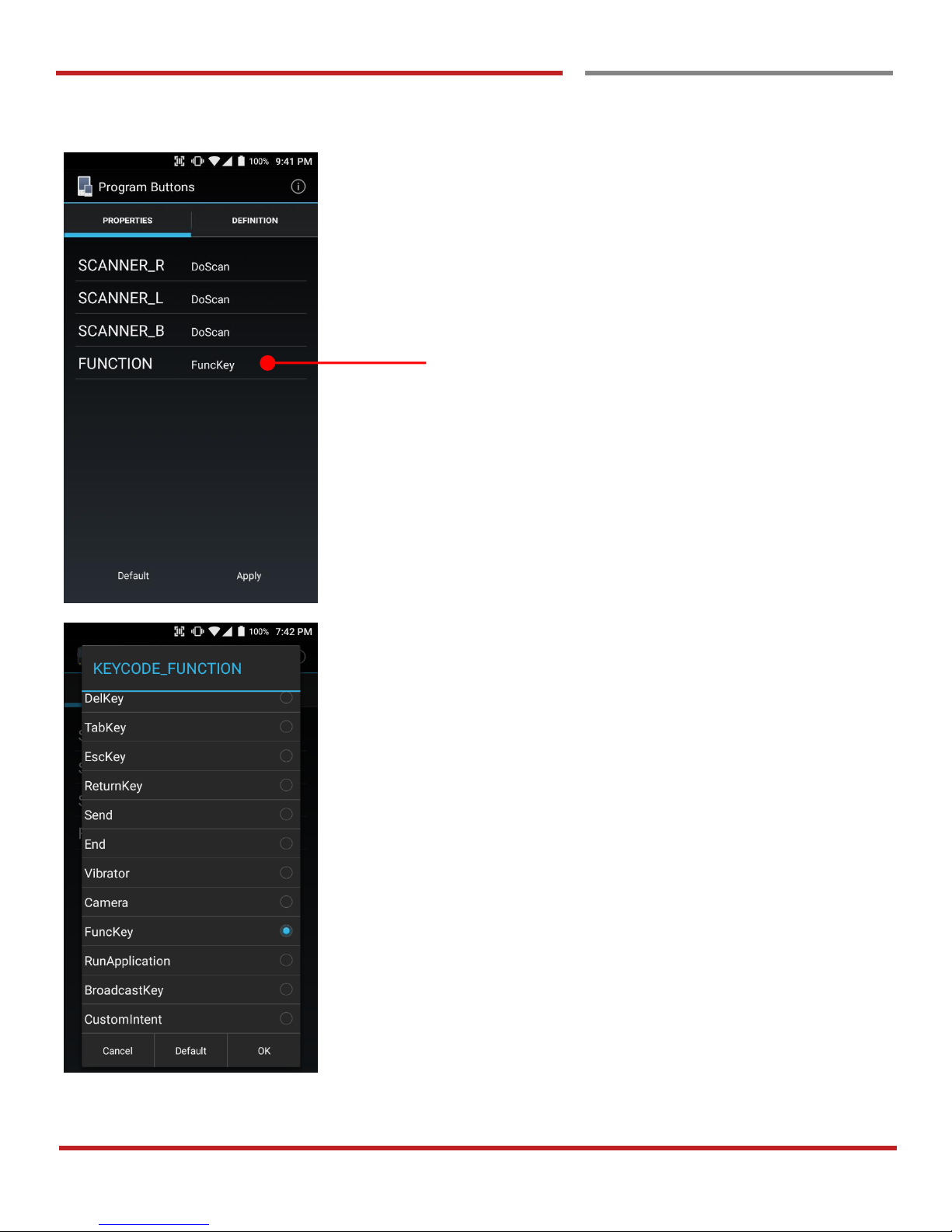

You can assign Hardware buttons function to rich preassigned functions. Also you can applying the customized KCM file (Key Character Map Files) here.

PM70 Android 6.0.1 User Manual

51

EmKit Remote

EmKit

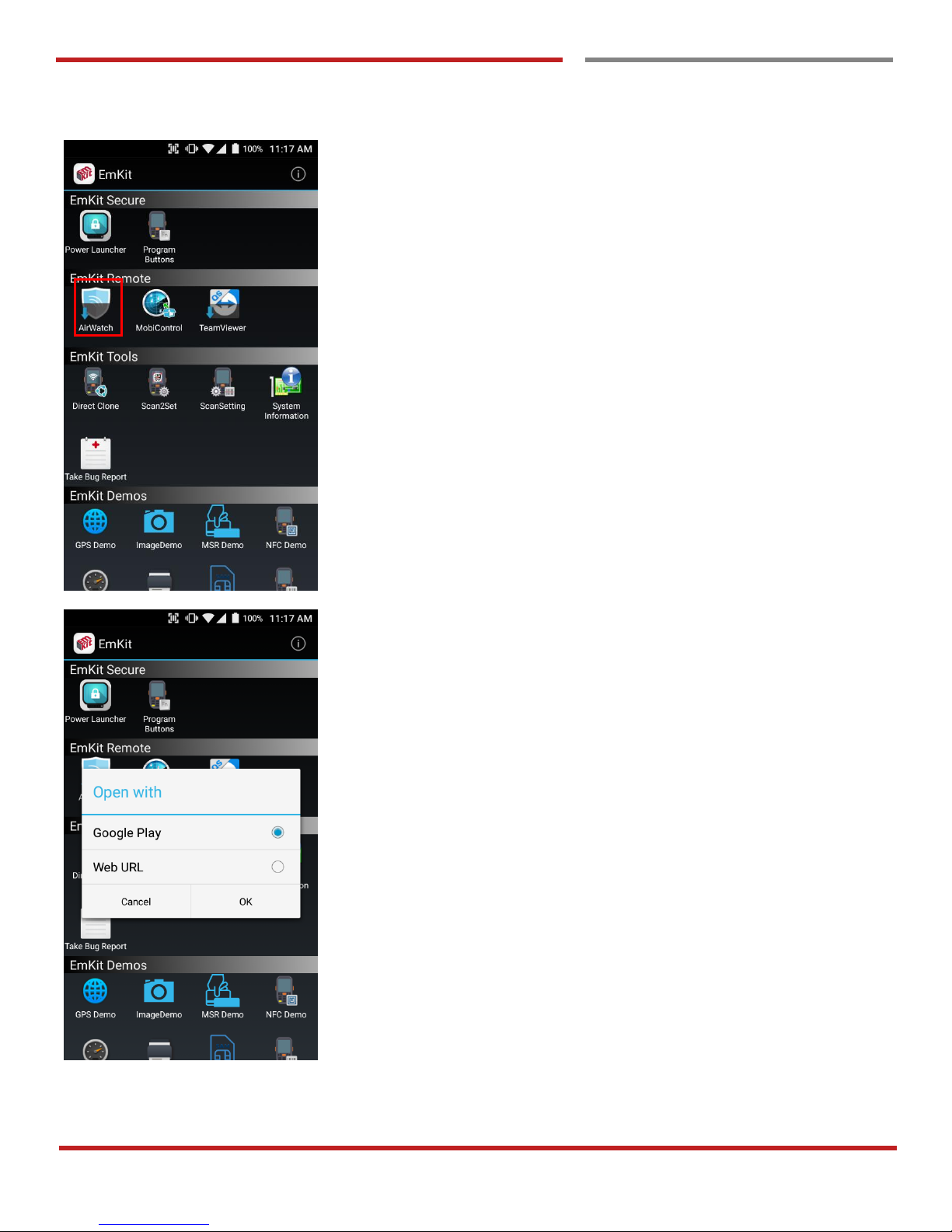

To install the AirWatch agent to Point Mobile Android device, please touch AirWatch icon

App provides AirWatch agent install via Google Play or Web URL.

- Google Play method requires Google account login. AirWatch agent download and install managed by Google Play

- Web URL method requires user’s manual installation

PM70 Android 6.0.1 User Manual

52

EmKit Remote

EmKit

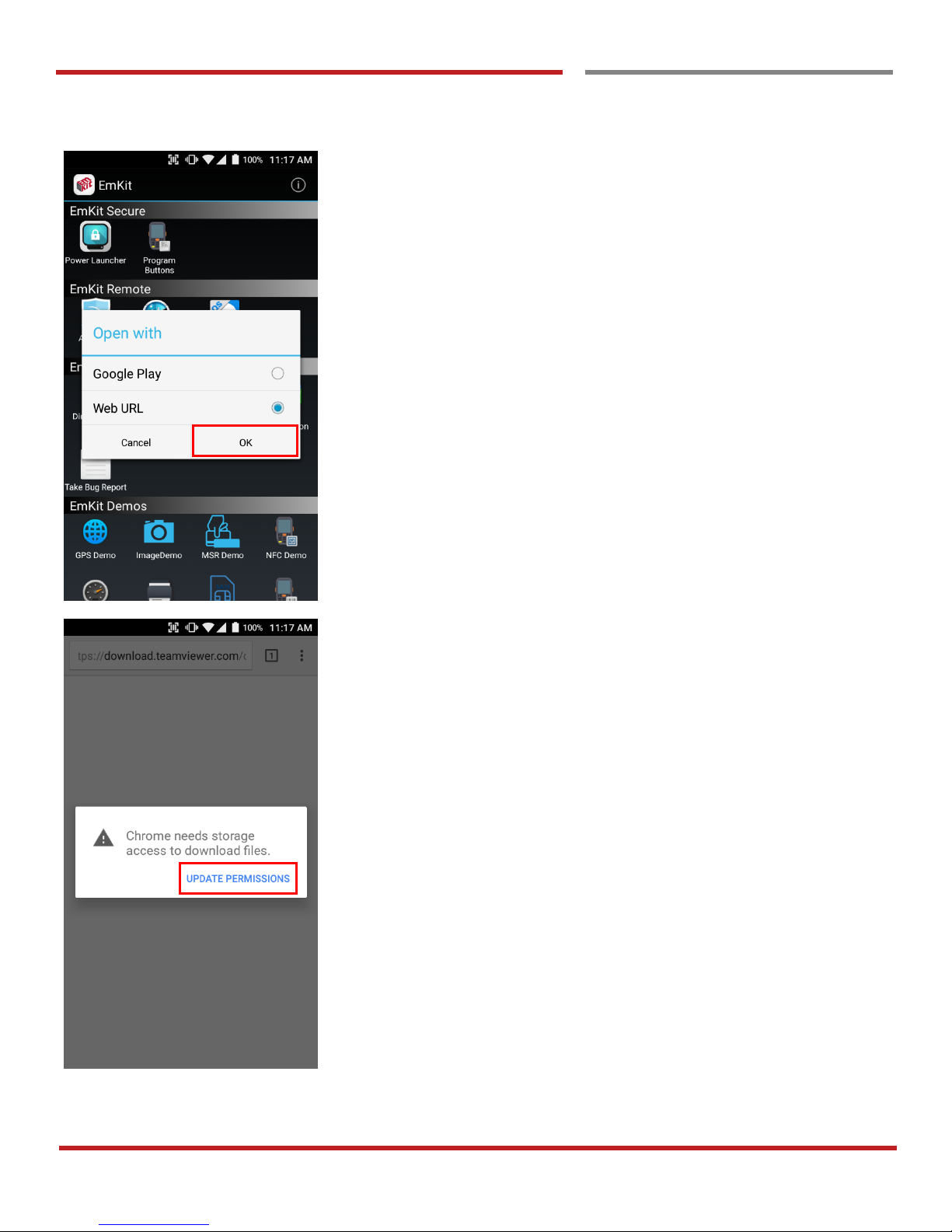

To install AirWatch agent from Web URL method, select Web URL and then OK

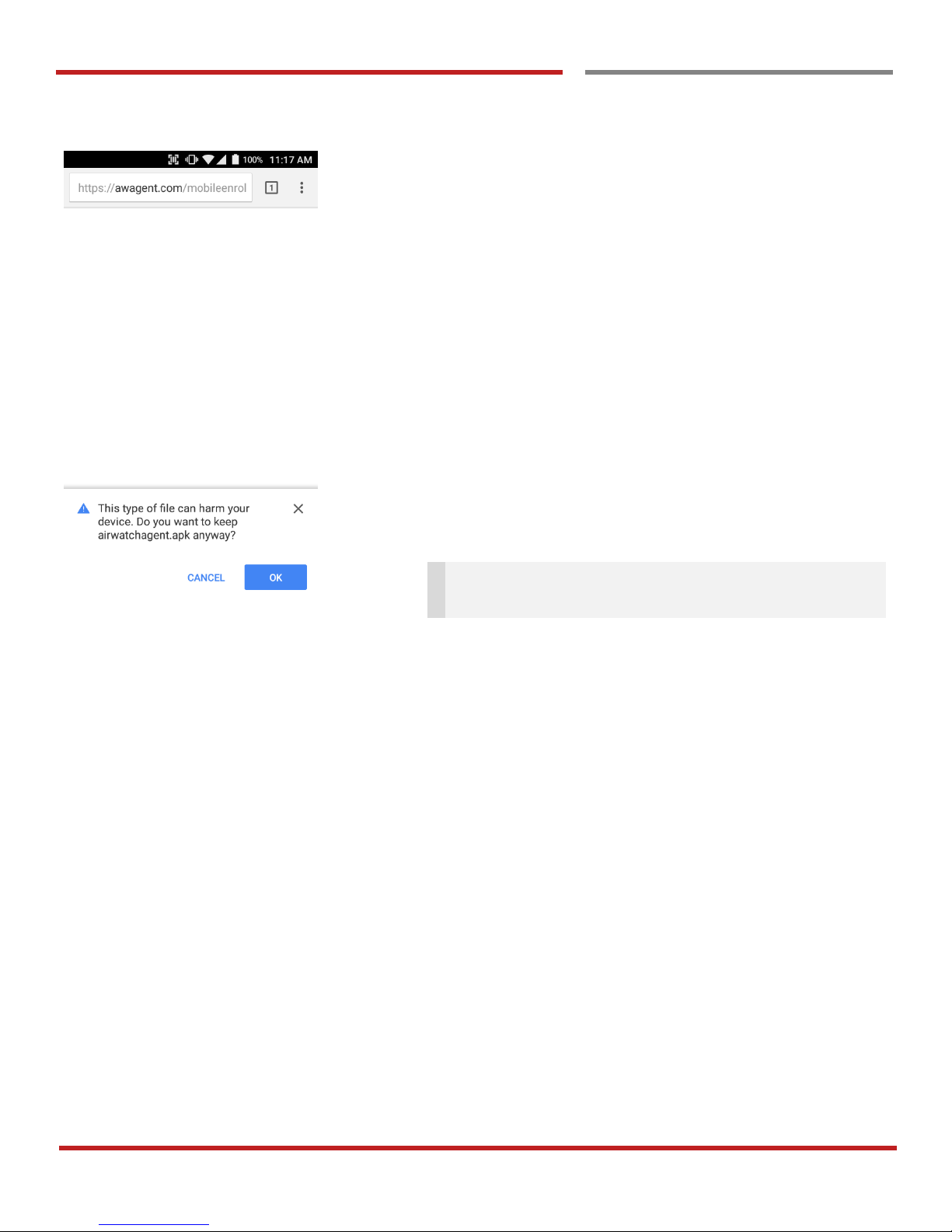

Web browser will download the apk file to the Point Mobile Android device. Before downloading, browser need permission to download apk file to the storage. Please touch Update Permissions button

PM70 Android 6.0.1 User Manual

53

EmKit Remote

EmKit

After permission update, web browser download the latest version of AirWatch agent apk file. Install this apk file to Point Mobile Android device.

Note: If you need to install specific agent version, please contact to AirWatch

PM70 Android 6.0.1 User Manual

54

EmKit Remote

EmKit

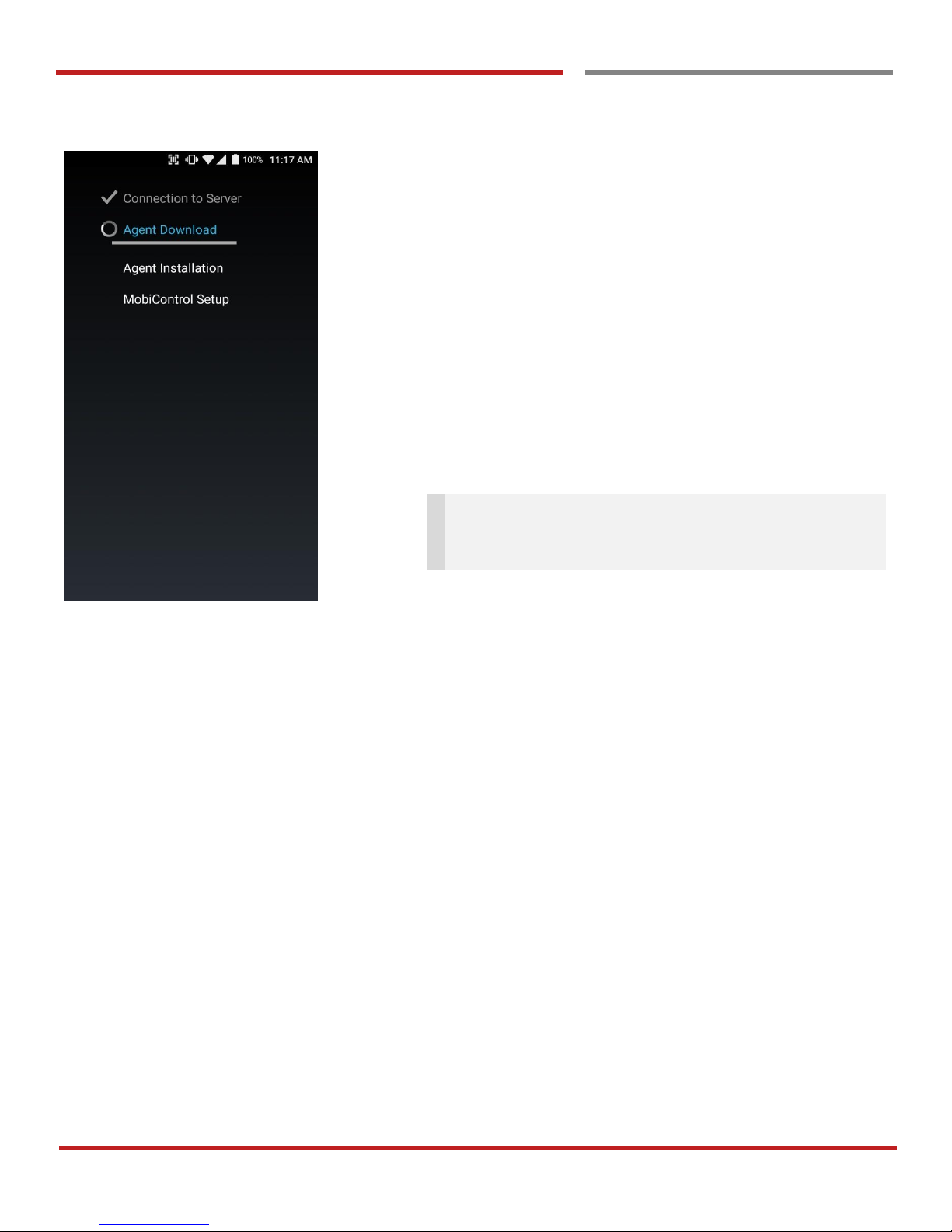

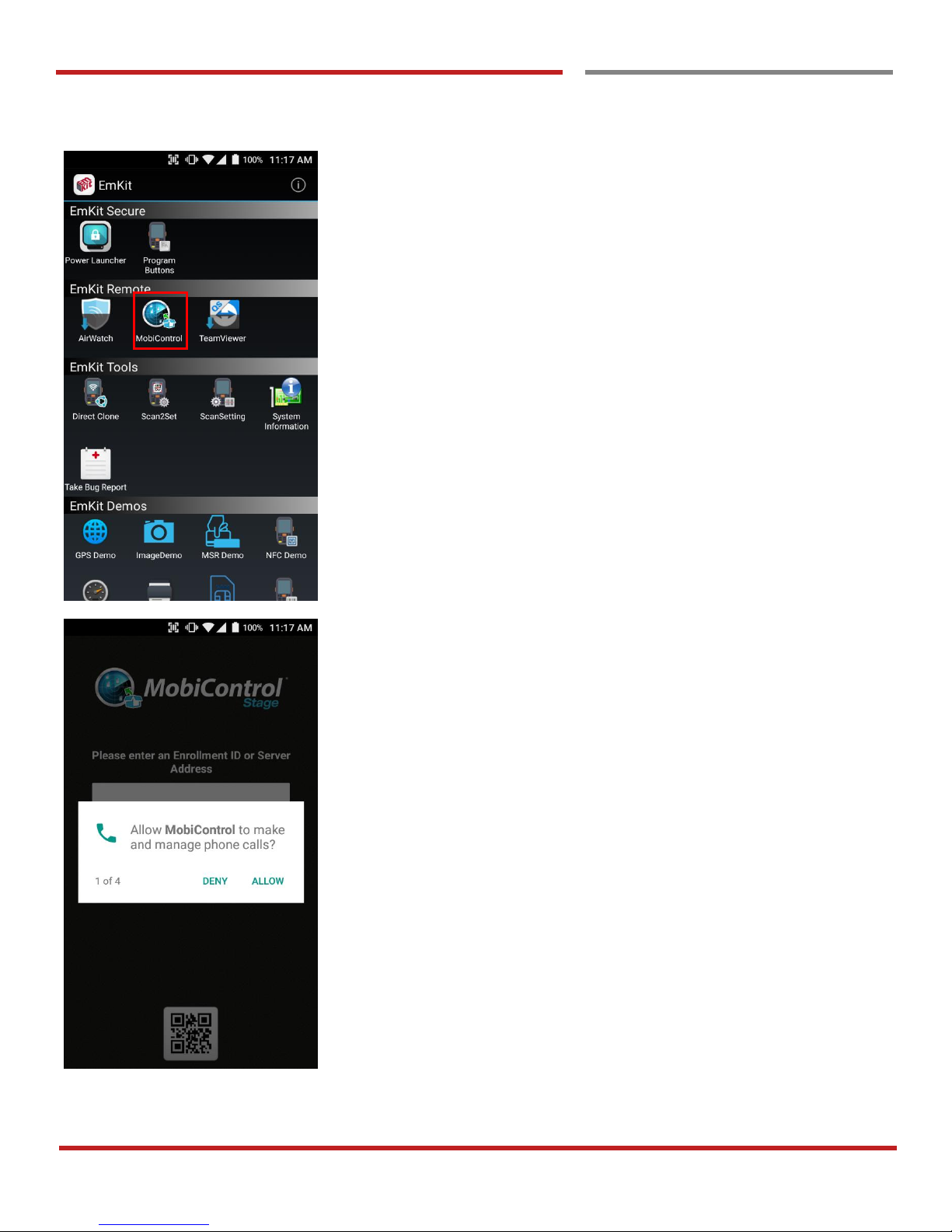

SOTI Mobi Control installer is pre-installed to Point Mobile Android device. To start enrollment process, please touch MobiControl icon

Mobi Control app request permission grant during enrollment process. Please allow it.

PM70 Android 6.0.1 User Manual

55

EmKit Remote

EmKit

After login, Mobi Control app communicate with SOTI server and then install the Mobi Control agent

Note: Agent version determine from SOTI console’s setting. If agent version is incorrect after enrollment, please contact to SOTI

PM70 Android 6.0.1 User Manual

56

EmKit Remote

EmKit

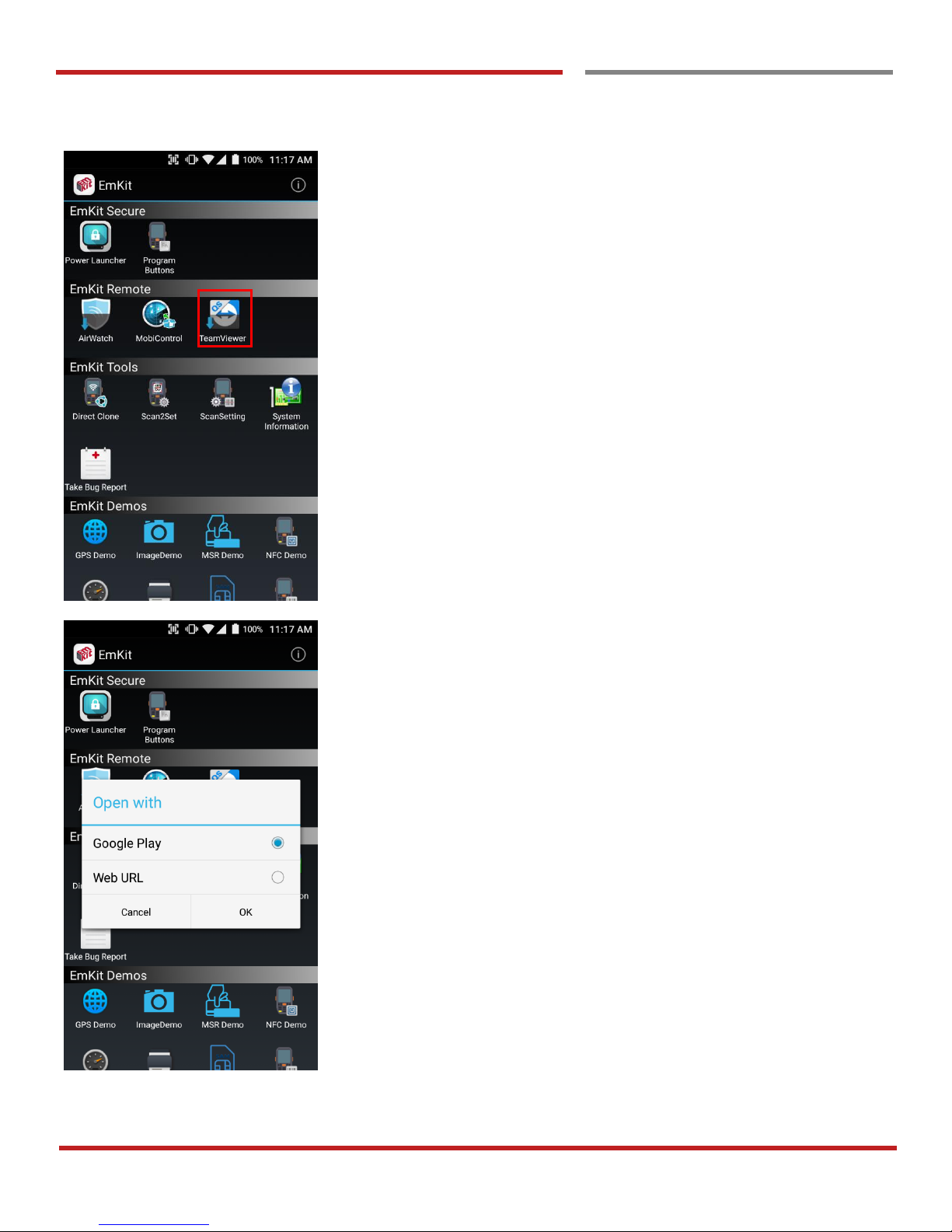

To install the TeamViewer QS app to Point Mobile Android device, please touch TeamViewer icon

App provides TeamViewer QS app install via Google Play or Web URL.

- Google Play method requires Google account login. TeamViewer QS app download and install managed by Google Play

- Web URL method requires user’s manual installation

PM70 Android 6.0.1 User Manual

57

EmKit Remote

EmKit

To install TeamViewer QS app from Web URL method, select Web URL and then OK

Web browser will download the apk file to the Point Mobile Android device. Before downloading, browser need permission to download apk file to the storage. Please touch Update Permissions button

PM70 Android 6.0.1 User Manual

58

EmKit Remote

EmKit

After permission update, web browser download the latest version of TeamViewer QS apk file. Install this apk file to Point Mobile Android device.

Note: If you need to install specific TeamViewer QS version, please contact to TeamViewer

PM70 Android 6.0.1 User Manual

59

EmKit Tools

EmKit

Direct Clone

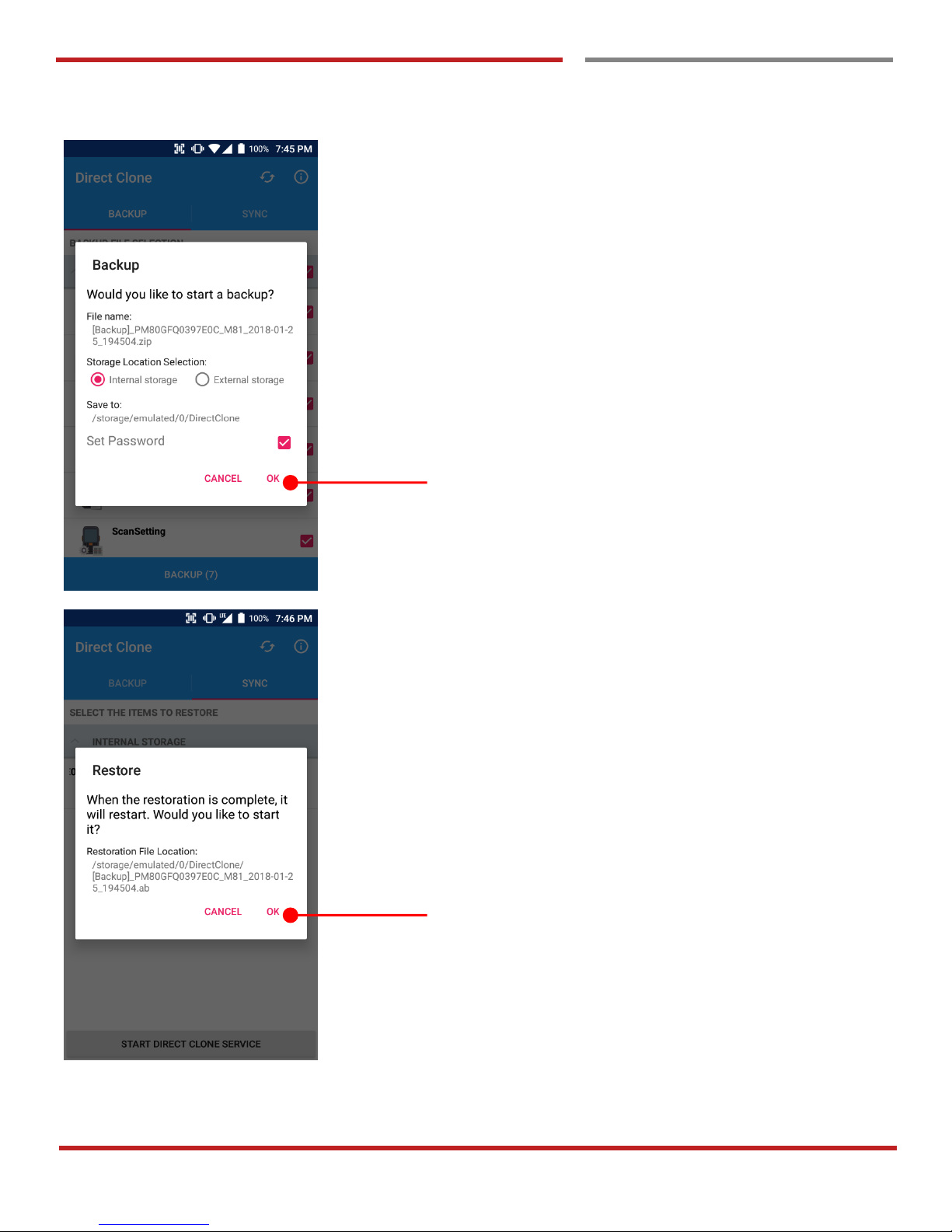

Create the Master PDA - backup your system settings and apps into a secured file. Without any network connection, Master PDA become a local server in your work place. Nearby Point Mobile device will automatically communicate with Master PDA and download the backup file and then Restore.

Create the backup file

Backed up file will restore your Point Mobile Android device.

PM70 Android 6.0.1 User Manual

60

EmKit Tools

EmKit

Step 1. Create Direct Clone Backup file

- Make a Direct Clone file from Master PDA device

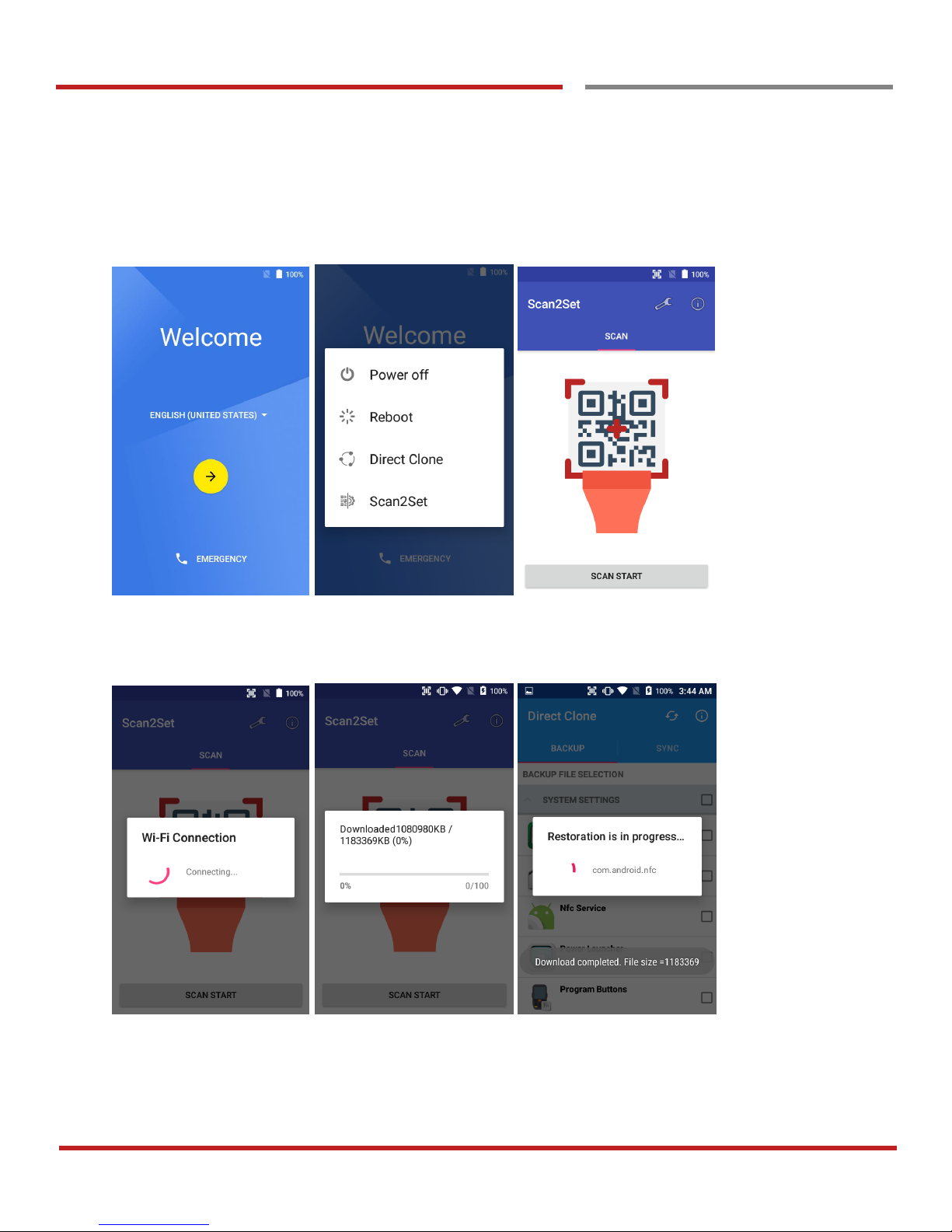

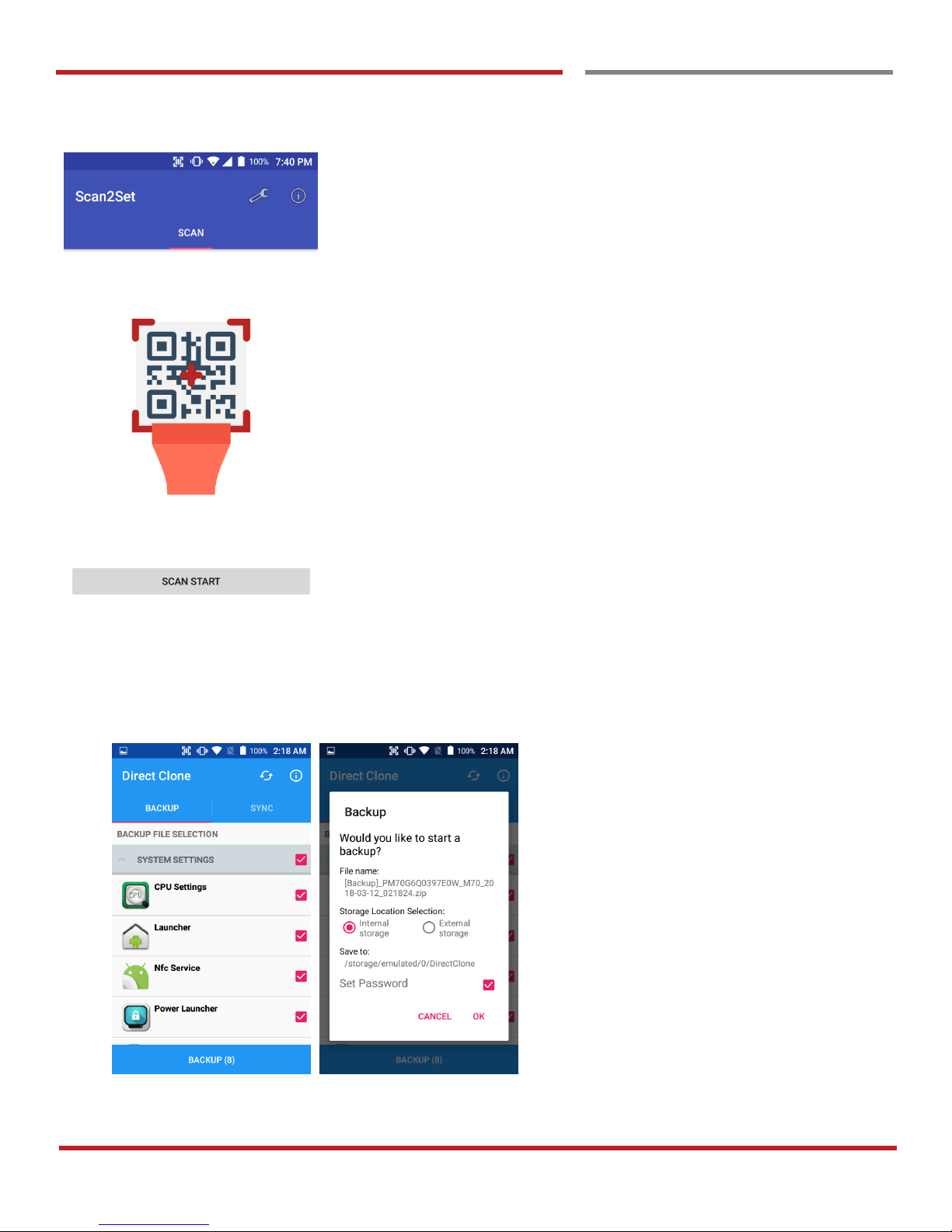

Scan2Set

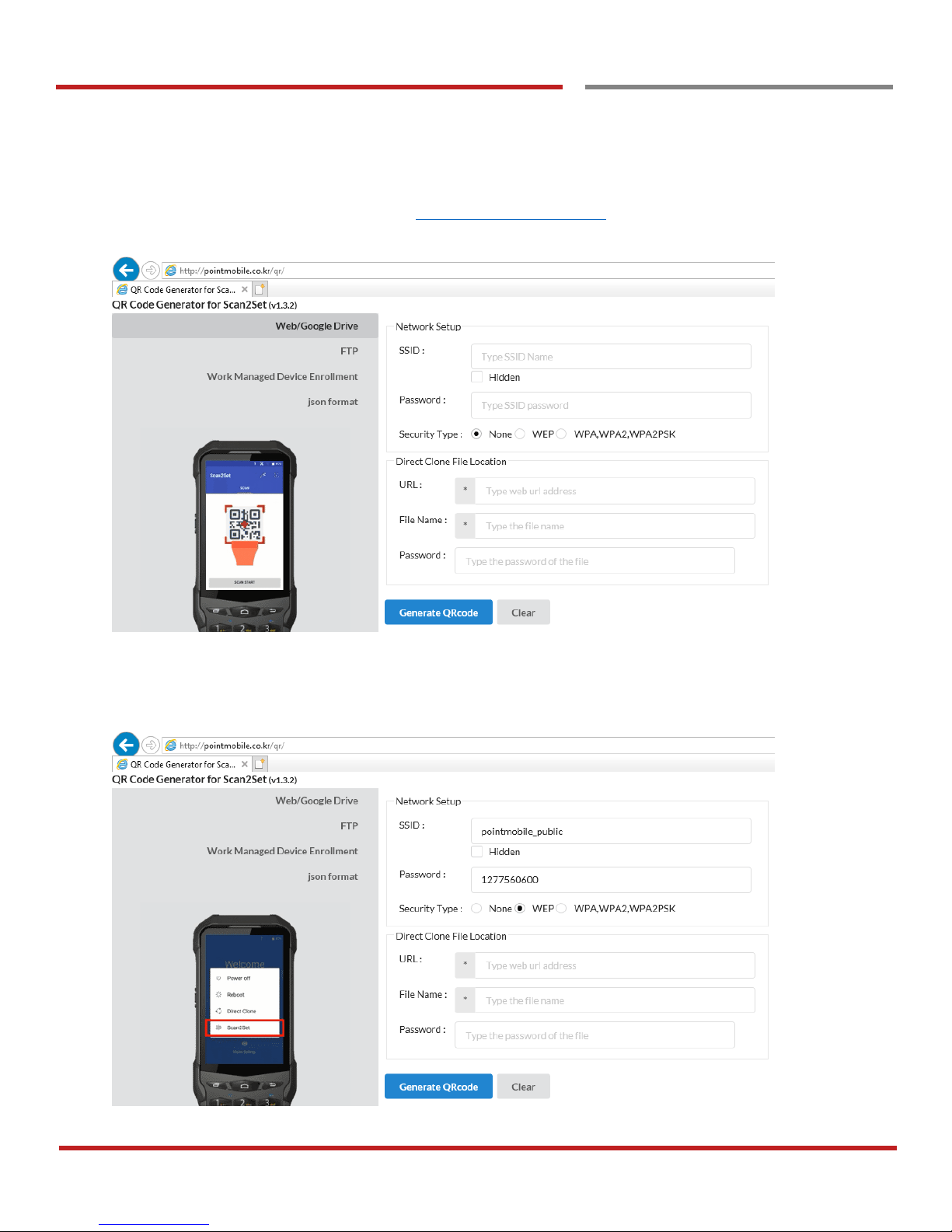

Scan2Set is designed for the network environment. Point Mobile Android device downloads the Direct Clone file from the FTP, Web server and Google Drive with just one QRcode Scan!

Scan your QR code and,

- Connect to your network

- Restore your PDA

- Work Managed Device setup

PM70 Android 6.0.1 User Manual

61

EmKit Tools

EmKit

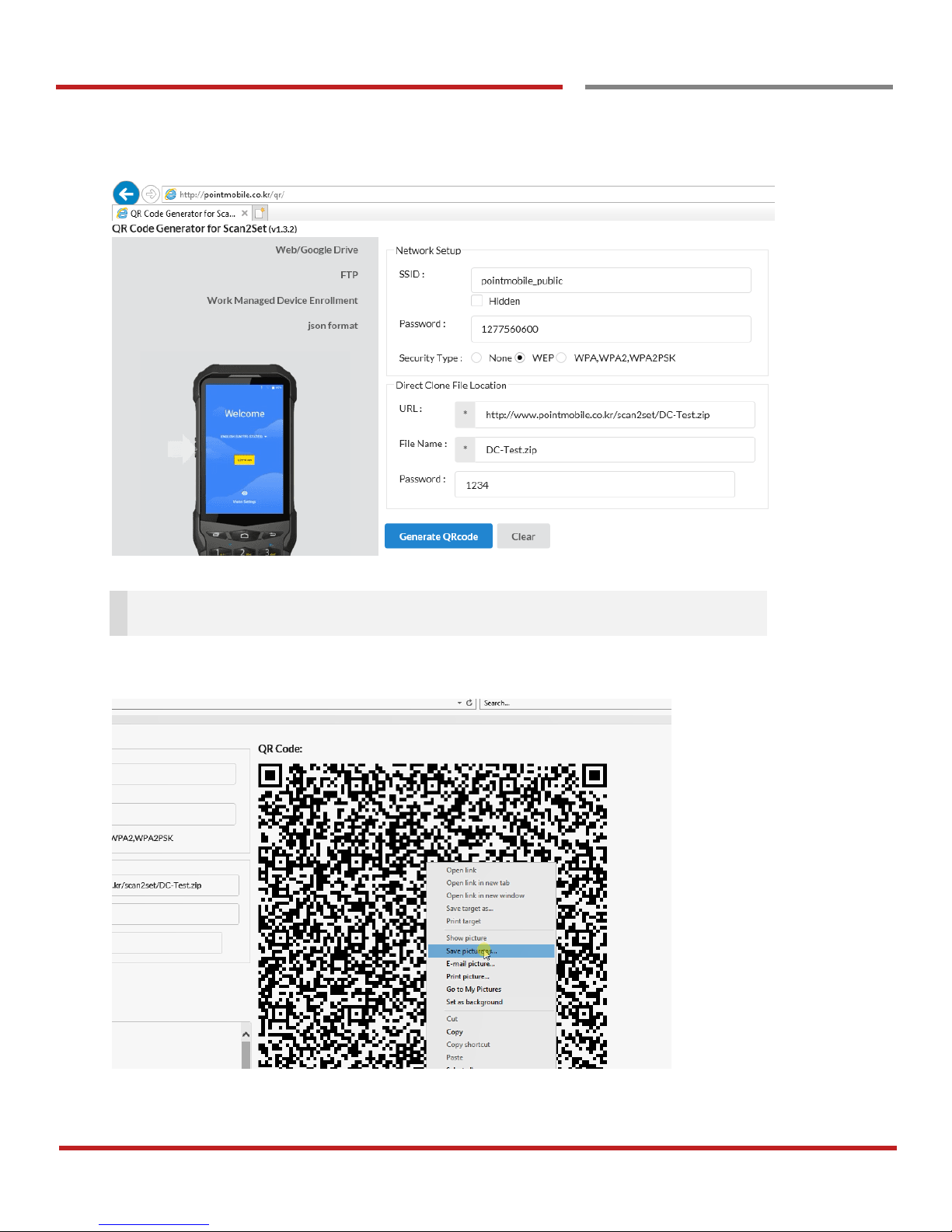

Step 2. Upload Direct Clone file to your FTP site or Web server

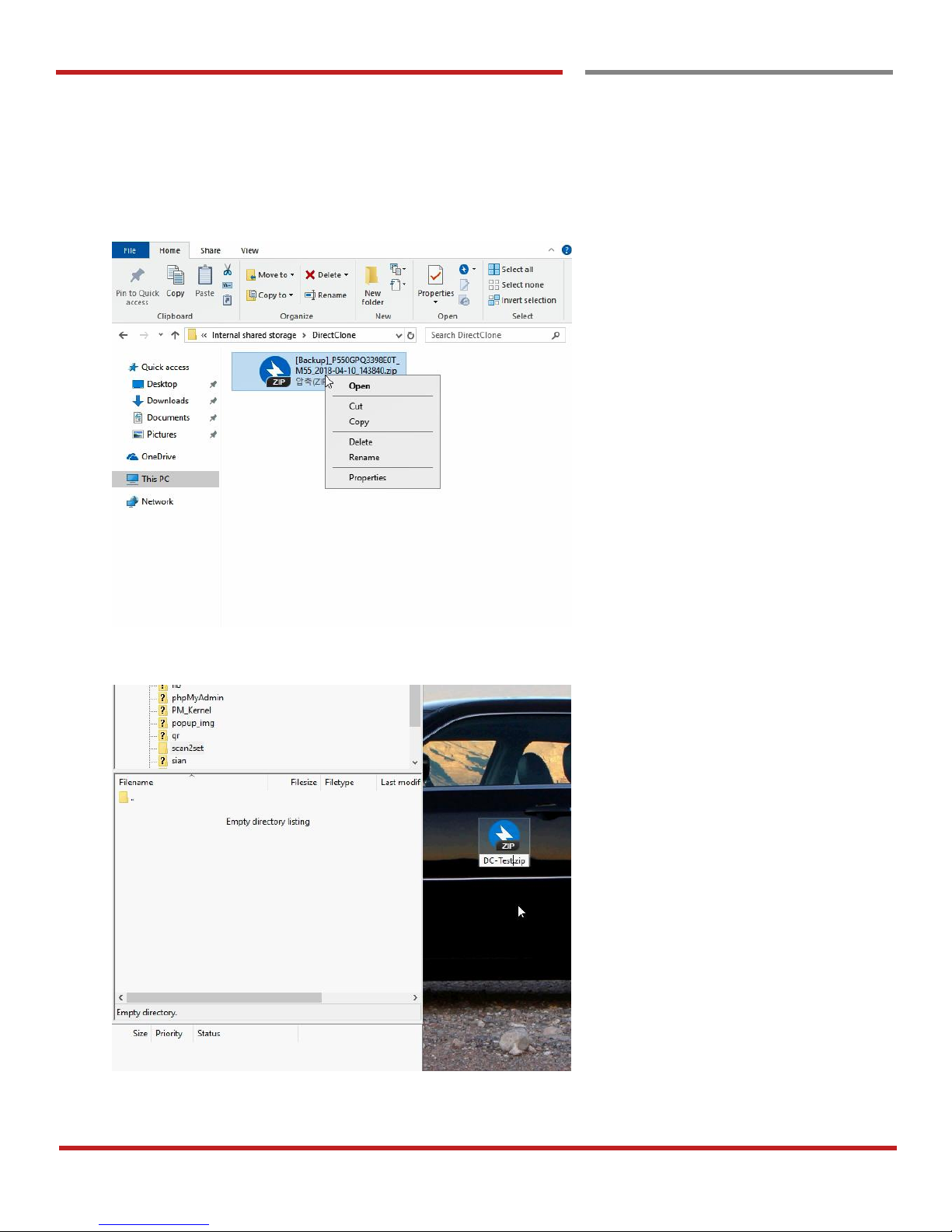

- Copy the Direct Clone file from the Point Mobile Android device

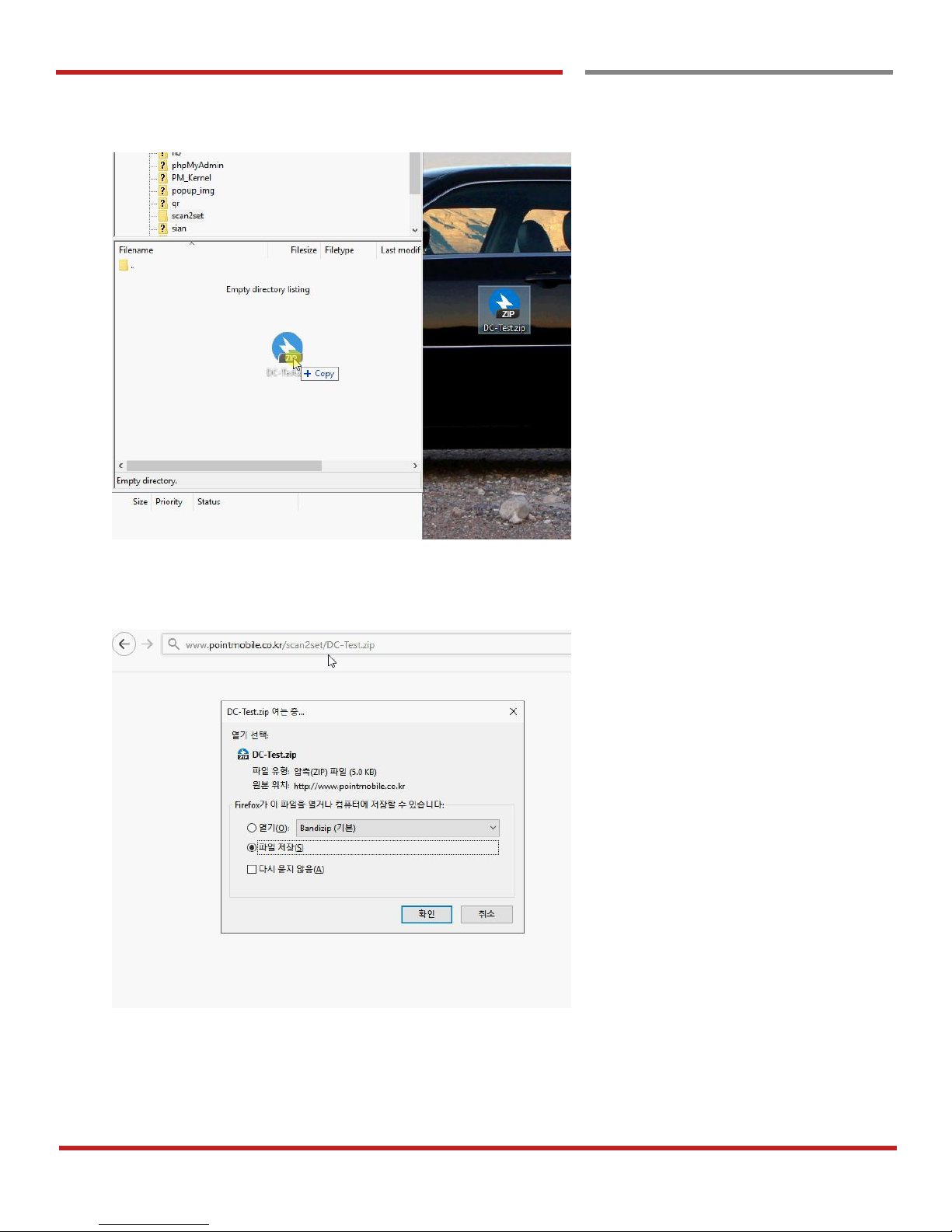

- Upload this file to your FTP site or Web Server. You may change file name

-

PM70 Android 6.0.1 User Manual

62

EmKit Tools

EmKit

- After file uploading, please check the url first. File should be download with url address.

PM70 Android 6.0.1 User Manual

63

EmKit Tools

EmKit

Step 3. Generate QRcode

- Access to Web QRcode generating site www.pointmobile.co.kr/qr

- Click Web/Google Drive menu

- Input Network information, Direct Clone file name and password

PM70 Android 6.0.1 User Manual

64

EmKit Tools

EmKit

Note: Make sure put http:// or https:// in front of url address

- Click Generate QRcode button and save or print generated QRcode

PM70 Android 6.0.1 User Manual

65

EmKit Tools

EmKit

Step 4. Read QRcode in other PDAs

- Turn on your Point Mobile Android device.

- Press the Power Button, then you will see the Scan2Set in the menu

- Read the generated QRcode. Point Mobile Android device will download the file from the FTP site or Web server and restore Direct Clone file

PM70 Android 6.0.1 User Manual

66

EmKit Tools

EmKit

ScanSetting

You can set your PM80’s scanner option with intuitive menu.

System information

All of SW and HW information available here and can save it to the file.

- Touch Save to file.

- devinfo.html file saved to root folder of the internal storage.

PM70 Android 6.0.1 User Manual

67

Tools

EmKit Tools

EmKit

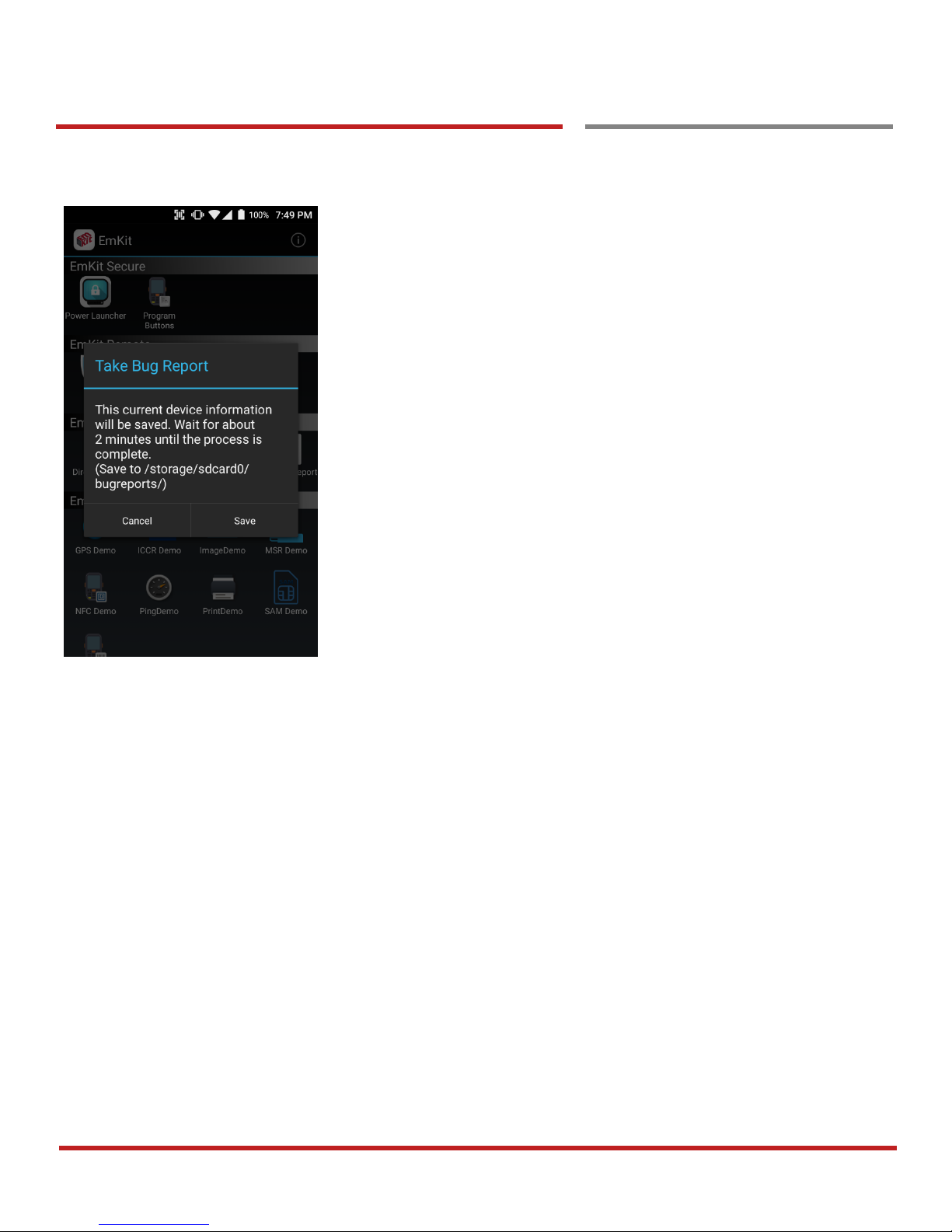

Take Bug Report

This function save logs and event to the internal storage. When you have a field issue, and need to contact service center, please find the reproduce step first.

- Reproduce the issue.

- After issue, reproduce, please run Take bug report.

- File will be saved to bugreports folder.

- Copy the file to the PC and then zip it to reduce the file size.

- Share bug report file to the service center or Point Mobile Support team with reproduce steps.

PM70 Android 6.0.1 User Manual

68

EmKit Demos

EmKit

GPS Demo

Developer can demonstrate or check Point Mobile Android model’s GPS signal strength, Satellite info, NMEA info.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

ICCR Demo

Developer can demonstrate or check Point Mobile Android model’s payment solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

PM70 Android 6.0.1 User Manual

69

`

EmKit Demos

EmKit

Image Demo

Developer can demonstrate or check Point Mobile Android model’s 2D scanner’s image taking solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

MSR Demo

Developer can demonstrate or check Point Mobile Android model’s IC card and Magnetic card reading solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

PM70 Android 6.0.1 User Manual

70

`

EmKit Demos

EmKit

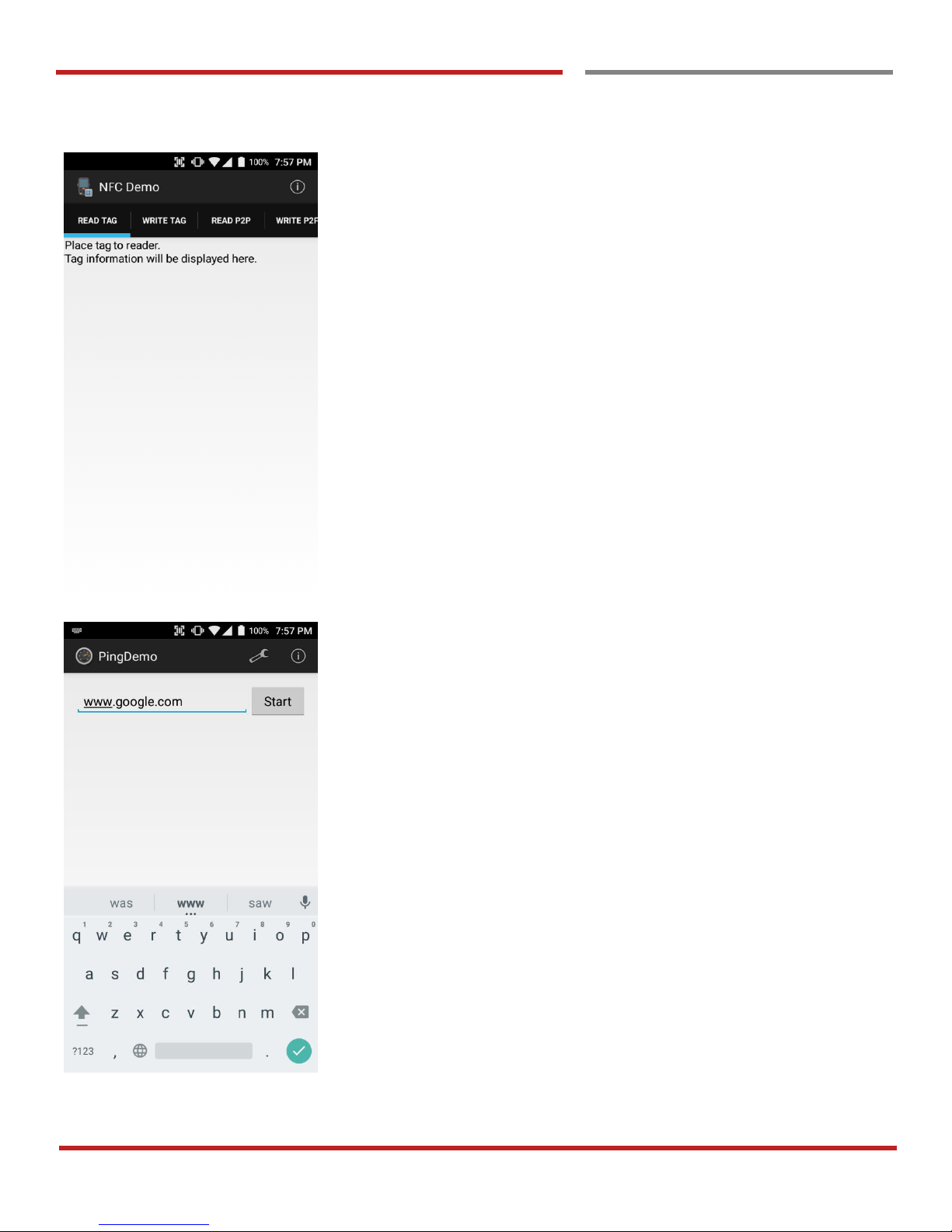

NFC Demo

Developer can demonstrate or check Point Mobile Android model’s NFC Read/Write solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

Ping Demo

Developer can demonstrate or check Point Mobile Android model’s ping test.

PM70 Android 6.0.1 User Manual

71

`

EmKit Demos

EmKit

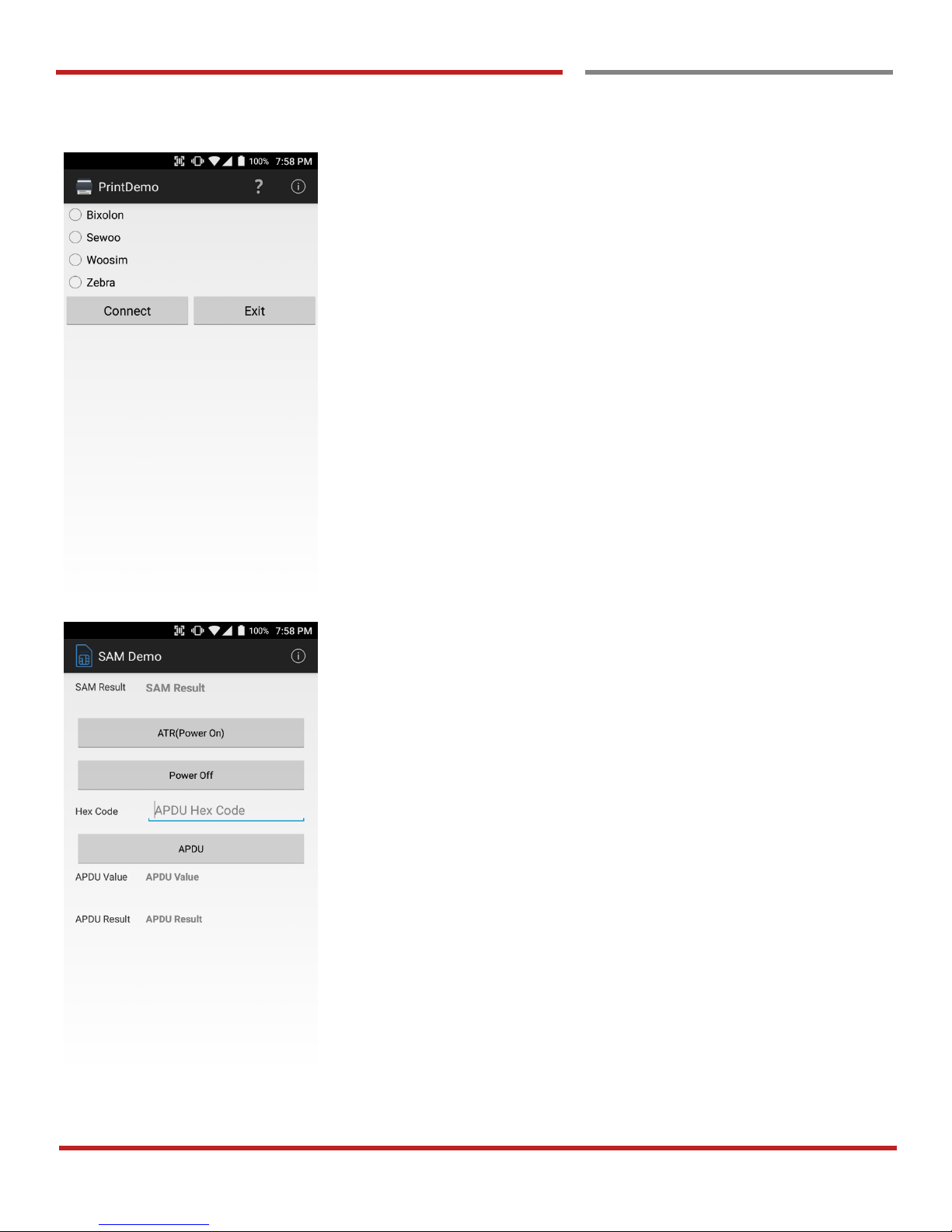

Print Demo

Developer can demonstrate or check Point Mobile Android model’s Bluetooth mobile printing solution.

SAM Demo

Developer can demonstrate or check Point Mobile Android model’s SAM communication.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

PM70 Android 6.0.1 User Manual

72

`

EmKit Demos

EmKit

Scan Demo

Developer can demonstrate or check Point Mobile Android model’s Scanner solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

POINT MOBILE. CO., LTD.

Offline

Tel: +82-2-3397-7870~1 ARS: 1800-3010 Fax: +82-2-3397-7872 Address: B-9F Kabul Great Valley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, Korea 08512

Point Mobile Co., Ltd. Logo are registered trademarks and symbols of Point Mobile Co., Ltd. Features and specifications are subject to change without prior notice.

Online

Website: http://www.pointmobile.co.kr/ E-mail: [email protected]
