Point Mobile PM550 User Manual

For AndroidTM 7.1.2

Enterprise Mobility

PM550

User Manual

Google, Android, Google Play and other marks are

trademarks of Google LLC.

PM550 Android 7.1.2 User Manual

1

User Manual

Please note your phone is battery-embedded design with removable battery and battery cover. Unauthorized personnel are strictly prohibited from disassembling the phone. Make sure to use only the power adapter (5V 2A Output AC/DC) that came with PM550.

In case your phone does not work as expected, you are strongly recommended to restart it by pressing and holding the power button for at least 12 seconds until the startup screen appears. If your phone has encountered a serious error and cannot be recovered, you should reset your phone to factory settings by using

the menu, either “Backup & Reset”, or “Factory Reset”. For more details, please refer to “Factory data reset”

section on page 51

Note: Please be cautious while performing the factory data reset. Because this will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc.

Body-worn Operation

This device was tested for typical body-worn operations with the front & back of the phone kept 0.2 inches (0.5 cm) between the user’s body and the front & back of the phone. A minimum separation distance of

0.2 inches (0.5 cm) must be maintained between the user’s body and the front & back of the phone. Any belt clips, holsters, and similar accessories containing metallic components may not be used. Bodyworn accessories that cannot maintain 0.2 inches (0.5 cm) separation distance between the user's body and the front & back of the phone, and have not been tested for typical body-worn operations should be avoided.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

Rev 03

PM550 Android 7.1.2 User Manual

2

Table of Contents

User Manual .......................................................................................................................................................................... 1

Table of Contents ................................................................................................................................................................. 2

Getting Started ...................................................................................................................................................................... 3

Major Parts ........................................................................................................................................................................ 3

Accessary .......................................................................................................................................................................... 5

Charge PM550 .................................................................................................................................................................. 6

Turn On/Off PM550 .......................................................................................................................................................... 8

Hot swap the battery ........................................................................................................................................................ 9

Learning the basics ............................................................................................................................................................ 10

Use a keypad .................................................................................................................................................................. 10

Use a touch screen ........................................................................................................................................................ 12

Setup Wizard ................................................................................................................................................................... 14

Home Screen, Apps and Widget.................................................................................................................................. 21

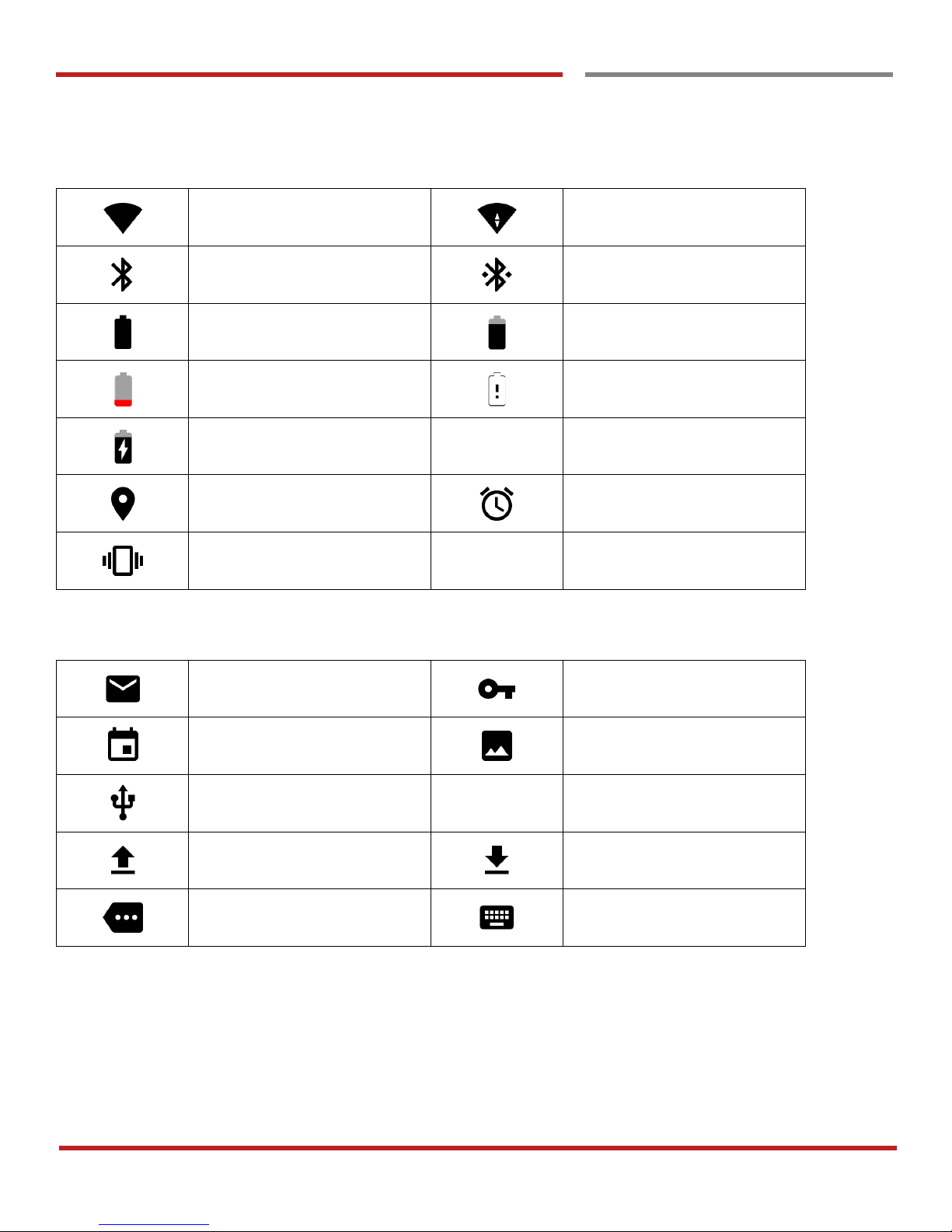

Status & Notifications Icons .......................................................................................................................................... 30

Connect to your Wi-Fi network ..................................................................................................................................... 31

Scanner Settings ................................................................................................................................................................ 33

Use a Scanner ................................................................................................................................................................ 33

Scan a Barcode .............................................................................................................................................................. 42

OS Update ........................................................................................................................................................................... 44

OS Image update from Storage ................................................................................................................................... 44

OS Image update from OTG Port ................................................................................................................................ 46

OS Image update from the FOTA ................................................................................................................................ 49

Factory data reset .............................................................................................................................................................. 51

Factory data reset from Settings .................................................................................................................................. 51

Force Factory data reset ............................................................................................................................................... 53

EmKit .................................................................................................................................................................................... 56

EmKit Secure .................................................................................................................................................................. 57

EmKit Remote ................................................................................................................................................................. 60

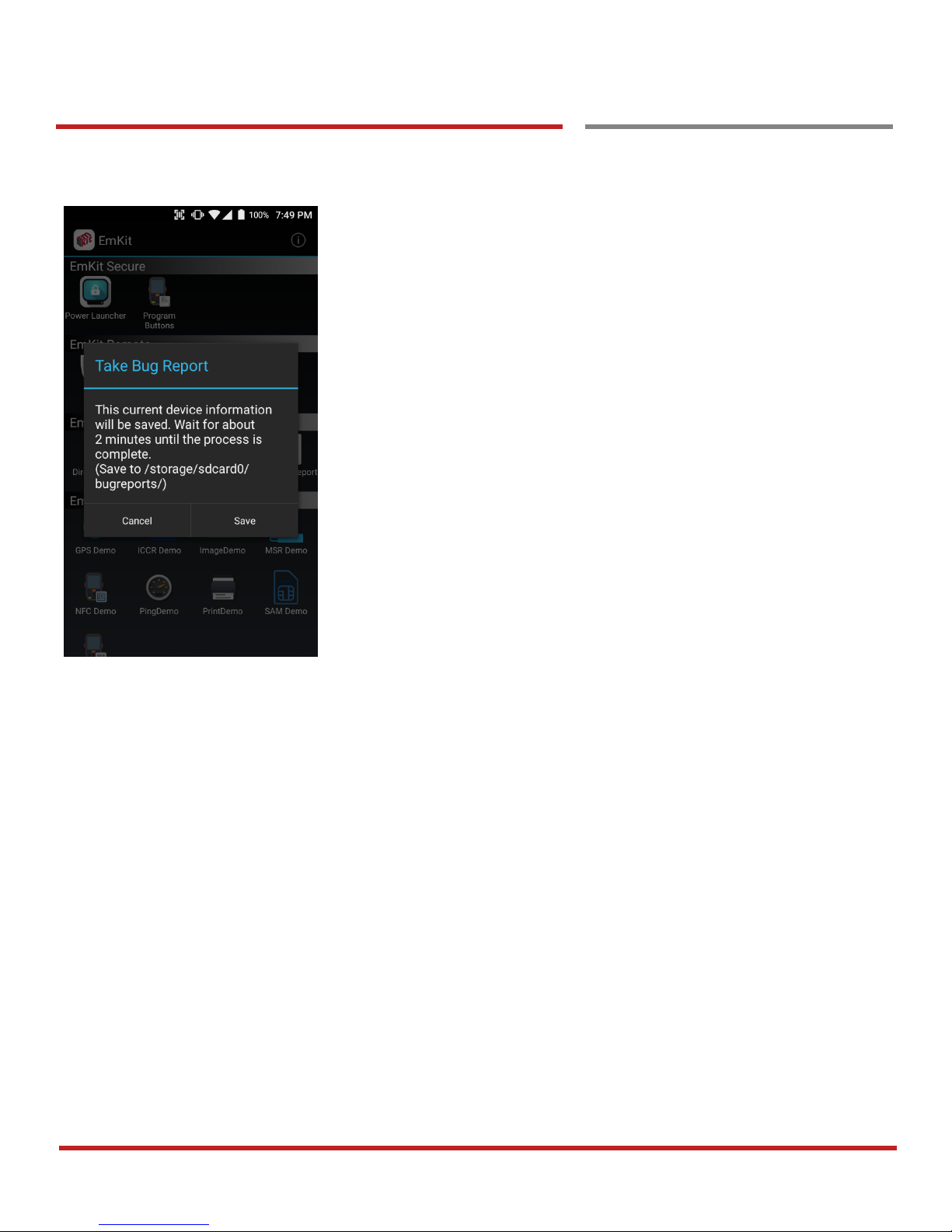

EmKit Tools ..................................................................................................................................................................... 68

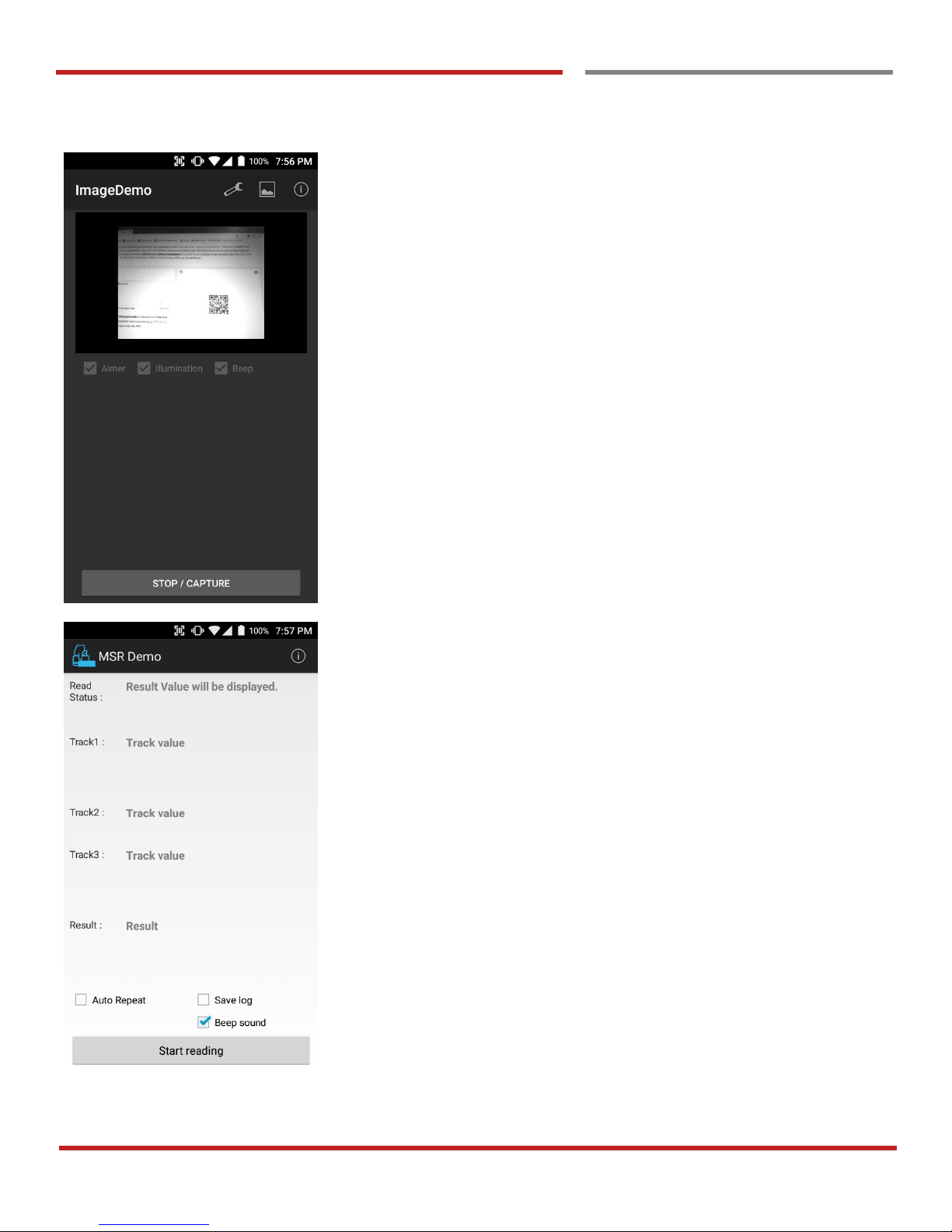

EmKit Demos .................................................................................................................................................................. 77

PM550 Android 7.1.2 User Manual

3

Getting Started

Major Parts

Getting Started

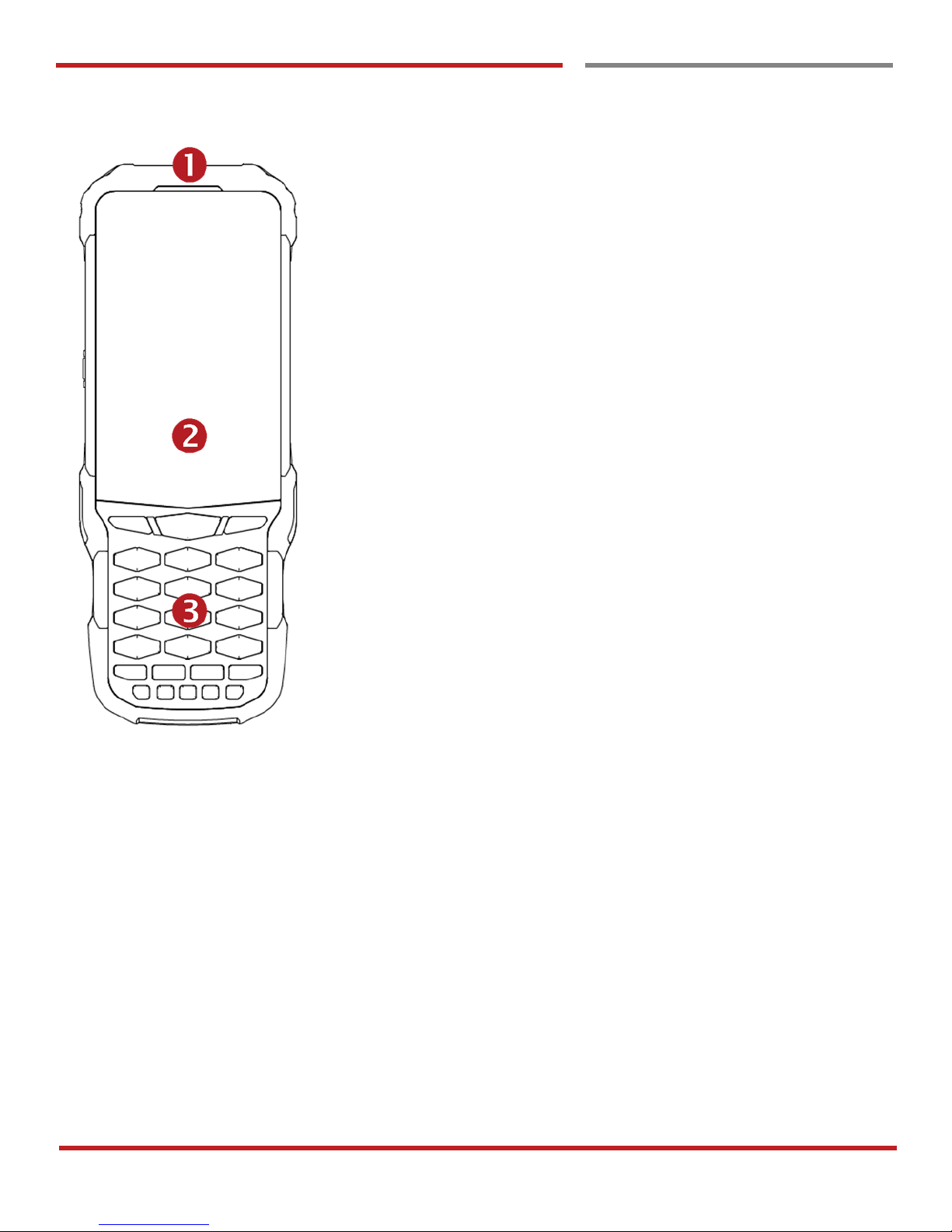

1. LED Indicator

2. Touch Screen

3. Key pad

PM550 Android 7.1.2 User Manual

4

Getting Started

Major Parts

Getting Started

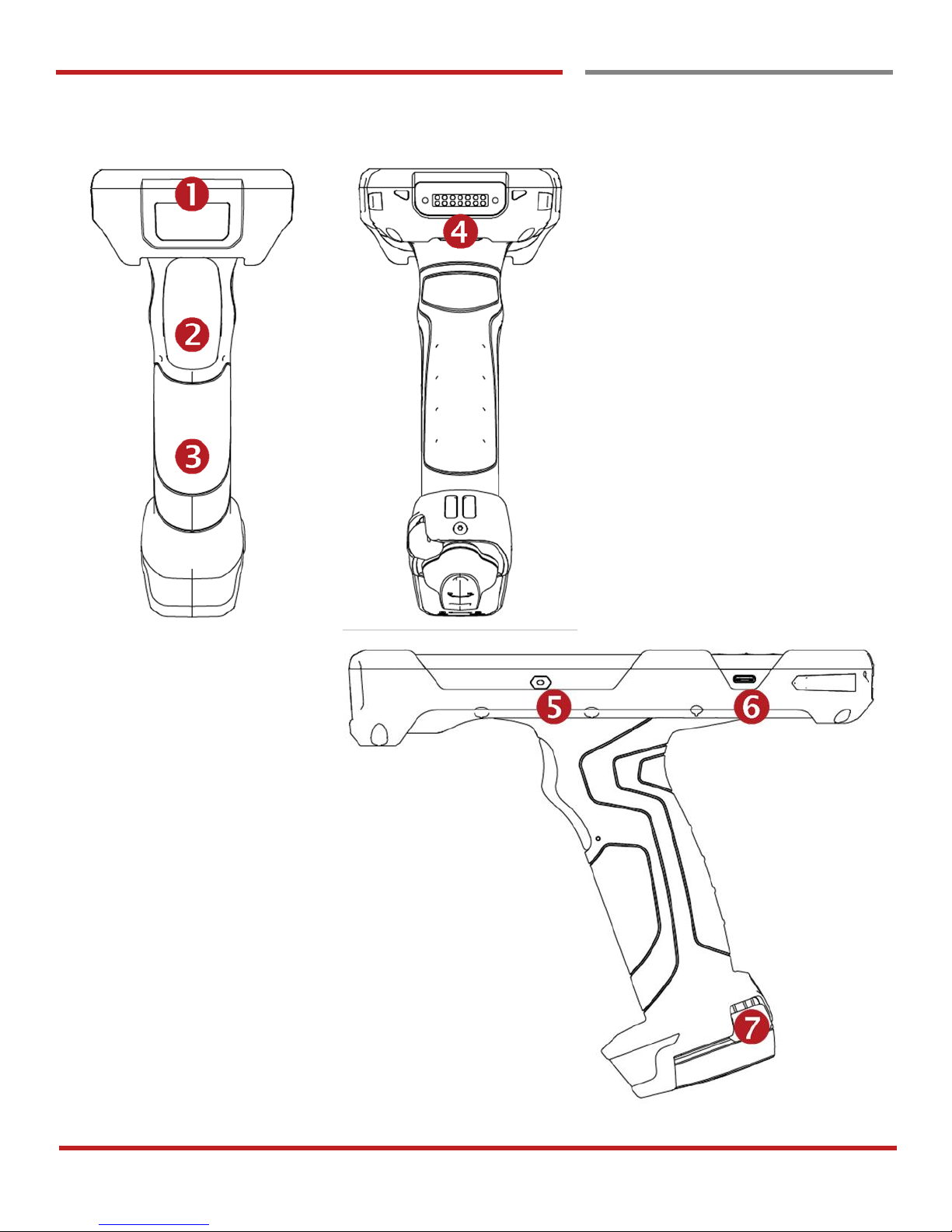

1. Scanner

2. Scanner trigger

3. Gun handle

4. Charging pad

5. Power key

6. USB-C type connector

7. Battery lock

PM550 Android 7.1.2 User Manual

5

Getting Started

Accessary

Getting Started

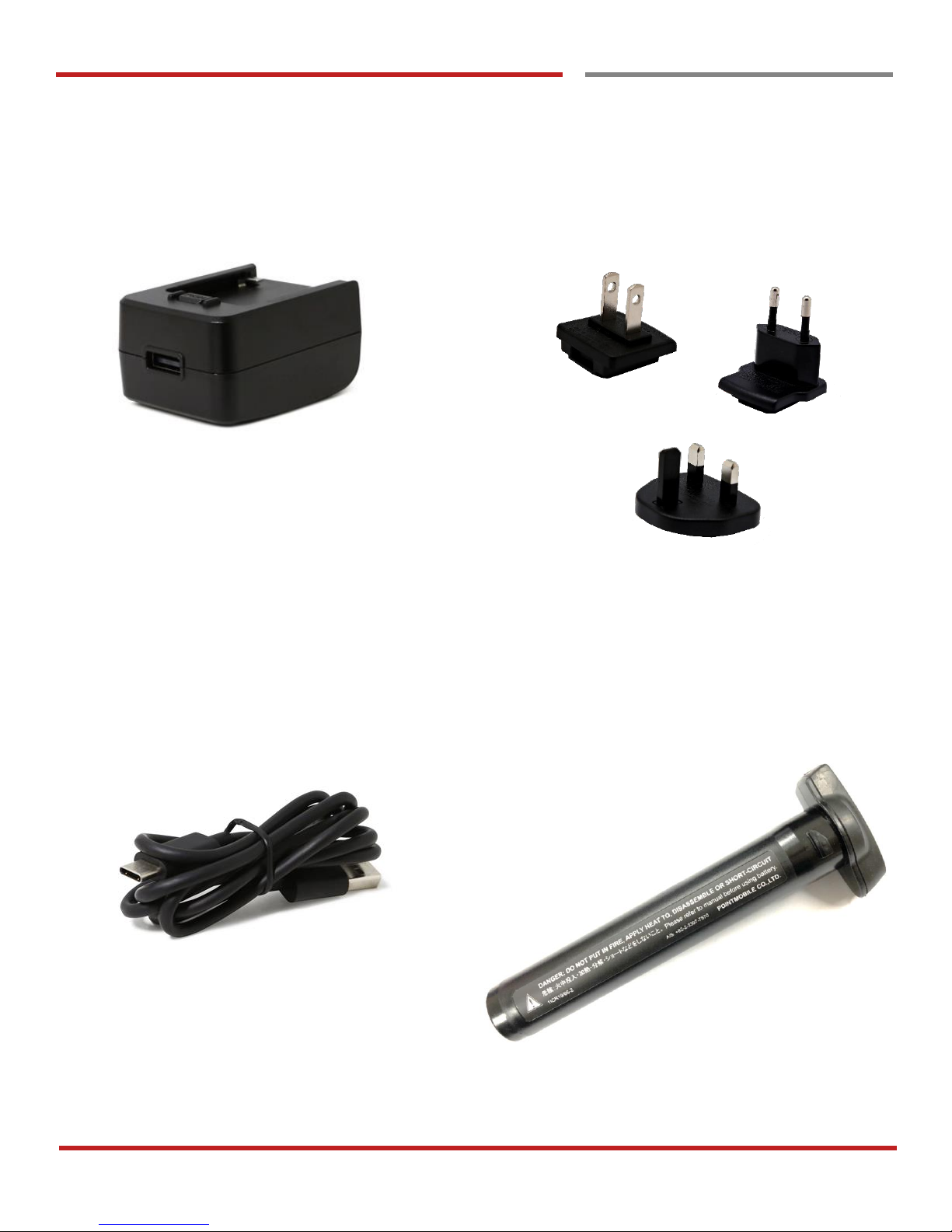

AC/DC adapter Plug (US/ EU/ UK)

USB Type-C cable Li-ion battery (6300mAh)

Started

PM550 Android 7.1.2 User Manual

6

Charge PM550 Getting started

Charge PM550

Getting Started

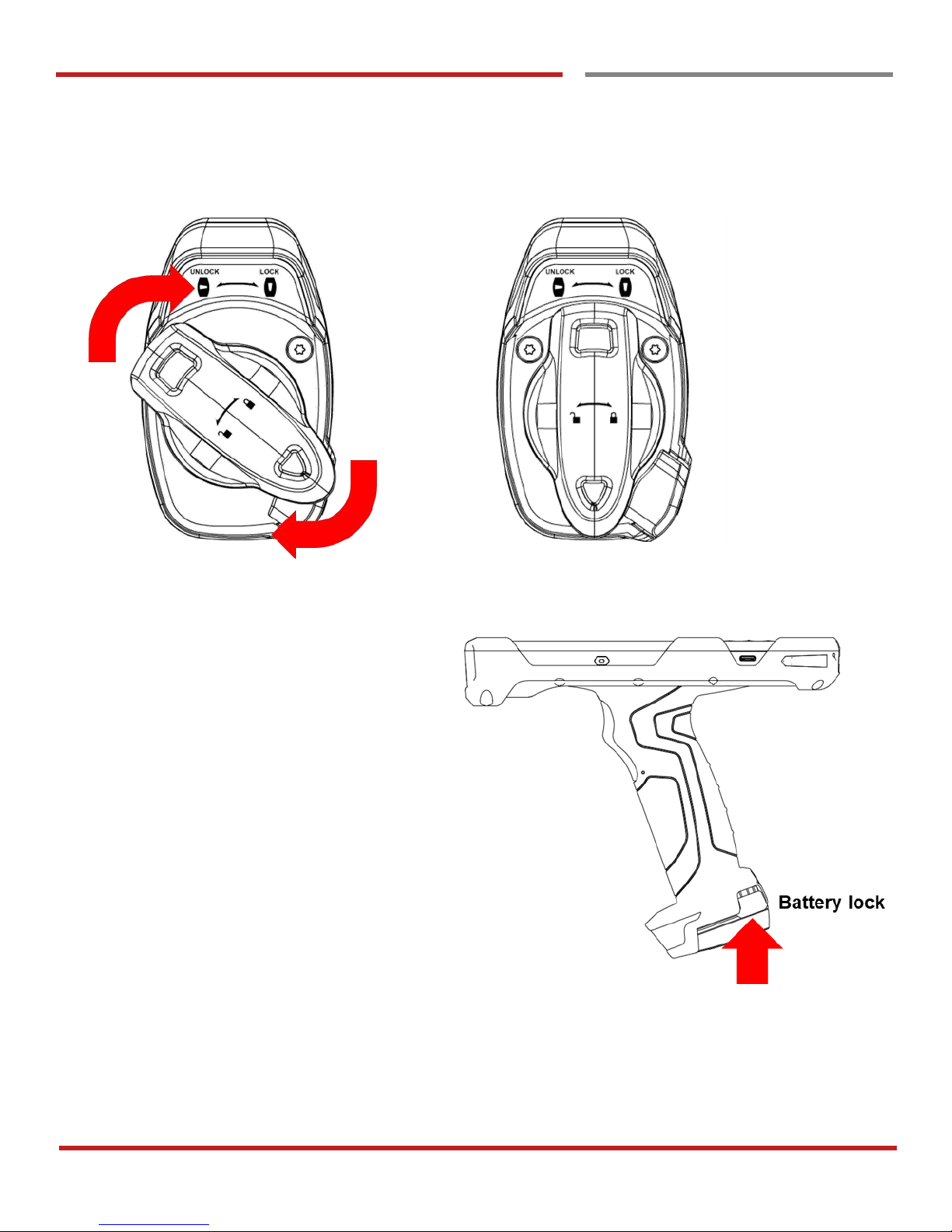

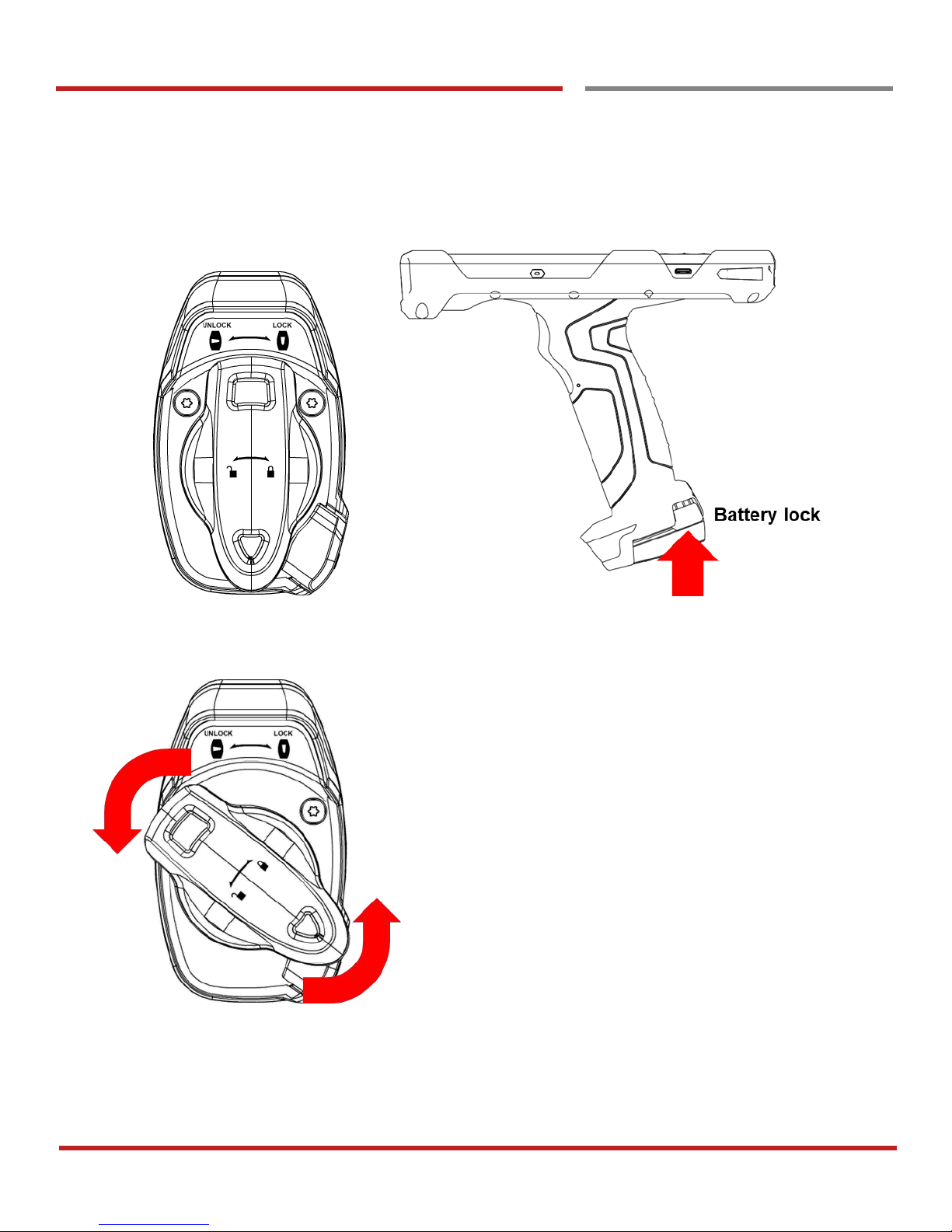

1. Insert “Battery” into the Gun handle. Press the Battery lock and turn the Battery to “Lock” position (Clockwise)

PM550 Android 7.1.2 User Manual

7

Getting started

Charge PM550

Getting Started

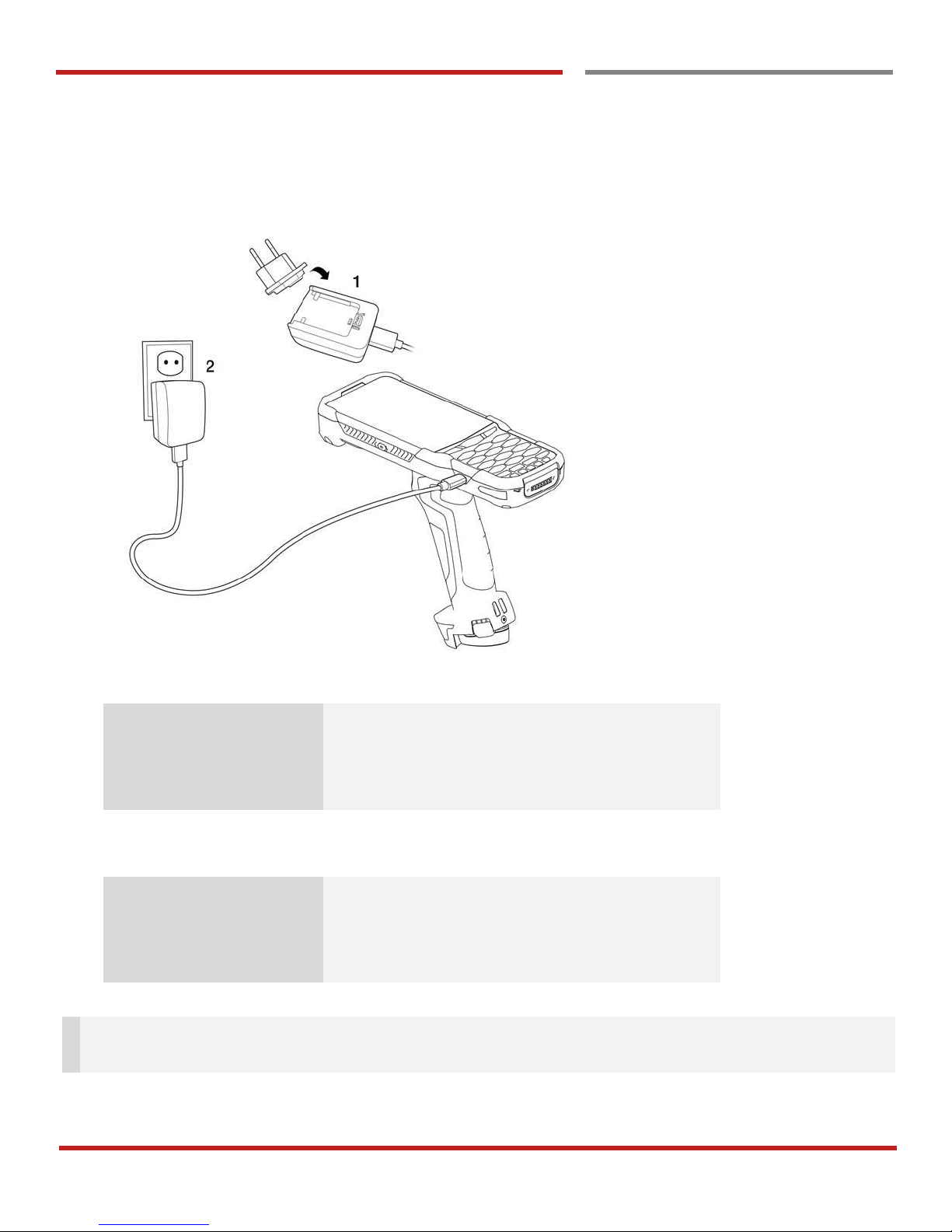

2. Connect the AC/DC adaptor to your device and wall socket respectively

3. LED indicator will display charging status.

Steady Red

Battery is charging

Blinking Red

Battery level is critical low

Steady Green

Battery is fully charged

PM550 Battery Specification

Main Battery

6,300mAh / 3.63V

Backup Battery

60mAh / 3.7V

Charging time

About 6.5 hours

Note: Always use an original charger and cable from the Point Mobile. Other chargers and cables may damage PM550. In addition, make sure connector, charger, cables are not wet.

PM550 Android 7.1.2 User Manual

8

Turn On/Off PM550 Getting Started

Turn On/Off PM550

Getting Started

Turn On

1. Press and hold the “Power Key” for a few seconds.

2. When PM550 enter to the boot mode, it will display “SMART BEYOND RUGGED” logo with short vibration

3. Release the “Power Key” and wait until PM550 finish booting

Note: If you cannot turn on your PM550, try below steps

- To turn on PM550, battery needs to be charged certain level. Please charge first

- Press and hold the “Power key” for 12 seconds to force reboot

- Press and release the “Reset Hole” and then turn on PM550 again (Check)

Turn Off

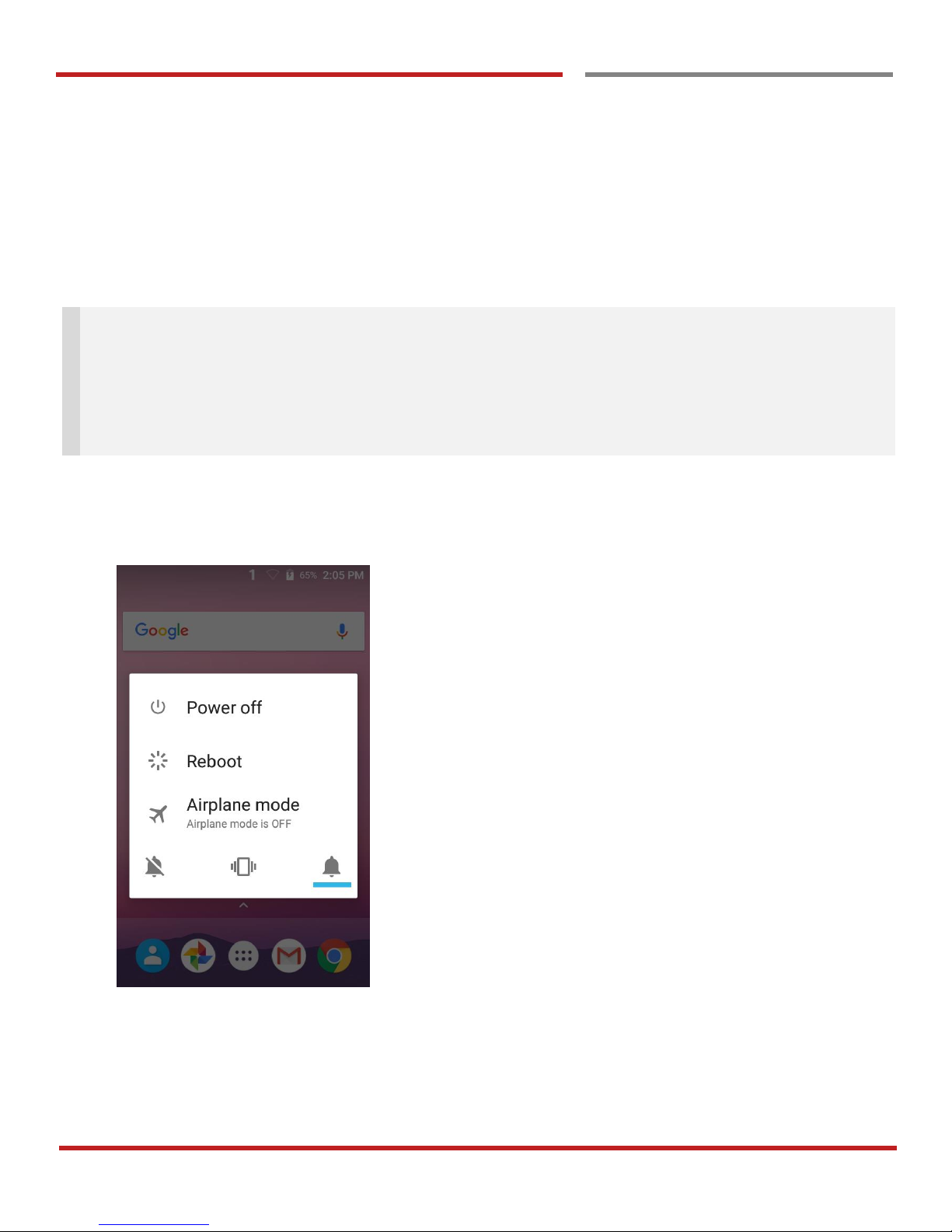

1. Press and hold the “Power Key” until you see the power menu

2. Among the menu, tap “Power Off”

PM550 Android 7.1.2 User Manual

9

Hot swap the battery

Getting Started

When battery level is low, you can replace the battery without turning off and on PM550.

- Remove the Battery and replace to another one.

- Make sure the battery is locked properly.

- Press the Power Key to use PM550 again.

PM550 Android 7.1.2 User Manual

10

Learning the basics

Use a keypad

Learning the basics

Power key

Press

- Lock the screen / Light up the screen.

Press and hold

- Display the power menu “Power Off / Reboot / Airplane mode”

Press and hold for 12seconds

- Forced to reboot

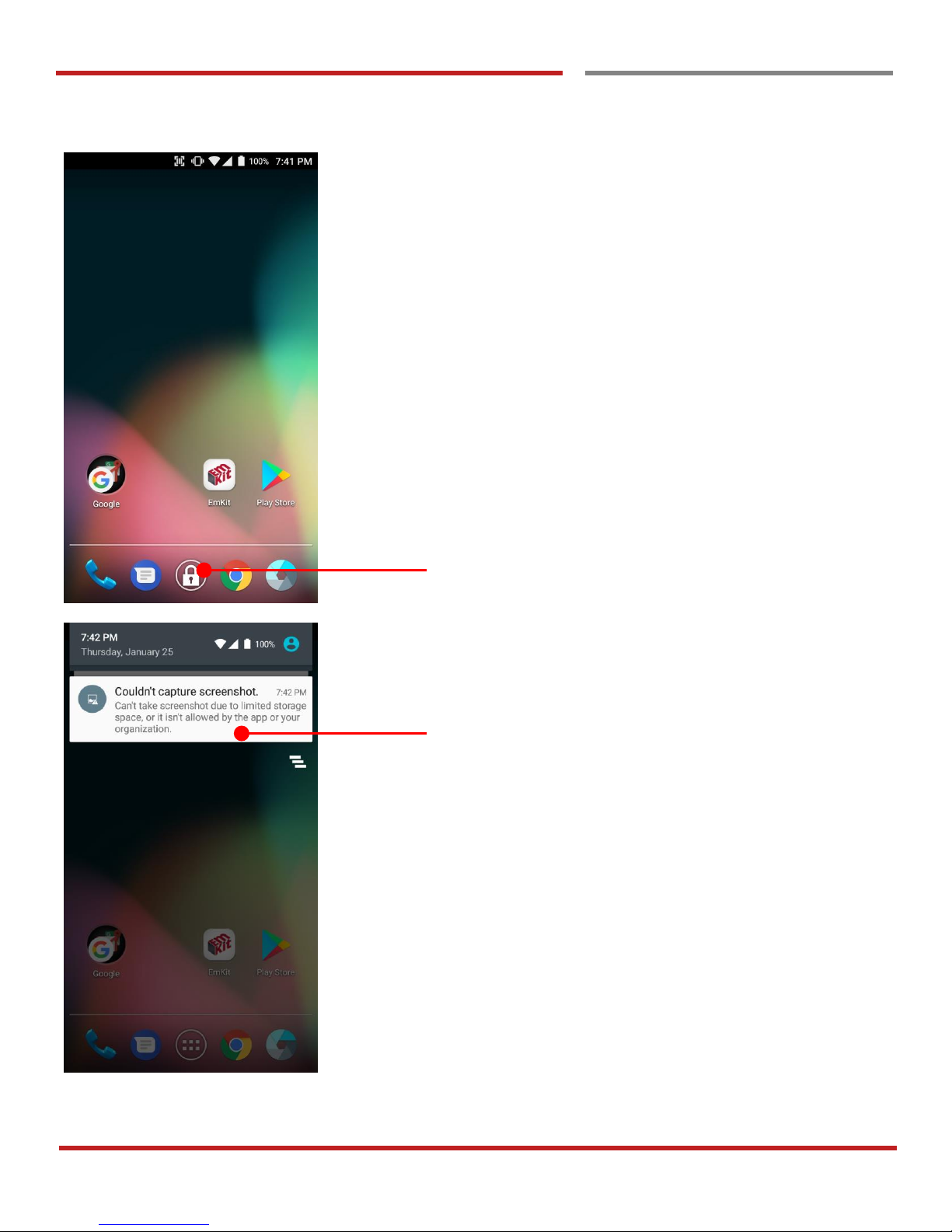

Press the “Power” key and “Home Button” key together

- Screen capture

Scanner trigger

When “Scan Setting” is turned on

- By pressing, PM550 scan the barcode.

PM550 Android 7.1.2 User Manual

11

Learning the basics

Using a keypad

Learning the basics

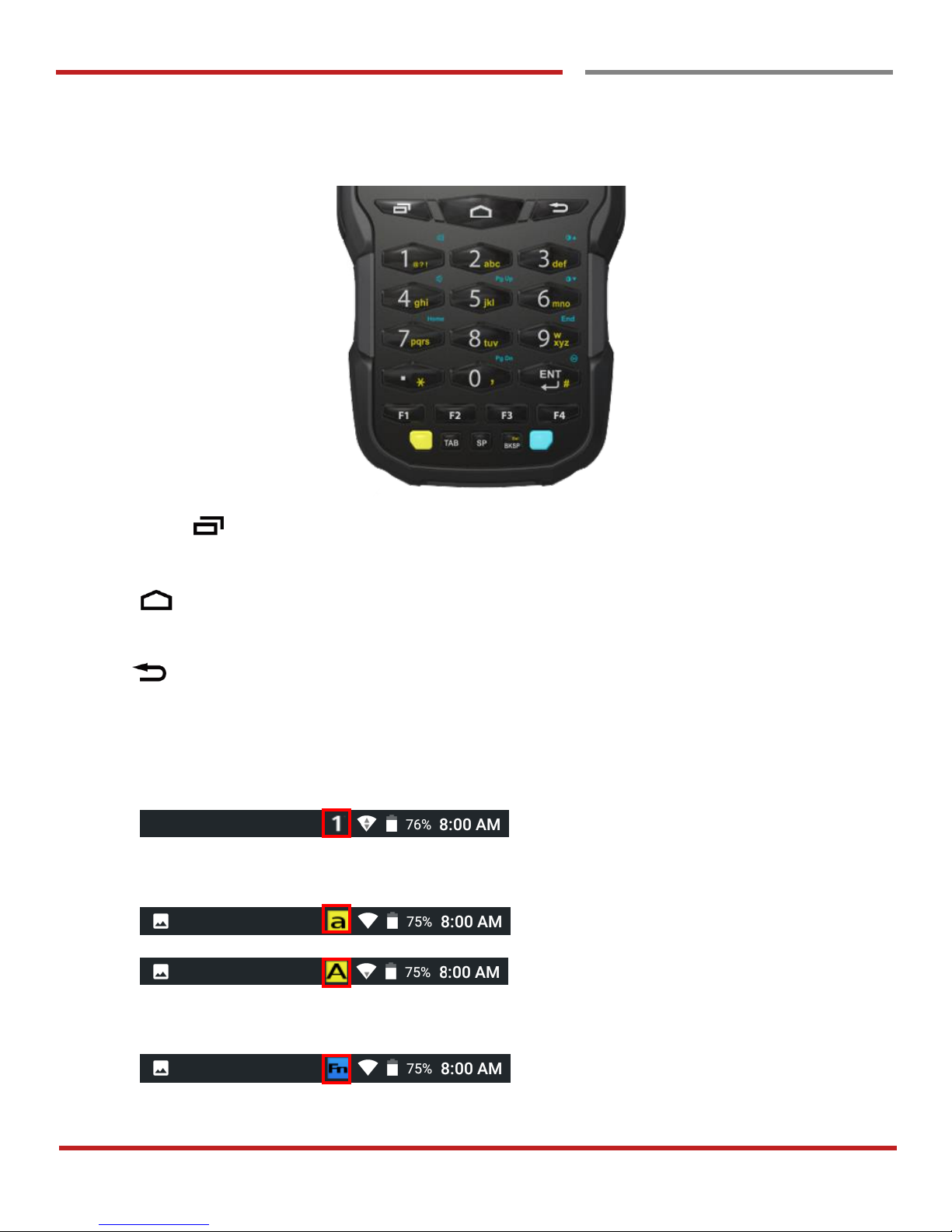

Numeric KeyPad

Recent Apps key

- Press to see recently used apps.

Home key

- From any apps or screens, press to return to the Home screen.

Back key

- Press to go back to the previous screen, or to close a dialog box, options menu, notification panel, etc.

Numeric key

- Press to type numbers in the keypad

Yellow Key combination

- Press to type alphabet or special character

Blue Key combination

- Press to type function key (Blue color)

PM550 Android 7.1.2 User Manual

12

Learning the basics

Use a touch screen

Learning the basics

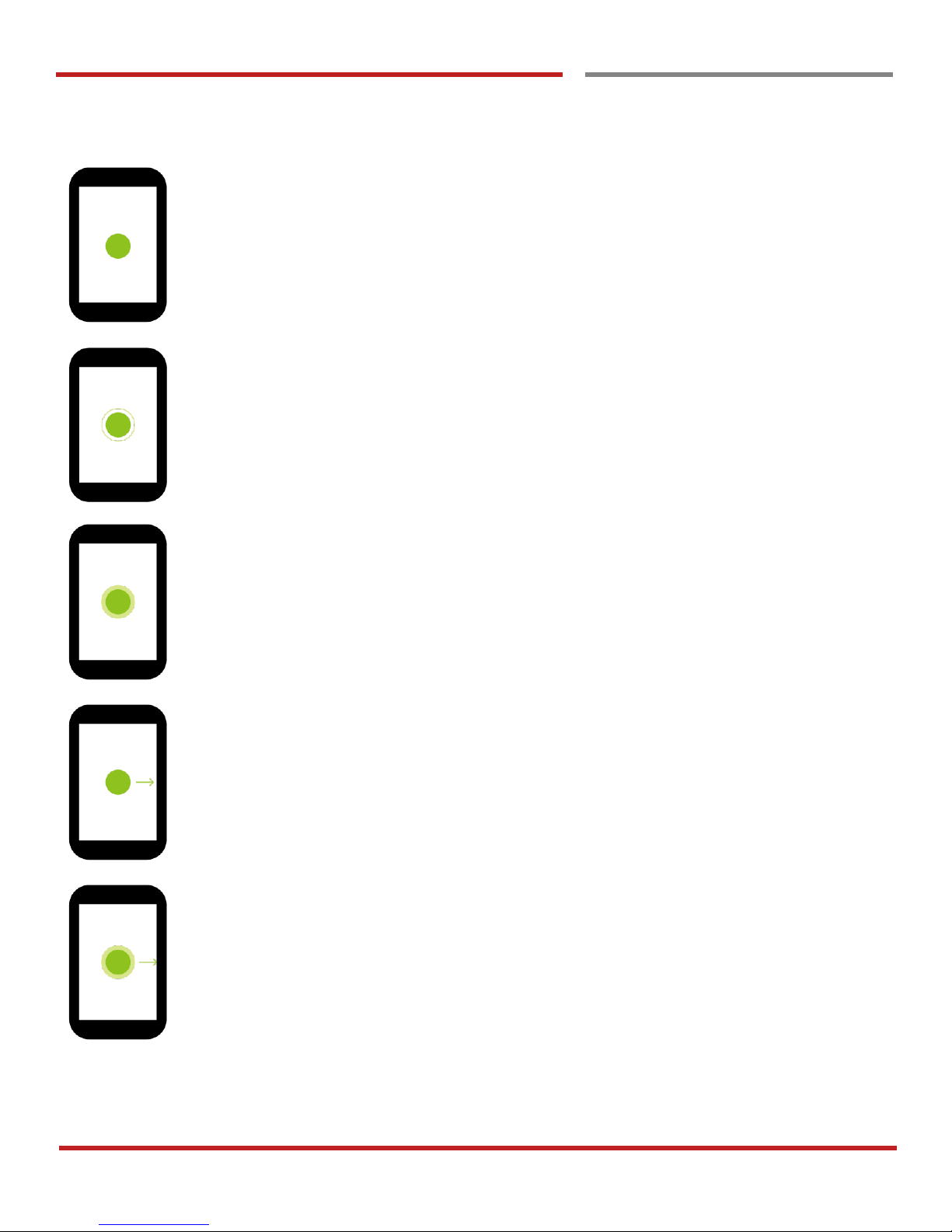

Touch

One-finger press

Double touch

One-finger press, lift, one-finger press, lift for “Zoom in”

Long press

One-finger press, wait, lift for “Select an item”

Drag, Swipe, or Fling

One-finger press, move, lift for “Scroll” or “Tilt”

Long-press drag

One-finger press, wait, move, lift for “Pick up and move” or “select multiple items”

PM550 Android 7.1.2 User Manual

13

Learning the basics

Use a touch screen

Learning the basics

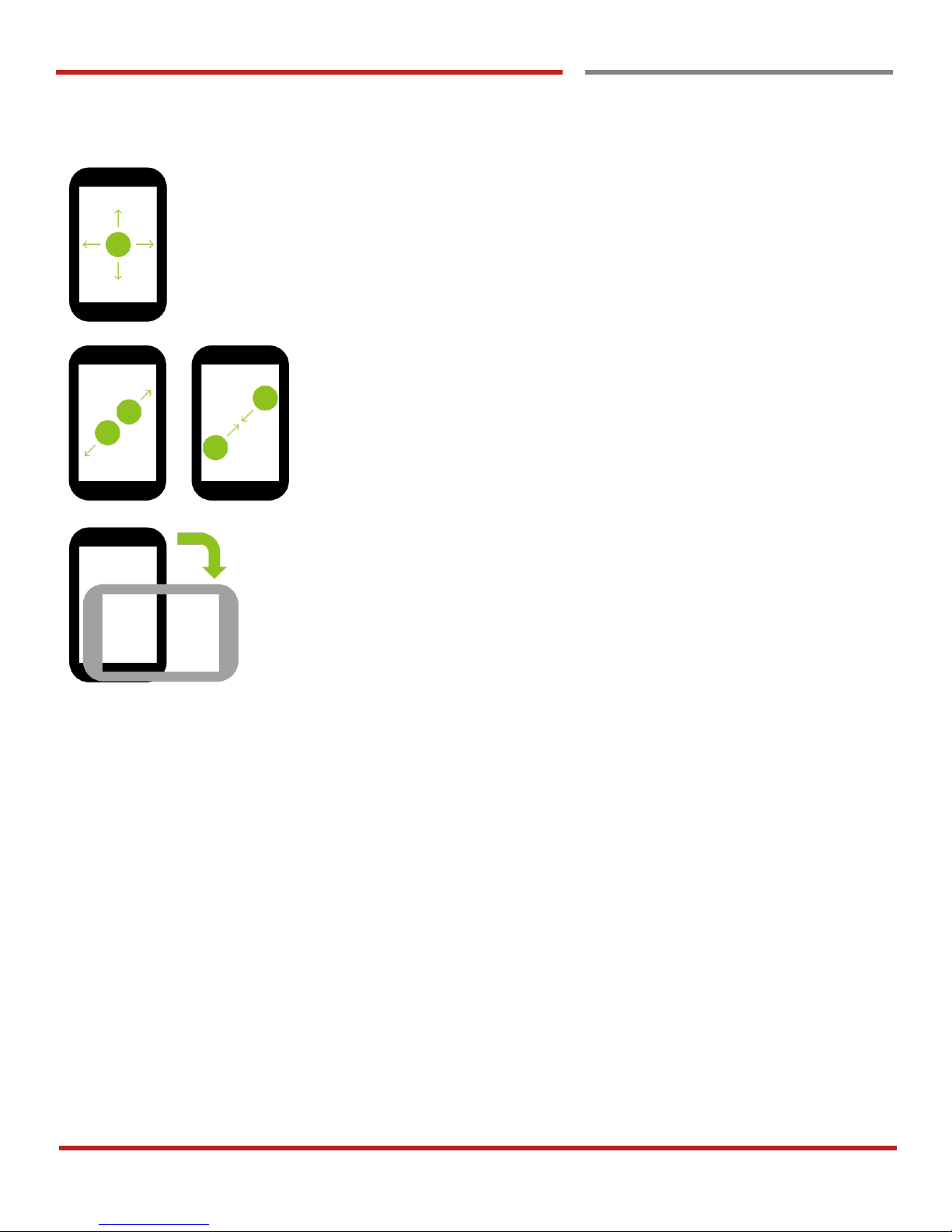

Scroll

Vertical or horizontal swipe in a single direction

Pinch Open & Close

Two-finger press, move outwards and inwords, lift for “Zoom in and out”

Rotate

When PM550 is turning sideways, screen orientation is changing

PM550 Android 7.1.2 User Manual

14

Setup Wizard

Learning the basics

When you power on your device very first time or boot after factory reset, you need to setup your device

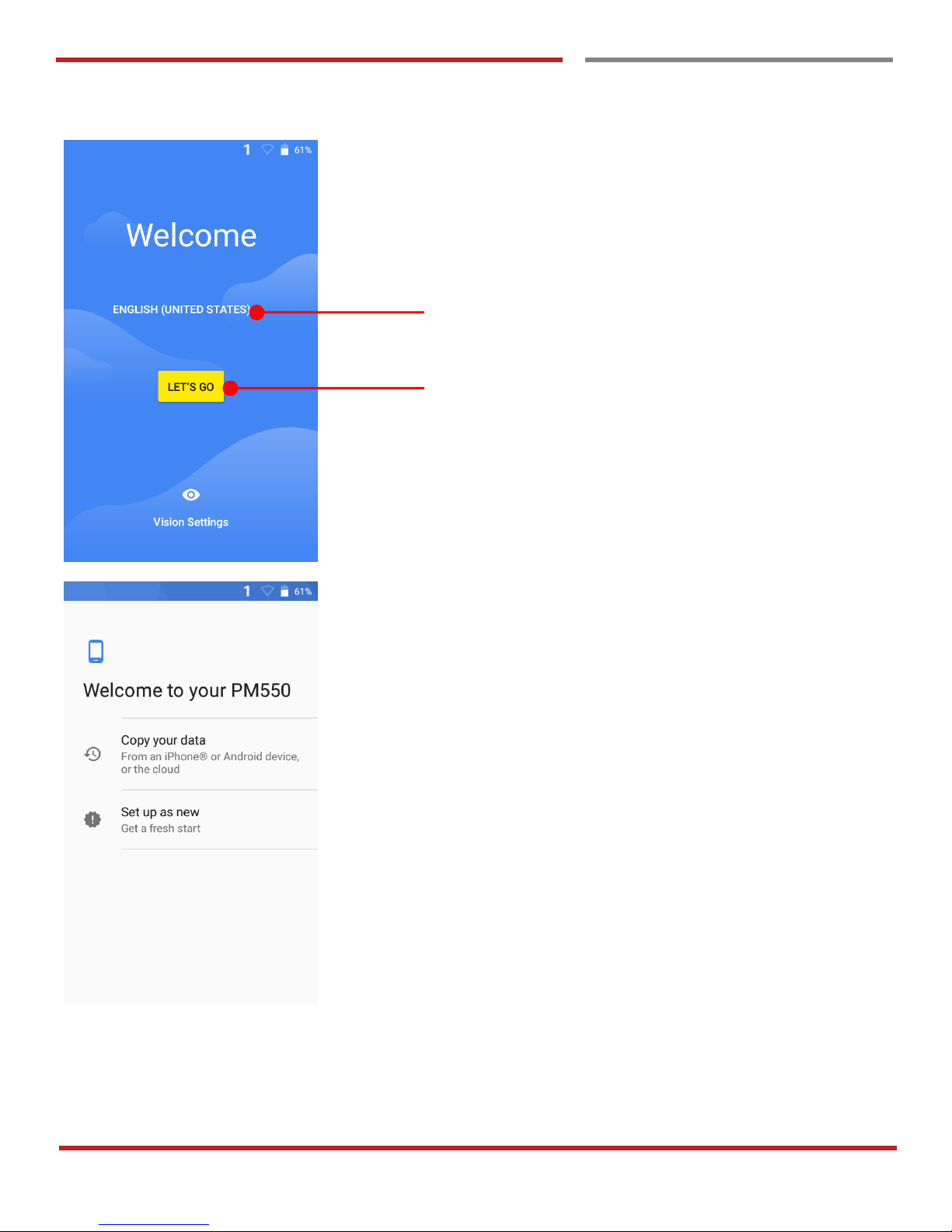

Language Selection

- Choose your language during setup process. Default is English

Touch here to start setup your device

You can copy other device’s settings to your PM550 or setup as a new device

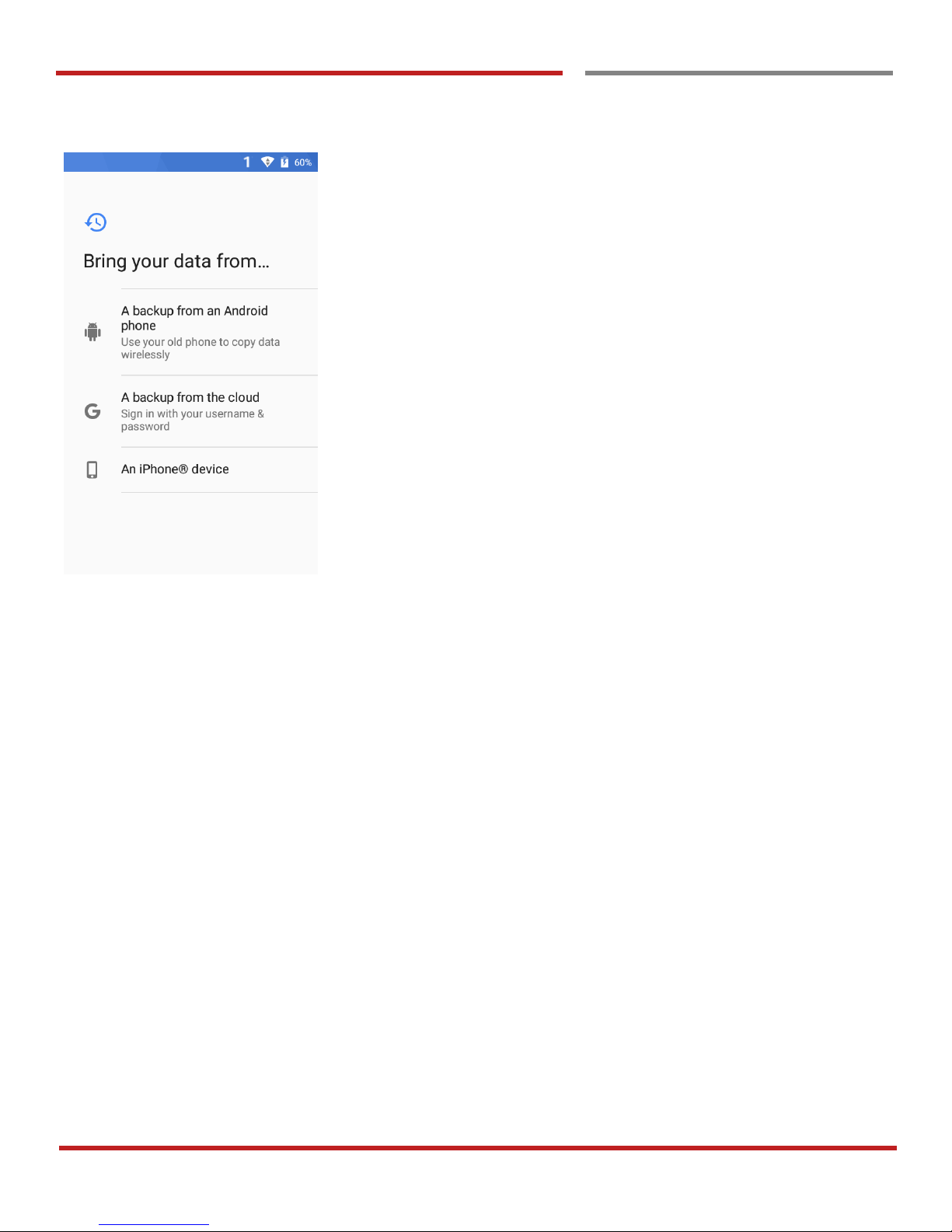

Copy your data

- You can copy your settings from other Android phone or Google account or iPhone

Set up as new

- Set your PM550 as your new device

PM550 Android 7.1.2 User Manual

15

Setup Wizard

Learning the basics

Copy your data process

- Touch here to copy settings from your other devices

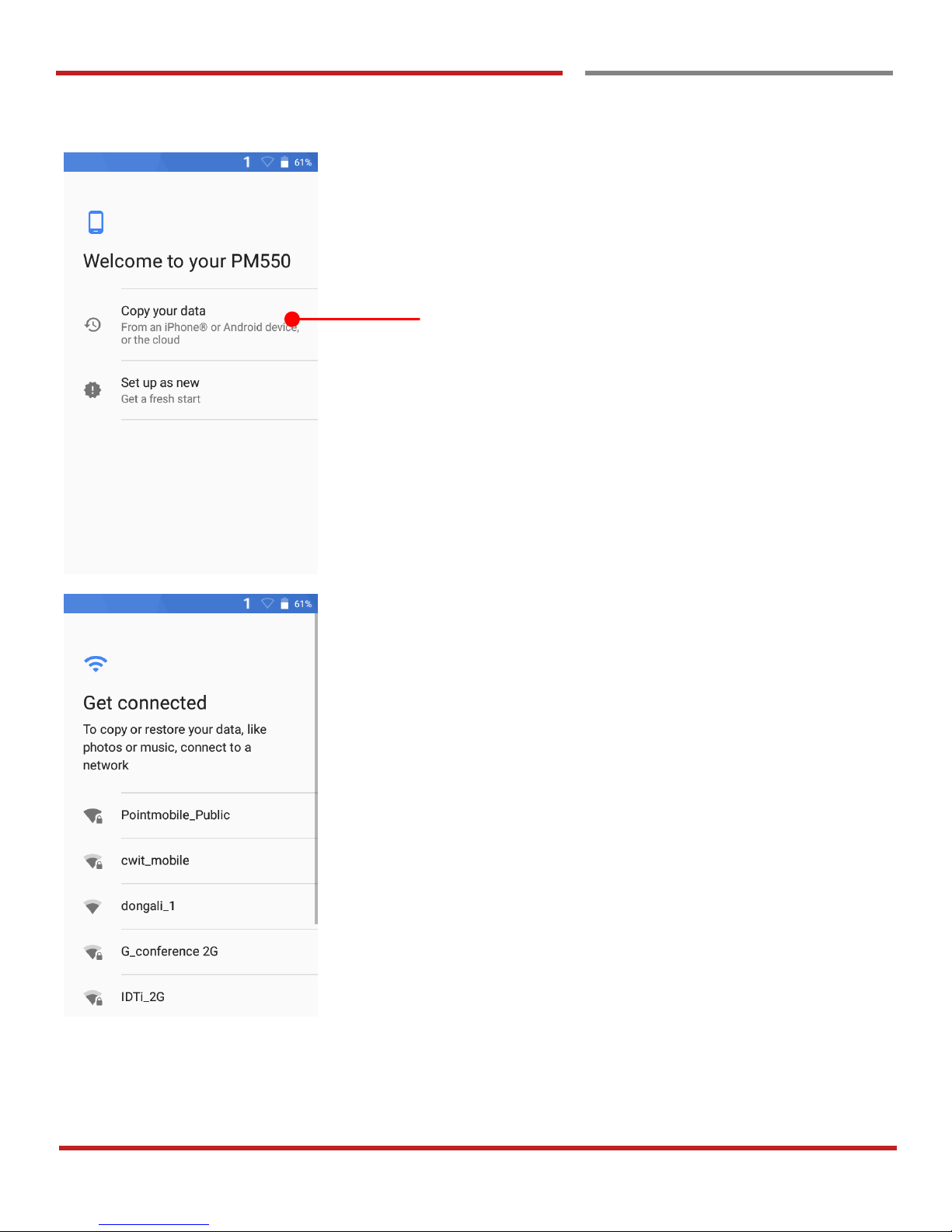

To copy your settings, please connect your PM550 to Wi-Fi network

PM550 Android 7.1.2 User Manual

16

d

Setup Wizard

Learning the basics

Choose the device or cloud where you want to copy the settings.

PM550 Android 7.1.2 User Manual

17

d

Setup Wizard

Learning the basics

Setup as new

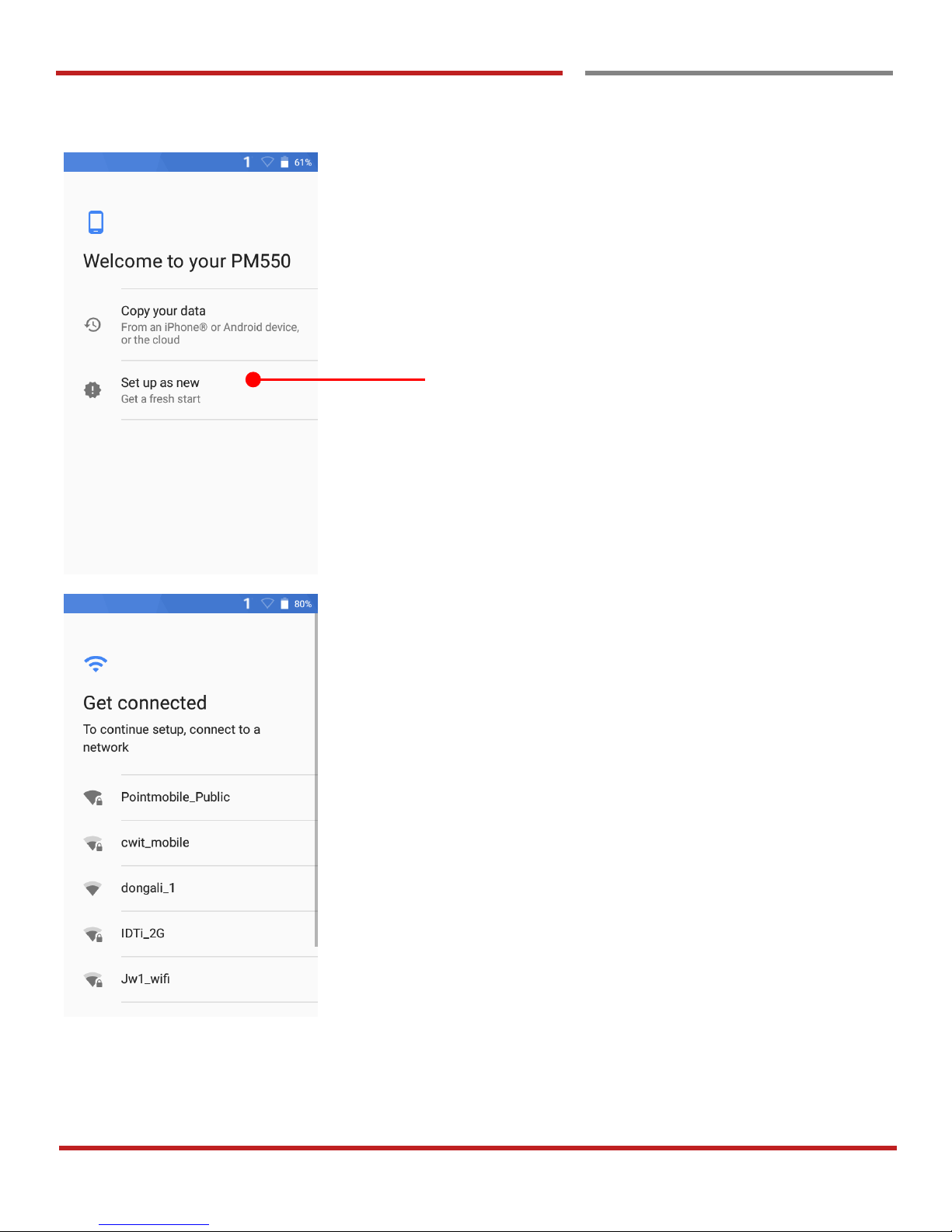

- Touch here to set your PM550 as your new device

During setup process, Google services setup required. Please connect your device to your Wi-Fi network.

PM550 Android 7.1.2 User Manual

18

d

Setup Wizard

Learning the basics

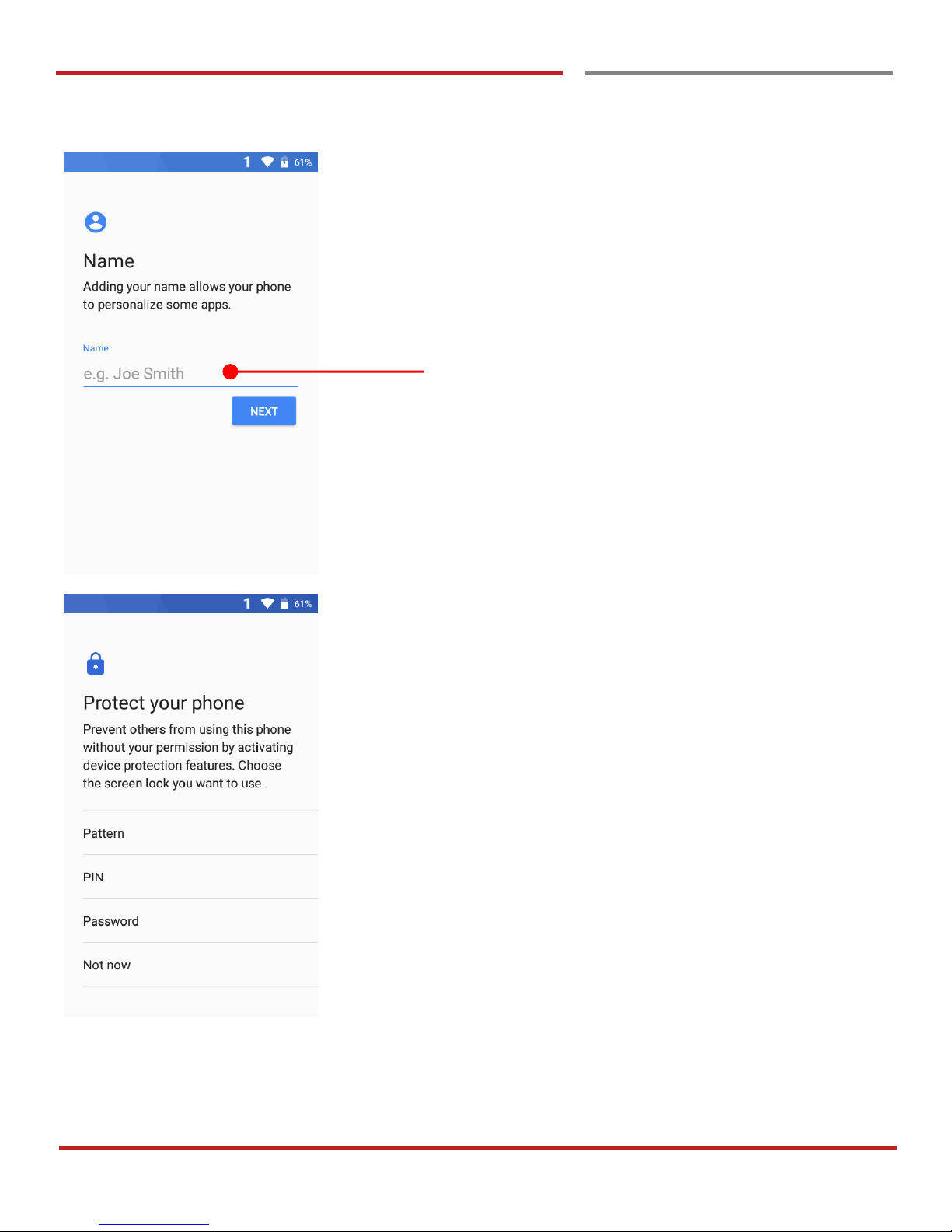

After your Google account login, you can set PM550’s name. Touch here to set a name

Choose security option for lock screen. You set specific pattern or PIN or password here.

PM550 Android 7.1.2 User Manual

19

d

Setup Wizard

Learning the basics

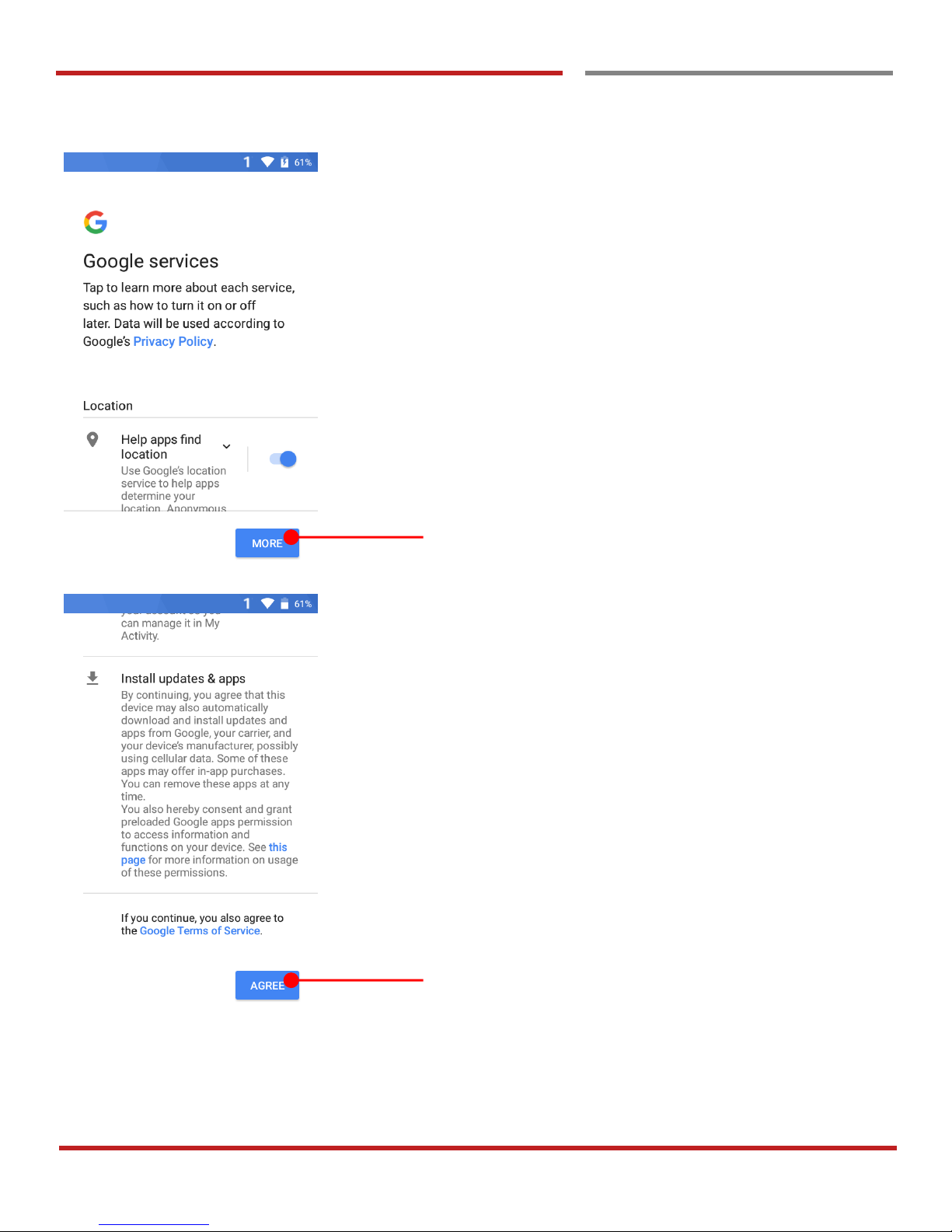

To review the Google services option, please touch MORE button. You can turn On/Off specific service

After your reviewing and set Google services option, touch AGREE button for next step

PM550 Android 7.1.2 User Manual

20

d

Setup Wizard

Learning the basics

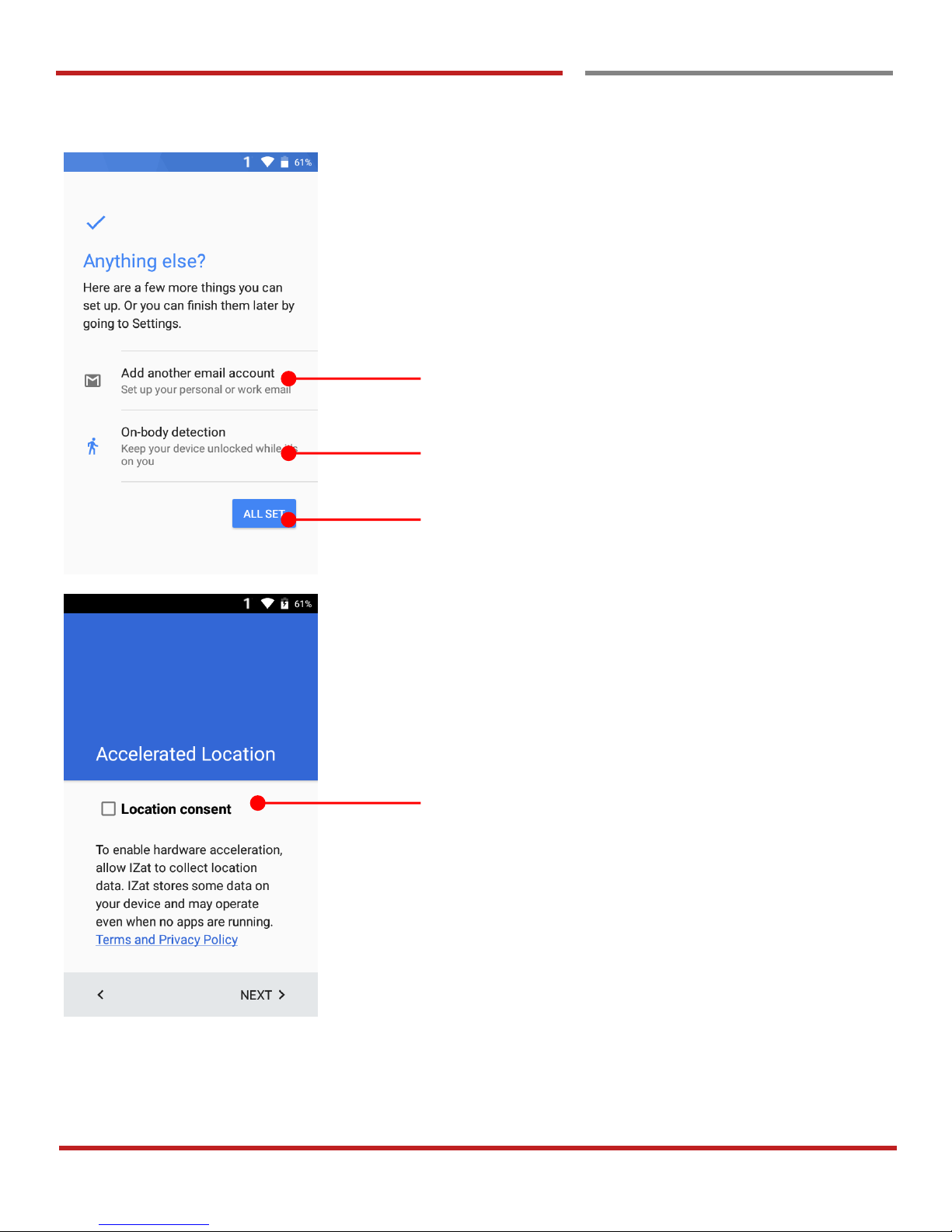

Touch to setup another e-mail account

Touch to use Smart Lock On-body detection

If you set up is done, touch ALL SET extra Touch an icon to run an app, open folder, etc

PM550’s default setting is High accuracy mode which use GPS, WLAN for accurate location tracking. If you want to enable hardware acceleration as well, please check Location consent

PM550 Android 7.1.2 User Manual

21

cs

Home Screen, Apps and Widget

Learning the basics

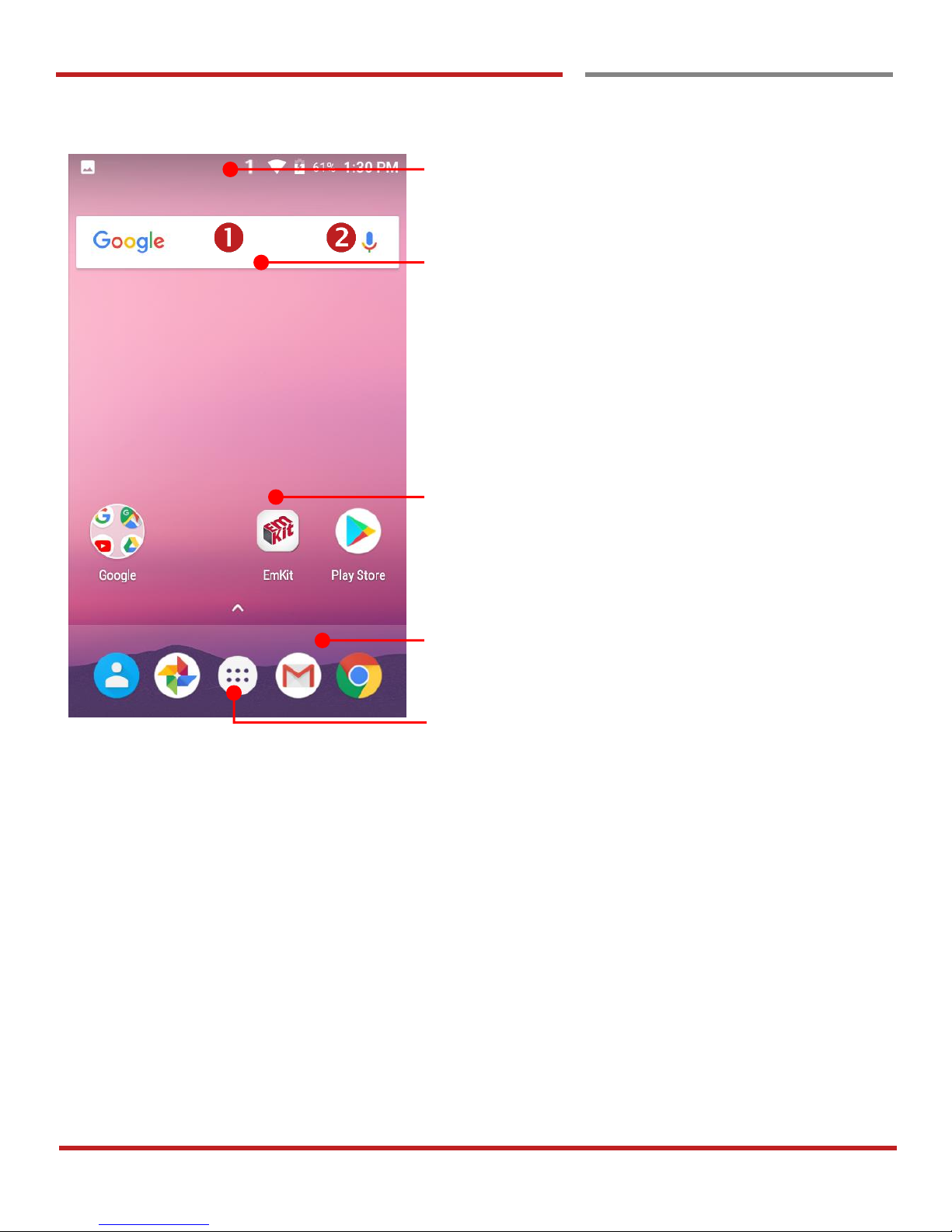

Status Bar

- Status / Notification

- Drag down to open the “Quick Setting Panel”

Search Bar

- Touch 1 to search by text

- Touch 2 to search by voice

Touch an icon to run an app, open a folder, etc

Favorite tray apps

- Touch to run an app

- Touch and hold to reorganize

App Drawer

Touch to browse apps in the PM550

PM550 Android 7.1.2 User Manual

22

basics

Home Screen, Apps and Widget

Learning the basics

To access app folder

- Touch the app folder then you will see apps in the folder.

- To change app folder’s name, touch the bottom area of the folder.

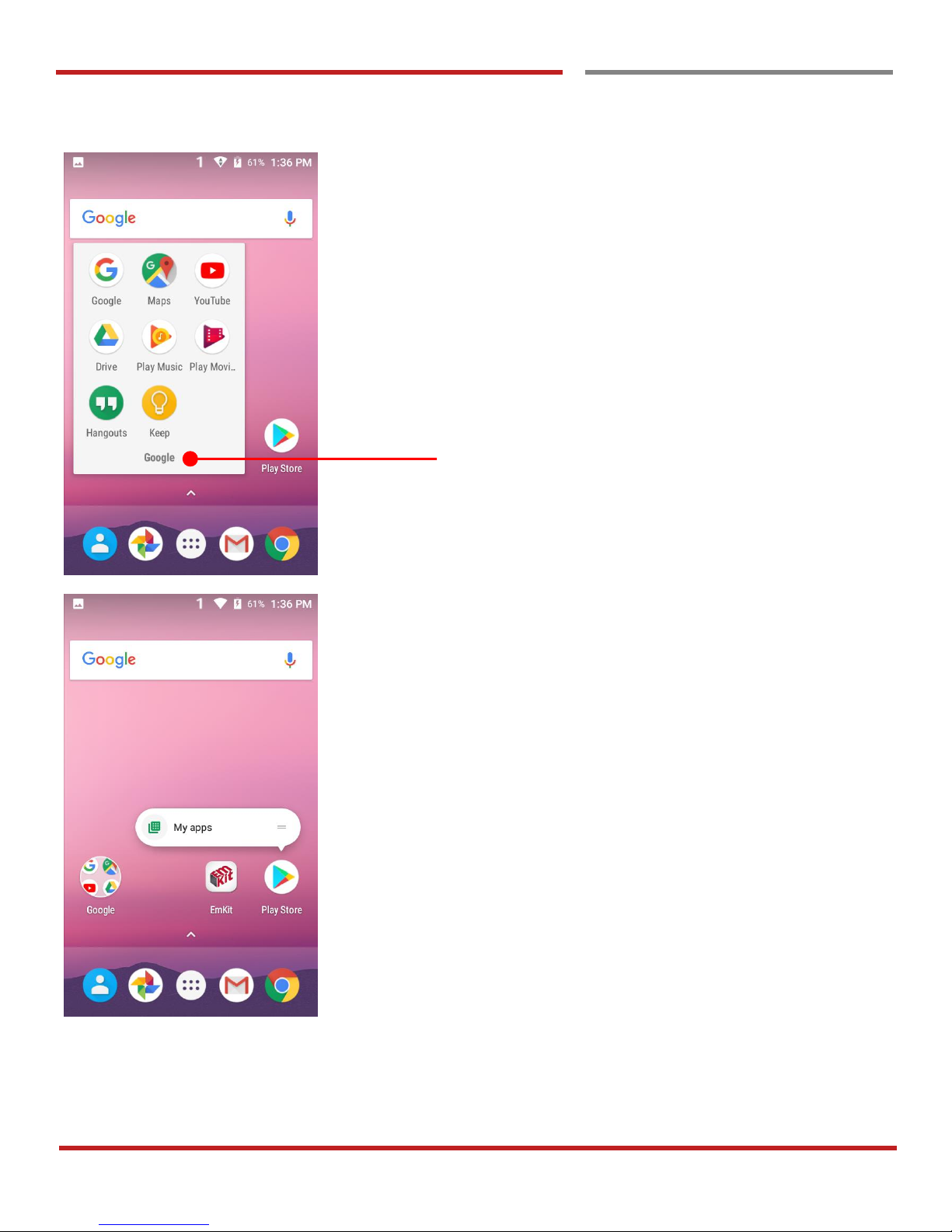

To see App’s option for quick access

- Long press the app icon. Then you will see options from the app. Here option may different by app

PM550 Android 7.1.2 User Manual

23

Learning the basics

Home Screen, Apps and Widget

Learning the basics

Organize the app icon in the home screen

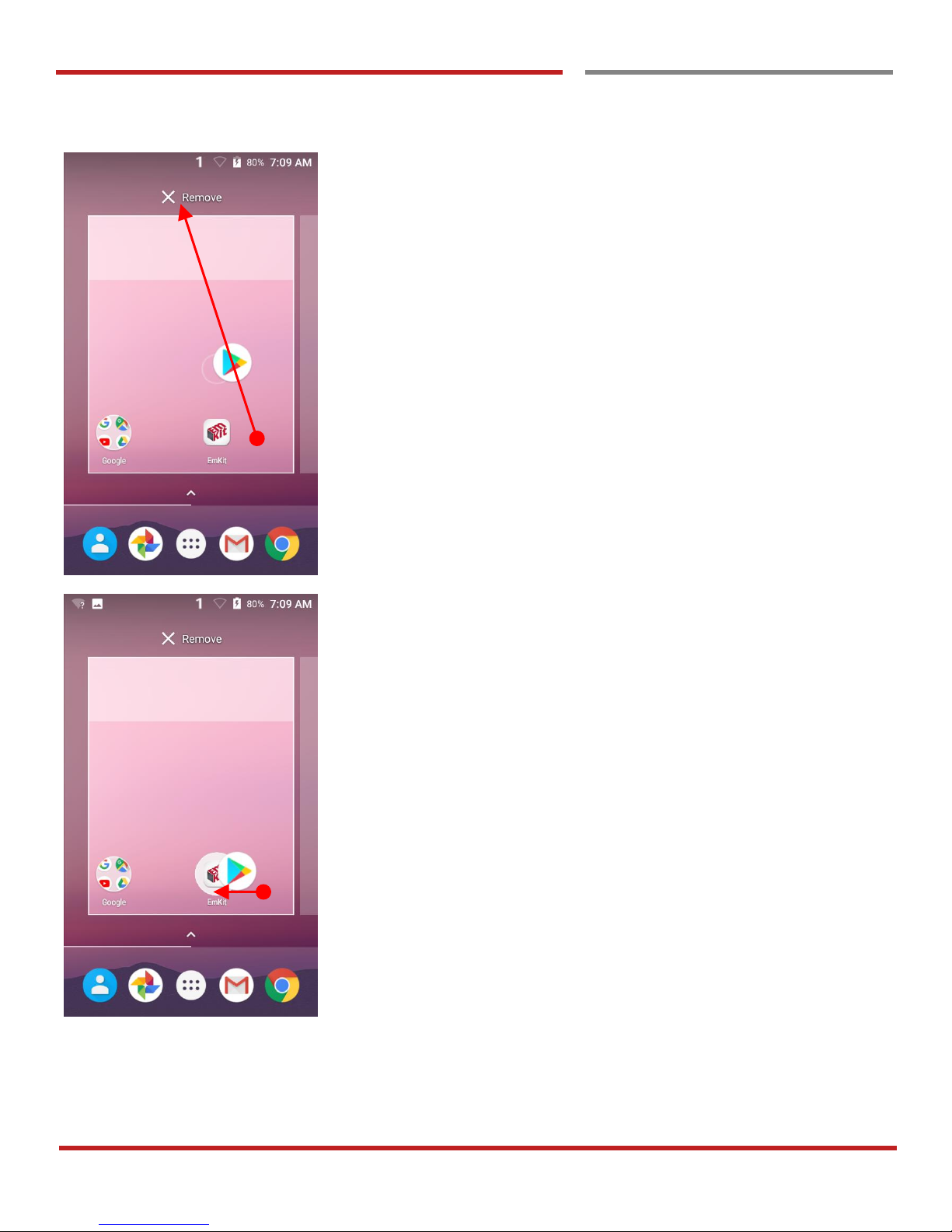

- Long-press drag the app icon and place where you want. You may place app icon to next panel

- If you want to remove the app icon, drag it to “Remove” area and release

Create “App Folder”

- Long press the app icon to other app icon. This will create the “App Folder”

- To set the folder name, touch the “Unnamed Folder” and rename it

PM550 Android 7.1.2 User Manual

24

the

Home Screen, Apps and Widget

Learning the basics

Notification panel

When there is notification from the Android (system) or the App, you can check details by drag down the “Status Bar”.

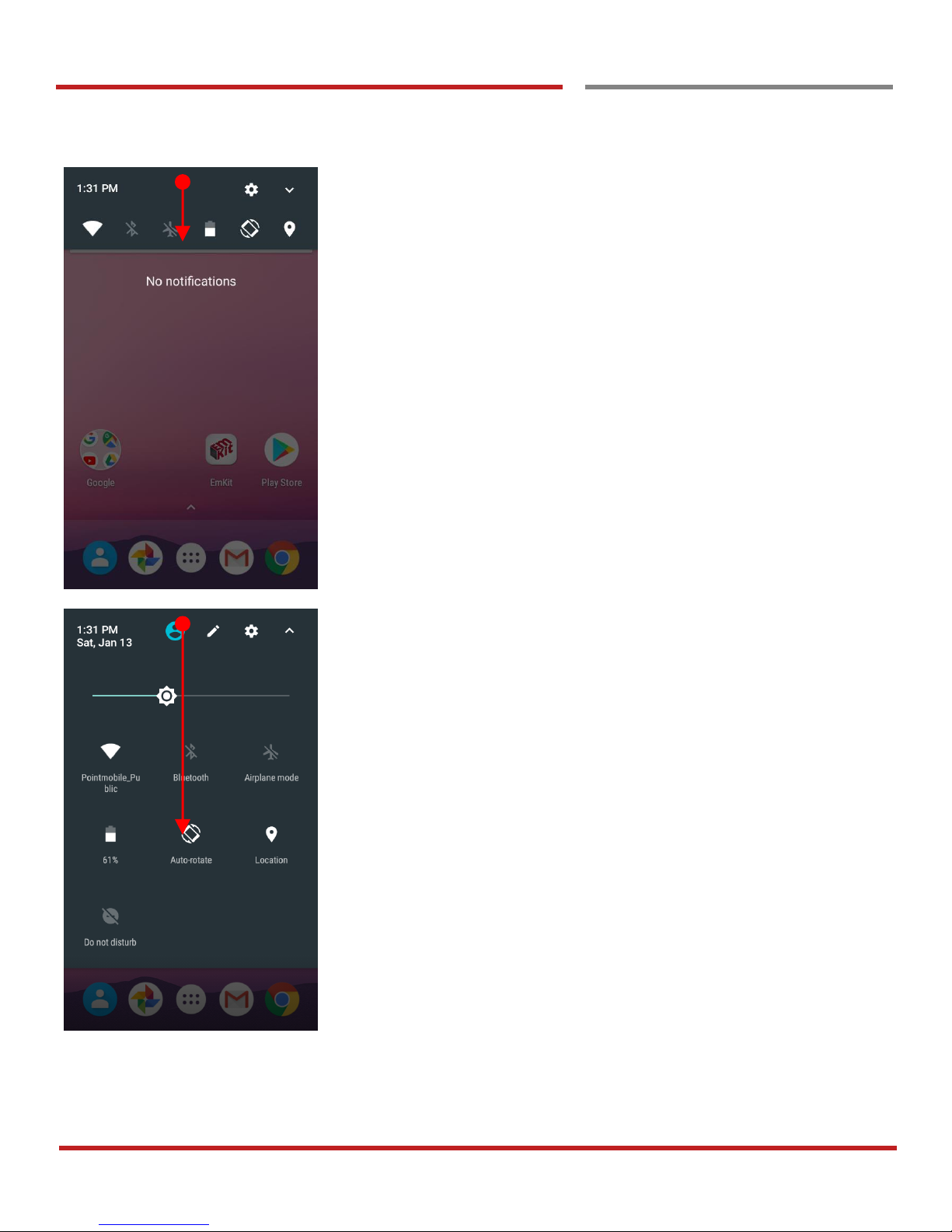

Quick setting panel

You can access “Quick setting panel” by drag down the “Notification panel”. You can enable / disable functions or

change modes easily.

PM550 Android 7.1.2 User Manual

25

Home Screen, Apps and Widget

Learning the basics

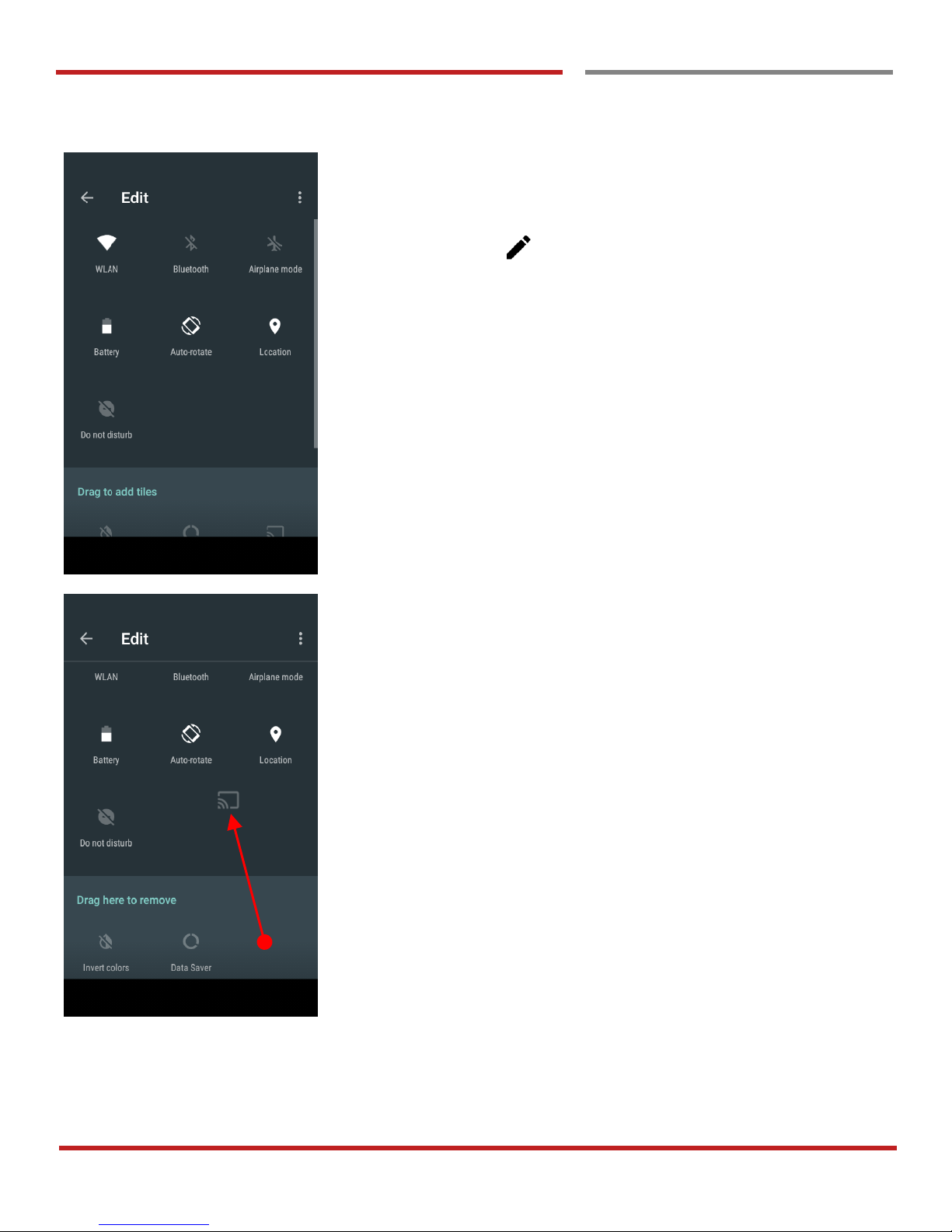

Edit Quick settings panel

To change the order of icon in the Quick settings panel, touch the Edit icon

By dragging the icon, you can customize the Quick settings panel

PM550 Android 7.1.2 User Manual

26

Learning the basics

Home Screen, Apps and Widget

Learning the basics

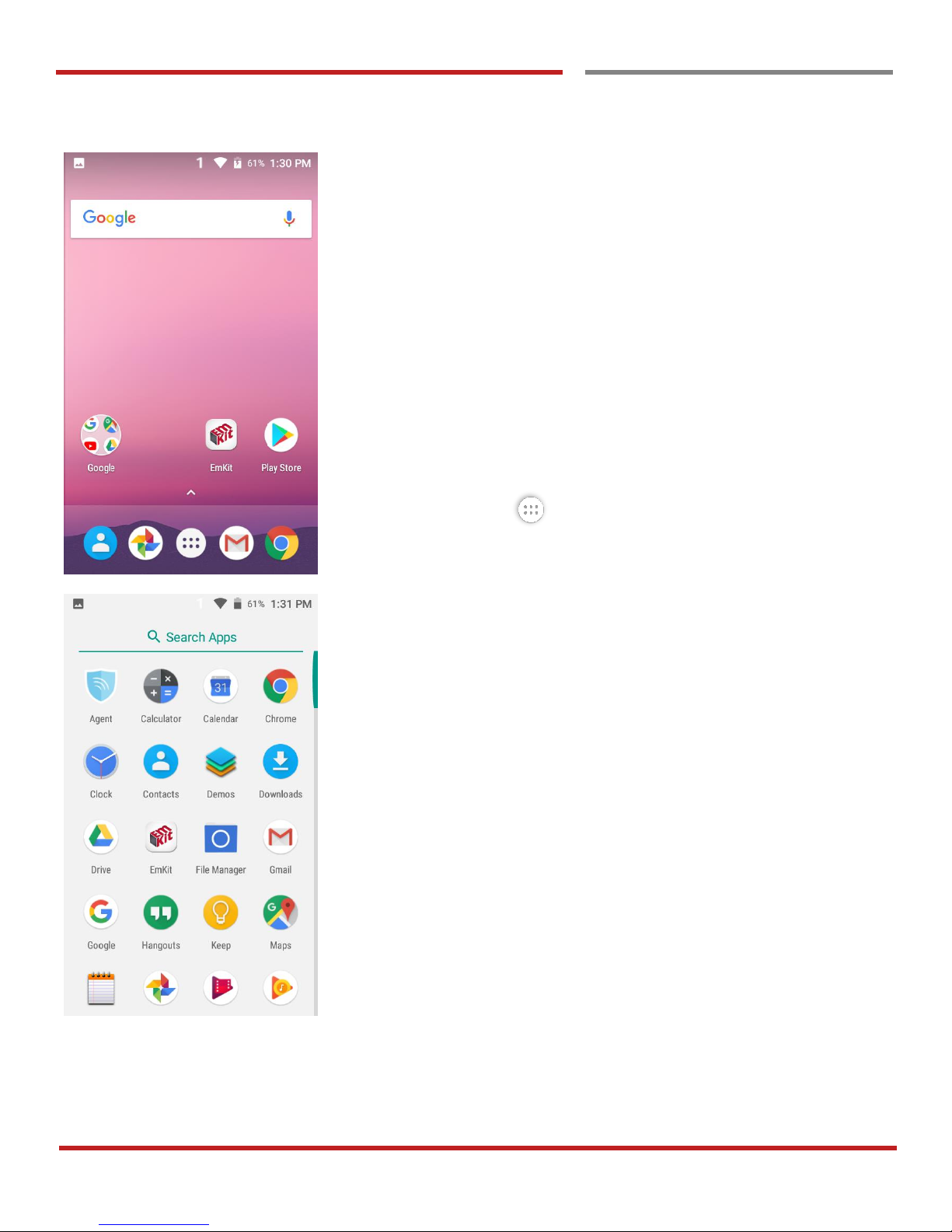

Touch the App drawer icon, to see apps in your PM550

All installed apps are listed alphabetically

- Tap app icon to run.

- Long press, specific app icon to place to the “Home Screen”.

PM550 Android 7.1.2 User Manual

27

Learning the basics

Home Screen, Apps and Widget

Learning the basics

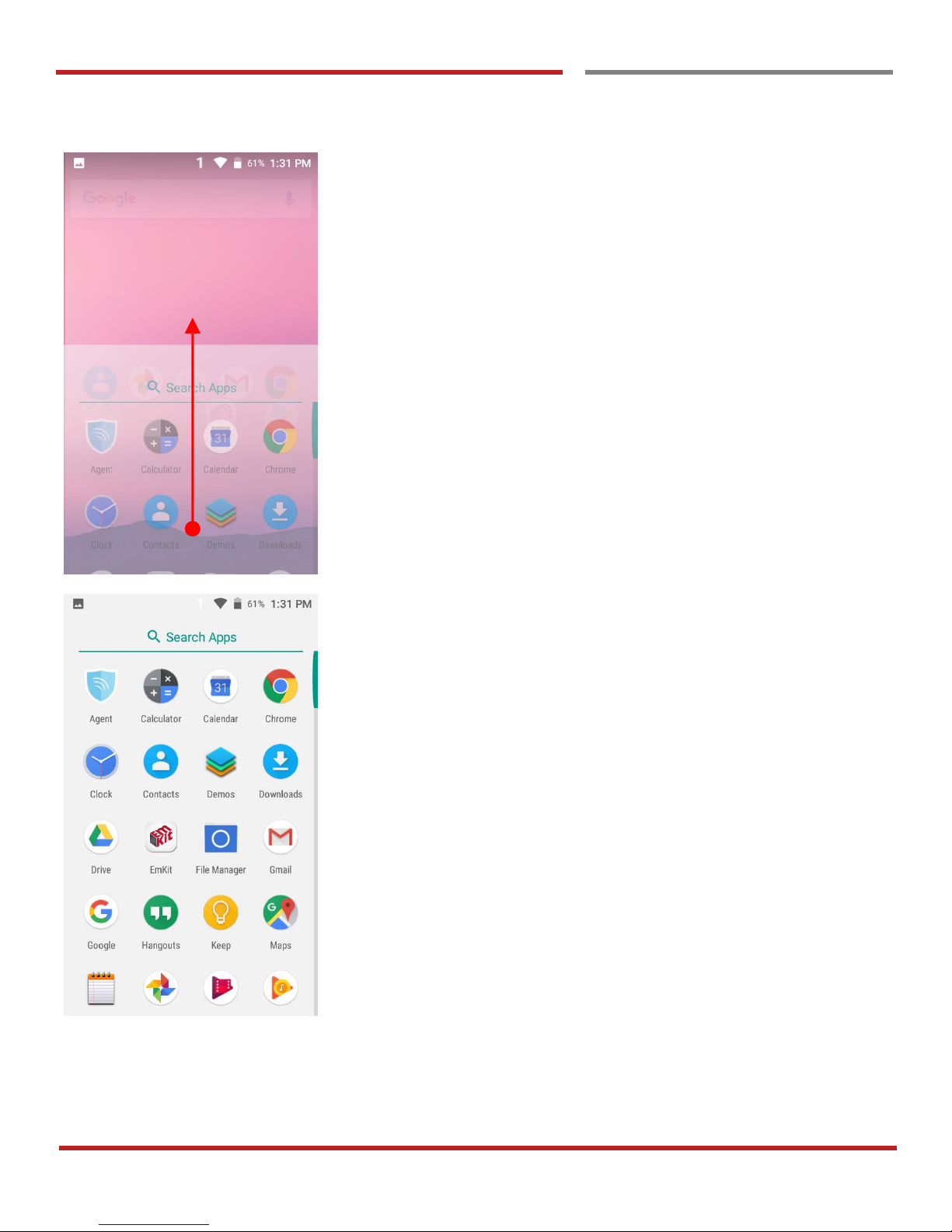

By drag up the Favorite tray apps area, you can also access to app list in your PM550

PM550 Android 7.1.2 User Manual

28

Learning the basics

Home Screen, Apps and Widget

Learning the basics

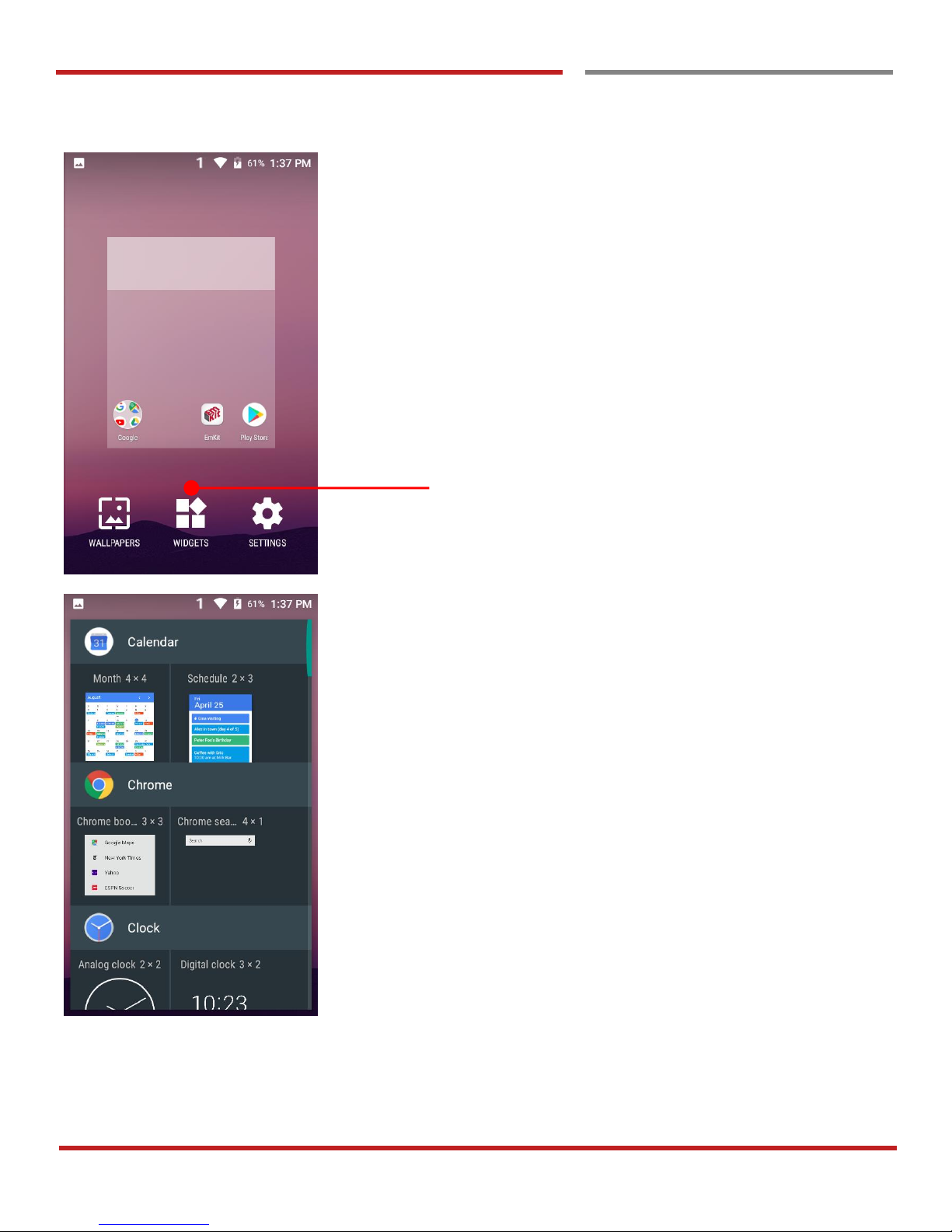

To add a Widget in the Home screen, long press the empty space. Then you will see WALL PAPERS, WIDGETS, SETTINS menu. Touch WIDGETS

Available widgets are listed. Among the list select the widget which you want to add and place it to the Home screen by drag and release

PM550 Android 7.1.2 User Manual

29

Learning the basics

Home Screen, Apps and Widget

Learning the basics

By pressing the Recent button in the keypad, you can see app list which you access

Touch the app, if you want to use or access the app.

If you want to close individual app, long press the app and then touch icon

If you close all of the apps, then touch CLEAR ALL button

PM550 Android 7.1.2 User Manual

30

Learning the basics

Status & Notifications Icons

Learning the basics

Status icons

Notification icons

WLAN is on

Connected to a WLAN network

Bluetooth is on

Connected to a Bluetooth device

Battery is full

Battery is partially drained

Battery is low

Battery is very low

Battery is charging

GPS is on

Alarm is set

Vibrate mode/ Mute

New Email

Connected to VPN network

Upcoming event

Screenshot captured

OTG device connected

File uploaded

File downloaded

There are more notifications

Other input method available

PM550 Android 7.1.2 User Manual

31

Learning the basics

Connect to your Wi-Fi network

Learning the basics

Touch “App drawer” icon → “Settings” and then “WLAN”

Touch to turn On/Off the W-Fi

You can see nearby Wi-Fi network. Each AP’s SSID information listed by signal strength

Icon means: Open Wi-Fi network. You don’t need

to enter the password

Icon means: Secured Wi-Fi network. To connect this Wi-Fi, you need to enter the password

PM550 Android 7.1.2 User Manual

32

Learning the basics

Connect to your Wi-Fi network

Learning the basics

Touch SSID, which you want to connect. To connect to the secured Wi-Fi network, enter the password

Your PM550 is obtaining the IP address from the selected AP

PM550 Android 7.1.2 User Manual

33

Scanner Settings

Use a Scanner

Scanner Settings

Default setting of Scanner is “Off” To use the Scanner,

- Touch EmKit and then “ScanSetting”

- Touch “App drawer” icon → “Settings” and then “ScanSettings”

Touch to turn on the Scanner

PM550 Android 7.1.2 User Manual

34

Scanner Settings

Use a Scanner

Scanner Settings

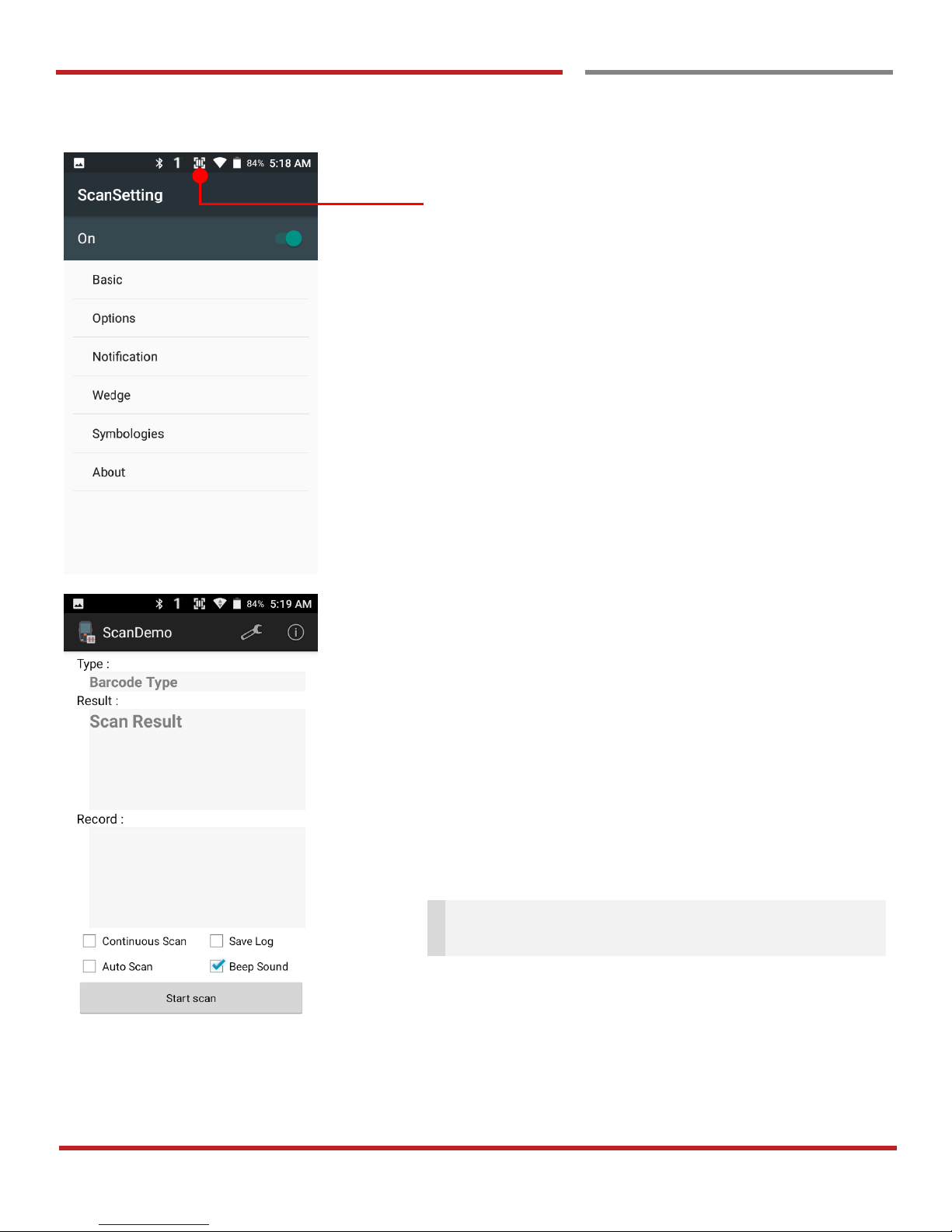

Now you can see “Scanner” icon in the “Status Bar”

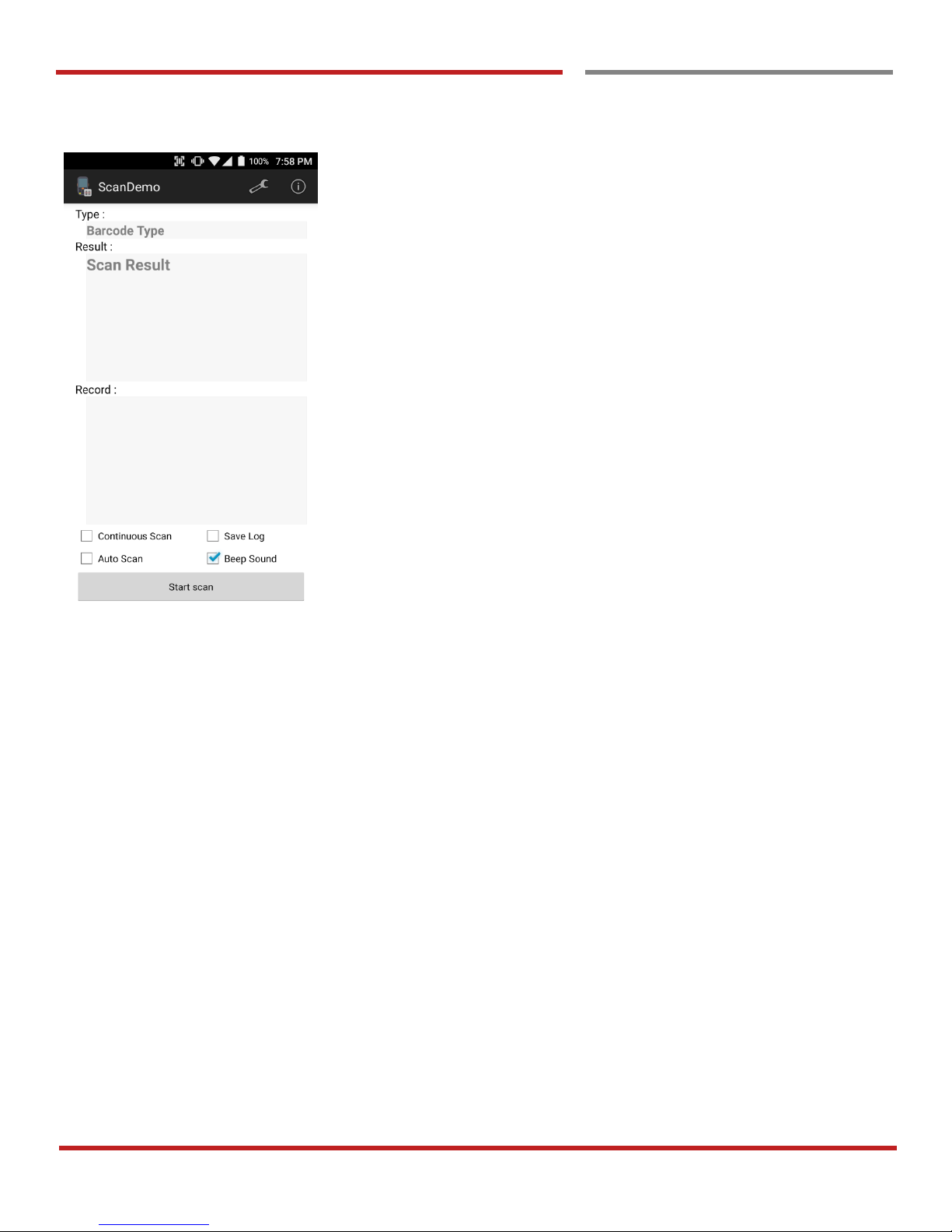

Note: When “Scanner” turned on, you can scan the barcode with “ScanDemo” in the EmKit

PM550 Android 7.1.2 User Manual

35

Scanner Settings

Use a Scanner

Scanner Settings

Scanner setting details

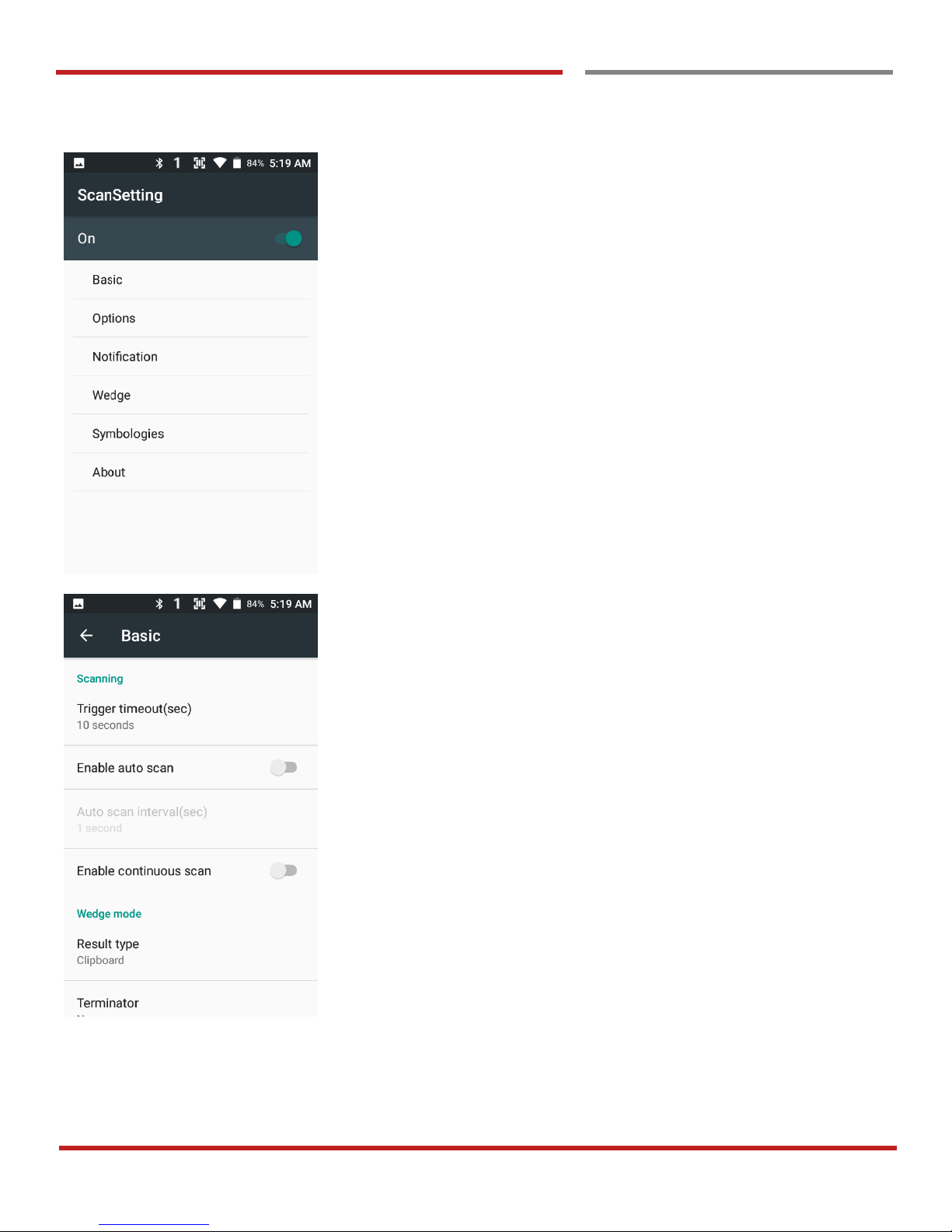

Scanner setting consist with “Basic”, “Options”, “Notification”, “Wedge”, “Symbologies”, and “About”

In the “Basic”, you can set “Scanning” option and “Wedge mode” option

In the “Scanning menu”, you can change Scanner’s trigger time out and set “Auto scan” & “Continues scan”

In the “Wedge menu” you can change, decode scan data’s

result type handling “User Message”, “Keyboard Event”,

“Clipboard’ or ‘Intent Broadcast’. Also you can set Terminator as “None”, “Space”, “Tab”, “LF” or “Tab & LF”

PM550 Android 7.1.2 User Manual

36

Scanner Settings

Use a Scanner

Scanner Settings

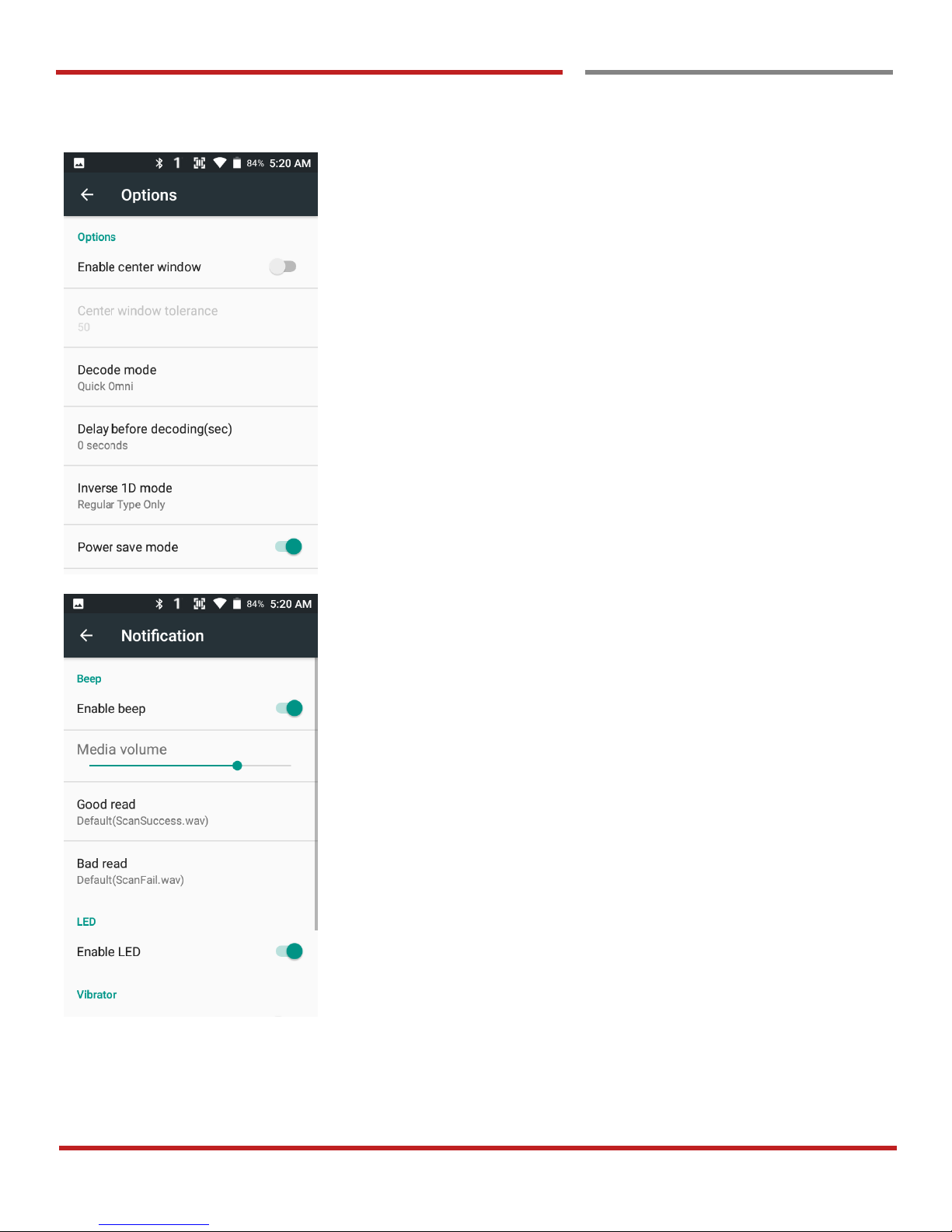

In the “Options”, you can enable/disable the “Center Window”, set “Decode mode”, “Power save mode” and

enable/disable “Aimer” & “Illumination” option

In the “Notification”, you can change the volume level,

notification sound, LED and vibration option

PM550 Android 7.1.2 User Manual

37

Scanner Settings

Use a Scanner

Scanner Settings

In the “Wedge”, you can enable/disable “Barcode ID” and “Aim ID”, set “Group separator”, “Prefix” & “Suffix”, “Character set” and “Extended Wedge”

PM550 has decoded data edit function. You can add or remove specific data from decode value. To use this function, enable the option and then set a rule

PM550 Android 7.1.2 User Manual

38

Use a Scanner

Scanner Settings

For example, whenever you decode CODE128 barcode, if

you want to add “Point Mobile”, enable the Extended wedge and select “Condition” in Style

Touch CODE128 and press Back button

PM550 Android 7.1.2 User Manual

39

Use a Scanner

Scanner Settings

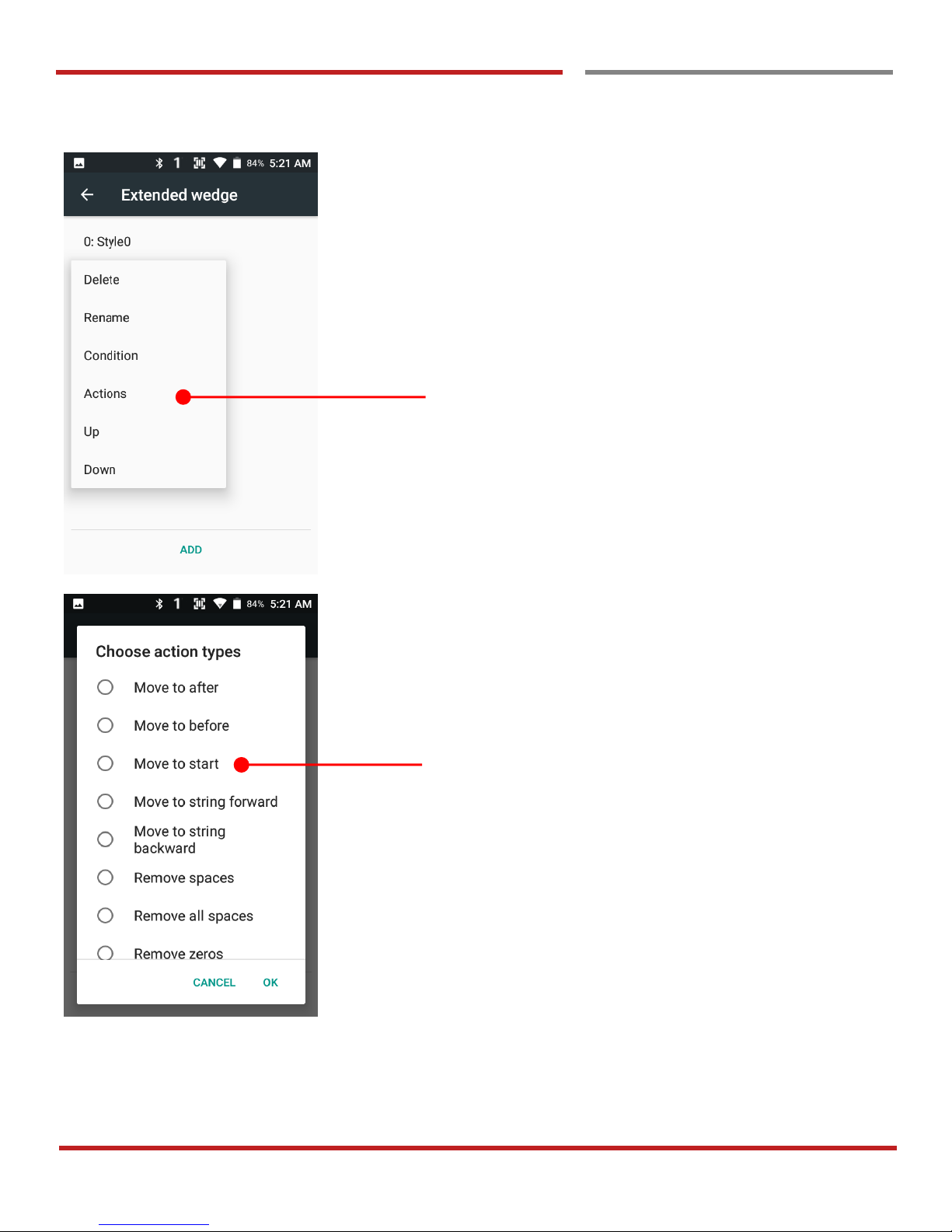

Touch Actions

Touch “Move to start” and “Send string” In “Send string”, edit “Value” as “Point Mobile”

PM550 Android 7.1.2 User Manual

40

Scanner Settings

Use a Scanner

Scanner Settings

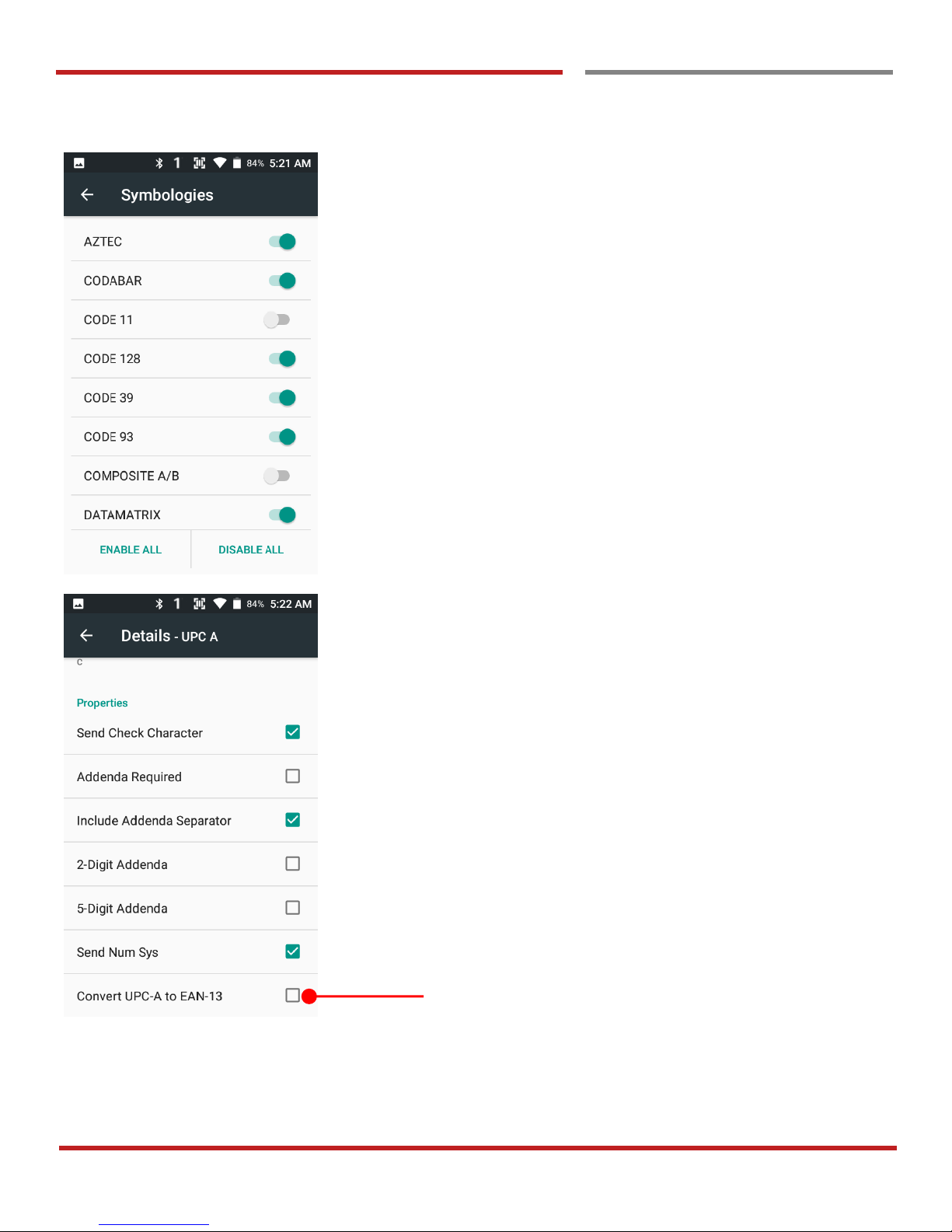

In the “Symbologies”, you can enable/disable specific barcode decoding or set a detail option.

By touching each “Symbology” name, you can set detail option.

Touch the check box to enable/disable specific option at symbology

PM550 Android 7.1.2 User Manual

41

Scanner Settings

Use a Scanner

Scanner Settings

In the ‘About’, you can check your Scanner’s information

and restore Scanner’s settings to default

PM550 Android 7.1.2 User Manual

42

Scan a Barcode

Scanner Settings

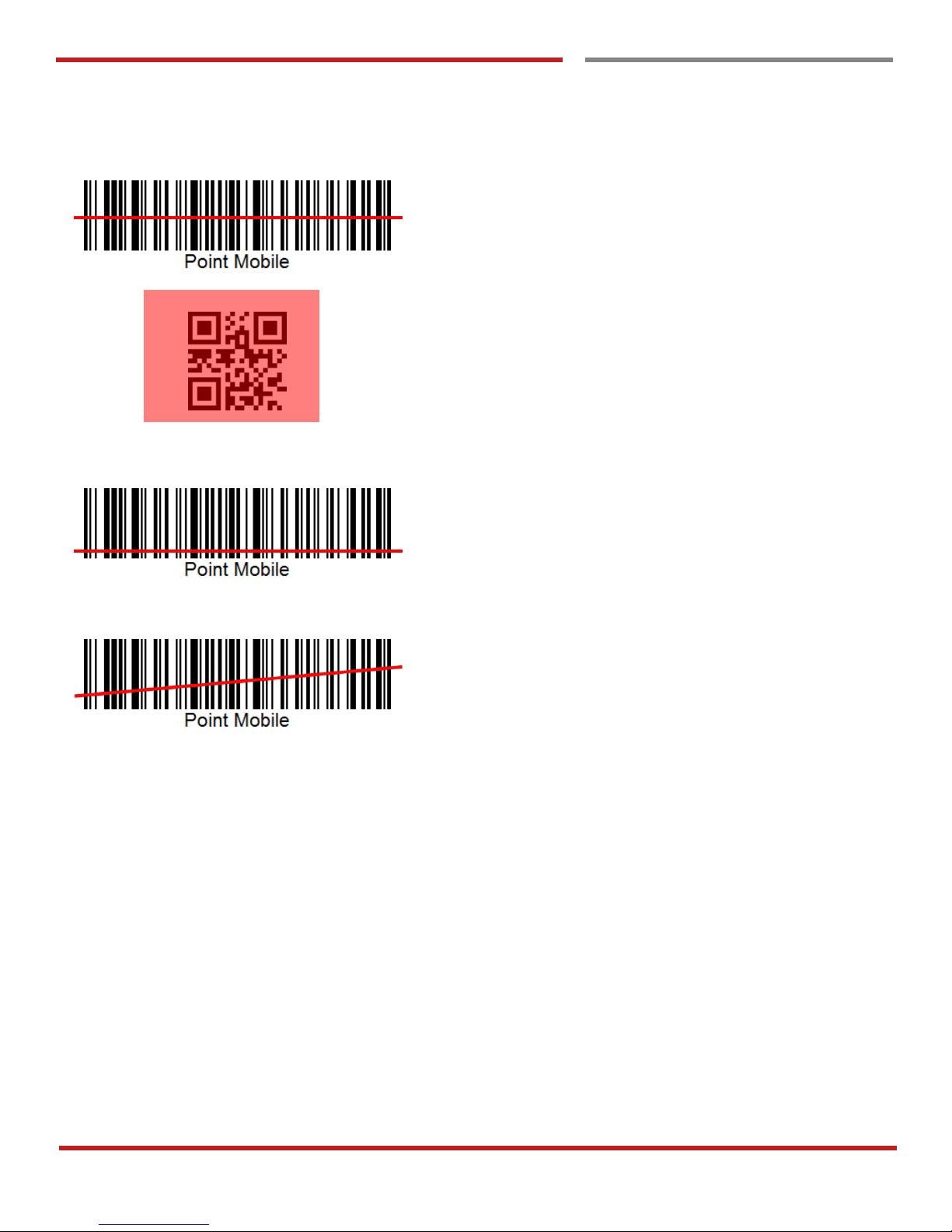

Example of good Barcode reading

Idle barcode scan Please aim the middle of barcode

Even you aim the barcode slightly upper or down area or angle is slightly tilted, you can read the barcode

PM550 Android 7.1.2 User Manual

43

Scan a Barcode

Scanner Settings

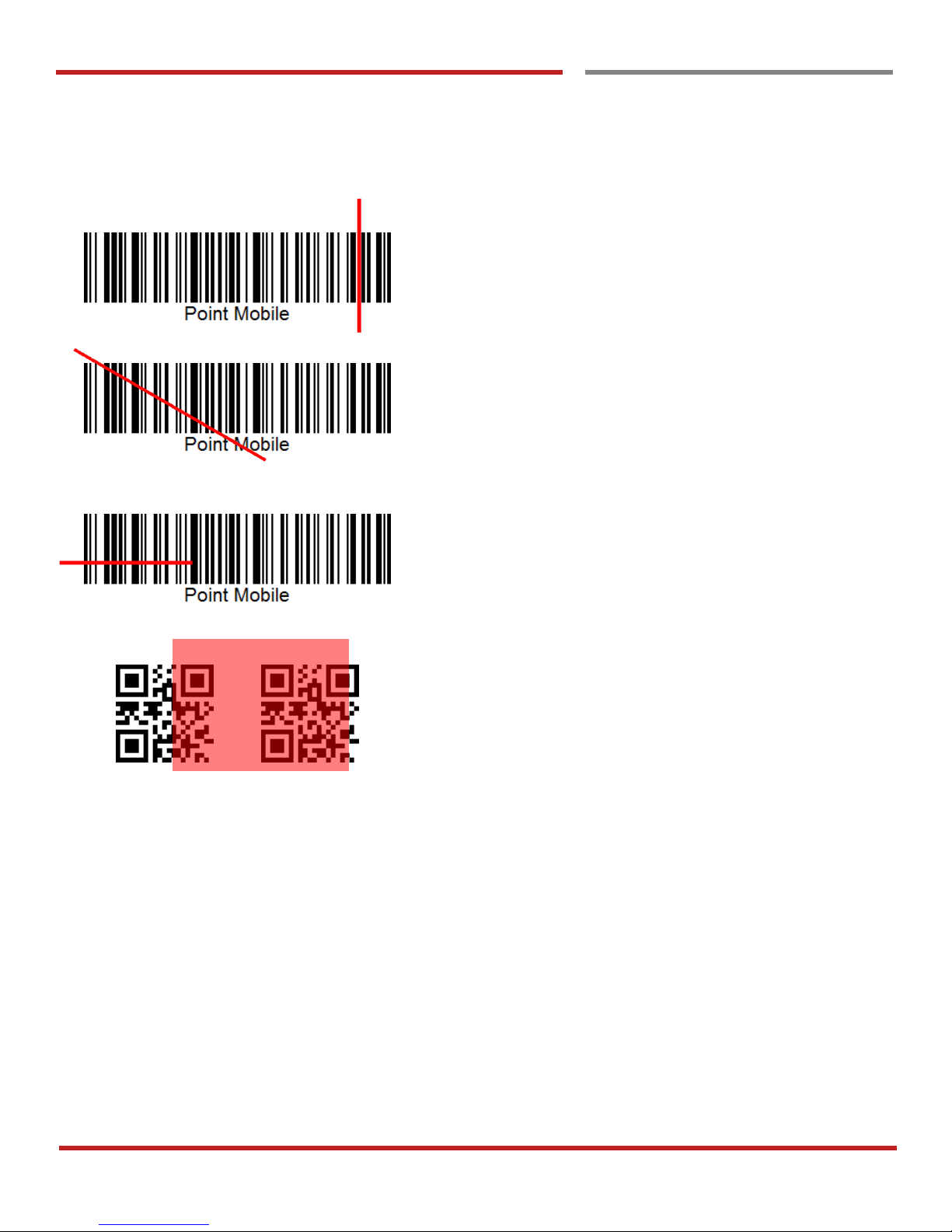

Example of bad Barcode reading

If you aim the barcode wrong direction or tilt too much, you can’t read the barcode

If you aim part of Barcode or aim two barcode together, you can’t read the barcode

PM550 Android 7.1.2 User Manual

44

OS Update

OS Image update from Storage

OS Update

To update OS image, copy or place OS image file into the root folder of “Internal Storage”

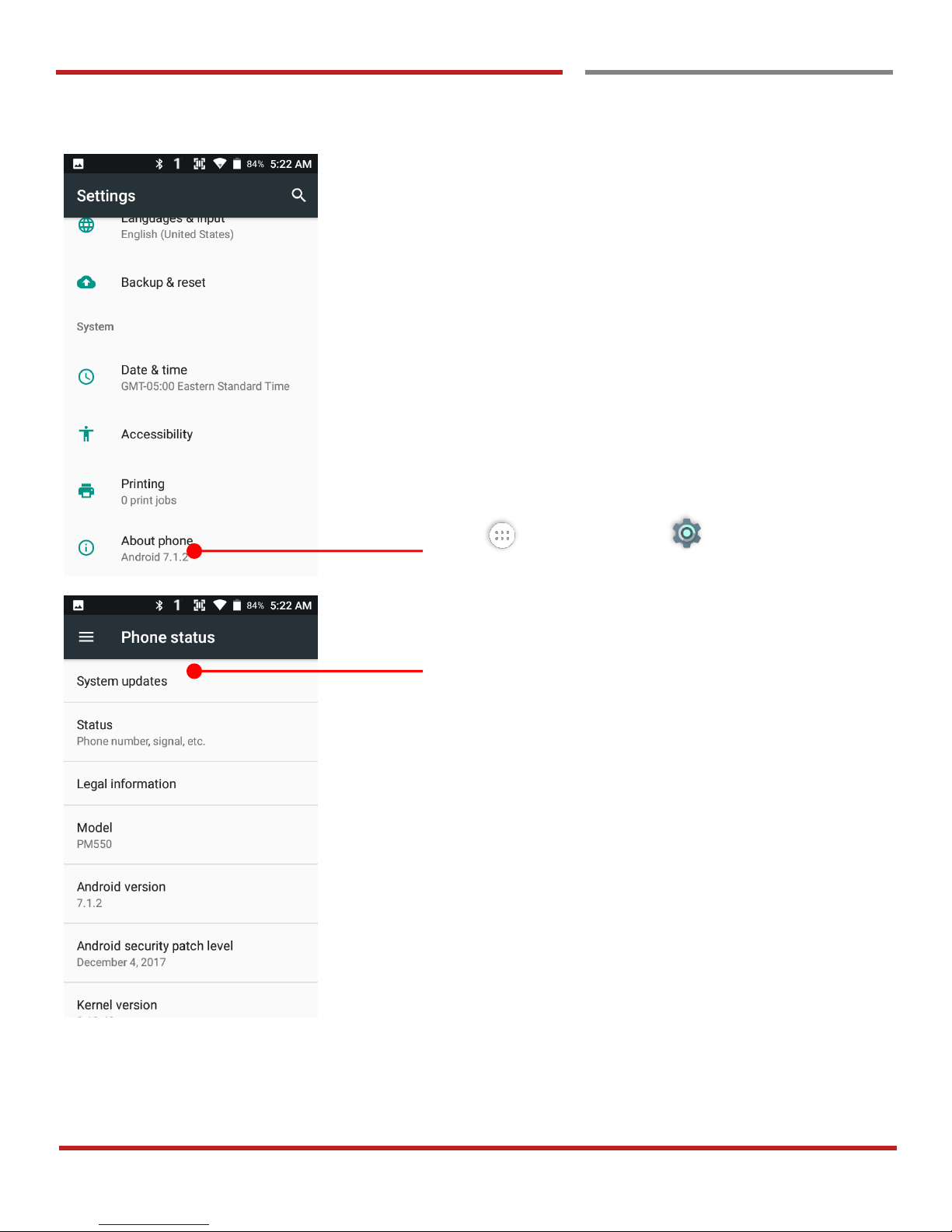

Touch “App Drawer” → “Settings” and then “About phone”

Touch “System updates”

PM550 Android 7.1.2 User Manual

45

OS Update

OS Image update from Storage

OS Update

Your PM550 will check storage and display available OS image

Touch “Update” button

By touching the “CONTINUE” button, your PM550 start to update the OS image. During this time, you cannot use your PM550. Please save the data before start, the OS update process.

PM550 Android 7.1.2 User Manual

46

OS Image update from OTG Port

OS Update

PM550 support USB OTG feature. With USB type C flash drive or OTG cable and USB flash drive combination, you can update the OS

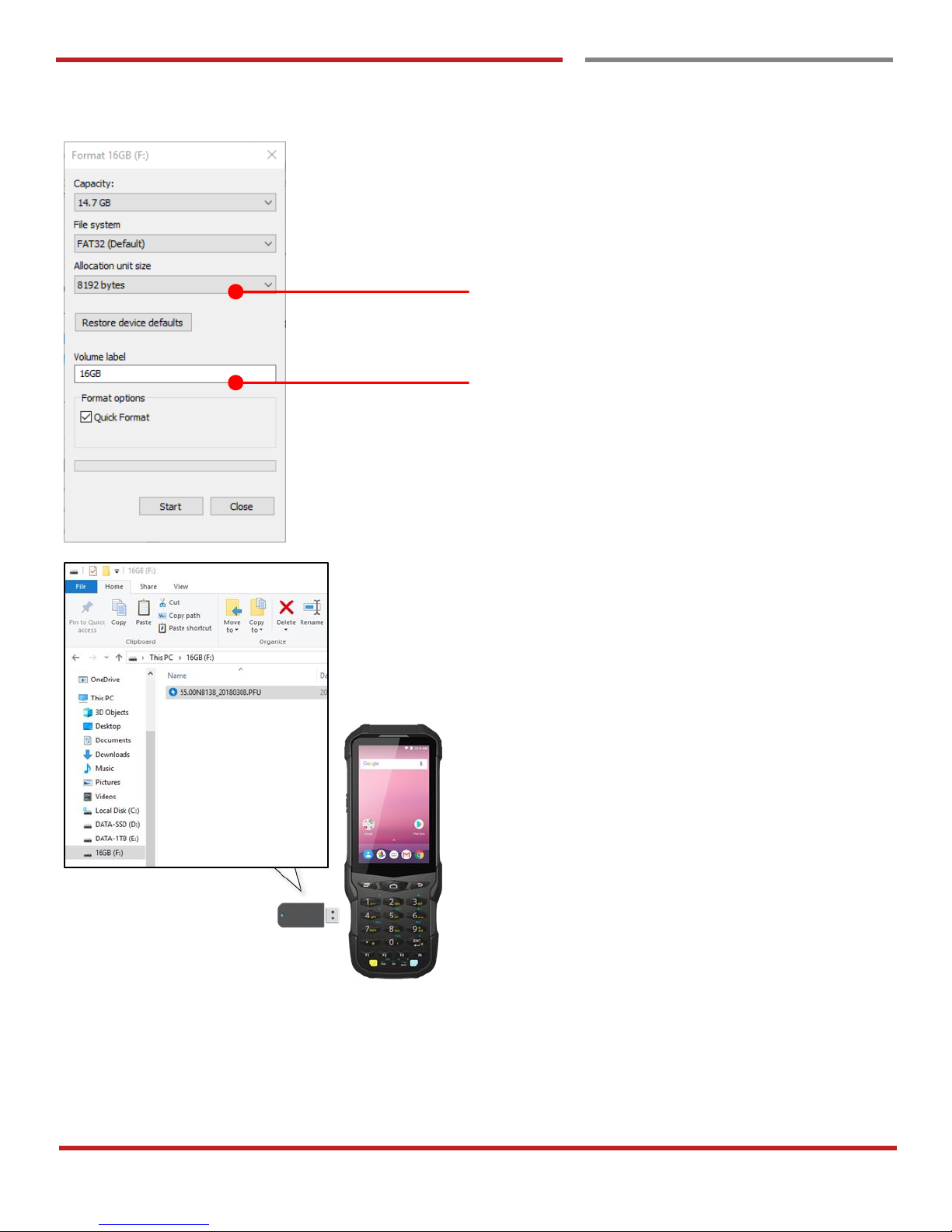

Please format your flash drive with FAT32 option

Please set a Volume label

After format, please copy OS image to the root folder of the flash drive

Connect flash drive to the PM550

PM550 Android 7.1.2 User Manual

47

OS Image update from OTG Port

OS Update

Touch “App Drawer” → “Settings” and then “About phone”

Touch “System updates”

PM550 Android 7.1.2 User Manual

48

OS Update

OS Image update from OTG Port

OS Update

Your PM550 will check storage and display available OS image

Touch “Update” button

By touching the “CONTINUE” button, your PM550 start to

update the OS image. During this time, you cannot use your PM550. Please save the data before start, the OS update process.

PM550 Android 7.1.2 User Manual

49

OS Update

OS Image update from the FOTA

OS Update

Tap icon for the advanced option access

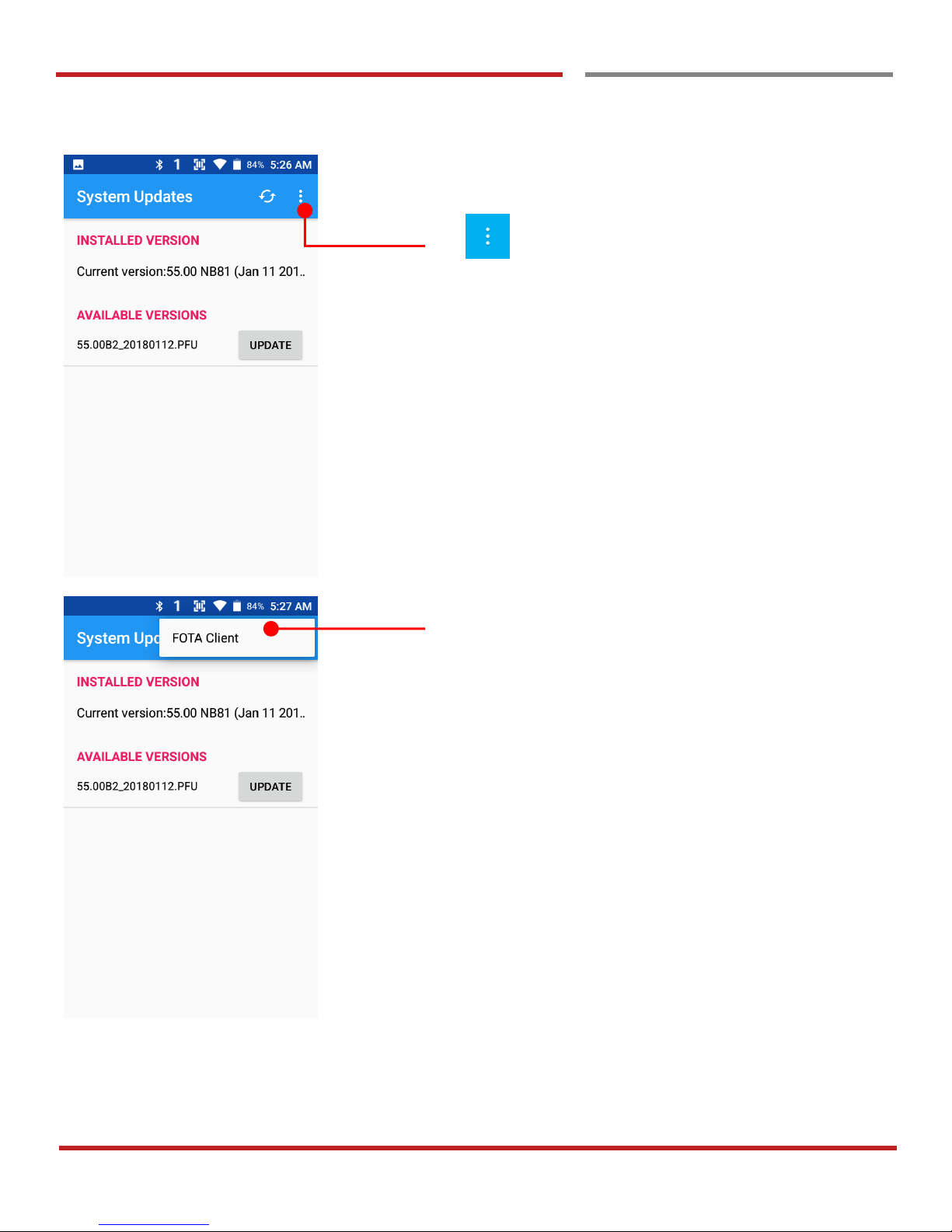

Touch “FOTA Client”

PM550 Android 7.1.2 User Manual

50

OS Update

OS Image update from the FOTA

OS Update

PM550 will compare the OS image between FOTA server and current OS image. If there is newer OS image in the FOTA server, FOTA server will suggest downloading.

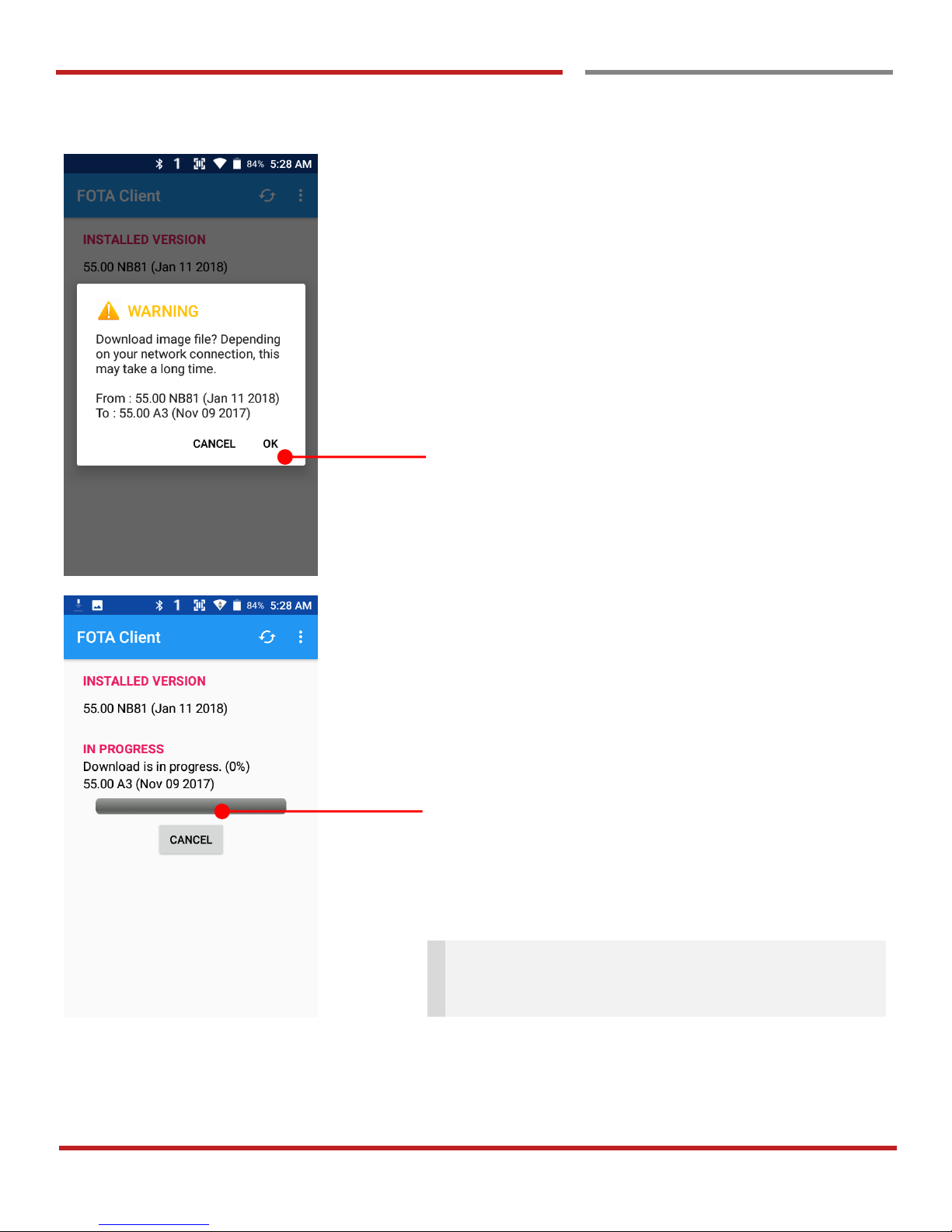

Touch “OK” to start download the image in the FOTA server

You can cancel OS image download process

Note: Default OS image download setting of FOTA Client is “Download over Wi-Fi only” Please connect to the nearby Wi-Fi network for FOTA service

PM550 Android 7.1.2 User Manual

51

Factory data reset

Factory data reset from Settings

Factory data reset

When your PM550 system is unstable and abnormal behavior occur but could not recover by rebooting, you may need to “Factory data reset” your PM550

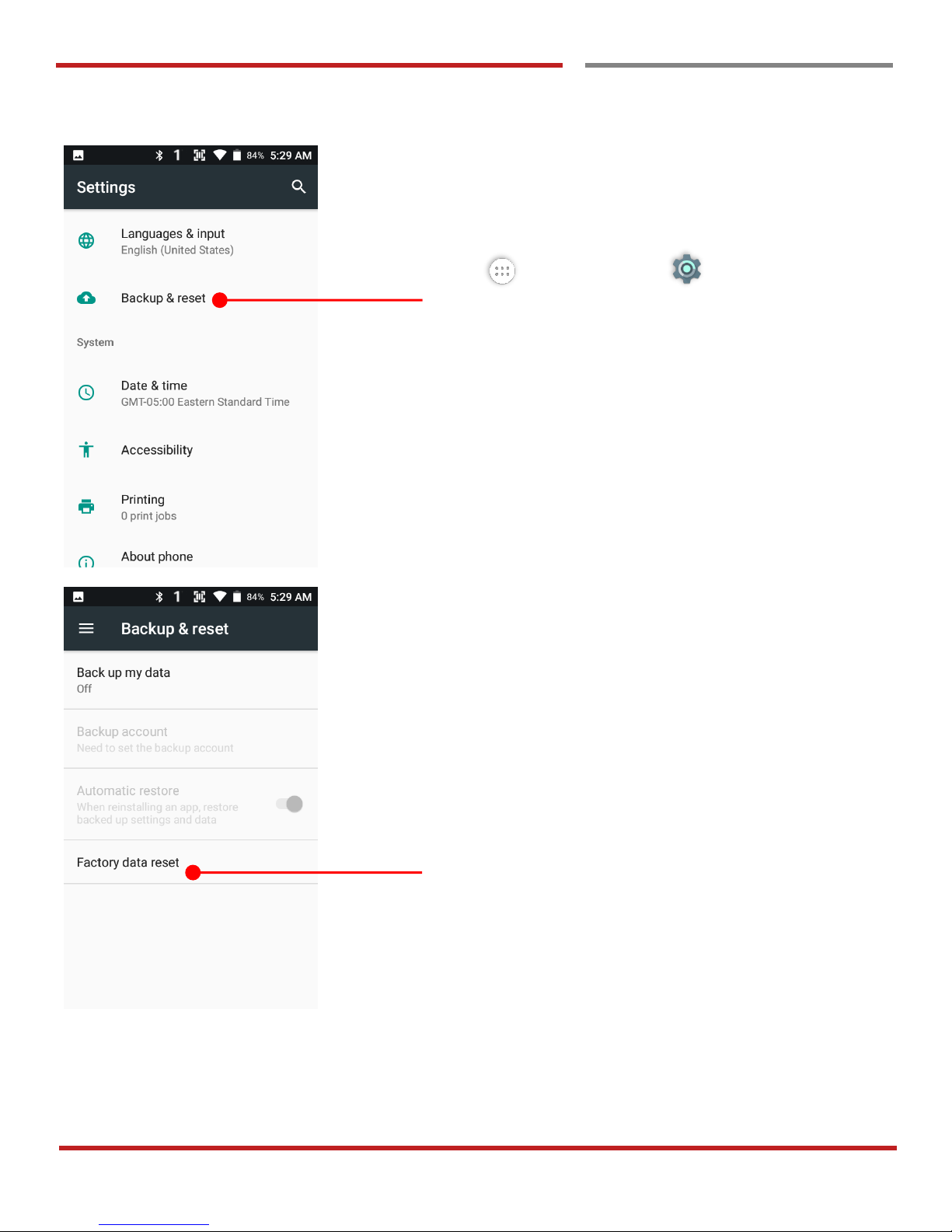

Touch “App Drawer” → “Settings” and then “Backup & reset”

Touch “Factory data reset”

PM550 Android 7.1.2 User Manual

52

Factory data reset from Settings

Factory data reset

Please note, all apps and data in the internal storage will be

deleted and restored to “Factory default” and this process cannot “Undo”

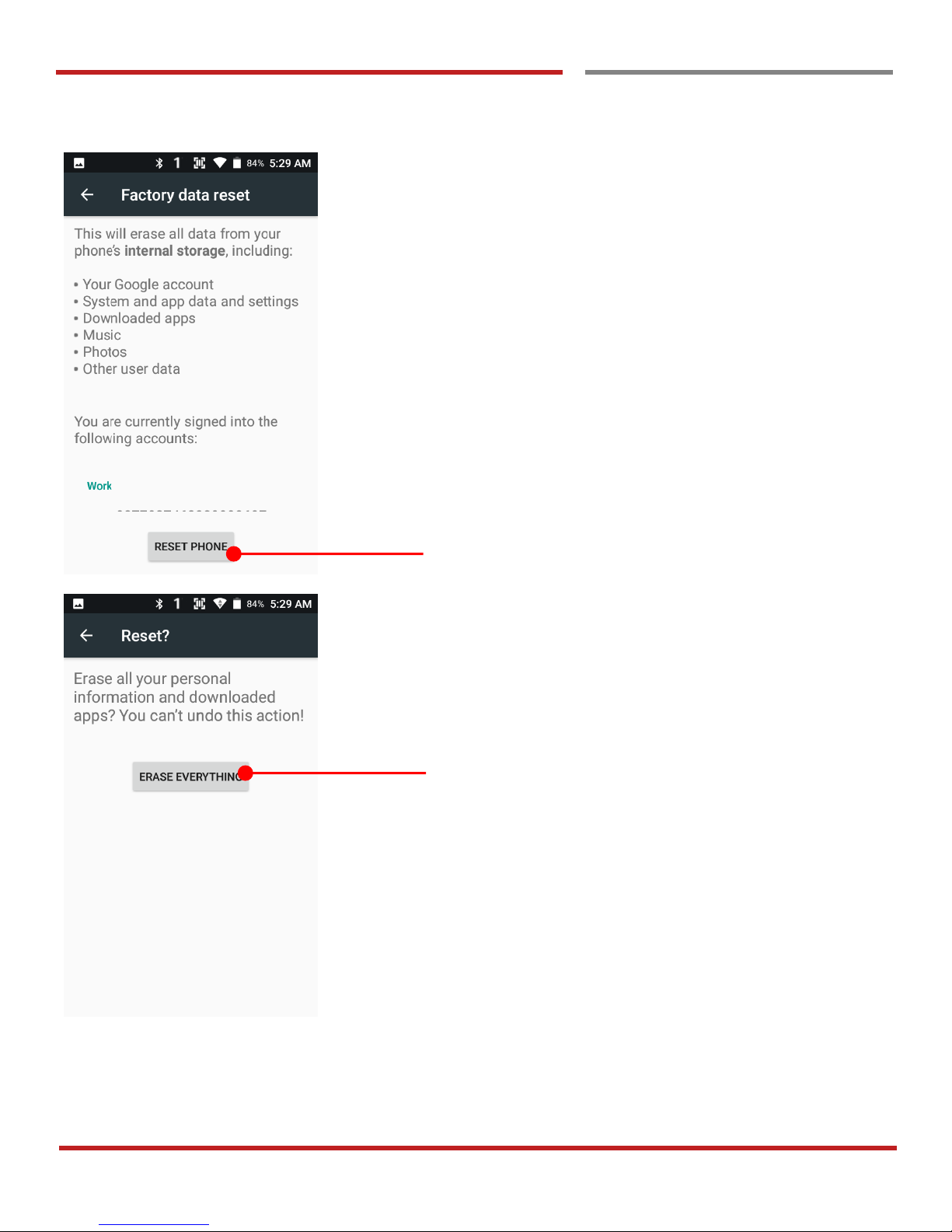

Touch RESET PHONE button to start “Factory Reset” process

Touch ERASE EVERYTHING button to confirm erase of “Apps and Data”

PM550 Android 7.1.2 User Manual

53

Factory data Reset

Force Factory data reset

Factory data reset

Force Factory data reset your PM550

You can perform “force” factory data reset your PM550. When your PM550 turned off, press “Power” + “Recent” + “Back” button all together. After short vibration from your PM550, you may release the buttons.

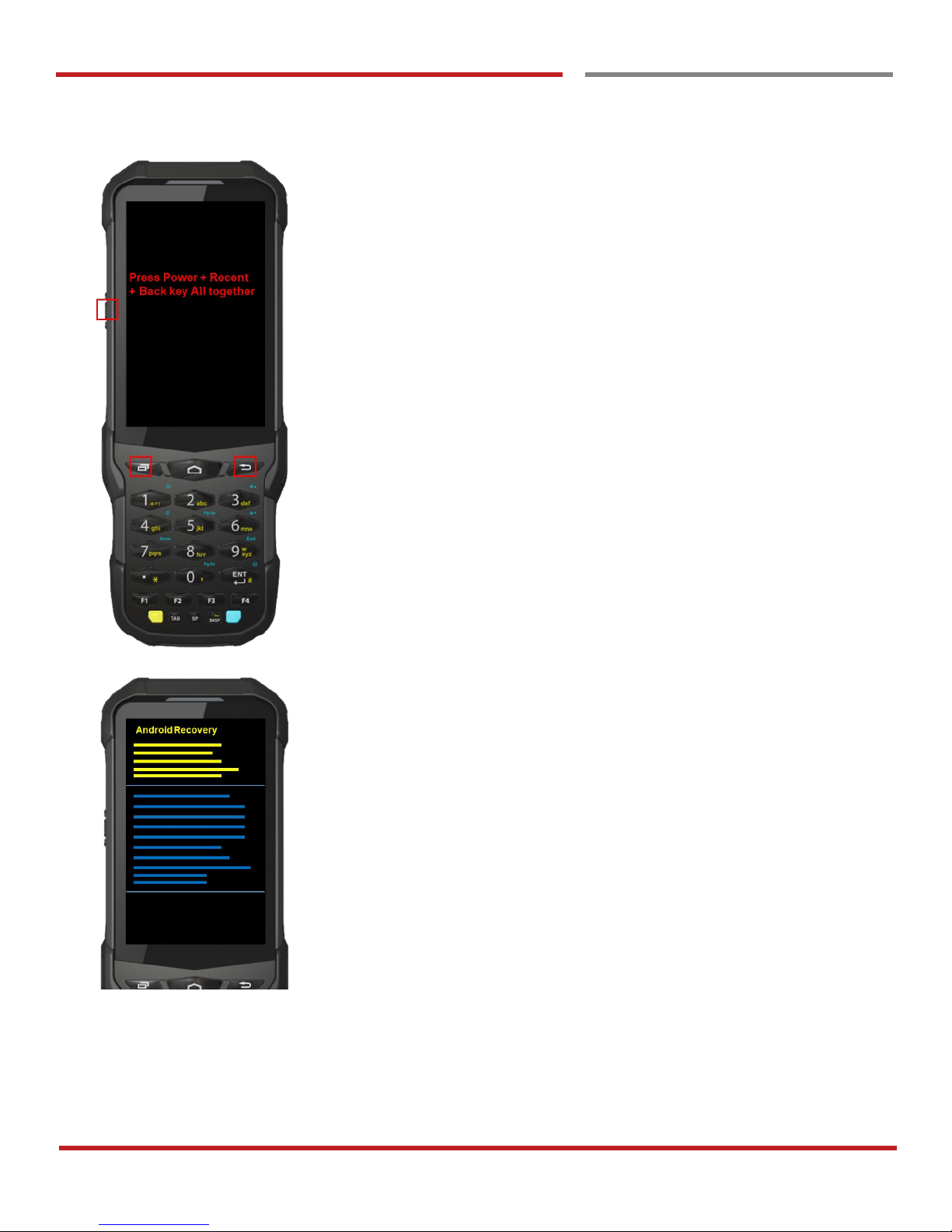

PM550 enter to the “Android Recovery” mode. In this mode, all key pad pressing move down the menu tree and “Power Button” is “Select”

PM550 Android 7.1.2 User Manual

54

Factory data Reset

Force Factory data reset

Factory data reset

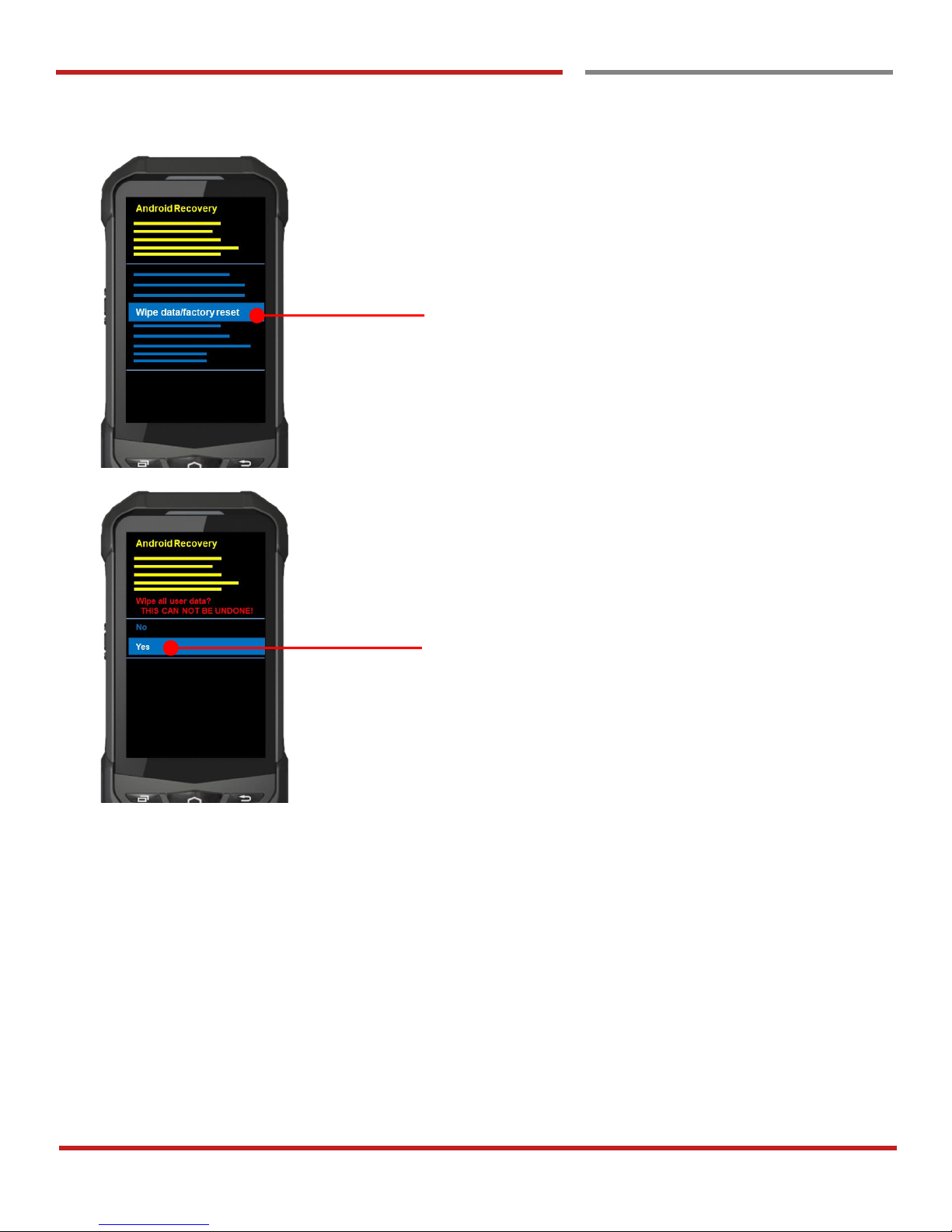

Select “Wipe data/factory reset”

Select “Yes” to perform the “Factory data reset”

After that, your PM550 start wiping the data

PM550 Android 7.1.2 User Manual

55

Factory data Reset

Force Factory data reset

Factory data reset

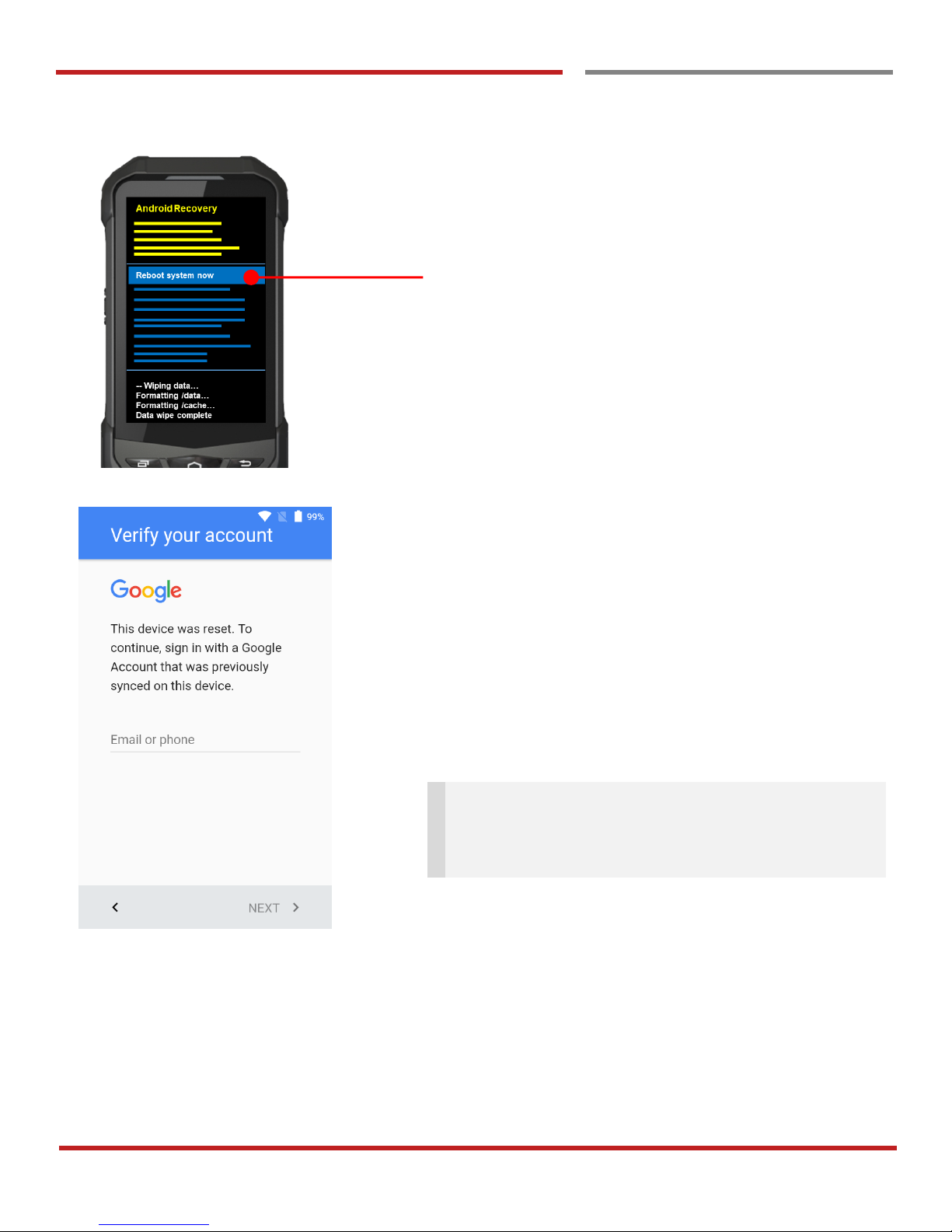

After data wiping, please select “Reboot system now” to

finish the “Force Factory data reset” process

After Force factory reset, if PM Android Device locked by Factory Reset Protection, then please enter to Fast Boot mode and execute command

- fastboot erase config

- fastboot reboot

Note: Factory Reset Protection (FRP) is a security method that was designed to make sure someone can't just wipe and factory reset your device if you've lost it or it was stolen

PM550 Android 7.1.2 User Manual

56

EmKit

Enterprise Mobility Kit

EmKit

Enterprise Mobility Kit – Truly, what Enterprise needs

Point Mobile announces new software solution – called “EmKit” is new software solution for enterprise mobility users. Our every Android device shall have EmKit pre-installed and every use can access them for free of charge*. EmKit offers truly-value-added advantages, for enterprise users, which are against consumer-centric & non-customizable smartphones. Every solution in EmKit is 100% compatible with Point Mobile Android GMS certified devices.

* Necessary MDM license subjects upon individual subscribers

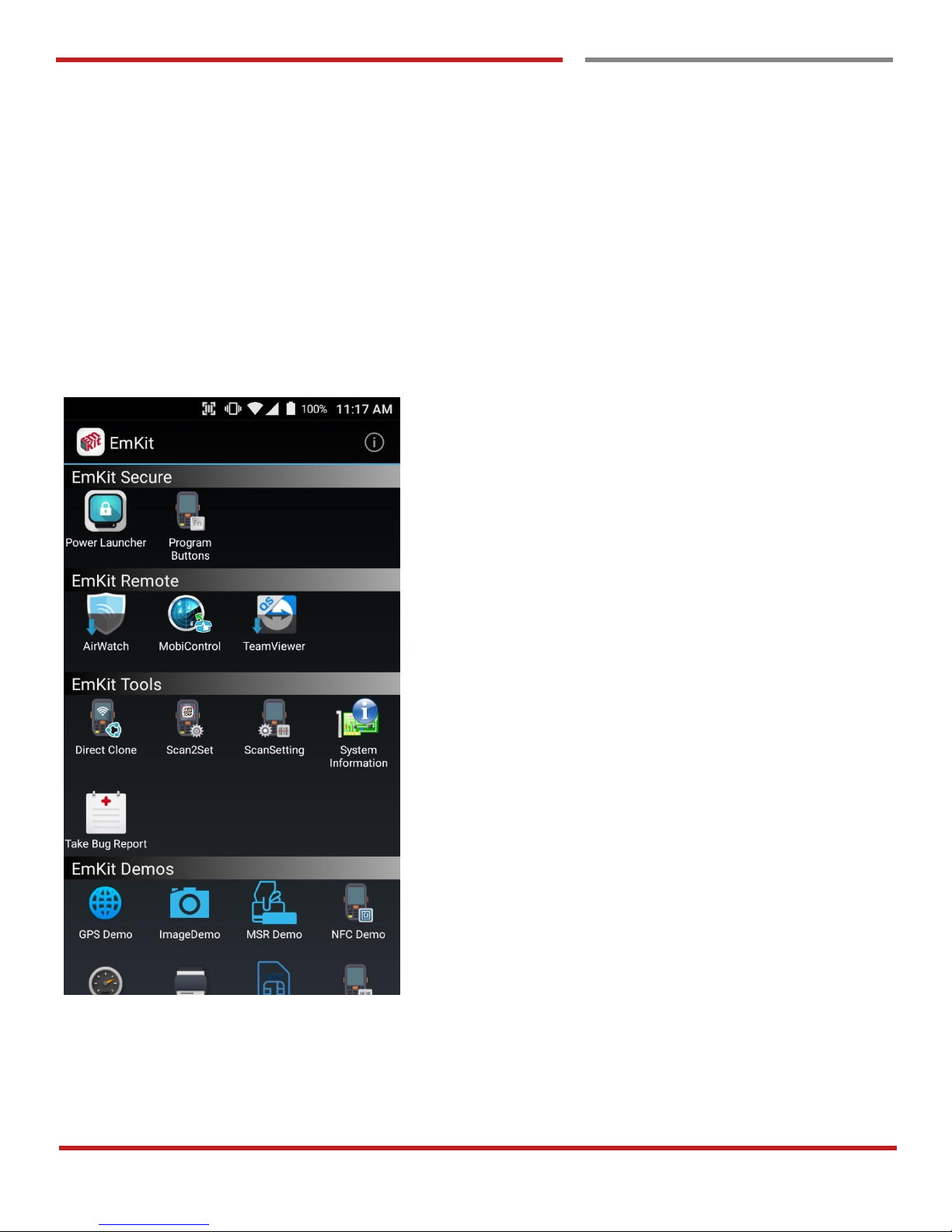

EmKit consist with “EmKit Secure”, “EmKit Remote”, “Emkit Tools” and “EmKit Demos”

- EmKit Secure “Lock Your Device”

- EmKit Remote “Mobile Device Management”

- EmKit Tools “Smarty Tools Ease Enterprise”

- EmKit Demos “Friendly For Programmers”

PM550 Android 7.1.2 User Manual

57

EmKit Secure

EmKit

Power Launcher You can lock your Point Mobile Android model’s Home

Screen and limit to access app drawer or specific function.

This function as known as Kiosk mode.

- Hide Quick Settings : Limit to access quick setting panel

- Restrict MTP connection : Limit to access Point Mobile Device’s MTP connection

- Screenshot Disable : Disable screenshot capture in OS level

Restriction feature will be keep added.

After restriction feature check, switch Launcher Lock to On.

PM550 Android 7.1.2 User Manual

58

EmKit Secure

EmKit

When Power Launcher is locked, operator could not access to App drawer.

Example of Screenshot Disable restriction.

PM550 Android 7.1.2 User Manual

59

EmKit Secure

EmKit

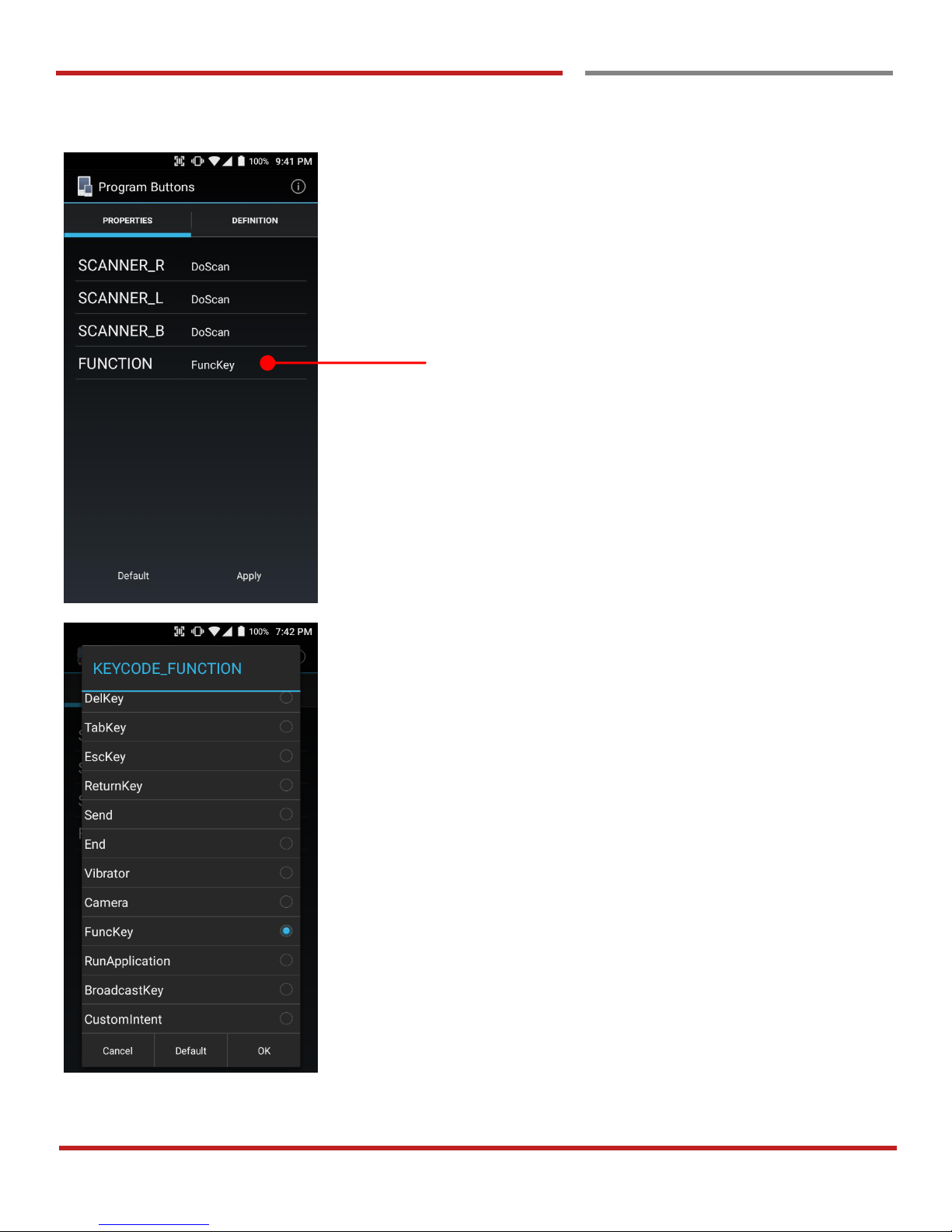

Program Buttons

You can assign Hardware buttons function to rich preassigned functions. Also you can applying the customized KCM file (Key Character Map Files) here.

PM550 Android 7.1.2 User Manual

60

EmKit Remote

EmKit

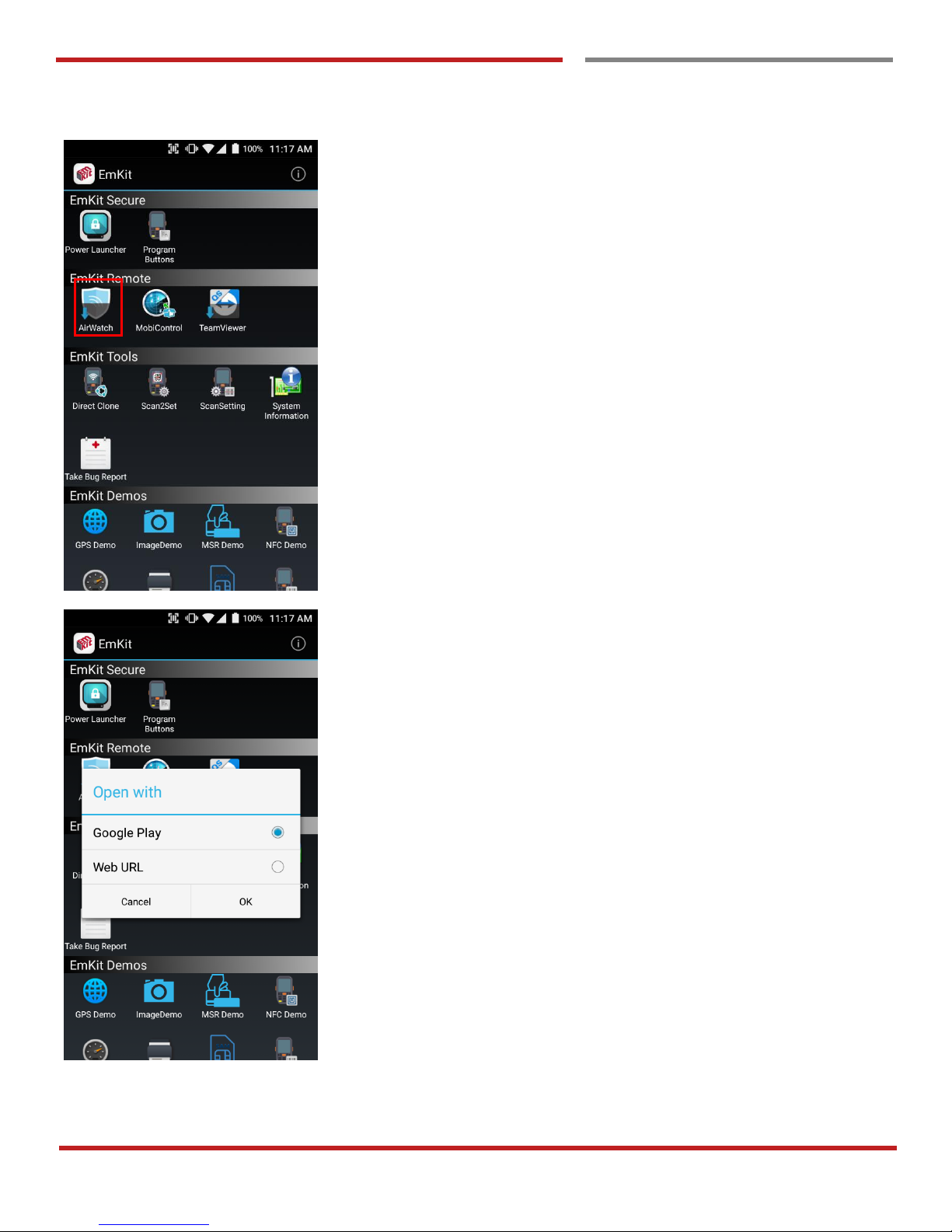

To install the AirWatch agent to Point Mobile Android device, please touch AirWatch icon

App provides AirWatch agent install via Google Play or Web URL.

- Google Play method requires Google account login. AirWatch agent download and install managed by Google Play

- Web URL method requires user’s manual installation

PM550 Android 7.1.2 User Manual

61

EmKit Remote

EmKit

To install AirWatch agent from Web URL method, select Web URL and then OK

Web browser will download the apk file to the Point Mobile Android device. Before downloading, browser need permission to download apk file to the storage. Please touch Update Permissions button

PM550 Android 7.1.2 User Manual

62

EmKit Remote

EmKit

After permission update, web browser download the latest version of AirWatch agent apk file. Install this apk file to Point Mobile Android device.

Note: If you need to install specific agent version, please contact to AirWatch

PM550 Android 7.1.2 User Manual

63

EmKit Remote

EmKit

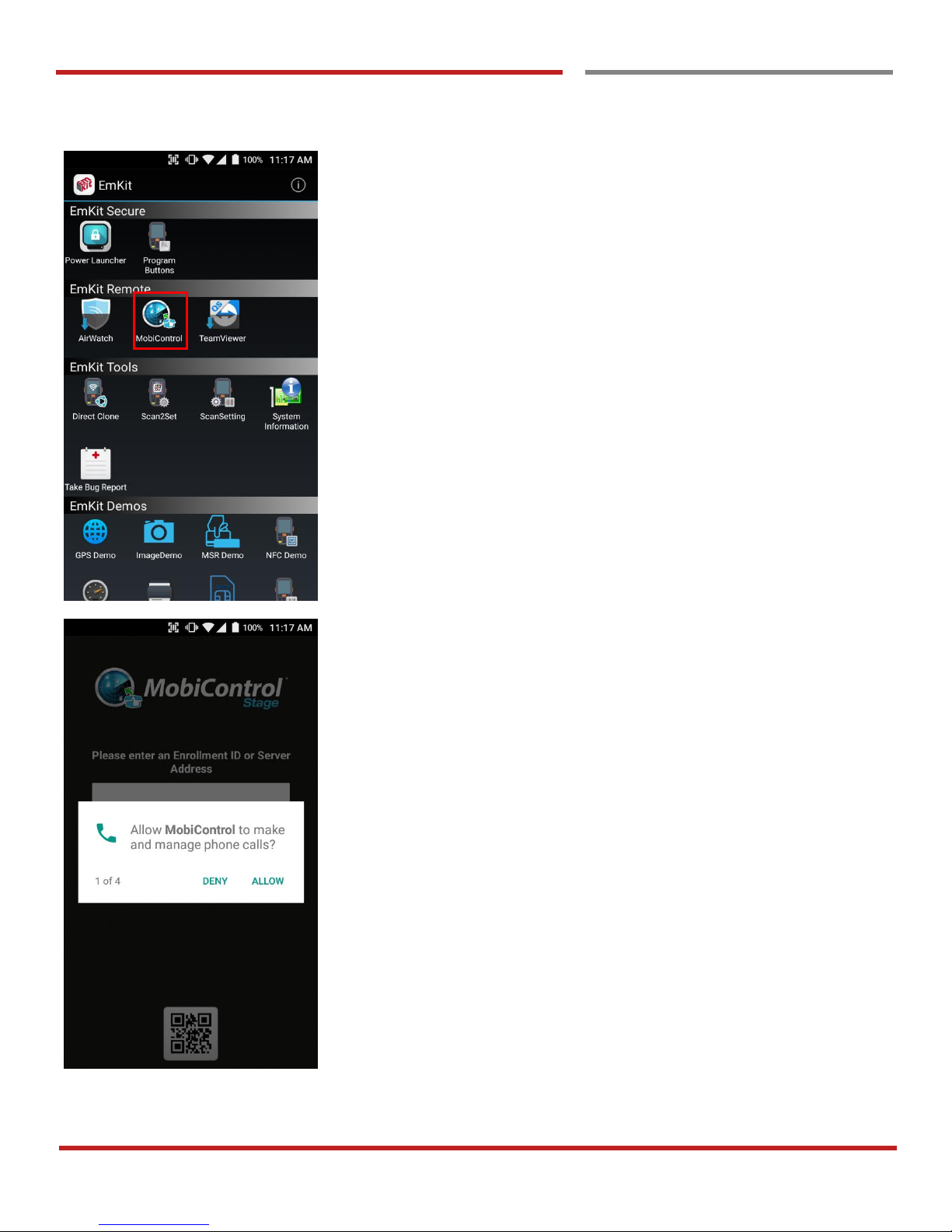

SOTI Mobi Control installer is pre-installed to Point Mobile Android device. To start enrollment process, please touch MobiControl icon

Mobi Control app request permission grant during enrollment process. Please allow it.

PM550 Android 7.1.2 User Manual

64

EmKit Remote

EmKit

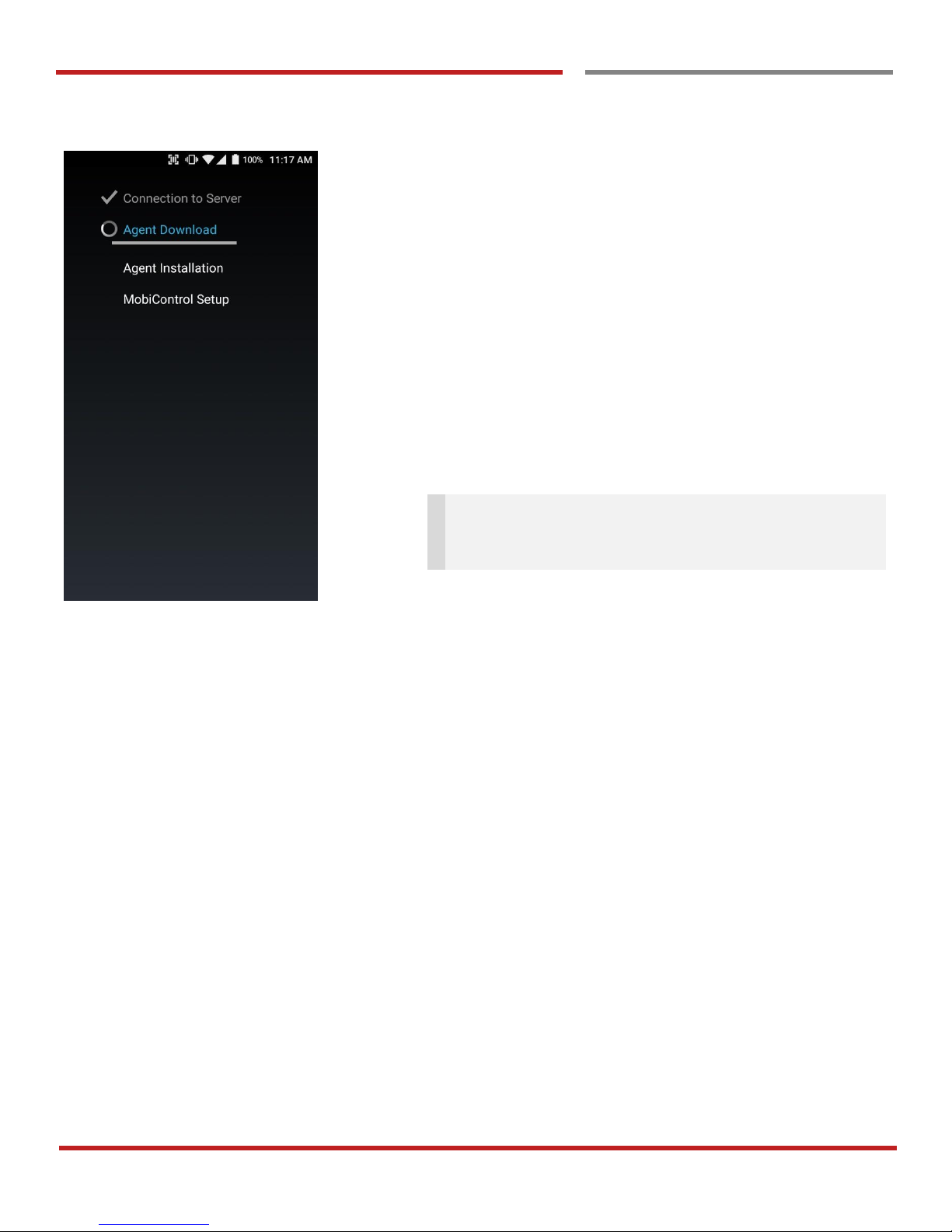

After login, Mobi Control app communicate with SOTI server and then install the Mobi Control agent

Note: Agent version determine from SOTI console’s setting. If agent version is incorrect after enrollment, please contact to SOTI

PM550 Android 7.1.2 User Manual

65

EmKit Remote

EmKit

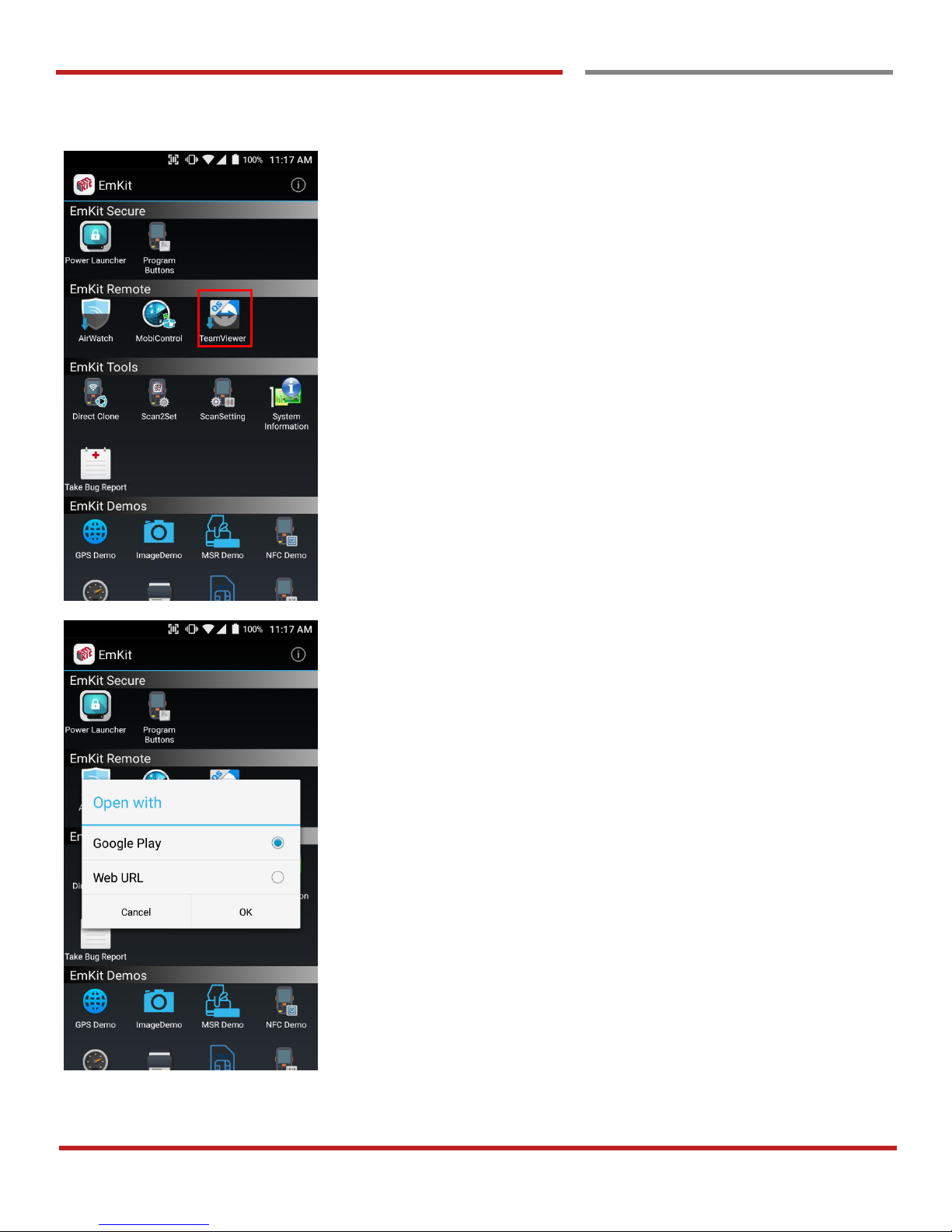

To install the TeamViewer QS app to Point Mobile Android device, please touch TeamViewer icon

App provides TeamViewer QS app install via Google Play or Web URL.

- Google Play method requires Google account login. TeamViewer QS app download and install managed by Google Play

- Web URL method requires user’s manual installation

PM550 Android 7.1.2 User Manual

66

EmKit Remote

EmKit

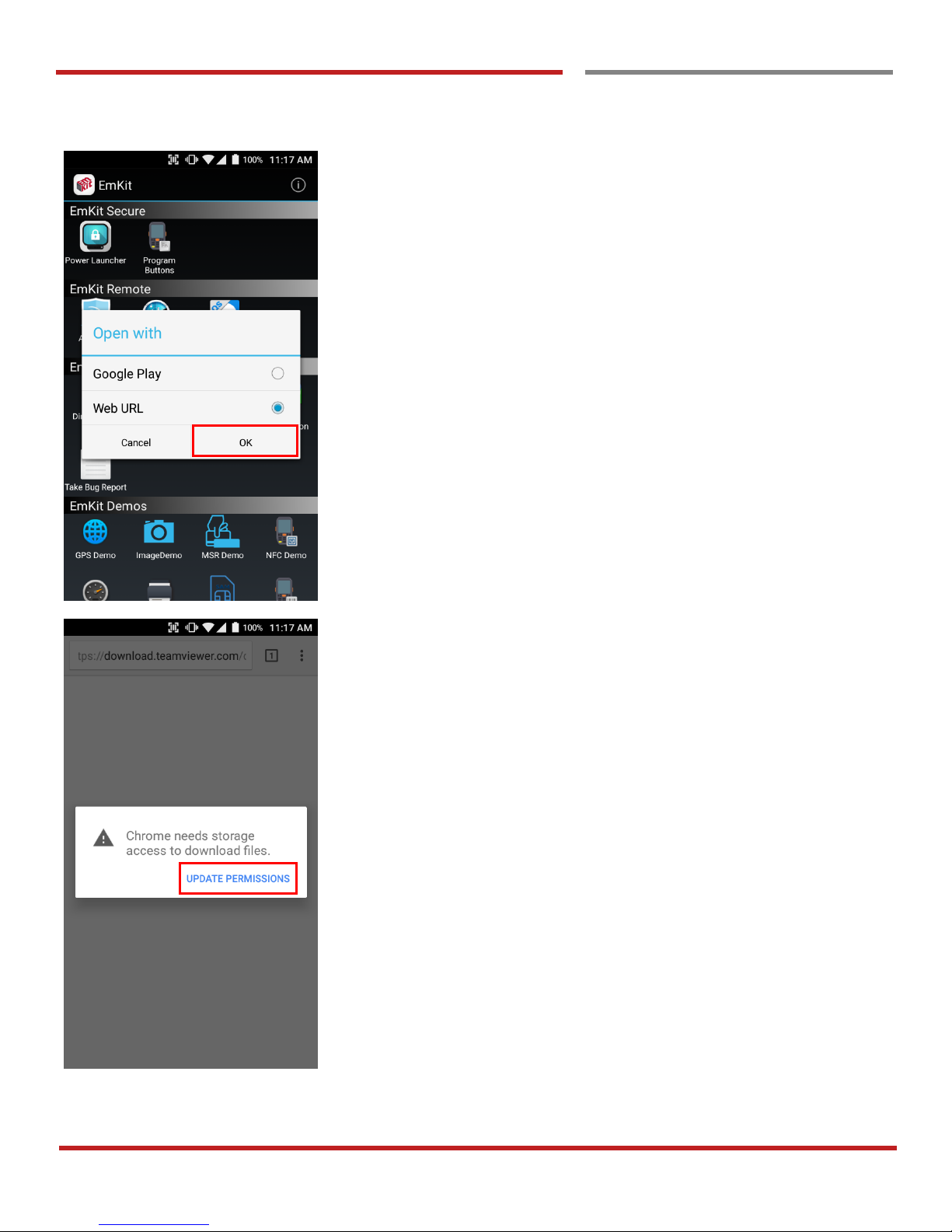

To install TeamViewer QS app from Web URL method, select Web URL and then OK

Web browser will download the apk file to the Point Mobile Android device. Before downloading, browser need permission to download apk file to the storage. Please touch Update Permissions button

PM550 Android 7.1.2 User Manual

67

EmKit Remote

EmKit

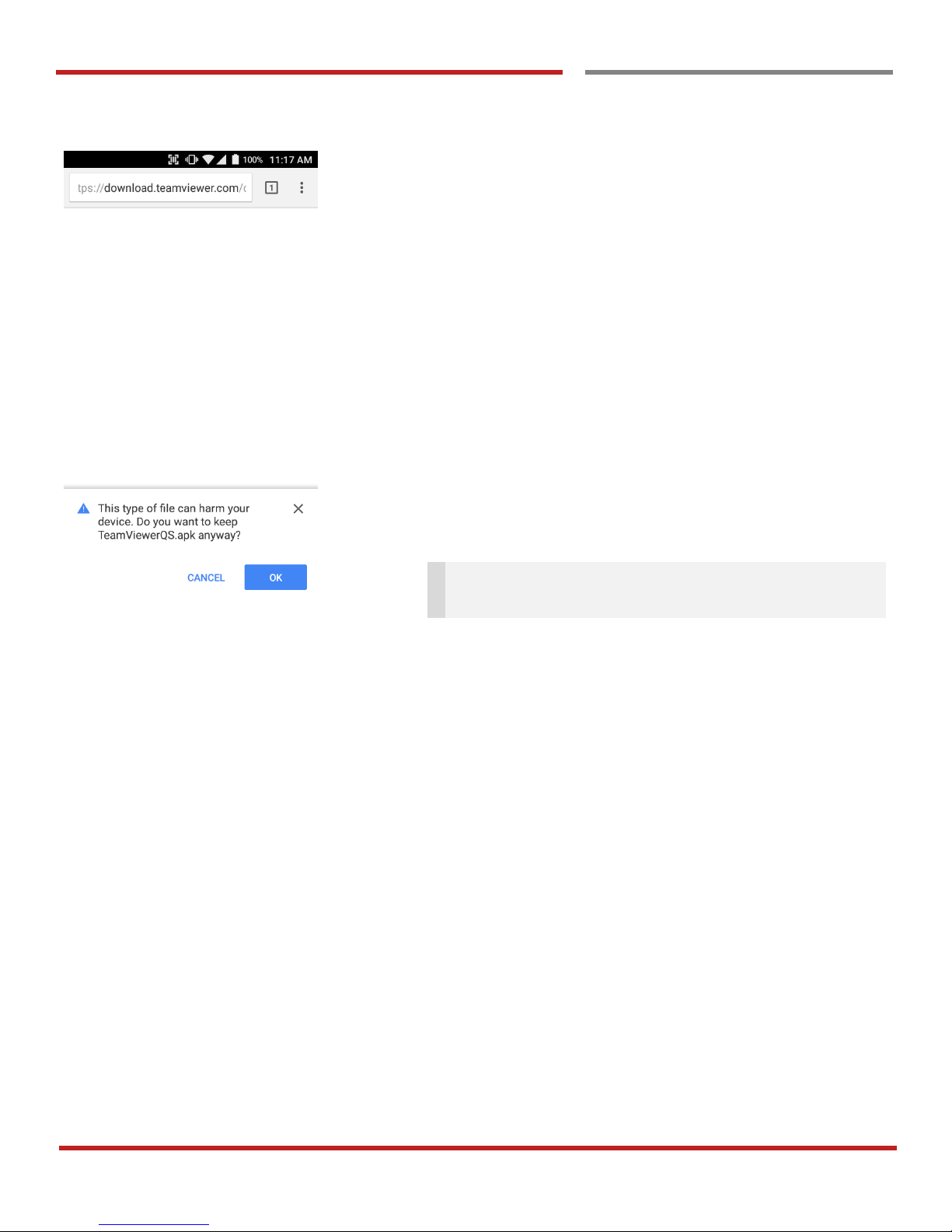

After permission update, web browser download the latest version of TeamViewer QS apk file. Install this apk file to Point Mobile Android device.

Note: If you need to install specific TeamViewer QS version, please contact to TeamViewer

PM550 Android 7.1.2 User Manual

68

EmKit Tools

EmKit

Direct Clone

Create the Master PDA - backup your system settings and apps into a secured file. Without any network connection, Master PDA become a local server in your work place. Nearby Point Mobile device will automatically communicate with Master PDA and download the backup file and then Restore.

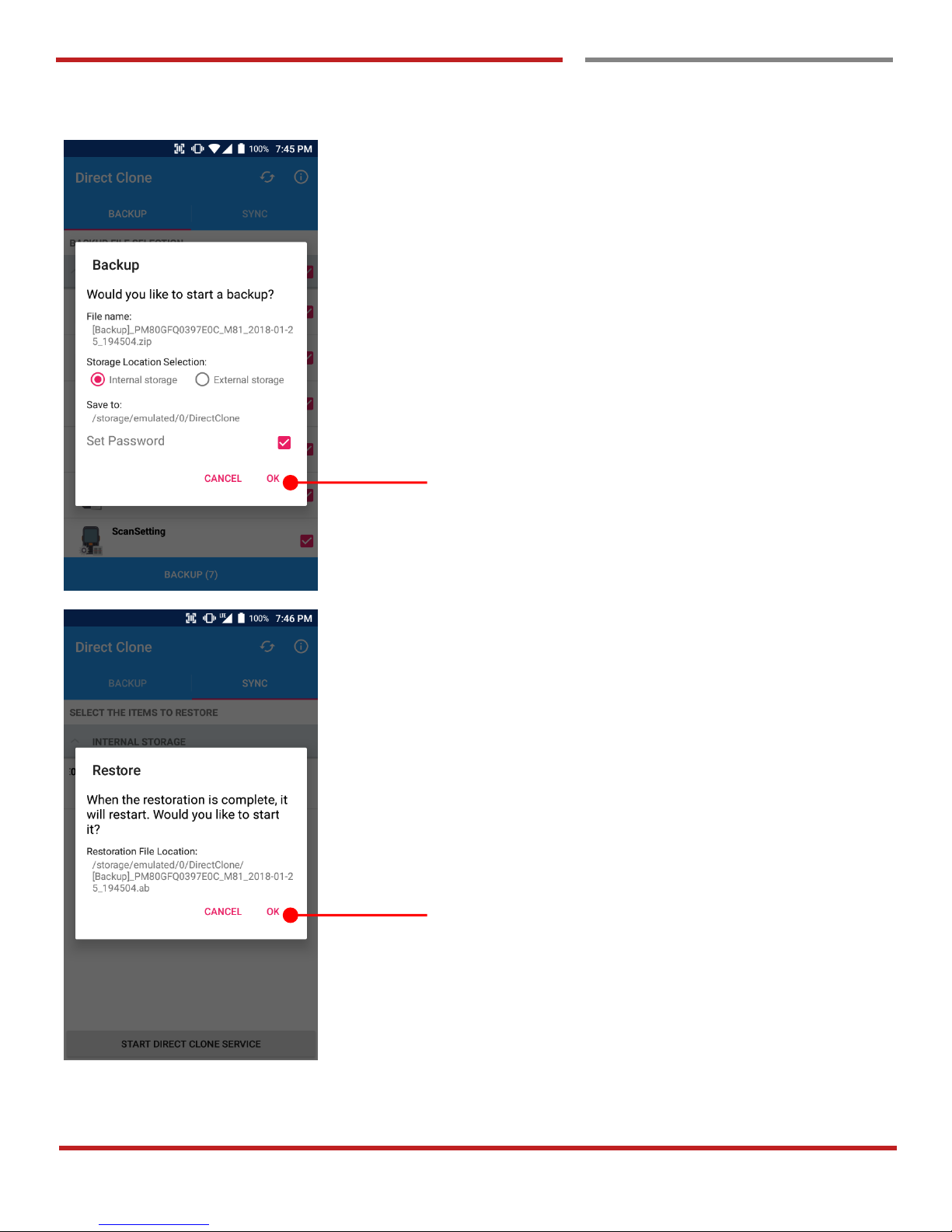

Create the backup file

Backed up file will restore your Point Mobile Android device.

PM550 Android 7.1.2 User Manual

69

EmKit Tools

EmKit

Step 1. Create Direct Clone Backup file

- Make a Direct Clone file from Master PDA device

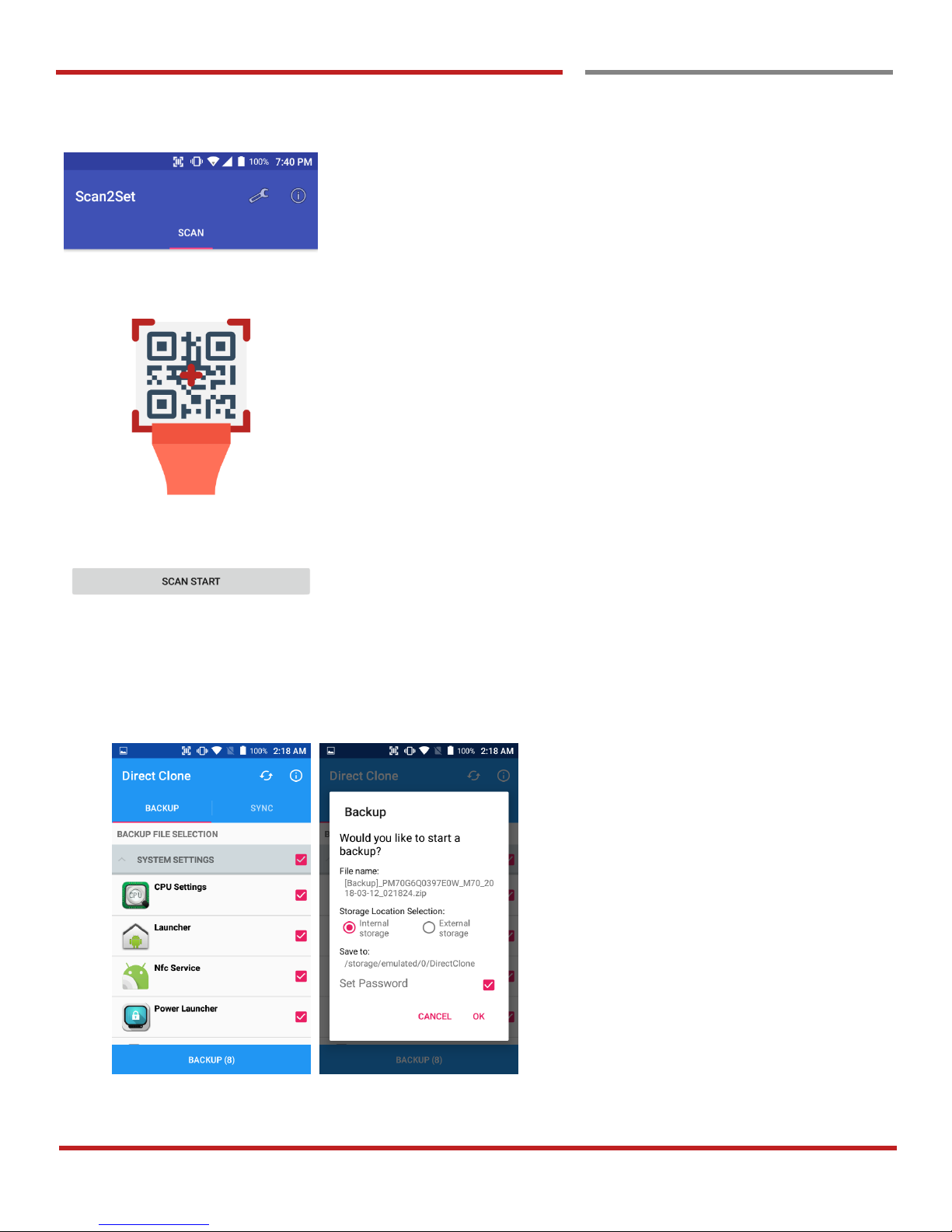

Scan2Set

Scan2Set is designed for the network environment. Point Mobile Android device downloads the Direct Clone file from the FTP, Web server and Google Drive with just one QRcode Scan!

Scan your QR code and,

- Connect to your network

- Restore your PDA

- Work Managed Device setup

PM550 Android 7.1.2 User Manual

70

EmKit Tools

EmKit

Step 2. Upload Direct Clone file to your FTP site or Web server

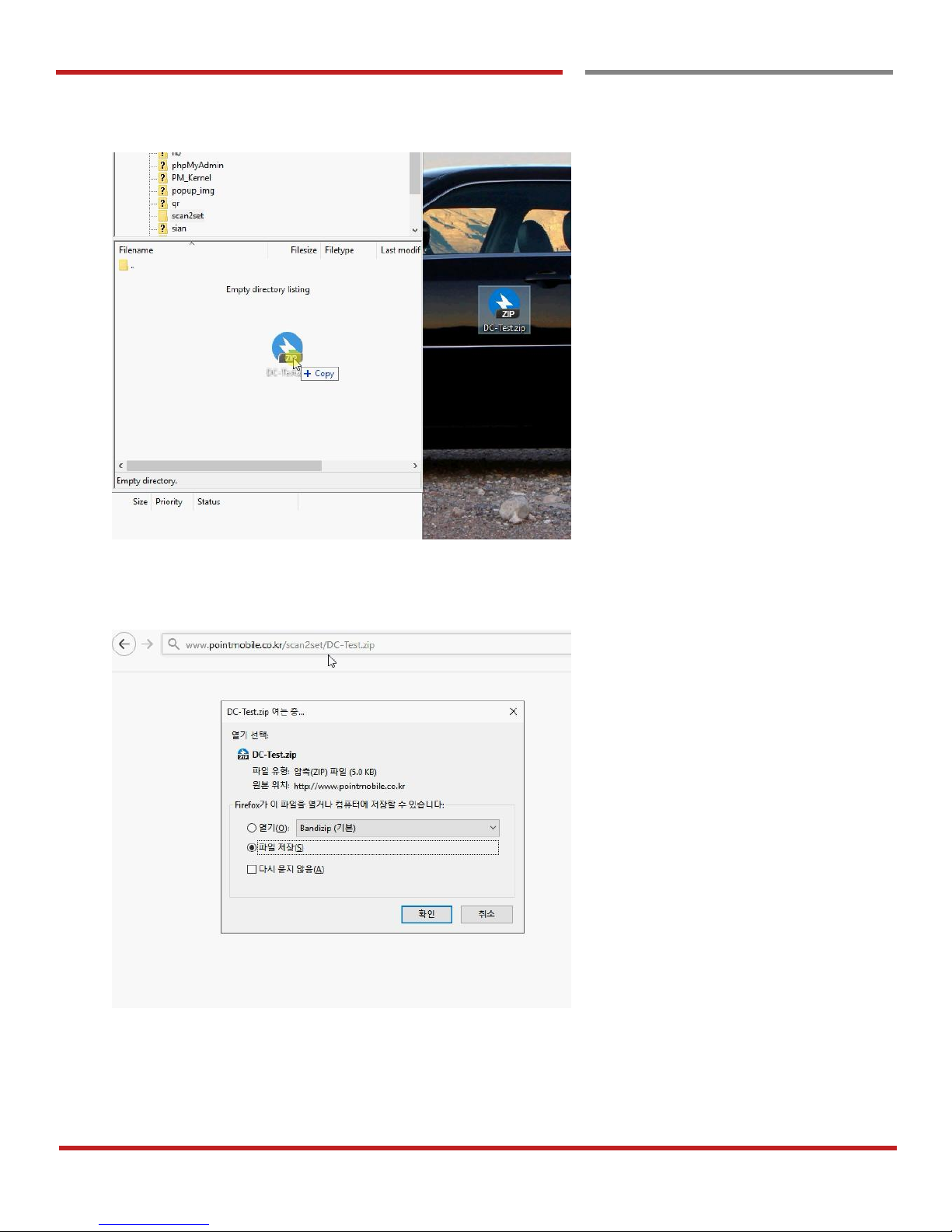

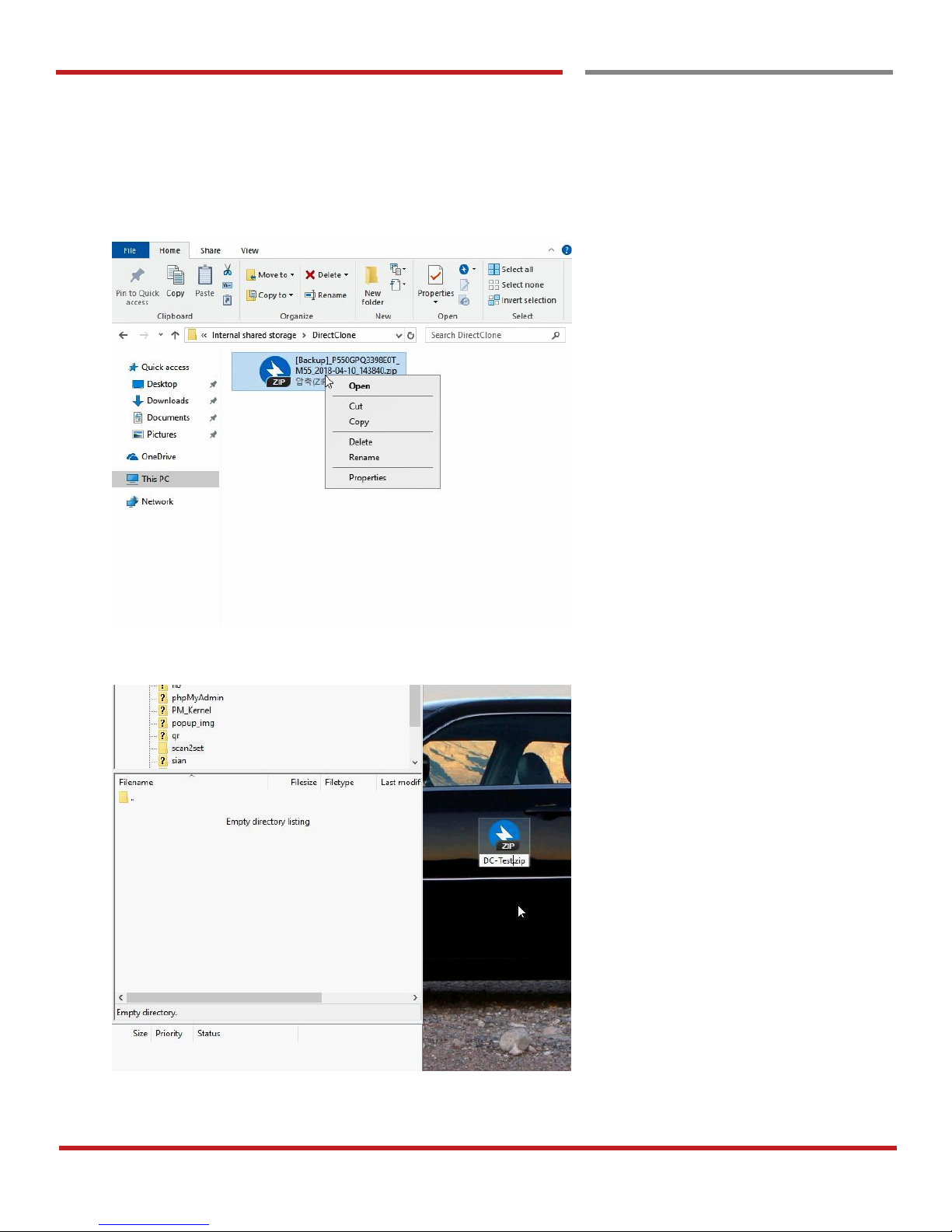

- Copy the Direct Clone file from the Point Mobile Android device

- Upload this file to your FTP site or Web Server. You may change file name

-

PM550 Android 7.1.2 User Manual

71

EmKit Tools

EmKit

- After file uploading, please check the url first. File should be download with url address.

PM550 Android 7.1.2 User Manual

72

EmKit Tools

EmKit

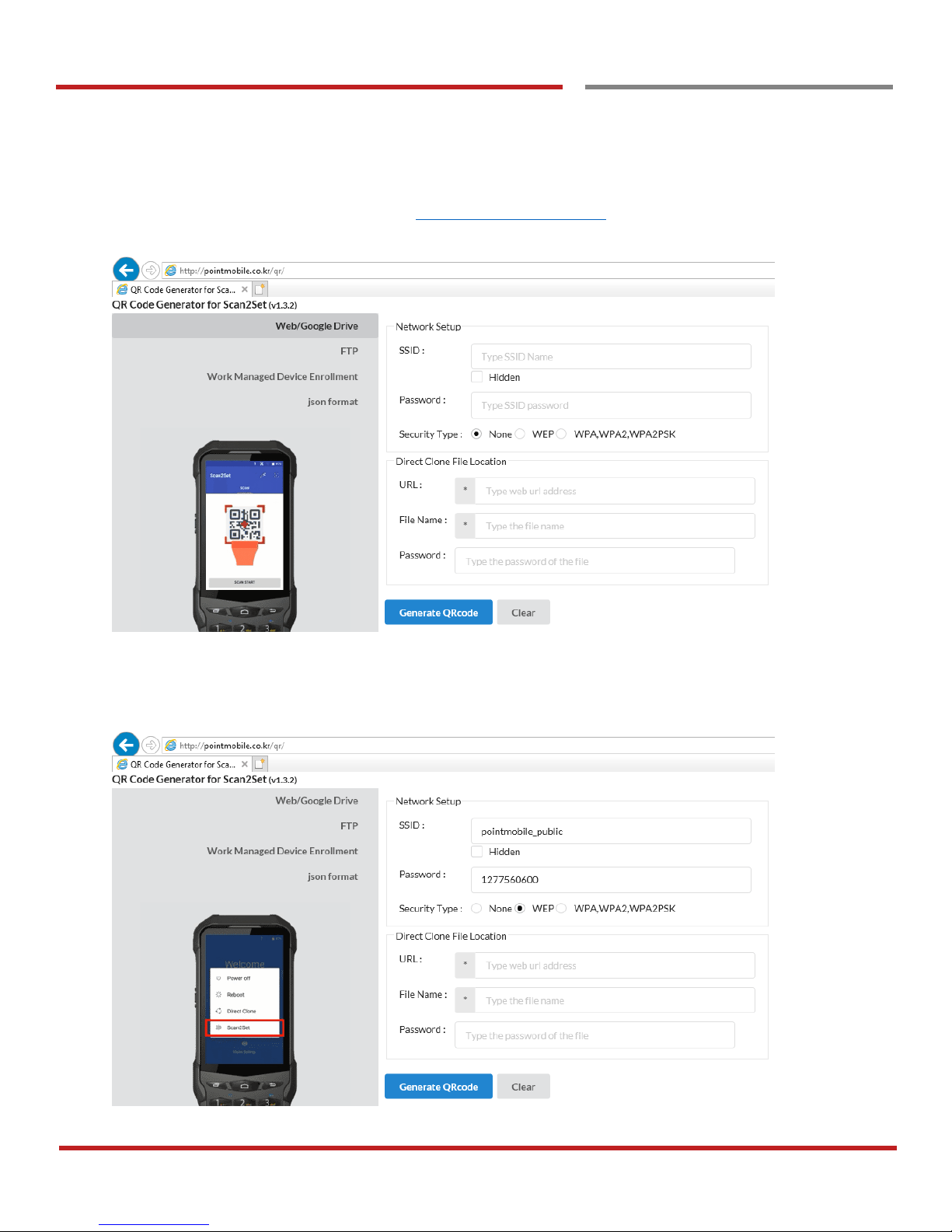

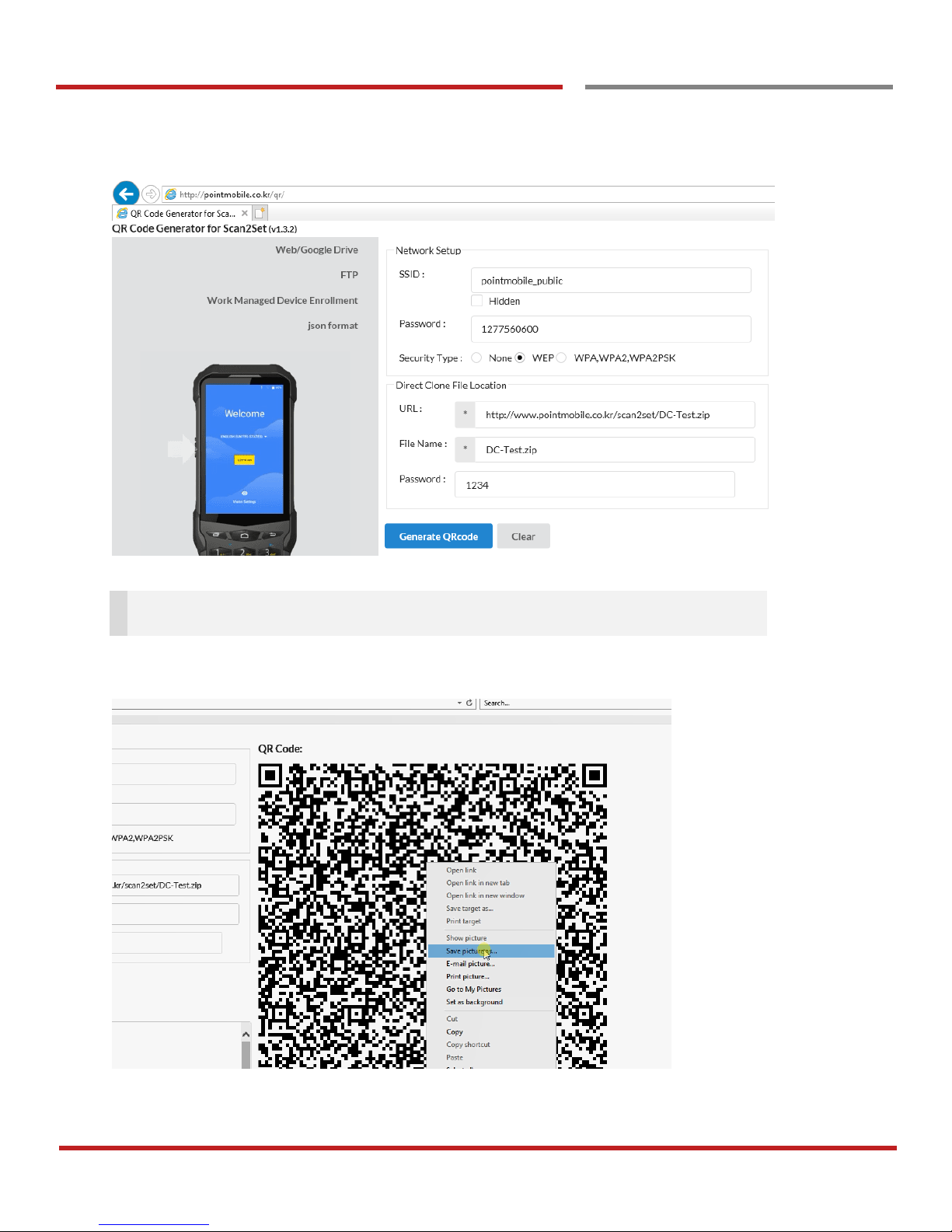

Step 3. Generate QRcode

- Access to Web QRcode generating site www.pointmobile.co.kr/qr

- Click Web/Google Drive menu

- Input Network information, Direct Clone file name and password

PM550 Android 7.1.2 User Manual

73

EmKit Tools

EmKit

Note: Make sure put http:// or https:// in front of url address

- Click Generate QRcode button and save or print generated QRcode

PM550 Android 7.1.2 User Manual

74

EmKit Tools

EmKit

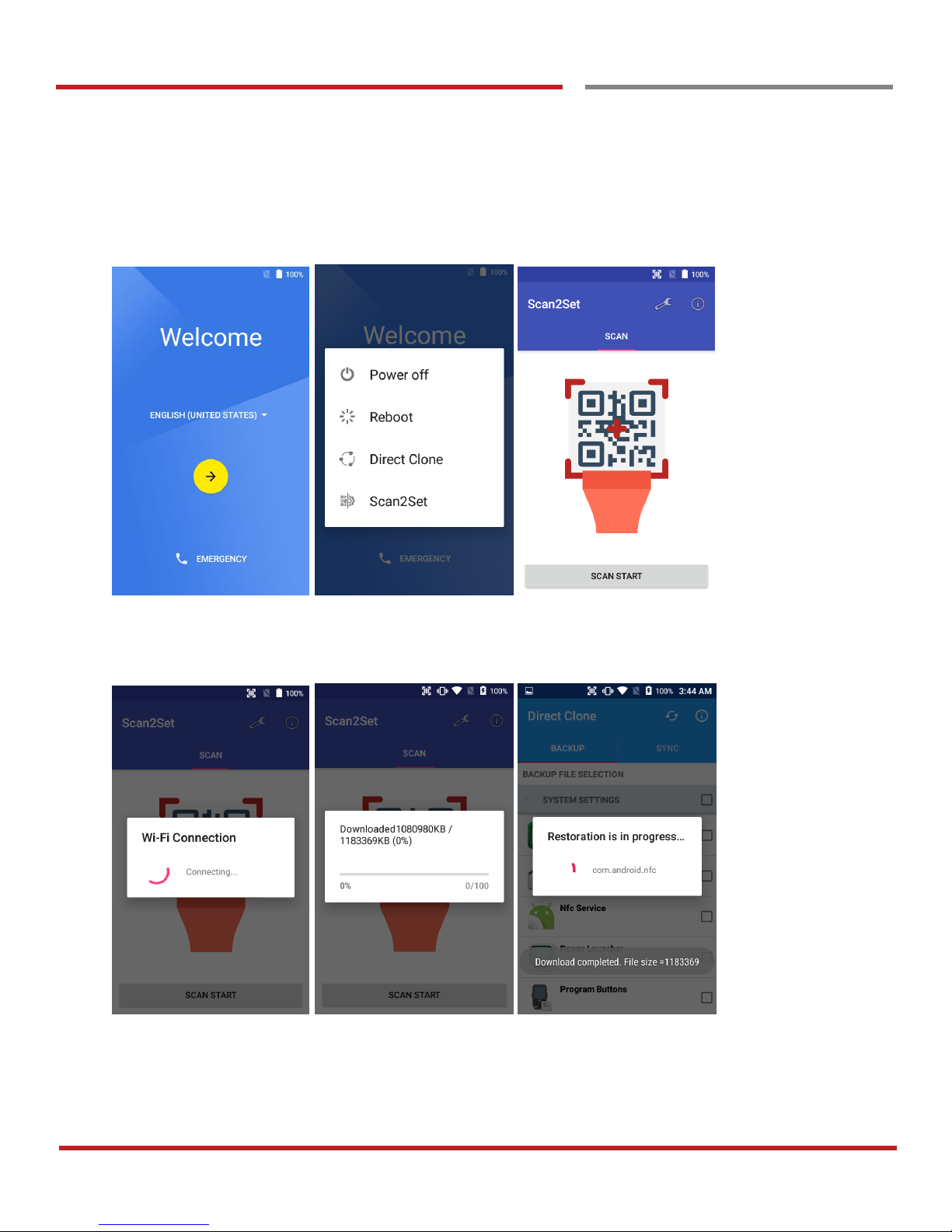

Step 4. Read QRcode in other PDAs

- Turn on your Point Mobile Android device.

- Press the Power Button, then you will see the Scan2Set in the menu

- Read the generated QRcode. Point Mobile Android device will download the file from the FTP site or Web server and restore Direct Clone file

PM550 Android 7.1.2 User Manual

75

EmKit Tools

EmKit

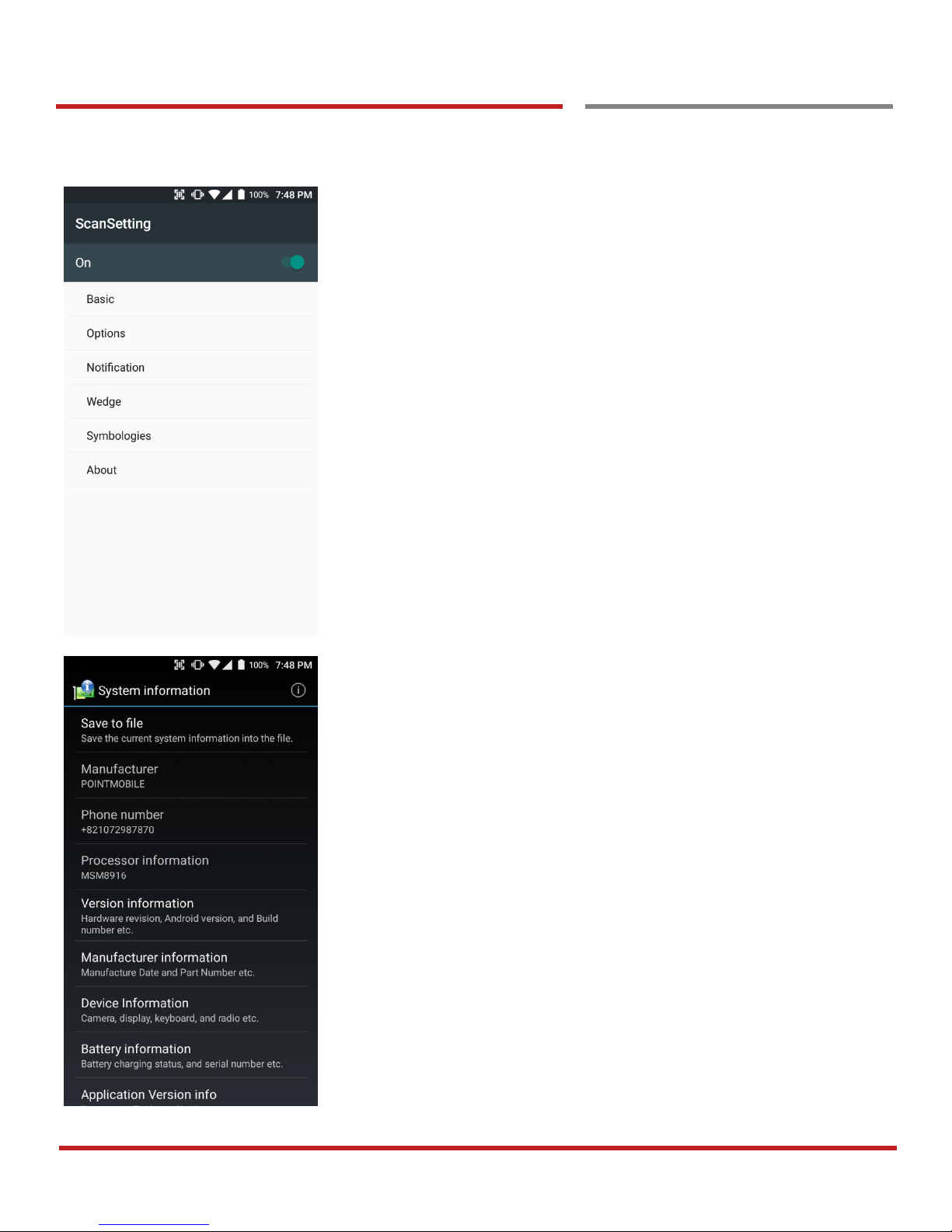

ScanSetting

You can set your PM80’s scanner option with intuitive menu.

System information

All of SW and HW information available here and can save it to the file.

- Touch Save to file.

- devinfo.html file saved to root folder of the internal storage.

PM550 Android 7.1.2 User Manual

76

Tools

EmKit Tools

EmKit

Take Bug Report

This function save logs and event to the internal storage. When you have a field issue, and need to contact service center, please find the reproduce step first.

- Reproduce the issue.

- After issue, reproduce, please run Take bug report.

- File will be saved to bugreports folder.

- Copy the file to the PC and then zip it to reduce the file size.

- Share bug report file to the service center or Point Mobile Support team with reproduce steps.

PM550 Android 7.1.2 User Manual

77

EmKit Demos

EmKit

GPS Demo

Developer can demonstrate or check Point Mobile Android model’s GPS signal strength, Satellite info, NMEA info.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

ICCR Demo

Developer can demonstrate or check Point Mobile Android model’s payment solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

PM550 Android 7.1.2 User Manual

78

`

EmKit Demos

EmKit

Image Demo

Developer can demonstrate or check Point Mobile Android model’s 2D scanner’s image taking solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

MSR Demo

Developer can demonstrate or check Point Mobile Android model’s IC card and Magnetic card reading solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

PM550 Android 7.1.2 User Manual

79

`

EmKit Demos

EmKit

NFC Demo

Developer can demonstrate or check Point Mobile Android model’s NFC Read/Write solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

Ping Demo

Developer can demonstrate or check Point Mobile Android model’s ping test.

PM550 Android 7.1.2 User Manual

80

`

EmKit Demos

EmKit

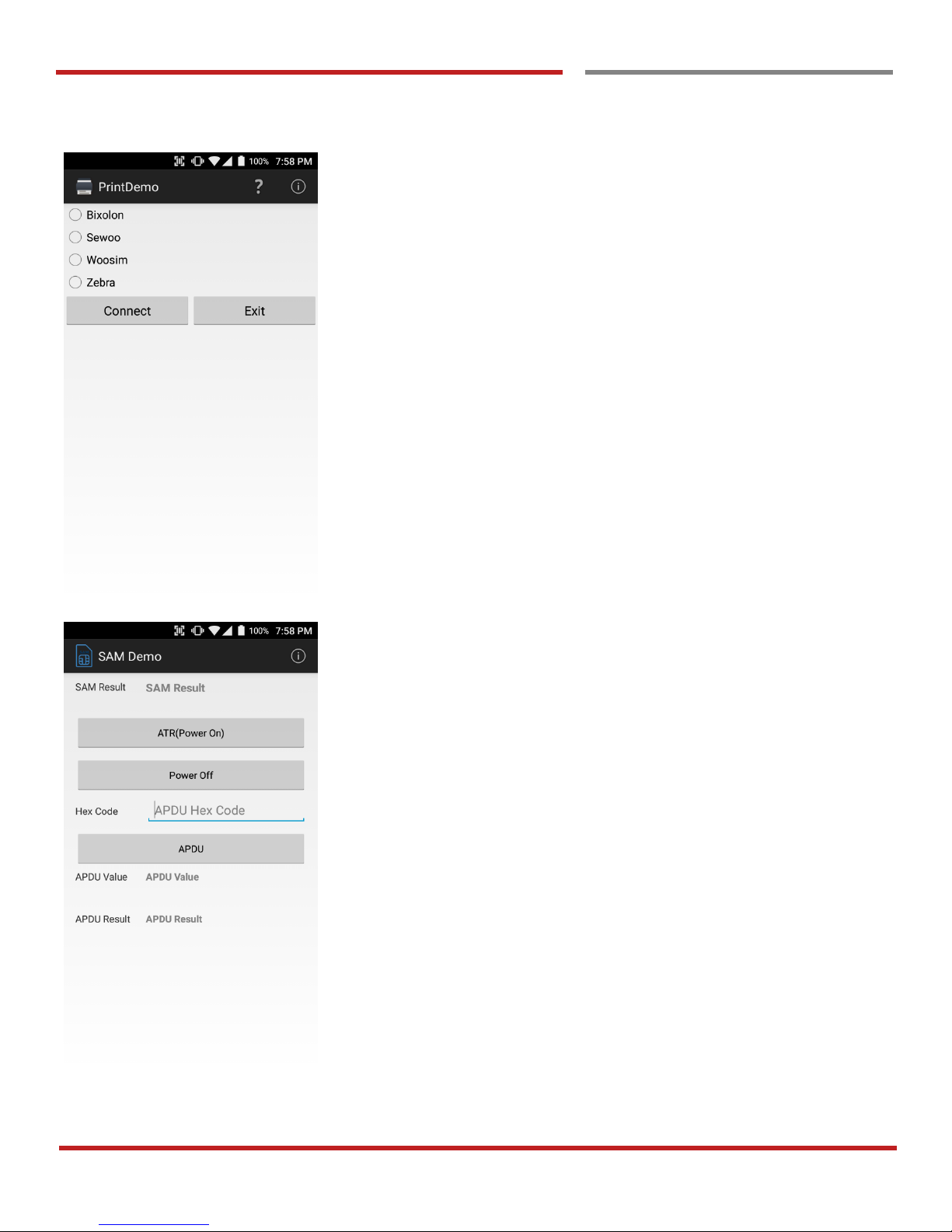

Print Demo

Developer can demonstrate or check Point Mobile Android model’s Bluetooth mobile printing solution.

SAM Demo

Developer can demonstrate or check Point Mobile Android model’s SAM communication.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

PM550 Android 7.1.2 User Manual

81

`

EmKit Demos

EmKit

Scan Demo

Developer can demonstrate or check Point Mobile Android model’s Scanner solution.

Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit)

POINT MOBILE. CO., LTD.

Offline

Tel: +82-2-3397-7870~1 ARS: 1800-3010 Fax: +82-2-3397-7872 Address: B-9F Kabul Great Valley, 32, Digital-ro 9-gil, Geumcheon-gu, Seoul, Korea 08512

Point Mobile Co., Ltd. Logo are registered trademarks and symbols of Point Mobile Co., Ltd. Features and specifications are subject to change without prior notice.

Online

Website: http://www.pointmobile.co.kr/ E-mail: [email protected]
