Page 1
Project:
Fixture Type:
Location:
Contact:

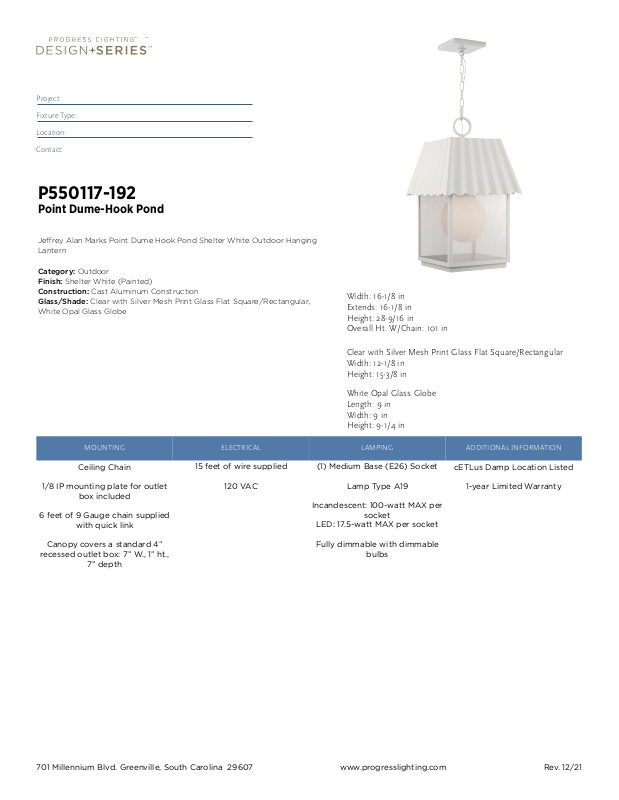

P550117-192
Point Dume-Hook Pond
Jerey Alan Marks Point Dume Hook Pond Shelter White Outdoor Hanging
Lantern
Category: Outdoor
Finish: Shelter White (Painted)
Construction: Cast Aluminum Construction
Glass/Shade: Clear with Silver Mesh Print Glass Flat Square/Rectangular,
White Opal Glass Globe
Width: 16-1/8 in
Extends: 16-1/8 in
Height: 28-9/16 in
Overall Ht. W/Chain: 101 in
Clear with Silver Mesh Print Glass Flat Square/Rectangular
Width: 12-1/8 in
Height: 15-3/8 in
MOUNTING
Ceiling Chain
1/8 IP mounting plate for outlet
box included
6 feet of 9 Gauge chain supplied
with quick link
Canopy covers a standard 4”
recessed outlet box: 7” W., 1” ht.,
7” depth
ELECTRICAL
15 feet of wire supplied
120 VAC
White Opal Glass Globe
Length: 9 in
Width: 9 in
Height: 9-1/4 in
LAMPING
(1) Medium Base (E26) Socket
Lamp Type A19
Incandescent: 100-watt MAX per
socket
LED: 17.5-watt MAX per socket
Fully dimmable with dimmable
bulbs
ADDITIONAL INFORMATION
cETLus Damp Location Listed
1-year Limited Warranty
701 Millennium Blvd. Greenville, South Carolina 29607 www.progresslighting.com Rev. 12/21
