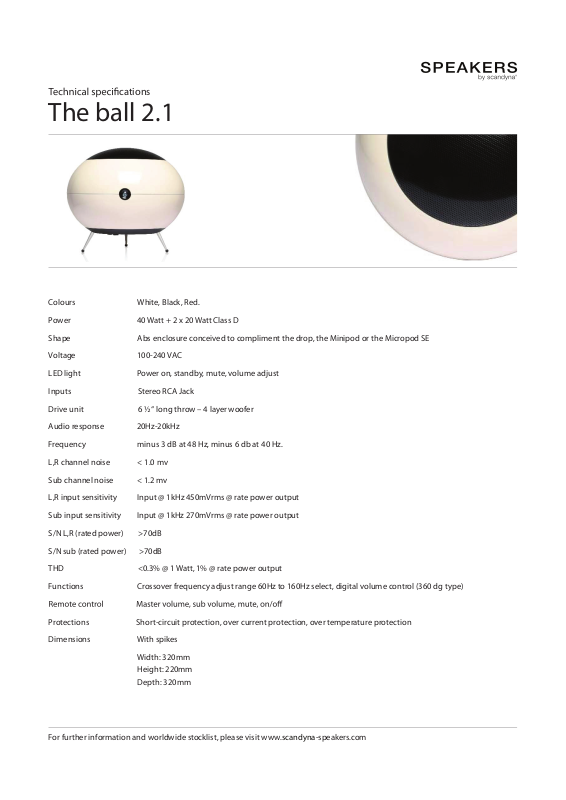

The ball 2.1

Colours White, Black, Red.

Power 40 Watt + 2 x 20 Watt Class D

Shape Abs enclosure conceived to compliment the drop, the Minipod or the Micropod SE

Voltage 100-240 VAC

LED light Power on, standby, mute, volume adjust

Inputs Stereo RCA Jack

Drive unit 6 ½ “ long throw – 4 layer woofer

Audio response 20Hz-20kHz

Frequency minus 3 dB at 48 Hz, minus 6 db at 40 Hz.

L,R channel noise < 1.0 mv

Sub channel noise < 1.2 mv

L,R input sensitivity Input @ 1kHz 450mVrms @ rate power output

Sub input sensitivity Input @ 1kHz 270mVrms @ rate power output

S/N L,R (rated power) >70dB

S/N sub (rated power) >70dB

THD <0.3% @ 1 Watt, 1% @ rate power output

Functions Crossover frequency adjust range 60Hz to 160Hz select, digital volume control (360 dg type)

Protections Short-circuit protection, over current protection, over temperature protection

Dimensions With spikes

mm023 :htdiW

mm022 :thgieH

mm023 :htpeD
