POD BREWER CUBE
1
CUBE
OPERATION MANUAL
CUBE
POD BREWER CUBE
16
CUBE
ESPRESSO COFFEE MAKER MANUAL
Technic criterion
- Model : 3A-C225E
- Voltage and power : AC220-240V-50Hz-1200W
- Safe grade : Class I
- Water tank capacity : 1000ml
- Weight : 4.0 kg
- Size : L328* W178*H250mm
POD BREWER CUBE
17
CUBE
SAFETY GUIDE
Read these instructions carefully before using your new co ee
machine for the rst time. Keep them in a place where you can nd
and refer to them later on.
• In case of an emergency: immediately remove the plug from the
power socket.
• Children can never use the appliance without close adult
supervision.
• Check that the voltage quoted on the rating plate is as same as
your mains voltage.
• Connect your appliance only to an earthed power socket.
The use of incorrect connections voids the warranty!
• Your machine is household use only.
• Remove the plug from the main socket if you will not be using the
machine for an unattended time (holidays).
Before cleaning and servicing, remove the plug from the main
socket and let the machine cool down.
• Never immerse the machine, cable, or plug in water or any liquid.
• Keep the cable out of children.
• Never leave the cable near or in contact with hot parts of the
machine, a source of heat, or a sharp edge.
• Never place the machine on a hot surface, e.g. a heating plate.
Never use it around an open ame.
• Place the machine on a at, stable, heat resistant surface away
from water splashes.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly quali ed persons in
order to avoid a hazard.
POD BREWER CUBE
18
CUBE
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Names of parts:
1. Handle
2. Pods window
3. Small Cup Key
4. Big Cup Key
5. Pods box
6. Drain tray cover
7. Drain tray
8. Water tank cover
9. Water tank
10. Power cord
11. Power switch
Figure 1
POD BREWER CUBE
19
CUBE
INSTRUCTIONS FOR USE
• Before using, check that the mechanical and other parts of the
machine are intact. The body of the machine, tank lid, tank and
brewing unit must never be broken or cracked. The sheath and
plug of the power cord must never be cracked or broken. If this
should occur, disconnect the plug immediately and take the
machine to an authorized dealer for checking.
• It is advisable to power the machine using a contact breaker (RCD)
with operating current not higher than 30 mA.
• Keep the power cord out of the reach of children.
• Make sure the machine is turned o before plugging it into the
socket outlet.
• The electrical safety of this machine is only assured when it is
connected to an e cient earth system, in accordance with the
safety regulations in force. Have this important requirement
checked by a quali ed person. The manufacturer cannot be held
responsible for damage caused by lack of an earth.
• Before plugging in the machine, make sure that the electric power
supply is the same as that of the machine.
• Flying leads or non-approved extensions must not be used for
supplying electricity to the machine.
• Before using the machine, remove all protective lms from the
Read these instructions carefully, because
they contain important information about
safety of instalation, use and maintenance.
Keep this booklet carefully for consulting
when you need it.
!
POD BREWER CUBE
20
CUBE
outside walls of its body.
• The rst time the machine is used there might be some smell
caused by the insulating materials and the heating elements. This
disappears after a few minutes.
DO NOT LEAVE THE MACHINE WITHOUT WATER IN THE TANK.
• Never immerse the machine, power cord and plug in water or
other liquids.
• Keep the power cord away from the hot parts of the machine.
• While in operation, the power plug must always be easy to get at
in case the machine has to be disconnected.
• Do not disconnect the machine by pulling the power cord.
• Do not move the machine while it is working.
• Do not leave the machine while it is working because this
machine hasn’t automatic stop function.
• Do not use or put the machine out of doors or near water.
• Always unplug the machine each time after using it.
DO NOT LEAVE THE MACHINE IN ROOMS WHERE THE
TEMPERATURE IS 0°C OR LOWER. IF YOU ARE PLANNING NOT TO
USE THE MACHINE FOR A FAIRLY LONG TIME, LEAVE NO WATER
IN THE TANK
• This machine must never be used by children, invalids etc. except
under strict supervision, nor in any case by people that have
not been properly instructed about how to use it and about the
dangers of improper use.
• Do not use the machine with bare feet and wet hands.
• Always unplug the power plug before cleaning the machine and
before doing any kind of work on it.
POD BREWER CUBE
21
CUBE
Figure 2
Figure 3
POD BREWER CUBE
22
CUBE
Figure 4
Figure 5
POD BREWER CUBE
23
CUBE

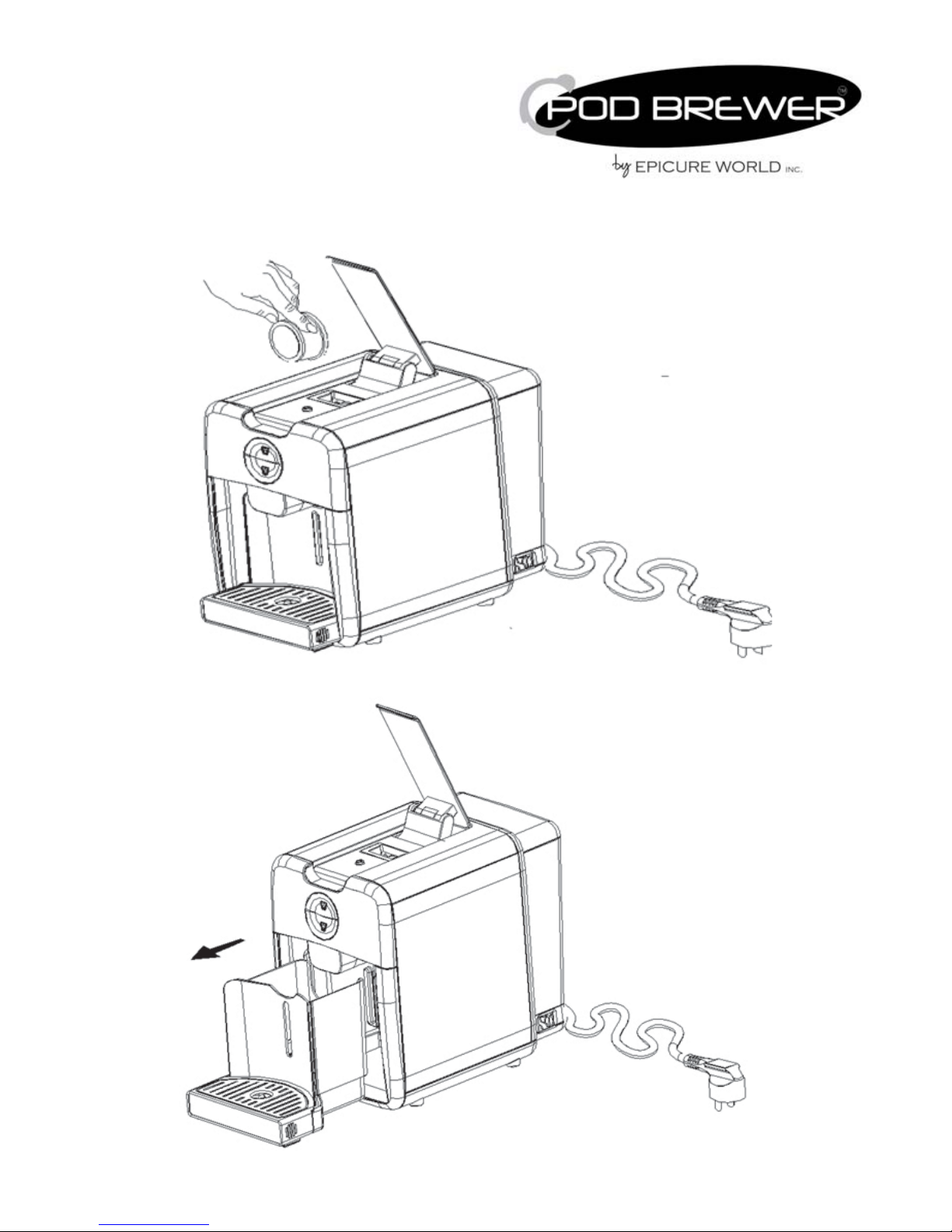

Figure 6
Figure 7
POD BREWER CUBE
24
CUBE
USER SAFETY UNPACKING AND PLACEMENT
• Remove the machine from its packing and check that all the parts
are there and are not broken.
• Place the machine on a at, even, stable, heat-resistant surface,
strong enough to bear its weight.
• Do not install or use the machine near curtains or other
ammable material and do not place anything on top of it during
use.
• Do not place the machine on top of, or close to, additional oven or
other equipment that generates heat (for instance, radiators etc.)
• Make sure there is enough space around the machine for proper
ventilation.
HOW TO USE THE MACHINE
• This machine is designed for making espresso co ee with ESE
pod, solely for household use. It must not be used for other
purposes and must not be altered or tampered with for any
reason. Use for any other purpose is considered improper
and therefore dangerous. The manufacturer cannot be held
responsible for any damages resulting from improper, erroneous
or unreasonable use.
• Do not touch the hot parts (Co ee nozzle ) after using the machine.
Packing materials (cardboard, cellophane,
metal staples etc.) could cut or couse
injury if not handled carefully or if used
incorrectly, keep them out of the reach of
children or unskilled persons.
!
POD BREWER CUBE
25
CUBE
• Danger of scald.
• While brewing co ee beware of possible splashes of hot co ee.
• Do not open main lever while brewing co ee.
REGULATIONS
The manufacturer states that the product referred to in this booklet
was manufactured in compliance with the Community Directives as
shown in the declaration of conformity attached to this booklet.
PREPARING THE MACHINE
Water lling
• Remove the water tank cover (no 8 Figure 1) and pour cold water
into the tank (maximum 1000ml), then close the water tank cover
• Connect the machine to the electricity by inserting the plug (no
10Figure 1) in the socket.
STARING UP FOR THE FIRST TIME
• The rst time you use the machine, or if it has not been used for a
long time, the following must be done:
• Remove the tank (no 9 Figure 4) from the machine, wash it well
with cold water (maximum 1000ml) and put it back in the
machine making sure it is tted in properly (Figure 5).
• Make sure the handle (no 1 Figure 3) is down, and then place a
cup on the Drain tray cover (no 6 Figure 1).
• Press the power switch (no 11 Figure 3) switch on the power then
power lamps ash green, and wait until the lamps turn to long
green (the water to reach temperature to make co ee).
• Feel the small cup key (or big cup key) (no 3 or 4 Figure 3) one
time, then water starts coming out from the nozzle, when co ee is
over, the machine will stop itself.
• This operation is necessary to make sure the tank is lled.
POD BREWER CUBE
26
CUBE
MAKING COFFEE
• Press the power switch (no 11 Figure 3) switch on the power
then power lamp ash green and wait for the water to reach
temperature then the co ee lamp light (green).
• Open the handle (no 1 Figure 6).
• Take a capsule (Figure 6) into the capsule window (no 2 Figure 6).
• Close the handle (no 1 Figure 3).
• Take a cup on the drain tray cover (no 6 Figure 3) and feel the
small cup key (or big cup key) (no 3or 4 Figure 1), the co ee start
brewing, when co ee is nished, the machine will stop itself
(Small cup co ee volume is 30cc, Big cup co ee volume is 50cc).
• After the end of the brewing, open the handle (no 1 Figure 7) the
used capsule always drop down to capsule box (no 5 Figure 7).
• After brewing 10-12 pieces capsule the capsule box is full, please
take out the capsule box unit (no 5,6,7 Figure 7) and clear it.
COFFEE SETTING
Put the capsule in the machine and handle is close and wait until the
cup key light from ash turn to long green (reach temperature for
brewing co ee).
• How to resume the acquiescence co ee volume (small cup co ee
volume is 30cc, big cup co ee volume is 50cc).
• When you want to make co ee for the acquiescence co ee
volume, Your nger feel the small cup key and the big cup key at
the same time for three seconds and then small cup lamp and big
cup lamp ash to acquiescence co ee volume setting, now make
co ee, co ee volume will be acquiescence co ee volume.
HOW TO MAKE COFFEE FOR 20CC
Long feel small cup key (or big cup key) for three seconds and the
lamps ash green, then move your nger away (go to co ee setting)
POD BREWER CUBE
27
CUBE
the machine will make co ee when the machine make co ee volume
under 20cc (or make co ee volume 20cc) to stop co ee brewing and
store the amount to memory, next cup co ee volume will be 20cc
and it stop itself.
HOW TO MAKE COFFEE FROM 20 TO 120CC
Long feel one nger on small cup key (or big cup key) for three
seconds to the lamps turn ash green, then move your nger (go
to co ee setting, the machine will make co ee. Once the co ee has
reached the required level, touch small cup key (or big cup key) to
stop the pouring and to store the amount to memory. If you not
touch small cup key (or big cup key), the co ee will be stopped itself
when the co ee quantity up the maximal quantity 120ml and to store
120ml to memory.
• When the machine don’t work for 15 minutes, the machine will go
to sleep (the green light will become red light).
• To restart the machine, touch one of the two cup key, which will
begin to ash green. When the machine is heated, the two cups
will have a xed green light.
DESCALING
It is advisable to de-scale the appliance every 6 months or so,
depending on the frequency of use and the mineral content of your
water;
De-scale using commercial de-scaling agents recommended for
co ee makers or use water and vinegar as follows: Fill the water tank
with straight vinegar (5%solution).
Operate the appliance, as it making co ee, until the tank is empty.
After that, rinse the water tank and let or 2 tanks of fresh water ow
through the brew head until there is no more smell of vinegar.
POD BREWER CUBE
28
CUBE
Note: This operation may be dangerous if other substance are used
instead of vinegar or approved de-scaling materials recommended
for household co ee makers.
CLEANING
• Use a damp cloth to clean the body of the machine and do not
use abrasive detergents.
• Remove the capsule box and drain tray (no 5,7 Figure 7) empty
any capsules and wash them with an ordinary dishwashing
detergent.
• Periodically remove the water tank (no 8 Figure 4) and rinse it with
clean water then put it back properly in its place.
TROUBLESHOOTING
If the machine is not working properly make the simple checks
set out below. If the problem is not among those listed or if it still
persists, even if you follow the advice given, contact an authorized
dealer.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
•Machine won’t start • Not properly plugged into
the power
• Make sure it is properly
plugged in.
•The coffee is too cold. • The machine is not ready. • Wait until the temperature is
reached, shown by the
indicator light.
•Coffee is not being
dispensed or it is being
done too slowly.
• Not enough water in the
tank
• Make sure that the level of
the water in the tank is right
and, if necessary, add cold
natural water.
POD BREWER CUBE
29
CUBE
MEANING OF CROSSED –OUT WHEELED DUSTBIN:
• Do not dispose of electrical appliances as unsorted municipal
waste, use separate collection facilities.
• Contact you local government for information regarding the
collection systems available.
• If electrical appliances are disposed of in land lls or dumps,
hazardous substances can leak into the groundwater and get into
the food chain, damaging your health and well-being.
• When replacing old appliances with new ones, the retailer is
legally obligated to take back your old appliance for disposals at
least free of charge.
POD BREWER CUBE
30
CUBE
POD BREWER CUBE
31
CUBE
POD BREWER CUBE
32
CUBE
Loading...
