PMK BumbleBee Instruction Manual

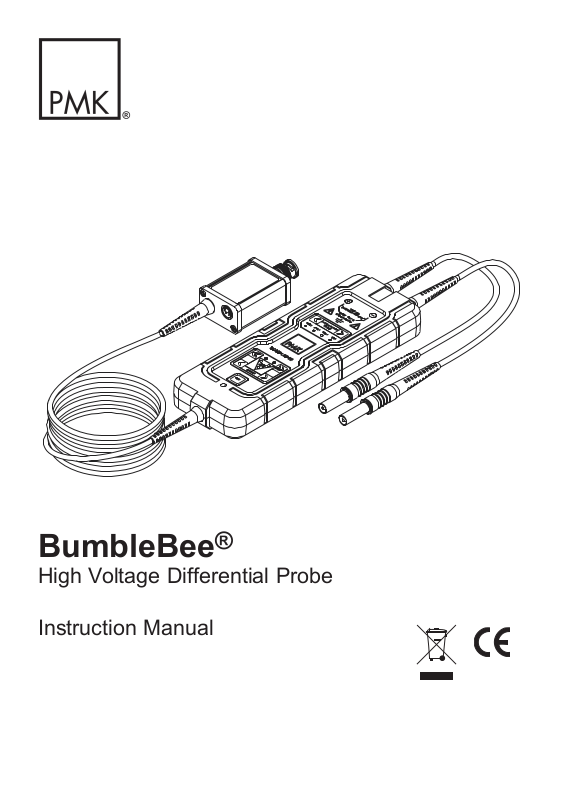

BumbleBee

High Voltage Differential Probe

Instruction Manual

®

2

Copyright © 2016 PMK GmbH All rights reserved.

Information in this publication supersedes that in all previously published material.
Specifications are subject to change without notice.

Manufacturer

PMK Mess- und Kommunikationstechnik GmbH
Königsteiner Str. 98
65812 Bad Soden, Germany Internet: www.pmk.de

Tel: [phone] - 930 E-Mail: [e-mail]
Fax: [phone] - 939

Warranty

PMK GmbH warrants this oscilloscope accessory for normal use and operation within specifications for a peri­od of two (2) years from date of shipment and will repair or replace any defective product which was not dama­ged by negligence, misuse, improper installation, accident or unauthorized repair or modification by the buyer.
This warranty is applicable only to defects due to material or workmanship. PMK GmbH disclaim any other
implied warranties of merchantability or fitness for a particular purpose. PMK GmbH will not be liable for any
indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business,
loss of use or data, interruption of business and the like), even if PMK GmbH has been advised of
the possibility of such damages arising from any defect or error in this manual or product.

3

Declaration of Conformity BumbleBee

(EC conformity marking)

The manufacturer declares,that this product is designed and manufactured in accordance with the requirements
of the specified Directives and Standards as listed below. The product carries the CE mark.

EU Directives covered by this declaration:

2004/108/EC Electromagnetic Compatibility Directive
2006/95/EC Low Voltage Equipment Directive
2002/96/EC Waste Electrical and Electronic Equipment
2002/95/EC Restriction of use of certain Hazardous Substances and its revised version 2011/65/EU

The basis on which conformity is being declared:

EN61010-1:2010 Safety requirements for electrical equipment for measurement, control and laboratory use,
general equipment requirements

EN61010-031:2002 + A1:2008
Safety requirements for hand-held probe assemblies for electrical measurement and test

EN61326-1:2006 Electrical equipment for measurement, control and laboratory use –
EMC requirements. Basic Immunity - static discharge per EN61000-4-2

RoHS and WEEE Statements and Confirmations issued by our vendors that no hazardous or restricted sub­stances are used to manufacture components, parts and subassemblies for our products.

®

WEEE/ RoHS Directives

(EC conformity marking)

Your help and efforts are required to protect and keep clean our environment. Therefore return this
electronic product at the end of its life either to the Service Department of PMK Mess- und
Kommunikationstechnik GmbH or take care of separate WEEE collection and professional WEEE treatment
yourself. Do not dispose as unsorted municipal waste.

* EC Directives:
WEEE Directive 2002/96/EC - Waste Electrical and Electronic Equipment
RoHS Directive 2002/95/EC - Restriction of the use of certain Hazardous Substances
in Electrical and Electronic Equipment

4

IEC Measurement Categories BumbleBee

Definitions and Examples (Clause 6.5.2)

Measurement Category I Definition: Measurement category I is for measurements performed

on circuits not directly connected to a mains supply.

Examples: Measurements in circuits not derived from a mains supply
and specially protected ( internal ) circuits derived
from a mains supply. In the latter case, transient stresses
are variable; for that reason it is required that the transient
withstand capability of the equipment is made known to
the user.

Measurement Category II Definition: Measurement category II is for measurements performed

CAT II on circuits directly connected to the low voltage
installation.

Examples: Household appliances, portable tools and similar
equipment.

Measurement Category III Definition: Measurement category III is for measurements

CAT III performed in the building installation.

Examples: Measurements on distribution boards, circuit breakers,
wiring including cables, bus-bars, junction boxes, switches,
socket-outlets in the fixed installation and equipment for
industrial use like for example stationary motors with per­ manent connection to the fixed installation.

®

Measurement Category IV Definition: Measurement category IV is for measurements

CAT IV performed at the source of the low-voltage installation.

Examples: Electricity meters and measurements on primary over
current protection devices and and ripple control units.

5

IEC Pollution Degrees BumbleBee

Definitions (Clause 3.5.6 )

Pollution Degree 1 No POLLUTION or only dry, non conductive POLLUTION.

NOTE The POLLUTION has no influence.

Pollution Degree 2 Only- non conductive POLLUTION. Occasionally, however, a temporary

conductivity caused by condensation must be accepted.

Pollution Degree 3 Conductive POLLUTION occurs or dry, non-conductive POLLUTION occurs

which becomes conductive due to condensation which is to be expected.

IEC Safety Symbols

The following symbols may appear on the product or in this instruction manual:

Caution, risk of danger. Refer to manual.

®

Caution, risk of electric shock.

Earth (ground) TERMINAL.

6

Safety Information BumbleBee

To avoid personal injury and to prevent fire or damage to this product or products connected to it, review and
comply with the following safety precautions. Be aware that if you use this probe assembly in a manner not

specified the protection this product provides may be impaired.

Only qualified personnel should use this probe assembly.

Use only grounded instruments.

Do not connect the probe ground lead to a potential other than earth ground. Always make sure the probe and
the measurement instrument are grounded properly.

Connect and disconnect properly.

Connect the probe output to the measurement instrument and connect the ground lead to earth ground before
connecting the probe to the circuit under test. Disconnect the probe input and the probe ground lead from the
circuit under test before disconnecting the probe from the measurement instrument.

Avoid unnecessary stress.

The small electrical components of the probe are sensitive to shock and impact. Avoid any unnecessary kinetic
stress to the probe like throwing, falling and strong vibrations.

Observe probe and probe accessory ratings.

Do not apply any electrical potential to the probe input which exceeds the maximum ratings of the probe or the
accessories connected to it. In a combination always the lower rating / measurement category applies to both
probe and accessories connected to it.
Make sure to comply with the voltage versus frequency derating curve on page 8.

Keep away from live circuits.

Avoid open circuitry. Do not touch connections or components when power is present.

®

Do not operate with suspected failures.

Refer to qualified service personnel.

Indoor use only.

Do not operate in wet/damp environment. Keep product surfaces dry and clean.

Do not operate the product in an explosive atmosphere.

7

Safety Information BumbleBee

BumbleBee has a rated Input Voltage of 2000 V Measurement Category I or 1000 V CAT III.

Note that the max. input voltage rating of the probe decreases as the frequency of the applied
signal increases. (see Voltage Derating on page 9)

See the relevant section of this manual for further information on maximum input voltage, voltage derating and
definitions of relevant IEC Measurement Categories (CAT).

Grounding the Probe

Connect the probe to the oscilloscope input and connect the ground lead to earth ground before performing any
measurements.

BumbleBee is designed for ground-referenced measurements only.

About BumbleBee

BumbleBee® is a 400 MHz, 2 kV Measurement Category I or 1 kV CAT III High-Voltage Differential Probe,
that can be used with every instrument having 50 Ω Input Impedance.
The probe is very effective in power device evaluation such as measurements in IGBT circuits used in the design
of motor drives, switching power supplies and frequency converters. Especially 1700 V IGBT modules for
inverters and converters.
BumbleBee is also very effective in fast transient measurements with bandwidths of up to 400 MHz.

Measurments at GaN and SiC modules as part of new semiconductor techniques prot from that in particular.

It provides a 4 Mode Attenuation, which allows higher resolution measurements. The probe provides overload
indicators for each input channel as well as for the output. That makes it easy to observe, that the differential

probe is working in the specied range.The probe also provides an active offset correction in a range of ± 4 V,

related to the output voltage, with a resolution of 15 Bit.

®

These and many other functions can be remotely controlled with the PC-Software "PMK Probe Control".
The Software is free and included in the scope of delivery of PMKs PS-02 and PS-03 Power Supplies.

The intuitive gracal user interface makes all interactions with BumbleBee clear and easy.

Measurement Princible

The differential probe consists of two attenuators, which are differentially matched. The Voltage measurements

of these attenuators is conducted ground-referenced. The read voltages are provided to a differential amplier,
where the differential voltage is amplied according to the choosen attenuation.

The Output Signal is fed over a driver stage to the 50 Ω Input of a measuring device.

8

Specifications BumbleBee

Specifications that are not defined to be guaranteed are typical and are published as general information to the
user. The instrument should have warmed-up for at least 20 minutes and the environmental conditions should
not exceed the probe's specified limits.

®

Electrical Specifications

(1)

Attenuation (switchable) 50:1 100:1 250:1 500:1
System Bandwidth (-3dB)

Input Voltage 50 V 300 MHz 300 MHz 400 MHz 400 MHz
Input Voltage 500 V n.a. n.a. 300 MHz 300 MHz
Input Voltage 1000 V n.a. n.a. n.a. 300 MHz

Risetime (10% - 90%)

Input Voltage 50 V 1.2 ns 1.2 ns 875 ps 875 ps
Input Voltage 500 V n.a. n.a. 1.2 ns 1.2 ns
Input Voltage 1000 V n.a. n.a. n.a. 1.2 ns

(2)

Noise (rms)

(Referred to the input)

55 mV 55 mV 75 mV 75 mV

Typical Propagation Delay 12 ns

Max. Input Voltage

(3)

Measurement Category I: 2000 V eff.
6000 V transient Overvoltage
Measurement Category III: 1000 V CAT III
Pollution Degree

Max. Differential Input Voltage ± 200 V DC ± 400 V DC ± 1000 V DC ±2000 V DC

(incl. AC peak)

(3)

2

Common Mode Voltage ± 2000 V pk ( 1400 V rms)

DC Gain Accuracy ± 0.7 % ± 0.7 % ± 0.35 % ± 0.35 %

(4)

Offset Range
Offset Resolution
Offset Drift

± 4 V

(4)

15 Bit / Minimum Step < 125 µV

(4)

150 µV / °C 150 µV / °C 40 µV / °C 40 µV / °C

Input Impedance

Each Input to Ground 5 MΩ || 4 pF
Differential Input Impedance 10 MΩ || 2 pF

(5)

Input Coupling of the Measuring Instrument

50 Ω

Typical CMRR DC > 80dB
100 kHz > 70 dB
1 MHz > 62 dB
3,2 MHz > 50 dB

(1) Ascertained with PS-02 Power Supply in +23 °C temperature
(2) Broadband Noise, Bandwidth 30 MHz
(3) As defined within IEC 61010-031. See definitions explained on page 4 and 5.

9

Specifications BumbleBee

Ty pica l V oltage Derating BumbleBee

M e asurement category III

100K 1M 10M100M1G

0

400

800

1200

1600

2000

Typical Input Impedance BumbleBee

10

100

1K

10K

100K

1M

10M

100M

10 100 1K 10K 100K 1M 10M 100M1G

®

Voltage Derating

Note that the max. input voltage
rating of the probe decreases as
the frequency of the applied
signal increases.

Amplitude AC rms [V] Sinus

Input Impedance

Note that the input impedance of
the probe decreases as the frequency
of the applied signal increases.

|Z| [Ohm]

Mechanical Specifications

Weight (probe only) 370 g
Cable Length 2 m
Input Lead Length 25 cm
Input Lead Connectors 2 x 4 mm (male)
Output Connector BNC (male)

Typical Voltage Derating BumbleBee

Frequency [Hz]

Typical Input Impedance BumbleBee

Frequency [Hz]

Environmental Specifications

Altitude operating non-operating
up to 2000 m up to 15000 m

Temperature Range
Probe 0 °C up to +50 °C -20 °C up to +70 °C
Input Leads -40 °C up to +85 °C

Maximum Relative Humidity 80 % relative humidity for temperatures up to +31° C,
decreasing linearly to 40 % at +50° C

(4) Referred to the output
(5) Must be met to achieve best performance and avoid Damage to the Probe

10

Handling for Firmware v.3.5 and above BumbleBee

®

General Information:

Adjust the Input Coupling of the Measuring Instrument to 50 Ω before connecting the probe to it.
After connecting the power supply you hear a short triplet of signals from the buzzer and the LEDs of the key­board blink. You may start with your measurements or adjust attenuation and offset correction.

User Default:

Settings of the BumbleBee Probe are saved in real-time, with no need to actively save or recall at any time.

Global Offset:

By pressing "Set" you can switch between the set global offset position and zero. While in setup menu, this
function is not available. Also with set "Hold Overload" an occuring Overload Event must be cleared before
switching offset Zero position is available.

Factory Settings:

By pressing both Buttons "1+2" together while in Setup Menu, the probe resets to factory settings. Hold both
buttons down for 5 Seconds; wait until you hear a differing signal.

Setup Menu:

By holding the "Set" Button down for five seconds you reach the Setup Menu of BumbleBee.

(Overvoltage-indicator LED of the output blinks green)

The focused Menu Item is indicated by the attenuation LEDs. This focus can be altered with the buttons "1" and
"2". Use the Buttons "5" and "6" to alter settings of the focused Menu Item. Pressing the "Set" Button again
ends the menu.

Keylock:

If no key is pressed 10 seconds after opening the menu the keypad will be locked.
Press the "Set" Button again to release it.

Setup Menu starts with item "I", indicated by the unlit LED 500:1. Change the item with
the buttons 5 and 6. Move between menu items with the buttons 1 and 2.
Overload indicators (LEDs B) show the state of an item. Green for On / Yes, unlit for
Off / No. In the following LEDs are marked as x = unlit and o= lit.

Menu Item I: ( x o o o )

For channel identification the following colors (modes) are available:
unlit, white, yellow, cyan, pink, blue, green, red;

Menu Item II: ( o x o o )

In case of detected overvoltage at input or output channel, the Overload Buzzer gives an audible signal and can
be turned on- and off with Button "5".
Additionally the Hold-Overload Buzzer can be activated with Button "6".
In case of detected overvoltage the "Set" Button has to be pressed to confirm and carry on.

Menu Item III: ( o o x o )

The Key Buzzer can be activated here, giving audible feedback when any Button on the keypad pressed.

Menu Item IV: ( o o o x )

Offset Synchronisation can be turned on and off here.

11

Keyboardlayout BumbleBee

1A

2B

34567C

Menu Item V: ( o x x x )

Here you can adjust the Offset-Zero for 500:1 attenuation.

Menüpunkt VI: ( x o x x )

Here you can adjust the Offset-Zero for 250:1 attenuation.

Menüpunkt VII: ( x x o x )

Here you can adjust the Offset-Zero for 100:1 attenuation.

Menüpunkt VIII: ( x x x o )

Here you can adjust the Offset-Zero for 50:1 attenuation.

®

Button 1 - 7

1 - smaller attenuation 2 - bigger attenuation
3 - negative active Offset coarse (1 V Steps*) 4 - positive active Offset coarse (1 V Steps*)
5 - negative active Offset fine (0,0625 V Steps*) 6 - positive active Offset fine (0,0625 V Steps*)
3+5 - negative active Offset XL (100 V Steps*) 4+6 - positive active Offset XL (100 V Steps*)
7 - Button "Set"

LED Lights A - C

A - Attenuation Indicator 50:1, 100:1, 250:1, 500:1
B - Overvoltage Indicators Channel / Channel / Ouput
C - colored Indicator of the Measuring Channel

Known Errors

If all Attenuation LEDs are lit after connecting BumbleBee, the probe is not functioning. Renew the
firmware with the free software tool "PMK Firmware Flasher".

(*) Factory adjusted, alter with PC-Software "PMK Probe Control".

12

Performance Verification BumbleBee

The following procedure verifies the warranted electrical characteristics of the

Bumblebee High Voltage Differential Probe

Table 1 itemizes the equipment required, provides an example model or part number, and explains the purpose
of the equipment:

®

Description Minimum

Test Oscilloscope Bandwidth: ≥ 400 MHz

Standard Test Generator

- Rectangular Pulse

- DC Voltage

Digital Multimeter DC: 0.1% accuracy Agilent 34401A Display probe off-set, dc

BNC Y-Adapter BNC-male to dual 4mm

Shortening Connector 4mm-female to 4mm-

Feed Through Terminator Resistance: 50 Ω

BNC Y-Adapter BNC-female to dual

Coaxial Cable Precision 50 Ω

Table 1: List of equipment required

Requirements

Vertical Accuracy:

≤ 1.5%

Amplitude Accuracy:

≤ 1%

Sockets fully insulated

female

Tolerance: ±0.05%

Wattage: 0.5W

4mm-Plug

BNC-male to BNC-male
1m

Example or Part
Number

Iwatsu ViewGo DS5552 Display probe output

PMK KHT1000C Check probe attenuation,

PMK 181-576-ISO Interconnection between

PMK 176-3310-RED Interconnection between

PMK 119-916-17P Interconnection

PMK 181-675-100 Interconnection

PMK 711-111-300 Interconnection

Purpose

bandwith

accuracy

probe and Generator

probe inputs

between probe and
multimeter

between probe and
multimeter

between oscilloscope
and generator

Setup

WARNING! These procedures require the application of high voltage to the inputs of the Bumble
Bee probe. Only qualified personnel should perform any testing with voltage levels exceeding 30 V
rms. All pertinent safety rules and guidelines for elevated voltage measurements should be followed
and adhered to.

WARNING! Always make sure that the probe’s shield is connected to earth ground. Instrument
inputs can be potential free and cause wrong readings.

13

Performance Verification BumbleBee

Off-Set Zero

Connect the probe’s output to the input of the test multimeter via 50 Ω feed through its connector and BNC

Y-Adapter. Set the multimeter to DC Voltage mode. Shorten the input of the probe via the shortening connector
(see Figure 1). Let the probe warm up for 30 minutes at room temperature (15-35° C).
Measure the Off-set voltage in the 4 attenuation stages and compare with the limits set out in table 2.
Please note that the off-set voltage depends on the ambient temperature. If the measured values exceed the
limits, conduct a factory reset using the “PMK Probe Control” Software; otherwise send the probe to PMK for
recalibration.

Attenuation-Mode Multimeter Min. Voltage M;ultimeter Max. Voltage

500 -525µV +525µV

250 -525µV +525µV

100 -1.6mV +1.6mV

50 -1.6mV +1.6mV

Table 2: List of Off-set limits

®

Figure 1:Setup Off-set Zero

14

Performance Verification BumbleBee

DC-Gain

WARNING! The generator produces hazardous voltages. To avoid risk of shock, do not touch any
exposed metal parts after the generator output is enabled.

Connect the probe’s output to the input of the test multimeter via 50 Ω feed through its connector and BNC

Y-Adapter. Connect the input leads of the probe to the output of the DC voltage source via the fully insulated
BNC Y-Adapter (see Figure 2). Set the multimeter to DC voltage mode. Set the source to DC voltage mode. Let
the probe warm up for 30 minutes at room temperature (15-35° C).
Measure the DC-input voltage in the 4 attenuation stages and compare with the limits set out in table 3. If the
measured values exceed the limits send the probe to PMK for recalibration.

®

KHT1000C Attenuation-Mode Multimter Min. Voltage Multimeter Max.

1000 V 500 1.96 V 2.04 V

500 V 250 1.96 V 2.04 V

200 V 100 1.96 V 2.04 V

100 V 50 1.96 V 2.04 V

Table 3: List of DC-Gain limits

Figure 2: Setup DC-Gain

Voltage

15

Performance Verification BumbleBee

Rise-Time

WARNING! The generator produces hazardous voltages. To avoid risk of shock, do not touch any
exposed metal parts after the generator output is enabled.

1. Connect the trigger output of the generator via BNC cable to channel 1 of the oscilloscope

(1 MΩ coupling/ 10 V amplitude).

2. Connect the output of the probe to channel 2 of the test oscilloscope. Set the oscilloscope to DC

mode (50 Ω coupling/ 500 mV/div).

3. Connect the input leads of the probe to the output of the generator via the fully insulated BNC Y­ Adapter (see Figure 3).

4. Set the trigger to normal mode /edge positive slope of the oscilloscope on channel 1.

5. Set the time base of the oscilloscope to 5 ns/ div

6. Set the generator to its 1000 V pulse mode.

7. Set the probe to 500/1 mode.

8. Enable the output of the generator.

9. Verify that the rise time of the probe is ≤ 10 ns between the 10% and 90% points of the displayed

pulse.

10. Verify that the overshoot of the probe is ≤ 5% of the displayed pulse.

If the measured values do exceed this limit, send the probe to PMK for recalibration.

®

Figure 3: Setup Rise-Time

16

890-880-113

Pair of Clamps, rotating grip jaw

(black, red)

890-880-115

Pair of Clamps, hook

(black, red)

890-880-114

Pair of Clamps, jaws

(black, red)

890-880-116

4 mm Coupler f-f

(red)

890-880-109

Pair of Magnet Connectors

4 mm (black, red)

890-880-107

Pair of Spade Terminals, wide

(black, red)

890-880-110

Pair of Spade Terminals, narrow

(black, red)

890-880-111

Pair of Safety Alligatorclips, small

(black, red)

890-880-108

Pair of Safety Alligatorclips, big

(black, red)

890-880-105

2-Footer

(black)

890-520-900 / 890-520-915

Power Supply Cable

(0.5 m / 1.5 m)

890-880-103

Pair of Probe Tip Adapters

4 mm to 0.8 mm

(black)

890-880-102

Set of 4 Spring Tips

(ne)

890-880-106

Pair of Mini Spring Tip Probes

4 mm (black, red)

890-880-112

Pair of Rail Clip Connectors

4 mm (black, red)

BumbleBee® Pr obe Acce ssories

890-880-104

Twinholder M6

890-880-101

Set of 10 Contact Pins 0.64 mm

889-09V-PS2 / 889-09V-PS3

Power Supply

(2 Channel / 4 Channel)

016-397-055

Carrying Case „Heavy Duty“

with foam inlays, black

016-397-049

Carrying Case in Scope of Delivery

with foam inlay, black

Accessories BumbleBee

®

17

Notes BumbleBee

Model Rated Input Voltage

2-Footer not applicable
4 mm Coupler f-f 1000 V CAT III
Clamp, hook 1000 V CAT II
Clamp, jaws 1000 V CAT III
Clamp, rotating grip jaw 1000 V CAT II
Contact Pin 0.64 mm 30 V AC / 60 V DC
Magnet Connector 30 V AC / 60 V DC
Power Supply Cable 30 V AC / 60 V DC
Probe Tip Adapter 4 mm to 0.8 mm 1000 V CAT III
Power Supply 100-240 V AC /50-60 Hz
Rail Clip Connector 600 V CAT III
Safety Alligator Clip, big 1000 V CAT III
Safety Alligator Clip, small 600 V CAT II
Spade Terminal, wide 30 V AC / 60 V DC
Spade Terminal, narrow 30 V AC / 60 V DC
Spring Tip Probe 4 mm 600 V CAT II

Spring Tip (ne) 30 V AC / 60 V DC

Twinholder M6 not applicable

®

18

Notes BumbleBee

®

19

Notes BumbleBee

®

Scope of Delivery BumbleBee

The following items are included in the scope of delivery. Please check the delivery for completeness. If any
item is missing, send a message to our service department and we will send you this item immediately.

Article Qty
2-Footer 2
4 mm Coupler f-f (red) 1
Manual 1
Pair of Clamps, hook (black & red) 1
Pair of Clamps, jaws (black & red) 1
Pair of Clamps, rotating grip jaw (black & red) 1
Pair of Magnet Connectors (black & red) 1
Pair of Probe Tip Adaptors 4 mm to 0.8 mm (2x black) 1
Pair of Safety Alligator Clips, big (black & red) 1
Pair of Safety Alligator Clips, small (black & red) 1

Pair of Spade Terminals, wide (black & red) 1
Pair of Spring Tip Probes 4 mm (black & red) 1
Power Supply Cable 1
Probe 1
Set of 4 Spring Tips (fine) 1
Set of 10 Contact Pins 0.64 mm 1

Pair of Spade Terminals, narrow (black & red) 1

®

A80-102-501

A80-102-504 Revision L - February 2017
