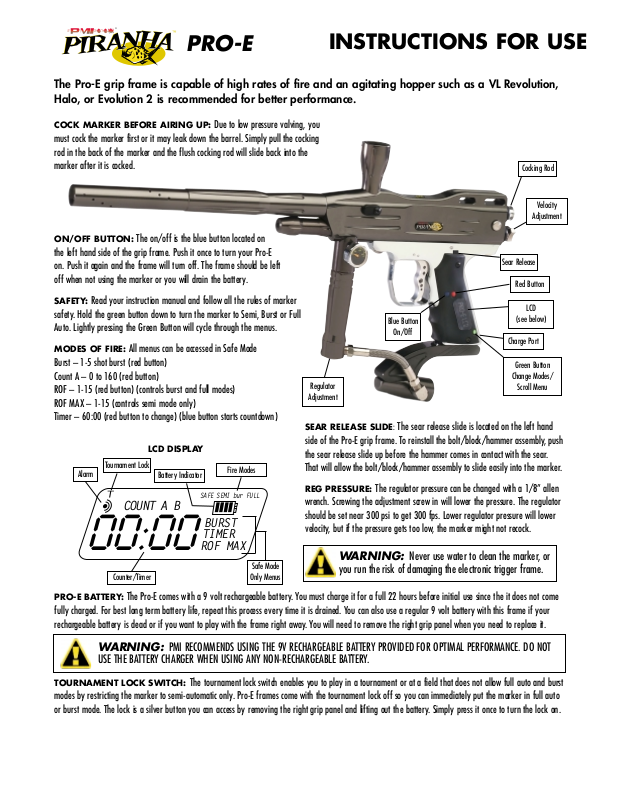

PMI Piranha Pro E User Manual

The Pro-E grip frame is capable of high rates of fire and an agitating hopper such as a VL Revolution, Halo, or Evolution 2 is recommended for better performance.

PRO-E BATTERY: The Pro-E comes with a 9 volt rechargeable battery. You must charge it for a full 22 hours before initial use since the it does not come

fully charged. For best long term battery life, repeat this process every time it is drained. You can also use a regular 9 volt battery with this frame if your rechargeable battery is dead or if you want to play with the frame right away. You will need to remove the right grip panel when you need to replace it.

TOURNAMENT LOCK SWITCH: The tournament lock switch enables you to play in a tournament or at a field that does not allow full auto and burst

modes by restricting the marker to semi-automatic only. Pro-E frames come with the tournament lock off so you can immediately put the marker in full auto or burst mode. The lock is a silver button you can access by removing the right grip panel and lifting out the battery. Simply press it once to turn the lock on.

SEAR RELEASE SLIDE: The sear release slide is located on the left hand

side of the Pro-E grip frame. To reinstall the bolt/block/hammer assembly, push the sear release slide up before the hammer comes in contact with the sear. That will allow the bolt/block/hammer assembly to slide easily into the marker.

REG PRESSURE: The regulator pressure can be changed with a 1/8” allen

wrench. Screwing the adjustment screw in will lower the pressure. The regulator should be set near 300 psi to get 300 fps. Lower regulator pressure will lower velocity, but if the pressure gets too low, the marker might not recock.

INSTRUCTIONS FOR USE

ON/OFF BUTTON: The on/off is the blue button located on

the left hand side of the grip frame. Push it once to turn your Pro-E on. Push it again and the frame will turn off. The frame should be left off when not using the marker or you will drain the battery.

SAFETY: Read your instruction manual and follow all the rules of marker

safety. Hold the green button down to turn the marker to Semi, Burst or Full Auto. Lightly pressing the Green Button will cycle through the menus.

MODES OF FIRE: All menus can be accessed in Safe Mode

Burst – 1-5 shot burst (red button) Count A – 0 to 160 (red button) ROF – 1-15 (red button) (controls burst and full modes) ROF MAX – 1-15 (controls semi mode only) Timer – 60:00 (red button to change) (blue button starts countdown)

COCK MARKER BEFORE AIRING UP: Due to low pressure valving, you

must cock the marker first or it may leak down the barrel. Simply pull the cocking rod in the back of the marker and the flush cocking rod will slide back into the marker after it is cocked.

PRO-E

WARNING: Never use water to clean the marker, or

you run the risk of damaging the electronic trigger frame.

WARNING: PMI RECOMMENDS USING THE 9V RECHARGEABLE BATTERY PROVIDED FOR OPTIMAL PERFORMANCE. DO NOT USE THE BATTERY CHARGER WHEN USING ANY NON-RECHARGEABLE BATTERY.

Battery Indicator

Safe Mode

Only Menus

Counter/Timer

Tournament Lock

LCD DISPLAY

Cocking Rod

Velocity

Adjustment

Blue Button

On/Off

LCD

(see below)

Sear Release

Red Button

Green Button

Change Modes/

Scroll Menu

Fire Modes

Alarm

Charge Port

Regulator

Adjustment

SAFE SEMI bur FULL

COUNT A B

BURST

TIMER

00:00

ROF MAX

1. Vertical Feed Receiver 71505

2. Barrel 71563

3. Ram Air Chamber 71545 3B. Ram Air Spring 71599 3C. Ram Air Piston 71579 3D. Piston O-Ring 10608

4. Sight Rail 71570

5. Field Strip Pin 10021

6. EXT Valve Body 71663

7. Valve Cup Seal Assembly 10127

8. Vertical Top Tube 71515

9. Valve Guide 10520

10. Valve Spring 71597

11. Venturi Bolt 10209

12. Flush Cocking Rear Block w/ Cushion 71661

13. Flush Cocking Rod 10201

14. Hammer 10310

15. Hammer Spring 71598

16. ASA O-Rings 10608

17. Spring Guide 10301

18. Vertical ASA 71525

19. Ball Detent Cap 10101

20. Ball Detent 10160

21. Double Trigger Frame Assembly 70155

22. Sear Release Slide 70128

23. Pro-E Grips 70100

25. Thumb Adjust Velocity Screw 10482 25A. Velocity Lock Screw 42029

26. Valve Set Screw 10514

27. ASA Screw 71580

28. Ball Detent Screw 10180

29. Trigger Frame Screws 70537

30. Grip Screws 10782

32. Bolt Pin 10291

33. Velocity Screw O-Ring 10460

34. Rear Block O-Rings 10260

35. Hammer O-Ring 10129

37. Bolt O-Ring 41010

37. Valve O-Ring Front 41010

37. ASA O-Ring Front 41010

37. Ram Air body O-Ring 41010

37. Regulator O-Ring 41010

38. Pro-E Trigger 70144

39. Barrel O-Ring 10161

41. 4.4” Hose 47011

42. Bottom Line SS Screws 10799

43. 10˚ Bottom Line Adapter 71645

44. Sear 70139

45. 90° Elbow 47000

50. Flush Cocking Guide O-Ring 10212

51. C-Clip 10207

52. Retaining Washer 10206

53. Flush Spring 10203

54. Drop Forward 71654

55. Trigger Spring 10752

56. Trigger/Sear Pin 10790

57. Sear Spring Pin 10767

67. Low Pressure Gauge 46090

68. Reg NGO Top 41600

69. Reg Seat Seal 41517

70. Reg Poppet O-Ring (013-70) 57976

71. Reg Poppet 41509

72. Reg Seat Base O-Ring (006-70U) 10162

73. Reg Spring 41510

74. Reg Seat Base 41505

75. Reg Body Mid (black) 41601

76. Reg Bottom Swivel (black) 41602

77. Reg Bottom Bolt O-Ring (012-70 Buna) 71660

78. Reg Bottom Bolt 41503

79. Reg Adjusting Screw 41504

80. Reg Adjusting Screw O-Ring 57607

81. Reg DSR 10-32 Plug 41506

82. Reg Seal Stop O-Ring (002-70) 57631

83. Interior Bottom Bolt O-Ring (010-70) 57645

Disassembly of electronic trigger frame will void warranty.
