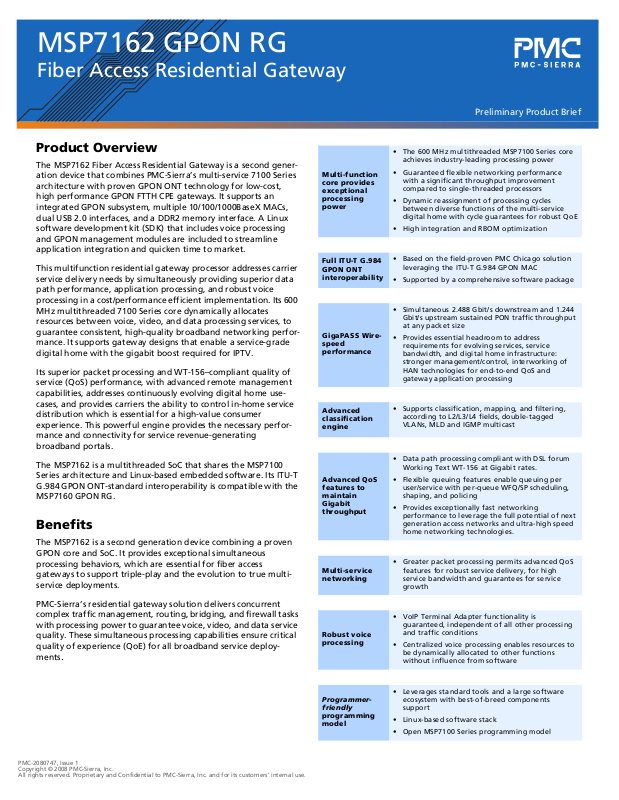

MSP7162 GPON RG

Fiber Access Residential Gateway

Product Overview

The MSP7162 Fiber Access Residential Gateway is a second gener­ation device that combines PMC-Sierra’s multi-service 7100 Series
architecture with proven GPON ONT technology for low-cost,
high performance GPON FTTH CPE gateways. It supports an
integrated GPON subsystem, multiple 10/100/1000BaseX MACs,
dual USB 2.0 interfaces, and a DDR2 memory interface. A Linux
software development kit (SDK) that includes voice processing
and GPON management modules are included to streamline
application integration and quicken time to market.

This multifunction residential gateway processor addresses carrier
service delivery needs by simultaneously providing superior data
path performance, application processing, and robust voice
processing in a cost/performance efficient implementation. Its 600
MHz multithreaded 7100 Series core dynamically allocates
resources between voice, video, and data processing services, to
guarantee consistent, high-quality broadband networking perfor­mance. It supports gateway designs that enable a service-grade
digital home with the gigabit boost required for IPTV.

Its superior packet processing and WT-156–compliant quality of
service (QoS) performance, with advanced remote management
capabilities, addresses continuously evolving digital home use­cases, and provides carriers the ability to control in-home service
distribution which is essential for a high-value consumer
experience. This powerful engine provides the necessary perfor­mance and connectivity for service revenue-generating
broadband portals.

The MSP7162 is a multithreaded SoC that shares the MSP7100
Series architecture and Linux-based embedded software. Its ITU-T
G.984 GPON ONT-standard interoperability is compatible with the
MSP7160 GPON RG.

Benefits

The MSP7162 is a second generation device combining a proven
GPON core and SoC. It provides exceptional simultaneous
processing behaviors, which are essential for fiber access
gateways to support triple-play and the evolution to true multi­service deployments.

Multi-function
core provides
exceptional
processing
power

Full ITU-T G.984
GPON ONT
interoperability

GigaPASS Wire­speed
performance

Advanced
classification
engine

Advanced QoS
features to
maintain
Gigabit
throughput

Multi-service
networking

Preliminary Product Brief

• The 600 MHz multithreaded MSP7100 Series core
achieves industry-leading processing power

• Guaranteed flexible networking performance
with a significant throughput improvement
compared to single-threaded processors

• Dynamic reassignment of processing cycles
between diverse functions of the multi-service
digital home with cycle guarantees for robust QoE

• High integration and RBOM optimization

• Based on the field-proven PMC Chicago solution
leveraging the ITU-T G.984 GPON MAC

• Supported by a comprehensive software package

• Simultaneous 2.488 Gbit/s downstream and 1.244
Gbit/s upstream sustained PON traffic throughput
at any packet size

• Provides essential headroom to address
requirements for evolving services, service
bandwidth, and digital home infrastructure:
stronger management/control, interworking of
HAN technologies for end-to-end QoS and
gateway application processing

• Supports classification, mapping, and filtering,
according to L2/L3/L4 fields, double-tagged
VLANs, MLD and IGMP multicast

• Data path processing compliant with DSL forum
Working Text WT-156 at Gigabit rates.

• Flexible queuing features enable queuing per
user/service with per-queue WFQ/SP scheduling,
shaping, and policing

• Provides exceptionally fast networking
performance to leverage the full potential of next
generation access networks and ultra-high speed
home networking technologies.

• Greater packet processing permits advanced QoS
features for robust service delivery, for high
service bandwidth and guarantees for service
growth

PMC-Sierra’s residential gateway solution delivers concurrent
complex traffic management, routing, bridging, and firewall tasks
with processing power to guarantee voice, video, and data service
quality. These simultaneous processing capabilities ensure critical
quality of experience (QoE) for all broadband service deploy­ments

.

PMC-2080747, Issue 1
Copyright © 2008 PMC-Sierra, Inc.
All rights reserved. Proprietary and Confidential to PMC-Sierra, Inc. and for its customers’ internal use.

Robust voice
processing

Programmer­friendly

programming
model

• VoIP Terminal Adapter functionality is
guaranteed, independent of all other processing
and traffic conditions

• Centralized voice processing enables resources to
be dynamically allocated to other functions
without influence from software

• Leverages standard tools and a large software
ecosystem with best-of-breed components
support

• Linux-based software stack

• Open MSP7100 Series programming model

MSP7162 GPON RG Fiber Access Residential Gateway

Product Highlights

System Processor

• MSP7100 Series multithreaded core

• 32 KB zero wait state scratchpad

• DSP extensions for efficient voice processing

• 32-bit, 233-MHz multi-service bus with multi-master access

Flexible, programmable, hardware-based QoS multi-service bus
arbitration allows provisioning of system bandwidth for high
throughput peripherals

• Support for multiple transaction priority levels

• DDR2 SDRAM

Interfaces

• Integrated ITU-T G.984 compliant GPON MAC and SERDES

• Line rate operation – 2.488 Gbit/s downstream; 1.244 Gbit/s

upstream

• Supports 8 T-CONTs

• Supports 256 Port IDs

• Supports NSR/SR DBA

• US and DS FEC

• AES decryption

• Multi-queue QoS support

• Dedicated GPON buffering

• Two 10/100/1000 MACs with MII/RMII/GMII interfaces

• 33/50 MHz PCI 2.3 host, initiator/target interface

• Dual Hi-speed USB 2.0 with integrated PHYs (support for host or

device modes)

• Glueless interface to SLIC/SLACs and DAAs

• Support for up to 32-channel cross-connects with TDM to TDM

and TDM to VoIP channel switching

• Flash/SRAM controller

• Hardware acceleration for IPSec (DES, 3DES, AES, MD5, SHA-1)

• Two externaltimer outputs

• Serial peripheral interface (SPI), Two-wire interface (TWI), Dual

UARTs

• 802.1x authentication engine

Voice Processing

• Voice Coding G.711, G.729a, G.729ab, G.723.1

Software

The MSP7162 includes a turnkey-level software solution that
integrates the MaxMT Linux SDK with dedicated GPON APIs.
Applications developer can build high-performance, feature-rich
gateways quickly and easily in an environment consisting of:

• Voice processing module (VPM) VoIP firmware suite

• GPON protocol stack

• GPON OMCI management stack

The MSP7162 and SDK are supported by standard tools from
industry leading vendors as well as GNU development tools
(compiler, debugger, EJTAG support, etc.)

For more details about the software development environment,
refer to the MSP7100 Series SDK Product Brief.

Applications

• Residential multi-service FTTH GPON gateway

• SOHO GPON FTTH gateway

• SMB GPON FTTH gateway

MSP7162 GPON Residential Gateway

DDR2 Flash

802.11a/b/g/n
chipset

Quad FXS

chipset

USB Host/Device

USB Host/Device

DDR

Controller

PCI I/F

VoIP

Subsystem

USB 2.0

USB 2.0

MSP7162

Flash/SRAM

Controller

MSP7100

Series Core

GPON

Subsystem

10/100/

1000BaseX

MAC

10/100/

1000BaseX

MAC

Transceiver

FE/GbE

switch

GbE PHY

GPON
