fact

Model

No.

Key to the

Hand built by

Date

fact

- noun - a thing known to be true with complete certainty.The denition of

is a groundbreaking range of loudspeakers that provides just that.

The unadulterated essence of the recording delivered by a wholly elegant form.

IMPORTANT - Complete your warranty

Warranty Certicate

Please take a few moments to complete the warranty card at the

back of this booklet or register at www.pmc-speakers.com. This records

the purchase of your loudspeakers and provides you, the customer an

opportunity to make suggestions and provide feedback directly to PMC.

Product Support

For product support, accessories or servicing advice, please contact

a PMC authorised dealer - See www.pmc-speakers.com.

THE PROFESSIONAL MONITOR COMPANY LIMITED

43-45 CRAWLEY GREEN ROAD LUTON LU2 OAA UK T 0870 4441044 F 0870 4441045

E sales@pmc-speakers.com www.pmc-speakers.com

Version v1 - #421

A message from Peter Thomas –

Peter Thomas

Owner & Chief Designer

Our sole aim while designing loudspeakers is to recreate the true essence of

“

an artist’s intention, combining the ultimate level of sonic resolution with solid

engineering principles.

We believe that the same loudspeaker can be used throughout the entire audio

chain, from composer to studio or lm stage, post-production or mastering and then,

nally, the consumer. Our unswerving passion for getting it right has made this goal

possible.

Thank you for choosing PMC products. It is now time for you to read the user guide, install your new speakers, and realise just how much you’ve been missing.

Congratulations - You have joined the elite.

Prince

Stevie Wonder

Francis Rossi (Status Quo)

PMC: the authority for quality sound.

Over two decades PMC has earned an

unrivalled reputation for creating the

world’s nest professional loudspeakers.

Simply put, our loudspeakers provide a

reference for the world’s highest prole

productions and events. They are found

UNIVERSAL MUSIC GROUP

Robbie Williams

Royal College of Music

BBC

Tony Bennett

JVC Studios

elbow

Sony

Coldplay

Basement Jaxx

at every stage of the creative process,

from conception to recording and

broadcast and, of course, in the home.

Our client list reads like a who’s who of the

sonically aware, with Prince,

Stevie Wonder, Robbie Williams, Coldplay,

Brian May, Universal, Sony, Dreamworks,

Deutsche Grammophon and the BBC

among the makers of movies and music.

Our loudspeakers were used in the

production of Titanic, Man of Steel, Skyfall,

WALL-E and during broadcasts of both the

Beijing and the London Olympics.

Brian May

Kraftwerk

Warner Music

Underworld

Emil Berliner/Deutsche Grammophon

Google

Siemens

Wisseloord Studios - one of the world’s leading music production facilities, PMC equipped

The combination of accumulated technical

knowledge and the experience gained from being

close to the creators of music has been distilled into the fact range - you will hear it exactly as the

artist intended with all the passion and emotion of

the performance.

Tip

fact

user guide

Contents

General usage guidelines

PMC’s

Our meticulous attention to detail

Unpacking

Spike Installation guide

Connections

Connecting to an amplier fact.3 & fact.8

Connecting to an amplier fact.12

Running in or breaking in

Positioning

Stereo set-up

Surround sound specic set up

Ideal 5.1 surround sound set up

Ideal 7.1 surround sound set up

Fine tuning for perfect sound

Service

Specications

Warranty on-line

Warranty certicate - Part 1 - Your copy

Warranty certicate - Part 2 - Our copy

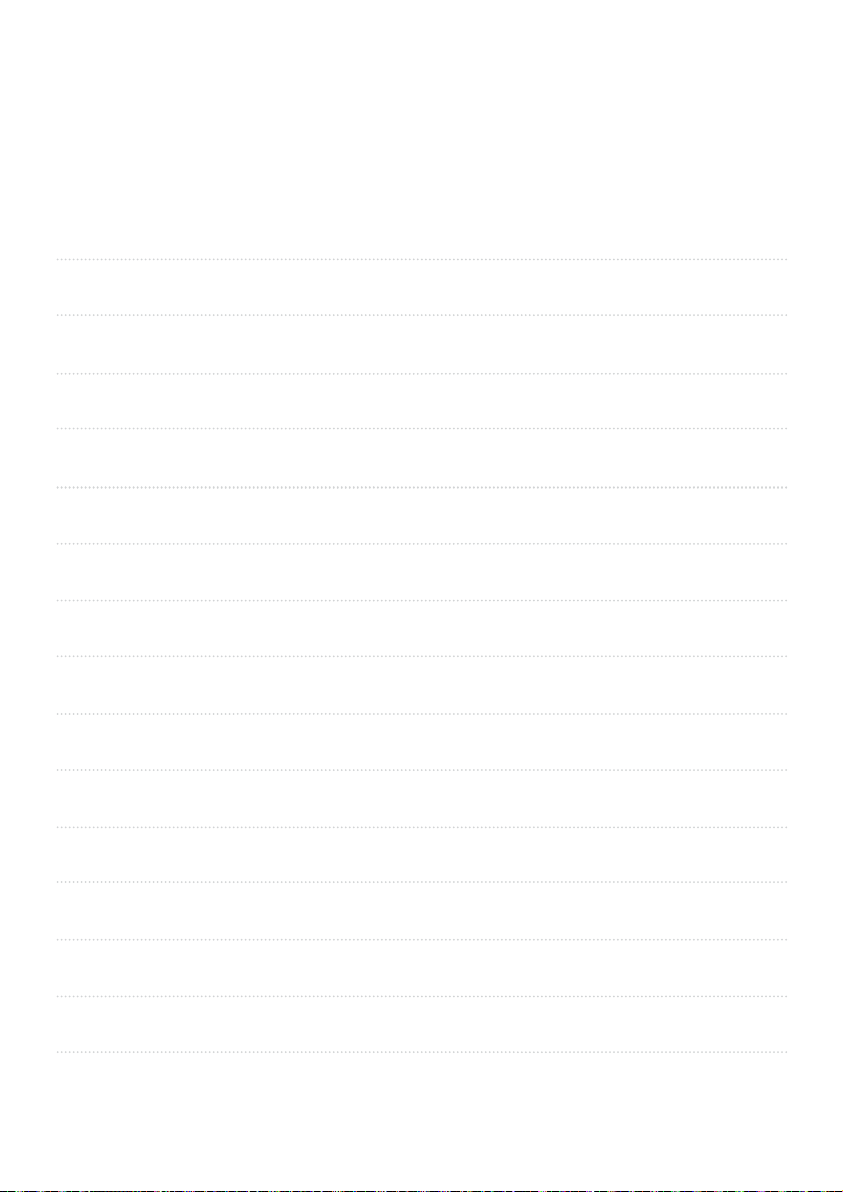

Help us improve - Your Comments

Inspection certicate

- Basically speaking

- Technically speaking

Tip

General usage guidelines

Tip

Read these instructions and keep them in a safe place for future reference.

Heed all electrical safety warnings, including any on the loudspeakers themselves.

Do not use the loudspeakers near water.

We have provided a high quality Microber cloth for cleaning. This is ideal as the cabinet

should only be cleaned with a dry, lint-free, cloth. Do not use solvents, abrasives, waxes

or liquids as they may be detrimental to the nish.

Floor spikes are sharp and should be treated with great care during installation and use.

Do not install near any heat sources such as radiators, ovens or other equipment that

produce excessive heat.

Unplug this product from both source and power during electrical storms or when unused

for extended periods of time.

Packing material can pose danger to the young and vulnerable.

Ensure these items are kept or disposed of safely.

High volume audio signals, however short their duration, have the potential to cause

hearing damage. Use care when setting the system volume level to ensure playback

sound pressure levels remain within safe comfortable limits.

Do not attempt to service the equipment. There are no user serviceable parts inside.

Please refer all servicing to PMC authorised personnel.

Servicing is required when the apparatus is damaged, exposed to moisture,

or exhibits a distinct or sudden change of operation or audio performance.

PMC has made efforts to provide accurate installation information and good quality

xings. The Professional Monitor Company Limited (PMC) will not be held responsible or

liable for injuries or property damage - direct, indirect or consequential - arising out of use

or inability to use this product safely and properly.

fact

loudspeakers contain powerful magnets and may have a detrimental effect if left in

close proximity to magnetically sensitive items, e.g.; CRT televisions or monitors and media

such as oppy discs, audio and videotapes.

Basically speaking

Tip

Advanced Transmission Line

The world’s leading professionals rely on the

accuracy of PMC’s designs everyday to

create much of the music and sound you

hear. You can rest assured that what you hear

from a PMC speaker is identical to the version

approved by the artist themselves.

What they offer above a standard HiFi speaker

Detail - They are extremely detailed and

sound natural - As if the musicians are with you

in the room

Room lling - The sound they produce covers a

massive area, so wherever you sit you still hear

everything

fact.12 cross section showing ATL™ bass loading

Full, rich sound at any volume - You can listen at

low level and still hear bass - Ideal for low level

or late night listening

Reliability - Our technology is tried and tested in

the professional world

Ease of drive - They are efcient and therefore

can be driven by the vast majority of good

quality ampliers

Technically speaking

PMC’s

Line) enclosures have taken loudspeaker

design to the highest level.

A PMC transmission line design utilises

sophisticated cabinet construction,

propriety drive units and patented

absorption materials and techniques.

The benets are enormous compared to

the relatively simple sealed and ported

models currently available elsewhere.

The bass driver is placed at one end

of a long tunnel (the transmission line),

which is heavily damped with absorbent

acoustic material. This material is

specied to absorb the upper bass and

higher frequencies that radiate from the

rear of the bass driver.

The lowest frequencies, which remain

in phase, then emerge from the large

vent at the end of the line, which

essentially acts as an additional driver.

One advantage to this approach is that

the air pressure loading the main driver

is maintained, thus controlling the driver

over a wide frequency range, which in

turn signicantly reduces distortion. A

spin-off from the lack of distortion is that

™

(Advanced Transmission

ATL

the upper bass and midrange detail

is not masked by harmonic distortion

residing in the very low frequencies.

The result is PMC’s characteristic

transparent midrange and fast,

attacking bass notes, all reproduced

with outstanding clarity.

A further advantage of the transmission

line approach is a cabinet that

produces a higher volume and

greater bass extension than a ported

or sealed design of a similar size,

even if identical drivers were used.

Moreover, as the loading on the main

driver is maintained at all volumes,

the frequency response also remains

consistent regardless of listening level.

Casual late night listening or analytical

studio sessions can be conducted

without the need for high volumes to

achieve maximum bass response. A

characteristic that is especially suited

to both the home enthusiast and

recording professional alike.

‘No other technology provides such a huge, rich room lling sound’

Our meticulous care & attention

All PMC loudspeakers are hand-built in the U.K. using individual

components that are matched to our reference model; this includes

the structural integrity of every cabinet and the testing and recording of

each component. This guarantees it will be within our strict tolerances

and ensures your purchase sounds identical to the original design.

Each completed loudspeaker then undergoes a set of objective and

subjective measurements - frequency response sweeps ensure that the

design meets our exacting performance criteria, and then listening tests

are conducted against the reference model using a wide variety of

material, from a benchmark BBC speech test to classical music,

pop and rock.

Tip

Unpacking

Please retain your packaging for future use as all PMC cartons

are durable, reusable and can be employed to safely transport

your loudspeakers should they be relocated or returned

for servicing.

Much of the packing is constructed from recyclable materials,

so if you are to dispose of it please do so in an environmentally

friendly manner.

Packing materials can pose danger to

animals, the young and vulnerable.

Ensure these items are kept or

disposed of safely.

Spike installation guide

Tip

(for fact.3 stands, see individual installation guide)

Spikes are used to enhance performance and allow the loudspeaker to be

levelled perfectly.

either carpeted or more sensitive hard ooring.

Note: If you require additional protection when using the ball ended tips on

hard ooring then use the handy protection caps included.

Carefully invert the loudspeaker so that its base is uppermost. Take

care not to damage the top of the loudspeaker when it is upside-

down, the use of a soft cloth or square of carpet is suggested.

Thread each spike with one of the supplied knurled collars/nuts.

Select the type of tip you wish to use. Generally spikes are used for

carpeted oors and ball ends for hard oors

The spikes can then be inserted into the threaded hole.

Caution: Spikes are sharp and should be treated with great

care and may damage hard ooring if in direct contact.

fact spikes are reversible, with spike or ball tips for use on

Re-invert the loudspeaker

Once in position, level the loudspeaker by adjusting each

spike in turn using the spirit level on the top of the cabinet to

conrm. While this might seem a time-consuming exercise,

it is important both in terms of system performance and the

stability of the loudspeaker.

The nal step is to tighten each knurled collar/nut; this will ensure that

the spike and loudspeaker are as rigid as possible.

Connections

Tip

Caution

To avoid potential damage, please ensure that your power amplier(s) or

receiver is turned off before connecting or disconnecting your loudspeakers.

Cable & connectors

When selecting cables for use with your fact loudspeakers, ensure that

their construction is of a high enough standard to withstand the rigors of

everyday use and that they are suitably terminated. While bare wire can be accommodated by the fact Ag binding posts, we recommend the use of either

spade lugs or 4mm ‘banana’ plugs in order to maintain an electrical connection

of the highest integrity and avoid the possibility of short circuits. Please consult

your dealer for more information regarding cable lengths and termination

options.

Polarity + & -

It is of vital importance to observe the polarity markings and maintain

positive-to-positive and negative-to-negative connections from amplier or receiver to the loudspeaker. The fact Ag terminals are colour-coded to aid

in their identication, positive terminals are red, negative terminals are black.

Plugging them in

Connecting to an amplier

Tip

Standard / Single wiring connection

This is the most common using a single cable with two conductors. Connect using any of the two pairs of RED+/BLACK- terminals. Ensuring the fact Ag

silver linking bars are secure and the binding posts are nger tight.

Advanced connection / Bi-wiring & Bi-amping

fact models with four binding posts can be bi-wired or bi-amped.

By loosening all four rear binding posts, the silver bridging plates can be

removed thus enabling separate signals to be fed to the low (Woofer)

and high frequency (Tweeter) drivers. Ensure the binding posts are re-

tightened after the bridging bars are removed. Both bi-wiring and bi-amping

require the use of two lengths of cable per speaker. Bi-amping requires

two separate ampliers; one for each driver. Please consult your dealer

regarding the benets and the correct procedure.

Terminal identication

Top pair of terminals - HF / High Frequency / Tweeter

Bottom pair of terminals – LF / Bass Frequency / Woofer

Back panel diagrams

Standard/single wiring

Bi-wiring

Bi-amp wiring

Connecting to an amplier

Tip

Standard / Single wiring connection

Connect using any of the three pairs of RED+/BLACK- terminals. Ensure the

linking bars are secure and the binding posts are nger tight.

Advanced connection

The fact.12 can also be bi-wired, bi-amped, tri-wired or tri-amplied. By

loosening all six rear binding posts, the linking bars can be removed so

separate signals can be fed to the LF (Woofer), MF (50mm Dome) and HF

(Tweeter) drivers. Ensure the binding posts are re-tightened after the linking

bars are removed.

Both bi-wiring and bi-amping use two lengths of cable per speaker, tri-wiring

and tri-amping use three lengths per speaker. Bi-amping also uses two

separate ampliers; tri-amping uses three, one for each driver.

Terminal identication

Top pair of terminals - HF / High Frequency / Tweeter

Middle pair of terminals - MF / Mid Frequency / 50mm Dome

Bottom pair of terminals - LF / Bass Frequency / Woofer

Back panel diagrams

Standard/single wiring

Bi-wiring

Tri-wiring

Bi-amp wiring

Tri-amp wiring

Running in or breaking in

Tip

When loudspeakers are new they will take time to reach their full potential.

It is often debated whether any solid-state equipment, such as CD players or

transistor-based power ampliers change with use, but the characteristics of

mechanical devices such as loudspeakers do alter and improve their perfor-

mance signicantly after a short ‘running in’ period.

The science is simple; as the soft material surrounding the dome or woofer

cone is exed it will eventually reach a point where it has optimum compli-

ancy allowing the drive unit to move more freely. This translates to greater

accuracy and speed of attack in the bass region and the mid and high fre-

quency produces a far more vivid audio picture. This short ‘running in’ period

takes approximately 50 hours of normal use.

Tip

Positioning

With their unique ATL

low distortion and smooth bass roll-off, PMC loudspeakers are more forgiving of

difcult room conditions and placement constraints than conventional designs -

you will be able to achieve a superb sound throughout the room with little effort.

We do encourage you to spend some time experimenting in your own room

in order to achieve the very best results. Remembering that small changes in

location can often inuence system performance.

Room shape, size, construction and interior decoration vary immensely and

therefore inuence sound in different ways. The following guidelines are

suggestions for the starting point to locate your new speakers. Fine-tuning of

their positioning can start from here.

™

Advanced Transmission Line design, wide dispersion, ultra

Tip

Positioning (Cont.)

• Place the speaker so the front face is slightly forward of any large object

that protrudes into the room - this could be a replace, bookcase

or television for example.

See stereo set up diagram

Tip

• Ensure that stereo pairs of loudspeakers are equidistant from the listening

position.

• It is best to position the front left/right pair (and centre channel loudspeaker

if you have a surround system) at the same height, usually at ear-level when

seated at the listening position.

Tip

If any of the speakers are mounted above or below ear level, then angle the

speaker towards the listening position.

• The distance between your left/right speakers and the listening position

should ideally create an equilateral triangle. As a general rule, the width

of the audio picture will be narrow if the speakers are too close together. If

they are too far apart the picture will be wide but there will be less central

denition

Tip

Use a well recorded vocal track to judge the ideal spot.

• To further enhance the audio picture or soundstage the speakers can

be angled/toed-in’. Start with the speakers angled so they will cross

approximately 50cm (2ft) behind the listening position. (See stereo set-up

diagram) Varying this angle will also subtly affect the vividness of the audio

picture, so again experiment.

Tip

A simple well recorded band with vivid vocals will help to achieve the best

position

Stereo set up

Surround sound specic set up

5.1 Systems

The fact range has been designed for perfect multi channel music or movie

playback and the following diagrams display the ideal layout for the

speakers.

No doubt the constraints of room size and shape will vary the distances from

Tip

the listener to the speakers. Therefore use of the time alignment function of

your surround processor will be important.

Tip

The guidance given in the ‘Stereo set up and ‘Fine tuning for perfect

bass’ also apply to the set up of a surround system.

Note

7.1 Systems

In a system capable of full 7.1 Dolby

Blu-ray™ or HD DVD™ playback there will be two sets of surround speakers.

The rst pair should be positioned at 100º and the second set at 150º. (The

centre is considered 0º while directly to the rear of the room is 180º). See

Ideal 7.1 surround set up diagram.

Digital Surround EX™, DTS® ES™,

Dolby® Digital Surround EX™ is a registered trademark of Dolby® Laboratories

DTS® ES™ are registered trademark of DTS®, Inc

Blu-ray™ is a trademark of the Blu-ray™ Disc Association

HD DVD™ is a trademark of the DVD Format/Logo Licensing Corporation (DVD FLLC)

Tip

Ideal 5.1 surround set up

Ideal 7.1 surround sound set up

Tip

Fine tuning for perfect sound

Ensure both HF & LF adjustment switches are in the zero position on the rear

Tip

panel of both loudspeakers (See fact back panel diag.)

If your amplier has tone controls set them in the at/zero position, or if your

Tip

amplier features a defeat/direct button use this function. This will ensure there

is no addition or reduction in bass or treble before the loudspeaker which would

make the ne tuning process confusing.

How your room can effect bass

Solid boundaries (i.e. walls, ceilings and oors) reect sound and help to contain

it within a room. They make a speaker sound louder the closer they are to them,

especially in the low frequency (bass) region.

This diagram shows the areas, that if a speaker is positioned, will either increase

or decrease bass - The darker the shading the more bass will be heard.

Placing the speakers in the corners will generate the most bass, and in the

centre of the room, the least bass.

Fine tuning for perfect sound

Tip

HF - High Frequency

+ More treble

0 Flat, No adjustment

- Less treble

Take control

With fact the problems of combining the various sound signatures of electronics,

cables and above all room acoustics are now resolved. Our design team have

engineered an elegant and effective solution to this previous insurmountable issue.

Set within the solid, brushed anodised rear panel are audiophile grade switching

that allow the tailoring of the loudspeaker’s bass and high frequency response.

This ne-tuning will ensure the perfect sound balancing any room and with any

source combination.

Always mute your amplier whilst

adjusting the HF & LF controls

+ More treble

0 Flat, No adjustment

- Less treble

HF - High Frequency

– 1

– 2

LF - Low Frequency

Flat, No adjustment

Less bass

Further reduced bass

Tip

Fine tuning for perfect sound

HF - High Frequency

+ More treble

0 Flat, No adjustment

- Less treble

Always mute your amplier whilst

adjusting the HF & LF controls

HF - High Frequency

+ More treble

0 Flat, No adjustment

- Less treble

–

LF - Low Frequency

More bass

Flat, No adjustment

Less bass

Tip

Fine tuning for perfect sound

Tip

Position your speakers so the bass is as clear and dened as possible using

various styles of well recorded music - remembering that more bass isn’t nec-

essarily better.

You now have the option to ne tune the bass response using the LF (Low

Frequency response) switch. If you require a reduction then use one of the

negative positions. N.B. The fact.12 features a unique bass lift (LF+) option. If

you require a subtle increase in bass to provide a deeper, richer sound move

it to the + position.

Again, repeat the process by checking how the bass sounds using various

styles of music and adjust accordingly.

Treble / HF (High Frequency adjustment)

The HF adjustment switching on the fact models will compensate for the

following:

In the + position

This will subtly increase the HF/High frequency output to compensate for

softer sounding source equipment or dull absorbent rooms i.e. rooms with an

abundance of soft furnishings, carpets etc

In the – position

This will subtly decrease the HF/High frequency output to compensate

for bright sounding source equipment or lively highly reective rooms i.e.

minimally furnished rooms with hard ooring and very little soft absorbent

materials.

Good quality speech or a well recorded vocal should sound dened and

completely natural and free from sibilance when the HF switch is in the

correct position.

You will often nd good quality speech on an FM broadcast by a national

Tip

broadcaster.

Service

Tip

We are condent your fact loudspeakers will afford many years of trouble-free

listening of the highest order. B ut in the unlikely event that one or more requires

repair, our unique manufacturing procedure, wherein the precise value of each

component together with the response of the system as a whole is recorded,

will ensure that any replaced parts will exactly match the performance of those

originally included within each individual loudspeaker.

For any issues that might arise or for advice and service requirements, the

primary point of contact should be your knowledgeable and authorised PMC

dealer/distributor.

If you do not have a local representative please see www.pmc-speakers.com

and click on ‘Where to buy’.

Alternatively you can view our FAQ’s (Frequently Asked Questions) and servicing

section on our website. (Click on the contacts section and select FAQ).

Important Note: Please do not return any products to PMC directly

without rst contacting our service department.

Tip

Specications

Freq response 35Hz – 30kHz Sensitivity 89dB 1w 1m

Effective ATL™ length 1.7m (5.6ft) Impedance 8 Ohm Drive units LF 2 x PMC fact 140mm/ 5.5” precision drivers

HF 1 x PMC fact 19mm high res SONOMEX™

Soft dome, Ferrouid cooled with 34mm surround

Crossover freq 1.7kHz Input connectors 2 pairs 4mm sockets PMC Ag terminals

(Bi-amp or Bi-wire) Dimensions H 535mm x W 155mm x D 300mm (+ 23mm Ag terminal) (+ stand)

Weight 9.5kg 20.9lbs

Freq response 28Hz – 30kHz Sensitivity 89dB 1w 1m

Effective ATL™ length 3m (9.8ft) Impedance 8 Ohm Drive units LF 2 x PMC fact 140mm/ 5.5” precision drivers

HF 1 x PMC fact 19mm high res SONOMEX™

Soft dome, Ferrouid cooled with 34mm surround

Crossover freq 1.7kHz Input connectors 2 pairs 4mm sockets PMC Ag terminals

(Bi-amp or Bi-wire)

Dimensions H 1030mm (+ 25mm spikes) x W 155mm (+80mm ingot feet) x D 380mm (+ 23mm Ag terminal)

Weight 20kg 44lbs

Freq response 26Hz – 30kHz Sensitivity 84dB 1w 1m

Effective ATL™ length 3.3m (11ft) Impedance 8 Ohm Drive units LF 2 x PMC fact 140mm/ 5.5” precision drivers

MF 1 x PMC fact 50mm/ 2” Soft dome ferro-uid cooled mid-range with machined aluminium dispersion plate HF 1 x PMC fact 19mm high res SONOMEX™

Soft dome, Ferrouid cooled with 34mm surround

Crossover freq 400Hz & 4kHz Input connectors 3 pairs 4mm sockets PMC Ag terminals

(Bi-amp/ wire or tri-amp/ wire)

Dimensions H 1100mm (+ 25mm spikes) x W 168mm (+100mm ingot feet) x D 420mm (+ 23mm Ag terminal)

Weight 26kg 57lbs

Warranty On-line

SIMPLY ACTIVATE YOUR 20 YEAR

WARRANTY ON-LINE

GO TO WWW.PMC-SPEAKERS.COM AND CLICK ON SUPPORT, REGISTER PRODUCT

If you do not have access to the internet ll in the

warranty form found on pages 33 & 34 and post it to us.

WARRANTY CERTIFICATE - PART 1

Your Copy

to KEEP

Please complete and retain this page for your own records

Product

Serial Nos

Date of purchase

Dealers name

Dealers address

Town

County

Postcode

Dealers Telephone No

Servicing and warranty issues – Please read the following carefully.

Non UK clients

Contact your local dealer/distributor for the details of warranty repairs - see www.pmc-speakers.com and click on distribution

for their details.

UK clients

In the unlikely event of a fault occurring with your PMC product rstly contact your dealer where the product was purchased.

Do not return a product to PMC without rstly contacting our technical dept. If the product must be returned for service you will be

issued with a Returns Authorisation number.

If a product is returned to PMC and subsequently is found to have no fault or a non-warranty fault it will be subject to a minimum of

£50.00 plus the carriage for its return.

Proof of purchase is required for any claim covered by this warranty.

This product is warranted for a period of 5 years from the date of purchase or upon receipt of ‘our copy’ overleaf or on-line registration

within ten days of purchase or receipt.

The warranty covers defects due to faulty materials or workmanship but does not cover defects arising from accidental damage,

misuse or wear and tear. The warranty is void if any attempt has been made by persons not authorised by PMC to dismantle,

repair or modify any part of the product.

Products must be returned using original packing material. This warranty does not cover damage in transit.

Note that the cost of the carriage to PMC is not covered by the warranty.

Returned products that are defective that are covered by warranty will be repaired or replaced at the discretion of PMC.

Allow minimum of 14 working days for return of warranty repairs.

This warranty does not effect your consumer rights under statutory law. This warranty certicate is only valid in the United Kingdom.

PMC 43-45 Crawley Green Road Luton LU2 0AA UK T +44 (0) 870 4441044 F +44 (0) 870 4441045

Tip

WARRANTY CERTIFICATE - PART 2

Our Copy

Please complete and return this section - or simply complete the on-line

registration at www.pmc-speakers.com and click on support, register product.

Product

Serial Nos

Date of purchase

Purchased from

Your Name

Your email address

Your address

Town

County

Postcode/Zip code

Help us improve

our products

see over

Tip

Help us Improve - Your Comments

We value all our client’s comments. Please take a moment to help us improve:

If there is one thing we should change, what would it be?

Please tell us how your new PMC’s perform. Your comments may appear on

the customer quotes section for this product on our site. N.B. Don’t worry the

comments will be anonymous; your personal details will not appear.

What magazines do you read?

HiFi Pro Lifes style Online

HiFi Choice Future Music T3 mixonline.com

What HiFi Sound on Sound Stuff gearslutz.com

Stereophile Audio Media GQ avreview.co.uk

HiFi World Pro Sound News EVO techradar.com

HiFi Critic Resolution FHM HiFi WigWam.com

HiFi News Audiofanzine Shortlist What HiFi.com

HiFi+ IBE Maxim the-ear.net

Gramophone Tape Op Esquire

Other Other Other

Other

We hope you enjoy your latest purchase as much as we enjoyed designing

and building them - Thank you.

Tip

Inspection Certicate

Every component that appears in a PMC product is measured, tested, matched

and recorded by hand. This analysis also applies to the nal product we build to ensure

you receive an identical replica of the reference model.

Crossover matching

Enclosure nish

Assembly & Wiring

Driver Installation

Enclosure seal

Level - Frequency

Impedance - frequency

Pair matching

Listening test 1

Listening test 2

Final inspection

Accessory pack

User Guide

All the above has been carefully checked by the builder of your fact series loudspeakers

Notes

fact

This document should not be construed as a commitment on the part of The Professional Monitor Company Limited

(PMC). The information it contains is subject to change without notice. PMC assumes no responsibility for errors that

may appear within this document. Information subject to change.

CE Conformity PMC passive loudspeakers conform to CE Directive LVD 73/23/EEC and EMC 89/336/EEC.

WEEE European directive - PMC Limited is a member of a National Compliance scheme and have gained the

associated certication of compliance and the following registration number from the Environment Agency WEEE/

GJ0101WU

WEEE EU Directive

This symbol on the product or in/on its packaging indicates that this product must not be disposed of with other

household waste. It is the responsibility of the owner to dispose of waste equipment via a designated collection

point for the recycling of waste electrical and electronic equipment. The recycling of your waste equipment is an

attempt to conserve natural resources and ensures that it is recycled in a manner that protects human health and

the environment. For more information about where you dispose of your waste equipment for recycling, please

contact your local waste/recycling authority or the dealer from whom you purchased the product.

‘The trade marks FACT and

are trade marks, and in the United Kingdom, registered trade marks, of The Professional Monitor Company Limited’

fact

T + 44 (0) 870 444 1044

E sales@promonitor.co.uk

W www.pmc-speakers.com

Ref No. 421v1 - 07/13

PMC Fact. 8 tiger ebony, Fact. 12 tiger ebony, Fact. 3 tiger ebony, Fact. 8 white silk, Fact. 3 Graphite fact_12_manual_web (1).pdf

Specifications and Main Features

Frequently Asked Questions

User Manual
