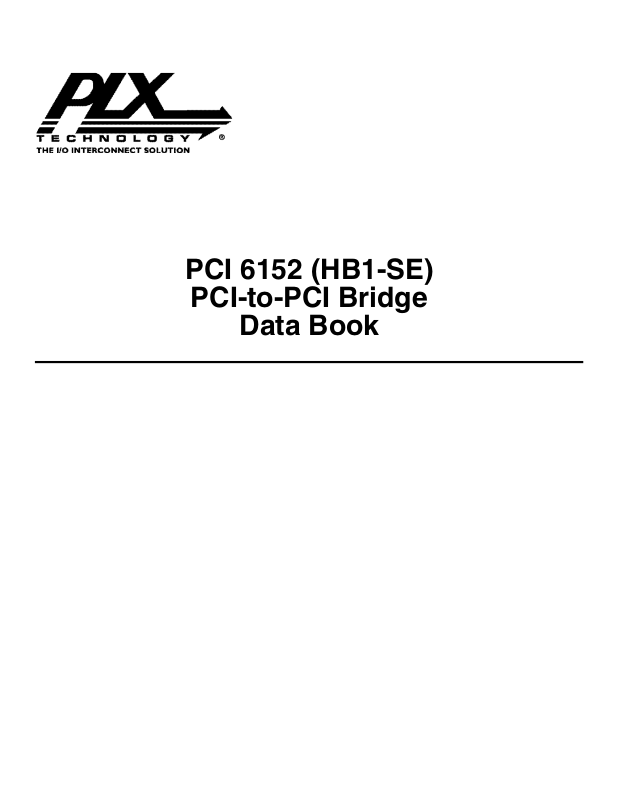

PCI 6152 (HB1-SE)

PCI-to-PCI Bridge

Data Book

Page 2

Page 3

PCI 6152 (HB1-SE)

PCI-to-PCI Bridge

Data Book

Version 2.0

May 2003

Website: http://www.plxtech.com

Technical Support: http://www.plxtech.com/support

Phone: 408 774-9060

800 759-3735

Fax: 408 774-2169

Page 4

PLX Technology, Inc. retains the right to make changes to this product at any time, without notice. Products may have minor variations to this publication, known as errata. PLX assumes no liability whatsoever, including infringement of any patent or copyright, for sale and use of PLX products.

PLX Technology and the PLX logo are registered trademarks of PLX Technology, Inc. Other brands and names are property of their respective owners.

These devices are not designed, intended, authorized, or warranted to be suitable for use in medical, life-support applications, devices or systems or other critical applications.

PLX Part Number: PCI 6152-CC33BC; Former HiNT Part Number: HB1-SE33B PLX Part Number: PCI 6152-CC33PC; Former HiNT Part Number: HB1-SE33P PLX Part Number: PCI 6152-CC66BC; Former HiNT Part Number: HB1-SE66

Order Number: 6152-SIL-DB-P1-2.0

Printed in the USA, May 2003

Page 5

PCI 6152 PCI-to-PCI Bridge

The PLX PCI 6152 is a family of three very low power 32-bit PCI-to-PCI bridges: PCI 6152 33BC, PCI 6152 33PC and PCI 6152 66PC. PCI 6152 66PC is capable of running at 66 MHz PCI Bus and PCI 6152 33BC and PCI 6152 33PC runs at 33 MHz. All parts are specially designed for applications that require high performance 32-bit PCI bus expansion. Add-in card designers can use PCI 6152 to expand PCI connection capacity beyond the limitation of a single PCI device. Designers can use PCI 6152 to build multi-device PCI cards such as RAID controllers and other multimedia applications.

Part numbers and Description:

Part Number Description Package Type PCI 6152 33BC 33 MHz, 32-bit PCI interface 160-pin Tiny BGA PCI 6152 66PC 66 MHz, 32-bit PCI interface

(AGP 2x port compatible)

PCI 6152 33PC Intel 21152 pin compatible 33 MHz, 32-bit PCI interface 160-pin PQFP

• PCI Local Bus Specification Rev. 2.2 with VPD support

PCI 6152 66BC

•

• Synchronous primary and secondary PCI bus operation

• Compact PCI Hot Swap Friendly support with Ejector connection

• High performance, no retry penalty flow with uninterrupted 0 wait state burst up to 1K bytes

• Provides 4 Dwords buffering for posted write transactions and 4 Dwords for prefetchable read transactions

each direction

• PCI Mobile Design Guide Rev. 1.1

• Power Management D3 Cold Wakeup capable

• Concurrent primary and secondary port operation supports traffic isolation

• Provides programmable arbitration support for 4 bus masters on secondary interface

• 5 Buffered secondary PCI clock outputs

• 4 GPIO pins

• Enhanced address decoding

- Support 32-bit I/O address range

- Support 64-bit memory- address range

- ISA aware mode for legacy support in the first 64KB of I/O address range

- VGA addressing and VGA palette snooping support

• Supports 3.3V PCI with 5V tolerant I/O

is 66 MHz capable and

PCI 6152 33BC and 33PC

run at 33 MHz

160-pin Tiny BGA

GPIO Interface

PCI 6152

Primary PCI Bus Secondary PCI Bus

PCI-to-PCI

Bridge

Up to Four

Master PCI Devices

Page 6

History

Revision Date Description

1.1 3/27/01 Corrected register C4h, bit 4,5 description. Default should be 2 clocks delay.

1.2 4/9/01 Updated Company Address

1.3 4/24/01 Corrected description of register 28h and 2Ch register.

1.4 4/30/01 Updated Revision ID description at register 8h.

1.5 7/12/01 Enhanced EEPROM Section description.

This release reflects PLX part numbering.

! Changed “SRST_L to “S_RST_L”, 3 places, in Register 3Eh

! Changed Register 82h, bits 11-15 description

! Changed Dual Address Cycle (1101) values from “N” to “Y” in Table 8-1

2.0 05/28/03

! Globally changed LDEV, LDEV#, and DEVSEL to DEVSEL_L

! Changed Case 1 and 3 descriptions in Section 8.6

! Removed secondary clock information from bullet 2 and S_RST# bullets (4

from Section 13.2

! Updated Master on primary and secondary response in Section 14

! Removed synchronous design information from Section 16

and 6th)

Page 7

Contents

HISTORY ...................................................................................................................................................... 6

1 REGISTER INDEX

2 INTRODUCTION

3 ORDERING INFORMATION

4 PIN DIAGRAM

5 SIGNAL DEFINITION

5.1 P

5.2 S

5.3 C

5.4 R

5.5 H

5.6 M

5.7 P

RIMARY BUS INTERFACE SIGNALS

ECONDARY BUS INTERFACE SIGNALS

LOCK SIGNALS

ESET SIGNALS

OT SWAP SIGNALS

ISCELLANEOUS SIGNALS

OWER SIGNALS

6 PIN ASSIGNMENT

6.1 PCI 6152 P

6.1.1 Pin Assignment Sorted by Location

6.1.2 Pin Assignment Sorted by Signal Name

............................................................................................................................... 11

................................................................................................................................. 12

............................................................................................................... 12

..................................................................................................................................... 13

.......................................................................................................................... 14

..................................................................................................... 14

................................................................................................ 16

................................................................................................................................. 17

........................................................................................................................... 17

.................................................................................................................. 18

................................................................................................................................18

.............................................................................................................................. 19

INOUT TABLES

.................................................................................................................. 20

.......................................................................................... 20

................................................................................... 22

7 CONFIGURATION REGISTERS......................................................................................................... 24

7.1 C

7.2 C

ONFIGURATION SPACE MAP

ONFIGURATION REGISTER DESCRIPTION

– T

RANSPARENT MODE

........................................................................................... 26

.......................................................................... 24

8 PCI BUS OPERATION

8.1 T

8.2 A

8.3 D

8.4 D

8.5 W

8.6 R

8.7 C

YPES OF TRANSACTIONS

DDRESS PHASE

EVICE SELECT

ATA PHASE

RITE TRANSACTIONS

EAD TRANSACTIONS

ONFIGURATION TRANSACTIONS

...................................................................................................................................... 46

8.7.1 Type 0 Access to PCI 6152

8.7.2 Type 1 to Type 0 Translation

8.7.3 Type 1 to Type 1 Forwarding

8.7.4 Special Cycles

8.8 T

RANSACTION TERMINATION

........................................................................................................................ 45

................................................................................................................... 45

................................................................................................................................46

(DEVSEL_L) G

ENERATION

....................................................................................................................... 47

......................................................................................................................... 47

......................................................................................................... 48

....................................................................................................... 48

.................................................................................................... 49

.................................................................................................... 51

........................................................................................................................... 52

............................................................................................................... 53

8.8.1 Master Termination Initiated by PCI 6152

8.8.2 Master Abort Received by PCI 6152

8.8.3 Target Termination Received by PCI 6152

8.8.4 Target Termination Initiated by PCI 6152

9 ADDRESS DECODING

9.1 A

9.2 I/O A

DDRESS RANGES

DDRESS DECODING

....................................................................................................................... 58

............................................................................................................................. 58

.................................................................................................................... 58

9.2.1 I/O Base and Limit Address Registers

....................................................................................... 46

................................................................................. 53

......................................................................................... 54

............................................................................... 54

................................................................................. 57

...................................................................................... 59

Page 8

9.2.2 ISA Mode

9.3 M

EMORY ADDRESS DECODING

................................................................................................................................... 60

............................................................................................................ 60

9.3.1 Memory-Mapped I/O Base and Limit Address Registers

.......................................................... 61

10 PCI BUS ARBITRATION

10.1 P

10.2 S

RIMARY

ECONDARY

PCI B

US ARBITRATION

PCI B

US ARBITRATION

11 TRANSACTION DELAY

12 ERROR HANDLING

12.1 A

12.2 D

DDRESS PARITY ERRORS

ATA PARITY ERRORS

................................................................................................................. 62

......................................................................................................... 62

.................................................................................................... 62

.................................................................................................................. 63

........................................................................................................................ 64

.................................................................................................................. 64

........................................................................................................................ 65

12.2.1 Configuration Write Transactions to Configuration Space

12.2.2 Read Transactions

12.3 D

12.4 S

13 RESET

13.1 P

13.2 S

ATA PARITY ERROR REPORTING SUMMARY

YSTEM ERROR

(SERR#) R

.............................................................................................................................................. 70

RIMARY INTERFACE RESET

ECONDARY INTERFACE RESET

14 BRIDGE BEHAVIOR

14.1 A

BNORMAL TERMINATION (INITIATED BY BRIDGE MASTER

14.1.1 Master Abort

14.1.2 PCI Master on Primary Bus

14.2 C

14.3 C

14.4 T

14.5 D

14.6 S

14.7 PCI C

ONFIGURATION TYPE

-0 C

YPE

ECODING

ECONDARY MASTER

ONFIGURATION CYCLE FILTER MODE

......................................................................................................................................... 73

LOCK RUN FEATURE

.................................................................................................................... 65

....................................................................................... 66

EPORTING

............................................................................................... 69

............................................................................................................... 70

.......................................................................................................... 70

....................................................................................................................... 71

) ................................................................... 72

.............................................................................................................................. 72

....................................................................................................... 72

TO TYPE

#0 C

ONVERSION

#1 BY-P

ASSING

........................................................................... 72

............................................................................ 73

.................................................................................... 73

......................................................................................................................... 74

.................................................................................................................. 74

........................................................ 65

15 CLOCKS

15.1 P

15.2 S

RIMARY AND SECONDARY CLOCK INPUTS

ECONDARY CLOCK OUTPUTS

16 66-MHZ OPERATION

17 MISCELLANEOUS OPTIONS

17.1 EEPROM I

17.1.1 Auto Mode EEPROM Access

17.1.2 EEPROM Mode at Reset

17.1.3 EEPROM Data Structure

17.1.4 EEPROM Address and Corresponding PCI 6152 Register

17.2 G

17.3 V

ENERAL PURPOSE

ITAL PRODUCT DATA

18 PCI POWER MANAGEMENT

19 HOT SWAP

19.1 H

19.2 H

OT SWAP INSERTION

OT SWAP EXTRACTION

.......................................................................................................................................... 75

.......................................................................................... 75

............................................................................................................ 75

...................................................................................................................... 76

......................................................................................................... 77

NTERFACE

........................................................................................................................ 77

.................................................................................................... 77

.......................................................................................................... 77

.......................................................................................................... 78

...................................................... 79

I/O I

NTERFACE

.................................................................................................... 80

........................................................................................................................ 80

.......................................................................................................... 81

...................................................................................................................................... 82

........................................................................................................................ 82

..................................................................................................................... 82

Page 9

20 PACKAGE SPECIFICATIONS

........................................................................................................ 83

20.1 160-

20.2 160-

PIN TINY

PIN STANDARD

BGA ............................................................................................................................. 83

PQFP.................................................................................................................. 85

21 ELECTRICAL SPECIFICATIONS.................................................................................................... 87

21.1 M

21.2 F

21.3 DC E

21.4 PCI C

21.5 PCI S

AXIMUM RATINGS

UNCTIONAL OPERATING RANGE

LECTRICAL CHARACTERISTICS

LOCK SIGNAL

............................................................................................................................. 87

........................................................................................................ 87

.................................................................................................... 88

AC P

ARAMETER MEASUREMENTS

21.4.1 33 MHz PCI Clock Signal AC parameters

21.4.2 66 MHz PCI Clock Signal AC parameters

IGNAL TIMING SPECIFICATION

21.5.1 33 MHz PCI Signal Timing

21.5.2 66 MHz PCI Signal Timing

.................................................................................................... 90

........................................................................................................ 91

......................................................................... 89

................................................................................. 89

................................................................................. 90

APPENDIX A: PCI 6152 33PC PART DESCRIPTION............................................................................... 92

PCI 6152 33PC 160

PIN PINOUT

................................................................................................................... 93

Pin Assignment Sorted by Location......................................................................................................... 93

Pin Assignment Sorted by Signal Name.................................................................................................. 95

PCI 6152 33PC

21152

PINOUT COMPARISON

........................................................................................... 97

APPENDIX B : SAMPLE SCHEMATICS.................................................................................................... 98

APPENDIX C: APPLICATION NOTES..................................................................................................... 104

PCI 6152 66BC A I

NTRODUCTION

YPICAL APPLICATIONS

ESIGN CONSIDERATION

PPLICATION NOTE

............................................................................................................................................ 104

............................................................................................................................... 104

............................................................................................................................. 104

1: C

ONNECTING

PCI 6152 66BC

TO THE

AGP

INTERFACE

................... 104

APPENDIX D: TIMING DIAGRAMS ......................................................................................................... 105

IGURE

RIMARY TO SECONDARY TYPE 1 TO TYPE

1 : P

RIMARY TO SECONDARY TYPE 1 TO TYPE

2 : P

ECONDARY TO PRIMARY MEMORY READ LINE TRANSACTION

3 : S

RIMARY TO SECONDARY MEMORY READ TRANSACTION

4 : P

ECONDARY TO PRIMARY MEMORY READ TRANSACTION

5 : S

RIMARY TO SECONDARY MEMORY WRITE TRANSACTION FOLLOWED

6 : P

BY SECONDARY TO PRIMARY MEMORY WRITE TRANSACTION

ECONDARY TO PRIMARY MEMORY WRITE TRANSACTION

7 : S

ONFIGURATION CYCLE CONVERSION

0 C

ONFIGURATION CYCLE PASSING

1 C

. ............................................................108

. ............................................................109

..................... 105

............................ 106

...................................................... 107

. .................................................. 110

............................................................ 111

Page 10

Page 11

1 Register Index

Arbiter Control Register.............................................................34

Bridge Control Register .............................................................32

Cache Line Size Register ..........................................................29

Capability Identifier........................................................36, 37, 38

Chip Control Register ................................................................33

Class Code Register..................................................................29

Clkrun Register..........................................................................35

Data Register ............................................................................37

Device ID Register.....................................................................26

ECP Pointer...............................................................................31

EEPROM Address.....................................................................43

EEPROM Control ......................................................................43

EEPROM Data ..........................................................................43

GPIO Control Register...............................................................42

Header Type Register................................................................29

Hot Swap Register.....................................................................38

Hot Swap Switch .......................................................................38

I/O Base Address Upper 16 Bits Register..................................31

I/O Base Register......................................................................29

I/O Limit Address Upper 16 Bits Register ..................................31

I/O Limit Register.......................................................................29

Internal Arbiter Control Register ................................................41

Interrupt Pin Register.................................................................32

Memory Base Register ..............................................................31

Memory Limit Register...............................................................31

Miscellaneous Control Register........................................... 40, 41

Next Item Pointer .......................................................... 36, 37, 38

PCI 6152 Test Register............................................................. 44

PMCSR Bridge Support ............................................................ 37

Power Management Capabilities............................................... 36

Power Management Control/ Status.......................................... 37

Prefetchable Memory Base Register......................................... 31

Prefetchable Memory Base Register Upper 32 Bits .................. 31

Prefetchable Memory Limit Register .........................................31

Prefetchable Memory Limit Register Upper 32 Bits ................... 31

Primary Bus Number Register................................................... 29

Primary Command Register...................................................... 26

Primary Latency Timer Register................................................ 29

Primary Status Register ............................................................ 28

Revision ID Register .................................................................29

Secondary Bus Number Register.............................................. 29

Secondary Clock Control Register ............................................34

Secondary Latency Timer .........................................................29

Secondary Status Register........................................................ 30

Subordinate Bus Number Register............................................ 29

Subsystem ID ...........................................................................44

Subsystem Vendor ID ............................................................... 44

Vendor ID Register.................................................................... 26

VPD Data Register.................................................................... 39

VPD Register............................................................................ 39

Page 12

2 Introduction

This document describes the implementation and functionality of PLX’s 32-bit, 66/33 MHz PCI 6152 PCI-to-PCI Bridge chip. The specification includes required function and limitations.

PCI 6152 has the following features:

• PCI Local Bus Specification Revision 2.2 features including VPD

• Support delayed transactions for PCI configuration, I/O and memory read commands

• Provides memory write data buffering in both directions

• Provides concurrent primary and secondary bus operation to isolate traffic

• Provides separate arbitration support for individual secondary port

- Programmable 2-level arbiter

• Enhanced address decoding

- 32-bit I/O and memory address decoding

• Supports PCI transaction forwarding for

- Type 1 to Type 0 downstream only configuration commands

- Type 1 to Type 1 configuration commands

- Type 1 configuration write to special cycle

• Three-stating of I/O during power up and power down

• Supports 3.3V, 5V tolerant signaling

3 Ordering Information

The following parts are available:

Part Number Description Package Type PCI 6152-CC33BC 33 MHz, 32-bit PCI interface 160-pin Tiny BGA PCI 6152-CC66BC 66 MHz, 32-bit PCI interface

(AGP 2x port compatible)

PCI 6152-CC33PC * 33 MHz, 32-bit PCI interface 160-pin PQFP

Mechanical specifications for each package type can be found in the appendix. * Refer to Appendix A for detailed information about this part.

160-pin Tiny BGA

Page 13

4 Pin Diagram

Primary PCI BUS

HOT PLUG

P_CLK

P_RST_L P_REQ_L P_GNT_L

P_FRAME_

P_IRDY_L

P_TRDY_L

P_DEVSEL

P_STOP_L

P_AD[31:0]

P_CBE[3:0]

P_PAR P_SERR_L P_PERR_L

P_IDSEL

P_CLKRUN

ENUM_L

L_STAT

EJECT

PCI 6152

S_CLK S_CLKOUT[4:0] S_FRAME_L S_IRDY_L S_TRDY_L S_DEVSEL_L S_STOP_L S_AD[31:0] S_CBE[3:0] S_PAR S_REQ_L[3:0] S_GNT_L[3:0] S_RST_L S_SERR_L S_PERR_L S_CLKRUN

PVIO SVIO

BCCP_EN GPIO[3:0]

EEPCLK EEPDATA

GOZ_L

NAND_O

Secondary PCI BUS

Misc.

Page 14

5 Signal Definition

Signal Types

PI PCI Input (5V tolerant, I/O VDD=3.3V)

PTS PCI Three-state bidirectional(5V tolerant, I/O VDD=3.3V)

PO PCI Output

PSTS PCI Sustained three-state Output. (Active LOW signal which must be driven inactive for

one cycle before being three-stated to ensure HIGH performance on a shared signal line)

OD Output which either drives LOW (active state) or is three-stated

I CMOS Input

O CMOS Output

IO CMOS Bidirect

5.1 Primary Bus Interface Signals

Name Type Description

P_AD[31:0] PTS Primary address/data: Multiplexed address and data bus. Address is

indicated by P_FRAME_L assertion. Write data is stable and valid when P_IRDY_L is asserted and read data is stable and valid when P_TRDY_L is asserted. Data is transferred on rising clock edges when both P_IRDY_L and P_TRDY_L are asserted. During bus idle, PCI 6152 drives P_AD to a valid logic level when P_GNT_L is asserted.

P_CBE[3:0] PTS Primary command/byte enables: Multiplexed command field and byte

enable field. During address phase, the initiator drives the transaction type on these pins. After that the initiator drives the byte enables during data phases. During bus idle, PCI 6152 drives P_CBE[3:0] to a valid logic level when P_GNT_L is asserted.

P_PAR PTS Primary Parity: Parity is even across P_AD[31:0], P_CBE[3:0], and

P_PAR (i.e. an even number of ‘1’s). P_PAR is an input and is valid and stable one cycle after the address phase (indicated by assertion of P_FRAME_L) for address parity. For write data phases, P_PAR is an input and is valid one clock after P_IRDY_L is asserted. For read data phase, P_PAR is an output and is valid one clock after P_TRDY_L is asserted. Signal P_PAR is three-stated one cycle after the PAD lines are three-stated. During bus idle, PCI 6152 drives PPAR to a valid logic level when P_GNT_L is asserted.

P_FRAME_L PSTS Primary FRAME: Driven by the initiator of a transaction to indicate the

beginning and duration of an access. The deassertion of P_FRAME_L indicates the final data phase requested by the initiator. Before being three-stated, it is driven to a deasserted state for one cycle.

Page 15

P_IRDY_L PSTS Primary IRDY: Driven by the initiator of a transaction to indicate its ability

to complete the current data phase on the primary side. Once asserted in a data phase, it is not deasserted until end of the data phase. Before being three-stated, it is driven to a deasserted state for one cycle.

P_TRDY_L PSTS Primary TRDY: Driven by the target of a transaction to indicate its ability

P_DEVSEL_L PSTS Primary Device Select: Asserted by the target indicating that the device

is accepting the transaction. As a master, PCI 6152 waits for the assertion of this signal within 5 cycles of P_FRAME_L assertion; otherwise, terminate with master abort. Before being three-stated, it is driven to a deasserted state for one cycle.

P_STOP_L PSTS Primary STOP: Asserted by the target indicating that the target is

requesting the initiator to stop the current transaction. Before being threestated, it is driven to a deasserted state for one cycle.

P_IDSEL PI Primary ID Select. Used as chip select line for Type 0 configuration

access to PCI 6152 configuration space.

P_PERR_L PSTS Primary Parity Error: Asserted when a data parity error is detected for

data received on the primary interface. Before being three-stated, it is driven to a deasserted state for one cycle.

P_SERR_L OD Primary System Error: Can be driven LOW by any device to indicate a

system error condition, PCI 6152 drives this pin on

• Address parity error

• Posted write data parity error on target bus

• Secondary bus S_SERR_L asserted

• Master abort during posted write transaction

• Target abort during posted write transaction

• Posted write transaction discarded

• Delayed write request discarded

• Delayed read request discarded

• Delayed transaction master timeout

This signal is pulled up through an external resistor.

P_REQ_L PTS Primary Request: This is asserted by PCI 6152 to indicate that it wants

to start a transaction on the primary bus. PCI 6152 deasserts this pin for at least 2 PCI clock cycles before asserting it again.

P_GNT_L PI Primary Grant: When asserted, PCI 6152 can access the primary bus.

During idle and P_GNT_L asserted, PCI 6152 will drive P_AD, P_CBE and P_PAR to valid logic level.

Page 16

5.2 Secondary Bus Interface Signals

Name Type Description

S_AD[31:0] PTS Secondary Address/Data: Multiplexed address and data bus. Address is

indicated by S_FRAME_L assertion. Write data is stable and valid when S_IRDY_L is asserted and read data is stable and valid when S_TRDY_L is asserted. Data is transferred on rising clock edges when both S_IRDY_L and S_TRDY_L are asserted. During bus idle, PCI 6152 drives S_AD to a valid logic level when the S_GNT_L is asserted

S_CBE[3:0] PTS Secondary Command/Byte Enables: Multiplexed command field and

byte enable field. During the address phase, the initiator drives the transaction type on these pins. After that the initiator drives the byte enables during data phases. During bus idle, PCI 6152 drives S_CBE[3:0] to a valid logic level when the internal grant is asserted.

S_PAR PTS Secondary Parity: Parity is even across S_AD[31:0], S_CBE[3:0], and

S_PAR (i.e. an even number of ‘1’s). S_PAR is an input and is valid and stable one cycle after the address phase (indicated by assertion of S_FRAME_L) for address parity. For write data phases, S_PAR is an input and is valid one clock after S_IRDY_L is asserted. For read data phase, S_PAR is an output and is valid one clock after S_TRDY_L is asserted. Signal S_PAR is three-stated one cycle after the S_AD lines are three-stated. During bus idle, PCI 6152 drives S_PAR to a valid logic level when the internal grant is asserted.

S_FRAME_L PSTS Secondary FRAME: Driven by the initiator of a transaction to indicate the

beginning and duration of an access. The deassertion of S_FRAME_L indicates the final data phase requested by the initiator. Before being three-stated, it is driven to a deasserted state for one cycle

S_IRDY_L PSTS Secondary IRDY: Driven by the initiator of a transaction to indicate its

ability to complete the current data phase on the primary side. Once asserted in a data phase, it is not deasserted until end of the data phase. Before being three-stated, it is driven to a deasserted state for one cycle.

S_TRDY_L PSTS Secondary TRDY: Driven by the target of a transaction to indicate its

S_DEVSEL_L PSTS Secondary Device Select: Asserted by the target indicating that the

device is accepting the transaction. As a master, PCI 6152 waits for the assertion of this signal within 5 cycles of S_FRAME_L assertion; otherwise, terminate with master abort. Before being three-stated, it is driven to a deasserted state for one cycle.

S_STOP_L PSTS Secondary STOP: Asserted by the target indicating that the target is

requesting the initiator to stop the current transaction. Before being threestated, it is driven to a deasserted state for one cycle.

S_PERR_L PSTS Secondary Parity Error: Asserted when a data parity error is detected

for data received on the primary interface. Before being three-stated, it is driven to a deasserted state for one cycle.

S_SERR_L PI Secondary System Error: Can be driven LOW by any device to indicate

a system error condition.

Page 17

S_REQ_L[3:0] PI Secondary Requests: This is asserted by external device to indicate that

it wants to start a transaction on the Secondary bus. They are external pulled up through resistors to VDD.

S_GNT_L[3:0] PO Secondary Grant: PCI 6152 asserts this pin to access the secondary

bus. PCI 6152 deasserts this pin for at least 2 PCI clock cycles before asserting it again. During idle and S_GNT_L asserted, PCI 6152 will drive S_AD, S_CBE and S_PAR to valid logic levels.

5.3 Clock Signals

Name Type Description

P_CLK I Primary CLK input: Provides timing for all transaction on primary

interface.

S_CLK I Secondary CLK input: Provides timing for all transaction on secondary

interface.

S_CLKOUT[4:0] O Secondary CLK output: Provides secondary clocks phase synchronous

with the P_CLK.

5.4 Reset Signals

Name Type Description

P_RST_L I Primary Reset: When P_RST_L is active, outputs and should be

asynchronously three-stated and P_SERR_L and P_GNT_L floated.

S_RST_L PO Secondary Reset: Asserted when any of the following conditions is met:

1. Signal P_RST_L is asserted.

2. The secondary reset bit in the bridge control register in configuration space is set.

When asserted, all control signals are three-stated and zeros are driven on S_AD, S_CBE and S_PAR.

5.5 Hot Swap Signals

Name Type Description

ENUM_L O Hot Swap Interrupt: An open drain bussed signal to signal a change in

status for the chip. Leave floating if not used.

EJECT I Hot Swap Eject: Indicates the status of software connection process. If

pin is used to detect the insertion of Hot Swap devices. Pin should be tied to ground if not used.

L_STAT IO Hot Swap LED: Indicates the status of software connection process.

Signal should be pulled down to ground if not used.

Page 18

5.6 Miscellaneous Signals

Name Type Description

P_CLKRUN_L I/OD Primary CLKRUN: Used by the central resource to stop the PCI clock or

to slow it down. If not used, this pin should be connected to ground to signify that PCLK is always running.

S_CLKRUN_L I/O Secondary CLKRUN: Drive high to stop or slow down secondary PCI

clock, driven by secondary PCI device to keep clock running. If secondary PCI devices do not support CLKRUN#, this pin needs to be pulled low by a 300ohm resistor.

BPCC_EN I Bus/power clock control management pin. When signal is tied high

and the PCI 6152 is placed in the D3hot power state, the PCI 6152 places the secondary bus in the B2 power state. The PCI 6152 disables the secondary clocks and drives them to 0. When tied low, placing the PCI 6152 in the D3hot power state has no effect on the secondary bus clocks.

GPIO[3:0] PTS General Purpose Input Output pins. These 4 general purpose signals

are programmable as either input-only or bi-directional signals by writing the GPIO output enable control register

EEPCLK O EEPROM Clock. This pin is the clock signal to the EEPROM interface

used during autoload and for VPD functions.

EEPDATA I/O EEPROM Serial Data. This pin is serial data interface to the EEPROM.

PVIO I Primary Interface I/O Voltage This signal must be tied to either 3.3V or

5V, depending on the signaling voltage of the primary interface.

SVIO I Secondary Interface I/O Voltage This signal must be tied to either 3.3V

or 5V, depending on the signaling voltage of the secondray interface.

GOZ_L I Diagnostic three-state control. This signal, when asserted, three-states

all

bidirectional and three-statable output pins. This pin must be pulled

high or connected to VDD for normal operation.

NAND_O O Nand tree diagnostic output. This signal is dedicated to the diagnostic

Nand tree. The GOZ_L signal should be asserted when the Nand tree mechanism is used.

5.7 Power Signals

Name Type Description

VDD +3.3V

VSS Ground

Page 19

6 Pin Assignment

10 11 12 13 14987654321

BPCCE

SCBE1_L SAD15

SAD13

SAD10

SCBE0_L

SAD5

SAD4

SAD1

PAD1

PAD6

CBE0_L

PCLKRUN_LPAD3

SPAR

VSS

SCLKRUN_L

ENUM_L

SAD11

SAD8

SAD6

SAD0

L_STATSAD3 PAD7PAD4

VSS

PAD8

SPERR_L

SSERR_L

VSS

SAD14

SAD12

SAD9

SAD7

SAD2

PAD0

PAD5PAD2

VSS

PAD9

EJECT

STRDY_L

SDEVSEL_L

SSTOP_L

VDD

VDDVSS

VSS

PAD10

PAD11

PAD12

EEPD

SFRAME_L

SIRDY_L

VSS

PAD13

PAD14

PAD15

SAD17

SAD16

SCBE2_L

VDD

PCBE1_L

PPAR

PSERR_L

SAD20

SAD19

SAD18

VDD

PPERR_L EEPCLK

PSTOP_L

SAD21

SAD22

SAD23

VDD

PIRDY_L

PTRDY_L

PDEVSEL_L

SCBE3_L

SAD24

SAD25

VDD

CBE2_LPAD16

PFRAME_L

SAD26

GPIO0

SAD27

VSS

PAD19

PAD18

PAD17

SAD28

SAD29

SAD30

VSS

VDD VDD VDDVSS

VDD

VSS

PAD22

PAD21

PAD20

SREQ0_L

SAD31

VSS

SGNT2_L

SCLK1SCLK

SCLK4 PAD26

PCLK

PREQ_L

PAD29

VSS

GPIO3

PAD23

SREQ1_L

VSS

SGNT0_L

SCLK2

NAND_O

PGNT_LSVIOSGNT3_L PAD24

GPIO1

PAD30

PAD27

VSS

PIDSEL

SREQ2_L

SREQ3_L

SGNT1_L

SCLK0

SCLK3

GOZ_L PVIO

RST_L

PAD28

PAD25

CBE3_L

GPIO2PAD31SRST_L

PCI 6152 Top View

Page 20

6.1 PCI 6152 Pinout Tables

6.1.1 Pin Assignment Sorted by Location

Location Pin Name Type

A01 BPCCE I A02 S_CBE_L[1] TS A03 S_AD[15] TS A04 S_AD[13] TS A05 S_AD[10] TS A06 S_CBE_L[0] TS A07 S_AD[05] TS A08 S_AD[04] TS A09 S_AD[01] TS A10 P_AD[01] TS A11 P_AD[03] TS A12 P_AD[06] TS A13 P_CBE_L[0] TS A14 P_CLKRUN_L TS B01 S_PAR TS B02 VSS P B03 S_CLKRUN_L TS B04 ENUM_L TS B05 S_AD[11] TS B06 S_AD[08] TS B07 S_AD[06] TS B08 S_AD[03] TS B09 S_AD[00] TS B10 L_STAT TS B11 P_AD[04] TS B12 P_AD[07] TS B13 VSS P B14 P_AD[08] TS C01 S_PERR_L TS C02 S_SERR_L I C03 VSS P C04 S_AD[14] TS C05 S_AD[12] TS C06 S_AD[09] TS C07 S_AD[07] TS C08 S_AD[02] TS C09 P_AD[00] TS C10 P_AD[02] TS C11 P_AD[05] TS C12 VSS P C13 P_AD[09] TS C14 EJECT I D01 S_TRDY_L STS D02 S_DEVSEL_L STS D03 S_STOP_L STS D04 VSS P

D05 VSS P D06 VDD P D07 VDD P D08 VDD P D09 VDD P D10 VSS P D11 VSS P D12 P_AD[10] TS D13 P_AD[11] TS D14 P_AD[12] TS E01 EEPD I/O E02 S_FRAME_L STS E03 S_IRDY_L STS E04 VSS P E11 VSS P E12 P_AD[13] TS E13 P_AD[14] TS E14 P_AD[15] TS F01 S_AD[17] TS F02 S_AD[16] TS F03 S_CBE_L[2] TS F04 VDD P F11 VDD P F12 P_CBE_L[1] TS F13 P_PAR TS F14 P_SERR_L OD G01 S_AD[20] TS G02 S_AD[19] TS G03 S_AD[18] TS G04 VDD P G11 VDD P G12 P_PERR_L STS G13 EEPCLK O G14 P_STOP_L STS H01 S_AD[21] TS H02 S_AD[22] TS H03 S_AD[23] TS H04 VDD P H11 VDD P H12 P_IRDY_L STS H13 P_TRDY_L STS H14 P_DEVSEL_L STS J01 S_CBE_L[3] TS J02 S_AD[24] TS J03 S_AD[25] TS J04 VDD P J11 VDD P

Page 21

J12 P_AD[16] TS J13 P_CBE_L[2] STS J14 P_FRAME_L STS K01 S_AD[26] TS K02 GPIO[0] TS K03 S_AD[27] TS K04 VSS P K11 VSS P K12 P_AD[19] TS K13 P_AD[18] TS K14 P_AD[17] TS L01 S_AD[28] TS L02 S_AD[29] TS L03 S_AD[30] TS L04 VSS P L05 VSS P L06 VDD P L07 VDD P L08 VDD P L09 VDD P L10 VSS P L11 VSS P L12 P_AD[22] TS L13 P_AD[21] TS L14 P_AD[20] TS M01 S_AD[31] TS M02 S_REQ_L[0] I M03 VSS P M04 S_GNT_L[2] O M05 S_CLK I M06 S_CLK_O[1] O M07 S_CLK_O[4] O M08 P_CLK I M09 P_REQ_L O

M10 P_AD[29] TS M11 P_AD[26] TS M12 VSS P M13 GPIO[3] I/O M14 P_AD[23] TS N01 S_REQ_L[1] I N02 VSS P N03 S_GNT_L[0] O N04 S_GNT_L[3] O N05 S_VIO I N06 S_CLK_O[2] O N07 NAND_OUT O N08 GPIO[1] I/O N09 P_GNT_L I N10 P_AD[30] TS N11 P_AD[27] TS N12 P_AD[24] TS N13 VSS P N14 P_IDSEL I P01 S_REQ_L[2] I P02 S_REQ_L[3] I P03 S_GNT_L[1] O P04 S_RST_L O P05 S_CLK_O[0] O P06 S_CLK_O[3] O P07 GOZ_L I P08 RST_L I P09 P_VIO I P10 P_AD[31] TS P11 P_AD[28] TS P12 P_AD[25] TS P13 GPIO[2] I/O P14 P_CBE_L[3] TS

Page 22

6.1.2 Pin Assignment Sorted by Signal Name

Location Pin Name Type

A01 BPCCE I G13 EEPCLK O E01 EEPD I/O C14 EJECT I B04 ENUM_L TS P07 GOZ_L I K02 GPIO[0] TS N08 GPIO[1] I/O P13 GPIO[2] I/O M13 GPIO[3] I/O B10 L_STAT TS N07 NAND_OUT O C09 P_AD[00] TS A10 P_AD[01] TS C10 P_AD[02] TS A11 P_AD[03] TS B11 P_AD[04] TS C11 P_AD[05] TS A12 P_AD[06] TS B12 P_AD[07] TS B14 P_AD[08] TS C13 P_AD[09] TS D12 P_AD[10] TS D13 P_AD[11] TS D14 P_AD[12] TS E12 P_AD[13] TS E13 P_AD[14] TS E14 P_AD[15] TS J12 P_AD[16] TS K14 P_AD[17] TS K13 P_AD[18] TS K12 P_AD[19] TS L14 P_AD[20] TS L13 P_AD[21] TS L12 P_AD[22] TS M14 P_AD[23] TS N12 P_AD[24] TS P12 P_AD[25] TS M11 P_AD[26] TS N11 P_AD[27] TS P11 P_AD[28] TS M10 P_AD[29] TS N10 P_AD[30] TS P10 P_AD[31] TS A13 P_CBE_L[0] TS F12 P_CBE_L[1] TS J13 P_CBE_L[2] STS P14 P_CBE_L[3] TS M08 P_CLK I

A14 P_CLKRUN_L TS H14 P_DEVSEL_L STS J14 P_FRAME_L STS N09 P_GNT_L I N14 P_IDSEL I H12 P_IRDY_L STS F13 P_PAR TS G12 P_PERR_L STS M09 P_REQ_L O F14 P_SERR_L OD G14 P_STOP_L STS H13 P_TRDY_L STS P09 P_VIO I P08 RST_L I B09 S_AD[00] TS A09 S_AD[01] TS C08 S_AD[02] TS B08 S_AD[03] TS A08 S_AD[04] TS A07 S_AD[05] TS B07 S_AD[06] TS C07 S_AD[07] TS B06 S_AD[08] TS C06 S_AD[09] TS A05 S_AD[10] TS B05 S_AD[11] TS C05 S_AD[12] TS A04 S_AD[13] TS C04 S_AD[14] TS A03 S_AD[15] TS F02 S_AD[16] TS F01 S_AD[17] TS G03 S_AD[18] TS G02 S_AD[19] TS G01 S_AD[20] TS H01 S_AD[21] TS H02 S_AD[22] TS H03 S_AD[23] TS J02 S_AD[24] TS J03 S_AD[25] TS K01 S_AD[26] TS K03 S_AD[27] TS L01 S_AD[28] TS L02 S_AD[29] TS L03 S_AD[30] TS M01 S_AD[31] TS A06 S_CBE_L[0] TS A02 S_CBE_L[1] TS F03 S_CBE_L[2] TS J01 S_CBE_L[3] TS

Page 23

M05 S_CLK I P05 S_CLK_O[0] O M06 S_CLK_O[1] O N06 S_CLK_O[2] O P06 S_CLK_O[3] O M07 S_CLK_O[4] O B03 S_CLKRUN_L TS D02 S_DEVSEL_L STS E02 S_FRAME_L STS N03 S_GNT_L[0] O P03 S_GNT_L[1] O M04 S_GNT_L[2] O N04 S_GNT_L[3] O E03 S_IRDY_L STS B01 S_PAR TS C01 S_PERR_L TS M02 S_REQ_L[0] I N01 S_REQ_L[1] I P01 S_REQ_L[2] I P02 S_REQ_L[3] I P04 S_RST_L O C02 S_SERR_L I D03 S_STOP_L STS D01 S_TRDY_L STS N05 S_VIO I D06 VDD P D07 VDD P D08 VDD P D09 VDD P F04 VDD P F11 VDD P G04 VDD P

G11 VDD P H04 VDD P H11 VDD P J04 VDD P J11 VDD P L06 VDD P L07 VDD P L08 VDD P L09 VDD P B02 VSS P B13 VSS P C03 VSS P C12 VSS P D04 VSS P D05 VSS P D10 VSS P D11 VSS P E04 VSS P E11 VSS P K04 VSS P K11 VSS P L04 VSS P L05 VSS P L10 VSS P L11 VSS P M03 VSS P M12 VSS P N02 VSS P N13 VSS P

Page 24

7 Configuration Registers

7.1 Configuration Space Map – Transparent Mode

31-24 23-16 15-8 7-0 Address

Device ID Vendor ID 00h

Primary Status Primary Command 04h

Class Code Revision ID 08h

Reserved Header Type Primary Latency

Reserved 10h – 17h

Secondary Latency

Timer

Secondary Status I/O Limit I/O Base 1Ch

Memory Limit Memory Base 20h

Prefetchable Memory Limit Prefetchable Memory Base 24h

I/O Limit Upper 16 Bits I/O Base Upper 16 Bits 30h

Bridge Control Interrupt Pin Interrupt Line 3Ch

Arbiter Control Chip Control 40h

Reserved Secondary Clock Control 68h

Subordinate Bus

Number

Prefetchable Memory Base Upper 32 Bits 28h

Prefetchable Memory Limit Upper 32 Bits 2Ch

Reserved ECP Pointer 34h

Reserved 38h

Reserved 44h-67h

Secondary Bus

Number

Timer

Cache Line Size 0Ch

Primary Bus

Number

18h

Clkrun Reserved

Reserved

Power Management Capabilities Next Item Ptr = 90 Capability ID = 01 80h

Data PMCSR Bridge

Support

Reserved 88-8Fh

Reserved HSCSR = 00 Next Item Ptr = A0 Capability ID = 06 90h

Reserved Hot Swap switch 94hh

Reserved 98h-9Fh

VPD Register = 0000 Next Item Ptr = 00 Capability ID = 03 A0h

VPD Data Register = 0000_0000 A4h

Power Management CSR 84h

Page 25

Reserved A8h-BFh

Arbiter Control Reserved Miscellaneous

Reserved C0h

Control

Reserved GPIO Control Miscellaneous

Control

EEPROM Data EEPROM Address EEPROM control C8h

Test Register Reserved CCh

Reserved D0h-EFh

Subsystem ID Subsystem Vendor ID F0h

Reserved F4h-FFh

C4h

Page 26

7.2 Configuration Register Description

Vendor ID Register (Read Only) - Offset 0h

Defaults to 3388(h).

Device ID Register (Read Only) - Offset 2h

Defaults to 0021(h).

(Note: R/W - Read/Write, R/O - Read Only, R/WC - Read/ Write 1 to clear)

Primary Command Register (Read/Write) - Offset 4h

Bit Function Type Description

0 I/O Space

Enable

1 Memory

Space Enable

2 Bus Master

Enable

3 Special Cycle

Enable

R/W Controls the bridge’s response to I/O accesses on the primary

interface.

0=ignore I/O transaction

1=enable response to I/O transaction

Reset to 0.

R/W Controls the bridge’s response to memory accesses on the primary

interface.

0=ignore all memory transaction

1=enable response to memory transaction

Reset to 0.

R/W Controls the bridge’s ability to operate as a master on the primary

interface.

0=do not initiate transaction on the primary interface and disable response to memory or I/O transactions on secondary interface

1=enable the bridge to operate as a master on the primary interface

Reset to 0.

R/O No special cycle implementation (set to ‘0’).

4 Memory Write

and Invalidate

Enable

5 VGA Palette

Snoop Enable

R/O Memory write and invalidate not supported (set to ‘0’).

R/W Controls the bridge’s response to VGA compatible palette accesses.

0=ignore VGA palette accesses on the primary interface

1=enable response to VGA palette writes on the primary interface (I/O address AD[9:0]=3C6h, 3C8h and 3C9h)

Reset to 0.

Page 27

6 Parity Error

Enable

R/W Controls the bridge’s response to parity errors.

0=ignore any parity errors

1=normal parity checking performed

Reset to 0.

7 Wait Cycle

R/O PCI 6152 performs address / data stepping (set to ‘1’).

Control

8 P_SERR_L

Enable

R/W Controls the enable for the P_SERR_L pin.

0=disable the P_SERR_L driver

1=enable the P_SERR_L driver

Reset to 0.

9 Fast Back to

Back Enable

R/W Controls the bridge’s ability to generate fast back-to-back

transactions to different devices on the primary interface.

0=no fast back to back transaction

1=enable fast back to back transaction

Reset to 0.

10-15 Reserved R/O Reserved. Reset to 0.

Page 28

Primary Status Register(Read/Write) – Offset 6h

Bit Function Type Description

0-3 Reserved R/O Reserved (set to ‘0’s).

4 ECP R/O Enhanced Capabilities port. Reads as 1 to indicate PCI 6152

supports an enhanced capabilities list.

5 66 MHz R/O 66 MHz Capable : Indicates if primary interface can run at 66 MHz.

This bit is set to ‘0’ for PCI 6152 33BC and set to ‘1’ for PCI 615266.

6 UDF R/O No User-Definable Features (set to ‘0’).

7 Fast Back to

Back Capable

8 Data Parity

Error Detected

9-10 DEVSEL_L

timing

11 Signaled

Target Abort

12 Received

Target Abort

13 Received

Master Abort

14 Signaled

System Error

15 Detected

Parity Error

R/O Fast back-to-back write capable on primary side (set to ‘1’).

R/WC It is set when the following conditions are met:

1. P_PERR_L is asserted

2. Bit 6 of Command Register is set

Reset to 0.

R/O DEVSEL_L timing (default to ‘01’) to indicate medium timing .

R/WC Should be set (by a target device) whenever a Target Abort cycle

occurs. Reset to 0.

R/WC Set to ‘1’ (by a master device) when transactions are terminated

with Target Abort. Reset to 0.

R/WC Set to ‘1’ (by a master) when transactions are terminated with

Master Abort. Reset to 0.

R/WC Should be set whenever P_SERR_L is asserted. Reset to 0.

R/WC Should be set whenever a parity error is detected regardless of the

state of the bit 6 of command register. Reset to 0.

Page 29

Revision ID Register (Read Only) – Offset 8h

Defaults to 12h for Rev B, 13h for Rev BA. This value may vary as new revisions are introduced.

Class Code Register (Read Only) – Offset 9h

Defaults to 060400h.

Cache Line Size Register (Read/Write) – Offset 0Ch

This register is used when terminating memory write and invalidate transactions and when prefetching.

Only cache line sizes (in units of 32-bits words) which are power of two are valid (only one bit can be set in this register). Reset to 0.

Primary Latency Timer Register (Read/Write) – Offset 0Dh

This register sets the value for Master Latency Timer which starts counting when the master asserts FRAME_L. Reset to 0.

Header Type Register (Read Only) – Offset 0Eh

Hardwired to 01h.

Primary Bus Number Register (Read/Write) – Offset 18h

Programmed with the number of the PCI bus to which the primary bridge interface is connected. This value is set with configuration software. Reset to 0.

Secondary Bus Number Register (Read/Write) – Offset 19h

Programmed with the number of the PCI bus to which the secondary bridge interface is connected. This value is set with configuration software. Reset to 0.

Subordinate Bus Number Register (Read/Write) –Offset 1Ah

Programmed with the number of the PCI bus with the highest number that is subordinate to the bridge. This value is set with configuration software. Reset to 0.

Secondary Latency Timer (Read/Write) – Offset 1Bh

This register is programmed in units of PCI bus clocks. Reset to 0. The latency timer checks for master accesses on the secondary side that remain unclaimed by any target.

I/O Base Register (Read/Write) – Offset 1Ch

This register defines the bottom address of the I/O address range for the bridge. The upper four bits define the bottom address range used by the chip to determine when to forward I/O transactions from one interface to the other. These 4 bits correspond to address bits <15:12> and are writeable. The upper 16 bits corresponding to address bits <31:16> are defined in the I/O base address upper 16 bits register. The address bits <11:0> are assumed to be 000h. The lower four bits (3:0) of this register set to ‘0001’ (read-only) to indicate 32-bit I/O addressing. Reset to 0.

I/O Limit Register (Read/Write) – Offset 1Dh

This register defines the top address of the I/O address range for the bridge. The upper four bits define the top address range used by the chip to determine when to forward I/O transactions from one interface to the other. These 4 bits correspond to address bits <15:12> and are writeable. The upper 16 bits corresponding to address bits <31:16> are defined in the I/O limit address upper 16 bits register. The address bits <11:0> are assumed to be FFFh. The lower four bits (3:0) of this register set to ‘0001’ (read-only) to indicate 32-bit I/O addressing. Reset to 0.

Page 30

Secondary Status Register (Read/Write) – Offset 1Eh

Bit Function Type Description

0-4 reserved R/O Reserved (set to ‘0’s).

5 66 MHz R/O 66 MHz Capable : Indicates if primary interface can run at 66 MHz.

This bit is set to ‘0’ for PCI 6152 33BC and set to ‘1’ for PCI 6152 66BC.

6 UDF R/O No User-Definable Features (set to ‘0’).

7 Fast Back to

Back Capable

8 Data Parity

Error Detected

9-10 DEVSEL_L

timing

11 Signaled

Target Abort

12 Received

Target Abort

13 Received

Master Abort

14 Received

System Error

R/O Fast back-to-back write capable on secondary port (set to ‘1’).

R/WC It is set when the following conditions are met:

1. SPERR_L is asserted

2. Bit 6 of Command Register is set

Reset to 0.

R/O Medium DEVSEL_L timing (set to ‘01’)

R/WC Should be set (by a target device) whenever a Target Abort cycle

occurs. Should be ‘0’ after reset.

Reset to 0.

R/WC Set to ‘1’ (by a master device) when transactions are terminated

with Target Abort.

Reset to 0.

R/WC Set to ‘1’ (by a master) when transactions are terminated with

Master Abort.

Reset to 0.

R/WC Should be set whenever SSERR_L is detected. Should be a ‘0 after

reset.

Reset to 0.

15 Detected

Parity Error

R/WC Should be set whenever a parity error is detected regardless of the

state of the bit 6 of command register.

Reset to 0.

Page 31

Memory Base Register (Read/Write) – Offset 20h

This register defines the base address of the memory-mapped address range for forwarding the cycle through the bridge. The upper twelve bits corresponding to address bits <31:20> are writeable. The lower 20 address bits (19:0) are assumed to be 00000h. The 12 bits are reset to 0. The lower 4 bits are read only and set to 0.

Memory Limit Register (Read/Write) – Offset 22h

This register defines the upper limit address of the memory-mapped address range for forwarding the cycle through the bridge. The upper twelve bits corresponding to address bits <31:20> are writeable. The 12 bits are reset to 0. The lower 4 bits are read only and are set to 0. The lower 20 address bits (19:0) are assumed to be FFFFFh. Reset to 0.

Prefetchable Memory Base Register (Read/Write) - Offset 24h

This register defines the base address of the prefetchable memory-mapped address range for forwarding the cycle through the bridge. The upper twelve bits corresponding to address bits <31:20> are writeable. The 12 bits are reset to 0. The lower 4 bits are read only and are set to 0. The lower 20 address bits (19:0) are assumed to be 00000h. Reset to 0.

Prefetchable Memory Limit Register (Read/Write) – Offset 26h

This register defines the upper limit address of the memory-mapped address range for forwarding the cycle through the bridge. The upper twelve bits correspond to address bits <31:20> are writeable. The 12 bits are reset to 0. The lower 4 bits are read only and are set to 0. The lower 20 address bits (19:0) are assumed to be FFFFFh. Reset to 0.

Prefetchable Memory Base Register Upper 32 Bits (Read/Write) – Offset 28h

This register defines the upper 32 bit <63:32> memory base address of the prefetchable memory-mapped address for forwarding the cycle through the bridge. Reset to 0.

Prefetchable Memory Limit Register Upper 32 Bits (Read/Write) – Offset 2Ch

This register defines the upper 32 bit <63:32> memory limit address of the prefetchable memory-mapped address for forwarding the cycle through the bridge. Reset to 0.

I/O Base Address Upper 16 Bits Register (Read/Write) – Offset 30h

This register defines the upper 16 bits of a 32-bit base I/O address range used for forwarding the cycle through the bridge. Reset to 0.

I/O Limit Address Upper 16 Bits Register (Read/Write) – Offset 32h

This register defines the upper 16 bits of a 32-bit limit I/O address range used for forwarding the cycle through the bridge. Reset to 0.

ECP Pointer (Read/Only) – Offset 34h

Bit Function Type Description

7-0 ECP Pointer R/O Enhanced capabilities port offset pointer. This register reads as 80h

to indicate the offset of the power management registers.

Page 32

Interrupt Pin Register (Read Only) – Offset 3Dh

Reads as 0 to indicate that PCI 6152 does not use any interrupt pin.

Bridge Control Register (Read/Write) – Offset 3Eh

Bit Function Type Description

0 Parity Error

Response

Enable

1 S_SERR_L

Enable

2 ISA Enable R/W Controls the bridge’s response to ISA I/O addresses, which is limited

R/W Controls the bridge’s response to parity errors on the secondary

interface.

0=ignore address and data parity errors on the secondary interface

1=enable parity error reporting and detection on the secondary interface

Reset to 0.

R/W Controls the forwarding of S_SERR_L to the primary interface.

0=disable the forwarding S_SERR_L to primary

1=enable the forwarding of S_SERR_L to primary

Reset to 0.

to the first 64K.

0=forward all I/O addresses in the range defined by the I/O Base and I/O Limit registers

1=block forwarding of ISA I/O addresses in the range defined by the I/O Base and I/O Limit registers that are in the first 64K of I/O space that address the last 768 bytes in each 1Kbytes block. Secondary I/O transactions are forwarded upstream if the address falls within the last 768 bytes in each 1Kbytes block

Reset to 0.

3 VGA Enable R/W Controls the bridge’s response to VGA compatible addresses.

0=do not forward VGA compatible memory and I/O addresses from primary to secondary

1=forward VGA compatible memory and I/O address from primary to secondary regardless of other settings

Reset to 0.

4 Reserved R/O Reserved (set to 0).

Page 33

5 Master Abort

Mode

R/W Controls the bridge behavior in responding to master aborts on

secondary interface

0=do not report master aborts (return ffff_ffffh on reads and discards data on writes)

1=report master aborts by signaling target abort if possible by the assertion of P_SERR_L if enabled

Reset to 0.

Note: During lock cycles, PCI 6152 ignores this bit, and always completes the cycle as a target abort.

6 Secondary

Interface

Reset

R/W Forces the assertion of S_RST_L signal pin on the secondary

interface.

0=do not force the assertion of S_RST_L pin

1=force the assertion of S_RST_L pin

Reset to 0.

7 Fast Back to

Back Enable

R/W Controls the bridge’s ability to generate fast back-to-back

transactions to different devices on the secondary interface.

0=no fast back to back transaction

1=enable fast back to back transaction

Reset to 0.

8-11 Reserved R/W Can be used as a software register

15-12 Reserved R/O Reserved (set to ‘0’s).

Chip Control Register (Read/Write) – Offset 40h

Bit Function Type Description

3-0 Reserved R/O Reserved (Set to 0)

4 Secondary

bus prefetch

disable

R/W Controls PCI 6152’s ability to prefetch during upstream memory read

transactions. When 0 the chip prefetches and does not forward byte enable bits during memory read transactions. When 1, PCI 6152 requests only one Dword from the target during memory read transactions and forwards read enable bits. PCI 6152 returns a target disconnect to the requesting master on the first data transfer. Memory read line and memory read multiple transactions are still prefetchable. Reset to 0.

7-6 Reserved R/O Reserved

Page 34

Arbiter Control Register (Read/Write) – Offset 42h

Bit Function Type Description

3-0 Arbiter Control R/W Each bit controls whether a secondary bus master is assigned to the

high priority group or the low priority group. Bits [3:0] correspond to request inputs S_REQ_L[3:0], respectively. Reset value is 0.

6-4 Reserved R/O Reserved

8-7 Reserved R/W Can be used as software register

9 PCI 6152

priority

15:10 Reserved R/O Reserved (set to ‘0’s)

R/W Defines whether the secondary port of PCI 6152 is in high priority

group or the low priority group

0=low priority group

1=high priority group.

Reset to 1.

Secondary Clock Control Register (Read/Write) – Offset 68h

Bit Function Type Description

1:0 Clock 0

Disable

3:2 Clock 1

Disable

5:4 Clock 2

Disable

7:6 Clock 3

Disable

R/W If either bit is 0, S_CLKOUT[0] is enabled.

When both bits are 1, S_CLKOUT[0] is disabled.

R/W If either bit is 0, S_CLKO[1] is enabled.

When both bits are 1, S_CLKO[1] is disabled.

R/W If either bit is 0, S_CLKO[2] is enabled.

When both bits are 1, S_CLKO[2] is disabled.

R/W If either bit is 0, S_CLKO[3] is enabled.

When both bits are 1, S_CLKO[3] is disabled.

8 Clock 4

Disable

15:9 Reserved R/O Reserved

R/W If 0, S_CLKO[3] is enabled.

Otherwise, it is disabled.

Page 35

Clkrun Register (Read/Write) – Offset 6Fh

Bit Function Type Description

0 Secondary

Clock Stop

Status

1 Secondary

Clkrun Enable

2 Primary Clock

Stop

3 Primary

Clkrun Enable

R/O Secondary clock stop status

0 = Secondary clock not stopped

1 = Secondary clock stopped

Defaults to 0

R/W Secondary clkrun protocol enable

0 = disable

1 = enable

Defaults to 0

R/W Primary clock stop

0 = allow primary clock to stop if secondary clock is stopped

1 = always keep primary clock running

Defaults to 0

R/W Primary clkrun protocol enable

0 = disable

1 = enable

Defaults to 0

4 Clkrun Mode R/W Clkrun mode

0 = Stop the secondary clock only on request from the primary bus

1 = Stop the secondary clock whenever the secondary bus is idle and there are no requests from the primary bus.

Defaults to 0

Page 36

Hot Swap and Power Management Registers

Capability Identifier (R/O) - Offset 80h

This register is set to 01h to indicate power management interface registers.

Next Item Pointer (R/O) – Offset 81h

Set to 90h. This field provides an offset into the function's PCI Configuration Space pointing to the location of next item in the function's capability list. In PCI 6152, this points to the Hot Swap registers.

Power Management Capabilities(R/O) – Offset 82h

Bit Function Type Description

0-2 Version R/O This register is set to 001b, indicating that this function complies with

Rev 1.0 of the PCI Power Management Interface Specification

3 PME Clock R/O This bit is a '0', indicating that PCI 6152 does not support PME#

signaling.

4 Auxiliary

Power Source

5 DSI R/O Device Specific Initialization . Returns ‘0’ indicating that PCI 6152 does

6-8 Reserved R/O Reserved

9 D1 Support R/O Returns ‘1’ indicating that PCI 6152 supports the D1 device power

10 D2 Support R/O Returns ‘1’ indicating that PCI 6152 supports the D2 device power

11-15 PME Support R/O Set to “F602” in Revision BA.

R/O This bit is set to ‘0’ since PCI 6152 does not support PME# signaling

not need special initialization

state

Set to “7E02” in Revision CC.

Page 37

Power Management Control/ Status(R/W) – Offset 84h

Bit Function Type Description

0-1 Power State R/W This 2-bit field is used both to determine the current power state of a

function and to set the function into a new power state. The definition of the field values is given below. 00b - D0 01b - D1 : valid only if D1 capable bit is 1 10b - D2 : valid only if D2 capable bit is 1 11b - D3hot : if BCPPE is 1, SCLK output will be stopped

2-7 Reserved R/O Reserved

8 PME Enable R/O This bit is set to ‘0’ since PCI 6152 does not support PME# signaling

9-12 Data Select R/W This 4-bit field is used to select which data is to be reported through the

Data registers and Data Scale field

13-14 Data Scale R/O This 2-bit field indicates the scaling factor to be used when interpreting

the value of the Data register. The value and meaning of this field will vary depending on which data value has been selected by the Data Select field

15 PME Status R/O This bit is set to ‘0’ since PCI 6152 does not support PME# signaling

PMCSR Bridge Support(R/W) – Offset 86h

Bit Function Type Description

0-5 Reserved R/O Reserved

6 B2/B3 Support

for D3hot

7Bus Power

Control Enable

R/O This bit returns a ‘1’ when read indicating that when PCI 6152 is

programmed to D3hot state the secondary bus’s clock is stopped.

R/O Returns ‘1’ indicating that the power management state of the

secondary bus follows that of PCI 6152 with one exception , D3hot state.

Data Register(R/W) – Offset 87h

Bit Function Type Description

0-7 Data Register R/O This register is used to report the state dependent data requested by

the Data Select field. The value of this register is scaled by the value reported by the Data Scale field. This register is EEPROM loadable

Capability Identifier (R/O) - Offset 90h

This register is set to 06h to indicate Hot Swap interface registers.

Next Item Pointer (R/O) - Offset 91h

Set to A0h. This field provides an offset into the function's PCI Configuration Space pointing to the location of next item in the function's capability list. In PCI 6152, this points to the Vital Product Data (VPD) registers.

Page 38

Hot Swap Register(R/W) – Offset 92h

Bit Function Type Description

0 Reserved R/O Reserved

1 ENUM# Mask

Status

2 Reserved R/O Reserved

3 LED status R/W Indicates if LED is on or off. Writing a ‘1’ to this bit drives the LSTAT

4-5 Reserved R/O Reserved

6 Extraction

State

7 Insertion State W1TC Indicates assertion of ENUM# due to the device being inserted. Writing

R/W Enables or disables ENUM# assertion

0 = enable ENUM# signal

1 = mask off ENUM# signal

signal high. Writing a ‘0’ drives the pin low.

0 = LED is off

1 = LED is on

W1TC Indicates assertion of ENUM# due to the device being extracted. Writing

a ‘1’ to this bit clears the status.

0 = ENUM# is set to ‘1’

1 = ENUM# is asserted low

a ‘1’ to thisbit clears the status

0 = ENUM# is set to ‘1’

1 = ENUM# is asserted low

Hot Swap Switch (R/W) – Offset 94h

Bit Function Type Description

0 Hot Swap

extraction

switch

1-7 Reserved R/O Reserved

R/O Hot Swap extraction switch : Software switch used to signal

extraction of board. If set, board is in inserted state. Writing a ‘0’ to this bit will signal the pending extraction of the board.

Capability Identifier (R/O) - Offset A0h

This register is set to 03h to indicate VPD registers.

Next Item Pointer (R/O) - Offset A1h

Set to 00h. End of Capability list.

Page 39

VPD Register (R/W) – Offset A2h

Bit Function Type Description

1-0 Reserved R/O Reserved

7-2 VPD Address R/W VPD Address: Contains Dword address that will be used when

generating a read or write cycle to the VPD table.

14-8 Reserved R/O Reserved

15 VPD

Operation

R/W VPD operation: Writing a ‘0’ to this bit generates a read cycle from the

EEPROM at the VPD address specified in bits 7-2 of this register. This bit will remain at a logic ‘0’ value until EEPROM cycle is finished, then it be set to ‘1’. Data for reads is available at register 9ch

Writing a ‘1’ to this bit generates a write cycle to the EEPROM at the VPD address specified in bits 7-2 of this register. This bit will remain at a logic ‘1’ value until EEPROM cycle is finished, then it be cleared to ‘0’.

VPD Data Register (R/W) – Offset A4h

Bit Function Type Description

31-0 VPD Data R/W VPD Data (EEPROM data[addr + 0x40]) - The least significant byte of

this register corresponds to the byte of VPD at the address specified by the VPD Address register. The data read from or written to this register uses the normal PCI byte transfer capabilities. Reads to this register will return the last data read from or written to the EEPROM.

Page 40

Miscellaneous Control Register (R/W) – Offset C1h

Bit Function Type Description

0 ISA IO R/W This bit enables several I/O addresses to be located behind PCI 6152. If

set, the following I/O addresses belong to the secondary bus.

• 0207h – 0200h : Game port

• 038bh – 0388h : FM

• 0233h – 0220h: Audio

• 0331h – 0330h: MIDI

1 Memory Read

Line control

R/W If 1, PCI 6152 will always stop prefetch on cacheline boundaries on

memory read line transactions.

2 Read BE

control

R/W If 1, PCI 6152 will force all byte enables to be active during read burst

cycles.

3 Reserved R/W Reserved.

4 Low priority

group fixed

R/W If 1, the low priority group uses the fixed priority arbitration scheme,

otherwise a rotating priority arbitration scheme is used

arbitration

5 Low priority

group

arbitration

order

R/W This bit is only valid when the low priority arbitration group is set to a

fixed arbitration scheme. If 1, priority decreases in ascending numbers of the master, for example master #4 will have higher priority than master #3. If 0, the reverse is true. This order is relative to the master with the highest priority for this group, as specified in bits 7-4 of this register.

6 High priority

group fixed

R/W If 1, the high priority group uses the fixed priority arbitration scheme,

otherwise a rotating priority arbitration scheme is used

arbitration

7 High priority

group

arbitration

order

R/W This bit is only valid when the high priority arbitration group is set to a

Page 41

Internal Arbiter Control Register - Offset C3h

Bit Function Type Description

0-3 Highest

priority master

in low priority

group

4-7 Highest

priority master in high priority

group

R/W Controls which master in the low priority group has the highest

priority. It is valid only if the group uses the fixed arbitration scheme.

0000 : master#0 has highest priority

0001 :

…

1001 : PCI 6152 has highest priority

1010-1111 : Reserved

R/W Controls which master in the high priority group has the highest

priority. It is valid only if the group uses the fixed arbitration scheme.

0000 : master#0 has highest priority

0001 :

…

1001 : PCI 6152 has highest priority

1010-1111 : Reserved

Miscellaneous Control Register (R/W) – Offset C4h

Bit Function Type Description

0-2 Reserved R/O Reserved

3SGNT_L

deassertion

4 Secondary to

Primary

transaction

delay

5 Primary to

Secondary transaction

delay

6Retry

Secondary

Master

7 Back to Back

Cycle Enable

R/W If 1, PCI 6152 deasserts SGNT_L 1 clock after PGNT_L is deasserted,

else, SGNT_L is deasserted at the same time as PGNT_L. This bit defaults to 1 in Rev B and Rev BA parts.

R/W Specify delay for transactions going from secondary to primary PCI

interface 0 = delay Secondary bus to Primary bus transfer by 2 PCLK 1 = delay Secondary bus to Primary bus transfer by 1 PCLKs

R/W Specify delay for transactions going from primary to secondary PCI

interface 0 = delay Primary bus to Secondary bus transfer by 2 PCLK 1 = delay Primary bus to Secondary bus transfer by 1 PCLKs

R/W If 0, and if PCI 6152 has been granted access to the primary bus, and a

secondary master initiates a cycle to access the primary bus while it is still busy, PCI 6152 will wait for the primary bus to be idle instead of immediately retrying the secondary master. If 1, PCI 6152 will immediately retry the secondary master if granted access to the primary bus while the primary bus is busy.

R/W This bit enables back to back cycles on the primary interface, if bit 9 of

the primary command register is also enabled.

Page 42

GPIO Control Register (R/W) – Offset C5h

Bit Function Type Description

0 GPIO0 Input R/O Contains the state of the GPIO0 pin

1 GPIO0 Output

R/W If 1, GPIO0 is configured as output. If 0, GPIO0 is an input pin

Enable

2 GPIO0 Output

R/W Value written here will be output to GPIO0 pin if configured as output

3 Reserved R/O Reserved

4 GPIO1 Input R/O Contains the state of the GPIO1 pin

5 GPIO1 Output

R/W If 1, GPIO1 is configured as output. If 0, GPIO1 is an input pin

Enable

6 GPIO1 Output

R/W Value written here will be output to GPIO1 pin if configured as output

7 Reserved R/O Reserved

8 GPIO2 Input R/O Contains the state of the GPIO2 pin

9 GPIO2 Output

R/W If 1, GPIO2 is configured as output. If 0, GPIO2 is an input pin

Enable

10 GPIO2 Output

R/W Value written here will be output to GPIO2 pin if configured as output

11 Reserved R/O Reserved

12 GPIO3 Input R/O Contains the state of the GPIO3 pin

13 GPIO3 Output

R/W If 1, GPIO3 is configured as output. If 0, GPIO3 is an input pin

Enable

14 GPIO3 Output

R/W Value written here will be output to GPIO3 pin if configured as output

15 Reserved R/O Reserved

Page 43

EEPROM Control - Offset C8

Bit Function Type Description

0 Start R/W Starts the EEPROM read or write cycle.

1EEPROM

command

2EEPROM

Error

3EEPROM

autoload

successful

5-4 Reserved R/O Reserved. Returns ‘0’ when read.

7-6 EEPROM

clock rate

R/W Controls the command sent to the EEPROM

1 : write

0 : read

R/O This bit is set to 1 if EEPROM ack was not received during EEPROM

cycle.

R/O This bit is set to 1 if EEPROM autoload occurred succesfully after

reset, and some configuration registers were loaded with values programmed in the EEPROM. If zero, EEPROM autoload was unsuccessful or was disabled.

R/W Controls frequency of EEPROM clock. EEPROM clock is derived

from the primary PCI clock.

00 = Reserved

01 = PCLK/256 (Used for 33 MHz PCI)

10 = PCLK/128

11 = PCLK (test mode)

defaults to 01

EEPROM Address - Offset C9h

Bit Function Type Description

0 Reserved R/O Reserved

7-1 EEPROM

address

R/W Word address for EEPROM cycle.

EEPROM Data - Offset CAh

Bit Function Type Description

15-0 EEPROM

Data

R/W Contains data to be written to the EEPROM. During reads, this

Page 44

PCI 6152 Test Register - Offset CDh

Bit Function Type Description

3-7 Reserved R/O Reserved

PCI 6152 Test Register - Offset CEh

Bit Function Type Description

3-7 Reserved R/O Reserved

PCI 6152 Test Register - Offset CFh

Bit Function Type Description

0EEPROM

Autoload

control

1 Fast EEPROM

Autoload

2EEPROM

autoload

status

3-7 Reserved R/O Reserved

R/W If 1, disables EEPROM autoload

R/W If 1, speeds up EEPROM autoload

R/O Status of EEPROM autoload

Subsystem Vendor ID (Read Only)- Offset F0h

This register is a nonstandard implementation of the Subsystem Vendor ID register. It is EEPROM loadable. Defaults to 3388h

Subsystem ID (Read Only) - Offset F2h

This register is a nonstandard implementation of the Subsystem ID register. It is EEPROM loadable. Defaults to 0021h

Page 45

8 PCI Bus Operation

This chapter presents detailed information about PCI transactions PCI 6152 responds to and transactions initiated by the PCI 6152.

PCI 6152 provides a simple, but complete PCI-to-PCI bridge capability, allowing PCI master and slave on its either side. It passes control and data between primary and secondary bus to guarantee complete visibility from either side. PCI 6152 is designed to behave like an intelligent buffer.

PCI 6152 achieves its zero wait state bridging function by controlling the direction of control and data. It divides control and data into 3 signal groups; the FRAME#/IRDY#/CBE#, DEVSEL_L/TRDY#/STOP#, and AD signal groups.

Direction of FRAME#/IRDY#/CBE# is determined by P_GNT#. If P_GNT# is asserted at the time FRAME# is active, direction of DEVSEL_L/TRDY#/STOP# is determined by address decode, as described in the address decode section. Direction of AD[31:0] is determined by the combination of address decode and location of slave.

8.1 Types of Transactions

This section provides a summary of PCI transactions performed by PCI 6152. Table 8–1 lists the command code and name of each PCI transaction. The Master and Target columns indicate support for each transaction when PCI 6152 initiates transactions as a master, on the primary bus and on the secondary bus, and when PCI 6152 responds to transactions as a target, on the primary bus and on the secondary bus.

Table 8–1 PCI Transactions

Type of Transaction Initiates as Master Responds as Target

Primary Secondary Primary Secondary 0000 Interrupt acknowledge NNNN 0001 Special cycle Y Y N N 0010 I/O read YYYY 0011 I/O write YYYY 0100 Reserved NNNN 0101 Reserved NNNN 0110 Memory read YYYY 0111 Memory write YYYY 1000 Reserved NNNN 1001 Reserved NNNN 1010 Configuration read N Y Y N 1011 Configuration write Type 1 Y Y Type 1 1100 Memory read multiple YYYY 1101 Dual address cycle YYYY 1110 Memory read line YYYY 1111 Memory write and

invalidate

YYYY

Page 46

As indicated in Table 8–1, the following PCI commands are not supported by PCI 6152:

• PCI 6152 never initiates a PCI transaction with a reserved command code and, as a target, PCI 6152

ignores reserved command codes.

• PCI 6152 never initiates an interrupt acknowledge transaction and, as a target, PCI 6152 ignores interrupt

acknowledge transactions. Interrupt acknowledge transactions are expected to reside entirely on the primary PCI bus closest to the host bridge.

• PCI 6152 does not respond to special cycle transactions. To generate special cycle transactions on other

PCI buses, either upstream or downstream, a Type 1 configuration command must be used.

• PCI 6152 does not generate Type 0 configuration transactions on the primary interface, nor does it

respond to Type 0 configuration transactions on the secondary PCI interface. The PCI-to-PCI Bridge Architecture Specification does not support configuration from the secondary bus.

8.2 Address Phase

A 32-bit address uses a single address phase. This address is driven on AD<31:0>, and the bus command is driven on P_CBE[3:0]

8.3 Device Select (DEVSEL_L) Generation

PCI 6152 always performs positive address decoding when accepting transactions on either the primary or secondary buses. PCI 6152 never subtractively decodes. Medium DEVSEL_L timing is used on both interfaces.

8.4 Data Phase

The address phase or phases of a PCI transaction are followed by one or more data phases. A data phase is completed when IRDY# and either TRDY# or STOP# are asserted. A transfer of data occurs only when both IRDY# and TRDY# are asserted during the same PCI clock cycle. The last data phase of a transaction is indicated when FRAME# is de-asserted and both TRDY# and IRDY# are asserted, or when IRDY# and STOP# are asserted.

Page 47

8.5 Write Transactions

Acting as PCI bus extender, PCI 6152 responds differently according to the address and initiator.

Case 1: Primary master access device on primary bus PCI 6152 will forward all PCI signals from primary to secondary so that any device there can track the PCI bus.

Case 2: Primary master access device on secondary bus PCI 6152 will forward address, command, data, byte enable, P_IRDY# to secondary while forwarding S_DEVSEL_L, S_TRDY# and S_STOP# to primary bus.

Case 3: Secondary master access device on secondary bus PCI 6152 will forward all PCI signals from secondary to primary so that any device there can track the PCI bus.

Case 4: Secondary master access device on primary bus PCI 6152 will forward address, command, data, byte enable, S_IRDY# to primary while forwarding P_DEVSEL_L, P_TRDY# and P_STOP# to secondary.

8.6 Read Transactions

PCI 6152 responds according to the address and initiator of the read command.

Case 1: Primary master access device on primary bus

PCI 6152 will not forward PCI signals from primary to secondary.

Case 2: Primary master access device on secondary bus PCI 6152 will forward address, command, byte enable, P_IRDY# to secondary while forwarding data, S_DEVSEL_L, S_TRDY# and S_STOP# to primary bus.

Case 3: Secondary master access device on secondary bus PCI 6152 will not forward PCI signals from secondary to primary, except in the case of dummy arbitration.

Case 4: Secondary master access device on primary bus PCI 6152 will forward address, command, byte enable, S_IRDY# to primary while forwarding data, P_DEVSEL_L, P_TRDY# and P_STOP# to secondary.

Page 48

8.7 Configuration Transactions

Configuration transactions are used to initialize a PCI system. Every PCI device has a configuration space that is accessed by configuration commands. All registers are accessible in configuration space only.

In addition to accepting configuration transactions for initialization of its own configuration space, PCI 6152 also forwards configuration transactions for device initialization in hierarchical PCI systems, as well as for special cycle generation.

To support hierarchical PCI bus systems, two types of configuration transactions are specified: Type 0 and Type 1.

Type 0 configuration transactions are issued when the intended target resides on the same PCI bus as the initiator. A Type 0 configuration transaction is identified by the configuration command and the Lowest 2 bits of the address set to 00b.

Type 1 configuration transactions are issued when the intended target resides on another PCI bus, or when a special cycle is to be generated on another PCI bus. A Type 1 configuration command is identified by the configuration command and the Lowest 2 address bits set to 01b.

The register number is found in both Type 0 and Type 1 formats and gives the Dword address of the configuration register to be accessed. The function number is also included in both Type 0 and Type 1 formats and indicates which function of a multifunction device is to be accessed. For single-function devices, this value is not decoded. Type 1 configuration transaction addresses also include a 5-bit field designating the device number that identifies the device on the target PCI bus that is to be accessed. In addition, the bus number in Type 1 transactions specifies the PCI bus to which the transaction is targeted.

8.7.1 Type 0 Access to PCI 6152

The configuration space is accessed by a Type 0 configuration transaction on the primary interface. The configuration space cannot be accessed from the secondary bus. PCI 6152 responds to a Type 0 configuration transaction by asserting P_DEVSEL_L when the following conditions are met during the address phase:

• The bus command is a configuration read or configuration write transaction.

• Low 2 address bits P_AD<1:0> must be 00b.

• Signal P_IDSEL must be asserted.

• The function code is 0.

PCI 6152 limits all configuration accesses to a single Dword data transfer and returns a target disconnect with the first data transfer if additional data phases are requested. Because read transactions to configuration space do not have side effects, all bytes in the requested Dword are returned, regardless of the value of the byte enable bits.

Type 0 configuration write and read transactions do not use data buffers; that is, these transactions are completed immediately.

PCI 6152 ignores all Type 0 transactions initiated on the secondary interface.

Page 49

8.7.2 Type 1 to Type 0 Translation

Type 1 configuration transactions are used specifically for device configuration in a hierarchical PCI bus system. A PCI-to-PCI bridge is the only type of device that should respond to a Type 1 configuration command. Type 1 configuration commands are used when the configuration access is intended for a PCI device that resides on a PCI bus other than the one where the Type 1 transaction is generated.

PCI 6152 performs a Type 1 to Type 0 translation when the Type 1 transaction is generated on the primary bus and is intended for a device attached directly to the secondary bus. PCI 6152 must convert the configuration command to a Type 0 format so that the secondary bus device can respond to it. Type 1 to Type 0 translations are performed only in the downstream direction; that is, PCI 6152 generates a Type 0 transaction only on the secondary bus, and never on the primary bus.

PCI 6152 responds to a Type 1 configuration transaction and translates it into a Type 0 transaction on the secondary bus when the following conditions are met during the address phase:

• The low 2 address bits on P_AD<1:0> are 01b.

• The bus number in address field P_AD<23:16> is equal to the value in the secondary bus number register

in configuration space.

• The bus command on P_CBE<3:0> is a configuration read or configuration write transaction.

When PCI 6152 translates the Type 1 transaction to a Type 0 transaction on the secondary interface, it performs the following translations to the address:

• Sets the low 2 address bits on S_AD<1:0> to 00b.

• Decodes the device number and drives the bit pattern specified in Table 4–6 on S_AD<31:16> for the

purpose of asserting the device’s IDSEL signal.

• Sets S_AD<15:11> to 0.

• Leaves unchanged the function number and register number fields.

Page 50

PCI 6152 asserts a unique address line based on the device number. These address lines may be used as secondary bus IDSEL signals. The mapping of the address lines depends on the device number in the Type 1 address bits P_AD<15:11>. Table 8–2 presents the mapping that PCI 6152 uses.

Table 8–2 Device Number to IDSEL S_AD Pin Mapping

Device Number P_AD<15:11> Secondary IDSEL S_AD<31:16> S_AD Bit 0h 00000 0000 0000 0000 0001 16 1h 00001 0000 0000 0000 0010 17 2h 00010 0000 0000 0000 0100 18 3h 00011 0000 0000 0000 1000 19 4h 00100 0000 0000 0001 0000 20 5h 00101 0000 0000 0010 0000 21 6h 0110 0000 0000 0100 0000 22 7h 00111 0000 0000 1000 0000 23 8h 01000 0000 0001 0000 0000 24 9h 01001 0000 0010 0000 0000 25 Ah 01010 0000 0100 0000 0000 26 Bh 01011 0000 1000 0000 0000 27 Ch 01100 0001 0000 0000 0000 28 Dh 01101 0010 0000 0000 0000 29 Eh 01110 0100 0000 0000 0000 30 Fh 01111 1000 0000 0000 0000 31 1Fh 11111 Generate special cycle (P_AD<7:2> = 00h)

0000 0000 0000 0000 (P_AD<7:2> != 00h)

PCI 6152 can assert up to 16 unique address lines to be used as IDSEL signals for up to 16 devices on the secondary bus, for device numbers ranging from 0 through 15. Because of electrical loading constraints of the PCI bus, more than 16 IDSEL signals should not be necessary. However, if device numbers greater than 15 are desired, some external method of generating IDSEL lines must be used, and no upper address bits are then asserted. The configuration transaction is still translated and passed from the primary bus to the secondary bus. If no IDSEL pin is asserted to a secondary device, the transaction ends in a master abort.

PCI 6152 forwards Type 1 to Type 0 configuration read or write transactions as delayed transactions. Type 1 to Type 0 configuration read or write transactions are limited to a single 32-bit data transfer.

Page 51

8.7.3 Type 1 to Type 1 Forwarding

Type 1 to Type 1 transaction forwarding provides a hierarchical configuration mechanism when two or more levels of PCI-to-PCI bridges are used.

When PCI 6152 detects a Type 1 configuration transaction intended for a PCI bus downstream from the secondary bus, PCI 6152 forwards the transaction unchanged to the secondary bus. Ultimately, this transaction is translated to a Type 0 configuration command or to a special cycle transaction by a downstream PCI-to-PCI bridge. Downstream Type 1 to Type 1 forwarding occurs when the following conditions are met during the address phase:

• The low 2 address bits are equal to 01b.

• The bus number falls in the range defined by the lower limit (exclusive) in the secondary bus number

• The bus command is a configuration read or write transaction.

PCI 6152 also supports Type 1 to Type 1 forwarding of configuration write transactions upstream to support upstream special cycle generation. A Type 1 configuration command is forwarded upstream when the following conditions are met:

• The low 2 address bits are equal to 01b.

• The bus number falls outside the range defined by the lower limit (inclusive) in the secondary bus number

• The device number in address bits AD<15:11> is equal to 11111b.

• The function number in address bits AD<10:8> is equal to 111b.

• The bus command is a configuration write transaction.

PCI 6152 forwards Type 1 to Type 1 configuration write transactions as delayed transactions. Type 1 to Type 1 configuration write transactions are limited to a single data transfer.

Page 52

8.7.4 Special Cycles

The Type 1 configuration mechanism is used to generate special cycle transactions in hierarchical PCI systems. Special cycle transactions are ignored by acting as a target and are not forwarded across the bridge. Special cycle transactions can be generated from Type 1 configuration write transactions in either the upstream or the downstream direction.

PCI 6152 initiates a special cycle on the target bus when a Type 1 configuration write transaction is

detected on the initiating bus and the following conditions are met during the address phase:

• The low 2 address bits on AD<1:0> are equal to 01b.

• The device number in address bits AD<15:11> is equal to 11111b.

• The function number in address bits AD<10:8> is equal to 111b.

• The register number in address bits AD<7:2> is equal to 000000b.

• The bus number is equal to the value in the secondary bus number register in configuration space for

downstream forwarding or equal to the value in the primary bus number register in configuration space for upstream forwarding.

• The bus command on P_CBE# is a configuration write command.

When PCI 6152 initiates the transaction on the target interface, the bus command is changed from configuration write to special cycle. The address and data are forwarded unchanged. Devices that use special cycles ignore the address and decode only the bus command. The data phase contains the special cycle message. The transaction is forwarded as a delayed transaction, but in this case the target response is not forwarded back (because special cycles result in a master abort). Once the transaction is completed on the target bus, through detection of the master abort condition, PCI 6152 responds with TRDY# to the next attempt of the configuration transaction from the initiator.

Page 53

8.8 Transaction Termination

This section describes how PCI 6152 returns transaction termination conditions back to the initiator.

The initiator can terminate transactions with one of the following types of termination:

• Normal termination

• Normal termination occurs when the initiator de-asserts FRAME# at the beginning of the last data phase,

and de-asserts IRDY# at the end of the last data phase in conjunction with either TRDY# or STOP# assertion from the target.

• Master abort

• A master abort occurs when no target response is detected. When the initiator does not detect a

DEVSEL_L from the target within five clock cycles after asserting FRAME#, the initiator terminates the transaction with a master abort. If FRAME# is still asserted, the initiator de-asserts FRAME# on the next cycle, and then de-asserts IRDY# on the following cycle. IRDY# must be asserted in the same cycle in which FRAME# de-asserts. If FRAME# is already de-asserted, IRDY# can be de-asserted on the next clock cycle following detection of the master abort condition.

• The target can terminate transactions with one of the following types of termination:

• Normal termination—TRDY# and DEVSEL_L asserted in conjunction with FRAME# de-asserted and

IRDY# asserted.

• Target retry—STOP# and DEVSEL_L asserted without TRDY# during the first data phase. No data

transfers occur during the transaction. This transaction must be repeated.

• Target disconnect with data transfer—STOP# and DEVSEL_L asserted with TRDY#. Signals that this is

the last data transfer of the transaction.

• Target disconnect without data transfer—STOP# and DEVSEL_L asserted without TRDY# after previous

data transfers have been made. Indicates that no more data transfers will be made during this transaction.

• Target abort—STOP# asserted without DEVSEL_L and without TRDY#.

• Indicates that the target will never be able to complete this transaction. DEVSEL_L must be asserted for at

least one cycle during the transaction before the target abort is signaled.

8.8.1 Master Termination Initiated by PCI 6152

PCI 6152, as an initiator, uses normal termination if DEVSEL_L is returned by the target within five clock cycles of PCI 6152’s assertion of FRAME# on the target bus. PCI 6152 terminates a transaction when the target terminates the transaction with last data transfer, retry, disconnect, or target abort.

Page 54

8.8.2 Master Abort Received by PCI 6152

If the initiator initiates a transaction on the target bus and does not detect DEVSEL_L returned by the target within five clock cycles of PCI 6152’s assertion of FRAME#, PCI 6152 terminates the transaction with a master abort. This sets the received master abort bit in the status register corresponding to the target bus.

For delayed read and write transactions, PCI 6152 is able to reflect the master abort condition back to the initiator. When PCI 6152 detects a master abort in response to a delayed transaction, and when the initiator repeats the transaction, PCI 6152 does not respond to the transaction with DEVSEL_L. This passes the master abort condition back to the initiator.

Note

When PCI 6152 performs a Type 1 to special cycle translation, a master abort is the expected termination for the special cycle on the target bus. In this case, the master abort received bit is not set, and the Type 1 configuration transaction is disconnected after the first data phase.

8.8.3 Target Termination Received by PCI 6152

When PCI 6152 initiates a transaction on the target bus and the target responds with DEVSEL_L, the target can end the transaction with one of the following types of termination:

• Normal termination (upon de-assertion of FRAME#)

• Target retry

• Target disconnect

• Target abort

PCI 6152 handles these terminations in different ways, depending on the type of transaction being performed.

Page 55

8.8.3.1 Delayed Write Target Termination Response

When PCI 6152 initiates a delayed write transaction, the type of target termination received from the target can be passed back to the initiator. Table 8–3 shows the response to each type of target termination that occurs during a delayed write transaction.

• PCI 6152 repeats a delayed write transaction until one of the following conditions is met:

• PCI 6152 completes at least one data transfer.

• PCI 6152 receives a master abort.

• PCI 6152 receives a target abort.

PCI 6152 makes 2

Table 8-3 Response to Delayed Write Target Termination

write attempts resulting in a response of target retry.

Target Termination Response Normal Return disconnect to initiator with first data

transfer only if multiple data phases requested.

Target retry Return target retry to initiator. Continue write

attempts to target.

Target disconnect Return disconnect to initiator with first data

transfer only if multiple data phases requested.

Target abort Return target abort to initiator.

Set received target abort bit in target interface status register. Set signaled target abort bit in initiator interface status register.

Page 56

8.8.3.2 Delayed Read Target Termination Response

When PCI 6152 initiates a delayed read transaction, the abnormal target responses can be passed back to the initiator. Other target responses depend on how much data the initiator requests. Table 8-4 shows the response to each type of target termination that occurs during a delayed read transaction.

Table 8-4 Response to Delayed Read Target Termination

Target termination Response Normal If prefetchable, target disconnect only if initiator

requests more data than read from target. If nonprefetchable, target disconnect on first data

phase. Target retry Reinitiate read transaction to target Target disconnect If initiator requests more data than read from

target, return target disconnect to initiator Target abort Return target abort to initiator.

Set received target abort bit in the target

interface status register.

Set signaled target abort bit in the initiator

interface status register.

PCI 6152 repeats a delayed read transaction until one of the following conditions is met:

• PCI 6152 completes at least one data transfer.

• PCI 6152 receives a master abort.

• PCI 6152 receives a target abort.

Page 57

8.8.4 Target Termination Initiated by PCI 6152

PCI 6152 can return a target retry, target disconnect, or target abort to an initiator for reasons other than detection of that condition at the target interface.

8.8.4.1 Target Retry

PCI 6152 returns a target retry to the initiator when it cannot accept write data or return read data as a result of internal conditions. PCI 6152 returns a target retry to an initiator when any of the following conditions is met:

• For delayed write transactions:

o The transaction is being entered into the delayed transaction queue. o The transaction has already been entered into the delayed transaction queue, but target response has not yet

been received.

o The delayed transaction queue is full, and the transaction cannot be queued. o A transaction with the same address and command has been queued. o Uses more than 16 clocks to accept this transaction.

• For delayed read transactions:

o The transaction is being entered into the delayed transaction queue. o The read request has already been queued, but read data is not yet available. o The delayed transaction queue is full, and the transaction cannot be queued. o A delayed read request with the same address and bus command has already been queued. o Uses more than 16 clocks to accept this transaction.

When a target retry is returned to the initiator of a delayed transaction, the initiator must repeat the transaction with the same address and bus command as well as the data if this is a write transaction, within the time frame specified by the master timeout value; otherwise, the transaction is discarded from the buffer.

8.8.4.2 Target Disconnect

PCI 6152 returns a target disconnect to an initiator when the target returns target disconnect.

8.8.4.3 Target Abort

PCI 6152 returns a target abort to an initiator when one of the following conditions is met:

• PCI 6152 is returning a target abort from the intended target.

• PCI 6152 is unable to obtain delayed read data from the target or to deliver delayed write data to the

target after 2•

attempts.

When PCI 6152 returns a target abort to the initiator, it sets the signaled target abort bit in the status register corresponding to the initiator interface.

Page 58

9 Address Decoding

PCI 6152 uses three address ranges that control I/O and memory transaction forwarding. These address ranges are defined by base and limit address registers in the configuration space. This chapter describes these address ranges, as well as ISA-mode and VGA-addressing support.

9.1 Address Ranges

PCI 6152 uses the following address ranges to determine which I/O and memory transactions are forwarded from the primary PCI bus to the secondary PCI bus, and from the secondary bus to the primary bus:

• Two 32-bit I/O address ranges

Transactions falling within these ranges are forwarded downstream from the primary PCI bus to the two secondary PCI buses. Transactions falling outside these ranges are forwarded upstream from the two secondary PCI buses to the primary PCI bus.

PCI 6152 uses a flat address space; that is, it does not perform any address translations. The address space has no ‘‘gaps’’—addresses that are not marked for downstream forwarding are always forwarded upstream.

9.2 I/O Address Decoding

PCI 6152 uses the following mechanisms that are defined in the configuration space to specify the I/O address space for downstream and upstream forwarding:

• I/O base and limit address registers

• The ISA enable bit

• The VGA mode bit

• The VGA snoop bit

This section provides information on the I/O address registers and ISA mode.

To enable downstream forwarding of I/O transactions, the I/O enable bit must be set in the command register in configuration space. If the I/O enable bit is not set, all I/O transactions initiated on the primary bus are ignored. To enable upstream forwarding of I/O transactions, the master enable bit must be set in the command register. If the master enable bit is not set, PCI 6152 ignores all I/O and memory transactions initiated on the secondary bus. Setting the master enable bit also Allows upstream forwarding of memory transactions.

Caution

If any configuration state affecting I/O transaction forwarding is changed by a configuration write operation on the primary bus at the same time that I/O transactions are ongoing on the secondary bus, the

PCI 6152 response to the secondary bus I/O transactions is not predictable. Configure the I/O base and limit address registers, ISA enable bit, VGA mode bit, and VGA snoop bit before setting the I/O enable and master enable bits, and change them subsequently only when the primary and secondary PCI buses are idle.

Page 59

9.2.1 I/O Base and Limit Address Registers

PCI 6152 implements one set of I/O base and limit address registers in configuration space that define an I/O address range per port downstream forwarding. PCI 6152 supports 32-bit I/O addressing, which Allows I/O addresses downstream of PCI 6152 to be mapped anywhere in a 4GB I/O address space.

I/O transactions with addresses that fall inside the range defined by the I/O base and limit registers are forwarded downstream from the primary PCI bus to the secondary PCI bus. I/O transactions with addresses that fall outside this range are forwarded upstream from the secondary PCI bus to the primary PCI bus.

The I/O range can be turned off by setting the I/O base address to a value greater than that of the I/O limit address. When the I/O range is turned off, all I/O transactions are forwarded upstream, and no I/O transactions are forwarded downstream.

The I/O range has a minimum granularity of 4KB and is aligned on a 4KB boundary. The maximum I/O range is 4GB in size.

The I/O base register consists of an 8-bit field at configuration address 1Ch, and a 16-bit field at address 30h. The top 4 bits of the 8-bit field define bits <15:12> of the I/O base address. The bottom 4 bits read only as 1h to indicate that PCI 6152 supports 32-bit I/O addressing. Bits <11:0> of the base address are assumed to be 0, which naturally aligns the base address to a 4KB boundary. The 16 bits contained in the I/O base upper 16 bits register at configuration offset 30h define AD<31:16> of the I/O base address. All 16 bits are read/write. After primary bus reset or chip reset, the value of the I/O base address is initialized to 0000 0000h.

The I/O limit register consists of an 8-bit field at configuration offset 1Dh and a 16-bit field at offset 32h. The top 4 bits of the 8-bit field define bits <15:12> of the I/O limit address. The bottom 4 bits read only as 1h to indicate that 32-bit I/O addressing is supported. Bits <11:0> of the limit address are assumed to be FFFh, which naturally aligns the limit address to the top of a 4KB I/O address block. The 16 bits contained in the I/O limit upper 16 bits register at configuration offset 32h define AD<31:16> of the I/O limit address. All 16 bits are read/write. After primary bus reset or chip reset, the value of the I/O limit address is reset to 0000 0FFFh.

Note

The initial states of the I/O base and I/O limit address registers define an I/O range of 0000 0000h to 0000 0FFFh, which is the bottom 4KB of I/O space. Write these registers with their appropriate values before setting either the I/O enable bit or the master enable bit in the command register in configuration space.

Page 60

9.2.2 ISA Mode

PCI 6152 supports ISA mode by providing an ISA enable bit in the bridge control register in configuration space. ISA mode modifies the response of PCI 6152 inside the I/O address range in order to support mapping of I/O space in the presence of an ISA bus in the system. This bit only affects the response of PCI 6152 when the transaction falls inside the address range defined by the I/O base and limit address registers, and only when this address also falls inside the first 64KB of I/O space (address bits <31:16> are 0000h).

When the ISA enable bit is set, PCI 6152 does not forward downstream any I/O transactions addressing the top 768 bytes of each aligned 1KB block. Only those transactions addressing the bottom 256 bytes of an aligned 1KB block inside the base and limit I/O address range are forwarded downstream. Transactions above the 64KB I/O address boundary are forwarded as defined by the address range defined by the I/O base and limit registers.

Accordingly, if the ISA enable bit is set, PCI 6152 forwards upstream those I/O transactions addressing the top 768 bytes of each aligned 1KB block within the first 64KB of I/O space. The master enable bit in the command configuration register must also be set to enable upstream forwarding. All other I/O transactions initiated on the secondary bus are forwarded upstream only if they fall outside the I/O address range.

When the ISA enable bit is set, devices downstream of PCI 6152 can have I/O space mapped into the first 256 bytes of each 1KB chunk below the 64KB boundary, or anywhere in I/O space above the 64KB boundary.

9.3 Memory Address Decoding

PCI 6152 has three mechanisms for defining memory address ranges for forwarding of memory transactions:

• Memory-mapped I/O base and limit address registers

• Prefetchable memory base and limit address registers

• VGA mode

This section describes the first two mechanisms.

To enable downstream forwarding of memory transactions, the memory enable bit must be set in the command register in configuration space. To enable upstream forwarding of memory transactions, the master enable bit must be set in the command register. Setting the master enable bit also Allows upstream forwarding of I/O transactions.

Caution

If any configuration state affecting memory transaction forwarding is changed by a configuration write operation on the primary bus at the same time that memory transactions are ongoing on the secondary bus, response to the secondary bus memory transactions is not predictable. Configure the memory-mapped I/O base and limit address registers, prefetchable memory base and limit address registers, and VGA mode bit before setting the memory enable and master enable bits, and change them subsequently only when the primary and secondary PCI buses are idle.

Page 61

9.3.1 Memory-Mapped I/O Base and Limit Address Registers

Memory-mapped I/O is also referred to as nonprefetchable memory. Memory addresses that cannot automatically be prefetched but that can conditionally prefetch based on command type should be mapped into this space. Read transactions to nonprefetchable space may exhibit side effects; this space may have non-memory-like behavior. PCI 6152 prefetches in this space only if the memory read line or memory read multiple commands are used; transactions using the memory read command are limited to a single data transfer.

The memory-mapped I/O base address and memory-mapped I/O limit address registers define an address range that PCI 6152 uses to determine when to forward memory commands. PCI 6152 forwards a memory transaction from the primary to the secondary interface if the transaction address falls within the memory-mapped I/O address range. PCI 6152 ignores memory transactions initiated on the secondary interface that fall into this address range. Any transactions that fall outside this address range are ignored on the primary interface and are forwarded upstream from the secondary interface (provided that they do not fall into the prefetchable memory range or are not forwarded downstream by the VGA mechanism).

The memory-mapped I/O range supports 32-bit addressing only. The PCI-to-PCI Bridge Architecture Specification does not provide for 64-bit addressing in the memory-mapped I/O space. The memory-mapped I/O address range has a granularity and alignment of 1MB. The maximum memory-mapped I/O address range is 4GB.

The memory-mapped I/O address range is defined by a 16-bit memory-mapped I/O base address register at configuration offset 20h and by a 16-bit memory-mapped I/O limit address register at offset 22h. The top 12 bits of each of these registers correspond to bits <31:20> of the memory address. The low 4 bits are hardwired to 0. The low 20 bits of the memory-mapped I/O base address are assumed to be 0 0000h, which results in a natural alignment to a 1MB boundary. The low 20 bits of the memory-mapped I/O limit address are assumed to be F FFFFh, which results in an alignment to the top of a 1MB block.

Note

The initial state of the memory-mapped I/O base address register is 0000 0000h. The initial state of the memorymapped I/O limit address register is 000F FFFFh. Note that the initial states of these registers define a memorymapped I/O range at the bottom 1MB block of memory. Write these registers with their appropriate values before setting either the memory enable bit or the master enable bit in the command register in configuration space.

To turn off the memory-mapped I/O address range, write the memory-mapped I/O base address register with a value greater than that of the memory-mapped I/O limit address register.

Page 62

10 PCI Bus Arbitration

PCI 6152 must arbitrate for use of the primary bus when forwarding upstream transactions, and for use of the secondary bus when forwarding downstream transactions. The arbiter for the primary bus resides external to the typically on the motherboard. For the secondary PCI bus, PCI 6152 implements an internal arbiter.

10.1 Primary PCI Bus Arbitration

PCI 6152 implements a request output pin, P_REQ#, and a grant input pin, P_GNT#, for primary PCI bus arbitration. PCI 6152 asserts P_REQ# when forwarding transactions upstream; that is, it acts as initiator on the primary PCI bus. However, if a target retry, target disconnect, or a target abort is received in response to a transaction initiated by PCI 6152 on the primary PCI bus, PCI 6152 de-asserts P_REQ# for two PCI clock cycles.

When P_GNT# is asserted LOW by the primary bus arbiter after PCI 6152 has asserted P_REQ#, PCI 6152 initiates a transaction on the primary bus on behalf of master on secondary. When P_GNT# is asserted to PCI 6152 when P_REQ# is not asserted, PCI 6152 parks P_AD, P_CBE, and P_PAR by driving them to valid logic levels. When the primary bus is parked at PCI 6152 and PCI 6152 then has a transaction to initiate on the primary bus, PCI 6152 starts the transaction if P_GNT# was asserted during the previous cycle.

10.2 Secondary PCI Bus Arbitration

PCI 6152 implements an internal secondary PCI bus arbiter. This arbiter supports 4 external masters in addition to PCI 6152.

The PCI 6152 Secondary to Primary Frame Delay can be adjusted by programming Register C4h bit 4. At 66 MHz, 2 clock delay is recommended. However if faster Frame propagation is desired, especially in the case of handling an aggressive PCI arbitor on the Host bus, 1 clock delay is recommended.

Page 63

11 Transaction Delay

PCI 6152 transaction delay from one interface to the other can be controlled through register C4h, bits 4 and 5. Primary to secondary transaction delay and secondary to primary transaction delay can be configured separately at 1 or 2 clocks delay.

PCI 6152 supports 1 clock latency mode in order to minimize the delay. In this mode, there is strictly 1 clock delay between the originating FRAME and the bridge FRAME. PCI 6152 passes all memory and I/O cycles, regardless of the address. On the 2nd clock of the cycle, PCI 6152 checks which side the cycle belongs to. If it is determined to be the wrong side, PCI 6152 will self terminate its own cycle by asserting STOP_L.

This mode can be independently enabled for the Primary to Secondary transfer, and for the Secondary to Primary transfer. It is used primarily to minimize the delay between the assertion of the PGNT_L on the Primary side and the assertion of PFRAME_L due to the transaction initiated on the secondary side. PCI 6152 is designed to restrict SGNT_L based on the assertion of PGNT_L.

The control flow is as follows:

1. Primary asserts PGNT_L in response to the PREQ_L asserted by PCI 6152

2. Secondary asserts SGNT_L in response to PGNT_L

3. Secondary master asserts SFRAME_L in response to SGNT_L

4. PCI 6152 passes through the SFRAME_L to PFRAME_L.

There could be up to 4 clocks delay from step 1 to 4. This mode will decrease the delay to 3 clocks.

If 2 clock latency mode is enabled, which is the default, then the delay for step 4 above is 2 clocks instead of 1, with everything else the same.

Page 64

12 Error Handling

PCI 6152 checks, forwards, and generates parity on both the primary and secondary interfaces. To maintain transparency, PCI 6152 always tries to forward the existing parity condition on one bus to the other bus, along with address and data.

To support error reporting on the PCI bus, PCI 6152 implements the following:

• S_SERR# signal on the secondary interface

• Primary status and secondary status registers

This chapter provides detailed information about how PCI 6152 handles errors. It also describes error status reporting and error operation disabling.

12.1 Address Parity Errors

PCI 6152 checks address parity for all transactions on both buses, for all address and all bus commands.

When PCI 6152 detects an address parity error on the primary interface, the following events occur:

• If the parity error response bit is set in the command register, PCI 6152 does not claim the transaction with

P_DEVSEL_L; this may allow the transaction to terminate in a master abort.

If the parity error response bit is not set, PCI 6152 proceeds normally and accepts the transaction if it is directed to or across the PCI 6152.

• PCI 6152 sets the detected parity error bit in the status register.

• PCI 6152 asserts P_SERR# and sets the signaled system error bit in the status register, if both of the

following conditions are met:

o The SERR# enable bit is set in the command register.

o The parity error response bit is set in the command register.

When PCI 6152 detects an address parity error on the secondary interface, the following events occur:

• If the parity error response bit is set in the bridge control register, PCI 6152 does not claim the transaction

with S_DEVSEL_L; this may allow the transaction to terminate in a master abort.

If the parity error response bit is not set, PCI 6152 proceeds normally and accepts the transaction if it is directed to or across the PCI 6152.

o PCI 6152 sets the detected parity error bit in the secondary status register.

o PCI 6152 asserts S_SERR# and sets the signaled system error bit in the status register, if both of the

following conditions are met:

o The SERR# enable bit is set in the command register.

o The parity error response bit is set in the bridge control register.

Page 65

12.2 Data Parity Errors

When forwarding transactions, PCI 6152 attempts to pass the data parity condition from one interface to the other unchanged, whenever possible, to allow the master and target devices to handle the error condition.

The following sections describe, for each type of transaction, the sequence of events that occurs when a parity error is detected and the way in which the parity condition is forwarded across PCI 6152.

12.2.1 Configuration Write Transactions to Configuration Space

When PCI 6152 detects a data parity error during a Type 0 configuration write transaction to configuration space, the following events occur:

• If the parity error response bit is set in the command register, PCI 6152 asserts P_TRDY# and writes the

data to the configuration register. PCI 6152 also asserts S_SERR#.

• If the parity error response bit is not set, PCI 6152 does not assert P_SERR#.

PCI 6152 sets the detected parity error bit in the status register, regardless of the state of the parity error response bit.

12.2.2 Read Transactions

When PCI 6152 detects a parity error during a read transaction, the target drives data and data parity, and the initiator checks parity and conditionally asserts SERR#.

For downstream transactions, when PCI 6152 detects a read data parity error on the secondary bus, the following events occur:

• PCI 6152 asserts P_SERR# two cycles following the data transfer, if the secondary interface parity error

response bit is set in the bridge control register.

• PCI 6152 sets the detected parity error bit in the secondary status register.

• PCI 6152 sets the data parity detected bit in the secondary status register, if the secondary interface parity

error response bit is set in the bridge control register.

• PCI 6152 forwards the bad parity with the data back to the initiator on the primary bus.

• PCI 6152 completes the transaction normally.

For upstream transactions, when PCI 6152 detects a read data parity error on the primary bus, the following events occur:

• PCI 6152 asserts P_SERR# two cycles following the data transfer, if the primary interface parity error

response bit is set in the command register.

• PCI 6152 sets the detected parity error bit in the primary status register.

• PCI 6152 sets the data parity detected bit in the primary status register, if the primary interface parity error

response bit is set in the command register.

• PCI 6152 forwards the bad parity with the data back to the initiator on the secondary bus.

• PCI 6152 completes the transaction normally.

PCI 6152 returns to the initiator the data and parity that was received from the target. When the initiator detects a parity error on this read data and is enabled to report it, the initiator asserts PERR# two cycles after the data transfer occurs. It is assumed that the initiator takes responsibility for handling a parity error condition.

Page 66

12.3 Data Parity Error Reporting Summary

In the previous sections, the PCI 6152’s responses to data parity errors are presented according to the type of transaction in progress. This section organizes the PCI 6152’s responses to data parity errors according to the status bits that the PCI 6152 sets and the signals that it asserts.

Table 12-1 shows setting the detected parity error bit in the status register, corresponding to the primary interface. This bit is set when PCI 6152 detects a parity error on the primary interface.

Table 12–1 Setting the Primary Interface Detected Parity Error Bit

Primary detected parity error bit

0 Read Downstream Primary x/x

0 Read Downstream Secondary x/x

1 Read Upstream Primary x/x

0 Read Upstream Secondary x/x

1 Delayed write Downstream Primary x/x

0 Delayed write Downstream Secondary x/x

0 Delayed write Upstream Primary x/x

Transaction type Direction Bus where error

was detected

Primary/secondary parity error response bits

0 Delayed write Upstream Secondary x/x

x =don’t care

Page 67

Table 12–2 shows setting the detected parity error bit in the secondary status register, corresponding to the secondary interface. This bit is set when PCI 6152 detects a parity error on the secondary interface.

Table 12–2 Setting the Secondary Interface Detected Parity Error Bit

Secondary detected parity error bit

0 Read Downstream Primary x/x

Transaction type Direction Bus where error

was detected

Primary/secondary parity error response bits

1 Read Downstream Secondary x/x

0 Read Upstream Primary x/x

0 Read Upstream Secondary x/x

0 Delayed write Downstream Primary x/x

0 Delayed write Downstream Secondary x/x

0 Delayed write Upstream Primary x/x

1 Delayed write Upstream Secondary x/x

x =don’t care

Table 12-3 shows setting the data parity detected bit in the status register, corresponding to the primary interface. This bit is set under the following conditions:

• PCI 6152 must be a master on the primary bus.

• The parity error response bit in the command register, corresponding to the primary interface, must be set.

Table 12-3 Setting the Primary Interface Data Parity Detected Bit

Primary data parity detected bit

0 Read Downstream Primary x/x

Transaction type Direction Bus where error

was detected

Primary/secondary parity error response bits

0 Read Downstream Secondary x/x

1 Read Upstream Primary 1/x

0 Read Upstream Secondary x/x

0 Delayed write Downstream Primary x/x

0 Delayed write Downstream Secondary x/x

1 Delayed write Upstream Primary 1/x

0 Delayed write Upstream Secondary x/x

x =don’t care

Page 68

Table 12–4 shows setting the data parity detected bit in the secondary status register, corresponding to the secondary interface. This bit is set under the following conditions:

• The PCI 6152 must be a master on the secondary bus.

• The parity error response bit in the bridge control register, corresponding to the secondary interface, must

be set.

Table 12–4 Setting the Secondary Interface Data Parity Detected Bit

Secondary data parity detected bit

0 Read Downstream Primary x/x

Transaction type Direction Bus where error

was detected

Primary/secondary parity error response bits

1 Read Downstream Secondary x/1

0 Read Upstream Primary x/x

0 Read Upstream Secondary x/x

0 Delayed write Downstream Primary x/x

1 Delayed write Downstream Secondary x/1

0 Delayed write Upstream Primary x/x

0 Delayed write Upstream Secondary x/x

x =dont care

Page 69

Table 12-5 shows assertion of S_SERR#. This signal is set under the following conditions:

• The parity error response bit on the command register and the parity error response bit on the bridge

control register must both be set.

• The SERR# enable bit must be set in the command register.

Table 12-5 Assertion of S_SERR# for Data Parity Errors

Transaction type Direction Bus where error

was detected

Primary/secondary parity error response bits

Read Downstream Primary x/x

Read Downstream Secondary x/x

Read Upstream Primary x/x

Read Upstream Secondary x/x

Delayed write Downstream Primary x/x

Delayed write Downstream Secondary x/x

Delayed write Upstream Primary x/x

Delayed write Upstream Secondary x/x

x =don’t care

The parity error was detected on the target (secondary) bus but not on the initiator (primary) bus.

The parity error was detected on the target (primary) bus but not on the initiator (secondary) bus.

12.4 System Error (SERR#) Reporting

PCI 6152 uses the P_SERR# signal to report conditionally a number of system error conditions in addition to the special case parity error conditions.

Whenever the assertion of P_SERR# is discussed in this document, it is assumed that the following conditions apply:

• For PCI 6152 to assert P_SERR# for any reason, the SERR# enable bit must be set in the command

• Whenever PCI 6152 asserts P_SERR#, PCI 6152 must also set the signaled system error bit in the status

When S_SERR# is asserted by secondary device, PCI 6152 sets the received system error bit in the secondary status register.

The PCI 6152 also conditionally asserts P_SERR# when parity error reported on target bus during write transaction.

Page 70

13 Reset

This chapter describes the primary interface, secondary interface, and chip reset mechanisms.

13.1 Primary Interface Reset

PCI 6152 has one reset input, P_RST#. When P_RST# is asserted, the following events occur:

• PCI 6152 immediately three-states all primary and secondary PCI interface signals.

• PCI 6152 performs a chip reset.

• Registers that have default values are reset.

The P_RST# asserting and de-asserting edges can be asynchronous to P_CLK and S_CLK.

13.2 Secondary Interface Reset

PCI 6152 is responsible for driving the secondary bus reset signal, S_RST#.

PCI 6152 asserts S_RST# when any of the following conditions is met:

• Signal P_RST# is asserted.

• Signal S_RST# remains asserted as long as P_RST# is asserted and does not de-assert until P_RST# is

de-asserted.

• The secondary reset bit in the bridge control register is set.

• The chip reset bit in the diagnostic control register is set.

When S_RST# is asserted, all secondary PCI interface control signals, including the secondary grant outputs, are immediately three-stated. Signals S_AD, S_CBE#, and S_PAR are driven LOW for the duration of S_RST# assertion. All posted write and delayed transaction data buffers are reset; therefore, any transactions residing in buffers at the time of secondary reset are discarded.

When S_RST# is asserted by means of the secondary reset bit, PCI 6152 remains accessible during secondary interface reset and continues to respond to accesses to its configuration space from the primary interface.

Page 71

14 Bridge Behavior

A PCI cycle is initiated by asserting the FRAME# signal. In a bridge, there are a number of possibilities. These are summarized in the table below.

Bridge Actions for Various Cycle Types

Initiator Target Response

Master on primary Target on Primary PCI 6152 does not forward signals to secondary.

Master on primary Target on secondary PCI 6152 asserts P_DEVSEL_L, then passes the

cycle to the secondary. When cycle is complete on the target port, it will wait for the initiator to end with normal termination.

Master on primary Target not on

primary nor secondary port

Master on secondary

A target then has up to three cycles to respond before subtractive decoding is initiated. If the target detects an address hit, it should assert its DEVSEL_L signal in the cycle corresponding to the values of bits 9 and 10 in the Configuration Status Register.

Termination of a PCI cycle can occur in a number of ways. Normal termination begins by the initiator (master) deasserting FRAME# with IRDY# being asserted (or remaining asserted) on the same cycle. The cycle completes when TRDY# and IRDY# are both asserted simultaneously. The target should de-assert TRDY# for one cycle following final assertion (sustained three-state signal).

Target on the secondary port

Target on primary port

Target not on primary nor the other secondary

PCI 6152 does not respond and the cycle will terminate as master abort.

PCI 6152 does not forward signals to primary, except in the case of dummy arbitration.

PCI 6152 asserts S_DEVSEL_L, then passes the cycle to the appropriate port. When cycle is complete on the target port, it will wait for the initiator to end with normal termination.

PCI 6152 does not respond.

Page 72

14.1 Abnormal Termination (Initiated by Bridge Master)

14.1.1 Master Abort

Master abort indicates that PCI 6152 acting as a master receives no response (i.e., no target asserts P_DEVSEL_L or S_DEVSEL_L) from a target., the bridge de-asserts FRAME# and then de-asserts IRDY#.

14.1.2 PCI Master on Primary Bus

The table illustrates the direction of the PCI control/data path when a PCI transaction is initiated by a PCI master residing on the primary bus. It guarantees the integrity of the cycle, viewed from the primary and the secondary side.

Slave location Command FRAME/CBE

IRDY

Primary bus read S->P P->S P->S

Primary bus write S->P P->S P<-S

Secondary bus read S->P P<-S ---

Secondary bus write S->P P<-S ---

PCI 6152 is designed to pass almost all the primary cycles to the secondary side, except configuration cycle in the 1 clock delay case, as described below. PCI 6152 performs configuration type #1 to type #0 conversion, on the cycle with a matched bus-number. It will pass the type #1 configuration cycle that locates on the secondary side of the bridge.

DEVSEL_L/ TRDY

STOP

14.2 Configuration Type #1 to type #0 Conversion

When a type #1 configuration cycle appears on the primary side with a bus-number equaling to PCI 6152 bridge bus-number, PCI 6152 performs the type #1 to type #0 conversion cycle, as follows.

First, it will retry all the subsequent all the primary cycles, until its completion. And it will de-grant the secondary bus to block the secondary master. The conversion cycle will appear on the secondary bus only, without being reflected to the primary side.

Then, it issues the converted type #0 configuration cycle on the secondary side. The termination of the cycle can be either normal, master abort or slave abort. In the case of read, PCI 6152 will latch the data, and wait for the same type #1 configuration cycle on the primary side.

Page 73

14.3 Configuration Type #1 to Type #1 By-Passing

When a type #1 configuration cycle appears on the primary side with a bus-number greater than PCI 6152 bridge bus-number, but smaller than the secondary sub-ordinate bus-number, the same type #1 configuration cycle will appear on the secondary side. Otherwise, the bypassing process is very similar to the type #1 to type #0 conversion process. PCI 6152's internal state machine will generate the secondary cycle, retry all the primary cycle, and block any secondary master.

14.4 Type-0 Configuration Cycle Filter Mode

In this Type-0 configuration cycle filter mode, PCI 6152 will filter out all the primary Type-0 configuration cycle by delaying passing of primary P_FRAME# by one PCI clock. In case of Type-1 configuration cycle through the bridge, it will return retry and relies on the internal state machine to do the conversion cycle to generate Type-0 or Type-1 on the secondary side.

14.5 Decoding

PCI 6152 uses decoding circuit to determine the slave device location.

During the memory cycle, PCI 6152 uses Memory Base/Limit and PrefetchBase/Limit. Slave is on the secondary side if one of the following is true:

• MemoryBase[31:16] <= Address <= MemoryLimit[31:16]

• PrefetchBase[31:16] <= Address <= PrefetchLimit[31:16]

• when VGA is enabled, 0xa0000 <= Address <= 0xbffff

During the I/O cycle, PCI 6152 uses I/O Base/Limit register. Slave device is on the secondary side if one of the following is true:

• I/O Base[15:4] <= Address <= IoLimit[15:4], see Note 1.

• when VGA is enabled, 0x3b0 <= Address <= 0x3bb

• when VGA is enabled, 0x3c0 <= Address <= 0x3df

Note1: when ISA is enabled, the I/O space between address 0-256 are always reserved at every 1K boundary.

During the Type-1 configuration cycle, PCI 6152 uses the device bus-number and the sub-ordinate bus-number. Slave device is on the secondary side if:

BusNumber[7:0] <= Address <= SubordinateBusNumber[7:0]

All the type #0 configuration cycle, interrupt acknowledge cycle and the special cycle appearing on the primary side is considered to have slave on the primary side. Likewise, all the similar cycle appearing on the secondary side is considered to have slave on the secondary side.

Page 74

14.6 Secondary Master

The secondary master issues S_REQ#[3:0] to request the bus. PCI 6152 will generate P_REQ# on the primary side. When P_GNT# is active, PCI 6152 will use the round-robin algorithm to grant one secondary master using S_GNT#[3:0].

The control/data path is illustrated below. PCI 6152 will pass all the cycle from the secondary side to the primary.

Slave

location

primary read S->P P->S P->S

primary write S->P P->S P<-S

slave read S->P P<-S ---

slave write S->P P<-S ---

read/

Write

FRAME/CBE

IRDY

DEVSEL_L / TRDY

STOP

14.7 PCI Clock Run Feature

PCI 6152 supports PCI clock run protocol defined in the PCI Mobile Design Guide 1.0. P_CLKRUN# is set high when the system's central resource wants to stop P_CLK, and then PCI 6152 will either signal that it allows PCI clock to be stopped by letting P_CLKRUN# remain high, or it will signal to the system to keep P_CLK running by driving P_CLKRUN# low for 2 clocks then release by then the system’s central resource will keep P_CLKRUN# low. There are three situations that PCI 6152 will keep primary clock running. First is bit 2 of clock run control register is set, second there is a pending cycle on going through the chip, third is on behalf of secondary PCI device.

Secondary clock run is enabled by bit 1 of the clock run control register, by default the initiation of stopping/slowing down secondary comes from primary, however if bit 4 of clock run control register is set, secondary clock will be stopped when the bus is idle and there is no cycle from primary bus.

Page 75

15 Clocks

This chapter provides information about the clocks.

15.1 Primary and Secondary Clock Inputs

PCI 6152 implements a separate clock input for each PCI interface. The primary interface is synchronized to the primary clock input, P_CLK, and the secondary interface is synchronized to the secondary clock input, S_CLK.

15.2 Secondary Clock Outputs

PCI 6152 has 5 secondary clock outputs that can be used as clock inputs for up to 4 external secondary bus devices with one feedback to S_CLK.

The rules for using secondary clocks are:

• Each secondary clock output is limited to no more than 2 loads.

• One of the secondary clock outputs must be used for the PCI 6152 S_CLK input

• Using an equivalent amount of etch on the board for all secondary clocks is recommended, to minimize skew

between them, and a maximum delay of the etch of 2ns.

• Terminating or disabling unused secondary clock outputs is recommended to reduse power dissipation and

noise in the system

Page 76

16 66-MHz Operation

PCI 6152 66BC supports a maximum frequency of 66 MHz. There are no special procedures necessary to configure PCI 6152 66BC as a 66 MHz device. Bit 5 of the PCI status register is supported, and shows PCI 6152 66BC as a 66 MHz capable device to the system. PCI 6152 66BC does not have an M66EN pin. It is up to the system designer to implement the M66EN connection when using the PCI 6152 66BC.

PCI 6152 supports only 1:1 frequency ratio on the primary and secondary bus interfaces.

Page 77

17 Miscellaneous Options

17.1 EEPROM Interface

PCI 6152 has an interface to EEPROM device. The interface can control an ISSI IS24C02 or compatible part, which is organized as 256X8 bits. The EEPROM is used to initialize the registers. After PRST_L is deasserted, PCI 6152 will automatically load data from the EEPROM. The data structure is defined in the following section. The EEPROM interface is organized on 16 bit base in little endian format, and PCI 6152 supplies a 7-bit EEPROM word address.

The following pins are used for the EEPROM interface:

• EEPCLK: EEPROM clock output

• EEPDATA: EEPROM bi-directional serial data pin

The PCI 6152 does not control the EEPROM address inputs, it can only access EEPROM with address inputs set to 0.

17.1.1 Auto Mode EEPROM Access

Using auto mode, the PCI 6152 can access the EEPROM on a word basis via hardware sequencer. User need only to access word data via PCI 6152 configuration registers for EEPROM START control, address, read/write command. Before each access, software should check the Auto Mode Cycle in Progress status before issuing the next START.

17.1.2 EEPROM Mode at Reset

During RESET, the PCI 6152 will autoload input for EEPROM automatic load condition. The first offset in the EEPROM contains a signature. If the signature is recognized, register auto-load will commence right after RESET. During the auto-load, PCI 6152 will read sequential words from the EEPROM and write to the appropriate registers.

Before the PCI 6152 registers can be accessed through host, user should check the auto-load condition by reading the EEPAUTO bit. Host access is allowed only after EEPAUTO status becomes '0' which means that the auto load initialization sequence is complete.

Page 78

17.1.3 EEPROM Data Structure

Following the reset, if the condition above is met, PCI 6152 will auto-load the register with data from EEPROM. The following table describes the data structure used in EEPROM.

The PCI 6152 accesses the EEPROM one word at a time. It is important to note that in the data phase, bit

orders are reverse of that of the address phase. PCI 6152 only supports EEPROM Device Address 0.

Write:

Read:

S T A R T

Device

Address

10 000

Device

Address

10 000

Word

Address (n)

A C K

Data (n) Data (n +1)

A C K

S B

Word

Address (n)

S T

L S B

Device

Address

10 000

Data (n) Data (n +1)

L S B

M S B

N O

A C K

M S B

Page 79

17.1.4 EEPROM Address and Corresponding PCI 6152 Register

EEPROM Byte Address

PCI Configuration Offset

Description

00-01h EEPROM signature: Autoload will only proceed if it reads a

value of 1516h on the first word loaded. 0x1516=valid signature, otherwise disable autoloading

02h Region Enable: Enables or disables certain regions of the PCI

configuration space from being loaded from the EEPROM. Valid combinations are:

Bits 0, 7-5: Reserved

Bits 4-1: 0000 = stop autoload at offset 02h 0001 = stop autoload at offset 04h 0011 = stop autoload at offset 07h 0111 = stop autoload at offset 11h 1111 = autoload all EEPROM loadable registers. Other combinations are undefined.

03h Secondary Clock Enable :

Bit0: 1=disable SCLKO[0] output Bit1: 1=disable SCLKO[1] output Bit2: 1=disable SCLKO[2] output Bit3: 1=disable SCLKO[3] output Bit4: 1=disable SCLKO[4] output

Bits 7-5: Reserved 04h-05h F0-F1h Subsystem Vendor ID 06h-07h F2-F3h Subsysem ID 08h-09h C0-C4 Miscellaneous

Bit0:register C0h, bit 0

Bits 7-1: register C4h, bits 7:1

Bits 15-8: register C1h 0Ah-0Bh 00h-01h Vendor ID 0Ch-ODh 02h-03h Device ID 0Eh-0Fh C3h, 42h Miscellaneous

Bits 7-0: register 42h

Bits 15-8: register C3h 10h-11h 82h PMC register 12h-13h 87h PMC register

Bits7-0: reserved

Bits15-8: register 87h 14h-15h CDh Test Register CDh

Bits7-0: reserved

Bits15-8:register CDh 15h-16h CEh, CFh Test Register CE/CFh

Bits7-0: register CEh

Bits11-8: reserved

Bits15-8: register CFh, bits 7-4

Page 80

17.2 General Purpose I/O Interface

The PCI 6152 implements a 4-pin general-purpose I/O GPIO interface. Each pin can be configured as input or output through the GPIO control register at offset C5h.

17.3 Vital Product Data

PCI 6152 contains the VPD registers as specified in the PCI Local Bus Specification Revision 2.2. The VPD information is stored in the EEPROM device along with the autoload information. PCI 6152 provides for storage of 224 bytes of VPD data in the EEPROM device. VPD related registers are located starting at offset A0h of the PCI configuration space. VPD also uses the enhanced capabilities port address mechanism

Page 81

18 PCI Power Management

PCI 6152 incorporates functionality that meets the requirements of the PCI Power Management Specification, Revision 1.0. These features include:

• PCI power management registers using the enhanced capabilities port (ECP) address mechanism

• Support for D0, D3

and D3

hot

• Support for D0, D1, D2, D3

• Support of the B2 secondary bus power state when in the D3

The table below shows the states and related actions that the PCI 6152 performs during power management transitions. (no other transactions are permitted.)

power management states

cold

and D3

hot

power management states for devices behind the bridge

cold

power management state

hot

Current State

D0 D3

D0 D2

D0 D1

hot

cold

Next State

cold

Action

Power has been removed from the PCI 6152. A power-up reset must be performed to bring the PCI 6152 to D0. If enabled to do so by the BPCCE pin, the PCI 6152

hot

will disable the secondary clocks and drive them low. Unimplemented power state. The PCI 6152 will ignore the write to the power state bits (power state remains at D0).

Unimplemented power state. The PCI 6152 will ignore the write to the power state bits (power state remains at D0).

The PCI 6152 enables secondary clock outputs and performs an internal chip reset. Signal S_RST_L will not be asserted. All registers will be returned to the reset values and buffers will be cleared. Power has been removed from the PCI 6152. A power-up reset must be performed to bring the PCI 6152 to D0. Power-up reset. The PCI 6152 performs the standard power-up reset functions.

PME# signals are routed from downstream devices around PCI-to PCI bridges. PME# signals do not pass through PCI-to-PCI bridges.

Page 82

19 Hot Swap

PCI 6152 incorporates functionality that meets the requirements of the CompactPCI Specification, Rev2.1. PCI 6152 is a Hot Swap friendly device, it contains support for Software Connection Control. The CompactPCI Hot Swap register block is located at PCI configuration offset E4h. The Hot Swap specification allows active insertion and extraction by controlling ENUM_L and LED signals.

PCI 6152 has the following Hot Swap related pins:

• ENUM_L: Signal to notify system of insertion/extraction of Hot Swap cards.

• LED: Hot Swap status light

• EJECT: Indicates PCI 6152 of insertion/extraction of Hot Swap card, should be connected

to switch of Hot Swap card.

19.1 Hot Swap Insertion

After reset, PCI 6152 will wait for the EJECT pin to be asserted to indicate successful insertion. It will signal the host by asserting ENUM_L. The host reads register 92h, to determine if ENUM_L was asserted as a result of a card insertion. The host will then set bit[7] of the Hot Swap register to acknowledge the insertion. Software drivers will then perform initialization and deassert ENUM_L after which the PCI 6152 will enter normal operation.

19.2 Hot Swap Extraction

During the extraction phase, user first has to deassert EJECT by toggling the switch on the Hot Swap card. PCI 6152 will signal the host by asserting ENUM_L. The host will set bit[6] of the configuration register 92h to acknowledge the extraction. PCI 6152 deasserts ENUM_L, and waits for the extraction. During the extraction phase, user can optionally cancel the extraction by setting asserting EJECT again.

Note that Hot Swap is an independent section of PCI 6152. Its function has no impact on the rest of the chip. If Hot Swap feature is not needed, simply leave ENUM_L unconnected.

Page 83

20 Package Specifications

20.1 160-pin Tiny BGA

This specification outlines the mechanical dimensions for 160 pin Tiny BGA package as shown below. All dimensions are in millimeters (mm).

1.4

0.7 0.36

0.27

1.0

SIDE VIEW

15.0

13.0

13.0 15.0

BOTTOM VIEW

Page 84

The following table lists the package dimensions in millimeters.

Symbol Dimension Minimum Nominal Maximum

e Ball pitch 1.00

A Overall package height 1.40

A1 Package standoff height 0.27

A2 Encapsulation thickness 0.70

b Ball diameter 0.35 0.40 0.45

C Substrate thickness 0.36

D Overall package width 15.00

D1 Overall Encapsulation width 13.00

E Overall package width 15.00

E1 Overall Encapsulation width 13.00

Page 85

20.2 160-pin Standard PQFP

This specification outlines the mechanical dimensions for 160 pin standard PQFP (plastic quad flat pack) package as shown below. All dimensions are in millimeters (mm).

Page 86

160-pin PQFP package dimensions

MillimetersSymbol

Min Nom Max

A- - 4.45 A1 0.35 0.45 0.65 A2 3.4 3.6 3.8

b 0.2 0.3 0.4

c 0.10 0.15 0.25

D 31.6 32.0 32.4

D1 27.8 28.0 28.2

E 31.6 32.0 32.4 E1 27.8 28.0 28.2

e 0.65 BSC

L 0.6 0.8 1.0 Zd 1.325 TYP Ze 1.325 TYP

θ 0°

10°

aaa 0.1 bbb 0.13

N 160

Page 87

21 Electrical Specifications

21.1 Maximum Ratings

(Above which the useful life may be impaired. For user guidelines, not tested.)

Parameter Minimum Maximum Storage Temperature Range -55 °C 125 °C Junction Temperature 125 °C Supply Voltage, V

3.9V Maximum Voltage to signal pins 5.5V Maximum Power 300mW

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.

21.2 Functional Operating Range

Parameter Minimum Maximum Supply Voltage 3.0 V 3.6 V Operating ambient temperature 0 °C 70 °C

Page 88

21.3 DC Electrical Characteristics

Symbol Parameter Condition Min Max Unit Notes

ol5V

oh5V

Supply Voltage 3.0 3.6 V

PVIO, SVIO pin Interface I/O Voltage 3.0 5.5 V

Input HIGH Voltage 0.5 V

Input LOW Voltage -0.5 0.3 V

Output LOW Voltage

5V Signalling Output LOW Voltage I

Output HIGH Voltage

5V Signalling Output HIGH Voltage I

Input Leakage Current 0 < Vin < V

= 1500 µA

iout

= 6 mA 0.1 V

iout

= -500 µA

iout

= -2 mA 2.7 V

iout

0.9 V

0.1 V

±2

µA

Input Pin Capacitance 10.0 pF

Page 89

21.4 PCI Clock Signal AC Parameter Measurements

NOTE: Vt1 - 2.0V for 5V clocks; 0.5VCC for 3.3V clocks

Vt2 - 1.5V for 5V clocks; 0.4VCC for 3.3V clocks V

– 0.8V for 5V clocks; 0.3VCC for 3.3V clocks

21.4.1 33 MHz PCI Clock Signal AC parameters

Symbol Parameter Minimum Maximum Unit T

cyc

high

low

sclk

sclkr

sclkf

skew

PCLK, SCLK cycle time 30 ns PCLK, SCLK high time 11 - ns PCLK, SCLK low time 11 - ns PCLK, SCLK slew rate 1 4 V/ns Delay from PCLK to SCLK 0 7 ns PCLK rising to SCLKO rising 0 5 ns PCLK falling to SCLKO falling 0 5 SCLKO[x] to SCLKO[y] - 0.500 ns

Page 90

21.4.2 66 MHz PCI Clock Signal AC parameters

Symbol Parameter Minimum Maximum Unit T

cyc

high

low

PCLK, SCLK cycle time 15 30 ns PCLK, SCLK high time 6 - ns PCLK, SCLK low time 6 - ns PCLK, SCLK slew rate 1.5 4 V/ns

sclk

sclkr

sclkf

skew

Delay from PCLK to SCLK 0 5 ns PCLK rising to SCLKO rising 0 5 ns PCLK falling to SCLKO falling 0 5 SCLKO[x] to SCLKO[y] - 0.500 ns

21.5 PCI Signal Timing Specification

Page 91

21.5.1 33 MHz PCI Signal Timing

Symbol Parameter Minimum Maximum Unit T

val

CLK to signal valid delay - bused

211ns

signals

val(ptp)

CLK to signal valid delay – point

212ns

to point

off

Float to active delay 2 - ns Active to float delay - 28 ns Input setup time to CLK – bused

7- ns

signals

su(ptp)

Input setup time to CLK – point to

10,12 -

point

Input signal hold time from CLK 0 - ns

21.5.2 66 MHz PCI Signal Timing

Symbol Parameter Minimum Maximum Unit T

T T T

val

val(ptp)

off

su(ptp)

CLK to signal valid delay - bused

26 ns signals CLK to signal valid delay – point

26 ns to point Float to active delay 2 - ns Active to float delay - 14 ns Input setup time to CLK – bused

3- ns signals Input setup time to CLK – point to

5point Input signal hold time from CLK 0 - ns

Page 92

Appendix A: PCI 6152 33PC Part Description

Part number PCI 6152 33PC is a 160 pin PQFP which is designed to be a pin compatible part for Intel 21152 Bridge. Even though it is PCI 6152 33BC internally, some PCI 6152 functions are not available in this configuration. This section will highlight these features.

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

VSS

S_PAR

S_SERR_L

S_PERR_L

S_STOP_L

S_DEVSEL_L

VDD

S_TRDY_L

S_IRDY_L

S_FRAME_L

VSS

S_CBE_L[2]

S_AD[16]

VDD

S_AD[17]

S_AD[18]

S_AD[19]

VSS

S_AD[20]

S_AD[21]

S_AD[22]

VDD

S_AD[23]

S_CBE_L[3]

S_AD[24]

VSS

S_AD[25]

S_AD[26]

VDD

S_AD[27]

S_AD[28]

S_AD[29]

VSS

S_AD[30]

S_AD[31]

S_REQ_L[0]

S_REQ_L[1]

S_REQ_L[2]

VDD

BPCCE

S_CBE_L[1]

VSS

S_AD[15]

S_AD[14]

VDD

S_AD[13]

S_AD[12]

VSS

S_AD[11]

S_AD[10]

VDD

S_AD[9]

S_AD[8]

VSS

S_AD[7]

S_AD[6]

S_AD[5]

S_CBE_L[0]

VDD

S_AD[4]

S_AD[3]

VSS

S_AD[2]

S_AD[1]

PCI 6152 33PC

S_AD[0]

P_AD[0]

P_AD[1]

VDD

P_AD[2]

VSS

P_AD[3]

P_AD[4]

P_AD[5]NCP_AD[6]

VSS

P_AD[7]

P_CBE_L[0]

P_AD[8] P_AD[9]

P_AD[10] P_AD[11] P_AD[12]

P_AD[13] P_AD[14] P_AD[15]

P_CBE_L[1]

P_PAR P_SERR_L P_PERR_L

P_STOP_L

P_DEVSEL_L

P_TRDY_L

P_IRDY_L

P_FRAME_L

P_CBE_L[2]

P_AD[16] P_AD[17] P_AD[18]

P_AD[19] P_AD[20] P_AD[21]

P_AD[22] P_AD[23]

P_IDSEL

P_CBE_L[3]

VDD

VSS

VDD

VSS

VDD

VSS

VDD

VSS

VDD

VSS

120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 099 098 097 096 095 094 093 092 091 090 089 088 087 086 085 084 083 082 081

VSS

S_REQ_L[3]

S_GNT_L[0]

S_GNT_L[1]

S_GNT_L[2]

VDD

S_GNT_L[3]

S_RST_LNCVSS

S_CLK

S_VIO

S_CLK_O[0]

VSS

S_CLK_O[1]

VDD

S_CLK_O[2]

VSS

S_CLK_O[3]

VDD

S_CLK_O[4]

NAND_OUT

GOZ_L

RST_L

VSS

P_CLK

P_VIO

P_GNT_L

P_REQ_L

P_AD[31]

VSS

P_AD[30]

P_AD[29]

P_AD[28]

VDD

P_AD[27]

P_AD[26]

P_AD[25]

P_AD[24]

VDD

414243444546474849505152535455565758596061626364656667686970717273747576777879

Pin Diagram, Top View

Page 93

PCI 6152 33PC 160 pin pinout

PCI 6152 33PC does not support the following pins:

ENUM_L L_STAT EEPD EEPCLK GPIO[0] GPIO[1] GPIO[2] GPIO[3] P_CLKRUN_L S_CLKRUN_L EJECT

Thus, all functions associated with this pins, such as Hot Swap, power management, EEPROM, VPD, and GPIO are not supported in this configuration.

Pin Assignment Sorted by Location

Location Pin Name Type

001 VSS P 002 S_PAR TS 003 S_SERR_L I 004 S_PERR_L TS 005 NC 006 S_STOP_L STS 007 S_DEVSEL_L STS 008 VDD P 009 S_TRDY_L STS 010 S_IRDY_L STS 011 S_FRAME_L STS 012 VSS P 013 S_CBE_L[2] TS 014 S_AD[16] TS 015 VDD P 016 S_AD[17] TS 017 S_AD[18] TS 018 S_AD[19] TS 019 VSS TS 020 S_AD[20] TS 021 S_AD[21] TS 022 S_AD[22] TS 023 VDD P 024 S_AD[23] TS 025 S_CBE_L[3] TS 026 S_AD[24] TS 027 VSS P 028 S_AD[25] TS 029 S_AD[26] TS 030 VDD P

031 S_AD[27] TS 032 S_AD[28] TS 033 S_AD[29] TS 034 VSS P 035 S_AD[30] TS 036 S_AD[31] TS 037 S_REQ_L[0] I 038 S_REQ_L[1] I 039 S_REQ_L[2] I 040 VDD P 041 VSS P 042 S_REQ_L[3] I 043 S_GNT_L[0] I 044 S_GNT_L[1] O 045 S_GNT_L[2] O 046 VDD P 047 S_GNT_L[3] I 048 S_RST_L O 049 NC 050 VSS P 051 S_CLK I 052 S_VIO I 053 S_CLK_O[0] O 054 VSS P 055 S_CLK_O[1] O 056 VDD P 057 S_CLK_O[2] O 058 VSS P 059 S_CLK_O[3] O 060 VDD P 061 S_CLK_O[4] O

Page 94

062 NAND_OUT O 063 GOZ_L I 064 RST_L I 065 VSS P 066 P_CLK I 067 P_VIO I 068 P_GNT_L I 069 P_REQ_L O 070 P_AD[31] TS 071 VSS P 072 P_AD[30] TS 073 P_AD[29] TS 074 P_AD[28] TS 075 VDD P 076 P_AD[27] TS 077 P_AD[26] TS 078 P_AD[25] TS 079 P_AD[24] TS 080 VDD P 081 VSS P 082 P_CBE_L[3] TS 083 P_IDSEL I 084 P_AD[23] TS 085 P_AD[22] TS 086 VSS P 087 P_AD[21] TS 088 P_AD[20] TS 089 P_AD[19] TS 090 VDD P 091 P_AD[18] TS 092 P_AD[17] TS 093 P_AD[16] TS 094 VSS P 095 P_CBE_L[2] STS 096 P_FRAME_L STS 097 P_IRDY_L STS 098 VDD P 099 P_TRDY_L STS 100 P_DEVSEL_L STS 101 P_STOP_L STS 102 NC 103 VSS P 104 P_PERR_L STS 105 P_SERR_L OD 106 P_PAR TS 107 P_CBE_L[1] TS 108 VDD P 109 P_AD[15] TS 110 P_AD[14] TS 111 P_AD[13] TS 112 VSS P

113 P_AD[12] TS 114 P_AD[11] TS 115 P_AD[10] TS 116 VDD P 117 P_AD[09] TS 118 P_AD[08] TS 119 VSS P 120 VDD P 121 VSS P 122 P_CBE_L[0] TS 123 P_AD[07] TS 124 P_AD[06] TS 125 NC 126 P_AD[05] TS 127 P_AD[04] TS 128 VSS P 129 P_AD[03] TS 130 P_AD[02] TS 131 VDD P 132 P_AD[01] TS 133 P_AD[00] TS 134 S_AD[00] TS 135 VSS P 136 S_AD[01] TS 137 S_AD[02] TS 138 S_AD[03] TS 139 VDD P 140 S_AD[04] TS 141 S_AD[05] TS 142 S_AD[06] TS 143 VSS P 144 S_AD[07] TS 145 S_CBE_L[0] TS 146 S_AD[08] TS 147 VDD P 148 S_AD[09] TS 149 S_AD[10] TS 150 S_AD[11] TS 151 VSS P 152 S_AD[12] TS 153 S_AD[13] TS 154 VDD P 155 S_AD[14] TS 156 S_AD[15] TS 157 VSS P 158 S_CBE_L[1] TS 159 BPCCE I 160 VDD P

Page 95

Pin Assignment Sorted by Signal Name

Location Pin Name Type

159 BPCCE I 063 GOZ_L I 062 NAND_OUT O 005 NC 049 NC 102 NC 125 NC 133 P_AD[00] TS 132 P_AD[01] TS 130 P_AD[02] TS 129 P_AD[03] TS 127 P_AD[04] TS 126 P_AD[05] TS 124 P_AD[06] TS 123 P_AD[07] TS 118 P_AD[08] TS 117 P_AD[09] TS 115 P_AD[10] TS 114 P_AD[11] TS 113 P_AD[12] TS 111 P_AD[13] TS 110 P_AD[14] TS 109 P_AD[15] TS 093 P_AD[16] TS 092 P_AD[17] TS 091 P_AD[18] TS 089 P_AD[19] TS 088 P_AD[20] TS 087 P_AD[21] TS 085 P_AD[22] TS 084 P_AD[23] TS 079 P_AD[24] TS 078 P_AD[25] TS 077 P_AD[26] TS 076 P_AD[27] TS 074 P_AD[28] TS 073 P_AD[29] TS 072 P_AD[30] TS 070 P_AD[31] TS 122 P_CBE_L[0] TS 107 P_CBE_L[1] TS 095 P_CBE_L[2] STS 082 P_CBE_L[3] TS 066 P_CLK I 100 P_DEVSEL_L STS 096 P_FRAME_L STS 068 P_GNT_L I 083 P_IDSEL I 097 P_IRDY_L STS

106 P_PAR TS 104 P_PERR_L STS 069 P_REQ_L O 105 P_SERR_L OD 101 P_STOP_L STS 099 P_TRDY_L STS 067 P_VIO I 064 RST_L I 134 S_AD[00] TS 136 S_AD[01] TS 137 S_AD[02] TS 138 S_AD[03] TS 140 S_AD[04] TS 141 S_AD[05] TS 142 S_AD[06] TS 144 S_AD[07] TS 146 S_AD[08] TS 148 S_AD[09] TS 149 S_AD[10] TS 150 S_AD[11] TS 152 S_AD[12] TS 153 S_AD[13] TS 155 S_AD[14] TS 156 S_AD[15] TS 014 S_AD[16] TS 016 S_AD[17] TS 017 S_AD[18] TS 018 S_AD[19] TS 020 S_AD[20] TS 021 S_AD[21] TS 022 S_AD[22] TS 024 S_AD[23] TS 026 S_AD[24] TS 028 S_AD[25] TS 029 S_AD[26] TS 031 S_AD[27] TS 032 S_AD[28] TS 033 S_AD[29] TS 035 S_AD[30] TS 036 S_AD[31] TS 145 S_CBE_L[0] TS 158 S_CBE_L[1] TS 013 S_CBE_L[2] TS 025 S_CBE_L[3] TS 051 S_CLK I 053 S_CLK_O[0] O 055 S_CLK_O[1] O 057 S_CLK_O[2] O 059 S_CLK_O[3] O 061 S_CLK_O[4] O

Page 96

007 S_DEVSEL_L STS 011 S_FRAME_L STS 043 S_GNT_L[0] I 044 S_GNT_L[1] O 045 S_GNT_L[2] O 047 S_GNT_L[3] I 010 S_IRDY_L STS 002 S_PAR TS 004 S_PERR_L TS 037 S_REQ_L[0] I 038 S_REQ_L[1] I 039 S_REQ_L[2] I 042 S_REQ_L[3] I 048 S_RST_L O 003 S_SERR_L I 006 S_STOP_L STS 009 S_TRDY_L STS 052 S_VIO I 116 VDD P 008 VDD P 015 VDD P 023 VDD P 030 VDD P 040 VDD P 046 VDD P 056 VDD P 060 VDD P 075 VDD P 080 VDD P 090 VDD P 098 VDD P

108 VDD P 120 VDD P 131 VDD P 139 VDD P 147 VDD P 154 VDD P 160 VDD P 119 VSS P 157 VSS P 001 VSS P 012 VSS P 019 VSS TS 027 VSS P 034 VSS P 041 VSS P 050 VSS P 054 VSS P 058 VSS P 065 VSS P 071 VSS P 081 VSS P 086 VSS P 094 VSS P 103 VSS P 112 VSS P 121 VSS P 128 VSS P 135 VSS P 143 VSS P 151 VSS P

Page 97

PCI 6152 33PC vs 21152 pinout comparison

This section describes pinout differences between the Intel 21152 and PCI 6152 33PC and some the design considerations for using the PCI 6152 33PC.

Pin No.

Intel

PCI 6152

33PC

Notes

21152

5 s_lock_l N/C

The PCI 6152 33PC does not support the PCI lock mechanism on its secondary interface.

49 s_cfn_l N/C The s_cfn_l pin specifies whether 21152 uses

internal or external arbitration. PCI 6152 33PC only supports internal arbitration, so will only function correctly in designs that do not use an external arbiter.

102 p_lock_l N/C The PCI 6152 33PC does not support the PCI

lock mechanism on its primary interface.

125 vdd N/C This is a power pin, and has no effect on

operation.

N/C: No Connect.

2,3

In most cases, this will not present a problem, as very few devices implement lock functionality.

Page 98

Appendix B : Sample Schematics

PCI 6152 PCI-to-PCI BRIDGE REFERANCE SCHEMATIC

FUNCTIONAL DESCRIPTION

PAGE

COVER

PCI 6152 PCI-to-PCI BRIDGE

PCI BUS GOLD FINGER

PCI SLOT 0 and 1

PCI SLOT 2 and 3

PCI SLOT 4

POWER

REVISION HISTORY: REV. C 2/14/01

CHASIS

0_F

BOT

PCI_BRACKET

ORCAD Capture for Windows - Ver. 9.00.1153

PLX Technology, Inc.

Title

PCI 6152 DEMO BOARD

Size Document Number Rev

Date: Sheet of

16Wednesday, February 14, 2001

Page 99

PCLK

-12V

INTBINTD-

REQ-

AD29

AD27 AD25

CBE3AD23

AD21 AD19

AD17 CBE2-

IRDY-

DEVSEL-

PERR-

SERR-

CBE1AD14

AD12 AD10

AD8 AD7

AD5 AD3

AD1

PCI_3V

PCI_5V

PB1

B1 -12V

B2 TCK

B3 GND

B4 TD0

B5 +5V

B6 +5V

B7 -INTB

B8 -INTD

B9 -PRSNT1

B10 RSVD1

B11 -PRSNT2

B12 GND (3V KEY)

B13 GND (3V KEY)

B14 RSVD2

B15 GND

B16 CLK

B17 GND

B18 -REQ

B19 +5V (IO)

B20 AD31

B21 AD29

B22 GND

B23 AD27

B24 AD25

B25 +3.3V

B26 -C/BE3#

B27 AD23

B28 GND

B29 AD21

B30 AD19

B31 +3.3V

B32 AD17

B33 -/CBE2#

B34 GND

B35 -IRDY

B36 +3.3V

B37 -DEVSEL

B38 GND

B39 -LOCK

B40 -PERR

B41 +3.3V

B42 -SERR

B43 +3.3V

B44 -C/BE1#

B45 AD14

B46 GND

B47 AD12

B48 AD10

B49 GND

B50 N/C (5V KEY)

B51 N/C (5V KEY)

B52 AD8

B53 AD7

B54 +3.3V

B55 AD5

B56 AD3

B57 GND

B58 AD1

B59 +5V (IO)

B60 -ACK64

B61 +5V

B62 +5V

PCIBSIDE_OPEN

PA1

-TRST A1 +12V A2

TMS A3

TDI A4 +5V A5

-INTA A6

-INTC A7 +5V A8

RSVD1 A9

+5V (10) A10

RSVD2 A11 GND A12 (3V KEY) GND A13 (3V KEY)

VAUX A14

-RST A15

+5V (IO) A16

-GNT A17 GND A18 PME- A19 AD30 A20

+3.3V A21

AD28 A22 AD26 A23 GND A24 AD24 A25

IDSEL A26

+3.3V A27

AD22 A28 AD20 A29 GND A30 AD18 A31 AD16 A32

+3.3V A33

-FRAME A34 GND A35

-TRDY A36 GND A37

-STOP A38

+3.3V A39

SDONE A40

-SBO A41 GND A42

PAR A43

AD15 A44

+3.3V A45

AD13 A46 AD11 A47 GND A48

AD9 A49 N/C A50 (5V KEY) N/C A51 (5V KEY)

-C/BE0# A52 +3.3V A53

AD6 A54 AD4 A55

GND A56

AD2 A57 AD0 A58

+5V (IO) A59

-REQ64 A60 +5V A61 +5V A62

PCIASIDE_OPEN

+12V

PCI_VIO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62

INTAINTC-

PRST-

GNT-

AD30AD31

AD28 AD26

AD24 IDSEL

AD22 AD20

AD18 AD16

FRAME-

TRDY-

STOP-

PAR AD15

AD13 AD11

AD9

CBE0-

AD6 AD4

AD2 AD0

SLOT_VAUX

SPME-

INTAINTBINTCINTD-

SINTASINTBSINTCSINTD-

GOLD FINGER

THIS IS AN UNVERIFIED EXAMPLE PLEASE CHECK FOR POSSIBLE MISTAKES PLX DOES NOT ASSUME ANY RESPONSIBILITY OR LIABILITY OUT OF THIS APPLICATION

PLX Technology, Inc.

Title

PCI 6152 DEMO BOARDPCI 6152

Size Document Number Rev

Date: Sheet of

26Monday, February 26, 2001

Page 100

AD[31:0]

CBE0CBE1CBE2CBE3DEVSELFRAMEGNTIRDYPAR REQPRSTSTOPTRDYIDSEL SERRPERR-

HPCLK

PCI 6152VDD

AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD10 AD11 AD12 AD13 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AD24 AD25 AD26 AD27 AD28 AD29 AD30

AD31 CBE0CBE1CBE2CBE3DEVSELFRAMEGNTIRDYPAR REQPRSTSTOPTRDYIDSEL SERRPERR-

ENUML_STAT

P_AD[0]

A10

P_AD[1]

C10

P_AD[2]

A11

P_AD[3]

B11

P_AD[4]

C11

P_AD[5]

A12

P_AD[6]

B12

P_AD[7]

B14

P_AD[8]

C13

P_AD[9]

D12

P_AD[10]

D13

P_AD[11]

D14

P_AD[12]

E12

P_AD[13]

E13

P_AD[14]

E14

P_AD[15]

J12

P_AD[16]

K14

P_AD[17]

K13

P_AD[18]

K12

P_AD[19]

L14

P_AD[20]

L13

P_AD[21]

L12

P_AD[22]

M14

P_AD[23]

N12

P_AD[24]

P12

P_AD[25]

M11

P_AD[26]

N11

P_AD[27]

P11

P_AD[28]

M10

P_AD[29]

N10

P_AD[30]

P10

P_AD[31]

A13

P_CBE0#

F12

P_CBE1#

J13

P_CBE2#

P14

P_CBE3#

H14

P_DEVSEL_L

J14

P_FRAME#

P_GNT#

H12

P_IRDY#

F13

P_PAR

P_REQ#

P_RST#

G14

P_STOP#

H13

P_TRDY#

N14

IDSEL

F14

P_SERR

G12

P_PERR#

P_CLK

ENUM#

B10

L_STAT

VDD

F11

VDD

G11

VDD

H11

VDD

J11

VDD

VSS

B13

VSS

C12

VSS

D10

VSS

D11

VSS

E11

VSS

K11

VSS

PCI 6152

VSS

L10

L11M3M12N2N13

VSS

S_AD[0] S_AD[1] S_AD[2] S_AD[3] S_AD[4] S_AD[5] S_AD[6] S_AD[7] S_AD[8]

S_AD[9] S_AD[10] S_AD[11] S_AD[12] S_AD[13] S_AD[14] S_AD[15] S_AD[16] S_AD[17] S_AD[18] S_AD[19] S_AD[20] S_AD[21] S_AD[22] S_AD[23] S_AD[24] S_AD[25] S_AD[26] S_AD[27] S_AD[28] S_AD[29] S_AD[30] S_AD[31] S_CBE0# S_CBE1# S_CBE2# S_CBE3#

S_DEVSEL_L

S_FRAME#

S_GNT0# S_GNT1# S_GNT2# S_GNT3#

S_IRDY# S_TRDY#

S_PAR S_REQ0# S_REQ1# S_REQ2# S_REQ3#

S_STOP#

S_RST# S_SERR# S_PERR#

S_CLK S_CLK0 S_CLK1 S_CLK2 S_CLK3 S_CLK4

PCLKRUN# SCLKRUN#

BPCCE

EEPCLK

EEPD

EJECT

GPIO0

GPIO1

GPIO2

GPIO3

GOZ_L

NAND_OUT

SVIO PVIO

B9 A9 C8 B8 A8 A7 B7 C7 B6 C6 A5 B5 C5 A4 C4 A3 F2 F1 G3 G2 G1 H1 H2 H3 J2 J3 K1 K3 L1 L2 L3 M1 A6 A2 F3 J1 D2 E2 N3 P3 M4 N4

E3 D1 B1 M2 N1 P1 P2

D3 P4 C2 C1

M5 P5 M6 N6 P6 M7

A14 B3

A1 G13 E1 C14

K2 N8 P13 M13

P7 N7

N5 P9

SAD0 SAD1 SAD2 SAD3 SAD4 SAD5 SAD6 SAD7 SAD8 SAD9 SAD10 SAD11 SAD12 SAD13 SAD14 SAD15 SAD16 SAD17 SAD18 SAD19 SAD20 SAD21 SAD22 SAD23 SAD24 SAD25 SAD26 SAD27 SAD28 SAD29 SAD30

SAD31 SCBE0SCBE1SCBE2SCBE3SDEVSELSFRAMESGNT0SGNT1SGNT2SGNT3-

SIRDYSTRDYSPAR SREQ0SREQ1SREQ2SREQ3-

SSTOPSPRSTSSERRSPERR-

PCLKRUNSCLKRUN-

BPCCE

EJECT

GPIO0 GPIO1 GPIO2 GPIO3

GOZ_L NAND_OUT

SVIO

PVIO

SAD[31:0]

SCBE0SCBE1SCBE2SCBE3SDEVSELSFRAMESGNT0SGNT1SGNT2SGNT3-

SIRDYSTRDYSPAR SREQ0SREQ1SREQ2SREQ3-

SSTOP-

SSERRSPERR-

HSCLK0 HSCLK1 HSCLK2 HSCLK3 HSCLK4

EJECT

SCLK

HSCLK0 HSCLK1 HSCLK2 HSCLK3

HSCLK4

R28

300 ohm

SFRAMESIRDYSTRDYSSTOPSDEVSEL-

SSERRSPERR-

SREQ0SREQ1SREQ2SREQ3-

BPCCE

C29

10pf

+3V

R19

300 ohm

EEPCLK

EEPD

R17

10k

SPRST-

R27

300 ohm

+3V

R1310k

R1410k

R1510k

R1610k

R2010k

R2110k

R2210k

R2310k

R2410k

R2510k

R2610k

+3V

R18

10k

GOZ_L

PCLK

HSCLK0

HSCLK1

HSCLK2

HSCLK3

HSCLK4

VCC

R29

10k

VCC

WC*

SCL

SDA

IS24C02

EEPROM is optional

ENUM-

PCLK

A0 A1 A2

GND

1 2 3 4

+3V

R48 10 ohm1 2

R49 10 ohm1 2

R50 10 ohm1 2

R51 10 ohm1 2

R52 10 ohm1 2

R53 10 ohm1 2

SAD24

SAD25

SAD26

SAD27

R60 10k

SPCLK0

SPCLK1

SPCLK2

SPCLK3

SCLK

THIS IS AN UNVERIFIED EXAMPLE PLEASE CHECK FOR POSSIBLE MISTAKES PLX DOES NOT ASSUME ANY RESPONSIBILITY OR LIABILITY OUT OF THIS APPLICATION

Title

Size Document Number Rev

Date: Sheet of

R54

10 ohm R55

1 2

10 ohm R56

1 2

10 ohm R57

1 2

10 ohm

HPCLK

SPCLK0

SPCLK1

SPCLK2

SPCLK3

PLX Technology, Inc.

PCI 6152 DEMO BOARD

SIDSEL0

SIDSEL1

SIDSEL2

SIDSEL3

HPCLK

36Monday, February 26, 2001
