PLUS Vision U2-1130 User Manual

USER’S MANUAL

U2-1130/U2-1110

DATA PROJECTOR

D

O

–

W

N

S

U

E

+

P

L

E

C

T

M

E

N

U

E

N

S

T

T

E

A

R

T

U

S

P

O

W

E

R

M

O

U

S

E

R

G

B

IN

P

C

A

U

D

IO

S

-V

ID

E

O

V

ID

E

O

A

U

D

L

/

IO

M

O

N

O

R

English
Français

U2-1130

U2-1110*

Deutsch

Italiano

Español

DOWN

–

S

U

E

+

P

L

E

C

T

M

E

N

U

E

N

S

T

T

E

A

R

T

U

S

P

O

W

E

R

M

O

U

S

E

R

G

B

I

N

P

C

A

U

D

I

O

S

-

V

I

D

E

O

V

I

D

E

O

A

U

D

L

/

I

M

O

O

N

O

R

* The U2-1130 is used for illustration purposes

in this manual unless otherwise specified.

Note:

This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be required
to correct the interference at his own expense.

PLUS CORPORATION

IMPORTANT

DMDTM is a trademark of Texas Instruments Inc.

Windows 98, Windows 95, and Windows 3.1 are registered trademarks in the
United States and other countries of Microsoft Corporation.
IBM is a registered trademark of International Business Machines Corporation.
Macintosh and MAC are trademarks of Apple Computer Inc.
Other names of companies and products mentioned are trademarks and registered
trademarks of the respective companies.

TM

, ® and © marks are not used in this document.

USER’S MANUAL

U2-1130/U2-1110

English

IMPORTANT SAFETY INFORMATION

Precautions

Please read this manual carefully before using your PLUS U2-1130/U2-1110 Data Projector and keep the manual handy for
future reference.

Your serial number is located next to the main power switch on the back of the unit. Record it here:

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PLUS SERV I CE P E R S ONNEL.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EX­POSE THIS UNIT TO RAIN OR MOISTURE. DO
NOT USE THIS UNIT’S GROUNDED PLUG
WITH AN EXTENSION CORD OR IN AN OUT­LET UNLESS ALL THREE PRONGS CAN BE
FULLY INSERTED. DO NOT OPEN THE CABI­NET. THERE ARE HIGH-VOLTAGE COMPO­NENTS INSIDE. ALL SERVICING MUST BE
DONE BY QUALIFIED PLUS SERVICE PER­SONNEL.

DOC Compliance Notice

This Class A digital apparatus complies with Canadian ICES-003.

Important Safeguards

RF Interference

WARNING

The Federal Communications Commission does not allow
any modifications or changes to the unit EXCEPT those
specified by PLUS Technologies in this manual. Failure to
comply with this government regulation could void your
right to operate this equipment.

This equipment has been tested and found to comply with
the limits for a Class A digital de vice, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required
to correct the interference at his own expense.

Warning

This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.

These safety instructions are to ensure the long life of the unit and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

• For best results, use the unit in a darkened room.

• Place the unit on a flat, level surface in a dry area away from dust
and moisture.

• Do not place the unit in direct sunlight, near heaters or heat
radiating appliances.

• Exposure to direct sunlight, smoke or steam can harm internal
components.

• Handle the unit carefully. Dropping or jarring can damage inter­nal components.

• Do not place heavy objects on top of the unit.

• If installing the unit on the ceiling:
– The ceiling must be strong enough to support the unit and the

installation must be in accordance with any local building
codes.

– The unit must be installed by qualified PLUS service person-

nel.

Power Supply

• The unit is designed to operate on a power supply of 100 to 120
and 220 to 240 V 50/60 Hz AC. Ensure that your power supply
fits these requirements before attempting to use the unit.

• For PLUGGABLE EQUIPMENT, the socket-outlet shall be
installed near the equipment and shall be accessible.

• Handle the power cable carefully and avoid excessi ve bending. A
damaged cord can cause electric shock or fire.

• Disconnect the power cable (mains lead) from the power outlet
after using the unit.

Before disconnecting the power cable, make sure that the
POWER indicator lights in amber (not in green).

E – 2

Table of contents

Cleaning

• Disconnect the power cable (mains lead) from the unit.

• Clean the cabinet of the unit periodically with a damp cloth. If

heavily soiled, use a mild detergent. Never use strong detergents
or solvents such as alcohol or thinner.

• Use a blower or lens paper to clean the lens, and be careful not to
scratch or mar the lens.

• Clean the ventilation slots and speaker grills on the unit
periodically using a vacuum cleaner . If accumulated dust b locks
the ventilation slots, the unit will overheat, which may cause the
unit to malfunction.

Use a soft brush attachment when using the vacuum cleaner. Do
not use a hard attachment, such as a crevice tool, to prevent the
damage to the unit.

Lamp Replacement

• Be sure to replace the lamp when the Status indicator comes on.
If you continue to use the lamp after 1000 hours of usage, the
lamp will turn off.

Fire and Shock Precautions

• Ensure that there is sufficient ventilation and that vents are
unobstructed to prevent the buildup of heat inside the unit. Allow
at least 10 cm (3 inches) of space between the unit and walls.

• Prevent foreign objects such as paper clips and bits of paper from
falling into the unit. Do not attempt to retrieve any objects that
fell into the unit. Do not insert any metal objects such as a wire or
screwdriver into the unit. If something should fall into the unit,
immediately disconnect the power cable from the unit and have
the object removed by a qualified PLUS service person.

• Do not place any liquids on top of the unit.

• Do not look into the lens while the unit is on. Serious damage
to your eyes could result.

Carrying around

When carrying the unit around, please use the carrying case that
comes with it and, to protect the lens from scratches, always attach
the lens cap. Also, do not subject the unit to strong mechanical
shock.

Caution labels on bottom of the remote
controller

AVOID EXPOSURE

-LASER

RADIATION IS EMITTED

FROM THIS APERTURE

REMOTERADIACION LASER

CONTROL

MODEL:PRODUCTO LASER CLASSE 2

PLUS

CORPORATION

CAUTION

LASER RADIATION-

DO NOT STARE INTO BEAM

WAVE LENGTH:650nm

MAX OUTPUT:1mW

CLASS II LASER PRODUCT

NO MIRE AL RAYO
LASER-STRAHLUNG U2-870R

NICHT IN DEN STRAHL
BLICKEN! LASER KLASSE 2
RAYCNNEMENT LASER NE PAS
REGARDER DANS LE FAISCEAU
APPAREIL A LASER DE CLASSSE 2

EN60825-1:1994+A11:1996

IMPORTANT SAFETY INFORMATION ................................... 2

Table of contents ........................................................................... 3

Basic information and preparations ........ 4

Features ......................................................................................... 4

Checking the supplied accessories ............................................... 4

Preparing the remote control ........................................................ 5

Parts and controls .......................................................................... 6

Installation..................................................................................... 9

Connections ............................................ 11

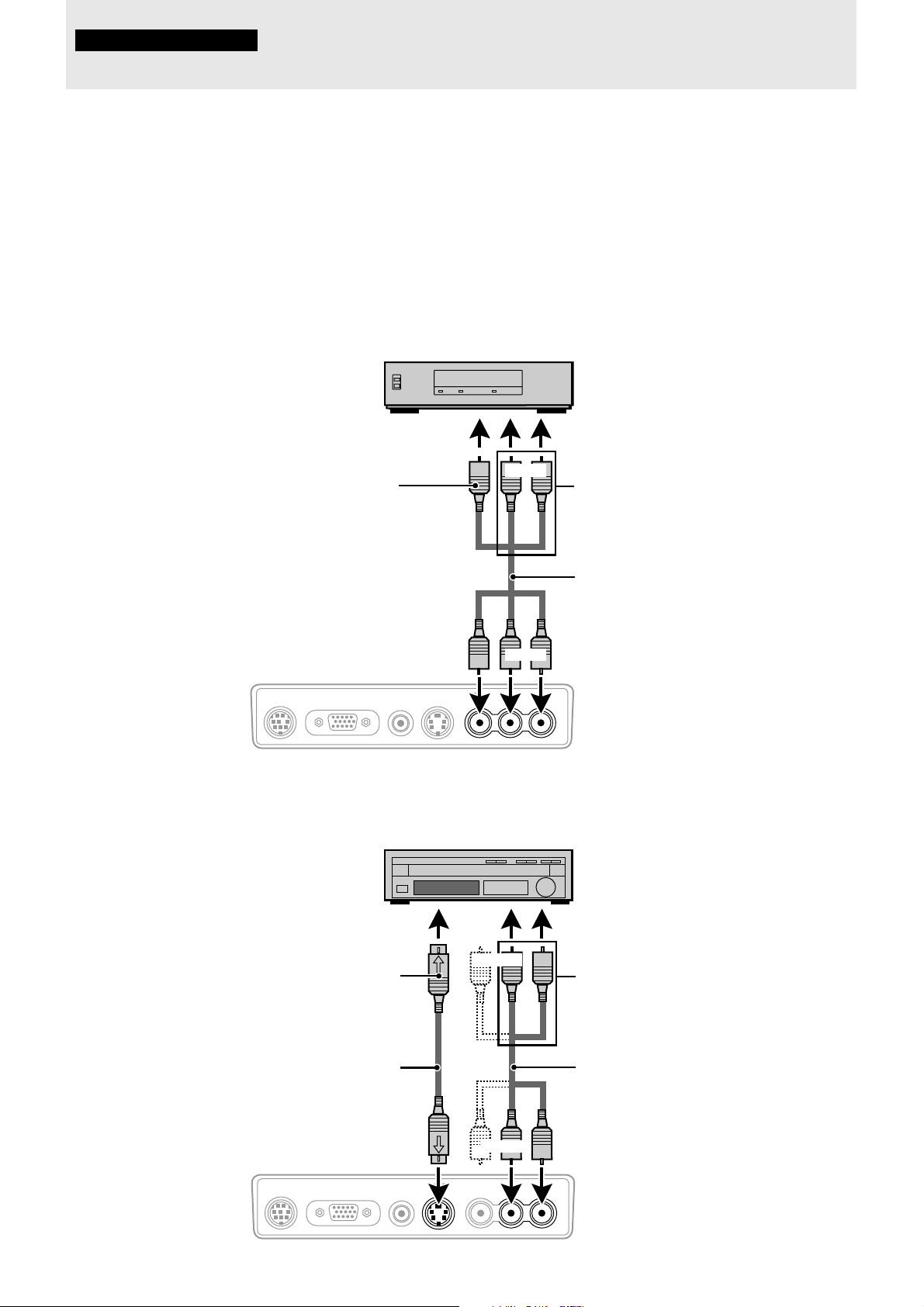

Connecting video equipment ...................................................... 11

Connecting a PC or Macintosh ................................................... 12

Using the remote control as a computer mouse

–Wireless mouse function........................................................... 14

Operation ................................................. 15

Using the unit .............................................................................. 15

Various functions while using the unit ....................................... 19

Menu operation....................................... 22

Menu structure ............................................................................ 22

Basic operation (Selecting the input source).............................. 23

Correcting the keystoning effect................................................. 24

Selecting a projection type ......................................................... 24

Selecting a menu language ......................................................... 24

Selecting the color system .......................................................... 24

Selecting the pointer type ........................................................... 25

Adjusting the volume .................................................................. 25

Selecting the background............................................................ 25

Adjusting the projected image from the computer .................... 26

Adjusting the picture elements ................................................... 28

Selecting t h e p i c t u r e type ........................................................... 28

Activating the power saving function......................................... 29

Quick-starting the unit ................................................................ 29

Activating the on-screen function............................................... 29

Checking hours of lamp usage.................................................... 30

Resetting to the factory settings ................................................. 30

Others ....................................................... 31

Troubleshooting .......................................................................... 31

When the STATUS indicator lights or flashes ........................... 32

Replacing the lamp cartridge ...................................................... 33

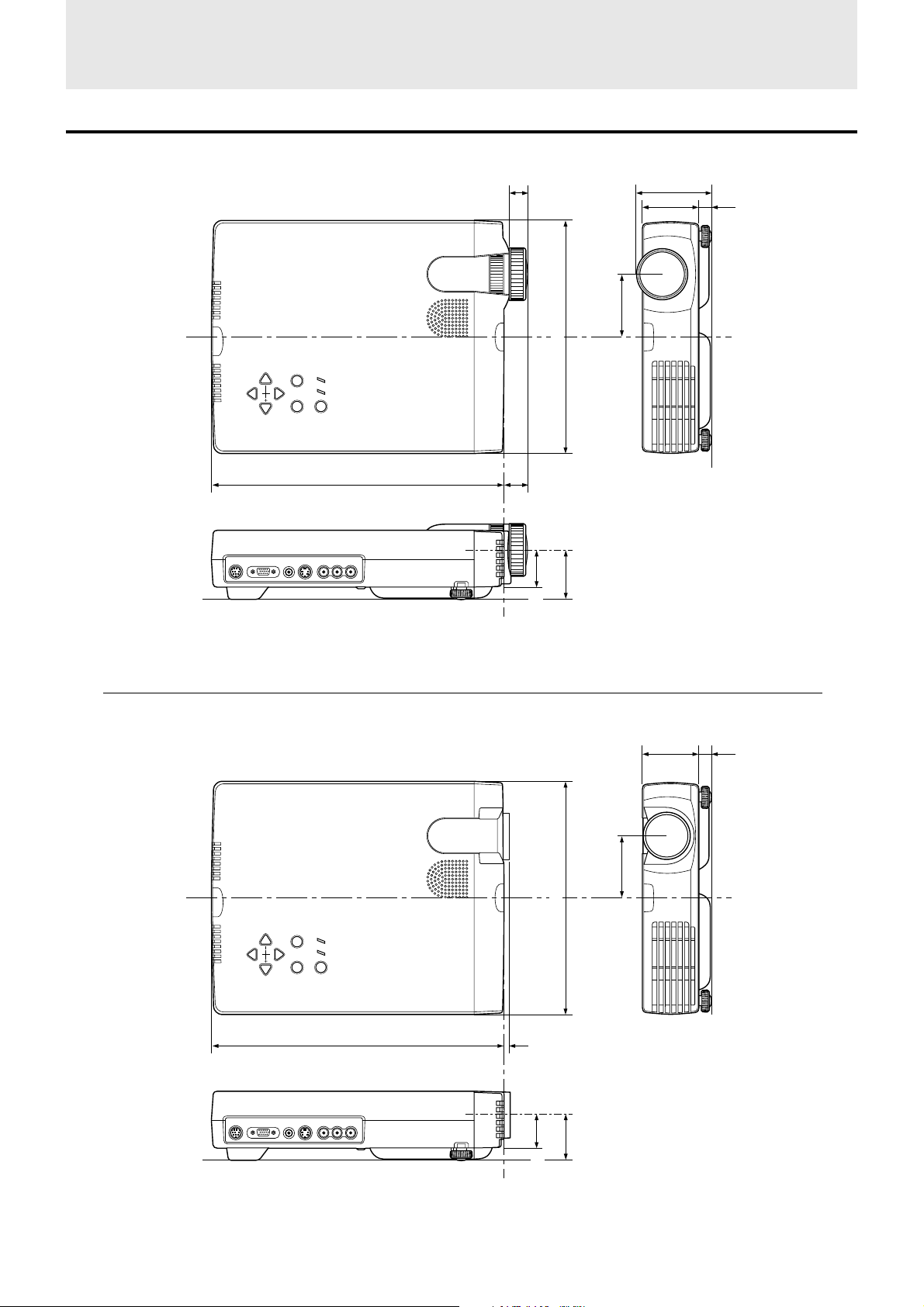

Specifications .............................................................................. 34

E – 3

Basic information and preparations

Checking the

Features

Congratulations On Your Purchase Of The U2­1130/U2-1110 Data Projector

The U2-1130/U2-1110 is one of the very most spectacular data
projectors available today. The unit enables you to project precise
images up to 300 inches across (measured diagonally) from your
PC or Macintosh computer (desktop or notebook), VCR, document
camera, laser disc player, DVD player, etc.

The unit can be placed on a tabletop or cart, or permanently
mounted on the ceiling*. The unit can also be used to project
images from behind the screen.

* Installing the unit on the ceiling must be done by authorized PLUS

technicians. Consult your dealer for more information.

The other main features you’ll enjoy

• Compatible with following various color systems:

– NTSC (U.S. and Canada standard)
– PAL (Western Europe standard)
– SECAM (France and Eastern Europe standard)
– NTSC4.43 (Middle East standard)

• (U2-1130)
Superior brightness of 1300 ANSI lumens, the size of an A4
size/letter size piece of paper, and weighing only 2.6 kilo­grams/5.7 lbs.

(U2-1110)
Superior brightness of 1100 ANSI lumens, the size of an A4
size/letter size piece of paper, and weighing only 2.5 kilo­grams/5.6 lbs.

Using TI’s Digital Mirror Device (DMD) and our own optical
design we have developed a geometric effect that increases the
light usage efficiency. By increasing the light usage efficiency we
can better reproduce the three basic colors (RGB) required for
color reproduction on a single DMD. This means superior bright­ness, smaller size, and lighter weight.

• Sharp, clear images

There is no RGB color separation, and the spaces between the
individual pixels are not noticeable. That means sharp and clear
reproduction of small characters and figures. Take a closer look
and notice the difference in quality!

• Outstanding sharp, clear, 3D like images with vivid colors
when reproducing DVD video and other high picture-quality
data/video sources

Faithful gray scale reproduction makes for more natural image
displays. DVD and other high quality image sources bring out the
true display capacity of the unit.

• Screen not distorted to a trapezoid (keystoning) when pro­jecting to the height of the line of vision

Because the projection position is already set to the height of the
line of vision, there is no keystoning effect.

Even when projecting above or under the height of the line of
vision, image distortion (if any) can be adjusted using the key­stone correction function.

• (U2-1130, U2-1110)
Fully compatible with true XGA; support for SXGA using
advanced intelligent compression technology

The advanced intelligent compression technology enables these
projectors to present clear compression SXGA images without any
line omission.

• A remote control that can operate the PC or Macintosh

The supplied remote control both operates the unit and acts as a
wireless mouse control to operate the PC or Macintosh con­nected to the unit.

• The compact and easy to carry cabinet with its contemporary
design complements any office, board room, or auditorium.

supplied accessories

Make sure your box contains everything listed below. If any
pieces are missing, contact your dealer.
Please save the original box and packing materials in case
you ever need to ship the unit.
The number of accessories is indicated in brackets.

For remote control

Remote control [1] Batteries (size AA/R6) [2]

Power cable (mains lead)
(1.8 m/5.9 ft.) [1]

The shape of the plug varies
depending on the region where
the unit is purchased.

When using the remote control as computer
mouse

Serial mouse cable [1]

Mouse adapter
(for IBM PS/2) [1]

For computer connection

PC/Macintosh multicable
(1 m/3.3 ft.) [1]

Mouse adapter
(for Macintosh) [1]

Monitor adapter
(for Macintosh) [1]

PC audio cable
(1m/3.3 ft.) [1]

E – 4

Preparing the
remote control

For video equipment connection

Audio video cable
(1 m/3.3 ft.) [1]

S-video cable
(1 m/3.3 ft.) [1]

Lens cap (attached to the lens of the unit) [1]

About the lens cap

The lens cap is fixed on the bottom of the
unit as shown in the illustration below.

Inserting the batteries

1 Press firmly and

slide the battery
cover off.

2 Insert the two

supplied batteries
(size AA/R6).
Ensure that the
polarities (+ and –)
of the batteries are
aligned correctly.

3 Slide the cover

back until it
snaps into place.

Carrying case [1]

How to use the carrying case

Packing the unit

USER’S MANUAL
(this manual) [1]

D
O

–

W
N

S

U

E

+

P

L
E
C
T

M
E
N

U
E
N

S

T

T

E

A

R

T

U
S
P
O
W
E

R

M
O
U
S
E

R
G
B
I
N

P
C
A
U
D
I
O

S

­V
I
D
E
O
V

I
D
E
O
A

U
D

L
/

I

M

O

O
N

O
R

D
O

–

W
N

S

U

E

+

P

L
E
C
T

M
E
N
U

E
N

S

T

T

E

A

R

T

U
S
P
O
W
E

R

M
O
U
S
E

R
G
B
I
N

P
C
A
U
D
I
O

S

­V
I
D
E
O
V

I
D
E
O
A

U
D

L
/

I

M

O

O
N

O
R

Packing the accesories

Quick Start Guide [1]

Notes

• If the remote control gets wet, wipe it dry immediately.

• Avoid excessive heat and humidity.

• If you will not be using the remote control for a long time, remove the

batteries.

• Do not mix new and old or different types of batteries.

• There are operations that can only be carried out by remote control.

Handle the remote control carefully.

Remote control effective range

The remote sensors are located on the front and back of the unit.
The controllable range is 50 degrees horizontally and 30 degrees

vertically relative to a line that is at a right angle to the remote
sensor. And the distance between the point of the remote control
and remote sensor must be shorter than four meters (13 feet).

D

O

–

W

N

S

U

E

+

P

L

E

C

T

M

E

N

U

E

N

S

T

T

E

A

R

T

U

S

P

O

W

E

US

R

E

RG

B INMO

PC AUDIO

S

-V
ID
EO

V
IDEO

A
UD

L
/M

IO

O
N

O

R

30˚

50˚

50˚

30˚

E – 5

Parts and controls

For operational instructions, refer to the page indicated in brackets.

Top, front and side panel view

Control panel

STATUS indicator [32]

STATUS

POWER

POWER indicator [15, 17]

POWER button [15, 17]

MENU

MENU button [23]

ENTER

ENTER button [23]

SELECT

UP

DOWN

SELECT UP/DOWN/+/– buttons [23]

Monaural speaker (1.0 W)
[11, 12]

Remote sensor [5]

D

O

–

W

N

S

U

E

+

P

L

E

C

T

M

E

N

U

E

N

T

E

R

M

O

U

S

E

R

G

B

IN

P

C

A

U

D

IO

S

-V

ID

E

O

V

ID

E

O

A

U

D

L

/M

IO

O

N

O

R

S

T

A

T

U

S

P

O

W

E

R

Zoom ring [16]

Focus ring [16]

Lens and Lens cap [5, 15]

Adjuster (left) [16]

Terminal Panel

MOUSE connector [14]

Adjuster button (right) [16]

PC AUDIO jack [12]

RGB IN connector [12]

VIDEO jack [11]

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

S-VIDEO jack [11]

Ventilation slots

Adjuster (right) [16]

AUDIO L/MONO/R jacks [11]

L/MONO R

E – 6

Rear and side panel view

Adjuster button (left) [16]

AC IN terminal [15]

Built-in Security Slot

Remote sensor [5]

STATUS

POWER

MENU

ENTER

SELECT

+

UP

N

W

–

O

D

Built-in security slot
[see below]

Ventilation slots

Rear adjuster [16]

This security slot supports the MicroSaver® Security
System. MicroSaver® is a registered trademark of
Kensington Microware Inc. The logo is trade­marked and owned by Kensington Microware Inc.

Bottom

Rear adjuster [16]

Lamp cover [33]Lamp cover securing screw [33]

Front adjusters [16]

Ventilation slots

(Continued on next page.)

E – 7

Parts and controls (continued)

Remote control

L-CLICK button [14, 23]

OFF ON

POWER

POWER OFF button [17, 30]

VIDEO

S-VIDEO

VIDEO button [15]

RGB

RGB button [15]

MENU

MENU button [23]

LASER

Laser pointer [19]
(Laser aperture)

Infrared transmitter [5]

LED

Lights when any button is pressed.

POWER ON button [15, 30]

S-VIDEO button [15]

LASER button [19]

POINTER button [20, 21]

MAGNIFY +/– button [20, 21]

–

R-CLICK

POINTER MUTE FREEZE

MAGNIFY KEYSTONE VOLUME

+

+

–

–

PLUS

+

Cursor key [14, 20, 21, 23]

R-CLICK button [14, 23]

FREEZE button [19]

MUTE button [19]

+

–

VOLUME +/– button [19]

KEYSTONE +/– button [16]

E – 8

Installation

The distance from the unit lens to the screen determines to the size of the projected image, therefore, you need to consider the place where you
set up the unit and screen before making connections. You also need to consider the screen size and height of the unit and screen as other
important factors.

Tip

A non-glossy wall may be used as a substitute for a screen.

WARNING

• Carrying the unit

Always carry the unit in the carrying case. Ensure that the power cable and any other cables connecting to video sources are disconnected
before moving the unit. When moving the unit or when it is not in use, cover the lens with the lens cap.

• Only use the unit on a solid flat level surface. If the unit falls to the ground, you may be injured and the unit may severely be damaged.

• Do not use the unit where temperatures vary greatly. The unit must be used at temperatures between 5°C (41°F) and 35°C (95°F).

• Do not expose the unit to moisture, dust, or smoke. This will harm the screen image.

• Ensure that you have adequate ventilation around the unit to allo w heat dissipation. Do not cover the vents on the bottom or the side of the
unit.

Positioning the unit

The projected image becomes larger as the distance between the unit and screen increases. The minimum image size is about 25 inches
diagonally at a distance of about 1.2 m (approx. 3.9 feet) and the maximum size is approx. 300 inches at a distance of 12.3 m (approx. 40.4
feet) from the screen. Use the following information when you fix the position of the unit.

Projecting distance and image size

Screen

11 to 15 degrees

(represented as “L” in the table and chart below)

• Horizontal projection position Lens centered left to right

• Vertical projection position (U2-1130)

Screen size Projection distance (L) Dimension (H) cm

Inches m / feet m / feet cm / inch

25 1.2 / 3.9 7.4 / 2.9
40 1.6 / 5.2 1.9 / 6.2 11.9 / 4.7
60 2.4 / 7.9 2.9 / 9.5 17.8 / 7.0

80 3.2 / 10.5 3.9 / 12.8 23.7 / 9.3
100 4.0 / 13.1 4.9 / 16.1 29.7 / 11.7
120 4.9 / 16.1 5.8 / 19.0 35.6 / 14.0
150 6.0 / 19.7 7.3 / 24.0 44.5 / 17.5
200 8.1 / 26.6 9.8 / 32.2 59.3 / 23.3
240 9.8 / 32.2 11.7 / 38.4 71.2 / 28.0
300 12.3 / 40.4 89.0 / 35.0

Projection distance

Wide (W)

Telephoto (T)

Both W & T

Screen

width

Screen
Height

Distance from center of lens to lower edge of screen
(represented as “H” in the table and chart below)

Screen size
(diagonal)

(Continued on next page.)

E – 9

Installation (continued)

• Projecting distance and image size

Projection distance

0123456789101112 (m)
0 3.3 6.6 9.8 13.1 16.4 19.7 23.0 26.2 29.5 32.8 36.1 39.4 (feet)

Tele. – Wide

250″ – 300″

Diagonal image size (inch)

200″ – 240″

100″ – 120″

80″ – 96″
60″ – 72″
40″ – 48″
25″ – 30″

4.9m / 16.1 feet

3.9m / 12.8 feet

2.9m / 9.5 feet

1.9m / 6.2 feet

1.2m

3.9 feet

12.3m / 40.4 feet

9.8m / 32.2 feet

Image center in
wide mode

Image center
in telephoto
mode

12.7˚ – 12.1˚

15.1˚ – 14.5˚

Center of lens

Height of the
projecting image

6m / 19.7 feet

5m / 16.4 feet
4m / 13.1 feet

3m / 9.8feet

2m / 6.6 feet

1m / 3.3 feet

0m / 0 feet

Using the ceiling mounting fixtures

When using the ceiling hanging fixtures, select “FRONT/CEILING” in “PROJECTION” of “SETTING MENU” (see pages 17 and 24).

Note

Installing the unit on the ceiling must be performed by qualified PLUS service personnel. Contact your PLUS dealer for more information. Never
attempt to install the unit yourself.

Projection distance

0123456 789101112 (m)

Height of the

projecting image

1m / 3.3 feet

2m / 6.6 feet

3m / 9.8feet

4m / 13.1 feet
5m / 16.4 feet

6m / 19.7 feet

0 3.3 6.6 9.8 13.1 16.4 19.7 23.0 26.2 29.5 32.8 36.1 39.4 (feet)

1.2m / 3.9 feet

(25 to 30″)

1.9m / 6.2 feet

2.9m / 9.5 feet

(40 to 48″)

3.9m / 12.8 feet

4.9m / 16.1 feet

(60 to 72″)

(80 to 96″)

9.8m / 32.2 feet

(100 to 120″)

12.3m / 40.4 feet

(200 to 240″)

(250 to 300″)

Center of lens
151 to 154 mm/ 0.5 feet

In telephoto mode
4,712 to 4,742 mm/

15.5 to 15.6 feet
In wide mode

5,613 to 5,660 mm/

18.4 to 18.6 feet

E – 10

Connections

Connecting video equipment

You can connect up to two pieces of video equipment to the unit following the illustrations below.

• You can switch the input source (picture) to VIDEO or S-VIDEO when you connect two pieces of equipment.
(The S-VIDEO connection provides more vivid color and higher resolution compared to the VIDEO connection.)

• You can output the sound of only one component through the unit speaker even when two components are connected.

Before connecting

• Turn off the components that are to be connected.

• The unit and computer will be turned on in “Using the unit” on page 15. Do not turn on either the computer or the unit until you read this
section.

• Please also refer to the manual of the video component to be connected.

Connection to the VIDEO jack
of the unit

To video output jack

The unit's terminal panel

DVD player, laser disc player,
VCR, document camera, etc.

(L) (R)

Yellow

Yellow

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

White

White

(L) (R)

L/MONO R

Red

To audio output jacks

Audio/video cable (supplied)*

Red

* If the equipment to be connected to the unit is a

monaural type, connect to the L/MONO jack of
the unit.

Connection to the S-VIDEO jack
of the unit

To S-video output jack

The unit's terminal panel

S-video cable
(supplied)

DVD player, laser disc player,
VCR, document camera, etc.

(L)

(R)

White Red

White

(L) (R)

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

L/MONO R

E – 11

To audio output jacks

Audio/video cable (supplied)*

Red

* If the equipment to be connected to the unit is a

monaural type, connect to the L/MONO jack of
the unit.

Connecting a PC or Macintosh

Connecting a PC or Macintosh to the unit will enable you to project your computer screen images for impressive presentations.

• The following display standards are supported:

VGA 640×480 for graphics SuperVGA 800×600
VGA 640×350 for graphics XGA 1024×768
VGA 720×350 for text Macintosh at 640×480
VGA 640×400 for graphics Macintosh at 832×624
VGA 720×400 for text Macintosh at 1024×768

• A PC, Macintosh, or computer equipped with an XGA adapter or compatible graphics adapter can easily be connected.

• If your PC does not support XGA you will need to install an XGA graphics board. Consult your computer's owner's manual for your XGA

configuration. If you need to install a new board, refer to the manual supplied with your new graphics board for installation instructions.

Notes

• Refer to the owner's manual supplied with your computer for more information about the video output requirements of the computer and any special

identification or configuring required by the projector image and monitor.

• Some Macintosh PowerBooks may need to set the mirroring to off to output 1024 × 768 dot signals. Please consult your PowerBook manual or

computer dealer for details.

Before connecting

• Turn off the computer that is to be connected.

• The unit and computer will be turned on in “Using the unit” on page 15. Do not turn on either the computer or the unit until you read this

section.

• Please also refer to the manual of the computer to be connected.

Mini D-Sub
15-pin
connector

IBM PC/AT compatible machine or
Macintosh with Mini D-Sub 15-pin
connector

To PC’s audio jack

Monitor adapter for
Macintosh

You may need to
change the DIP switch
setting depending on
the machine to be
connected. See next
page.

PC/Macintosh multicable
(supplied)

Plug the cable connector
into the RGB IN connector
securely and tighten the
screws.

Macintosh desktop computer

Mini D-Sub
15-pin
connector

To Macintosh's audio jack

Mini D-Sub 15-pin connector

PC audio cable
(supplied)*

PC/Macintosh multicable
(supplied)

* When VIDEO or S-VIDEO is selected as the input source,

the sound from the AUDIO L/MONO /R jacks will be
output.

When RGB is selected as the input source, the sound from
the PC AUDIO jack will be output.

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

L/MONO R

The unit's
terminal panel

E – 12

Note on the PowerBook connection

Depending on the model of your PowerBook, the additional Apple video cable ada pter may be required with the above connection.

Video cable adapter

Modifying the DIP switch setting (for Macintosh)

Modify the DIP switch setting according to the DIP switch setting table below.

DIP switch setting (● = ON)

MONITOR RESOLUTION 123456

MULTIPLE SCAN 21 ●● ●
MULTIPLE SCAN 17 ●● ●
MULTIPLE SCAN 16 ●● ●●

VGA/S-VGA ●●
21″ COLOR 1152×870 ●●●●
19″ COLOR 1024×768 ●●
16″ COLOR 832×624 ●●
13″ COLOR 640×480 ●●

Monitor adapter
(supplied)

Mini D-Sub 15-pin connector
(supplied)

To the Data Projector

Inch 13

ON

123456

MULTIPLE SCAN 17

ON

123456

VGA/S-VGA/XGA/SXGA

ON

123456

E – 13

Using the remote control as a computer
mouse – Wireless mouse function

The supplied remote control enables you to operate the computer’s mouse functions by connecting the computer to the MOUSE connector of
the unit. It is a great way to control your computer-generated presentations.

How does the remote control operate the computer?

• The cursor key on the remote control operates the computer mouse functions.

• If a computer running Windows is connected, the L-CLICK button on the remote control operates as the computer mouse left click button

and the R-CLICK button as the computer mouse right click button.

• If a Macintosh computer is connected, the L-CLICK and R-CLICK buttons operate in the same way as the computer mouse click button.

• While the menu is displayed on the screen (see page 22, 23), the cursor key , L-CLICK and R-CLICK buttons will operate to control the menu.

Connecting the computer to the MOUSE connector of the unit

Before connecting

• Turn off the computer, then remove the current mouse.

• The unit and computer will be turned on as described in “Using the unit” on page 15. Do not turn on either the computer or the unit until you

read that section.

• Please also refer to the manual of the computer to be connected.

How to connect to the IBM PC/AT
computer

Use the supplied serial mouse cable to connect
the MOUSE connector of the unit and the 9-pin
serial port (COM1/COM2/COM3/COM4) of
the computer.

How to connect to the IBM PS/2 or
Macintosh computer

Use the supplied serial mouse cable and mouse
adapter (for IBM PS/2 or Macintosh).

1 Connect the serial mouse cable and mouse

adapter.

2 Connect the other end of the serial mouse

cable to the MOUSE connector of the unit.

3 Connect the other end of the mouse adapter

to the mouse port of the computer.

Serial mouse cable (supplied)

To the MOUSE connector

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

To the MOUSE connector

Serial mouse cable
(supplied)

9-pin serial port

L/MONO R

IBM PC/AT

IBM PS/2 or Macintosh

Mouse adapter for IBM PS/2 (supplied) or
Mouse adapter for Macintosh (supplied)

E – 14

Operation

Using the unit

Before starting

• Remove the lens cap from the lens. Please keep it because it must
be replaced after use.

• Don’t use the unit in a bright room and don’t expose the screen to
direct sunlight or other strong light sources.

1 Connect the supplied power cable to the

unit, then to the wall outlet (the mains).

The POWER indicator on top of the unit lights in
amber.

STATUS

Lights in amber
(Standby)

Power cable
(supplied)

POWER

S

U

T

A

T

S

1

R

E

W

O

P

R

E

T

N

E

U

N

E

M

T

C

E

L

P

+

E

U

S

N

W

–

O

D

2

3 T urn on the connected source (computer,

VCR, DVD player, etc.).

If you use a video component, start playback for
screen/image adjustment.

4 Press either VIDEO, S-VIDEO, or RGB to

select the input source.

You can also select the input source with the
menu operation (see page 23).

OFF ONPOWERPOWER

VIDEO

S-VIDEO

RGB

Notes

• If the blue or black screen (the background type differs
depending on the “BACKGROUND” setting. See page 25.)
is projected, check the following:

– Is the source properly connected to the unit?
– Is the source component or computer turned on?
– Are the video signals coming to the unit?

• The video resolution of the connected computer can be
changed. See page 18.

2 Press POWER ON on the remote control,

or POWER on top of the unit, to turn on
the unit.

The POWER indicator on top of the unit turns to
green and starts flashing.

It takes one minute for the unit to be ready f or use.
Wait until the indicator stops flashing and lights
steadily in green.

POWER

OFF ONPOWERPOWER

VIDEO

S-VIDEO

RGB

Note

While the POWER indicator is flashing, the unit doesn’t turn
off even if you press POWER OFF on the remote control, or
POWER on the unit.

Tip

If you set “ A UT O START” to “ON” in the menu (see page 29),
the unit will turn on automatically after connecting the power
cable in step 1.

Green light flashes
(About one minute)

↓

Then lights steadily
in green

5 Adjust the position and height of the unit.

Move the unit to the position where the projected
image is horizontally centered to the screen.

• When the projected image is offset

horizontally

Adjust the position of the unit so that the unit is
square to the screen.

View from the top

• When the pr ojected image is offset ver -

tically

Adjust the height balance of the unit with the
adjusters. See next page.

Side view

(Continued on next page.)

Screen

Screen

E – 15

Using the unit (continued)

Using the adjusters to adjust the height balance

There are two front adjusters and one rear adjuster.

1 If you need to lower the position of the projected

image, pull out the leg of the rear adjuster.

2 Hold the front sides of the unit, then adjust the

height of the projected image.

While adjusting the height, the rear adjuster should remain
on the table.

3 Press the left and right buttons by the front ad-

justers at the same time to loosen the adjuster
legs.

The front adjuster legs will loosen and be extended.

4 Release the buttons to fix the position of the front

adjuster legs.

5 To fine-adjust the height and balance, turn each

foot of the front adjuster legs.

D

O

–

W

N

SELECT

UP

+

MENU

ENTER

STATUS

POWER

M

2

O

U

SE

R

G

B

IN

PC

A

U

D

IO

S

-V

ID

EO

V

ID

EO

AU

DI

L

/
M

O

O

N

O

R

Adjusting the distorted picture

The upper distortion of the picture will be corrected as you see
the illustration below.

The menu screen shape is not changed by the keystone
correction even when displayed.

→←

7 Adjust the image size with the zoom ring,

then adjust the focus with the focus ring.

Zoom ring

Down

1

Up

3

4

Up

Down

5

6 (If the vertical offset cannot be adjusted

completely with the adjusters)
Press KEYSTONE + or – to correct the

offset (keystoning) image.

You can also correct the keystoning effect with
the menu operation (see page 24).

MAGNIFY KEYSTONE VOLUME

+

+

+

Focus ring

8 Change the unit setting to suit the

method and source selected in step 4.

The following settings can be made using the
menu operation.

The menu can be displayed in English, Deutsch,
Français, Italiano, Español, Svenska, or .
(The standard setting is English.) See page 24.

• For basic menu operation, see page 23.

• To see an overview of the menu structure, see

page 22.

• Select the type of projection

If the projected image is horizontally reversed
or upside down, change the projection type.

See page 24.

• When the input source is VIDEO or S-

VIDEO

Select the color system. See page 24.

–

–

–

PLUS

Note

The maximum correction value is 29° including the optical
correction value.

• When the input source is RGB

Adjust the projected image from the computer.
The resolution most suitable for the incoming

signals is automatically selected.
However, if any vertical banding, noise, dot

interference, or crosstalk appears on the
screen, manually adjust “PICTURE ADJ ,” then
“FINE PICTURE” using the menus. See page

27.

E – 16

The horizontal and vertical positions of the
image can also be adjusted manually. See
page 27.

If you have set “A UT O MODE” to “OFF” to carry
out the above described adjustments (see
page 27 for details), you can choose to project
the image at the original size of the incoming
signal resolution. (Normally, the image is
enlarged or reduced to the most suitable size
automatically.) See page 27.

After using the unit

1 Press POWER OFF on the remote control,

or POWER on the unit, for two to three
seconds.

When you have turned off the unit, the POWER
indicator will start flashing then turn to amber in
one minute.

Never disconnect the power cable while the
POWER indicator is flashing.

9 Adjust the picture elements (see page

28), then select the picture type
according to the video content (see page

28).

10

Start using the unit.

The following functions are available while using
the unit:

• Adjusting the volume of the unit's speaker
(see pages 19 and 25),

• Using the laser pointer (see page 19),

• T urning off the ima ge and muting the sound

temporarily (see page 19),

• Freezing a moving picture (see page 19),

• Enlarging the picture (see page 20), and

• Enlarging the picture after selecting the

portion you wish to enlarge (see page 21).

Note

If “POWER OFF” is set to “ON” (see page 29), the image will
be turned off if the unit has been left unoperated for five
minutes with an RGB input source.

If the image is suddenly turned off while projecting a computer
image, the computer’s screen saver or power management
function may be activated.

POWER

OFF ONPOWERPOWER

VIDEO

S-VIDEO

RGB

Notes

• Neither POWER ON on the remote control nor POWER on
the unit operate while the POWER indicator is flashing.

• Wait at least one minute before turning on the unit again.
POWER ON on the remote control or POWER on the unit
may not operate if you try to turn on the unit again within one
minute after turning off the unit.

Green light flashes
(About one minute)

↓

Then lights steadily
in amber

2 After the POWER indicator stops flashing

and turns to amber , disconnect the po wer
cable from the wall outlet, then from the
unit.

The POWER indicator goes out.

Note

Hold the plug when disconnecting the power cable. Never pull
the cord.

E – 17

(Continued on next page.)

Using the unit (continued)

Changing the computer’s video
resolutions

Depending on your computer's graphics capability, you may be
able to select one of several resolutions. Generally a computer­either a PC or Macintosh- with 1 MB VRAM will generally run:

640 × 480 at 16.7 million colors (24 bit Truecolor)
800 × 600 at 65,000 colors.
1024 × 768 at 256 colors.
As the resolution increases, the number of colors you can run

decreases. With 2 MB VRAM a computer will generally run:
640 × 480 at 16.7 million colors (24 bit Truecolor).
800 × 600 at 16.7 million colors (24 bit Truecolor).
1024 × 768 at 65,000 colors.
1280 × 1024 at 256 colors.

Windows 98/Windows 95

There are two methods you can use to change your resolution.

Method 1
1 Move your cursor to the background image and click.

2 In the “Properties” menu, select “Settings.”
3 Change your resolution and click “OK.”
4 You may be asked to reboot for the changes to take effect,

or a message may appear saying that “Windows is about
to resize your display.” You’ll be asked if you want to
keep your settings. Select “Yes.”

Notebook computers and resolution
standards

The unit is designed to project industry standardized video such as
VESA (Video Electronics Standards Association) or XGA
(eXtended Graphics Array). Notebook computers do not use indus­try standards. They use whatever timing is necessary to match their
local LCD display. T he end result is typically not standard. By
turning off your notebook's display , the timing parameters are a bit
more like the real VESA or XGA signal.

Method 2
1 Click on your “My Computer” icon.

2 Open “Control Panel” and select “Display.”
3 Change your resolution and click “OK.” after the new

resolution is selected.

4 You may be asked to reboot for the changes to take effect,

or a message may appear saying that “Windows is about
to resize your display.” You’ll be asked if you want to
keep your settings. Select “Yes.”

Windows 3.1

1 Click on the “Main” icon and open “Control Panel.”
2 Select “Change System Settings” and click on “Option.”
3 Choose “Change Display Settings.”
4 Select the resolution you want.
5 Choose the current or desired drive.
6 Restart Windows for the changes to take effect.

Macintosh

1 Under the Apple menu, select “Control Panels” and open

“Monitors.”

2 Click and open “Options.”
3 Select your new resolution and click “OK.”

E – 18

Various functions while using the unit

OFF ONPOWER

VIDEO

S-VIDEO

RGB

MENU

–

POINTER MUTE FREEZE

MAGNIFY KEYSTONE VOL UME

+–+

PLUS

R-CLICK

LASER

LASER button

+

FREEZE button

+

–

–

MUTE button
VOLUME +/– button

Adjusting the volume of the unit's
speaker

Press VOLUME + to increase the volume
or – to decrease.

The volume can also be adjusted using the menu
(see page 25).

VOLUME

+

–

Using the laser pointer

Y ou can highlight the desired point on the screen with a beam of red
light.

Caution

• Do not look into the laser pointer while it is on, nor point the laser
beam at any other persons. This could result in serious eye damage or
blindness.

• Use of controls or adjustments or performance other than those
specified herein may result in hazardous radiation exposure.

Turning off the image and muting the
sound temporarily

Press MUTE.

The image turns off and the sound is muted at the
same time. To restore the picture and sound,
press the button again.

MUTE

Freezing a moving picture

You can capture the desired frame of a moving picture.

Press FREEZE.

A still image of the current frame is display ed. To
restore the present picture, press the button
again.

FREEZE

Press LASER.

The red light is on while pressing the button.
The light goes out when you release the button.

LASER

Tip

The still picture can also be enlarged (see pages 20 and 21).

(Continued on next page.)

E – 19

Various functions while using the unit(continued)

POWER

OFF ON

VIDEO

S-VIDEO

RGB

POINTER button

MAGNIFY button

MENU

–

POINTER MUTE FREEZE

MAGNIFY KEYSTONE VOLUME

+

–

PLUS

R-CLICK

LASER

+

Cursor key

+–+

–

Enlarging the picture

You can enlarge the picture up to four times the original size.

Press MAGNIFY +.

While the button is pressed the picture is en­larged until it becomes four times the original
size.

Release the button at the desired size.

MAGNIFY

+

–

Original size

Four times as large

as the original size

To move to the desired portion of the enlarged

1 Press POINTER.

The button lights in red. If you don’t proceed to
step 2 within ten seconds, the button goes off.

POINTER

POINTER

2 Press the desired portion of the cursor

key while POINTER is lit.

The available directions are indicated by the
eight triangle marks on the cursor key. The pic­ture will move in the direction of the mark you are
pressing.

Move upward

Move leftward

–

Move rightward

+

Note

The quality of the enlarged picture deteriorates compared to
the original size picture.

To reduce the size of the enlarged picture

Press MAGNIFY –.

While the button is pressed the picture is reduced
until it becomes the original size.

MAGNIFY

+

–

Enlarged size

Original size

Move downward

Note

The original size of the picture cannot be moved because the
whole image is fully displayed.

E – 20

OFF ON

VIDEO

RGB

MENU

–

POWER

S-VIDEO

LASER

+

Cursor key

3 Press MAGNIFY +.

While the button is pressed, the picture is
enlarged until it becomes four times the original
size.

MAGNIFY

+

R-CLICK

POINTER button

MAGNIFY button

POINTER MUTE FREEZE

MAGNIFY KEYSTONE VOL UME

+

–

–

PLUS

+–+

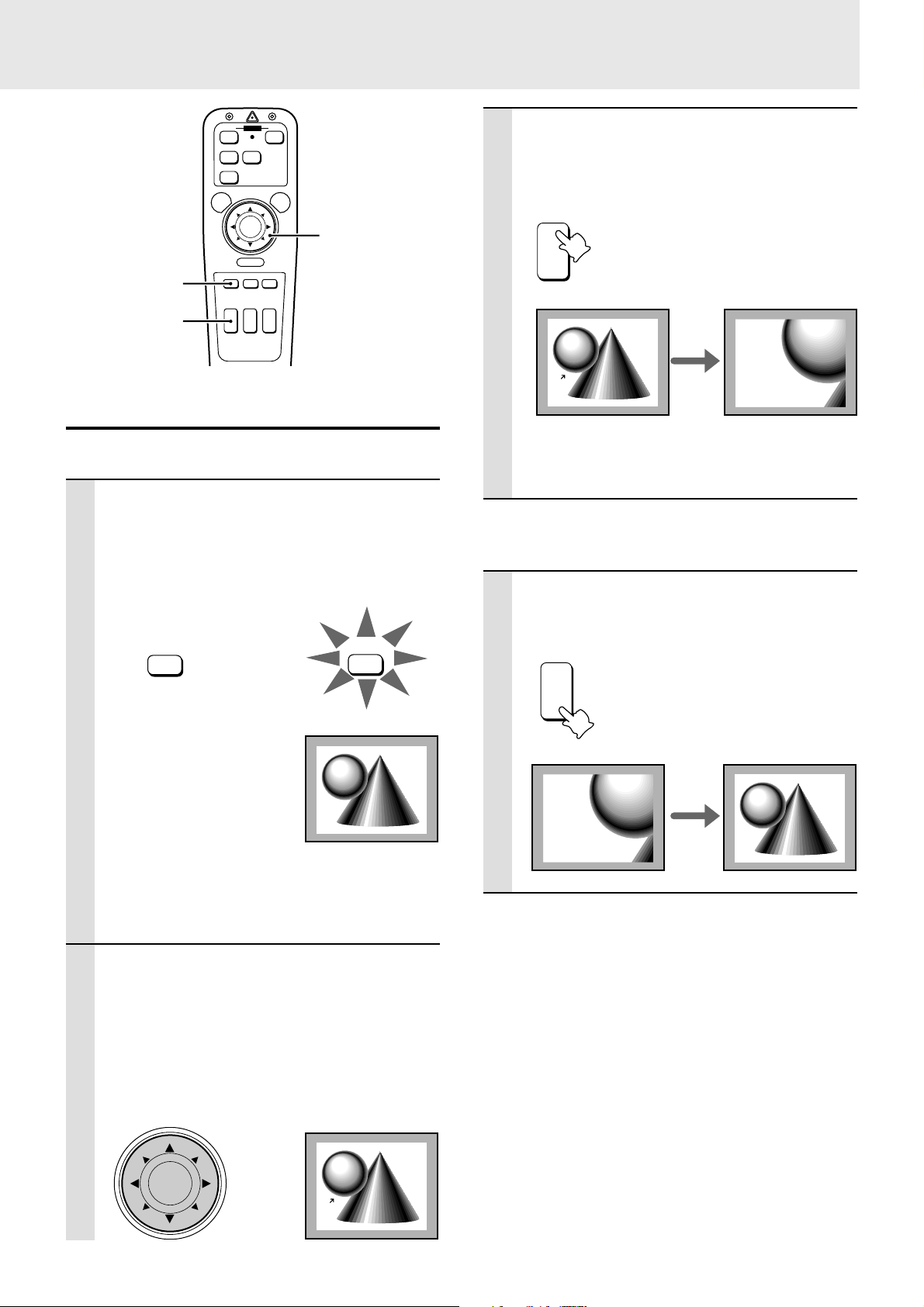

Enlarging the picture after selecting the
portion you wish to enlarge

After selecting the portion you wish to enlarge, you can enlarge the
picture up to four times the original size.

1 While the picture is projected at its

original size, press POINTER.

The button lights in red, then the pointer is dis­played on the screen.

If you don’t proceed to step 2 within ten seconds,
the button goes off.

POINTER

POINTER

Original size

–

Four times as large

Original size

as the original size

Note

The quality of the enlarged picture deteriorates compared to
the original size picture.

To reduce the size of the enlarged picture

Press MAGNIFY –.

While the button is pressed, the picture is
reduced until it becomes the original size.

MAGNIFY

+

–

Note

You can also display the pointer on the menu screen. See page

25.
You can select from among eight pointers using the menu. See

page 25.

2 Press the desired portion of the cursor

key to move the pointer while POINTER is
lit.

The available directions are indicated by the
eight triangle marks on the cursor key. The
pointer will move in the direction of the mark you
are pressing.

Original size

Enlarged size Original size

E – 21

Menu operation

Menu structure

For operational instructions, refer to the page indicated in brackets.

SOURCE MENU

IMAGE ADJ MENU

POWER MENU

SETTING MENU

(23)

(24)

(29)

(24)

VIDEO
AUTO

S-VIDEO
AUTO

RGB
AUTO

(23)

(23)

(23)

When the input source
is VIDEO or S-VIDEO

VOLUME
– +

IMAGE MODE
NORMAL

KEYSTONE
– +

BRIGHTNESS
– +

CONTRAST
– +

COLOR
– +

TINT
– +

SHARPNESS
– +

LAMP USAGE
0HOURS

AUTO START
OFF

POWER OFF
OFF

KEYSTONE SAVE
OFF

DISPLAY
ON

(25)

(28)

(24)

(28)

(28)

(28)

(28)

(28)

(30)

(29)

(29)

(24)

(29)

Note

The menu will not be displayed if the picture is
enlarged even slightly. In such a case, reduce the
picture size to normal before starting the menu
operation.

When the input source
is RGB

VOLUME
– +

IMAGE MODE
NORMAL

KEYSTONE
– +

BRIGHTNESS
– +

CONTRAST
– +

WHITE BALANCE

AUTO MODE
ON

The menu below is
displayed when “AUTO
MODE” is set to “Off.”

AUTO MODE
OFF

H POSITION
– +

V POSITION
– +

PICTURE ADJ
1160

FINE PICTURE
64

RESOLUTION
AUTO

(25)

(28)

(24)

(28)

(28)

(28)

(28)

(27)

(27)

(27)

(27)

(27)

(27)

BRIGHTNESS R
– +

BRIGHTNESS G
– +

BRIGHTNESS B
– +

CONTRAST R
– +

CONTRAST G
– +

CONTRAST B
– +

(28)

(28)

(28)

(28)

(28)

(28)

WHITE PICTURE
NORMAL

BACKGROUND
BLUEBACK

VIDEO STANDARD
AUTO

PROJECTION
FRONT / FLOOR

LANGUAGE
ENGLISH

POINTER
POINTER1

RESET
48KHz

(28)

(25)

(24)

(24)

(24)

(25)

(30)

E – 22

Basic operation (Selecting the input source)

R-CLICK

OFF ONPOWER

VIDEO

S-VIDEO

MENU button

RGB

MENU

–

LASER

+

L-CLICK button
(On bottom of
the remote
control)

Cursor key

R-CLICK

POINTER MUTE FREEZE

MAGNIFY VOLUME

KEYSTONE

+

+

+

–

–

–

PLUS

R-CLICK button

1 Press MENU.

The button lights in red and the main menu
appears on the screen.

If you don’t proceed to step 2 within ten seconds,
the button goes off.

MENU

Note

The menu will not be dis­played if the picture is en­larged even slightly. In
such a case, reduce the pic­ture size to normal before
starting the menu opera­tion.

MENU

SOURCE MENU

IMAGE ADJ MENU

POWER MENU

SETTING MENU

2 Press the cursor / key to select

“SOURCE MENU.”

–

+

SOURCE MENU

IMAGE ADJ MENU

POWER MENU

SETTING MENU

3 Press L-CLICK.

The source menu appears on the screen.

VIDEO
AUTO

S-VIDEO
AUTO

RGB
AUTO

4 Press the cursor / key to select the

desired input source.

VIDEO
AUTO

S-VIDEO

–

+

AUTO
RGB

AUTO

5 Press L-CLICK.

The source you’ve selected in step 4 is con­firmed, then the picture from the selected source
is projected on the screen.

6 Press R-CLICK to turn off the menu dis-

play.

Whenever you wish to turn off the menu display,
press the R-CLICK button.

Operating using the unit

The menu operation is explained using the remote control, how­ever, it can also be controlled using the unit operation buttons.

To operate using the unit, refer to the comparison table below.

STATUS

MENU

MENU button

SELECT

The remote control and unit button comparison table

Remote control buttons
MENU

The main menu appears on
the screen when you press
this button.

To tur n off any menu, press

R-CLICK.

Cursor / keys

Press either key to select the
menu item.

Cursor + / – keys

Press either key to choose
the setting or value of the
selected menu item.

L-CLICK

Press this button whenever
confirmation is required.

POWER

ENTER

ENTER button

UP

DOWN

SELECT
UP/DOWN/+/–
buttons

Unit operation buttons
MENU

The main menu appears on the
screen when you press this
button.

To turn off any menu, press
R-CLICK on the remote
control.

(You cannot turn off the
menu with the unit’s button.)

SELECT UP/DOWN

Press either button to select
the menu item.

SELECT + / –

Press either button to choose
the setting or value of the se­lected menu item.

ENTER

Press this button whenever
confirmation is required.

E – 23

Correcting the

Selecting a menu

keystoning effect

The keystone correction function can be used if the vertical offset
cannot be completely adjusted with the adjusters (see page 16).

The unit retains the correction value even if you select another input
source after keystoning unless you turn off the unit.

This correction can also be made with KEYSTONE +/– on the
remote control (see page 16).

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “IMAGE ADJ

MENU.”
3 Press L-CLICK to display the IMAGE ADJ MENU.
4 Press the cursor / keys to select “KEYSTONE.”
5 Press the cursor +/– keys to correct the offset image.

For more information, see page 16.

Saving the corrected value

The keystoning value returns to the standard settings after the
power of the unit is turned off. To keep the corrected value for the
next use of the unit, set “KEYSTONE SAVE” to “ON.”

1 After keystoning, press MENU to display the main menu.
2 Press the cursor / keys to select “POWER MENU.”
3 Press L-CLICK to display the POWER MENU.
4 Press the cursor / keys to select “KEYSTONE SAVE.”
5 Press the cursor + key to select “ON.”

language

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “LANGUAGE,” then

press the cursor + / – keys to select one of the following
languages:

• ENGLISH (English),

• DEUTSCH (German),

• FRANÇAIS (French),

• ITALIANO (Italiano),

• ESPAÑOL (Spanish),

• SVENSKA (Swedish), or

• (Japanese).

5 Press L-CLICK.

Selecting a
projection type

This reorients your image for your type of projection.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “PROJECTION.”
5 Press the cursor + / – keys to select the projection type

which suits the unit setup conditions.
The following four projection types can be selected:

• FRONT FLOOR (Normal),

• REAR CEILING (Upside down and horizontally re-

versed),

• REAR FLOOR (Horizontally rever sed), or

• FRONT CEILING (Upside down).

6 Press L-CLICK.

Selecting the
color system

The unit can be changed to the following color systems:

• NTSC 3.58

• PAL (except for the PAL-M and PAL-N systems)*

• SECAM

• NTSC 4.43

If your color system is NTSC 3.58 or PAL, select “AUTO” (factory
setting).

If your color system is SECAM or NTSC 4.43, select “SECAM” or
“4.43NTSC.”

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “VIDEO STAN-

DARD.”
5 Press the cursor +/– keys to select the color system.
6 Press L-CLICK to change the unit to the selected color

system.

* The unit cannot project the PAL-M

and PAL-N systems.

E – 24

Selecting the

Selecting the

pointer type

If you press POINTER on the remote control while the picture is
projected at its original size, the pointer is displayed on the screen
(see page 21).

You can select from among eight pointers.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “POINTER.”
5 Press the cursor +/– keys to select one of the following

eight pointer types.

6 Press L-CLICK to confirm the pointer type.

background

1 Press MENU to display the main menu.
2 Press the cursor / key to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / key to select “BACKGROUND.”
5 Press the cursor + / – key to select one of the following

background types:

• BLUEBACK or

• BLACKBACK.

6 Press L-CLICK.

Adjusting the
volume

The last adjusted volume will not be changed if you change the
input source from S-VIDEO to VIDEO, and vice versa. But the
volume for RGB is independently set.

The volume can also be adjusted with VOLUME +/– on the remote
control (see page 19).

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “IMAGE ADJ

MENU.”
3 Press L-CLICK to display the IMAGE ADJ MENU.
4 Press the cursor / keys to select “VOLUME,” then

press the cursor + / – keys to adjust the volume.

E – 25

Adjusting the projected image from
the computer

The unit selects the most suitable resolutions as shown in the “Timing Chart” below according to the incoming signals from the RGB IN
connector when “AUTO MODE” is set to “ON.” (See page 27). Howe v er , you may need manual adjustment depending on the computer. If you
have any vertical banding, noise, dot interference , or crosstalk on the projected picture, adjust the clock frequency with “PICTURE ADJ” then
the clock phase with “FINE PICTURE” (see page 27). You can also adjust the horizontal and vertical position of the image (see page 27).

When adjusting manually (when “AUTO MODE” is set to “OFF”), you can choose to project the image at the original size of the incoming
signal resolution (see page 27). (Normally, the image is enlarged or reduced to the most suitable size automatically.)

Timing Chart

Resolution H Sync. (kHz) V Sync. (Hz)

IBM PC/AT compatible machine 640 × 350 31.5 70.1

640 × 350 37.9 85.1
720 × 350 31.5 70.0
640 × 400 31.5 70.1
640 × 400 37.9 85.1
720 × 400 31.5 70.0
720 × 400 37.9 85.0
640 × 480 31.5 60.0
640 × 480 37.9 72.8
640 × 480 37.5 75.0
640 × 480 43.3 85.0
800 × 600 35.2 56.3
800 × 600 37.9 60.3
800 × 600 46.9 75.0
800 × 600 48.1 72.2
800 × 600 53.7 85.1
1024 × 768 48.4 60.0
1024 × 768 56.5 70.1
1024 × 768 58.1 72.0
1024 × 768 60.0 75.0
1024 × 768 68.7 85.0
1280 × 1024 64.0 60.0
1280 × 1024 80.0 75.0

Apple Macintosh 640 × 480 35.0 66.7

832 × 624 49.7 74.5
1024 × 768 60.2 74.9
1152 × 870 68.7 75.6
1280 × 1024 81.1 76.1

Sun 1152 × 900 61.8 66.0

1280 × 1024 74.9 69.9
1280 × 1024 81.1 76.1

SGI 1024 × 768 49.7 60.4

1280 × 1024 63.9 60.0
1152 × 900 71.7 76.1

HP 1280 × 1024 78.1 72.0

Note on AccuBlend

The resolution of the unit is 1024 × 768. Other resolution images (e.g. 1280 × 1024) are compressed into 1024 × 768 (AccuBlend). In such a case,
projected letters and lines might appear unevenly.

TM

E – 26

Adjusting the clock frequency (PICTURE
ADJ) and clock phase (FINE PICTURE)
manually

Adjusting the horizontal (H POSITION) and
vertical (V POSITION) position of the

When “AUTO MODE” is set to “ON,” the clock frequency and
clock phase will be adjusted automatically. However, if you need
any manual adjustment for these two items, you first need to set
“AUTO MODE” to “OFF” as indicated in the following steps.

Adjust the clock frequency to eliminate any vertical banding, then
the clock phase to reduce any video noise, dot interference, or cross
talk. (When the clock phase is not matched evenly, the image
appears to be shimmering.)

1 Setting the input source to “RGB”

Select the RGB input source (see page 15 or 23).

2 Setting “AUTO MODE” to “OFF” for manual ad-

justment

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “IMAGE ADJ

MENU.”
3 Press L-CLICK to display the IMAGE ADJ MENU.
4 Press the cursor / keys to select “AUTO MODE.”
5 Press the cursor – key to select “OFF,” then press L-

CLICK.

The AUTO MODE OFF menu appears.

3 Adjusting the clock frequency

1 Press the cursor / keys to select “PICTURE ADJ. ”
2 Press the cursor – key until the v ertical banding disap-

pears.

Press + to increase the frequency and – to decrease.

4 Adjusting the clock phase

1 Press the cursor / keys to select “FINE PICTURE.”
2 Press the cursor +/– keys until the video noise, dot

interference, and cross talk are reduced.

Press + to increase the phase and – to decrease the

phase.

1 Carry out steps 1 and 2 in the left column.
2 Press the cursor / keys to select “H POSITION.”
3 Press the cursor +/– keys to adjust the horizontal position.

Press + key to move the image right and – key to move it

left.
4 Press the cursor / keys to select “V POSITION.”
5 Press the cursor +/– keys to adjust the vertical position.

Press + keys to move the image up and – key to move it

down.

Adjusting the image size automatically/
Displaying the image at its original size

Normally the unit enlarges or reduces the image from the computer
to the most suitable size, however, you can choose to project the
image at the original size of the incoming signal resolution.

1 Carry out steps 1 and 2 in the left column.
2 Press the cursor / keys to select “RESOLUTION.”
3 Press the cursor +/– keys to select “AUTO” or “REAL

MODE.”

When adjusting the size of the image automatically, se-

lect “AUTO.”

When displaying the image at its original size, select

“REAL MODE.”
4 Press L-CLICK to confirm the setting in step 3.

If the image (and the menu) disappears while setting
the clock frequency or clock phase

Carry out the following steps.
1 Turn off the source connected to the RGB IN connector.

The incoming signals from the source go down and a blue or black
screen will be displayed. (The background type differs depending on

the “BACKGROUND” setting. See page 25.)
2 Carry out “Resetting to the factory settings” on page 30.
3 Turn on the source, then carry out “Adjusting the clock frequency and

clock phase manually” from the beginning.

When you have connected another computer

Set “AUTO MODE” to “ON” by pressing the cursor + key in step 2-5
above.

E – 27

Adjusting the

Selecting the

picture elements

The picture elements such as brightness, contrast, white balance,
and so on can be adjusted individually for each input source. The
adjustable items vary depending on the input source.

(The elements
marked with “
are adjustable.)

BRIGHTNESS
CONTRAST
COLOR –
TINT –
SHARPNESS –
WHITE BALANCE –

”

VIDEO/S-VIDEO RGB

1 Select the input source (see page 15 or 23).
2 Press MENU to display the main menu.
3 Press the cursor / keys to select “IMAGE ADJ

MENU.”
4 Press L-CLICK to display the IMAGE ADJ MENU.
5 Press the cursor / keys to select “BRIGHTNESS,” then

press the cursor +/– keys to adjust the brightness.
6 Press the cursor / keys to select “CONTRAST,” then

press the cursor +/– keys to adjust the contrast.

When the input source
is VIDEO or S-VIDEO

7 Press the cursor / keys

to select “COLOR,” then

press the cursor +/– keys

to adjust the color.
8 Press the cursor / keys

to select “TINT,” then

press the cursor +/– keys

to adjust the tint.

Note

The tint control doesn’t oper-

ate with a PAL or SECAM

source.

9 Press the cursor / keys

to select “SHARPNESS,”

then press the cursor +/–

keys to adjust the sharp-

ness.

Input source

When the input source
is RGB

7 Press the cursor / keys

to select “WHITE BAL­ANCE,” then press L-
CLICK.

The WHITE BALANCE
menu appears.

8 Press the cursor / keys

to select each item in the
WHITE BALANCE
menu, then press the cur­sor +/– keys to adjust the
item for the white color
balance.

picture type

Selecting the brightness or color oriented image
setting

The brightness oriented setting may be suitable for PC images and
the color oriented setting may be suitable for movie pictures. In this
way, you can focus on either brightness or color.

This setting is applied to all input sources regardless of the present
input source.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “WHITE PICTURE,”

then press the cursor +/– keys to select the white picture
mode.

The following two types can be selected:

• NORMAL to set the unit to the brightness oriented
setting or

• QUIET to reduce brightness for better color e xpression,

5 Press L-CLICK to confirm the setting.

Selecting the color preference

After selecting the brightness or color oriented image setting, you
can set the color preference individually for each input source
according to the video content and your preferences.

1 Select the input source (see page 15 or 23).
2 Press MENU to display the main menu.
3 Press the cursor / keys to select “IMAGE ADJ

MENU.”
4 Press L-CLICK to display the IMAGE ADJ MENU.
5 Press the cursor / keys to select “IMAGE MODE,”

then press the cursor +/– keys to select the gamma mode.

The following three types of gamma modes can be se-

lected according to your preferences:

• NORMAL,

• NATURAL 1, or

• NATURAL 2.

E – 28

Activating the power

Activating the on–

saving function

This function operates only with an RGB input source.
If there are no input signals from the RGB IN connector for more

than five minutes, the unit will automatically turn of f and enter the
standby mode.

1 Press MENU to display the main menu.
2 Press the cursor
3 Press L-CLICK to display the POWER MENU.
4 Press the cursor

press the cursor + key to select “ON” to activate the
power saving function.

To deactivate the function, set “POWER OFF” to “OFF”
by pressing the cursor – key.

/ keys to select “POWER MENU.”

/ keys to select “POWER OFF,” then

screen function

The factory setting of this function is “ON.”
When the function is activated, the source menu appears on the

screen in the following cases:

• The source menu appears for three seconds when you select the

input source with the remote control, and

• The source menu appears for approximately twenty seconds

when you turn on the unit.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “DISPLAY,” then

press the cursor + key to select “ON” to activate the on-

screen function.

To deactivate the function, set “DISPLAY” to “OFF” by

pressing the cursor – key.

Quick-starting
the unit

The unit can be turned on by only connecting the power cable (see
page 15) if you set “AUTO START” to “ON.” There is no need to
press POWER ON on the remote control or POWER on the unit
after “AUTO START” is activated to turn on the unit.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “POWER MENU.”
3 Press L-CLICK to display the POWER MENU.
4 Press the cursor / keys to select “AUTO START,” then

press the cursor + key to select “ON” to activate the
function.

T o deactivate the function, set “AUTO START” to “OFF”
by pressing the cursor – key.

E – 29

Checking hours
of lamp usage

Resetting to the
factory settings

The lamp cartridge must be replaced after 1000 hours of usage.
When 1000 hours have elapsed the STA TUS indicator will light in
red (see page 32). Periodically check the hours of lamp usage in the
menu so that you will have time to purchase a new lamp cartridge
before the old one burns out.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “POWER MENU.”
3 Press L-CLICK to display the POWER MENU.
4 Press the cursor / keys to select “LAMP USAGE.”

The lamp usage hours will be displayed.

Resetting the lamp usage hours to zero

You need to reset the lamp usage hours to zero after replacing the
lamp cartridge (see page 33).

1 Carry out the steps above.
2 Press POWER ON on the remote control for more than

ten seconds.
“LAMP USAGE” will be reset to zero and the STATUS

indicator will go off (see page 32).

If the unit doesn’t turn on because lamp
usage exceeds 1100 hours.

The unit is designed not to turn on after the lamp usage has
exceeded 1100 hours. (If the unit is in use, it will go off.) If this
happens you must replace the lamp cartridge with a new one
immediately. After replacing the lamp cartridge, you need to reset
the lamp usage hours to zero to enable you to turn on the unit.

The following items can be reset to the standard settings.

• H POSITION

• V POSITION

• PICTURE ADJ

• FINE PICTURE

• BRIGHTNESS

• CONTRAST

• COLOR

• TINT

• SHARPNESS

• WHITE BALANCE

Although the above items for the particular input source are stored
in memory when setting the value, the items for all input sources
will be reset regardless of the input source when resetting.

1 Press MENU to display the main menu.
2 Press the cursor / keys to select “SETTING MENU.”
3 Press L-CLICK to display the SETTING MENU.
4 Press the cursor / keys to select “RESET.”

The horizontal frequency appears under “RESET” when

the present input source is RGB.

5 Press the cursor + key for more than three seconds.

“COMPLETED” appears under the title “RESET” after

the reset is complete.

1 Connect the power cable (see step 1 on page 15).
2 Press POWER OFF on the remote control for more ten

seconds.
“LAMP USAGE” will be reset to zero and the STATUS

indicator will go off (see page 32).

E – 30

Others

Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the unit.

Common Problems & Solutions

Problem

Does not turn on

No picture

Image isn’t square on the screen

Picture is blurred

Remedy

• Check that the power cable is properly connected to the unit and wall outlet (the
mains). (See page 15).

• Check the STATUS indicator to see if the unit has overheated or the lamp usage
has exceeded 1100 hours. (See page 32.)

• Check that you have selected the proper input source you wish to project. (See
pages 15 and 32.)

• Ensure all the cables are connected properly. (See pages 11 to 13.)

• Adjust the brightness and contrast. (See page 28.)

• Remove the lens cap. (See page 15.)

• Is the POWER indicator flashing? (See page 15.)

• Is the STATUS indicator flashing? (See page 32.)

• Reposition the unit to improve its angle on the screen. (See pages 15 and 16.)

• Is the vertical offset properly corrected using the keystone function? (See page

16).

• Adjust the focus. (See page 16.)

• Reposition the unit to improve its angle to the screen. (See pages 15 and 16.)

• Ensure that the distance between the unit and screen is within the adjustment
range of the lens. (See pages 9 and 10.)

Remote control does not work

The STATUS indicator is lit or
flashing

Cross color appears in RGB mode

• Replace the dead batteries with new ones. (See page 5).

• Make sure there is no obstacle between the remote control and the unit.

• Stand within 4m (13 feet) of the unit. (See page 5.)

See the STATUS indica tor message chart on the next page.

• If “AUTO MODE” is set to “ON,” set it to “OFF” then manually adjust the
clock frequency and clock phase. (See page 27.)

• If “AUTO MODE” is set to “OFF,” set it to “ON.” (See page 27.)

E – 31

When the STATUS indicator lights or flashes

STATUS indicator

Status Light Messages

Condition

OFF

On Continually

Flashing Very Rapidly (On and off
in a cycle of 1 sec.)

STATUS

MENU

SELECT

POWER

ENTER

UP

DOWN

Status

Normal

The lamp usage has exceeded 1000 hours of operation and should be replaced.

• The lamp cover is not correctly attached. Replace it correctly.

Flashing Rapidly
(On and off in a cycle of 4 sec.)

Flashing Slowly (On and off in a
cycle of 8 sec.)

Flashing Very Slowly (On and off in
a cycle of 12 sec.)

• The temperature protector has been triggered. If the room temperature is high,
move the unit to a cool location. If the temperature within the unit is high, chec k the
cooling fan ventilation slots and the ventilation slots on the bottom of the unit. If
any of the slots are blocked, remove whatever is blocking them.

• The temperatur e protector has been triggered. If you try to turn on the unit immedi­ately after turning off, sometimes the power does not come on. If this happens, wait
at least one minute, then turn on the unit again.

• The lamp lighting voltage error detection protector has been triggered. Wait at
least one minute before turning on the unit again. If this does not solve the problem,
please contact your dealer.

The cooling fan has stopped. Contact your PLUS dealer for service.

The lamp is not turned on.

• The unit was turned on immediately after being turned off. Turn off the unit, wait at
least one minute, then turn on the unit again.

• The lamp is dead. Replace the lamp cartridge. (See page 33.)

E – 32

Replacing the lamp cartridge

The lamp life is about 1,000 hours (under the test conditions of our
company), however, it may become shorter depending on the conditions of
usage.

After the lamp has been operating for 1000 hours or longer, the STATUS
indicator on the control panel will light and the “LAMP USAGE” icon
which shows hours of total lamp usage will be displayed on the screen.
When this happens, turn off the unit and replace the lamp cartridge with a
new one. The unit will not turn on after 1100 hours. (It will go off if it is in
use.)

CAUTION

• DO NO T TOUCH THE LAMP immediately after it has been
used. It will be extremely hot. Allow at least one hour for the
lamp to cool before handling.

• DO NOT LOOSEN ANY SCREWS except for those men­tioned in the instructions below. There is danger of electric
shock.

Lamp cartridge replacement procedure

1 Disconnect the power cable.

Wait at least one hour f or the lamp to cool.
2 Turn the unit upside down carefully.
3 Loosen the lamp cover securing screw.
4 Remove the lamp cover.

Step 3

Step 4

Step 5

Step 6

Lamp Cover

Lamp cartridge

CAUTION: Do not use a lamp cartridge other than the PLUS
replacement lamp cartridge. Order this from your PLUS dealer
using the unit model number (see “Notes” below).

5 Loosen the three lamp cartridge securing screws.

(This unit has a safety switch.)
6 Hold the handle then pull the lamp cartridge upward to remove

it.
7 Install the new lamp cartridge.
8 Secure the lamp cartridge with the three screws.
9 Replace the lamp cover and secure it with the securing screw.

10 Return the unit to the normal position, connect the power cable,

and turn on the unit.

11 Reset “LAMP USAGE.” (See page 30).

Notes

• When the lamp usage time reaches 1100 hours, it becomes impossible
to switch on the power and menus are not displayed. In such a case,
see “If the unit doesn’t go on because lamp usage exceeds 1100
hours” on page 30.

• Obtain a replacement lamp cartridge at the store where the unit was
purchased. Please specify the following information when ordering a
replacement lamp cartridge:

– Model name : U2-150
– Product code : 28-640

Step 7

Step 8

Step 9

E – 33

Specifications

Optical

TM

DMD

Lens Manual zoom, manual focus

Lamp High Performance Compact Lamp 150 W
Image Size 635 to 7620 mm (25 to 300 in.) diagonal
Projection Distance 1.2 to 12.3m (3.9 to 40.4 ft.)
Light Output (U2-1130) (U2-1110)

Contrast Ratio 800 : 1

Electrical

Inputs Video (NTSC / PAL / SECAM / NTSC4.43)

Single Chip Digital Micro Device (DMDTM)
(U2-1130) (U2-1110)
1024×768 dots 1024×768 dots

(U2-1130) (U2-1110)
F=2.7 to 3.0 f=35 to 42 mm F=3.0 to 3.3 f=27.5 to 33 mm

(1.4 to 1.65 in.) (1.1 to 1.3 in.)

1300 ANSI lumens (normally white) 1100 ANSI lumens (normally white)

RGB (H:15 to 85 kHz, V: 50 to 85 Hz)

Video Bandwidth 60 MHz
Color Reproduction Full color, 16.7 million colors simultaneously.
Horizontal Resolution NTSC 500, PAL 500, SECAM 300, NTSC4.43 350 TV lines

RGB 1024 dots horizontal, 768 dots vertical

Power Requirement 100 to 120/220 to 240 V AC, 50/60 Hz
Input Current 2.2A/1.0A (220W)

Mechanical

Dimensions 23.5 cm (W) × 5.8 cm (H) × 29.7 cm (D) / 9.3 in.(W) × 2.3 in.(H) × 11.7 in.(D)
Net W eight (U2-1130) (U2-1110)

2.6 kg / 5.7 lbs 2.5 kg / 5.5 lbs

Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity

Remote control: 0° to 60°C (32° to 140°F)

Regulations UL Approved (UL 1950, CSA 950)

Meets DOC Canada requirements
Meets FCC Class A requirements
Meets EMC Directive (EN55022, EN61000-3-2, EN61000-3-3, EN50082-1)
Meets Low Voltage Directive (EN60950, TÜV GS Approved)

E – 34

D-Sub Pin Assignments

PC 15-Pin mini D-Sub

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

Signal to be connected
Red
Green
Blue
GND
GND
Red GND
Green GND
Blue GND
No Connection
Digital GND
GND
SDA
Horizontal Sync
Vertical Sync
SCL

E – 35

(Continued on next page.)

Specifications (continued)

Dimensions

(U2-1130)

DOWN

UP

SELECT

MENU

ENTER

297mm/11.7″

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

STATUS

POWER

L/MONO R

18.6mm/0.7″

23.6mm/0.9″

76.9mm/3.0″

58mm/

13mm/0.5″

2.3″

64mm/2.5″

235mm/9.3″

50.4mm/2.0″

(U2-1110)

37. 4mm/1.5″

58mm/2.3″

13mm/0.5″

64mm/2.5″

SELECT

DOWN

UP

MENU

ENTER

STATUS

POWER

235mm/9.3″

297mm/11.7″

1.8mm/0.1″

PC AUDIORGB INMOUSE AUDIOS-VIDEO VIDEO

L/MONO R

47.5mm/1.9″

34.5mm/1.4″

E – 36

PLUS CORPORATION

3-B22, NAKASE 1-CHOME, MIHAMA-KU, CHIBA 261-01 JAPAN

PHONE: [phone] FAX: [phone]

TELEX: J22113 PLUSJIM, CABLE PLUSJIMUK TOKYO
