User’s Manual
KG-PS100S
KG-PS120X
KG-PS125X
IMPORTANT
* DLP® (Digital Light Processing) and DLP® chip are registered trademarks of Texas Instru-ments Incorporated (U.S.A.).
* VGA and XGA are trademarks or registered trademarks of International Business Machines Corporation (U.S.A.).
* S-VGA is a registered trademark of Video Electronics Standards Association.
* Microsoft, Windows, and PowerPoint are registered trademarks of Microsoft Corporation (U.S.A. and other countries).
* Macintosh is a trademark of Apple Computer Inc. (U.S.A.).
Note that even in the absence of explanatory notes, serious attention is paid to the trademarks of the various companies
and to the product trademarks.
Page 2
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
U.S. Responsible Party:
Address:
Tel. No.:
Type of Product:
Equipment Classification:
Models:
PLUS Vision Corp. of America
9610 SW Sunshine Court Suite 500 Beaverton,
OR 97005
(503) 748 8700
Projector
Class B Peripheral
KG-PS100S, KG-PS120X
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
Page 3
IMPORTANT SAFETY INFORMATION
Precautions
Please read this manual carefully before using your KAGA COMPONENTS Data Projector and keep the manual
handy for future reference.
This user's manual covers models KG-PS100S, KG-PS120X, and KG-PS125X.
The projection distance is the same in these models, but the inclusion of functions that can use Image Viewer and
Wireless Network depends on the model.
See the table below for details.
This manual describes the full complement of functions of the KG-PS125X model.
Model Name Wireless Network Image Viewer Display Resolution
KG-PS125X 쎻쎻1024⳯768 (XGA)
KG-PS120X ——1024⳯768 (XGA)
KG-PS100S ——800⳯600 (S-VGA)
쎻 : Function included — : Function not included
Note that when a function is applicable to a certain model, Applicable Model: KG-PS * * * * will be cited at the
location of the description.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED KAGA COMPONENTS SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude
to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside
of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of
this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
The above cautions are given on the bottom of the product.
WARNING
TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS
UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS
CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS
INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED KAGA COMPONENTS SERVICE PERSONNEL.
Applicable Model: KG-PS100S/KG-PS120X
RF Interference
WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorientate or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
DOC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Hg: Lamp in This Product Contains Mercury. Dispose of Lamp According to Local, State or Federal Law.
E-2
Page 4
IMPORTANT SAFETY INFORMATION
Applicable Model: KG-PS125X
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
RF Interference
WARNING
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT
those specified by KAGA COMPONENTS in this manual. Failure to comply with this government regulation
could void your right to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
DOC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
E-3
Page 5
IMPORTANT SAFETY INFORMATION
Important Safeguards
These safety instructions are to ensure the long life of the unit and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
• For best results, use the unit in a darkened room.
• Place the unit on a flat, level surface in a dry area away from dust and moisture.
• Do not place the unit in direct sunlight, near heaters or heat radiating appliances.
• Exposure to direct sunlight, smoke or steam can harm internal components.
• Handle the unit carefully. Dropping or jarring can damage internal components.
• Do not place heavy objects on top of the unit.
Power Supply
• The unit is designed to operate on a power supply of 100 - 240 V 50/60 Hz AC. Ensure that your power supply
fits these requirements before attempting to use the unit.
• Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or
fire.
• Disconnect the power cable (main’s lead) from the power outlet after using the unit.
Before disconnecting the power cable, make sure that the STANDBY indicator lights in amber (not blinking or
in green).
Cleaning
• Disconnect the power cable (main’s lead) from the unit.
• Clean the cabinet of the unit periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use
strong detergents or solvents such as alcohol or thinner.
• Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.
• Clean the ventilation slots and speaker grills on the unit periodically using a vacuum cleaner. If accumulated
dust blocks the ventilation slots, the unit will overheat, which may cause the unit to malfunction.
Use a soft brush attachment when using the vacuum cleaner. Do not use a hard attachment, such as a crevice
tool, to prevent the damage to the unit.
Lamp Replacement
• Be sure to replace the lamp when the Status indicator comes on. If you continue to use the lamp after 2000
hours of usage, the lamp will turn off.
Fire and Shock Precautions
• Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the buildup of heat inside
the unit. Allow at least 10 cm (4 inches) of space between the unit and walls.
• Prevent foreign objects such as paper clips and bits of paper from falling into the unit. Do not attempt to retrieve
any objects that fell into the unit. Do not insert any metal objects such as a wire or screwdriver into the unit. If
something should fall into the unit, immediately disconnect the power cable from the unit and have the object
removed by a qualified KAGA COMPONENTS service person.
• Do not place any liquids on top of the unit.
Carrying around
When carrying the unit around, please use the storage case that comes with it and, to protect the lens from
scratches, always shut the Iris Lens Cover. Also, do not subject the unit to strong mechanical shock.
CAUTION – HOT!
The area around the exhaust vents is hot during and immediately after image projection.
To avoid burns, keep your hands away from this area.
Wait until the exhaust vents area cools off before touching it.
Do not look into the lens while the unit is on. Serious damage to your eyes could result.
E-4
Page 6
Major Features
䡵 High-brightness, lightweight projector with wireless network presentation and PC-less
presentation functions
The synergy of DLP® technology and the unique optical design raises the efficiency of light usage. One DLP® chip reproduces
the three primary colors (red, green, and blue) required in the expression of color. These factors have enabled the achievement of high brightness together with compact size and light weight. Also, by employing wireless LAN technology, wireless
presentations can be made without having an RGB cable connection with the PC. Using the Image Viewer function enables
image files that have been saved on SD memory cards or USB memory devices to be presented without carrying around a
personal computer. (*
*1. For details, refer to the “Image Viewer / Wireless Network” section.
䡵 Sharp, clear picture
The DLP® display system affords RGB color fidelity and inconspicuous gaps between the individual dots, thereby permitting
the display of small characters and diagrams with distinct clarity.
䡵 Advanced Color Wheel (ACW) allows for further enhancement of color reproduction
KAGA COMPONENTS’ unique ACW preserves brightness, while allowing for superlatively enhanced color reproduction and
astoundingly clear picture quality attainable only with DLP® technology.
䡵 High contrast ration of 2000:1
DLP® technology employed in this projector makes possible an astonishing 2000:1 high contrast ratio.
By widening the difference of brightness between black and white, you can see a degree of sharpness that is greater than just
the brightness based on specifications.
䡵 Great moving image playback capabilities using the same principles as DLP® Cinema
KAGA COMPONENTS DLP® type projectors have the same makings as the DLP® Cinema used in movie theaters. Because
of their extremely fast response, even images with much movement – sports, movies – play smoothly without blurring.
䡵 Security lock function
The lock can be set so that a password must be input when the projector is started up. Without the correct password, no
operations other than turning the power on and off can be performed. This function effectively protects the projector from
unauthorized use.
䡵 Powerful functions for presentations
A wide variety of easy-to-set functions have been built into the projector, from a digital keystone correction function (used
when making settings) that corrects picture distortion, to an auto adjustment function that automatically identifies the PC
signal.
There is also a built-in “Presentation Timer” function for further presentation convenience.
䡵 Beautiful reproduction of high-quality images from DVD
Faithful reproduction of color tones gives rise to the display of natural images. High-quality images such as those from DVD
and digital high-definition television broadcasts bring out the display capabilities that are an essential strength of the DLP
display system projector.
1)
®
E-5
Page 7
Table of Contents
IMPORTANT SAFETY INFORMATION ................................................................................... E-2
Major Features ....................................................................................................................... E-5
Table of Contents ................................................................................................................... E-6
Checking the Supplied Accessories .................................................................................... E-8
Names of the Main Unit Parts ............................................................................................. E-10
Names of the Remote Control Parts................................................................................... E-12
Preparing the Remote Control ............................................................................................ E-13
Button Battery Replacement ..................................................................................... E-13
Remote Control Range ............................................................................................. E-13
The Procedure Up to Projecting to the Screen ................................................................. E-14
Placement Guide .................................................................................................................. E-15
Screen Size and Projection Distance ........................................................................ E-15
Connecting Personal Computers and Video Equipment .................................................. E-16
Connections with Personal Computer ....................................................................... E-16
Connect the projector’s COMPUTER IN connector
using the included RGB signal cable. .............................................................. E-16
To Output the External Output Signal of a Notebook Computer ......................... E-17
Connections with Composite Signals ........................................................................ E-18
Video Equipment with VIDEO Connectors .......................................................... E-18
Video Equipment with S-VIDEO Connectors ...................................................... E-18
Connections with Component Signals ....................................................................... E-19
When the Video Equipment Has a YCbCr Connector or YPbPr Connector ........ E-19
Connections with the AUDIO Jack ............................................................................ E-20
Power Cable Connections and Switching the Power On/Off ........................................... E-21
Operating ................................................................................................................... E-21
Finishing .................................................................................................................... E-23
Adjustment of the Projection Screen ................................................................................. E-24
Adjustment of the Projection Screen ......................................................................... E-24
Making Adjustments with the Adjusters .............................................................. E-25
General Operation ................................................................................................................ E-26
Input Selection .......................................................................................................... E-26
Automatic Adjustment ............................................................................................... E-26
Selection of Aspect Ratio .......................................................................................... E-27
Freezing a Moving Picture ......................................................................................... E-28
Cancelling Video and Audio Temporarily ................................................................... E-28
Eco Mode .................................................................................................................. E-28
Quick Color Adj. ........................................................................................................ E-28
Keystone Manual Adjustment .................................................................................... E-29
Adjustment of the Volume .......................................................................................... E-29
Enlargement of the Image and Video Movement ...................................................... E-30
Protecting the Projector with the Security Lock ......................................................... E-31
Using the Quick Menu ............................................................................................... E-33
Menu Operation Method ...................................................................................................... E-34
Performing Menu Operations .................................................................................... E-36
List of Item Names Offering Input Selection and Adjustments/Settings .................... E-39
Image ..................................................................................................................................... E-41
Brightness / Contrast / Color / Tint / Sharpness ........................................................ E-41
Picture Adj. / Fine Picture / H Position / V Position .................................................... E-41
Reset ......................................................................................................................... E-42
Color ...................................................................................................................................... E-43
Quick Color Adj. ........................................................................................................ E-43
Gamma ..................................................................................................................... E-43
Color Temp. ............................................................................................................... E-44
White Level ................................................................................................................ E-44
Color Space .............................................................................................................. E-44
White Balance ........................................................................................................... E-45
E-6
Page 8
Table of Contents
View ....................................................................................................................................... E-46
Aspect Ratio .............................................................................................................. E-46
Filter .......................................................................................................................... E-46
Vertical Flip / Horizontal Flip ...................................................................................... E-47
Keystone.................................................................................................................... E-47
Auto Keystone ........................................................................................................... E-47
Setup ..................................................................................................................................... E-48
Auto Source............................................................................................................... E-48
Auto Power Off .......................................................................................................... E-48
Menu Position............................................................................................................ E-48
Eco Mode .................................................................................................................. E-49
Input Format .............................................................................................................. E-49
Presentation Timer .................................................................................................... E-50
Volume ...................................................................................................................... E-50
Option ................................................................................................................................... E-51
Language .................................................................................................................. E-51
On Screen ................................................................................................................. E-51
Background ............................................................................................................... E-51
Startup Screen .......................................................................................................... E-52
Security Lock ............................................................................................................. E-52
Network Password..................................................................................................... E-52
Info......................................................................................................................................... E-53
Status ........................................................................................................................ E-53
Factory Default .......................................................................................................... E-53
Lamp Timer Reset ..................................................................................................... E-53
Resolution / Frequency ............................................................................................. E-54
Lamp Timer ............................................................................................................... E-54
When an Indicator is Lit or Flashing .................................................................................. E-55
Troubleshooting ................................................................................................................... E-56
Cleaning ................................................................................................................................ E-57
Replacing the Lamp Cartridge ............................................................................................ E-58
Specifications ....................................................................................................................... E-61
Table of Supported Frequency ........................................................................................... E-64
Cabinet Dimensions ............................................................................................................ E-65
E-7
Page 9

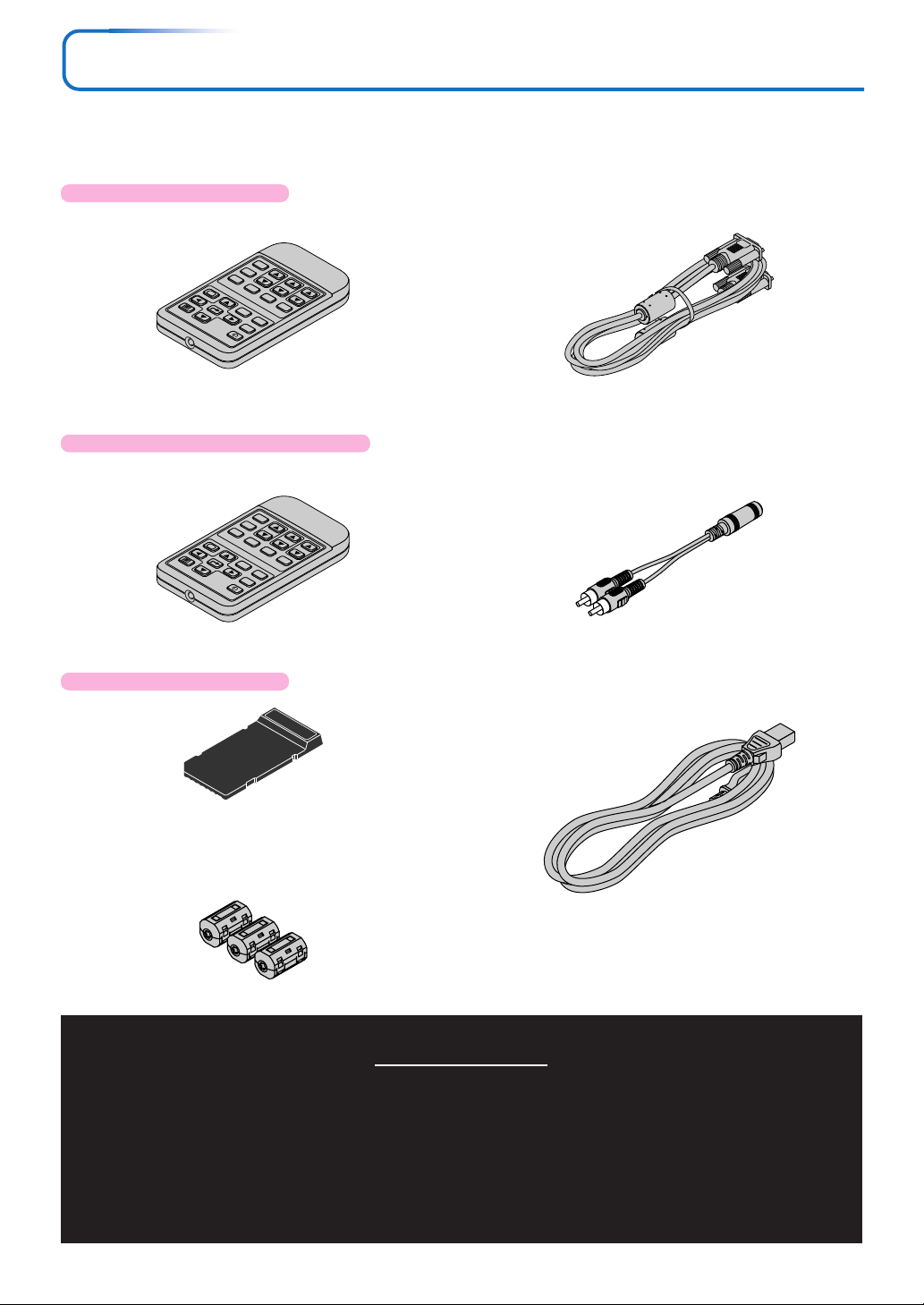

Checking the Supplied Accessories
Remove the main unit and the accessories from the box and check that the following items are included.
Wireless remote control unit (with wireless LAN)
(includes one button battery) [1]
Applicable Projector: KG-PS125X
This controls the projector. Please remove the transportation
insulation sheet at time of purchase. (See Page E-13.)
VIEWER
SS
LE
IRE
J
W
AD
R
K
IC
LO
O
QU
C
KSTN ZOOM
ECO
Q
QUICK
MENU
ENTER
CANCEL
Y
COMPUTER
B
/
D
R
N
E
A
T
W
S
O
P
VOL
MUTE
FREEZE
VIDEO
Wireless remote control unit (without wireless LAN)
(includes one button battery) [1]
Applicable Projector: KG-PS100S/KG-PS120X
This controls the projector. Please remove the transportation
insulation sheet at time of purchase. (See Page E-13.)
AUTO
J
ASPECT
D
A
R
K
O
IC
L
U
O
Q
C
KSTN ZOOM
ECO
Q
QUICK
MENU
ENTER
CANCEL
Y
COMPUTER
B
/
D
R
N
E
A
T
W
S
O
P
VOL
MUTE
FREEZE
VIDEO
SD wireless LAN card [1]
Applicable Projector: KG-PS125X
RGB signal cable
(Mini D-sub 15-pin, 2 m / 6.6 feet) [1]
This is used in making connections with a personal computer.
See Page E-16 about connections.
No. M01800500
Audio conversion adapter (Mini plug / RCA pin plug, 15 cm
/ 0.5 feet) [1]
This cable is used with equipment whose audio connector is
of the phono pin type. Connections are described on Page
E-20.
No. M01800600
Power cable (1.8 m / 5.9 feet) [1]
This power cable supplies power to the unit. See Page E-21
about connections.
Ferrite cores [3]
These ferrite cores are attached to power cable, video cable
and S-video cable.
Mounting → See Pages E-18, 21.
“WARNING”
Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
E-8
Page 10
Checking the Supplied Accessories
MENU
Storage case (for projector and accessories) [1]
This case is designed to hold the projector itself and its accessories.
Use it when storing the projector.
User’s Manual (CD-ROM edition) [1]
User’s Manual (Simplified Edition) [1]
Security Sheet [1]
Security Label [1]
HOW TO PUT THE PROJECTOR INTO THE STORAGE CASE
Close the lens cover, then place the projector in the case
with the lens facing upward.
Place the accessories in the storage pocket.
E
N
O
T
O
T
S
U
Y
A
E
O
T
K
U
A
T
C
E
M
P
S
O
J
A
O
D
Z
A
R
K
O
C
I
L
N
U
O
T
Q
C
S
K
O
C
E
Q
K
L
C
I
O
U
V
Q
E
T
S
U
E
M
O
N
E
U
O
Z
U
E
R
N
T
R
E
E
E
L
R
C
M
T
S
E
F
N
C
E
Y
E
N
E
A
C
K
O
E
D
I
V
R
E
T
U
P
M
O
Y
C
B
/
D
R
N
E
S
A
T
W
U
S
O
P
T
A
T
S
U
Y
N
B
E
D
M
N
K
A
T
C
I
S
U
Q
R
E
W
O
P
E-9
Page 11

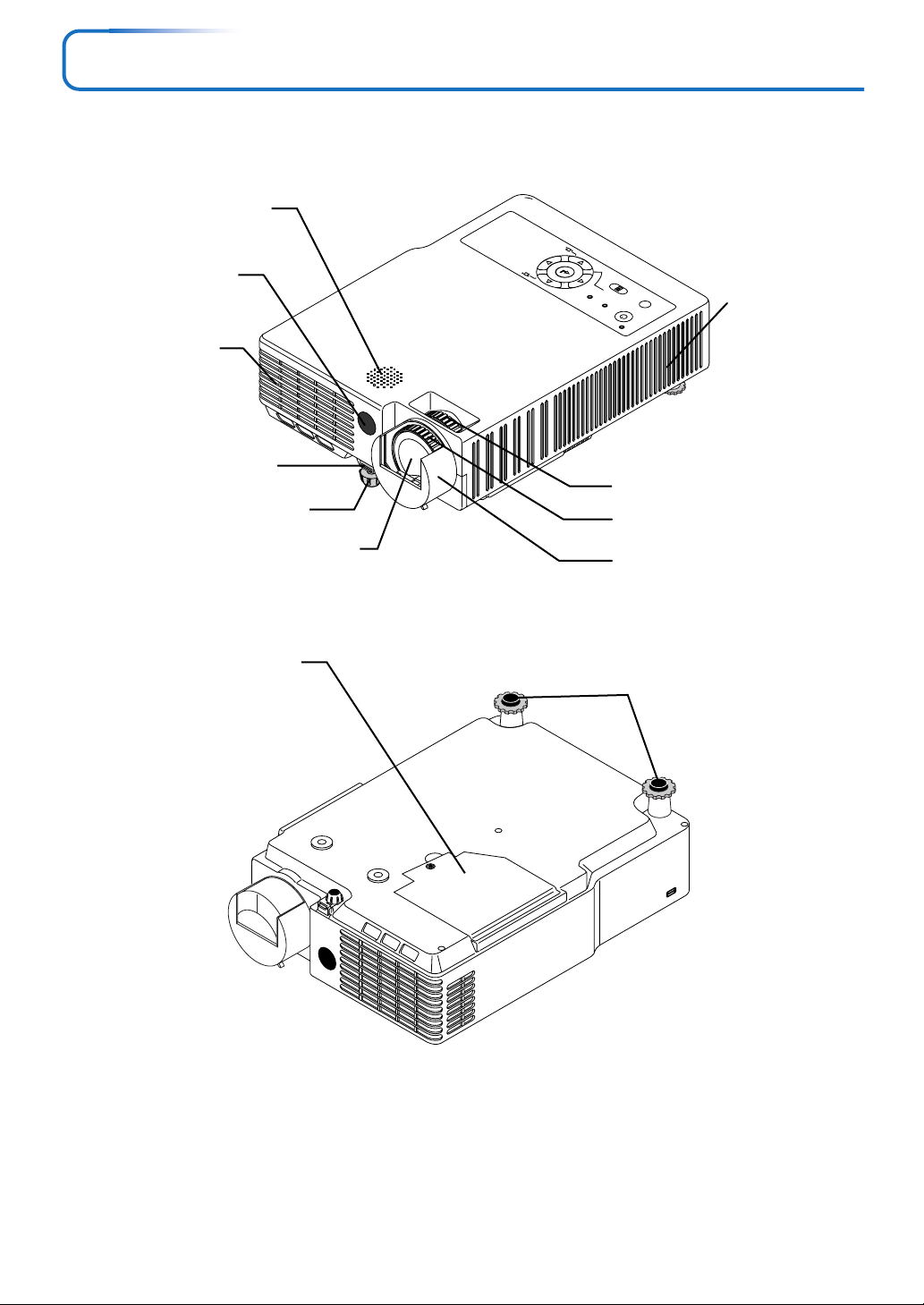

Names of the Main Unit Parts
Speaker
U
A
Remote control
sensor [E-13]
Exhaust vents
Adjuster button [E-25]
Front adjuster [E-25]
E
N
O
E
N
O
T
O
T
S
Y
E
K
S
O
U
R
T
C
S
E
Y
E
K
U
N
E
M
S
TU
A
ST
U
Y
N
B
E
D
N
K M
A
T
IC
S
U
Q
R
E
W
O
P
Ventilation slots
Zoom ring [E-24]
Focus ring [E-25]
Lamp cover [E-59]
Lens
Lens cover
Rear adjusters [E-25]
E-10
Page 12

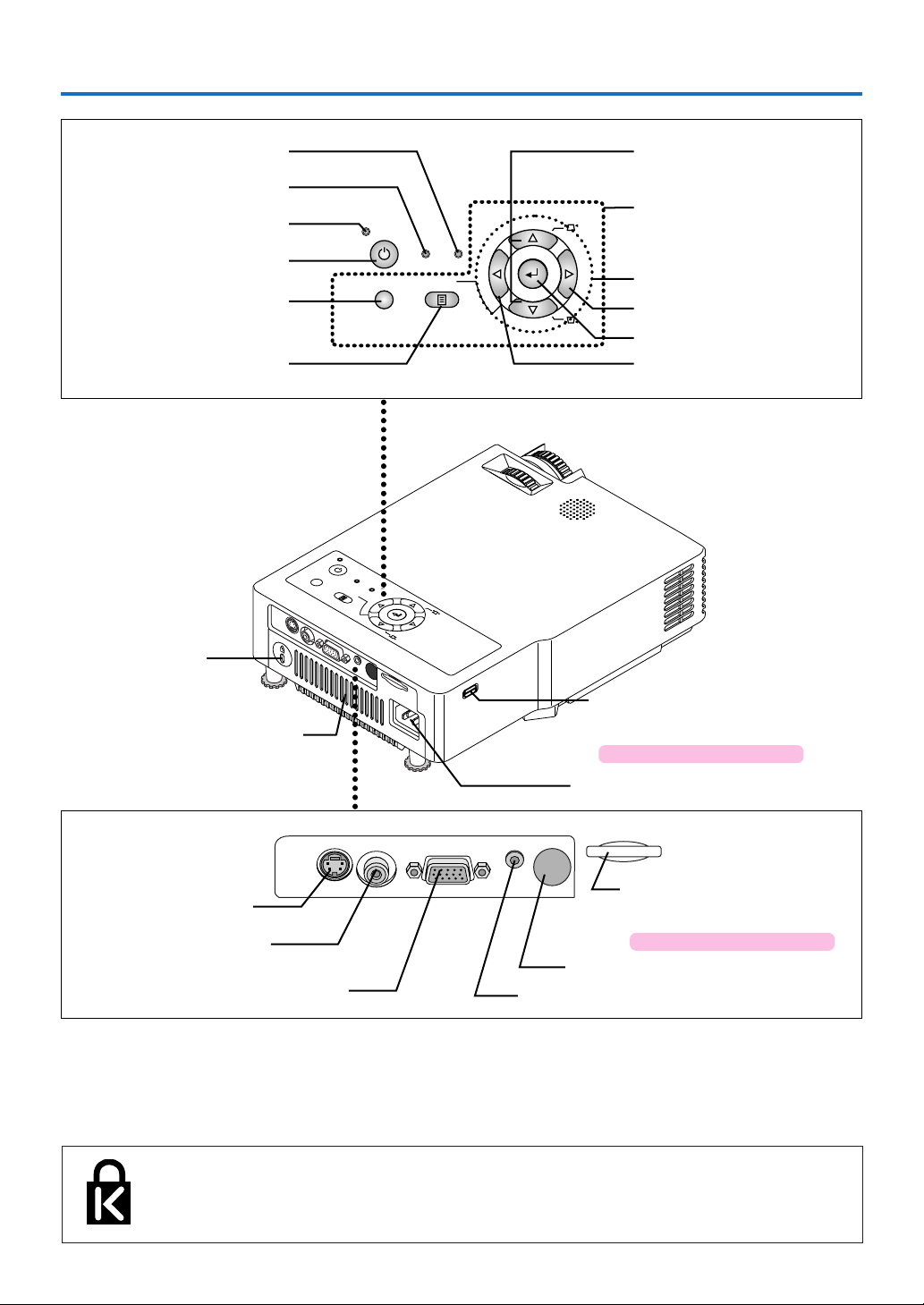

Names of the Main Unit Parts
Applicable Model: KG-PS125X
Applicable Model: KG-PS125X
STATUS indicator [E-28, 49, 55]
STANDBY indicator [E-21, 55]
POWER indicator [E-21, 55]
POWER/STANDBY button
[E-21, 23]
QUICK MENU button [E-33]
MENU button [E-34]
Built-in security slot
(See description below.)
Ventilation slot
QUICK MENU
Keystone Manual Adjustment
button [E-29]
Buttons used in menu and
POWER
STANDBY STATUS
MENUQUICK MENU
E
E
K
E
C
R
U
O
S
K
E
Y
A
U
T
O
E
N
S
O
T
quick menu operations
[E-33, 34]
SELECT () buttons
AUTO button [E-26]
T
S
O
Y
N
ENTER button [E-34]
SOURCE button [E-26]
POWER
STANDBY
STATUS
MENU
K
E
Y
E
S
C
T
R
O
U
N
O
S
K
E
Y
S
E
A
U
T
O
T
O
N
E
USB slot
See Page 15 (“Image Viewer / Wireless Network”
section)
S-VIDEO connector [E-18]
VIDEO connector [E-18]
COMPUTER IN connector [E-16, 19]
Built-in Security Slot
This security slot supports the MicroSaver Security System manufactured by
Kensington Microware Inc.
S-VIDEO VIDEO AUDIOCOMPUTER IN
E-11
AC IN connector [E-21]
SD CARD
SD CARD slot
See Page 14 (“Image Viewer / Wireless Network” section)
Remote control sensor [E-13]
AUDIO connector [E-20]
Page 13
Names of the Remote Control Parts
Two types of remote control are available for this projector, and both types are described.
See the description of the remote control (and the drawing) for the type supplied with the projector.
Precautions
Handling of the Remote Control
* Do not drop the remote control or handle it inappropriately.
* Do not expose the remote control to water or other liquids. Should the remote control become wet, wipe it dry
immediately.
* Try to avoid use in hot and/or humid locations.
* Please keep button battery out of the reach of children. If a battery is swallowed, promptly obtain the medical care of
a doctor.
* Remove the battery from the remote control when it is not going to be used for a long period.
* Some operations (such as menu operations) are available only through the use of the remote control and attention
should be given to its careful handling.

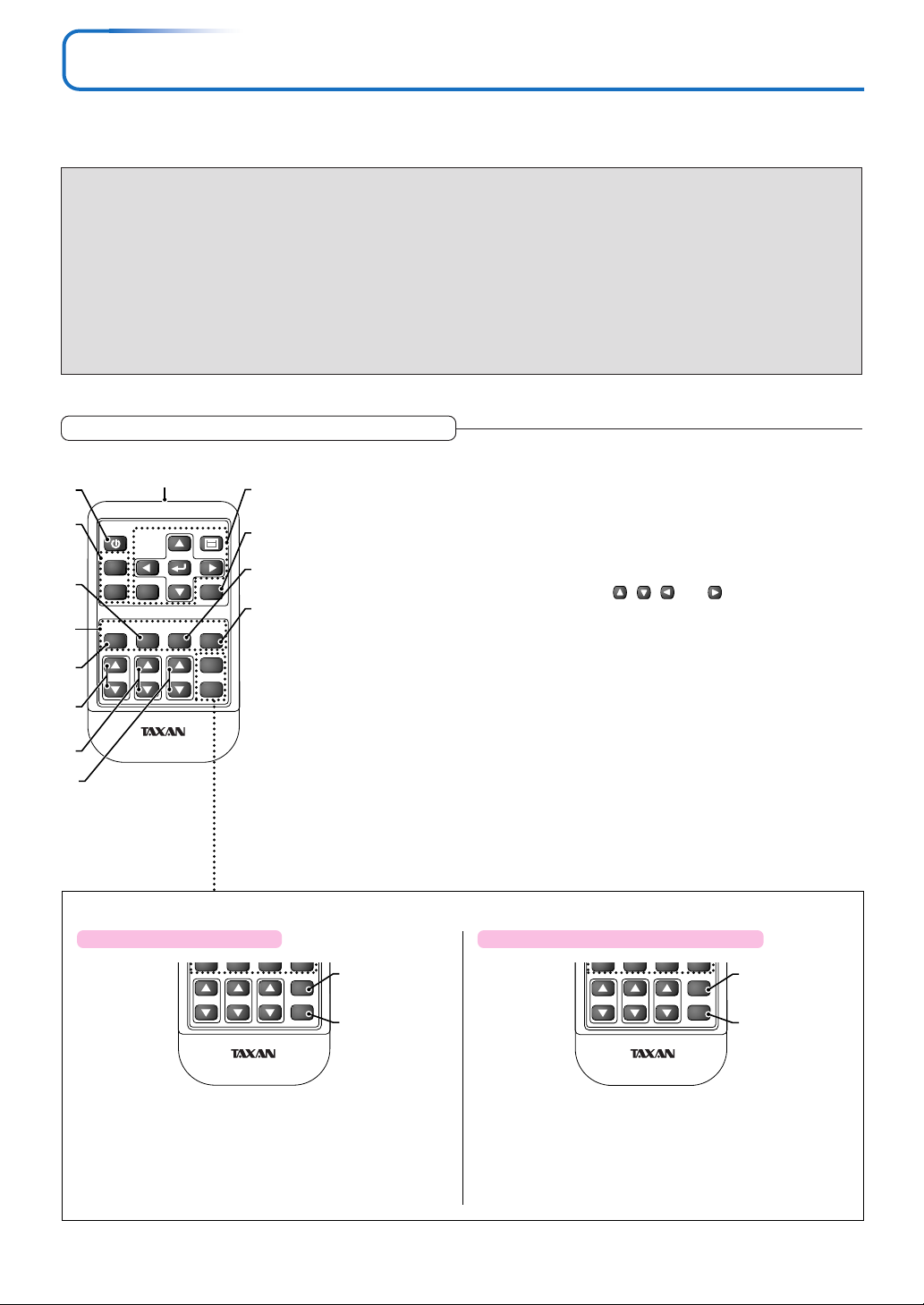

Names of the Remote Control Parts
2
1
1. Infrared transmitter [E-13]
10
2. POWER/STANDBY button [E-21, 23]
3
4
5
6
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
ECO
MENU
QUICK
COLOR ADJ
This button is used to switch ON the power
11
and set the unit to the STANDBY mode.
12
3. Buttons used for input selection [E-26]
COMPUTER button and VIDEO button
13
(Video / S-Video)
4. MUTE button [E-28]
(Temporarily cancels the video and audio)
5. Input buttons [E-31]
7
8
(Used for the security lock.)
6. FREEZE button [E-28]
(Freezes moving pictures)
9
7. VOL button [E-29]
(Volume adjustment)
The function of the buttons below will differ depending on the model.
14
WIRELESS
VOL KSTN ZOOM
VIEWER
15
8. KSTN button [E-29]
(Keystone correction adjustment)
9. ZOOM button [E-30]
(Digital zoom adjustment)
10. SELECT Buttons [E-34]
The , , and buttons are the
select (, , and ) buttons.
11. QUICK button [E-33]
(Displays a simplified menu)
12. ECO button [E-28]
(Selection of lamp mode)
13. QUICK COLOR ADJ button [E-28]
Applicable Model: KG-PS100S/KG-PS120X Applicable Model: KG-PS125X
ASPECT
VOL KSTN ZOOM
14
AUTO
15
14. WIRELESS button
See “Image Viewer / Wireless Network” section.
15. VIEWER button
See “Image Viewer / Wireless Network” section.
14. ASPECT button [E-27]
(Selects the vertical and horizontal ratio of the screen)
15. AUTO button [E-20]
(Automatic adjustment of the RGB moving image)
E-12
Page 14
CR2025
Preparing the Remote Control
Button Battery Replacement
Using the remote control for the first time
The battery compartment is fitted with a transportation insulation sheet at the time of shipping. Pull
out the sheet and remove it. The remote control is now ready for use.
Replacement Method
(A) With the knob pressed to
1
the right side, (B) draw out the
battery case.
Remove the old battery and in-
2
stall a new button battery with (+)
side facing upward in the battery
holder.
Insert the battery holder into the re-
3
mote control and push in until the
battery holder closes with a “click”
sound.
CR2025
(A)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type (CR2025) recommended by the manufacturer.
Dispose of used batteries according to your local regulations.
CAUTION
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
(B)
Purchase a CR2025 type battery for replacement.
CR2025

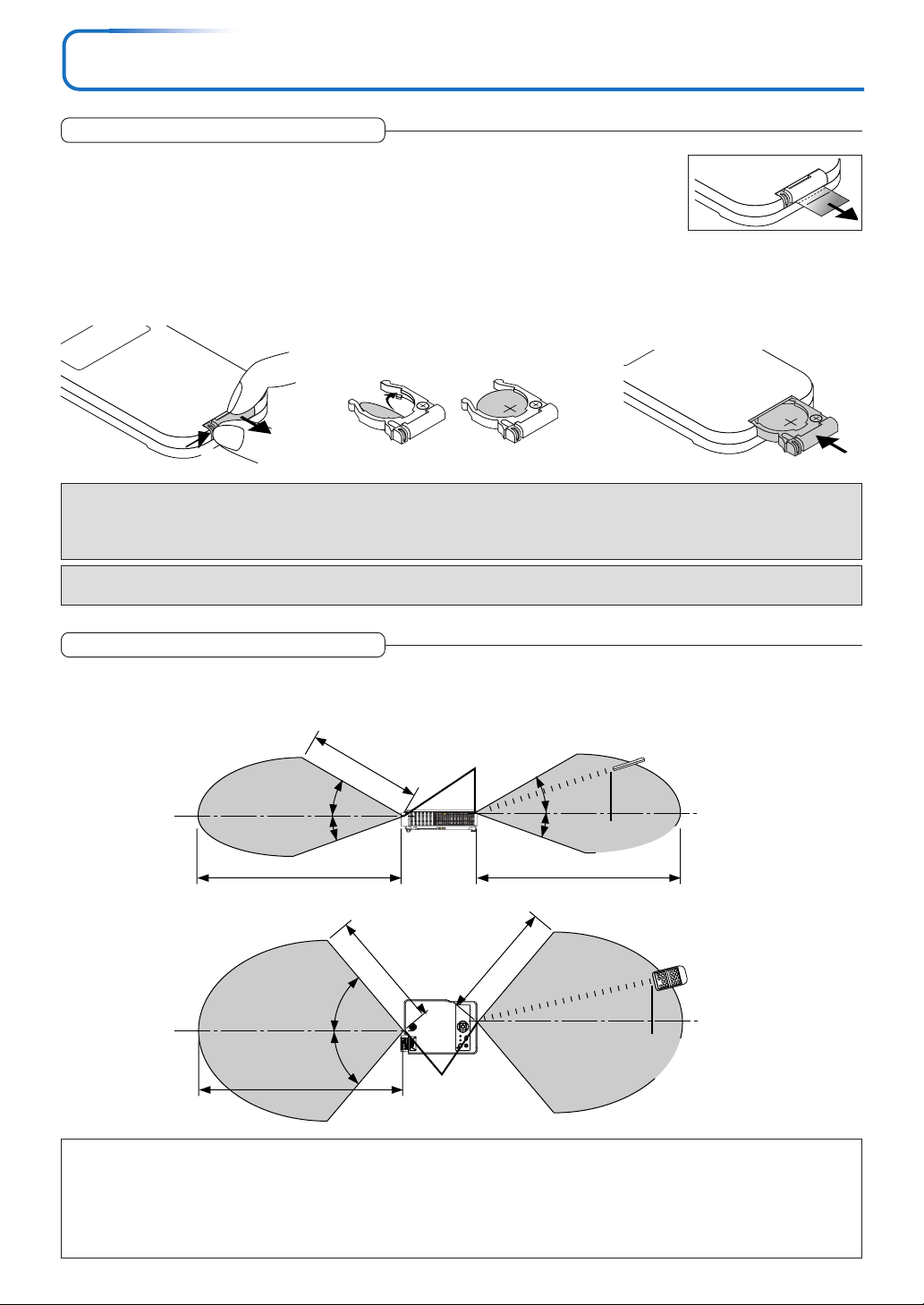

Remote Control Range
Point the infrared transmitter of the remote control toward the remote control sensor located at the front or rear of the main unit
and operate.
Reception of the remote control signal should generally be possible within the range illustrated below.
4m/13.1 feet
30°
20°
7m/23.0 feet
Remote control
sensor
Side View
30°
20°
6m/19.7 feet
Remote control infrared
transmitter
3m/9.8 feet
4m/13.1 feet
50°
50°
7m/23.0 feet
Note
* Exposure of the main unit’s remote control sensor or the remote control infrared transmitter to bright light or the obstruction of the signal
by an obstacle located in the pathway may prevent operation.
* To prevent operational difficulties with the sensor when the projector is installed suspended, install the projector 1.5 m or further from
fluorescent lighting.
* The remote control will not function when the battery is exhausted.
Remote control
sensor
Top View
Remote control infrared transmitter
E-13
Page 15
The Procedure Up to Projecting to the Screen
Perform setup adjustments in the following order.
1 Position the projector
Determine the locations to set up the screen and the projector.
See “Placement Guide” on Page E-15.
2 Connect the video equipment and personal computer
Connect your equipment to the projector.
When making connections with the personal computer’s RGB connector, see “Connections with
Personal Computer” on Page E-16.
When making connections with the video equipment’s video connector or an S-video connector,
see “Connections with Composite Signals” on Page E-18.
When making connections with the video equipment’s YCbCr connector or YPbPr connector,
see “Connections with Component Signals” on Page E-19.
When playing the audio through the built-in speaker of the projector, see “Connections with the
AUDIO Jack” on Page E-20.
3 Open the lens cover
4 Connect the power cable and switch on the projector power
See “Operating” on Page E-21.
See “Finishing” on Page E-23.
5 When selecting the language of menu displays, etc.
(Only when the power is first switched on following purchase)
See “When [Menu Language Select] is Displayed Upon Switching On the Power” on Page E-22.
6 Switching on the power of the personal computer and video equipment
7 Properly adjust the projection image to the screen
See “Adjustment of the Projection Screen” on Page E-24.
8 Selecting input equipment
See “Input Selection” on Page E-26.
9 Adjust the screen or video image
Adjust the image to the optimum condition as required.
See the Table of Contents for the adjustment items.
About DLP® projectors
Though careful attention is paid to providing optimum quality, please note that with DLP® type projectors, in rare cases there may
be black spots or bright spots among the picture elements.
Note:
* Please purchase a screen.
* A component cable, which is commercially available, is required to connect a DVD player or other equipment having YCbCr connectors.
* A component cable, which is commercially available, is required to connect high definition (HD) video equipment or other equipment
having YPbPr connectors.
E-14
Page 16
Placement Guide
S
O
U
R
C
E
K
E
Y
S
T
O
N
E
A
U
T
O
K
E
Y
S
T
O
N
E
POW
ER
/
ST
AND
B
Y
STAN
D
B
Y
STATU
S
MENU
QUIC
K
MENU
• Use this information as a guide to find out about the screen size when the projector is placed at a certain location, or
to find out the approximate size of a screen that will be required.
• The projection distance over which focussing is adjustable is 1.20 m (3.9 feet) to 11.78 m (38.65 feet). The projector
should be placed within this range.

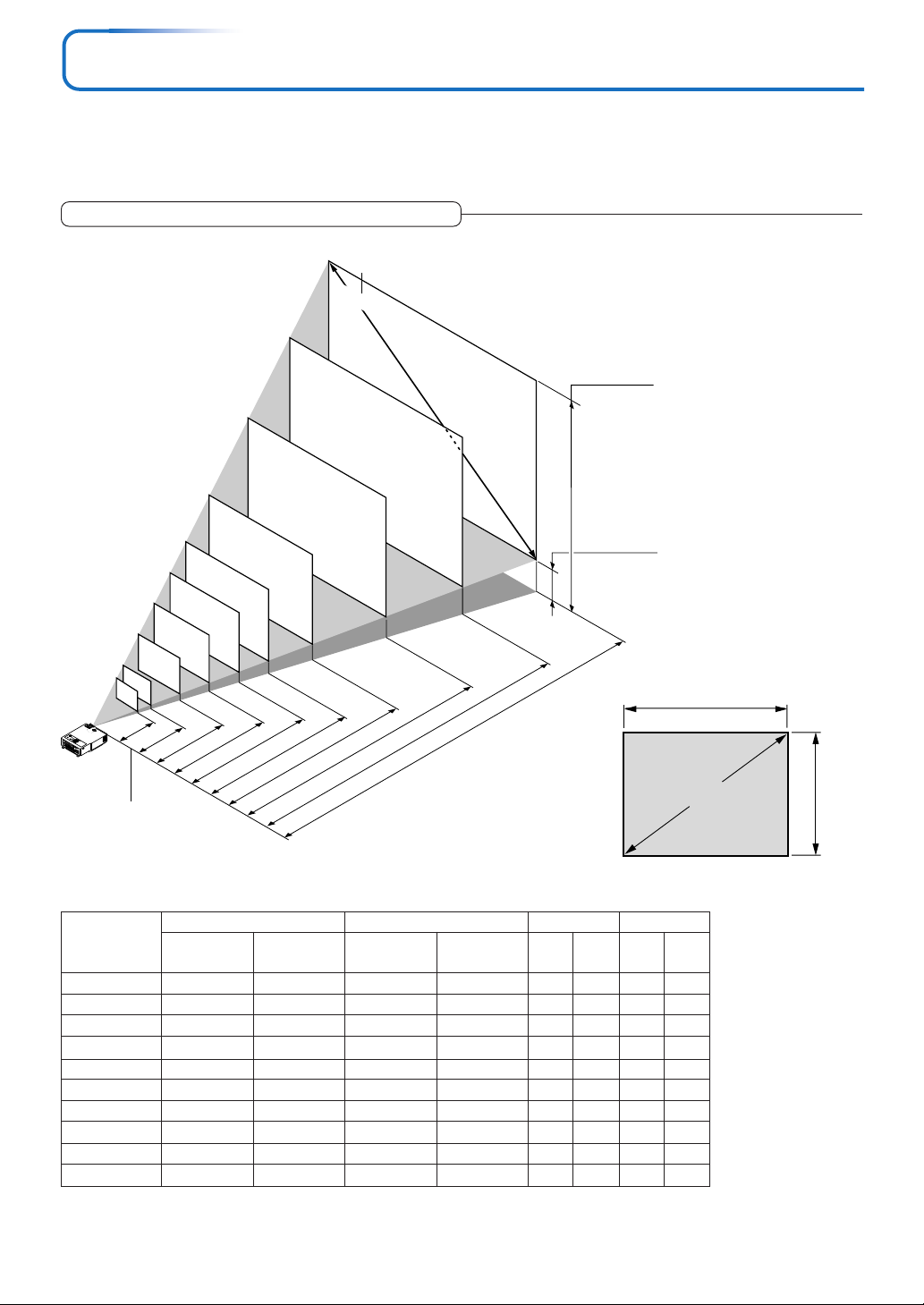

Screen Size and Projection Distance
Screen Size Designation (Inches)
300"
Height from center of
250"
200"
lens to top edge of
the projection
150"
Height from center of
lens to bottom edge
of the projection
60"
40"
31.7"
1.20 (3.94)
1.32–1.53
(4.33–5.02)
120"
100"
80"
2.00–2.32
(6.56–7.61)
–3.10 (8.79
2.68
3.36–3.88 (11.02–12.73)
–10.17)
5.06–5.85 (16.60–19.19)
4.04–4.67 (13.25–15.32)
8.46–9.78 (27.76–32.09)
10.19–11.78 (33.43–38.65)
6.76–7.81 (22.18–25.62)
h1
h2
Unit: m (feet)
Width
Screen size (Diagonal)
Height
Lens surface of
the main unit
Screen Size
Designation (Inches)
31.7"
40"
60"
80"
100"
120"
150"
200"
250"
300"
* There is a tolerance of ±5% due to design values.
Screen Size Width x Height Projection Distance Height h1 Height h2
(m) (feet)
(m) (feet) (m) (feet) (m) (feet)
Wide – Tele Wide – Tele
0.64 ⳯ 0.48
0.81 ⳯ 0.61
1.22 ⳯ 0.91
1.63 ⳯ 1.22
2.03 ⳯ 1.52
2.44 ⳯ 1.83
3.05 ⳯ 2.29
4.06 ⳯ 3.05
5.08 ⳯ 3.81
6.10 ⳯ 4.57
2.11 ⳯ 1.59
2.67 ⳯ 2.00
4.00 ⳯ 3.00
5.33 ⳯ 4.00
6.67 ⳯ 5.00
8.00 ⳯ 6.00
10.00 ⳯ 7.50
13.33 ⳯10.00
16.67 ⳯12.50
20.00 ⳯15.00
—–1.20
1.32 – 1.53
2.00 – 2.32
2.68 – 3.10
3.36 – 3.88
4.04 – 4.67
5.06 – 5.85
6.76 – 7.81
8.46 – 9.78
10.19 – 11.78
—–3.94
4.33 – 5.02
6.56 – 7.61
8.79 – 10.17
11.02 – 12.73
13.25 – 15.32
16.60 – 19.19
22.18 – 25.62
27.76 – 32.09
33.43 – 38.65
0.54
0.67
1.00
1.35
1.68
2.02
2.53
3.36
4.20
5.04
2.09
2.20
3.30
4.43
5.52
6.62
8.29
11.02
13.78
16.54
0.06
0.06
0.09
0.13
0.16
0.19
0.24
0.31
0.39
0.47
0.20
0.20
0.30
0.43
0.52
0.62
0.79
1.02
1.28
1.54
* This table uses the lens apex and lens center as references and requires that the projector be in a
horizontal condition (with front and rear adjusters fully withdrawn).
E-15
Page 17
Connecting Personal Computers and Video Equipment
Connecting this unit with a personal computer permits presentation data to be projected as a large screen display at
conferences, lectures, and on other occasions. Furthermore, connecting this unit to a DVD player or other video equipment source in combination with an audio/video amplifier and speaker system will allow you to enjoy convincing home
theater.
Connections with Personal Computer
Please check the following before making connections with the personal computer.
• An appropriate resolution for the KG-PS100S is 800 x 600 dots (S-VGA), and the maximum displayable resolution is XGA
(1024 x 768 dots).
An appropriate resolution for the KG-PS120X/KG-PS125X is 1024 x 768 dots (XGA), and the maximum displayable resolution
is S-XGA (1280 x 1024 dots).
Change to a displayable resolution at the PC side. See “Table of Supported Frequencies” on Page E-64.
• The setting method for the personal computer will differ depending on the specific model. Please read the personal computer
instruction manual or the on-line help information, or contact the manufacturer of your personal computer.
Connect the projector’s COMPUTER IN connector using the included RGB signal cable.
• When making connections with the COMPUTER IN connector of the projector, please make the connection via the supplied
RGB signal cable.
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Com-
puter” using the menu sequence of [Setup] → [Input Format] → [Computer].
See “Input Format” on Page E-49.
MONITOR OUT
Personal
computer
RGB signal cable (Supplied item)
Note:
* Before making connections, check the power of the projector and the equipment to be connected is switched off.
* When projection will be with a notebook computer connected, knowledge will be required for the cable connection and notebook computer
startup procedure as well as the operation that follows startup. Please consult the instruction manual of your notebook computer or the online help.
E-16
Page 18
Connecting Personal Computers and Video Equipment
To Output the External Output Signal of a Notebook Computer
When projection will be with a notebook computer connected, knowledge will be required for the cable connection and notebook
computer startup procedure as well as the operation that follows notebook startup. Please consult the instruction manual of your
notebook computer or the on-line help while performing the following procedure.
Check whether a signal is being sent from the notebook computer to the projector.
1
An indication appearing on the liquid crystal display of the notebook computer does not necessarily mean that an external
output signal is being output.
REFERENCE: When “Resolution” or “Frequency” is not displayed under “Info.” on the menu of the projector, this means that
the external output signal is not being output from the personal computer. See “Resolution/Frequency” on Page E-64.
Should a sign not be output from the notebook computer, please try the operation described below.
2
For an IBM PC/AT compatible computer, press the [Fn] key plus any one of the [F1] to [F10] keys. (See the table below.)
Manufacturer Model Key
DELL All computers Fn + F8
EPSON All computers Fn + F8
FUJITSU All computers Fn + F10
MITSUBISHI All computers Fn + F5
IBM All computers Fn + F7
NEC All computers Fn + F3
Panasonic All computers Fn + F3
SHARP All computers Fn + F5
SONY All computers Fn + F7
SOTEC All computers Fn + F3–F5
TOSHIBA All computers Fn + F5
HITACHI All computers Fn + F7
Note: Table information is current to December 2006.
Note:
When the liquid crystal display of the notebook computer and the projector are displayed at the same time, the projected image might not be
correct even though the liquid crystal display shows a correct indication. Should this occur, stop the simultaneous display of the notebook
computer and try the mode with external output only. Try an operation such as that described in aforementioned Step 2 and try closing the
liquid crystal panel which might result in external output only.
E-17
Page 19
Connecting Personal Computers and Video Equipment
Connections with Composite Signals
Video Equipment with VIDEO Connectors
• Connect to the projector’s VIDEO connector using a commercially available video cable.
• The input setting of the VIDEO connector has been set to “Auto” at the factory; however, if the projector does not project, please
change the input setting to “Your Country’s Television Broadcast System” using the menu sequence of [Setup] → [Input Format]
→ [Video].
See “Input Format” on Page E-49.
Video Equipment with S-VIDEO Connectors
• Connect to the projector’s S-VIDEO connector using a commercially available S-Video cable.
• The input setting of the S-VIDEO connector has been set to “Auto” at the factory; however, if the projector does not project,
please change the input setting to “Your Country’s Television Broadcast System” using the menu sequence of [Setup] → [Input
format] → [S-Video].
See “Input Format” on Page E-49.
Video deck, DVD player, document
camera, etc.
VIDEO
Ferrite core (Supplied item)
Video cable (RCA pin plug)
(Commercially available)
S-Video cable (Mini DIN 4-pin plug)
(Commercially available)

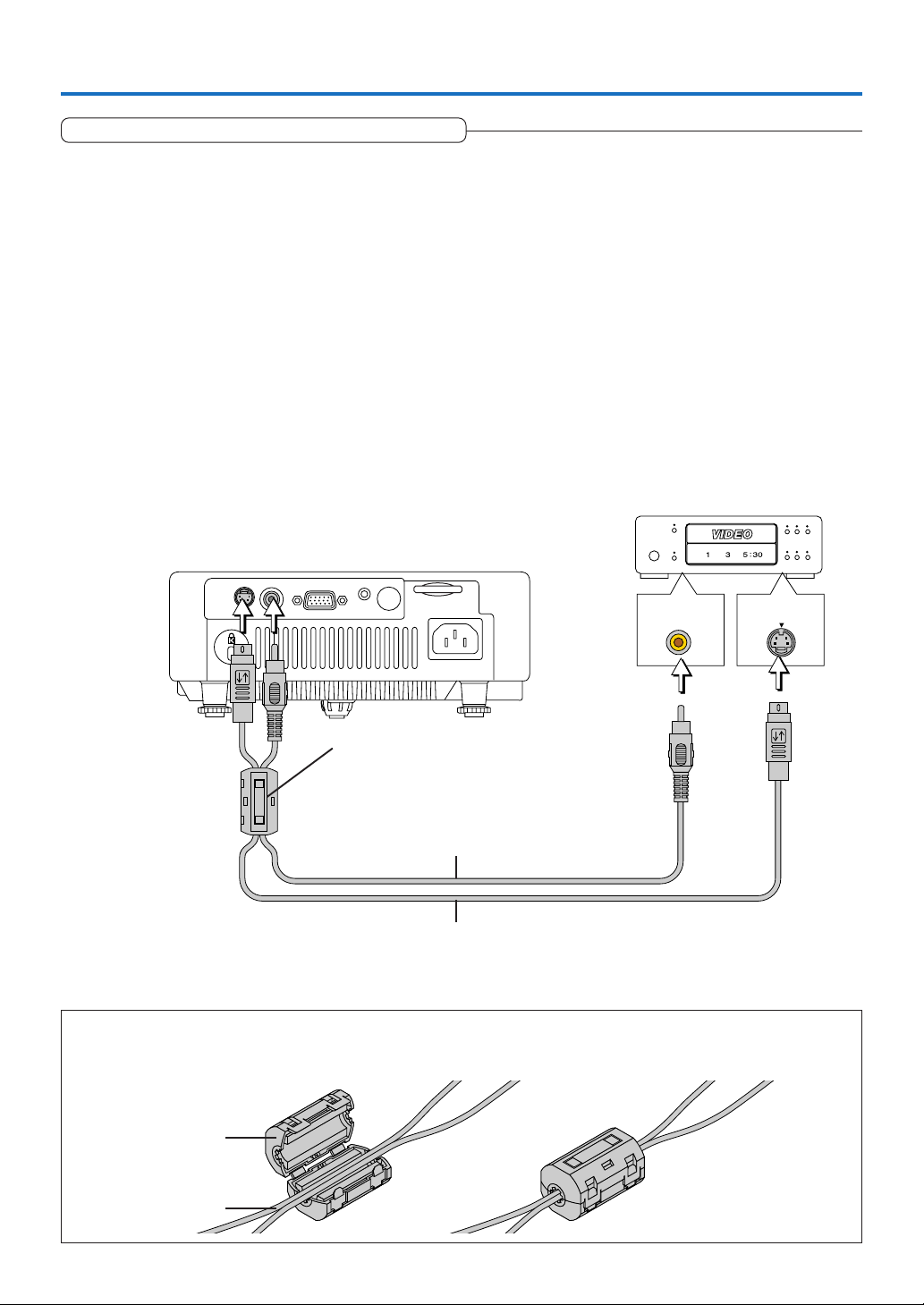

Attaching the Ferrite Core
Gather the commercially-available video cable and S-video cable as illustrated in the diagram and attach the supplied ferrite
core.
S-VIDEO
Ferrite core
Cable
E-18
Page 20
Connecting Personal Computers and Video Equipment
Connections with Component Signals
When the Video Equipment Has a YCbCr Connector or YPbPr Connector
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Compo-
nent” using the menu sequence of [Setup] → [Input Format] → [Computer].
See “Input Format” on Page E-49.
• When projecting the YCbCr signal or YPbPr signal, if the color of the overall image strongly leans toward being greenish or
another color, change the setting under the menu of [Color] → [Color Space].
See “Color Space” on Page E-44.
Component cable (Commercially available)
(Mini D-sub 15-pin to RCA⳯3)
Green
Blue
Component cable (Commercially available)
(Mini D-sub 15-pin to RCA⳯3)
Red
CrCbY
COMPONENT
COMPONENT
PrPbY
Green
Blue
Red
E-19
Page 21
Connecting Personal Computers and Video Equipment

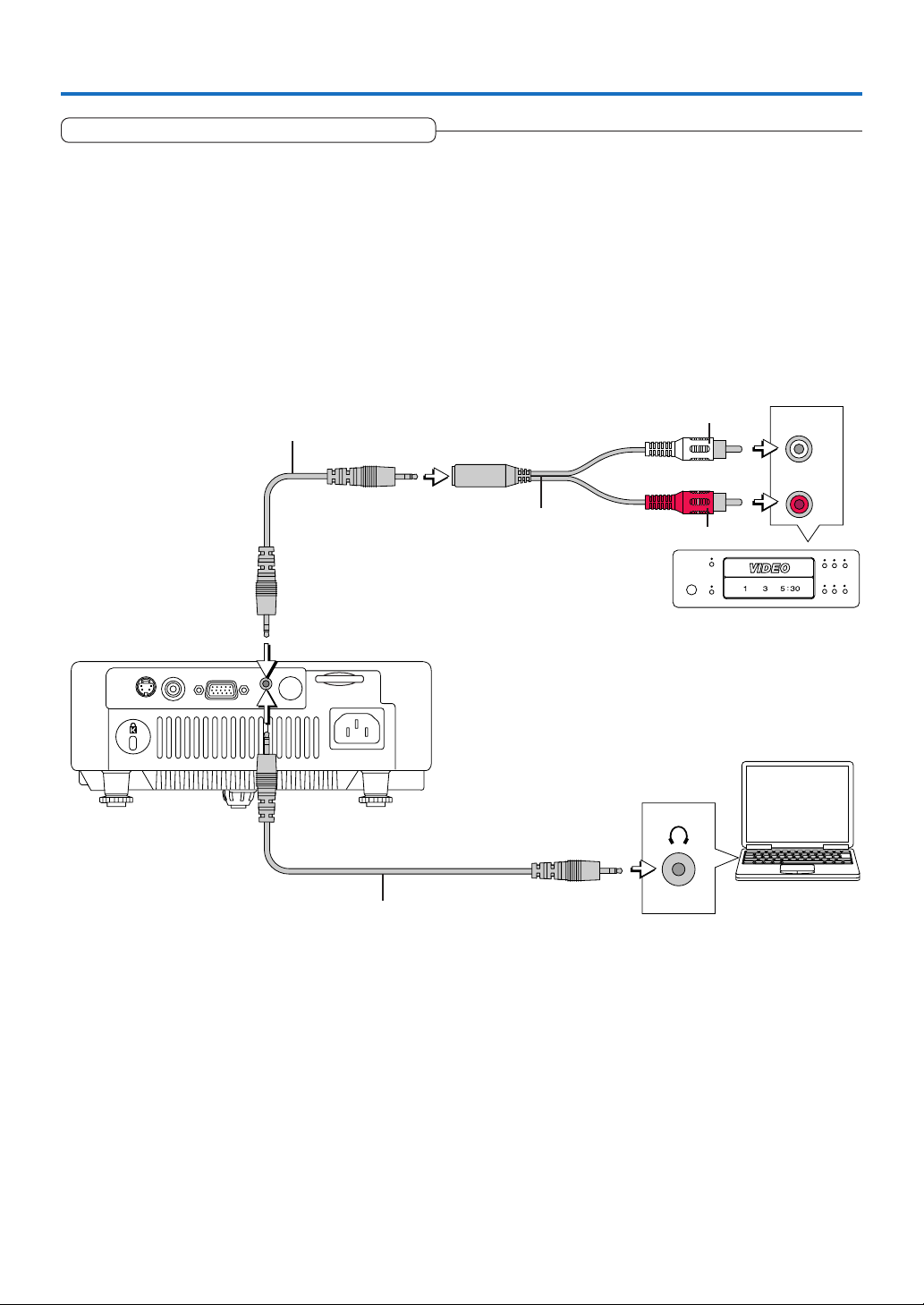

Connections with the AUDIO Jack
* Connect to the projector’s AUDIO jack using a commercially available audio cable. When the audio jack of the equipment that
is to be connected is of the RCA phono type, make connection via the supplied audio conversion adapter.
* The built-in speaker of the projector provides monaural audio. To enjoy convincing audio reproduction, please connect the
audio output of the video equipment to your audio system.
* The built-in speaker outputs the audio of the equipment connected to the AUDIO jack. The built-in speaker outputs the audio of
the equipment connected to the AUDIO connector. Note that audio will not be output unless a video signal is input.
Audio cable (Mini plug)
(Commercially available)
Audio cable (Mini plug)
(Commercially available)
Audio conversion cable
(Mini-jack/ RCA pin plug)
(Supplied item)
White
Red
AUDIO OUT
L
R
E-20
Page 22
Power Cable Connections and Switching the Power On/Off
POWER
STANDBY STATUS
There is an order in which the power cable is connected and the power is switched on/off.
Operating
Connect the AC IN connector of the projector and the power outlet using the supplied power cable.
1
The STANDBY indicator will light in green, and the unit will enter the standby mode.
To wall outlet
Firmly plug in
all the way.
Attaching the Ferrite Core
Ferrite core
Cable
Note:
• When the power plug will be unplugged from the power outlet, please place the projector near the power outlet so that it may be reached
easily.
• The included power cable is exclusively for use with this product. Never use it with other products.
• Press the POWER/STANDBY button after the STANDBY indicator is lit in green.
P
O
W
E
R
Q
U
S
T
I
C
A
K
N
M
D
B
E
Y
N
U
S
T
A
T
U
S
M
EN
U
K
E
Y
E
S
C
T
R
O
U
N
O
E
S
K
E
A
Y
U
S
T
O
T
O
N
E
Lit green
햲 Turn the lens cover clockwise.
2
1
Switch on the projector power
3
Press the POWER/STANDBY button.
POWER
(button on main unit)
The first time the power is switched on after purchase, [Menu
Language Select] will be displayed. See Page E-22 for information about language selection.
• When the power is turned on, the POWER indicator starts flashing
green, then stops flashing after about 60 seconds. If the STATUS
indicator lights green at this time, the lamp mode is set to “Eco”.
See E-28 and 49 for instructions on selecting.
Note:
While the POWER indicator is blinking, the power cannot be switched off.
Check that the POWER indicator is lit steadily, then switch off the power.
• If the power does not come on, see “When the STATUS Indicator is
Lit or Flashing” on Page E-55.
햳 When the lens cover stops with a click, the
projector is ready for projection.
2
POWER/
POWER
Blinking
green
(Approxi-
mately 60
seconds)
STANDBY STATUS
Goes off
indicator is
also lit
green in
Eco-mode.
STANDBY
COMPUTER
VIDEO
This
CANCEL QUICK
MENU
ENTER
Lit green
Power is
on
POWER
STANDBY STATUS
indicator is
Eco-mode.
This
also lit
green in
If the “Password” input window is displayed: See E-32.
A password is set for this projector.
The projector cannot be used unless the correct password is input.
To turn off the power: See E-23.
The projector is now capable of regular projection.
Note:
The image can be muted quickly by closing the lens cover while the image is being projected.
Switch on the power of the connected equipment
4
E-21
Page 23
Power Cable Connections and Switching the Power On/Off
When [Menu Language Select] is Displayed Upon Switching On the Power
The first time the power is switched on after purchase, [Menu Language Select] will be displayed. Follow the procedure described below and select the display language of the projector.
If the image is blurred, turn the focus ring counterclockwise or clockwise to focus it. See Page E-25.
Press the SELECT () buttons of the Remote con-
1
trol and align the deep blue cursor with [English].
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
MENU
ENTER
Cursor
QUICK
MUTE
COLOR ADJ
ECO
ASPECT
AUTO
FREEZE
VOL KSTN ZOOM
Press the ENTER button to set.
2
This will set the language and [Menu Language Select] will close.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
This completes the selection of the display language.
Caution:
[Menu Language Select] will not appear the next time the power is switched on.
Should a change of language become necessary, see “Language” on Page E-51.
E-22
Page 24
Power Cable Connections and Switching the Power On/Off
Press the STANDBY button again
to power off
MENU
Finishing
1
Switch off the power of the connected equipment
2
Switch off the power of the projector
Press the POWER/STANDBY button.
POWER
(button on main unit)
The message display appears.
One more press of the POWER/STANDBY button as described in
the message will switch off the projection screen and cause the
projector to enter the power-off operation.
Note:
* The operation can be cancelled by pressing a button other than the
POWER/STANDBY button.
The POWER indicator will change to a blinking green, then go off
about 90 seconds later, and the STANDBY indicator will light
steadily.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
MENU
ENTER
POWER
STANDBY STATUS
Blinking green
(Approximately 90
seconds)
3
Unplug the power cable
POWER
STANDBY STATUS
Lit green
Standby
mode
When the Quick Off function is not used, check that the STANDBY indicator is lit and then unplug the power cable.
The STANDBY indicator will go off when the power cable is unplugged.
Note:
* When the power cable is disconnected from the power outlet, to provide cooling, the fan will start to turn again and cool the lamp.
(This is not a malfunction.)
* Do not put the projector into a bag or other enclosure while the cooling fan is turning.
햲 Turn the lens cover counterclockwise until it stops.
4
햳 The lens cover will stop with a click.
1
2
Unplug & Go function
Even when the power cable is unplugged soon after switching off the power, the cooling fan (powered by the internal power
supply) will continue to turn and cool the lamp.
• It may be more difficult to turn the lamp back on if it has been cooled with the power cord unplugged.
• Do not place the projector in a bag, etc., while the cooling fan is turning.
E-23
Page 25
Adjustment of the Projection Screen
S
O
U
R
C
E
K
E
Y
S
T
O
N
E
A
U
T
O
K
E
Y
S
T
O
N
E
POWER/
STANDBY
STANDBY
STATUS
MENU
QUICK
MENU
Switch on the power of the connected equipment and make the adjustments with the video signal being input to the
projector.
Adjustment of the Projection Screen
Turn the zoom ring to adjust the screen size of the projection image.
1
Adjust the image to match the desired screen size. When outside of the adjustment range, move the projector to the rear or
forward.
Zoom ring
Adjust the projection image to the screen.
2
Check that the screen is set level and vertically.
(2)
(5)
(3)
(1)
(3)
(4)
(4)
(1) If the image is shifted to the left or right, move the main unit horizontally. (Align the center of the screen and the center of
the projector lens.)
(2) If the image is shifted vertically, move the image up or down with the front adjuster. See "Making Adjustments with the
Adjusters" on Page E-25.
(3) If the image is slanted, adjust by turning the right or left rear adjuster. See "Making Adjustments with the Adjusters" on
Page E-25.
(4) A projection image such as that illustrated in the diagram is the result of the projector not being perpendicular to the
screen. Set the projector so that it is pointing straight toward the screen.
(5) The vertical keystone distortion of the projection screen will be corrected automatically. (Auto Keystone Function)
• An automatic adjustment will be made approximately 2 seconds after the projection angle has been fixed. When the
adjustment is completed, the [Auto Keystone Complete] message will be displayed for about 1.5 seconds.
To make fine adjustments after the automatic adjustment, see “Keystone Manual Adjustment” on Page E-29.
Auto Keystone Function
Keystone distortion arises when the projector is on a slant in the vertical orientation. This projector has an “Auto Keystone”
function that detects the vertical slanting and corrects it automatically.
This function is disabled when [Auto Keystone] of the on-screen menu is set to “OFF”. See “Auto Keystone” on Page E-47.
Conditions for Automatic Correction
• Automatic correction will operate in the range of 2 to 12 degrees in the upward direction, and 2 to 18 degrees in the downward
direction.
• Correction is performed only while the image is being projected.
Note:
Correction might not be possible when the screen surface is on a slant, or when the ambient temperature of the projector is extremely high
or low.
E-24
Page 26
Adjustment of the Projection Screen
S
O
U
R
C
E
K
E
Y
S
T
O
N
E
A
U
T
O
K
E
Y
S
T
O
N
E
POWER/
STANDBY
STANDBY
STATUS
MENU
QUICK
MENU
Turn the focus ring and adjust the focus of the screen
3
ABCD
Making Adjustments with the Adjusters
Raising the projection image
While viewing the projection image, (1) press and hold
the front adjuster buttons located at the left and right and,
(2) raise the projector to align the image with the screen,
then release your fingers.
Turn the left and right front adjusters for fine adjustment.
Adjust so that there is no shaking of the projector.
Focus ring
(2)
E
N
O
T
O
T
S
U
Y
A
E
K
S
E
O
N
U
O
R
T
C
S
E
Y
E
K
MENU
STANDBY STATUS
QUICK MENU
POWER
Lowering the projection image
Lower the front adjuster using the operation described
above. To lower the projection screen further, turn the rear
adjusters.
Fine adjustments are made by turning the rear adjusters.
Make adjustments so that there is no rattling.
Adjuster button
(1)
E
N
A
U
O
T
T
S
O
Y
E
K
S
E
U
T
A
T
S
Y
B
D
N
A
T
S
R
E
M
W
O
P
U
N
E
M
K
IC
U
Q
E
C
N
R
O
U
T
O
S
S
Y
E
K
U
N
E
Note:
When the projector has a rear installation is used, the orientation of the projection will need to be changed.
Please see “Vertical Flip / Horizontal Flip” on Page E-47.
E-25
Page 27
General Operation
This section describes the use of direct operation with the main unit or remote control buttons.
For information about operation using the menu, see “Menu Operation Method” on Page E-34 and the various items on
Pages E-41 to E-54.
Input Selection
This operation selects the input signal to be projected.
Main unit operation: Press the SOURCE button.
(It will not function while the menu or the quick menu is displayed.)
Each press of the SOURCE button on the main unit permits the selection of an
input source. Press the ENTER button to set the selected input source.
Applicable Model: KG-PS100S/KG-PS120X
Applicable Model: KG-PS125X
Remote control operation: Press the desired input selection button.
COMPUTER button ... Switches the Computer input.
VIDEO button ............ The input switches between Video and S-Video each time the button
is pressed.
When Auto Source is On
When an input signal is not present at the selected source, the projector automatically selects the next source that has an input signal.
When Auto Source is Off
The projector switches to the selected source regardless of whether an input signal is present.
Note:
* When you do not operate source selection, the projector will assume the input selec-
tion condition that was previously used.
* See “Auto Source” on Page E-48 for information about the Auto Source on and off
conditions.
POWER
STANDBY STATUS
MENUQUICK MENU
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
T
O
S
N
Y
E
E
K
E
C
R
U
O
S
K
E
Y
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
A
U
T
O
E
N
S
O
T
Automatic Adjustment
This function automatically adjusts the position shift, screen size, vertical stripes,
and color infidelity of the projected analog RGB input signal.
Normally automatic adjustment is performed at the time of signal selection.
Main unit operation/Remote control operation: Press the AUTO button.
(This will not function while the menu or the quick menu is displayed.)
A press of the AUTO button starts the automatic adjustment.
Note:
* If the display position is shifted, vertical lines appear on the picture, or the projection
is not good even after using automatic adjustment, please perform image adjustment
manually. See “Picture Adj. / Fine Picture / H Position / V Position” on Page E-41.
* When the image extends beyond the boundaries of the screen or is smaller than the
screen, set “Aspect Ratio” to “Auto”. See “Selection of Aspect Ratio” on Page E-27
and “Aspect Ratio” on Page E-46.
E-26
T
O
S
N
Y
E
E
ENTER
K
E
C
R
U
O
S
K
E
Y
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
A
U
T
O
E
N
S
O
T
POWER
QUICK MENU
STANDBY STATUS
MENU
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
(KG-PS100S/KG-PS120X remote control)
Page 28
General Operation
Selection of Aspect Ratio
This function selects horizontal and vertical picture proportions of the input
signal.
Press the ASPECT button while viewing the projected image and select the
aspect ratio.
Personal Computer Signal
Each press of the ASPECT button advances the selection one step in the sequence of Auto → Direct → Real, and then repeats.
Auto ............ Automatically enlarges or reduces the image to project a full screen in a ratio
of 4:3
Direct .......... Maintains the aspect ratio and projects a picture of the maximum displayable
size
Real ............ Projects the input signal without pixel conversion.
Input Signal Auto Direct Real
The setting is higher
than the display resolution of the projector.
The setting is lower
than the display resolution of the projector.
Note:
The KG-PS125X projector uses menu operations to make this
selection. The content
of the operation is the
same. See “Aspect
Ratio” on Page E-46.
POWER/
STANDBY
CANCEL QUICK
VIDEO
MUTE
VOL KSTN ZOOM
ENTER
ECO
COMPUTER
FREEZE
(KG-PS100S/
KG-PS120X
remote control)
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
Video Signals / Component Signals
Each press of the ASPECT button advances the selection one step in the sequence of Auto → Wide → Zoom, and then repeats.
Auto ............ While maintaining the aspect ratio, projects a full screen so that no portions extend beyond the boundaries of the screen. The top
and bottom of the 16:9 image becomes black.
Wide ........... Projects to fill the full width with the entire image at 16:9.
(This feature is used to project a squeezed image in a proper aspect ratio.)
Zoom .......... Projects only the 4:3 portion within 16:9 image to fill the screen.
(Portion that extend off screen is cut.)
Aspect ratio selection Auto Wide Zoom
4:3 screen
16:9 screen
Note:
When selection has been made for the “Real” setting of the personal computer signal (i.e., when the input signal and the projector display
resolution are high) and the “Zoom” setting of the video signal, pressing the SELECT (
) buttons on the remote control will permit
movement of the display position. Note that there will not be any movement when the menu or the quick menu is displayed.
E-27
Page 29
General Operation
Freezing a Moving Picture
This function is used to stop and view a moving picture. Note that the input
image continues to advance even though the picture there is a still picture
condition.
A press of the FREEZE button changes the screen to a still picture. A
further press returns the screen to a moving picture.
Cancelling Video and Audio Temporarily
This function is used to cancel the video and audio at the same time.
A press of the MUTE button will blank the picture and the sound, and
the screen will take on the background color that has been set.
Another press will cause a return to the original conditions.
Eco Mode
Use this if the picture is projected on a small screen and the picture
is too bright or when projecting images in dark rooms.
Pressing the ECO button will set the Eco mode.
On (STATUS indicator is lit green)
The lamp’s brightness is reduced to approximately 80%, extending the
lamp’s service life.
Off (STATUS indicator is off)
The lamp brightness is set to 100% and the screen is bright.
Note:
Frequent switching this mode can degrade the lamp.
QUICK
FREEZE
VOL KSTN ZOOM
FREEZE
VOL KSTN ZOOM
POWER
ECO
MUTE
ECO
MUTE
STANDBY STATUS
COLOR ADJ
ASPECT
AUTO
QUICK
COLOR ADJ
ASPECT
AUTO
STATUS indicator
QUICK
MUTE
COLOR ADJ
ECO
ASPECT
AUTO
FREEZE
VOL KSTN ZOOM
Quick Color Adj.
This function selects the preset color mode.
* The preset color mode will differ depending on the input source.
Press the QUICK COLOR ADJ button and select the setting details with
the SELECT ( ) buttons.
Selection of the setting details can also be made with each press of the
QUICK COLOR ADJ button.
Input Source Color Mode
Standard ................... Selection of the standard (default setting).
Computer
Wireless
Viewer
Color priority ............ Selection of color priority.
Brightness priority .... Selection of brightness priority.
Blackboard mode ...... Selects the optimum colors when the projection surface is a blackboard.
Custom ..................... Allows the selection and adjustment of the gamma, color temperature, and white level adjustment
items.
Standard ................... Selection of the standard (default setting).
Component
Video
S-Video
Movie mode .............. Selection of color priority best suited to movies.
Blackboard mode ...... Selects the optimum colors when the projection surface is a blackboard.
Custom ..................... Allows the selection and adjustment of the gamma, color temperature, and white level adjustment
items.
Note:
When an item other than Custom is selected with Quick Color Adj., the gamma, color temperature, and white level adjustment items are
displayed in gray, and selection and adjustment are not possible.
E-28
FREEZE
MUTE
VOL KSTN ZOOM
ECO
QUICK
COLOR ADJ
ASPECT
AUTO
Page 30
General Operation
VIDEO
FREEZE
MUTE
ECO
VOL KSTN ZOOM
CANCEL QUICK
MENU
ENTER
COMPUTER
QUICK
COLOR ADJ
ASPECT
AUTO
POWER/
STANDBY
S
O
U
R
C
E
K
E
Y
S
T
O
N
E
A
U
T
O
K
E
Y
S
T
O
N
E
Keystone Manual Adjustment
Use this to adjust for trapezoidal (keystone) distortion of the projected image. The projector has both an automatic and a manual keystone adjustment function. The manual adjustment will be described
here.
Adjustment Method
(1) Press the () buttons of the projector, or the () KSTN but-
tons of the remote control and set the left and right sides so that
they are parallel.
The keystone adjustment display appears when one of the buttons is
pressed.
Press the button. Press the button.
(2) To exit the display immediately, press the CANCEL button of the
remote control.
The display will close when there has not been an operation in about
10 seconds.
(1)
(Projector button)
(2)
(1)
Note:
* Screen examples have been drawn in an exaggerated style for the purpose of description.
* Please note that depending on the projected picture and the projection conditions, it may not be possible to eliminate keystone distortion
completely.
* When the Auto Keystone function is OFF, the keystone adjustment settings will be maintained even when the power has been turned off.
* See “Adjustment of the Projection Screen” on Page E-24 for information about the Auto Keystone function.
See “Auto Keystone” on Page E-47 for information about turning Auto Keystone ON and OFF.
Also see “Keystone” on Page E-47 for information about making manual adjustments using the on-screen menu.
* When Wireless Viewer is selected with model KG-PS125X, the keystone function will not operate with the main unit button.
Adjustment of the Volume
This function adjusts the volume of the built-in speaker.
(1) Press the or VOL button to adjust the volume.
The volume adjustment display appears when one of the buttons is
pressed.
The button increases the volume and the button decreases the
volume.
(2) Press the CANCEL button to immediately close the display.
The display will close when there has not been an operation in about
Note:
* Adjustment of the volume will not produce any sound unless an image is
10 seconds.
being projected.
E-29
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
(1)
ENTER
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
(2)
Page 31
General Operation
Enlargement of the Image and Video Movement
This function digitally enlarges the personal computer image and video
image.
(1) Press the ZOOM button to enlarge the image.
The zoom display appears when the ZOOM button is pressed.
Each press of the button enlarges the image and each press of the
button makes the image smaller (returning it to 1:1).
Zoom
0
Zoom
21
(No enlargement) (Approximately 2 times enlargement)
(2) Pressing the SELECT () buttons on the remote control at
the time of the zoom operation will cause the display position to
move.
(There will not be any movement when zoom is at 0.)
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
MENU
(2)
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
(3)
(1)
Zoom
21
Zoom
21
(Approximately 2 times enlargement) (Movement)
(3) Press the CANCEL button to immediately close the display.
The display will close when there has not been an operation in about
10 seconds.
Note:
After magnifying the image, be sure to use the ZOOM button to bring the gauge
value back to “0”.
The image can also be moved in the following circumstances.
• When “Aspect Ratio” is set to “Real” by the signal of the personal computer, and the input resolution is
higher than the display resolution of the projector.
• When “Aspect Ratio” is set to “Zoom” by the video signal.
Note:
* Zoom and image movement functions are cancelled when the input is switched.
* The greater the zoom enlargement, the less distinct the image will appear. The reason for this is that the dots are being digitally corrected
so that they are not conspicuous.
* Movement of the screen will not be possible when the menu screen is being displayed.
E-30
Page 32
General Operation
Protecting the Projector with the Security Lock
A password can be registered and the security lock set in order to protect the projector from unauthorized use.
Registering the password
The password is registered using the menus. For instructions on operating the menus, see “Menu Operation Method” on E-34.
(1) Select “Security Lock” in the “Option” menu and set it to “Enable”.
The menu closes and the password registration display appears.
(2) Register using the (four) input buttons.
Be sure to input a 4-digit number.
Example: Registering the password “3221”
Supposing that the input buttons are substituted by number buttons, the
substitution will be:
FREEZE button ........................ “1”
MUTE button ............................ “2”
ECO button .............................. “3”
QUICK COLOR ADJ button ..... “4”
(1) When input button “ECO” is pressed, an “*” (asterisk) is entered for the
first digit.
Continuing, pressing the “MUTE” “MUTE” “FREEZE” input buttons will
enter asterisks in the remainder of the four digits.
(2) Input the password again. An “*” appears when the input number
matches. If there is a mistake, the asterisks turn off. Start over from step
(1) above.
If the password matches, the password registration display closes.
Input buttons
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
Note:
To cancel the number you have input, press the CANCEL button.
The asterisks disappear and the display returns to the input standby mode at the first
place.
To cancel the password registration mode, press the CANCEL button again. The “Pass-
word” display turns off.
This completes password registration.
The “Password” input display appears the next time the power is turned
on.
Note:
The numbers you have input are not displayed. Be sure to write down the password
and store it in a safe place.
E-31
Page 33
General Operation
If the password input display appears when the power is turned on
When a password has been registered, the “Password” input window appears on the projected image when the power is turned
on. The projector continues projecting this image until the correct password is input. At this time, only the POWER/STANDBY
button (power off) works. Use the procedure described below to input the registered password. For instructions on registering the
password, see E-31.
Register using the (four) input buttons.
Be sure to input the registered 4-digit number.
Example: To input the password “3221”
When input button “ECO” is pressed, an “*” (asterisk) is entered for the first digit.
Continuing, pressing the “MUTE” “MUTE” “FREEZE” input buttons will enter as-
terisks in the remainder of the four digits.
If the password matches, the window turns off and the projector can be used
normally.
Canceling the password/Changing the password
The password is canceled and changed using the menus. For instructions on operating the menus, see “Menu Operation Method”
on E-34.
[Password input window]
Canceling the password
Select “Security Lock” in the “Option” menu and set it to “Disable”.
This clears the password and disables the security lock.
The password input display no longer appears when the power is turned on.
Changing the password
After setting “Security Lock” to “Disable” as described above, set it back to “En-
able”. The menu closes and the password registration display appears.
Register the new password. See “Registering the password” on E-31.
E-32
Page 34
General Operation
Using the Quick Menu
This function permits frequently used adjustments to be performed
quickly.
Note that the Quick Menu will not be displayed unless the signal of the connected equipment is input. Please select the input that you wish to adjust.
Main unit operation
(1) Press the QUICK MENU button to display the quick adjustment display.
Further presses cause the adjustment display to change in sequence.
Press the SELECT or button to switch to the desired adjustment display.
(2) Press the SELECT or button to adjust.
POWER
STANDBY STATUS
E
C
R
MENUQUICK MENU
U
O
S
(1) (2)
T
S
O
Y
N
E
E
K
A
U
T
O
K
E
E
N
Y
S
O
T
Remote control operation
(1) A press of the QUICK MENU button brings up the quick adjustment
display.
Further presses cause the adjustment display to change in sequence.
The adjustment display can be selected with use of either the SELECT or
button.
(2) Press the cursor or button to make the adjustment.
(3) To close the display immediately, press the CANCEL button.
In the absence of operations for a period of about 10 seconds, the display
will close automatically.
Content of Adjustments and Settings
Example: Brightness adjustment display
Display Item Adjustment/Setting
Brightness Adjusts the brightness of the image. See page E-41.
Contrast Adjusts the contrast of the image. See page E-41.
Keystone Corrects (vertical) keystone distortion of the screen. See page E-47.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
MENU
(2)
(1)
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
(3)
Volume This function adjusts the volume of the built-in speaker. See page E-29.
Presentation timer Sets the time of the presentation timer. See page E-50.
Quick Color Adj. Select the preset color mode. See page E-43.
E-33
Page 35
Menu Operation Method
• This section describes only the menu operation method. Please see this item should you need information while
performing menu operations.
• For information about a menu function, adjustment, or setting, please see one of the pages containing such descrip-
tions.
• Adjustments and settings are made by projecting an image and adjusting to an optimum condition.
• The remote control should be pointed toward the remote control sensor of the projector and operated.
• To return the various items that have been changed via the menu to their standard values (i.e., default values at time
of shipping from the factory), see “Factory Default” on Page E-53. (Some items will not return to their initial values.)
• The adjustment/setting items and contents will differ depending on the input selection and the adjustment/setting
items that can be used with the input signal are displayed on the menu.
Names and Functions of Buttons Used for Menu Operations
(Remote Control)
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
MENU button
Used for menu display and menu closure.
SELECT () buttons
Used in the selection of menu names and item names as
well as in setting and adjusting the item contents.
ENTER button
Used to enter settings.
(Main Unit)
POWER
STANDBY STATUS
MENUQUICK MENU
CANCEL button
Used to return to menu name selection as well as to close
the menu (and the sub menu display).
T
O
S
N
Y
E
E
K
E
C
R
U
O
S
K
E
Y
S
O
T
A
U
T
O
E
N
SELECT () buttons
ENTER button
MENU button
Used to display menus, to return to menu name selections,
and to close menus (i.e., closing sub menu displays).
E-34
Page 36
Menu Operation Method
Menu Screen Names and Functions
Menu Name
This is the title of the menu.
There is a change to the title screen
when the menu is selected.
The cursor moves to the selected
menu name.
Item Name
This is the name of the
adjustment or setting.
Adjustment Bar and Settings Contents
Adjustment Bar: The increases and decreases in bar length
express the adjustment condition.
Setting Contents: Displays the contents that have been set.
Adjustment Bar
Cursor (Deep Blue)
This permits setting/adjustment of the
item located at the cursor position.
Icon: A press of the ENTER
button (the button on the
main unit) will display the sub
menu or the setting details.
Sub menu
E-35
Settings ContentsItem Name
Page 37
Menu Operation Method
Performing Menu Operations
• Only “Setup”, “Options” and “Info.” can be selected when no signal is being input.
• The menu display will close if, after pressing a button, the next button operation is not made within 30 seconds.
• The adjustment and the setting values are stored even when the power is switched off or the plug is disconnected
from the power outlet.
(Note that some items are not stored.)
Preparation Switch on the power of the connected equipment, start the play operation or another operation, and input
the signal to the projector.
Select the input that you wish to adjust.
The menu display of the description diagram depicts an example in which the “Keystone” item name is selected.
Menu Display
Press the MENU button to display the menu
1
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
ENTER
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
The menu name that existed when the menu was closed previously will be displayed.
Selection of the Menu Name
Press the SELECT () button to select the menu name
2
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
Each press of the SELECT button advances the selection one step in the sequence of “Color” → “View” → “Setup” →
“Option” → “Info.” → “Image”. Each press of the SELECT button causes a return of one step.
The cursor moves to the selected menu name.
Note:
Please check that the cursor of the item name has disappeared at the time of menu name selection.
Press the CANCEL button to make the cursor disappear.
E-36
Page 38
Menu Operation Method
Displaying the Cursor
3 Press the SELECT button to display the item name selection cursor.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
Selection of the Item Name
Press the SELECT () button to align the cursor with the item name
4
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
MUTE
ENTER
ENTER
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
MENU
QUICK
COLOR ADJ
ECO
ASPECT
AUTO
This condition allows selection of the
item name.
Items for which the Icon Is Displayed
Press the ENTER button to display the submenu.
Press the SELECT () button and align the cursor with the desired item name.
There are also some items for which the setting display or the verification display will appear. Please see the various item
descriptions.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
MUTE
VOL KSTN ZOOM
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
Sub menu
Making Adjustments/Settings
Press the SELECT () button and make the adjustment (or setting) while viewing the image
5
When a button is pressed, the image will also change.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
Adjustment display: Each press of the button results in a change of 1 point and continued presses cause changes to
proceed in order.
Setting display: The setting contents display changes with each press of the button.
E-37
Page 39
Menu Operation Method
Closing the Menu
6
Press the MENU button and close the menu display
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
Selecting Another Menu Name with Remote Control Operation
When a sub menu is displayed, press the CANCEL button or the MENU button to close the sub menu.
Press the CANCEL button or the MENU button again to
delete the cursors of the various items.
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
MENU
ENTER
MUTE
COLOR ADJ
ECO
ASPECT
AUTO
FREEZE
VOL KSTN ZOOM
QUICK
Press the SELECT () button and select the menu
name.
(Menu names cannot be selected when the item name
cursor is displayed.)
POWER/
STANDBY
COMPUTER
CANCEL QUICK
VIDEO
FREEZE
VOL KSTN ZOOM
MUTE
ENTER
ECO
MENU
QUICK
COLOR ADJ
ASPECT
AUTO
Note:
A press of the QUICK button while the menu is displayed will close the menu and display the quick menu. A press of the MENU button while
the quick menu is displayed will close the quick menu and display the menu.
E-38
Page 40
Menu Operation Method
List of Item Names Offering Input Selection and Adjustments/Settings
The item names that can be adjusted/set will differ depending on the input signal.
[Example of Menu Display Items at the Time of Input Signal Computer Selection]
Menu name
Color
View
Item Name
Brightness
Contrast
Color
Tint
Sharpness
Picture Adj.
Fine Picture
H Position
V Position
Reset
Quick Color Adj.
Gamma
Color Temp.
White Level
Color Space
White Balance
Aspect Ratio
Filter
Vertical Flip
Horizontal Flip
Keystone
Auto Keystone
Sub Menu
Item Name
Imput
Terminal
Input Signal
Computer
Component
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷嘷嘷
COMPUTER
IN
Video
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
嘷嘷
S-Video
Wireless
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
Reference
Viewer
Page
E-41
E-41
E-41
E-41
E-41
E-41
E-42
E-42
E-42
E-42
E-43
E-43
E-44
E-44
E-44
E-45
E-46
E-46
E-47
E-47
E-47
E-47
* “Tint” can be adjusted only in the NTSC system composite/S signal input mode, or in the component signal input mode.
E-39
Page 41
Menu Operation Method
Imput
Terminal
Menu name
Setup
Option E-51
Info.
Item Name
Auto Source E-48
Auto Power Off E-48
Menu Position E-48
Eco Mode E-49
Input Format
Presentation Timer
Volume E-50
Language
On Screen
Background
Startup Screen
Security Lock E-52
Network Password E-52
Status E-53
Factory Default E-53
Lamp Timer Reset E-53
Resolution E-54
Frequency E-54
Lamp Timer E-54
Sub Menu
Item Name
Computer
Video
S-Video
Input Signal
嘷
嘷
嘷
嘷嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷嘷 嘷
嘷
嘷
嘷
嘷
嘷
嘷
COMPUTER
Video
Computer
Component
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷嘷嘷嘷 嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
嘷嘷
嘷
IN
S-Video
嘷
嘷
嘷
嘷
嘷嘷嘷 嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
Wireless
Viewer
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
Reference
Page
E-49
E-49
E-49
E-50
E-51
E-51
E-52
E-40
Page 42
• Perform this operation while projecting the picture for which the adjustment/setting will be made.
• Select the menu name “Image”.
See “Menu Operation Method” on Page E-34 for information about performing menu operations. The item name display will
differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-39.
Brightness / Contrast / Color / Tint / Sharpness
Picture qualities such as brightness and contrast will change depending on the whether the room is bright or dark. Please adjust to suit your
preference.
Select the desired item name and then adjust with the SELECT () buttons.
Item Name
Brightness
Contrast
Color
Tint
Sharpness
Note:
* The adjustment values of the adjustable items are stored according to input source.
* “Tint” can only be adjusted when inputting NTSC composite/S-Video signals or
component signals.
SELECT 䊴 Button
Darker
Less contrast
Less dense color
More red
Softer image
SELECT 䊳 Button
Brighter
More contrast
Denser color
More green
Sharper image
Picture Adj. / Fine Picture / H Position / V Position
Usually, automatic adjustment is performed at the time of signal selection, but when automatic adjustment is not effective, these adjustments
can be performed.
Note:
When the image extends beyond the boundaries of the screen or is smaller than the
screen, check that the “View” → “Aspect Ratio” setting is set to “Auto”. See “Aspect Ratio” on Page E-46.
Picture Adj. (Picture Adjustment)
Adjust this when bright and dark vertical bands appear on the screen.
Select the “Picture Adj.” item name and adjust with the SELECT () buttons
so that the vertical bands disappear and brightness becomes uniform across
the screen.
E-41
Page 43
Fine Picture
Adjust this when the picture shows a lack of color fidelity or flickering.
Select the “Fine Picture” item name and adjust with the SELECT () but-
tons so that the lack of color fidelity or the flickering disappears.
H Position
Adjust this when the picture is shifted to the left or right.
Select the “H Position” item name and adjust with the SELECT () buttons.
V Position
Adjust this when the picture is shifted up or down.
Select the “V Position” item name and adjust with the SELECT () buttons.
Reset
This function resets (i.e., returns to the standard settings) the adjustment/setting value of the “Image” menu name.
A press of the ENTER button forces the reset.
Note:
* The item name “Fine Picture” at the time of RGB input will not be reset.
* “Reset” of the menu name “Image” can be reset for each input source.
* To reset the adjustments/settings of all the menu items (while noting that there are some items that cannot be reset), see “Factory Default”
on Page E-53.
E-42
Page 44
Color
• Do the following operation while displaying the image you want to adjust or set.
• Select the menu name “Color”.
See “Menu Operation Method” on Page E-34 for information about performing menu operations. The item name display will
differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Pages
E-39.
Quick Color Adj.
This function selects the preset color mode.
* The preset color mode will differ depending on the input source.
Press the QUICK COLOR ADJ button and select the setting details with the
SELECT ( ) buttons.
Selection of the setting details can also be made with each press of the QUICK
COLOR ADJ button.
Input Source Color Mode
Computer
Wireless
Viewer
Component
Video
S-Video
Standard ................... Selection of the standard (default setting).
Color priority ............ Selection of color priority.
Brightness priority .... Selection of brightness priority.
Blackboard mode ...... Selects the optimum colors when the projection surface is a blackboard.
Custom ..................... Allows the selection and adjustment of the gamma, color temperature, and white level adjustment
items.
Standard ................... Selection of the standard (default setting).
Movie mode .............. Selection of color priority best suited to movies.
Blackboard mode ...... Selects the optimum colors when the projection surface is a blackboard.
Custom ..................... Allows the selection and adjustment of the gamma, color temperature, and white level adjustment
items.
Note:
When an item other than Custom is selected with Quick Color Adj., the gamma,
color temperature, and white level adjustment items are displayed in gray, and selection and adjustment are not possible.
Gamma
Gamma corrects the proportion of change of the dark portions from the
bright portions of the input signal.
Set this to reproduce natural color tone or to distinctly project a personal computer picture in a bright conference room.
Select the “Gamma” item name and select the setting contents with the SELECT
() buttons.
Normal ....... Correction with standard settings
Natural ........ Corrects for natural color tones
Real ............ Corrects with emphasis on brightness
Note:
When an item other than Custom is selected with Quick Color Adj., the gamma,
color temperature, and white level adjustment items are displayed in gray, and selection and adjustment are not possible.
E-43
Page 45
Color
Color Temp.
The screen color is affected by the color of the illumination and other
extraneous light.
This function adjusts the white, which is the reference color for video
equipment, and improves the quality of color reproduction. Adjustment
can also be used to enhance skin colors.
Select the item name “Color Temp.” and select the setting contents with the
SELECT () buttons.
Low ............ Produces warm whites (reddish)
Medium ...... Produces warm whites (yellowish)
Normal ....... Produces the white of sunlight
High ............ Produces cool whites (bluish)
Note:
When an item other than Custom is selected with Quick Color Adj., the gamma,
color temperature, and white level adjustment items are displayed in gray, and selection and adjustment are not possible.
White Level
When projecting, this function is used to emphasize the whites of text or
diagrams on the personal computer.
Select the item name “White Level” and use the SELECT () buttons to
select the setting contents.
Select the desired degree of white level from among “Low”, “Medium”, and
“High”.
Note:
When an item other than Custom is selected with Quick Color Adj., the gamma,
color temperature, and white level adjustment items are displayed in gray, and selection and adjustment are not possible.
Color Space
Set this function when a component signal (YPbPr) is projected and the
image is extremely red or extremely green.
Select the item name “Color Space” and use the SELECT () buttons to
select a color space setting that provides a normal image.
Selection contents at the time of YPbPr input
BT.709, SMPTE240
Note:
* When the component signal undergoes conversion processing to red, green,
and blue which express the image of the projector, the correct color cannot be
reproduced unless a system compliant with the color difference conversion system of the input signal is used. Color Space serves to make this selection.
* The color space can only be adjusted with high definition TVs.
E-44
Page 46
Color
White Balance
This function automatically adjusts the black level and the white level of
the Computer input signal to suit the personal computer.
1 Select the item name [White Balance] and press the ENTER button.
The display will change to [Input Black Signal].
2 The screen background color of the connected personal computer
will be set to black.
3. Press the ENTER button. The display will change to [Adjusting Black]
and the black level will be adjusted.
4 The adjustment of the black level is completed and the display
changes to [Input White Signal].
5 The screen background color of the connected personal computer
will be set to white.
6 Press the ENTER button. The display will change to [Adjusting White]
and the white level will be adjusted.
[White balance complete] is displayed for a while and the adjustment is
completed.
E-45
Page 47
View
• Perform this operation while projecting the picture for which the adjustment/setting will be made.
• Select the menu name “View”.
See “Menu Operation Method” on Page E-34 for information about performing menu operations. The item name display will
differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-39.
Aspect Ratio
This function sets the horizontal and vertical picture proportions of the
input signal.
Select the item name “Aspect Ratio” and select the setting contents with the
SELECT () buttons.
Personal Computer Signal
Auto ............ Automatically enlarges or reduces the image to project a full screen in a
Direct .......... Maintains the aspect ratio and projects a picture of the maximum
Real ............ Projects the input signal without pixel conversion
Video Signals
Auto ............ While maintaining the aspect ratio, projects a full screen so that no por-
Wide ........... Projects to fill the full width with the entire image at 16:9.
Zoom .......... Projects only the 4:3 portion within 16:9 image to fill the screen.
ratio of 4:3
displayable size
tions extend beyond the boundaries of the screen. The top and bottom of
the 16:9 image becomes black.
(This feature is used to project a squeezed image in a proper aspect ratio.)
(Portion that extend off screen is cut.)
See “Selection of Aspect Ratio” on Page E-27 for diagrams of projection screen
images that correspond to the input signals.
Note:
Please note that using this monitor for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and projecting
a 4:3 screen in wide mode or leaving a squeezed screen as a compressed image
raises concern about the infringement of the copyright holder’s rights which are
protected by copyright law.
Filter
This function sets the sharpness when the input signal is adjusted to
the resolution of the projector and enlarged or reduced.
Select the item name “Filter” and select the setting contents with the SELECT
() buttons.
Smaller numerical values result in a sharper picture and larger values result in
a softer picture. Please select your desired setting value.
E-46
Page 48
View
Vertical Flip / Horizontal Flip
In selecting the method of projecting to the screen, these functions are
set when the projector is in a rear screen installation.
Select the item name “Vertical Flip” or “Horizontal Flip” and select the setting
contents with the SELECT () buttons.
“Vertical Flip” Off
“Horizontal Flip” Off
“Vertical Flip” Off
“Horizontal Flip” On
“Vertical Flip” On
“Horizontal Flip” On
“Vertical Flip” On
“Horizontal Flip” Off
Keystone
Keystone distortion will occur when the projector and screen are on an
angle (in the vertical orientation). The Keystone function is used to manually adjust this distortion.
Select the item name “Keystone” and correct the keystone distortion using the
SELECT () buttons.
Press the button. Press the button.
Note:
* The menus and other on-screen displays cannot be adjusted.
* Please note that depending on the projected picture and the projection conditions, it may not be possible to eliminate keystone distortion
completely.
* When the Auto Keystone function is OFF, the keystone adjustment settings will be maintained even when the power has been turned off.
* See “Adjustment of the Projection Screen” on Page E-24 for information about the Auto Keystone function.
See “Keystone Manual Adjustment” on Page E-29 for information about manual adjustment using the projector and the remote control.
Auto Keystone
Auto Keystone is set to provide an automatic adjustment of the keystone distortion.
Select the item name “Auto Keystone” and set with the SELECT () buttons.
On ............... provides automatic adjustment.
Off .............. does not provide automatic adjustment.
Note:
See “Adjustment of the Projection Screen” on Page E-24 for information about the Auto Keystone function.
See “Manual Adjustment of Keystone” and the aforementioned “Keystone” on Page E-29 for information about manual adjustment using the
buttons of the projector and the remote control.
E-47
Page 49
Setup
Applicable Model: KG-PS125X
• Select menu name “Setup”.
See “Menu Operation Method” on Page E-34 for information about performing menu operations. The item name display will
differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-39.
Auto Source
The Auto Source function automatically detects the input signal when
the power supply is switched on and when the input is switched.
Select the item name “Auto Source” and select the setting contents with the
SELECT () buttons.
On ............... Switches on the automatic detection function
Off .............. Switches off the automatic detection function
Signal Detection Order When On
The sequence of Computer → Video → S-Video → Wireless → Viewer is
searched repeatedly.
When a signal is detected, the search is stopped and the image is projected.
Auto Power Off
This function switches off the projector power automatically when the
input of the projector enters a no-signal condition.
Select item name “Auto Power Off” and select the setting contents with the
SELECT () buttons.
On ............... The power is switched off when there is no signal.
Off .............. The power is not switch off even when there is no signal.
Operation when Function is On
• The “No Signal Power Off” display appears when a no-signal condition con-
tinues for approximately 10 seconds. The power is switched off about 5
minutes after this.
• If a signal is input during the appearance of the display and an operation
button other than the POWER/STANDBY button is pressed, the display is
closed and the function is cancelled.
Note:
Some video decks and other equipment output a blue background or other video when playback ends. When this happens, a signal is being
input to the projector and Auto Power Off is not activated.
Menu Position
This function sets the display position of the menu.
Select item name “Menu Position” and select the setting contents with the
SELECT () buttons.
............. Displays on the left side
............. Displays on the right side
E-48
Page 50
Setup
Eco Mode
Use this if the picture is projected on a small screen and the picture is
too bright or when projecting images in dark rooms.
Select the item name “Eco Mode” and select the setting contents with the
SELECT () buttons.
On ............... The lamp’s brightness is reduced to approximately 80%, extending the
lamp’s service life.
(STATUS indicator is green)
Off .............. The lamp brightness is set to 100% and the screen is bright.
(STATUS indicator is off)
Note:
Frequent switching this mode can degrade the lamp.
Input Format
This function is used in setting the input signals of the input connectors.
Normally, this should be set to Auto. When identification is not possible
with Auto, make the setting.
Select the item name “Input Format”, press the ENTER button, and the sub
menu will open.
Select the connector that is to be changed, and select the setting contents
with the SELECT () buttons.
[Computer]
This is the signal setting for the COMPUTER IN connector.
Auto ............ Automatically identifies the signal.
Computer ... Analog RGB signal is set.
Component . Component signal is set.
POWER
STANDBY STATUS
STATUS indicator
[Video] and [S-Video]
[Video] is the color system setting for the VIDEO connector and [S-Video] is
the color system setting for the S-VIDEO connector.
Auto ............ Automatic identification.
NTSC .......... Fixed to the NTSC system.
PAL ............. Fixed to the PAL system.
SECAM ....... Fixed to the SECAM system.
NTSC 4.43 .. Fixed to the NTSC 4.43 system.
PAL M ......... Fixed to the PAL M system.
PAL N ......... Fixed to the PAL N system.
PAL 60 ........ Fixed to the PAL 60 system.
E-49
Page 51
Setup
Presentation Timer
The presentation is given while checking the timer displayed on the
screen.
The gauge display allows the remaining time to be known at a glance.
Select the item name “Presentation Timer” and select the setting contents
with the SELECT () buttons.
Setting contents: Off, 10 min., 20 min. , 30 min. , 40 min., 50 min., 60 min.
To start the timer...
Press the MENU button and open the menu.
The timer display will appear at the lower right and the timer will start.
Gauge (Blue)
[Timer Display]
The blue gauge indicates the remaining time. When the gauge disappears,the
time is up.
The gauge continues to be displayed when the timer is stopped.
When the remaining time is
“0” (Gray)
• Press the ENTER button to restart the timer. The timer will start with the
same time setting.
• Press the CANCEL button to close the timer display. The timer setting will
return to “Off”.
Moving the Position of the Timer Display
The SELECT () buttons on the remote control permit movement within
the movable range of the timer display.
Note:
* The timer display will be closed while the menu or the quick menu is displayed, and while a message is displayed; however, the timer will
still be operating at such times. Also, the timer will not be displayed unless a signal is being input.
* While the presentation timer is being displayed, screen movement will not be possible in the zoom mode.
Movable Range of the Timer Display
Volume
This function adjusts the volume of the built-in speaker.
Select the item name [Volume] and adjust the sound level with the SELECT
() buttons.
E-50
Page 52
Option
• Select menu name “Option”.
See “Menu Operation Method” on Page E-34 for information about performing menu operations. The item name display will
differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-39.
Language
This function sets the language that is displayed on screen in
the messages and menu displays.
Select item name “Language” and press the ENTER button to open
the Language sub menu.
Select the language with the SELECT () buttons.
On Screen
This function switches on/off the messages displayed with a black
frame such as the input signal information and the aspect ratio.
Select item name “On Screen” and select the setting contents with the
SELECT () buttons.
On ............... The message is displayed.
Off .............. The message is not displayed.
Note:
Even when set to off, messages that are not in a black frame will be displayed.
Background
This function sets the screen color when the input source is nosignal.
Select item name “Background” and select the setting contents with
the SELECT () buttons.
Blue ............ Sets a blue screen when there is no signal
Black ........... Sets a black screen when there is no signal
Freeze
Example of a display when the
FREEZE button is pressed
E-51
Page 53
Option
Startup Screen
This is the selection of whether or not to display the logo screen
at startup time.
Select item name “Startup Screen” and select the setting contents
with the SELECT () buttons.
Logo ........... Displays the logo.
Blank .......... Does not display the logo.
Note:
When “Logo” is selected at the startup screen, the “TAXAN” logo is displayed.
Security Lock
A password can be registered and the security lock set in order
to prevent unauthorized use of the projector.
For instructions on using the security function, see “Protecting the
Projector with the Security Lock” on E-31.
Select item name “Security Lock” and select the setting contents with
the SELECT () buttons.
Disable ....... The security lock is disabled.
Enable ......... The security lock is enabled.
Network Password
For details, refer to the “Image Viewer / Wireless Network” section.
The projector can be operated without inputting the password.
The security lock is activated when the power is turned on, and
the password must be input in order to operate the projector.
Applicable Model: KG-PS125X
E-52
Page 54
Info.
• Select menu name “Info.”.
See “Menu Operation Method” on Page E-34 for information about performing menu operations. The item name display will
differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-39.
Status
This displays information about the equipment.
Select item name “Status” and press the ENTER button.
There is a change to the status display.
Press the CANCEL button to return to the menu.
Display Contents:
Projector model, firmware version, and the internet home page address of KAGA COMPONENTS.
Factory Default
This function returns the adjustments and settings of all the input sources to the standard factory default values.
Select item name “Factory Default” and press the ENTER button.
There is a change to the display [Press “ENTER” to Factory Default
Set].
Press the ENTER button to initialize.
To cancel, press the CANCEL button and there will be a return to the
menu.
Items that are not set to the factory default:
Vertical Flip / Horizontal Flip, Language and Lamp Timer and Security
Lock.
Lamp Timer Reset
This function resets the lamp timer. Be sure to perform the reset
operation when the lamp cartridge has been replaced.
Select item name “Lamp Timer Reset” and press the ENTER button.
There is a change to the display “Press “ENTER” to Lamp Timer Re-
set”.
Press the ENTER button to initialize.
To cancel, press the CANCEL button and there will be a return to the
menu.
E-53
Page 55
Info.
Resolution / Frequency
This function displays the resolution and frequency of the detected input signal.
Lamp Timer
This displays the lamp timer.
This projector has an Eco mode function. The lamp life will differ between
Normal mode and Eco mode.
Lamp Life
Use only in Normal mode: approx. 2000 hours
Use only in Eco mode: approx. 3000 hours
* Lamp life will differ when there has been switching between the modes.
• When Lamp Life Has Been Reached
“Replace the Lamp Cartridge” is displayed on the screen for 10 seconds in
a 1-minute interval.
Please replace the lamp with a new one.
See “Replacing the Lamp Cartridge” on Page E-58 for information about
lamp cartridge replacement.
• When Over 100 Hours Have Elapsed Since Reaching Lamp Life
(Including Eco Mode)
[Warning!! System Shutdown] is displayed for 10 seconds and the power is
switched off. Pressing the POWER/STANDBY button under this condition
will not switch on the power. Please replace the lamp cartridge.
E-54
Page 56
When an Indicator is Lit or Flashing
S
T
O
U
T
The indicators on the projector’s control panel light or flash to
notify of problems, as described below.
An indicator is also used to notify you of the currently set power
mode. See “Power Cable Connections and Switching the Power
On/Off” on page E-21.
Indicator status
POWER
STANDBY STATUS
When the power is on (Lit green)
Lit red
It is time to replace the lamp.
Replace with a new lamp cartridge.
Standby mode (Lit green)
POWER
POWER
STANDBY STATUS
STANDBY STATUS
Lit red
Blinks green for 60 seconds (then,
lit green)
Blinks red
(1 second on/1 second off)
The lamp has reached the end of its service life. The power
will no longer turn on.
The projector can be used for 100 hours after the lamp has reached
the end of its service life.
Replace with a new lamp cartridge.
The lamp cover is open.
The lamp cover is not properly mounted. Mount it properly.
Lit green
The temperature is abnormally high.
• The temperature protector has been activated. If the room tem-
POWER
STANDBY STATUS
Blinks red
(0.5 seconds on/0.5 seconds off)
Lit green
perature is high, move the projector to a cool place. If the
projector’s internal temperature is high, check the cooling fan’s
ventilation slots and clean them if they are clogged.
• When the temperature protector is activated, the power turns
off and in some cases will not turn back on immediately. In this
case wait about 90 seconds, then try again.
POWER
STANDBY STATUS
Lit green
Blinks red
(0.5 seconds on/0.5 seconds off)
The fan has stopped.
Unplug the power cable and contact a store that sells the KGPS100S/KG-PS120X/KG-PS125X for repairs.
Lit green
POWER
indicator
STANDBY
indicator
STATUS
indicator
STANDBY
POWER
K MENU
What you should do
STATU S
MENU
E
N
O
T
S
Y
E
K
E
C
R
U
O
S
A
Y
E
K
POWER
STANDBY STATUS
Blinks red quickly
(0.1 seconds on/0.1 seconds off)
Lit green
The lamp will not light.
Wait at least 90 seconds, then turn the power back on. If the problem persists, unplug the power cable and contact a store that sells
the KG-PS100S/KG-PS120X/KG-PS125X for repairs.
Should an indicator be in a condition other than normal or flash at a rate other than the aforementioned, disconnect the power
cable and contact your store of purchase.
Thermal Protector
If the temperature within the projector becomes abnormally high, the thermal protector will be activated and will switch off the
power of the projector.
Should this happen, please take the following actions.
1. Switch off the power and disconnect the power plug from the wall outlet.
2. Check the following matters and take the required measures.
When the projector is being used in a location that has a high ambient temperature, set it up again in a cool location. Check the
outflow and intake holes and clean them if they are obstructed.
3. Wait about 60 minutes until the temperature of the projector drops.
If after having performed the above matters, the problem still has not been solved, please contact your store of purchase.
E-55
Page 57
Troubleshooting
Check the following matters before requesting servicing.
Problem
Power does not turn on
No image is produced
Image is distorted
Image is out of focus
Image is not in proper position and is not displayed
properly
Video image is crushed
Check
• Is the power cord plugged into a power outlet?
• Is the lamp cover properly mounted?
• Is the projector’s temperature high? To protect the projector, the power can-
not be turned on when the projector’s temperature is abnormally high.
• Has the lamp reached the end of its service life?
• Depending on the timing with which the power cord is plugged in (the power
is turned on), it may happen that the POWER indicator (LED) does not light
and the power does not turn on. This is not a malfunction. If this happens,
unplug the power cord then plug it back in.
• Is a connected input selected?
• Is the cable properly connected to the input terminal?
• When a computer is connected, are signals being output from the computer?
• Does the signal being input have a frequency usable with this projector?
• Are the brightness and contrast adjusted to the minimum?
• Is the STATUS indicator lit a steady red or flashing red?
• When the component signal of the DVD player is connected with the COM-
PUTER IN connector and the image is not output, is [Input Settings] of the
COMPUTER IN connector properly selected?
• For a Computer input, has the picture been properly adjusted?
• Is the projector properly installed?
• For trapezoidal (keystone) distortion, perform keystone adjustment.
Please note that depending on the projected picture and the projection conditions, it may not be possible to eliminate keystone distortion completely.
• Is the lens properly focused?
• Are the screen and projector installed at the proper distance?
• Does the projection distance exceed the focusing range?
• Is there condensation on the lens, etc.?
If the projector is moved from a cool storage area to a warm place and the
power is turned on, condensation may form on the lens or internal optical
parts. If this happens, wait until the condensation has evaporated before
using the projector.
• For a computer input, are the horizontal and vertical positions properly adjusted?
• Does the input signal have a compatible resolution and frequency? Check
the computer’s resolution.
• If the image is crushed in the horizontal or vertical direction or if it is not
displayed over the entire screen, select a different aspect ratio.
Reference
Page
E-21
E-60
E-55
E-55
—
E-26
E-16–19
E-54
E-64
E-41
E-55
E-50
E-41, 42
E-25
E-29, 47
E-24
E-15
E-15
—
E-42
E-64
E-27
Colors of the overall image
are strange
Characters flicker or colors
are offset for RGB inputs
Cannot select the menu
name
Remote control unit does
not operate
STATUS indicator is lit red
or flashing red
• When a component signal is being input, is the color space setting proper?
• For a composite input, is the tint properly adjusted?
• From the menu, select “Image” and adjust the “Picture Adj.” and “Fine Picture”.
• Other than [Settings], [Option] and [Information], selection will not be pos-
sible unless a signal is being input to the projector and the image/picture is
projected.
• Are the remote control unit’s batteries worn? Replace with new batteries.
• Is there an obstacle between the remote control unit and the projector’s
remote control signal sensor?
• Is the remote control unit outside of range?
• Are you pointing the remote control unit’s transmitter towards the projector’s
remote control signal sensor?
• Is the projector located near fluorescent lighting?
• See “When an indicator is lit or flashing”.
E-56
E-44
E-41
E-41, 42
—
E-13
E-13
E-13
E-13
E-13
E-55
Page 58
Cleaning
• Be certain to disconnect the power plug from the power outlet before cleaning.
• Do not spray or otherwise expose the projector, lens, or screen to volatile substances such as insecticides. Do not leave rubber
or vinyl products in contact with the projector for long periods. Doing so could cause them to undergo qualitative changes or the
coatings may peel, etc.
Cleaning a Soiled Projector Main Unit
• Wipe with a lint-free, soft, dry cloth.
When very dirty, wipe with a cloth that has been moistened with a diluted neutral detergent, then finish with a dry cloth. If a
chemically-treated cloth is going to be used, please follow any written warnings.
• Do not wipe with thinner, benzene, or other solvents. Doing so could cause them to undergo qualitative changes or the coatings
may peel, etc.
• When removing the dust of the outflow and intake holes, use the brush attachment on a vacuum cleaner to clean out the dust.
Avoid using the vacuum directly without attaching the adapter as well as the use of a nozzle adapter.
• Do not scratch or otherwise hit the projector body with your nails or other hard object, since this will cause scratches.
Dirty Lens
• Clean using the same method you would use to clean a camera lens: Use a commercial blower for camera use or cleaning
paper for eye glasses. Be careful not to scratch the lens at this time.
Dust of the Intake and Outflow Holes
Dust that collects in the intake and outflow holes will obstruct the ventilation and cause the internal temperature to rise which
could cause damage. Clean this area carefully. As a guideline, clean at least every 100 hours of usage.
• Switch off the power, check that the STANDBY indicator has
changed to a steadily lit green, then unplug the power cable.
• Clean out the holes from the outside using a vacuum cleaner.
Use the brush adapter of the vacuum cleaner to do this. Avoid
using the vacuum directly without attaching the adapter as well
as the use of a nozzle adapter.
E
N
A
U
O
T
T
S
O
Y
E
K
S
E
TU
TA
S
BY
D
N
TA
S
ER
W
O
P
NU
E
M
ICK
U
Q
E
C
N
R
O
U
T
O
S
S
Y
E
K
U
EN
M
Cleaning the Inside of the Projector
Cleaning of the inside of the projector is required about once a year. Failure to clean over a long period while dust has collected
inside the projector could cause a fire or breakdown. Do not clean the inside of the projector by yourself. Please be sure to contact
your dealer.
E-57
Page 59
Replacing the Lamp Cartridge
• The lamp that is used as a light source in the projector has a limited service life. The rated service life of the lamp is
about 2000 hours (when used in normal mode only). This could be shortened depending on conditions of use and
other factors.
Note that lamp life will be extended when the projector is often used in Eco mode. (The rated service life of the lamp
means the average value of lamp life for lamps that have been manufactured over a long period, and it is derived from
test conditions at this company.)
• When the life of the lamp is exceeded, the STATUS indicator lights a steady red and the message [Replace the Lamp
Cartridge] is displayed on the screen. When this occurs, it is time to replace the lamp cartridge. Follow the procedure
described on Pages E-59 and E-60 and replace the lamp cartridge.
• If the projector is used another 100 hours after the lamp’s service life is reached, the power is set to the standby mode
and no longer turns on.
• Contact a store that sells the KG-PS100S/KG-PS120X/KG-PS125X for a replacement lamp. Indicate you need a KGLPS1230 replacement lamp for the KG-PS100S/KG-PS120X/KG-PS125X (order code 000-155).
CAUTION
• Replacement of the lamp cartridge is performed after switching off the power, waiting for the cooling fan to stop,
disconnecting the power plug from the power outlet, and then leaving the projector for about 60 minutes before
replacement is started. Replacement of the lamp cartridge during operation or immediately after operation stops will
cause burns because of the high temperature.
• Do not remove any screws other than those specified.
• Do not touch the lamp with bare hands. Doing so could shorten the life of the lamp.
• If lamp has reached the end of its usable life, the lamp bulb may shatter. When this happens, an explosive sound can
be heard and pieces of glass may be scattered in the lamp cartridge. Do not touch them as the pieces of glass may
cause injury. If this happens, contact your dealer or the store the projector was purchased.
E-58
Page 60
Replacing the Lamp Cartridge
Preparations: Turning the projector upside-down on top of a soft cloth, etc., so that it does not get scratched makes it easier to
replace the lamp cartridge. Turn the projector right-side up after replacing the lamp cartridge.
1
Unplug the power cord.
2
Turn the projector upside-down.
3
Remove the lamp cover.
(1) Loosen the lamp cover locking screw by turning it counter-
clockwise until it turns freely. (The screw will not come out.)
4
Remove the lamp cartridge.
(1) Loosen the 2 screws of the lamp cartridge by turning them
counterclockwise until they turn freely. (The screws will not
come out.)
(2) Pull in the direction of the arrow and remove.
(2) Grasp the handles of the lamp cartridge and pull upward to
remove the cartridge.
E-59
Page 61
Replacing the Lamp Cartridge
5
Mount the new lamp cartridge.
(1) Slowly push in the lamp cartridge. (Align it with the screw
holes of the main unit.)
6
Mount the lamp cover.
(1) Insert the edge of the lamp cover into the main unit, then
close the lamp cover.
(2) Firmly press down on the specified location, then tighten
the 2 screws of the lamp cartridge by turning them clockwise.
(2) Tighten the screw of the lamp cover by turning it clockwise.
7
Reset the Lamp Timer.
Connect the power cable, switch on the power, and then reset.
Select [Info.] → [Lamp Timer Reset] on the menu and press the ENTER button. There is a change to the initialization
verification display. Press the ENTER button again. See “Lamp Timer Reset” on Page E-53.
Note:
After reaching the lamp service life, if the lamp is used for more than another 100 hours, it will not be possible to switch on the power. Should
this happen, while the projector is in the standby mode, simultaneously holding down the projector’s SOURCE button and AUTO button for
more than 5 seconds will clear the lamp timer. Checking that the STATUS indicator is out will show that the lamp timer has been cleared.
Contact a store that sells the KG-PS100S/KG-PS120X/KG-PS125X for a replacement lamp. Indicate you need a KG-LPS1230 replacement
lamp for the KG-PS100S/KG-PS120X/KG-PS125X (order code 000-155).
E-60
Page 62
Specifications
Model KG-PS100S
Optical
Method of projection : DLP® (single DLP® chip)
DLP® chip 0.55 inches 800⳯600 dots
Lamp 230 W high pressure mercury lamp
Projection lens : Manual zoom (⳯1.15), Manual focus F = 2.45 – 2.62, f = 18.7 – 21.5 mm
Image size Minimum 31.7 inch (at projection distance of 1.20 m / 3.9 feet telephoto)
Maximum 300 inch (at projection distance of 10.19 m / 33.43 feet wide)
Light Output Standard mode: 2500 lm
Contrast Ratio 2000:1 (Full on/off)
Electrical
Inputs Video (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL60/SECAM/YCbCr(NTSC, PAL)/YPbPr(480p,
576p, 1080i, 720p)): (automatic or manual switching)
RGB (Horizontal :15 to 80 kHz, Vertical 50 to 85 Hz)
Color Reproduction Full color (16,770,000 colors)
Resolution VGA (640⳯480) expansion/true, S-VGA (800⳯600) true
XGA (1024⳯768) compression
Input Current 2.8 A
Power Requirement 100 - 240 V AC, 50/60 Hz
Power Consumption 280 watts (240 watts in eco mode)
Mechanical
Dimensions Excluding Stand 195 mm (W)⳯58 mm (H)⳯262 mm (D) (when stored, not including projecting parts)
7.7 in.(W)⳯2.3 in.(H)⳯10.3 in.(D) (when stored, not including projecting parts)
Weight Approximately 1.8 kg / 4.0 lbs
Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity
• Specifications and design are subject to change without notice.
E-61
Page 63
Specifications
Model KG-PS120X
Optical
Method of projection : DLP® (single DLP® chip)
DLP® chip 0.55 inches 1024⳯768 dots
Lamp 230 W high pressure mercury lamp
Projection lens : Manual zoom (⳯1.15), Manual focus F = 2.45 – 2.62, f = 18.7 – 21.5 mm
Image size Minimum 31.7 inch (at projection distance of 1.20 m / 3.9 feet telephoto)
Maximum 300 inch (at projection distance of 10.19 m / 33.43 feet wide)
Light Output Standard mode: 2500 lm
Contrast Ratio 2000:1 (Full on/off)
Electrical
Inputs Video (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL60/SECAM/YCbCr(NTSC, PAL)/YPbPr(480p,
576p, 1080i, 720p)): (automatic or manual switching)
RGB (Horizontal :15 to 80 kHz, Vertical 50 to 85 Hz)
Color Reproduction Full color (16,770,000 colors)
Resolution VGA (640⳯480) expansion/true, S-VGA (800⳯600) expansion/true
XGA (1024⳯768) true, S-XGA (1280⳯1024) compression
Input Current 2.8 A
Power Requirement 100 - 240 V AC, 50/60 Hz
Power Consumption 280 watts (240 watts in eco mode)
Mechanical
Dimensions Excluding Stand 195 mm (W)⳯58 mm (H)⳯262 mm (D) (when stored, not including projecting parts)
7.7 in.(W)⳯2.3 in.(H)⳯10.3 in.(D) (when stored, not including projecting parts)
Weight Approximately 1.8 kg / 4.0 lbs
Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity
• Specifications and design are subject to change without notice.
E-62
Page 64
Specifications
Model KG-PS125X
Optical
Method of projection : DLP® (single DLP® chip)
DLP® chip 0.55 inches 1024⳯768 dots
Lamp 230 W high pressure mercury lamp
Projection lens : Manual zoom (⳯1.15), Manual focus F = 2.45 – 2.62, f = 18.7 – 21.5 mm
Image size Minimum 31.7 inch (at projection distance of 1.20 m / 3.9 feet telephoto)
Maximum 300 inch (at projection distance of 10.19 m / 33.43 feet wide)
Light Output Standard mode: 2500 lm
Contrast Ratio 2000:1 (Full on/off)
Electrical
Inputs Video (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL60/SECAM/YCbCr(NTSC, PAL)/YPbPr(480p,
576p, 1080i, 720p)): (automatic or manual switching)
RGB (Horizontal :15 to 80 kHz, Vertical 50 to 85 Hz)
Color Reproduction Full color (16,770,000 colors)
Resolution VGA (640⳯480) expansion/true, S-VGA (800⳯600) expansion/true
XGA (1024⳯768) true, S-XGA (1280⳯1024) compression
Input Current 3.0 A
Power Requirement 100 - 240 V AC, 50/60 Hz
Power Consumption 300 watts (260 watts in eco mode)
Mechanical
Dimensions Excluding Stand 195 mm (W)⳯58 mm (H)⳯262 mm (D) (when stored, not including projecting parts)
7.7 in.(W)⳯2.3 in.(H)⳯10.3 in.(D) (when stored, not including projecting parts)
Weight Approximately 1.8 kg / 4.0 lbs
Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity
• Specifications and design are subject to change without notice.
E-63
Page 65
Table of Supported Frequency
The projector automatically identifies the signal input from the computer and selects the optimum resolution as shown on the table
below.
Manual adjustments may be required for some input signals. See “Picture Adj. / Fine Picture / H Position / V Position” on page
E-41, 42.
Signal
VIDEO(NTSC)
VIDEO(PAL/SECAM)
PC/AT
VESA
Apple Macintosh
HDTV (1080i)
(720p)
EDTV (576p)
(480p)
SDTV (576i)
(480i)
Resolution Video
ⳮ
ⳮ
640 ⳯ 350
640 ⳯ 400
720 ⳯ 350
720 ⳯ 400
640 ⳯ 350
640 ⳯ 400
720 ⳯ 400
640 ⳯ 480
640 ⳯ 480
640 ⳯ 480
640 ⳯ 480
800 ⳯ 600
800 ⳯ 600
800 ⳯ 600
800 ⳯ 600
800 ⳯ 600
1024 ⳯ 768
1024 ⳯ 768
1024 ⳯ 768
1024 ⳯ 768
1280 ⳯ 1024
640 ⳯ 480
823 ⳯ 624
1024 ⳯ 768
1152 ⳯ 870
1920 ⳯ 1080
1920 ⳯ 1080
1280 ⳯ 720
720 ⳯ 576
720 ⳯ 480
720 ⳯ 576
720 ⳯ 480
Frequency
Horizonral (kHz)
15.734
15.625
31.5
31.5
31.5
31.5
37.9
37.9
37.9
31.5
37.9
37.5
43.3
35.2
37.9
46.9
48.1
53.7
48.4
56.5
60.0
68.7
64.0
35.0
49.7
60.2
68.7
33.8
28.1
45.0
31.3
31.5
31.3
31.5
Vertical (Hz)
60.0
50.0
70.1
70.1
70.0
70.0
85.1
85.1
85.0
60.0
72.8
75.0
85.0
56.3
60.3
75.0
72.2
85.1
60.0
70.1
75.0
85.0
60.0
66.7
74.5
74.9
75.1
60.0
50.0
60.0
50.0
60.0
50.0
60.0
嘷
嘷
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
Component
嘷
嘷
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
嘷
嘷
嘷
嘷
嘷
嘷
嘷
Digital Analog
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
嘷
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
ⳮ
* The model name for XGA is KG-PS120X/KG-PS125X and SVGA is KG-PS100S.
* The projector does not support the ADC connector on Apple Macintosh.
KG-PS120X/KG-PS125X
The display resolution is 1024⳯768 dots. When displaying a signal with resolutions other than 1024⳯768 dots such as 1280⳯1024,
sizes of characters or lines may be uneven.
KG-PS100S
The display resolution is 800⳯600 dots. When displaying a signal with resolutions other than 800⳯600 dots such as 1024⳯768,
sizes of characters or lines may be uneven.
嘷 : Supported frequency
ⳮ : Not supported frequency
E-64
Page 66
Cabinet Dimensions
T
O
S
Y
N
E
E
K
S
O
MENU
O
T
U
A
U
R
C
E
K
E
E
N
Y
O
S
T
STANDBY STATUS
QUICK MENU
POWER
262 (10.3)
195 (7.7)
58 (2.3)
Unit: mm (inch)
E-65
Page 67
2007, KAGA COMPONENTS CO., LTD.
Loading...
