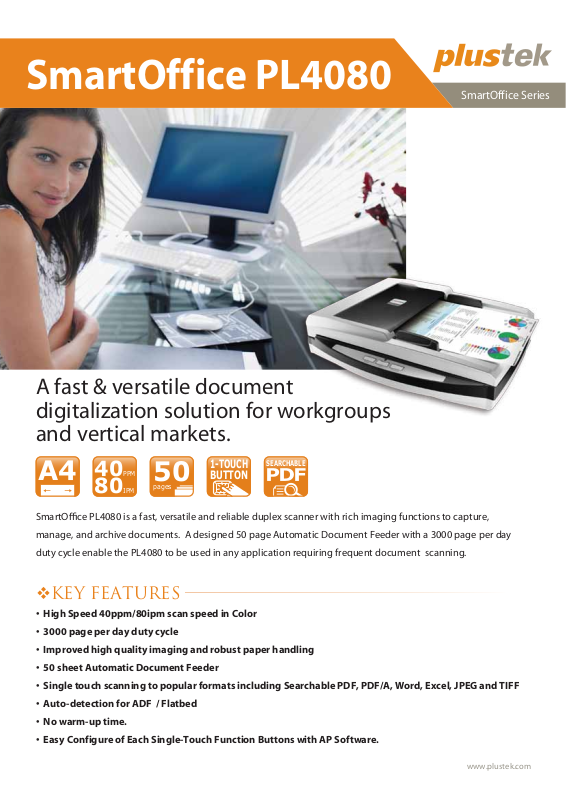

SmartOffice PL4080

SEARCHABLE

PPM

IPM

pages

1-TOUCH BUTTON

SmartOffice Series

A fast & versatile document digitalization solution for workgroups and vertical markets.

SmartOce PL4080 is a fast, versatile and reliable duplex scanner with rich imaging functions to capture,

manage, and archive documents. A designed 50 page Automatic Document Feeder with a 3000 page per day

duty cycle enable the PL4080 to be used in any application requiring frequent document scanning. 

KEY FEATURES

• �High Speed 40ppm/80ipm scan speed in Color

• �3000 page per day duty cycle

• �Improved high quality imaging and robust paper handling

• �50 sheet Automatic Document Feeder

• �Single touch scanning to popular formats including Searchable PDF, PDF/A, Word, Excel, JPEG and TIFF

• �Auto-detection for ADF / Flatbed

• �No warm-up time.

• �Easy Configure of Each Single-Touch Function Buttons with AP Software.

www.plustek.com

SmartOffice PL4080

FEATURES

Auto-detection for ADF and Flatbed

The PL4080 is a 40 pages per minute duplex scanner combining an Automatic

Document Feeder (ADF) and flatbed unit with an up to 3000 pages per day duty

cycle. The Automatic Document Feeder allows you to scan up to 50 pages by

simply loading the feeder and pressing a button on the scanner. The flatbed

enables you to scan fragile documents or small items such as receipts or

business cards.

Complete Your Scanning with One Touch

SmartOffice PL4080 with three intelligent shortcut keys, scanning, PDF and

Custom. Custom function keys can be freely set up to 7 groups of commonly

used functions such as: Scan to PDF, scan to file, email, OCR text recognition,

regardless of what kind of operation you can get a key, simplify your daily work

frequently repeated scans. This design not only greatly improve work efficiency,

but also reduce the user threshold, even for "Beginner" is concerned can easily

operate.

Hardware Requirements

Pentium IV 3.2 GHz processor or faster CPU DVD-ROM Drive One available USB Port (USB 2.0 recommended) 2 GB RAM (4 GB or higher recommended) 2 GB free HDD space (2 GB or larger recommended) Windows XP / Vista / 7 / 8 / 10 LINUX SANE for Systems Integrator. Please contact local sal

Software

This product contains ABBYY FineReader OCR

Plustek DocAction

sales@plustek.com

Compatible with most imaging applications

Industry standard TWAIN drivers combined with TIF, JPG, PDF and Microsoft

Office file formats ensure compatibility with thousands of scanning and

imaging programs. ABBYY FineReader Sprint is included* to easily create and

manage searchable PDFs at the touch of a button. Built in image processing

insures the highest image quality, reduces rescans and increases OCR accuracy.

Specication

Light Source LED Image Sensor CIS x 2 Optical Resolution 600 dpi Hardware Resolution Flatbed: 600 x 1200 dpi ADF: 600 x 600 dpi Scan Modes Color: Input 48-bit, Output 24-bit Grayscale: Input 16-bit, Output 8-bit

es.

Black & White: 1-bit ADF Capacity

2. 20 sheets (Business Card) Note: Maximum ADF capacity varies, depending upon paper weight. Scanning Speed ( ADF ) 40 ppm/ 80 ipm (Color mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (Grayscale mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (B&W mode, 200 dpi, A4 Portr8it)

Scanning Area (W x L) Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 220 x 356 mm (8.66” x 14”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) Acceptable Paper Sizes (W x L) Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 220 x 356 mm (8.66” x 14”) Min. 90 x 50.8 mm (3.55” x 2”) Acceptable Paper Weight (Thickness) 50 to 120 g/㎡ (14 to 32 Lbs) Daily Duty Scan ( Sheets ) 3,000 Roller Lifetime (Scans) 100,000 Pad Lifetime (Scans) 25,000 Action Button Scan、PDF、Custom Power Supply 24 Vdc/ 0.75 A Interface USB 2.0 Net Weight 3.98 Kgs (8.77 Lbs) Dimensions (W x D x H) 418 x 326 x 101 mm (16.45" x 12.83" x 4") Protocol TWAIN Compliant

Note: 1. ADF Scanning speeds may vary due to the system environment used.

2. Maximum ADF capacity varies, depending upon paper weight.

1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").

Note: Results may vary depending upon your scanning application, computer processor and system memory.

As an international ENERGY STAR Partner, Plustek has determined that this product meets the international ENERGY STAR Program for energy efficiency.
