PlusQuip EQP-061
Tool
Getting Started
Guide
INTRODUCTION
Please read this information carefully before using your new PlusQuip EQP-061 tool
Thank you for purchasing your PlusQuip EQP-061 tool. We at PlusQuip believe that you will
have many years of successful business as a result of your investment and it is our aim to
ensure that you will remain as up-to-date as possible.
Always ensure you have the latest version of software and vehicle data that is available. Follow
the instructions for Software Update procedure.
Please refer to this manual when using the tool and don't hesitate to contact your distributor if
you experience any difficulty with it.
Safety Information
Always wear eye protection when handling batteries.
Keep batteries away from children.
No smoking, avoid open flames or creating sparks near batteries.
Explosion hazard. Batteries emit an explosive mixture of hydrogen and
oxygen during and after charging.
Corrosive hazard. Wear protective equipment to shield eyes, hands, and
clothing
Product Details:
Modern battery management systems used in today’s vehicles require their systems to be
reconfigured each time a battery is fitted, the EQP-061 tool allows you to reconfigure the stored
battery data on these modern vehicles.
The EQP-061 tool allows you to enter the new battery information quickly and simply, it can also
display the current battery’s details. In addition, the EQP-061 can be used to initiate a diesel
particulate filter regeneration.
Regeneration must be undertaken on a level concrete surface.
Regeneration must be undertaken externally and must not use exhaust extraction
instead.
o Must be undertaken away from combustible materials.
Regeneration will generate high levels of heat and noise whilst being undertaken, you will
need to:
o Ensure adequate levels of fuel are available and regeneration must not be started
if the fuel light is on.
o Essential that the level of engine oil is checked to ensure sufficient is available.
o Ensure that timing belts have been replaced in line with the manufacturer’s service
levels.
Regeneration cannot repair worn or damaged components.
Regeneration can take between 5 – 60 minutes dependent on the manufacturer.
USB Connector
LCD Display
Multi-Functional
Keypad
16 Pin J1962
Diagnostic plug
Features:
Replacement of vehicle batteries
Display of battery condition
Display of battery replacement history
Regenerates Diesel Particulate Filters
Resets EOLYS Additive Lights
ID Fault Codes
Filter Replacement Function
Static Regeneration
Numerous Systems Covered
Supports Vehicles from 2000 on
Arrows control the
cursor around the
screen
OK Button confirms
the selected option
Mini USB connector is
used when updating the
tool via a PC
ESC Button cancels an
operation or returns
from a menu

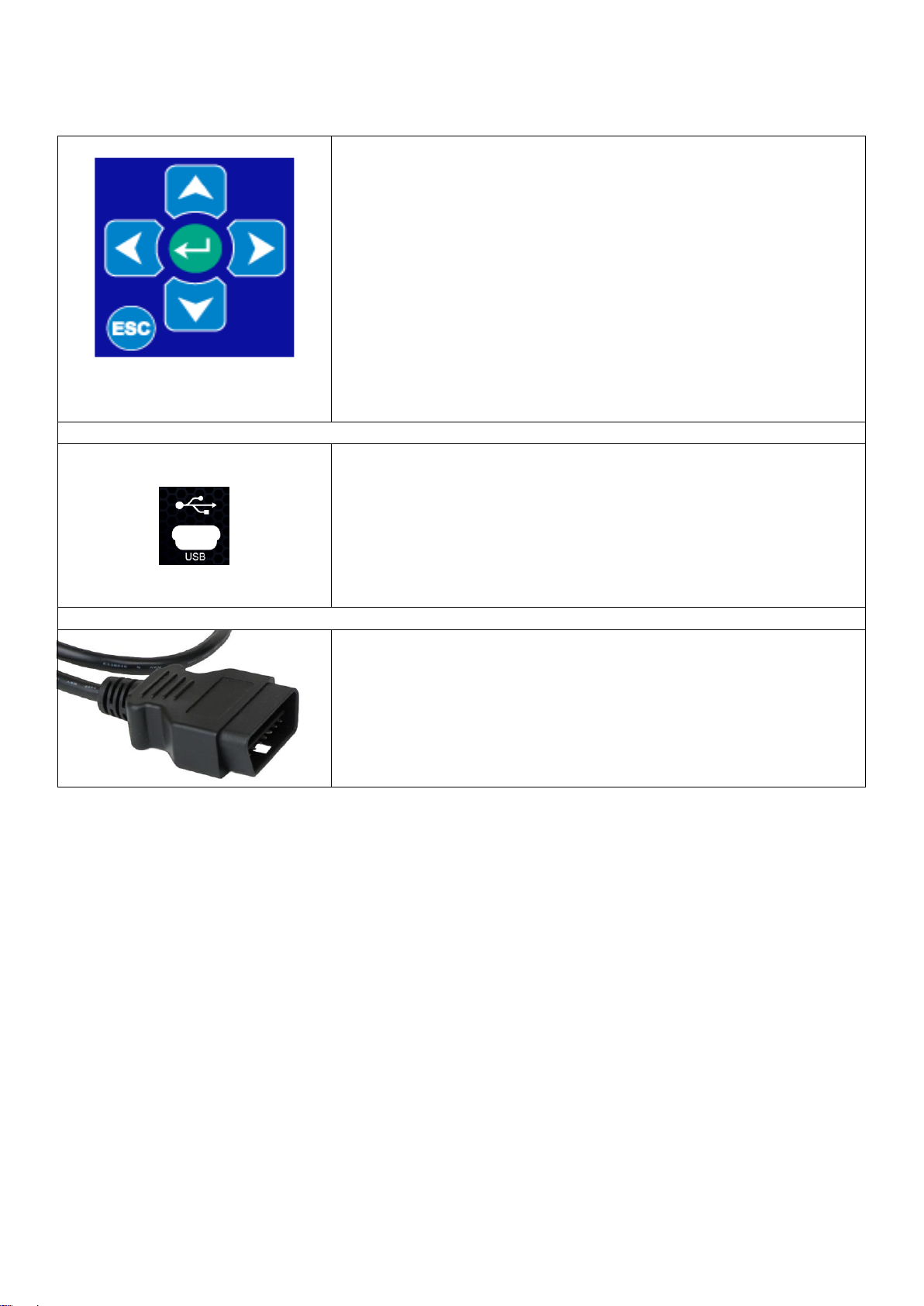

PlusQuip EQP-061 tool Navigation:
Navigation buttons
The arrow keys are used to navigate through the
menus.
The OK button is used to confirm a selection.
The ESC button is used to go back to the previous
screen.
The mini USB connector is used to connect to a PC to allow
you to update the PlusQuip EQP-061 tool with additional
software.
The J1962 connector needs to be connected to the vehicle’s
OBD socket in order to get power and make communications
with the particular vehicle.
USER INTERFACE:
Diagnostic / Vehicle Selection Icon – Select this to go into Vehicle
Specific Serial Diagnostics
System Setup Icon – Select this to configure the
various settings of the PlusQuip EQP-061 Tool
Diagnostic / ECU Selection Icon – Select this to go into ECU Specific Serial
Diagnostics
Information Icon – Select this to display
software and hardware version information
Menu & Icons
Main Menu
Clock Icon – Select this to view the date and
time of the PlusQuip EQP-061 Tool
Garage Information Icon – Select this to display
your user details. This is changed through the
PC Suite
Test Icon – Select this to carry out hardware
tests on the PlusQuip EQP-061 Tool if
requested by Technical Support
Volume Icon – Select this to turn the sounder
ON or OFF
‘Back’ Icon – Select this to return to the
previous menu
Language Selection – Select this icon to
change the language used by the PlusQuip
EQP-061 Tool.
System Setup Menu
Erase Diagnostic Trouble Codes – Select this to clear the Diagnostic
Trouble Codes on the vehicle you are currently diagnosing.
Live Data – Select this to display Live Data (Components) for the
vehicle you are currently diagnosing.
Actuator – Select this to run actuators for the vehicle you are
currently diagnosing.
Service – Select this to access service related functions only.
Service functions are also accessible under the vehicle selection
option.
Micro Filter - Heating, air conditioning or automatic air conditioning: replace
micro filter/carbon canister this is important because micro filters trap 80% of
the pollen and traffic fumes before it gets into the cabin, helps keep drivers and
passengers alert and helps demist windows quickly even on a rainy winter's
day.
Diagnostic Trouble Codes – Select this to read the Diagnostic
Trouble Codes on the vehicle you are currently diagnosing.
Statutory Inspection - (where relevant) - Statutory inspection for
vehicles 3 years and older
Additional Icons used (depending on Software purchased)
Fuel Filter - Diesel filter is changed. This filter is important to the general
efficiency of diesel engines. As the fuel passes through this filter, unwanted
particles and residue will become trapped, so that the fuel is passing to the
engine is 'clean'. Therefore, this filter has to be replaced when indicated to
ensure that your engine is running at optimum performance.
Vehicle Inspect – General inspection of the vehicle.
Emissions Test – This is part of the statutory test that tests the emissions fall
within the limits required.
Engine Oil - The engine oil and oil filter are changed because keeping the oil at
the right level and clean is vital to the protection and longevity of the life of
movable engine parts. Also, if you do a lot of short journeys, your oil filter will be
more susceptible to blockages caused by the condensation of water in the oil.
Spark Plugs - Spark plugs are replaced. When it comes to fuel efficiently, spark
plugs are one of the most critical parts of a petrol/gasoline car's engine. Defective
spark plugs can result in worsening emissions and increased fuel consumption,
and can even result in misfires if not replaced. Replacing these worn spark plugs
will improve the performance of the engine.
Rear Brake Pads - Brake pads are changed, and the brake caliper cavities are
cleaned. Failure to get your brake pads matched correctly will result in a brake
imbalance front to rear on your vehicle, and if the calipers are cleaned, any
squeaking in the brakes should be diminished.
Brake discs:- Surface and thickness - the importance of having a safe level of
thickness in your brake discs is paramount to your driving safety; if necessary,
the brake discs will be replaced.
Brake Fluid - Brake fluid is changed. The problem with brake fluid is that it
absorbs moisture from the air quickly. This is important because the amount of
moisture in your brake fluid affects your vehicle's performance.
Connect the EQP-061 Tool to a vehicle using the 16 Pin
Diagnostic plug. The EQP-061 Tool will then power up and
take you to the Main Menu screen.
Using the keypad, navigate to the Manufacturer Icon and press
OK.
Using the keypad to navigate up and down the menus you will
be given the following options:
Select the Manufacturer
Select the Model
Select the Type of system
Select the Size of the engine
Select the Fuel type
Select the Year of the vehicle
Select the Variant of the vehicle
Select the Engine Code (if applicable)
Finally you will be shown the System or Systems fitted to that
choice of vehicle
The PlusQuip EQP-061 Tool will now load the correct
software and establish communications with the vehicle!
Quick Start Guide
Now you are ready to start using the EQP-061 Tool to diagnose faults and also carry out service
functions on the range of cars covered
First replace the old battery with the new one, ensuring the key
is not in the ignition.
Connect the PlusQuip EQP-061 tool to a vehicle using the 16
Pin Diagnostic plug.
The tool will take you to the Main Menu screen.
Using the keypad, navigate to the battery replacement option
and press OK.
Using the keypad to navigate up and down the menus you will
be given the following options:
Select the Manufacturer. You will then be asked to
switch the Ignition On
Select the Function. Select Validate Battery
Follow on screen instructions
Select the Validate Battery.
Follow on screen instructions
o The system will register a new battery to the
vehicle
o You will be informed if battery validation was
concluded successfully.
Coding a Battery to a Vehicle
Now you can start using the PlusQuip EQP-061 tool to configure the battery to the vehicle and
diagnose faults on the range of cars covered.
Example system:
Using the keypad, navigate to the Language Icon and press
OK.
Select the required language.
The system will register and remember your selection.
The selected Language will now be the default language used.
Changing the preset Language
If you want to change the language the tool displays, you can select this option and choose the
language you wish to use. This will then be stored in memory until you change it again.
Using the keypad, navigate to the Information Icon and press
OK.
The information screen is displayed with a warning along with the
Serial number of the unit and the product identification number.
You may be asked to navigate to this screen by technical support
to establish the serial number of your handset.
Information screen
SOFTWARE UPDATE
Overview:
Software updates are done through an update suite that is available to download from the
PlusQuip EQP-061 tool website.
http://www.plusquip.com.au/product/eqp-061-battery-programmer-and-replacement-tool/
Download and install the application suite using the application suite user guide for help if
required.
Once the suite is installed you simply need to follow the steps shown on screen to update the
handset to the latest software.
Minimum requirements:
Windows PC running Windows 7/8/10
5MB of free disk space
Free USB port
COPYRIGHT AND WARRANTY
Copyright:
PlusQuip EQP-061 tool is made by SP Diagnostics and it is strictly forbidden to disseminate,
decompile, reverse engineer or disassemble any part of the hardware or software incorporated
within it or associated with it and is protected by international law.
Warranty:
This tool is warranted to be free of defects in materials and workmanship for a period of two
years from the date of purchase. PlusQuip and the manufacturer will, at our option, repair the
unit or replace the unit with a remanufactured tool. This limited warranty applies only to PlusQuip
EQP-061 tool and does not cover any other equipment, static damage, water damage,
overvoltage, dropping unit or damage resulting from extraneous causes including owner misuse.
PlusQuip and the manufacturer are not liable for any incidental or consequential damages for
breach of this warranty. The warranty is void if owner attempts to disassemble the unit or modify
the cable assembly.
Premier Auto Trade Pty Ltd
36-40 Shearson Crescent,
Mentone VIC 3191
1300 133 980
www.plusquip.com.au/contact/technical-inquiry/
1463-10-014LL
