PLUS V-339 User Manual
DATA PROJECTOR
V
User’s Manual
-
339
* DLP™ (Digital Light Processing) and DMD (Digital Micromirror Device) are registered trademarks of Texas Instru-
IMPORTANT
ments Incorporated (U.S.A.).
* VGA and XGA are trademarks or registered trademarks of International Business Machines Corporation (U.S.A.).
* S-VGA is a registered trademark of Video Electronics Standards Association.
* Microsoft, Windows, and PowerPoint are registered trademarks of Microsoft Corporation (U.S.A. and other countries).
* Macintosh is a trademark of Apple Computer Inc. (U.S.A.).
Note that even in the absence of explanatory notes, serious attention is paid to the trademarks of the various companies
and to the product trademarks.
V-339
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
U.S. Responsible Party:
Address:
Tel. No.:
Type of Product:
Equipment Classification:
Models:
PLUS Vision Corp. of America
9610 SW Sunshine Court Suite 800 Beaverton,
OR 97005
(503) 748 8700
Projector
Class B Peripheral
V-339
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
IMPORTANT SAFETY INFORMATION
Precautions
Please read this manual carefully before using your PLUS Data Projector and keep the manual handy for future
reference.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PLUS SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude
to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside
of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of
this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
The above cautions are given on the bottom of the product.
WARNING
TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE
THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE
PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED PLUS SERVICE PERSONNEL.
RF Interference
WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorientate or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
DOC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Hg: Lamp in This Product Contains Mercury. Dispose of Lamp According to Local, State or Federal Law.
E-2
IMPORTANT SAFETY INFORMATION
Important Safeguards
These safety instructions are to ensure the long life of the unit and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
• For best results, use the unit in a darkened room.
• Place the unit on a flat, level surface in a dry area away from dust and moisture.
• Do not place the unit in direct sunlight, near heaters or heat radiating appliances.
• Exposure to direct sunlight, smoke or steam can harm internal components.
• Handle the unit carefully. Dropping or jarring can damage internal components.
• Do not place heavy objects on top of the unit.
Power Supply
• The unit is designed to operate on a power supply of 100 - 240 V 50/60 Hz AC. Ensure that your power supply
fits these requirements before attempting to use the unit.
• Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or
fire.
• Disconnect the power cable (main’s lead) from the power outlet after using the unit.
Before disconnecting the power cable, make sure that the STANDBY indicator lights in amber (not blinking or
in green).
Cleaning
• Disconnect the power cable (main’s lead) from the unit.
• Clean the cabinet of the unit periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use
strong detergents or solvents such as alcohol or thinner.
• Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

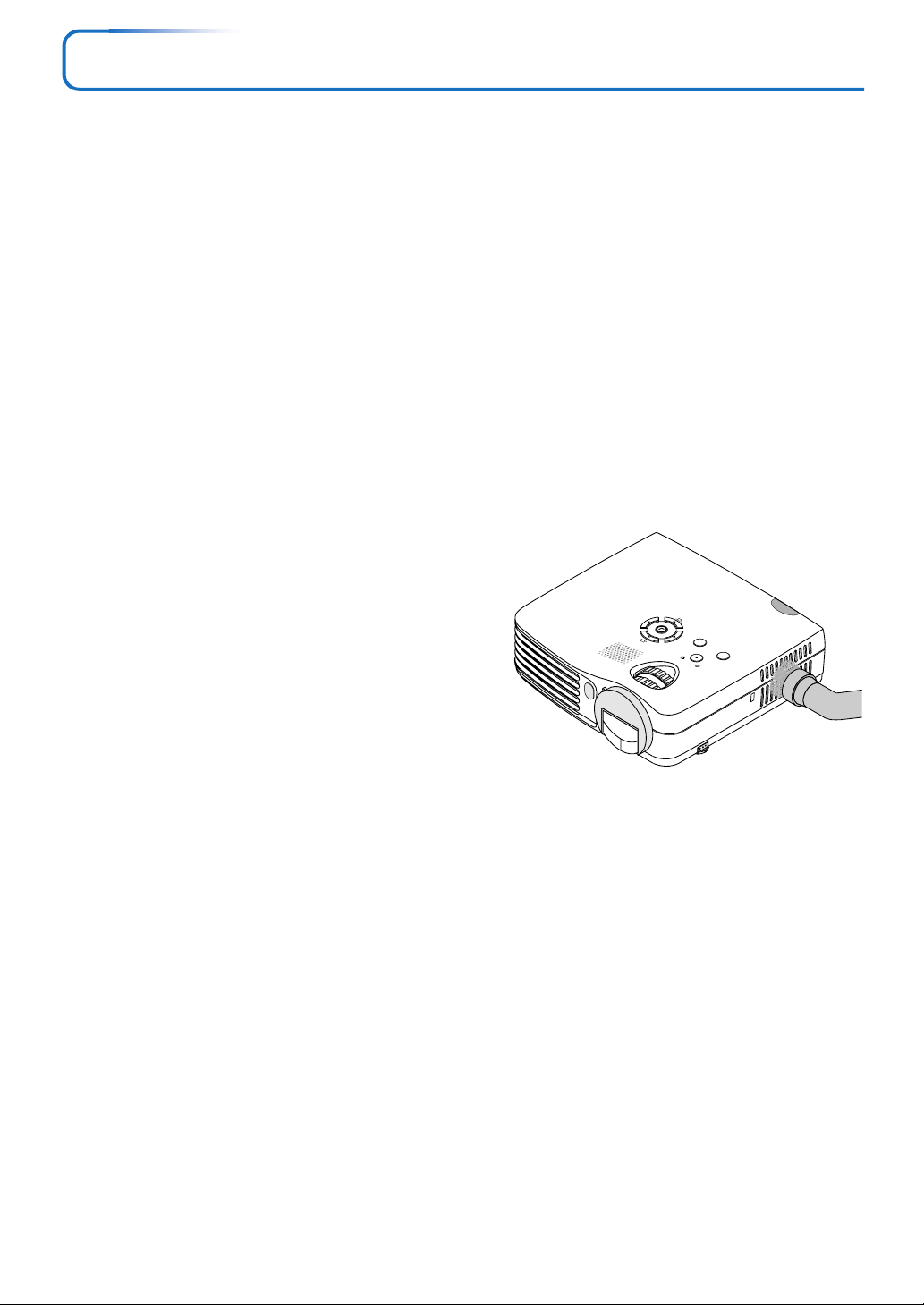

• Clean the ventilation slots and speaker grills on the unit periodically using a vacuum cleaner. If accumulated
dust blocks the ventilation slots, the unit will overheat, which may cause the unit to malfunction.
Use a soft brush attachment when using the vacuum cleaner. Do not use a hard attachment, such as a crevice
tool, to prevent the damage to the unit.

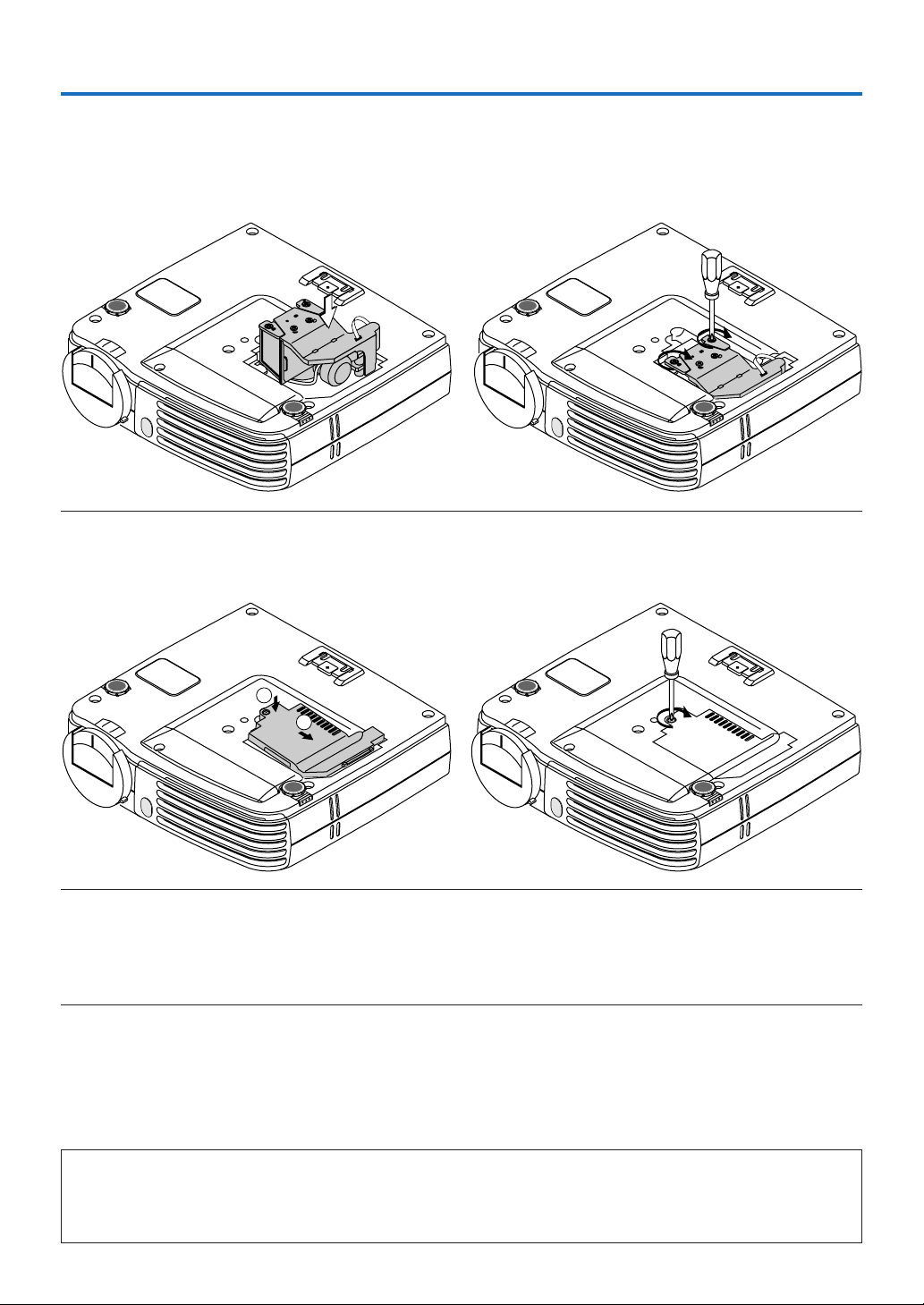

Lamp Replacement

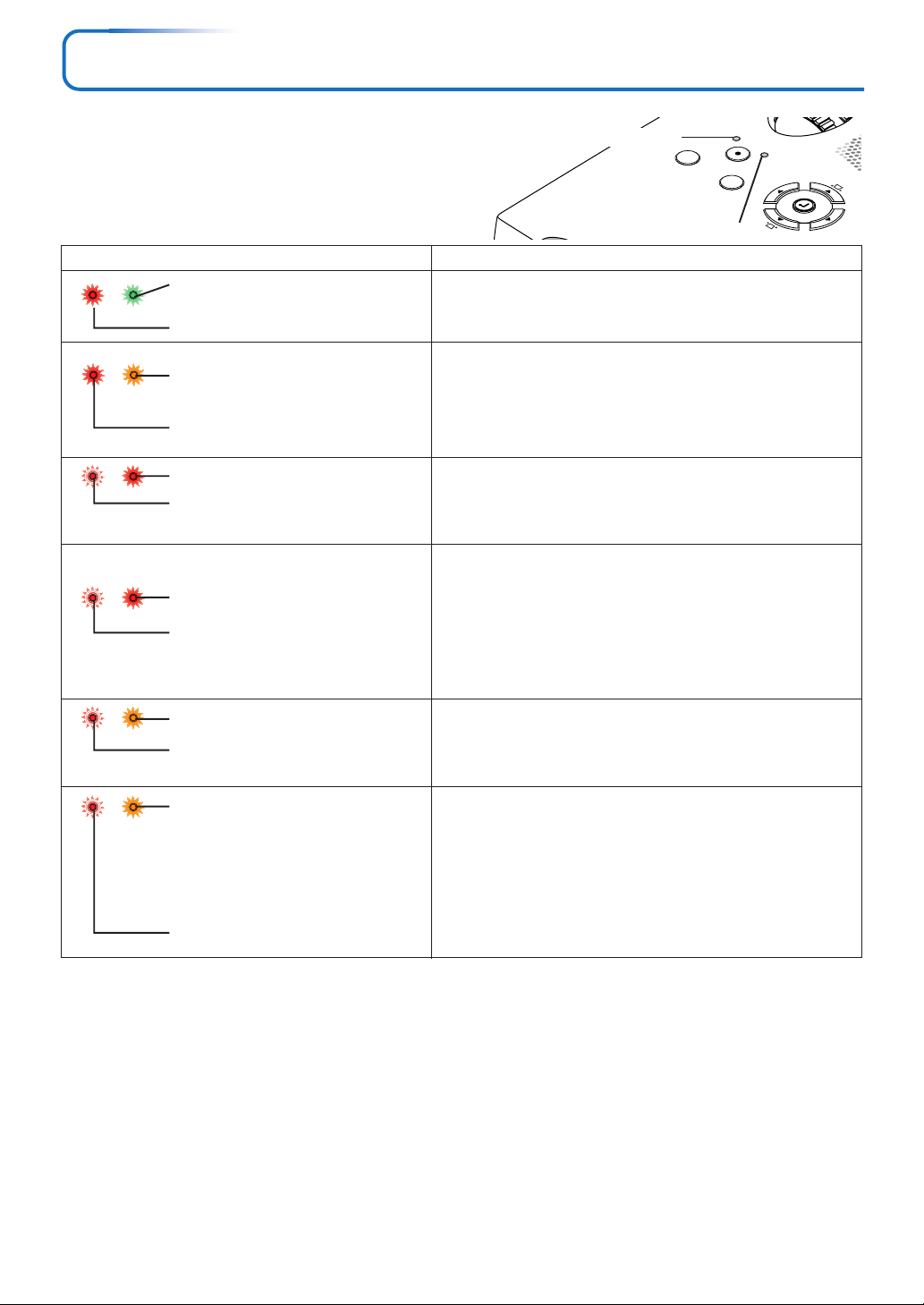

• Be sure to replace the lamp when the Status indicator comes on. If you continue to use the lamp after 1500
hours of usage, the lamp will turn off.
Fire and Shock Precautions
• Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the buildup of heat inside
the unit. Allow at least 10 cm (4 inches) of space between the unit and walls.
• Prevent foreign objects such as paper clips and bits of paper from falling into the unit. Do not attempt to retrieve
any objects that fell into the unit. Do not insert any metal objects such as a wire or screwdriver into the unit. If
something should fall into the unit, immediately disconnect the power cable from the unit and have the object
removed by a qualified PLUS service person.
• Do not place any liquids on top of the unit.
Carrying around
When carrying the unit around, please use the storage case that comes with it and, to protect the lens from
scratches, always shut the Iris Lens Cover. Also, do not subject the unit to strong mechanical shock.
CAUTION – HOT!
The area around the exhaust vents is hot during and immediately after image projection.
To avoid burns, keep your hands away from this area.
Wait until the exhaust vents area cools off before touching it.
Do not look into the lens while the unit is on. Serious damage to your eyes could result.
E-3
Major Features
䡵 Evolution of the Best Seller Mobile Projector
The ease of use of this take anywhere, anytime, mobile projector has been improved and despite its small size and light
weight, it produces a high brightness of 1300 lm and a high contrast ratio of 2000:1. The newly developed Iris Lens Cover and
Auto Keystone permit speedy setup and projection, and after the presentation is finished, just switch off the power of the
projector and the Quick Off function allows it to soon be moved to another location.
䡵 DCM “Dual Color Mode”
This next-generation small sized projector contains a “dual color mode” function, the world’s first for a small sized projector.
The use of two color wheels permits optimum color combination to suit the scene, thereby greatly improving color reproduction.
䡵 Sharp, clear picture
The DLP™ display system affords RGB color fidelity and inconspicuous gaps between the individual dots, thereby permitting
the display of small characters and diagrams with distinct clarity.
䡵 High contrast ration of 2000:1
Use of a new generation of DMD devices has given birth to an amazing 2000:1 high contrast ratio.
By widening the difference of brightness between black and white, you can see a degree of sharpness that is greater than just
the brightness based on specifications.
䡵 Powerful functions for presentations
A wide variety of easy-to-set functions have been built into the projector, from a digital keystone correction function (used
when making settings) that corrects picture distortion, to an auto adjustment function that automatically identifies the PC
signal.
There is also a built-in “Presentation Timer” function for further presentation convenience.
䡵 Great moving image playback capabilities using the same principles as DLP Cinema
technology
Plus DLP type projectors have the same makings as the DLP Cinema technology used in movie theaters. Because of their
extremely fast response, even images with much movement – sports, movies – play smoothly without blurring.
䡵 Security lock function
The lock can be set so that a password must be input when the projector is started up. Without the correct password, no
operations other than turning the power on and off can be performed. This function effectively protects the projector from
unauthorized use.
䡵 Eco-mode switch function for the lamp output
Using the lamp Eco-mode will extend the life of the lamp and lower the power consumption.
By switching the lamp mode to suit your operating environment, you will save on lamp cost as well as contribute to energy
conservation and ecology.
E-4
Table of Contents
IMPORTANT SAFETY INFORMATION ................................................................................... E-2
Major Features ....................................................................................................................... E-4
Table of Contents ................................................................................................................... E-5
Checking the Supplied Accessories .................................................................................... E-7
Names of the Main Unit Parts ............................................................................................... E-8
Names of the Remote Control Parts................................................................................... E-10
Preparing the Remote Control ............................................................................................ E-11
Button Battery Replacement ..................................................................................... E-11
Remote Control Range ............................................................................................. E-11
The Procedure Up to Projecting to the Screen ................................................................. E-12
Placement Guide .................................................................................................................. E-13
Screen Size and Projection Distance ........................................................................ E-13
Connecting Personal Computers and Video Equipment .................................................. E-14
Connections with Personal Computer ....................................................................... E-14
Connect the projector’s RBG connector using the included RGB signal cable. .. E-14
To Output the External Output Signal of a Notebook Computer ......................... E-15
Connections with Composite Signals ........................................................................ E-16
Video Equipment with VIDEO Connectors .......................................................... E-16
Video Equipment with S-VIDEO Connectors ...................................................... E-16
Connections with Component Signals ....................................................................... E-17
When the Video Equipment Has a YCbCr Connector or YPbPr Connector ........ E-17
Connections with the AUDIO Jack ............................................................................ E-18

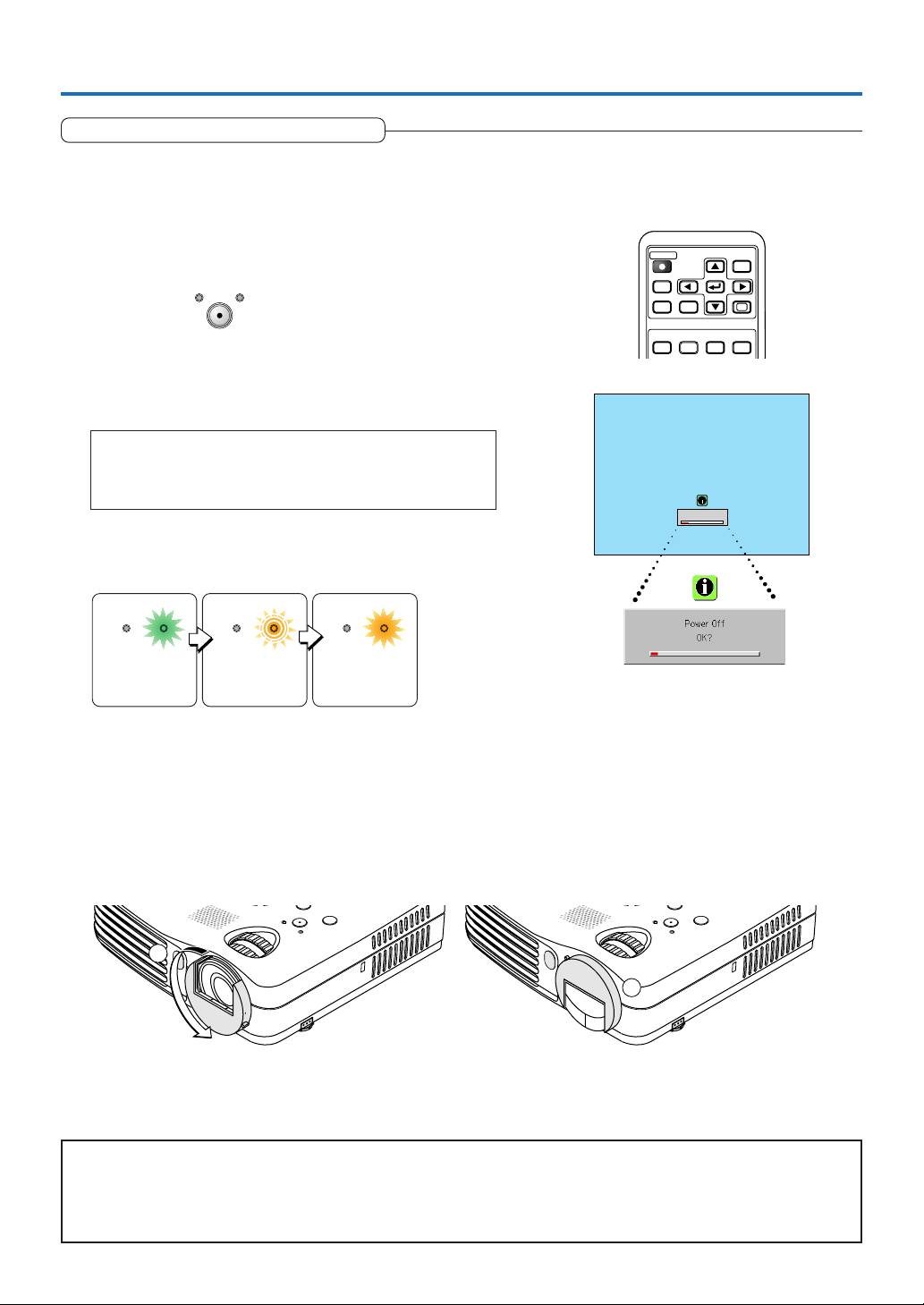

Power Cable Connections and Switching the Power On/Off ........................................... E-19
Operating ................................................................................................................... E-19
Finishing .................................................................................................................... E-21

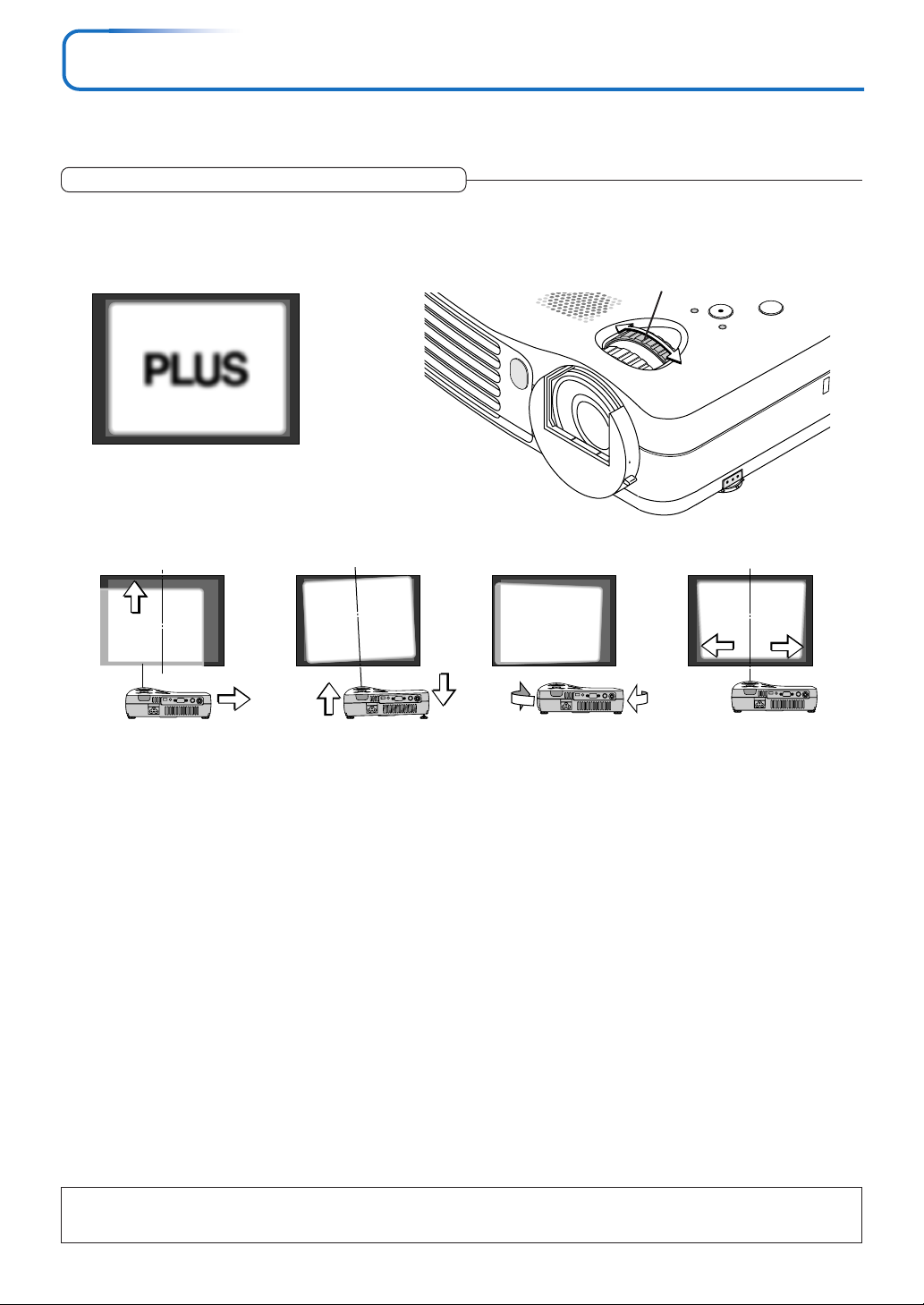

Adjustment of the Projection Screen ................................................................................. E-22
Adjustment of the Projection Screen ......................................................................... E-22

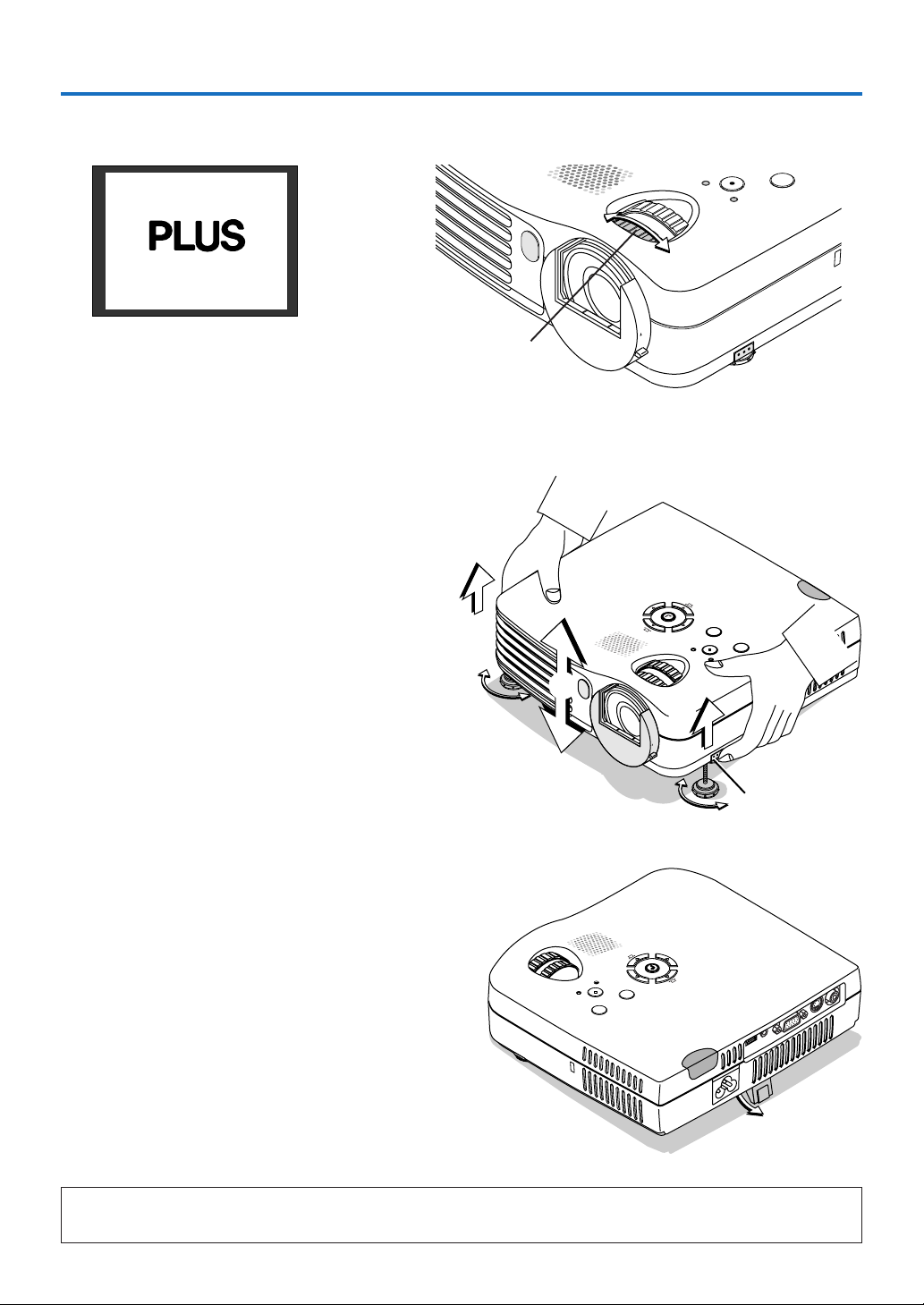

Making Adjustments with the Adjusters .............................................................. E-23
General Operation ................................................................................................................ E-24
Input Selection .......................................................................................................... E-24
Automatic Adjustment ............................................................................................... E-24

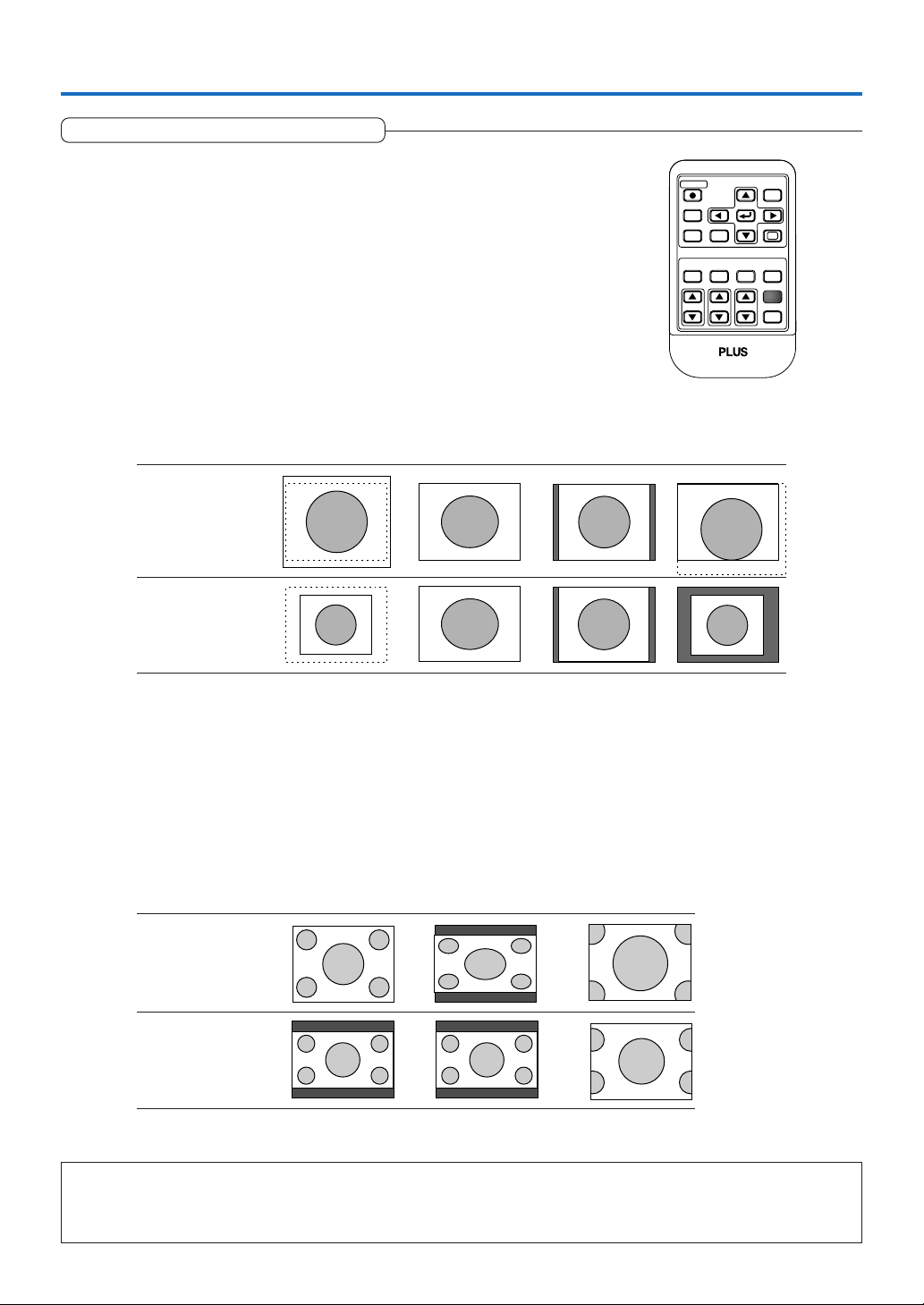

Selection of Aspect Ratio .......................................................................................... E-25
Freezing a Moving Picture ......................................................................................... E-26
Cancelling Video and Audio Temporarily ................................................................... E-26
Lamp Mode ............................................................................................................... E-26
Selection of the Color Mode (DCM) .......................................................................... E-26

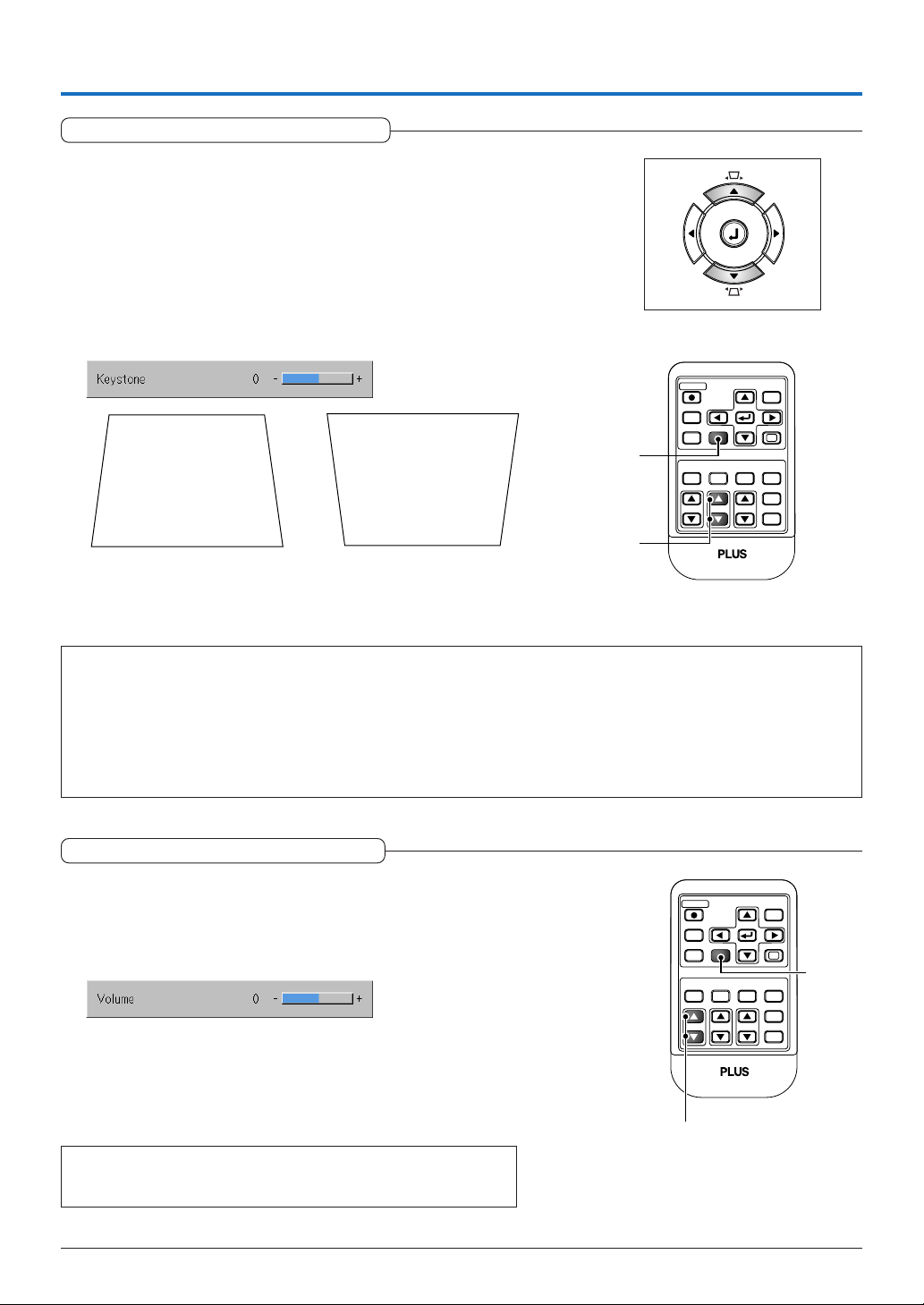

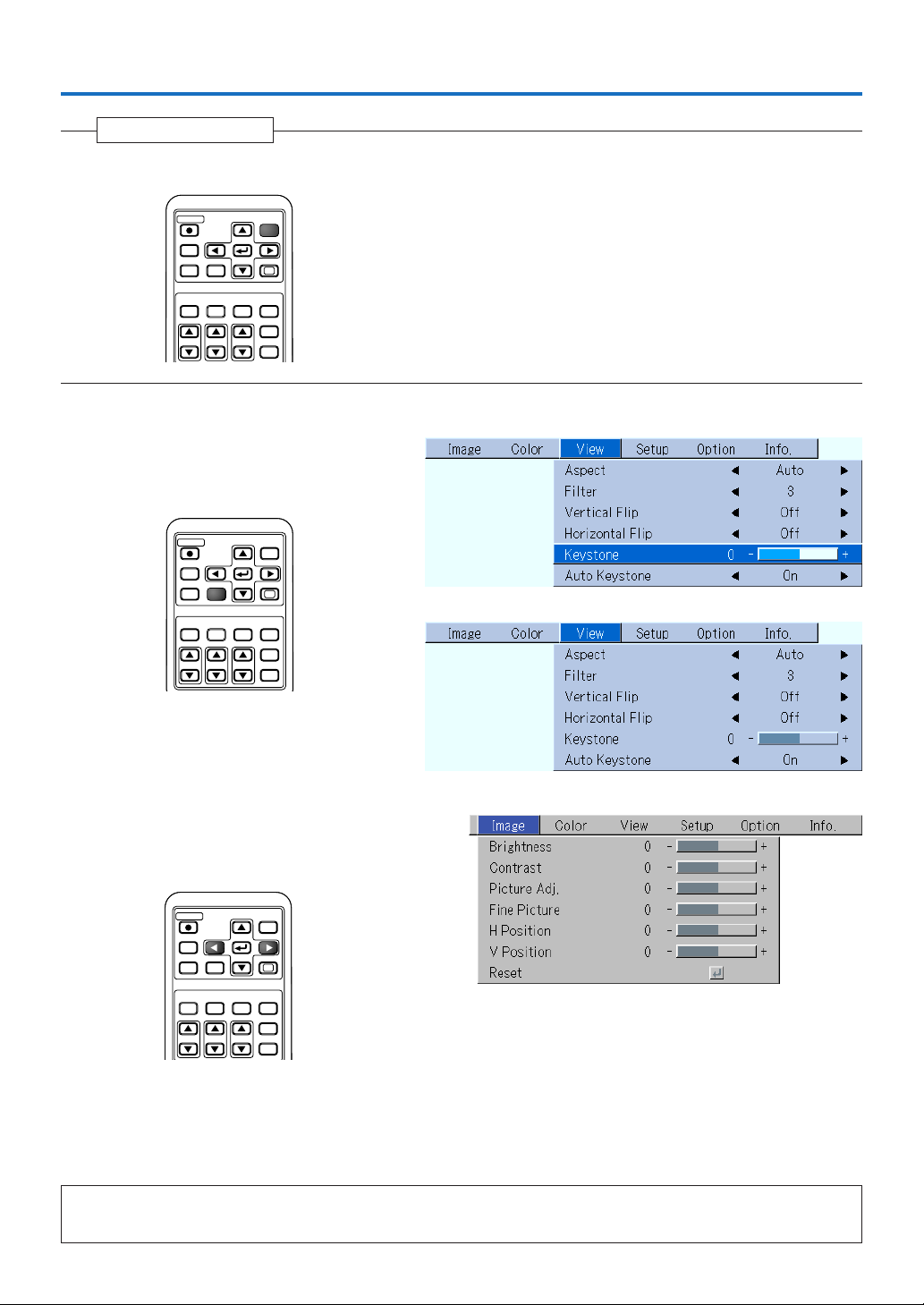

Keystone Manual Adjustment .................................................................................... E-27
Adjustment of the Volume .......................................................................................... E-27
Enlargement of the Image and Video Movement ...................................................... E-28

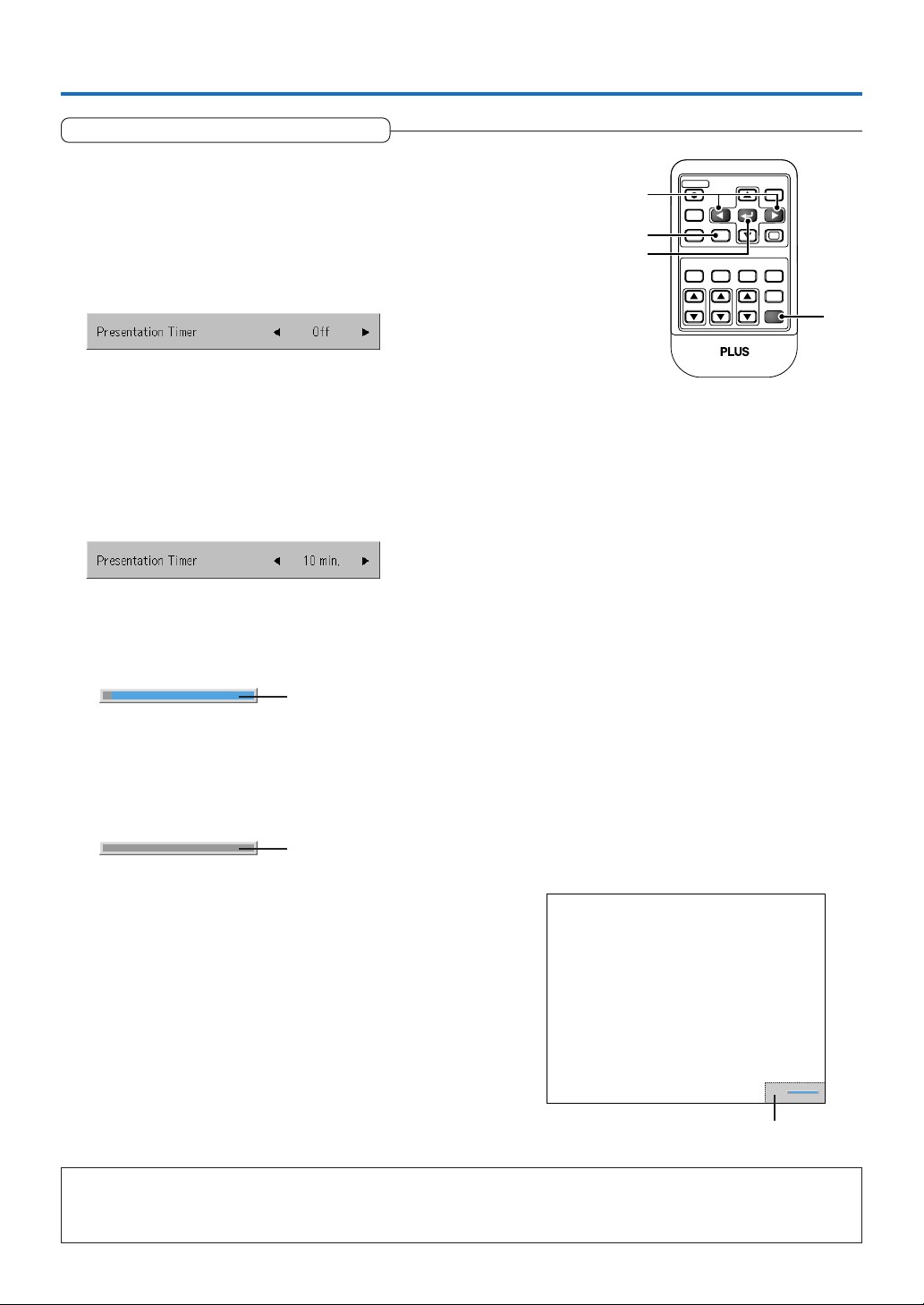

Using the Presentation Timer .................................................................................... E-29

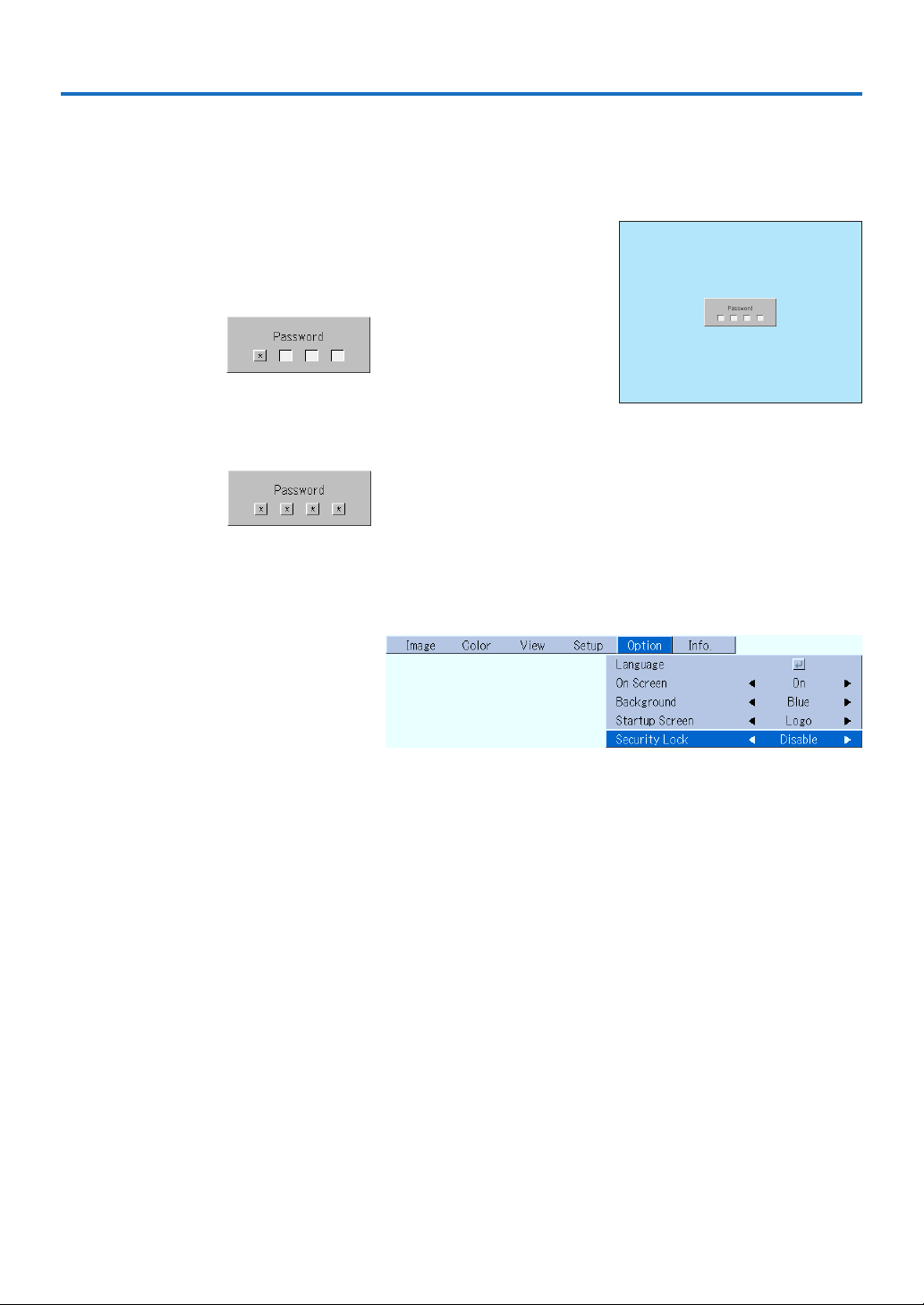

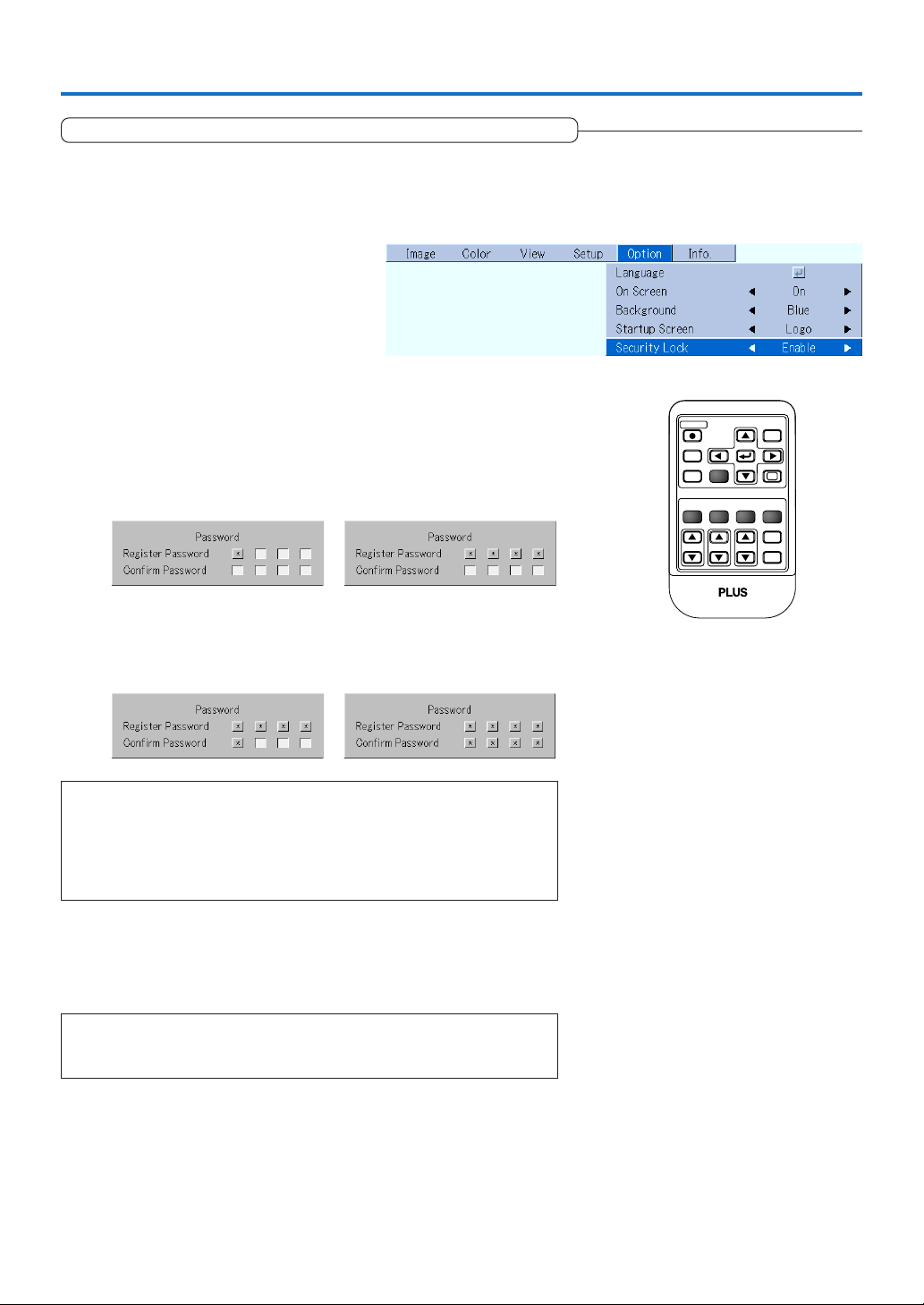

Protecting the Projector with the Security Lock ......................................................... E-30
Using the Quick Menu ............................................................................................... E-32

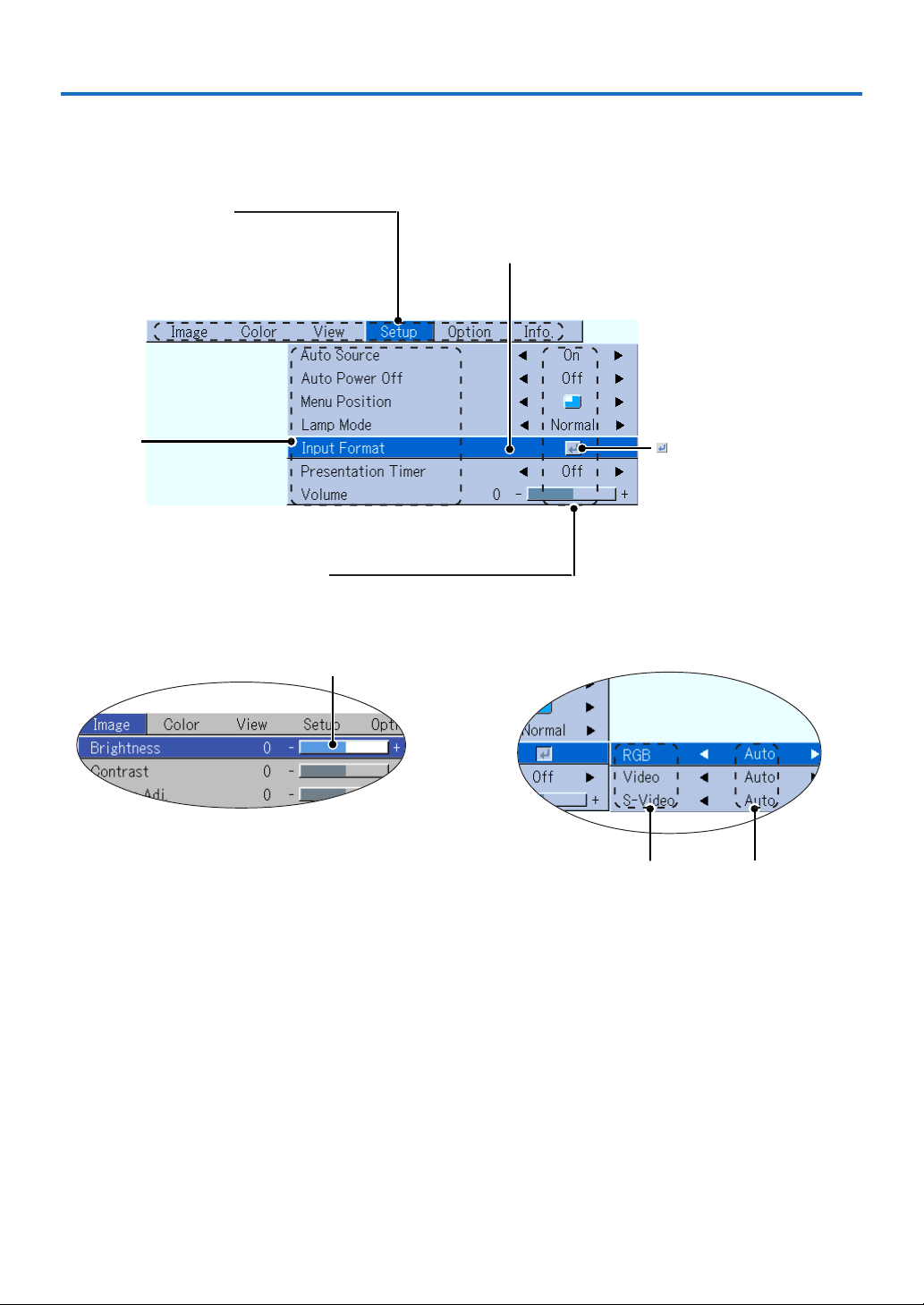

Menu Operation Method ...................................................................................................... E-33

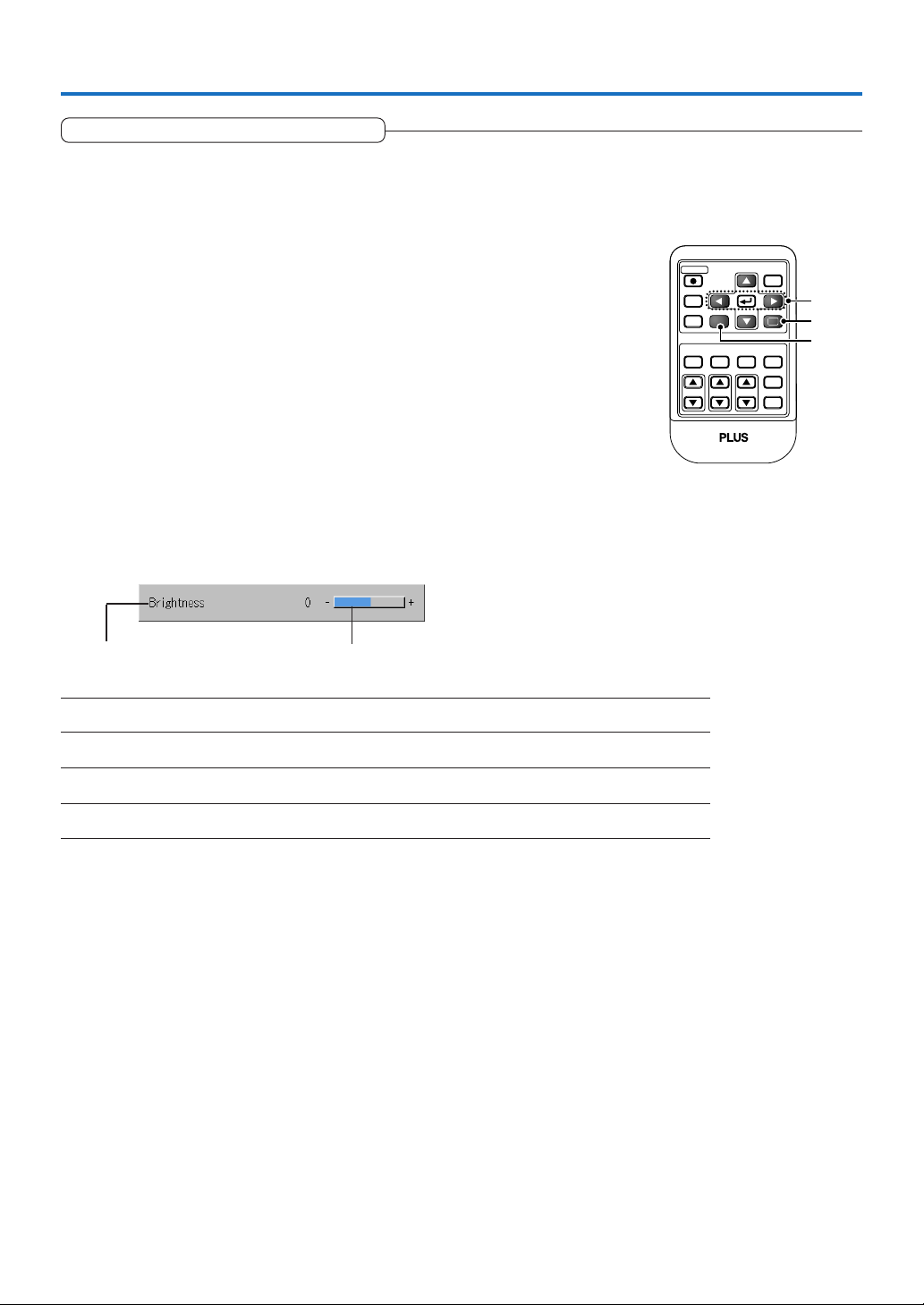

Performing Menu Operations .................................................................................... E-35

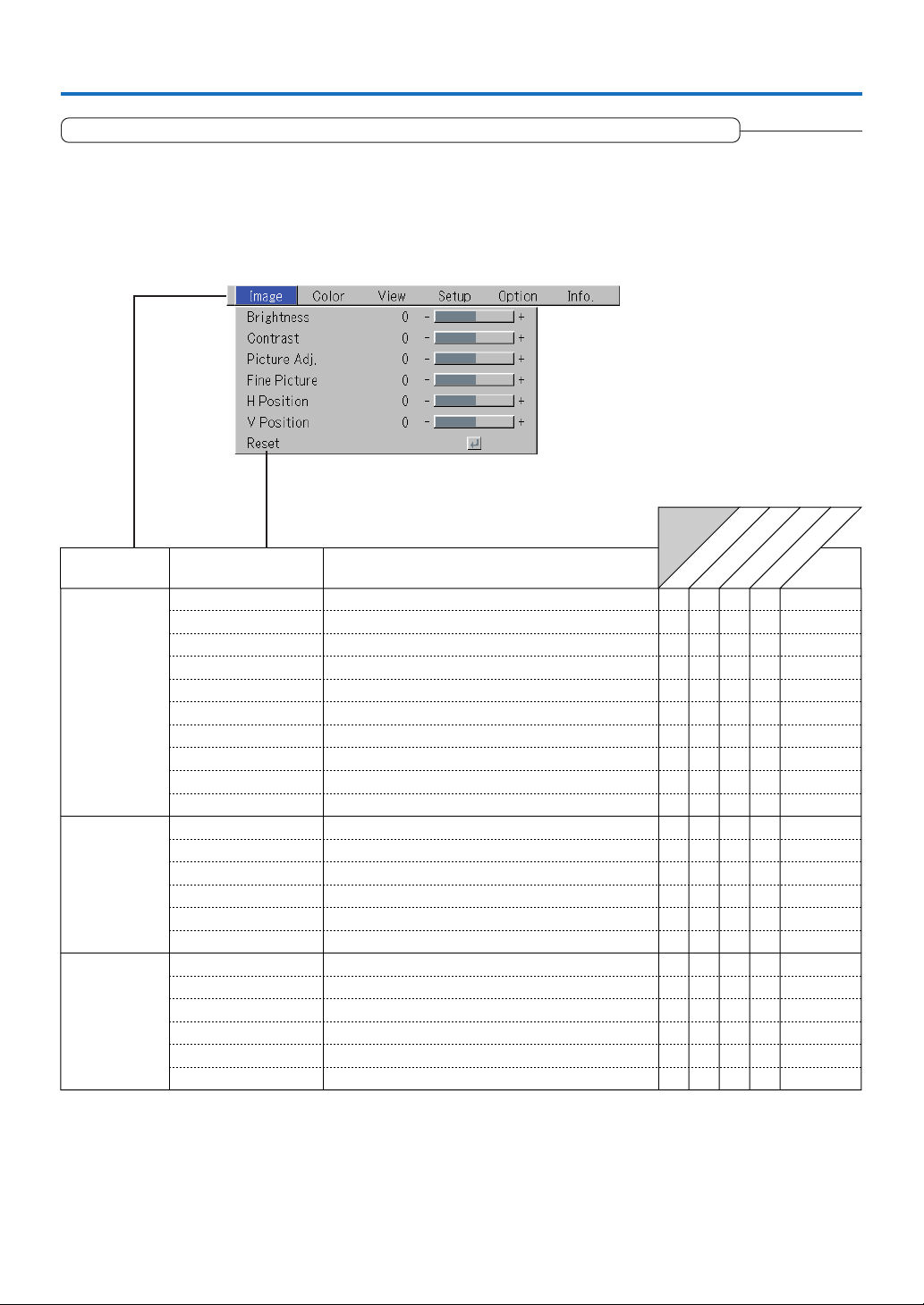

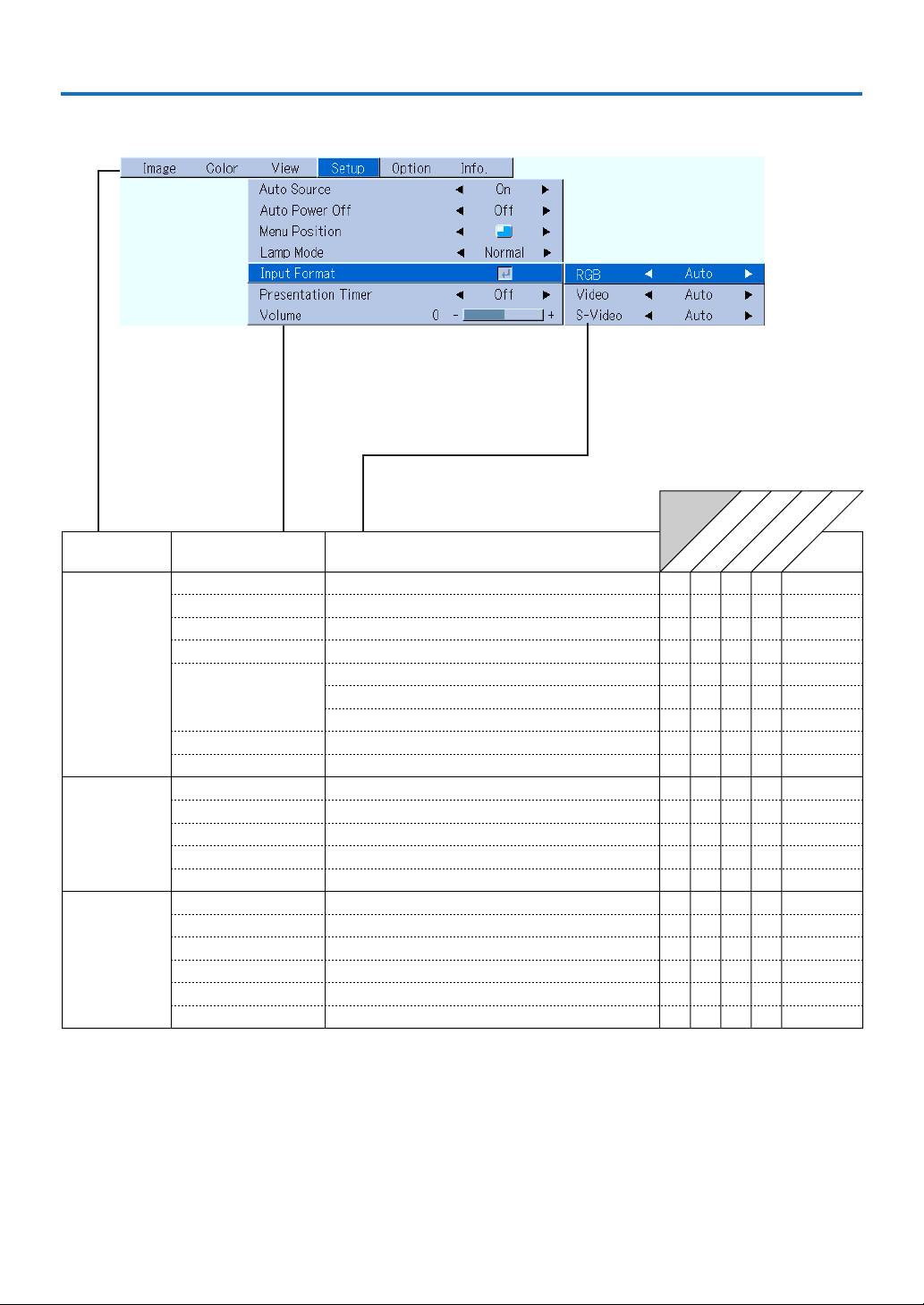

List of Item Names Offering Input Selection and Adjustments/Settings .................... E-38

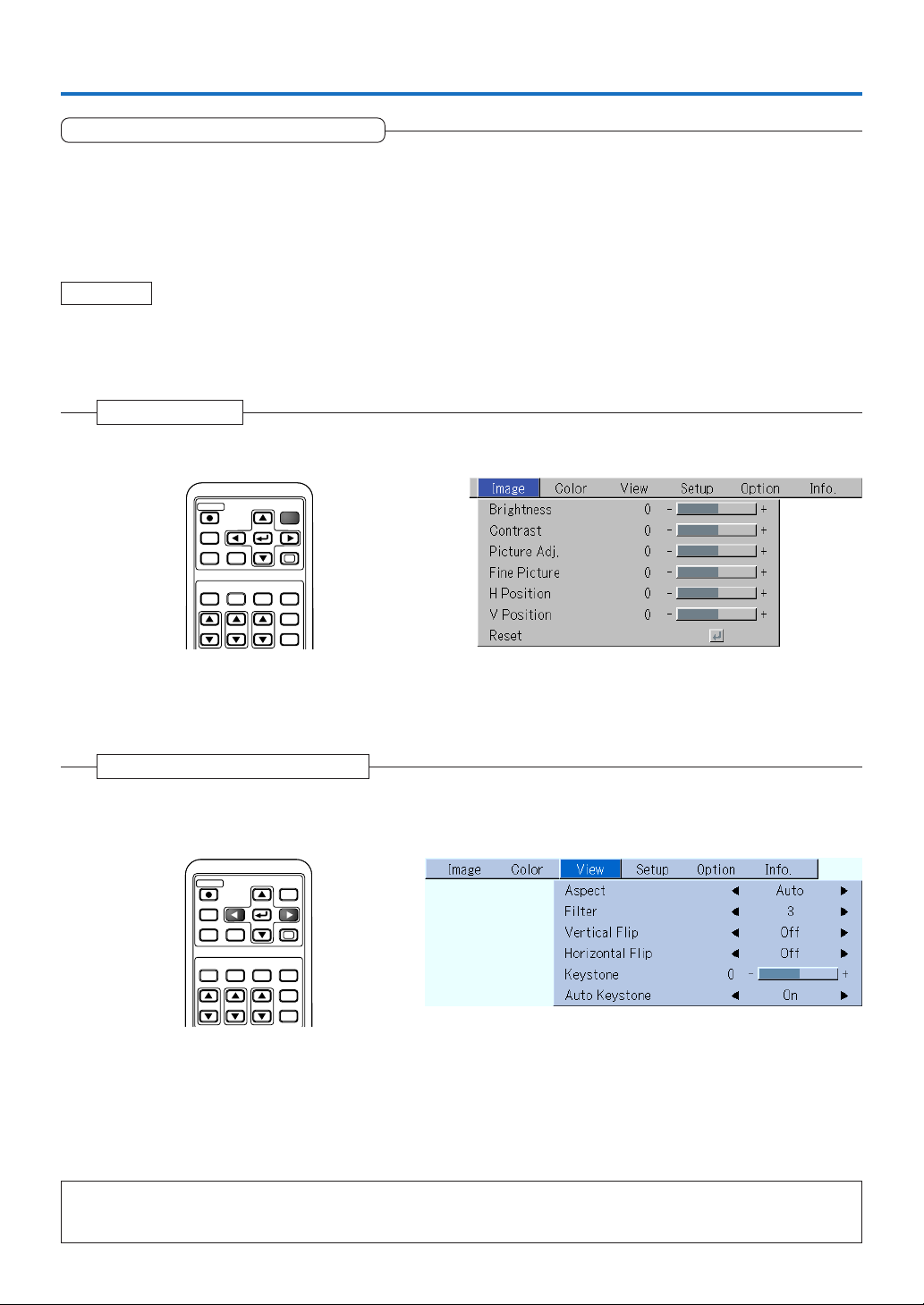

Image ..................................................................................................................................... E-40
Brightness / Contrast / Color / Tint / Sharpness ........................................................ E-40

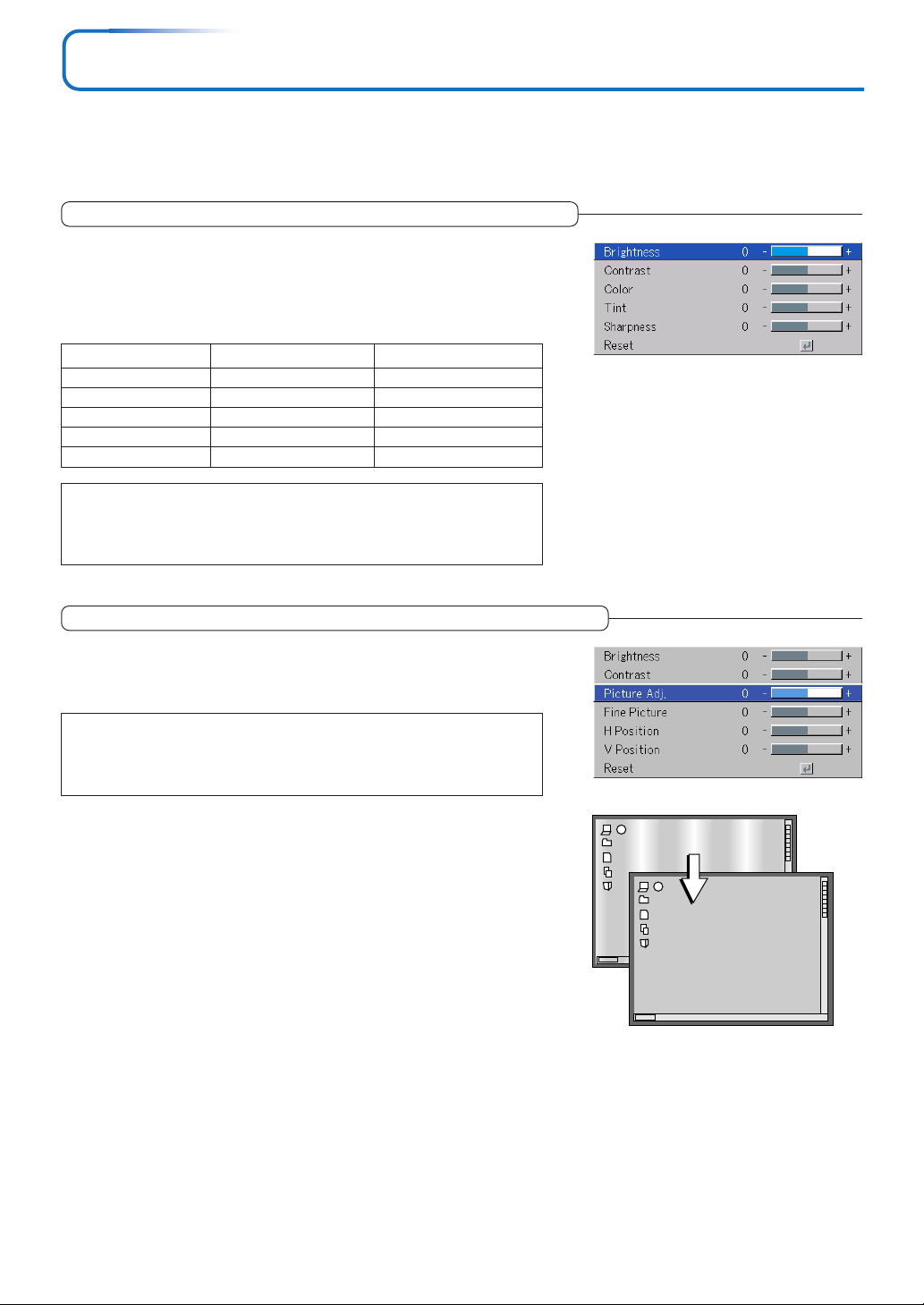

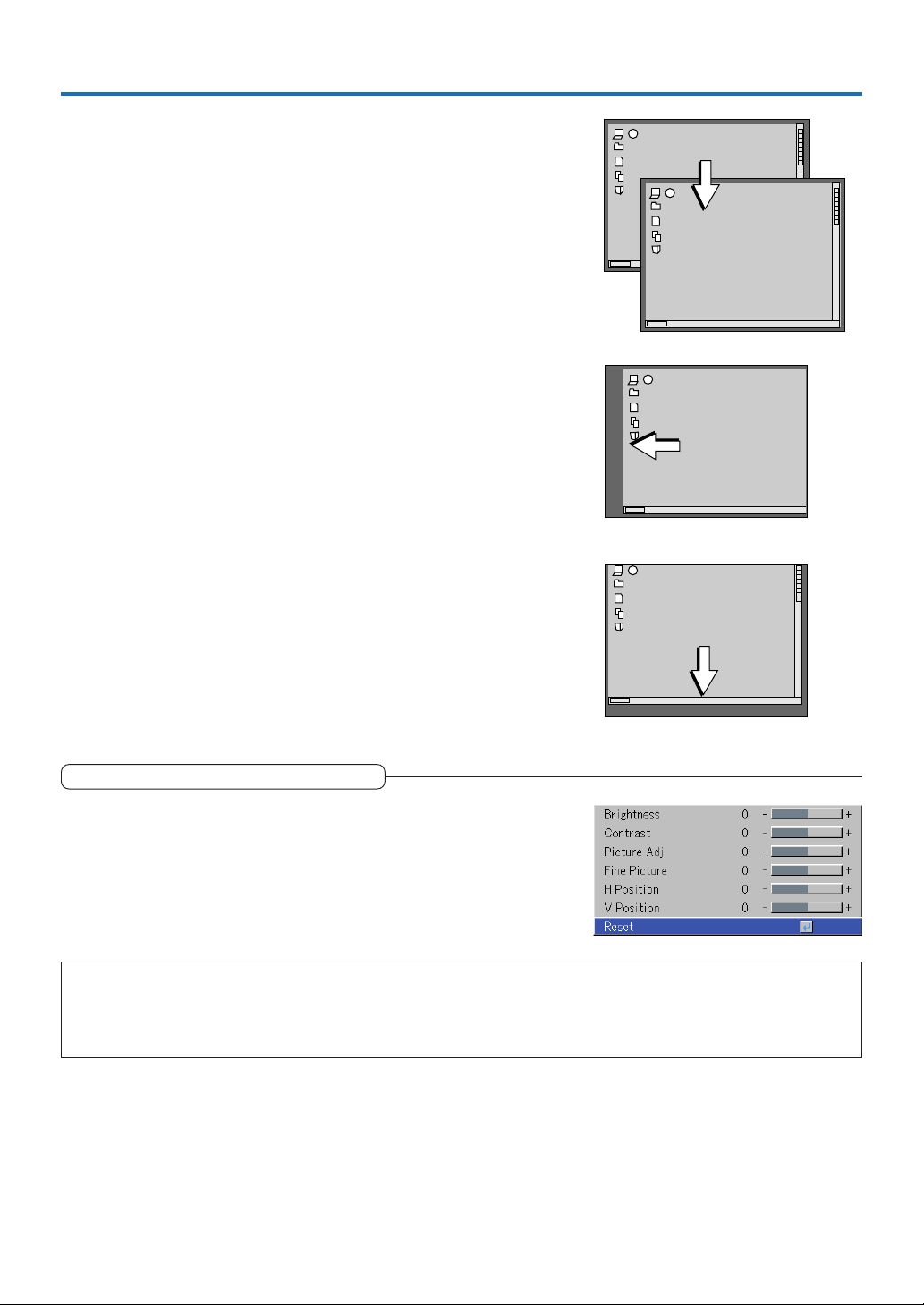

Picture Adj. / Fine Picture / H Position / V Position .................................................... E-40
Reset ......................................................................................................................... E-41
Color ...................................................................................................................................... E-42
Dual Color Mode ....................................................................................................... E-42
Gamma ..................................................................................................................... E-42

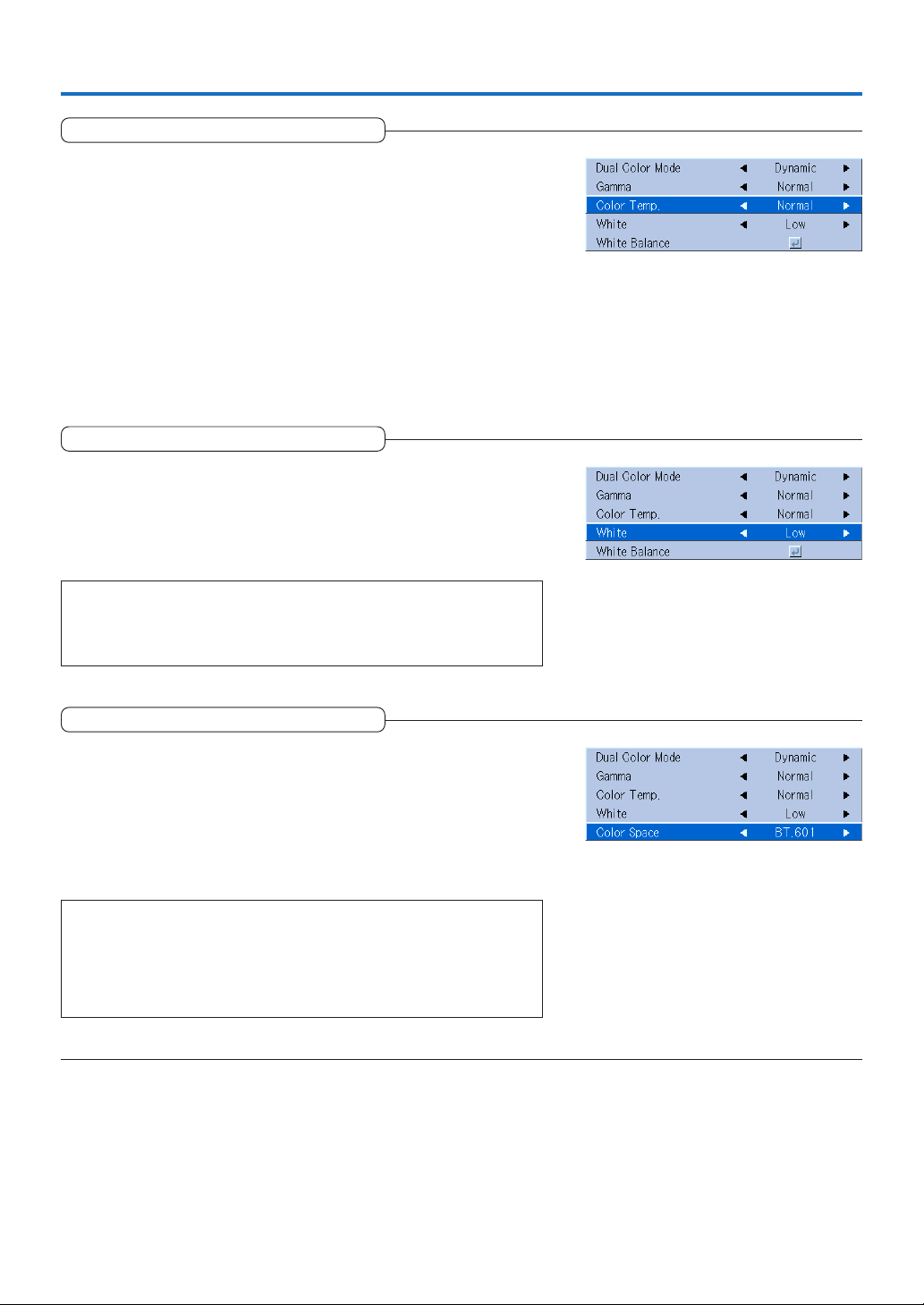

Color Temp. ............................................................................................................... E-43
White ......................................................................................................................... E-43
Color Space .............................................................................................................. E-43

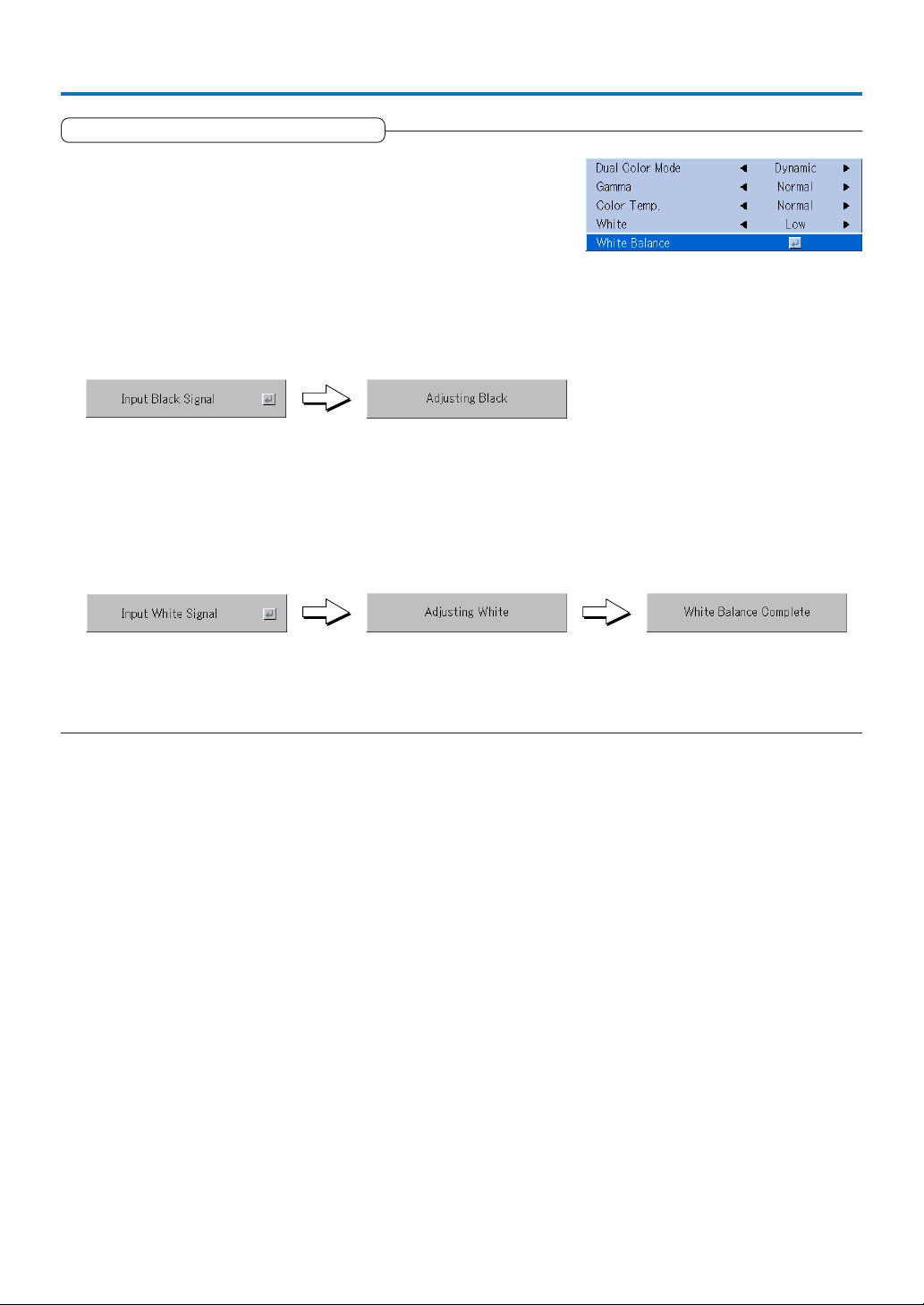

White Balance ........................................................................................................... E-44
E-5
Table of Contents

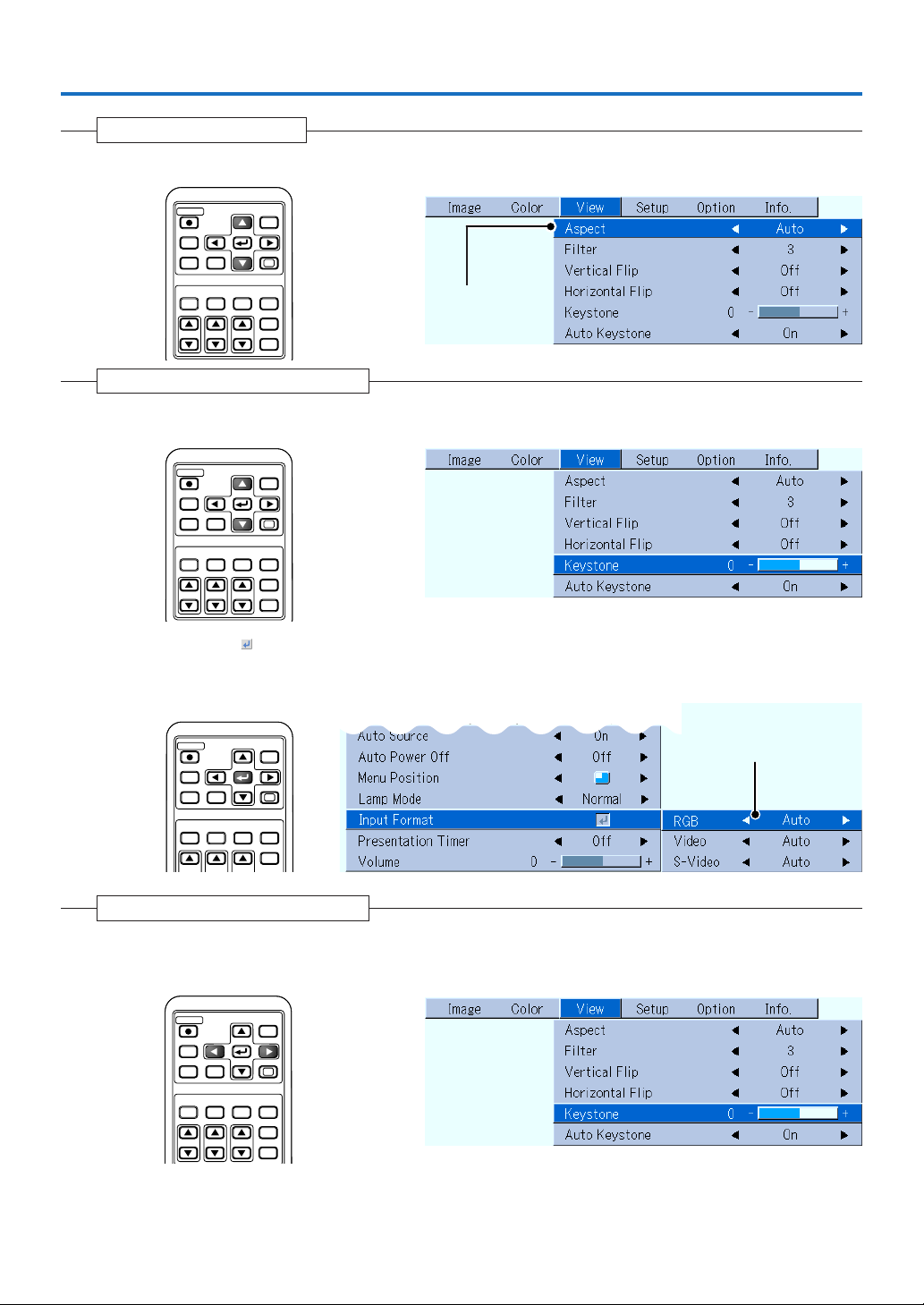

View ....................................................................................................................................... E-45
Aspect ....................................................................................................................... E-45
Filter .......................................................................................................................... E-45

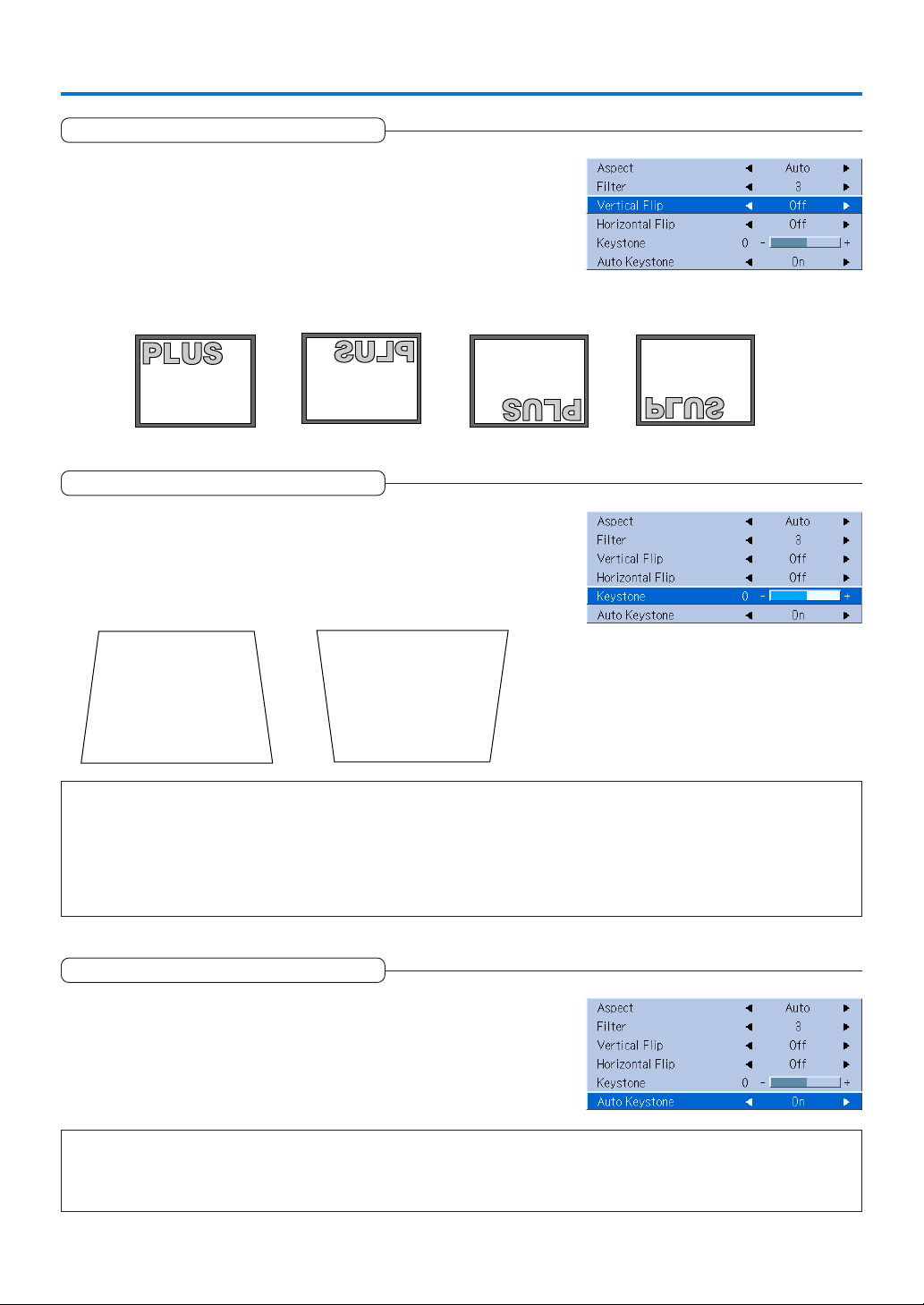

Vertical Flip / Horizontal Flip ...................................................................................... E-46
Keystone.................................................................................................................... E-46
Auto Keystone ........................................................................................................... E-46
Setup ..................................................................................................................................... E-47
Auto Source............................................................................................................... E-47
Auto Power Off .......................................................................................................... E-47
Menu Position............................................................................................................ E-48
Lamp Mode ............................................................................................................... E-48

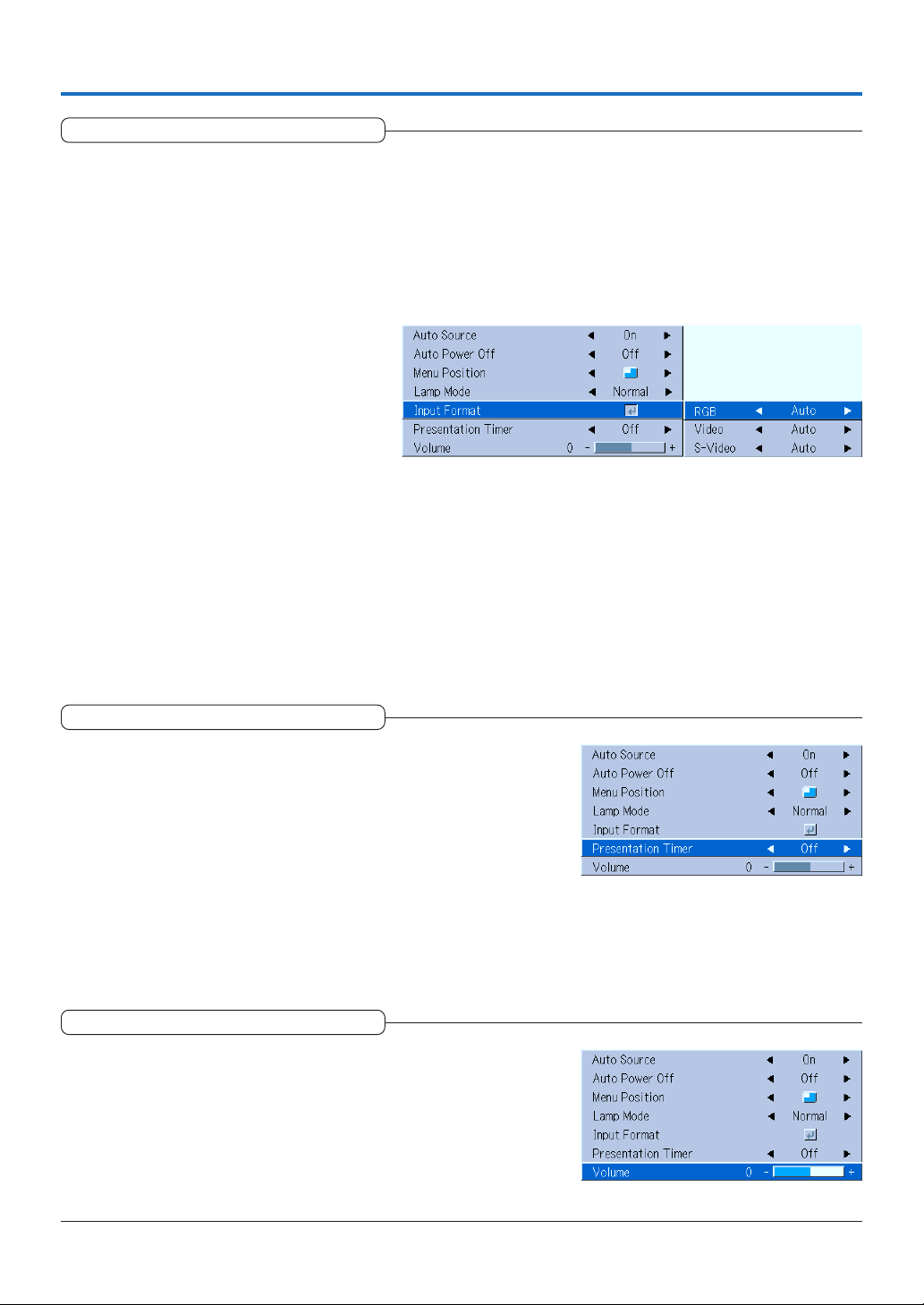

Input Format .............................................................................................................. E-49
Presentation Timer .................................................................................................... E-49
Volume ...................................................................................................................... E-49
Option ................................................................................................................................... E-50
Language .................................................................................................................. E-50
On Screen ................................................................................................................. E-50
Background ............................................................................................................... E-50
Startup Screen .......................................................................................................... E-51
Security Lock ............................................................................................................. E-51

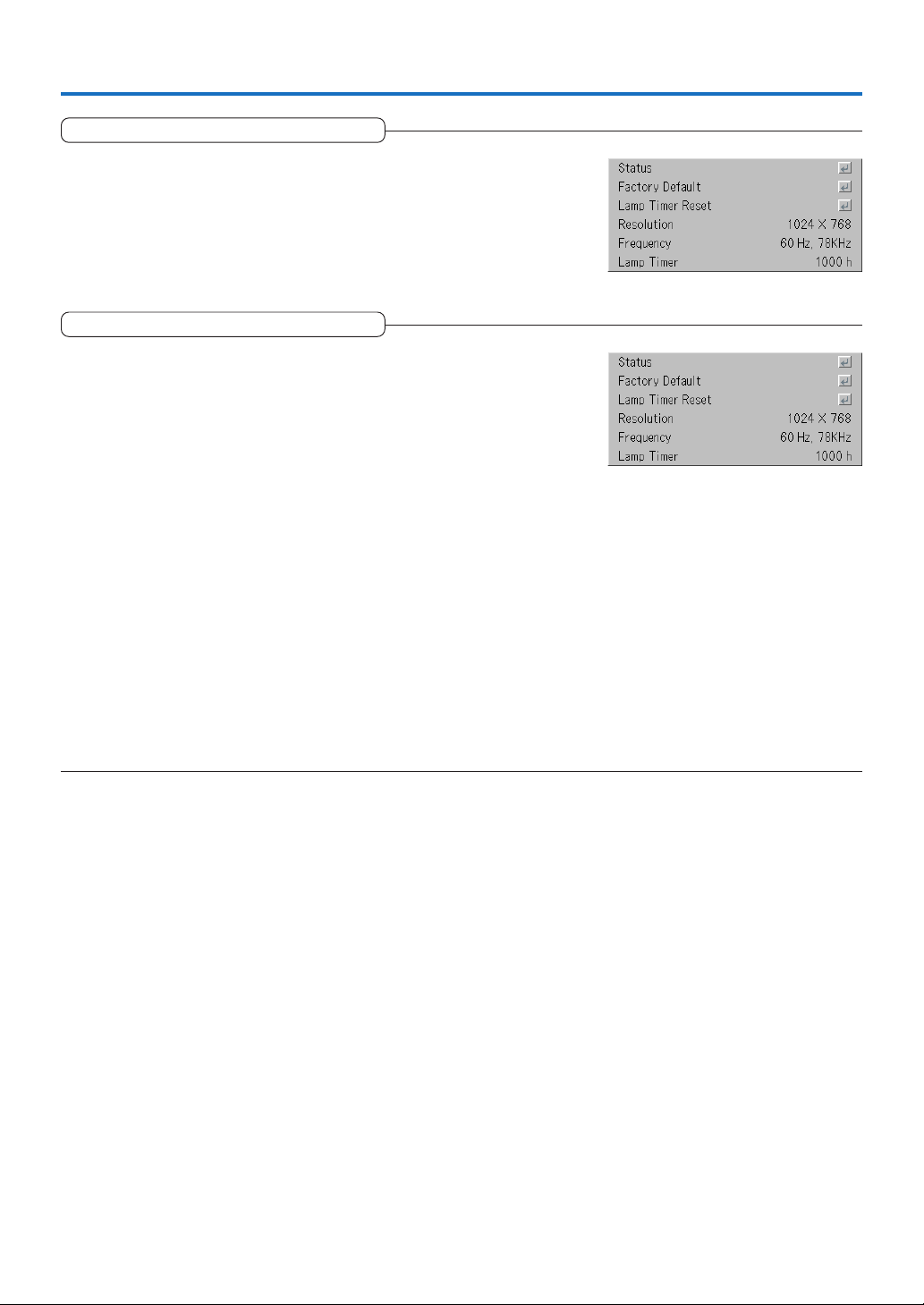

Info......................................................................................................................................... E-52
Status ........................................................................................................................ E-52
Factory Default .......................................................................................................... E-52
Lamp Timer Reset ..................................................................................................... E-52
Resolution / Frequency ............................................................................................. E-53
Lamp Timer ............................................................................................................... E-53
When an Indicator is Lit or Flashing .................................................................................. E-54
Troubleshooting ................................................................................................................... E-55
Cleaning ................................................................................................................................ E-56
Replacing the Lamp Cartridge ............................................................................................ E-57
Specifications ....................................................................................................................... E-60
Table of Supported Frequency ........................................................................................... E-61

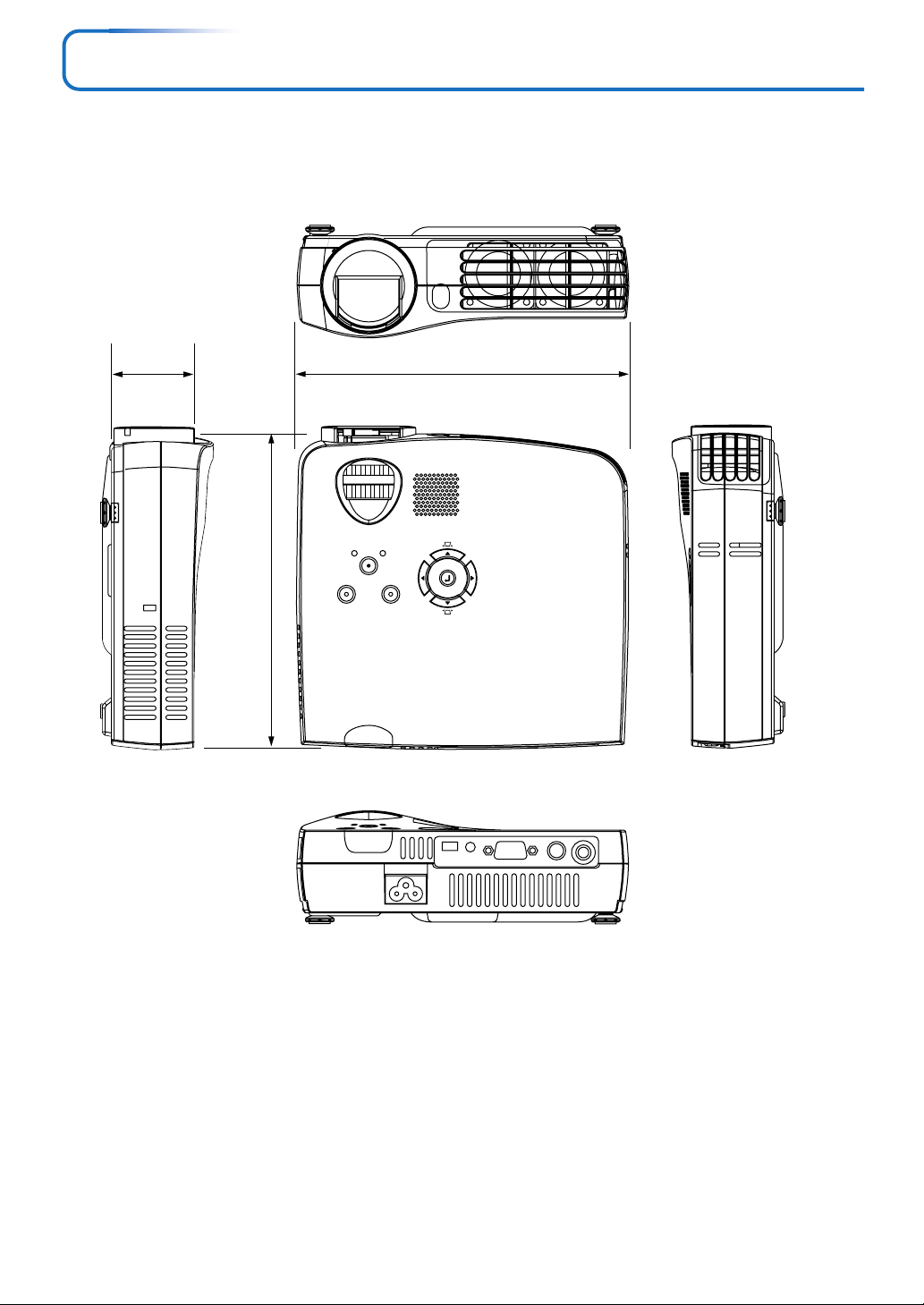

Cabinet Dimensions ............................................................................................................ E-62
E-6
Checking the Supplied Accessories
Remove the main unit and the accessories from the box and check that the following items are included.
Wireless remote control unit
(includes one button battery) [1]
This controls the projector. Please remove the transportation
insulation sheet at time of purchase. (See Page E-11.)
TIMER
ASPECT
ZOOM
AUTO
KSTN
ECO
Q
QUICK
MENU
ENTER
DBY
TAN
S
VOL
MUTE
1234
FREEZE
CANCEL
VIDEO
RGB
Power cable (1.8 m / 5.9 feet) [1]
This power cable supplies power to the unit. See Page E-19
about connections.
RGB signal cable
(Mini D-sub 15-pin, 2 m / 6.6 feet) [1]
This is used in making connections with a personal computer.
See Page E-14 about connections.
No. 773711000
Carrying case (for projector and accessories) [1]
This is a case designed for storing the projector and its accessories.
Use this carrying case when storing or moving the projector.
HOW TO PUT THE PROJECTOR INTO THE STORAGE CASE
Close the lens cover of the projector and then put the projector into the case.
Put the remote control into the small inside pocket and the
supplied cable into the outside pocket.
Small inside
Outside pocket
pocket
Ferrite cores [2]
These ferrite cores are attached to video cables and audio
cables. Mounting See Pages E-16, 18.
M
C
D
U
N
E
M
Y
B
D
N
A
T
S
S
U
T
A
T
S
User’s Manual (CD-ROM edition) [1]
V
O
L
K
S
12
T
N
F
R
E
E
Z
Z
E
O
O
M
M
U
T
E
T
V
I
ID
M
34
E
E
R
O
E
A
C
S
O
R
P
C
G
E
A
C
B
N
T
C
E
A
L
U
T
O
E
Q
N
Q
T
E
U
R
I
C
K
M
E
N
U
User’s Manual (Simplified Edition) [1]
Security Sheet [1]
Security Label [1]
“WARNING”
Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
E-7
Names of the Main Unit Parts
Exhaust vents
Remote control
sensor [E-11]
Lamp cover [E-58]
Speaker
Lens
Lens cover
Zoom ring [E-22]
O
T
U
A
S
O
M
U
C
D
R
C
E
Y
B
D
N
A
T
S
S
U
N
E
M
U
T
A
T
S
Ventilation slots
Built-in security slot
CL
O
Z
E
(See description below.)
Focus ring [E-23]
Adjuster button [E-23]
(Also on opposite side)
Rear adjuster [E-23]
Ventilation slots
Front adjusters [E-23]
Built-in Security Slot
This security slot supports the MicroSaver Security System manufactured by
Kensington Microware Inc.
E-8
Names of the Main Unit Parts
STANDBY indicator [E-19, 54]
STATUS indicator [E-19, 54]
STANDBY button [E-19]
MENU button [E-33]
DCM button [E-26]
Remote control sensor [E-11]
AC IN connector [E-19]
MENU
Buttons used in menu and
quick menu operations
[E-32, 33]
STANDBYSTATUS
Keystone Manual Adjustment
button [E-27]
E
C
R
U
O
S
A
U
T
O
SELECT (왖왔왗왘) buttons
AUTO button [E-24]
DCM
ENTER button [E-20]
SOURCE button [E-24]
STA
TUS
STA
NDB
S-VIDEO
Y
E
C
R
U
O
S
VIDEO
A
U
T
O
Ventilation slots
MOUSE
AUDIO
M
EN
U
DCM
RGB
MOUSE connector
A separately sold “VR-100 Remote Mouse Set”
(ordering code: 28-052) is required to use the
MOUSE connector.
AUDIOMOUSE S-VIDEO VIDEORGB
RGB connector [E-14, 17]
AUDIO connector [E-18]
Ventilation slot
VIDEO connector [E-16]
S-VIDEO connector [E-16]
E-9
Names of the Remote Control Parts
Infrared transmitter [E-11]
STANDBY button [E-19, 21]
This button is used to switch ON
the power and set the unit to the
STANDBY mode.
Buttons used for input selection
[E-24]
RGB button and VIDEO button
(Video / S-Video)
MUTE button [E-26]
(Temporarily cancels the video and
audio)
Number buttons [E-30]
(Used for the security lock.)
FREEZE button [E-26]
(Freezes moving pictures)
STANDBY
RGB
VIDEO
FREEZE
ENTER
CANCEL QUICK
MUTE
MENU
ECO AUTO
1234
ASPECT
VOL KSTN ZOOM
TIMER
Q
TIMER
ASPECT
ZOOM
STN
VIDEO
K
L
FREEZE
VO
1234
UTE
M
O
EC
CANC
GB
R
MENU
TO
AU
Q
K
IC
QU
EL
ENTER
STANDBY
Buttons used for menu operations
[E-33]
The , , and buttons are
the select (왖, 왔, 왗 and 왘) buttons.
QUICK button [E-32]
(Displays a simplified menu)
ECO button [E-26]
(Selection of lamp mode)
AUTO button [E-24]
(Automatic adjustment of the RGB
moving image)
ASPECT button [E-25]
(Selects the vertical and horizontal
ratio of the screen)
VOL button [E-27]
(Volume adjustment)
TIMER button [E-29]
(Presentation timer time setting
display)
KSTN button [E-27]
(Keystone correction adjustment)
ZOOM button [E-28]
(Digital zoom adjustment)
Precautions
Handling of the Remote Control
* Do not drop the remote control or handle it inappropriately.
* Do not expose the remote control to water or other liquids. Should the remote control become wet, wipe it dry
immediately.
* Try to avoid use in hot and/or humid locations.
* Please keep button battery out of the reach of children. If a battery is swallowed, promptly obtain the medical care of
a doctor.
* Remove the battery from the remote control when it is not going to be used for a long period.
* Some operations (such as menu operations) are available only through the use of the remote control and attention
should be given to its careful handling.
E-10
CR2025
Preparing the Remote Control
Button Battery Replacement
Using the remote control for the first time
The battery compartment is fitted with a transportation insulation sheet at the time of shipping. Pull
out the sheet and remove it. The remote control is now ready for use.
Replacement Method
(A) With the knob pressed to
1
the right side, (B) draw out the
battery case.
Remove the old battery and in-
2
stall a new button battery with (+)
side facing upward in the battery
holder.
Insert the battery holder into the re-
3
mote control and push in until the
battery holder closes with a “click”
sound.
CR2025
(A)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type (CR2025) recommended by the manufacturer.
Dispose of used batteries according to your local regulations.
CAUTION
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
(B)
Purchase a CR2025 type battery for replacement.
CR2025
Remote Control Range
Point the infrared transmitter of the remote control toward the remote control sensor located at the front or rear of the main unit
and operate.
Reception of the remote control signal should generally be possible within the range illustrated below.
4m/13.1 feet
30°
20°
7m/23.0 feet
3m/9.8 feet
Remote control
sensor
Side View
30°
20°
6m/19.7 feet
Remote control infrared
transmitter
DCM
STANDBYSTATUS
MENU
4m/13.1 feet
Remote control infrared transmitter
50°
50°
7m/23.0 feet
Remote control sensor
Top View
Note
* Exposure of the main unit’s remote control sensor or the remote control infrared transmitter to bright light or the obstruction of the signal
by an obstacle located in the pathway may prevent operation.
* The remote control will not function when the battery is exhausted.
E-11
The Procedure Up to Projecting to the Screen
Perform setup adjustments in the following order.
1 Position the projector
Determine the locations to set up the screen and the projector.
See “Placement Guide” on Page E-13.
2 Connect the video equipment and personal computer
Connect your equipment to the projector.
When making connections with the personal computer’s RGB connector, see “Connections with
Personal Computer” on Page E-14.
When making connections with the video equipment’s video connector or an S-video connector,
see “Connections with Composite Signals” on Page E-16.
When making connections with the video equipment’s YCbCr connector or YPbPr connector,
see “Connections with Component Signals” on Page E-17.
When playing the audio through the built-in speaker of the projector, see “Connections with the
AUDIO Jack” on Page E-18.
3 Connect the power cable and open the lens cover.
See “Operating” on Page E-19.
See “Finishing” on Page E-21.

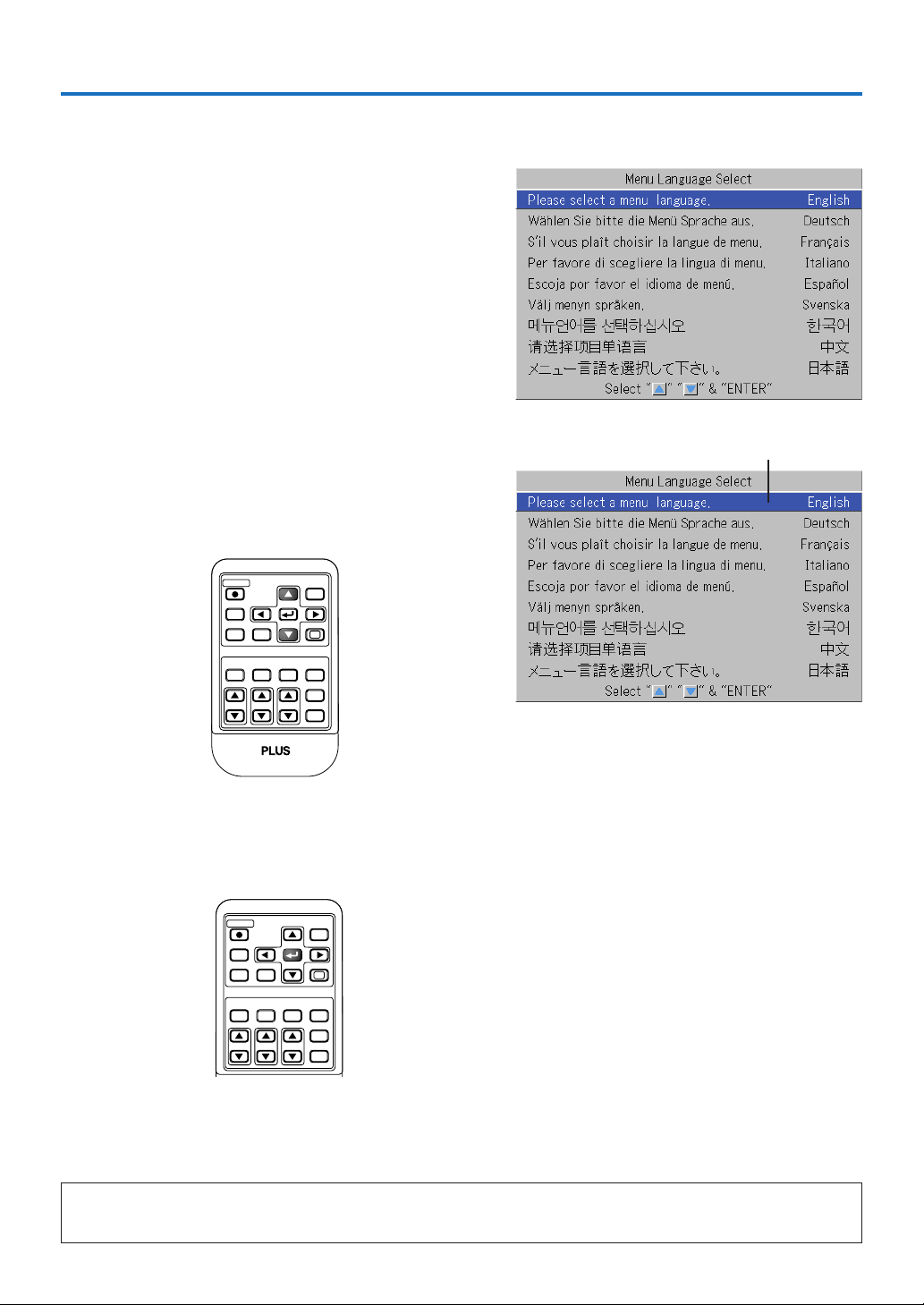

4 When selecting the language of menu displays, etc.
(Only when the power is first switched on following purchase)
See “When [Menu Language Select] is Displayed Upon Switching On the Power” on Page E-20.
5 Switching on the power of the personal computer and video equipment
6 Properly adjust the projection image to the screen
See “Adjustment of the Projection Screen” on Page E-22.
7 Selecting input equipment
See “Input Selection” on Page E-24.
8 Adjust the screen or video image
Adjust the image to the optimum condition as required.
See the Table of Contents for the adjustment items.
About DLP projectors
Though careful attention is paid to providing optimum quality, please note that with DLP type projectors, in rare cases there may
be black spots or bright spots among the picture elements.
Note:
* Please purchase a screen.
* A component cable (order code 28-690), which is available separately, is required to connect a DVD player or other equipment with YCbCr
connectors.
* A component cable (order code 28-690), which is available separately, is required to connect high definition (HD) video equipment or other
equipment with YPbPr connectors.
E-12
Placement Guide
• Use this information as a guide to find out about the screen size when the projector is placed at a certain location, or
to find out the approximate size of a screen that will be required.
• The projection distance over which focussing is adjustable is 1.20 m (3.9 feet) to 14.17 m (46.50 feet). The projector
should be placed within this range.
Screen Size and Projection Distance
Screen Size Designation (Inches)
300"
Height from center of
250"
200"
180"
lens to top edge of
the projection
150"
Height from center of
lens to bottom edge
of the projection
120"
100"
80"
60"
40"
26"
S
T
A
T
U
S
S
T
A
N
D
B
Y
M
E
N
U
E
C
R
D
U
C
O
M
S
A
U
T
O
1.20 (3.94)
M
O
U
S
E
A
U
D
I
O
R
G
B
S
V
I
D
E
O
V
1.54– 1.85
I
D
E
O
2.33– 2.80
(5.05– 6.07)
(7.64– 9.19)
3.12– 3.75 (10.24–12.30)
4.70– 5.64 (15.42–18.50)
3.91– 4.70 (12.83–15.42)
5.89– 7.07 (19.32– 23.20)
8.49 (23.20– 27.84)
–
7.86– 9.44 (25.79– 30.95)
7.07
9.84–11.81 (32.28 –38.73)
–14.17 (38.76
11.81
h1
h2
Unit: m (feet)
–46.50)
Width
Screen size (Diagonal)
Lens surface of
the main unit
Screen Size
Designation (Inches)
26"
40"
60"
80"
100"
120"
150"
180"
200"
250"
300"
Screen Size Width x Height Projection Distance Height h1 Height h2
(m) (feet)
(m) (feet) (m) (feet) (m) (feet)
Wide – Tele Wide – Tele
0.53 ⳯ 0.40
0.81 ⳯ 0.61
1.22 ⳯ 0.91
1.63 ⳯ 1.22
2.03 ⳯ 1.52
2.44 ⳯ 1.83
3.05 ⳯ 2.29
3.66 ⳯ 2.74
4.06 ⳯ 3.05
5.08 ⳯ 3.81
6.10 ⳯ 4.57
1.73 ⳯ 1.30
2.67 ⳯ 2.00
4.00 ⳯ 3.00
5.33 ⳯ 4.00
6.67 ⳯ 5.00
8.00 ⳯ 6.00
10.00 ⳯ 7.50
12.00 ⳯ 9.00
13.33 ⳯10.00
16.67 ⳯12.50
20.00 ⳯15.00
—–1.20
1.54 – 1.85
2.33 – 2.80
3.12 – 3.75
3.91 – 4.70
4.70 – 5.64
5.89 – 7.07
7.07 – 8.49
7.86 – 9.44
9.84 –11.81
11.81 –14.17
—–3.94
5.04 – 6.08
7.64 – 9.19
10.23 – 12.30
12.82 – 15.41
15.42 – 18.52
19.31 – 23.18
23.20 – 27.84
25.79 – 30.95
32.28 – 38.73
38.76 – 46.50
0.47
0.71
1.07
1.43
1.78
2.14
2.68
3.21
3.57
4.46
5.35
1.52
2.34
3.51
4.68
5.85
7.02
8.78
10.53
11.70
14.63
17.55
0.07
0.10
0.16
0.21
0.26
0.31
0.39
0.47
0.52
0.65
0.78
0.22
0.34
0.51
0.68
0.85
1.02
1.28
1.53
1.70
2.13
2.55
* There is a tolerance of ±5% due to design values.
* This table uses the lens apex and lens center as references and requires that the projector be in a
horizontal condition (with front and rear adjusters fully withdrawn).
Height
E-13
Connecting Personal Computers and Video Equipment
Connecting this unit with a personal computer permits presentation data to be projected as a large screen display at
conferences, lectures, and on other occasions. Furthermore, connecting this unit to a DVD player or other video equipment source in combination with an audio/video amplifier and speaker system will allow you to enjoy convincing home
theater.
Connections with Personal Computer
Please check the following before making connections with the personal computer.
• A suitable resolution for this projector is 1024 ⳯ 768 dots (XGA). The maximum displayable resolution is 1280 ⳯ 1024 dots (S-
XGA).
Make changes to a displayable resolution at the personal computer side. Please check with “Table of Supported Frequency” on
Page E-61.
• The setting method for the personal computer will differ depending on the specific model. Please read the personal computer
instruction manual or the on-line help information, or contact the manufacturer of your personal computer.
Connect the projector’s RBG connector using the included RGB signal cable.
• When making connections with the RGB connector of the projector, please make the connection via the supplied RGB signal
cable.
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “RGB”
using the menu sequence of [Setup] → [Input Format] → [RGB].
See “Input Format” on Page E-49.
MONITOR OUT
Personal
computer
RGB signal cable (Supplied item)
Note:
* Before making connections, check the power of the projector and the equipment to be connected is switched off.
* When projection will be with a notebook computer connected, knowledge will be required for the cable connection and notebook computer
startup procedure as well as the operation that follows startup. Please consult the instruction manual of your notebook computer or the online help.
E-14
Connecting Personal Computers and Video Equipment
To Output the External Output Signal of a Notebook Computer
When projection will be with a notebook computer connected, knowledge will be required for the cable connection and notebook
computer startup procedure as well as the operation that follows notebook startup. Please consult the instruction manual of your
notebook computer or the on-line help while performing the following procedure.
Check whether a signal is being sent from the notebook computer to the projector.
1
An indication appearing on the liquid crystal display of the notebook computer does not necessarily mean that an external
output signal is being output.
REFERENCE: When “Resolution” or “Frequency” is not displayed under “Info.” on the menu of the projector, this means that
the external output signal is not being output from the personal computer. See “Resolution/Frequency” on Page E-53.
Should a sign not be output from the notebook computer, please try the operation described below.
2
For an IBM PC/AT compatible computer, press the [Fn] key plus any one of the [F1] to [F10] keys. (See the table below.)
Manufacturer Model Key
DELL All computers Fn + F8
EPSON All computers Fn + F8
FUJITSU All computers Fn + F10
iiyama All computers Fn + F3
IBM All computers Fn + F7
NEC All computers Fn + F3
Panasonic All computers Fn + F3
SHARP All computers Fn + F5
SONY All computers Fn + F7
SOTEC All computers Fn + F3–F5
TOSHIBA All computers Fn + F5
Victor All computers Fn + F10
Note: Table information is current to December 2003.
Note:
When the liquid crystal display of the notebook computer and the projector are displayed at the same time, the projected image might not be
correct even though the liquid crystal display shows a correct indication. Should this occur, stop the simultaneous display of the notebook
computer and try the mode with external output only. Try an operation such as that described in aforementioned Step 2 and try closing the
liquid crystal panel which might result in external output only.
E-15
Connecting Personal Computers and Video Equipment
Connections with Composite Signals
Video Equipment with VIDEO Connectors
• Connect to the projector’s VIDEO connector using a commercially available video cable. Please attach the supplied ferrite core
to the video cable as described below.
• The input setting of the VIDEO connector has been set to “Auto” at the factory; however, if the projector does not project, please
change the input setting to “Your Country’s Television Broadcast System” using the menu sequence of [Setup] → [Input Format]
→ [Video].
See “Input Format” on Page E-49.
Video Equipment with S-VIDEO Connectors
• Connect to the projector’s S-VIDEO connector using a commercially available S-Video cable.
• The input setting of the S-VIDEO connector has been set to “Auto” at the factory; however, if the projector does not project,
please change the input setting to “Your Country’s Television Broadcast System” using the menu sequence of [Setup] → [Input
format] → [S-Video].
See “Input Format” on Page E-49.
Video deck, DVD player, document
camera, etc.
Ferrite core (Supplied item)
Video cable (RCA pin plug)
(Commercially available)
S-Video cable (Mini DIN 4-pin plug)
(Commercially available)
Mounting the Ferrite Core
Open the ferrite core, loop the cable through it, then close.
VIDEO
S-VIDEO
Ferrite core
Cable
E-16
Connecting Personal Computers and Video Equipment
Connections with Component Signals
When the Video Equipment Has a YCbCr Connector or YPbPr Connector
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Compo-
nent” using the menu sequence of [Setup] → [Input Format] → [RGB].
See “Input Format” on Page E-49.
• When projecting the YCbCr signal or YPbPr signal, if the color of the overall image strongly leans toward being greenish or
another color, change the setting under the menu of [Color] → [Color Space].
See “Color Space” on Page E-43.
Component cable (Available as an option)
(Mini D-sub 15-pin to RCA⳯3)
(Order code: 28-690)
Green
Blue
Component cable (Available as an option)
(Mini D-sub 15-pin to RCA⳯3)
(Order code: 28-690)
Red
CrCbY
COMPONENT
COMPONENT
PrPbY
Green
Blue
Red
E-17
Connecting Personal Computers and Video Equipment
Connections with the AUDIO Jack
* Connect to the projector’s AUDIO jack using a commercially available audio cable. If the other device has an RCA phono type
audio jack, connect via a commercially available audio converter cable. Please attach the supplied ferrite core to the audio
cable as described below.
* The built-in speaker of the projector provides monaural audio. To enjoy convincing audio reproduction, please connect the
audio output of the video equipment to your audio system.
* The built-in speaker outputs the audio of the equipment connected to the AUDIO jack.
Audio cable (Mini plug)
(Commercially available)
Ferrite core (Supplied item)
Audio cable (Mini plug)
(Commercially available)
Audio conversion cable
(Mini-jack/ RCA pin plug)
(Commercially available)
Ferrite core (Supplied item)
White
Red
AUDIO OUT
L
R
Mounting the Ferrite Core
Open the ferrite core, loop the cable through it, then close.
Ferrite core
Cable
E-18
Power Cable Connections and Switching the Power On/Off
S
TA
N
D
B
Y
S
TAT
U
S
M
E
N
U
AUDIO
MOUSE
RGB
S-VIDEO
VIDEO
S
O
U
R
C
E
A
U
T
O
D
C
M
E
C
E
There is an order in which the power cable is connected and the power is switched on/off.
Operating
Connect the AC IN connector of the projector and the power outlet using the supplied power cable.
1
The STANDBY indicator will light in amber, and the unit will enter the standby mode.
STANDBYSTATUS
Lit amber
햲 Turn the lens cover clockwise.
2
햳 When the lens cover stops with a click, the
projector is ready for projection.
ENU
Y
B
D
N
1
Switch on the projector power
3
STA
Press the STANDBY button.
STANDBYSTATUS
(button on main unit)
The first time the power is switched on after purchase, [Menu
Language Select] will be displayed. See Page E-20 for information about language selection.
• When the power is turned on, the STANDBY indicator starts flashing green, then stops flashing after about 60 seconds. If the STATUS
indicator lights green at this time, the lamp mode is set to “Eco”.
See E-26 and 48 for instructions on selecting.
• If the power does not come on, see “When the STATUS Indicator is
Lit or Flashing” on Page E-54.
M
S
TU
TA
S
Firmly plug in all the
way.
U
N
E
Y
B
D
N
TA
S
M
S
TU
A
ST
2
STANDBY
RGB
CANCEL QUICK
VIDEO
This indicator is also lit green in Eco-mode.
STANDBYSTATUS STANDBYSTATUS STANDBYSTATUS
Flashing green
Lit amber
(Approximately 60
seconds)
MENU
ENTER
Q
To wall outlet
Lit green
Power is on
If the “Password” input window is displayed: See E-31.
A password is set for this projector.
The projector cannot be used unless the correct password is input.
To turn off the power: See E-21.
The projector is now capable of regular projection.
Note:
The image can be muted quickly by closing the lens cover while the image
is being projected.
Switch on the power of the connected equipment
4
Note:
• When the power plug will be unplugged from the power outlet, please place the projector near the power outlet so that it may be reached
easily.
• Press the STANDBY button after the STANDBY indicator is lit in amber.
E-19
Loading...
