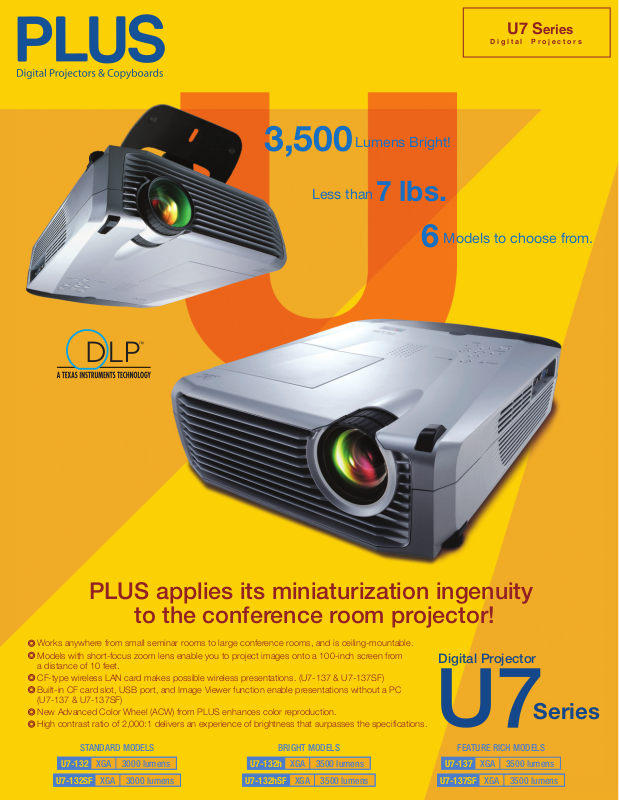

PLUS U7-137SF Product Sheet

U7 Series

D i g i t a l P r o j e c t o r s

3,500

Less than

Lumens Bright!

7 lbs.

6

Models to choose from.

PLUS applies its miniaturization ingenuity

to the conference room projector!

Works anywhere from small seminar rooms to large conference rooms, and is ceiling-mountable.
Models with short-focus zoom lens enable you to project images onto a 100-inch screen from

a distance of 10 feet.
CF-type wireless LAN card makes possible wireless presentations. (U7-137 & U7-137SF)
Built-in CF card slot, USB port, and Image Viewer function enable presentations without a PC

(U7-137 & U7-137SF)
New Advanced Color Wheel (ACW) from PLUS enhances color reproduction.
High contrast ratio of 2,000:1 delivers an experience of brightness that surpasses the specifications.

STANDARD MODELS BRIGHT MODELS FEATURE RICH MODELS

U7-132 XGA 3000 lumens

U7-132SF XGA 3000 lumens

U7-132h XGA 3500 lumens

U7-132hSF XGA 3500 lumens

Digital Projector

Series

U7-137 XGA 3500 lumens

U7-137SF XGA 3500 lumens

World’s Brightest (3,500 lm) Projector
in a Light and Compact sub 7 lb Body
The Total Multifunction Projector For Wireless
and PC-Less Presentations!

Designed to enable the projector to be mounted to the ceiling
Weighing less than 7 lbs, the projector is easy to move from place to place

An easily replaceable lamp and a terminal cover allow
the projector to be mounted to the ceiling and its light,
compact design gives it wonderful portability.

Easy lamp replacement even when ceiling mounted

SF Models equipped with Short-focus zoom lens

SF Models equipped with Short-focus zoom lens

The short-focus zoom lens allows you to project images

The short-focus zoom lens allows you to project images

onto a 100-inch screen from a distance of only 10 feet.

onto a 100-inch screen from a distance of only 10 feet.

Enables wireless presentations

100"

80"

8.2~9.5 ft

10.2~11.2 ft

With no need for troublesome cable connections (U7-137 & U7-137SF)

A CF-type wireless LAN card comes with the projector as a standard feature, enabling
wireless capability. The projector also has wired network capability which makes it possible
to handle the projector via a company's internal network.

Wired network feature

Equipped with
10BaseT/100BaseTX

LAN

Ethernet port

Enables PC-less presentations with internal Image Viewer (U7-137 & U7-137SF)

The CF card slot, built-in USB port and Image Viewer enable PC-less presentation
capability. Internal Image Viewer makes possible projection of image files stored in USB
memory and CF card/CF card adapter compatible media, etc.

USB port

Enables direct connection with PLUS copyboards with internal CF card slot (PLUS M series)
so that data can be shared even without a PC.

Advanced Color Wheel (ACW) allows for further enhancement of color reproduction

PLUS's unique ACW preserves brightness, while allowing
for superlatively enhanced color reproduction and astoundingly
clear picture quality attainable only with DLP

TM

technology.

Equipped with a wide array of input/output terminals
High-quality image sources beautifully reproduced

Equipped with a built-in line doubler and advanced input/output terminals, including analog
RGB input, analog RGB output, and DVI terminals.

Compatible with progressive DVD input (480p, 576p) and HDTV broadcast (1080i, 720p)

With the component video cable you can input progressive DVD and HDTV (1080i, 720p)
signals. A 16:9 aspect ratio is also supported.

Superior Security Options

Security Password: Projectors can be set to require the input of a password at startup.
Security slot accommodates use of third-party anti-theft cables. The cable attaches to a desk
or other fixed object, and the lock fits snugly into the security slot.

PLUS's unique technologies exploit the strengths

TM

of DLP

technology to the fullest

PLUS has created a projector that offers astounding compactness, lightness, and brightness
by combining technologies it has gained from its development of mobile projectors over the
years with DLPTM technology which is ideal for compact projectors using a single-chip Digital
Micromirror Device (DMD) system. A high contrast of 2,000:1 offers a superlative brightness
that seems in actual use to supersede specifications. In addition, the DLPTM technology
minimizes picture quality decay that often occurs with LCD projectors when used over a long
period of time.

Specifications

Projection System
Panel
Resolution
Brightness

Contrast Ratio
Aspect Ratio
Projection Lens (Reg.)
Projection Lens (SF)

Light Resource
Lamp Life
Color Palette
Projecting Position
Projection Distance (Reg.)
Projection Distance (SF)
Image Size (Reg.)
Image Size (SF)
RGB Signal (Input)
Video Signal

Horizontal Synch Range
Vertical Synch Range
Audio
Terminals (Input)

Terminals (Output)
Other Terminals

External Projector Control
Color
Dimensions

Excluding lens and stand

Weight
Power Supply
Power Consumption

Environment
On-Screen Display Languages
Functions

Accessories

Optional Accessories

*1: In Dynamic Mode

(The abbreviation “Reg.” refers to projectors without a Short-focus zoom lens;
the abbreviation “SF” refers to projectors with a Short-focus zoom lens.)

430watts (Normal mode), 380 watts (Eco-mode),

Lens Cap x 1
IR Remote Control (with Laser Pointer) x 1
AAA Batteries (for Remote Control) x 2
Power Cable (6 ft) x 1
VGA Cable (Mini D-sub 15 pin/6.5 ft) x 1
S-Video Cable (Mini DIN 4 pin/6.5 ft) x 1
Video Cable (RCA/6.5 ft) x 1
Audio Cable (ø3.5 mm Mini Plug/6.5 ft) x 1
DVI-I - Mini D-Sub 15 pin Adapter (0.6 ft) x 1
USB Cable (Mini-B - Type A/6.5 ft) x 1

U7-137/SF U7-132h/SF

1024 pixels x 768 pixels

3500 lm*1 (Eco-mode:

approximately 20% less brightness)

F2.4-2.6 f=26.5-31.8 mm

F2.6-2.8 f= 22.1-25.6 mm

1:1.2 Manual Zoom, Manual Focus

300-watt High Performance Compact Lamp

2,000 hours (Normal mode), 3,000 hours (Eco-mode)

Front/Rear, Table/Ceiling

SXGA (Compression), XGA (True), SVGA/VGA (Expansion/True)

NTSC3.58, NTSC4.43, PAL, PAL_N, PAL_M, PAL60, SECAM,

YCbCr (NTSC, PAL), YPbPr (480p, 576p, 1080i, 720p)

RGB (Analog/Digital)/YCbCr/YPbPr: DVI-I x 1

RGB/YCbCr/YPbPr: Mini D-Sub 15 pin x 1

Composite Video: RCA x 1, S-Video: Mini DIN 4 pin x 1

Audio (RGB/Video): ø3.5 mm Stereo Mini Jack x 1

RGB/YCbCr/YPbPr: Mini D-Sub 15 pin x 1

Image Veiwer/Mouse:

USB Type A x 2,

Wireless/ImageViewer:

TM

CompactFlash

Network (10BaseT/100BaseTX):

RS232C/Telnet/Web Browser RS232C

English/ German/ French/ Italian/ Spanish/Swedish/ Korean/ Chinese/ Japanese

Full-Auto Adjustment, Digital Keystone Correction (Vertical: Max. 20 degrees)

Card Type I slot x 1,

RJ45 x 1

Remote Mouse: USB Mini-B x 1, RS232C: Mini DIN 9 pin x 1

3.3” / 83 mm (H) x 10.2” / 258 mm (W) x 12.6 / 320 mm (L)

6.8 lbs 6.6 lbs
100-240 V AC at 50/60 Hz

under 20 watts (Standby)

Digital Zoom (2x), Freeze, Mute, Quick Color Adjustment

Presentation Timer, Security Password

User-Replaceable Lamp Unit, Ceiling Mount Kit

TM

DLP

DMD XGA x 1

2000:1 (Full on/off)

4:3, supports 16:9

16.7 million colors

3.9-37.7 ft

3.9-31.2 ft
27”-300” diagonal
34"-300" diagonal

15-80 kHz

50-85 Hz

Mono 0.5-watt

Silver

430watts (Normal mode), 380 watts (Eco-mode),

32-95 °F/5-35 °C

Mini Jack to RCA Adapter
(ø3.5 mm Stereo Mini Jack - RCA/0.5 ft) x 1

Soft Case x 1
Wireless LAN Card (802.11b Wi-Fi

CompactFlashTM Card) x 1 (only U7-137/SF)
User's Manual (CD-ROM) x 1
User's Manual (Simplified Edition) x 1
Security Label x 1

The DLPTMlogo is a trademark of Texas Instruments.

XGAXGA XGA

U7-132/SF

3000lm*1(Eco-mode:

approximately 20%

less brightness)

under 15 watts (Standby)
