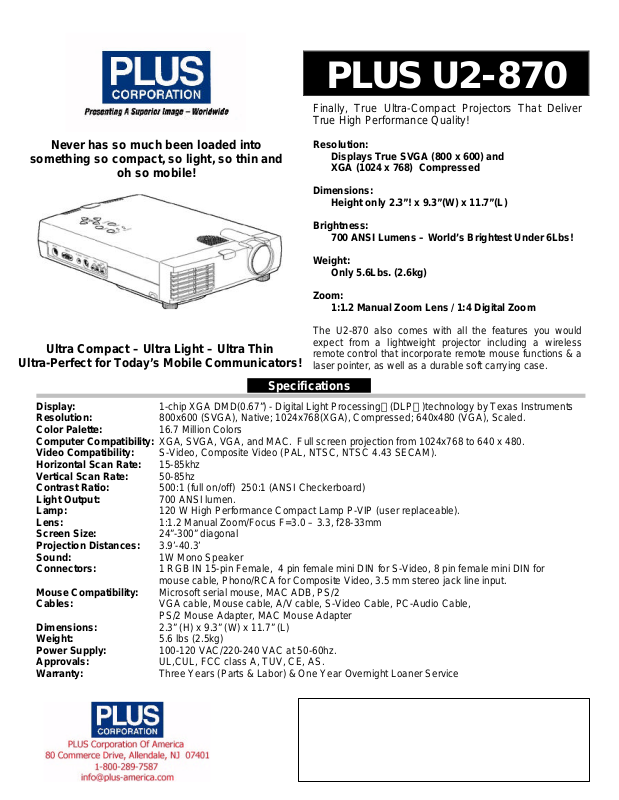

PLUS U2-870 Product Sheet

PLUS U2-870

Finally, True Ultra-Compact Projectors That Deliver

True High Performance Quality!

Never has so much been loaded into

something so compact, so light, so thin and

oh so mobile!

Ultra Compact – Ultra Light – Ultra Thin

Ultra-Perfect for Today’s Mobile Communicators!

Display: 1-chip XGA DMD(0.67”) - Digital Light Processing(DLP)technology by Texas Instruments
Resolution: 800x600 (SVGA), Native; 1024x768(XGA), Compressed; 640x480 (VGA), Scaled.
Color Palette: 16.7 Million Colors
Computer Compatibility: XGA, SVGA, VGA, and MAC. Full screen projection from 1024x768 to 640 x 480.
Video Compatibility: S-Video, Composite Video (PAL, NTSC, NTSC 4.43 SECAM).
Horizontal Scan Rate: 15-85khz
Vertical Scan Rate: 50-85hz
Contrast Ratio: 500:1 (full on/off) 250:1 (ANSI Checkerboard)
Light Output: 700 ANSI lumen.
Lamp: 120 W High Performance Compact Lamp P-VIP (user replaceable).
Lens: 1:1.2 Manual Zoom/Focus F=3.0 – 3.3, f28-33mm
Screen Size: 24”-300” diagonal
Projection Distances: 3.9’-40.3’
Sound: 1W Mono Speaker
Connectors: 1 RGB IN 15-pin Female, 4 pin female mini DIN for S-Video, 8 pin female mini DIN for

mouse cable, Phono/RCA for Composite Video, 3.5 mm stereo jack line input.

Mouse Compatibility: Microsoft serial mouse, MAC ADB, PS/2
Cables: VGA cable, Mouse cable, A/V cable, S-Video Cable, PC-Audio Cable,

PS/2 Mouse Adapter, MAC Mouse Adapter

Dimensions: 2.3” (H) x 9.3” (W) x 11.7” (L)
Weight: 5.6 lbs (2.5kg)
Power Supply: 100-120 VAC/220-240 VAC at 50-60hz.
Approvals: UL,CUL, FCC class A, TUV, CE, AS.
Warranty: Three Years (Parts & Labor) & One Year Overnight Loaner Service

Resolution:

Displays True SVGA (800 x 600) and
XGA (1024 x 768) Compressed

Dimensions:

Height only 2.3”! x 9.3”(W) x 11.7”(L)

Brightness:

700 ANSI Lumens – World’s Brightest Under 6Lbs!

Weight:

Only 5.6Lbs. (2.6kg)

Zoom:

1:1.2 Manual Zoom Lens / 1:4 Digital Zoom

The U2-870 also comes with all the features you would
expect from a lightweight projector including a wireless
remote control that incorporate remote mouse functions & a
laser pointer, as well as a durable soft carrying case.

Specifications
