Plus P-106A User Manual
340-4, DANGSAN-DONG 6KA, YOUNGDEUNGPO-KU, SEOUL, KOREA
TEL : +82-2-2679-4131~8 FAX : +82-2-2679-4114
http://www.plus.co.kr e-mail : plus@plus.co.kr
Copyright ⓒ2007 PLUS All Rights Reserved Printed in KOREA(Ver 1.2)
1. FOREWORD …………………………………………… 4P
2. FEATURES ……………………………………………… 4P
3. SPECIFICATION ………………………………………… 5P
4. APPEARANCE ………………………………………… 6P
5. OPERATION PANEL …………………………………… 8P
6. OPERATION …………………………………………… 11P
7. ERROR CODE ………………………………………… 20P
8. TROUBLESHOOTING ………………………………… 23P

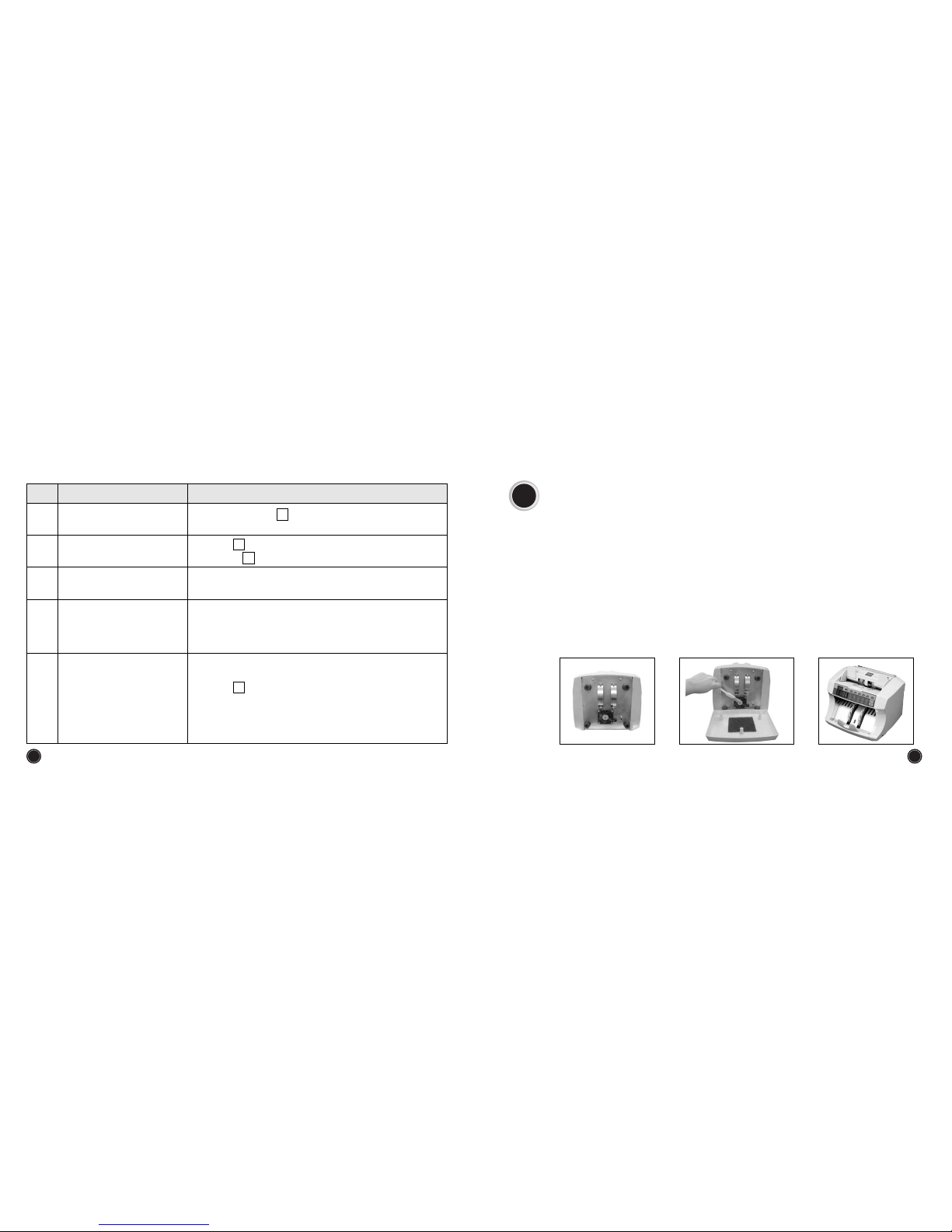

9. SELF CLEANING ……………………………………… 25P
CONTENTS
NOTE : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
4 5
Thank you for selecting a Plus Bank Note Counting Machine. This manual has been
compiled to provide complete instructions for operating the machine.
Before starting, please read the instructions thoroughly to familiarize yourself with all of
the machine functions.
1. FOREWORD 3. SPECIFICATIONS
Patented fan built-in dust removal system.
Operator-variable presetting from 1 to 999. Batch setting is programmable
through the 10 digit numeric keypad.
Enhanced self diagnostics.
Stops and sounds alarm for the possible errors (double, short, chain, half….)
Optional Ultra-Violet or dual UV and Magnetic counterfeit Detection.
Optional size check detection & Customer Display.
Dust collector for efficient dust removal.
2. FEATURES
Three selectable speeds : 800, 1000, 1200 notes/min (STANDARD)
1000, 1200, 1500 notes/min (OPTION)
280mm(W)×206mm(H)×236mm(D)
Approx. 5.3 kg
50mm×100mm~100mm×181mm, Thickness: 0.06mm~0.12mm
Roller friction type
300sheets(Optional:500sheets)
Free Voltage(AC 86V ~ 264V, 50/60Hz)
200sheets
40W
Counting speed
Dimensions
Weight
Size of countable note
Feed system
Hopper capacity
Stacker capacity
Power source
Power consumption
6 7
4. APPEARANCE
FUNCTION
NAME
No
Notes to be counted are placed in the Hopper.
HOPPER
Easily adjust the hopper plates to the different width size of banknotes
Used for carrying the machine.
Used for the proper adjustment of gab between paper feeding
rollers for smooth counting of various notes to have different paper
thickness.
To clear the possible errors (half, chain, double…)
SELF CENTERING
HOPPER PLATES
HANDLE
PAPER THICKNESS
ADJUSTMENT SCREW
Counted notes are stacked in this stacker.
Built-in dust removal system.
Main power on / off switch.
Connector for optional remote display.
User can easily remove the dust to be stacked on this dust collector.
STACKER
FAN
POWER SWITCH
REMOTE DISPLAY PULG
DUST COLLECTOR
8
9

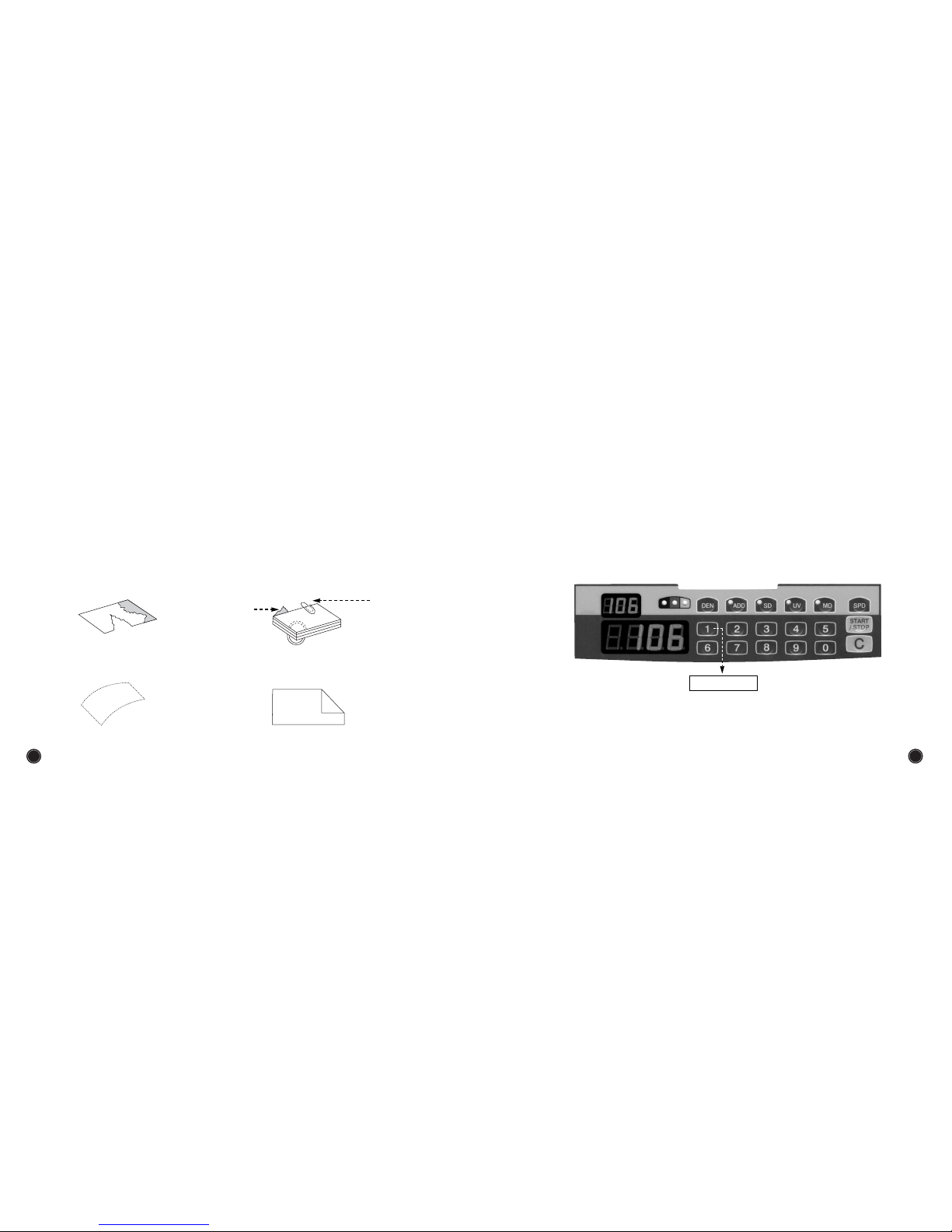

5. OPERATION PANEL
Turn the power switch ON. The counter will display the following message.
tst, good
it is self test function.
FUNCTION
NAME
No
The number of counted notes is displayed here.
Counter numerical display
By pressing any number key, user can freely preset the number
to be counted.
This key is used to clear errors.
Used to stop or to restart the counting temporarily during
counting operation.
Preset key
Clear key
Restart key
3 different counting speeds can be selected by simply pressing
this key. SPD 1 (High speed), SPD 2 (Middle speed), SPD 3 (Low
speed).
Speed key
By pressing this key, the counting will be stopped in case a
counterfeit note is detected through the magnetic features.
Magnetic Detection key
(
OPTION
)
