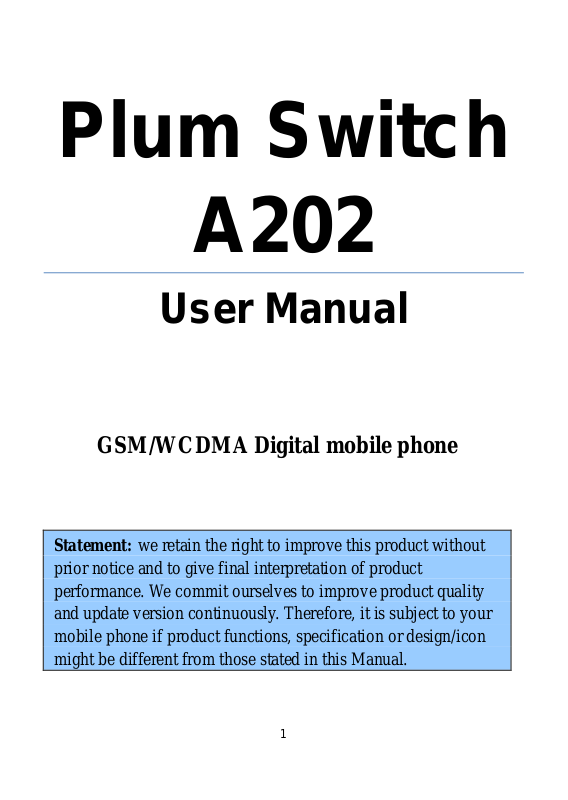

Plum Mobile A202 User Manual

1
Plum Switch
A202
User Manual
GSM/WCDMA Digital mobile phone
Statement: we retain the right to improve this product without
prior notice and to give final interpretation of product performance. We commit ourselves to improve product quality and update version continuously. Therefore, it is subject to your mobile phone if product functions, specification or design/icon might be different from those stated in this Manual.
2
Content
1 Safety Precautions ......................................................... 6
2 Phone Introduction ........................................................ 9
2.1 Technical reference ......................................... 10
2.2 Components sitemap ....................................... 11
2.2.1 Appearance............................................................... 11
2.2.2 Keys and functions .................................................. 13
2.2.3 Icons ........................................................................ 15
3 Get started .................................................................... 16
3.1 Switching on/off phone .................................... 16
3.2 Battery Installation ........................................... 17
3.3 USIM Card Installation ..................................... 18
3.4 Memory Card Installation ................................. 18
3.5 Using USB Data Cable .................................... 19
3.6 Battery Charging .............................................. 19
3.7 Use earphone .................................................. 20
3
3.8 Safety Password .............................................. 21
3.8.1 PIN code .................................................................. 21
3.8.2 PIN2 code ................................................................ 21
3.8.3 PUK code ................................................................ 22
3.8.4 Mobile phone password .......................................... 22
4 Quick Use Guide .......................................................... 23
4.1 Call functions ................................................... 23
4.1.1 Make a call .............................................................. 23
4.1.2 Dial-up state ............................................................ 24
4.1.3 Call Status ............................................................... 25
4.1.4 Dialing a domestic number...................................... 25
4.1.5 Dialing an extension number ................................... 26
4.1.6 Making an international call .................................... 26
4.1.7 Answering a call ...................................................... 26
4.1.8 Missed Call ............................................................. 27
4.1.9 During the call ......................................................... 27
4.1.10 Volume control ........................................................ 28
4.2 Input text .......................................................... 29
4.2.1 Multitap ABC and abc............................................. 29
4.2.2 Smart ABC and abc ................................................. 30
4.2.3 Entering Numbers ................................................... 30
4.2.4 Entering Symbols .................................................... 31
5 Functional Menus ........................................................ 32
5.1 Call center ....................................................... 32
5.2 Phonebook ...................................................... 35
4
5.2.1 Add new contact ...................................................... 36
5.2.2 Phonebook search.................................................... 36
5.2.3 Write message ......................................................... 36
5.2.4 Dial up ..................................................................... 37
5.2.5 Send vCard .............................................................. 37
5.2.6 Delete ...................................................................... 37
5.2.7 Mark ........................................................................ 37
5.2.8 Copy ........................................................................ 37
5.2.9 Others ...................................................................... 38
5.3 Services ........................................................... 38
5.4 Multimedia ....................................................... 39
5.4.1 Image Viewer .......................................................... 39
5.4.2 Media palyer ........................................................... 40
5.4.3 Sound recorder ........................................................ 41
5.4.4 FM radio .................................................................. 42
5.4.5 File manager ............................................................ 42
5.5 Messages ........................................................ 43
5.5.1 Write message ......................................................... 44
5.5.2 Conver sations ......................................................... 46
5.5.3 Drafts....................................................................... 47
5.5.4 Archive .................................................................... 47
5.5.5 SIM messages ......................................................... 47
5.5.6 Delete messages ...................................................... 48
5.5.7 Email ....................................................................... 48
5.5.8 Broadcast messages ................................................. 48
5.5.9 Templates ................................................................ 49
5.5.10 Message settings...................................................... 49
5
5.6 Organizer ......................................................... 49
5.7 Fun and Games ............................................... 50
5.8 User profiles .................................................... 51
5.9 Settings............................................................ 52
5.9.1 Phone settings ......................................................... 52
5.9.2 Network settings...................................................... 53
5.9.3 Security settings ...................................................... 55
5.9.4 Connectivity ............................................................ 58
5.9.5 Restore factory settings ................................ ........... 63
5.9.6 Sound effects ........................................................... 63
5.10 Extra ................................................................ 63
6 FAQ and Solutions ....................................................... 65
7 Reference ..................................................................... 69
7.1 Access Password ............................................ 69
7.2 Health and Safety Information ......................... 69
6
1 Safety Precautions
For your safety, read the guidelines carefully. Breaking the rules may be dangerous or illegal. Please refer “health and safety” section for detail security information. Traffic Safety Please follow local rules and regulations during driving. Do not use your mobile phone when driving. Use hand-free or stop your car beside the road if emergency. Do not put your mobile phone on the car's airbag. This will harmed you if the airbag swell or burst. Switch off near dangerous stuff
Don’t use the phone at a refueling point. Don’t use near fuels or chemicals.
Switch off in Airport Wireless devices can cause interference in aircraft. The use of mobile telephones in an aircraft is illegal. Please switch off your mobile before taking off the plane and please ensure the alarm clock should be closed when the mobile is turned off.
Switch off in Hospitals
7
Switch the device off near medical equipment or in hospital (except for the designated using area). Like other common devices, the mobile phone will interfere in the operation of other electrical apparatus, electrical equipments or radio-frequency equipment (such as cardiac pacemaker, hearing aids and etc.). Interference All wireless devices may be susceptible to interference, which could affect performance. Waterproof Please keep the phone dry because the phone is not waterproofed. Remove battery if any liquid go into your mobile phone and allow the device to dry completely before replacing it. Accessories and batteries Please use the batteries and adapter designated by our company, or otherwise causing explosion possibly. Connect to other devices Connect to other devices, you must first read the device's user manual to ensure proper use.
Keep the phone out of stretch of the kids
The phone and its accessories (including fittings) should be kept
8
out of the stretch of the kids.
Specialized service
Please do not bold to dismantle the phone and its accessories. Only can authorized agencies maintain the phone.
9
2 Phone Introduction
Thank you for purchasing the GSM/WCDMA/HSPA digital mobile phones-V302.Through this manual; you can have overall knowledge of how to use V302 mobile phone. V302 mobile phone is designed for GSM/WCDMA/HSPA network. In addition to the basic phone functions, such as call, SMS, Phone book, etc. Many other Supplement functions are exist there too, to facilitate your work and leisure your activities Part of the supplement functions are listed as the following:
- 64 polyphonic ring tones for incoming calls
- incoming call images
- calendar
- clock/alarm
- music player
- video player
- USB disk
- T-Flashcard
- Recorder
10
Phone
Model
V302
- Calculator
- power on/off on time
- reminder
- GPRS/WCDMA/HSPA net connection function
- WAP/MMS
- hand-free
- File/document management
- HSPA CARD
- WIFI
- MIFI, etc.
Moreover, V302 mobile phone adopts the personalized human-machine interface, can satisfy your diversified needs with the perfect functions. V302 mobile phone is made abide by GSM/GPRS/WCDMA/HSPA specifications
and has passed the certification by certification authorities. Reminding: Our Company preserves the right to change the contents of this manual without any prior notices.
2.1 Technical reference
11
Dimension(L×W×H)
106.1mm*37.1mm*13.8mm
Weight
128g(including standard battery)
Li-ion battery
Model
V302
Standard voltage
3.7V
Max. charge voltage
4.2V
Rated capacity
500mAh
Portable battery charger
Model
V302
Input
110-240V-50/60HZ 0.15A
Output
5.5V/500mA
USB cable
Specification
The phone itself, USB
Earpiece
Specification
Stereo-phone
2.2 Components sitemap
2.2.1 Appearance
This picture is for reference
12
Front view
Back view
Mic
Battery Back Cover
Chargers/Earphone
Keypad Speaker
Photoflash
Standby screen
LCD
Receiver
13
Name
Function in standby screen
Left soft key
Messaging
Right soft key
Phonebook
Dial key
- Answer incoming calls
- Dial numbers by SIM card in dial
screen
- Go to the call log list
End key
Short press:
- End the call or reject incoming call
- return to standby screen in any mode Long press:
- Switch on/off phone
Direction keys
UP key
Media player
Down key
Shortcuts
Left key
User profiles
Right key
Received call
OK key
WLAN hotspot
Numeric keys
1
Short press: go to dial screen and input number 1
0, 2~9
Short press: go to dial screen, and input numbers 0, 2~9.
2.2.2 Keys and functions
14
Long press: dial out number stored in speed
dial function if speed dial enabled.
*
Short press: go to dial screen and input *.
Long Press: Switch Input * + P W.
#
Short press: go to dial screen and input #.
Long press: activate/deactivate the Silent mode.
Note:
1. Keypad Lock: When keypad is locked, the phone is in power-saving mode and user cannot operate phone functions except answering incoming calls or charging;
2. Lock/unlock keypad: Press # key and Right soft key to lock the keypad and then also press Right soft key and # key to unlock keypad.
3. In this manual, “short press” a key means press a key then immediately release it; “long press” a key means press the key
and hold it for no less than 2 seconds.
15
Icons
Description
Indicate the current battery capacity.
Indicate the network signal strength for phone.
Indicate that the alarm clock is set up as activated.
Indicate the current keypad-locked state.
Indicate that there is an unread SMS in phone.
Indicate that SMS capacity is full
Indicate that there is an unread MMS in phone.
Indicate that MMS capacity is full
Indicate that the current profile mode is the general mode
Indicate that the current profile mode is the conference mode
Indicate that the current profile mode is the outdoor mode
Indicate that the current profile mode is the indoor mode
Indicate that the current profile mode is the earphone mode
2.2.3 Icons
(Icons may be changed without prior notification)
16
Indicate that the current profile mode is the Bluetooth mode
Indicate that the current profile mode is the mute mode
The notification of incoming call is ring tone plus vibration.
The notification of incoming call is vibration.
GPRS Signal
3 Get started
3.1 Switching on/off phone
Press and hold End key to switch on (or switch off) the mobile
phone.
If phone power on without SIM card, the two situations will
appear
“Insert SIM” - indicates no SIM card found, but emergency call
is available.
17
“Enter Phone Lock Code” - indicates that you have set mobile phone lock. After inserting SIM card, the handset will automatically check if the SIM is valid. Then, the following prompts will be displayed in order on the screen
1. “Enter Phone Lock Code” – in this case you have set mobile phone lock. 2“Enter PIN” – in this case you have set SIM PIN password. 3 “Invalid SIM” –in this case phone is not registered on correct network, you can only dial emergency number. 4 ”Searching” –mobile phone is searching network until proper network access is found.
3.2 Battery Installation
Please ensure the phone is turned off before removing battery! Take out the battery:First, remove the back cover of phone, then lift up the top of the battery to get it out. Assemble battery: Put battery bottom side into the slot, pushing the top of the battery into the slot.
18
3.3 USIM Card Installation
Before you can operate the mobile phone, you should get a valid USIM card from the service operator. Otherwise, you could not make any call except emergency call. When you need to remove the USIM card, firstly, please shutdown the phone, take out the battery, then you can remove the USIM card from the card slot. This mobile phone supports USIM/SIM/T-FLASH cards.
The USIM card Inserting/Removing method:
Firstly, Power off the phone, remove the battery, then insert USIM card into USIM card socket. When you need to remove USIM card, also please power off the phone firstly, remove battery, then you can remove the card.
3.4 T-Flash Card Installation
This mobile phone supports T-Flash card, which is a small memory card used to increase the memory of your mobile phone. Take care when inserting or removing to avoid any damage. Please refer to the inserting/removing of USIM for installation of memory card.
19
3.5 USB function
The phone supports USB interface, you can connect the phone to the computer directly through the USB interface. You can copy and move files between mobile phone and computer. Also, you can view photos, videos, and recorded files, etc. which are saved in the mobile phone. AdditionWhen inserted into the PC,it can be used as a charger also.
3.6 Battery Charging
The new battery is not fully charged. You need to install and charge the battery before using the device. In general conditions, the new battery will work under best condition after several times of charge and discharge. Connect the charger to the connection jack of the phone in
proper direction, and connect the charger to a main socket.
The phone displays "Charger Connected!" and starts
charging after properly connected. The battery icon dynamically displays the charging process. In switch-off state, the phone dynamically displays the charging process.
20
When the battery is fully charged, the charging process stops
automatically, and the battery icon indicates full grid on the screen. After the battery is fully charged, remove the charger from the phone and socket as soon as possible.
Warning: Battery must be charged in a well ventilated place with surrounding temperature at -10~+55, and it is imperative that a charger provided by manufacturer is used. Using unauthorized charger might cause danger, which also violates warranty terms prescribed by the manufacturer. If the charging temperature is too high or too low, the phone will automatically give warning and stop charging, so as to prevent damages to battery or dangers.
3.7 Use earphone
When you plug earphone into the phone's headset jack, the phone's profile will automatically switch to headset profile. The phone can use regular headphones, through the automatic answer, you can listen to music through headphones or receive calls.
21
3.8 Safety Password
3.8.1 PIN code
PIN1 Code is the Personal Identification Number for entering a SIM card. 'Input PIN' is requested each time the phone is switched on if this PIN1 code is activated. You can get PIN1 Code with the SIM card by your network operator. It usually has 4 digits. When you input the PIN1 Code, '*' will display on the main screen instead of the digits.
3.8.2 PIN2 code
PIN2 is required for some specific functions provided by the network, such as the charge information. Note: If you enter the PIN incorrectly three times in a row, the SIM card will be locked. Please contact your network operator immediately for decoding. Attempting to decode by yourself
22
may result in the permanent failure of the SIM card.
3.8.3 PUK code
PUK (Personal Unblocking Key, 8-digit) unlocks a locked PIN. If you enter the PUK incorrectly ten times in a row, the SIM card will become invalid. Please contact your network operator for a new SIM card.
3.8.4 Mobile phone password
The phone lock protects your phone from unauthorized use. The default phone lock code is 0000. You can change it into any numeric string of 4 to 8 digits. If the phone lock function is enabled, you need to enter the correct phone lock code when the phone is powered on or in the standby mode.
Loading...
+ 50 hidden pages
