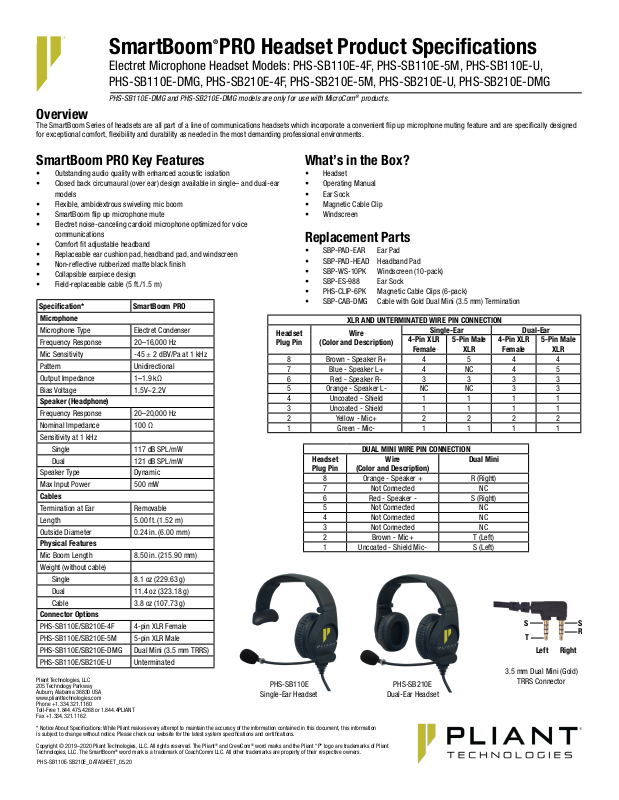

Pliant Technologies PHS-SB210E-DMG User Manual
SmartBoom® PRO Headset Product Specications
Electret Microphone Headset Models: PHS-SB110E-4F, PHS-SB110E-5M, PHS-SB110E-U,
PHS-SB110E-DMG, PHS-SB210E-4F, PHS-SB210E-5M, PHS-SB210E-U, PHS-SB210E-DMG
PHS-SB110E-DMG and PHS-SB210E-DMG models are only for use with MicroCom® products.
Overview
The SmartBoom Series of headsets are all part of a line of communications headsets which incorporate a convenient ip up microphone muting feature and are specically designed
for exceptional comfort, exibility and durability as needed in the most demanding professional environments.
SmartBoom PRO Key Features
• Outstanding audio quality with enhanced acoustic isolation
• Closed back circumaural (over ear) design available in single– and dual-ear
models
• Flexible, ambidextrous swiveling mic boom
• SmartBoom ip up microphone mute
• Electret noise-canceling cardioid microphone optimized for voice
communications
• Comfort t adjustable headband
• Replaceable ear cushion pad, headband pad, and windscreen
• Non-reective rubberized matte black nish
• Collapsible earpiece design
• Field-replaceable cable (5 ft./1.5 m)
Specication* SmartBoom PRO
Microphone
Microphone Type Electret Condenser
Frequency Response 20–16,000 Hz
Mic Sensitivity
Pattern Unidirectional
Output Impedance
Bias Voltage 1.5V~2.2V
Speaker (Headphone)
Frequency Response 20–20,000 Hz
Nominal Impedance 100 Ω
Sensitivity at 1 kHz
Single 117 dB SPL/mW
Dual 121 dB SPL/mW
Speaker Type Dynamic
Max Input Power 500 mW
Cables
Termination at Ear Removable
Length 5.00 ft. (1.52 m)
Outside Diameter 0.24 in. (6.00 mm)
Physical Features
Mic Boom Length 8.50 in. (215.90 mm)
Weight (without cable)
Single 8.1 oz (229.63 g)
Dual 11.4 oz (323.18 g)
Cable 3.8 oz (107.73 g)
Connector Options
PHS-SB110E/SB210E-4F 4-pin XLR Female
PHS-SB110E/SB210E-5M 5-pin XLR Male
PHS-SB110E/SB210E-DMG Dual Mini (3.5 mm TRRS)
PHS-SB110E/SB210E-U Unterminated
Pliant Technologies, LLC
205 Technology Parkway
Auburn, Alabama 36830 USA
www.plianttechnologies.com
Phone +1.334.321.1160
Toll-Free 1.844.475.4268 or 1.844.4PLIANT
Fax +1.334.321.1162
* Notice About Specications: While Pliant makes every attempt to maintain the accuracy of the information contained in this document, this information
is subject to change without notice. Please check our website for the latest system specications and certications.
Copyright © 2019–2020 Pliant Technologies, LLC. All rights reserved. The Pliant® and CrewCom® word marks and the Pliant “P” logo are trademarks of Pliant
Technologies, LLC. The SmartBoom® word mark is a trademark of CoachComm LLC. All other trademarks are property of their respective owners.
PHS-SB110E-SB210E_DATASHEET_05.20
-45 ± 2 dBV/Pa at 1 kHz
1–1.9 kΩ
PHS-SB110E
Single-Ear Headset
What’s in the Box?
• Headset
• Operating Manual
• Ear Sock
• Magnetic Cable Clip
• Windscreen
Replacement Parts
• SBP-PAD-EAR Ear Pad
• SBP-PAD-HEAD Headband Pad
• SBP-WS-10PK Windscreen (10-pack)
• SBP-ES-988 Ear Sock
• PHS-CLIP-6PK Magnetic Cable Clips (6-pack)
• SBP-CAB-DMG Cable with Gold Dual Mini (3.5 mm) Termination
XLR AND UNTERMINATED WIRE PIN CONNECTION
Headset
Plug Pin
8 Brown - Speaker R+ 4 5 4 4
7 Blue - Speaker L+ 4 NC 4 5
6 Red - Speaker R- 3 3 3 3
5 Orange - Speaker L- NC NC 3 3
4 Uncoated - Shield 1 1 1 1
3 Uncoated - Shield 1 1 1 1
2 Yellow - Mic+ 2 2 2 2
1 Green - Mic- 1 1 1 1
Headset
Plug Pin
Wire
(Color and Description)
DUAL MINI WIRE PIN CONNECTION
(Color and Description)
8 Orange - Speaker + R (Right)
7 Not Connected NC
6 Red - Speaker - S (Right)
5 Not Connected NC
4 Not Connected NC
3 Not Connected NC
2 Brown - Mic+ T (Left)
1 Uncoated - Shield Mic- S (Left)
4-Pin XLR
Female
Wire
PHS-SB210E
Dual-Ear Headset
Single-Ear Dual-Ear
5-Pin Male
XLR
Dual Mini
4-Pin XLR
Female
3.5 mm Dual Mini (Gold)
5-Pin Male
S
T
Left Right
TRRS Connector
XLR
S
R
