Pliant Technologies PHS-SB11LE-DMG User Manual

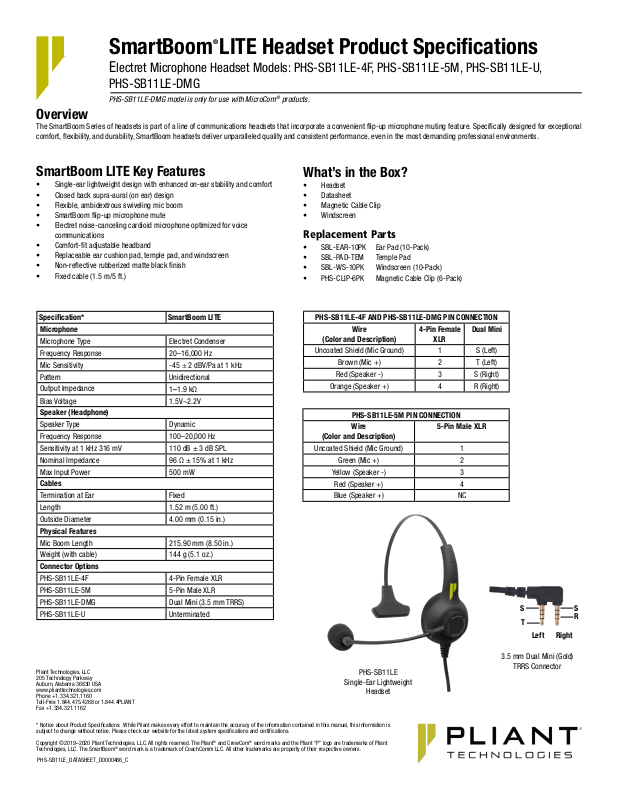

SmartBoom® LITE Headset Product Specications

Electret Microphone Headset Models: PHS-SB11LE-4F, PHS-SB11LE-5M, PHS-SB11LE-U,

PHS-SB11LE-DMG

PHS-SB11LE-DMG model is only for use with MicroCom® products.

Overview

The SmartBoom Series of headsets is part of a line of communications headsets that incorporate a convenient ip-up microphone muting feature. Specically designed for exceptional
comfort, exibility, and durability, SmartBoom headsets deliver unparalleled quality and consistent performance, even in the most demanding professional environments.

SmartBoom LITE Key Features

• Single-ear lightweight design with enhanced on-ear stability and comfort

• Closed back supra-aural (on ear) design

• Flexible, ambidextrous swiveling mic boom

• SmartBoom ip-up microphone mute

• Electret noise-canceling cardioid microphone optimized for voice
communications

• Comfort-t adjustable headband

• Replaceable ear cushion pad, temple pad, and windscreen

• Non-reective rubberized matte black nish

• Fixed cable (1.5 m/5 ft.)

Specication* SmartBoom LITE

Microphone

Microphone Type Electret Condenser

Frequency Response 20–16,000 Hz

Mic Sensitivity

Pattern Unidirectional

Output Impedance

Bias Voltage 1.5V~2.2V

Speaker (Headphone)

Speaker Type Dynamic

Frequency Response 100–20,000 Hz

Sensitivity at 1 kHz 316 mV 110 dB ± 3 dB SPL

Nominal Impedance 96 Ω ± 15% at 1 kHz

Max Input Power 500 mW

Cables

Termination at Ear Fixed

Length 1.52 m (5.00 ft.)

Outside Diameter 4.00 mm (0.15 in.)

Physical Features

Mic Boom Length 215.90 mm (8.50 in.)

Weight (with cable) 144 g (5.1 oz.)

Connector Options

PHS-SB11LE-4F 4-Pin Female XLR

PHS-SB11LE-5M 5-Pin Male XLR

PHS-SB11LE-DMG Dual Mini (3.5 mm TRRS)

PHS-SB11LE-U Unterminated

-45 ± 2 dBV/Pa at 1 kHz

1–1.9 kΩ

What’s in the Box?

• Headset

• Datasheet

• Magnetic Cable Clip

• Windscreen

Replacement Parts

• SBL-EAR-10PK Ear Pad (10-Pack)

• SBL-PAD-TEM Temple Pad

• SBL-WS-10PK Windscreen (10-Pack)

• PHS-CLIP-6PK Magnetic Cable Clip (6-Pack)

PHS-SB11LE-4F AND PHS-SB11LE-DMG PIN CONNECTION

Wire

(Color and Description)

Uncoated Shield (Mic Ground) 1 S (Left)

Brown (Mic +) 2 T (Left)

Red (Speaker -) 3

Orange (Speaker +) 4 R (Right)

PHS-SB11LE-5M PIN CONNECTION

Wire

(Color and Description)

Uncoated Shield (Mic Ground) 1

Green (Mic +) 2

Yellow (Speaker -) 3

Red (Speaker +) 4

Blue (Speaker +) NC

4-Pin Female

XLR

5-Pin Male XLR

Dual Mini

S (Right)

S

T

Left Right

S
R

Pliant Technologies, LLC
205 Technology Parkway
Auburn, Alabama 36830 USA
www.plianttechnologies.com
Phone [phone]
Toll-Free 1.844.475.4268 or 1.844.4PLIANT
Fax [phone]

* Notice about Product Specications: While Pliant makes every effort to maintain the accuracy of the information contained in this manual, this information is
subject to change without notice. Please check our website for the latest system specications and certications.

Copyright ©2019–2020 Pliant Technologies, LLC. All rights reserved. The Pliant® and CrewCom® word marks and the Pliant “P” logo are trademarks of Pliant
Technologies, LLC. The SmartBoom® word mark is a trademark of CoachComm LLC. All other trademarks are property of their respective owners.

PHS-SB11LE_DATASHEET_D0000486_C

PHS-SB11LE

Single-Ear Lightweight

Headset

3.5 mm Dual Mini (Gold)

TRRS Connector
