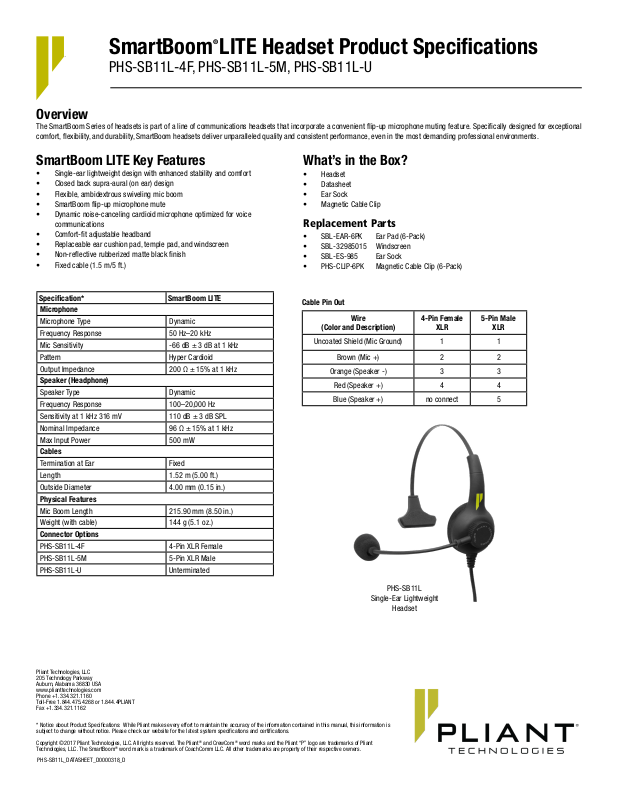

Pliant Technologies PHS-SB11L-4F Data Sheet

SmartBoom® LITE Headset Product Specications

PHS-SB11L-4F, PHS-SB11L-5M, PHS-SB11L-U

Overview

The SmartBoom Series of headsets is part of a line of communications headsets that incorporate a convenient ip-up microphone muting feature. Specically designed for exceptional
comfort, exibility, and durability, SmartBoom headsets deliver unparalleled quality and consistent performance, even in the most demanding professional environments.

SmartBoom LITE Key Features

• Single-ear lightweight design with enhanced stability and comfort

• Closed back supra-aural (on ear) design

• Flexible, ambidextrous swiveling mic boom

• SmartBoom ip-up microphone mute

• Dynamic noise-canceling cardioid microphone optimized for voice
communications

• Comfort-t adjustable headband

• Replaceable ear cushion pad, temple pad, and windscreen

• Non-reective rubberized matte black nish

• Fixed cable (1.5 m/5 ft.)

Specication* SmartBoom LITE

Microphone

Microphone Type Dynamic

Frequency Response 50 Hz–20 kHz

Mic Sensitivity -66 dB ± 3 dB at 1 kHz

Pattern Hyper Cardioid

Output Impedance 200 Ω ± 15% at 1 kHz

Speaker (Headphone)

Speaker Type Dynamic

Frequency Response 100–20,000 Hz

Sensitivity at 1 kHz 316 mV 110 dB ± 3 dB SPL

Nominal Impedance 96 Ω ± 15% at 1 kHz

Max Input Power 500 mW

Cables

Termination at Ear Fixed

Length 1.52 m (5.00 ft.)

Outside Diameter 4.00 mm (0.15 in.)

Physical Features

Mic Boom Length 215.90 mm (8.50 in.)

Weight (with cable) 144 g (5.1 oz.)

Connector Options

PHS-SB11L-4F 4-Pin XLR Female

PHS-SB11L-5M 5-Pin XLR Male

PHS-SB11L-U Unterminated

What’s in the Box?

• Headset

• Datasheet

• Ear Sock

• Magnetic Cable Clip

Replacement Parts

• SBL-EAR-6PK Ear Pad (6-Pack)

• SBL-32985015 Windscreen

• SBL-ES-985 Ear Sock

• PHS-CLIP-6PK Magnetic Cable Clip (6-Pack)

Cable Pin Out

Wire

(Color and Description)

Uncoated Shield (Mic Ground) 1 1

Brown (Mic +) 2 2

Orange (Speaker -) 3 3

Red (Speaker +) 4 4

Blue (Speaker +) no connect 5

4-Pin Female

XLR

5-Pin Male

XLR

Single-Ear Lightweight

Pliant Technologies, LLC
205 Technology Parkway
Auburn, Alabama 36830 USA
www.plianttechnologies.com
Phone [phone]
Toll-Free 1.844.475.4268 or 1.844.4PLIANT
Fax [phone]

* Notice about Product Specications: While Pliant makes every effort to maintain the accuracy of the information contained in this manual, this information is
subject to change without notice. Please check our website for the latest system specications and certications.

Copyright ©2017 Pliant Technologies, LLC. All rights reserved. The Pliant® and CrewCom® word marks and the Pliant “P” logo are trademarks of Pliant
Technologies, LLC. The SmartBoom® word mark is a trademark of CoachComm LLC. All other trademarks are property of their respective owners.

PHS-SB11L_DATASHEET_D0000318_D

PHS-SB11L

Headset
