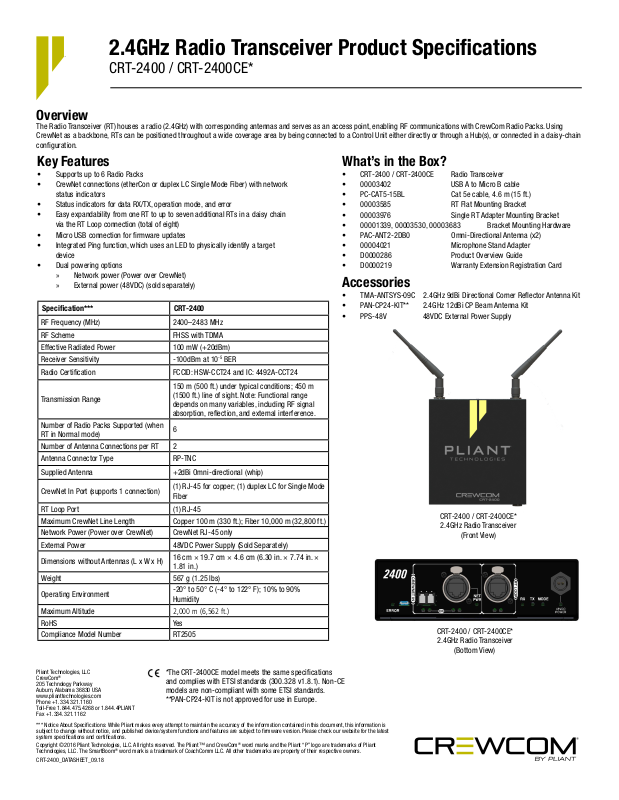

Pliant Technologies CRT-2400 Datasheet

2.4GHz Radio Transceiver Product Specications

CRT-2400 / CRT-2400CE*

Overview

The Radio Transceiver (RT) houses a radio (2.4GHz) with corresponding antennas and serves as an access point, enabling RF communications with CrewCom Radio Packs. Using
CrewNet as a backbone, RTs can be positioned throughout a wide coverage area by being connected to a Control Unit either directly or through a Hub(s), or connected in a daisy-chain
conguration.

Key Features

• Supports up to 6 Radio Packs

• CrewNet connections (etherCon or duplex LC Single Mode Fiber) with network
status indicators

• Status indicators for data RX/TX, operation mode, and error

• Easy expandability from one RT to up to seven additional RTs in a daisy chain
via the RT Loop connection (total of eight)

• Micro USB connection for rmware updates

• Integrated Ping function, which uses an LED to physically identify a target
device

• Dual powering options

» Network power (Power over CrewNet)
» External power (48VDC) (sold separately)

Specication*** CRT-2400

RF Frequency (MHz) 2400–2483 MHz

RF Scheme FHSS with TDMA

Effective Radiated Power 100 mW (+20dBm)

Receiver Sensitivity -100dBm at 10

Radio Certication FCCID: HSW-CCT24 and IC: 4492A-CCT24

150 m (500 ft.) under typical conditions; 450 m

Transmission Range

Number of Radio Packs Supported (when
RT in Normal mode)

Number of Antenna Connections per RT 2

Antenna Connector Type RP-TNC

Supplied Antenna +2dBi Omni-directional (whip)

CrewNet In Port (supports 1 connection)

RT Loop Port (1) RJ-45

Maximum CrewNet Line Length Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.)

Network Power (Power over CrewNet) CrewNet RJ-45 only

External Power 48VDC Power Supply (Sold Separately)

Dimensions without Antennas (L x W x H)

Weight 567 g (1.25 lbs)

Operating Environment

Maximum Altitude

RoHS Yes

Compliance Model Number RT2505

(1500 ft.) line of sight. Note: Functional range
depends on many variables, including RF signal
absorption, reection, and external interference.

6

(1) RJ-45 for copper; (1) duplex LC for Single Mode
Fiber

16 cm × 19.7 cm × 4.6 cm (6.30 in. × 7.74 in. ×

1.81 in.)

-20° to 50° C (-4° to 122° F); 10% to 90%
Humidity

2,000 m (6,562 ft.)

-5

BER

What’s in the Box?

• CRT-2400 / CRT-2400CE Radio Transceiver

• 00003402 USB A to Micro B cable

• PC-CAT5-15BL Cat 5e cable, 4.6 m (15 ft.)

• 00003585 RT Flat Mounting Bracket

• 00003976 Single RT Adapter Mounting Bracket

• 00001339, 00003530, 00003683 Bracket Mounting Hardware

• PAC-ANT2-2DB0 Omni-Directional Antenna (x2)

• 00004021 Microphone Stand Adapter

• D0000286 Product Overview Guide

• D0000219 Warranty Extension Registration Card

Accessories

• TMA-ANTSYS-09C 2.4GHz 9dBi Directional Corner Reector Antenna Kit

• PAN-CP24-KIT** 2.4GHz 12dBi CP Beam Antenna Kit

• PPS-48V 48VDC External Power Supply

CRT-2400 / CRT-2400CE*

2.4GHz Radio Transceiver
(Front View)

CRT-2400 / CRT-2400CE*

2.4GHz Radio Transceiver
(Bottom View)

Pliant Technologies, LLC

®

CrewCom
205 Technology Parkway
Auburn, Alabama 36830 USA
www.plianttechnologies.com
Phone [phone]
Toll-Free 1.844.475.4268 or 1.844.4PLIANT
Fax [phone]

*** Notice About Specications: While Pliant makes every attempt to maintain the accuracy of the information contained in this document, this information is
subject to change without notice, and published device/system functions and features are subject to rmware version. Please check our website for the latest
system specications and certications.

Copyright ©2016 Pliant Technologies, LLC. All rights reserved. The Pliant™ and CrewCom
Technologies, LLC. The SmartBoom® word mark is a trademark of CoachComm LLC. All other trademarks are property of their respective owners.

CRT-2400_DATASHEET_09.18

*The CRT-2400CE model meets the same specications
and complies with ETSI standards (300.328 v1.8.1). Non-CE
models are non-compliant with some ETSI standards.
**PAN-CP24-KIT is not approved for use in Europe.

®

word marks and the Pliant “P” logo are trademarks of Pliant
