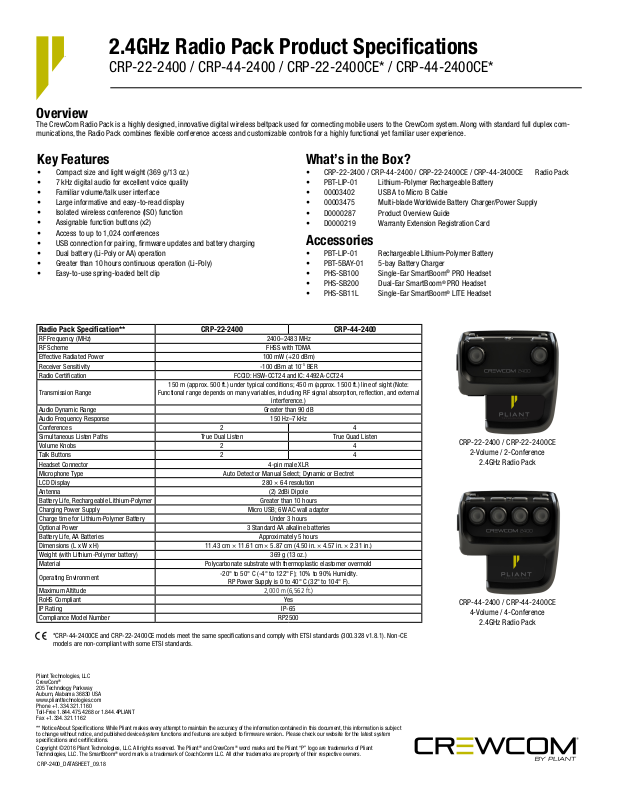

Pliant Technologies CRP-22-2400, CRP-44-2400 Data Sheet

2.4GHz Radio Pack Product Specications

CRP-22-2400 / CRP-44-2400 / CRP-22-2400CE* / CRP-44-2400CE*

Overview

The CrewCom Radio Pack is a highly designed, innovative digital wireless beltpack used for connecting mobile users to the CrewCom system. Along with standard full duplex com­munications, the Radio Pack combines exible conference access and customizable controls for a highly functional yet familiar user experience.

Key Features

• Compact size and light weight (369 g/13 oz.)

• 7 kHz digital audio for excellent voice quality

• Familiar volume/talk user interface

• Large informative and easy-to-read display

• Isolated wireless conference (ISO) function

• Assignable function buttons (x2)

What’s in the Box?

• CRP-22-2400 / CRP-44-2400 / CRP-22-2400CE / CRP-44-2400CE Radio Pack

• PBT-LIP-01 Lithium-Polymer Rechargeable Battery

• 00003402 USB A to Micro B Cable

• 00003475 Multi-blade Worldwide Battery Charger/Power Supply

• D0000287 Product Overview Guide

• D0000219 Warranty Extension Registration Card

• Access to up to 1,024 conferences

• USB connection for pairing, rmware updates and battery charging

• Dual battery (Li-Poly or AA) operation

• Greater than 10 hours continuous operation (Li-Poly)

• Easy-to-use spring-loaded belt clip

Accessories

• PBT-LIP-01 Rechargeable Lithium-Polymer Battery

• PBT-5BAY-01 5-bay Battery Charger

• PHS-SB100 Single-Ear SmartBoom® PRO Headset

• PHS-SB200 Dual-Ear SmartBoom® PRO Headset

• PHS-SB11L Single-Ear SmartBoom® LITE Headset

Radio Pack Specication** CRP-22-2400 CRP-44-2400

RF Frequency (MHz) 2400–2483 MHz
RF Scheme FHSS with TDMA
Effective Radiated Power 100 mW (+20 dBm)
Receiver Sensitivity -100 dBm at 10
Radio Certication FCCID: HSW-CCT24 and IC: 4492A-CCT24

Transmission Range

Audio Dynamic Range Greater than 90 dB
Audio Frequency Response 150 Hz–7 kHz
Conferences 2 4
Simultaneous Listen Paths True Dual Listen True Quad Listen
Volume Knobs 2 4
Talk Buttons 2 4
Headset Connector 4-pin male XLR
Microphone Type Auto Detect or Manual Select; Dynamic or Electret
LCD Display 280 × 64 resolution
Antenna (2) 2dBi Dipole
Battery Life, Rechargeable Lithium-Polymer Greater than 10 hours
Charging Power Supply Micro USB; 6W AC wall adapter
Charge time for Lithium-Polymer Battery Under 3 hours
Optional Power 3 Standard AA alkaline batteries
Battery Life, AA Batteries Approximately 5 hours
Dimensions (L x W x H) 11.43 cm × 11.61 cm × 5.87 cm (4.50 in. × 4.57 in. × 2.31 in.)
Weight (with Lithium-Polymer battery) 369 g (13 oz.)
Material Polycarbonate substrate with thermoplastic elastomer overmold

Operating Environment

Maximum Altitude
RoHS Compliant Yes
IP Rating IP-65
Compliance Model Number RP2500

*CRP-44-2400CE and CRP-22-2400CE models meet the same specications and comply with ETSI standards (300.328 v1.8.1). Non-CE
models are non-compliant with some ETSI standards.

150 m (approx. 500 ft.) under typical conditions; 450 m (approx. 1500 ft.) line of sight (Note:

Functional range depends on many variables, including RF signal absorption, reection, and external

interference.)

-20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
RP Power Supply is 0 to 40° C (32° to 104° F).

2,000 m (6,562 ft.)

-5

BER

CRP-22-2400 / CRP-22-2400CE

2-Volume / 2-Conference

2.4GHz Radio Pack

CRP-44-2400 / CRP-44-2400CE

4-Volume / 4-Conference

2.4GHz Radio Pack

Pliant Technologies, LLC

®

CrewCom
205 Technology Parkway
Auburn, Alabama 36830 USA
www.plianttechnologies.com
Phone [phone]
Toll-Free 1.844.475.4268 or 1.844.4PLIANT
Fax [phone]

** Notice About Specications: While Pliant makes every attempt to maintain the accuracy of the information contained in this document, this information is subject
to change without notice, and published device/system functions and features are subject to rmware version.. Please check our website for the latest system
specications and certications.
