Pliant PHS-SB100 Operating Manual

SmartBoom® PRO

PHS-SB100 / PHS-SB200

Operating Manual D0000276

Thank You

We at Pliant Technologies, LLC want to thank you for purchasing the SmartBoom® PRO Headset.
Pliant Technologies brings our experience, commitment to quality, and expertise to headsets with
the new SmartBoom PRO Headset, which meets the standards of traditional, reliable headsets,
while introducing modern features and design enhancements. The SmartBoom PRO Headset utilizes
our trademark SmartBoom automatic mic muting technology and includes a noise-cancelling
microphone; soft, cushioned ear pads; and a eld-replaceable cable. In order to get the most out
of your new SmartBoom PRO Headset, please take a few moments to read this manual completely
so that you better understand the operation of this product. This document applies to models
PHS-SB100 and PHS-SB200. For questions not addressed in this manual, feel free to contact our
Customer Support Department.

Pliant Technologies, LLC
205 Technology Parkway
Auburn, Alabama 36830
www.plianttechnologies.com
Phone [phone]
Toll-Free 1.844.475.4268 or 1.844.4PLIANT
Fax [phone]

Copyright ©2016 Pliant Technologies, LLC. All rights reserved. The Pliant™ word mark and the
Pliant “P” logo are trademarks of Pliant Technologies, LLC. The Tempest® and SmartBoom® word
mark are trademarks of CoachComm, LLC. All other trademarks are property of their respective
owners.

SmartBoom PRO Operating Manual_D0000276_C

Safety Information

The following section details important safety information related to the ownership and operation
of SmartBoom PRO. Read and follow all instructions and heed all warnings.

WARNING: Indicates a situation, which, when not avoided, has the poten-

tial to result in death or severe injury.

CAUTION: Indicates a situation, which, when not avoided, results or has

the potential to result in minor injury or product failure or damage.

• To reduce the risk of re or electric shock, do not expose this apparatus to excessive rain
or moisture.

• Do not use this apparatus near water.

• Operate in accordance with manufacturer’s instructions.

• Use only attachments or accessories specied by the manufacturer.

• There are no user-serviceable parts inside the SmartBoom PRO headset. Opening the
product may expose dangerous electrical components, may result in product failure, and
will void the warranty. Refer all servicing to qualied Pliant service personnel.

• Do not subject the headset or cables to extreme force; doing so may cause product
damage or failure.

• Avoid exposing the SmartBoom PRO to extreme temperatures and humidity.

Page 1

What’s included with SmartBoom PRO?

Each SmartBoom PRO headset comes complete with everything needed to get started. Unpack
your device and familiarize yourself with the following components:

• Headset (assembled with ear and head pads)

• Removable 4-pin XLR female connector cable (arrives attached to headset)

Operation

The following section details procedures for operating SmartBoom PRO.

1. Headset Adjustment: Use the slide adjustment on each side of the headband to
achieve proper t and size.

Figure 1 Adjusting Headset Sizing

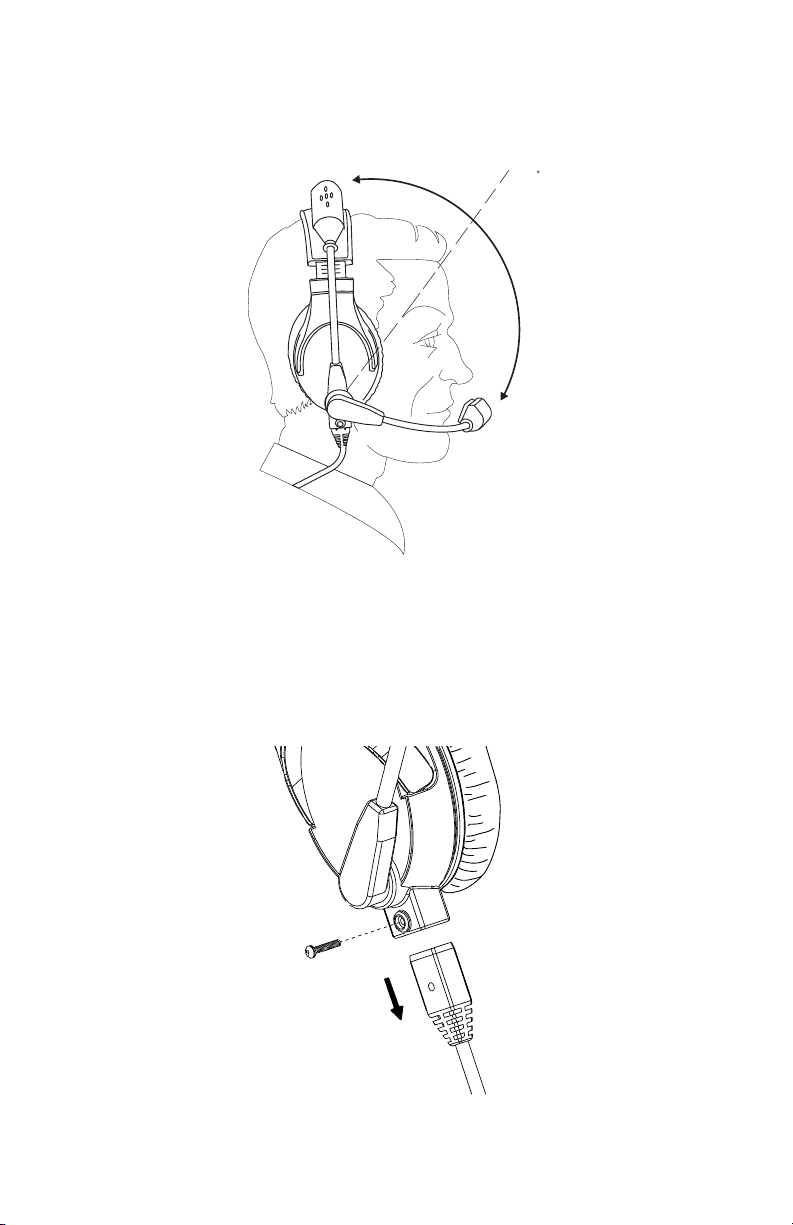

2. Mic Position: For best performance, it is recommended the microphone be positioned
directly in front of your mouth, sitting a nger’s width from your lips.

Figure 2 Correct Mic Position

Figure 3 Incorrect Mic Position

Page 2
