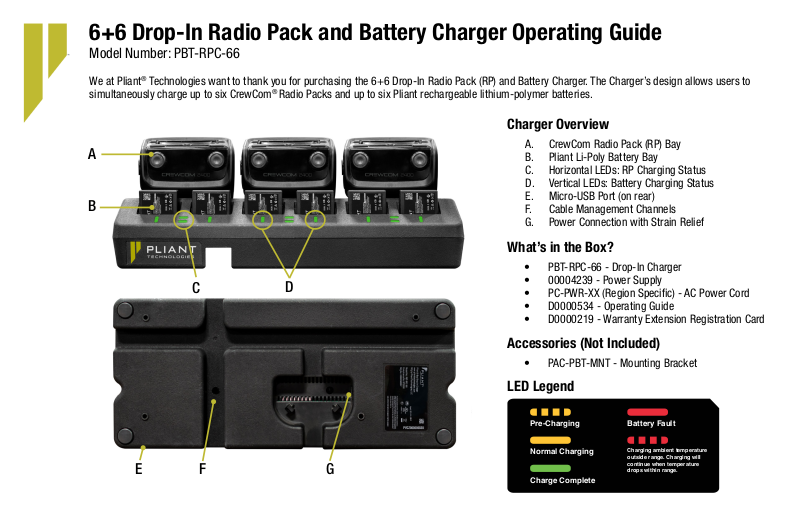

6+6 Drop-In Radio Pack and Battery Charger Operating Guide

Model Number: PBT-RPC-66

We at Pliant® Technologies want to thank you for purchasing the 6+6 Drop-In Radio Pack (RP) and Battery Charger. The Charger’s design allows users to
simultaneously charge up to six CrewCom

®

Radio Packs and up to six Pliant rechargeable lithium-polymer batteries.

Charger Overview

A

B

A. CrewCom Radio Pack (RP) Bay
B. Pliant Li-Poly Battery Bay
C. Horizontal LEDs: RP Charging Status
D. Vertical LEDs: Battery Charging Status
E. Micro-USB Port (on rear)
F. Cable Management Channels
G. Power Connection with Strain Relief

What’s in the Box?

• PBT-RPC-66 - Drop-In Charger

C

D

• 00004239 - Power Supply

• PC-PWR-XX (Region Specic) - AC Power Cord

• D0000534 - Operating Guide

• D0000219 - Warranty Extension Registration Card

Accessories (Not Included)

• PAC-PBT-MNT - Mounting Bracket

LED Legend

Pre-Charging

Normal Charging

GFE

Charge Complete

Battery Fault

Charging ambient temperature
outside range. Charging will
continue when temperature
drops within range.

Safety Recommendations

WARNING – DANGER! Users should take special precautions to avoid

the introduction of hazards when operating, installing, servicing,
transporting, or storing this device and lithium-polymer batteries.

• Do not place unit in areas where it will be exposed to weather.

• Exercise extreme care when working with electricity, and always connect
the device into a ground-fault interrupting circuit when working outdoors or
near water.

• PBT-RPC-66 should only be used at an altitude not exceeding 2000 m.

• Do not allow the power cord to become crimped, twisted, or frayed.

• Refer all PBT-RPC-66 service to qualied Pliant Technologies service
personnel.

• When the PBT-RPC-66 is exposed to electromagnetic (EM) disturbances,
the device may show abnormal behavior.

Charger Operation

Radio Pack charge time from empty is approximately 4 hours. Battery charge
time from empty is approximately 2.5 hours.

When inserting a Radio Pack into the charger, the Radio Pack will log off and
power down, and its LCD will display a “Charge Mode” screen, which contains
the device’s model number, serial number, rmware version, charge percentage,
and estimated time to charge completion.

When removing a Radio Pack from the charger, wait for the bay’s LED to turn off
(approx. 4 seconds) before inserting another Radio Pack into that bay. Failure to
do so will prevent the new Radio Pack from charging.

During static events, LED operation may display an errant charging status. It
will only be temporary and will recover without damage to the charger or its
contents.

Warranty

Pliant Technologies, LLC products are warranted to be free from defects in
materials and workmanship for a period of two years from the date of sale to the
end user, under the following conditions:

• First year of warranty included with purchase.

• Second year of warranty requires product registration on the Pliant website.

Product Registration

Registering your CrewCom product is fast and easy. By doing so, your product
warranty will be documented and you will qualify for a free second year of
warranty. You will also have the opportunity to receive product news and more.
If you do not have an account on the Pliant Technologies web site, you will need
to create one in order to register your product. You may access or create your
account at: https://www.plianttechnologies.com/customer/account/login/

Additional Resources

For questions not addressed in this guide, feel free to review the additional
product information provided on our website: www.plianttechnologies.com.

Pliant Technologies, LLC

205 Technology Parkway

Auburn, Alabama 36830 USA

Phone [phone]

Toll-Free 1.844.475.4268 or 1.844.4PLIANT
