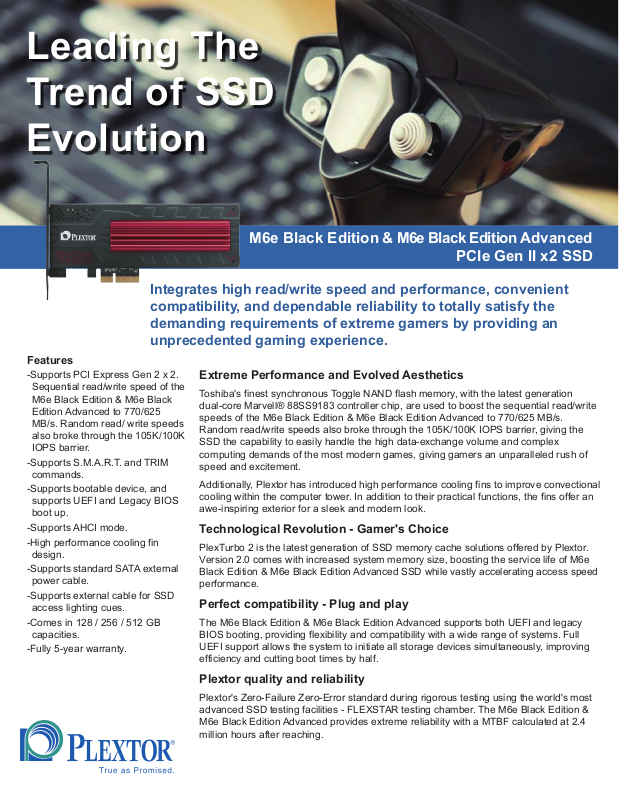

Leading The Trend of SSD Evolution
M6e Black Edition & M6e Black Edition Advanced
Integrates high read/write speed and performance, convenient compatibility, and dependable reliability to totally satisfy the demanding requirements of extreme gamers by providing an unprecedented gaming experience.
PCIe Gen II x2 SSD
Features
-Supports PCI Express Gen 2 x 2. Sequential read/write speed of the M6e Black Edition & M6e Black Edition Advanced to 770/625 MB/s. Random read/ write speeds also broke through the 105K/100K IOPS barrier.
-Supports S.M.A.R.T. and TRIM commands.
-Supports bootable device, and supports UEFI and Legacy BIOS boot up.
-Supports AHCI mode.
-High performance cooling fin design.
-Supports standard SATA external power cable.
-Supports external cable for SSD access lighting cues.
-Comes in 128 / 256 / 512 GB capacities.
-Fully 5-year warranty.
Extreme Performance and Evolved Aesthetics
Toshiba's finest synchronous Toggle NAND flash memory, with the latest generation dual-core Marvell® 88SS9183 controller chip, are used to boost the sequential read/write speeds of the M6e Black Edition & M6e Black Edition Advanced to 770/625 MB/s. Random read/write speeds also broke through the 105K/100K IOPS barrier, giving the SSD the capability to easily handle the high data-exchange volume and complex computing demands of the most modern games, giving gamers an unparalleled rush of speed and excitement.
Additionally, Plextor has introduced high performance cooling fins to improve convectional cooling within the computer tower. In addition to their practical functions, the fins offer an awe-inspiring exterior for a sleek and modern look.
Technological Revolution - Gamer's Choice
PlexTurbo 2 is the latest generation of SSD memory cache solutions offered by Plextor. Version 2.0 comes with increased system memory size, boosting the service life of M6e Black Edition & M6e Black Edition Advanced SSD while vastly accelerating access speed performance.
Perfect compatibility - Plug and play
The M6e Black Edition & M6e Black Edition Advanced supports both UEFI and legacy BIOS booting, providing flexibility and compatibility with a wide range of systems. Full UEFI support allows the system to initiate all storage devices simultaneously, improving efficiency and cutting boot times by half.
Plextor quality and reliability
Plextor's Zero-Failure Zero-Error standard during rigorous testing using the world's most advanced SSD testing facilities - FLEXSTAR testing chamber. The M6e Black Edition & M6e Black Edition Advanced provides extreme reliability with a MTBF calculated at 2.4 million hours after reaching.
Page 2
M6e Black Edition & M6e Black Edition Advanced PCIe Gen II x2 SSD
Performance
Model PX-128M6e-BK PX-256M6e-BK PX-512M6eA-BK
Capacity 128 GB 256 GB 512 GB
Cache 256MB DDR3 512MB DDR3 1024MB DDR3
Read/Write Speed(Under Windows NTFS)
Sequential Read Speed* Up to 770 MB/s Up to 770 MB/s Up to 770 MB/s Sequential Write Speed* Up to 335 MB/s Up to 580 MB/s Up to 625 MB/s Random Read Speed (IOPS 4K QD32)* Up to 96,000 Up to 105,000 Up to 105,000 Random Write Speed (IOPS 4K QD32)* Up to 83,000 Up to 100,000 Up to 100,000
Environment and Reliability
Power Requirement (PCIe Slot) 12V 0.7A 12V 1.7A 12V 1.7A Temperature 0°C ~ 70°C (Operating) Shock 1500G (Max.) , at 1 msec half-sine Vibration 7 ~ 800Hz,1.63Grms (Non-operating) MTBF >2,400,000 hours Warranty 5 years
Compatibility
Operating System Supported
Agency Approval BSMI/UL/TUV/C-Tick/CE/KCC/VCCI/FCC/ ROHS/CB Command Set Support TRIM, S.M.A.R.T., NCQ DATA Encryption AES 256 PCIe PCIe Gen2 x 2 Firmware Upgrade Supported
Form Factor and Connectors
Form Factor Standardized PCle Card with Half-Height/Half-Length
Power Connector 12V PCIe Slot Data Connector PCIe Slot
Dimension and Weight
Dimension (L/W/H) 180.98 x 121.04 x 22.39 mm / 7.13 x 4.77 x 0.88 inch Weight 180 g / 6.35 oz (Max.)
Content
Drive 128GB / 256GB / 512GB SSD
Documents Quick Installation Guide
Software PlexTurbo SSD Utility
Windows 7 x86, x64 / Windows 8 x86, x64 / Linux series, Fedora,
SUSE, Ubuntu / Windows Server 2008, 2012
* Performance measured using CrystalDiskMark Ver.3
Actual performance may vary based on hardware, software, and overall system configuration.
Specifications subject to change without notice.
For more information, please visit
www.Plextor.com
Lite-On Technology Corporation 12F, 392, Ruey Kuang Road Neihu, Taipei 114 Taiwan, R.O.C
© 2014 Plextor.
Plextor branded products are developed and sold by Lite-On Technology Corporation.
