Plebani 113 Instruction Manual

READ CAREFULLY AND KEEP INSTRUCTIONS FOR FUTURE REFERENCE!

“Urban”

ART - 113

ENGLISH INSTRUCTION MANUAL

2

3

4

5

6

7

8

9

10

11

12

13

FRAME

ASSEMBLING:

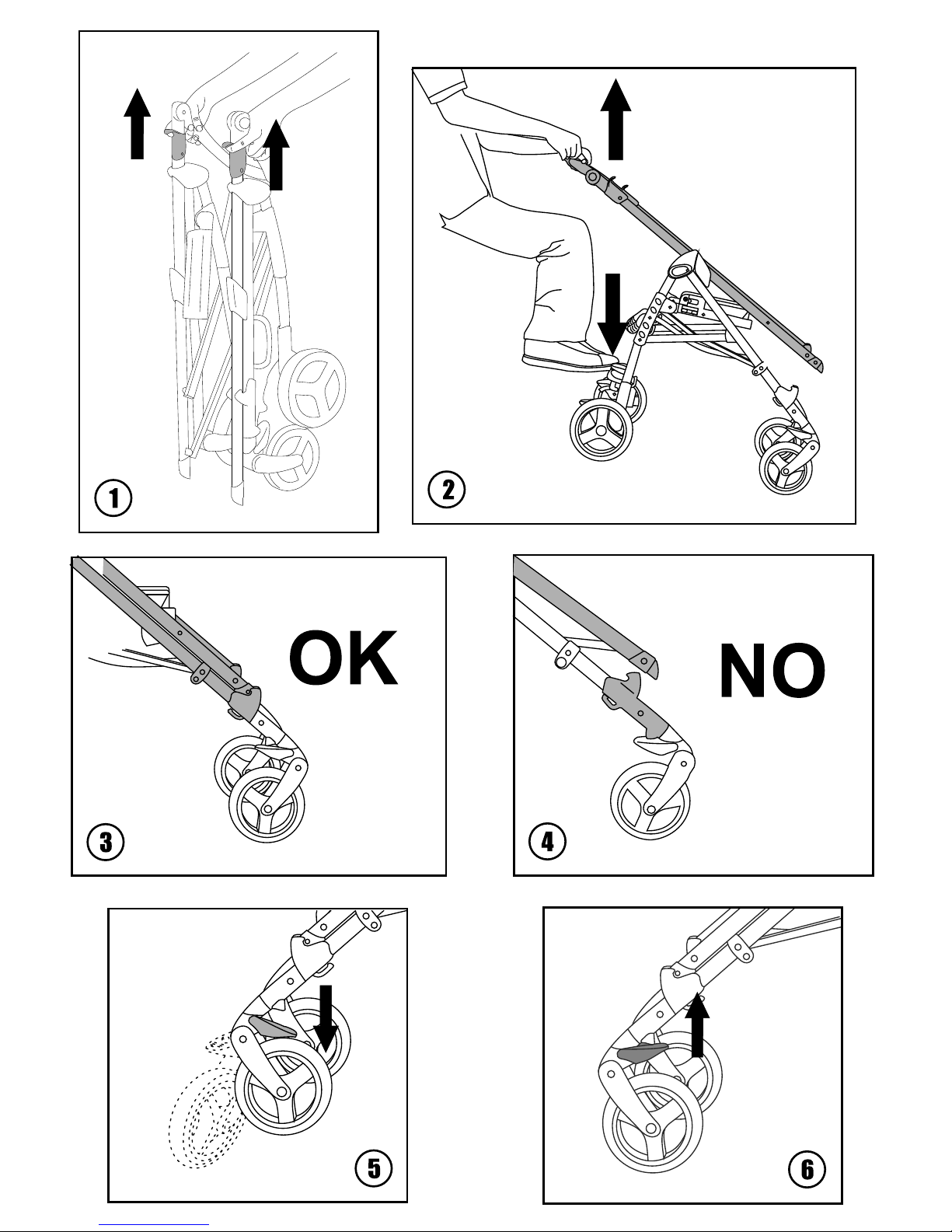

1- After remove and thrown away the packing, open the frame pulling at the same time the two

levers on the handles (Fig. 1); pull upward opening it completely (Fig. 2). Check that the pipes
are properly locked (Fig. 3) and not separated (Fig. 4).

2- Front wheels are swivel and turn pushing down the appropriate release lever (Fig. 5) to lock and

have a straight line, lift up the lever (Fig. 6).

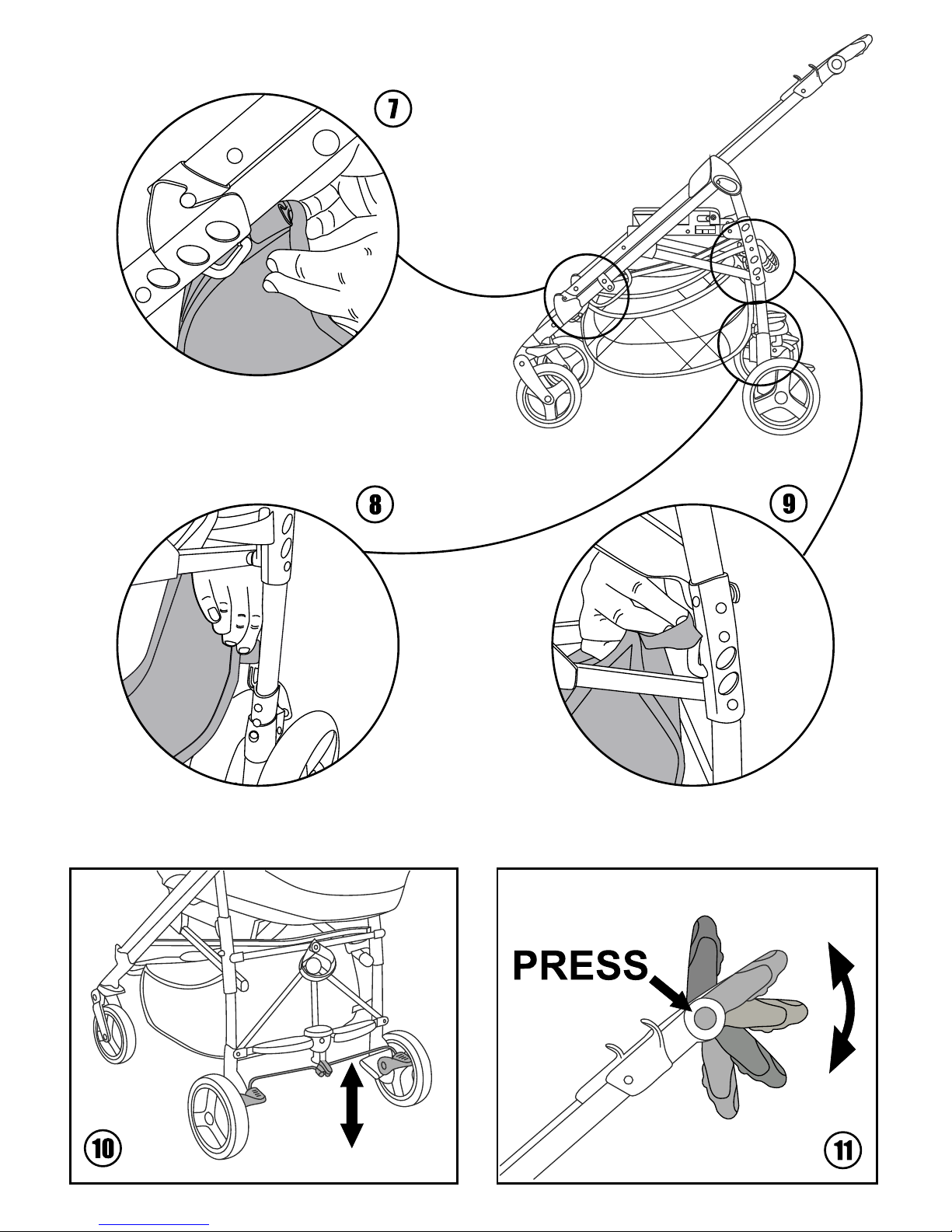

3- Our stroller is equipped with a storage basket. After take it out from its packing, first slide the

hook into the front loop (Fig. 7) then the rear slots (Fig. 8 and 9). Repeat on both sides.
WARNING: DO NOT LOAD WITH WEIGHTS OVER 5 KG.

REGOLAZIONI:

4- Thanks to the link brake system, to stop push downward one of the two levers. To unlock the

stroller and go, pull upward (Fig. 10). ALWAY USE BRAKES WHEN STOPPED AND ON
NOT PLANE SURFACES!

5- The handle is adjustable in many positions. Press BOTH buttons on the sides and turn up or

down the handle until you get the desired position (Fig. 11).

Thanks to its simple and practical fixing system, our frame can be used in conjunction with
the seat of REVERSIBLE stroller (Fig. 33 and 34), or with its specific carry-cot/pram (Fig.

51) or with his car seat GROUP 0 + (Fig. 52). See the appropriate instructions below.

14

UK

ASSEMBLY AND USE INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

QUALITY GUARANTIES:

-

- This product is guaranteed for a period as stated by the laws in force.

- All the defects and deteriorations caused by the wrong use, by the non respect of the
standards of security, by the non respect of the mentioned assembly and use instructions
or by modifications made on the product can not be claimed.

- The natural wear of time and damage caused by improper or wrong use can not be

claimed.

- Scratches, wear of time, opacity or the turning yellow of the parts caused by the rubbing,

by the improper use of detergents, sweat, or atmospheric phenomena can not be
considered manufacturing defects.

- Wrong washing and not dry fabrics can create molds and can not be considered as

manufacturing defects.

Our stroller is made according to European standards EN 1888/2003.

IMPORTANT!:

BEFORE USING THIS ITEM, READ CAREFULLY INSTRUCTIONS AND ASSEMBLING
SEQUENCE TO AVOID UNLESS DANGER TO YOUR BABY!
THROW AWAY AND KEEP OUT OF BABY’S REACH ALL PLASTIC BAGS OF THE
PACKING, THEY MIGHT BE RISK OF SUFFOCATION!

NEVER LEAVE YOUR CHILD UNATTENDED!

CLOSING:

...

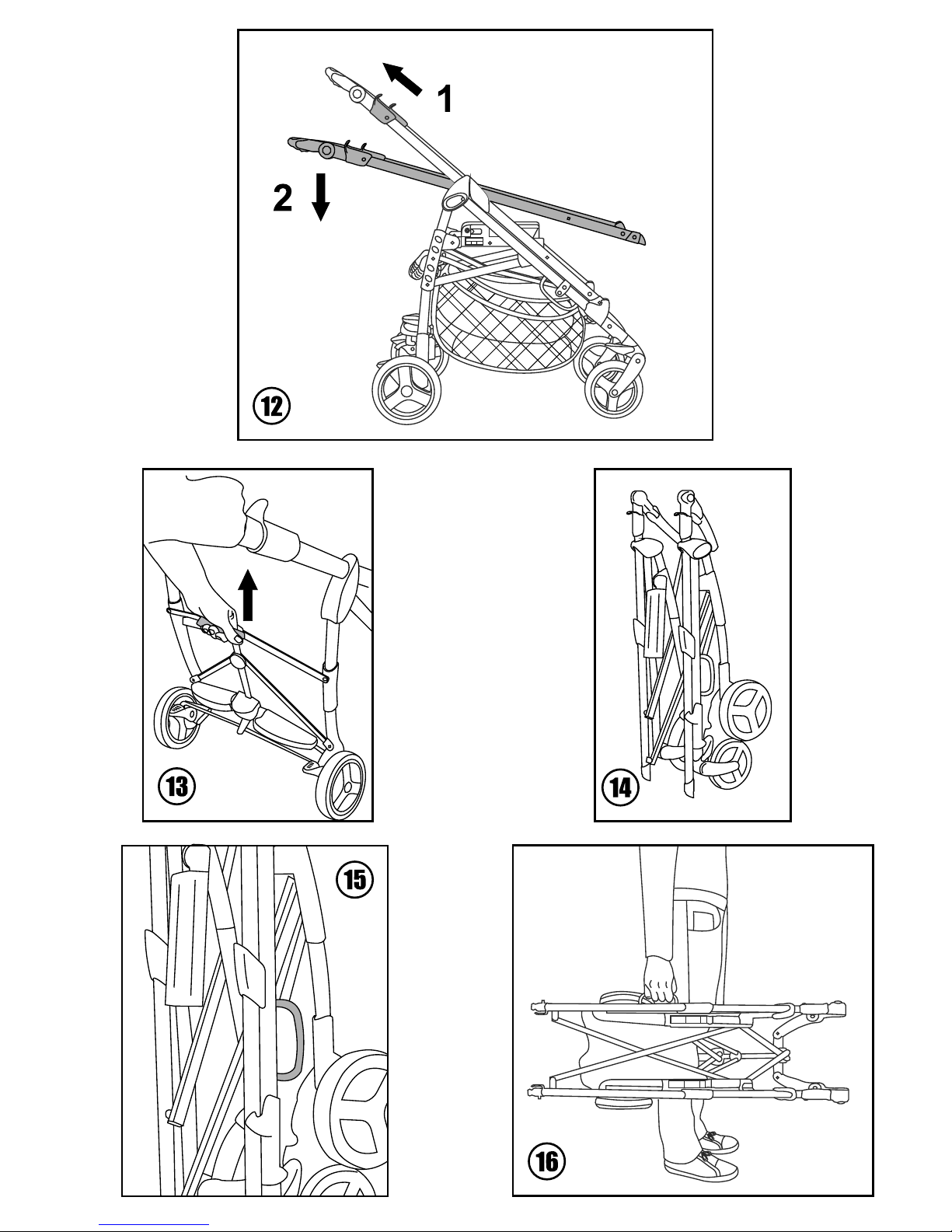

6- To close the stroller, unlock it pulling up the release levers (Fig. 12 -1) and push the

handle downward (Fig. 12-2). Our frame is equipped with easy locking system: you
can pull both levers even NOT simultaneously and also without keep them tight. The
levers will be automatically unlocked. Hold the locking handle located on the back of
the frame (Fig. 13) and pull until it's completely closed (Fig. 14). To open it, repeat
step 1 in "assembling" section.

ATTENTION:

NEVER MAKE ANY OPENING OR CLOSING OPERATION OF STROLLER IF
BABIES OR OTHER OBJECTS ARE INSIDE.

7- Our frame is equipped with an handy carrying side handle (Fig. 15) For correct

transport always use it when stroller is closed (Fig. 16). DO NOT USE the closing
handle (Fig. 13) for transport!

ATTENTION: Our stroller can NOT be closed with pram/carry-cot or with the car seat
installed. The stroller can be closed ALSO with the seat fixed on it, obviously without seat
operation it's easier.

15

SEAT - STROLLER

ASSEMBLING:

...

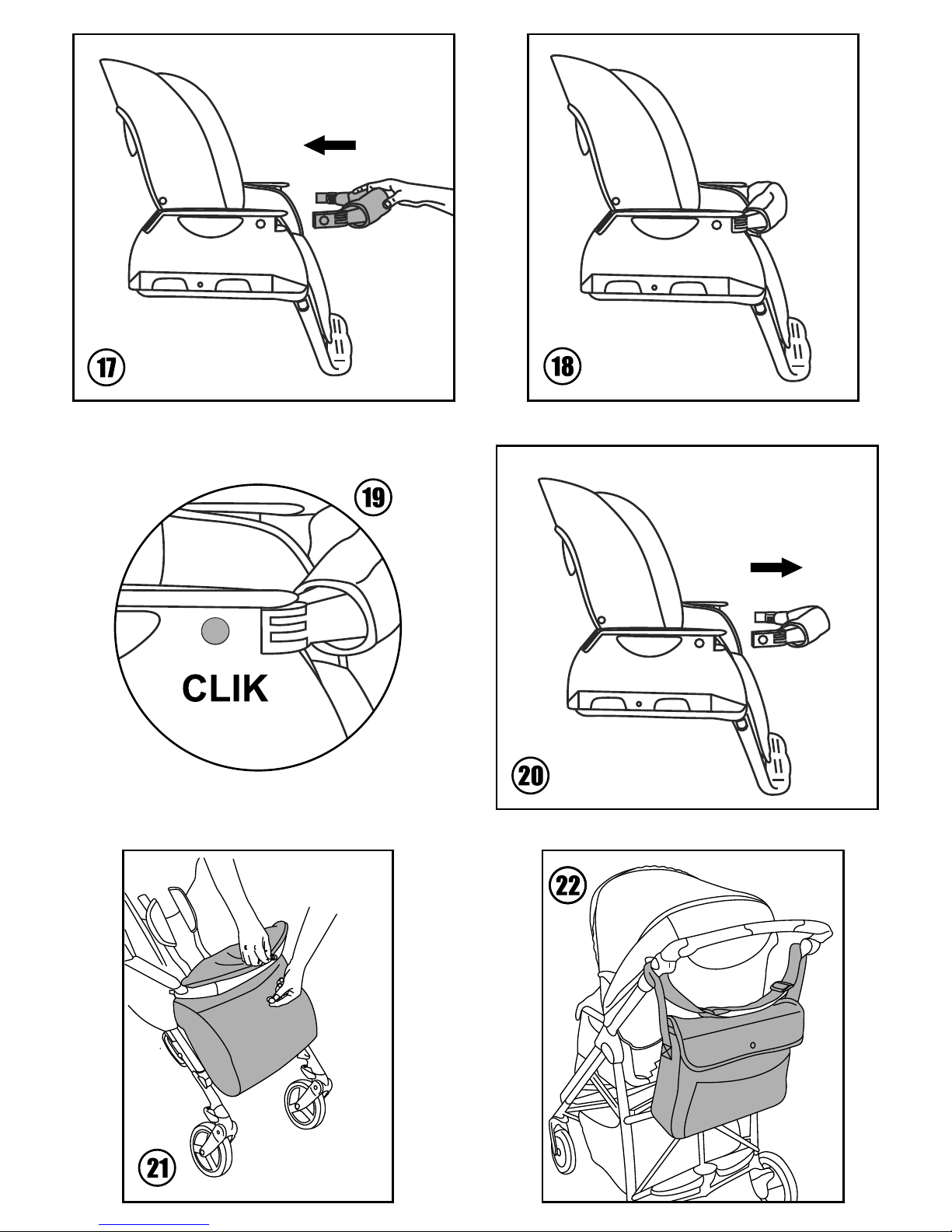

8- To assemble the front-bar (Fig. 18) insert it by pushing on both sides (Fig. 17) and

check that buttons on both sides are properly released (Fig. 19). To remove, press both
buttons (Fig. 19) and pull it out.

9- Stroller includes a convenient foot-cover for cooler periods. Slide it under the leg-rest

from the bottom up, pass it around to the front bar and hook the button (Fig. 21).

10- "Urban" modular system is supplied with a convenient, roomy, elegant INCLUDED

bag (Fig. 22). You can keep it fixed to the stroller thanks to the side buttons or carry it
over the shoulder comfortably using the adjustable shoulder strap. Inside the bag you
will find a functional padded mattress for any case.

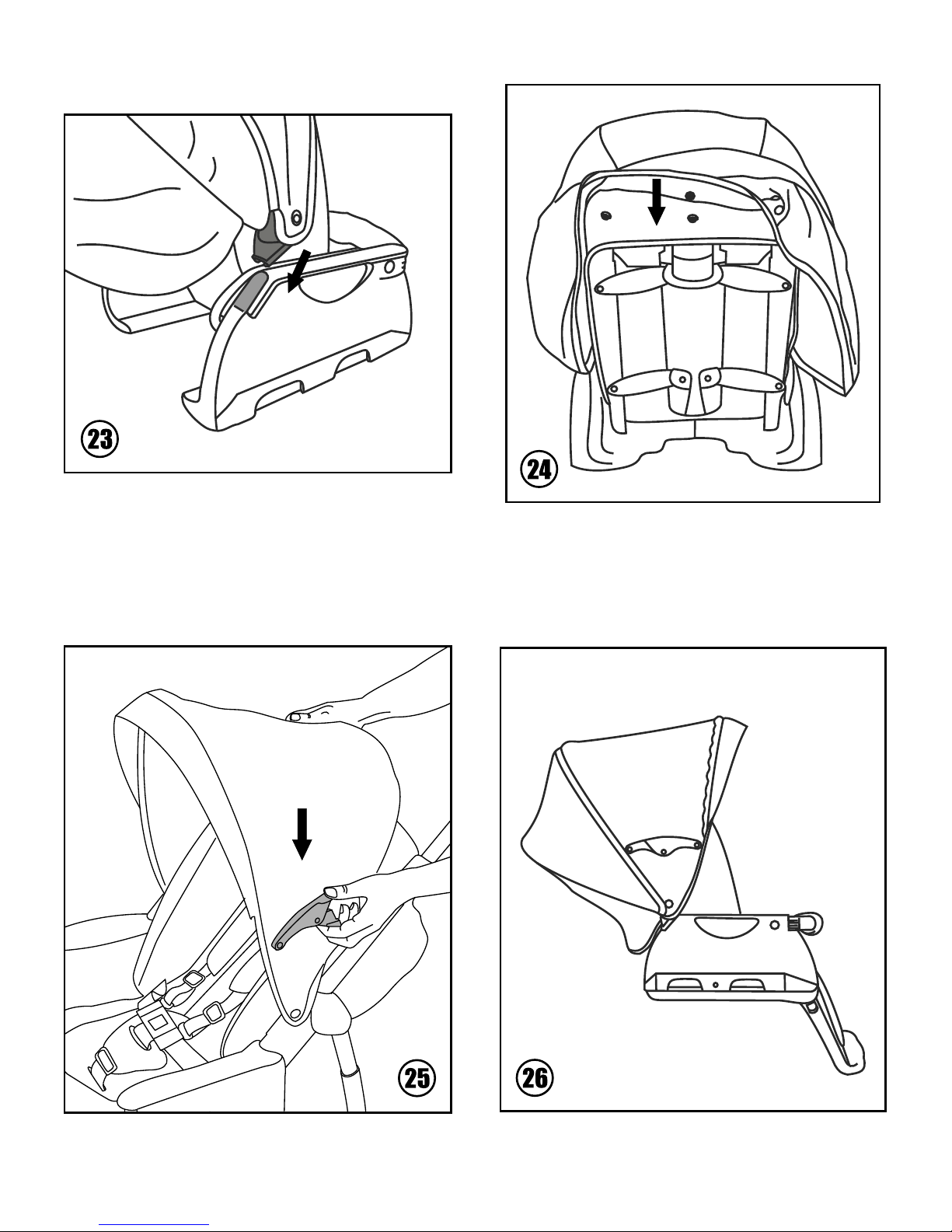

11- To assemble canopy to the seat, push the slot on its special tab on the seat (Fig. 23).

Make this operation on both sides. Fasten buttons on the rear of the backrest of the
seat (Fig. 24). To open canopy, push both compasses side down (Fig. 25). Our canopy
is equipped with a zip to separate it by using it in the warmer seasons and have greater
ventilation.

REGULATIONS:

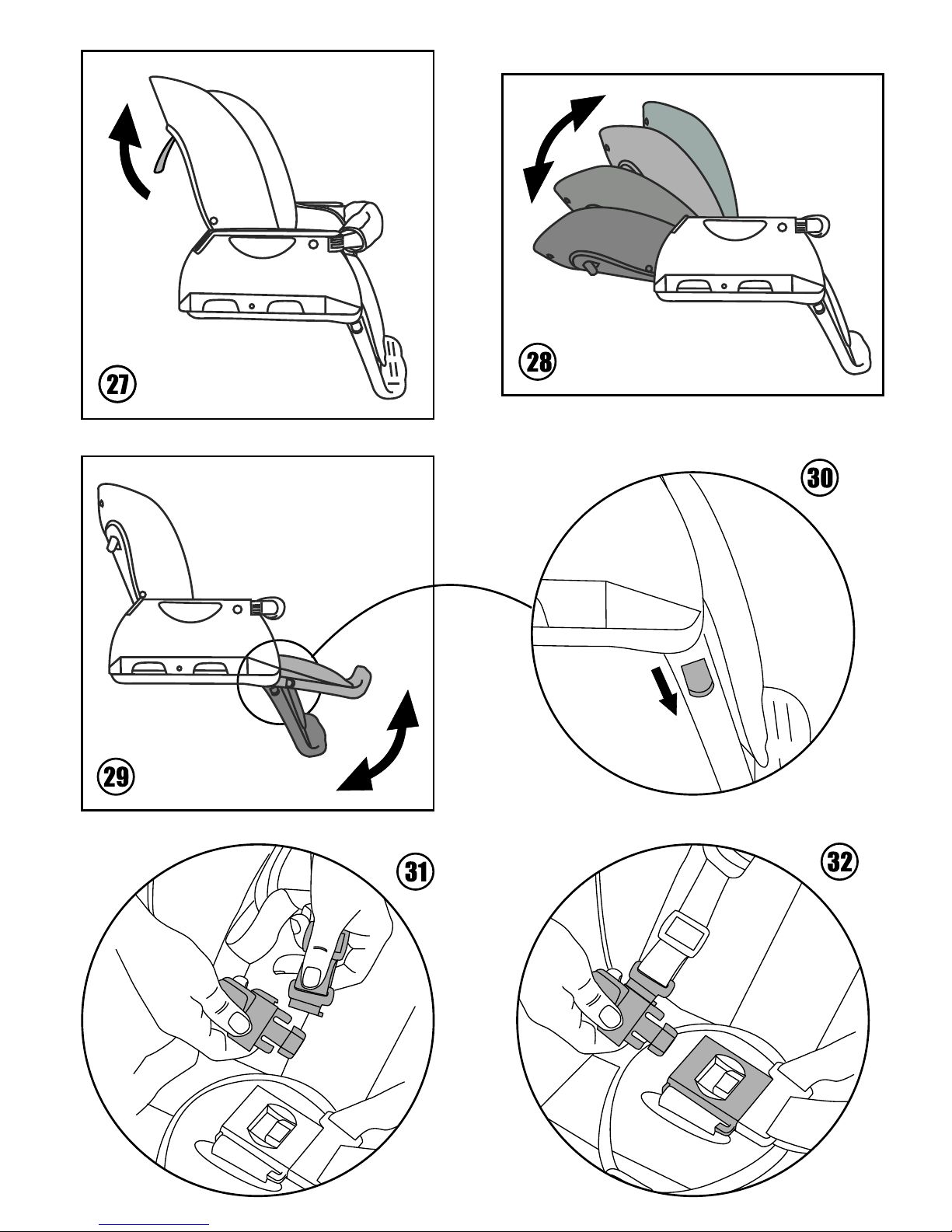

12- Backrest is adjustable in 5 positions. To adjust, lift the handle (Fig. 27) until you reach

the desired position (Fig. 28).

13 - The leg-rest is adjustable in 2 positions (Fig. 29). Push simultaneously both buttons

on the platform (Fig. 30) and pull it down. To bring in a horizontal position, turn it up.

14 - Insert guide-belt on lateral belt (Fig. 31) by pushing it well till the end. Slide the

buckle into crotch strap (Fig. 32), repeat operation on the other side.

WARNING: ALWAYS use safety belts and crotch strap properly adjusted and fixed!

16

FIXING:

...

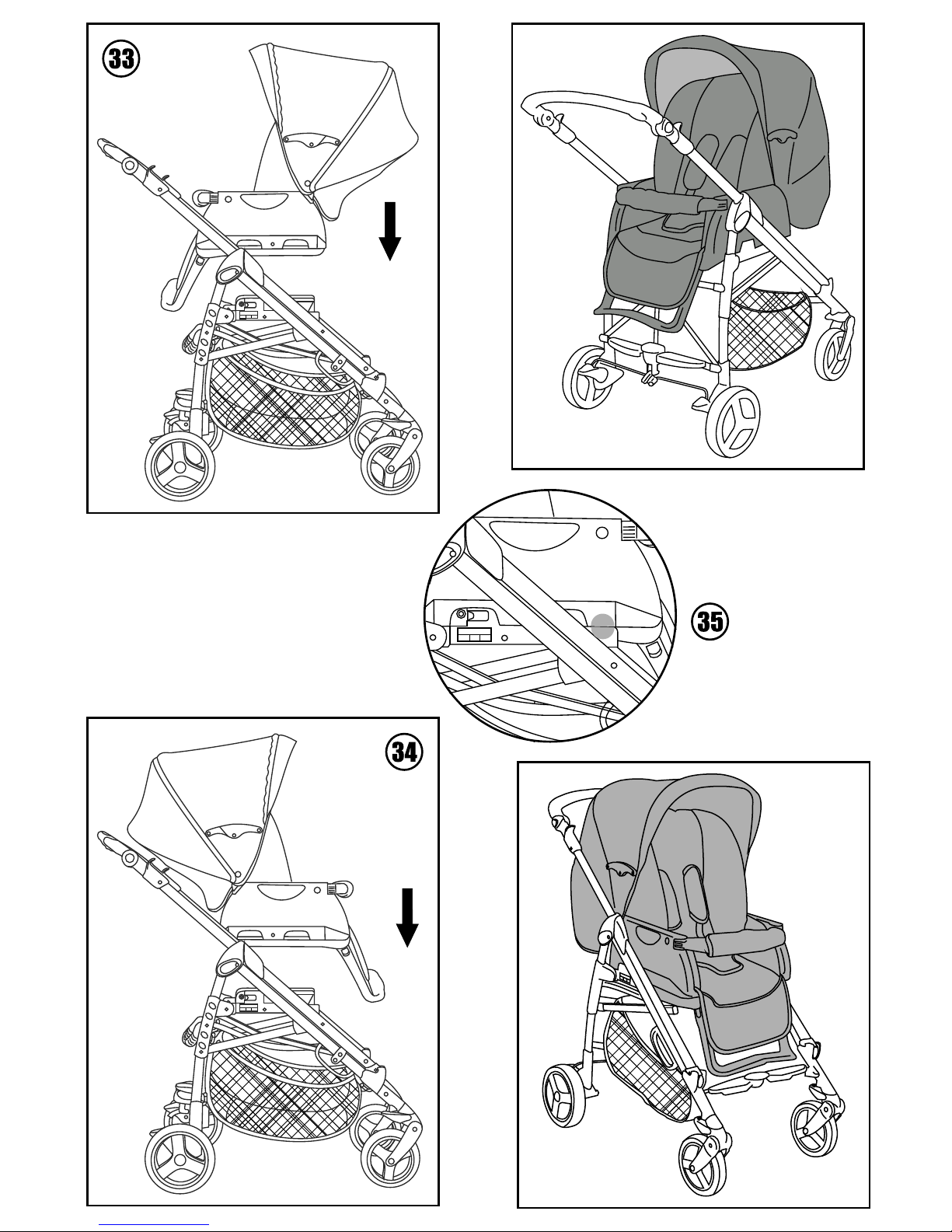

15- You can simply attach the seat onto the frame in "mother facing" position (Fig. 33)

(recommended age 0-12 months) or "world facing" (Fig. 34) (recommended age: 12 - 36
Months) leaning seat on fixing blocks on frame and pushing down seat well. Hold seat on
both sides and gently pull upward to ensure that it is properly and securely attached to the
frame! You can help with visual position displays, places both on the seat shell, both on the
support block right (the one with the red release button) (Fig. 35).

Now your stroller is ready for use. Make sure that it is well open, strongly assembled and
stable, check there are no broken, damaged or missing parts.

REMOVE:

...

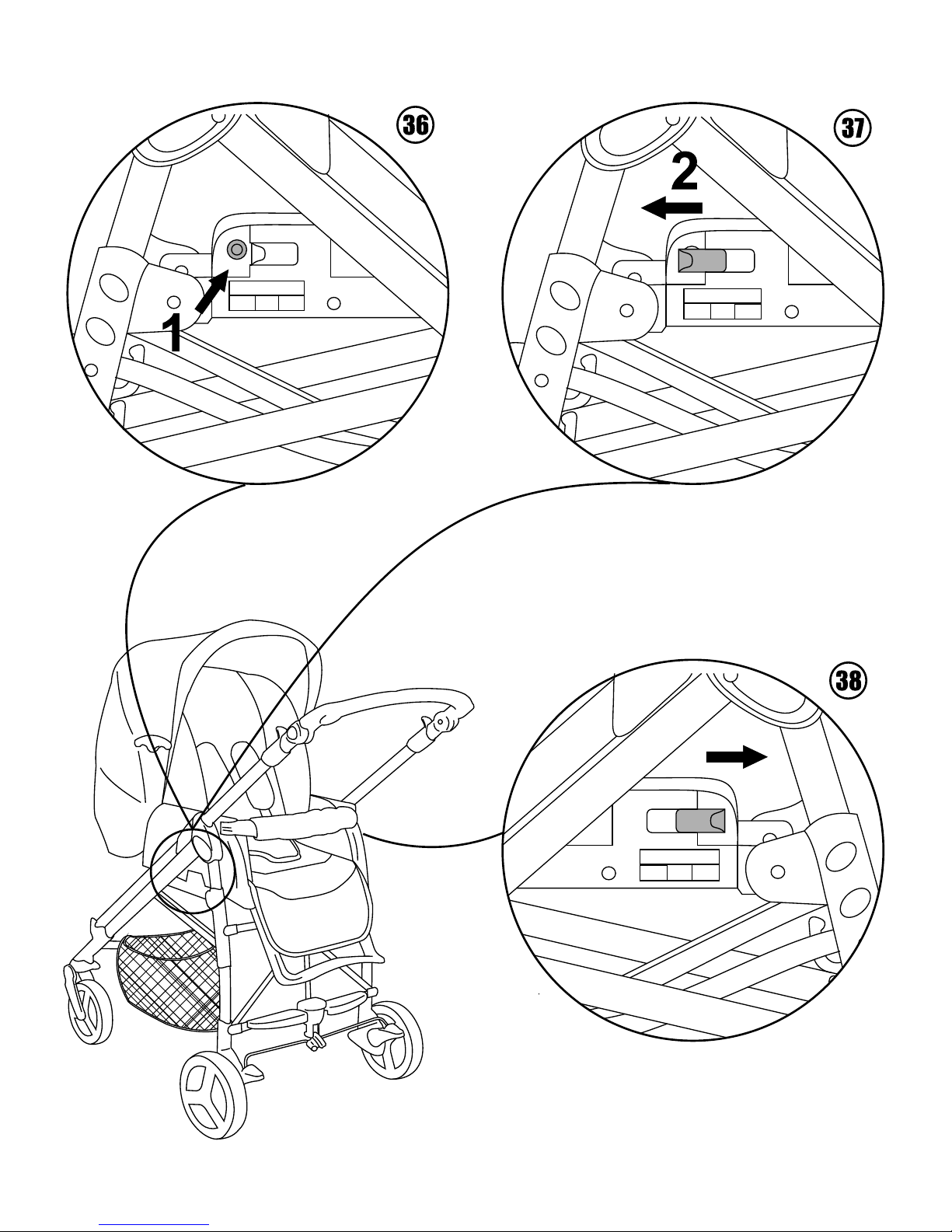

16- To remove the seat from the frame and turn it from one position to other, or to remove the

pram/carry-cot, press the red safety button placed on one side of the frame (Fig. 36) and
then pull the unlocking slider (Fig 37). So you have automatically unlocked one side of the
stroller; the slider will automatically remain unlocked until you keep seat away. Pull the
release slider placed on the other side (Fig. 38); so you have automatically unlocked the
other side of the stroller. The slider will automatically remain unlocked until you keep seat
away. Hold the seat sideways, help yourself with proper lateral handrail and pull seat
upward. Turn the seat or store it for future use.

CARRY-COT / PRAM

ASSEMBLING:

IMPORTANT: All assembly and regulation operations MUST BE DONE with
article placed on a stable, level and NOT inclined surface WITHOUT the baby
inside.

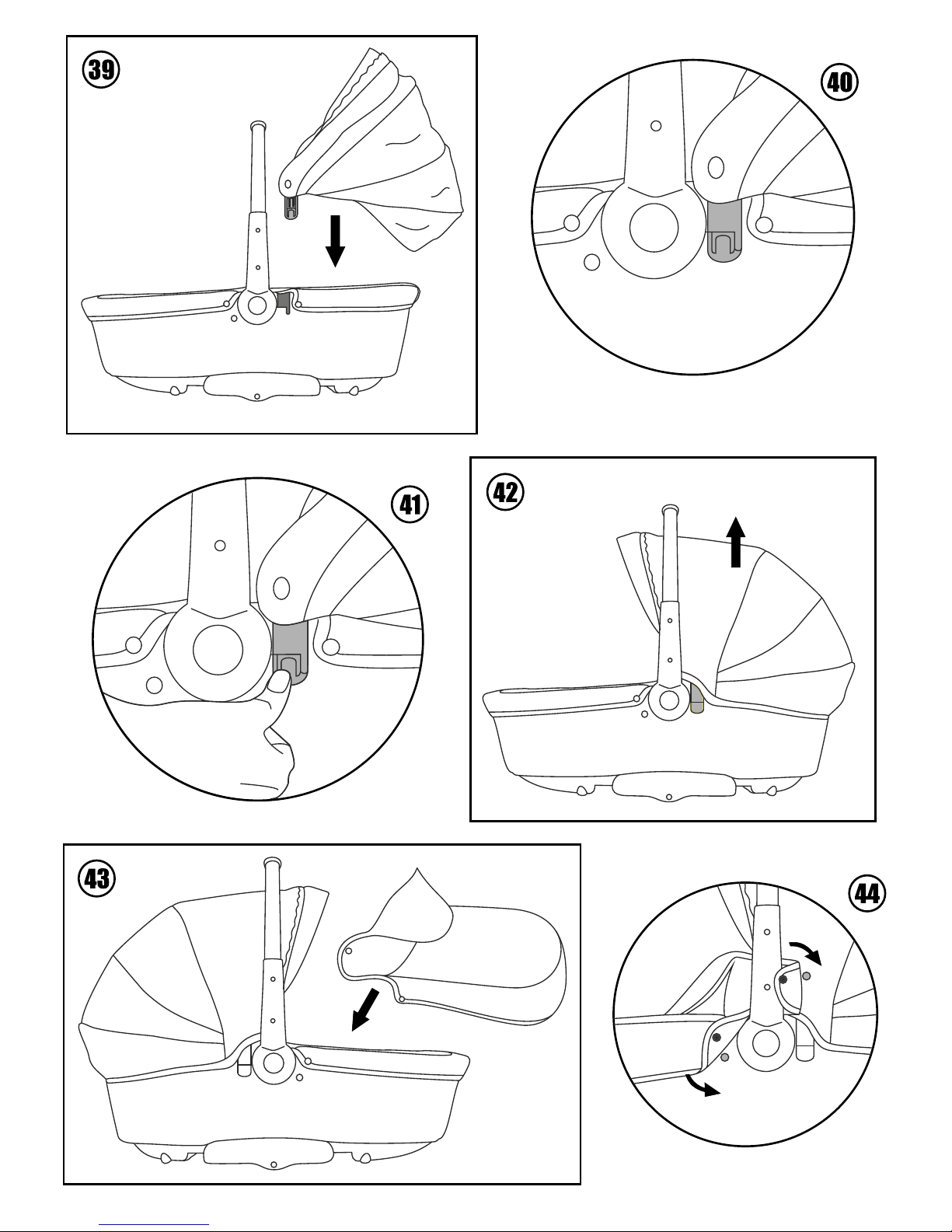

17- Fix canopy to the shell (Fig. 39) by inserting the pins into the holes on both sides (Fig.

40). To remove it press the buttons (Fig. 41) on both sides and remove the canopy pulling
up (Fig. 42).

18 - Our carry-cot is equipped with a cover to keep your baby's legs protected and sheltered

(Fig. 43). To fix it, first attach the button on the shell and then the one on the canopy (Fig.

44), repeat on both sides making fabric snugly fit to shell.

REGULATIONS:

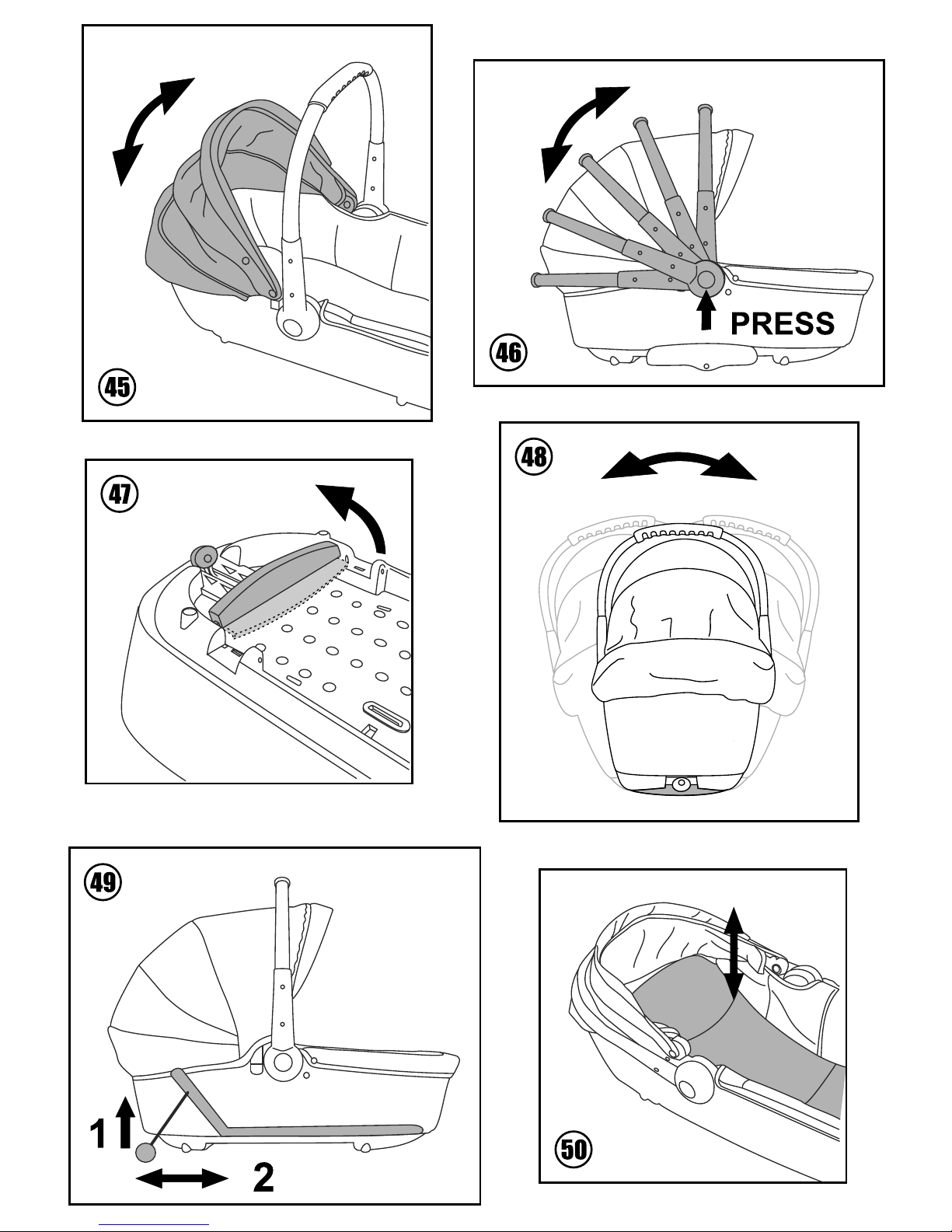

19- To protect you baby from sun, pull canopy up; to pull it down, push downward (Fig. 45).
20- To adjust carry-handle, press and keep pressed the two buttons on both sides and adjust

until required position (Fig. 46).

21- Our pram is equipped with adjusting foot to convert in a real carry-cot where you can

swing your baby. To let it swing, take off both foot located on bottom (Fig. 47), put it on
STABLE SURFACES and swing your baby (Fig. 48).

22- Our bassinet is provided with adjustable backrest for baby's comfort. To raise the seatback,

lift the handle located under the shell (Fig. 49-1) and then push it forward or backward
(Fig. 149-2) to obtain the desired position (Fig. 50).

17

FIXING:

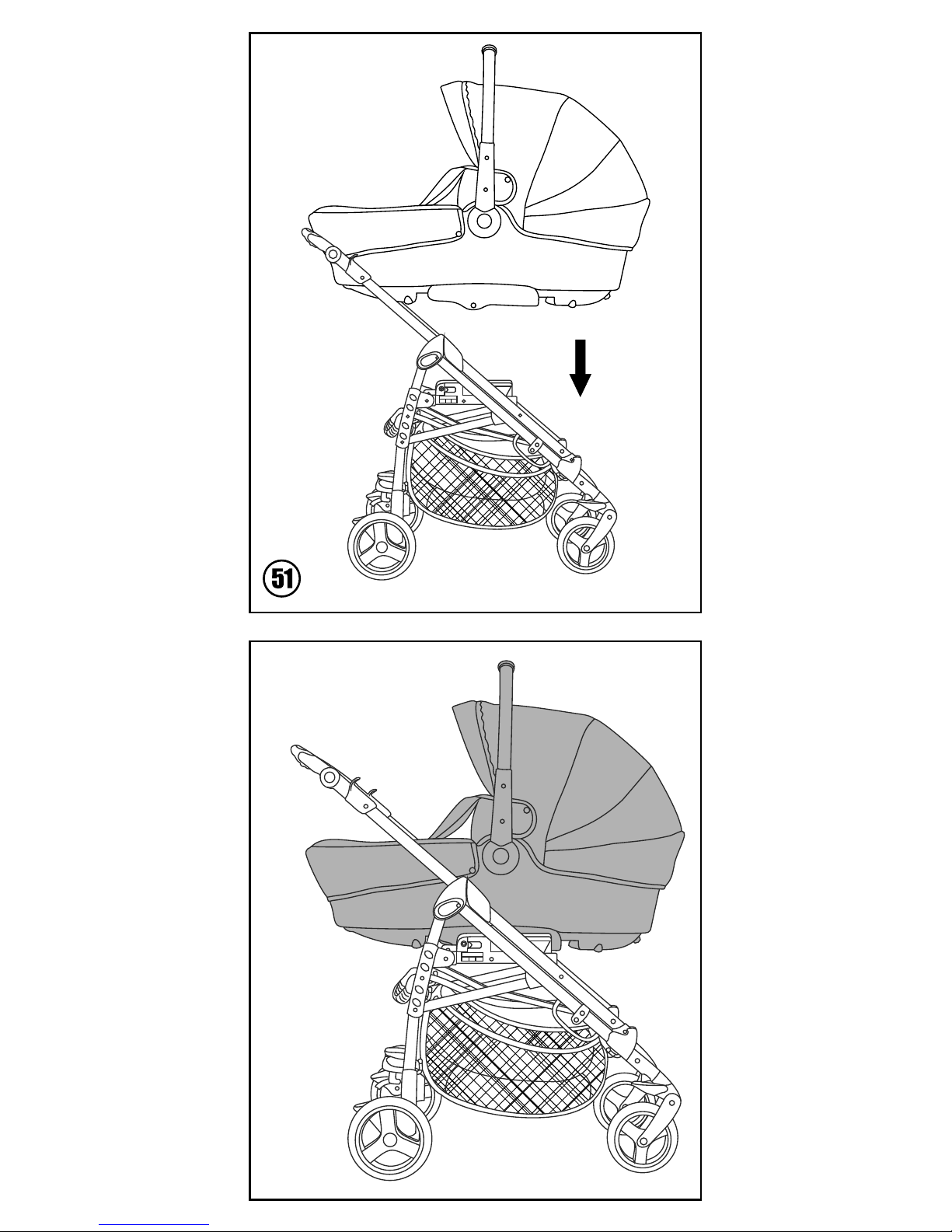

23- You can simply fix pram to the frame bring it closer and pushing well down until complete

locking (CLICK) on both sides (Fig 51). Keep the handle and pull upward slightly to make sure
it is properly and securely fixed to the frame!

IMPORTANT!: The carry-cot can be set ONLY on "mother facing" direction and NOT in
the opposite direction.

REMOVE:

24- To remove the carry-cot from the frame, press the red safety button placed on one side

of the frame (Fig. 36) and then pull the unlocking slider (Fig. 37). So you have
automatically unlocked one side of the stroller; the slider will automatically remain
unlocked until you keep seat away. Pull the release slider placed on the other side (Fig.

38); so you have automatically unlocked the other side of the stroller. The slider will
automatically remain unlocked until you keep seat away. Hold the handle, pull seat
upward and store it for future use.

CAR-SEAT

IMPORTANT!: Car seat is approved according to ECE R44/04 regulations and
can be installed on motor vehicles, it has a specific and separated instruction
manual from this manual that ALWAYS must follow the product in your car.

FIXING:

This car seat is provided with its own fixing system independent from the one place on
the frame.

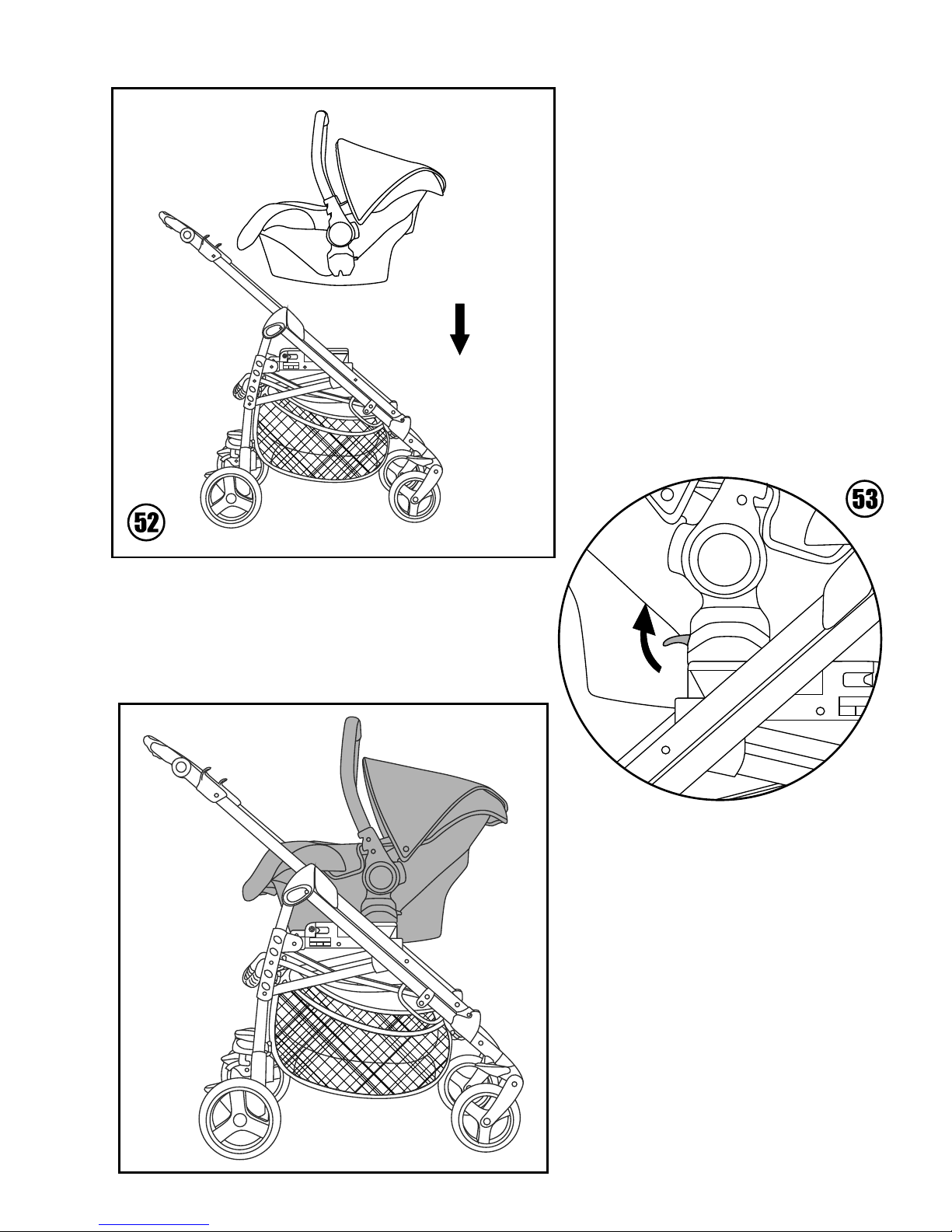

25- To fix car- seat to frame, push it well down and let the locks on the body of the seat

(placed under the handle) insert into slots for the clamps on the frame (loops with metal
rivets) until car-seat is well fixed (CLICK) on both sides (Fig 52). Keep the handle and
pull upward slightly to make sure it is properly and securely fixed to the frame!

IMPORTANT!: The car-seat can be set ONLY on "mother facing" direction and NOT in
the opposite direction.

REMOVE:

26- To remove, pull up at the same time the red levers on the blocks of the seat (Fig. 53)

and then remove it for future use.

18

WARNINGS:

BEFORE ASSEMBLING COMPONENTS OF MODULAR SYSTEM READ
CAREFULLY THESE INSTRUCTIONS. KEEP THEM FOR FUTURE REFERENCE.

THE NON-OBSERVANCE OF THESE WARNINGS AND USE INSTRUCTIONS
COULD CAUSE SERIOUS CONSEQUENCES TO YOUR BABY' S SAFETY

- WARNING: NEVER LEAVE YOUR CHILD UNATTENDED, WITHOUT THE

SUPERVISION OF AN ADULT.

- Before using check all locking systems work correctly and all components are not

defected or damaged, in this case DO NOT USE THE MODULAR SYSTEM ANY
LONGER.

- Throw away and keep out of baby's reach the poly bags of the packing, they might be

risks of suffocation.

- WARNING: This three-in-one modular system is studied to bring only one child by

time.

- WARNING: Any weight hanging on handles change product stability and may affect its

stability and safety.

- Storage basket can load maximum weight of 5 Kgs, any overload might make it

unstable.

- WARNING: This item is not suitable to run or skate.

- Modular system and its parts must be used and assembled only by adults.

- Keep the stroller far from sources of heat, current-taps, ovens, fires, windows,...and any

other type of danger.

- Check that all parts of item don't have any loosened or improperly assembled screw, or

any other elements which can injure your baby. DO NOT USE WITH BROKEN,
DAMAGED OR MISSING PARTS.

- ALWAYS LOCK WHEELS WHEN MAKE ANY STOPS!

- NEVER LEAVE THE BABY INSIDE STROLLER, CARRY-COT OR CAR-SEAT ON

TILTED OR STEEP SURFACES, even if wheels are locked.

- Take babies away from stroller.

- Do not use with broken, defective or missing parts.

- Do not carry any modification that could affect the safety of the item; it may be

dangerous use spare parts not approved from constructor

- ATTENTION: Do not make any opening or closing operation of product with baby or

any object inside. Keep the baby away when you make these operations.

- Do not put your fingers in locking systems and in other mechanisms.

WARNINGS: SEAT - STROLLER

- WARNING: This stroller is studied to receive children with less than 12 months in

"mother facing" direction (Fig. 33); in "world facing" direction (Fig. 34) for children up
to 36 months or with 15 kg MAXIMUM WEIGHT.

- This stroller has safety belts and crotch strap. Always use them and well adjusted.

- Crotch-bar is not designed to hold the weight of the child, much less to let seat an adult.

.

19

- Crotch-bar do not replace safety belts.

- With the rain cover assembled, never leave stroller under sun with the baby inside for

risk of overheating. Do not use indoors, never place rain-cover near sources of heat and
be careful to not put it closer cigarettes.

- Make sure that the rain-cover does not catch with any mechanism, remove it before you

close your stroller.

WARNING: CARRY-COT / PRAM

- WARNING: This item is suitable for children that can not sit themselves, that can not

round and stand using hands and knees.

- WARNING: Use carry-cot with children with 9 Kgs MAXIMUM WEIGHT.

- Before using check all locking systems work correctly, padding, bottom and any other

parts are not damaged or broken.

- Do not put pram on unstable, tilted surfaces, near stairs or edges.

- ATTENTION: When fix pram to frame using as cradle, ALWAYS ASSEMBLE IT

“MOTHER FACING” SIDE (Fig. 51), always check the correct fixing to the frame.

CARE AND MAINTENANCE OF THE PRODUCT:

For better operation and maintenance of the product, you should follow these maintenance
instructions. The cleaning and maintenance must be done only by adults.

- Regularly check that the item and its parts has no broken, defective or missing parts.

- To clean plastic parts, use duster with warm water or neutral detergents.

- Do not use solvents. Do not bleach. Dry thoroughly before using or storing.

- Dry well iron parts to prevent rust.

- Keep the product dry and protected from the sun to avoid changes or damage to

materials; do not place anything on it to avoid deformation and damage.

- Protect the product from weather, water, rain or snow; continuous and prolonged

exposure to sunlight may cause color changes.

- Do not use spare parts not approved and supplied by the manufacturer. Use only Plebani

spare parts.

The manufacturer may make changes to the article at any time in order to improve it.
Plebani s.r.l. disclaims any liability for damage to persons or property resulting from misuse
and/or misuse of the product.

IMPORTANT NOTES:

- Keep medicines, small objects and any dangerous item far from the modular system.

- Keep this manual near the product for future reference.

- DO NOT PLACE this item near heat sources, electrical outlets… or where the baby can

contact with any risk.

- Be sure that those who use product is aware of precise functions of item and all safeties

standards.

Thank you for choosing a Plebani's product.

...E TANTI, TANTI ALTRI ANCORA !!... ...AND MANY, MANY OTHERS MORE!!...

PLEBANI s.r.l. VIA DELL’ ARTIGIANATO 1 , 24060 TELGATE (BG) ITALY

Tel. [phone] • Fax [phone] - www.plebani.it • e-mail:[email protected]

altri prodotti - other products

COLLEZIONE PLEBANI - LINEA PRIMA INFANZIA

Fasciatoi - Changing tables Cancelletti - Safety gates Recinti / Box - Playpens

Seggiolini auto - Car seats Tricicli - Tricycle

Passeggini & Sistemi modulari - Strollers & Modular systems

Seggioloni - Highchairs Rialzo sedia - Booster-seatMobiletti / Bagnetti - Dresserettes / Changing baths

Lettini - Playards

Dondolini - Swings
