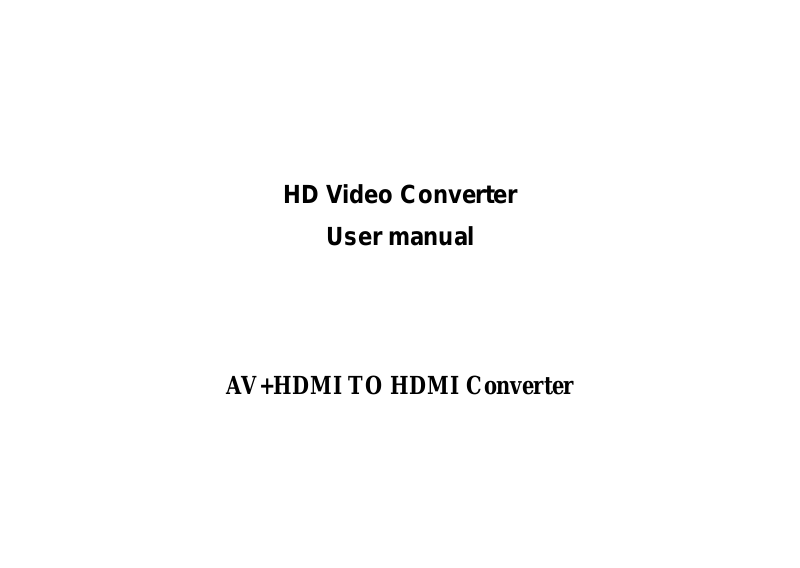

Playvision HDV-8A User Manual

HD Video Converter

User manual

AV+HDMI TO HDMI Converter

Ⅰ.Introduction

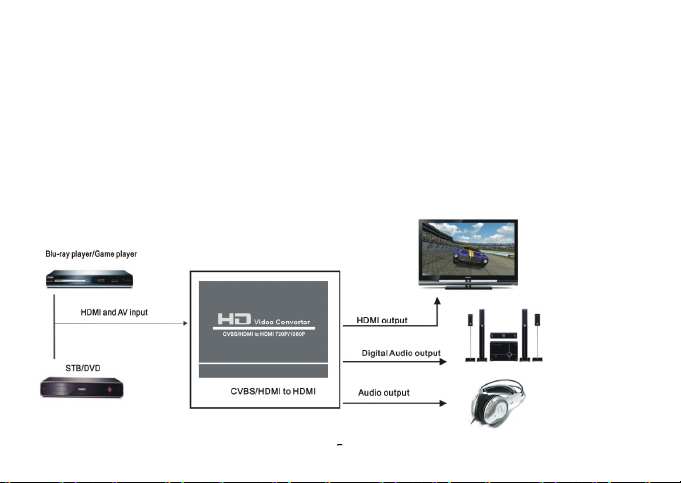

AV+HDMI TO HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P
HDMI signal output, also it can connect the high definition HDMI input interface, Easy connect the DVD,
set-top box, HD player, Game Console (PS2，PS3，PSP,WII,XBOX360 etc).

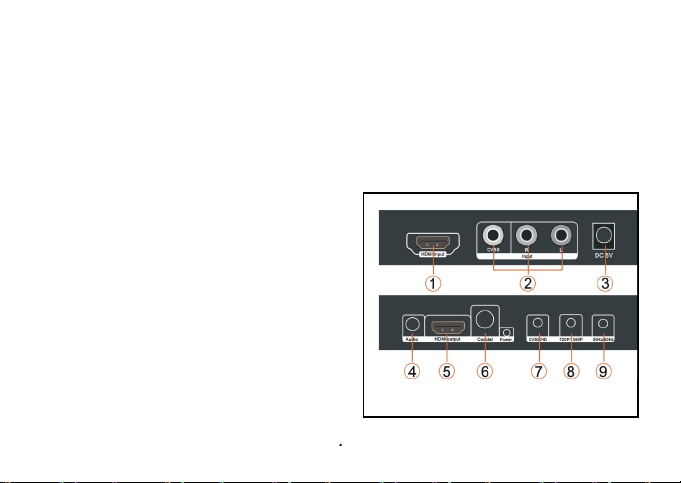

Ⅱ.Basic function:

1).HDMI output interface: connect with high definition TV or high definition projector
HDMI output format:720P@50/60Hz, 1080P@50/60HZ
Audio output format: Digital coaxial audio, analog stereo audio

2). CVBS input interface: DVD, set top box, PS2, WII, NGC and other players.

CVBS input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3). HDMI input format: 480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz

Compatible with several DVI format: 800X600、1024X768,1280X1024、1360X768, 1680X1050、

1920X1080 etc.

4). 3.5mm audio interface: Connect with analog audio amplifier or headphones input interface

5). Digital coaxial output: Connect with digital audio amplifier.
