Page 1

Riviera Playhouse

Model: 1536

(BOXES: 1518, 1528,

1529, 1536 & Accessory Box)

*52-3036-W*

52-3036-W

190 Etowah Industrial Court

Canton, GA 30114

www.playnation.com

Page 2

Please inspect and inventory all parts immediately upon accepting delivery. Use the inventory pages in the manual to make sure you have received all necessary parts. The quickest method to get any parts that are missing or damaged is use our “Quick Response Center” located at:

www.playnation.com/support

DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECTLY. THE RETAILER DOES NOT STOCK COMPONENTS.

PLEASE RETAIN ALL INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. CHECK FOR REVISED INSTRUCTIONS AT:

http://www.playnation.com/manuals.html

Page 3

PLAYNATION WARRANTY 2016

MANUFACTURER'S LIMITED LIFETIME WARRANTY

PlayNation Play Systems, Inc. warrants its Lifetime™ series of swing sets to be free from defects in

workmanship and materials, under normal use and conditions, for the lifetime of the product for above

ground structural wood components and for two years for all other components (e.g., swings, hardware,

plastics, tarps, rope ladder, etc.) except PlayNation's Super Scoop Slides™ and Super Tube Spiral Slides™.

PlayNation warrants its Super Scoop Slides™ and Super Tube Spiral Slides™ to be free from defects in

workmanship and materials, under normal use and conditions, for the lifetime of the product.

PlayNation warrants its Regal™, Imperial™, and Empire™ series swing sets to be free from defects in

workmanship and materials, under normal use and conditions, for a period of 15 years for above ground

structural wood components and for two years for all other components (e.g., swings, hardware,

plastics, tarps, rope ladder, etc.).

PlayNation warrants all remaining products, including but not limited to its Free Standing Swing Set, Free

Standing Tire Swing, See-Saw, Children's Picnic Table with Umbrella, Play-Zee-Bo™, Riviera Playhouse

and spring riders to be free from defects in workmanship and materials, under normal use and

conditions, for a period of 1 year. All accessories purchased separate from those included with one of

our swing set packages have a one year limited warranty.

Cosmetic imperfections and natural tendencies of wood such as peeling, splintering, warping, seasonal checking or cracking, knots or knot holes, etc. are normal characteristics of all outdoor wooden play equipment and are not covered by this warranty. Checks or cracks in wood components that do not affect the intended function of the part, piece or overall swing set are not covered under this warranty.

Wood rot or decay that develops because the product was installed in an area with poor drainage is not

covered under this warranty. Lumber that has been damaged by wood boring bees, or conditions that

develop as a result of faulty or improper installation of the product, are not covered by this warranty.

Fading of stain, discoloration or mold on any wood part or accessory is not covered by this warranty.

Cracks in plastic components, surface rust on hardware and chips on powder coated materials are not

considered defects in material as long as they do not affect the functionality or structural integrity of the

part or component.

It is the owner's responsibility to maintain the swing set. This includes but is not limited to staining and sealing the lumber as needed and regular inspection to be sure all hardware is tight. Instructions for

proper maintenance can be found on PlayNation's website. Imperfections or conditions that develop

because of a failure to properly maintain the swing set are not covered by this warranty.

Page 4

PLAYNATION WARRANTY 2016

PlayNation will, at its discretion, replace any above ground part within the stated warranty period that is

defective in workmanship or materials. This decision is subject to verification of the defect, which, at

PlayNation's discretion, may be accomplished by submitting photographs or by delivery of the defective

part to PlayNation. PlayNation Play Systems, Inc. • 190 Etowah Industrial Ct. • Canton, GA 30114 •

770-704-9300 Monday to Friday 9AM-5PM EST. Any warranty claim must include proof of purchase, including the date of purchase. In addition, within the first 30 days from the date of purchase, PlayNation will replace any parts discovered to be missing from or damaged in the original packaging.

This warranty is valid only if the product is used for the purpose for which it was designed and installed

at a residential, single-family dwelling. This warranty is void if the product is used in a commercial, institutional or multi-family setting. This warranty does not cover normal wear and tear or (a) products

that have been damaged by acts of God and/or nature, negligence, misuse or accident; (b) products that have been modified or repaired by unauthorized persons; (c) the cost of labor; or (d) the cost of shipping any replacement product or part.

PLAYNATION DISCLAIMS ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND, EXPRESSED,

IMPLIED, STATUTORY OR OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. PLAYNATION WILL NOT BE LIABLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES. This warranty is non-transferable and does not extend to the owners of the

product subsequent to the original purchaser. Some states do not allow limitations on implied

warranties or exclusion of incidental or consequential damages, so these restrictions may not be

applicable to you. This warranty gives you specific legal rights. You may also have other rights which vary

from state to state.

Page 5

IMPORTANT SAFETY GUIDELINES

This product is recommended for use by children ages 3-11. This product is intended for residential use only and not intended for use in any public setting. A safety surface such as mulch or recycled tire should be used under the play set to prevent injury from falls. Also a 6 foot safety zone should be used around the entire play set.

As with any home project, good judgment and respect for power tools will greatly reduce the risk of injury. PlayNation recommends you follow all tool manufacturers’ safety guidelines. Always wear eye protection and safety gloves to prevent injury. In several phases of construction two people may be required for lifting and securing of lumber. While the play set is being constructed, please keep children off the equipment until the project is complete. Bolts and screw heads should be checked regularly for tightness. The ground ladder, rope ladder, slide, swings and other areas where children spend a majority of their playtime should be checked more frequently.

PlayNation shall not be liable for incidental, indirect or consequential damages or injuries that result from the building and/or playing on our play sets. Adult supervision is recommended anytime a play set is being used.

WEIGHT LIMITS FOR PLAYNATION PLAYSETS

• FORT PLATFORMS: 800 LBS. TOTAL WEIGHT

• SWING BELT: 225 LBS.

• TANDEM SWINGS: 70 LBS. PER CHILD. UP TO 140 LBS TOTAL WEIGHT.

• TRAPEZE: 125 LBS.

• FULL BUCKET SWING/ HALF BUCKET SWING: 50 LBS.

• HEAVY DUTY TODDLER BUCKET SWING: 85 LBS.

• INFANT SWING: 35 LBS.

• TIRE SWING: 125 LBS. TOTAL WEIGHT

• ROPE LADDER: 75 LBS.

• ROCK WALL: 150 LBS.

• CLIMBING RAMP: 150 LBS.

• MONKEY BARS: 175 LBS.

• ALL SLIDES: 150 LBS.

PlayNation recommends that the weight limits for all components must not be exceeded. Failure to

adhere to these and other safety guidelines could result in damage to the play set and injury to the users.

Page 6

THIS PAGE INTENTIONALLY LEFT BLANK

Page 7

Warranty registration

- riviera playhouse -

PlayNation™ manufactures the

nest quality products that

are designed for outstanding

strength and durability. We back

our products with an unparalleled

warranty. In the unlikely event

that you will need to contact us

about covered repairs, we must

have a valid Warranty Registration

on le.

option 1

option 2

option 3

3 Easy Ways To REgisTER

Complete the online registration form at:

http://www.playnation.com/register

Fax this completed form to:

(678) 880-3300

Mail this completed form to:

PlayNation Playsets

190 Etowah Industrial Court

Canton, GA 30114

Where did you buy this product?

Date of Purchase Store Store City Store State

Your registration information:

Name: _______________________________________________________ Email: ______________________________________

Address: __________________________________________________________________________________________________

Street City State Zip

Please select

your age

How old are

your children?

Would you recommend this product to friends & family?

Comments: ________________________________________________________________________________________________

____________________________________________________________________________________________________________

18-30

31-40

2-3

4-5

41-50

51+

6-7

How would

you rate the

quality of this

product?

Yes

    

Below Average

Poor

Average

Excellent

Above Average

____________________________________________________________________________________________________________

Page 8

THIS PAGE INTENTIONALLY LEFT BLANK

Page 9

IMPORTANT – PLEASE READ

Congratulations! You have just purchase one of the finest residential wooden swing sets available today. As with any wooden product that spends its entire life outside, in varying elements, it is important to know what to expect with your new swing set so that your family can enjoy it for many years.

As your swing set acclimates to its new environment, natural characteristics of the wood can show in the form of checks, or “cracks” in the lumber. In almost all cases this is normal and it will not affect the structural integrity of your play set and is not covered under warranty.

KEEPING YOUR PLAYSET LIKE NEW

MUST DO’s

The following owner responsibilities are crucial to the safety, integrity and aesthetic appeal of your swing set and may affect the warranty if not adhered to.

WITHIN 60 DAYS

Check and tighten Hex Bolts/T-nuts, Carriage Bolts/Lock-nuts, and Lag Screws within the first 60 days and

•

then twice annually – once before each season and then once during the season.

WITHIN 90 DAYS

• Apply a sealant or semi-transparent stain with sealant within the first 90 days of owning the swing set. If applicable state laws allow, an oil based product will penetrate and protect the lumber better than a water based product. Because climate conditions can vary drastically from region to region, we suggest asking the product covering specialists at any number of specialty paint stores or home improvement centers for a product that would work best for your local environment. ** TIP – while the set is new, take a small board from your swing set to the store with you so they can color match the tint of the stain or sealant. Be sure to replace the board when you get home.

SEASONAL REMINDERS

If your area experiences regular snowfall, remove your fabric tarp/canopy to avoid stretching, sagging or

•

tearing of the material. Store it inside, folded up, and it will be as good as new when winter is over.

If your area experiences extremely cold temperatures, remove swing belts and other pliable features to

•

prolong the lifespan of these play activities.

OTHER TIPS

Spray swing hangers with Pam, Mazola or olive oil to stop squeaking; do not use petroleum based products

•

such as WD-40 or motor oil.

To repel yellow jackets and wasps, use a cotton ball and dab interior wooden corners underneath the play set

•

deck with a liquid dish soap. Avoid using insecticides.

To speed up the slide wipe the center of slide with wax paper every 2 - 3 weeks.

•

For additional safety and maintenance guidelines, please visit our website.

Page 10

IMPORTANT DOCUMENTS

CUSTOMER MUST READ AND RETAIN

Please go to the following links and read important SAFETY information prior to using your new play structure.

http://www.playnation.com/safety-and-maintenance.html

http://www.playnation.com/manuals.html (Click on your specific model)

http://www.playnation.com/warranty.html

NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious injury. Please review these safety rules regularly with your children.

WARNING:

Children must NOT use this play set until it has been

completely assembled and inspected by an adult to

ensure it has been properly installed.

PlayNation Play Systems, Inc.

190 Etowah Industrial Court

Canton, GA. 30114

Page 11

Model: 1536

(BOXES: 1518, 1528,

1529, 1536 & ACCESSORY

BOX)

REV: 11.17.2016

Page 12

TABLE OF CONTENTS

Safety Guidelines……………………………………….......……...........................Pages 3-6

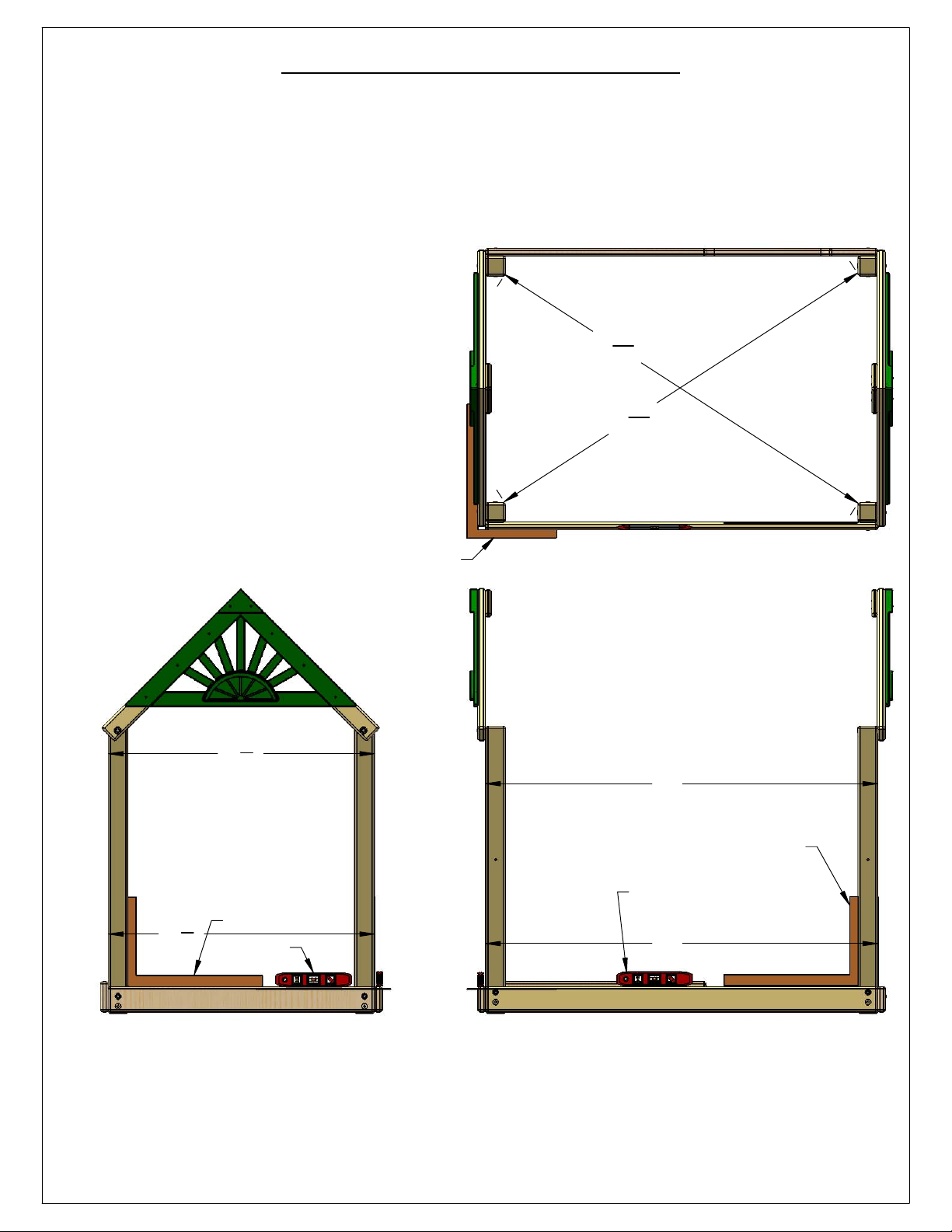

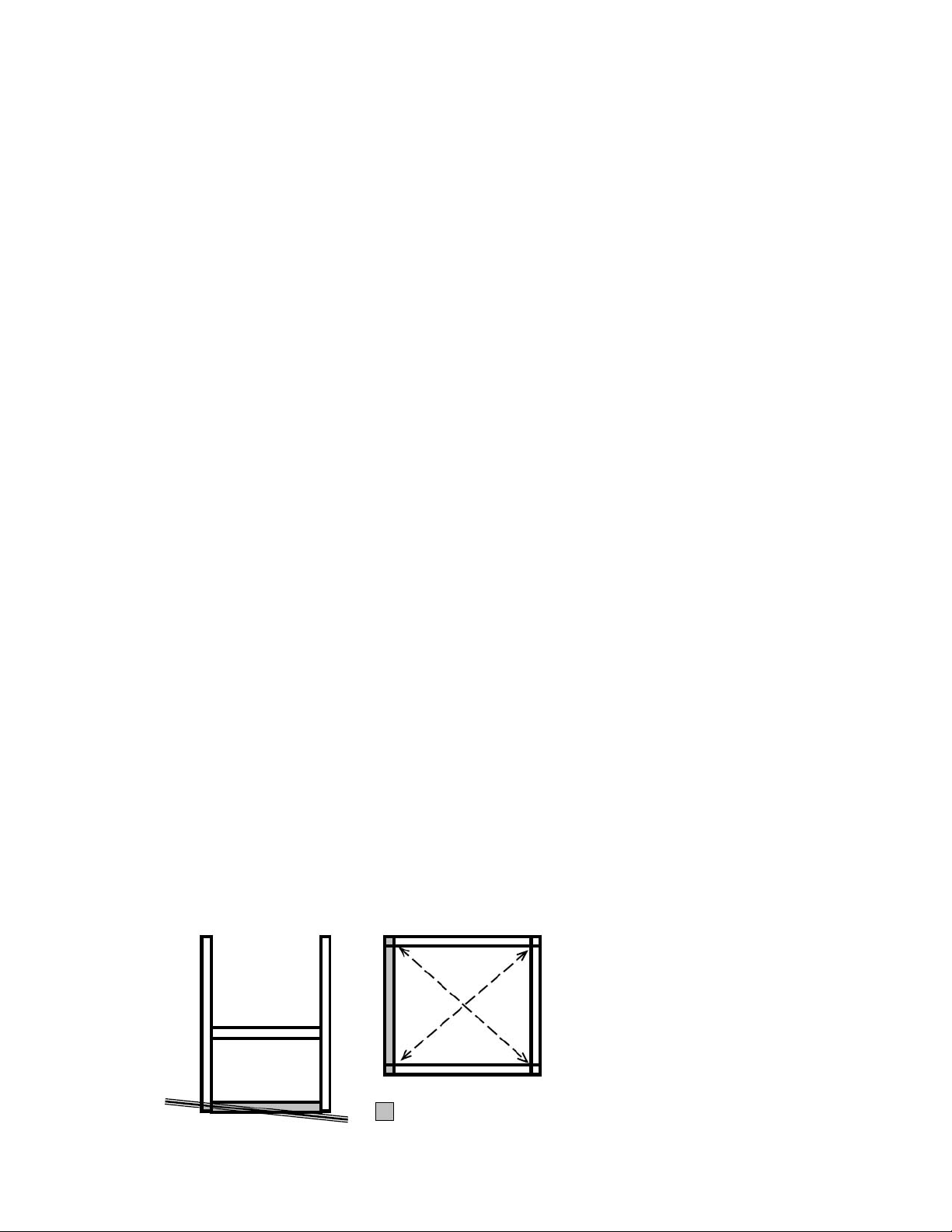

Leveling Fort, General Information and Denitions…….....................................Pages 6-8

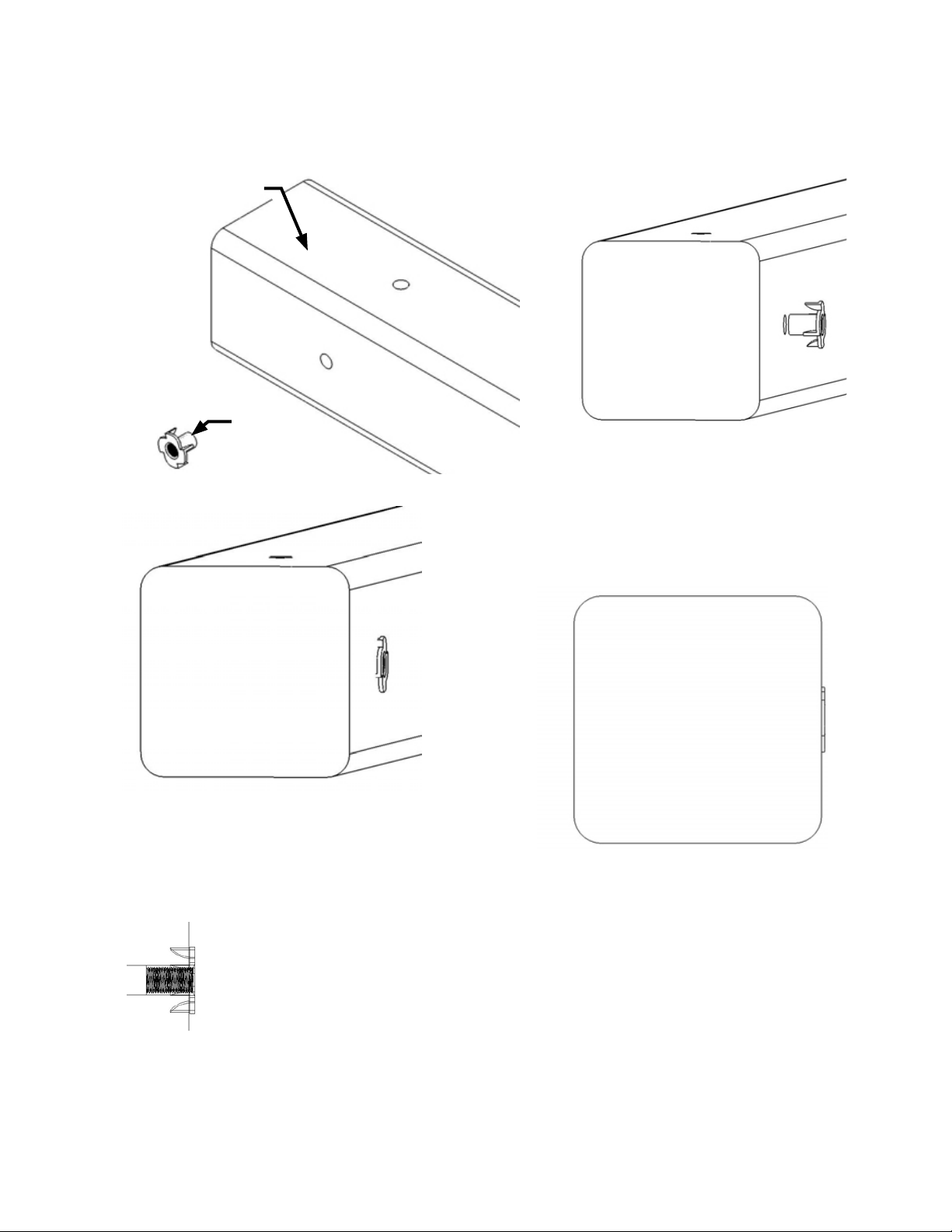

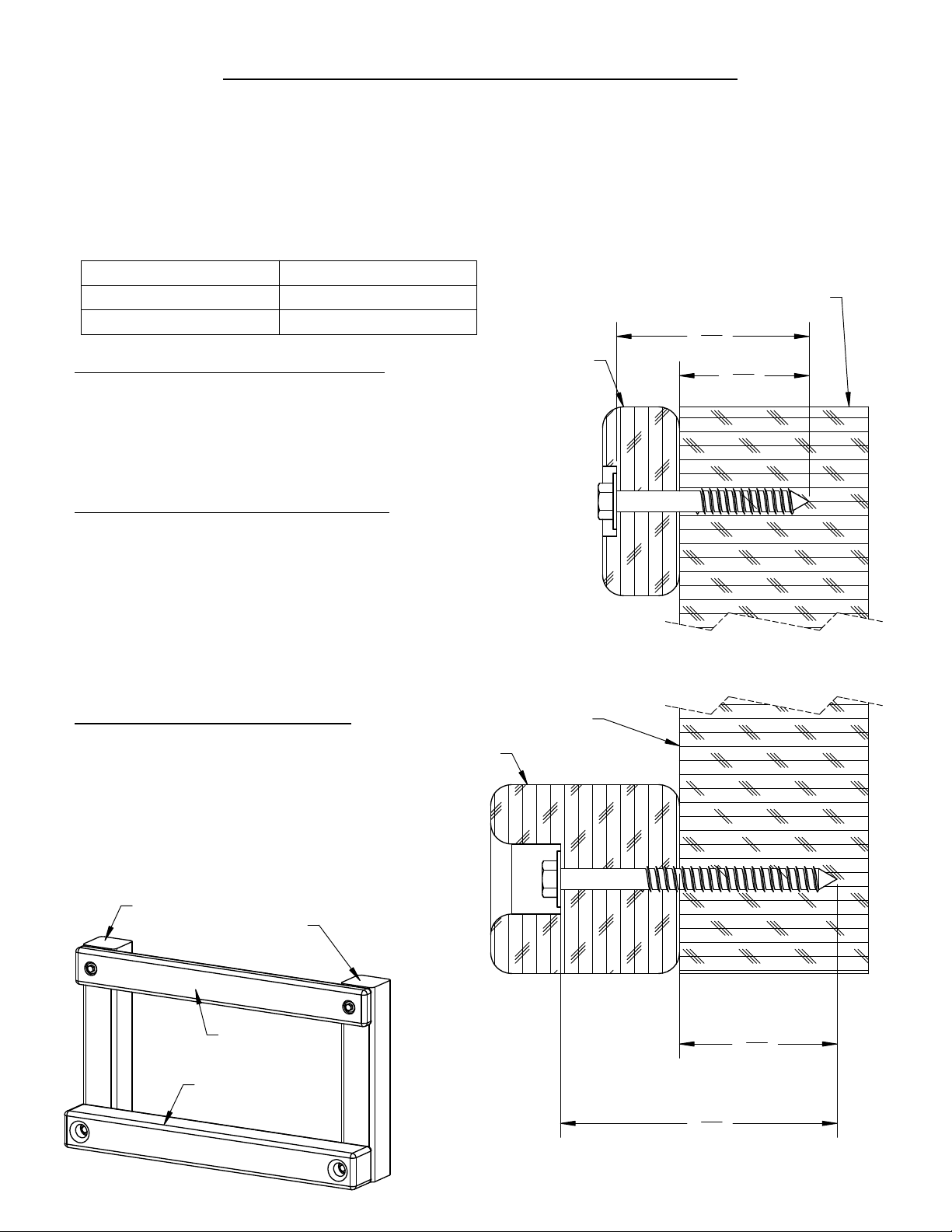

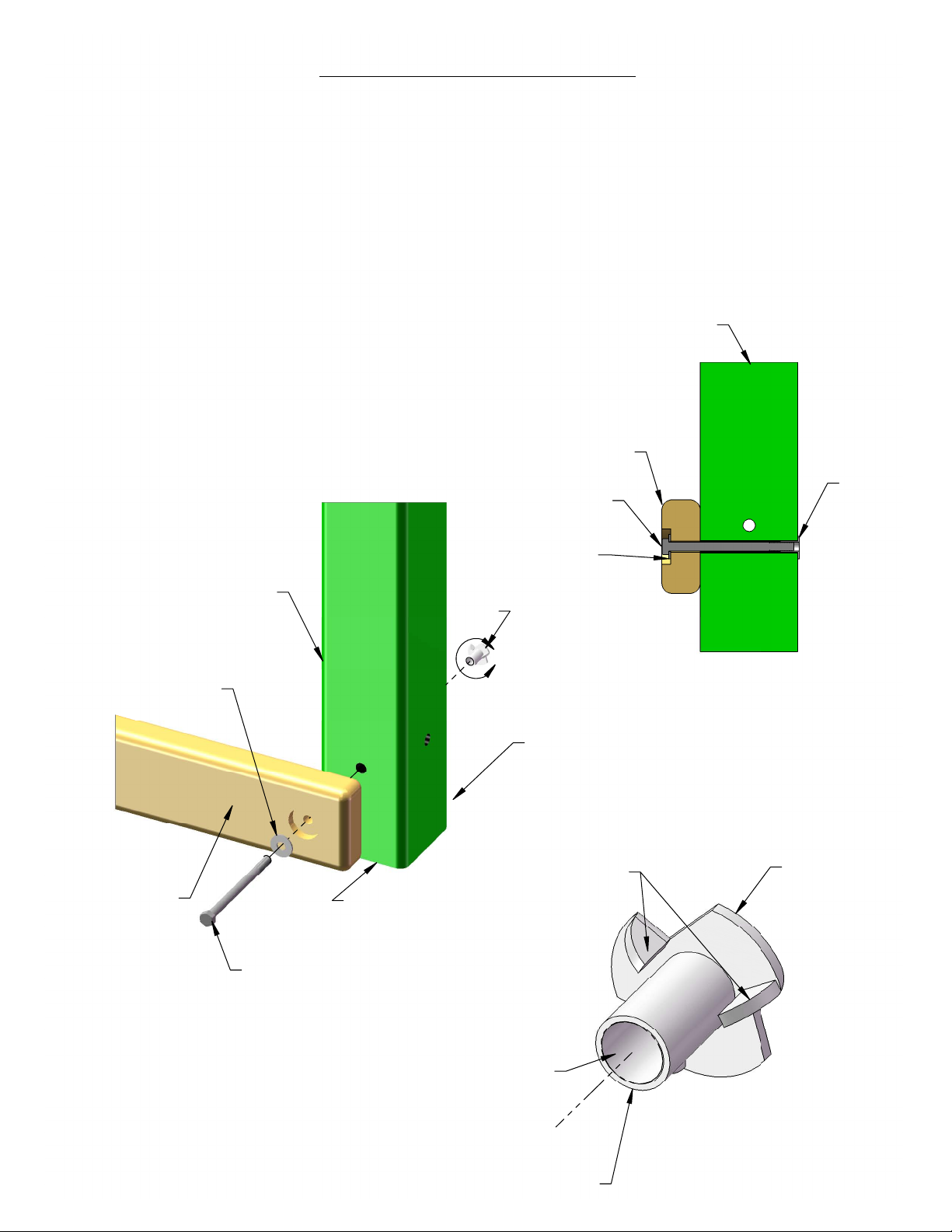

How to Install T-Nuts, Board Identication, Predrill Lag Screw Directions ......Pages 9-12

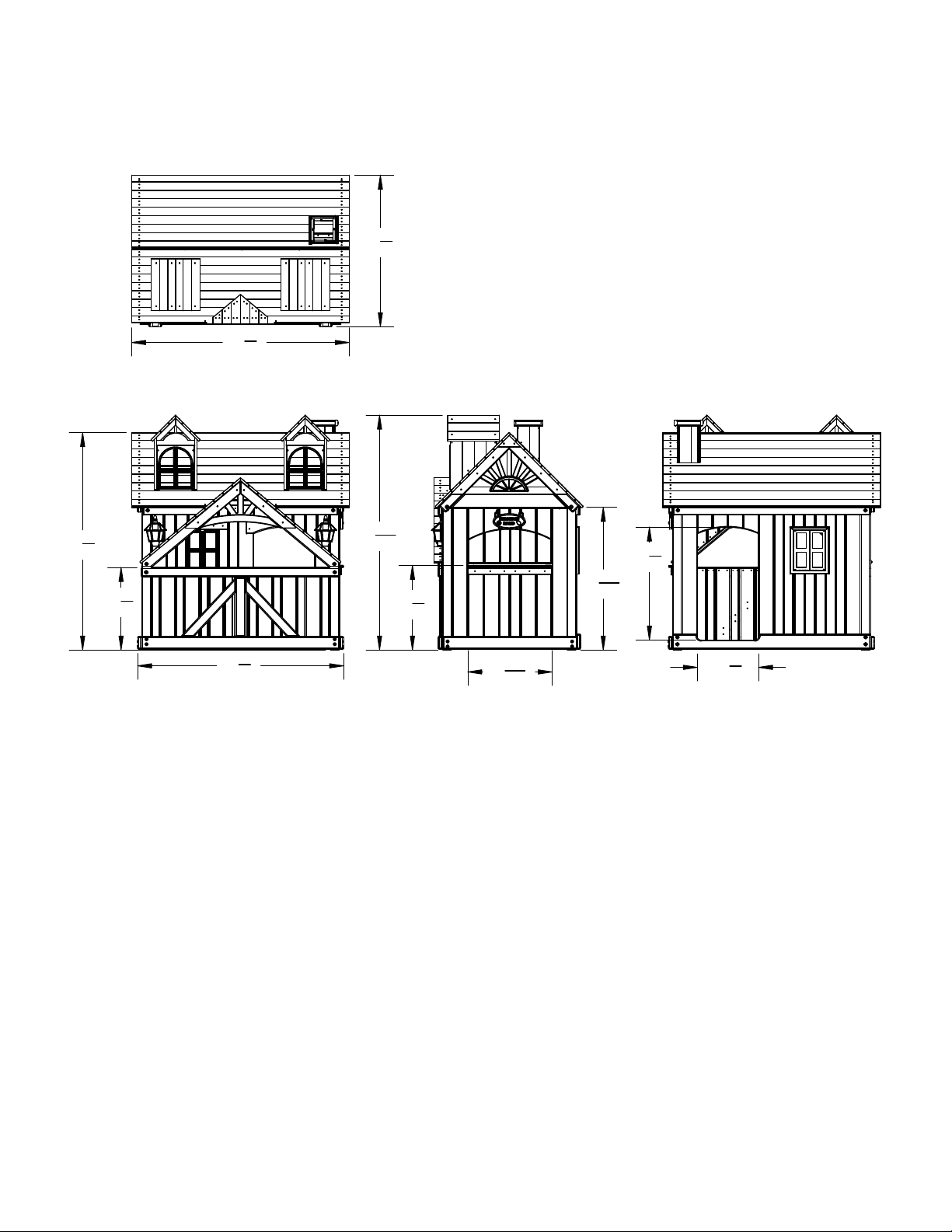

Site Plan, Required Tool List and Kit Contents………..………...….................Pages 13-14

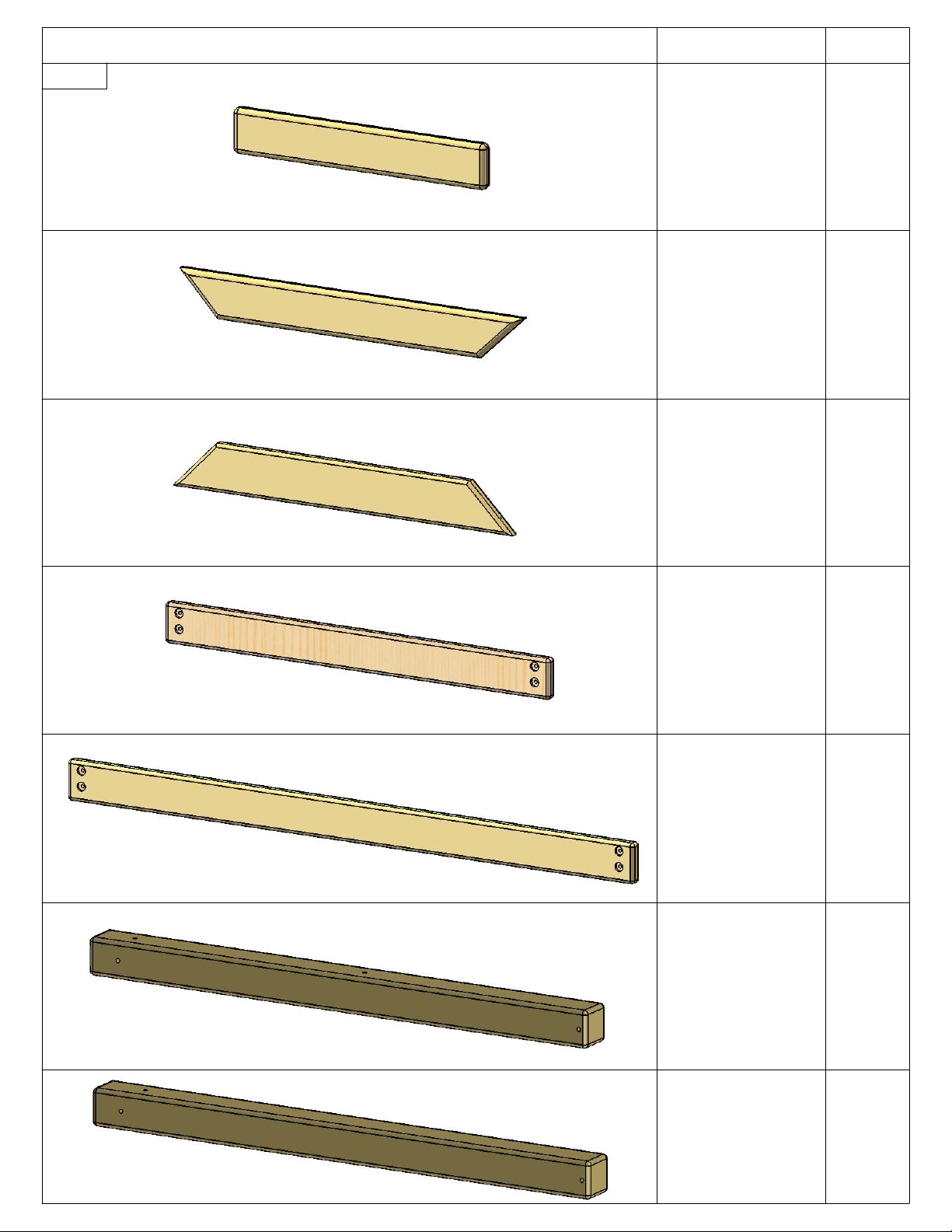

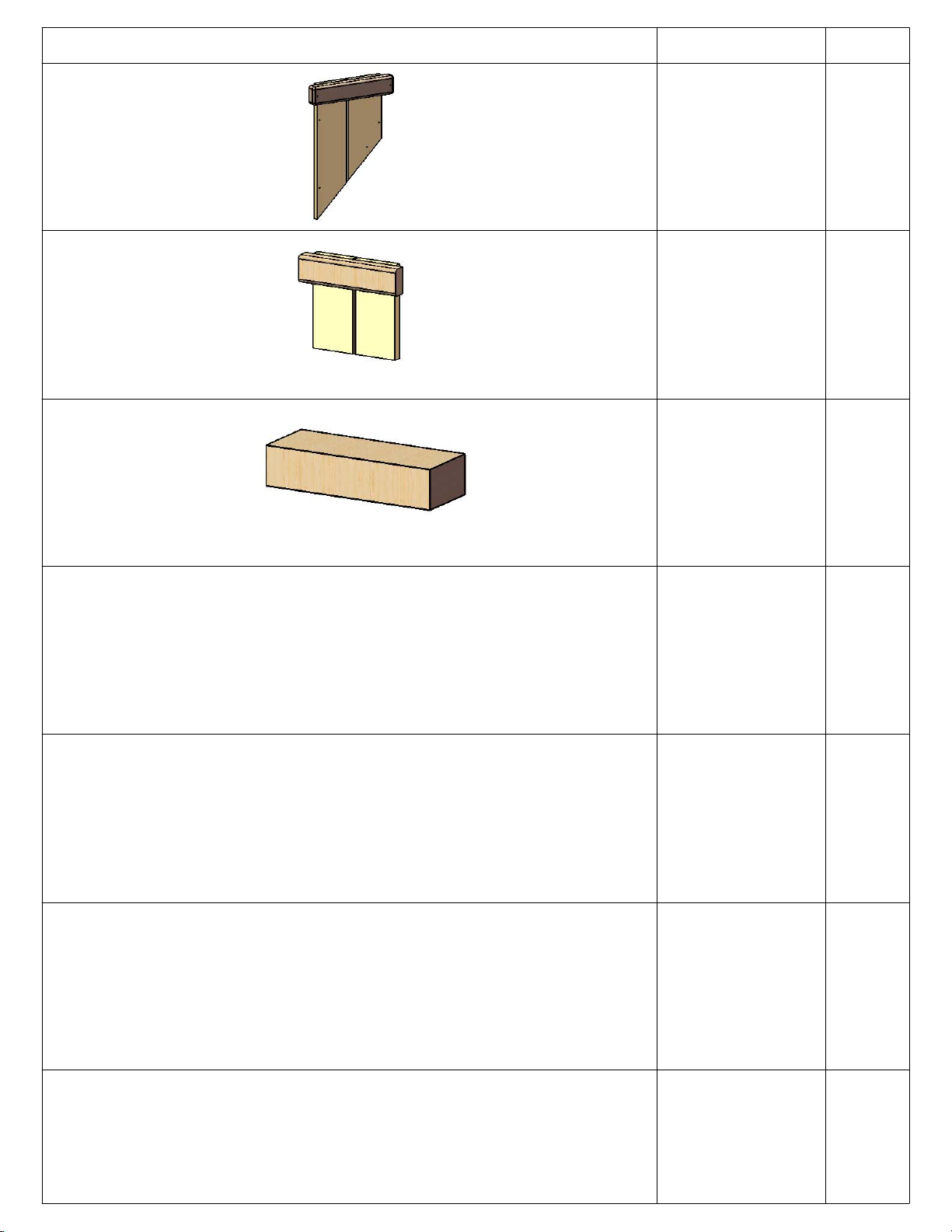

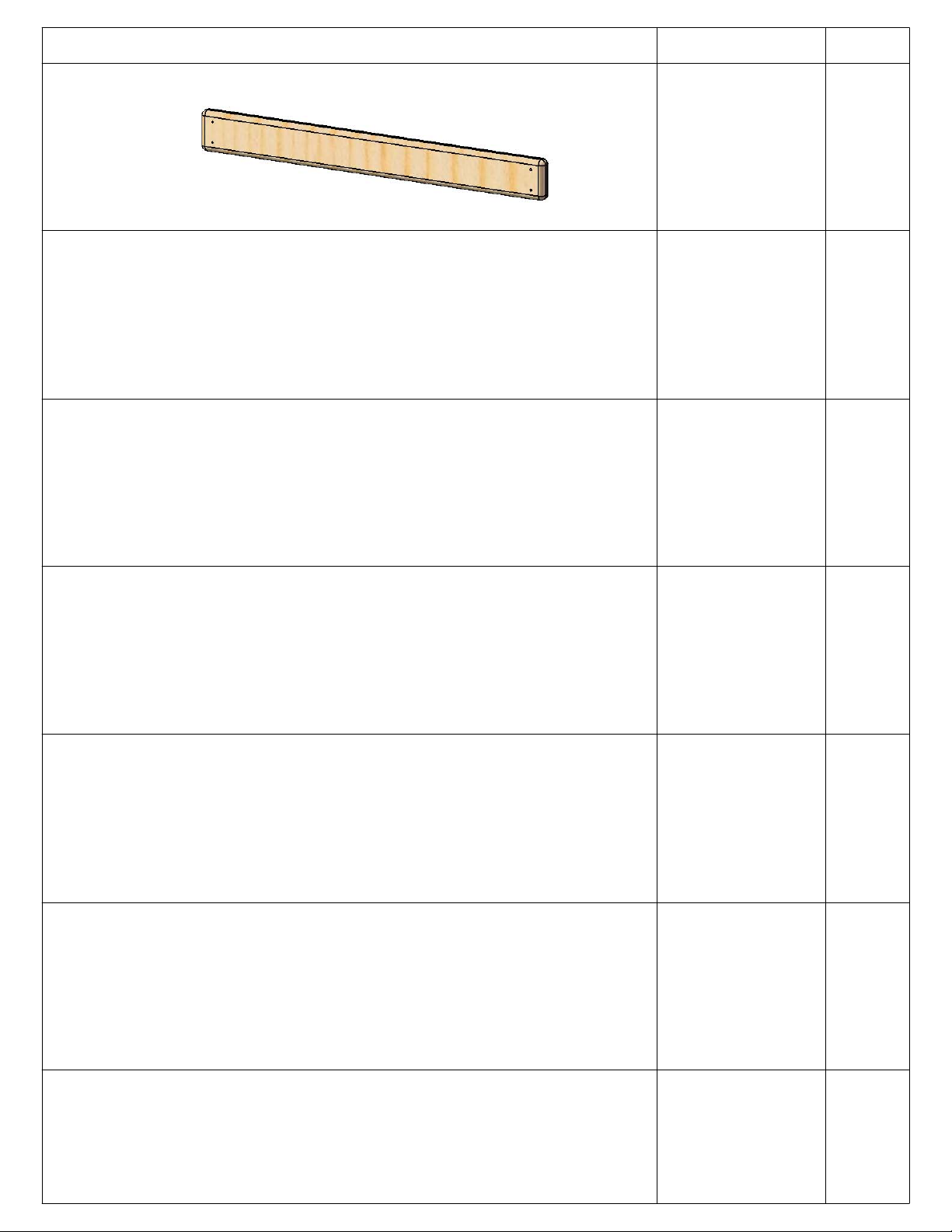

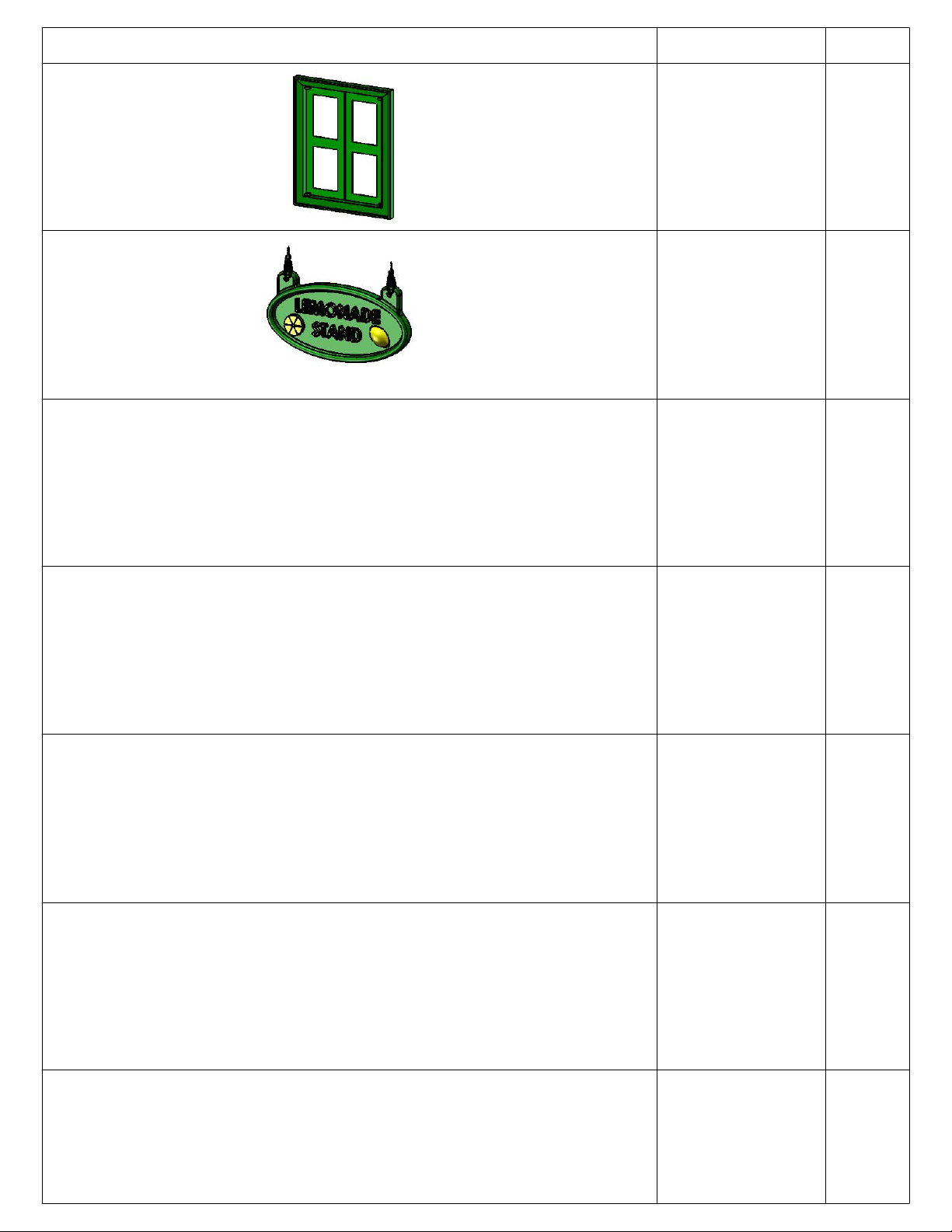

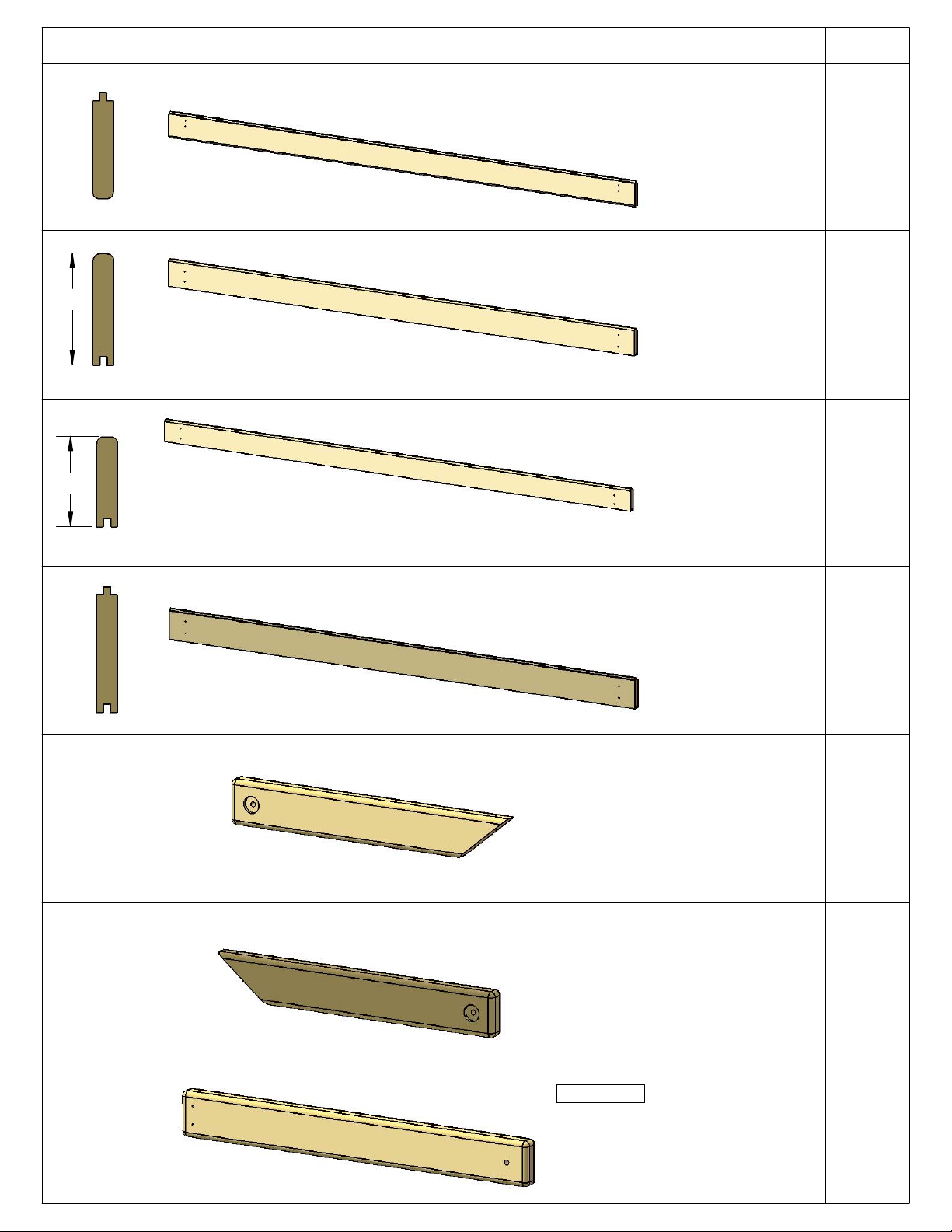

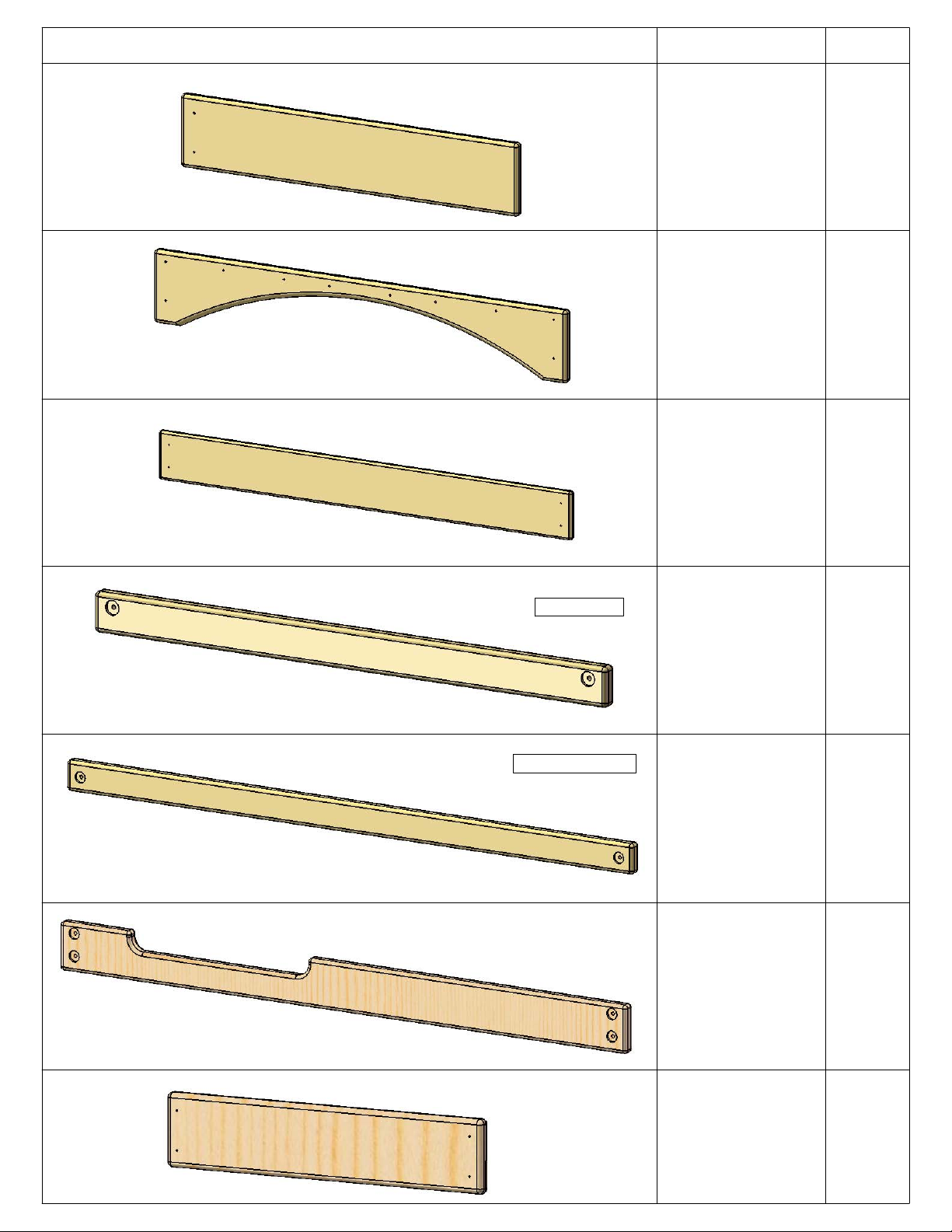

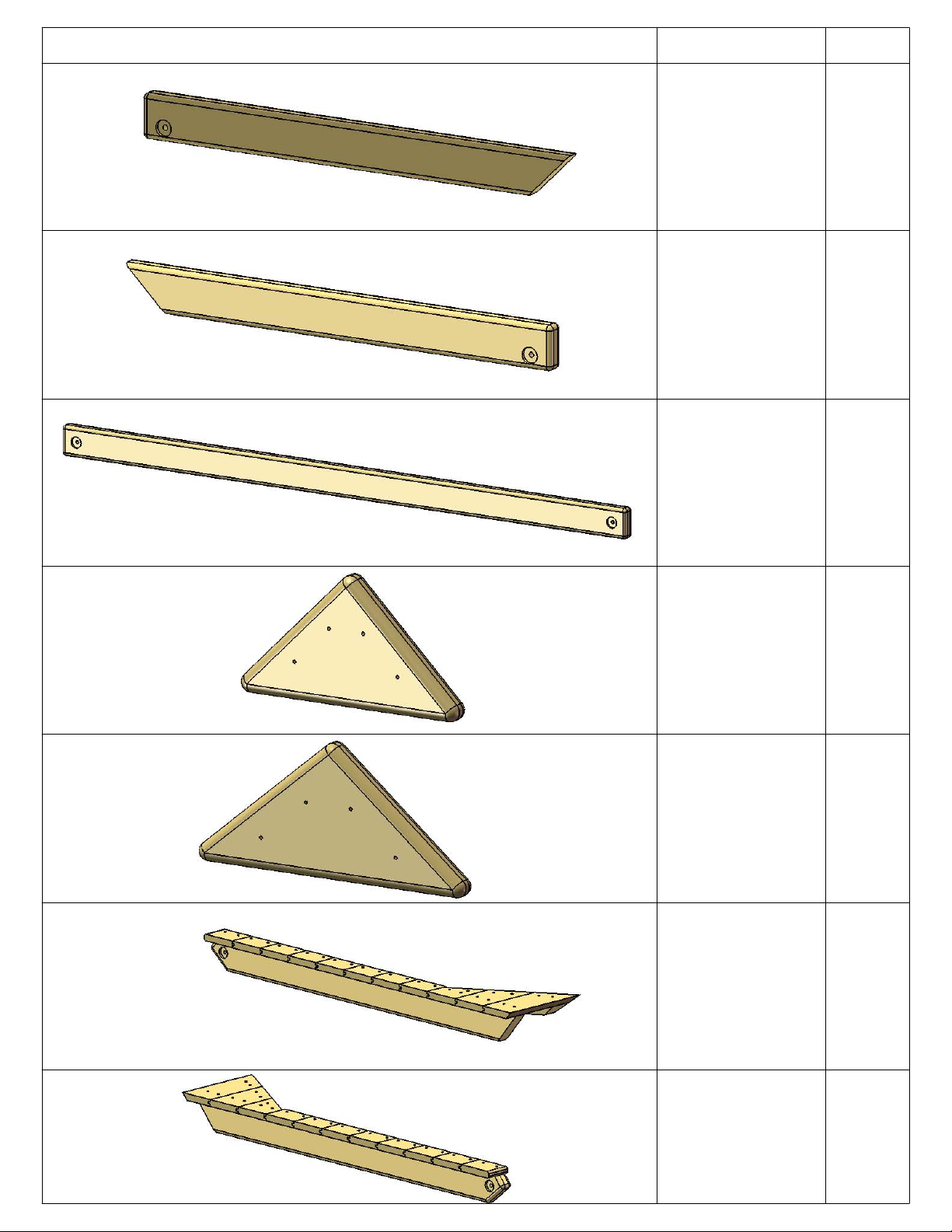

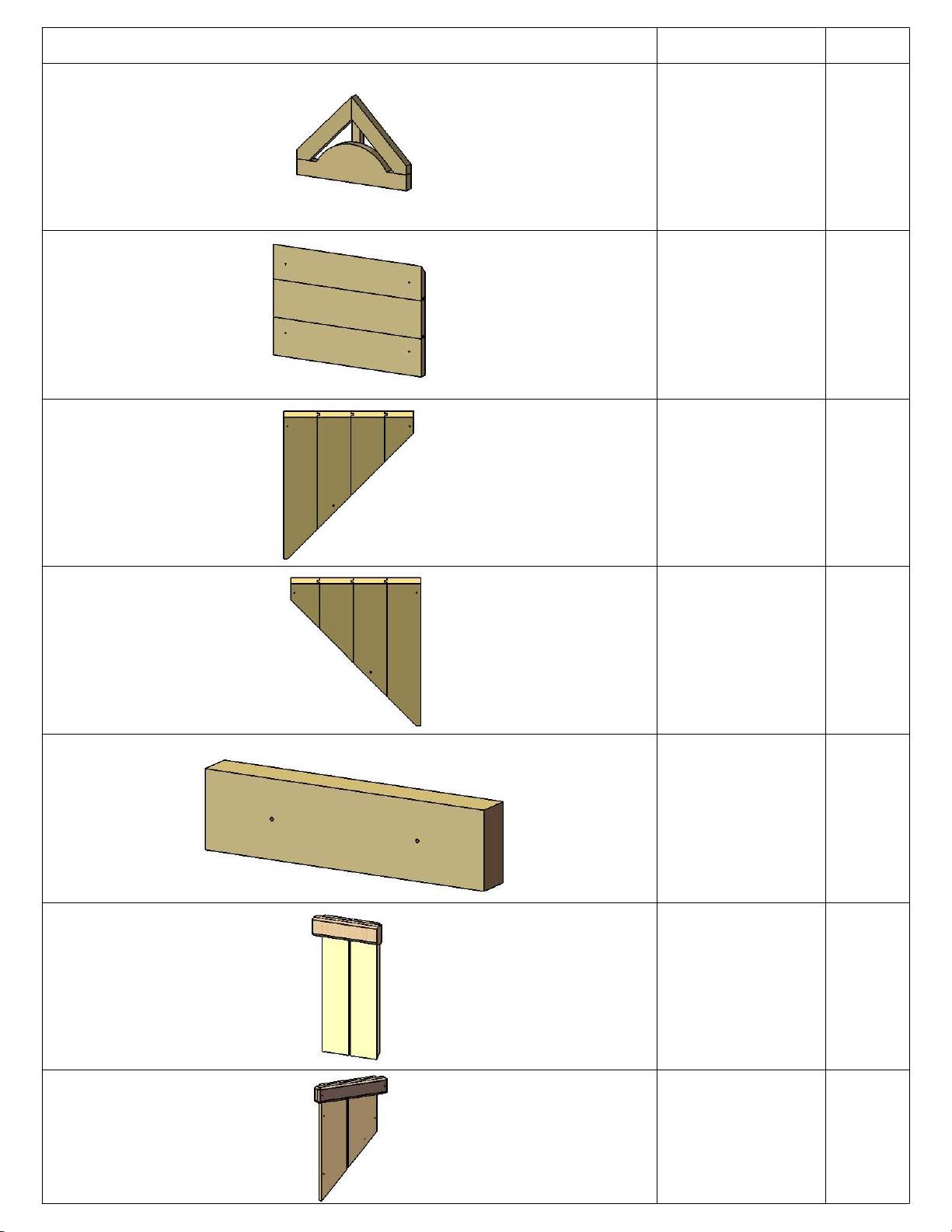

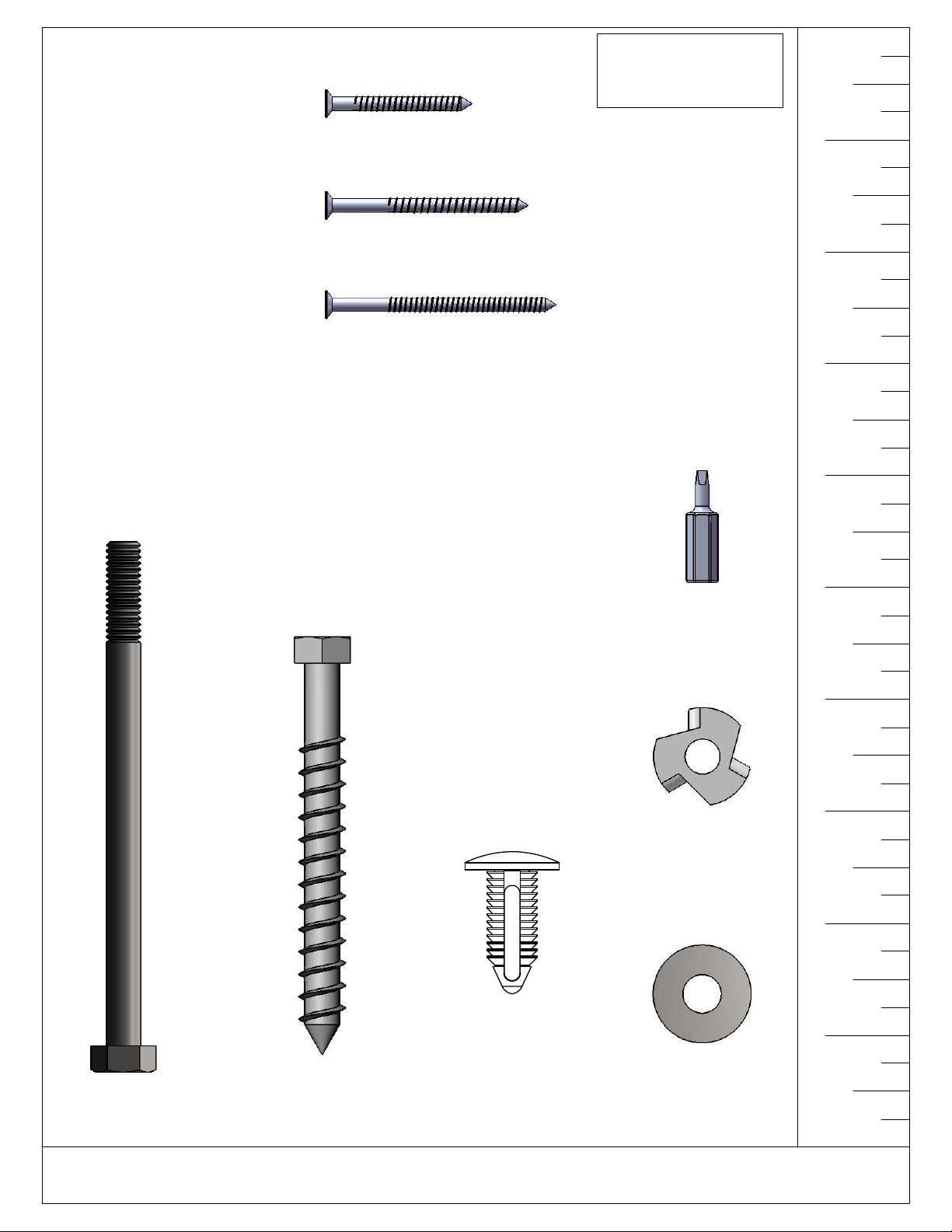

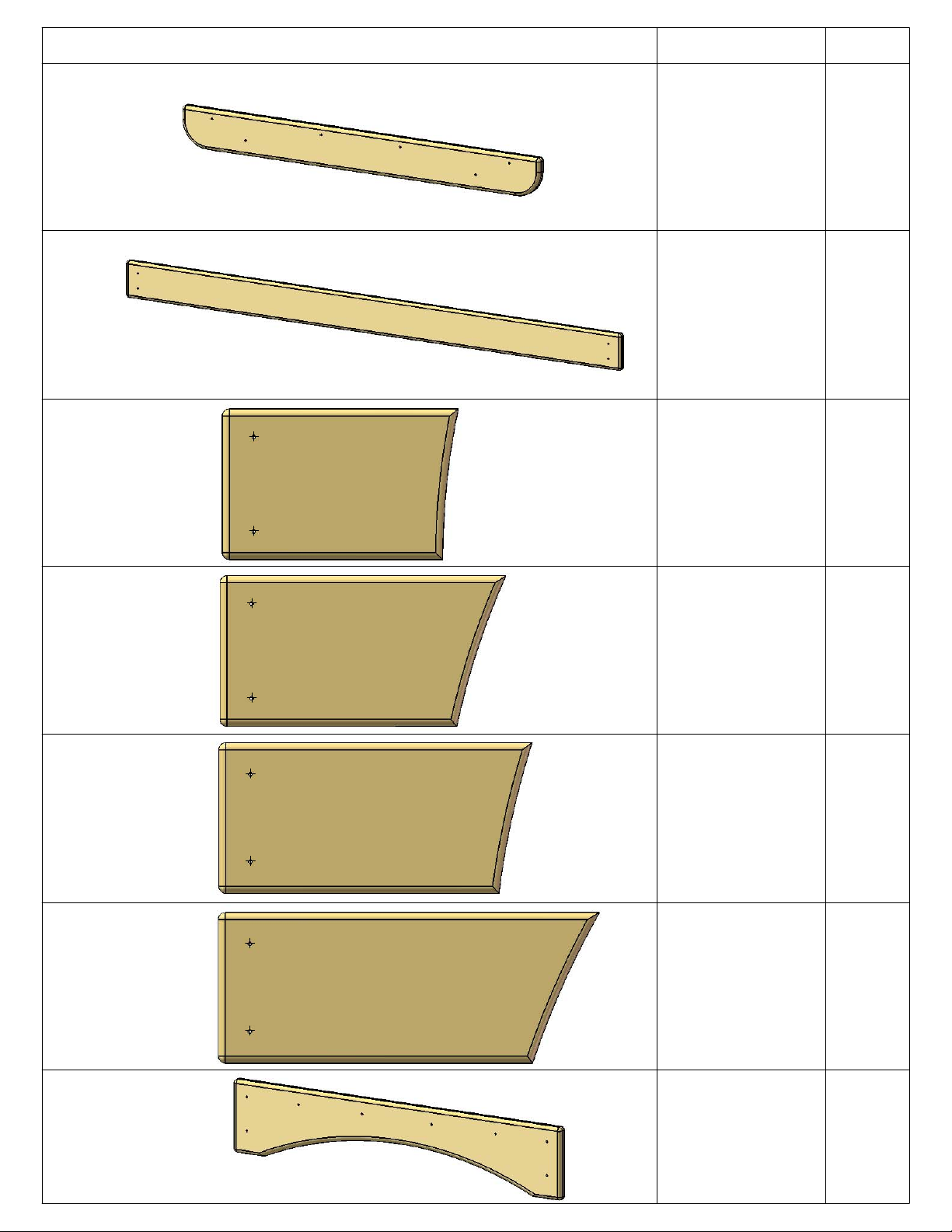

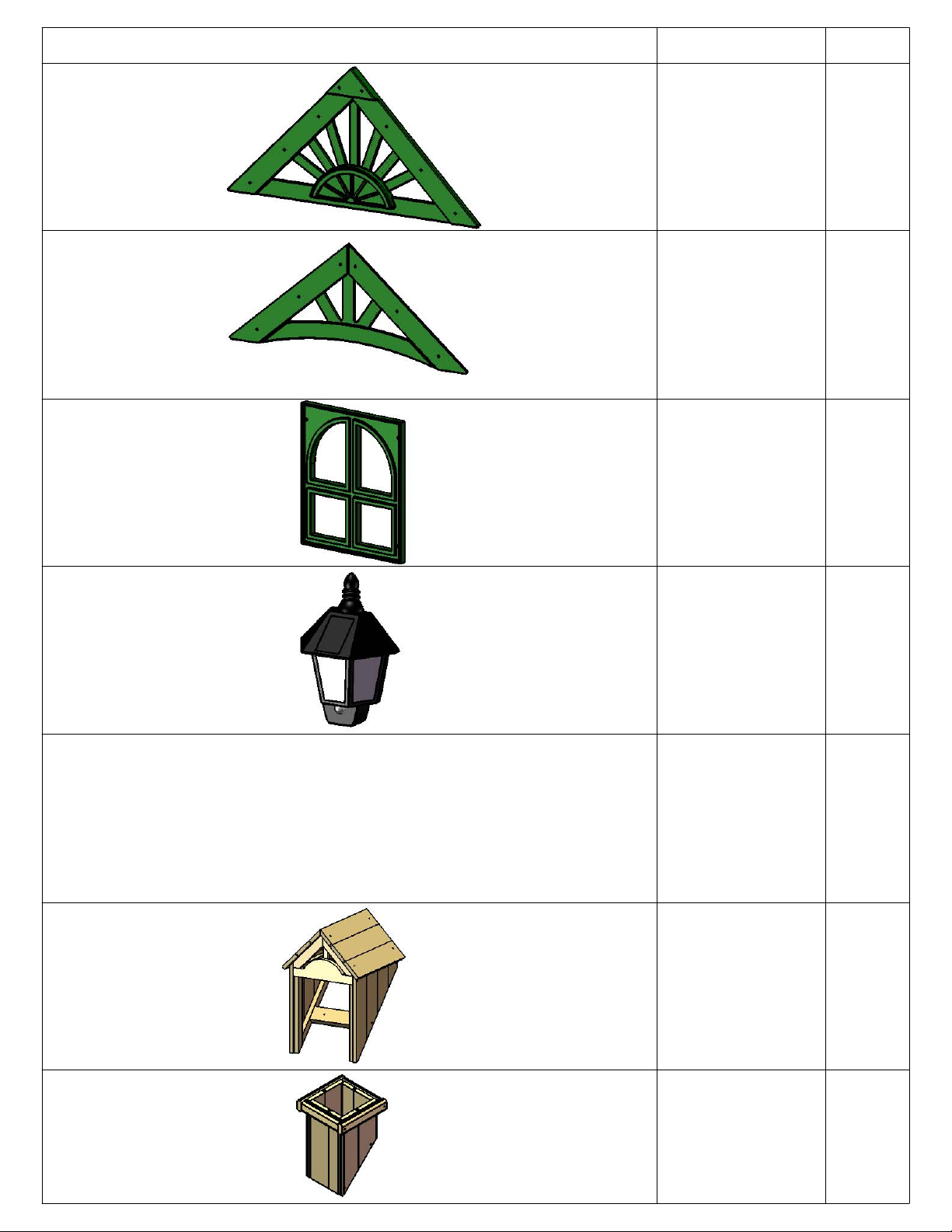

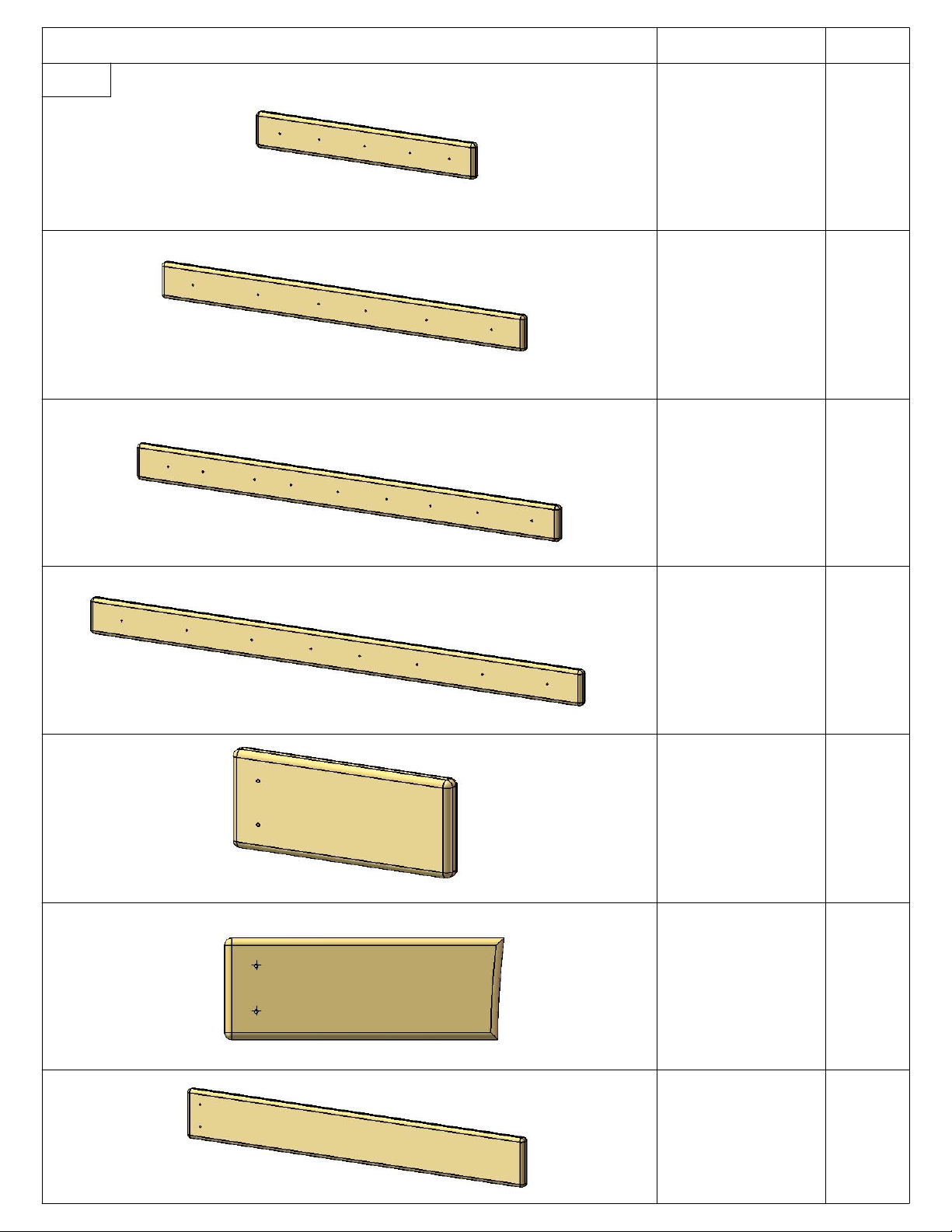

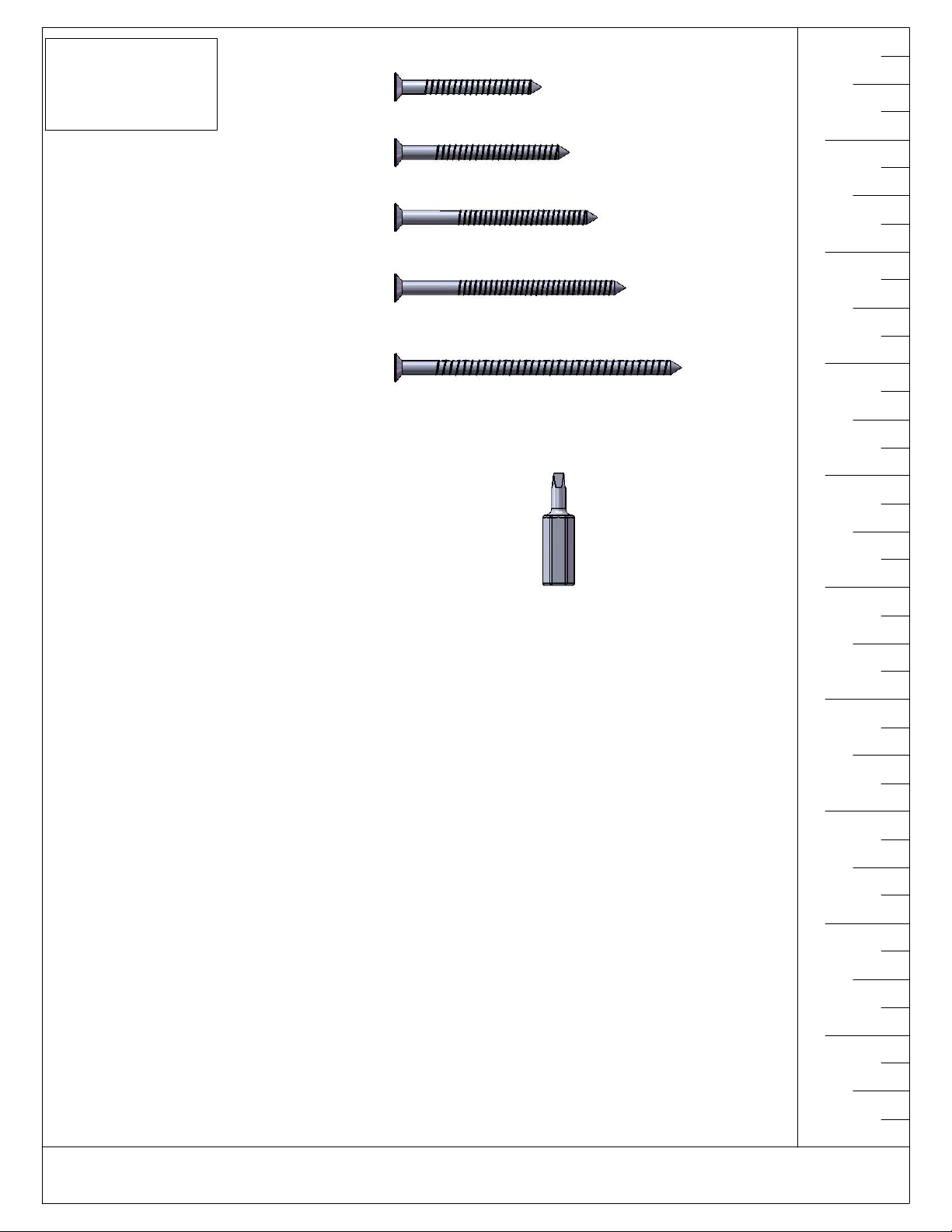

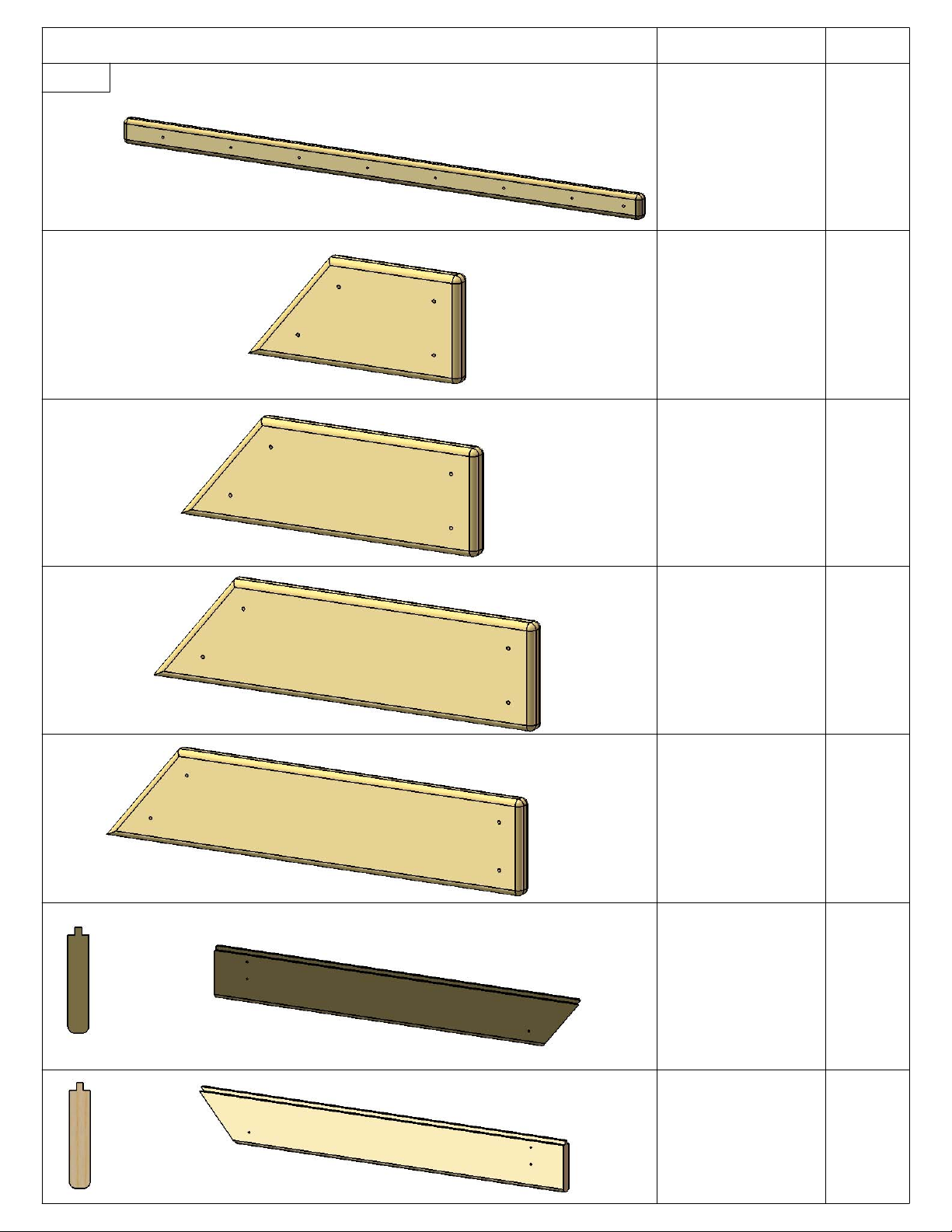

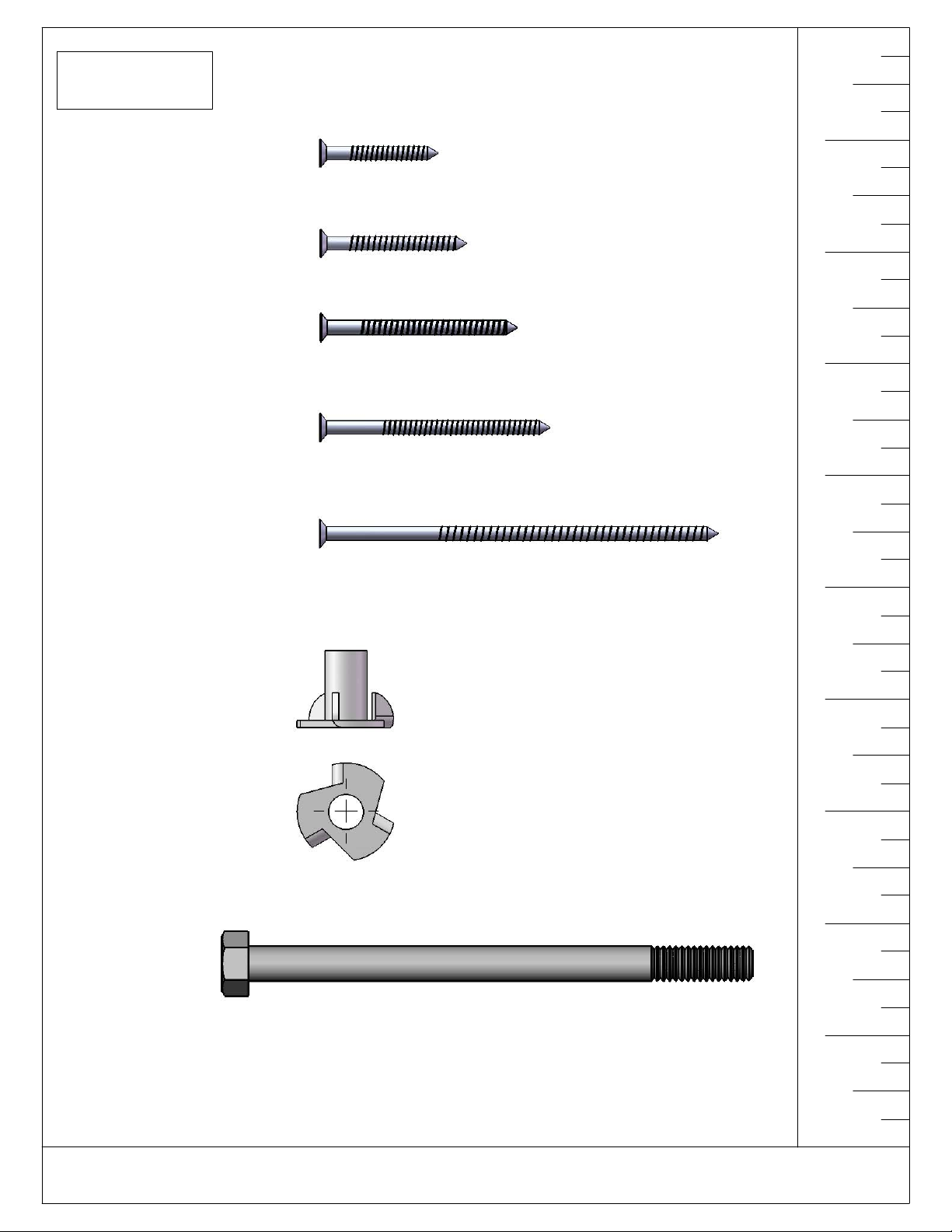

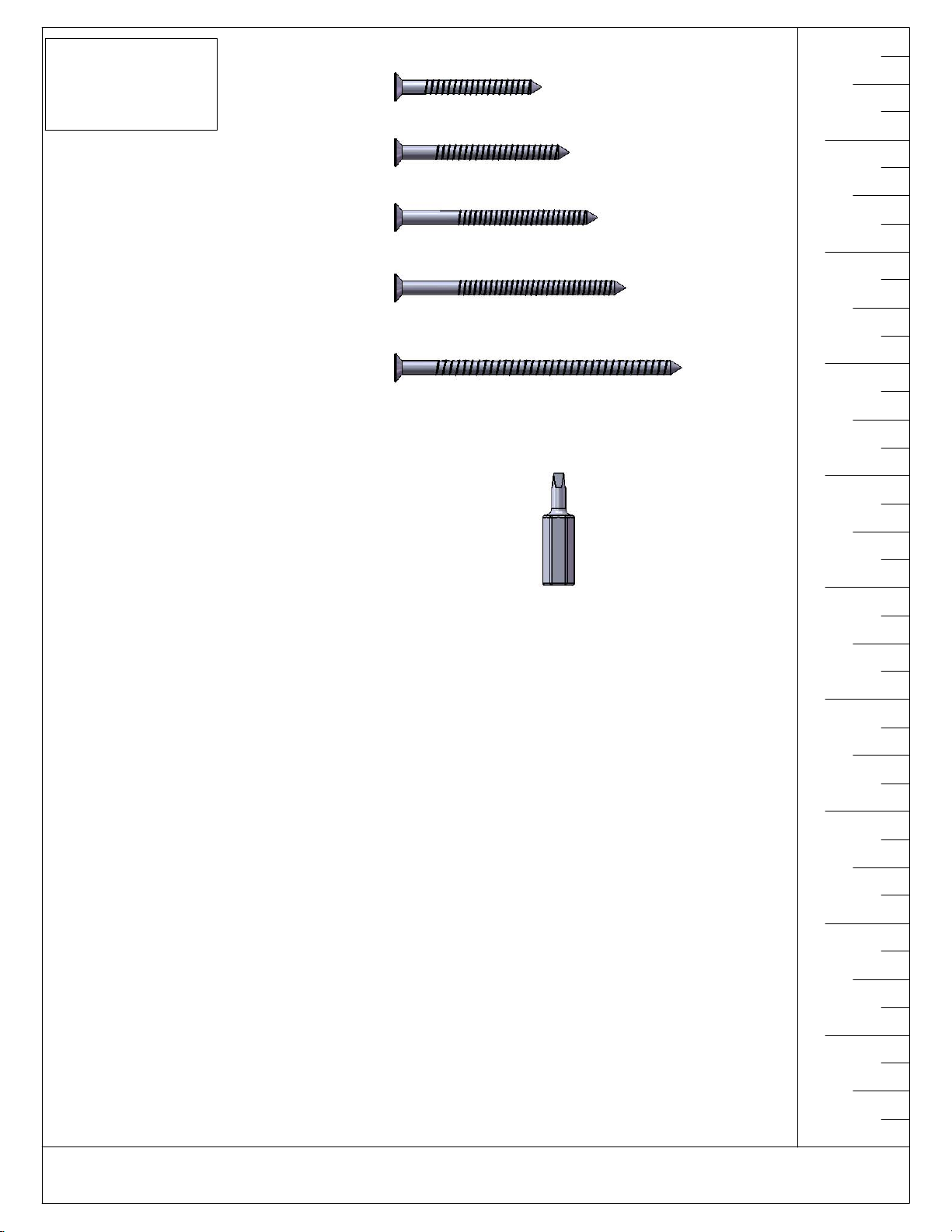

Hardware, Lumber and Accessory Checklists.…………………………..….....Pages 15-28

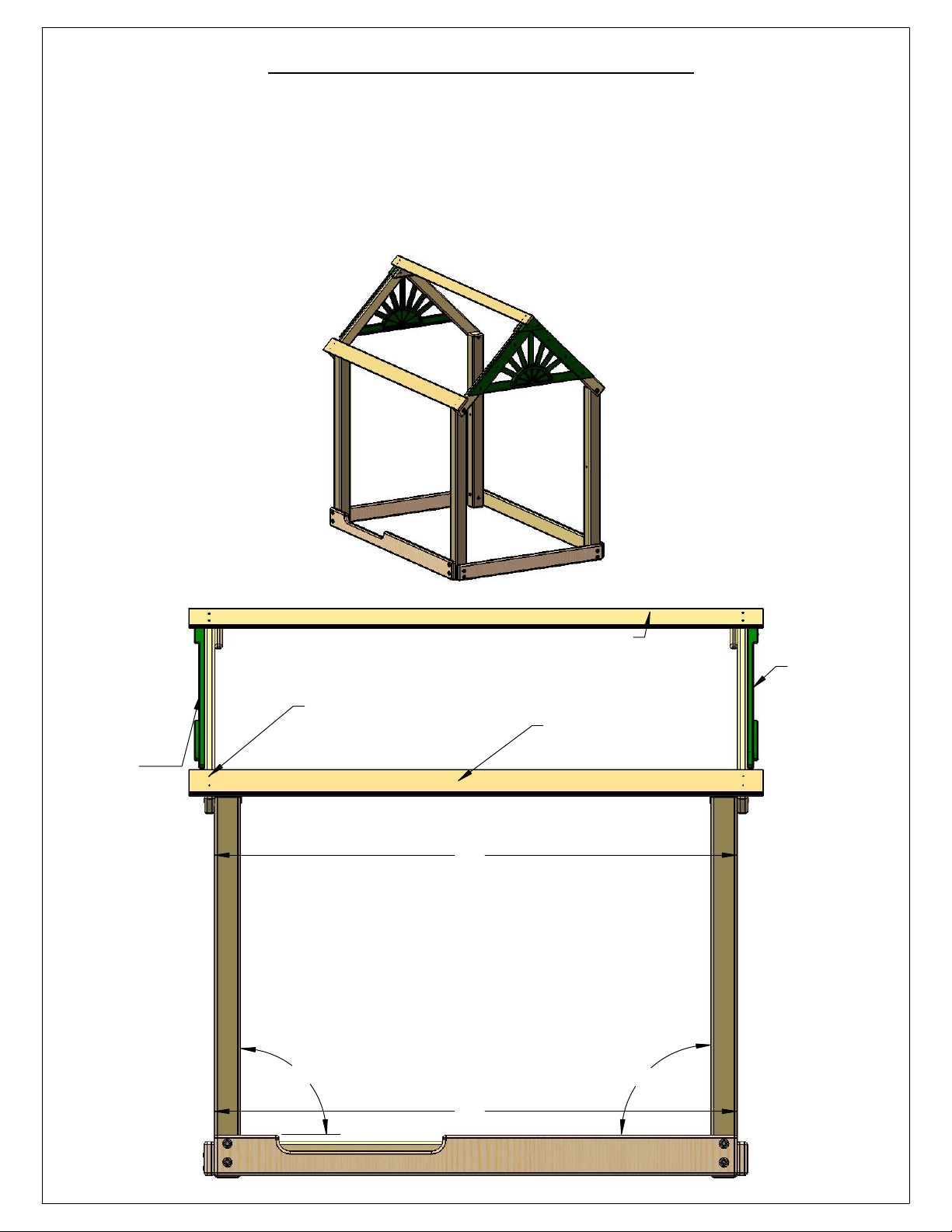

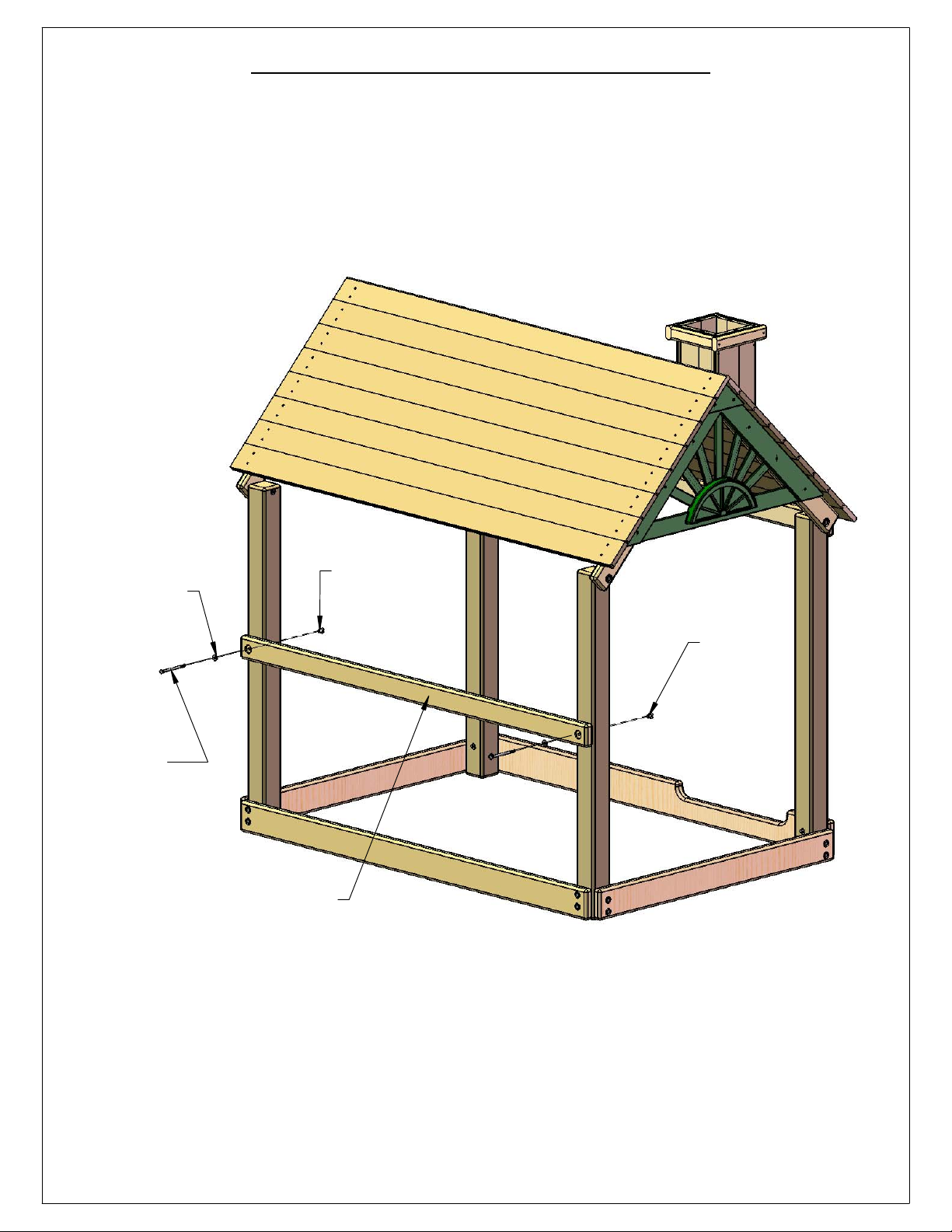

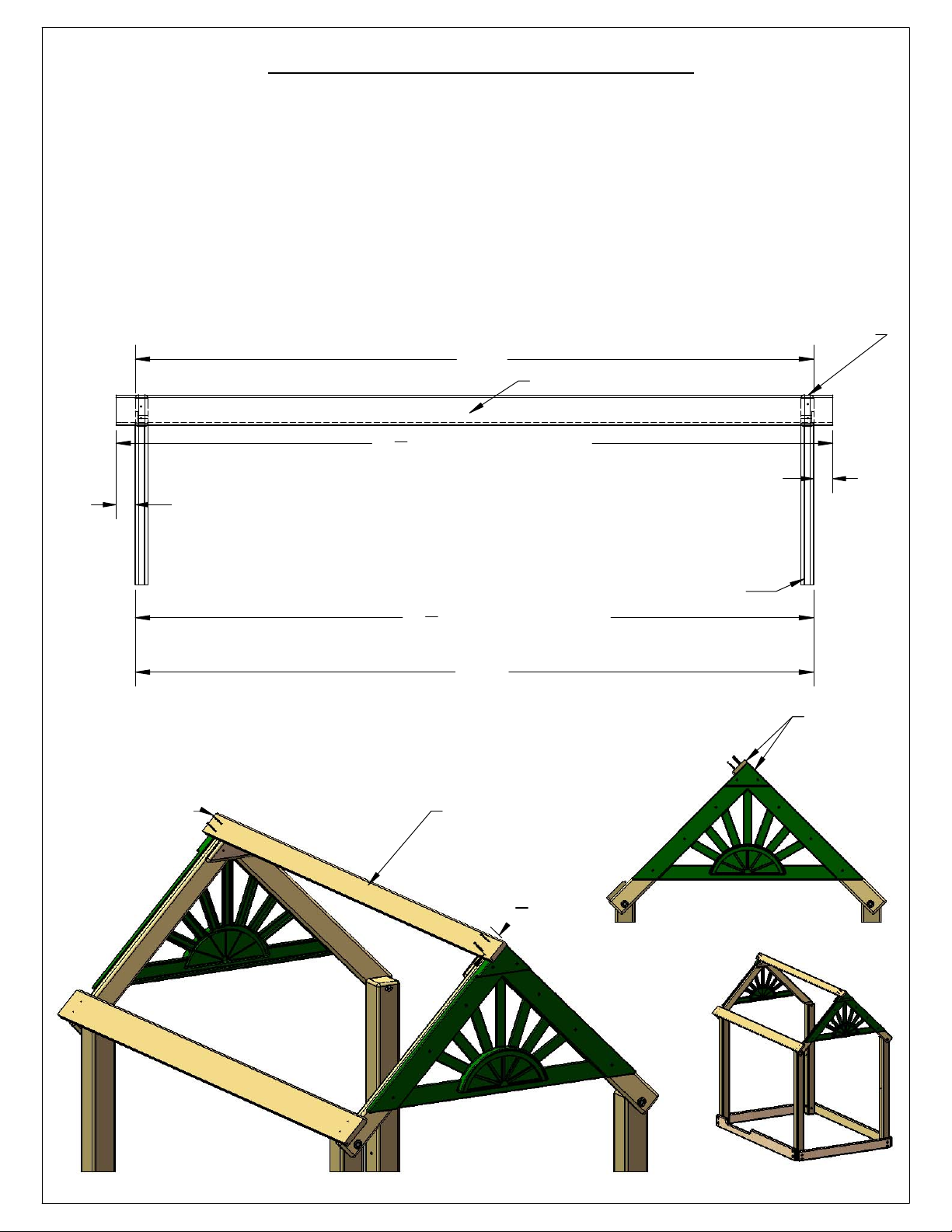

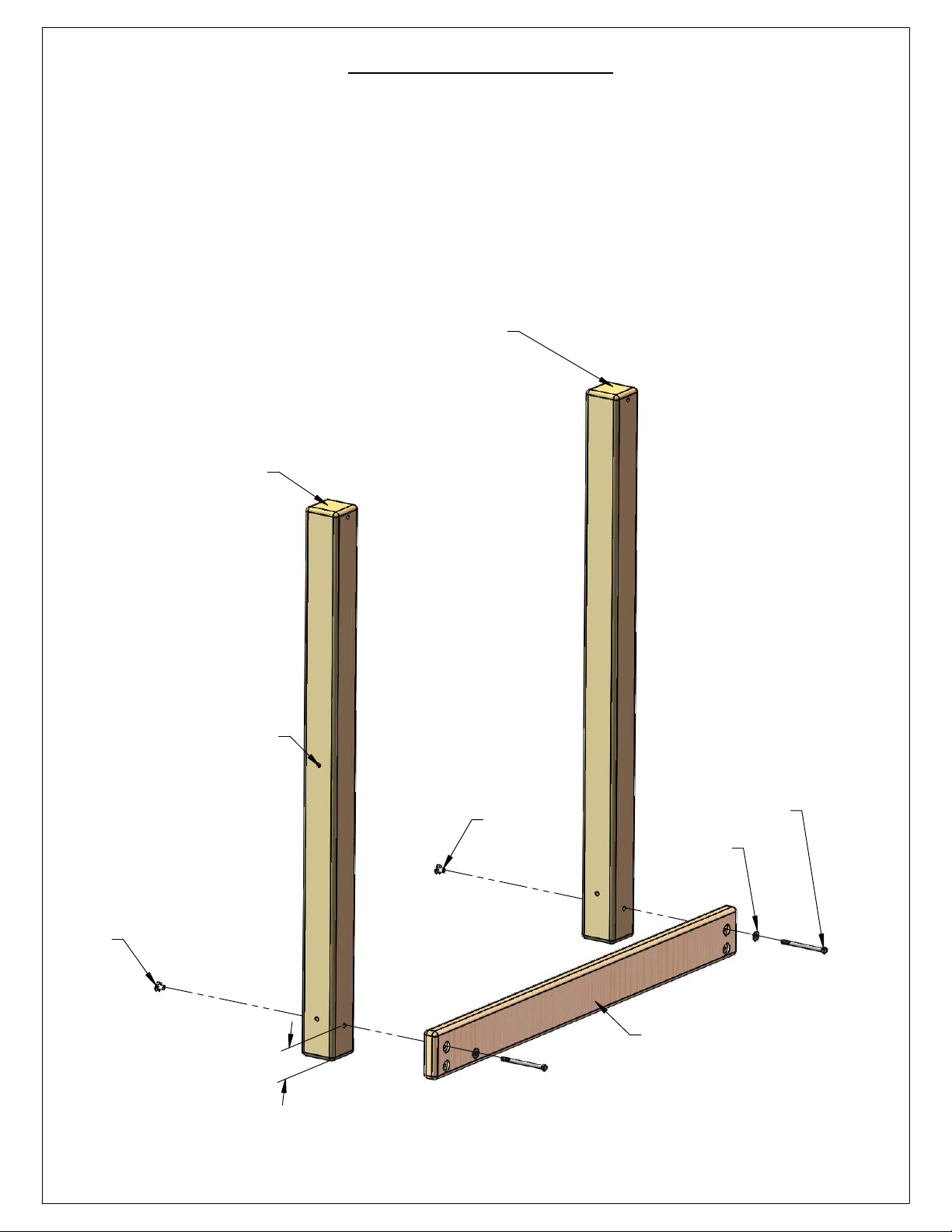

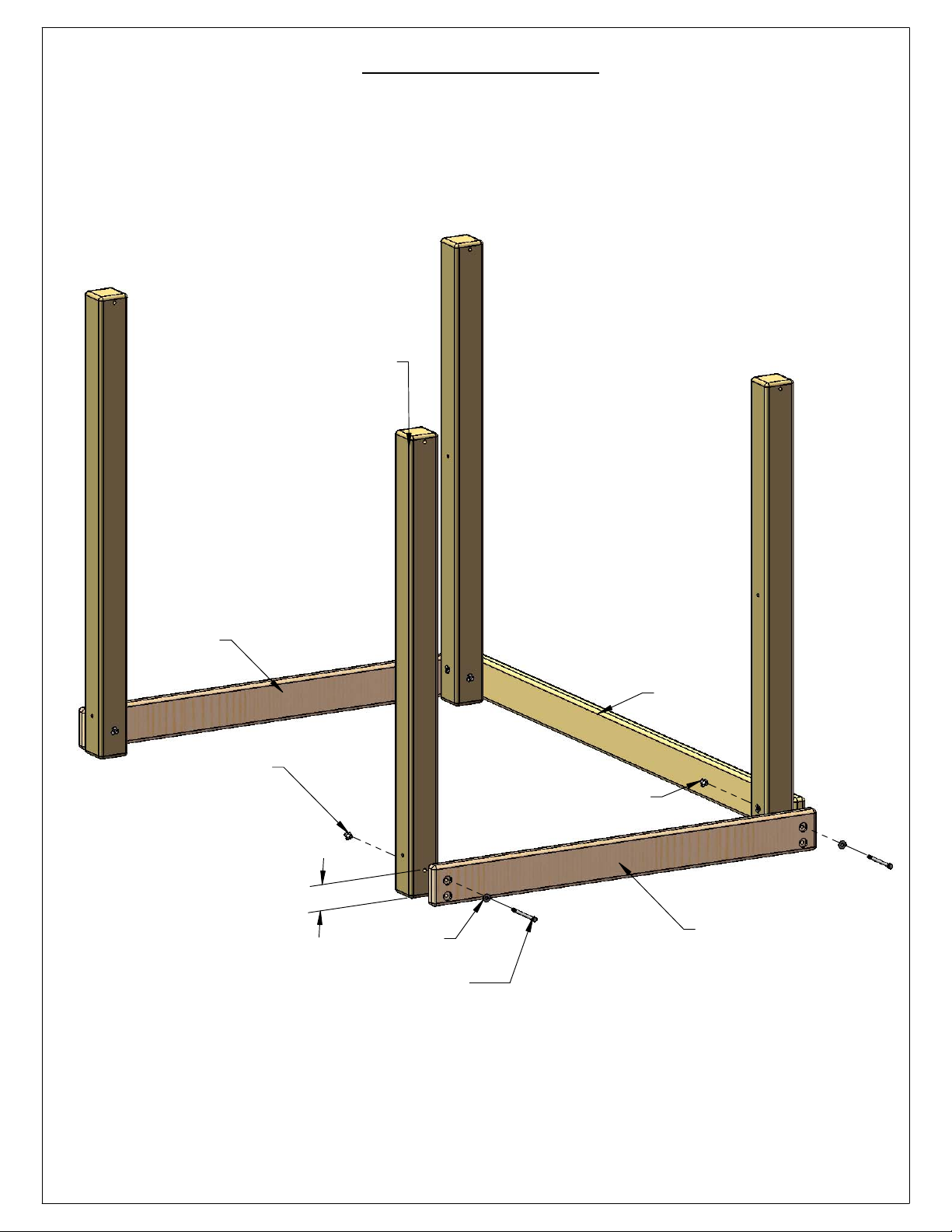

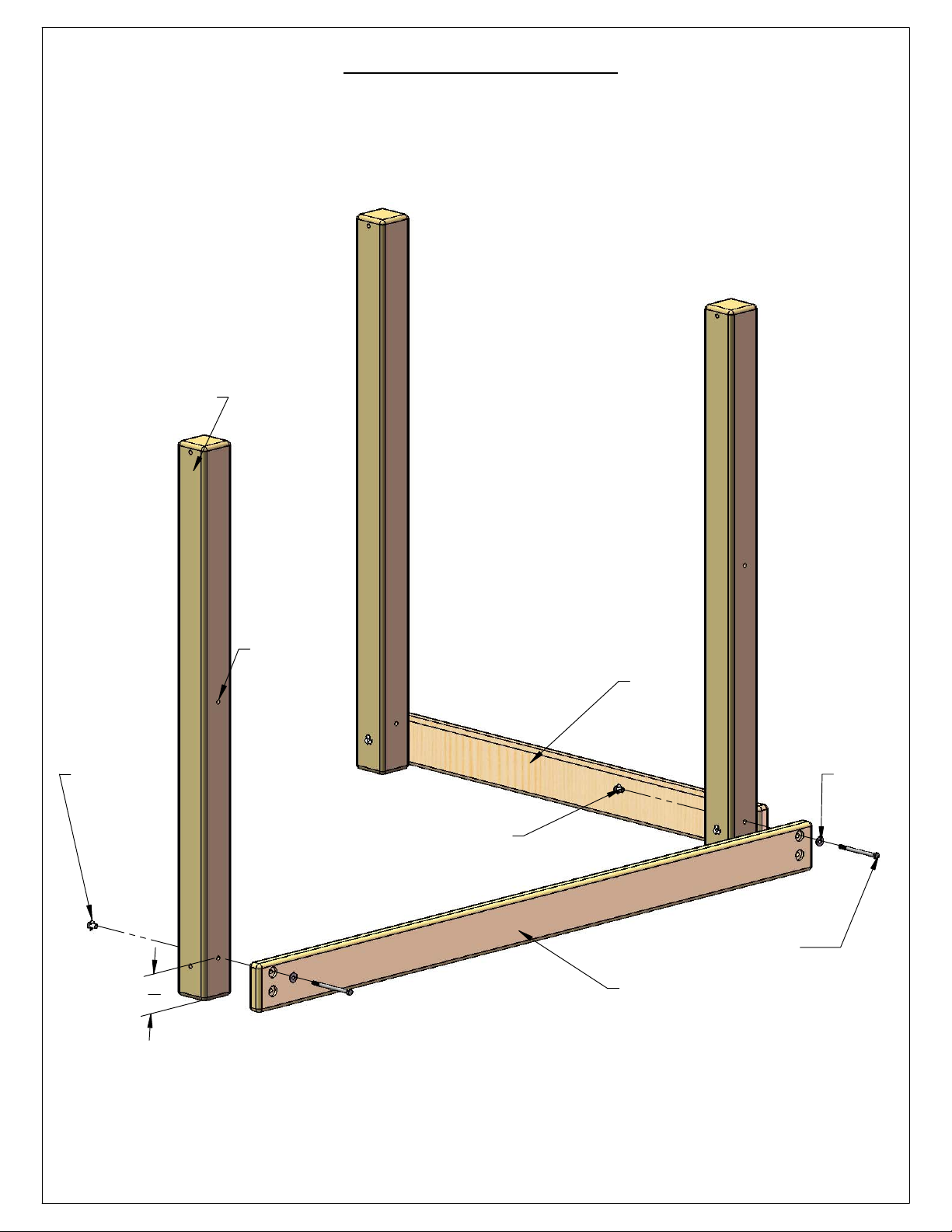

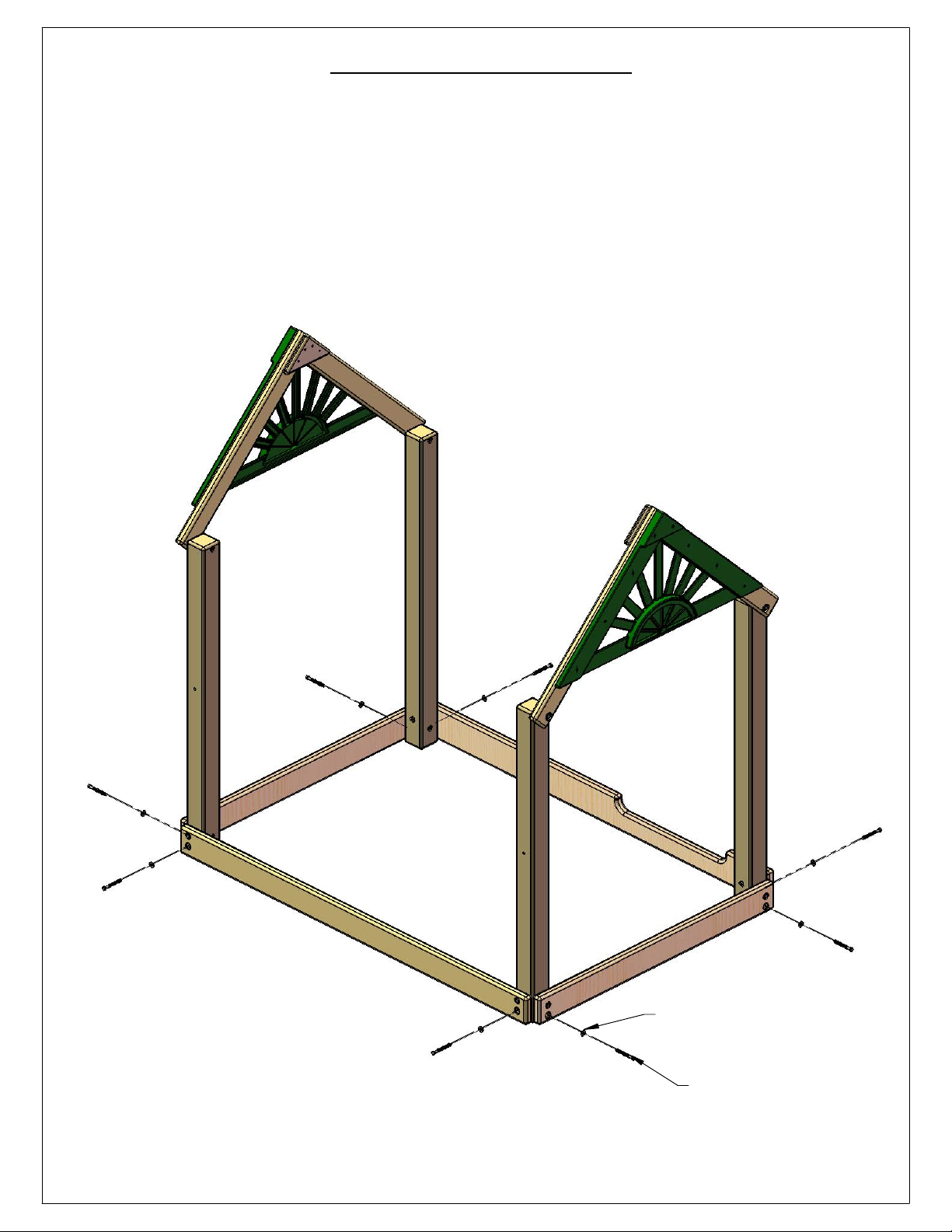

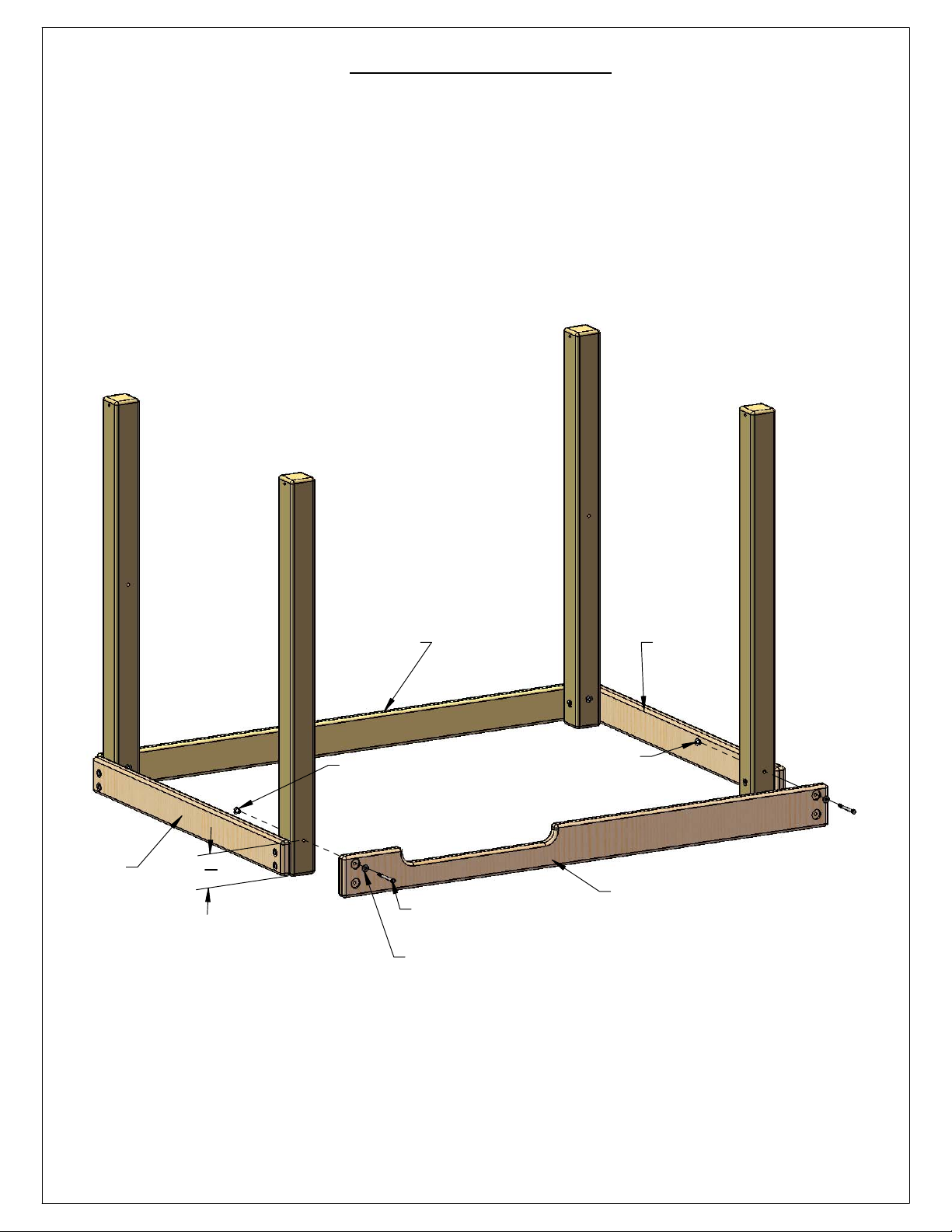

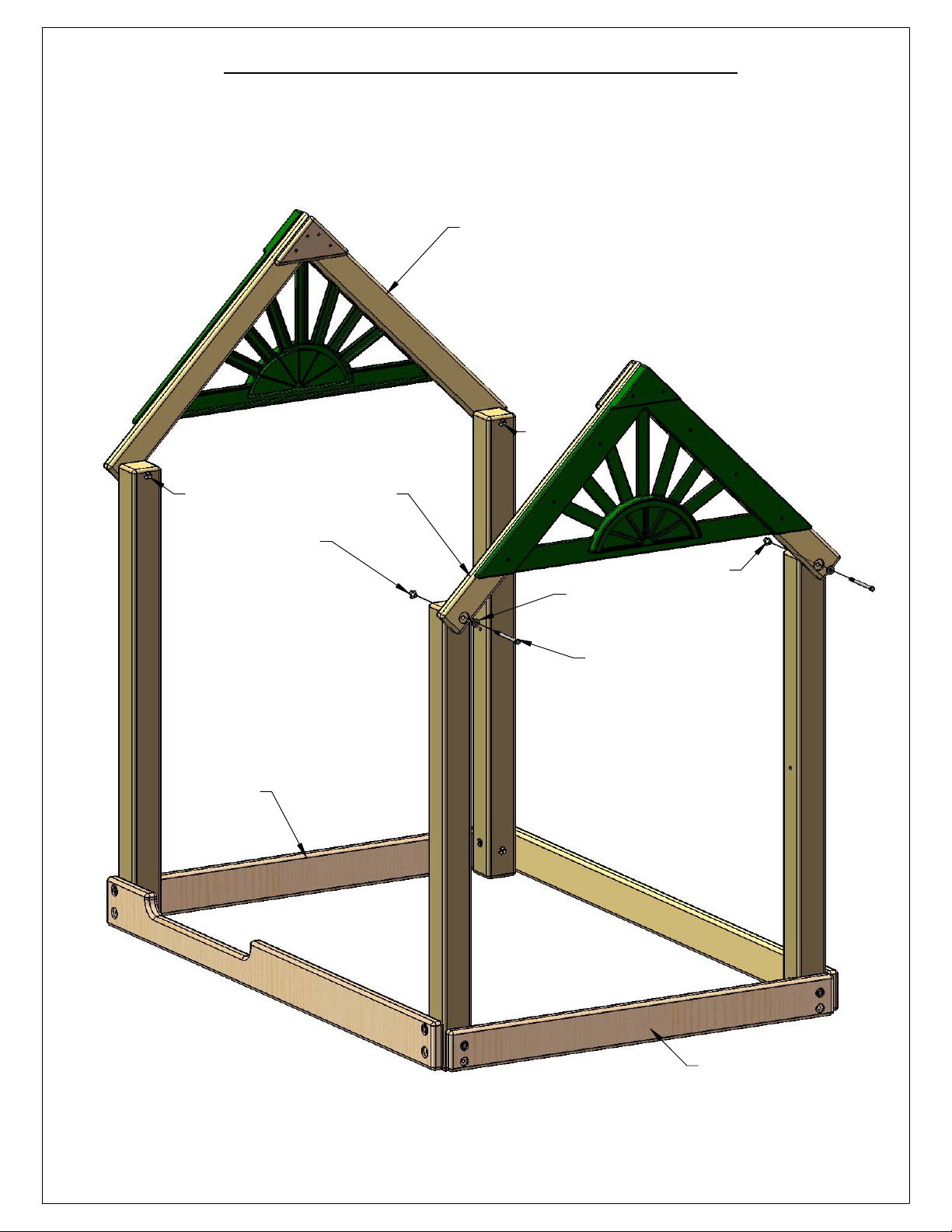

Framing the Playhouse……………………....……………….…………...….......... Steps 1-9

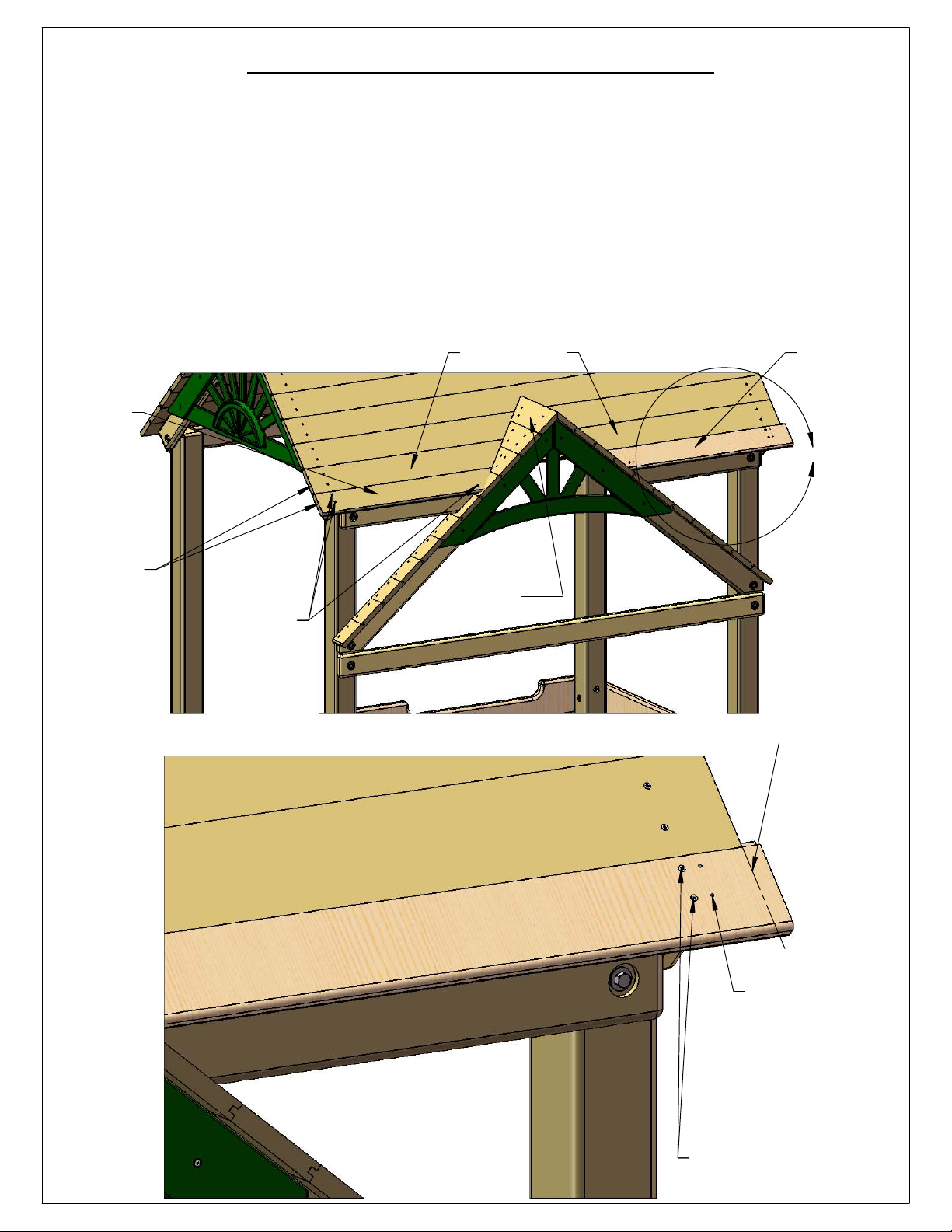

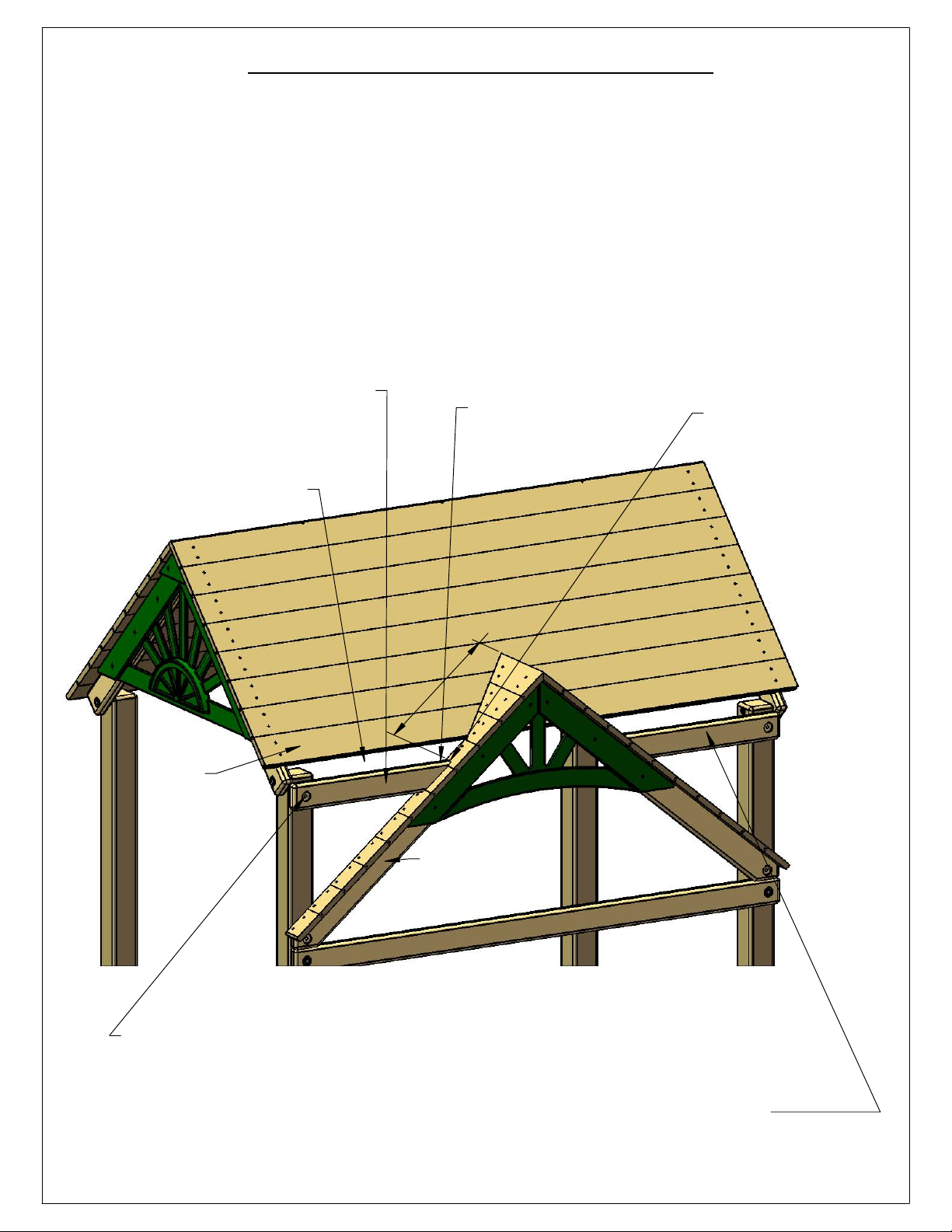

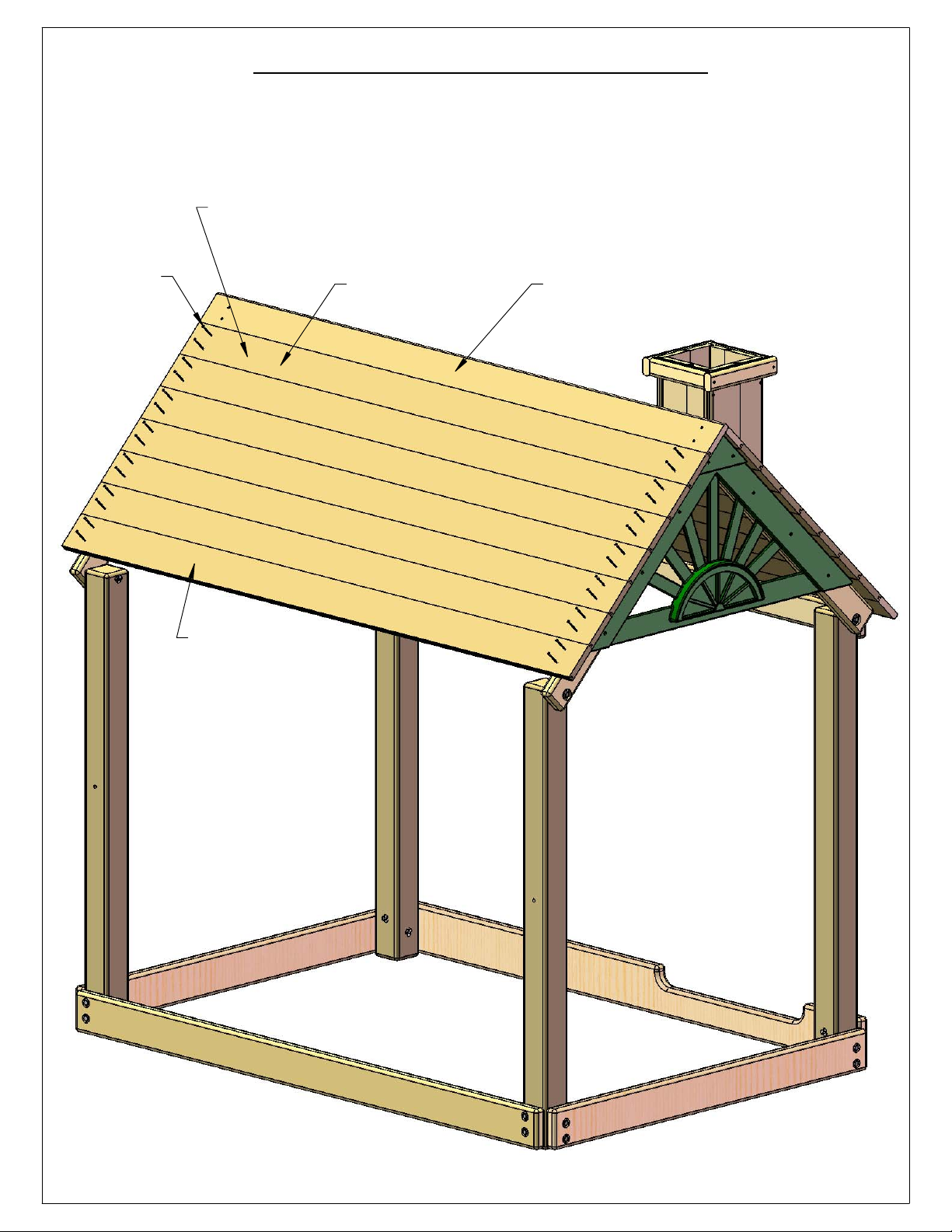

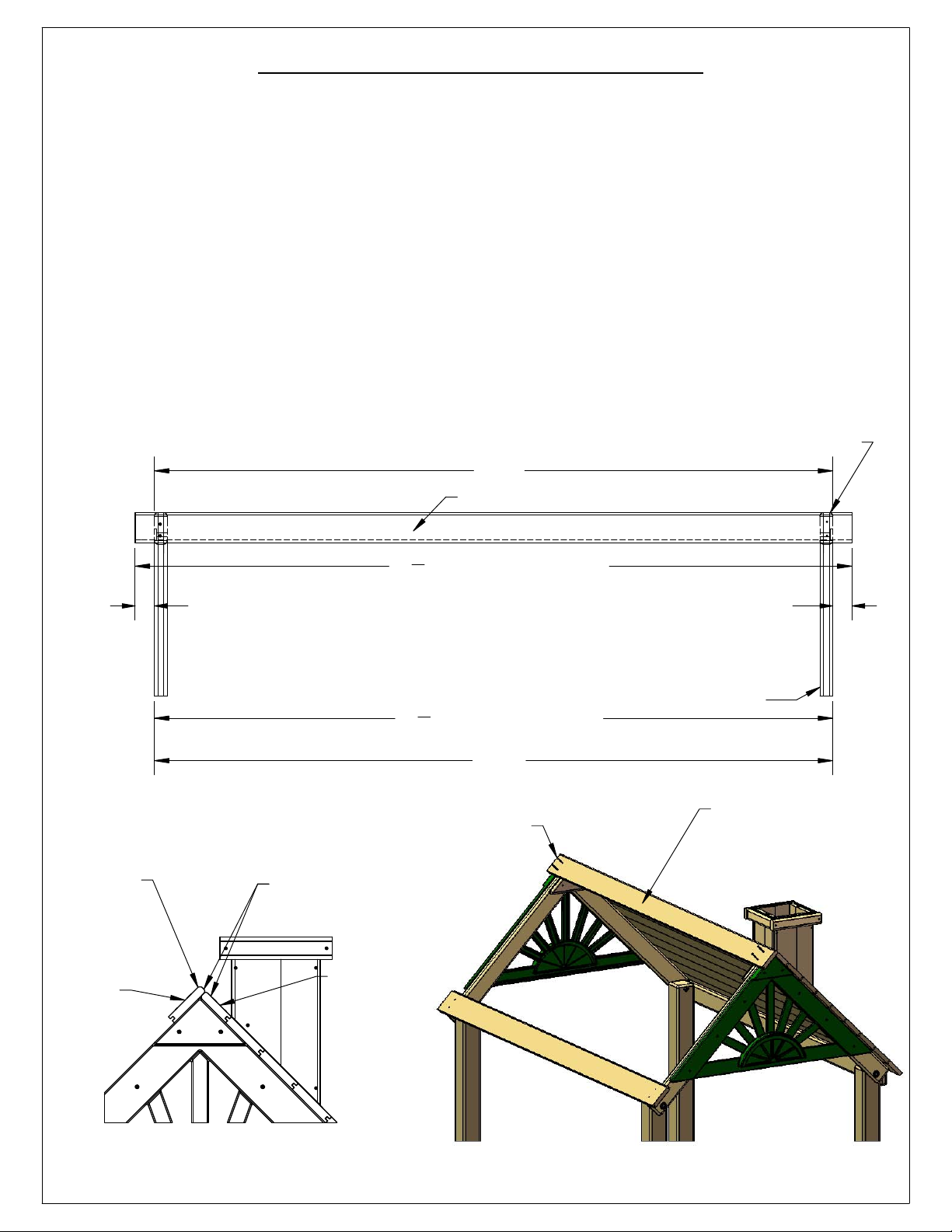

Wood Roof Assembly……………………………...…..……..……...….……....... Steps10-15

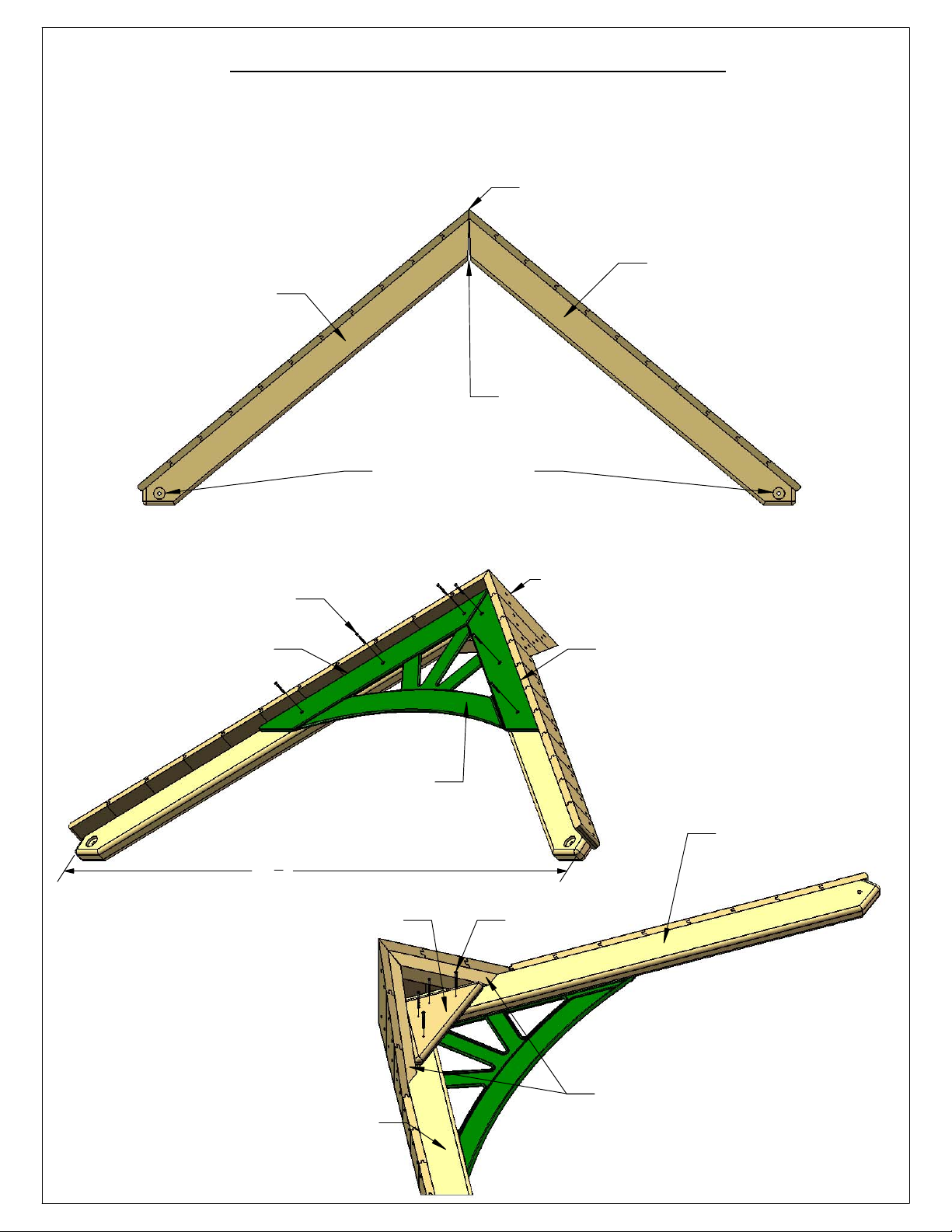

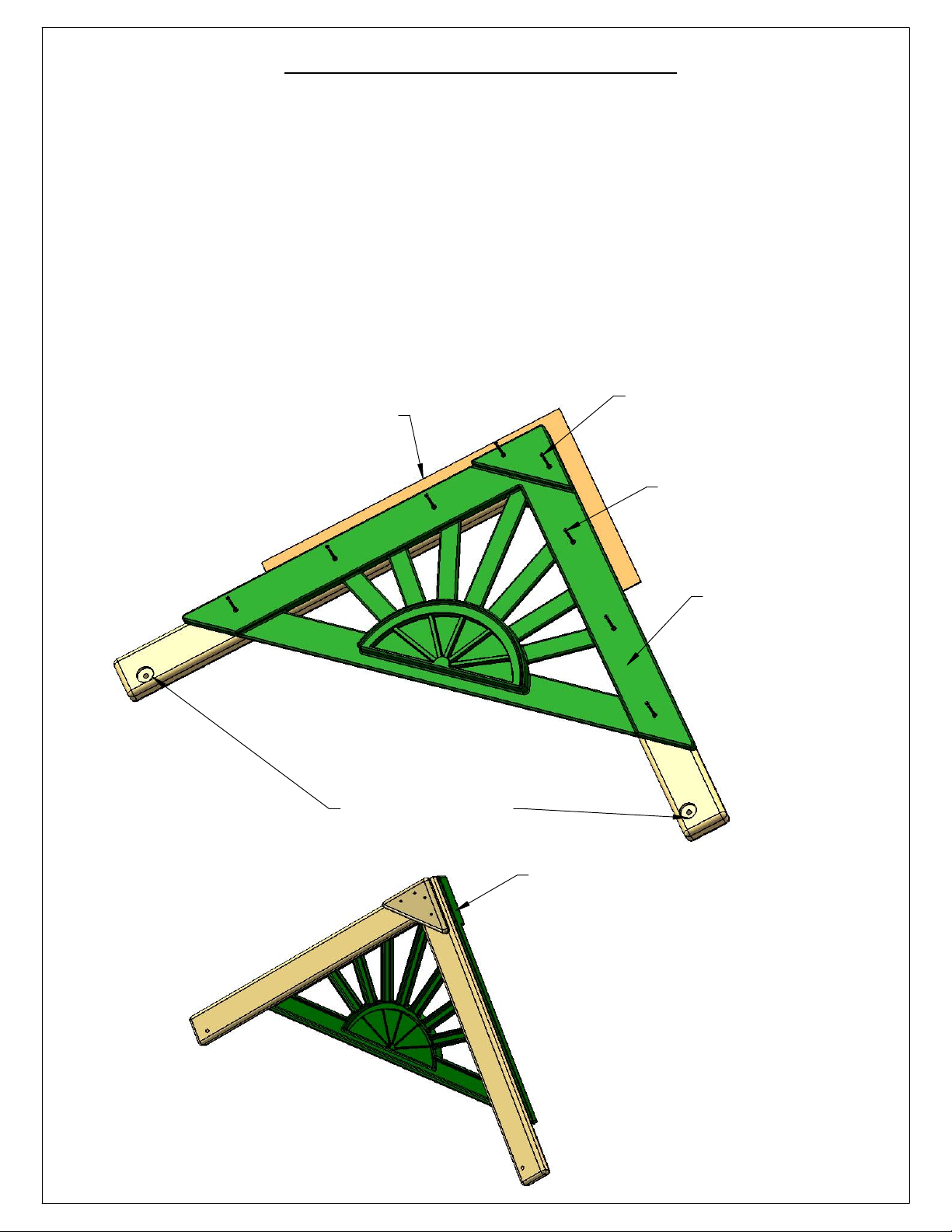

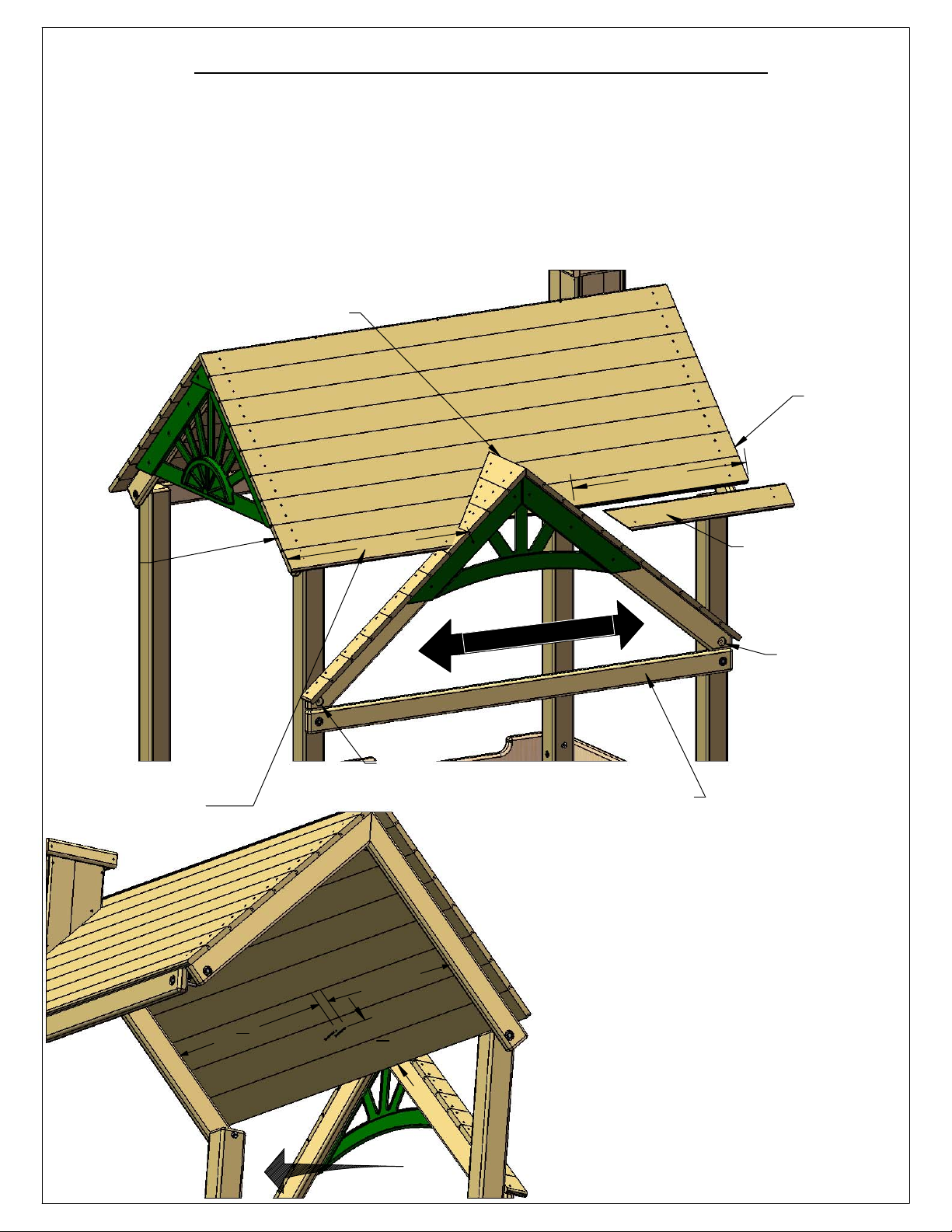

Front Gable Assembly .……………………..……................................................... Step 16

Bottom Wall Board………….……………………..……........................................… Step 17

Attaching Front Gable.……...……………………….……….................................... Step 18

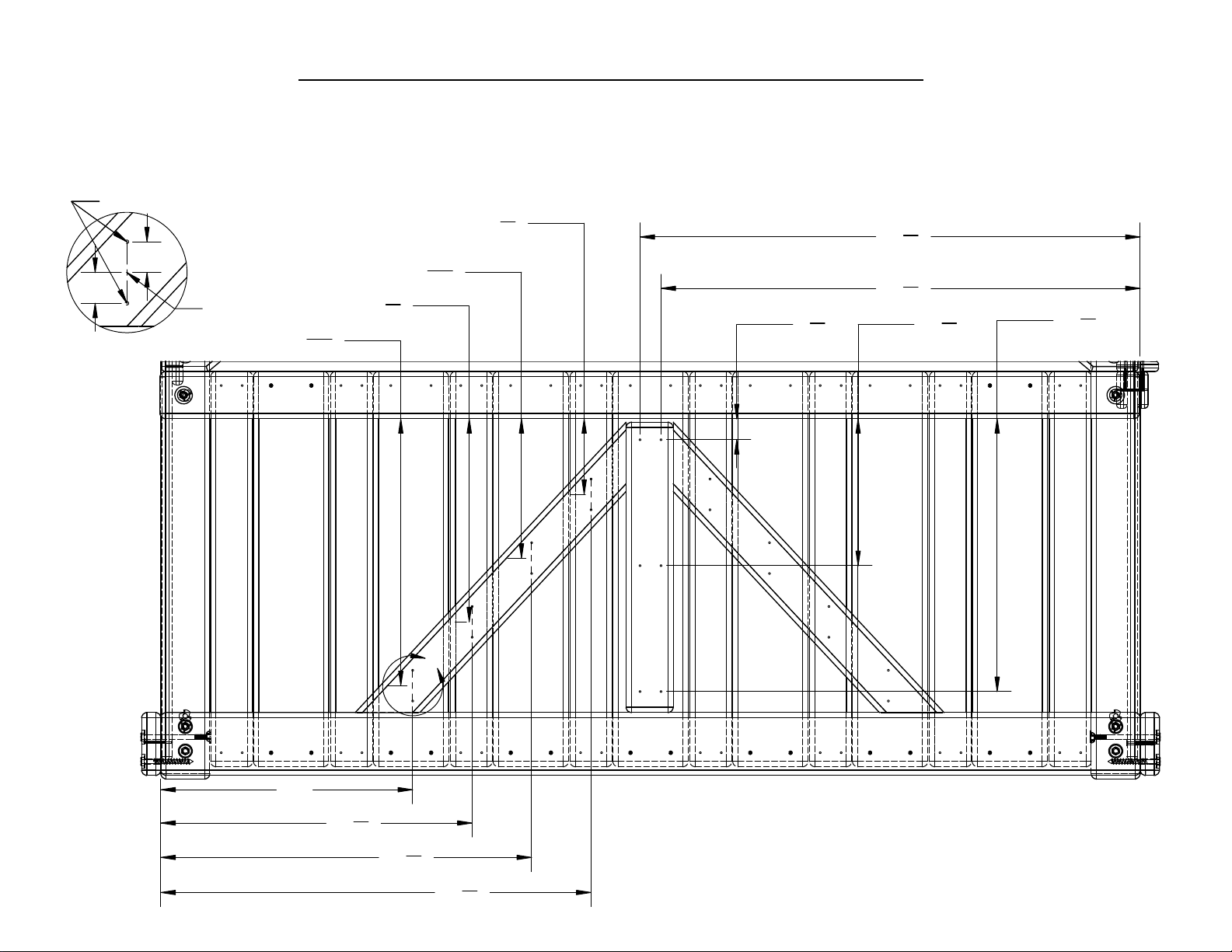

Wall Panel Supports and Roof Finishers………………………….................... Steps 19-20

Roof Battens………………...…………………………….…..................................... Step 21

Wall Panel Boards and Roof Gable Boards……………….............................. Steps 22-23

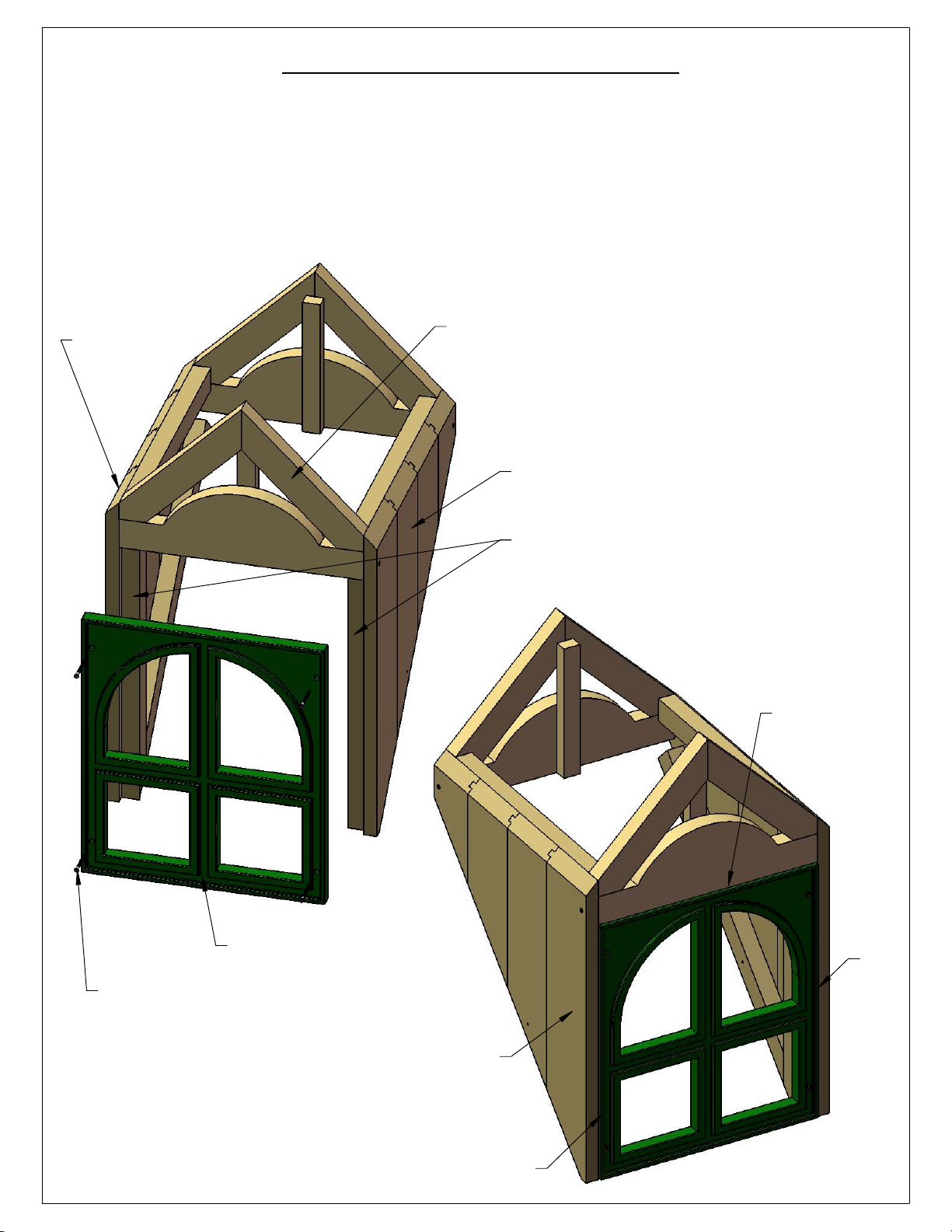

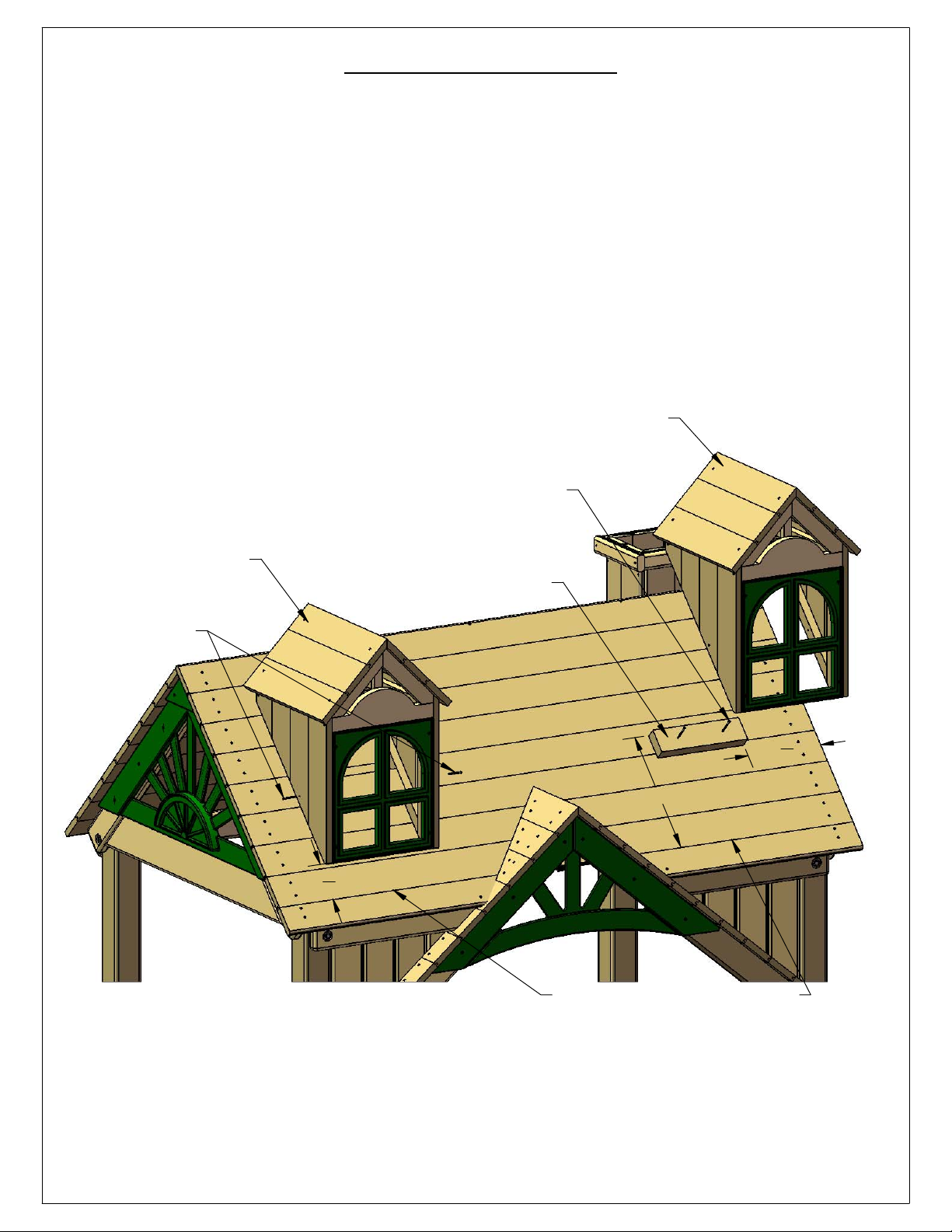

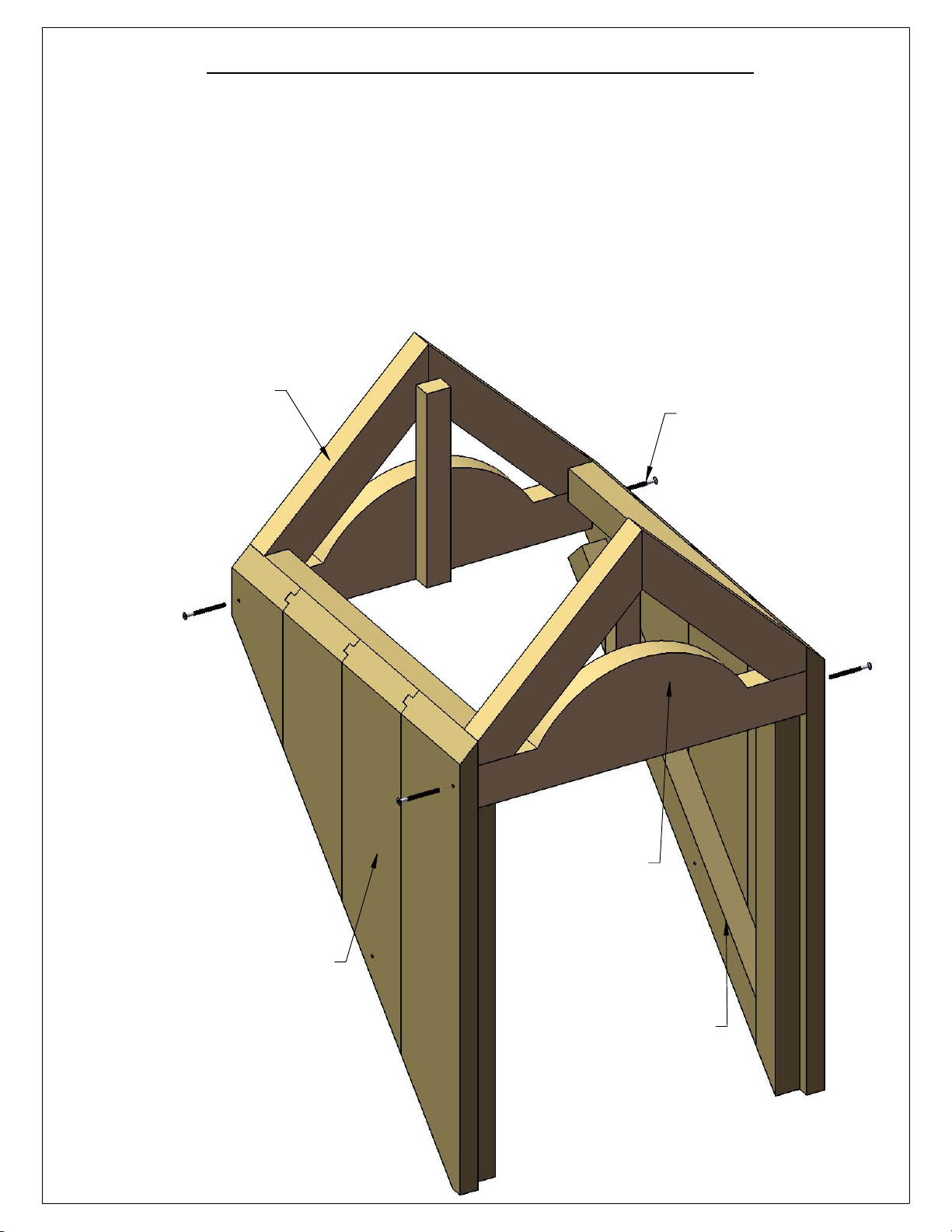

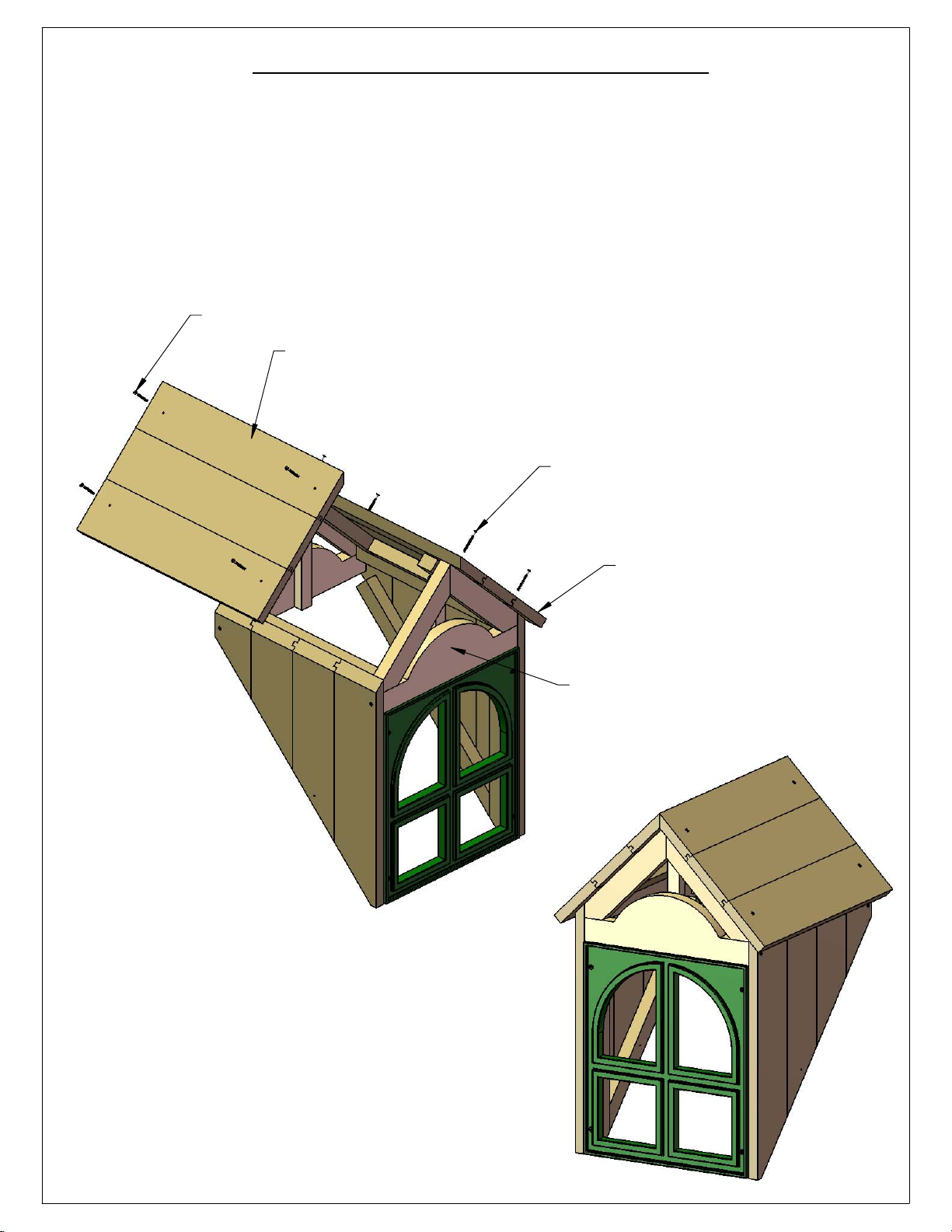

Dormer Assembly and Installation……………….…….……................................... Step 24

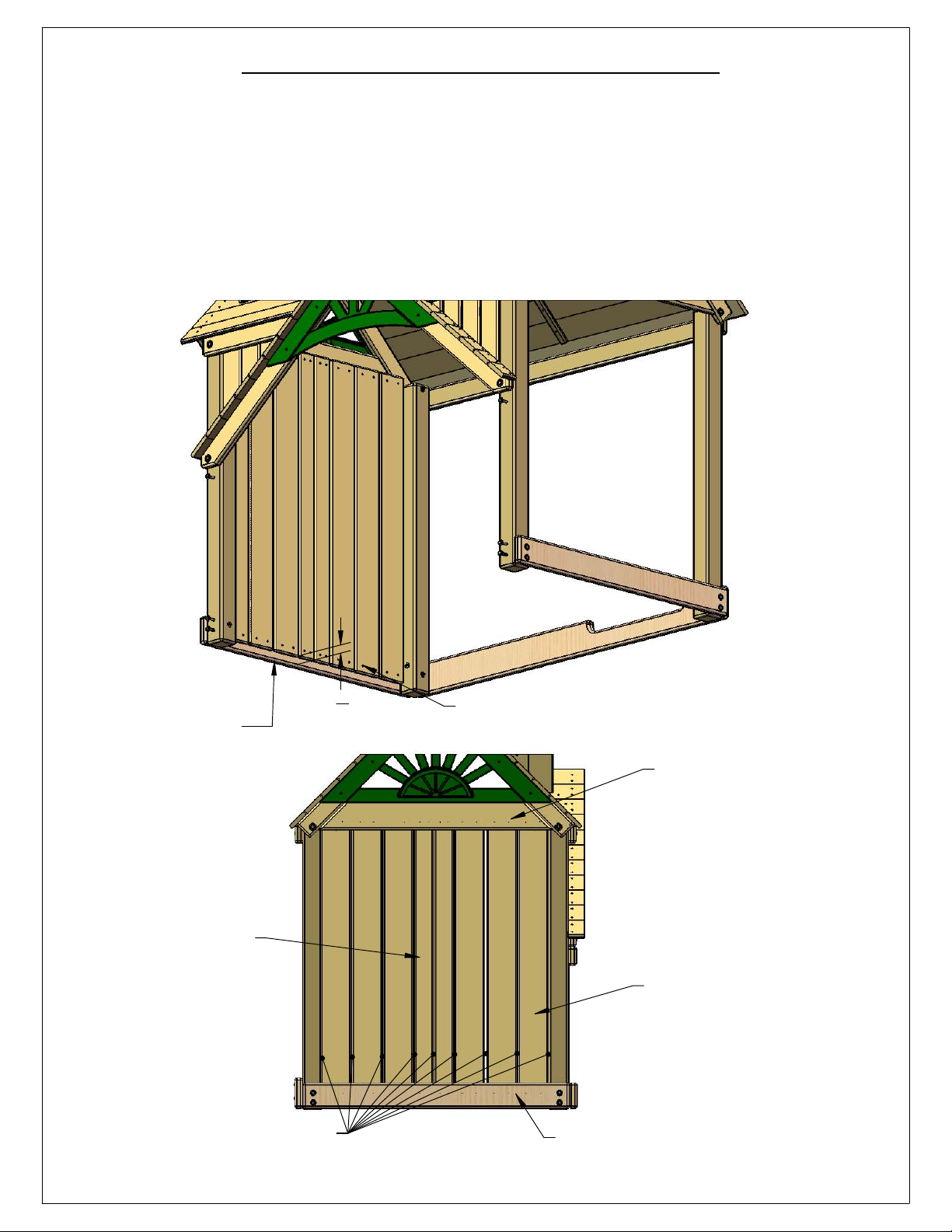

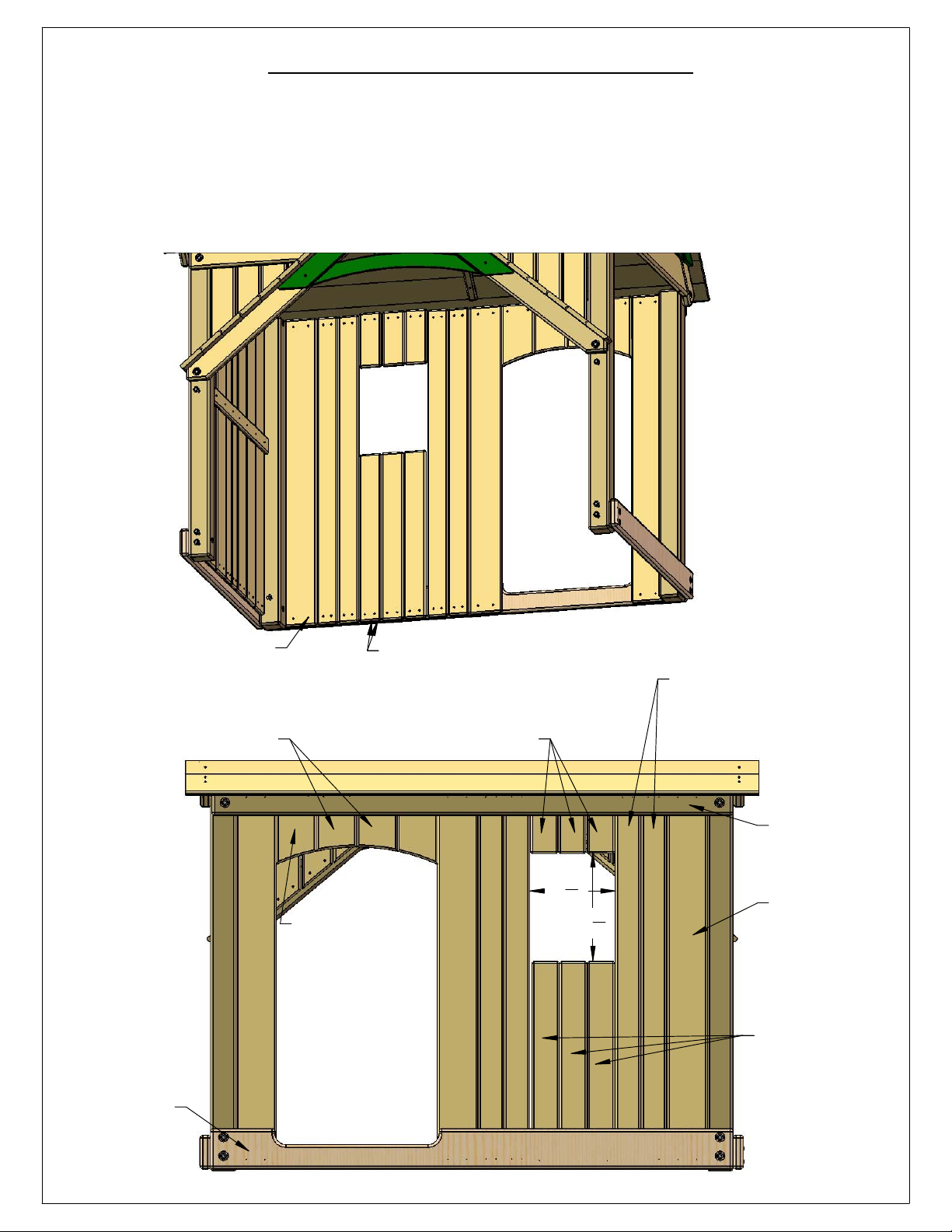

Wall Boards-Left, Rear and Right Sides…………………………..……........... Steps 25-33

Panel Slats…...…........................................................................................... Steps 34-35

Drilling for Front Accent pieces and Installating them………………………...... Step 36-37

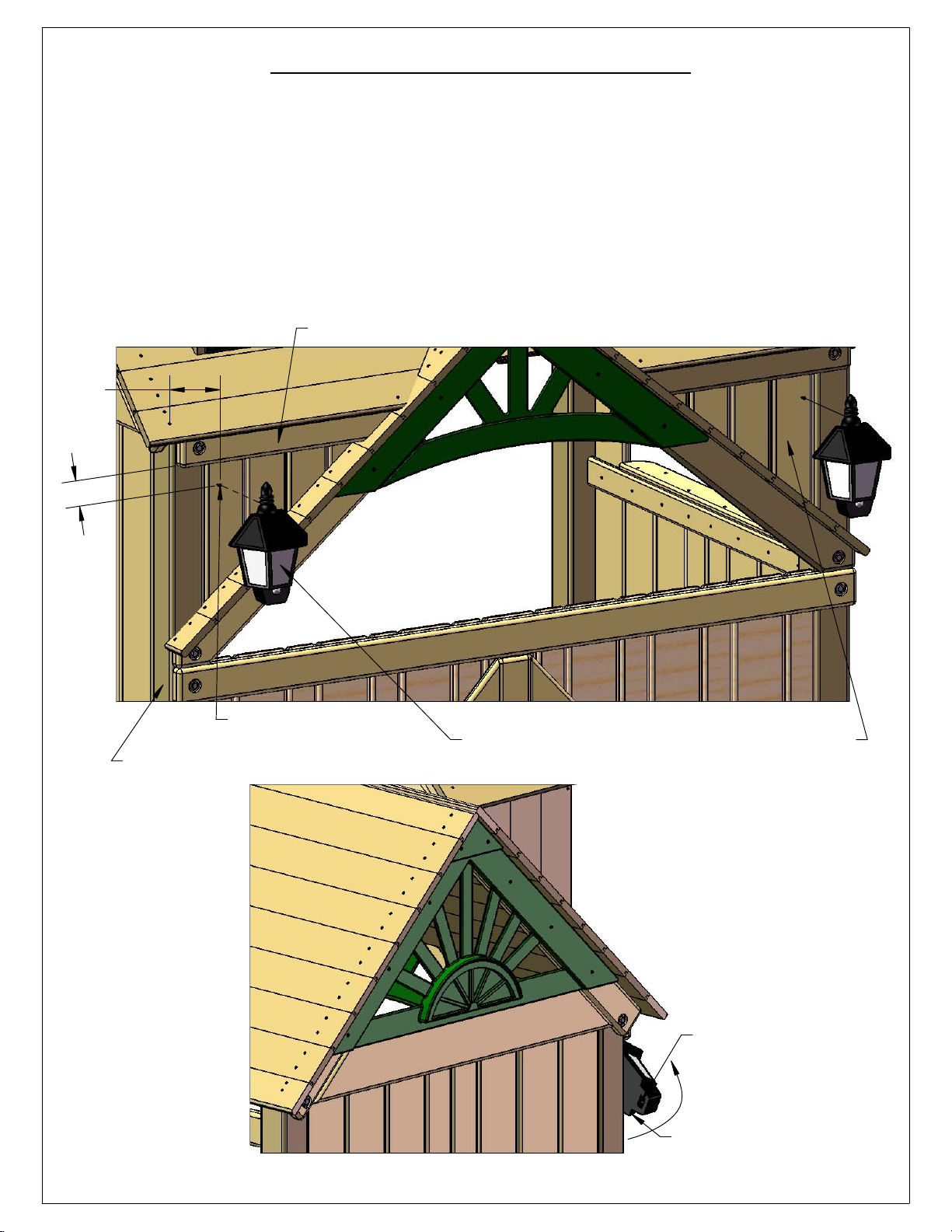

Solar Wall Lights.................................................................................................... Step 38

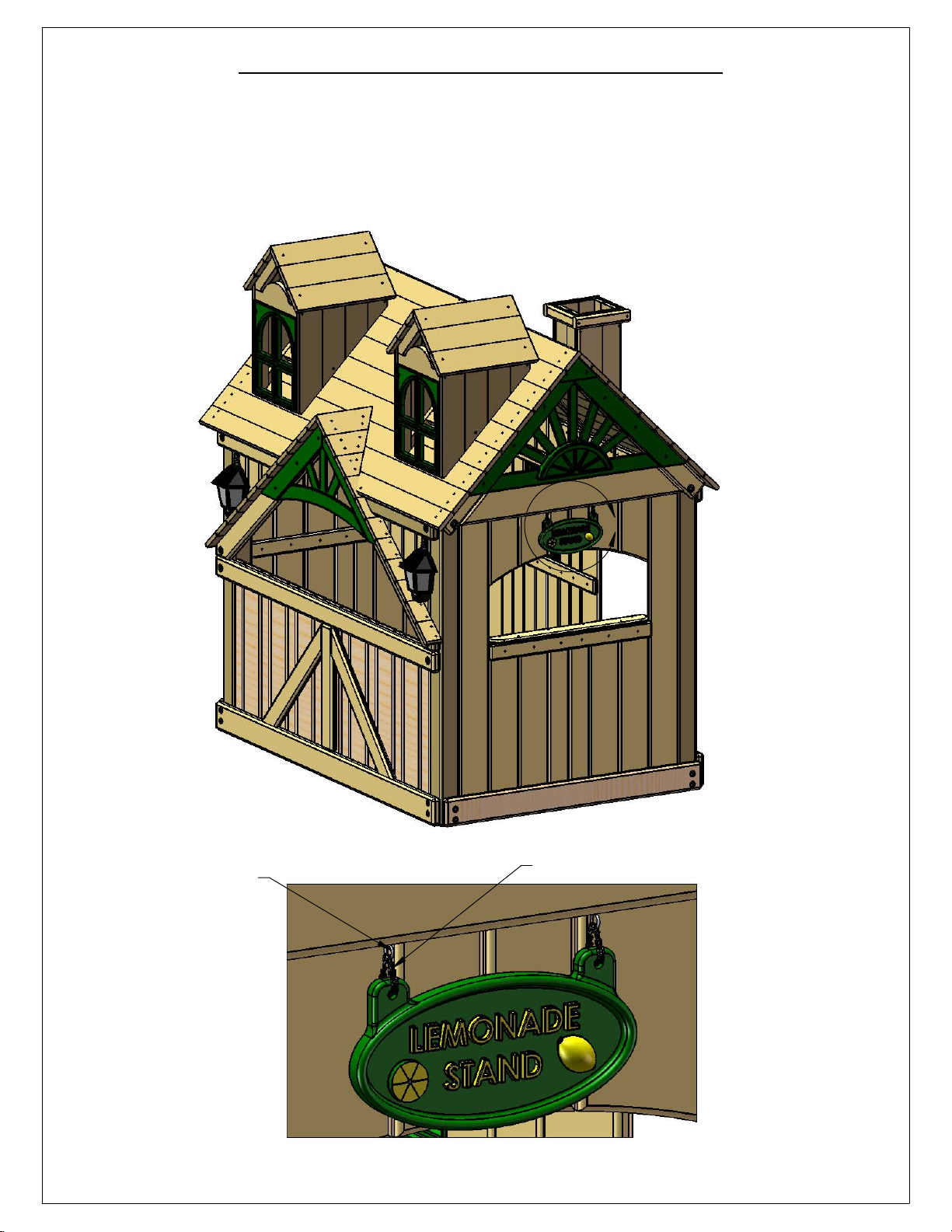

Lemonade Stand sign…………....……………………..................................... Steps 39-40

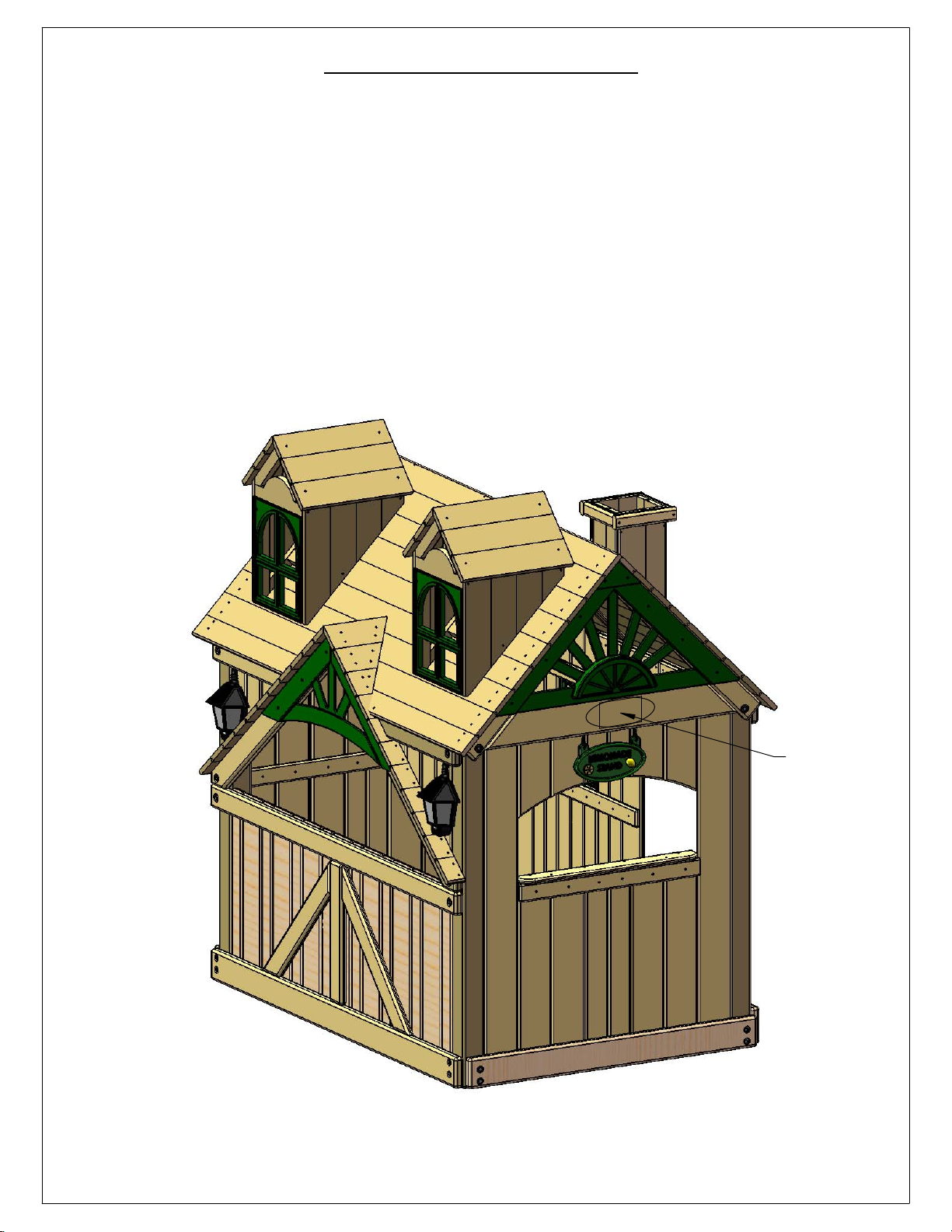

Logo Plate…………………….....…..…………..….…………................................... Step 41

Appendix............................................................................................................... Page 70

PLEASE READ OWNER’S MANUAL CAREFULLY

BEFORE STARTING ASSEMBLY!

Page 13

Safety and Maintenance Tips for Your New Play Set:

NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children.

• This play set is designed for the use of 4-6 occupants.

• On-site adult supervision is required.

• Teach children not to use the equipment in a manner other than intended.

• The parents should have the children dress appropriately with well-tting shoes. Loose clothing such as scarves and ponchos should not be worn. Always take off, tie up or tuck in cords and drawstrings on children’s clothing. These things can get caught on playground equipment and strangle a child.

• Teach children not to climb on the playhouse railings, serving window, window or roof.

• Teach children not to attach items to the playground equipment that are not specically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.

• Teach children to remove their bike or other sports helmet before playing on the playgound equipment.

• Teach children to NEVER look at the sun or other bright light through any accessory such as but not limited to a telescope, periscope or binoculars.

WARNING: Children must NOT use this play set until it has been completely assembled and inspected by an adult to insure it has been properly installed.

Page 14

Safety and Maintenance Tips for Your New Play Set:

(continued)

Playgrounds should be inspected on a regular basis. If any of the following conditions are noted, they should be removed, corrected, or repaired immediately to prevent injuries.

• Hardware that is loose, worn or that has protrusions or projections.

• Exposed equipment footings.

• Scattered debris, litter, rocks, or tree roots.

• Splinters, large cracks, and decayed wood components.

• Deterioration and corrosion on structural components, which connect to the ground.

• Missing or damaged equipment components, such as handholds, guardrails, swing seats.

• Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so tight that you crack the wood) We recommend you check the hardware often due to wood expansion and contraction. It is particularly important that this procedure be followed at the beginning of each season.

• Check all coverings for bolts and sharp edges twice monthly during usage season to be certain they are in place. Replace when necessary. It is especially important to do this at the beginning of each new season.

• For rusted areas on metallic members such as monkey bars, hand supports brackets, etc.; sand and repaint, using a non lead-based paint meeting the requirements of Title 16 C.F.R. Part

1303. These requirements are available at: http://www.cpsc.gov/

• Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season causing splinters to appear. Light sanding may be necessary to maintain a safe playing environment. If you are treating your play set with stain regularly, it will help prevent severe checking/splitting and other weather damage.

• Once or twice a year, depending on your climate conditions, you must apply some type of protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any “rough” spots on your set. Please note this is a requirement of your warranty.

• Creating and maintaining the play set on a level location is very important. As your children play, your play set will slowly dig its way into the soil, and it is very important that it settles evenly. Make sure the play set is level and true once each year or at the beginning of each play

season.

• Twice a month during the usage season rake the playground protective surfacing materials to prevent compaction and maintain appropriate depths. Replace the protective surfacing materials

as required.

• Disposal Instructions: When the play set is no longer desired, it should be disassembled and disposed of in such away that no unreasonable hazards will exist at the time the play set is

discarded.

Page 15

Play Set Surfacing Recommendations:

Below are some of the recommendations that the U.S. Consumer Product Safety Commission (CPSC) offers from its Handbook for Public Playground Safety. The guide can be downloaded in full at www.cpsc.gov/cpscpub/pubs/325.pdf

1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the ground, protective surfacing under and around all playground equipment is the most critical safety factor on playgrounds.

Certain manufactured synthetic surfaces also are acceptable; however, test data on shock absorbing performance should be requested from the manufacturer.

Asphalt and concrete are unacceptable. They do not have any shock absorbing properties. Similarly, grass and turf should not be used. Their ability to absorb shock during a fall can be reduced considerably through wear and environmental conditions.

Certain loose-ll surfacing materials are acceptable. Surfacing materials are acceptable, such as the types and depths shown in the table.

Fall Heights and Materials

Type Of Material 6 in. depth 9 in. depth 12 in. depth

Double-Shredded bark mulch 6’ Fall Height 10’ Fall Height 11’ Fall Height

Wood Chips 6’ Fall Height 7’ Fall Height 12’ Fall Height

Fine Sand 5’ Fall Height 5’ Fall Height 9’ Fall Height

Shredded Tires* 10-12’ Fall Height N/A N/A

Fine Gravel 6’ Fall Height 7’ Fall Height 10’ Fall Height

*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples produced by four manufacturers. The tests reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface request test data from the supplier showing the critical height of the material when it was tested in accordance with ASTM F1292.

It should be recognized that all injuries due to falls cannot be prevented no matter what surfacing material is used.

Page 16

2. Fall Zones - A fall zone, covered with a protective surfacing material, is essential

under and around equipment where a child might fall. This area should be free of other equipment and obstacles onto which a child might fall. Stationary climbing equipment and slides should have a fall zone extending a Minimum of 6’ in all directions from the perimeter of the equipment.

Swings should have a fall zone extending a minimum of 6’ from the outer edge of the support structure on each side. The fall zone in front and back of the swing should extend out a minimum distance of twice the height of the swing as measured from the ground to the top of the swing support structure.

LEVELING YOUR FORT DURING ASSEMBLY

• Complete the steps which will be the basic frame of the fort. {i.e. four corner posts with base (sand box boards) and deck supports}

• Position in the most level area chosen for the play set, keeping in mind the location and size of the swing beam, ladder, slides, etc. that extend off the fort.

• Once the frame is in the nal position, check for vertical and horizontal levelness to determine which side(s) will need to be dug into the ground to level the play set.

• With a shovel, score the ground around the outside edges of the sandbox boards on the ‘high’ side of the fort. This is the area that will be dug in. Make sure to score deep enough; the scored lines will be your digging template.

• Push the frame off and away from the scored area, far enough to dig and remove dirt to reach the appropriate depth.

• Dig a channel along the scored line(s) for the base of the fort (corner post and sandbox boards) to rest into. Dig the channel(s) to the same level depth. The bottom of the channel(s) should be level to each other so your frame doesn’t teeter or rock because the channel(s) are uneven.

• Once you have removed enough grass and dirt, slide/push the frame into the channel(s). Place a level on the vertical and horizontal boards of the frame to determine if enough soil, or too much, was removed.

• Repeat this process until the basic frame is plumb and level and in its nal position before completing the rest of the assembly.

• Measure to make sure fort is square.

Important: if you require a channel depth of more than 6”, then we recommend you have your play set area professionally graded before completing assembly.

Example Play area:

Side View of Playset Frame

(Grade is the

Slanted Line)

= Area to be scored and channeled for levelness

The diagonal measurements should be the same from corner post to corner post. If not, adjust corner posts so that the distance is equal.

Page 17

General Info to Review Before Installation

• Depending on your experience, assembly of the playset can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend

you set aside a full two days for assembly.

• Identify all of the parts for your play set. Empty each box and lay out boards so you can see each part. Your instruction book will have detailed drawings that will make it easy for you to recognize individual parts. Keep all hardware and metal parts separate from wooden pieces.

• After everything is laid out, check carefully to ensure all parts are present. Make sure there are no broken boards.

• Find an area to sort your hardware. It is best to open the hardware on a solid surface so that you do not lose any pieces in the grass. This will save time and familiarize you with all the different pieces in the hardware bag.

• Important note: Wood has some natural defects such as knots, surface cracks, etc… We reject parts that are structurally defective. We use a high quality lumber in our structures; however, you should inspect each part for splinters or rough spots and sand them smooth to prevent injury.

• After familiarizing yourself with all of the components, read all instructions thoroughly. Reading instructions after you have studied the parts will help you understand the installation process, and help to eliminate unnecessary mistakes.

• Pay close attention to the diameter and length of each bolt and screw.

• Never tighten hardware completely at rst. It helps to have some adjustment for bolt alignment while you are attaching parts together. After everything is square, tighten each joint.

• After the main unit is assembled it is critical that the oor is level and square. If the main frame is not level, the walls and oor will be out of square.

• After you complete installation, make sure every bolt, screw, and nut is tight, and every board is secure. Wood will expand and contract with the seasons.

• Place the set on level ground, not less than 6 feet from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical

wires.

Page 18

This page is a list of denitions and explanations used throughout our

instructions to aid you in the assembly of your play set.

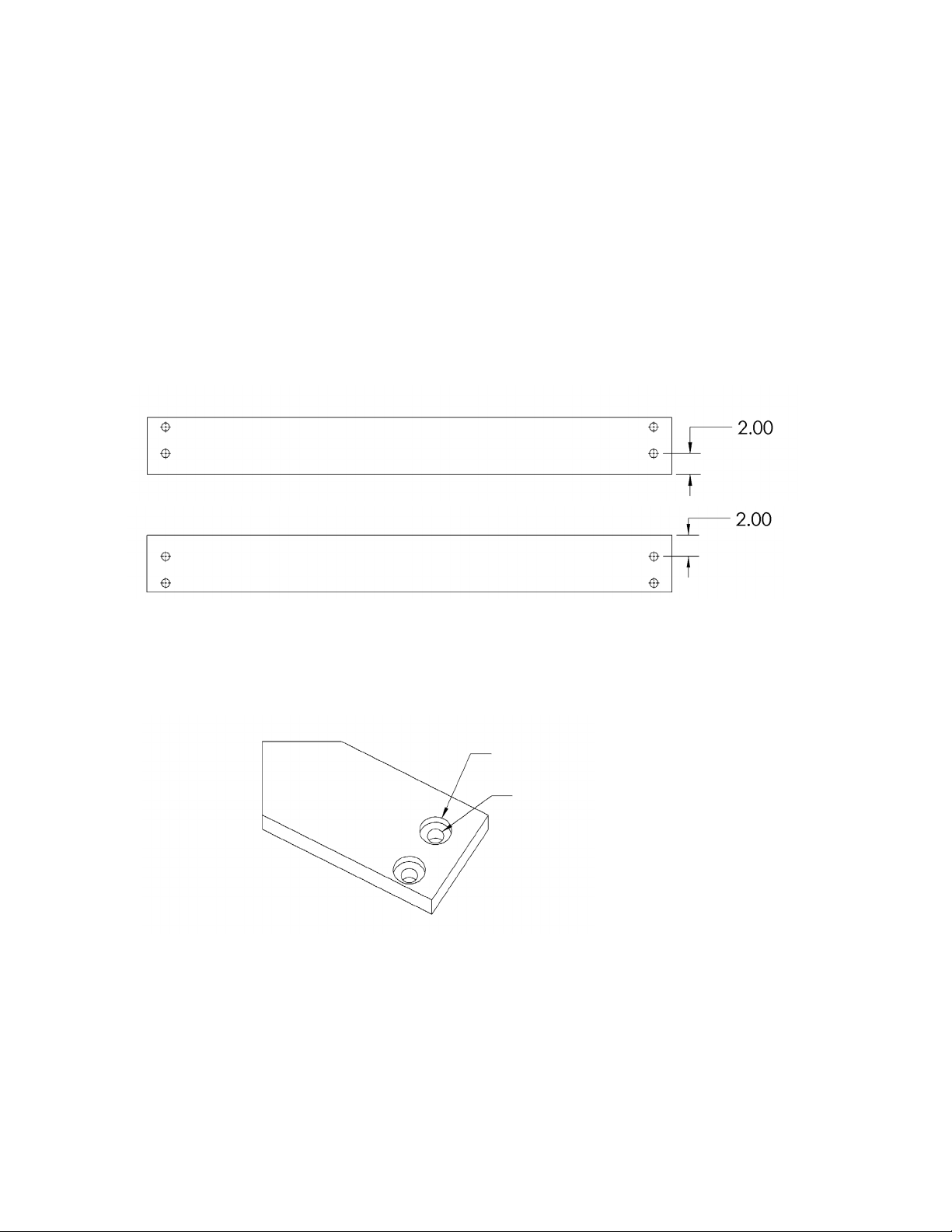

Offset Holes- Throughout the installation procedures we will refer to parts with offset

holes. This refers to the orientation of the holes on the board. An offset hole is one that is closer to one side than it is the other or in other words, it is not centered on the board. In the procedures you will be instructed to attach the boards with the holes offset up or with the holes offset down. This refers to which side of the board the hole/holes should be closer to. Offset holes up= hole/holes will be closer to the top of the board. Offset holes down= hole/holes will be closer to the bottom of the board. Note: some parts do not have offset holes, but instead the holes are on center. Therefore there will not be any reference on how to offset these parts.

EXAMPLE OF OFFSET HOLES UP

EXAMPLE OF OFFSET HOLES DOWN

Counter-sunk holes - Many of the parts that will be used have counter-sunk holes. A

counter-sunk hole is one that surrounds one side of a through hole, but does not extend through the wood it’s self. When using a counter-sunk hole the bolt will be inserted through the through hole and either the head of the bolt and washer or nut and washer will occupy the counter sunk hole.

Counter-Sunk Hole

Through Hole

Lag Screws- Lag screws are used in the construction of our play sets to enhance the structural integrity of the unit. There will not be predrilled holes in the post for lag screw installation. Lag screws are self-tapping, though if you are using a manual socket wrench it may be advantageous to pre-drill a hole rst. Instructions for this are provided on a separate page in the front of the manual. Be sure to tighten the lags completely when driving them in by hand. Power tools such as a heavy duty impact driver or large power drill should have enough torque to drive in the lag screws, but make sure not to over tighten as this can cause the threads to “strip out” in the post.

Page 19

Common Installation Practice Installing T-nuts

When installing T-nuts into the wood, use a smooth faced hammer to set the face of the T-nut ush into the wood.

Corner Post

T-nut

Insert the barrel of the T-nut into the predrilled hole. Using a smooth faced hammer, drive the T-nut until the face of the T-nut is ush to the wood.

This picture shows the T-nut inserted and installed ush to the wood.

This picture shows an end view of the T-nut installed ush to the wood.

WARNING: DO NOT EMBED THE TOP

OF THE T-NUT INTO THE

Flush (Correct)

Cross Section end view, you are looking at an X-ray view of the post and T-nut. The barrel of the T-nut is in the corner post the line is the face of the wood.

FACE OF THE WOOD

Page 20

HOW A T-NUT WORKS

THE FIRST STEP IN OUR ASSEMBLY INSTRUCTIONS IS TO INSERT T-NUTS INTO THE CORNER POSTS. A T-NUT IS A FASTENER WHICH IS THREADED ON THE INSIDE AND IT FUNCTIONS JUST LIKE A STANDARD HEX NUT. YOU INSERT THE T-NUTS INTO THE PREDRILLED HOLES IN THE CORNER POSTS.

THE T-NUT HAS A BARREL SHAPED END WHICH GOES INTO THE HOLE IN THE CORNER POST. THE T-NUT ALSO HAS AN FLANGE SHAPED END WITH TEETH. THE TEETH PENETRATE INTO THE CORNER POST WOOD TO PREVENT THE T-NUT FROM SPINNING WHEN YOU TIGHTEN THE HEX HEAD BOLT.

SHOWN BELOW YOU WILL SEE THE T-NUT IS HAMMERED INTO THE CORNER POST ON THE BACK SIDE. THE BOARD IS BEING ATTACHED ON THE FRONT SIDE OF THE CORNER POST.

CORNER POST

BOARD YOU ARE ATTACHING TO CORNER POST.

HEX HEAD BOLT

T-NUT FLANGE IS HERE.

WASHER

BOARD YOU ARE ATTACHING TO CORNER POST.

CORNER POST

HEX HEAD BOLT

FRONT SIDE OF CORNER POST

T-NUT

WASHER

BACK SIDE OF CORNER POST

TEETH

CROSS SECTION VIEW OF BOARD, CORNER POST AND FASTENERS.

T-NUT DETAILS

FLANGE SHAPED END WITH TEETH

THREADS ON INSIDE OF BARREL .

BARREL SHAPED END GOES INTO HOLE IN CORNER POST.

DETAIL A

SCALE 2 : 1

Page 21

BOARD IDENTIFICATION

1. On the end of each board there should be a small white tag that is stapled or stuck into place. Remove the staples and/or tag after the board is installed.

2. This white identifcation tag displays the thickness, width, length and an abbreviated description of the part.

Example: a tag reads "2-4-3600-BPB"

The 2 is the thickness of the board. "Nominal Lumber" at a home center will measure 1-• 1/2" for the thickness. We "remill" that lumber to 1-3/8" thick.

The 4 is the width of the board. "Nominal Lumber" at a home center will measure 3-• 1/2" for the width. We "remill" that lumber to 3-3/8" wide. Note: sometimes the width will be smaller than 3-3/8" because: A) We need the width of the part to fit into a certain area of the play set. B) We need the designation to be simple.

The 3600 is the length of the board. It means the board is 36 inches long. If the code • were 3625 then the board is 36-1/4" in length.

The "BPB" abbreviation stands for "Bottom Panel Board". The wood part bill of materials • in the instructions has a description which will match the abbreviation closely.

In the event that there is no tag on a wood part measure the part then:• A)Use the measurements and compare them to the wood list at the front of the instructions to identify it. B)Look at the holes on the wood part and compare them to the pictures in the wood list. C)Look to see if the holes are centered or if they are offset up or offset down. This should help you identify any parts that have missing tags. In the event that you cannot identify a board please email us for assistance.

36" LENGTH

" WIDTH

THICKNESS

TAG

2-4-3600-BPB

Page 22

PRE-DRILL LAG SCREW DIRECTIONS

Pre-drilling holes for lag screws will make it easier to drive the screws in by hand.

"Jobber" length drill bits are available in sizes that are longer than standard drill bits and those are ideal for the job. When using the drill bit you will have to "spot" drill the post and then remove the board you are attaching to finish drilling the hole.

Pay attention to the DIAMETER of the lag screw you are installing. Your playset may come with two different diameter lag screws. Each diameter will require a different size drill bit. When installing lag screws DO NOT OVERTIGHTEN.

LAG SCREW DIAMETER DRILL BIT SIZE

" 3

Corner Post

5/16" DIAMETER 9/64"

3/8" DIAMETER 11/64"

Example: 3/8" diameter x 3-1/2" lag screw

This would be like the 2 x 4 board installation shown below. Place the board into position. Spot Drill through the holes in the 2 x 4 board into the corner posts with an 11/64" drill bit. Remove the 2 x 4 board. Continue to drill the holes to a total depth of 2-5/16" as shown at the right. Install the 2 x 4 board.

Example 5/16" diameter x 3-1/2" lag screw

This would be like the 2 x 4 board installation shown below. Place the board into position. Spot Drill through the holes in the 2 x 4 board into the corner posts with an 9/64" drill bit. Remove the 2 x 4 board. Continue to drill the holes to a total depth of 2-5/16" as shown at the right. Install the 2 x 4 board.

2 x 4 board

Example 3/8" diameter x 5" lag screw

This would be like the 4 x 4 board installation shown below. Place the board into position. Spot drill through the holes in the 4 x 4 board into the corner posts with an 11/64" drill bit. Remove the 4 x 4 board. Continue to drill the holes to a total depth of 2-13/16" as shown at the right. Install the 4 x 4 board.

Corner Post

Corner post

2 x 4 board

4 x 4 board

Corner Post

4 "

13 16

Page 23

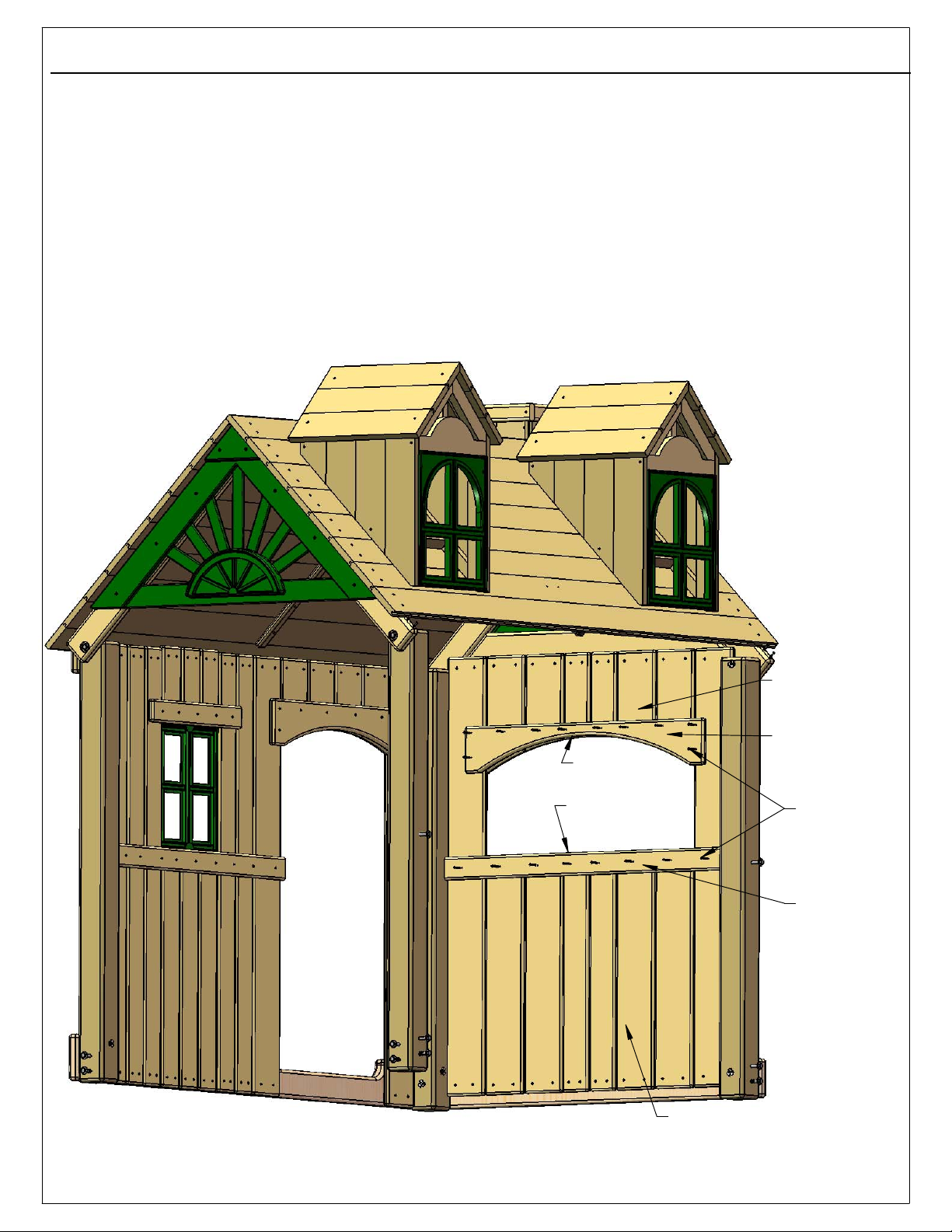

Malibu Playhouse - Site Plan

MORE TEXT

Please familiarize yourself with the manual, parts/components and general

construction process of your new playset before getting started.

SITE PLAN:

" 53

291"

8215"

297"

29 "

Playset height:83”

Interior Dimensions:

Width-68-1/2” Depth-45-3/4” Height at front/rear-55-1/2” Height at center (roof peak) 75-1/2”

Other dimensions (rounded off): Door Opening-21-1/2”W x 39-3/4” H Serving Window Opening-29-3/4”W x 12-3/4”H(at center) Serving Window Top Height- 29-3/4” Front Wall Height to top of railing-29”

Approximate assembly time: 12 to 16 hours

(6) foot unobstructed safety perimeter around playset recommended

Page 24

REQUIRED TOOL LIST:

___ Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided) ___ Drill Bits 1/16”, 1/8”, 3/8”, 9/64” ___ ½” Wrench and Socket ___ ½” Deep Well Socket

___ Level

___ Tape Measure ___ Extension Cord (if using standard drill or jigsaw)

___ Hammer

___ Pencil ___ You may need a Saw (handsaw or jigsaw) See Step 20 ___ Pliers and/or Locking Pliers (Vise Grips) ___ Carpenter’s Square ___ Shovel (if installing outdoors)

KIT CONTENTS

Swings, Slides, Accessories:

___ (Qty ) Description ___ (2) Plastic Sunburst ___ (1) Plastic Front Arch ___ (2) Plastic Dormer Window ___ (2) Solar Wall Light

___ (1) Logo Plate ___ (1) Plastic Window with shutters ___ (1) Lemonade Stand Sign

Hardware:

see following pages

Wood Components:

see following pages

Page 25

#8 X 1-1/4"

WOOD SCREW

QTY: 58

#8 X 1-3/4"

WOOD SCREW

QTY: 118

#8 X 2"

WOOD SCREW

QTY: 28

11-0054

1518 HARDWARE

PAGE 1 OF 1

REV C: 3/24/2014 JH.

5/16 x 3-1/2" LAG SCREW

QTY: 12

3/8" x 1-1/8"

BLACK PLASTIC

PLUG

QTY: 2

#2 SQUARE

DRIVE TIP

QTY:1

5/16" TEE NUT

QTY: 2

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

QTY: 4

QTY: 16

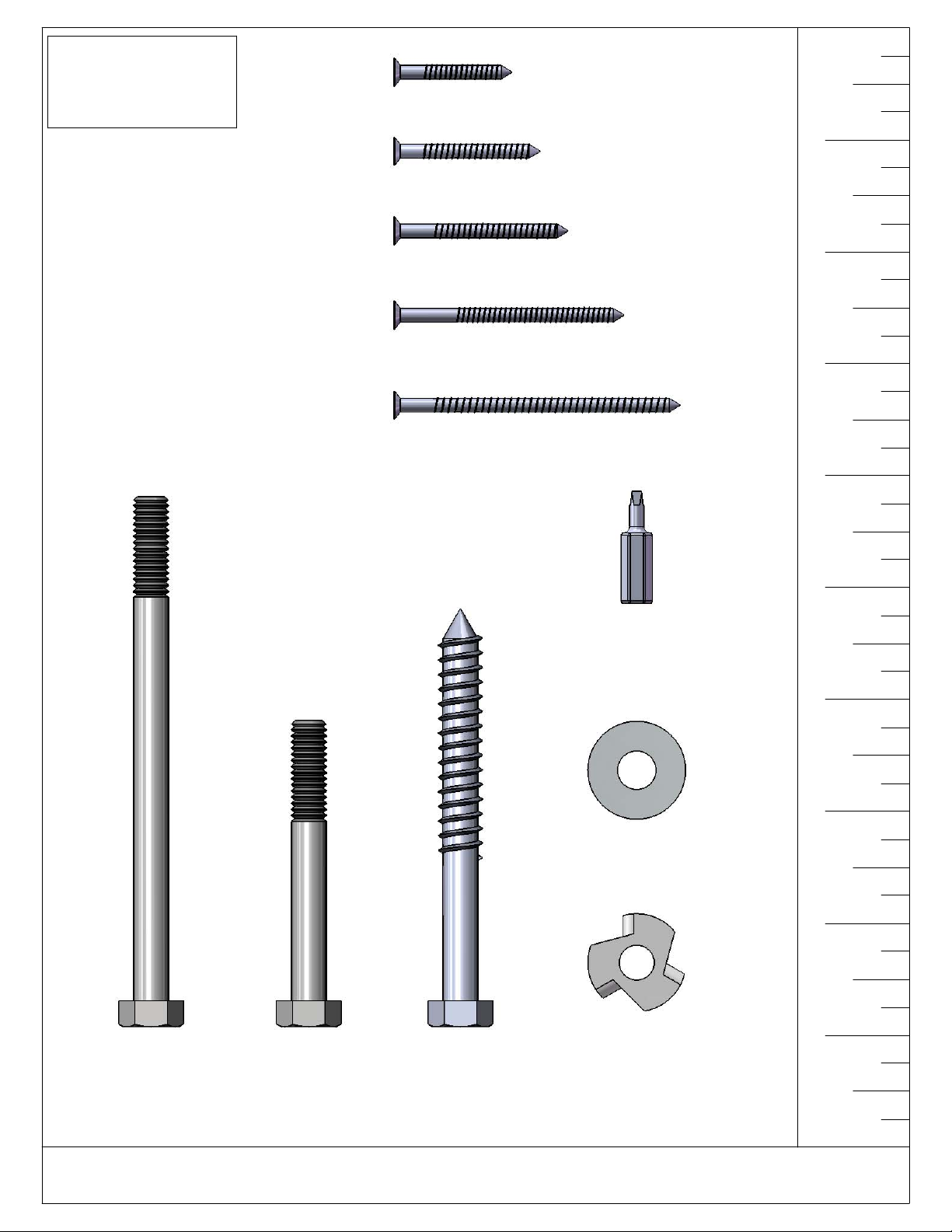

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 26

1528 HARDWARE

PAGE 1 OF 1

1/16/2015 SO.

#8 X 1"

WOOD SCREW

QTY: 2

#8 X 1-1/4"

WOOD SCREW

QTY: 25

#8 X 1-1/2"

WOOD SCREW

QTY: 110

#8 X 2"

WOOD SCREW

QTY: 25

#8 X 2-1/2"

WOOD SCREW

QTY: 12

5/16" X 4-1/2"

HEX BOLT

QTY: 4

5/16" X 2-1/2"

HEX BOLT

QTY: 2

5/16" x 3-1/2"

LAG SCREW

QTY: 6

#2 SQUARE

DRIVE BIT

QTY:1

5/16" WASHER

QTY: 12

5/16" TEE NUT

QTY: 6

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 27

1529 HARDWARE

PAGE 1 OF 1

1/16/2015 S.O.

#8 X 1-1/4"

WOOD SCREW

QTY: 22

#8 X 1-1/2"

WOOD SCREW

QTY: 34

#8 X 1-3/4"

WOOD SCREW

QTY: 8

#8 X 2"

WOOD SCREW

QTY: 6

#8 X 2-1/2"

WOOD SCREW

QTY: 4

#2 SQUARE

DRIVE BIT

QTY:1

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 28

1536 HARDWARE

11-0086 11/10/2016 JH

#8 x 1"

WOOD SCREW

QTY: 2

#8 x 1-1/4"

WOOD SCREW

QTY: 5

#8 x 1-3/4"

WOOD SCREW

QTY: 22

#8 x 2"

WOOD SCREW

QTY: 33

#10 x 3-1/2"

WOOD SCREW

QTY: 4

5/16" T-NUT

5/16" X 4-1/2"

HEX BOLT

QTY: 6

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 29

1528

1 X 2 X 32"

ROOF BATTEN

1-2-3200-RB

1 X 4 X 8-3/4"

WALL PANEL

BOARD

1-4-0875-WPB

1 X 4 X 12-1/4"

WALL PANEL

BOARD

1-4-1225-WPB

QTY.PICTURE DESCRIPTION

1 X 4 X 15-3/4"

WALL PANEL

BOARD

1-4-1575-WPB

1 X 4 X 19-5/16"

WALL PANEL

BOARD

1-4-1931-WPB

1 X 4 X 29-1/4" ROOF FINISHER

FRONT LEFT

1-4-2929-RFFL

1 X 4 X 29-1/4" ROOF FINISHER

FRONT RIGHT

1-4-2929-RFFR

Page 30

PICTURE DESCRIPTION QTY.

1 X 4 X 76-7/8" ROOF FINISHER

REAR

1-4-7688-RFR

4.00

3.25

1 X 4 X 76-7/8" ROOF STARTER

FRONT

1-4-7688-RSF

1 X 4 X 76-7/8" ROOF STARTER

REAR

1-4-7688-RSR

1 X 5 X 76-7/8"

ROOF BOARD

1-5-7688-RB

NOT USED

2 X 4 X 22-3/4"

WALL PANEL

SUPPORT LEFT

2-4-2275-WPSL

2 X 4 X 22-3/4"

WALL PANEL

SUPPORT RIGHT 1

2-4-2275-WPSR

2 X 4 X 28-9/16"

CENTER POST

2-4-2856-CPFR

Page 31

DESCRIPTIONPICTURE QTY.

2 X 4 X 35-3/16" ROOF SUPPORT

LEFT

2-4-3515-RSL

2 X 4 X 35-3/16" ROOF SUPPORT

RIGHT

2-4-3515-RSR

2 X 4 X 69-3/4"

ROOF FINISHER

SUPPORT

2-4-6975-RFS

5/4 X 6 X 10"

ROOF PEAK

SUPPORT

125-6-1000-RPS

5/4 X 5 X 10-7/8"

ROOF PANEL

PEAK SUPPORT

125-5-1081-RPPS

5 X 11 X 46-15/16" ROOF PANEL LEFT

ASSEMBLY

5-11-4697-RPLA

5 X 11 X 46-15/16"

ROOF PANEL

RIGHT ASSEMBLY

5-11-4697-RPRA

Page 32

1518

1 X 3 X 18"

WINDOW TOP

BOARD

1-3-1800-WTB

1 X 3 X 29-7/8"

OPEN WINDOW

OUTSIDE

SUPPORT

1-3-2988-OWOS

1 X 3 X 34-3/4"

WINDOW

BOTTOM

BOARD

1-3-3475-WBB

QTY.PICTURE DESCRIPTION

1 X 3 X 40-1/2" PANEL BOARD

BRACE

1-3-4050-PBB

1 X 4 X 9"

TOP BOARD

WINDOW

1-4-0900-TBW

1 X 4 X 10"

OPEN WINDOW

TOP BOARD 3

1-4-0998-OWTB3

1 X 4 X 27-3/4"

BOTTOM

WINDOW

BOARD

1-4-2775-BWB

Page 33

DESCRIPTIONPICTURE QTY.

1 X 4 X 29-1/2"

OPEN WINDOW

BOARD

1-4-2950-OWB

1 X 4 X 51"

WALL BOARD

1-4-5100-WB

1 X 6 X 8-7/16"

TOP BOARD

DOOR 2

1-6-0843-TBD2

1 X 6 X 10-3/16"

TOP BOARD

DOOR 1

1-6-1020-TBD1

1 X 6 X 11-3/16"

OPEN WINDOW

TOP BOARD 2

1-6-1118-OWTB2

1 X 6 X 13-5/8"

OPEN WINDOW

TOP BOARD 1

1-6-1360-OWTB1

1 X 6 X 27"

ARCH TOP

BOARD DOOR

1-6-2700-ATBD

Page 34

PICTURE DESCRIPTION QTY.

1 X 6 X 27-3/4"

BOTTOM

BOARD OPEN

WINDOW

1-6-2775-BBOW

1 X 6 X 34"

TOP BOARD

WINDOW

1-6-3400-TBW

1 X 6 X 51"

WALL BOARD

1-6-5100-WB

NOT USED

1 IS NOT USED

2 X 4 X 47-1/2"

TOP PANEL

BOARD

2-4-4750-TPB

2 X 4 X 70"

BOTTOM WALL

BOARD

2-4-7000-BWB

2 X 6 X 70"

BOTTOM PANEL

BOARD DOOR

2-6-7000-BPBD

5/4 X 6 X 28-1/4"

PANEL SLAT

125-6-2825-PS

Page 35

1536

PICTURE DESCRIPTION QTY.

5/4 X 4 X 20-3/4"

VERTICAL

ACCENT

125-4-2075-VA

5/4 X 4 X 28-3/8"

DIAGONAL

ACCENT

125-4-2838-DA

2 X 6 X 42"

ROOF GABLE

BOARD

2-6-4200-RGB

2 X 5 X 47-1/2"

BOTTOM PANEL

BOARD

2-5-4750-BPB

2 X 5 X 70"

SANDBOX

BOARD

2-5-7000-SB

4 X 4 X 51-1/4"

FRONT CORNER

POST

4-4-5125-FCP

4 X 4 X 51-1/4"

REAR CORNER

POST

4-4-5125-RCP

Page 36

PICTURE DESCRIPTION QTY.

5/4 X 3 X 28-1/4"

PANEL SLAT

125-3-2825-PS

Page 37

PICTURE DESCRIPTION QTY.

PLASTIC

SUNBURST

07-0028-G

PLASTIC

FRONT ARCH

07-0027-G

PLASTIC

DORMER

WINDOW

07-0029-G

SOLAR WALL

LIGHT

09-2003

MANUFACTURER (NOT SHOWN)

LOGO PLATE

UNASSEMBLED

DORMER

(1529 BOX)

UNASSEMBLED

CHIMNEY

(1529 BOX)

Page 38

PICTURE DESCRIPTION QTY.

PLASTIC

WINDOW

07-0013

LEMONADE

STAND

SIGN

07-0024

1528, 1518, 1536

(NOT SHOWN)

HARDWARE

KITS

TOUCH UP

STAIN

(LITTLE BOTTLE

THAT IS

BAGGED)

1EA

Page 39

STEP 1: RIGHT SIDE

1: HAMMER T-NUTS INTO THE CORNER POSTS HOLES THAT ARE 3" OFF THE BOTTOM. TIP: USE A SCREWDRIVER OR A 4-1/2" HEX BOLT TO CLEAN OUT THE HOLES IF SAWDUST IS PRESENT. IF THE HOLES ARE SLIGHTLY SMALL THEN REAM THEM OUT WITH A 3/8" DRILL BIT.

2: FASTEN THE 2 X 5 X 47-1/2" BOTTOM PANEL BOARD (OFFSET DOWN) TO THE CORNER POSTS WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16" WASHERS.

4 X 4 X 51-1/4" REAR CORNER POST

4 X 4 X 51-1/4" FRONT CORNER POST

5/16" T-NUT

EXTRA HOLE IN FRONT POST

5/16" T-NUT

5/16" X 4-1/2" HEX BOLT

5/16" WASHER

2 X 5 X 47-1/2" BOTTOM PANEL BOARD (OFFSET DOWN)

Page 40

STEP 2: FRONT SIDE

1: HAMMER T-NUTS INTO THE CORNER POSTS HOLES THAT ARE 3-3/4" OFF THE BOTTOM. 2: FASTEN THE 2 X 5 X 70" SANDBOX BOARD (OFFSET UP) TO THE CORNER POSTS WITH 5/16" X 4-

1/2" HEX BOLTS AND 5/16" WASHERS.

4 X 4 X 51-1/4" FRONT CORNER POST

5/16" T-NUT

EXTRA HOLE

RIGHT SIDE

5/16" WASHER

5/16" T-NUT

5/16" X 4-1/2" HEX BOLT

2 X 5 X 70" SANDBOX BOARD (OFFSET UP)

Page 41

STEP 3: LEFT SIDE

1: HAMMER T-NUTS INTO THE CORNER POSTS HOLES THAT ARE 3" OFF THE BOTTOM. 2: FASTEN THE 2 X 5 X 47-1/2" BOTTOM PANEL BOARD (OFFSET DOWN) TO THE CORNER POSTS

WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16" WASHERS.

4 X 4 X 51-1/4" REAR CORNER POST

RIGHT SIDE

5/16" T-NUT

5/16" WASHER

5/16" X 4-1/2" HEX BOLT

FRONT SIDE

5/16" T-NUT

2 X 5 X 47-1/2" BOTTOM PANEL BOARD (OFFSET DOWN)

Page 42

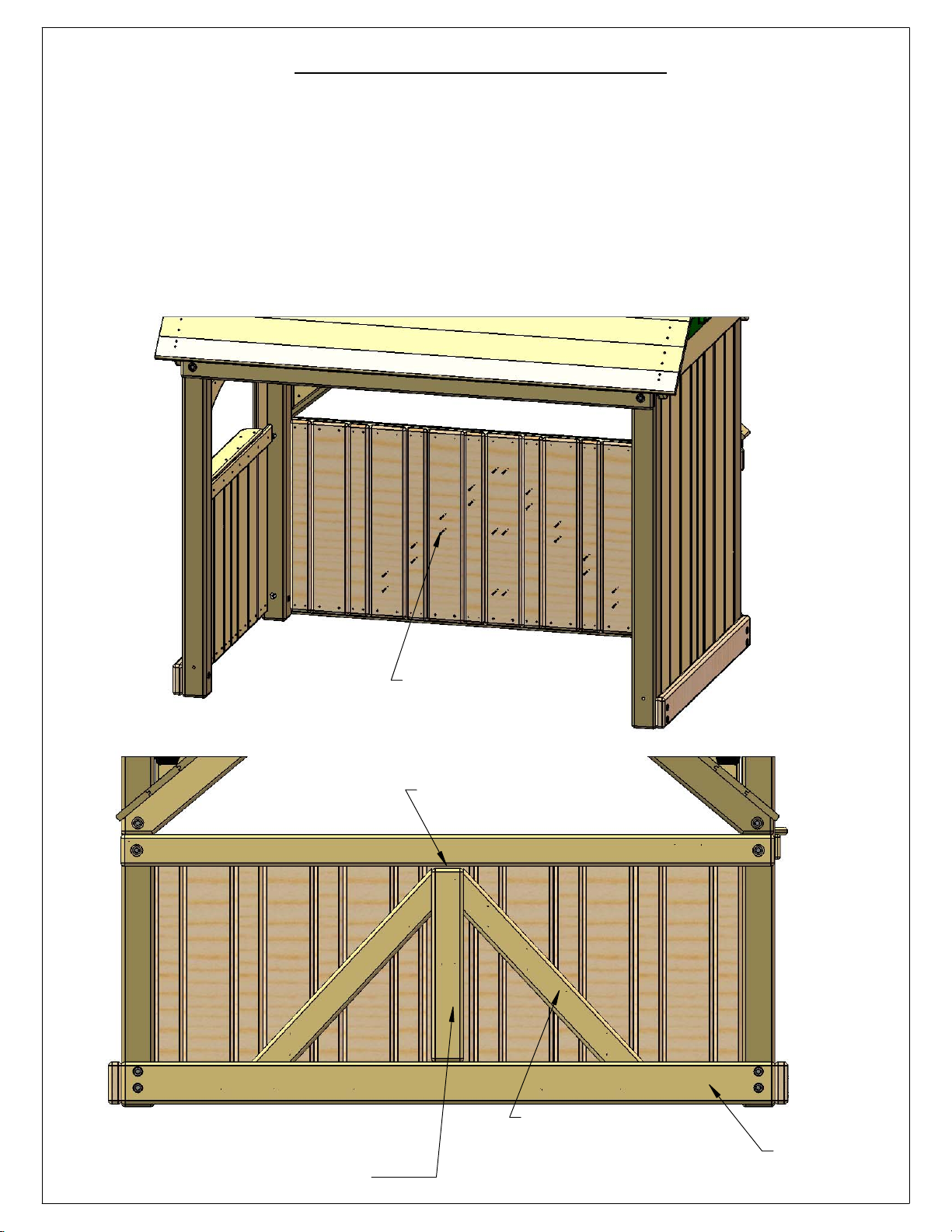

STEP 4: BACK SIDE

1: HAMMER T-NUTS INTO THE CORNER POSTS HOLES THAT ARE 4-1/2" OFF THE BOTTOM. 2: FASTEN THE 2 X 6 X 70" BOTTOM PANEL BOARD DOOR (OFFSET UP) TO THE CORNER

POSTS WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16" WASHERS.

RIGHT SIDE

FRONT SIDE

5/16" T-NUT

5/16" X 4-1/2" HEX BOLT

5/16" WASHER

5/16" T-NUT

LEFT SIDE

2 X 6 X 70" BOTTOM PANEL BOARD DOOR (OFFSET UP)

Page 43

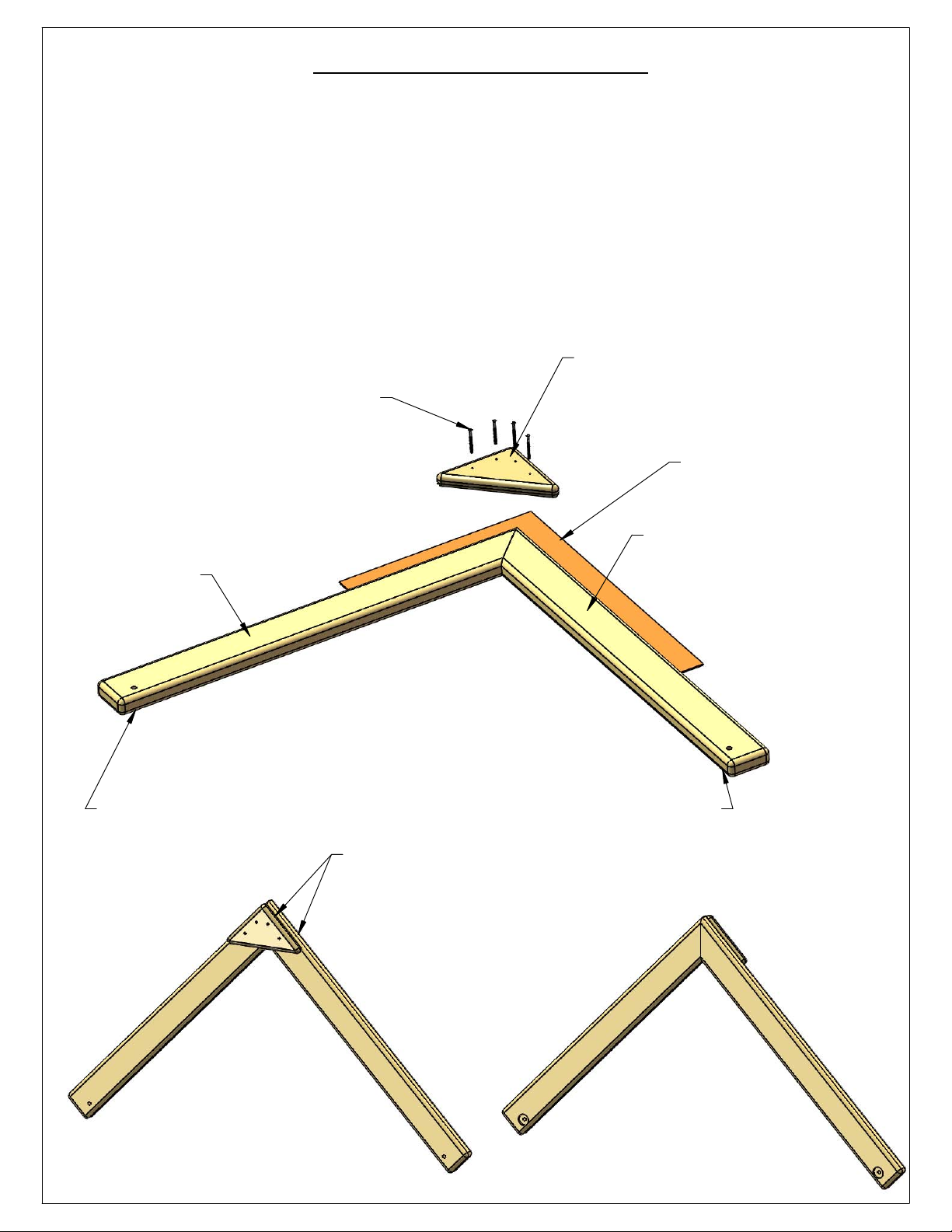

STEP 5: ROOF SUPPORT

1: PLACE THE 2 X 4 X 35.15 ROOF SUPPORTS ON A FLAT SURFACE AS SHOWN. THE COUNTERBORES SHOULD BE FACING THE GROUND (FLAT SURFACE).

2: USE A CARPENTER'S SQUARE TO ENSURE THE PARTS ARE SQUARE TO ONE ANOTHER. 3: PLACE THE 5/4 X 6 X 10" ROOF PEAK SUPPORT ON TOP OF THE ROOF SUPPORTS. THE

EDGES OF THE ROOF PEAK SUPPORT SHOULD BE EVEN OR SLIGHTLY BELOW THE EDGES OF THE ROOF SUPPORTS.

4: ATTACH THE ROOF PEAK SUPPORT TO THE ROOF SUPPORTS WITH #8 X 2" WOOD SCREWS.

5: REPEAT SUBSTEPS 1THROUGH 4 TO MAKE ANOTHER ROOF SUPPORT ASSEMBLY.

5/4 X 6 X 10" #8 X 2" WOOD SCREW

ROOF PEAK SUPPORT

(TRIANGLE)

CARPENTER'S SQUARE

2 X 4 X 35.15 ROOF SUPPORT RIGHT SIDE

COUNTERBORES SHOULD BE FACING THE FLAT SURFACE THE PARTS ARE RESTING ON.

THE TRIANGLE EDGE SHOULD BE EVEN OR BELOW THE ROOF SUPPORT EDGE ON BOTH SIDES.

2 X 4 X 35.15 ROOF SUPPORT LEFT SIDE

Page 44

STEP 6: PLASTIC SUNBURSTS

1: PLACE THE PLASTIC SUNBURST OVER THE ROOF SUPPORTS. 2: MAKE SURE THE ROOF SUPPORTS ARE STILL SQUARE TO ONE ANOTHER WITH THE CARPENTER'S

SQUARE. 3: THE TOP SURFACES OF THE SUNBURST SHOULD BE FLUSH OR SLIGHTLY BELOW THE TOP

SURFACES OF THE ROOF SUPPORTS. 4: FASTEN THE SUNBURST TO THE ROOF SUPPORTS WITH TWO #8 X 2-1/2" WOOD SCREWS AT THE

TOP TRIANGLE SECTION AND SIX #8 X 2" WOOD SCREWS ON THE SIDES. 5: REPEAT SUBSTEPS 1 THROUGH 4 FOR THE OTHER ROOF SUPPORT ASSEMBLY.

CARPENTER'S SQUARE

NOTE: COUNTERBORES

#8 X 2-1/2" WOOD SCREW (2 THROUGH TRIANGLE PORTION OF PLASTIC)

#8 X 2" WOOD SCREW (6 ON SIDES)

PLASTIC SUNBURST

THIS SURFACE OF THE PLASTIC MUST BE EVEN OR SLIGHTLY BELOW THE SURFACE OF THE WOOD ROOF SUPPORT. THIS IS SO THE WOOD ROOF CAN BE ATTACHED PROPERLY TO THE WOOD ROOF SUPPORTS.

Page 45

STEP 7: ROOF SUPPORT ASSEMBLIES

1: HAMMER A T-NUT INTO THE TOP HOLE ON THE INSIDE OF EACH CORNER POSTS. 2: FASTEN THE ROOF SUPPORT ASSEMBLY TO THE LEFT SIDE WITH 5/16" X 4-1/2" HEX BOLTS

AND 5/16" WASHERS. 3: REPEAT SUBSTEPS 1 THROUGH 2 FOR THE OTHER ROOF SUPPORT ASSEMBLY.

ROOF SUPPORT ASSEMBLY

T-NUT

ROOF SUPPORT

T-NUT

ASSEMBLY

RIGHT SIDE

T-NUT

5/16" WASHER

5/16" X 4-1/2" HEX BOLT

LEFT SIDE

Page 46

STEP 8: LEVEL AND SQUARE

1: NOW IS THE TIME TO LEVEL AND SQUARE UP THE FRAME. 2: MAKE SURE THE BOARDS AT THE BOTTOM ARE ALL LEVEL. MAKE SURE ALL THE POSTS

ARE SQUARE TO THE BOARDS AT THE BOTTOM. 3: COMPARE MEASUREMENTS AT THE BOTTOM AND AT THE TOP OF THE POSTS. THE POSTS

NEED TO BE PARALLEL TO ONE ANOTHER. IF THEY ARE NOT PARALLEL THEN LOOSEN THE HEX BOLTS AND MAKE THEM PARALLEL.

COMPARE DIAGONAL DIMENSIONS. WHEN THEY ARE THE SAME THE BASE SHOULD BE CLOSE TO BEING SQUARE. DOUBLE CHECK IT WITH THE CARPENTER'S SQUARE ON THE CORNERS. (DIAGONAL MEASUREMENTS SHOWN ARE FOR REFERENCE ONLY. YOURS MAY VARY.)

1 2

SQUARE

LEVEL

SQUARE

70"

SQUARE

LEVEL

70"

Page 47

STEP 9: LAG SCREWS

1: THE FRAME SHOULD BE LEVEL AND SQUARE AT THIS POINT. THE POSTS SHOULD BE PARALLEL TO ONE ANOTHER ALSO.

2: USE A 9/64" DRILL BIT TO DRILL A PILOT HOLE AT EACH LOCATION SHOWN. (SEE PREDRILL LAG SCREW DIRECTIONS AT FRONT OF THE MANUAL FOR 5/16" X 3-1/2" LAG SCREWS.)

3: INSTALL A 5/16" X 3-1/2" LAG SCREW WITH 5/16" WASHER AT EACH LOCATION. 4: VERIFY THE POSTS ARE STILL PARALLEL TO ONE ANOTHER.

5/16" WASHER

5/16" X 3-1/2" LAG SCREW

Page 48

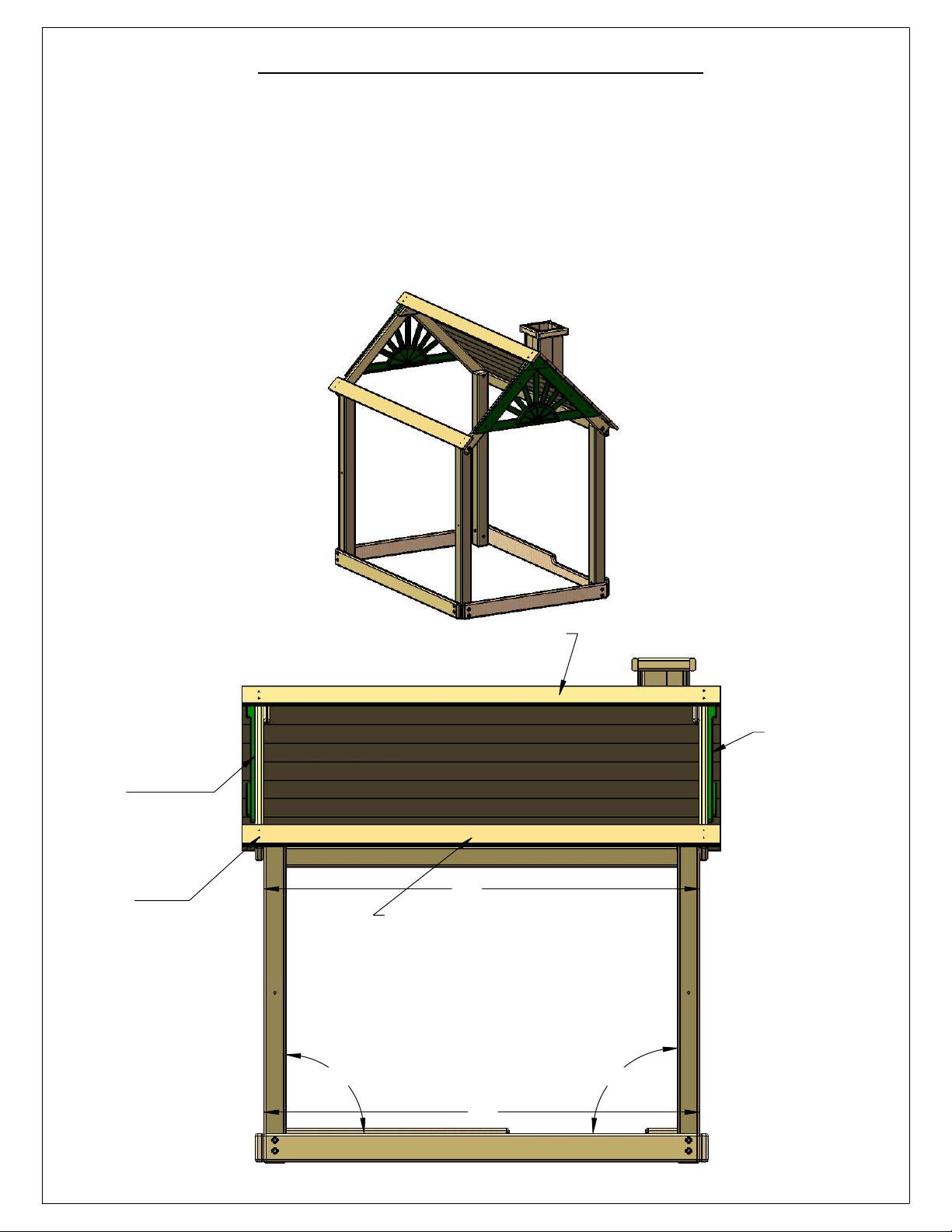

STEP 10: ROOF STARTER REAR

IT MAY BE HELPFUL TO TEMPORARILY INSTALL A ROOF BOARD AT THE BOTTOM OF THE ROOF SUPPORTS. THAT WAY YOU CAN POSITION THE REAR ROOF STARTER AND MAKE ADJUSTMENTS EASILY IN STEP 11.

1: FASTEN THE ROOF BOARD AT THE END OF THE ROOF SUPPORTS WITH #8 X 1-1/2" WOOD SCREWS. 2: MEASURE THE DISTANCE ACROSS THE SET AT THE TOP OF THE POSTS. THAT DISTANCE SHOULD MATCH THE

BOTTOM OF THE POSTS. IF THAT DISTANCE IS NOT THE SAME THEN LOOSEN THE WOOD SCREWS IN THE ROOF BOARD AND REPOSITION ON ONE SIDE UNTIL THE DISTANCES MATCH.

THE ROOF SUPPORT ASSEMBLIES SHOULD BE VERTICAL. IF THEY ARE NOT THEN YOU WILL BE ABLE TO ADJUST THEM SOME IN THE NEXT STEP.

ROOF SUPPORT ASSEMBLY SHOULD BE VERTICAL (NOT LEANING IN OR OUT)

REAR STARTER WILL BE INSTALLED IN THE NEXT STEP.

#8 X 1-1/2" WOOD SCREWS 2 PER SIDE

70"

90.00°

1 X 5 X 76-7/8" ROOF BOARD

90.00°

ROOF SUPPORT ASSEMBLY SHOULD BE VERTICAL (NOT LEANING IN OR OUT)

70"

Page 49

STEP 11: ROOF STARTER REAR

1: PLACE THE 1 X 4 X 76-7/8" ROOF STARTER REAR BOARD AT THE PEAK OF THE ROOF. THE HOLES IN THE ROOF STARTER SHOULD BE CENTERED ON THE ROOF SUPPORTS, AND THE FLAT TOP END OF THE ROOF STARTER SHOULD BE PLACED FLUSH TO THE PEAK OF THE ROOF SUPPORTS.

2: FASTEN THE ROOF STARTER REAR TO THE ROOF SUPPORTS WITH 1-1/2" WOOD SCREWS.

MEASURE DIM A ACROSS THE BOTTOM OF THE ROOF SUPPORTS NEAR THE CORNER POSTS. WHEN ATTACHING THE ROOF STARTER DIM B AT THE ROOF PEAK SHOULD MATCH DIM A. THIS WILL MAKE THE ROOF SUPPORTS PARALLEL TO EACH OTHER. DUE TO WOOD MILLING VARIATIONS YOUR HOLES IN THE ROOF STARTER WILL EITHER BE CENTERED ON THE ROOF SUPPORTS OR THEY WILL BE OFFSET TOWARDS THE INSIDE OF THE ROOF SUPPORTS SLIGHTLY. SUBTRACT DIM A FROM 76-7/8" AND THEN DIVIDE THIS NUMBER BY 2. THIS WILL GIVE YOU THE OVERHANG FOR EACH SIDE. USE THE OVERHANG NUMBER ON EACH SIDE TO KEEP YOUR ROOF SUPPORTS PARALLEL.

DIM B

ROOF STARTER

" ROOF STARTER LENGTH

TOP OF ROOF SUPPORT AT THE PEAK OF THE ROOF.

OVERHANG

#8 X 1-1/2" WOOD SCREW

EXAMPLE: 76-7/8" MINUS 72-3/4" EQUALS 4-1/8". 4-1/8" DIVIDED BY 2 EQUALS 2-1/16" OVERHANG PER SIDE.

BOTTOM OF ROOF SUPPORT ATTACHED

" EXAMPLE DIMENSION 72

DIM A

1 X 4 X 76-7/8" ROOF STARTER REAR 1-4-7688-RSR (3-1/4" WIDE)

TO CORNER POST

OVERHANG

FLUSH

Page 50

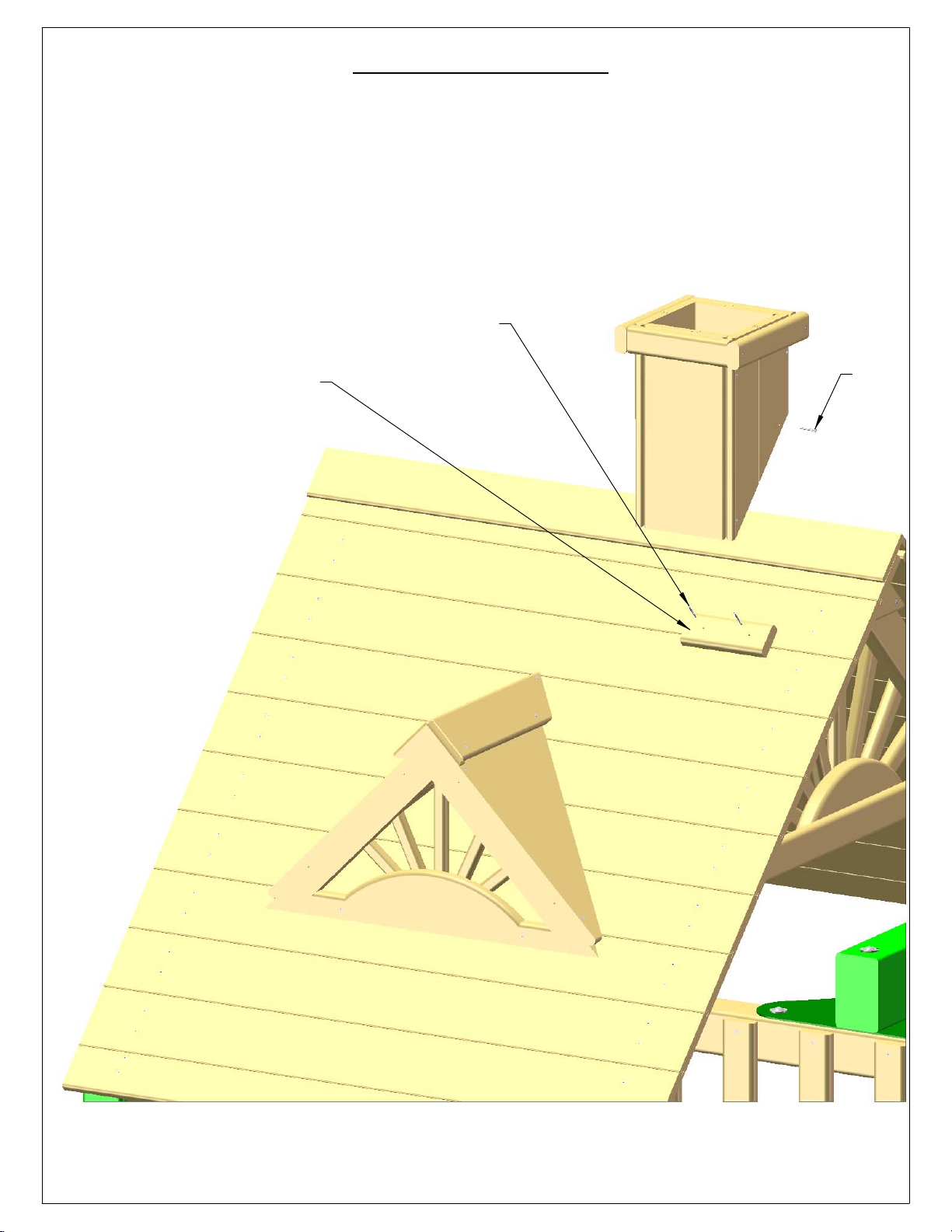

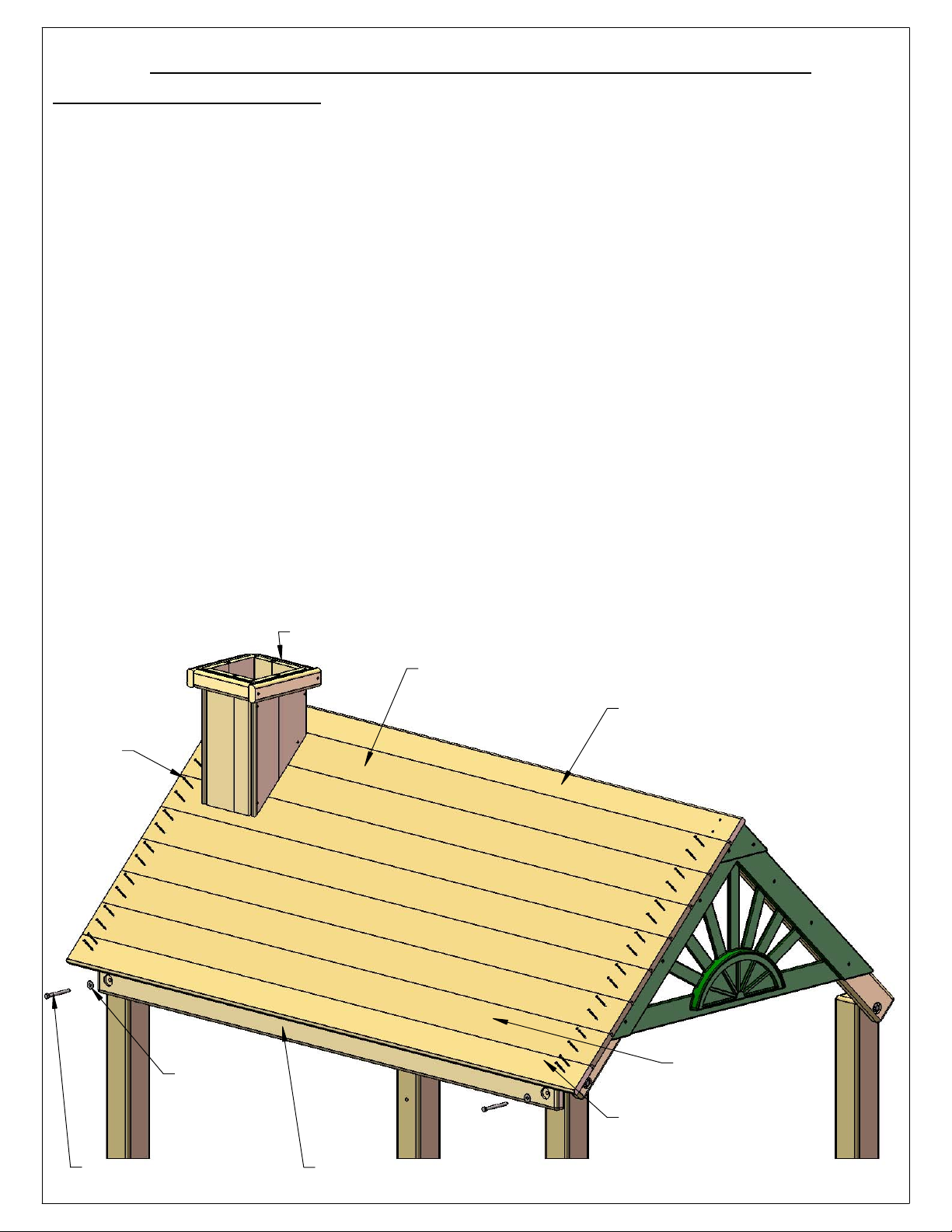

STEP 12: ROOF REAR SECTION AND CHIMNEY

ROOF BOARD INSTALLATION TIPS:

*INSTALL TWO ROOF BOARDS AND THEN REMOVE THE ROOF BOARD AT THE BOTTOM YOU ATTACHED TEMPORARILY.

*BEFORE FITTING ROOF BOARDS INTO ONE ANOTHER SIGHT DOWN THE BOARD TO SEE IF IT HAS A BOW TO IT. IF THE BOARD IS BOWED THEN PLACE THE "BOW SIDE UP". IT IS EASIER TO PUSH A BOW DOWN THAN TO PULL A BOW UP.

*SOMETIMES IT IS EASIER TO FIT BOARDS TOGETHER IF THE BOTTOM TWO SCREWS ARE LEFT OUT. INSTALL THE TWO SCREWS NEAR THE TOP OF THE ROOF BOARD AND LEAVE THE BOTTOM TWO HOLES EMPTY. THEN INSTALL THE NEXT ROOF BOARD BELOW IT AND ONLY INSTALL THE TWO TOP SCREWS IN THAT BOARD. GO BACK TO THE PRIOR BOARD AND INSTALL THE TWO BOTTOM SCREWS.

*USE A SCRAP BLOCK OF WOOD WITH A HAMMER TO HAMMER AGAINST ANY ROOF BOARDS THAT ARE DIFFICULT TO FIT. THIS SHOULD PREVENT DAMAGE TO THE ROOF BOARD.

1: PLACE THE 1 X 5 X 76-7/8" ROOF BOARDS ON TOP OF THE ROOF SUPPORTS, FITTING THE TONGUE END INTO THE GROOVE END OF THE ROOF STARTER REAR. THIS SIDE OF THE ROOF GETS SEVEN ROOF BOARDS.

2: FASTEN THE ROOF BOARDS TO THE ROOF SUPPORTS WITH 1-1/2" WOOD SCREWS. 3: PLACE THE 1 X 4 X 76-7/8" ROOF FINISHER AT THE END OF THE ROOF ASSEMBLY, AND FASTEN WITH 1-

1/2" WOOD SCREWS. 4: MOUNT THE 2 X 4 X 69-3/4" ROOF FINISHER SUPPORT UNDERNEATH THE ROOF UP AGAINST THE ROOF

FINISHER REAR AND ATTACH TO THE REAR CORNER POST USING 5/16" LAG SCREWS AND 5/16" WASHERS.

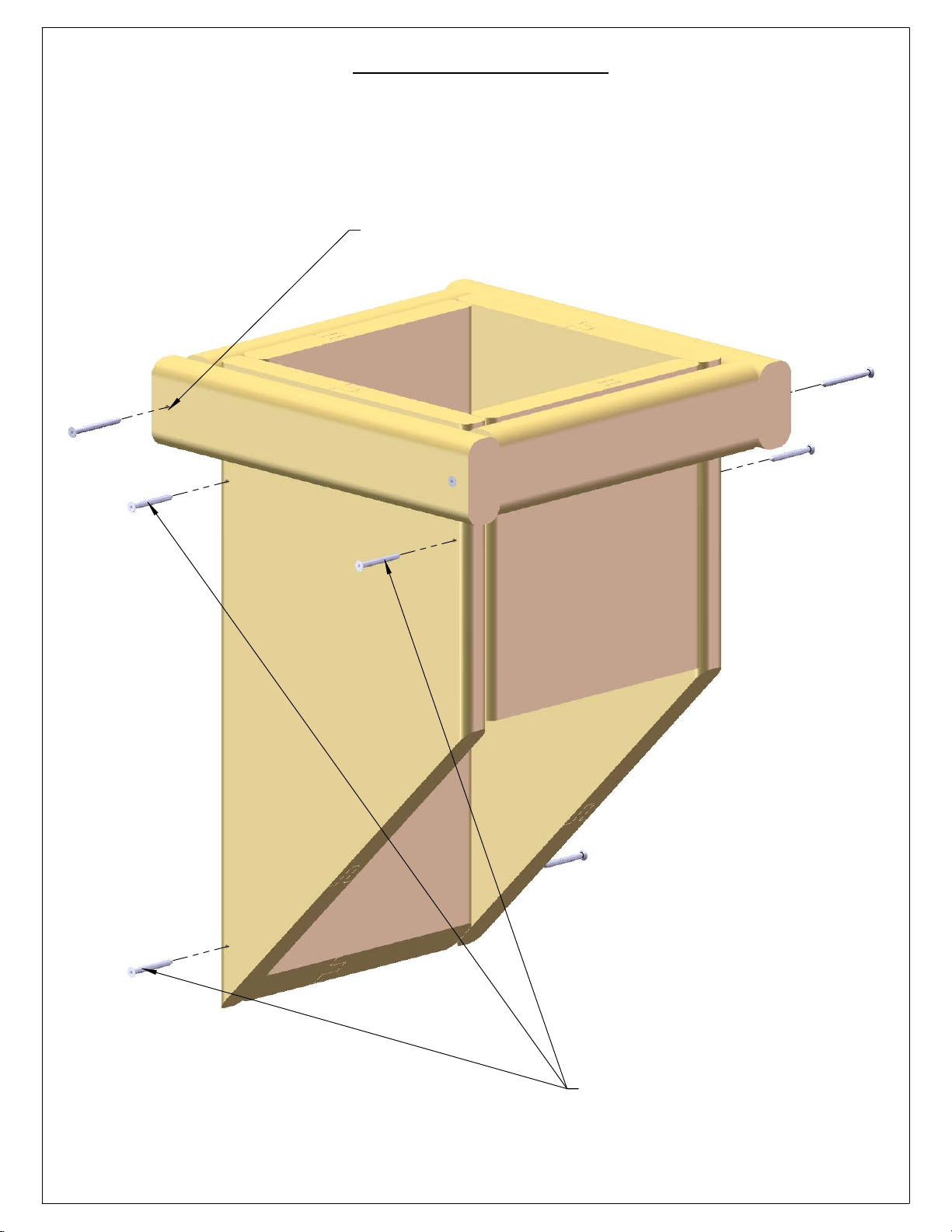

TIP: USE THE INSTRUCTIONS PROVIDED IN THE APPENDIX TO BUILD THE CHIMNEY. INSTALL THREE ROOF BOARDS AND INSTALL THE CHIMNEY ACCORDING TO THE CHIMNEY INSTRUCTIONS.

CHIMNEY

1 X 5 X 76-7/8" ROOF BOARD

1-1/2" WOOD SCREW

(FIRST ONE)

ROOF STARTER REAR

5/16" X 3-1/2" LAG SCREW

5/16" WASHER

ROOF BOARD (SEVENTH ONE)

1 X 4 X 76-7/8" ROOF FINISHER

2 X 4 X 69-3/4" ROOF FINISHER SUPPORT

Page 51

STEP 13: ROOF STARTER FRONT

IT MAY BE HELPFUL TO TEMPORARILY INSTALL A ROOF BOARD AT THE BOTTOM OF THE ROOF SUPPORTS. THAT WAY YOU CAN MAKE SURE THE FRONT CORNER POSTS STAY PARALLEL.

1: FASTEN THE ROOF BOARD AT THE END OF THE ROOF SUPPORTS WITH #8 X 1-1/2" WOOD SCREWS.

2: MEASURE THE DISTANCE ACROSS THE SET AT THE TOP OF THE POSTS. THAT DISTANCE SHOULD MATCH THE BOTTOM OF THE POSTS. IF THAT DISTANCE IS NOT THE SAME THEN LOOSEN THE SCREWS IN THE ROOF BOARD AND REPOSITION ON ONE SIDE UNTIL THE DISTANCES MATCH.

ROOF SUPPORT ASSEMBLY SHOULD BE VERTICAL (NOT LEANING IN OR OUT)

#8 X 1-1/2" WOOD SCREWS 2 PER SIDE

FRONT STARTER WILL BE INSTALLED IN THE NEXT STEP

ROOF SUPPORT ASSEMBLY SHOULD BE VERTICAL (NOT LEANING IN OR OUT)

70"

1 X 5 X 76-7/8" ROOF BOARD

90.00° 90.00°

70"

Page 52

STEP 14: ROOF STARTER FRONT

1: PLACE THE 1 X 4 X 76-7/8" ROOF STARTER FRONT BOARD AT THE PEAK OF THE ROOF. THE HOLES IN THE ROOF STARTER SHOULD BE CENTERED ON THE ROOF SUPPORTS, AND THE FLAT TOP END OF THE FRONT (4") ROOF STARTER SHOULD OVERLAP THE OTHER REAR (3-1/4")ROOF STARTER.

2: FASTEN THE ROOF STARTER FRONT TO THE ROOF SUPPORTS WITH 1-1/2" WOOD SCREWS. MEASURE DIM A ACROSS THE BOTTOM OF THE ROOF SUPPORTS NEAR THE CORNER POSTS. WHEN

ATTACHING THE ROOF STARTER DIM B AT THE ROOF PEAK SHOULD MATCH DIM A. THIS WILL MAKE THE ROOF SUPPORTS PARALLEL TO EACH OTHER. DUE TO WOOD MILLING VARIATIONS YOUR HOLES IN THE ROOF STARTER WILL EITHER BE CENTERED ON THE ROOF SUPPORTS OR THEY WILL BE OFFSET TOWARDS THE INSIDE OF THE ROOF SUPPORTS SLIGHTLY. SUBTRACT DIM A FROM 76-7/8" AND THEN DIVIDE THIS NUMBER BY 2. THIS WILL GIVE YOU THE OVERHANG FOR EACH SIDE. USE THE OVERHANG NUMBER ON EACH SIDE TO KEEP YOUR ROOF SUPPORTS PARALLEL.

TOP OF ROOF SUPPORT AT THE PEAK OF THE ROOF.

DIM B

ROOF STARTER

OVERLAP

1 X 4 X 76-7/8" ROOF STARTER FRONT (4" WIDE)

OVERHANG

FLUSH

" ROOF STARTER LENGTH

EXAMPLE: 76-7/8" MINUS 72-3/4 EQUALS 4-1/8". 4-1/8" DIVIDED BY 2 EQUALS 2-1/16" OVERHANG PER SIDE.

1 X 4 X 76-7/8" ROOF STARTER REAR (3-1/4" WIDE)

" EXAMPLE DIMENSION

DIM A

#8 X 1-1/2" WOOD SCREW

BOTTOM OF ROOF SUPPORT ATTACHED TO CORNER POST

OVERHANG

1 X 4 X 76-7/8" ROOF STARTER FRONT 1-4-7688-RSF (4" WIDE)

Page 53

STEP 15: ROOF FRONT SECTION

1: PLACE THE 1 X 5 X 76-7/8" ROOF BOARDS ON TOP OF THE ROOF SUPPORTS, FITTING THE TONGUE END INTO THE GROOVE END OF THE ROOF STARTER FRONT. THIS SIDE GETS SEVEN ROOF BOARDS.

2: FASTEN THE ROOF BOARDS TO THE ROOF SUPPORTS WITH 1-1/2" WOOD SCREWS.

1 X 5 X 76-7/8" ROOF BOARD

#8 X 1-1/2" WOOD SCREW

ROOF BOARD (FIRST ONE)

1 X 4 X 76-7/8" ROOF STARTER FRONT

ROOF BOARD (SEVENTH ONE)

Page 54

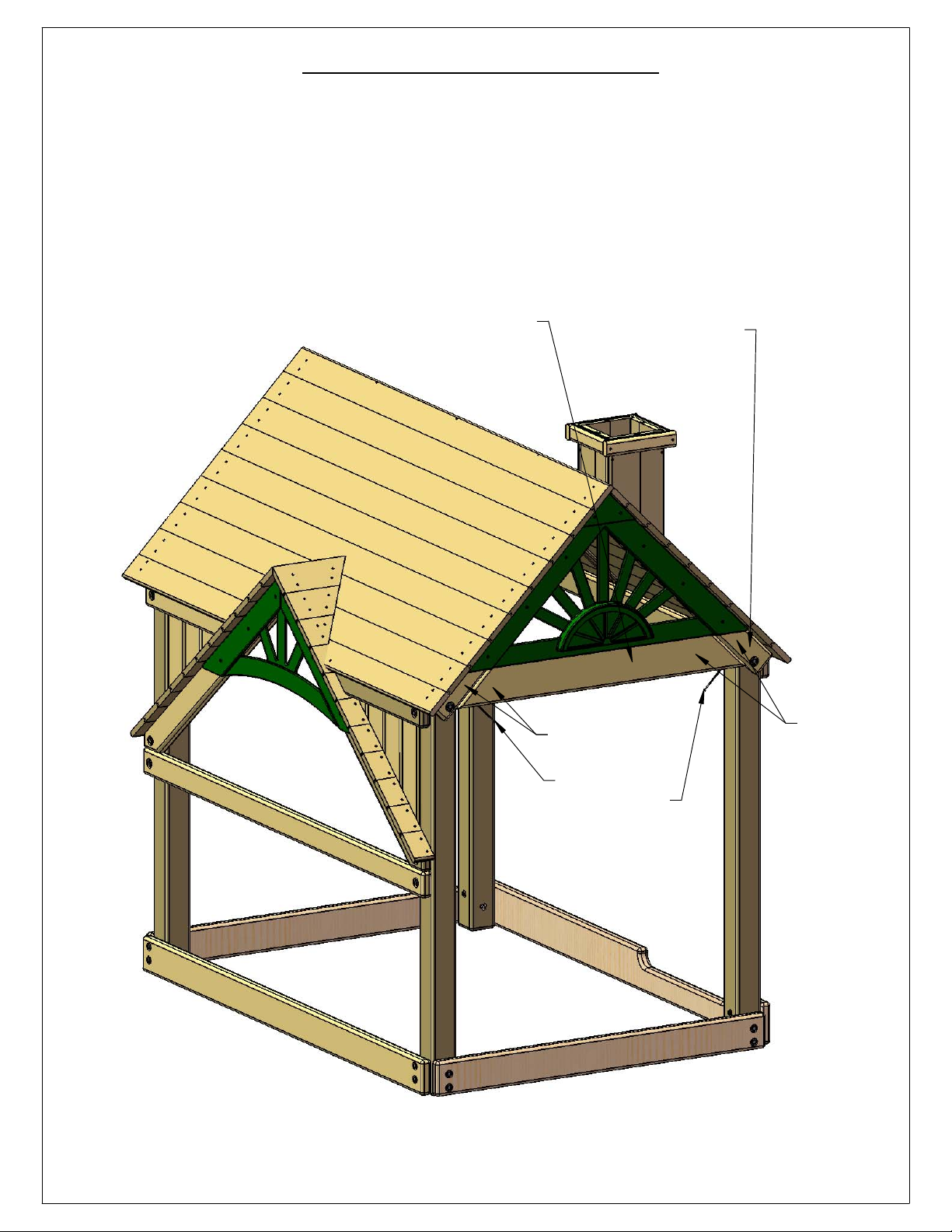

STEP 16: FRONT GABLE ASSEMBLY

1: FIND ONE 5 X 11 X 46.97" ROOF PANEL LEFT ASSEMBLY, ONE 5 X 11 X 46.97" ROOF PANEL RIGHT ASSEMBLY, ONE 5/4 X 5 X 10.81 ROOF PANEL PEAK SUPPORT AND A FRONT PLASTIC ARCH.

2: PLACE THE ROOF PANEL ASSEMBLIES ON A FLAT SURFACE WITH THE COUNTERSUNK HOLES FACING UP. ALIGN THE ANGLED ENDS OF THE ROOF PANEL ASSEMBLIES FLUSH AT THE PEAK LEAVING A GAP AT THE BOTTOM OF THE SEAM, THIS PROVIDES YOU FREEDOM FOR ADJUSTABILITY.

FLUSH (AT THE PEAK)

ROOF PANEL LEFT ASSEMBLY

3: PLACE THE FRONT PLASTIC ARCH ON TOP OF THE ROOF SUPPORTS. MAKE SURE TO KEEP THE ROOF PANEL ASSEMBLIES TIGHT AT THE PEAK AND THE FRONT PLASTIC ARCH FLUSH TO THE ROOF OVERHANG ON BOTH SIDES. FASTEN USING #8 X 1-1/4" WOOD SCREWS. THE FINAL ASSEMBLY SHOULD MEASURE 69-7/8" AT THE BOTTOM.

#8 X 1-1/4" WOOD SCREW

5 x 11 x 46.97

FLUSH TO

ROOF OVERHANG

GAP (AT THE BOTTOM)

COUNTERSUNK HOLES

FACING UP

KEEP TIGHT AT THE PEAK

FLUSH TO ROOF OVERHANG

5 x 11 x 46.97 ROOF PANEL RIGHT ASSEMBLY

FRONT PLASTIC ARCH

125-5-1081-RPPS ROOF PANEL PEAK SUPPORT

4: PLACE THE ROOF PANEL PEAK SUPPORT ON TOP OF THE TWO PANELS AND FLUSH TO THE SIDES OF THE ROOF BOARD BATTENS. FASTEN THE ROOF PANEL PEAK SUPPORT TO THE ROOF PANELS USING 2" WOOD SCREWS.

ROOF PANEL RIGHT ASSEMBLY

ROOF PANEL LEFT ASSEMBLY

2" WOOD SCREW

FLUSH TO ROOF BOARD BATTENS

Page 55

STEP 17: BOTTOM WALL BOARD

1: HAMMER A T-NUT INTO EACH HOLE IN THE FRONT CORNER POSTS. 2: FASTEN THE 2 X 4 X 70" BOTTOM WALL BOARD TO THE FRONT CORNER POSTS WITH 5/16" X 4-

1/2" HEX BOLTS AND 5/16" WASHERS.

5/16" WASHER

5/16" X 4-1/2" HEX BOLT

2 X 4 X 70" BOTTOM WALL BOARD

T-NUT

Page 56

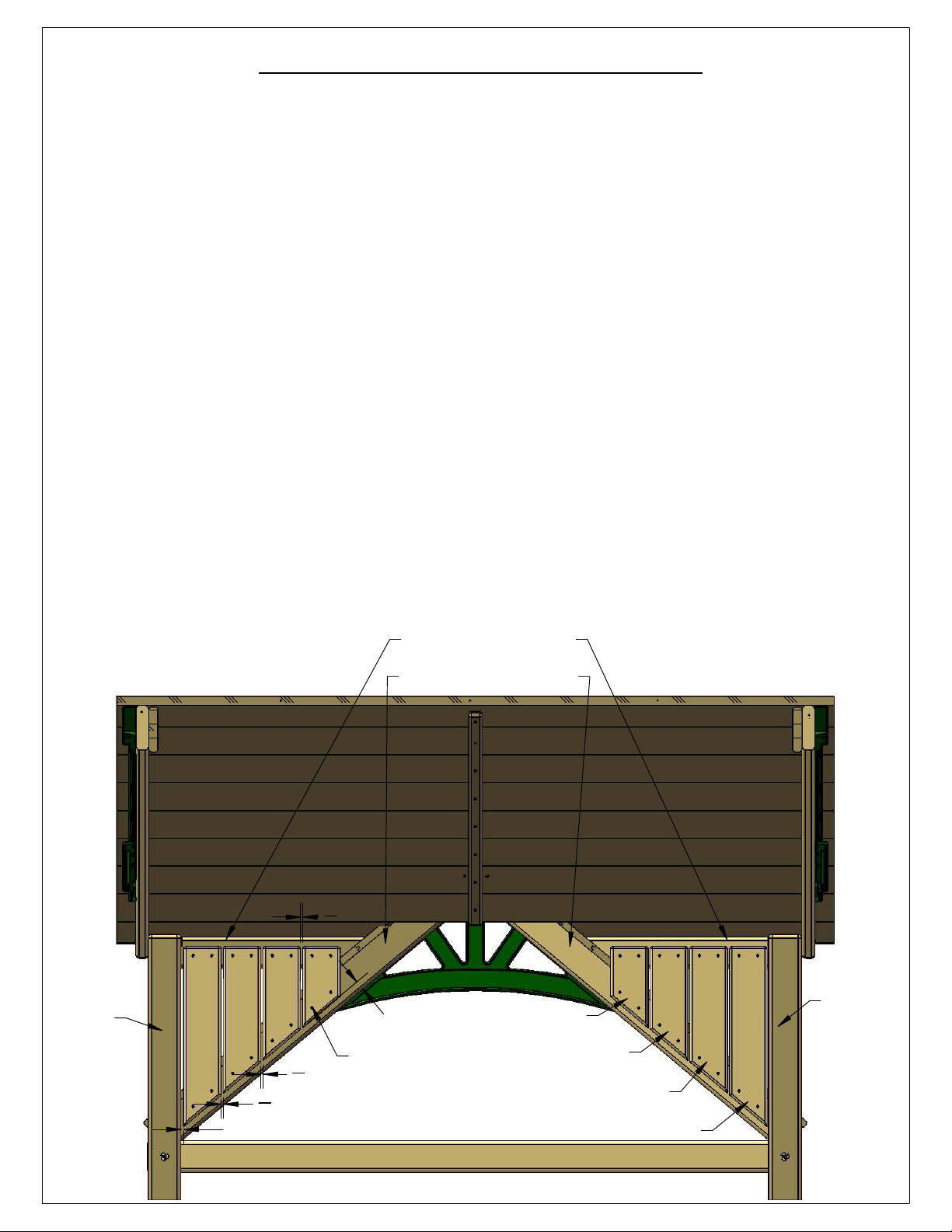

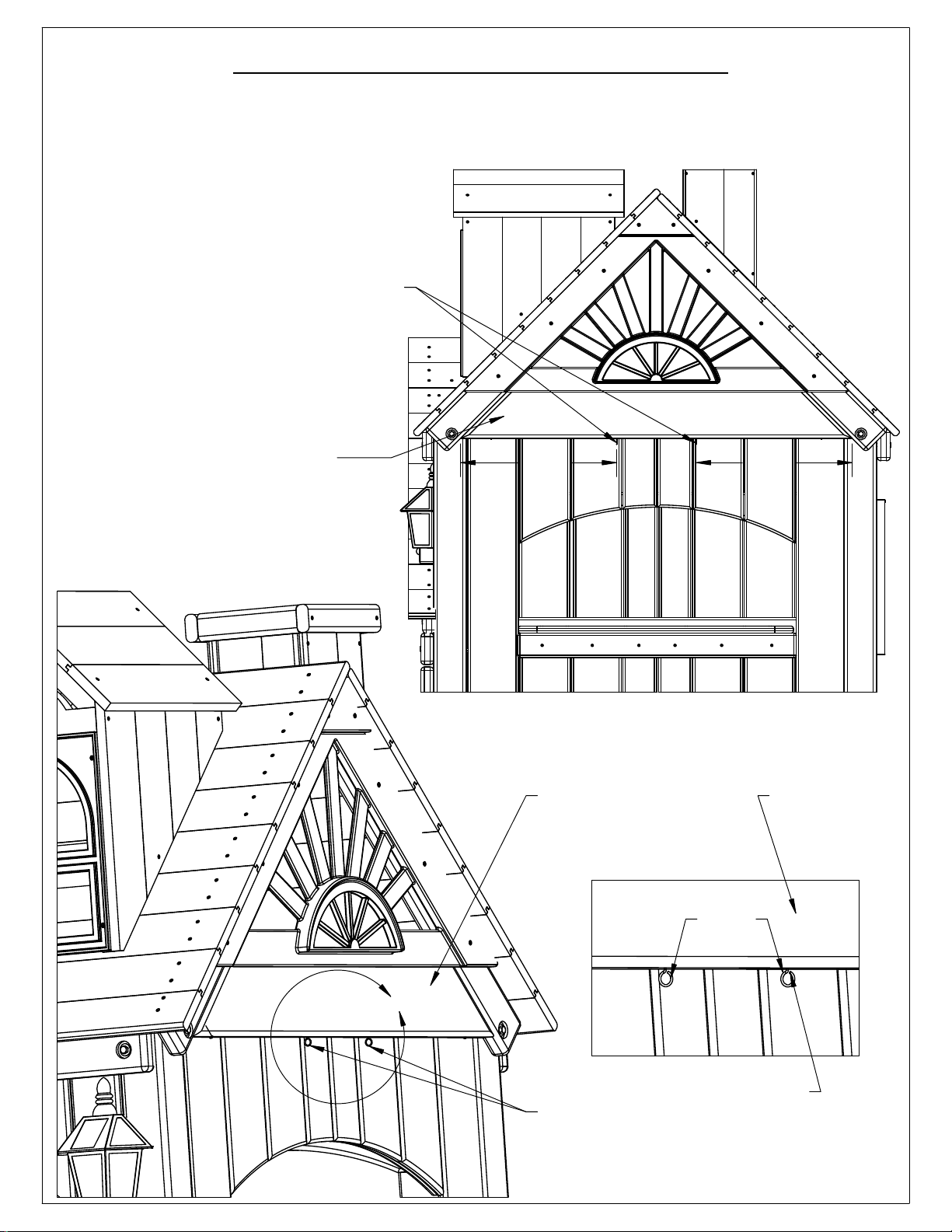

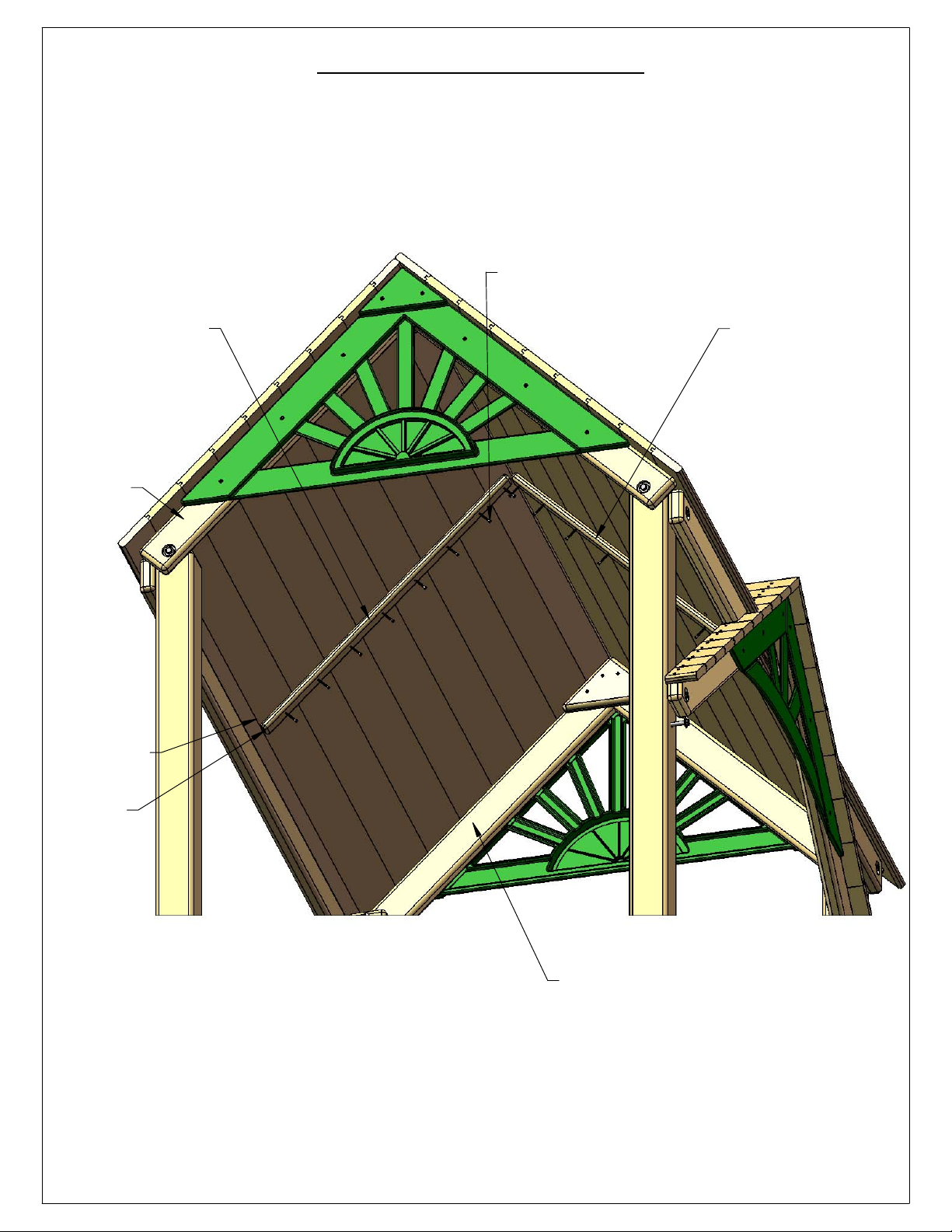

STEP 18: ATTACHING THE FRONT GABLE

MOUNT THE GABLE ASSEMBLY RESTING ABOVE THE BOTTOM WALL BOARD. MAKE SURE THE GABLE ASSEMBLY IS FLUSH AGAINST THE FRONT CORNER POSTS. THE GABLE ROOF PEAK SHOULD BE RESTING ON TOP OF THE ROOF FRONT SECTION.

TIP: MAKE SURE THE DISTANCE BETWEEN THE GABLE ASSEMBLY AND THE ROOF OVERHANG IS EQUAL ON BOTH SIDES. IT IS RECOMMENDED TO TEST FIT THE 1 X 4 X 29.29" ROOF FINISHERS FRONT LEFT AND RIGHT TO ASSURE THIS EQUAL DISTANCE (DO NOT FASTEN). IF NECESSARY SLIDE THE GABLE ASSEMBLY LEFT OR RIGHT UNTIL FINAL POSITION IS ACCOMPLISHED.

2: THE GABLE ASSEMBLY BOTTOM COUNTERSUNK HOLES WILL REMAIN EMPTY FOR NOW.

GABLE ASSEMBLY

ROOF OVERHANG

EQUAL

ROOF OVERHANG

1 X 4 X 29.29" ROOF FINISHER LEFT (TEST FIT ONLY)

EQUAL

EMPTY

3: AFTER THE GABLE ASSEMBLY IS IN ITS FINAL POSITION GO INSIDE ON TOP OF THE DECK AND PULL THE GABLE ASSEMBLY TOWARDS YOU MAKING SURE IT IS FLUSH TO THE OUTSIDE OF THE ROOF AND INSERT TWO 1-1/2" WOOD SCREWS

33-7/8"

FROM UNDERNEATH THE ROOF INTO THE GABLE ASSEMBLY ROOF PEAK. USE THE DIMENSIONS SHOWN IN THE DIAGRAM TO THE LEFT TO INSERT THE WOOD SCREWS IN THE CORRECT LOCATION. REMOVE THE ROOF FINISHERS,

THESE WILL BE USED IN A LATER STEP.

BOTTOM WALL BOARD

1 X 4 X 29.29" ROOF FINISHER RIGHT (TEST FIT ONLY)

EMPTY

NOTE: CORNER POST REMOVED FOR CLARITY

PULL TOWARDS

YOU

Page 57

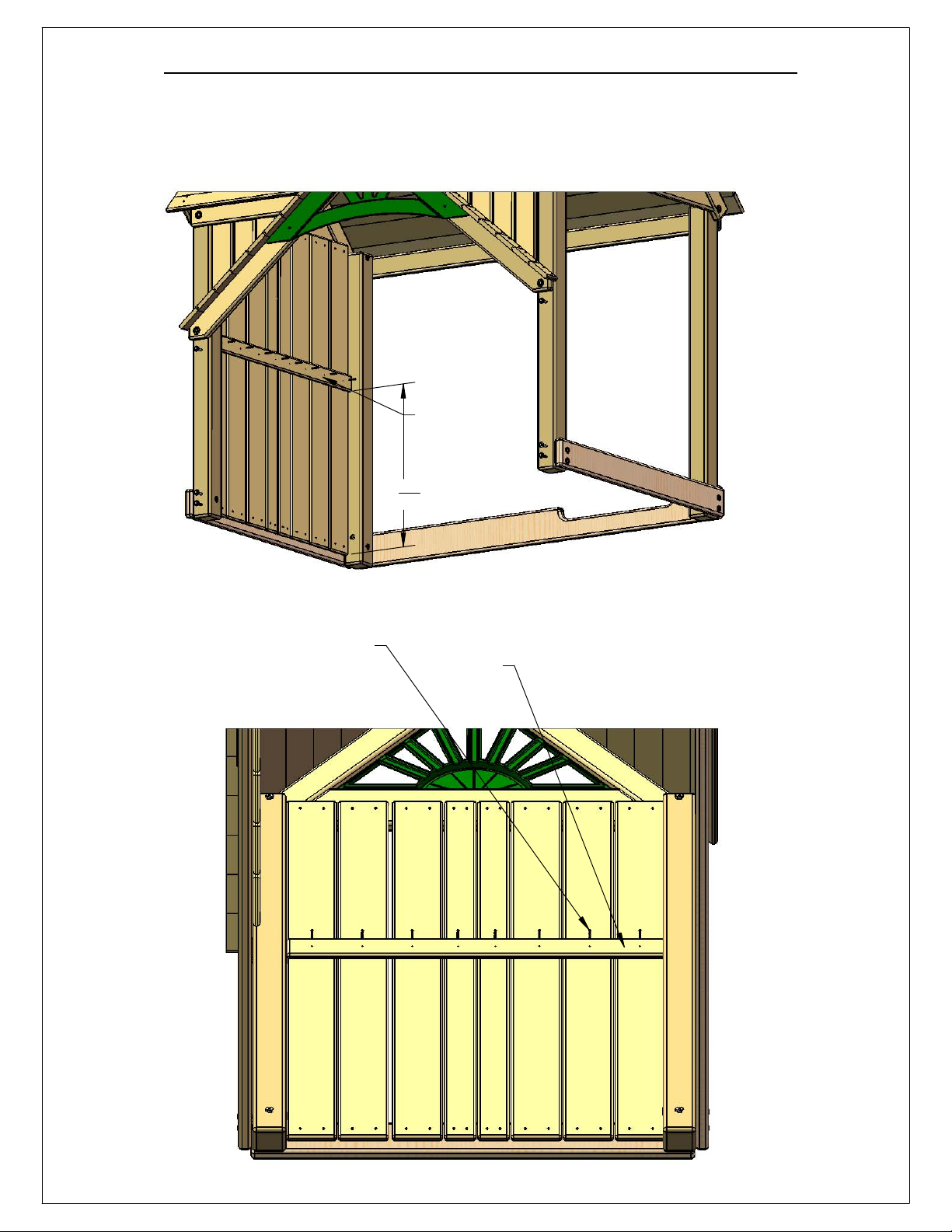

STEP 19: WALL PANEL SUPPORTS

SINCE ALL INSTALLATIONS VARY THE 15-13/16" DIMENSION SHOWN MAY NOT BE CORRECT. FOLLOW THE PROCEDURE BELOW TO POSITION THE WALL PANEL BOARDS PROPERLY.

1: SLIDE THE LEFT ROOF FINISHER (NOT SHOWN) AGAINST THE ROOF BOARD TEMPORARILY. THEN PUSH THE WALL PANEL SUPPORT UNDER IT. THE TOP OF THE FINISHER NEEDS TO BE FLUSH TO THE TOP OF THE ROOF BOARD ABOVE IT.

2: SLIDE THE FINISHER OUT AND THEN MAKE A MARK AT THE END OF THE TIP OF THE WALL PANEL BOARD. 3: ALIGN THE BACK OF THE WALL PANEL SUPPORT FLUSH TO THE BACK OF THE GABLE ASSEMBLY. ALIGN THE TIP OF THE WALL

PANEL BOARD WITH THE MARK. USE THE HOLE IN THE WALL PANEL BOARD TO DRILL A 1/8" PILOT HOLE THROUGH THE SHORT ROOF BOARD IN THE GABLE ASSEMBLY. INSTALL A 2-1/2" WOOD SCREW IN THE HOLE.

4: MAKE THE WALL PANEL SUPPORT PARALLEL TO THE ROOF BOARD. INSTALL A 5/16" X 3-1/2" LAG SCREW WITH 5/16" WASHER IN THE COUNTERBORED HOLE.

5: REPEAT SUBSTEPS 1 THROUGH 4 FOR THE RIGHT WALL PANEL SUPPORT.

2 X 4 X 22-3/4" WALL PANEL SUPPORT LEFT

2-1/2" WOOD SCREW

LEFT ROOF FINISHER (NOT SHOWN)

MAKE A MARK HERE AT THE TIP.

15 13/16"

ROOF BOARD

GABLE ASSEMBLY

INSTALL 5/16" X 3-1/2" LAG SCREW WITH 5/16" WASHER IN THE COUNTERBORED HOLE.

2 X 4 X 22-3/4" WALL PANEL SUPPORT RIGHT

Page 58

STEP 20: ROOF FINISHERS FRONT

1: PLACE THE RIGHT ROOF FINISHER INTO THE GROOVE OF THE ROOF BOARD. 2: SLIDE THE FINISHER OVER UNTIL IT HITS THE GABLE ASSEMBLY ROOF. IF THE FINISHER STICKS OUT BEYOND THE END

OF THE ROOF BOARD ABOVE IT THEN YOU WILL HAVE TO TRIM IT. MARK THE END OF THE FINISHER AND CUT IT TO LENGTH.

(IF THE FINISHER IS FLUSH TO THE END OF THE ROOF BOARD ABOVE IT THEN ALL YOU NEED TO DO IS TO ATTACH IT WITH THREE #8 X 1-1/2" WOOD SCREWS)

3: RESTAIN THE TRIMMED END OF THE FINISHER IF YOU CUT IT WITH THE STAIN PROVIDED. 4: AT THIS POINT YOU MAY NOTICE THAT THE TWO SMALL HOLES MAY NOT BE CENTERED OVER THE ROOF

SUPPORT. IF THAT IS THE CASE THEN DRILL TWO SMALL HOLES THAT ARE CENTERED OVER THE ROOF SUPPORT AND INSTALL TWO #8 X 1-1/2" WOOD SCREWS.

REPEAT SUBSTEPS 1 THROUGH 4 FOR THE LEFT ROOF FINISHER

1 X 4 X 29.29" ROOF FINISHER FRONT LEFT

IDEAL IF ENDS ARE FLUSH

#8 X 1-1/2" WOOD SCREWS (3 PER SIDE)

ROOF BOARD

GABLE ASSEMBLY ROOF

1 X 4 X 29.29" ROOF FINISHER FRONT RIGHT

IF THE FINISHER OVERHANGS THEN TRIM IT.

DETAIL A

SCALE 1 : 4

IF THESE HOLES ARE NOT CENTERED OVER THE ROOF SUPPORT THEN DRILL NEW HOLES BESIDE THEM.

NEW HOLES

Page 59

STEP 21: ROOF BATTEN

1: PLACE THE 1 X 2 X 32" ROOF BATTEN UP AGAINST THE ROOF PANEL, CENTERED BETWEEN THE ROOF SUPPORTS. FLUSH THE BOTTOM EDGE OF THE ROOF BATTEN TO THE BOTTOM EDGE OF THE SEVENTH ROOF BOARD. MAKE SURE IT IS PARALLEL TO THE ROOF SUPPORTS. INSERT 1-1/4" SCREWS THROUGH THE PREDRILLED HOLES ALONG THE BATTEN AND SECURE THE BATTEN TO THE ROOF BOARDS. DO NOT OVERTIGHTEN THE SCREWS OR THE BATTEN COULD SPLIT.

2: REPEAT THIS PROCESS FOR THE SECOND ROOF BATTEN ON THE OTHER SIDE.

#8 X 1-1/4" WOOD SCREWS

1 X 2 X 32" ROOF BATTEN

ROOF SUPPORT

1 X 2 X 32" ROOF BATTEN

EDGE OF SEVENTH ROOF BOARD

FLUSH

ROOF SUPPORT

Page 60

STEP 22: WALL PANEL BOARDS

1: START MOUNTING THE 1 X 4 X 19.31" WALL PANEL BOARD AGAINST THE GABLE LEFT ROOF SUPPORT AND THE WALL PANEL SUPPORT LEFT. THE SIDE EDGE OF THE WALL PANEL BOARD MUST BE PARALLEL AND 1/4" FROM THE SIDE EDGE OF THE FRONT LEFT CORNER POST. THE WALL PANEL BOARD BOTTOM ANGLED END SHOULD BE PARALLEL AND 1" FROM THE SIDE EDGE OF THE GABLE ROOF SUPPORT. FASTEN THE WALL PANEL BOARD WITH FOUR 1-1/2" WOOD SCREWS.

2: MOUNT THE 1 X 4 X 15.75" WALL PANEL BOARD AGAINST THE GABLE LEFT ROOF SUPPORT AND THE WALL PANEL SUPPORT LEFT. THE SIDE EDGE OF THE WALL PANEL BOARD MUST BE PARALLEL AND 1/4" FROM THE SIDE EDGE OF THE PREVIOUS WALL PANEL BOARD. THE WALL PANEL BOARD BOTTOM ANGLED END SHOULD BE PARALLEL AND 1" FROM THE SIDE EDGE OF THE GABLE ROOF SUPPORT. FASTEN THE WALL PANEL BOARD WITH FOUR 1-1/2" WOOD SCREWS.

3: MOUNT THE 1 X 4 X 12.25" WALL PANEL BOARD AGAINST THE GABLE LEFT ROOF SUPPORT AND THE WALL PANEL SUPPORT LEFT. THE SIDE EDGE OF THE WALL PANEL BOARD MUST BE PARALLEL AND 1/4" FROM THE SIDE EDGE OF THE PREVIOUS WALL PANEL BOARD. THE WALL PANEL BOARD BOTTOM ANGLED END SHOULD BE PARALLEL AND 1" FROM THE SIDE EDGE OF THE GABLE ROOF SUPPORT. FASTEN THE WALL PANEL BOARD WITH FOUR 1-1/2" WOOD SCREWS.

4: MOUNT THE 1 X 4 X 8.75" WALL PANEL BOARD AGAINST THE GABLE LEFT ROOF SUPPORT AND THE WALL PANEL SUPPORT LEFT. THE SIDE EDGE OF THE WALL PANEL BOARD MUST BE PARALLEL AND 1/4" FROM THE SIDE EDGE OF THE PREVIOUS WALL PANEL BOARD. THE WALL PANEL BOARD BOTTOM ANGLED END SHOULD BE PARALLEL AND 1" FROM THE SIDE EDGE OF THE GABLE ROOF SUPPORT. FASTEN THE WALL PANEL BOARD WITH FOUR 1-1/2" WOOD SCREWS.

5: REPEAT SUB-STEP 1 TO 4 FOR THE OTHER SIDE. ROOF BOARDS REMOVED FROM VIEW FOR CLARITY

WALL PANEL SUPPORTS

GABLE ROOF SUPPORTS

CORNER POST

1/4"

1 4

1-1/2"

WOOD SCREW

1 X 4 X 8.75" WALL PANEL BOARD

1 X 4 X 12.25" WALL PANEL BOARD

CORNER POST

1 X 4 X 15.75" WALL PANEL BOARD

1 X 4 X 19.31" WALL PANEL BOARD

Page 61

STEP 23: GABLE BOARDS

1: PLACE THE 2 X 6 X 42" ROOF GABLE BOARD DIRECTLY UNDERNEATH THE ROOF SUPPORTS. 2: SECURE THE ROOF GABLE BOARD TO THE ROOF SUPPORTS WITH TWO #10 X 3-1/2" WOOD

SCREWS. 3: REPEAT SUBSTEPS 1 THROUGH 2 FOR THE OTHER SIDE OF THE ROOF.

2 X 6 X 42" ROOF GABLE BOARD

ROOF SUPPORT

FLUSH

#10 X 3-1/2" WOOD SCREW

FLUSH

Page 62

STEP 24: DORMERS

1: ASSEMBLE THE DORMERS AS SHOWN IN THE APPENDIX. 2: MAKE MARKS ON THE ROOF WITH A PENCIL AT THE DIMENSIONS SHOWN. NOTE THE

DIMENSIONS START FROM THE JOINT OF THE SEVENTH ROOF BOARD AND THE FINISHERS. 3: INSTALL THE DORMER MOUNTING BLOCKS WITH TWO #8 X 2" WOOD SCREWS. 4: MOUNT THE DORMER 4-1/2" FROM THE BOTTOM EDGE OF THE SEVENTH ROOF BOARD. THE

DORMER MOUNTING BLOCK WILL FIT BETWEEN THE SIDES OF THE DORMER. 5: ATTACH THE DORMER TO THE DORMER MOUNTING BLOCK WITH #8 X 2-1/2" WOOD

SCREWS 6: INSTALL TWO 2" WOOD SCREWS FROM UNDERNEATH THE ROOF INTO THE DORMER

MOUNTING BLOCKS.

DORMER

2" WOOD SCREW

DORMER

#8 X 2-1/2" WOOD SCREW

DORMER MOUNTING BLOCK

41"

3 4

15"

EDGE OF SEVENTH ROOF BOARD

" 9

Page 63

STEP 25: WALL BOARDS LEFT SIDE

1: FIND SIX 1 X 6 X 51" WALL BOARDS AND TWO 1 X 4 X 51" WALL BOARDS WITH PRE-DRILLED HOLES.

2: PLACE WALL BOARDS ON THE LEFT SIDE OF THE FORT AGAINST THE ROOF GABLE BOARD AND THE SANDBOX BOARD AS SHOWN BELOW. THE BOTTOM OF THE WALL BOARDS SHOULD BE 13/8" ABOVE THE BOTTOM OF THE SANDBOX BOARD.

3: USE A #8 X 1-3/4" WOOD SCREWS TO ATTACH THE BOARDS. LEAVE 1/4" SPACES BETWEEN THE WALL BOARDS AS WELL AS THE CORNER POSTS.

LEFT SIDE VIEW (INSIDE)

SANDBOX BOARD

1 X 4 X 51" WALL BOARD (TWO BOARDS)

1/4" GAPS APPROXIMATELY

LEFT SIDE VIEW (OUTSIDE)

#8 X 1-3/4" WOOD SCREW

ROOF GABLE BOARD

1 X 6 X 51" WALL BOARD (SIX BOARDS)

SANDBOX BOARD

Page 64

STEP 26: ATTACHING PANEL BOARD BRACE

1: PLACE THE 1 X 3 X 40-1/2" PANEL BOARD BRACE AT THE CENTER OF THE WALL BOARDS YOU ATTACHED TO THE SWING BEAM SIDE. FASTEN IT TO THE WALL BOARDS WITH #8 X 1-1/4" WOOD SCREWS.

1 X 3 X 40-1/2" PANEL BOARD BRACE

WOOD SCREW

1 X 3 X 40-1/2"#8 X 1-1/4" PANEL BOARD BRACE

LEFT WALL INSIDE VIEW

Page 65

STEP 27: REAR WALL BOARDS

1: PLACE WALL BOARDS ON THE REAR SIDE OF THE FORT AGAINST THE BOTTOM PANEL BOARD AND THE ROOF FINISHER SUPPORT AS SHOWN BELOW. THE BOTTOM OF THE WALL PANEL BOARDS SHOULD BE FLUSH TO THE BOTTOM OF THE BOTTOM PANEL BOARD DOOR. THE OPENING DIMENSIONS FOR ATTACHING THE WINDOW IN THE NEXT STEP ARE SHOWN BELOW.

2: USE #8 X 1-3/4" WOOD SCREWS TO ATTACH THE WALL BOARDS. LEAVING 1/4" SPACES BETWEEN THE WALL BOARDS AS WELL AS THE CORNER POSTS.

BOTTOM PANEL BOARD DOOR

#8 X 1-3/4" WOOD SCREW

1 X 6 X 8-3/8" TOP BOARD DOOR 2 (TWO BOARDS)

FLUSH

1 X 6 X 10" TOP BOARD DOOR1 (TWO BOARDS)

1 X 4 X 9" TOP BOARD

(THREE BOARDS)

1 X 4 X 51" WALL BOARD (FOUR BOARDS)WINDOW

2 X 4 X 69-3/4" ROOF FINISHER

" 14

SUPPORT 1 X 6 X 51"

WALL BOARD (THREE BOARDS)

1 X 4 X 27-3/4" BOTTOM WINDOW BOARD (THREE BOARDS)

Page 66

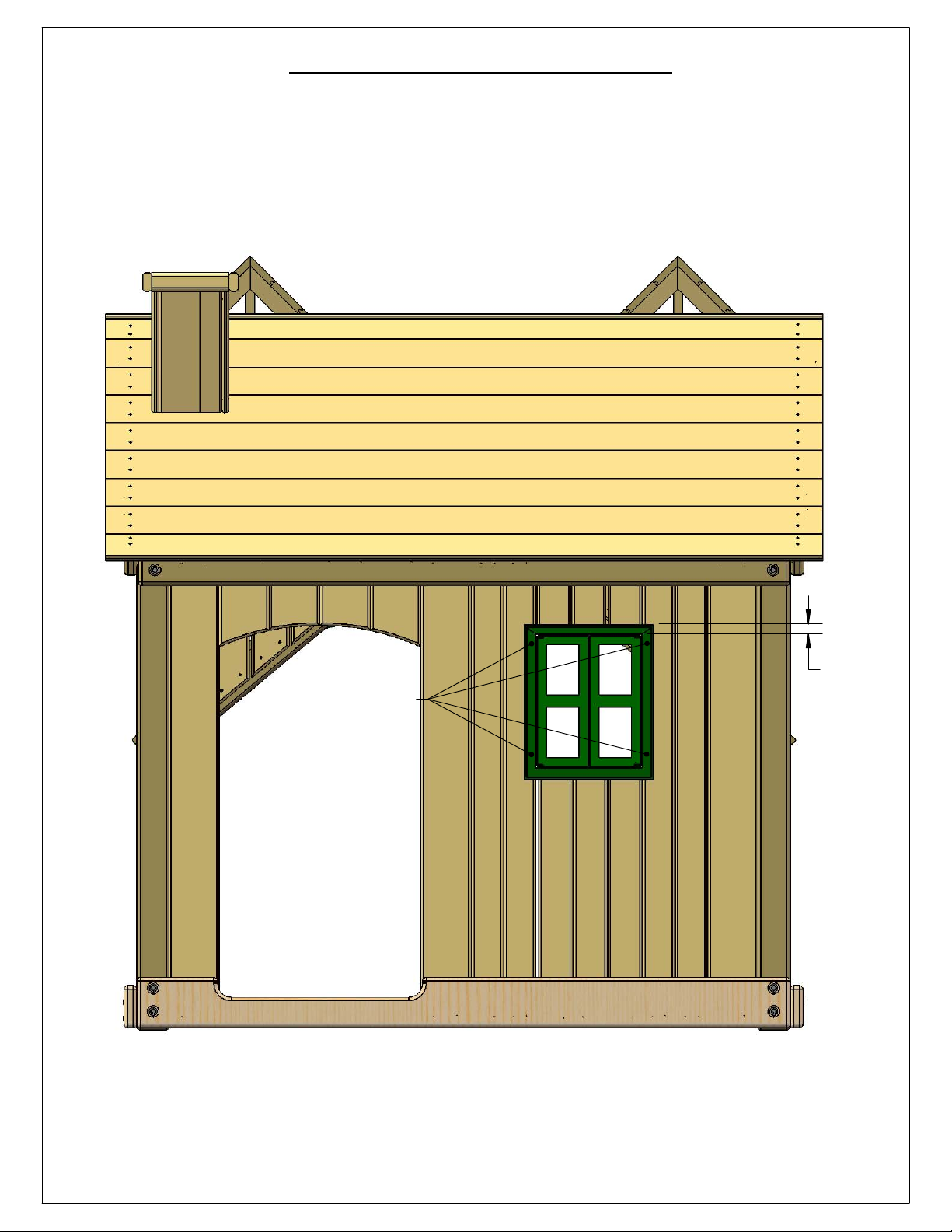

STEP 28: INSTALL WINDOW

1: FIND THE PLASTIC WINDOW. PLACE WINDOW AT THE REAR OF THE PLAYHOUSE IN THE OPENING. THE 1" WIDE SECTION OF THE WINDOW FRAME SHOULD BE AT THE TOP.

2: ATTACH THE WINDOW WITH FOUR #8 X 1-1/4" WOOD SCREWS.

#8 X 1-1/4" WOOD SCREWS

1" WIDE

SECTION

AT TOP.

Page 67

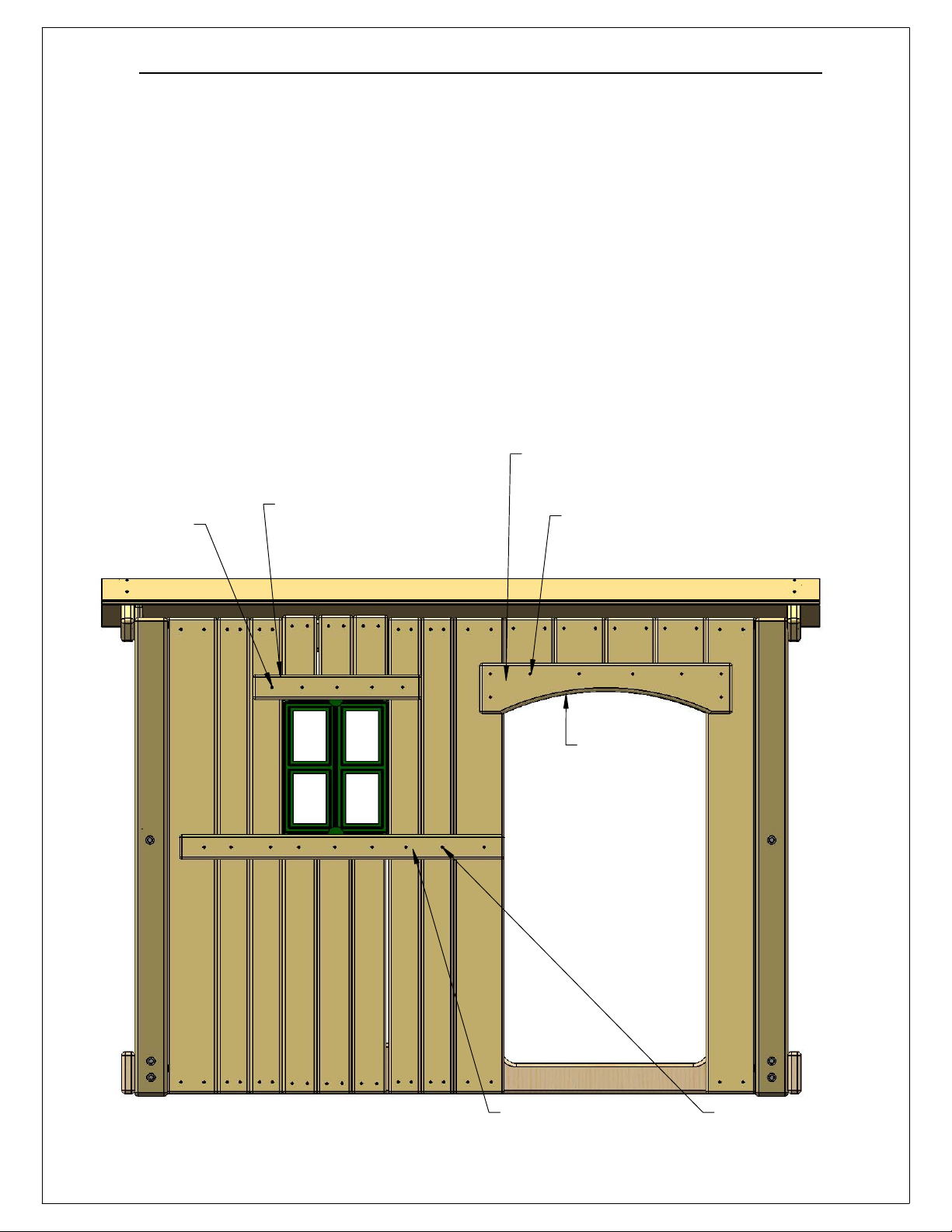

STEP 29: WINDOW BOARD AND DOOR BOARD

1: PLACE THE 1 X 3 X 34-3/4" WINDOW BOTTOM BOARD FLUSH WITH THE BOTTOM OF THE WINDOW. THIS BOARD TIES THE BOARDS TOGETHER.

2: FASTEN THE WINDOW BOTTOM BOARD WITH #8 X 1-1/4" WOOD SCREWS. 3: PLACE THE 1 X 3 X 18" WINDOW TOP BOARD FLUSH WITH THE TOP OF THE WINDOW. THIS BOARD TIES THE

BOARDS TOGETHER. 4: FASTEN THE WINDOW TOP BOARD WITH #8 X 1-1/4" WOOD SCREWS. 5: PLACE THE 1 X 6 X 27" ARCH TOP BOARD DOOR FLUSH WITH THE BOTTOM OF THE TOP DOOR BOARD 2 AND

TOP DOOR BOARD 1 PIECES. 6: FASTEN THE ARCH TOP BOARD DOOR PIECE WITH #8 X 1-1/4" WOOD SCREWS.

1 X 6 X 27" ARCH TOP BOARD DOOR

#8 X 1-1/4" WOOD SCREW

1 X 3 X 18" WINDOW TOP BOARD

#8 X 1-1/4" WOOD SCREW

FLUSH

1 X 3 X 34-3/4" WINDOW BOTTOM BOARD

#8 X 1-1/4" WOOD SCREW

Page 68

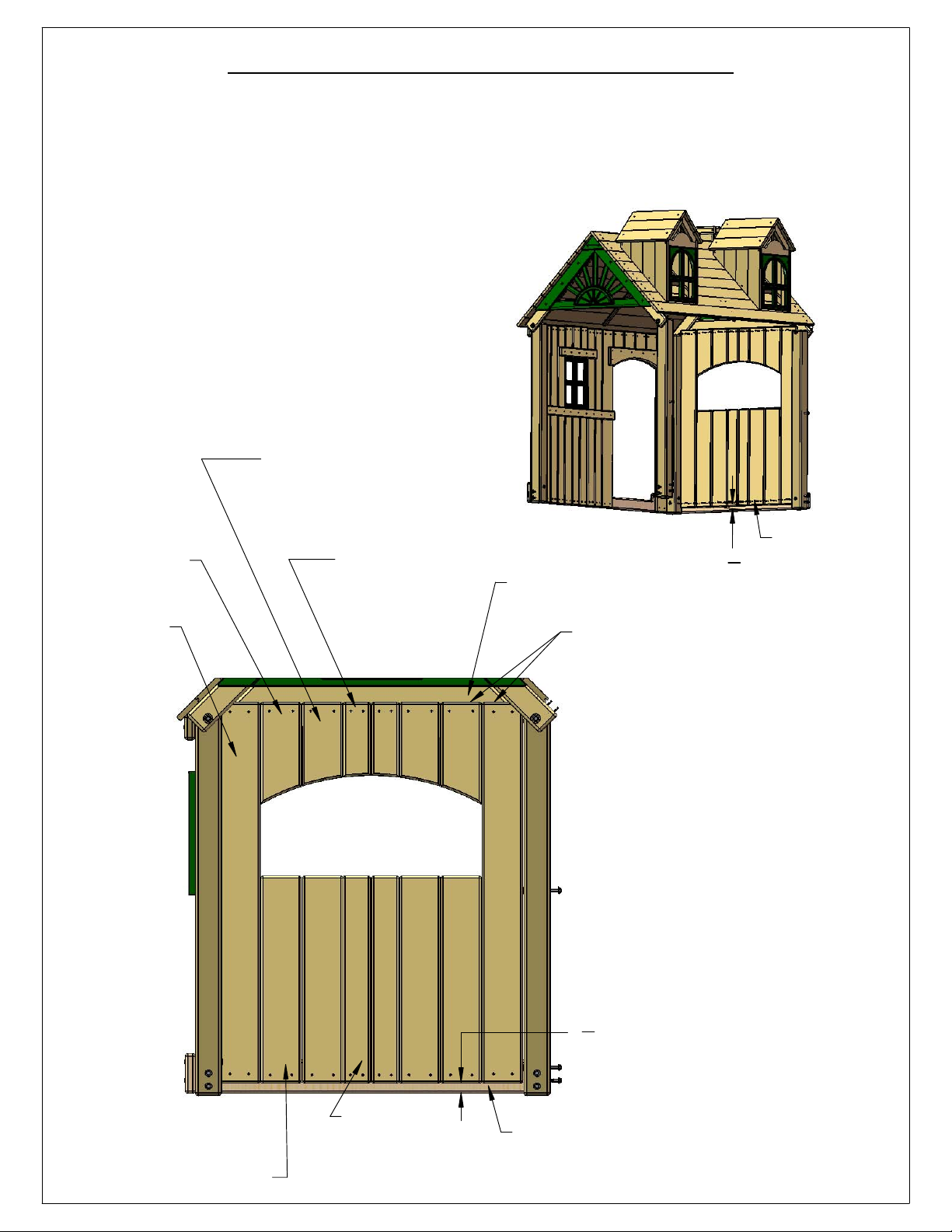

STEP 30: RIGHT SIDE WALL BOARDS

1 PLACE WALL BOARDS ON THE RIGHT SIDE OF THE PLAYSET AGAINST THE ROOF GABLE BOARD AND THE SANDBOX BOARD AS SHOWN BELOW. THE BOTTOM OF THE WALL BOARDS SHOULD BE 1-3/8" ABOVE THE BOTTOM OF THE SANDBOX BOARD. FASTEN THE BOARDS WITH #8 X 1-3/4" WOOD SCREWS. LEAVE A 1/4" GAP BETWEEN THE BOARDS AS WELL AS THE CORNER POSTS.

1 X 6 X 11-3/16" OPEN WINDOW

1 X 6 X 13-5/8" OPEN WINDOW TOP BOARD 3 (TWO BOARDS)

1 X 6 X 51" WALL BOARD (TWO BOARDS)

TOP BOARD 2 (TWO BOARDS)

1 X 4 X 10" OPEN WINDOW TOP BOARD 3 (TWO BOARDS)

ROOF GABLE BOARD

BOARDS FLUSH ACROSS THE TOP

#8 X 1-3/4"

WOOD SCREW

1 X 6 X 27-3/4" BOTTOM BOARD OPEN WINDOW (FOUR BOARDS)

1 X 4 X 27-3/4" BOTTOM WINDOW BOARD (TWO BOARDS)

SANDBOX BOARD

Page 69

STEP 31: PANEL BOARD BRACE AND TOP BOARD WINDOW

1: PLACE THE 1 X 3 X 40-1/2" PANEL BOARD BRACE FLUSH OR SLIGHTLY ABOVE THE BOTTOM BOARD OPEN WINDOW PIECES.

2: FASTEN WITH #8 X 1-1/4" WOOD SCREWS. 3: PLACE THE 1 X 6 X 34" TOP BOARD WINDOW FLUSH WITH THE OPEN WINDOW TOP BOARDS. 4: FASTEN WITH #8 X 1-1/4" WOOD SCREWS.

FLUSH

FLUSH OR SLIGHTLY ABOVE

BOTTOM BOARD OPEN WINDOW PIECES

OPEN WINDOW TOP BOARDS

1 X 6 X 34" TOP BOARD WINDOW

#8 X 1-1/4" WOOD SCREW

1 X 3 X 40-1/2" PANEL BOARD BRACE

Page 70

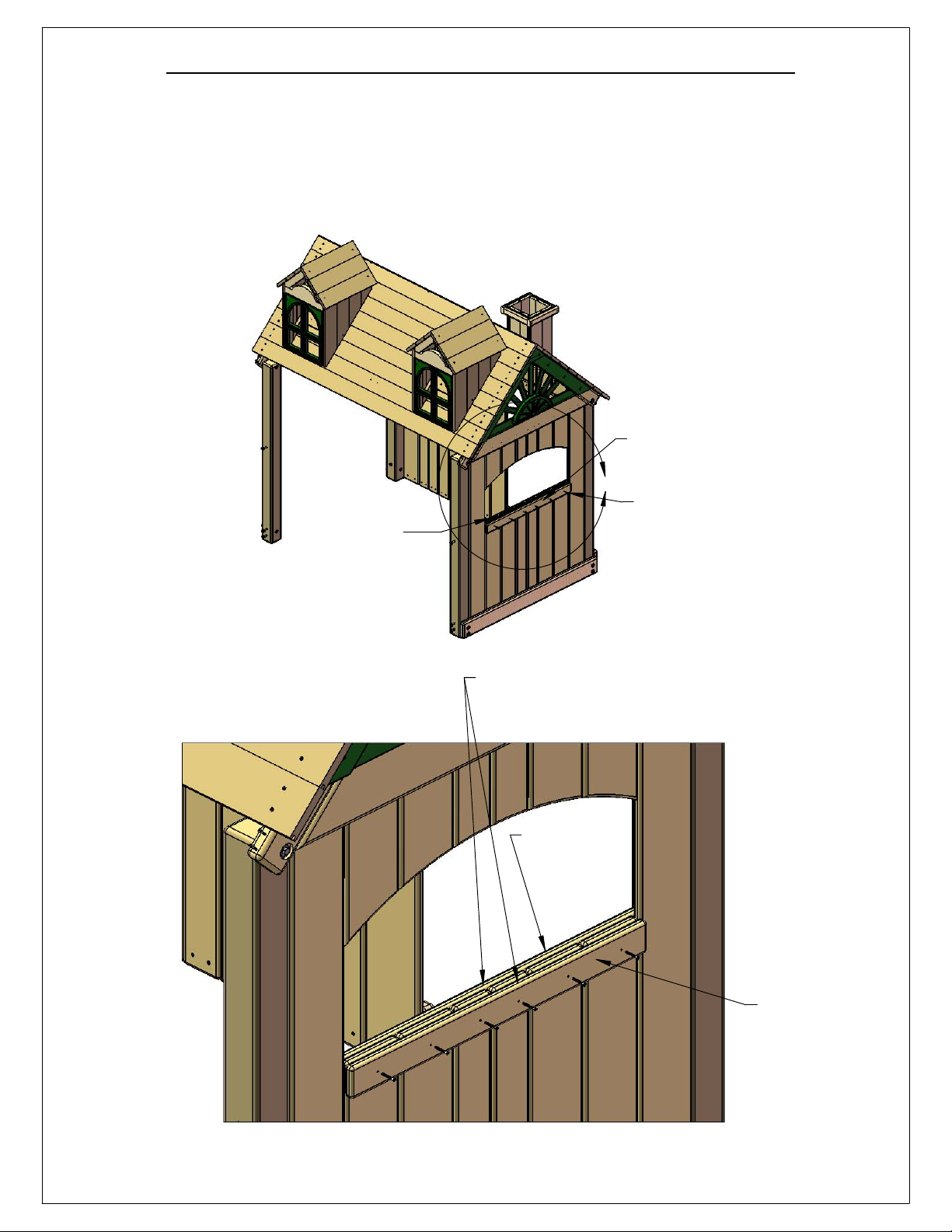

STEP 32: OPEN WINDOW OUTSIDE SUPPORT

1: PLACE THE 1 X 3 X 29-7/8" OPEN WINDOW OUTSIDE SUPPORT ON THE OUTSIDE OF THE RIGHT WALL BOARDS. MAKE THE TOP OF THE BOARD FLUSH TO THE TOP OF THE PANEL BOARD BRACE ON THE INSIDE.

2: FASTEN THE OPEN WINDOW OUTSIDE SUPPORT WITH #8 X 1-1/4" WOOD SCREWS.

1 X 3 X 29-7/8" OPEN WINDOW OUTSIDE SUPPORT

PANEL BOARD BRACE ON INSIDE.

#8 X 1-1/4" WOOD SCREW

MAKE THE TOP OF THE OPEN WINDOW OUTSIDE SUPPORT FLUSH TO THE TOP OF THE PANEL BOARD BRACE.

PANEL BOARD BRACE ON INSIDE.

1 X 3 X 29-7/8" OPEN WINDOW OUTSIDE SUPPORT

DETAIL A

SCALE 1 : 8

Page 71

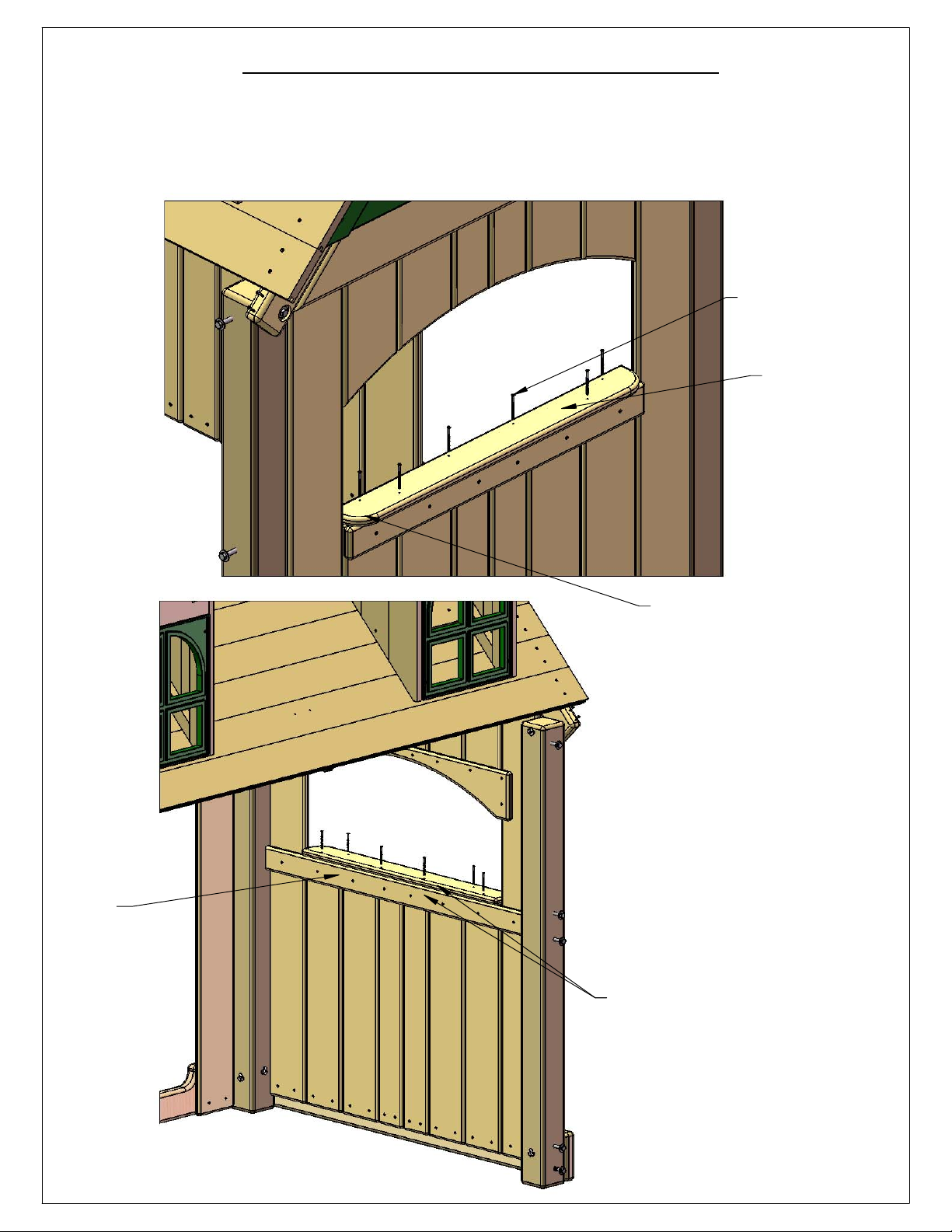

STEP 33: OPEN WINDOW BOARD

1: PLACE THE 1 X 4 X 29-1/2" OPEN WINDOW BOARD ON TOP OF THE BOARDS IN THE WINDOW OPENING. THE BACK OF THE OPEN WINDOW BOARD SHOULD BE FLUSH TO THE INSIDE OF THE PANEL BOARD BRACE.

2: FASTEN THE OPEN WINDOW BOARD WITH #8 X 1-3/4" WOOD SCREWS.

#8 X 1-3/4" WOOD SCREW

1 X 4 X 29-1/2" OPEN WINDOW BOARD

OUTSIDE VIEW

PANEL BOARD BRACE

ROUNDED CORNERS GO ON THE OUTSIDE

INSIDE VIEW

BACK OF OPEN WINDOW BOARD IS FLUSH TO THE SURFACE OF THE PANEL BOARD BRACE.

Page 72

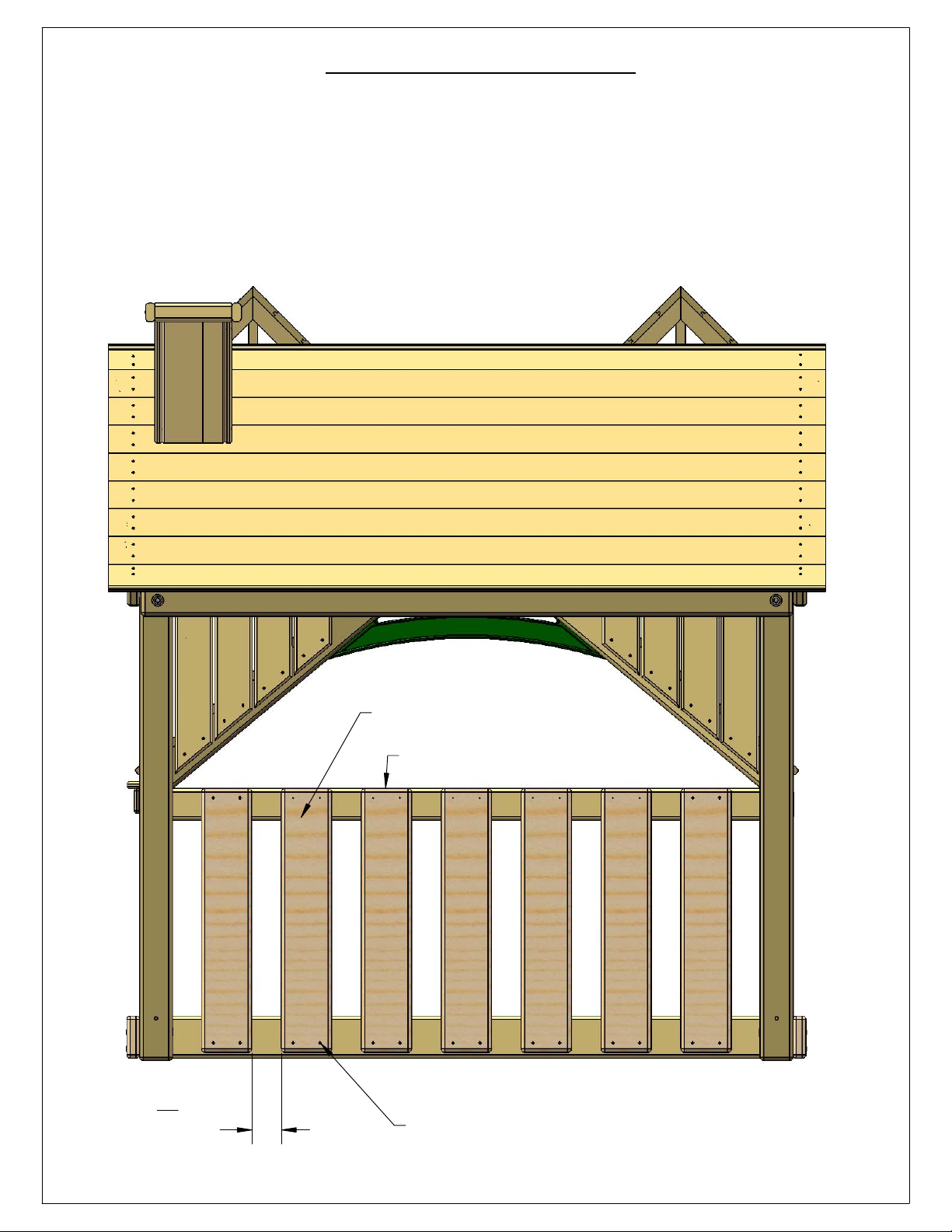

STEP 34: PANEL SLATS

1: FIND SEVEN 5/4 X 6 X 28-1/4" PANEL SLATS. 2: INSTALL THE PANEL SLATS WITH EQUAL SPACING. SEE DETAILS BELOW FOR MEASUREMENTS. 3: ATTACH THE PANEL SLATS TO THE PLAYHOUSE WITH #8 X 2" WOOD SCREWS.

SPACING FOR

ALL SPACES.

5/4 X 6 X 28-1/4" PANEL SLAT

FLUSH TO TOP

#8 X 2" WOOD SCREWS

Page 73

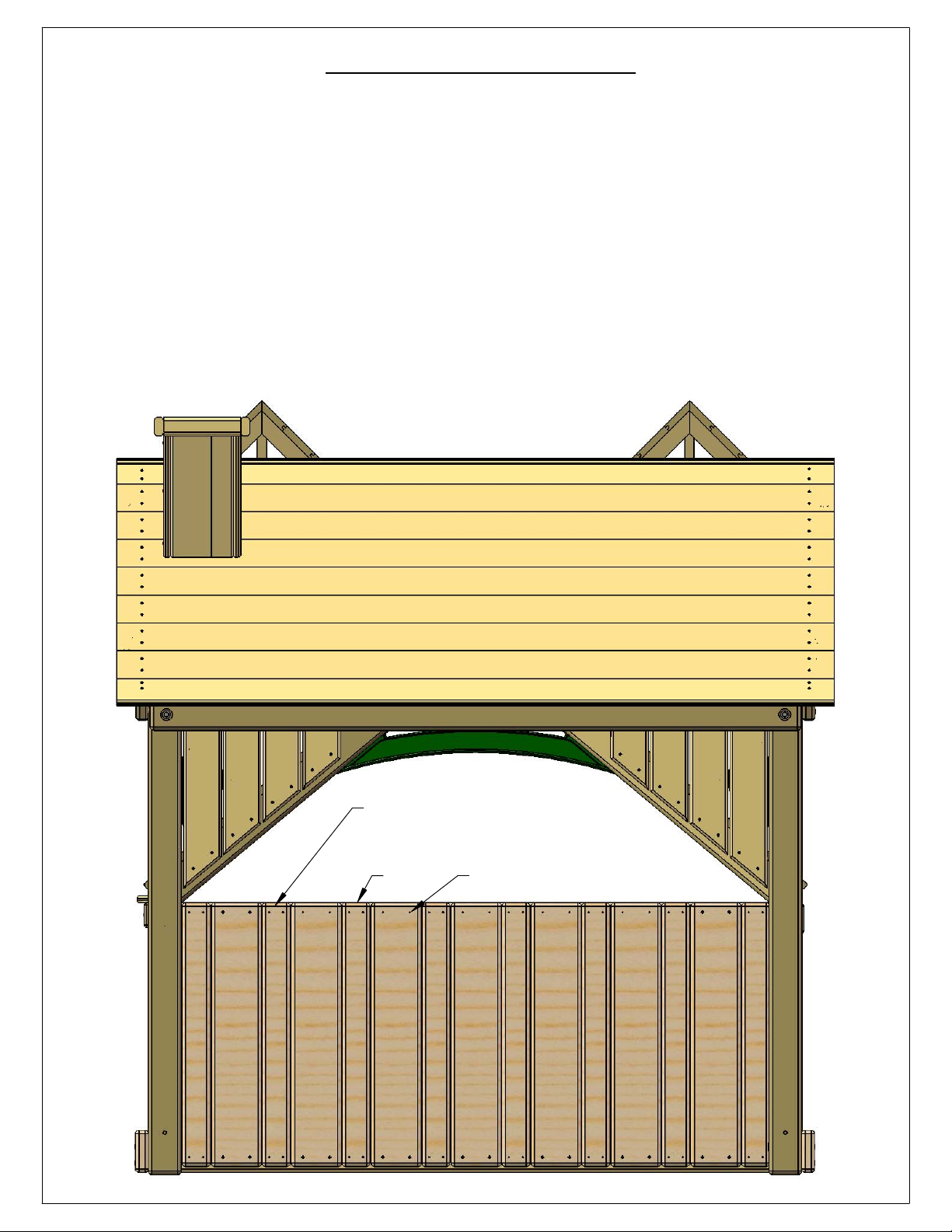

STEP 35: PANEL SLATS

1: PLACE THE 5/4 X 3 X 28-1/4" PANEL SLATS IN BETWEEN THE SLATS INSTALLED IN THE PREVIOUS STEP.

2: ATTACH THE PANEL SLATS TO THE PLAYHOUSE WITH #8 X 2" WOOD SCREWS.

5/4 X 3 X 28-1/4" PANEL SLAT (EIGHT)

FLUSH

#8 X 2" WOOD SCREW

Page 74

STEP 36: DRILLING HOLES FOR FRONT ACCENT PIECES

1: USE THE DIMENSIONS ON THE LEFT TO MAKE CENTER MARKS FOR THE DIAGONAL ACCENT. THEN MEASURE 1" ABOVE AND BELOW EACH CENTER MARK TO MAKE THE SCREW HOLE MARKS. DRILL 1/8" HOLES AT THE SCREW HOLE MARKS. REPEAT THIS PROCESS AGAIN FOR THE BOARD ON THE OPPOSITE SIDE.

SCREW HOLE MARKS

DETAIL A

SCALE 1 : 4

CENTER MARK

2: USE THE DIMENSIONS ON THE RIGHT TO MAKE CENTER MARKS FOR THE SCREW HOLES FOR THE VERTICAL ACCENT BOARD AT THE CENTER. DRILL 1/8" HOLES AT EACH MARK.

" 35

341"

" 10

18"

Page 75

STEP 37: FRONT ACCENTS

1: PLACE THE 5/4 X 4 X 20-3/4" VERTICAL ACCENT CENTERED ON THE FRONT OF THE PLAYHOUSE. LET THE BOTTOM EDGE REST ON THE 2 X 5 X 70. FASTEN THE VERTICAL ACCENT FROM INSIDE GOING THROUGH THE SLAT INTO THE BACK SIDE OF THE VERTICAL ACCENT. USE #8 X 1-3/4" WOOD SCREWS TO SECURE THE VERTICAL ACCENT.

2: PLACE THE LEFT 5/4 X 4 X 28-3/8" DIAGONAL ACCENT FLUSH TO THE LEFT SIDE OF THE VERTICAL ACCENT AND LET THE TIP REST ON TOP OF THE 2 X 5 X 70. IF THE BOARD DOES NOT LOOK RIGHT THEN FLIP IT END FOR END AND PUT IT BACK INTO POSITION. FASTEN THE DIAGONAL ACCENT FROM THE INSIDE GOING THROUGH THE SLATS INTO THE BACK SIDE OF THE DIAGONAL ACCENT. USE #8 X 1-3/4" WOOD SCREWS TO SECURE THE DIAGONAL ACCENT.

3: PLACE THE RIGHT 5/4 X 4 X 28-3/8" DIAGONAL ACCENT FLUSH TO THE RIGHT SIDE OF THE VERTICAL ACCENT AND LET THE TIP REST ON TOP OF THE 2 X 5 X 70. IF THE BOARD DOES NOT LOOK RIGHT THEN FLIP IT END FOR END AND PUT IT BACK INTO POSITION. FASTEN THE DIAGONAL ACCENT FROM THE INSIDE GOING THROUGH THE SLATS INTO THE BACK SIDE OF THE DIAGONAL ACCENT. USE #8 X 1-3/4" WOOD SCREWS TO SECURE THE DIAGONAL ACCENT.

#8 X 1-3/4" WOOD SCREWS DRIVEN IN FROM THE INSIDE OF THE PLAYHOUSE GOING OUTWARDS.

THERE WILL BE A SMALL 1/4" GAP HERE AND THAT IS NORMAL.

5/4 X 4 X 20-3/4" VERTICAL ACCENT ACCENT (1 PIECE)

5/4 X 4 X 28-3/8" DIAGONAL

(2 PIECES)

2 X 5 X 70

Page 76

STEP 38: SOLAR WALL LIGHTS

1: WITH A PENCIL MAKE A CENTER MARK ON THE OUTSIDE FACE OF THE 1 X 4 X 19.31 WALL PANEL BOARD. MEASURE 4-7/8" HORIZONTALLY FROM THE OUTSIDE EDGE OF THE CORNER POST TOWARDS THE CENTER OF THE WALL PANEL BOARD AND 2-3/8" FROM THE BOTTOM EDGE OF THE WALL PANEL SUPPORT TOWARDS THE CENTER OF THE WALL PANEL BOARD AS SHOWN IN THE DIAGRAM BELOW.

2: PARTIALLY INSERT A #8 X 1" WOOD SCREW INTO THE WALL PANEL BOARD CENTER MARK FROM THE PREVIOUS SUB-STEP. MAKE SURE THE HEAD OF THE SCREW IS STICKING OUT ABOUT 3/8" FROM THE OUTSIDE FACE OF THE WALL PANEL BOARD.

3: MOUNT THE SOLAR WALL LIGHT ONTO THE WALL USING THE HEAD OF THE WOOD SCREW AS A HANGER INTO THE SLOT LOCATED IN THE BACK OF THE SOLAR WALL LIGHT. THE ON/OFF SWITCH IS LOCATED IN THE BOTTOM REAR OF THE SOLAR WALL LIGHT. YOU CAN ACCESS THIS SWITCH BY SWINGING THE SOLAR WALL LIGHT TOWARDS THE OUTSIDE OF THE CORNER POST.

4: REPEAT SUBSTEPS 1 TO 3 FOR THE OTHER SOLAR WALL LIGHT.

WALL PANEL SUPPORT

4 7/8"

2 3/8"

CORNER POST

#8 X 1" WOOD SCREW

1 X 4 X 19.31

SOLAR WALL LIGHT WALL PANEL BOARD

ON/OFF SWITCH

SWING THE SOLAR WALL LIGHT TOWARDS THE OUTSIDE.

Page 77

STEP 39: LEMONADE SIGN HOOKS

1: MEASURE 16-1/4" FROM THE EACH END OF THE ROOF GABLE BOARD AND MAKE A MARK ON THE BOTTOM OF IT. CENTER THE MARK.

2: PREDRILL A SMALL 1/16" HOLE AT EACH MARK. 3: INSTALL A HOOK IN EACH HOLE.

HOOKS

ROOF GABLE BOARD

16 1/4" 16 1/4"

ROOF GABLE BOARD

HOOKS

ROOF GABLE BOARD

HOOKS

HOOK END FACES OUT

DETAIL A

SCALE 1 : 4

Page 78

STEP 40: LEMONADE STAND SIGN

1: CUT TWO LENGTHS OF CHAIN TO 3-1/4" FROM THE PIECES PROVIDED. 2: HANG ONE END OF THE CHAIN ON THE END OF THE HOOK. PLACE THE OTHER END

THROUGH THE HOLE ON THE LEMONADE STAND SIGN. PLACE THE END OF THE CHAIN ON THE HOOK. CLOSE THE HOOK WITH A PAIR OF PLIERS.

3: REPEAT SUBSTEP 2 FOR THE OTHER CHAIN.

CLOSE HOOK WITH PLIERS AFTER CHAIN IS INSTALLED.

CUT CHAIN TO 3-1/4" LONG

DETAIL A

SCALE 1 : 4

Page 79

STEP 41: LOGO PLATE

1: PLACE THE MANUFACTURER LOGO PLATE ON THE 2 X 6 ROOF GABLE BOARD. 2: FASTEN THE LOGO PLATE TO THE BOARD WITH #8 X 1" WOOD SCREWS.

LOGO PLATE

Page 80

APPENDIX

Page 81

1529 HARDWARE

PAGE 1 OF 1

1/16/2015 S.O.

#8 X 1-1/4"

WOOD SCREW

QTY: 22

#8 X 1-1/2"

WOOD SCREW

QTY: 34

#8 X 1-3/4"

WOOD SCREW

QTY: 8

#8 X 2"

WOOD SCREW

QTY: 6

#8 X 2-1/2"

WOOD SCREW

QTY: 4

#2 SQUARE

DRIVE BIT

QTY:1

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 82

DESCRIPTIONPICTURE QTY.

DORMER SUNRAY

ASSEMBLY

2-10-1355-DS

DORMER ROOF

PANEL ASSEMBLY

2-13-1828-DRPA

DORMER SIDE

RIGHT ASSEMBLY

2-17-1850-DSRA

DORMER SIDE LEFT

ASSEMBLY

2-17-1850-DSLA

DORMER MOUNT

2-3-1150-DM

CHIMNEY FRONT

ASSEMBLY

2-8-1500-CFA

CHIMNEY RIGHT

SIDE ASSEMBLY 1

2-10-1500-CRS

Page 83

PICTURE DESCRIPTION QTY.

CHIMNEY LEFT

SIDE ASSEMBLY

2-10-1500-CLS

CHIMNEY REAR

ASSEMBLY

2-8-0700-CRA

CHIMNEY

MOUNTING

BLOCK

2-3-0675-CMB

Page 84

STEP 1: DORMER SUNRAYS AND SIDES

1: FIND ONE DORMER SIDE LEFT ASSEMBLY AND ONE DORMER SIDE RIGHT ASSEMBLY. 2: FIND TWO DORMER SUNRAY ASSEMBLIES. 3: PLACE THE TWO DORMER SUNRAY ASSEMBLIES BETWEEN THE DORMER SIDE LEFT

ASSEMBLY AND DORMER SIDE RIGHT ASSEMBLY. ONE DORMER SUNRAY ASSEMBLY FLUSH TO THE FRONT FLAT END OF THE DORMER SIDE ASSEMBLIES AND THE OTHER DORMER SUNRAY ASSEMBLY FLUSH TO THE REAR FLAT END OF THE DORMER SIDE ASSEMBLIES AS SHOWN BELOW.

4: ATTACH THE DORMER SIDE ASSEMBLIES TO THE DORMER SUNRAY ASSEMBLIES WITH #8 X 1-1/2" WOOD.

DORMER SUNRAY ASSEMBLY

1-1/2" WOOD SCREW

DORMER SIDE LEFT ASSEMBLY

DORMER SUNRAY

ASSEMBLY

DORMER SIDE RIGHT ASSEMBLY

Page 85

STEP 2: DORMER WINDOW

1: MOUNT THE DORMER WINDOW IN THE FRONT OF THE DORMER, THE WINDOW SHOULD FIT IN BETWEEN THE DORMER SIDES AND THE DORMER SUNRAY. THE BACK FACE OF THE WINDOW MUST BE RESTING AGAINST THE DORMER SIDES BATTENS.

2: MAKE SURE THE HOLES ON THE DORMER WINDOW ARE CENTERED WITH THE DORMER SIDES BATTENS AND THE DORMER SIDES ARE FLUSH TO THE SIDE EDGES OF THE DORMER WINDOW AND FASTEN WITH #8 X 1-1/2" WOOD SCREWS.

DORMER SIDE

DORMER SUNRAY

DORMER SIDE

DORMER SIDE BATTEN

FLUSH

DORMER WINDOW

1-1/2" WOOD SCREW

FLUSH

DORMER SIDE

FLUSH

Page 86

STEP 3: DORMER ROOF PANELS

1: FIND TWO DORMER ROOF PANEL ASSEMBLIES. 2: PLACE ONE DORMER ROOF PANEL ASSEMBLY ON TOP OF THE DORMER SUNRAY

ASSEMBLIES, THE ROOF PANEL BOARDS MUST OVERHANG EQUALLY OFF THE FRONT AND BACK, MAKE SURE THE PRE-DRILLED HOLES ON THE ROOF PANEL ARE CENTERED WITH THE TOP FACE OF THE DORMER SUNRAY ASSEMBLES. FASTEN WITH #8 X 1-1/2" WOOD SCREWS.

3: REPEAT THE PREVIOUS SUB-STEP FOR THE OTHER SIDE.

1-1/2" WOOD SCREW

DORMER ROOF PANEL ASSEMBLY

1-1/2" WOOD SCREW

DORMER ROOF PANEL ASSEMBLY

DORMER SUNRAY ASSEMBLY

Page 87

STEP 4: CHIMNEY

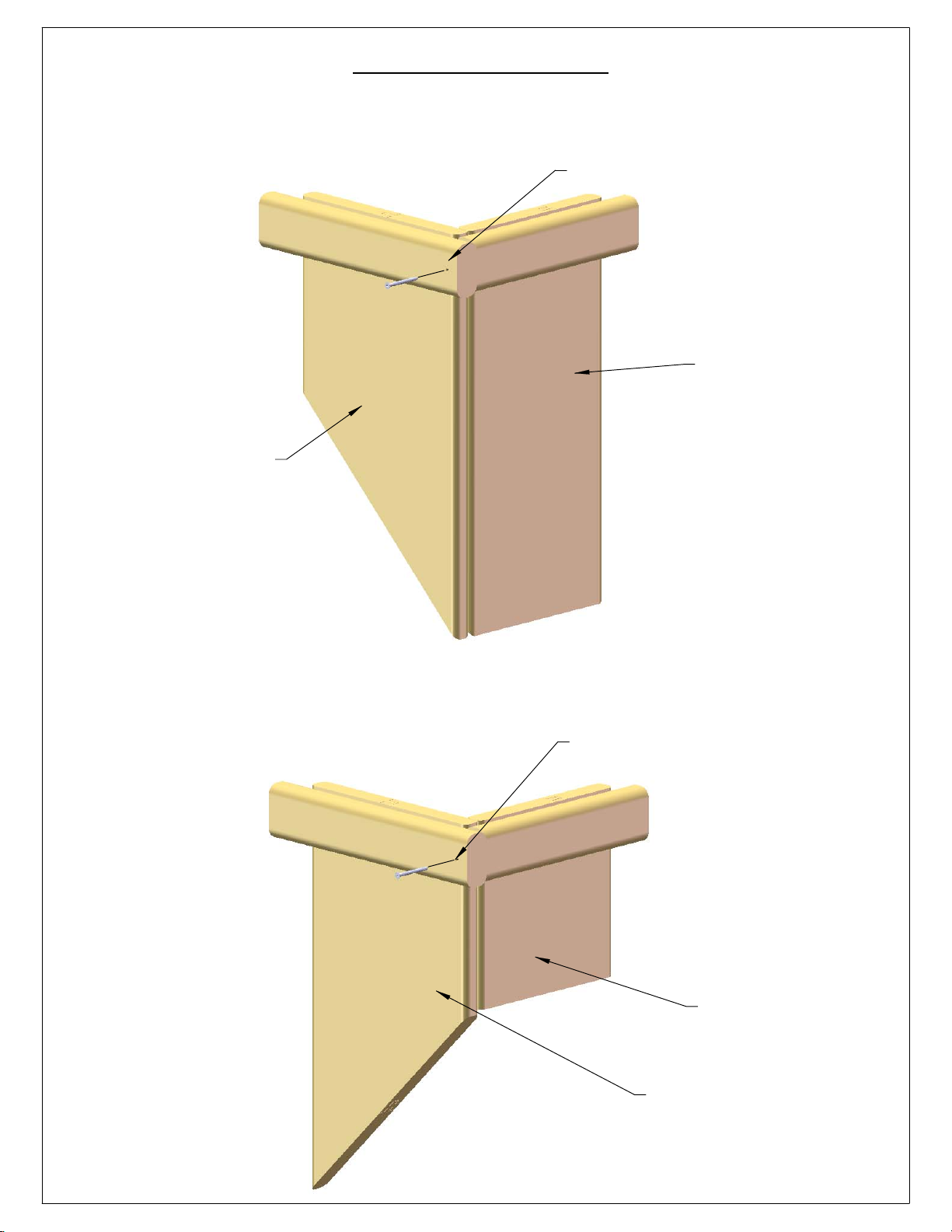

1: FIND THE FRONT AND LEFT SIDE OF THE CHIMNEY. 2: ATTACH THE FRONT AND LEFT SIDES OF THE CHIMNEY WITH A 2" WOOD SCREW.

USE A 2" WOOD SCREW IN THIS LOCATION

CHIMNEY LEFT SIDE

CHIMNEY FRONT

1: FIND THE REAR AND RIGHT SIDE OF THE CHIMNEY. 2: ATTACH THE REAR AND RIGHT SIDES OF THE CHIMNEY WITH A 2" WOOD SCREW.

USE A 2" WOOD SCREW IN THIS LOCATION

CHIMNEY REAR

CHIMNEY RIGHT SIDE

Page 88

STEP 5: CHIMNEY

1: ATTACH THE CHIMNEY SIDES FROM THE PREVIOUS SIDES TO FORM THE CHIMNEY WITH 2" AND 1-1/4" WOOD SCREWS.

USE A 2" WOOD SCREW IN THIS LOCATION (EACH SIDE)

USE 1-1/4" WOOD SCREWS IN THIS LOCATION (EACH SIDE)

Page 89

STEP 6: CHIMNEY

1: FASTEN THE 5/4 X 3 X 6-3/4" CHIMNEY MOUNTING BLOCK TO THE ROOF WITH 1-1/2" WOOD SCREWS. YOU CAN PLACE THE BLOCK AT ANY DESIRED PLACE ON THE ROOF. USE THE DIAGRAM BELOW AS A GUIDE AS TO WHERE YOU MIGHT INSTALL YOUR CHIMNEY.

2: AFTER INSTALLING THE CHIMNEY MOUNTING BLOCK, PLACE THE CHIMNEY ASSEMBLY ON THE ROOF SO THAT THE INSIDE OF THE BACK WALL RESTS AGAINST THE BLOCK.

3: FASTEN THE CHIMNEY TO THE CHIMNEY MOUNTING BLOCK WITH A 1-1/2" WOOD SCREW IN EACH SIDE.

1-1/2" WOOD SCREW

5/4 X 3 X 6-3/4"

CHIMNEY MOUNTING BLOCK

1-1/2" WOOD SCREW

ABOVE UNIT MAY NOT BE YOUR EXACT PLAYSET.

SHOWN FOR ILLUSTRATION PURPOSES ONLY.
