Playnation Cartecay 1701 Assembly

Copyright © 2013 PlayNation Play Systems, Inc.

Cartecay

Model: 1701

(BOXES: 1700-1, 1700-2,

1701 & SLIDE BOX)

All Rights Reserved

190 Etowah Industrial Court

Canton, GA 30114

www.playnation.com

Please inspect and inventory all parts immediately upon accepting delivery. Use the
inventory pages in the manual to make sure you have received all necessary parts.
The quickest method to get any parts that are missing or damaged is use our “Quick
Response Center” located at:

www.playnation.com/support

DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECTLY.
THE RETAILER DOES NOT STOCK COMPONENTS.

PLEASE RETAIN ALL INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE
PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. CHECK FOR REVISED INSTRUC­TIONS AT:

http://www.playnation.com/manuals.html

PLAYNATION WARRANTY - 2013

PlayNation Play Systems, Inc. warrants its Enchanted™, Dreamer™ and Majestic™ series of swing sets to be free from defects in

workmanship and materials, under normal use and conditions, for the lifetime of the product for above ground structural wood

components and for two years for all other components (e.g., swings, hardware, plastics, tarps, rope ladder, etc.) except

PlayNation’s Super Scoop Slides™ and Super Tube Spiral Slides™.

PlayNation warrants its Super Scoop Slides™ and Super Tube Spiral Slides™ to be free from defects in workmanship and

materials, under normal use and conditions, for the lifetime of the product.

PlayNation warrants its Mystic™ series swing sets to be free from defects in workmanship and materials, under normal use and

conditions, for a period of 15 years for above ground structural wood components and for two years for all other components

(e.g., swings, hardware, plastics, tarps, rope ladder, etc.).

PlayNation warrants all remaining products, including but not limited to its Breckenridge Playhouse™, Free Standing Swing Set,

Free Standing Tire Swing, See-Saw, Children’s Picnic Table with Umbrella, Play-Zee-Bo™ and spring riders to be free from

defects in workmanship and materials, under normal use and conditions, for a period of 1 year. All accessories purchased

separate from those included with one of our swing set packages have a one year limited warranty.

Cosmetic imperfections and natural tendencies of wood such as peeling, splintering, warping, seasonal checking or cracking,
knots or knot holes, etc. are normal characteristics of all outdoor wooden play equipment and are not covered by this
warranty.

Wood rot or decay that develops because the product was installed in an area with poor drainage is not covered under this

warranty. Lumber that has been damaged by wood boring bees, or conditions that develop as a result of faulty or improper

installation of the product, are not covered by this warranty. Fading of stain, discoloration or mold on any wood part or

accessory is not covered by this warranty. Cracks in plastic components, surface rust on hardware and chips on powder coated

materials are not considered defects in material as long as they do not affect the functionality or structural integrity of the part

or component.

It is the owner’s responsibility to maintain the swing set. This includes but is not limited to re-staining and resealing the
lumber as needed and regular inspection to be sure all hardware is tight. Instructions for proper maintenance can be found

on PlayNation’s website. Imperfections or conditions that develop because of a failure to properly maintain the swing set are

not covered by this warranty.

PlayNation will repair or, at its discretion, replace any above ground part within the stated warranty period that is defective in

workmanship or materials. This decision is subject to verification of the defect, which, at PlayNation’s discretion, may be

accomplished by submitting photographs or by delivery of the defective part to PlayNation at 190 Etowah Industrial Court,

Canton, Georgia 30114. 1-800-661-7295. Monday through Friday 9am to 5pm EST. Any warranty claim must include proof of

purchase, including the date of purchase. In addition, within the first 30 days from the date of purchase, PlayNation will replace

any parts discovered to be missing from or damaged in the original packaging.

This warranty is valid only if the product is used for the purpose for which it was designed and installed at a residential, single­family dwelling. This warranty is void if the product is used in a commercial, institutional or multi-family setting. This warranty

does not cover normal wear and tear or (a) products that have been damaged by acts of God and/or nature, negligence,
misuse or accident; (b) products that have been modified or repaired by unauthorized persons; (c) the cost of labor; or (d)
the cost of shipping any replacement product or part.

PLAYNATION DISCLAIMS ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND, EXPRESSED, IMPLIED, STATUTORY OR

OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

PLAYNATION WILL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty is non-transferable and

does not extend to the owners of the product subsequent to the original purchaser. Some states do not allow limitations on

implied warranties or exclusion of incidental or consequential damages, so these restrictions may not be applicable to you. This

warranty gives you specific legal rights. You may also have other rights which vary from state to state.

IMPORTANT SAFETY GUIDELINES

This product is recommended for use by children ages 3-11. This product is intended for residential
use only and not intended for use in any public setting. A safety surface such as mulch or recycled
tire should be used under the play set to prevent injury from falls. Also a 6 foot safety zone should be
used around the entire play set.

As with any home project, good judgment and respect for power tools will greatly reduce the risk
of injury. PlayNation recommends you follow all tool manufacturers’ safety guidelines. Always wear
eye protection and safety gloves to prevent injury. In several phases of construction two people may
be required for lifting and securing of lumber. While the play set is being constructed, please keep
children off the equipment until the project is complete. Bolts and screw heads should be checked
regularly for tightness. The ground ladder, rope ladder, slide, swings and other areas where children
spend a majority of their playtime should be checked more frequently.

PlayNation shall not be liable for incidental, indirect or consequential damages or injuries that result
from the building and/or playing on our play sets. Adult supervision is recommended anytime a play
set is being used.

WEIGHT LIMITS FOR PLAYNATION PLAYSETS

• FORT PLATFORMS: 800 LBS. TOTAL WEIGHT

• SWING BELT: 225 LBS.

• GLIDER SWINGS: 70 LBS. PER CHILD. UP TO 140 LBS TOTAL WEIGHT.

• TRAPEZE: 125 LBS.

• FULL BUCKET SWING/ HALF BUCKET SWING: 50 LBS.

• HEAVY DUTY TODDLER BUCKET SWING: 85 LBS.

• INFANT SWING: 35 LBS.

• TIRE SWING: 125 LBS. TOTAL WEIGHT

• ROPE LADDER: 75 LBS.

• ROCK WALL: 150 LBS.

• CLIMBING RAMP: 150 LBS.

• MONKEY BARS: 175 LBS.

• ALL SLIDES: 150 LBS.

PlayNation recommends that the weight limits for all components must not be exceeded. Failure to

adhere to these and other safety guidelines could result in damage to the play set and injury to the
users.

WůĂLJEĂƟŽŶ ŵĂŶƵĨĂĐƚƵƌĞƐ ƚŚĞ
ĮŶĞƐƚ ƋƵĂůŝƚLJ ƉƌŽĚƵĐƚƐ ƚŚĂƚ
ĂƌĞ ĚĞƐŝŐŶĞĚ ĨŽƌ ŽƵƚƐƚĂŶĚŝŶŐ
ƐƚƌĞŶŐƚŚ ĂŶĚ ĚƵƌĂďŝůŝƚLJ  tĞ
ďĂĐŬ ŽƵƌ ƉƌŽĚƵĐƚƐ ǁŝƚŚ ĂŶ
ƵŶƉĂƌĂůůĞůĞĚ ǁĂƌƌĂŶƚLJ /Ŷ ƚŚĞ
ƵŶůŝŬĞůLJĞǀĞŶƚƚŚĂƚLJŽƵǁŝůůŶĞĞĚ
ƚŽ ĐŽŶƚĂĐƚ ƵƐ ĂďŽƵƚ ĐŽǀĞƌĞĚ
ƌĞƉĂŝƌƐ ǁĞ ŵƵƐƚ ŚĂǀĞ Ă ǀĂůŝĚ
tĂƌƌĂŶƚLJZĞŐŝƐƚƌĂƟŽŶŽŶĮůĞ

Where did you buy this product?:

^ƚŽƌĞ ^ƚŽƌĞŝƚLJ ^ƚŽƌĞ^ƚĂƚĞĂƚĞŽĨ

WƵƌĐŚĂƐĞ

EĂŵĞ ŵĂŝů

ĚĚƌĞƐƐ

^ƚƌĞĞƚ ŝƚLJ ^ƚĂƚĞ ŝƉ

WůĞĂƐĞƐĞůĞĐƚ
LJŽƵƌĂŐĞ

18-30

31-40

41-50

51+

,ŽǁŽůĚĂƌĞ
LJŽƵƌĐŚŝůĚƌĞŶ

2-3

4-5

6-7

8+

,ŽǁǁŽƵůĚ

LJŽƵƌĂƚĞƚŚĞ

ƋƵĂůŝƚLJŽĨ

ƚŚŝƐƉƌŽĚƵĐƚ

tŽƵůĚLJŽƵƌĞĐŽŵŵĞŶĚƚŚŝƐƉƌŽĚƵĐƚƚŽĨƌŝĞŶĚƐΘĨĂŵŝůLJ

zĞƐ EŽ

zŽƵƌƌĞŐŝƐƚƌĂƟŽŶŝŶĨŽƌŵĂƟŽŶ

ŽŵŵĞŶƚƐ

džĐĞůůĞŶƚ

ǀĞƌĂŐĞ

ďŽǀĞǀĞƌĂŐĞ

ĞůŽǁǀĞƌĂŐĞ

WŽŽƌ

3 EASY WAYS TO REGISTER

KWd/KEϭ

KWd/KEϮ

KWd/KEϯ

&ĂdžƚŚŝƐĐŽŵƉůĞƚĞĚĨŽƌŵƚŽ

[phone]

OR

DĂŝůƚŚŝƐĐŽŵƉůĞƚĞĚĨŽƌŵƚŽ

WůĂLJEĂƟŽŶWůĂLJƐĞƚƐ

ϭϵϬƚŽǁĂŚ/ŶĚƵƐƚƌŝĂůŽƵƌƚ

ĂŶƚŽŶ'ϯϬϭϭϰ

ŽŵƉůĞƚĞƚŚĞŽŶůŝŶĞƌĞŐŝƐƚƌĂƟŽŶĨŽƌŵĂƚ

ŚƩƉǁǁǁƉůĂLJŶĂƟŽŶĐŽŵƌĞŐŝƐƚĞƌ

^ĐĂŶƚŚŝƐYZŽĚĞ

ǁŝƚŚLJŽƵƌƐŵĂƌƚ

ƉŚŽŶĞƚŽĐŽŵƉůĞƚĞ

ƚŚĞĨŽƌŵƵƐŝŶŐLJŽƵƌ

ƉŚŽŶĞ

WARRANTY REGISTRATION

- CARTECAY -

IMPORTANT – PLEASE READ

As fresh lumber acclimates to its new environment, the natural tendencies of the tree can show
itself in the form of checks, or “cracks” in the lumber. In almost all cases this is normal and it will
not affect the structural integrity of your play set.

Cosmetic defects that do not affect the structural integrity of the product, or natural defects of
wood such as warping, checking or any other physical properties of wood that do not present
a safety hazard, are not covered by this warranty. Defects that develop because the product is
exposed to extreme climate conditions or woodboring insects are not covered by this warranty.
Defects that develop as a result of faulty or improper installation of the product are also not
covered by this warranty.

Most cracks are not warrantable, however if you believe that the integrity of your play set is
compromised by this natural occurrence, please follow the warranty claim procedure found at
http://www.playnation.com/warranty. Click on the “Warranty” tab and follow the instructions.

KEEPING YOUR PLAYSET LIKE NEW

LUBRICATE:

•

Spray swing hangers with Pam, Mazola or olive oil to stop squeaking.

• Do not use petroleum based products such as WD-40 or motor oil.

• To speed up the slide wipe center of slide ONLY with wax paper every 2 - 3 weeks.

TIGHTEN:

• Check and tighten hex/carriage bolts within rst 60 days and then twice annually.

• Check lag screws for tightness before each season and then once during the season for

tightness. Tighten lag screws as required.

SEAL:

• Apply an oil based sealer or preservative within 90 days, then every 2 - 3 years. You may

need to power wash the unit before sealer application on year two.

INSECTS:

• To repel yellow jackets and wasps, using a cloth, coat all interior 90 degree corners with liquid

dish soap underneath the play set deck. This will make wasps sick when they attempt to build a
nest. Avoid using insecticides.

Model: 1701

(BOXES: 1700-1, 1700-2, 1701

& SLIDE BOX)

REV: 3.6.2013

TABLE OF CONTENTS

2

Safety Guidelines……………………………………….......……...........................Pages 3-6

Leveling Fort, General Information and Denitions…………………...................Pages 6-8

How to Install T-nuts, Board Identication, Predrill Lag Screw Directions and

Swing Beam Loading........................................................................................Pages 9-13

Site Plan, Required Tool List and Kit Contents...............................................Pages 14-15

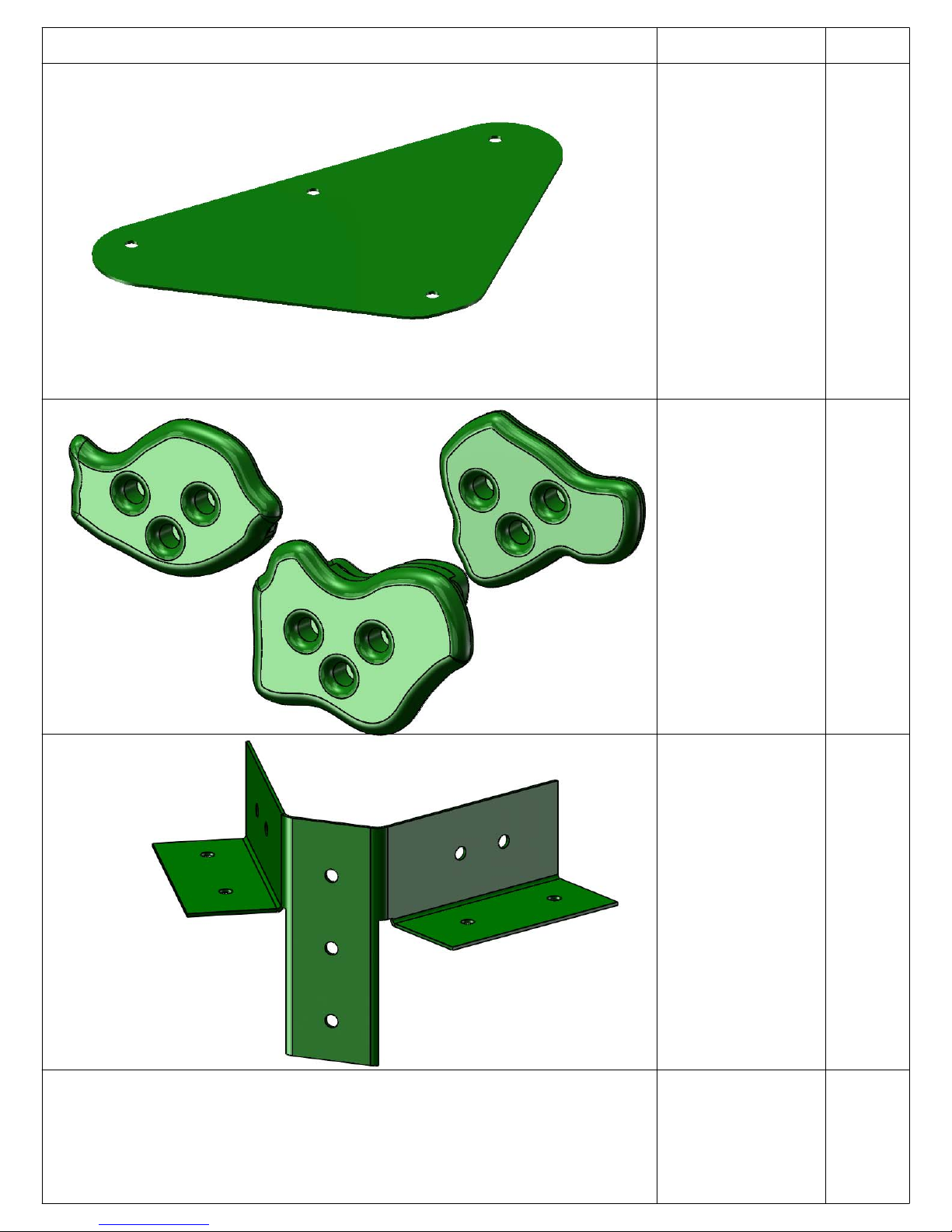

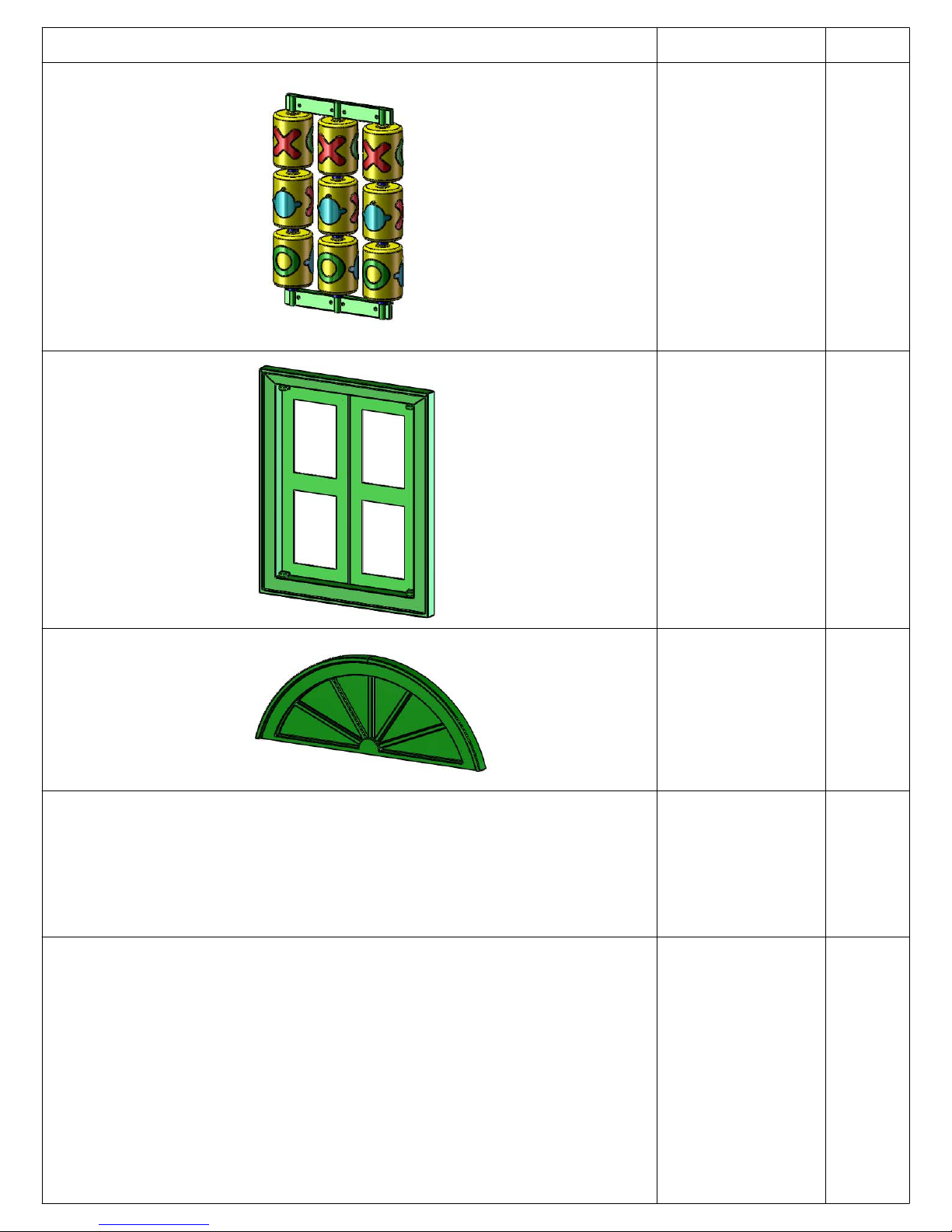

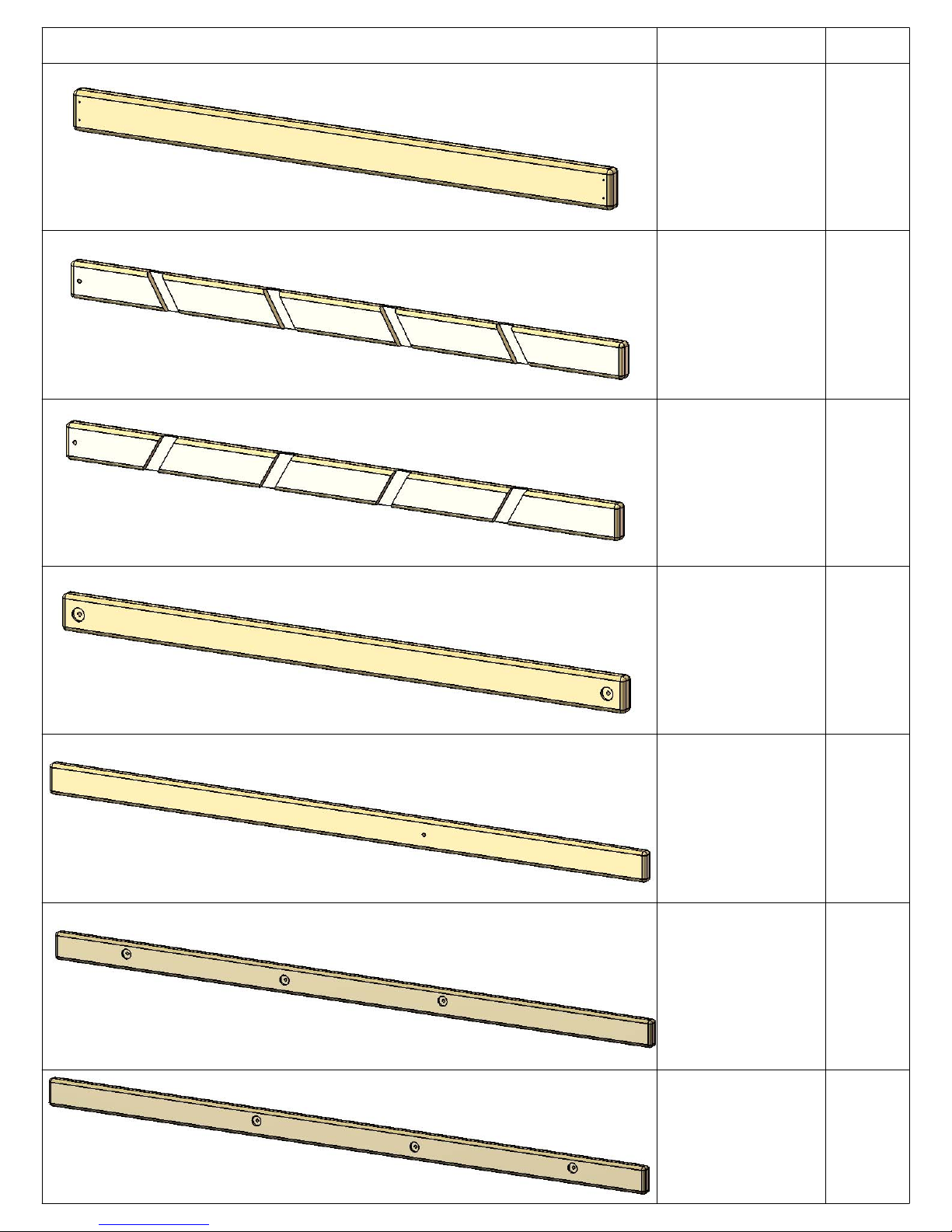

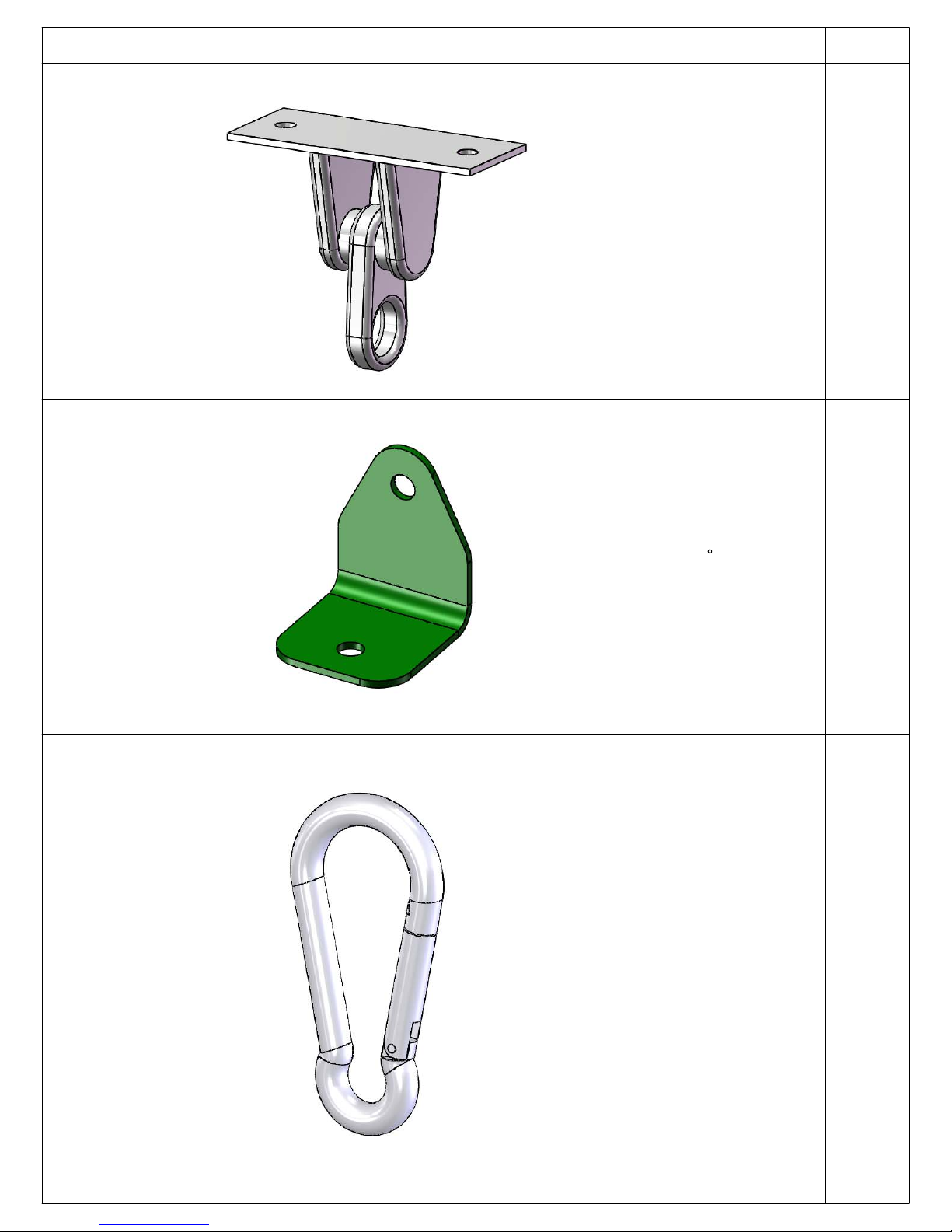

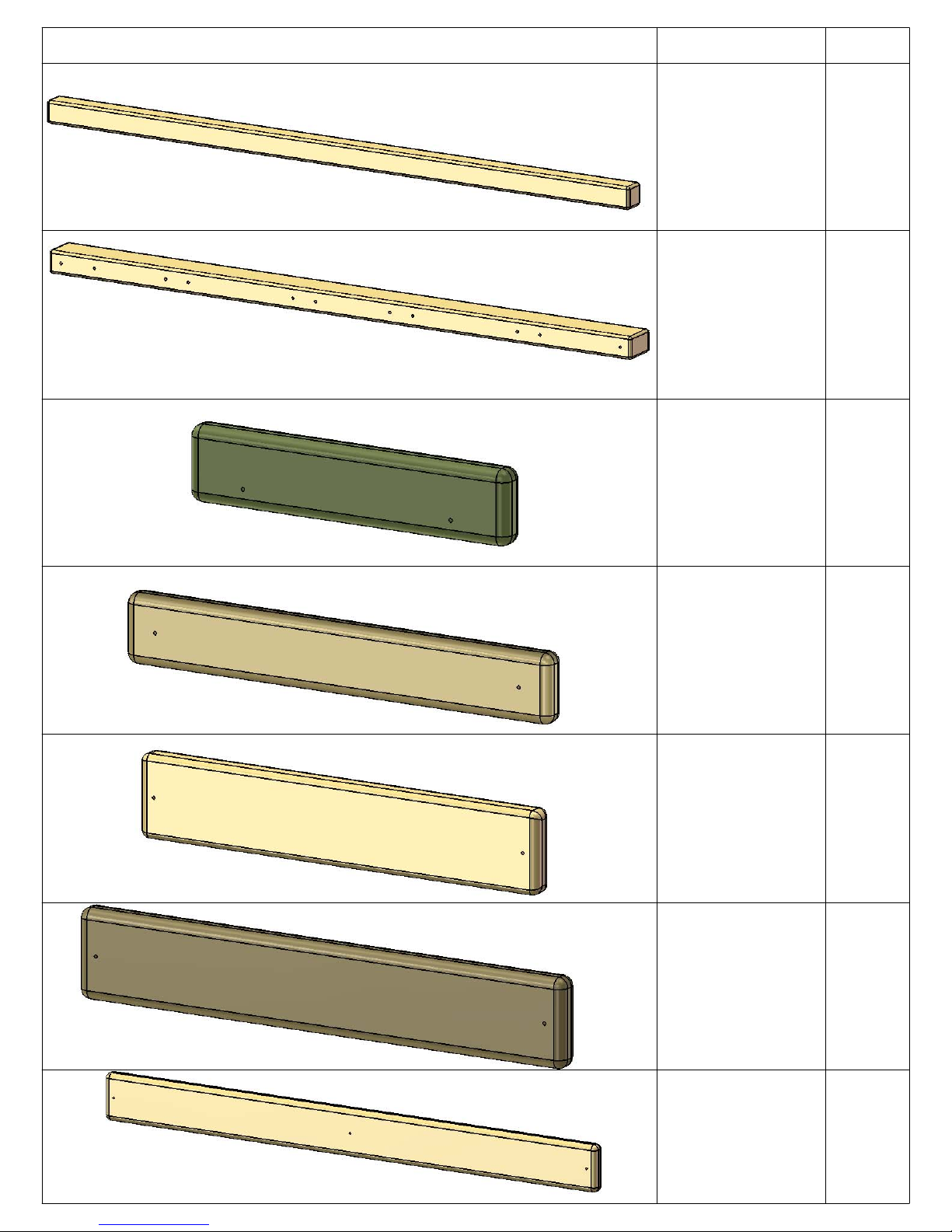

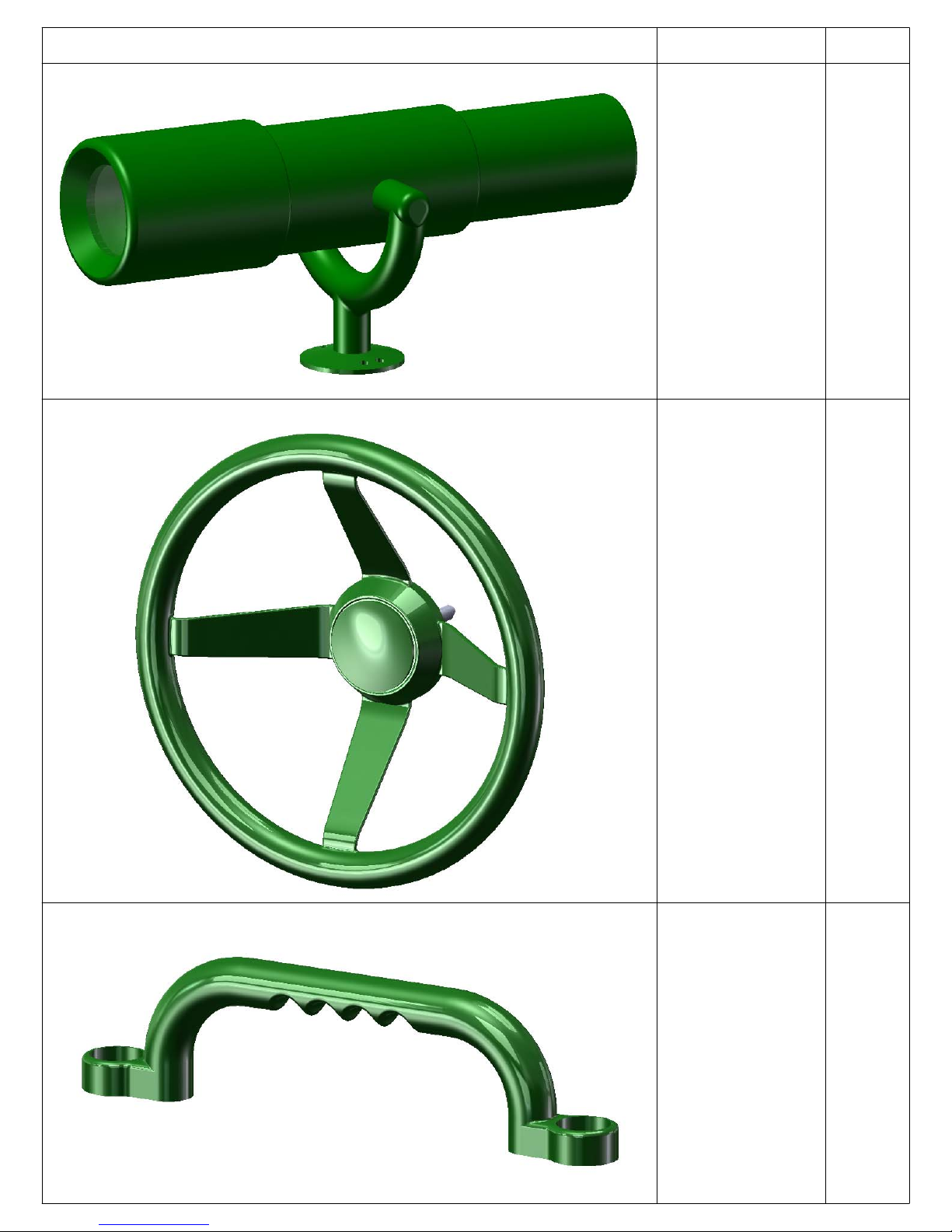

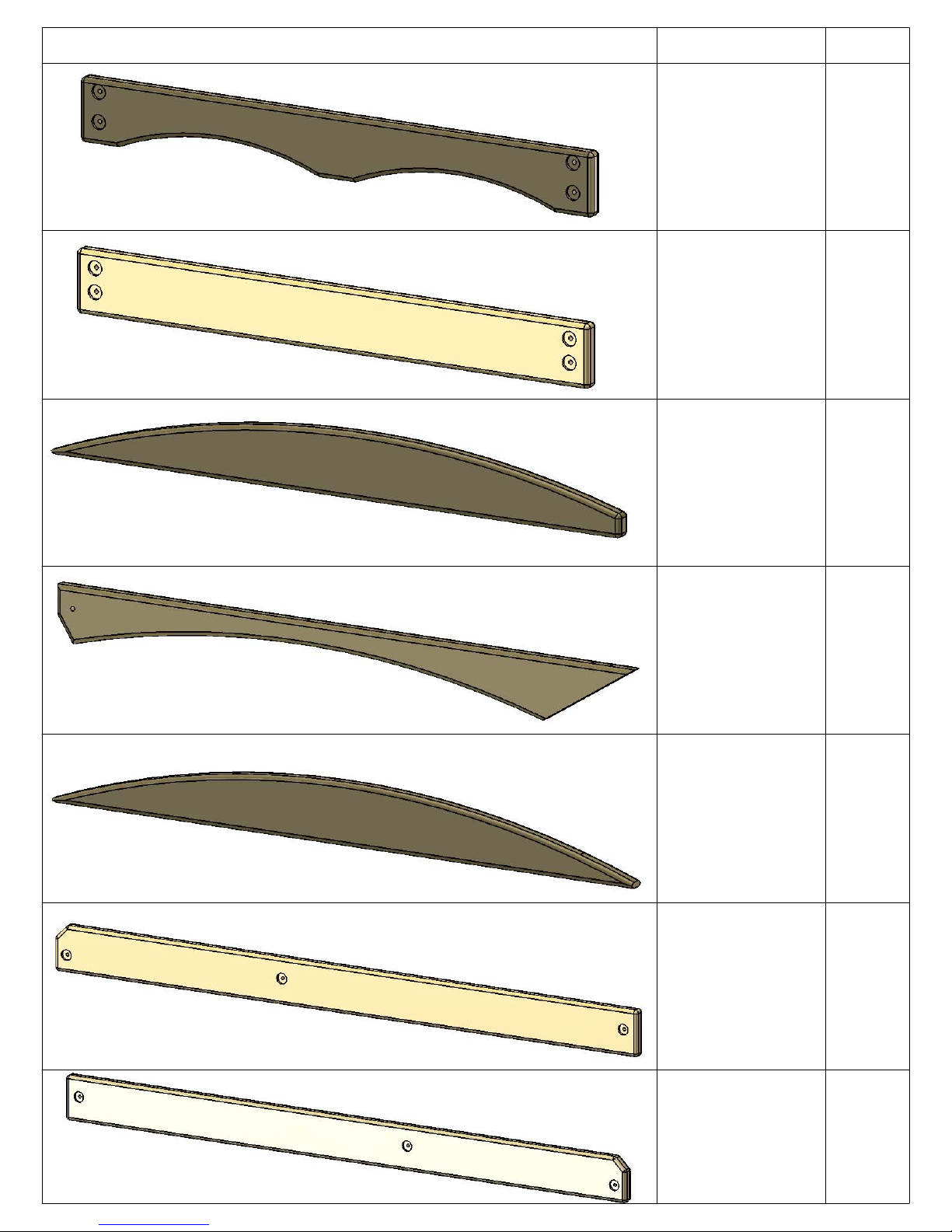

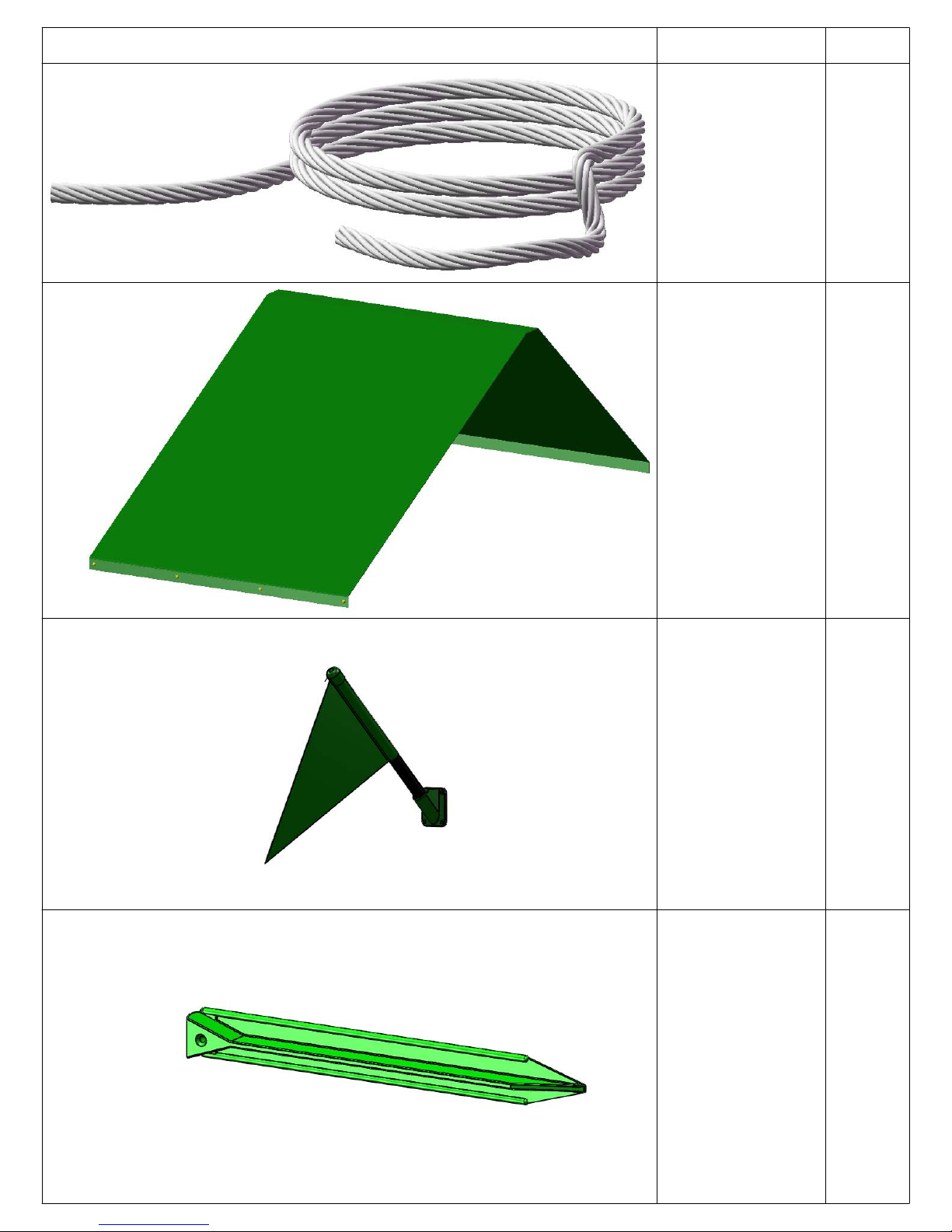

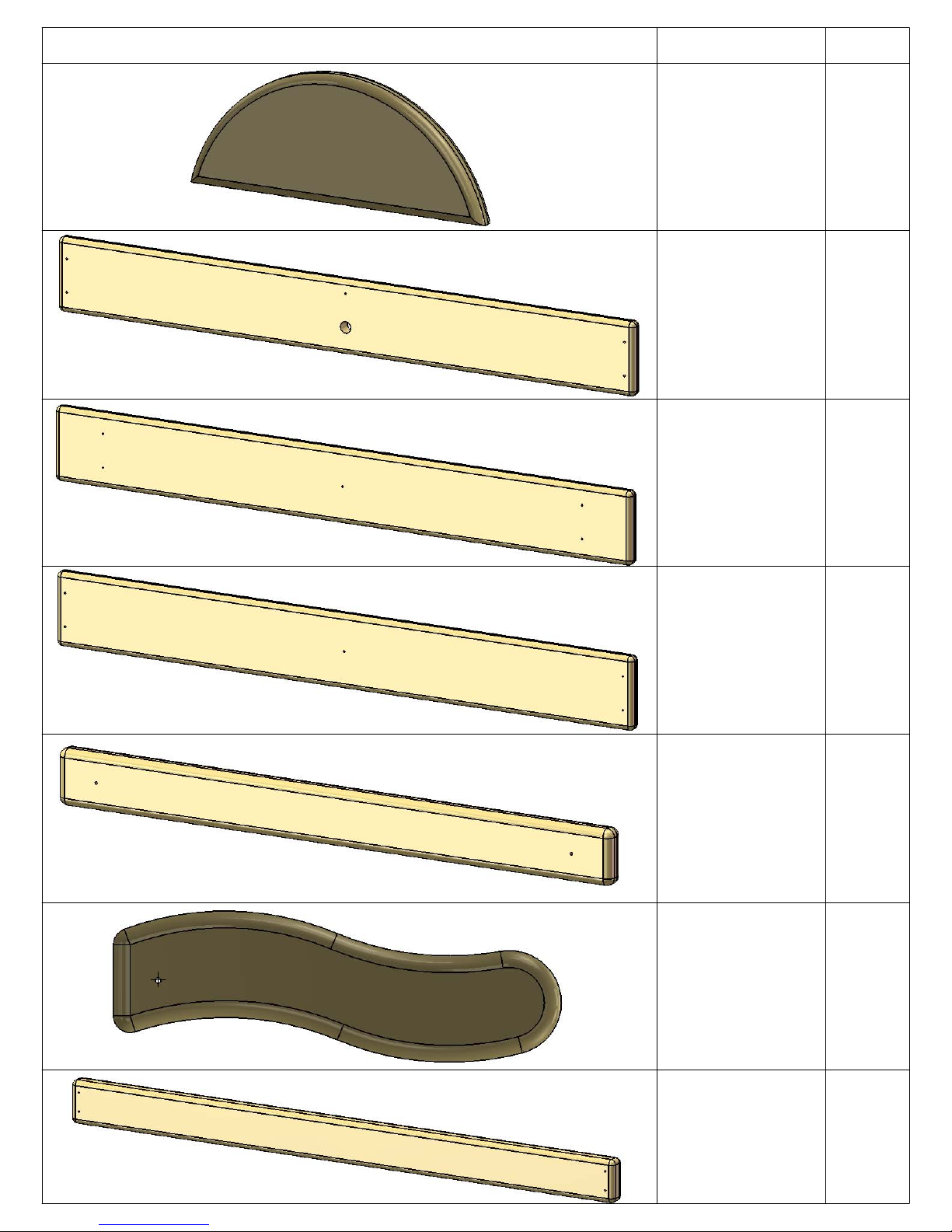

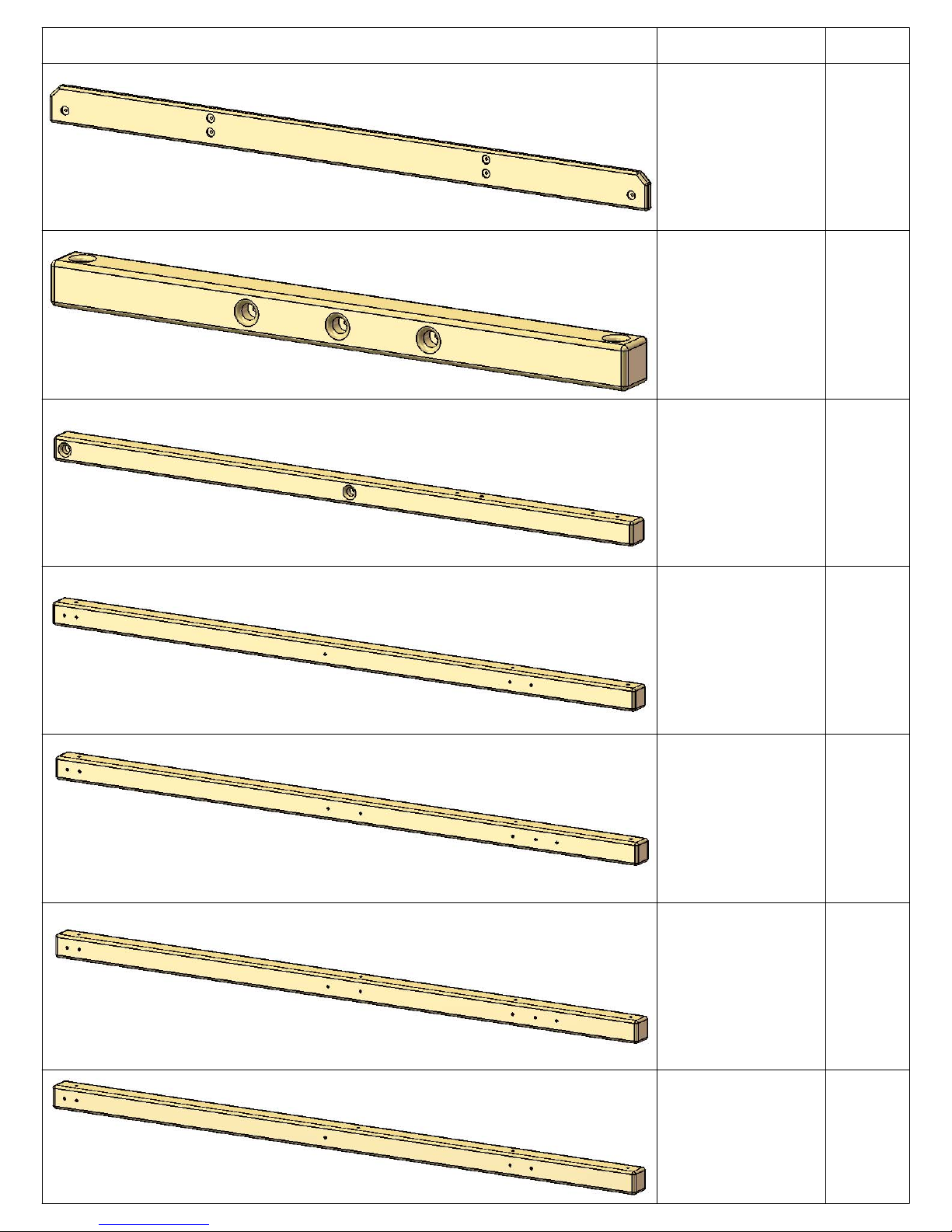

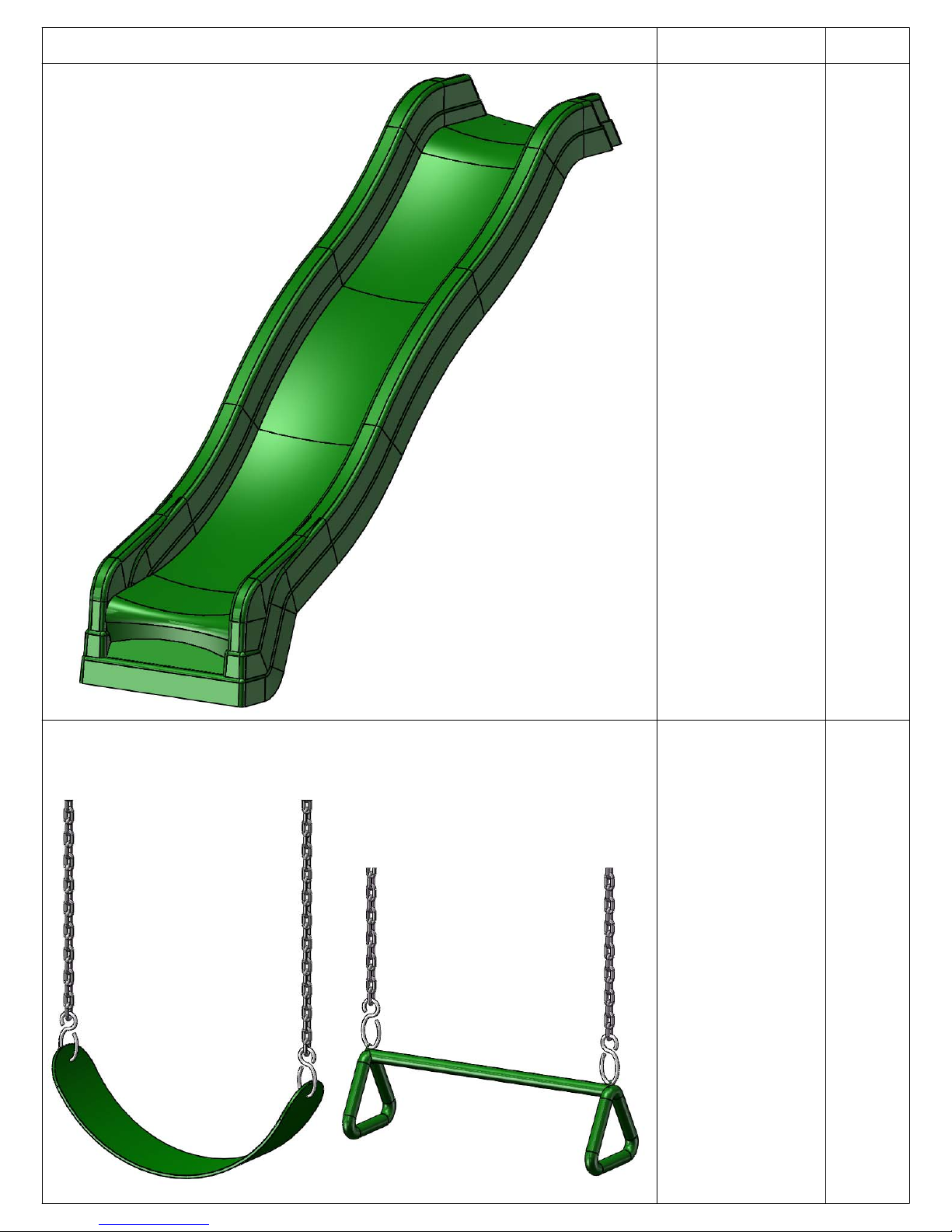

Hardware, Lumber and Accessory Checklists.………………………………....Pages 16-30

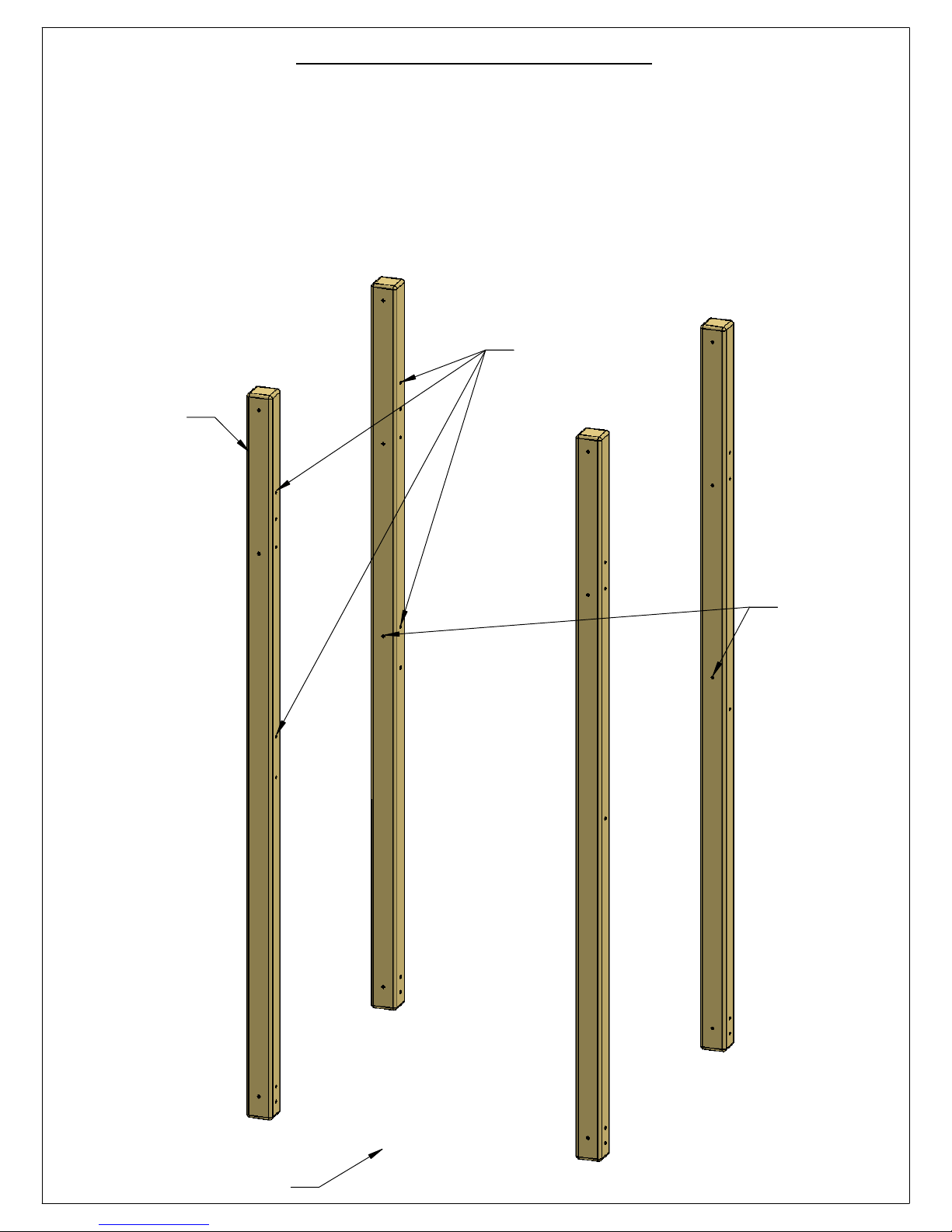

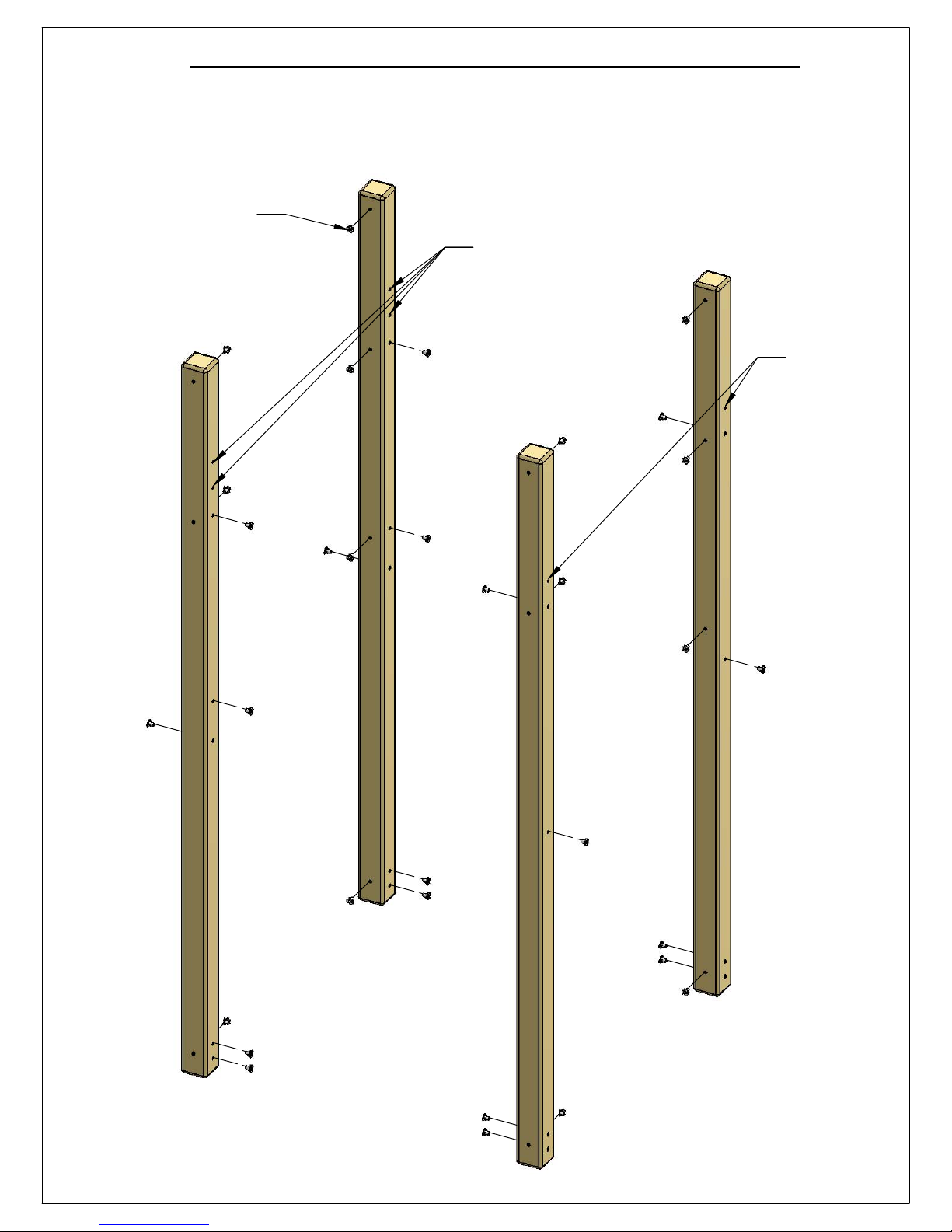

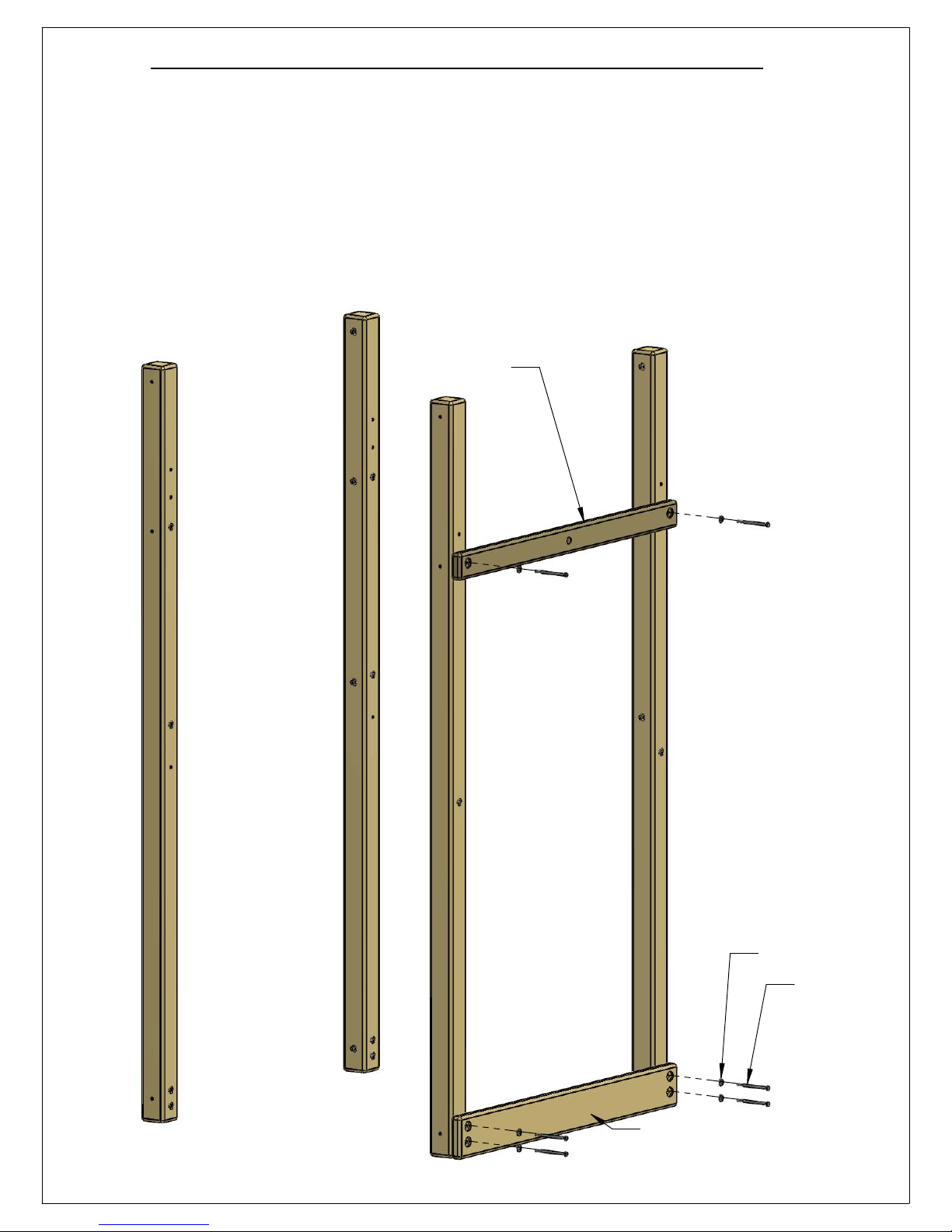

Arranging Corner Posts and adding T-Nuts to Corner Posts..………...…............ Step 1-2

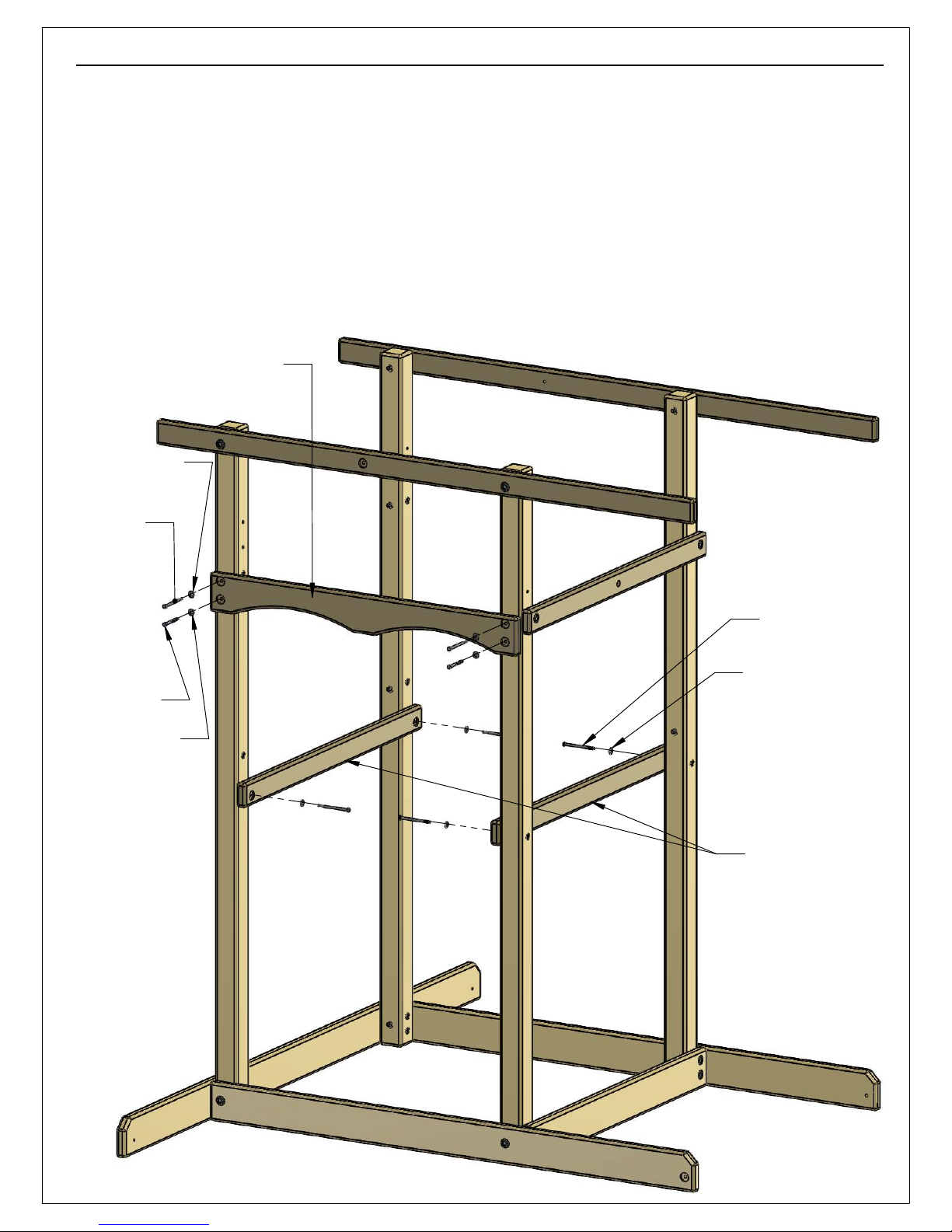

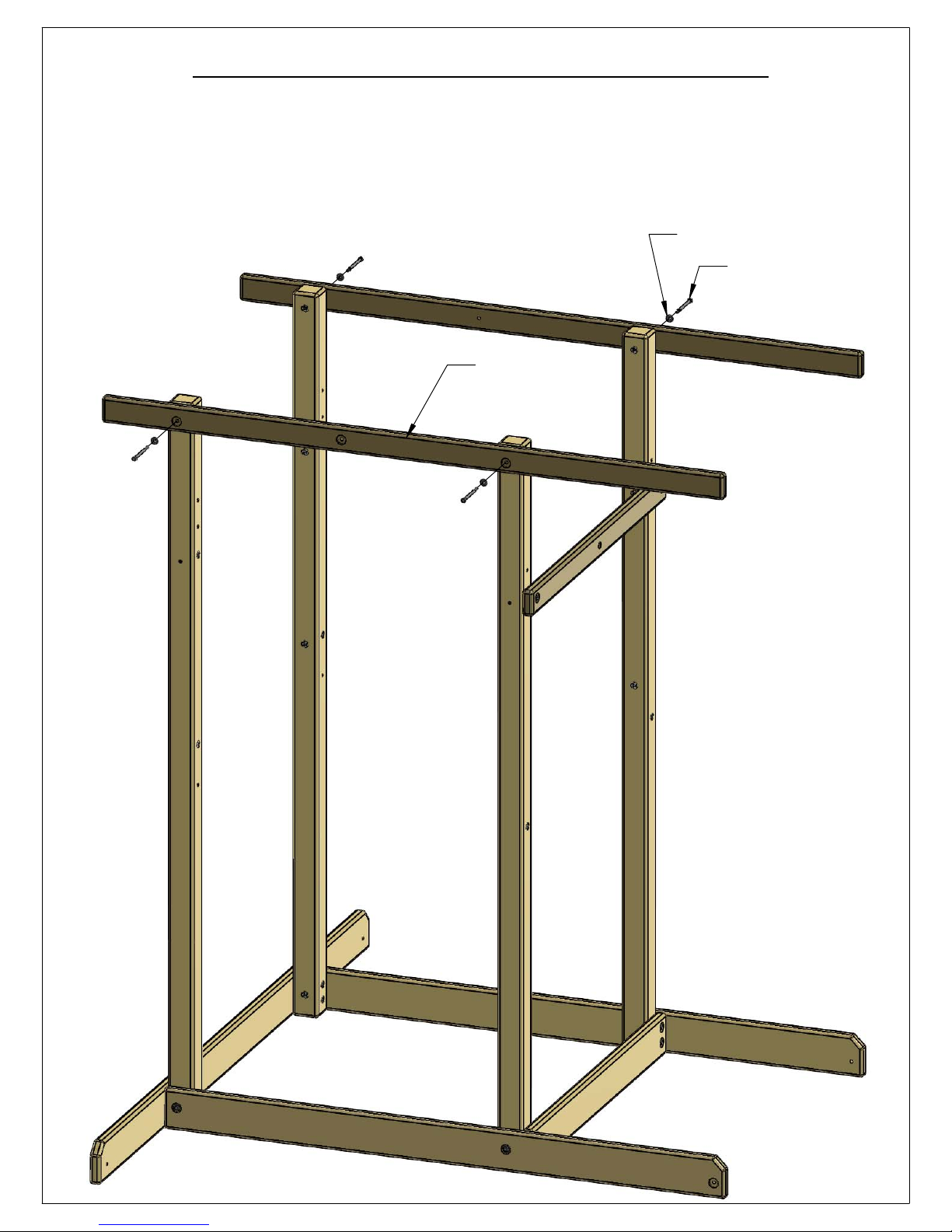

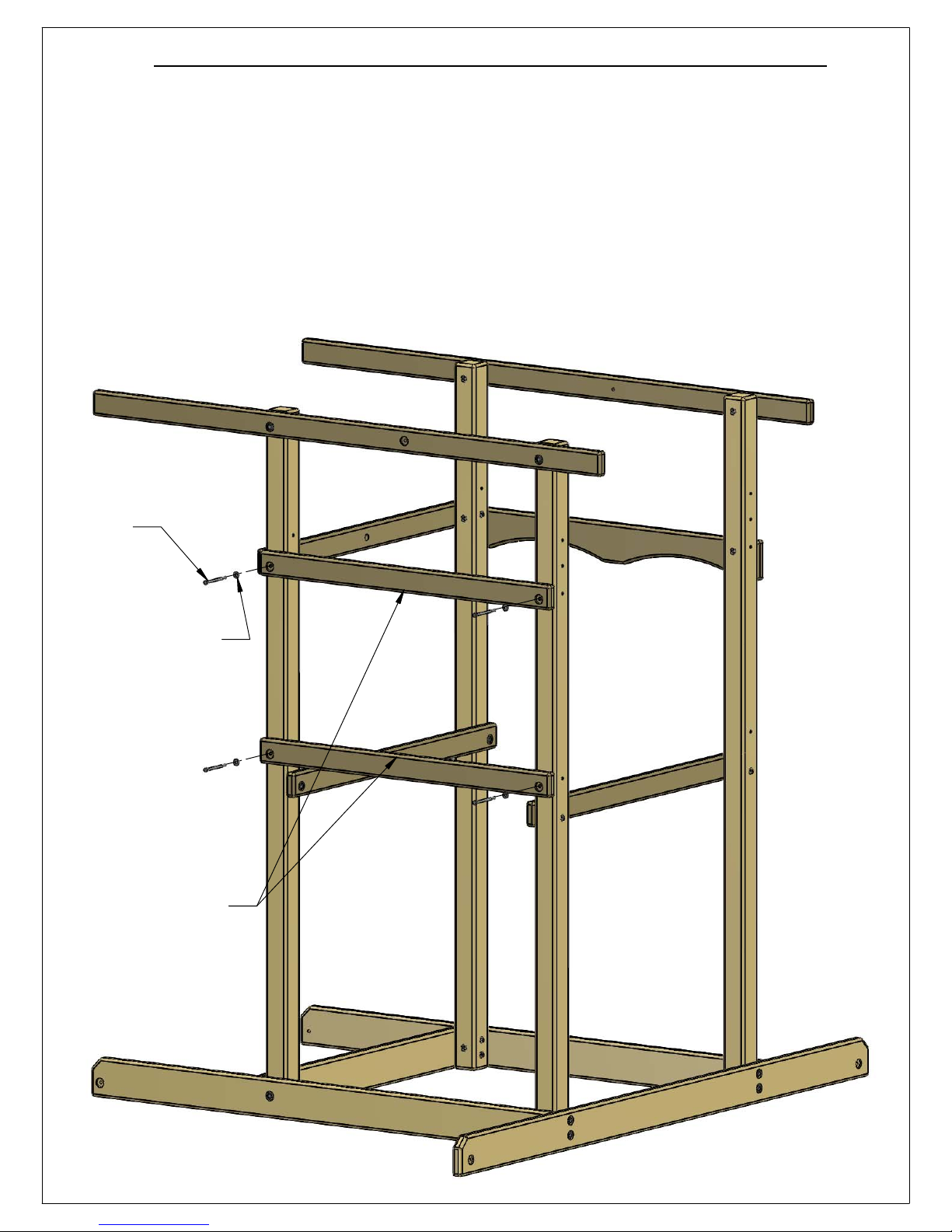

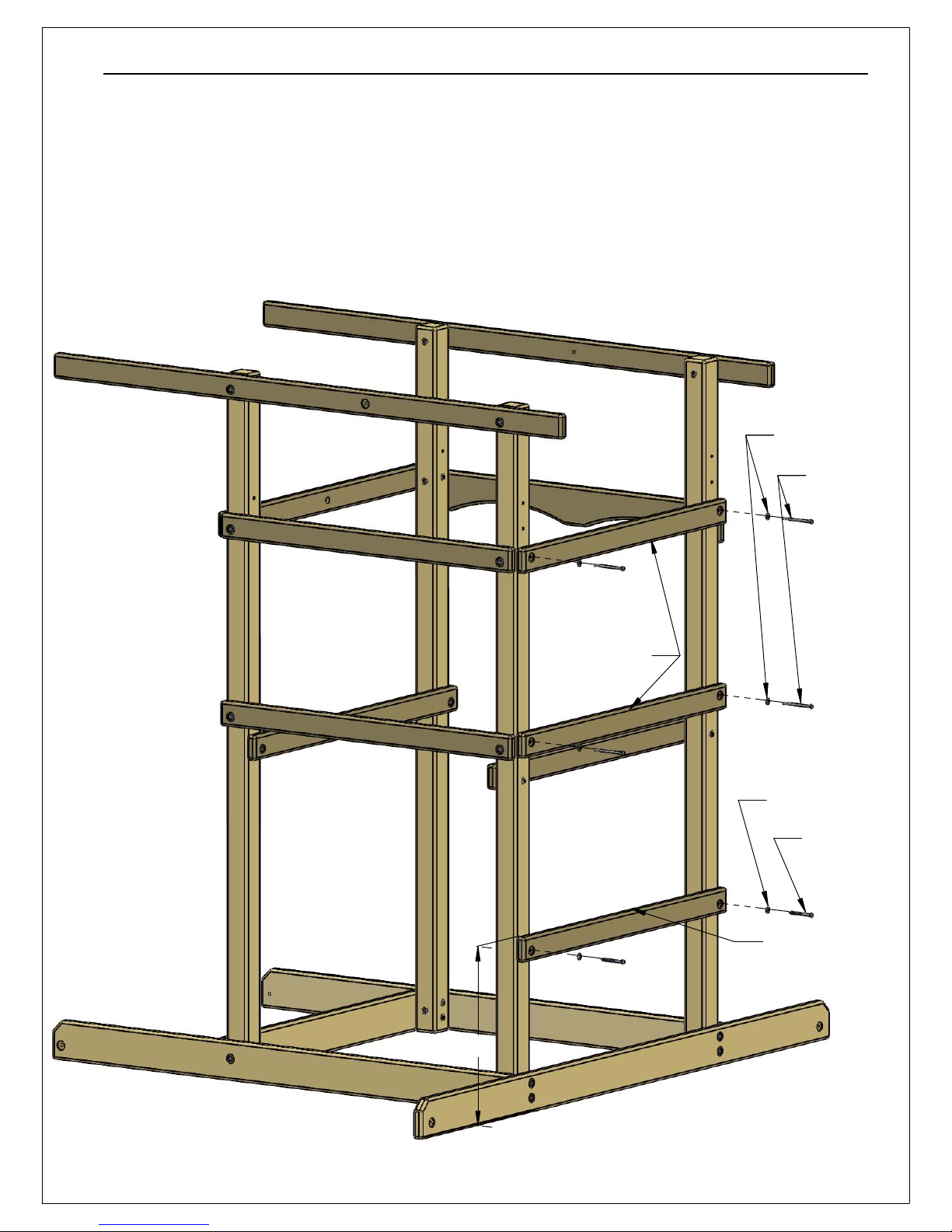

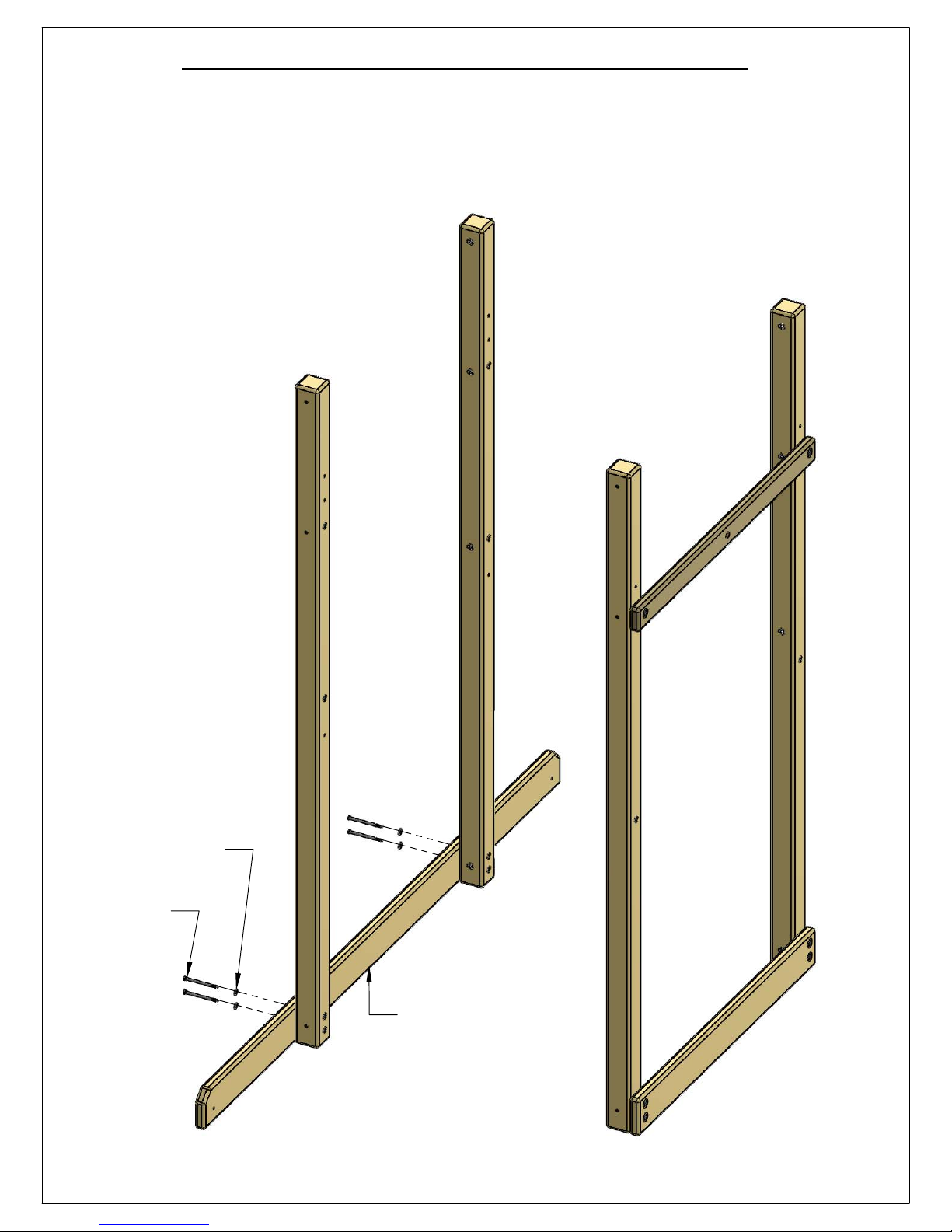

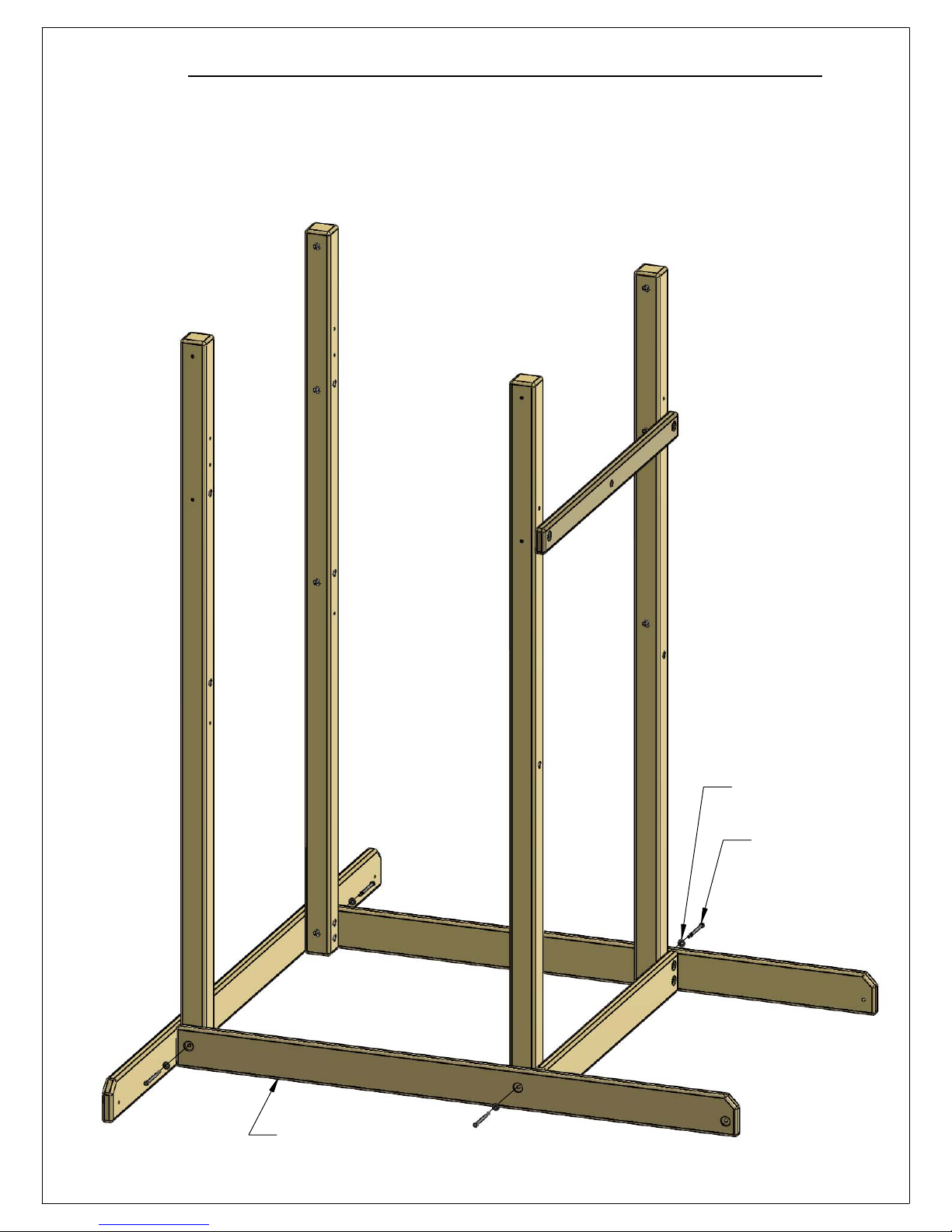

Framing Fort……………………………………..…………………………..……..... Steps 3-9

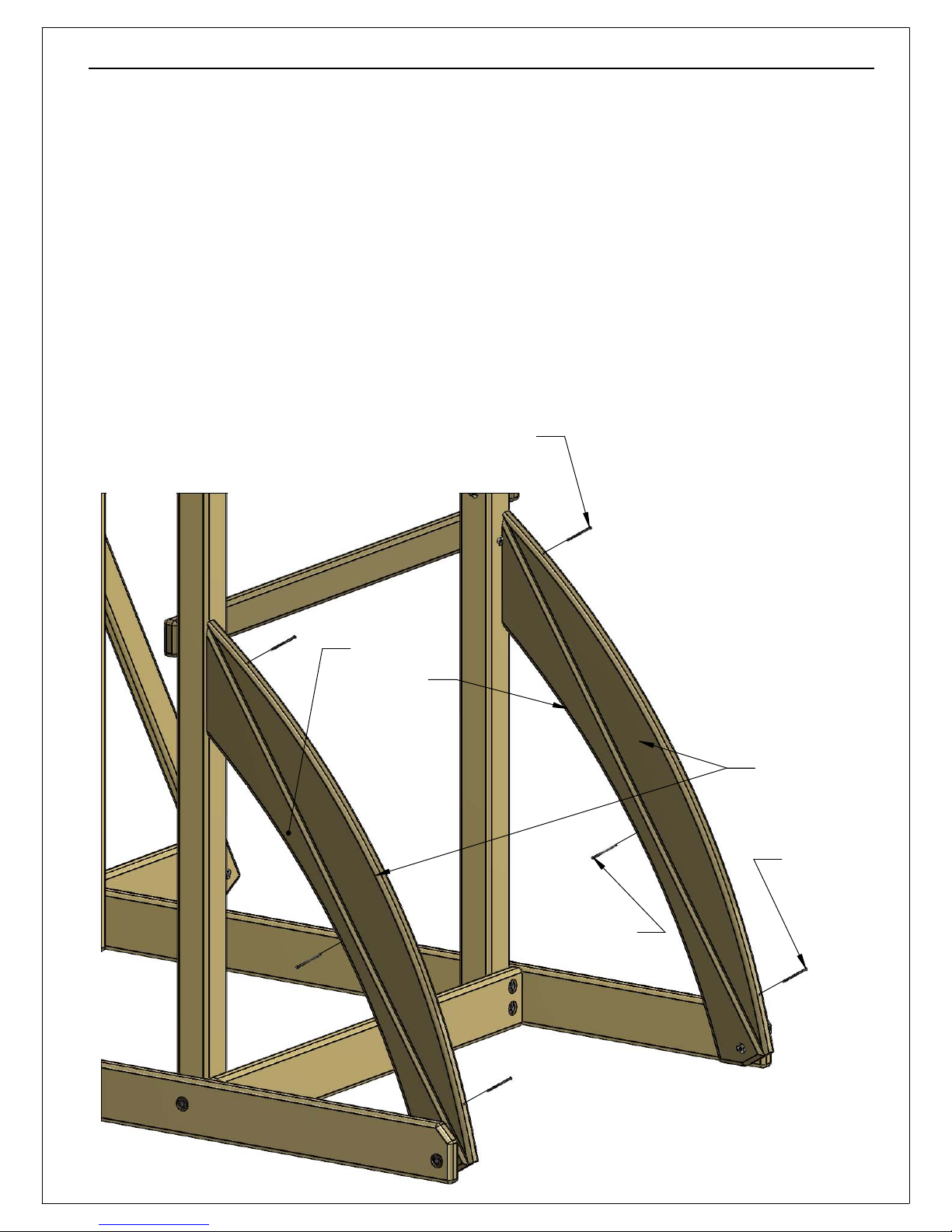

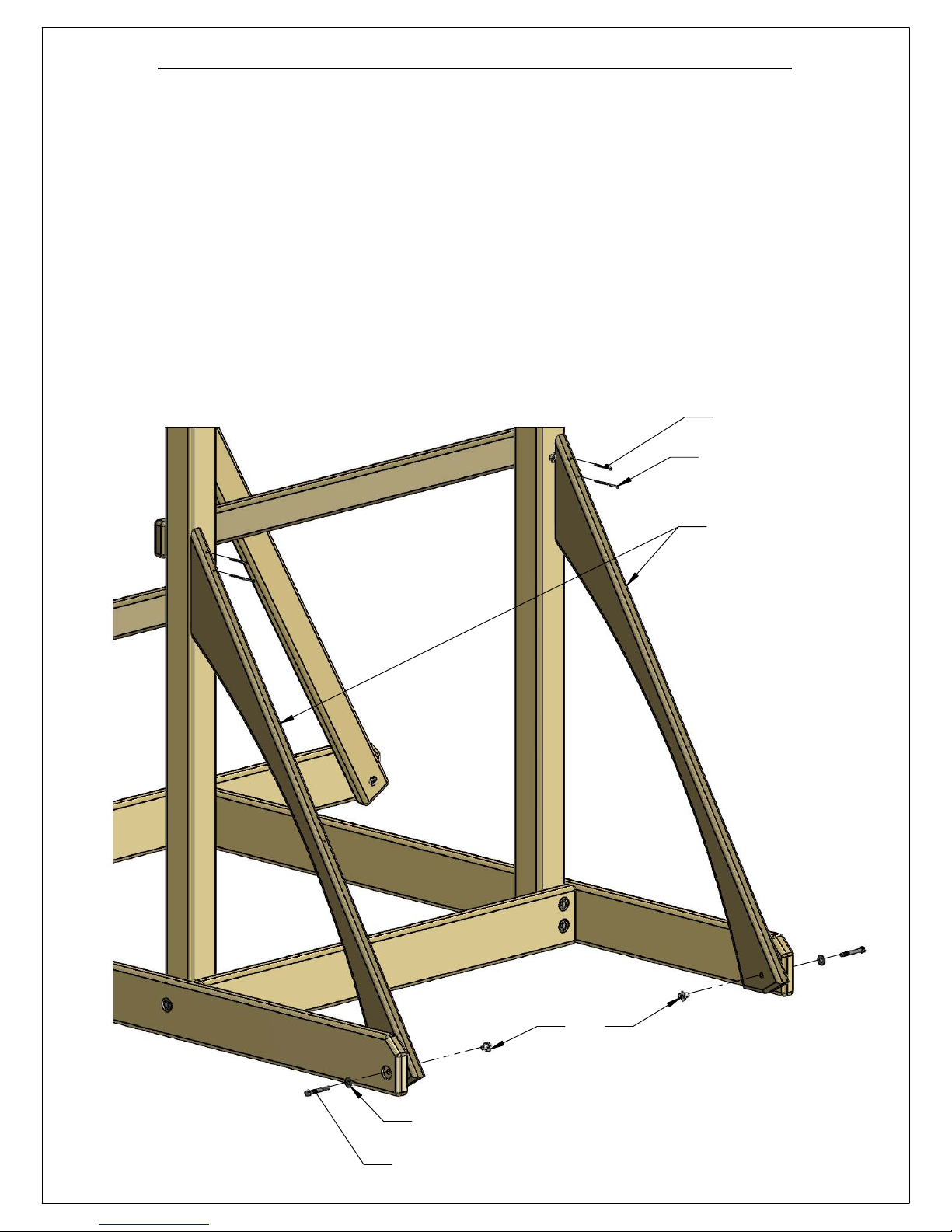

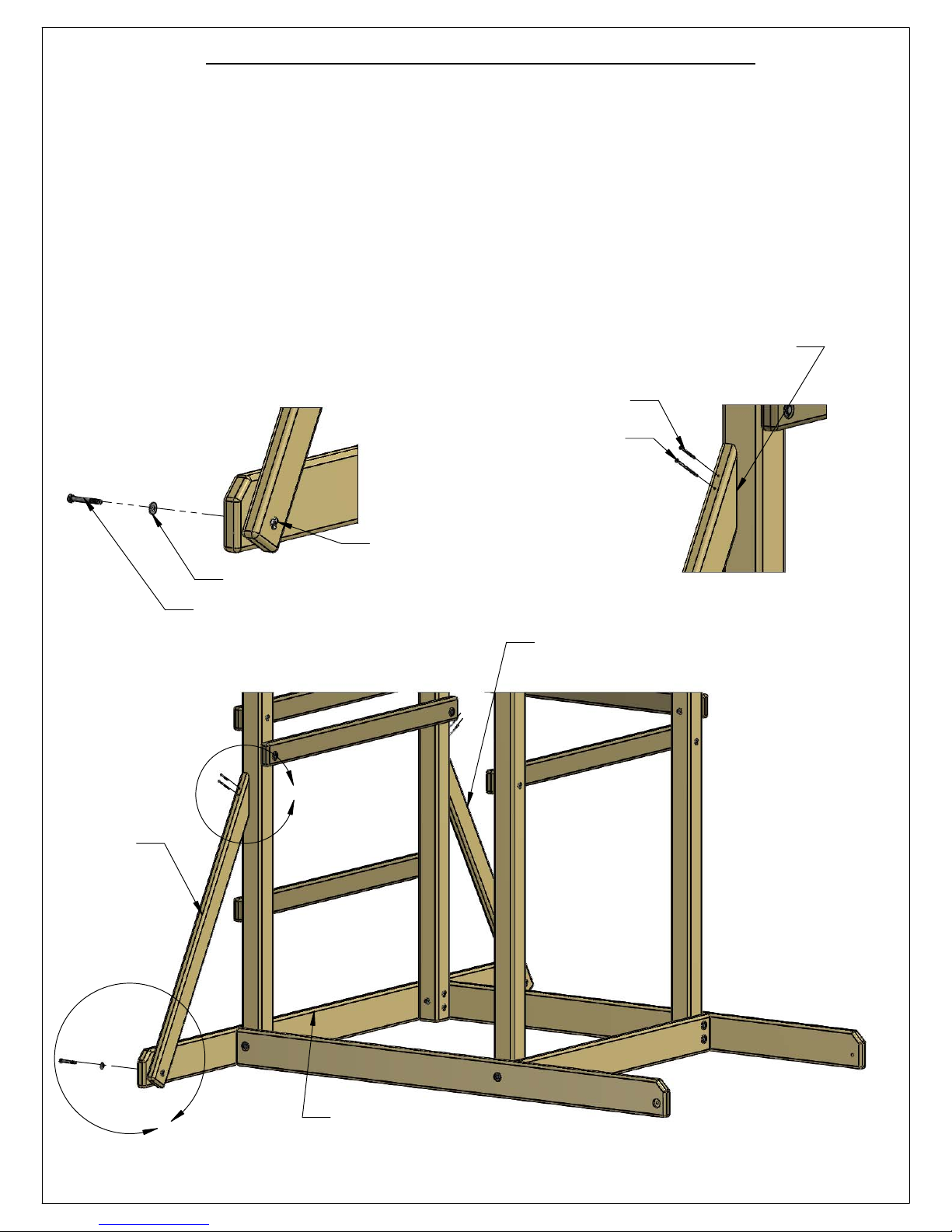

Mounting Fort Side Supports…....……………….…………...….............................. Step 10

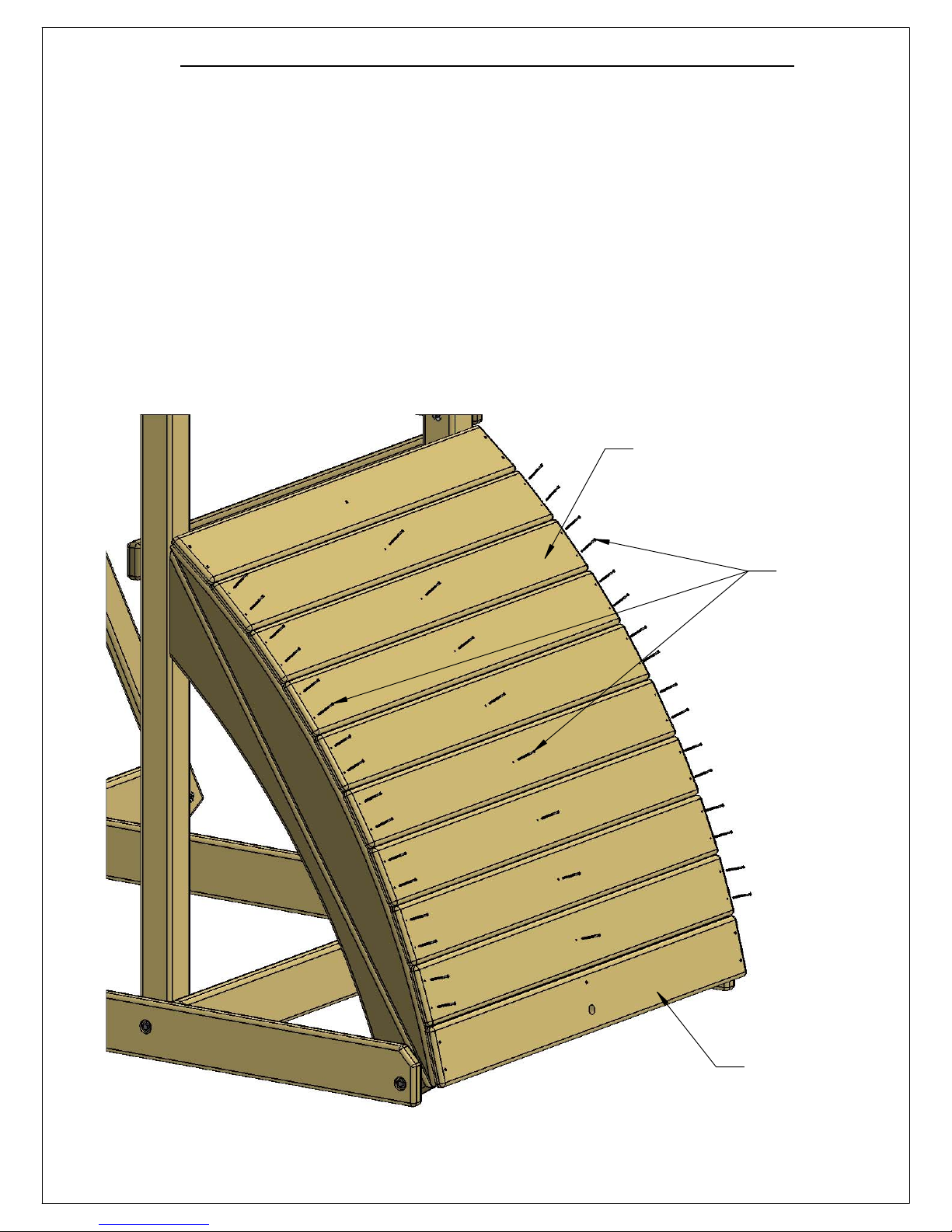

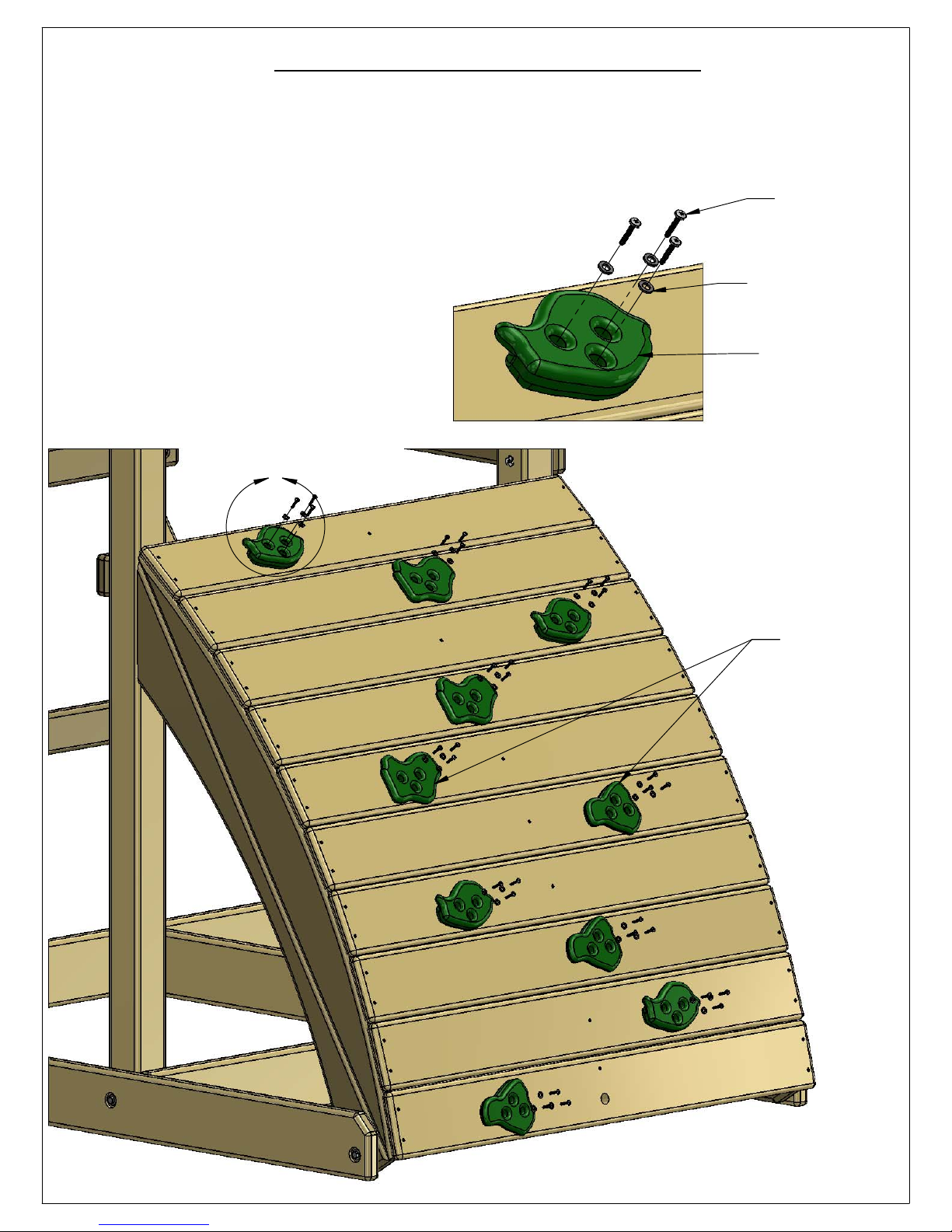

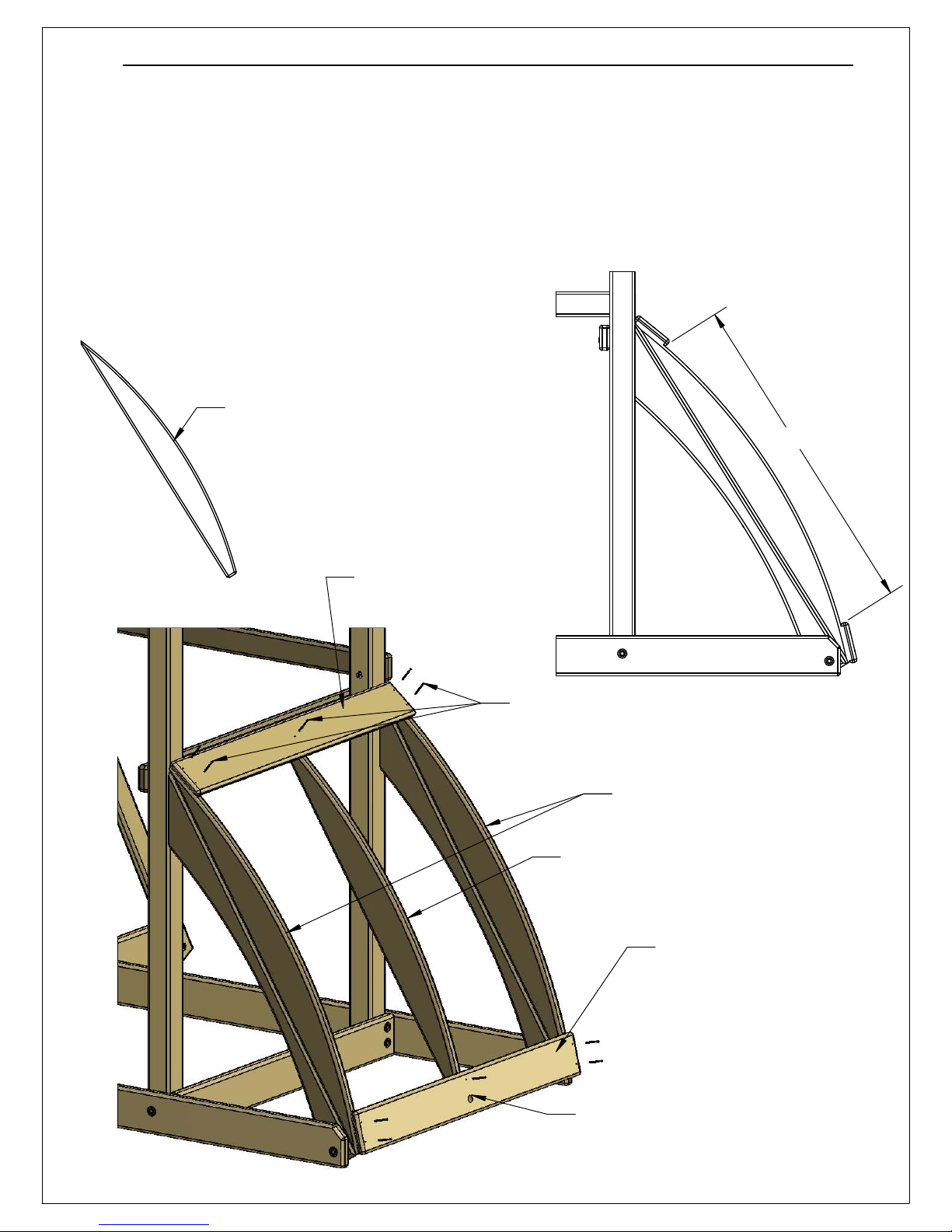

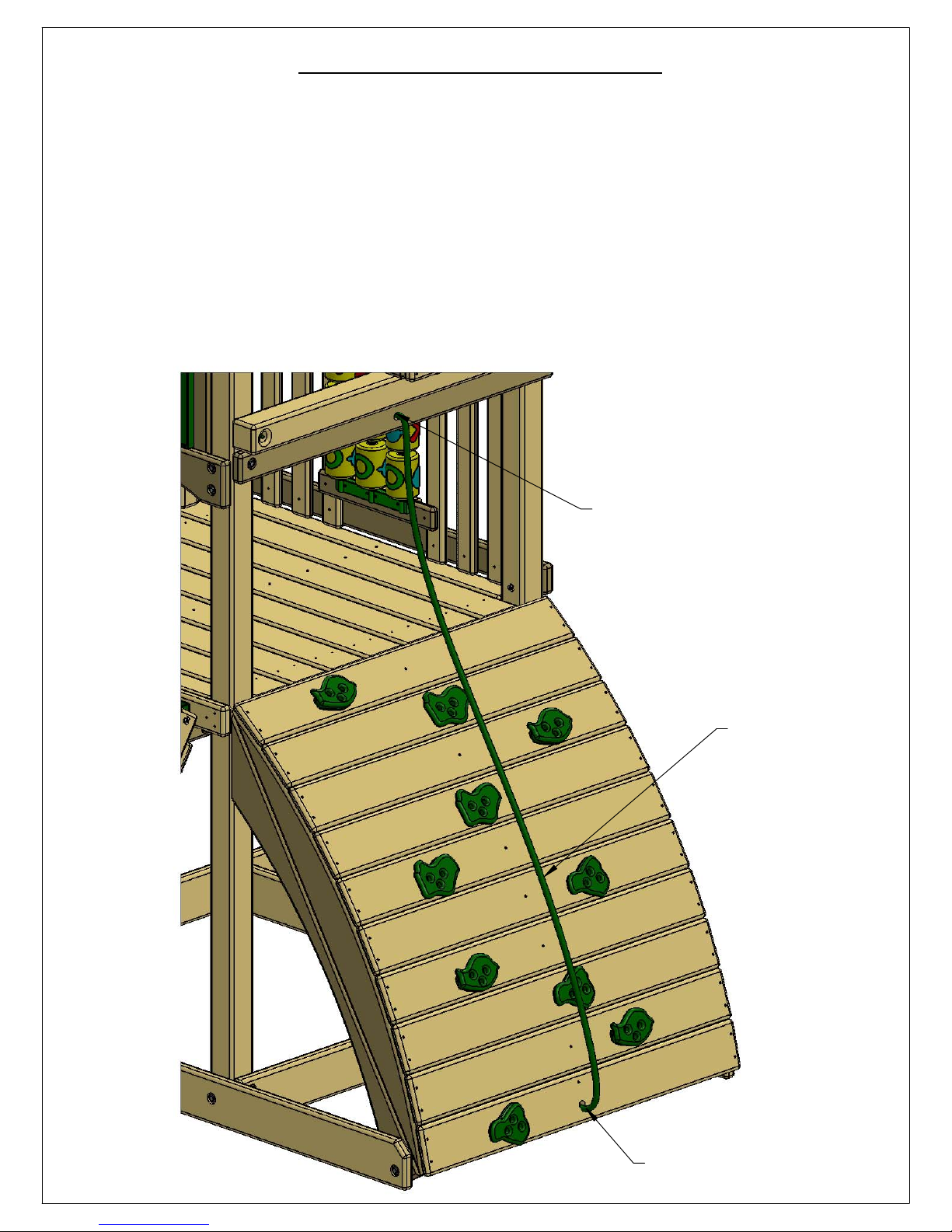

Rock Wall Assembly...................…………………...…..……..……...….…….... Steps 11-15

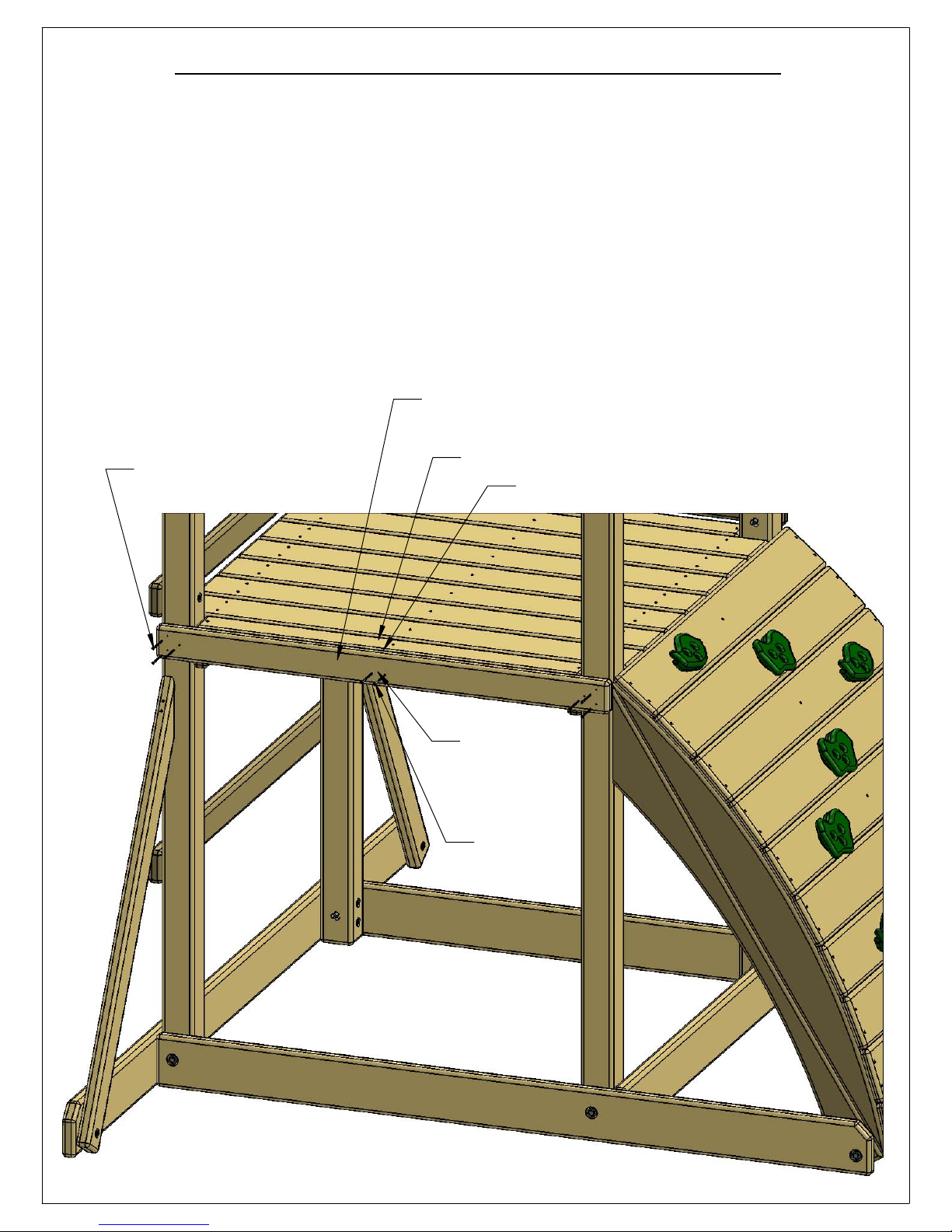

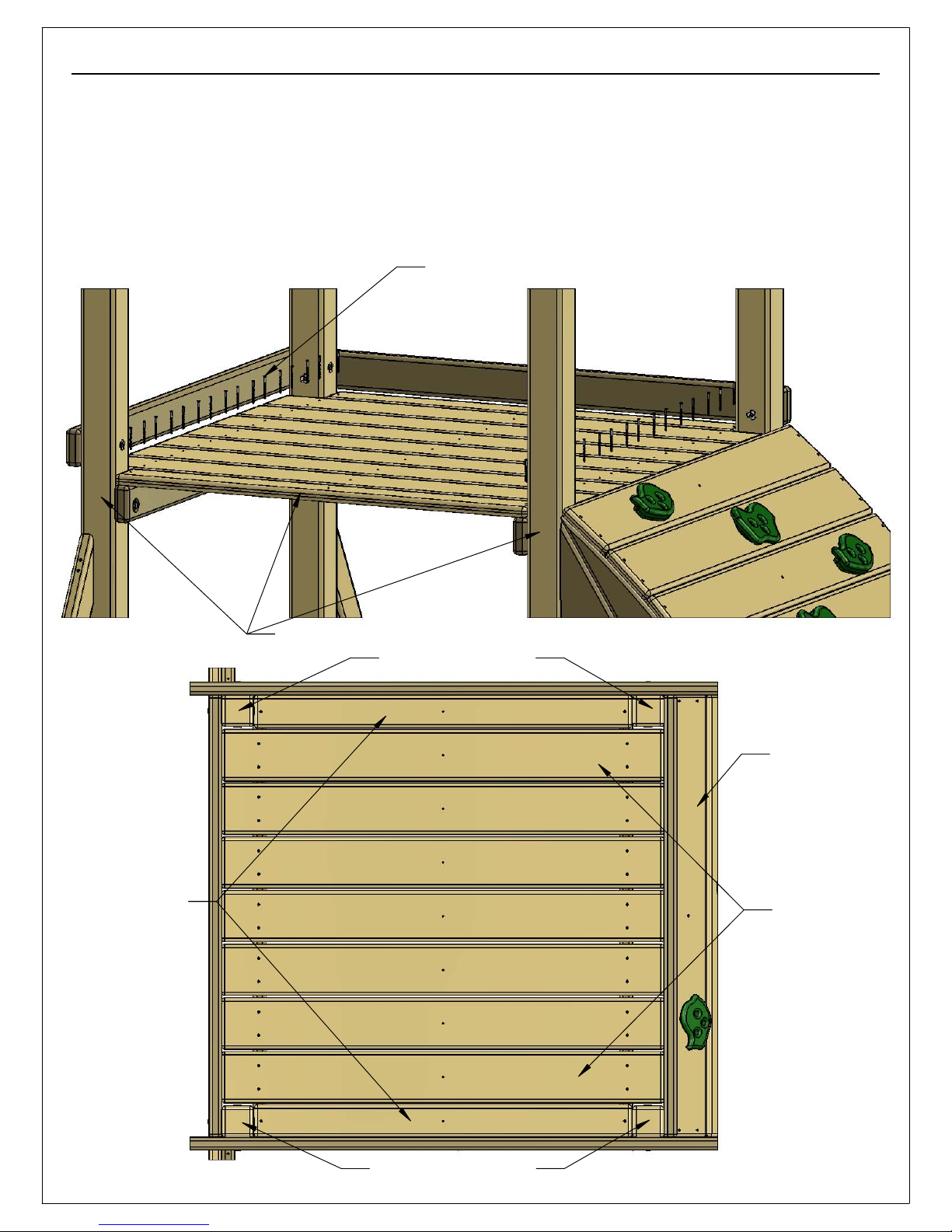

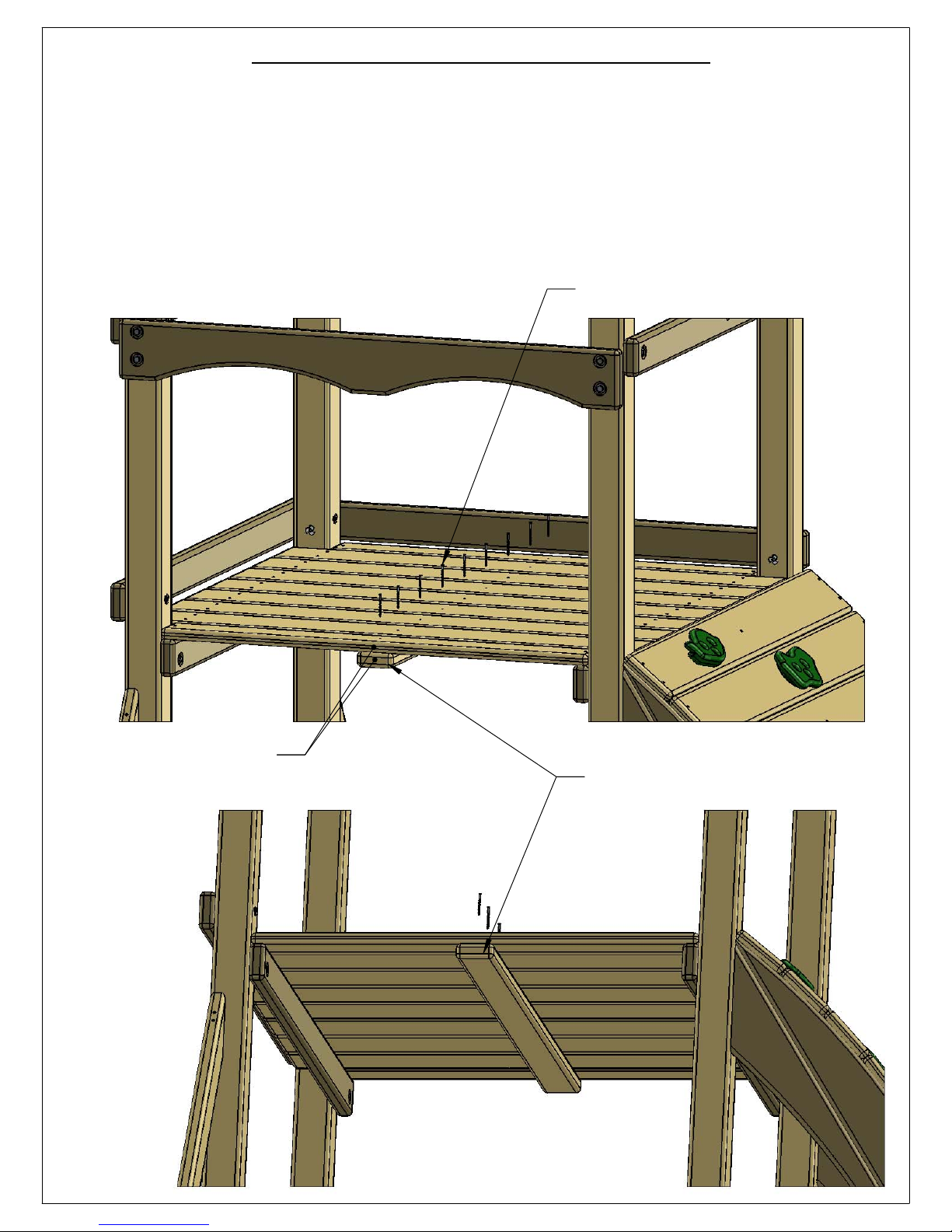

Adding Deck Boards, Stringer and Front Face Board.................................... Steps 16-18

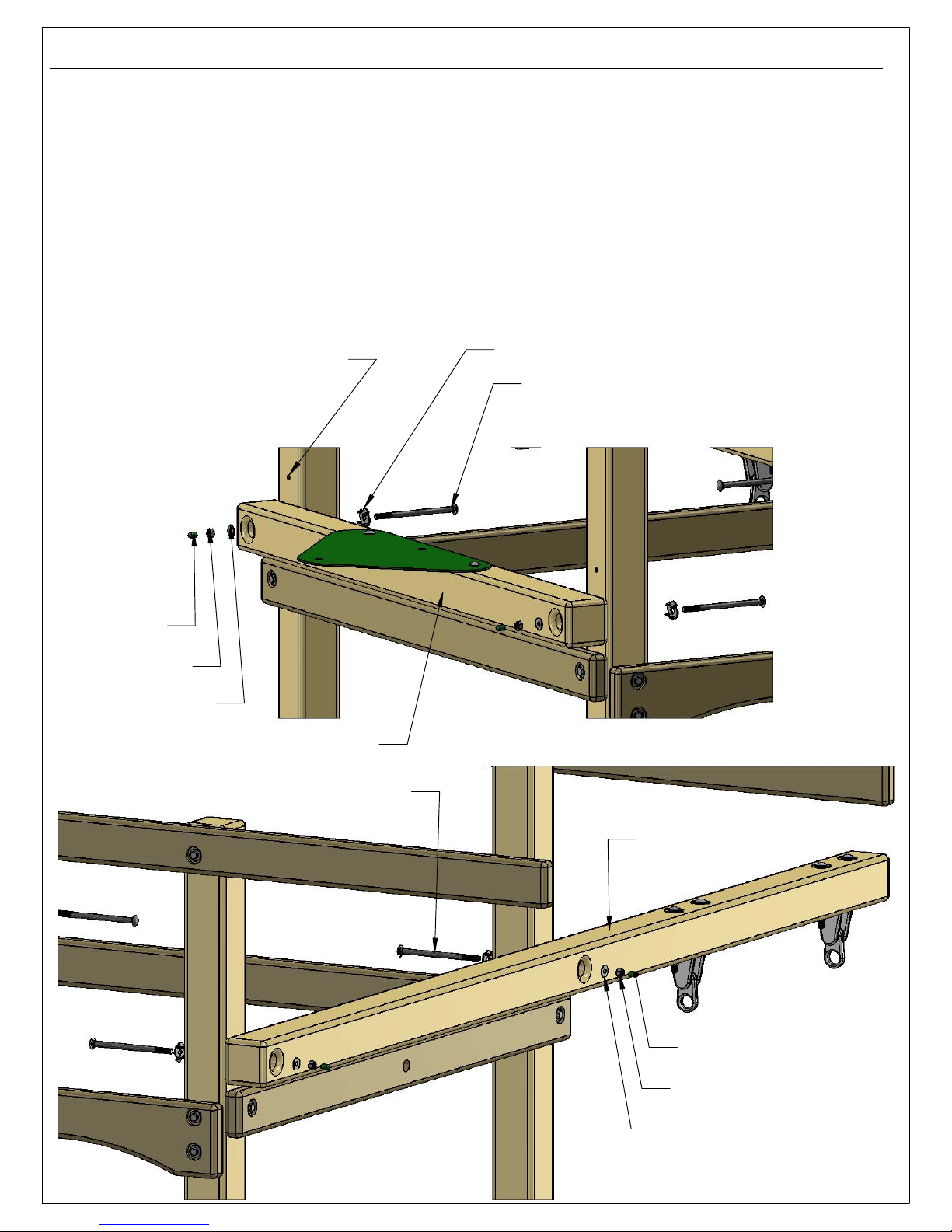

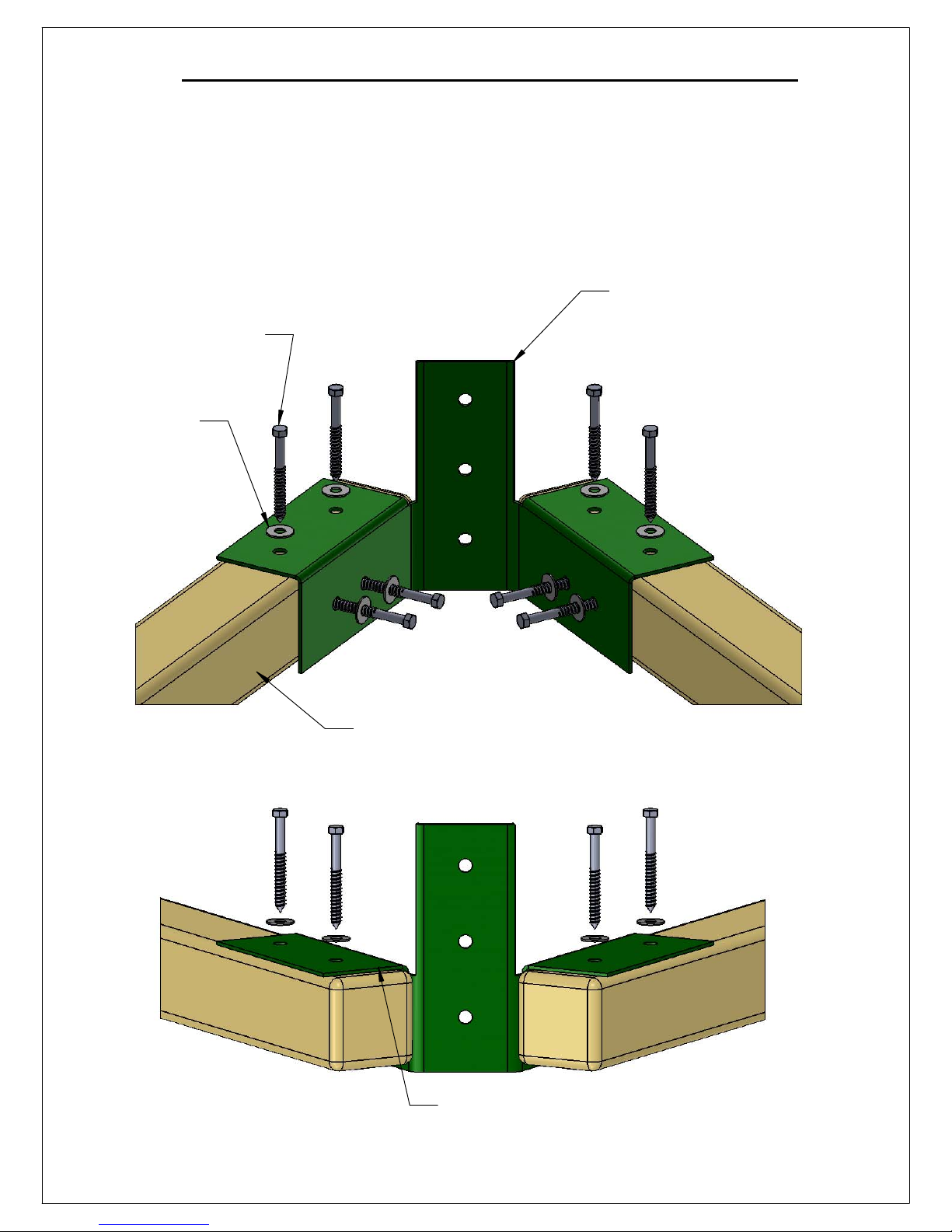

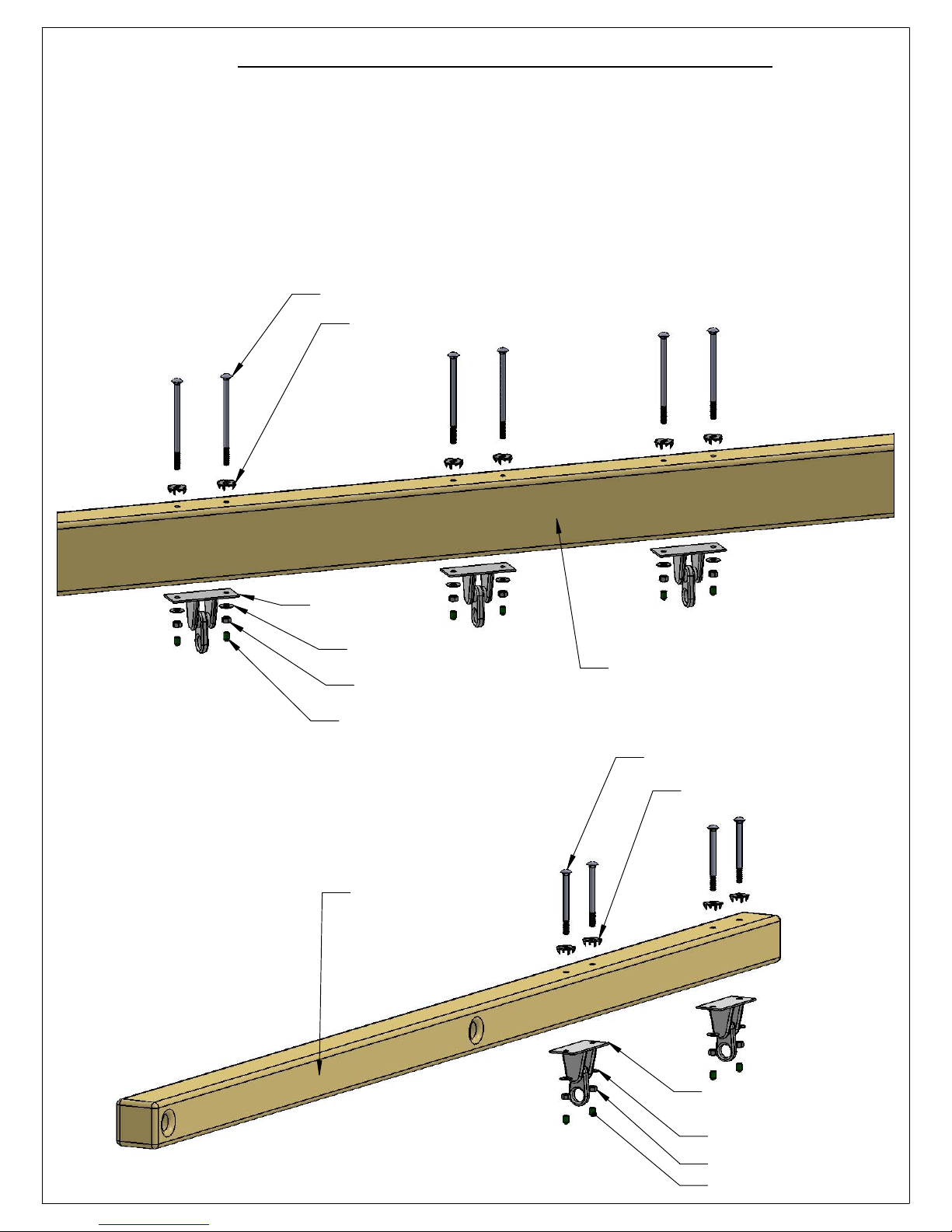

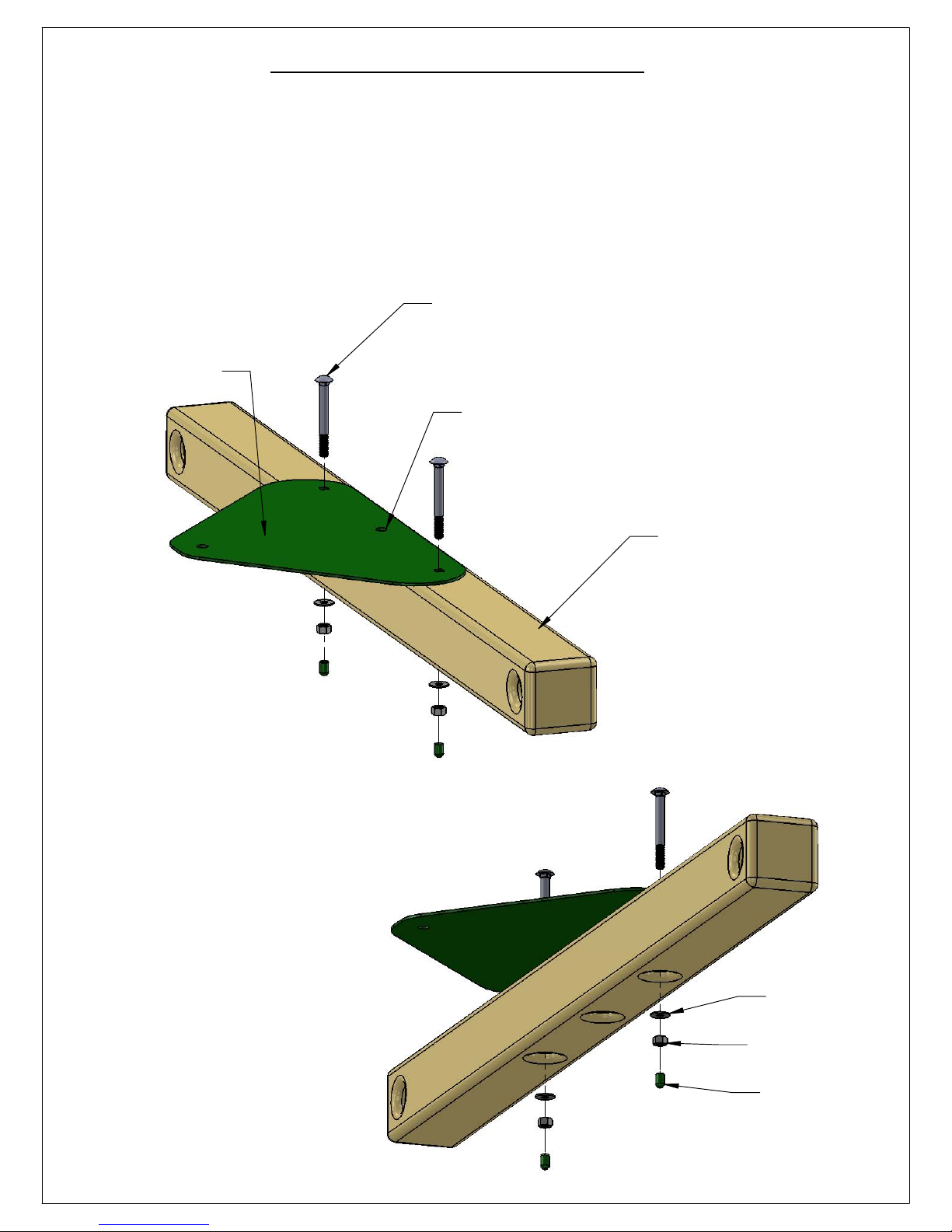

Swing Beam Plate, Swing Hangers and Swing Beam Mount/Trap Arm......... Steps 19-21

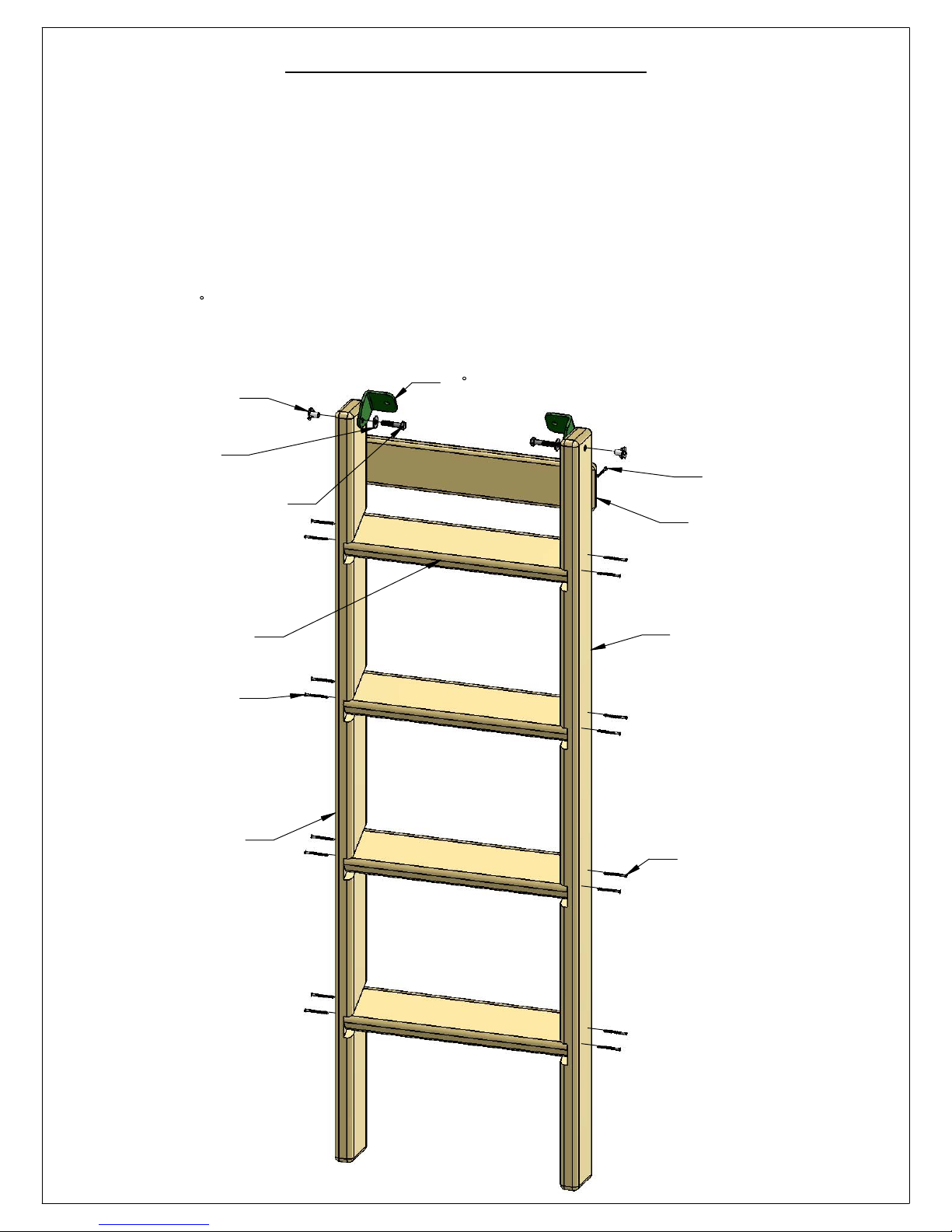

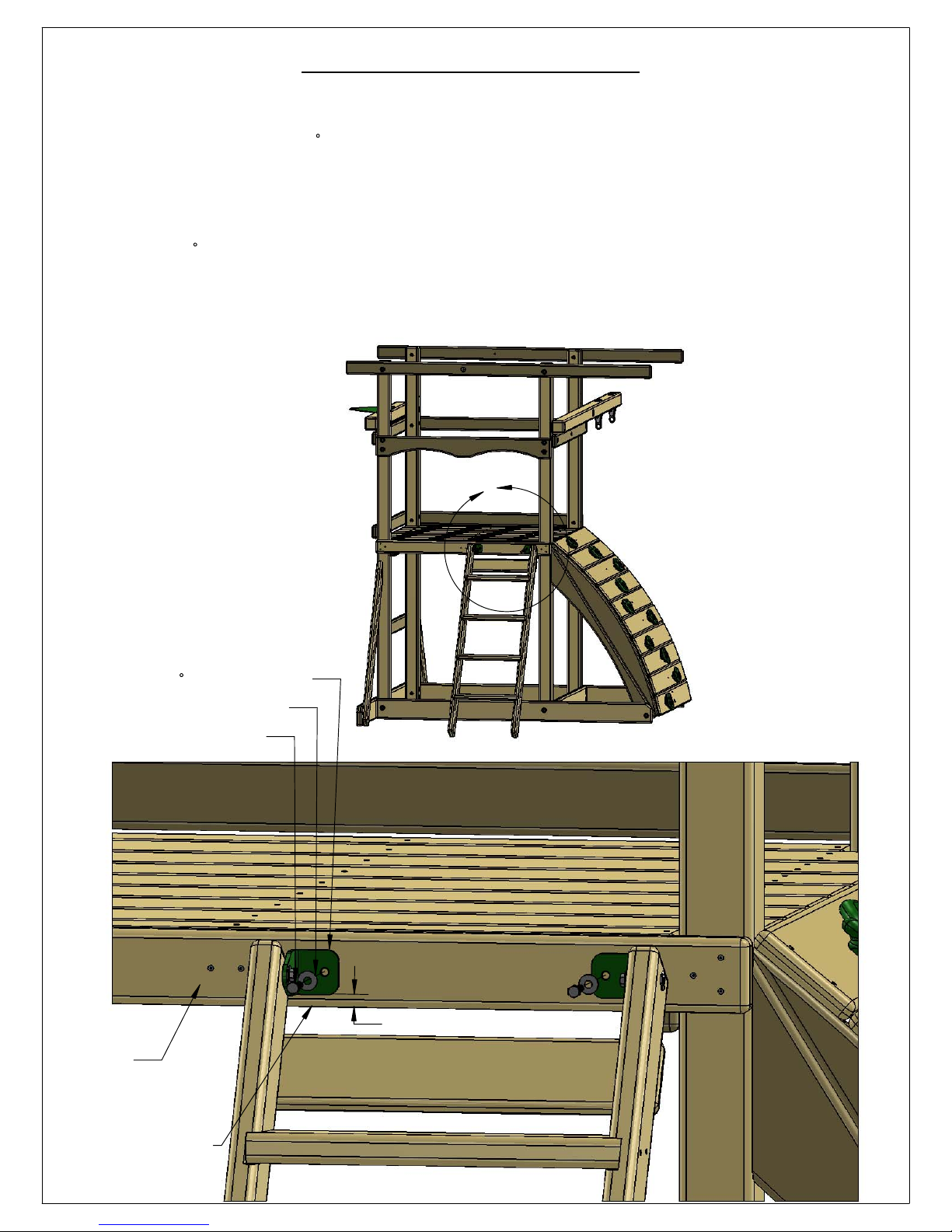

Ladder Assembly and Installation…………………..……........…..................... Steps 22-23

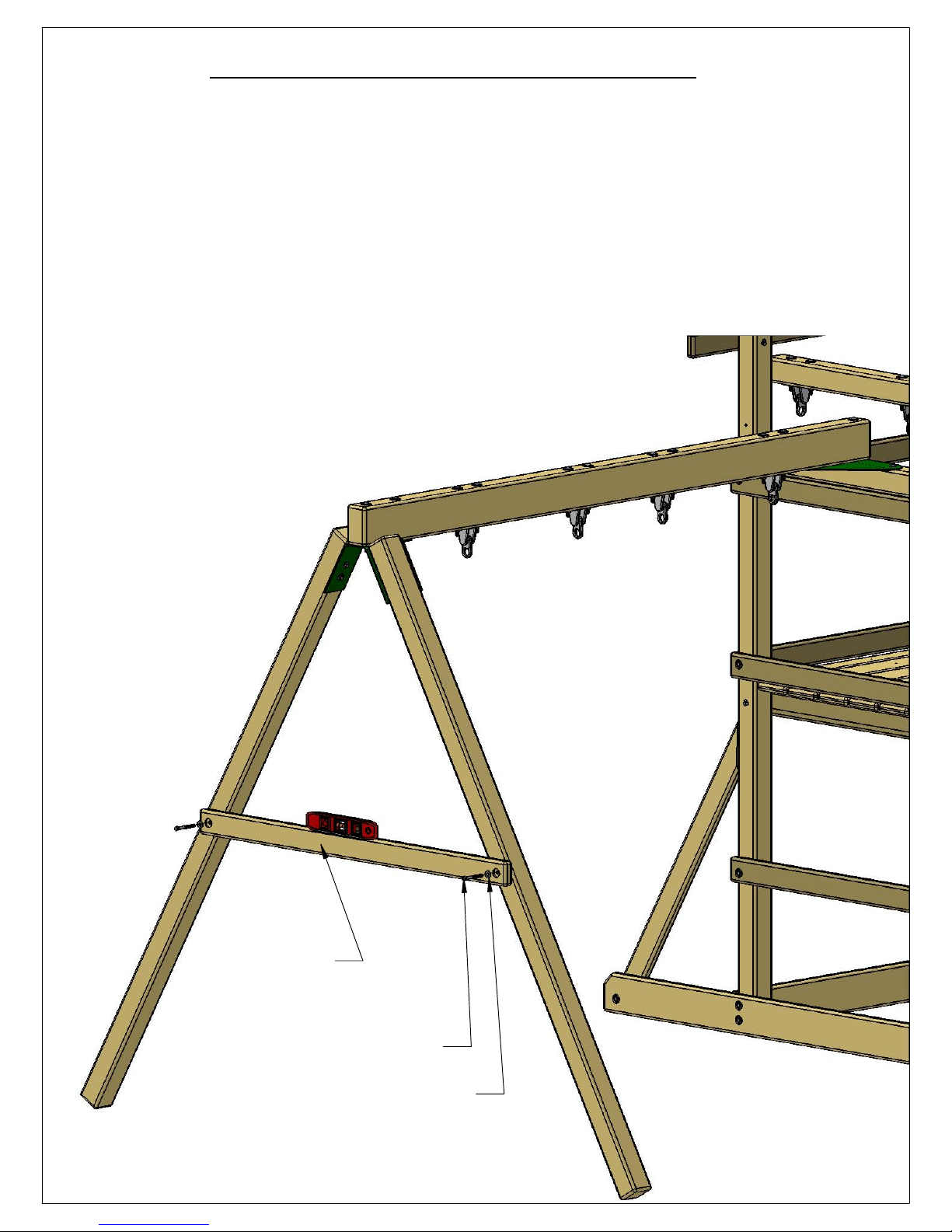

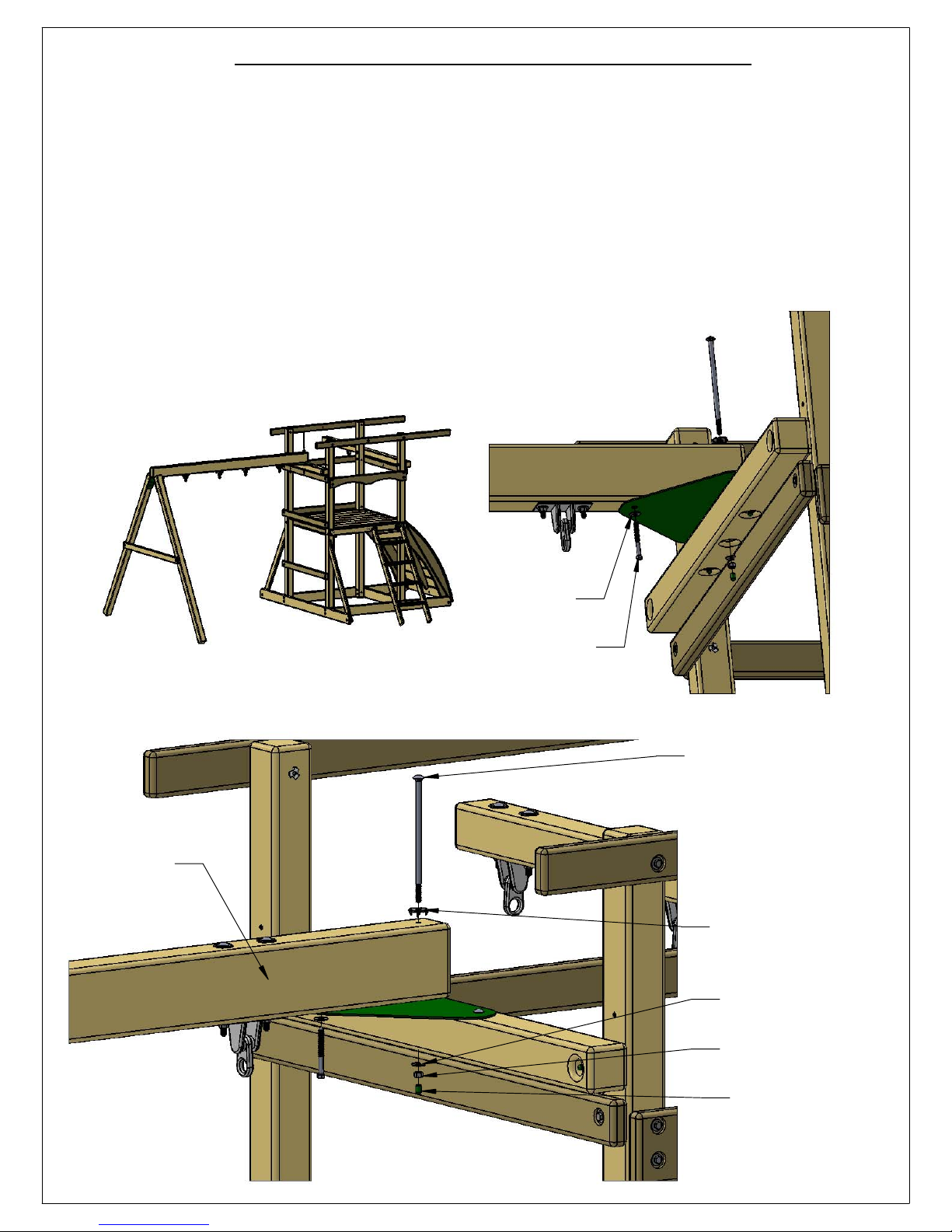

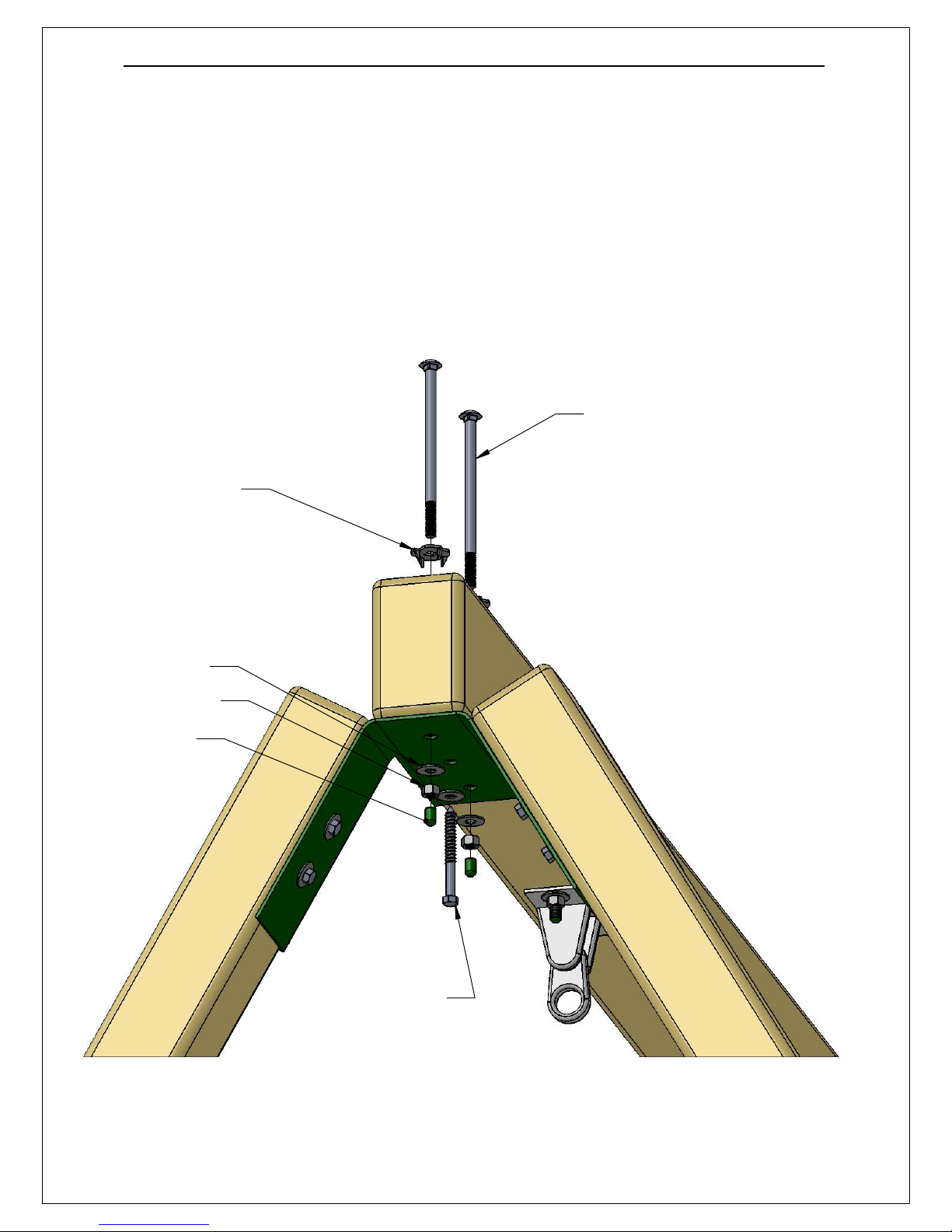

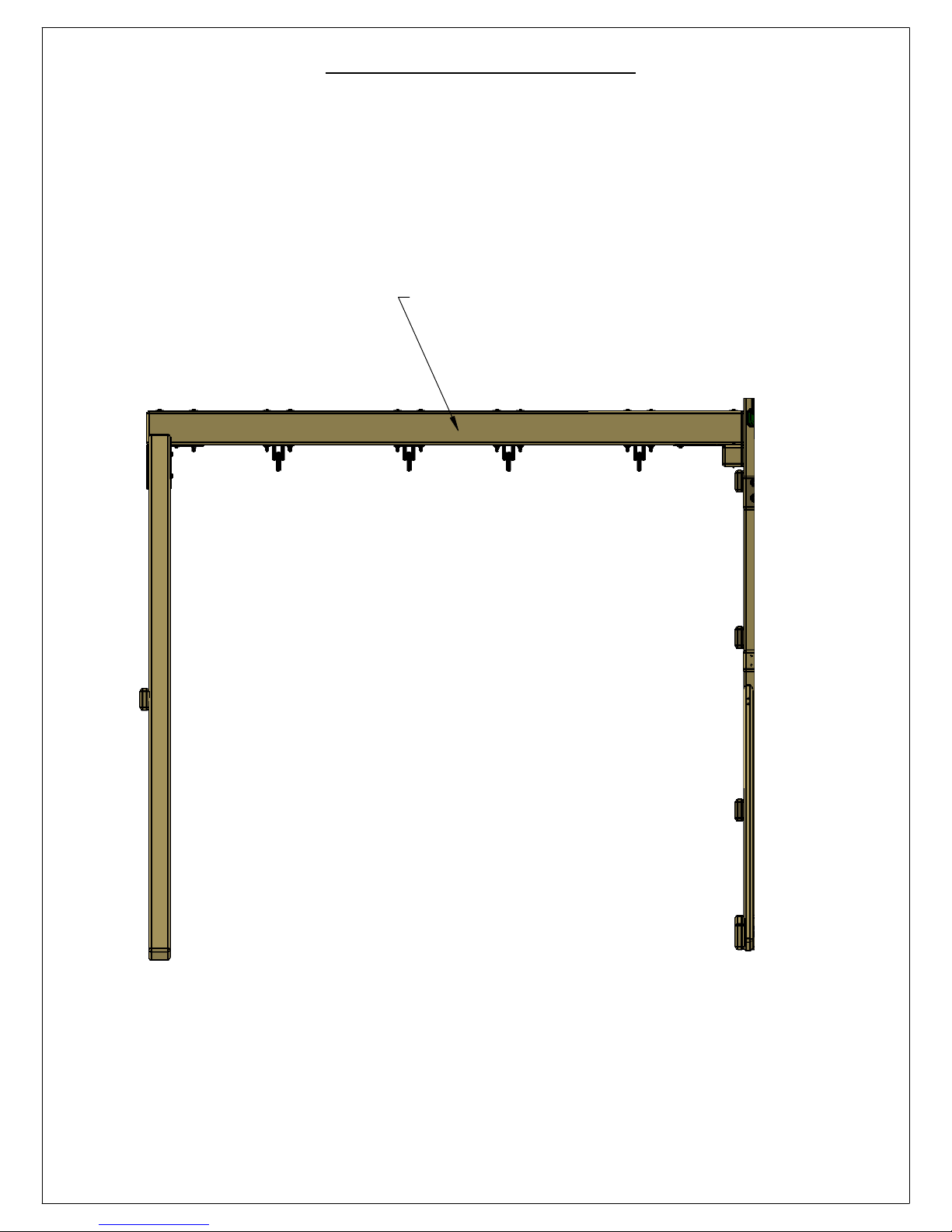

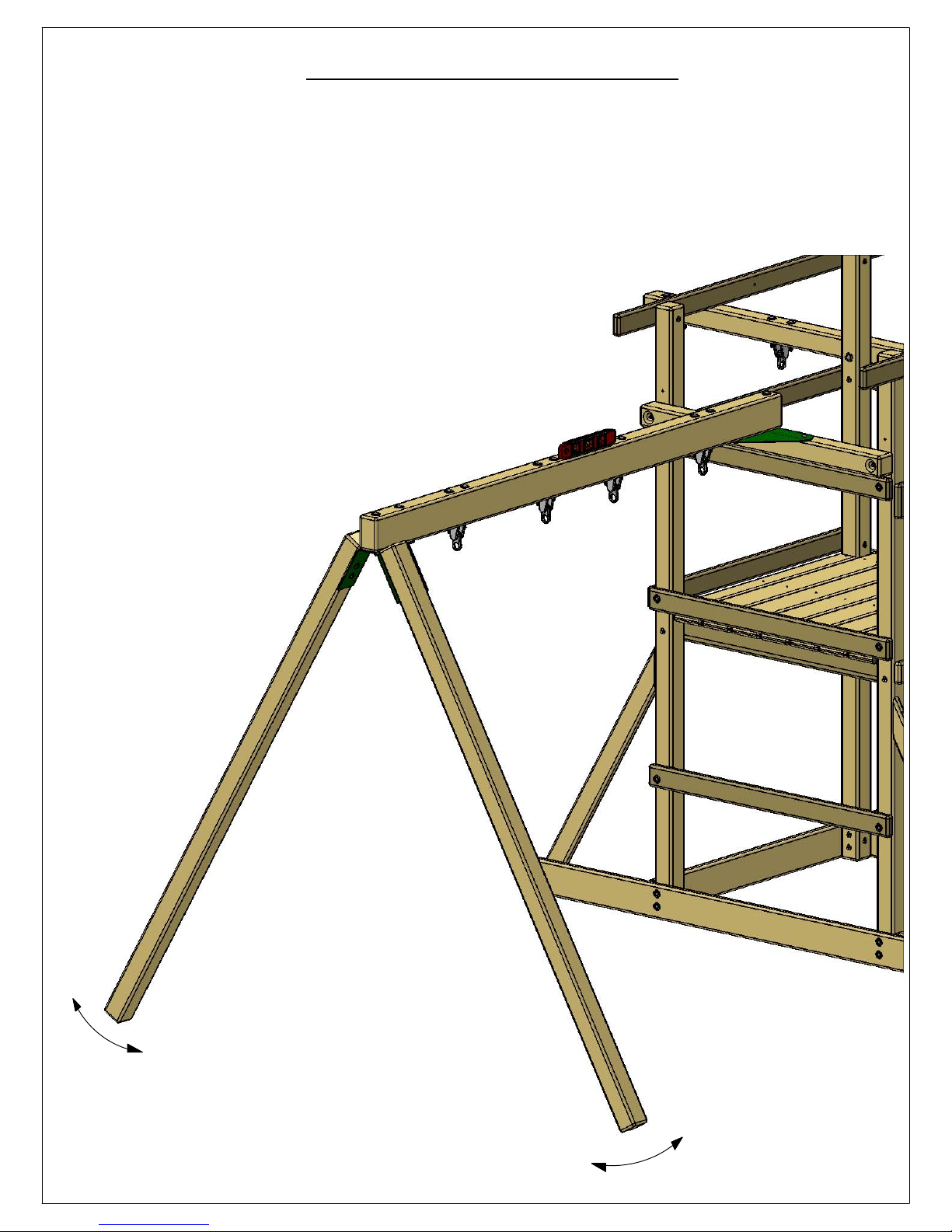

Swing Beam Assembly...........……...……………………….….........……......... Steps 24-28

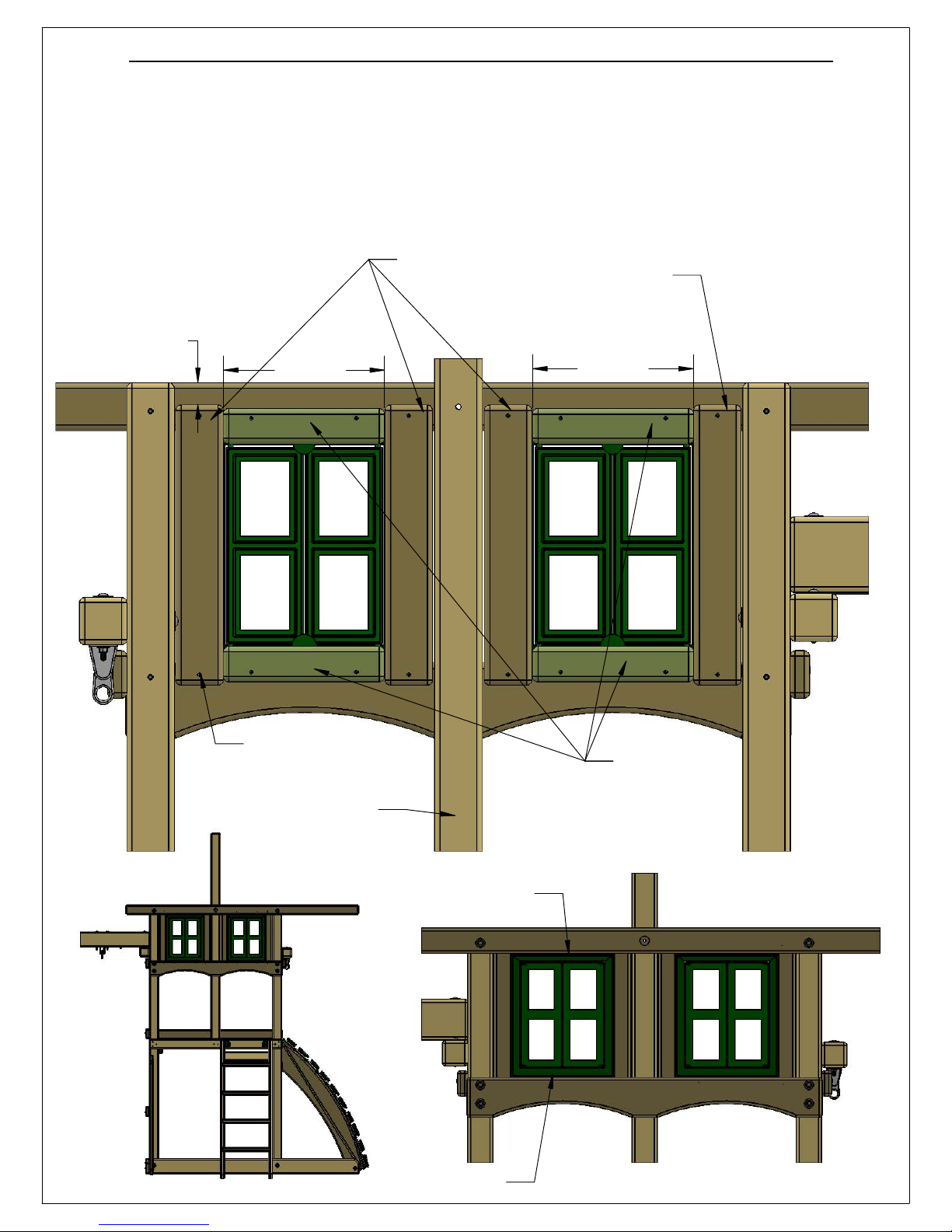

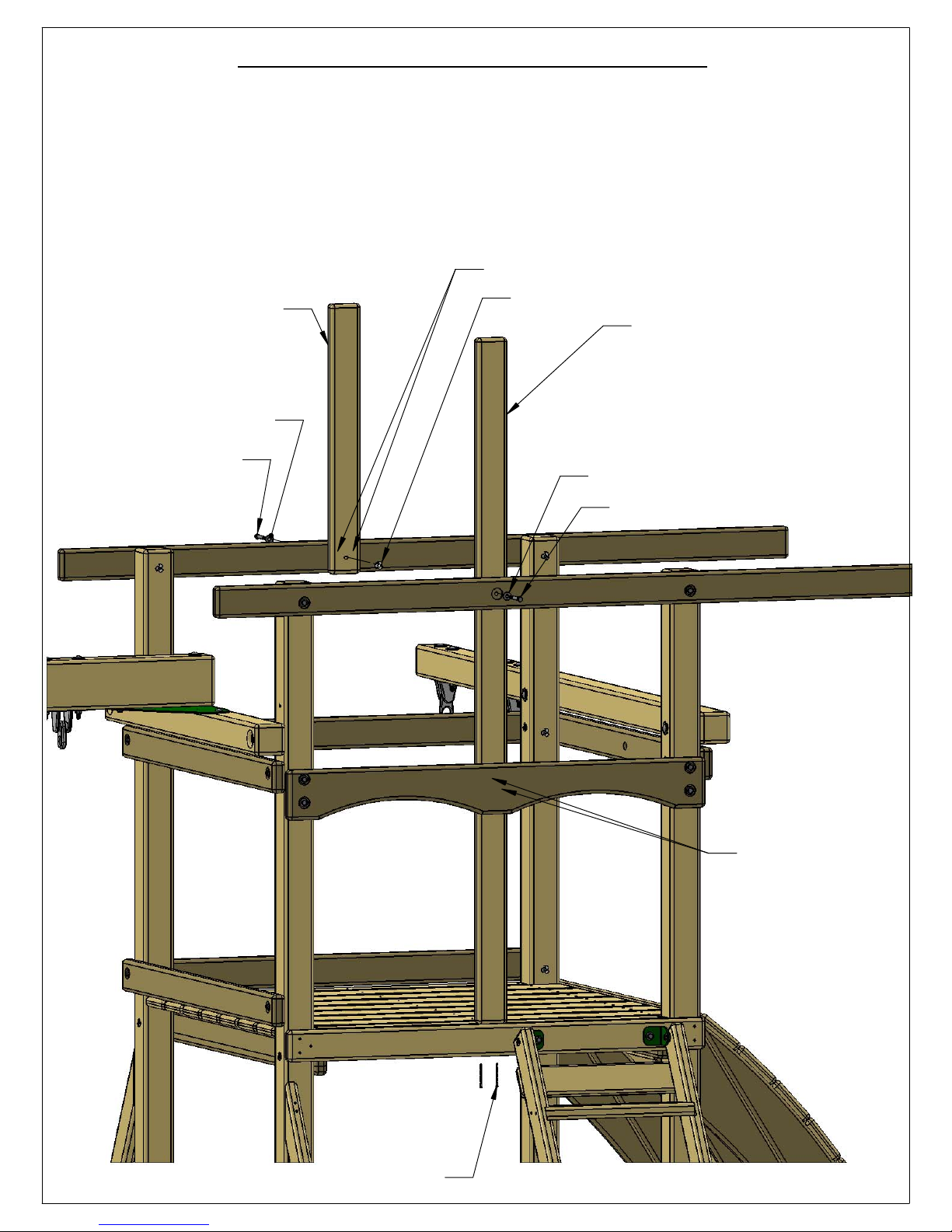

Center Posts, Window Supports/Windows…………………………………...... Steps 29-30

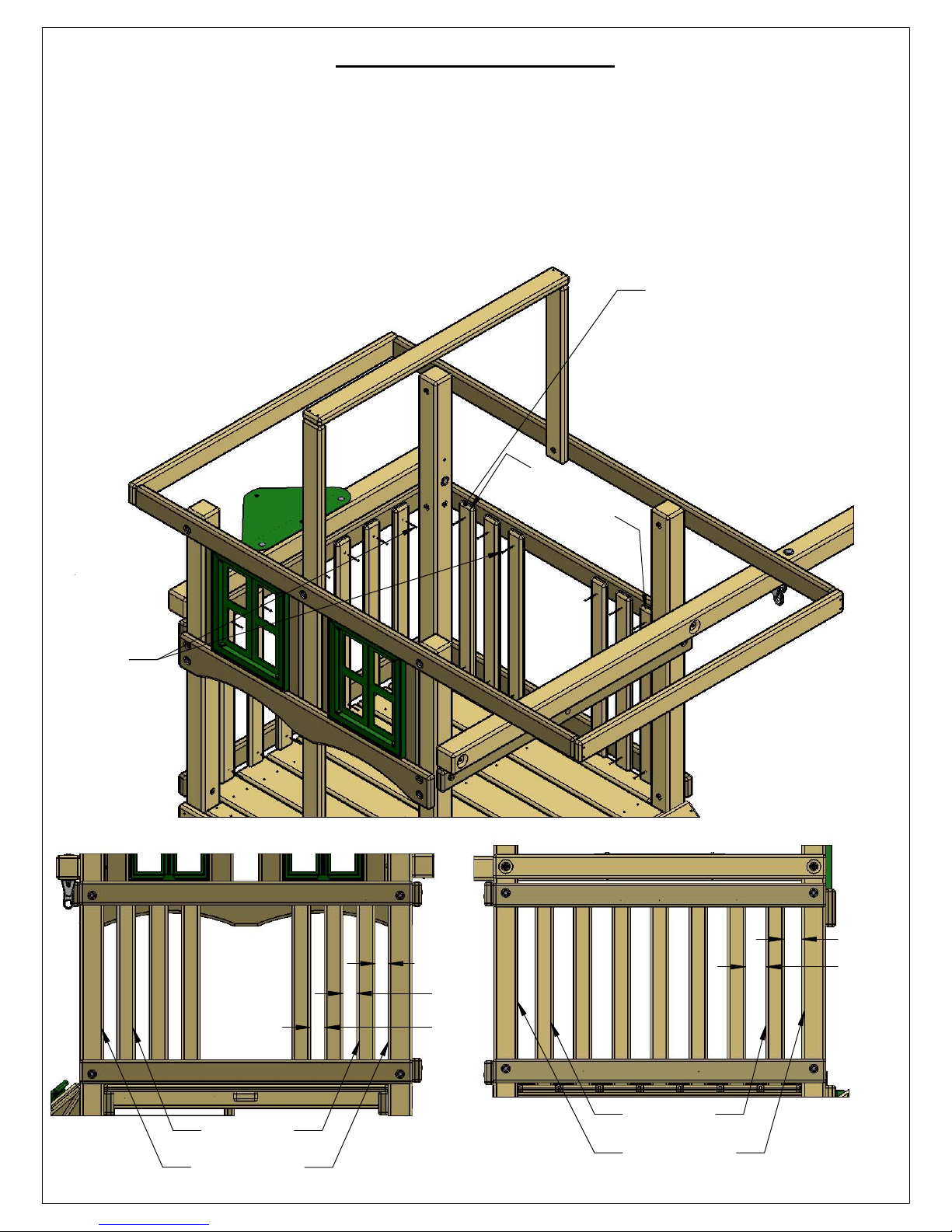

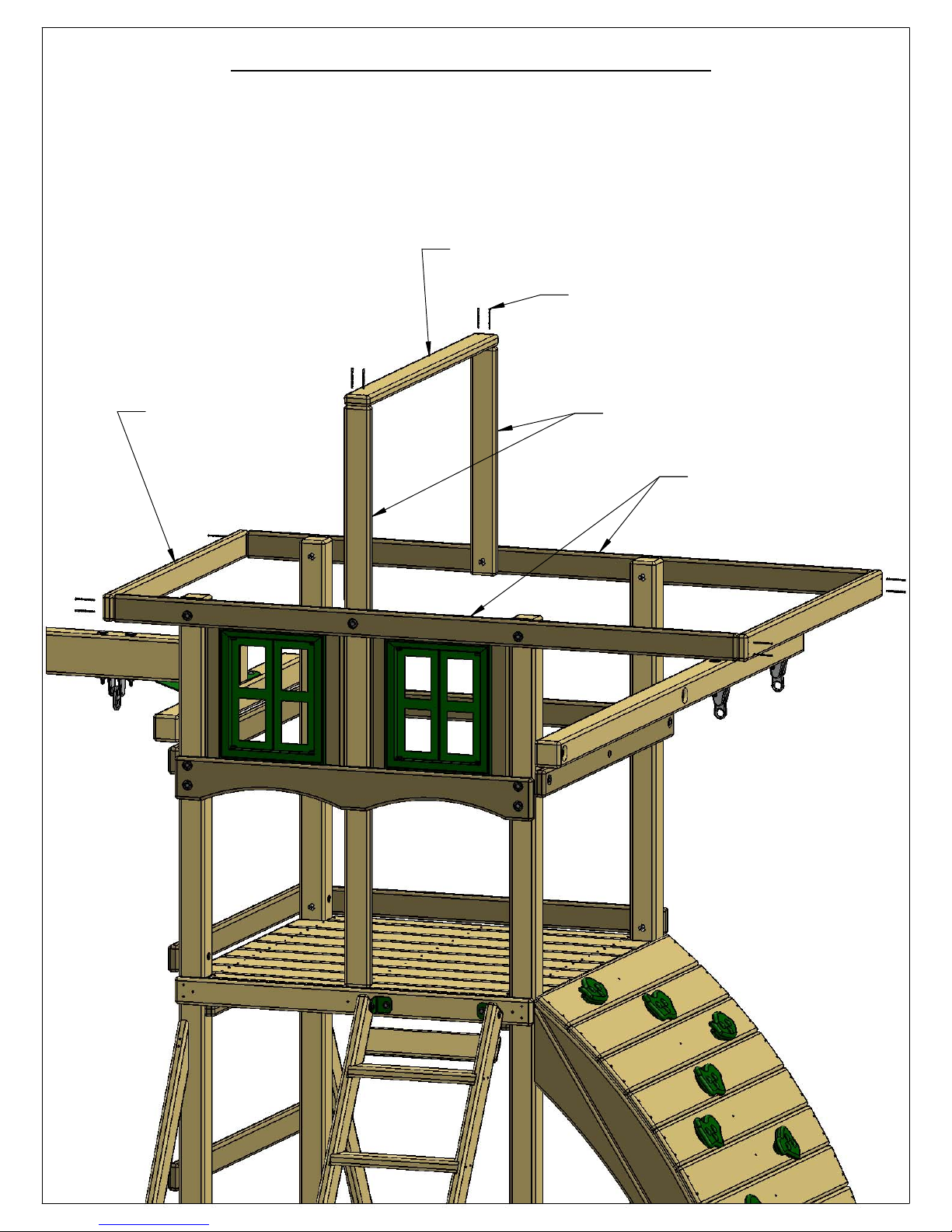

Tarp Boards, Panel Slats.…………………………......….…............................. Steps 31-32

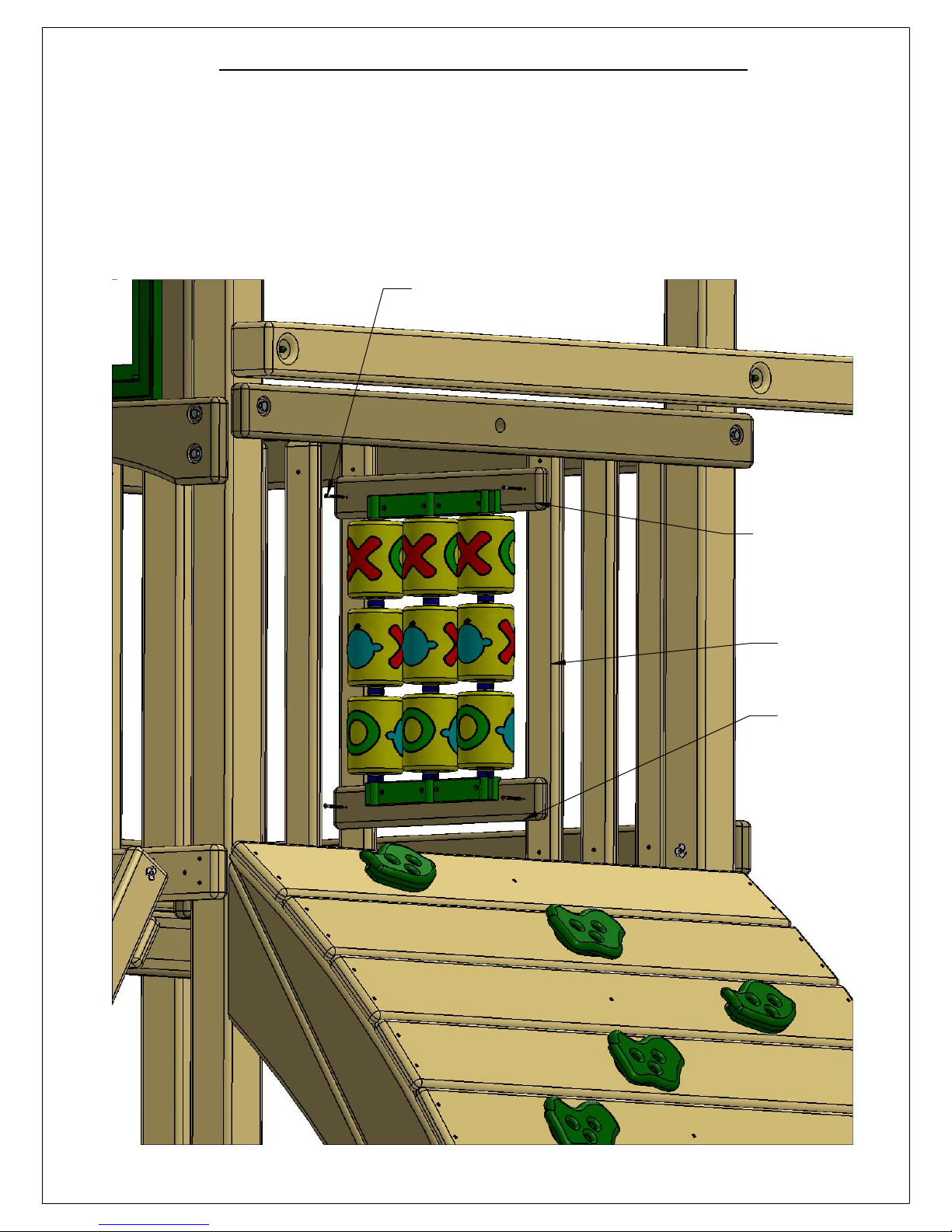

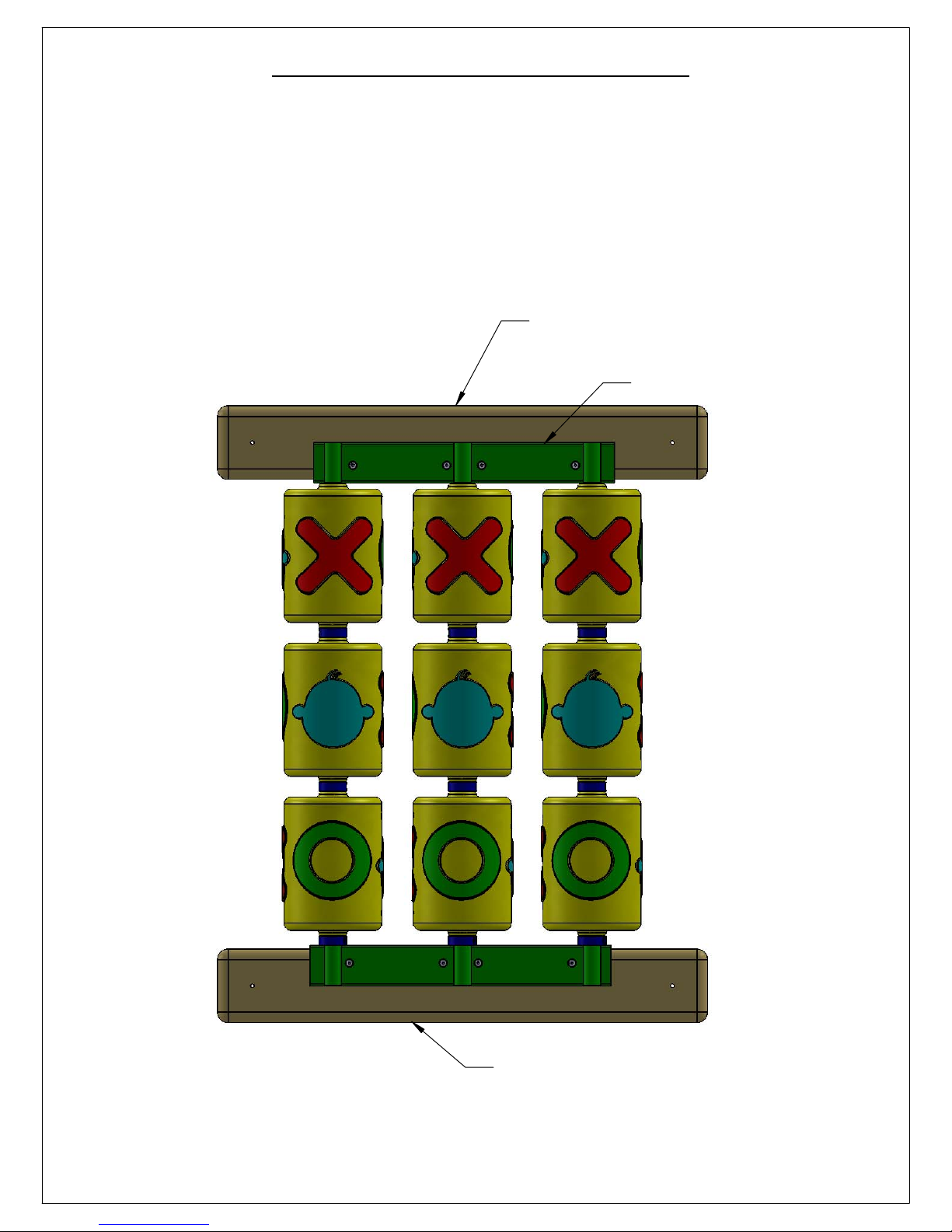

Tic Tac Toe Assembly/Installation…………………………….....……................. Step 33-34

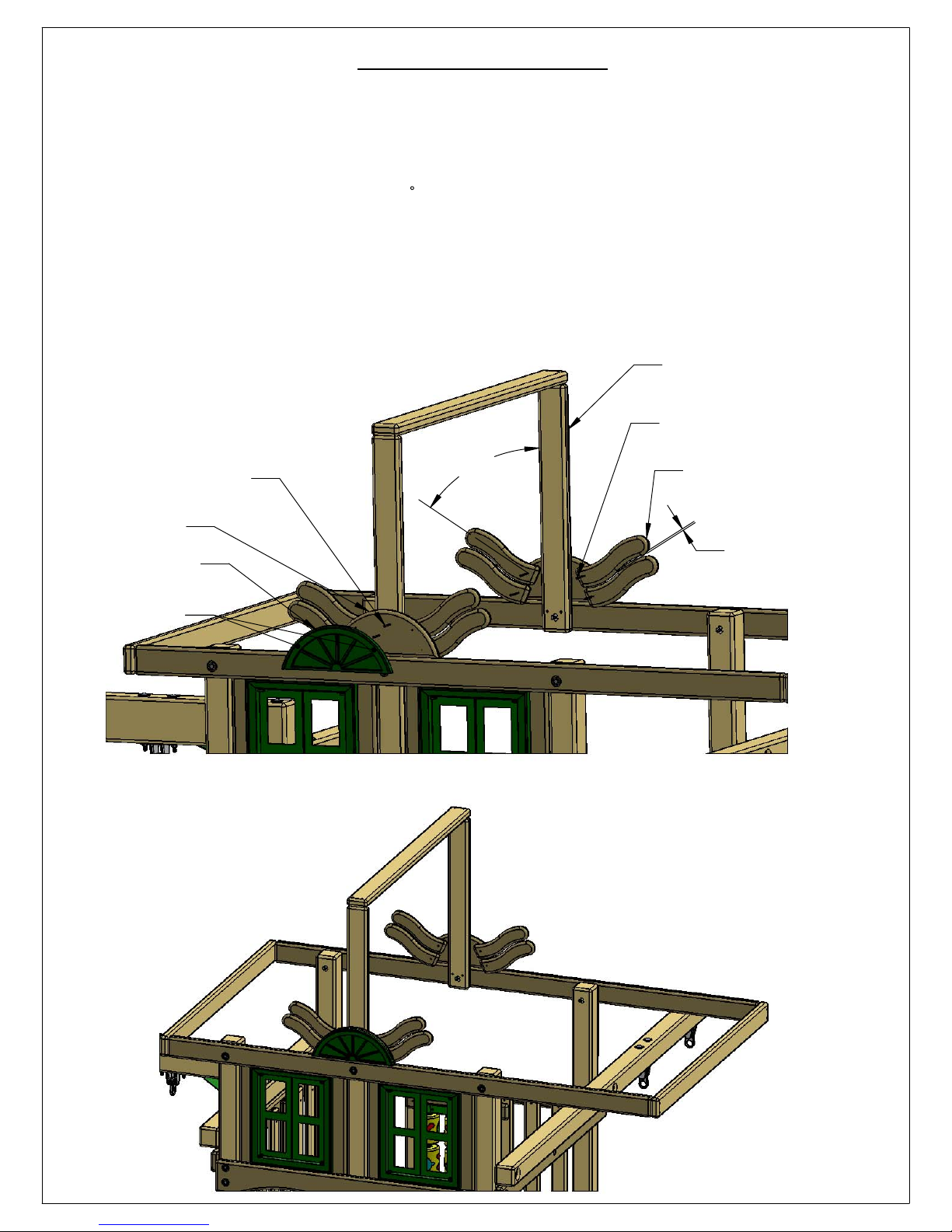

Sunburst and Crown Installation……………………………….…….....................… Step 35

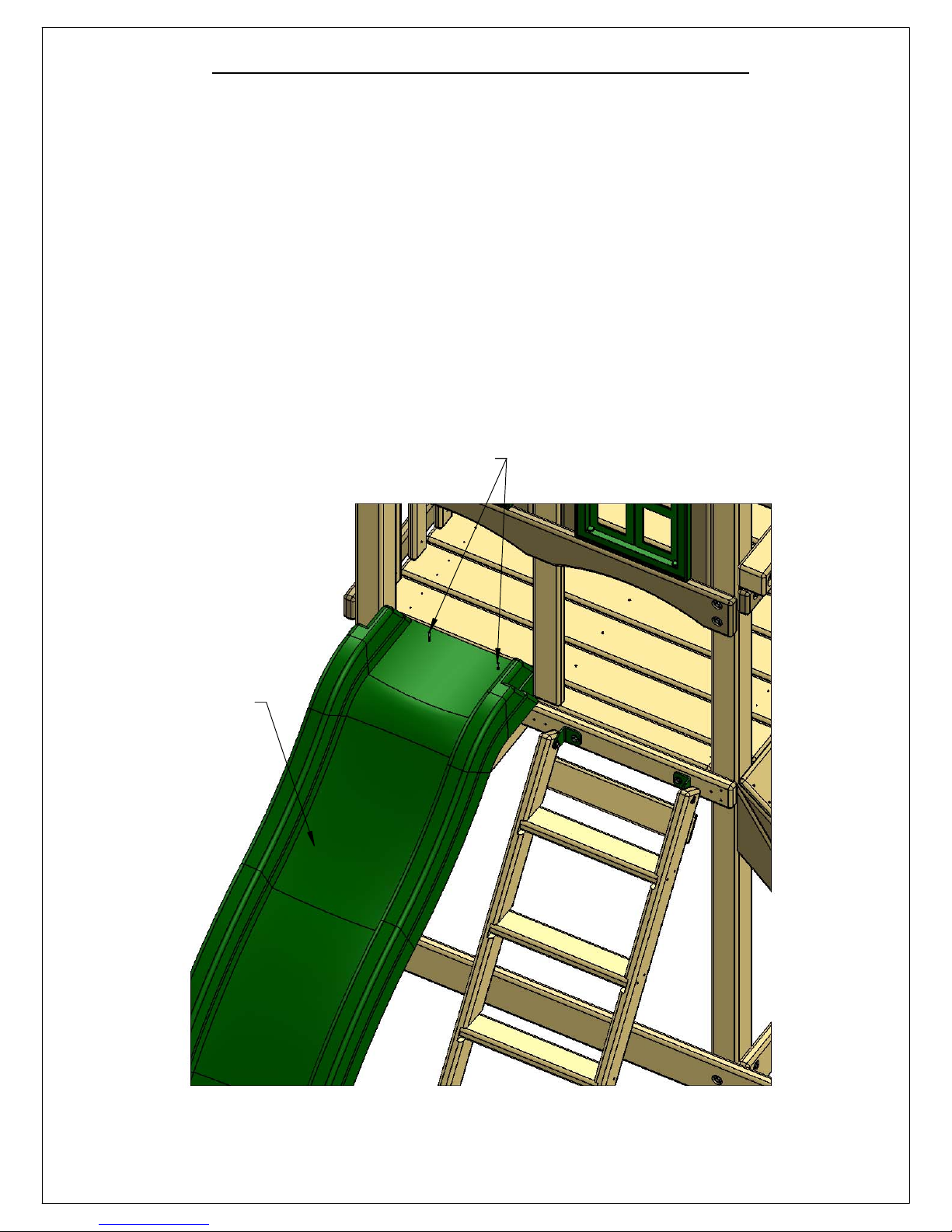

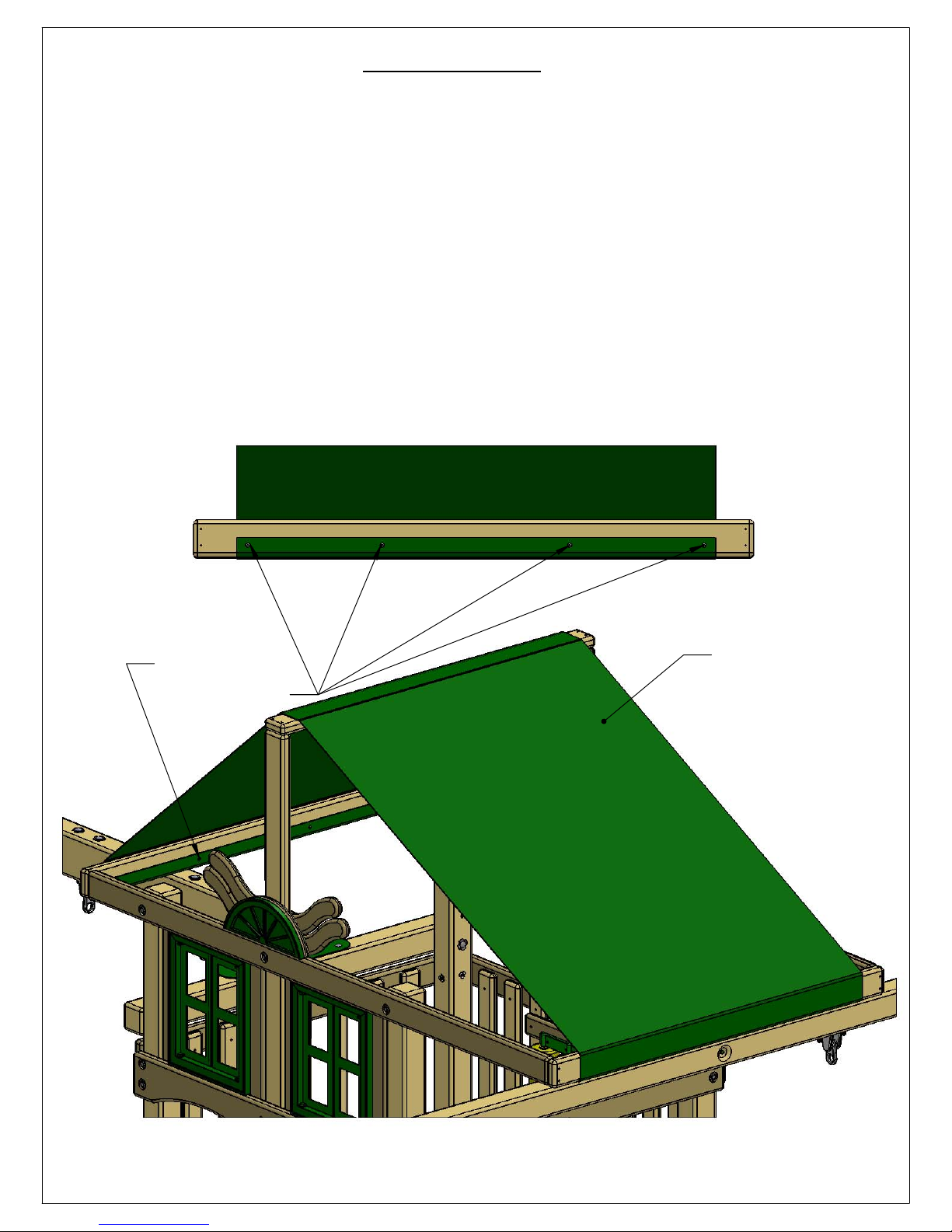

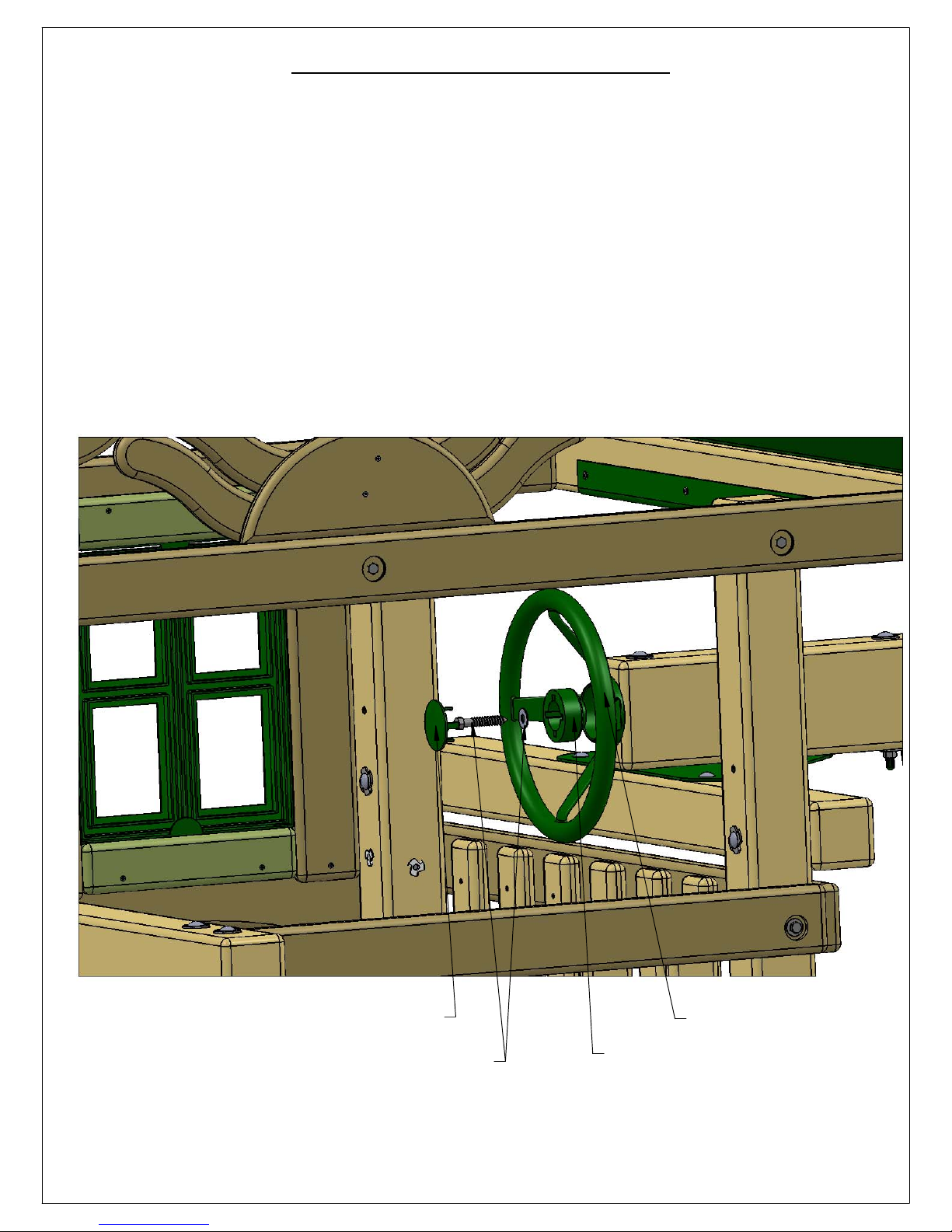

Tarp, Climbing Rope, Wave Slide, Steering Wheel…..................................... Steps 36-39

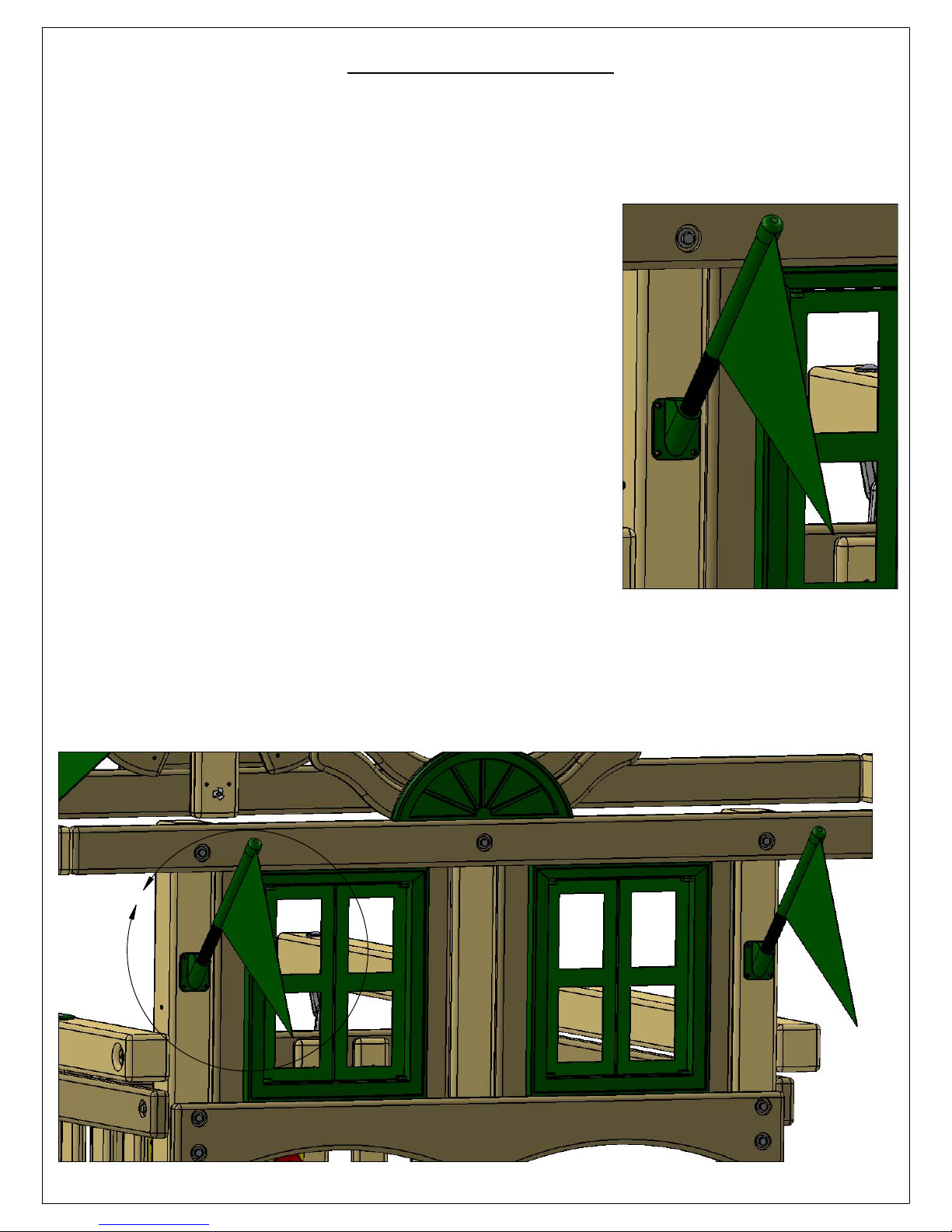

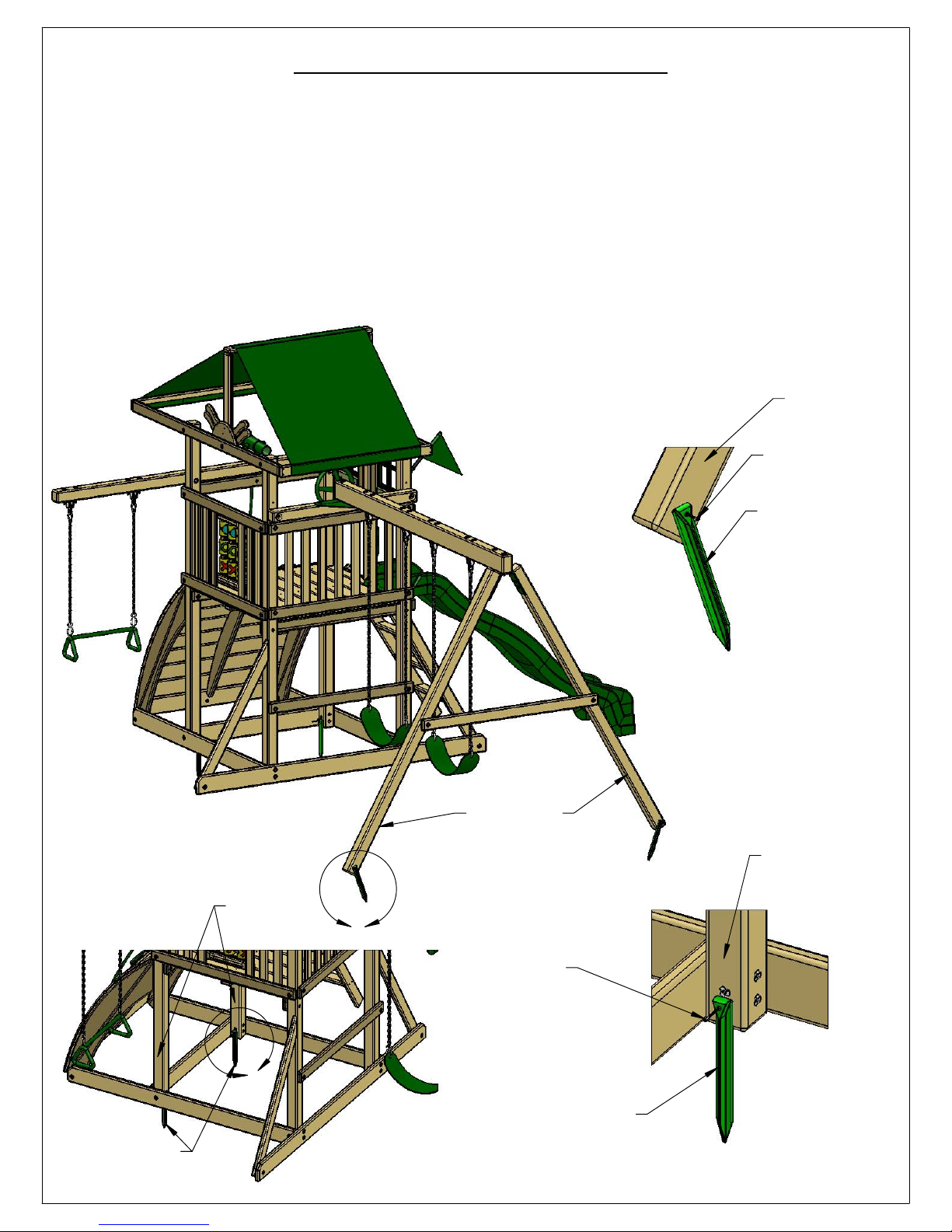

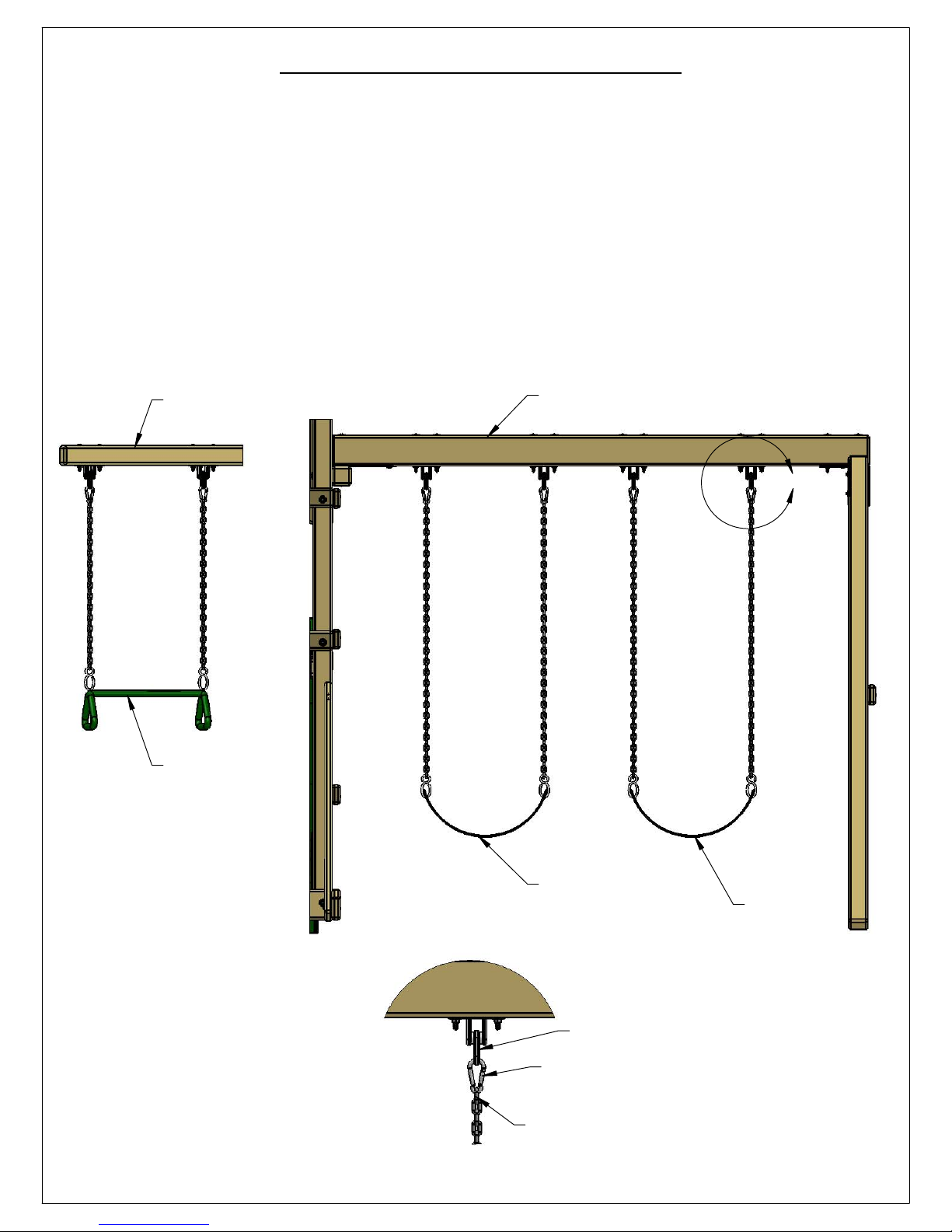

Flag Kits, Name Plate, Hanging Swings/Trapeze, Ground Stakes …...…..... Steps 40-43

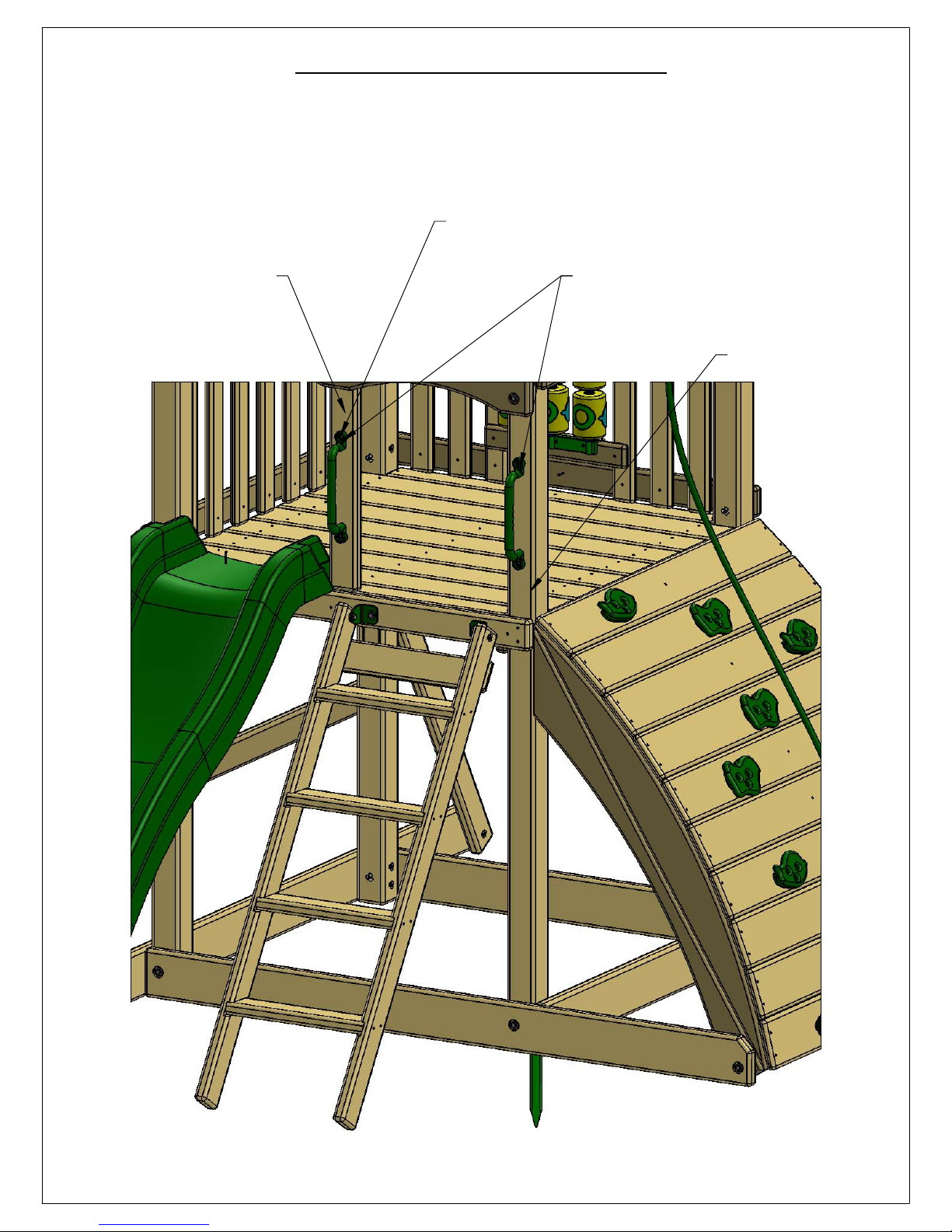

Safety Handles ..................................................................................................... Step 44

PLEASE READ OWNER’S MANUAL CAREFULLY

BEFORE STARTING ASSEMBLY!

Safety and Maintenance Tips for Your New Play Set:

3

NOTE: Your children’s safety is our #1 concern. Observing the
following statements and warnings reduces the likelihood of serious
or fatal injury. Please review these safety rules regularly with your
children.

• This play set is designed for the use of 4 occupants who have a combined weight not
exceeding 800 pounds on the elevated oor, 3 occupants who have a combined weight
of 425 pounds on the swing area, for a total Unit capacity of 7 occupants who have a
combined weight of 1225. (This weight does not include any picnic table area(s).)

• On-site adult supervision is required.

• Teach children not to walk close to, in front of, behind, or between moving swings or
other moving playground equipment.

• Teach children to sit in and never stand on swings

• Teach children not to twist the chains and ropes and not to loop them over the swing
beam, since this may reduce the strength of the chain or rope.

• Teach children not to jump from swings or other playground equipment in motion.

• Teach children not to push empty seats. The seat may hit them and cause serious
injury.

• Teach children to sit in the center of the swings with their full weight on the seats.

• Teach children not to use the equipment in a manner other than intended.

• Teach children to always go down slides feet rst. Never slide headrst.

• Teach children to look before they slide to make sure no one is at the bottom.

• Teach children to never run up a slide, as this increases their chances of falling.

• The parents should have the children dress appropriately with well-tting shoes. Loose
clothing such as scarves and ponchos should not be worn. Always take off, tie up or
tuck in cords and drawstrings on children’s clothing. These things can get caught on
playground equipment and strangle a child.

• Teach children not to climb when the equipment is wet.

• Teach children to never jump from a fort deck. They should always use the ladder,

ramp or slide.

• Teach children to never crawl or walk across the top of monkey bars.

• Teach children to never crawl on top of a fort roof.

• Verify that any suspended climbing ropes, chains, or cables are secured at both ends
and that they cannot be looped around an adult hand.

• Teach children not to attach items to the playground equipment that are not specically
designed for use with the equipment, such as, but not limited to, jump ropes, clothesline,
pet leashes, cables and chain as they may cause a strangulation hazard.

• Teach children to never wrap their legs around swing chain.

• Teach children to never slide down the swing chain.

• Teach children to remove their bike or other sports helmet before playing on the

playgound equipment.

• Teach children to NEVER look at the sun or other bright light through any accessory
such as but not limited to a telescope, periscope or binoculars.

WARNING: Children must NOT use this play set until it has been
completely assembled and inspected by an adult to insure it has been
properly installed and the swing beam legs are anchored.

Safety and Maintenance Tips for Your New Play Set:

4

(continued)

Playgrounds should be inspected on a regular basis. If any of the following conditions are noted,
they should be removed, corrected, or repaired immediately to prevent injuries.

• Hardware that is loose, worn or that has protrusions or projections.

• Exposed equipment footings.

• Scattered debris, litter, rocks, or tree roots.

• Splinters, large cracks, and decayed wood components.

• Deterioration and corrosion on structural components, which connect to the ground.

• Missing or damaged equipment components, such as handholds, guardrails, swing seats.

• Check all nuts and bolts twice monthly during the usage season and tighten as required.
(But not so tight that you crack the wood) We recommend you check the swing beam and
hardware often due to wood expansion and contraction. It is particularly important that this
procedure be followed at the beginning of each season.

• Remove plastic swing seats and take indoors or do not use when the temperature drops below
32°F. Reinstall swings and other swing equipment at the beginning of the usage season.

• Oil all metallic moving parts monthly during the usage period.

• Check all coverings for bolts and sharp edges twice monthly during usage season to be certain
they are in place. Replace when necessary. It is especially important to do this at the beginning
of each new season.

• Check swing seats, ropes, cables and chains monthly during usage season for evidence of
deterioration. Replacement should be made of any swing seat that has developed cracks in the
plastic seats. Ropes, cables and chains should be removed and replaced if excessive wear is
found. Contact us for warranted replacement parts.

• For rusted areas on metallic members such as monkey bars, hand supports brackets, etc.;
sand and repaint, using a non lead-based paint meeting the requirements of Title 16 C.F.R. Part

1303. These requirements are available at: http://www.cpsc.gov/

• Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sanding may be necessary to maintain a safe playing
environment. If you are treating your play set with stain regularly, it will help prevent severe
checking/splitting and other weather damage.

• Once or twice a year, depending on your climate conditions, you must apply some type of
protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any
“rough” spots on your set. Please note this is a requirement of your warranty.

• Creating and maintaining the play set on a level location is very important. As your children
play, your play set will slowly dig its way into the soil, and it is very important that it settles
evenly. Make sure the play set is level and true once each year or at the beginning of each play

season.

• Twice a month during the usage season rake the playground protective surfacing materials to
prevent compaction and maintain appropriate depths. Replace the protective surfacing materials

as required.

• Disposal Instructions: When the play set is no longer desired, it should be disassembled and
disposed of in such away that no unreasonable hazards will exist at the time the play set is

discarded.

Play Set Surfacing Recommendations:

5

Below are some of the recommendations that the U.S. Consumer Product Safety
Commission (CPSC) offers from its Handbook for Public Playground Safety. The guide
can be downloaded in full at www.cpsc.gov/cpscpub/pubs/325.pdf

1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the
ground, protective surfacing under and around all playground equipment is the most
critical safety factor on playgrounds.

Certain manufactured synthetic surfaces also are acceptable; however, test data on
shock absorbing performance should be requested from the manufacturer.

Asphalt and concrete are unacceptable. They do not have any shock absorbing
properties. Similarly, grass and turf should not be used. Their ability to absorb shock
during a fall can be reduced considerably through wear and environmental conditions.

Certain loose-ll surfacing materials are acceptable. Surfacing materials are acceptable,
such as the types and depths shown in the table.

Fall Heights and Materials

Type Of Material 6 in. depth 9 in. depth 12 in. depth

Double-Shredded bark mulch 6’ Fall Height 10’ Fall Height 11’ Fall Height

Wood Chips 6’ Fall Height 7’ Fall Height 12’ Fall Height

Fine Sand 5’ Fall Height 5’ Fall Height 9’ Fall Height

Shredded Tires* 10-12’ Fall Height N/A N/A

Fine Gravel 6’ Fall Height 7’ Fall Height 10’ Fall Height

*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples
produced by four manufacturers. The tests reported critical heights, which varied from 10 feet to greater than 12 feet. It is
recommended that persons seeking to install shredded tires as a protective surface request test data from the supplier showing the
critical height of the material when it was tested in accordance with ASTM F1292.

It should be recognized that all injuries due to falls cannot be prevented no matter what
surfacing material is used.

2. Fall Zones - A fall zone, covered with a protective surfacing material, is essential

6

under and around equipment where a child might fall. This area should be free of other
equipment and obstacles onto which a child might fall. Stationary climbing equipment
and slides should have a fall zone extending a Minimum of 6’ in all directions from the
perimeter of the equipment.

Swings should have a fall zone extending a minimum of 6’ from the outer edge of the
support structure on each side. The fall zone in front and back of the swing should
extend out a minimum distance of twice the height of the swing as measured from the
ground to the top of the swing support structure.

LEVELING YOUR FORT DURING ASSEMBLY

• Complete the steps which will be the basic frame of the fort. {i.e. four corner posts with
base (sand box boards) and deck supports}

• Position in the most level area chosen for the play set, keeping in mind the location
and size of the swing beam, ladder, slides, etc. that extend off the fort.

• Once the frame is in the nal position, check for vertical and horizontal levelness to
determine which side(s) will need to be dug into the ground to level the play set.

• With a shovel, score the ground around the outside edges of the sandbox boards on
the ‘high’ side of the fort. This is the area that will be dug in. Make sure to score deep
enough; the scored lines will be your digging template.

• Push the frame off and away from the scored area, far enough to dig and remove dirt
to reach the appropriate depth.

• Dig a channel along the scored line(s) for the base of the fort (corner post and
sandbox boards) to rest into. Dig the channel(s) to the same level depth. The bottom
of the channel(s) should be level to each other so your frame doesn’t teeter or rock
because the channel(s) are uneven.

• Once you have removed enough grass and dirt, slide/push the frame into the
channel(s). Place a level on the vertical and horizontal boards of the frame to determine
if enough soil, or too much, was removed.

• Repeat this process until the basic frame is plumb and level and in its nal position
before completing the rest of the assembly.

• Measure to make sure fort is square.

Important: if you require a channel depth of more than 6”, then we
recommend you have your play set area professionally graded before
completing assembly.

Example Play area:

Side View of
Playset Frame

(Grade is the

Slanted Line)

The diagonal measure­ments should be the
same from corner post to
corner post. If not, adjust
corner posts so that the
distance is equal.

= Area to be scored and
channeled for levelness

General Info to Review Before Installation

7

• Depending on your experience, assembly of the playset can take as little as 6 hours
up to 24 hours, depending on size, after inventory of parts; therefore, we recommend

you set aside a full two days for assembly.

• Identify all of the parts for your play set. Empty each box and lay out boards so you
can see each part. Your instruction book will have detailed drawings that will make it
easy for you to recognize individual parts. Keep all hardware and metal parts separate
from wooden pieces.

• After everything is laid out, check carefully to ensure all parts are present. Make sure
there are no broken boards.

• Find an area to sort your hardware. It is best to open the hardware on a solid surface
so that you do not lose any pieces in the grass. This will save time and familiarize you
with all the different pieces in the hardware bag.

• Important note: Wood has some natural defects such as knots, surface cracks, etc…
We reject parts that are structurally defective. We use a high quality lumber in our
structures; however, you should inspect each part for splinters or rough spots and sand
them smooth to prevent injury.

• After familiarizing yourself with all of the components, read all instructions thoroughly.
Reading instructions after you have studied the parts will help you understand the
installation process, and help to eliminate unnecessary mistakes.

• Pay close attention to the diameter and length of each bolt and screw.

• Never tighten hardware completely at rst. It helps to have some adjustment for bolt
alignment while you are attaching parts together. After everything is square, tighten
each joint.

• After the main unit is assembled it is critical that the oor is level and square. If the
main frame is not level, the walls and oor will be out of square.

• After you complete installation, make sure every bolt, screw, and nut is tight, and every
board is secure. Wood will expand and contract with the seasons.

• Place the set on level ground, not less than 6 feet from any structure or obstruction
such as a fence, garage, house, overhanging branches, laundry lines, or electrical

wires.

This page is a list of denitions and explanations used throughout our

8

instructions to aid you in the assembly of your play set.

Offset Holes- Throughout the installation procedures we will refer to parts with offset

holes. This refers to the orientation of the holes on the board. An offset hole is one that
is closer to one side than it is the other or in other words, it is not centered on the board.
In the procedures you will be instructed to attach the boards with the holes offset up or
with the holes offset down. This refers to which side of the board the hole/holes should
be closer to. Offset holes up= hole/holes will be closer to the top of the board. Offset
holes down= hole/holes will be closer to the bottom of the board. Note: some parts do
not have offset holes, but instead the holes are on center. Therefore there will not be
any reference on how to offset these parts.

EXAMPLE OF OFFSET HOLES UP

EXAMPLE OF OFFSET HOLES DOWN

Counter-sunk holes - Many of the parts that will be used have counter-sunk holes. A

counter-sunk hole is one that surrounds one side of a through hole, but does not extend
through the wood it’s self. When using a counter-sunk hole the bolt will be inserted
through the through hole and either the head of the bolt and washer or nut and washer
will occupy the counter sunk hole.

Counter-Sunk Hole

Through Hole

Lag Screws- Lag screws are used in the construction of our play sets to enhance
the structural integrity of the unit. There will not be predrilled holes in the post for lag
screw installation. Lag screws are self-tapping, though if you are using a manual socket
wrench it may be advantageous to pre-drill a hole rst. Instructions for this are provided
on a separate page in the front of the manual. Be sure to tighten the lags completely
when driving them in by hand. Power tools such as a heavy duty impact driver or large
power drill should have enough torque to drive in the lag screws, but make sure not to
over tighten as this can cause the threads to “strip out” in the post.

Common Installation Practice Installing T-nuts

9

When installing T-nuts into the wood, use a smooth faced hammer to set the face of the
T-nut ush into the wood

Corner Post

T-nut

Insert the barrel of the T-nut into the
predrilled hole. Using a smooth faced
hammer, drive the T-nut until the face
of the T-nut is ush to the wood.

This picture shows the T-nut inserted
and installed ush to the wood.

Flush (Correct)

Cross Section end view, you are looking at an X-ray view
of the post and T-nut. The barrel of the T-nut is in the
corner post the line is the face of the wood.

This picture shows an end view of the T-nut
installed ush to the wood.

WARNING: DO NOT EMBED THE TOP

OF THE T-NUT INTO THE

FACE OF THE WOOD

A

T-NUT

CORNER POST

BOARD YOU ARE
ATTACHING TO
CORNER POST.

WASHER

HEX HEAD BOLT

FRONT SIDE OF
CORNER POST

BACK SIDE OF
CORNER POST

T-NUT
FLANGE
IS HERE.

BOARD YOU
ARE ATTACHING
TO CORNER POST.

WASHER

HEX HEAD BOLT

CROSS SECTION VIEW
OF BOARD, CORNER
POST AND FASTENERS.

CORNER POST

DETAIL A

SCALE 2 : 1

FLANGE
SHAPED END
WITH TEETH

TEETH

BARREL
SHAPED
END GOES
INTO HOLE IN
CORNER POST.

T-NUT DETAILS

THREADS ON
INSIDE OF
BARREL .

HOW A T-NUT WORKS

THE FIRST STEP IN OUR ASSEMBLY INSTRUCTIONS IS TO INSERT T-NUTS INTO THE CORNER
POSTS. A T-NUT IS A FASTENER WHICH IS THREADED ON THE INSIDE AND IT FUNCTIONS
JUST LIKE A STANDARD HEX NUT. YOU INSERT THE T-NUTS INTO THE PREDRILLED HOLES IN
THE CORNER POSTS.

THE T-NUT HAS A BARREL SHAPED END WHICH GOES INTO THE HOLE IN THE CORNER POST.
THE T-NUT ALSO HAS AN FLANGE SHAPED END WITH TEETH. THE TEETH PENETRATE INTO THE
CORNER POST WOOD TO PREVENT THE T-NUT FROM SPINNING WHEN YOU TIGHTEN THE
HEX HEAD BOLT.

SHOWN BELOW YOU WILL SEE THE T-NUT IS HAMMERED INTO THE CORNER POST ON THE
BACK SIDE. THE BOARD IS BEING ATTACHED ON THE FRONT SIDE OF THE CORNER POST.

10

36" LENGTH

3

3
8

" WIDTH

1

3
8

"

THICKNESS

BOARD IDENTIFICATION

2-4-3600-BPB

1. On the end of each board there should be a small white tag that is stapled into place.

2. This white identifcation tag displays the thickness, width, length and an abbreviated
description of the part.

Example: a tag reads "2-4-3600-BPB"

The 2 is the thickness of the board. "Nominal Lumber" at a home center will measure 1-•
1/2" for the thickness. We "remill" that lumber to 1-3/8" thick.

The 4 is the width of the board. "Nominal Lumber" at a home center will measure 3-•
1/2" for the width. We "remill" that lumber to 3-3/8" wide.
Note: sometimes the width will be smaller than 3-3/8" because:
A) We need the width of the part to fit into a certain area of the play set.
B) We need the designation to be simple.

The 3600 is the length of the board. It means the board is 36 inches long. If the code •
were 3625 then the board is 36-1/4" in length.

The "BPB" abbreviation stands for "Bottom Panel Board". The wood part bill of materials •
in the instructions has a description which will match the abbreviation closely.

In the event that there is no tag on a wood part measure the part then:•
A)Use the measurements and compare them to the wood list at the front of the
instructions to identify it.
B)Look at the holes on the wood part and compare them to the pictures in the wood
list.
C)Look to see if the holes are centered or if they are offset up or offset down.
This should help you identify any parts that have missing tags. In the event that you
cannot identify a board please email us for assistance.

TAG

11

2 x 4 board

Corner post

Corner Post

4 x 4 board

PRE-DRILL LAG SCREW DIRECTIONS

posts with an 11/64" drill bit. Remove the

holes in the 4 x 4 board into the corner

right. Install the 4 x 4 board.

to drill the holes to a total depth of 2-5/16" as shown at

4 x 4 board. Continue to drill the holes to
a total depth of 2-13/16" as shown at the

the right. Install the 2 x 4 board.

board into position. Spot drill through the

below. Place the board into position. Spot Drill through
the holes in the 2 x 4 board into the corner posts with

Example 5/16" diameter x 3-1/2" lag screw

the right. Install the 2 x 4 board.

This would be like the 2 x 4 board installation shown

drill the holes to a total depth of 2-5/16" as shown at

an 9/64" drill bit. Remove the 2 x 4 board. Continue to

Example: 3/8" diameter x 3-1/2" lag screw

This would be like the 2 x 4 board installation shown
below. Place the board into position. Spot Drill through
the holes in the 2 x 4 board into the corner posts with
an 11/64" drill bit. Remove the 2 x 4 board. Continue

Example 3/8" diameter x 5" lag screw

This would be like the 4 x 4 board
installation shown below. Place the

LAG SCREW DIAMETER DRILL BIT SIZE

5/16" DIAMETER 9/64"

3/8" DIAMETER 11/64"

Pre-drilling holes for lag screws will make it easier to drive the screws in by hand.
"Jobber" length drill bits are available in sizes that are longer than standard drill bits and
those are ideal for the job. When using the drill bit you will have to "spot" drill the post
and then remove the board you are attaching to finish drilling the hole.

Pay attention to the DIAMETER of the lag screw you are installing. Your playset may
come with two different diameter lag screws. Each diameter will require a different size
drill bit. When installing lag screws DO NOT OVERTIGHTEN.

Corner Post

2 x 4 board

4 x 4 board

Corner Post

7

" 3

16

"

16

2

5

16

15

4 "

2

13
16

"

12

SWING BEAM LOADING

MAXIMUM SWING BEAM LOAD IS 425 LBS.

Weight Limits for Accessories:

The weight limit for a Swing Belt is 225 lbs. (Although 150lbs is the maximum recommended
swinging weight capacity for the swing position.)

The weight limit for a Trapeze Bar is 125 lbs.

Maximum Allowable swinging weight for a three position swing:

1) The maximum allowable swinging weight at each Swing Belt position is 150 lbs.

2) The maximum allowable swinging weight at the Trapeze position is 125 lbs.

3) The MAXIMUM SWING BEAM LOAD IS 425 lbs.

SWINGING WEIGHT

TRAPEZE BAR

125 LBS MAX150 LBS MAX

SWINGING WEIGHT

150 LBS MAX

SWINGING WEIGHT

SWING BELT SWING BELT

THIS END
OF SWING
BEAM IS
ATTACHED
TO PLAY SET.

13

1700 SERIES - TARP ROOF

Encore/Cartecay

Height - 10' - 3

1

16

"

"

13'-10"

8

14'-6

3'-11

1

"

3
8

"

8

1

6'-5

3'-6

1

16

"

Please familiarize yourself with the manual, parts/components and general

14

construction process of your new playset before getting started.

SITE PLAN:

Trapeze Arm

Swing Belts (2)

Playset height: 10 feet - 3 inches

Rock Wall

Ladder

Wave Slide

Swing Beam height: 7 feet - 2-1/2 inches

Deck height: 4 feet

Approximate assembly time: 5-7 hours

(6) foot unobstructed safety perimeter around playset recommended

REQUIRED TOOL LIST:

15

___ Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided)
___ Drill Bits 1/8”, 3/8”, 9/64”, 11/64”
___ ½” Wrench and Socket
___ ½” Deep Well Socket
___ 9/16” Deep Well Socket
___ 9/16” Wrench and Socket

___ Level
___ Tape Measure
___ Extension Cord (if using standard drill)
___ Hammer

___ Pencil
___ Locking Pliers (Vise Grips)
___ Shovel

KIT CONTENTS

Swings, Slides, Accessories:

___ (Qty ) Description
___ (2) Swingbelt w/ Chains
___ (1) Trapeze Swing w/Chains
___ (1) Wave Slide
___ (10) Rock Wall Grips (assorted colors)
___ (1) Telescope

___ (2) Safety Handle
___ (2) Flag Kit
___ (1) Tarp
___ (1) Name Plate

___ (4) Ground Stake
___ (1) Tic Tac Toe
___ (1) Steering Wheel

___ (1) Crown

___ (2) Window

Fort Hardware:

see following pages

Swing Beam Hardware:

see following pages

Wood Components:

see following pages

#8 X 1-1/4"

16

WOOD SCREW

QTY: 6

#8 X 1-1/2"

WOOD SCREW

QTY: 8

1700/1701 HARDWARE
PAGE: 1 OF 2
REV A: 10/29/2012 JH

9

#14 X 1-1/4"

PAN HEAD SCREW

QTY: 8

#8 X 1-3/4"

WOOD SCREW

QTY: 20

#8 X 2"

WOOD SCREW

QTY: 161

#8 X 2-1/2"

WOOD SCREW

QTY: 28

#8 X 3"

WOOD SCREW

QTY: 14

5/16" TEE NUT

QTY: 44

8

7

6

5

3/8" LOCK NUT

QTY: 21

5/16 X 4-1/2"

HEX BOLT

QTY: 34

5/16 X 2-1/2"

HEX BOLT

QTY: 6

TORQUE WASHER

5/16 X 1-1/2"

HEX BOLT

QTY: 4

QTY: 19

3/8" WASHER

QTY: 33

5/16" WASHER

QTY: 48

1/4" WASHER

QTY: 8

4

3

2

1

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN
ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

1700/1701 HARDWARE

17

PAGE: 2 OF 2

5/16" X 3-1/2"

HEX LAG

SCREW
QTY: 4

3/8 X 3-1/2"

HEX LAG SCREW

QTY: 12

REV A: 10/29/2012 JH

9

8

7

6

5

4

3

#2 SQUARE

DRIVE TIP

QTY: 1

2

1

3/8 x 9"

CARRIAGE

BOLT

QTY: 1

3/8" x 7"

CARRIAGE

BOLT

QTY: 8

3/8 x 6-1/2"
CARRIAGE

BOLT

QTY: 6

3/8 x 5"

CARRIAGE

BOLT

QTY: 4

3/8 x 3-1/2"

CARRIAGE

BOLT

QTY: 2

PLASTIC

BOLT CAP

QTY: 21

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN
ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

DESCRIPTIONPICTURE QTY.

18

2 X 4 X 17"
LADDER STEP
2-4-1700-LS

4

2 X 4 X 29"
REAR CENTER
POST
2-4-2900-RCP

2 X 4 X 47"
STRINGER
2-4-4700-S

2 X 4 X 47-1/2"
FRONT FACE
BOARD
2-4-4750-FFB

1

1

1

2 X 4 X 47-1/2"
FORT SIDE
SUPPORT
2-4-4750-FSS

2 X 4 X 47-1/2"
PANEL AND
DECK
SUPPORT
2-4-4750-PDS

2 X 4 X 47-1/2"
ROCK WALL
ROPE
SUPPORT
2-4-4750-RWRS

2

7

1

DESCRIPTIONPICTURE QTY.

19

2 X 4 X 50"
END TARP
BOARD
2-4-5000-ETB

2 X 4 X 57"
LADDER LEFT
SIDE
2-4-5700-LLS

2 X 4 X 57"
LADDER RIGHT
SIDE
2-4-5700-LRS

2

1

1

2 X 4 X 58"
CROSS
MEMBER
2-4-5800-CM

2 X 4 X 73-3/4"
FRONT CENTER
POST
2-4-7375-FCP

2 X 4 X 83"
BACK TARP
SUPPORT BOARD
2-4-8300-BTSB

1

1

1

2 X 4 X 83"
FRONT TARP

SUPPORT BOARD 1

2-4-8300-FTSB

DESCRIPTIONPICTURE QTY.

20

2 X 6 X 47-1/2"
ARCH FACE
BOARD
2-6-4750-AFB

2 X 6 X 47-1/2"
END
SANDBOX
BOARD
2-6-4750-ESB

2 X 6 X 50"
ARCH ROCK
WALL CENTER
SUPPORT
2-6-5000-ARWCS

1

1

1

2 X 6 X 53-1/2"
ROCK WALL
SUPPORT
2-6-5350-RWS

2 X 6 X 53-15/16"
ARCH ROCK
WALL SIDE
SUPPORT
2-6-5392-ARWSS

2 X 6 X 75"
LEFT SIDE
SANDBOX
BOARD
2-6-7500-LSSB

2

2

1

2 X 6 X 75"
RIGHT SIDE
SANDBOX
BOARD
2-6-7500-RSSB

1

DESCRIPTIONPICTURE QTY.

21

2 X 6 X 95-1/2"
END SANDBOX
BOARD
2-6-9550-ESB

4 X 4 X 47-1/2"
SWING BEAM
MOUNT
4-4-4750-SBM

4 X 4 X 89-1/2"
TRAP ARM
4-4-8950-TA

1

1

1

4 X 4 X 96"
CORNER POST 1
4-4-9600-CP1

4 X 4 X 96"
CORNER POST 2
4-4-9600-CP2

4 X 4 X 96"
CORNER POST 3
4-4-9600-CP3

1

1

1

4 X 4 X 96"
CORNER POST 4
4-4-9600-CP4

1

PICTURE DESCRIPTION QTY.

22

4 X 4 X 96"
SWING LEG
4-4-9600-SL

4 X 6 X 96"
SWING BEAM
4-4-9600-SB

5/4 X 3 X 11-1/2"
WINDOW PANEL
BOARD
125-3-1150-WPB

2

1

4

5/4 X 3 X 17-1/2"
TIC TAC TOE
MOUNT
125-3-1750-TTTM

5/4 X 4 X 18-1/2"
LADDER BACK
125-4-1850-LB

5/4 X 4 X 20"
WINDOW PANEL
BOARD
125-4-2000-WPB

2

1

4

5/4 X 4 X 40-1/2"
DECK SPACER
125-4-4050-DS

2

DESCRIPTIONPICTURE QTY.

23

5/4 X 6 X 13-5/8"
SUN
125-6-1363-OS

5/4 X 6 X 47-1/2"
BOTTOM ROCK
WALL BOARD
125-6-4750-BRWB

5/4 X 6 X 47-1/2"
DECK BOARD
125-6-4750-DB

2

1

7

5/4 X 6 X 47-1/2"
ROCK WALL
BOARD
125-6-4750-RWB

5/4 X 3 X 28-1/2"
PANEL SLAT
125-3-2850-PS

5/4 X 4 X 10"
WAVE SUN
RAY
125-4-1000-WSR

9

14

8

2 X 4 X 47-1/2"
CENTER TARP
BOARD
2-4-4750-CTB

1

DESCRIPTIONPICTURE QTY.

24

WAVE SLIDE

1

03-0010

SWING

W/CHAINS

04-0002

TRAPEZE

BAR

W/CHAINS

04-0006

2

1

DESCRIPTIONPICTURE QTY.

25

SWING

PLATE

11-5002

1

CLIMBING

ROCK

07-0008

A-FRAME

SWING LEG

BRACKET

11-5010

10

1

1700/1701

HARDWARE BOX

INSTRUCTIONS

1

EA.

PICTURE DESCRIPTION QTY.

26

IRON

DUCTILE

SWING

HANGER

11-4012

6

90 GREEN

BRACKET

11-5013

SPRING
CLIP

11-4003

2

6

PICTURE DESCRIPTION QTY.

27

10' ROPE

TARP

1

1

FLAG KIT

09-1014

GROUND

STAKE

07-0016

2

4

PICTURE DESCRIPTION QTY.

28

TELESCOPE

1

07-0001

STEERING

WHEEL

07-0004

SAFETY

HANDLE

07-0005

1

2


29

DESCRIPTION QTY.

TIC TAC TOE

(UNASSEMBLED)

07-0010

WINDOW

1

2

07-0013

(NOT SHOWN)

CROWN

07-0019

NAME

PLATE

1

1

STEP 1: CORNER POST LAYOUT

30

1: THIS STEP IS CRITICAL TO BUILDING THE FORT PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO
DIS-ASSEMBLE AND THE RE-ASSEMBLE TO MAKE YOUR CORRECTIONS.

2: LAY OUT EACH OF THE 4 X 4 X 96" CORNER POSTS IN THE AREA YOU INTEND ON BUILDING THE FORT SIDE OF THE
PLAYSET.

3: USE THE DIAGRAM BELOW TO CORRECTLY IDENTIFY AND ORIENT THE POSTS IN THE CORRECT DIRECTION.

NOTE: THE LADDER SIDE IS CONSIDERED THE FRONT OF THE PLAYSET WITH THE SWING BEAM EXTENDING OFF TO
THE LEFT SIDE. IF YOU PREFER THE SWINGBEAM ON THE RIGHT SIDE, REVERSE THE ORIENTATION OF THE CORNER
POSTS IN THIS STEP.

LEFT SIDE WILL
HAVE EXTRA HOLES
AT THESE LOCATIONS

4 X 4 X 96"

CORNER POST

CORNER POST #3

REAR CORNER
POSTS WILL HAVE
AN EXTRA HOLE
AT THIS
LOCATION

CORNER POST #2

FRONT OF PLAY SET

CORNER POST #4

CORNER POST #1

STEP 2: INSERTING T-NUTS INTO CORNER POSTS

31

1: USE A HAMMER TO SEAT THE T-NUTS AFTER INSERTING THEM INTO THE HOLES SHOWN IN THE DIAGRAM BELOW.
2: THE BARREL OF THE T-NUT SHOULD GO IN THE HOLE FIRS. HAMMER THE T-NUT UNTIL IS FLUSH/ALMOST FLUSH

TO THE CORNER POSTS.

T-NUT

NO T-NUTS IN THESE HOLES

NO T-NUTS
IN THESE HOLES

CORNER POST #3

CORNER POST #2

CORNER POST #4

CORNER POST #1

STEP 3: END SANDBOX BOARD/ROPE SUPPORT

32

1: THE 2 X 6 X 47-1/2" END SANDBOX BOARD (WITH FOUR PRE-DRILLED HOLES) ATTACHES TO THE BOTTOM OF THE
RIGHT SIDE CORNER POSTS, OFFSET HOLES UP, WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS.

2: THE 2 X 4 X 47-1/2" ROCK WALL ROPE SUPPORT ( WITH THREE PRE-DRILLED HOLES) ATTACHES TO THE TOP SET OF
HOLES ON THE RIGHT SIDE OF THE CORNER POSTS, OFFSET HOLES UP, WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16"
WASHERS.

2 X 4 X 47-1/2"
ROCK WALL
ROPE SUPPORT
(OFFSET UP)

5/16" WASHER

5/16 X 4-1/2"
HEX BOLT

2 X 6 X 47-1/2"
END SANDBOX BOARD
(OFFSET UP)

STEP 4: ATTACHING END SANDBOX BOARD

33

1: THE 2 X 6 X 95-1/2" END SANDBOX BOARD (WITH SIX PRE-DRILLED HOLES) ATTACHES TO THE BOTTOM OF THE
LEFT SIDE CORNER POSTS WITH 4-1/2" HEX BOLTS AND 5/16" WASHERS.

5/16" WASHER

5/16 X 4-1/2"
HEX BOLT

2 X 6 X 95-1/2"
END SANDBOX
BOARD

STEP 5: ATTACHING THE SIDE SANDBOX BOARDS

34

1: THE 2 X 6 X 75" SIDE SANDBOX BOARDS (WITH THREE PRE-DRILLED HOLES) ATTACH TO THE BOTTOM OF THE
FRONT AND REAR CORNER POSTS WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS.

2: THE STRUCTURE SHOULD BE ABLE TO STAND ON ITS OWN, WITHOUT ANY SUPPORT, AT THIS STAGE.

2 X 6 X 75"
SIDE SANDBOX BOARD

5/16" WASHER

5/16 X 4-1/2"
HEX BOLT

STEP 6: ATTACHING TARP SUPPORT BOARDS

35

1: THE 2 X 4 X 83" TARP SUPPORT BOARDS (WITH THE PRE-DRILLED HOLES) ATTACH TO THE TOP OF THE FRONT
AND REAR CORNER POSTS WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS.

2: THE OUTER COUNTER-SUNK HOLES SHOULD BE OFFSET DOWN ON BOTH BOARDS.
3: THE SHORTEST END FROM THE COUNTER-SUNK HOLE WILL POINT TOWARD THE SWING BEAM SIDE OF THE FORT.

5/16" WASHER

5/16 X 4-1/2" HEX BOLT

2 X 4 X 83"
TARP SUPPORT
BOARD
(OFFSET DOWN)

STEP 7: ATTACHING ARCH FACE BOARD AND DECK SUPPORT

36

1: THE 2 X 6 X 47-1/2" ARCH FACE BOARD (WITH FOUR PRE-DRILLED HOLES) ATTACHES TO THE SET OF HOLES
BELOW THE TARP SUPPORT BOARD. ATTACH THE TOP HOLES OF THE ARCH FACE BOARD USING 5/16 X 4-1/2" HEX
BOLTS AND 5/16" WASHERS. ATTACH THE BOTTOM HOLES OF THE ARCH FACE BOARD USING 5/16 X 3-1/2" LAG
SCREWS AND 5/16" WASHERS.

2: THE 2 X 4 X 47-1/2" DECK SUPPORT BOARDS (WITH TWO PRE-DRILLED HOLES) ATTACH TO THE SET OF HOLES
ABOVE THE SANDBOX BOARD AND THE GROUND SUPPORT BOARD ON THE INSIDE OF THE LEFT AND RIGHT SIDE
CORNER POSTS WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS. THE HOLES SHOULD BE OFFSET DOWN ON
BOTH DECK SUPPORT BOARDS.

2 X 6 X 47-1/2"
ARCH FACE BOARD

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

5/16" X 3-1/2"

LAG SCREW

5/16" WASHER

5/16
HEX BOLT

5/16" WASHER

2 X 4 X 47-1/2"
DECK SUPPORT
(OFFSET DOWN)

4-1/2"

X

F

R

O

N

T

O

F

P

L

A

Y

S

E

T

STEP 8: ATTACHING REAR PANEL SUPPORT BOARDS

37

1: THE 2 X 4 X 47-1/2" REAR PANEL SUPPORT BOARDS (WITH TWO PRE-DRILLED HOLES) ATTACH TO THE SET OF
HOLES BELOW THE TARP SUPPORT BOARD ON THE REAR OF THE FORT WITH 5/16
WASHERS. THE HOLES SHOULD BE OFFSET DOWN.

4-1/2" HEX BOLTS AND 5/16

" X

"

5/16 X 4-1/2"
HEX BOLT

5/16" WASHER

2 X 4 X 47-1/2
REAR PANEL
SUPPORT BOARD
(OFFSET DOWN)

"

REAR OF PLAYSET

STEP 9: ATTACHING PANEL SUPPORTS AND SAFETY BOARD

38

1: THE 2 X 4 X 47-1/2" PANEL SUPPORT BOARDS SHOULD BE PLACED WITH HOLES OFFSET UP AGAINST THE LEFT
SIDE CORNER POSTS. USE 5/16" X 4-1/2"
CORNER POSTS.

HEX BOLTS AND 5/16" WASHERS TO SECURE THE BOARDS TO THE

2: PLACE THE TOP OF THE
BOARD.

3: FASTEN THE SAFETY BOARD TO THE CORNER POSTS WITH 5/16" X 3-1/2" LAG SCREWS AND 5/16" WASHERS.

PANEL SUPPORT (USED AS SAFETY BOARD) 24" FROM THE BOTTOM OF THE 2 X 6

5/16" WASHER

5/16" X 4-1/2"
HEX BOLT

2 X 4 X 47-1/2"
PANEL BOARD
(OFFSET UP)

5/16" WASHER

5/16" X 3-1/2"
LAG SCREW

2 X 4 X 47-1/2"
PANEL BOARD
(SAFETY BOARD)

24"

STEP 10: ATTACHING FORT SIDE SUPPORTS

39

1: LAY THE 2 X 4 X 47-1/2" FORT SIDE SUPPORTS ON A FLAT SURFACE WITH THE ANGLED ENDS ORIENTED THE WAY
THEY WILL BE INSTALLED ONTO THE FORT. PLACE A T-NUT IN THE PRE-DRILLED HOLE ON EACH END AND SECURE
WITH HAMMER. SEE DETAIL A.

2: THE 2 X 4 X 47-1/2" FORT SIDE SUPPORT (WITH ANGLED END) ATTACHES TO THE HOLE ON THE END OF THE
END SANDBOX BOARD ON THE INSIDE WITH 5/16 X 2-1/2" HEX BOLTS AND 5/16" WASHERS. THE ANGLED END
SHOULD REST FLUSH AGAINST THE CORNER POSTS. SEE DETAIL A AND DETAIL B.

3: ENSURE THAT THE TWO FORT SIDE SUPPORTS ARE ATTACHED PROPERLY TO THE END SANDBOX BOARD BEFORE
SECURING THEM TO THE CORNER POSTS. USE A #8 X 2-1/2" WOOD SCREW IN THE TOP HOLE OF THE SUPPORT,
THEN USE A 3" WOOD SCREW IN THE BOTTOM HOLE OF THE SUPPORT. SEE DETAIL B.

ANGLED END OF FORT SIDE SUPPORT.

#8 X 2-1/2" WOOD SCREW

#8 X 3" WOOD SCREW

2 X 4 X 47-1/2"
FORT SIDE
SUPPORT

DETAIL A

DETAIL B

T-NUT

(INSTALL FIRST)

5/16" WASHER

5/16" X 2-1/2" HEX BOLT

2 X 4 X 47-1/2"
FORT SIDE
SUPPORT

B

A

END SANDBOX BOARD

STEP 11: ATTACHING THE ROCK WALL SUPPORTS

40

1: LAY THE 2 X 6 X 53-1/2" ROCK WALL SUPPORTS ON A FLAT SURFACE WITH THE ANGLED ENDS ORIENTED THE
WAY THEY WILL BE INSTALLED ONTO THE PLAY SET. PLACE A T-NUT INTO THE PRE-DRILLED HOLE ON THE END AND
SECURE WITH A HAMMER.

2: LINE UP THE HOLE IN THE BOTTOM OF EACH 2 X 6 X 53-1/2" ROCK WALL SUPPORT TO THE HOLE ON THE END OF
EACH SIDE SANDBOX BOARD. ATTACH EACH ROCK WALL SUPPORT TO THE SIDE SANDBOX BOARD WITH 2-1/2"
HEX BOLTS AND 5/16" WASHERS. THE ANGLED END OF EACH ROCK WALL SUPPORT SHOULD REST FLUSH
AGAINST THE CORNER POST.

3: ENSURE THAT THE TWO ROCKWALL SUPPORTS ARE ATTACHED PROPERLY TO THE SIDE SANDBOX BOARDS
BEFORE SECURING THEM TO THE CORNER POSTS. USE A #8 X 2-1/2" WOOD SCREW IN THE TOP HOLE AND A
#8 X 3" WOOD SCREW IN THE BOTTOM HOLE OF THE ROCK WALL SUPPORT.

#8 X 2-1/2"
WOOD SCREW

#8 X 3"
WOOD SCREW

2 X 6 X 53-1/2"
ROCK WALL SUPPORT

T-NUT

5/16" WASHER

5/16" X 2-1/2" HEX BOLT

STEP 12: ATTACHING THE ARCH ROCK WALL SIDE SUPPORTS

41

1: MOUNT THE ARCH ROCK WALL SIDE SUPPORT ON TOP OF THE ROCK WALL SUPPORT, MAKE SURE THAT THE
TOP END OF THE ARCH ROCK WALL SIDE SUPPORT IS FLUSH WITH THE CORNER POST.

2: FIRST, FASTEN A #8 X 3" WOOD SCREW THROUGH THE ARCH ROCK WALL SIDE SUPPORT TOP HOLE INTO THE
ROCK WALL SUPPORT. MAKE SURE THAT THIS BOARD IS ALIGNED WITH THE ROCK WALL SUPPORT.

3: SECOND, FASTEN THE SECOND #8 X 3" WOOD SCREW THROUGH THE ARCH ROCK WALL SIDE SUPPORT
BOTTOM HOLE INTO THE ROCK WALL SUPPORT. MAKE SURE THAT THIS BOARD IS ALIGNED WITH THE ROCK WALL
SUPPORT.

4: THIRD, FASTEN #8 X 3" WOOD SCREW THROUGH THE ROCK WALL SUPPORT INTO THE ARCH ROCK WALL
SUPPORT. MAKE SURE BOTH BOARDS ARE FLUSH ON THE SIDES AND WHERE THEY MEET.

ROCK
WALL
SUPPORTS

#8 X 3" WOOD SCREW

(1ST)

#8 X 3"

WOOD SCREW

(3RD)

2 X 6 X 54"

ARCH ROCK WALL

SIDE SUPPORT

#8 X 3"
WOOD SCREW
(2ND)

STEP 13: ATTACHING THE ROCK WALL CENTER SUPPORT

42

1: BEGIN WITH THE 5/4 X 6 X 47-1/2" ROCK WALL BOARD AND SECURE IT TO THE ARCH ROCK WALL SIDE SUPPORT
WITH TWO #8 X 2" WOOD SCREWS PER SIDE. THE ROUNDED EDGE OF THE ROCK WALL BOARD SHOULD BE
AGAINST THE CORNER POSTS BEFORE ATTACHING.

2: NEXT THE 5/4 X 6 X 47-1/2" BOTTOM ROCK WALL BOARD WITH ONE HOLE WILL MOUNT AT THE BOTTOM WITH
THE 7/8" HOLE TOWARDS THE BOTTOM. THIS BOARD WILL BE AT 44" FROM THE TOP ROCK WALL BOARD AND
FLUSH TO THE ROCK WALL SIDE SUPPORTS. SECURE WITH #8 X 2" WOOD SCREWS.

3: PLACE THE ARCH ROCK WALL CENTER SUPPORT BEHIND THE ROCK WALL BOARDS AND CENTER IT UNDER THE
SMALL HOLES. FASTEN THE ARCH ROCK WALL CENTER SUPPORT TO THE ROCK WALL BOARDS WITH #8 X 2"
WOOD SCREWS.

TOP

ARCH ROCK WALL

CENTER SUPPORT

44"

BOTTOM

5/4" X 6 X 47-1/2"

ROCK WALL BOARD

#8 X 2" WOOD SCREW

ARCH ROCK WALL SIDE SUPPORT

ARCH ROCK WALL CENTER

SUPPORT

5/4" X 6 X 47-1/2"

BOTTOM ROCK WALL BOARD

MAKE SURE ROCK WALL CENTER
SUPPORT IS NOT BLOCKING THIS HOLE

STEP 14: ATTACHING THE ROCK WALL BOARDS

43

1: MOUNT THE REMAINING ROCK WALL BOARDS TO THE ROCK WALL SUPPORTS FROM TOP TO BOTTOM WITH
#8 X 2" WOOD SCREWS.

2: WHEN YOU GET TO THE LAST ROCK WALL BOARD MAKE SURE THE GAP BETWEEN THIS BOARD AND THE BOTTOM
ROCK WALL BOARD IS NO BIGGER THAN 1/4". IF NECESSARY UNSCREW THE BOTTOM ROCK WALL BOARD AND
SHIFT THE TOP FLUSH TO THE LAST ROCK WALL BOARD.

ROCK WALL BOARD

#8 X 2"

WOOD SCREWS

BOTTOM

ROCK WALL BOARD

STEP 15: ATTACHING THE ROCKS

44

1: THE ROCKS SHOULD FOLLOW THE GENERAL OFFSET PATTERN SHOWN BELOW. A DIFFERENT PATTERN MAY BE
USED IF YOU WISH.

2: THE ROCKS INCLUDED WITH YOUR PLAYSET MAY VARY IN COLOR. USE THE #14 X 1-1/4" PANHEAD SCREWS
AND 1/4" WASHERS INCLUDED WITH THE ROCKS TO ATTACH THE ROCKS TO THE ROCK WALL BOARDS.

#14 X 1-1/4"

PANHEAD

SCREW

DETAIL A

1/4" WASHER

ROCK

A

ROCKS

STEP 16: ATTACHING THE DECK BOARDS AND DECK SPACERS

45

1: THE 5/4" X 4 X 40-3/8" DECK SPACERS MOUNT BETWEEN THE REAR CORNER POSTS AND BETWEEN THE FRONT
CORNER POSTS. THE REAR SPACER SHOULD BE FLUSH TO THE INSIDE OF THE REAR POSTS. THE FRONT SPACER
SHOULD NOT PROTRUDE BEYOND THE FRONT OF THE FRONT CORNER POSTS. DRIVE #8 X 2" WOOD SCREWS
THROUGH THE PREDRILLED HOLES INTO THE DECK SUPPORTS.

2: SEVEN 5/4" X 6 X 47-1/2" DECK BOARDS WILL LAY ACROSS THE DECK SUPPORTS WITH ONE END FLUSH TO THE
TOP MOST ROCK WALL BOARD.

3: SPACE THE DECK BOARDS EVENLY ACROSS THE DECK SUPPORTS BETWEEN THE DECK SPACERS. SECURE WITH #8
X 2" WOOD SCREWS THROUGH THE PREDRILLED HOLES INTO THE DECK SUPPORTS.

#8 X 2" WOOD SCREWS

5/4 X 4 X 40-3/8"

DECK SPACER

(2)

DECK SPACER SHOULD NOT PROTRUDE BEYOND FRONT OF FRONT CORNER POSTS.

REAR CORNER POSTS

TOP MOST
ROCK WALL
BOARD

5/4" X 6 X 47-1/2"
DECK BOARDS (7)

FRONT CORNER POSTS

STEP 17: ATTACHING THE STRINGER

46

1: FIND THE 2 X 4 X 47" STRINGER WITHOUT HOLES.
2: PLACE THE STRINGER UNDEREATH THE CENTER OF THE DECK BOARDS. USE THE HOLES AT THE CENTER OF THE

DECK BOARDS AS A GUIDE. MAKE SURE THE END OF THE STRINGER IS FLUSH WITH THE SIDE OF THE DECK SPACER
AT THE FRONT OF THE PLAY SET.

3: ATTACH THE STRINGER TO THE DECK BOARDS/DECK SPACERS WITH #8 X 2" WOOD SCREWS.

#8 X 2" WOOD SCREWS

END OF STRINGER IS FLUSH
TO THE SIDE OF DECK SPACER

2 X 4 X 47"
STRINGER

STEP 18: ATTACHING THE FRONT FACE BOARD

47

1: THE EDGE OF THE 2 X 4 X 47-1/2" FRONT FACE BOARD WILL BE FLUSH TO THE TOP OF THE DECK SPACER. SECURE
THE FRONT FACE BOARD TO THE CORNER POSTS WITH THREE #8 X 2-1/2" WOOD SCREWS PER SIDE.

2: INSTALL TWO 2-1/2" WOOD SCREWS THROUGH THE CENTER OF THE FRONT FACE BOARD INTO THE STRINGER AS
SHOWN BELOW.

2 X 4 X 47-1/2"
FRONT FACE BOARD

#8 X 2-1/2" WOOD SCREWS

DECK SPACER

FLUSH TO THE TOP OF THE DECK SPACER

STRINGER IS
BEHIND THE
SCREWS
HERE.

#8 X 2-1/2"
WOOD
SCREWS

STEP 19: SWING BEAM PLATE

48

1: LAY THE SWING BEAM MOUNT ON A FLAT SURFACE WITH THE THREE COUNTER SUNK CENTER HOLES FACING
THE GROUND. THE COUNTER SUNK HOLES ON THE ENDS MUST BE FACING TOWARDS YOU.

2: PLACE THE SWING BEAM PLATE ON TOP OF THE SWING BEAM MOUNT, LINING UP PILOT HOLES.
3: FASTEN THE SWING BEAM PLATE TO THE SWING BEAM MOUNT OUTER HOLES USING 3/8" X 3-1/2" CARRIAGE

BOLTS AND 3/8" WASHERS WITH 3/8" LOCK NUTS ON THE BOTTOM. PLACE GREEN BOLT CAPS OVER EXPOSED
THREADS AFTER SECURING.

4: LEAVE THE MIDDLE HOLE EMPTY, IT WILL BE USED LATER.

3/8" X 3-1/2" CARRIAGE BOLT

SWING BEAM PLATE

MIDDLE HOLE EMPTY

4 X 4 X 47-1/2"
SWING BEAM MOUNT

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

STEP 20: IRON DUCTILE SWING HANGERS

49

1: LINE UP THE HOLES OF THE IRON DUCTILE SWING HANGERS WITH THE HOLES IN THE SWING BEAM.
2: FASTEN THE SWING HANGER TO THE SWING BEAM USING 3/8" X 7" CARRIAGE BOLTS WITH TORQUE

WASHERS ON TOP OF THE SWING BEAM, AND 3/8" WASHERS WITH 3/8" LOCK NUTS ON THE BOTTOM. PLACE
BOLT CAPS OVER EXPOSED THREADS AFTER SECURING.

3: FASTEN IRON DUCTILE SWING HANGERS TO THE TRAP ARM IN THE SAME MANNER THAT YOU FASTENED THEM
TO THE SWING BEAM. USE 3/8" X 5" CARRIAGE BOLTS WITH TORQUE WASHERS ON TOP OF THE TRAP ARM, AND
3/8" WASHERS WITH 3/8" LOCK NUTS ON THE BOTTOM. PLACE BOLT CAPS OVER ANY EXPOSED THREADS AFTER
SECURING.

3/8" X 7" CARRIAGE BOLT

TORQUE WASHER

IRON DUCTILE
SWING HANGER

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

4 X 4 X 89-1/2"

TRAP ARM

4 X 6 X 96"

SWING BEAM

3/8" X 5" CARRIAGE BOLT

TORQUE WASHER

IRON DUCTILE
SWING HANGER

3/8" WASHER
3/8" LOCK NUT

BOLT CAP

STEP 21: ATTACHING THE SWING BEAM MOUNT AND TRAP ARM

50

1: THE 4 X 4 X 47-1/2" SWING BEAM MOUNT HAS COUNTER-SUNK HOLES IN THE CENTER AND ON THE ENDS. INSTALL
THE SWING BEAM MOUNT SO THAT THE COUNTER-SUNK HOLES ON EACH END OF THE BEAM FACE OUT, AND THE
COUNTER-SUNK HOLES AT THE CENTER FACE DOWN.

2: FASTEN THE SWING BEAM MOUNT TO THE CORNER POSTS USING 3/8" X 6-1/2" CARRIAGE BOLTS WITH TORQUE
WASHERS. PLACE THE CARRIAGE BOLT INTO THE TORQUE WASHER, THEN INTO THE HOLE OF THE CORNER POST AND
SET WITH A HAMMER, USE 3/8" WASHERS AND 3/8" LOCK NUTS TO SECURE THE SWING BEAM MOUNT FROM THE
OUTSIDE. PLACE BOLT CAPS OVER THE EXPOSED THREADS AFTER SECURING.

3: THE 4 X 4 X 89-1/2" TRAP ARM WILL ATTACH TO THE UNIT IN THE SAME MANNER AS THE SWING BEAM MOUNT. THE
TRAP ARM WILL MOUNT ACROSS FROM THE SWING BEAM MOUNT ABOVE THE ROCK WALL.

THE HOLE ABOVE WHERE THE SWING BEAM MOUNT
ATTACHES IS TO BE USED ONLY ON UNEVEN (UPHILL)
GROUND. IF INSTALLING ON A RELATIVELY LEVEL
SURFACE, THIS HOLE WILL NOT BE USED.

TORQUE WASHER

3/8" X 6-1/2" CARRIAGE BOLT

BOLT COVER

3/8" LOCK NUT

3/8" WASHER

SWING BEAM MOUNT

3/8" X 6-1/2" CARRIAGE BOLT

4 X 4 X 89-1/2"

TRAP ARM

BOLT COVER

3/8" LOCK NUT

3/8" WASHER

STEP 22: LADDER ASSEMBLY

51

1: LAY ONE 2 X 4 X 57" LADDER SIDE ON A FLAT SURFACE WITH THE CHANNELS FACING DOWN. PLACE THE BARREL
OF A T-NUT IN THE HOLE AT THE TOP OF THE LADDER SIDE AND SECURE WITH A HAMMER. REPEAT THIS STEP FOR
THE OTHER LADDER SIDE.

2: FLIP THE LADDER SIDE OVER SO THAT THE CHANELS ARE FACING UP.
3: PLACE THE LADDER STEPS INTO THE CHANNELS, AND THEN PLACE THE SECOND LADDER SIDE ON TOP, WITH THE

CHANNELS FACING DOWN.
4: NOW DRIVE TWO 2" WOOD SCREWS THROUGH THE LADDER SIDE INTO EACH STEP.
5: CAREFULLY TURN THE LADDER OVER AND FINISH THE OTHER SIDE WITH TWO 2" WOOD SCREWS PER STEP.
6: INSTALL TWO 90 GREEN BRACKETS USING 5/16" X 1-1/2" BOLTS AND 5/16" WASHERS.
7: INSTALL THE 5/4" X 4 X 18-1/2" LADDER BACK ABOVE THE OPENING OF THE TOP CHANNELS WITH ONE 2" WOOD

SCREW PER SIDE.

GREEN BRACKET

T-NUT

5/16" WASHER

5/16" X 1-1/2" HEX BOLT

90

2" WOOD SCREW

5/4" X 4 X 18-1/2"

LADDER BACK

2 X 4 X 17"

LADDER STEP

2" WOOD SCREW

2 X 4 X 57"

LADDER SIDE LEFT

2 X 4 X 57"

LADDER SIDE RIGHT

2" WOOD SCREW

STEP 23: LADDER TO FORT

52

1: THE LADDER ATTACHES TO THE FRONT SIDE AT THE RIGHT, FLUSH TO THE INSIDE EDGE OF THE CORNER POST.
2: THE BOTTOM EDGE OF EACH 90 GREEN BRACKET SHOULD BE 3/4" FROM THE BOTTOM OF THE 2 X 4.
3: MAKE SURE THE LADDER IS LEVEL, USING THE LADDER BRACKETS AS A TEMPLATE, DRILL A 3/8" HOLE THROUGH

THE 2 X 4.
4: GO UNDER THE DECK AND INSERT T-NUTS IN THE HOLES.
5: ATTACH THE 90 GREEN BRACKET TO THE 2 X 4 WITH 5/16" X 1-1/2" HEX BOLTS AND 5/16" WASHERS.

A

90 GREEN BRACKET

5/16" WASHER

5/16" X 1-1/2" HEX BOLT

2 X 4

GO UNDER DECK
AND INSERT T-NUTS
IN THE HOLES.

3/4"

STEP 24: ATTACHING SWING LEGS TO BRACKET

53

1: PLACE THE 4 X 4 X 96" SWING LEGS FLUSH TO THE TOP OF THE SWING LEG BRACKET.
2: USING THE SWING LEG BRACKET AS A TEMPLATE, DRILL 11/64" PILOT HOLES AT EACH SWING LEG BRACKET

HOLE.
3: FASTEN THE SWING LEGS TO THE SWING LEG BRACKET WITH 3/8" X 3-1/2 LAG SCREWS AND 3/8" WASHERS.

SWING LEG BRACKET

3/8" X 3-1/2" LAG SCREW

3/8" WASHER

4 X 4 X 96" SWING LEG

SWING LEGS FLUSH
TO TOP OF SWING
LEG BRACKET

STEP 25: MOUNT SWING BEAM TO SWING BEAM LEGS

54

1: FASTEN THE SWING BEAM TO THE SWING BEAM BRACKET USING 3/8" X 6-1/2" CARRIAGE BOLTS WITH
TORQUE WASHERS ON TOP OF THE SWING BEAM, AND 3/8" LOCK NUTS WITH 3/8: WASHERS FROM UNDERNEATH.

2: PREDRILL AN 11/64" HOLE THROUGH THE MIDDLE HOLE IN THE SWING LEG BRACKET INTO THE SWING BEAM
3-1/2" DEEP. DRIVE A 3/8" X 3-1/2" LAG SCREW WITH 3/8" WASHER INTO THE HOLE IN THE CENTER OF THE SWING
BEAM BRACKET.

3: PLACE A BOLT CAP OVER ANY EXPOSED THREADS.

3/8" X 6-1/2" CARRIAGE BOLT

TORQUE WASHER

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

3/8" X 3-1/2"
LAG SCREW

STEP 26: MOUNT SWING BEAM TO FORT

55

AN EXTRA PERSON IS NEEDED FOR THIS STEP.
1: HAVE ONE PERSON WALK THE SWING BEAM OUT TO THE END OF THE FORT FROM INSIDE THE FORT WHILE THE

OTHER PERSON CARRIES THE LEGS.
2: LINE UP THE PILOT HOLE ON THE END OF THE SWING BEAM WITH THE MIDDLE HOLE ON THE SWING BEAM PLATE.
3: FASTEN THE SWING BEAM TO THE SWING BEAM PLATE AND SWING BEAM MOUNT USING A 3/8" X 9" CARRIAGE

BOLT WITH TORQUE WASHER ON TOP AND A 3/8" WASHER AND 3/8" LOCK NUT ON THE BOTTOM. PLACE A GREEN
BOLT CAP OVER EXPOSED THREADS AFTER SECURING.

4: DRILL AN 11/64" HOLE THROUGH THE HOLE IN THE SWING BEAM PLATE 3-1/2" INTO THE SWING BEAM. FASTEN
THE SWING BEAM TO THE SWING BEAM PLATE FROM UNDERNEATH WITH A 3/8" X 3-1/2" LAG SCREW AND 3/8"
WASHER.

SWING BEAM

3/8" WASHER

3/8" X 3-1/2"
LAG SCREW

3/8" X 9" CARRIAGE BOLT

TORQUE WASHER

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

STEP 27: LEVEL SWING BEAM

56

1: PLACE THE LEVEL ON TOP OF THE SWING BEAM AND ADJUST THE SWING LEGS IN OR OUT AS NEEDED TO
MAKE THE SWING BEAM LEVEL.

STEP 28: SWING LEG CROSS MEMBER

57

1: POSITION THE 2 X 4 X 58" SWING LEG CROSS MEMBER AGAINST THE SWING BEAM LEGS WITH THE HOLES
CENTERED ON THE LEGS.

2: LEVEL THE SWING LEG CROSS MEMBER, AND MAKE MARKS WITH A PENCIL INSIDE THE HOLES ONTO THE
SWING LEGS. DRILL 11/64" HOLES 2-1/2" DEEP AT THE MARKS.

3: ATTACH THE SWING LEG CROSS MEMBER TO THE SWING LEGS WITH 3/8" X 3-1/2" LAG SCREWS AND 3/8"
WASHERS.

2 X 4 X 58"
SWING LEG
CROSS MEMBER

3/8" X 3-1/2"
LAG SCREWS

3/8" WASHER

STEP 29: ATTACHING CENTER POSTS

58

1: FIRST ATTACH THE 2 X 4 X 73-1/2" FRONT CENTER POST AND 2 X 4 X 29" REAR CENTER POST TO THE TARP SUPPORT
BOARDS WITH 5/16" X 2-1/2" HEX BOLTS, 5/16" WASHERS, AND T-NUTS.

2: SQUARE THE THE FRONT CENTER POST TO THE DECK. ATTACH THE BOTTOM OF THE FRONT CENTER POST TO THE
DECK SPACER FROM UNDERNEATH WITH TWO #8 X 2-1/2" WOOD SCREWS. ATTACH THE FRONT CENTER POST TO
THE ARCH FACE BOARD ON THE INSIDE USING TWO #8 X 2-1/2" WOOD SCREWS.

3: SQUARE THE REAR CENTER POST TO THE REAR TARP SUPPORT BOARD. DRIVE TWO #8 X 2-1/2" SCREWS
THROUGH THE REAR CENTER POST INTO THE REAR TARP SUPPORT BOARD.

#8 X 2-1/2" WOOD SCREW

2 X 4 X 29"
REAR CENTER POST

5/16" WASHER

5/16" X 2-1/2" HEX BOLT

T-NUT

2 X 4 X 73-1/2"
FRONT CENTER POST

5/16" WASHER

5/16" X 2-1/2" HEX BOLT

#8 X 2-1/2" WOOD SCREWS

#8 X 2-1/2"
WOOD SCREWS
(GO UP ON
DECK AND
DRIVE THESE
FROM THE INSIDE
GOING OUT.)

STEP 30: INSTALLING WINDOW SUPPORTS / WINDOWS

59

IN THIS STEP THE WOOD COMPONENTS TO ATTACH THE WINDOWS WILL BE INSTALLED ON THE INSIDE OF THE
FRONT OF THE PLAYSET. GO UP ON TOP OF THE FORT AND LOOK FOR THE FRONT OF THE PLAY SET.
1: ATTACH THE 5/4 X 4 X 20" VERTICAL WINDOW SUPPORTS NEXT TO THE FRONT CENTER POST ON BOTH SIDES
WITH #8 X 2" WOOD SCREWS.
2: ATTACH THE 5/4 X 4 X 20" VERTICAL WINDOW SUPPORTS NEXT TO THE CORNER POSTS ON BOTH SIDES WITH
#8 X 2" WOOD SCREWS.
3: GO TO THE OUTSIDE FRONT OF THE PLAYSET AND INSTALL THE WINDOWS WITH #8 X 1-1/2" WOOD SCREWS.
4: ATTACH THE 5/4 X 3 X 11-1/2" HORIZONTAL WINDOW SUPPORTS AT THE BOTTOM WITH #8 X 2" WOOD SCREWS.
5: ATTACH THE 5/4 X 3 X 11-1/2" HORIZONTAL WINDOW SUPPORTS AT THE TOP WITH #8 X 2" WOOD SCREWS.

5/4 X 4 X 20" WINDOW PANEL BOARD

(VERTICAL WINDOW SUPPORTS)

1-1/2"

11-1/2"

#8 X 2"
WOOD
SCREW

FRONT CENTER POST

WINDOWS
NOTE: THE 1" WIDE
FRAME SECTION IS TOP

11-1/2"

5/4 X 3 X 11-1/2"
WINDOW PANEL
BOARD
(HORIZONTAL
WINDOW
SUPPORTS)

FRONT OF PLAY SET

WINDOW­ATTACH
WITH
1-1/2"
WOOD SCREWS

OUTSIDE FRONT OF PLAYSET

STEP 31: TARP BOARDS (TARP ROOF)

60

1: THE 2 X 4 X 47-1/2" CENTER TARP BOARD WILL SECURE ON TOP OF THE CENTER POSTS WITH TWO #8 X 2-1/2"
WOOD SCREWS PER SIDE.

2: THE TWO 2 X 4 X 50" END TARP BOARDS WILL SECURE ON THE ENDS OF THE TARP SUPPORTS WITH TWO #8 X 2-1/2"
WOOD SCREWS PER SIDE

2 X 4 X 47-1/2"
CENTER TARP BOARD

#8 X 2-1/2"
WOOD SCREWS

2 X 4 X 50"
END TARP BOARD

CENTER POSTS

TARP SUPPORTS

STEP 32: PANEL SLATS

61

1: BEGIN ON THE REAR WALL OF THE FORT WITH THE TWO OUTER SLAT BOARDS (5/4 X 3 X 28-1/2" PANEL SLAT). THEY
ARE SPACED 1-7/8" FROM THE CORNER POSTS. ATTACH EACH PANEL SLAT WITH #8 X 2" WOOD SCREWS.

2: THE INNER BOARDS ON THE REAR ARE THEN SPACED 2" FROM EACH OTHER FOR A TOTAL OF SIX SLATS ON THE
REAR OF THE PLAY SET. ATTACH EACH PANEL SLAT WITH #8 X 2" WOOD SCREWS.

3: ON LEFT SIDE OF THE FORT (SWING BEAM SIDE) BEGIN WITH THE TWO OUTER SLAT BOARDS, THEY ARE SPACED
2-1/2" FROM THE CORNER POSTS. ATTACH EACH PANEL SLAT WITH #8 X 2" WOOD SCREWS.

4: THE INNER BOARDS ARE SPACED 2-7/8" FROM EACH OTHER FOR A TOTAL OF SEVEN SLATS ON THE LEFT SIDE
(SWING BEAM SIDE). ATTACH EACH PANEL SLAT WITH #8 X 2" WOOD SCREWS.

5/4 X 3 X 28-1/2"
PANEL SLAT
(13 PIECES USED IN THIS STEP.
1 EXTRA IS LEFTOVER.)

E

ID

S

M

BEA

G

IN

W

S

O

U

T

E

R S

R

E

AR

O

F

P

L

A

Y

S

E

T

L

A

TS

#8 X 2"
WOOD
SCREW

REAR OF PLAY SET

1-7/8"

2"
2"

SWING BEAM SIDE

2-1/2"
2-7/8"

OUTER SLATS

CORNER POSTS

OUTER SLATS

CORNER POSTS

STEP 33: TIC TAC TOE ASSEMBLY

62

1: LOCATE THE TIC TAC TOE BOX. ASSEMBLE THE TIC TAC TOE ACCORDING TO THE INSTRUCTIONS IN THE BOX.

IGNORE STEPS 6 AND 7 IN THE INSTRUCTIONS.

2: LOCATE THE 5/4 X 3 X 17-1/2" TIC TAC TOE MOUNTS. DRILL A 1/8" HOLE IN EACH END OF THE MOUNT AS
SHOWN BELOW.

3: FASTEN THE TIC TAC TOE MOUNTS TO THE GREEN TIC TAC TOE BRACKETS WITH THE SCREWS PROVIDED IN THE
TIC TAC TOE BOX.

5/4 X 3 X 17-1/2"
TIC TAC TOE MOUNT

GREEN BRACKET

5/4 X 3 X 17-1/2"
TIC TAC TOE MOUNT

STEP 34: MOUNTING TIC TAC TOE PANEL

63

1: PLACE THE TIC TAC TOE PANEL ASSEMBLY FROM THE PREVIOUS STEP ONTO THE BACK WALL. THE BOTTOM OF
THE LOWER TIC TAC TOE MOUNT SHOULD BE 4" ABOVE THE DECK.

2: ATTACH EACH TIC TAC TOE MOUNT TO THE PANEL SLATS WITH #8 X 1-3/4 WOOD SCREWS.

#8 X 1-3/4"
WOOD SCREW

TIC TAC TOE
MOUNT BOARD

PANEL SLAT

THE
BOTTOM OF
THIS BOARD
SHOULD BE
4" ABOVE
THE DECK.

STEP 35: SUNBURST

64

1: PLACE THE 5/4 X 6 X 13-5/8" WOOD SUN ON TOP OF THE TARP SUPPORT LEANING AGAINST THE CENTER POST,
MAKE SURE IT IS CENTERED AND SECURE IT WITH TWO #8 X 2" WOOD SCREWS.

2: ALL THE 5/4 X 4 X 10" WAVE SUN RAY PIECES GET INSTALLED ON THE INSIDE SURFACE OF THE WOODEN SUN.
3: INSTALL THE TOP WAVE SUN RAYS ABOUT 55 FROM THE CENTER POST AND SECURE WITH #8 X 1-3/4" WOOD

SCREWS.
4: PLACE THE BOTTOM WAVE SUN RAY BELOW THE TOP WAVE SUN RAY LEAVING A 1/4" GAP IN BETWEEN.
5: REPEAT SUBSTEPS 2 TO 4 FOR THE OTHER SIDE.
6: PLACE THE CROWN ON TOP OF THE FRONT WOOD SUN AND SECURE IT WITH TWO #8 X 1-1/4" WOOD

SCREWS.

CENTER POST

#8 X 1-3/4" WOOD SCREW

#8 X 2" WOOD SCREW

5/4 X 6 X 13-5/8"
SUN

CROWN

#8 X 1-1/4"
WOOD SCREW

55°

5/4 X 4 X 10"
WAVE SUN RAY

1/4" GAP

STEP 36: TARP

65

NOTE: IT IS EASIER TO INSTALL THE PAN HEAD SCREWS/WASHERS SHOWN BELOW IF 1/8" PILOT HOLES ARE
DRILLED INTO THE TARP BOARDS AT THE TARP GROMMET LOCATIONS. USE CAUTION IF DRILLING PILOT HOLES

INTO THE TARP BOARDS SINCE DRILLING THE HOLES TOO DEEP THROUGH THE TARP BOARD WILL DAMAGE THE
TARP ON THE OUTSIDE.

1: LAY TARP ACROSS TARP BOARDS, MAKE SURE HEM SIDE IS WRAPPED AROUND TO THE INSIDE OF THE TARP
BOARD.

2: CENTER THE TARP ON BOARDS AND BEGIN WITH THE FRONT RIGHT SIDE CORNER. PLACE ONE 1-1/4" PAN
HEAD SCREW WITH A 1/4" WASHER INTO THE GROMMET. FASTEN FRONT RIGHT GROMMET TO THE TARP BOARD.

3: GO TO THE FRONT LEFT SIDE CORNER AND PULL THE TARP TIGHT. INSERT A SCREW AND WASHER INTO THE
GROMMET AND FASTEN IT TO THE TARP BOARD.

4: NOW THE NEXT RIGHT SIDE GROMMET WILL RECEIVE A SCREW/WASHER, THEN THE SAME GROMMET ON THE
OPPOSITE SIDE (LEFT SIDE).

5: ESSENTIALLY, WHAT YOU ARE DOING IS ALTERNATING FROM SIDE TO SIDE, FROM THE FRONT OF THE FORT
MOVING BACK, TO KEEP THE TARP TIGHT AND WRINKLE-FREE.

#14 X 1-1/4
PAN HEAD SCREW
WITH 1/4" WASHER

TARP

STEP 37: CLIMBING ROPE

66

1: THREAD ONE END OF THE 10' ROPE THROUGH THE HOLE ABOVE THE ROCK WALL. TIE A SECURE KNOT ON
THE INSIDE OF THE TOP PANEL BOARD. ADD KNOTS IN THE ROPE TO AID IN CLIMBING. SET KNOTS
ACCORDING TO YOUR CHILD'S NEEDS. 2-3 KNOTS SHOULD BE SUFFICIENT.

2: THREAD THE OTHER END OF THE ROPE THROUGH THE HOLE IN THE BOTTOM ROCK WALL BOARD. PULL THE
ROPE TIGHT AND TIE A SECURE KNOT BEHIND THE BOTTOM ROCK WALL BOARD.

3: ATTEMPT TO WRAP THE ROPE AROUND YOUR HAND. IF THE ROPE WRAPS AROUND YOUR HAND IT IS TOO
LOOSE. UNTIE THE TOP KNOT AND RETIE THE ROPE UNTIL IT NO LONGER WRAPS AROUND YOUR HAND.

THE KNOT BEHIND THIS HOLE

ROPE

THE KNOT BEHIND THIS HOLE

STEP 38: INSTALLING THE WAVE SLIDE

67

1: PLACE THE WAVE SLIDE IN THE OPENING AT THE FRONT OF THE FORT. LAY THE WAVE SLIDE ON THE DECK
WITH THE LIP EXTENDING ONTO THE DECK.

2: ATTACH THE WAVE SLIDE TO THE DECK WITH 1-1/4" PAN HEAD SCREWS. **DO NOT OVER TIGHTEN**

#8 X 1-1/4"
WOOD SCREW

**DO NOT OVER TIGHTEN**

WAVE SLIDE

STEP 39: STEERING WHEEL

68

1: PLACE THE STEERING WHEEL INSERT INSIDE THE STEERING WHEEL.
2: USE THE HARDWARE INCLUDED WITH THE STEERING WHEEL TO MOUNT THE STEERING WHEEL TO THE END OF

THE SWING BEAM. DO NOT OVER-TIGHTEN THE LAG SCREW INTO THE STEERING WHEEL, OR IT WILL NOT TURN.
3: PLACE THE STEERING WHEEL CAP OVER THE CENTER OF THE STEERING WHEEL.

STEERING WHEEL CAP

INCLUDED HARDWARE

STEERING WHEEL

STEERING WHEEL INSERT

STEP 40: FLAG KITS

69

1: INSTALL THE FLAG KITS IN THE DESIRED LOCATION ON YOUR PLAY SET.
THE RECOMMENDED LOCATION IS ON THE CORNER POSTS AT THE FRONT
OF THE FORT. ATTACH THE FLAG KITS WITH THE HARDWARE PROVIDED.

A

DETAIL A

STEP 41: NAME PLATE

70

1: ATTACH THE NAME PLATE TO THE MIDDLE OF THE SWING BEAM WITH TWO #8 X 1-1/4"
WOOD SCREWS.

ATTACH NAME PLATE HERE
WITH TWO #8 X 1-1/4" WOOD SCREWS

STEP 42: HANGING SWINGS

71

1: LOCATE TWO SWING BELTS WITH CHAINS ATTACHED.
2: SNAP A SPRING CLIP THROUGH THE SWING HANGER LOOP ON THE SWING BEAM.
3: SNAP A CHAIN ONTO EACH SPRING CLIP. ADJUST EACH SWING UP OR DOWN BY

CLIPPING ONTO HIGHER OR LOWER CHAIN LINKS.
4: LOCATE ONE TRAPEZE BAR WITH CHAINS ATTACHED.
5: SNAP A SPRING CLIP THROUGH THE SWING HANGER LOOP ON THE TRAPEZE ARM.
6: SNAP A CHAIN ONTO EACH SPRING CLIP. ADJUST THE TRAPEZE BAR UP OR DOWN BY

CLIPPING ONTO HIGHER OR LOWER CHAIN LINKS.

**WARNING: DO NOT HANG SWING BELTS FROM TRAPEZE ARM**

TRAPEZE ARM

TRAPEZE
BAR
WITH CHAINS

SWING BEAM

A

DETAIL A

SCALE 1 : 10

SWING BELT
WITH CHAINS

SWING HANGER LOOP

SPRING CLIP

CHAIN FROM SWING BELT

SWING BELT
WITH CHAINS

STEP 43: GROUND STAKES

72

1: PLACE THE GROUND STAKES ON THE OUTSIDE OF THE SWING LEGS AS SHOWN BELOW.
2: HAMMER EACH GROUND STAKE IN AT AN ANGLE SIMILAR TO WHAT IS SHOWN. USE CAUTION WHEN

HAMMERING SO THAT YOU DO NOT MAR THE WOOD. LEAVE THE TOP PORTION OF THE GROUND STAKE
ABOVE THE GROUND FAR ENOUGH SO THAT YOU CAN STILL GET THE SCREW INTO THE HOLE AT THE TOP OF
THE STAKE.

3: SECURE EACH STAKE TO THE SWING LEGS WITH THE SCREWS PROVIDED WITH THE STAKES.
4: HAMMER A GROUND STAKE ON THE INSIDE OF EACH CORNER POST NEAR THE ROCK WALL. USE

CAUTION WHEN HAMMERING SO THAT YOU DO NOT MAR THE WOOD. LEAVE THE TOP PORTION OF THE
GROUND STAKE ABOVE THE GROUND FAR ENOUGH SO THAT YOU CAN STILL GET THE SCREW INTO THE
HOLE AT THE TOP OF THE STAKE.

5: SECURE EACH STAKE TO THE CORNER POSTS WITH THE SCREWS PROVIDED WITH THE STAKES.

SWING LEG

SCREW THAT
COMES WITH
GROUND STAKE

GROUND STAKE

CORNER
POSTS

A

DETAIL A

SCALE 1 : 8

SWING LEGS

CORNER POST

WOOD SCREW
THAT COMES
WITH GROUND
STAKE

B

GROUND STAKES

DETAIL B

SCALE 1 : 8

GROUND STAKE

STEP 44: SAFETY HANDLES

73

1: LOCATE THE SAFETY HANDLE BAG. PLACE A SAFETY HANDLE ON THE CORNER POST
AND FRONT CENTER POST. ADJUST THE HEIGHT TO SUIT THE NEEDS OF YOUR CHILD.

2: USE THE HARDWARE INCLUDED WITH THE SAFETY HANDLES TO ATTACH EACH HANDLE
TO THE CORNER POST OR FRONT CENTER POST.

#14 X 1-1/4" PAN HEAD SCREW AND 1/4" FLAT WASHER
INCLUDED WITH SAFETY HANDLES.

FRONT CENTER POST

SAFETY HANDLES

CORNER POST
